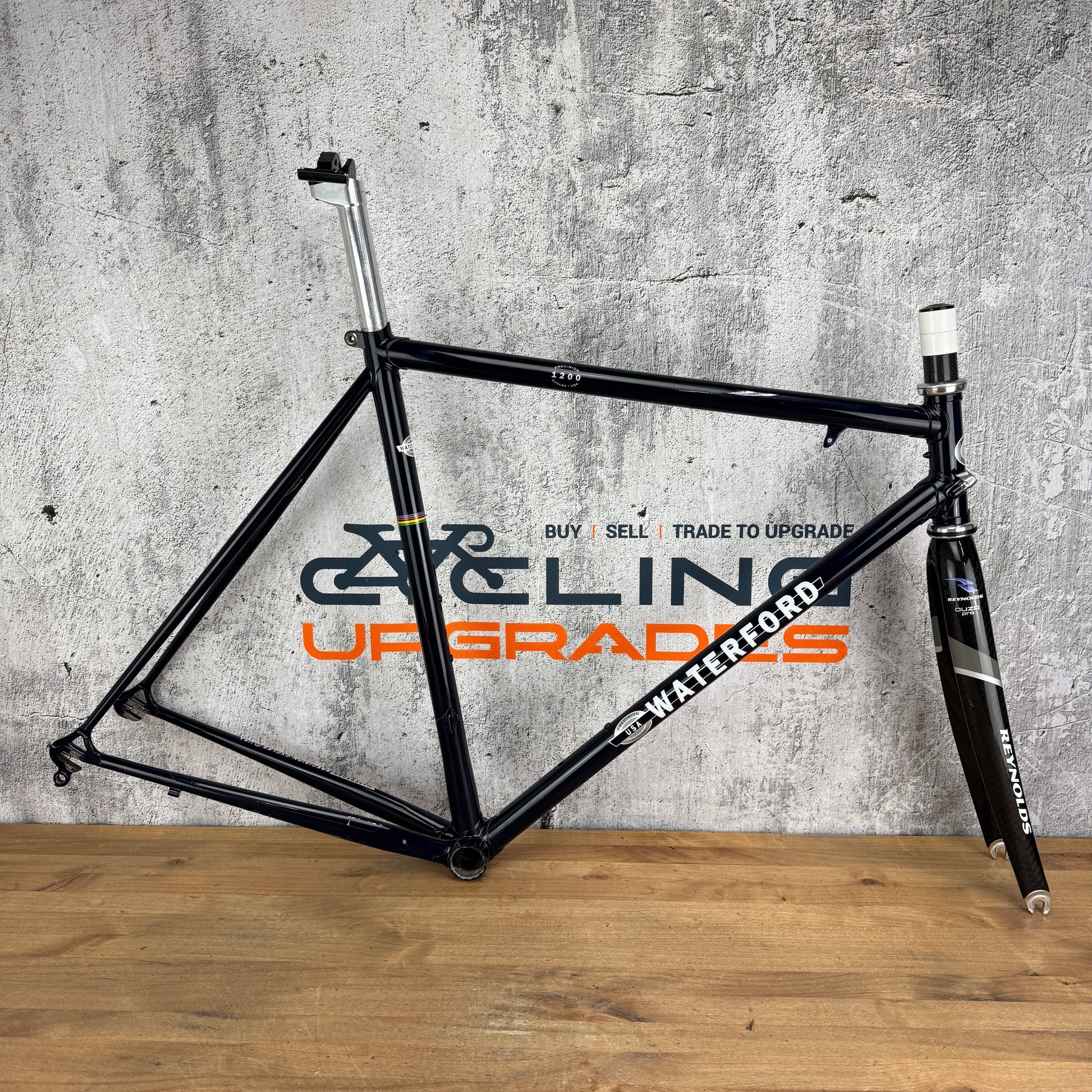

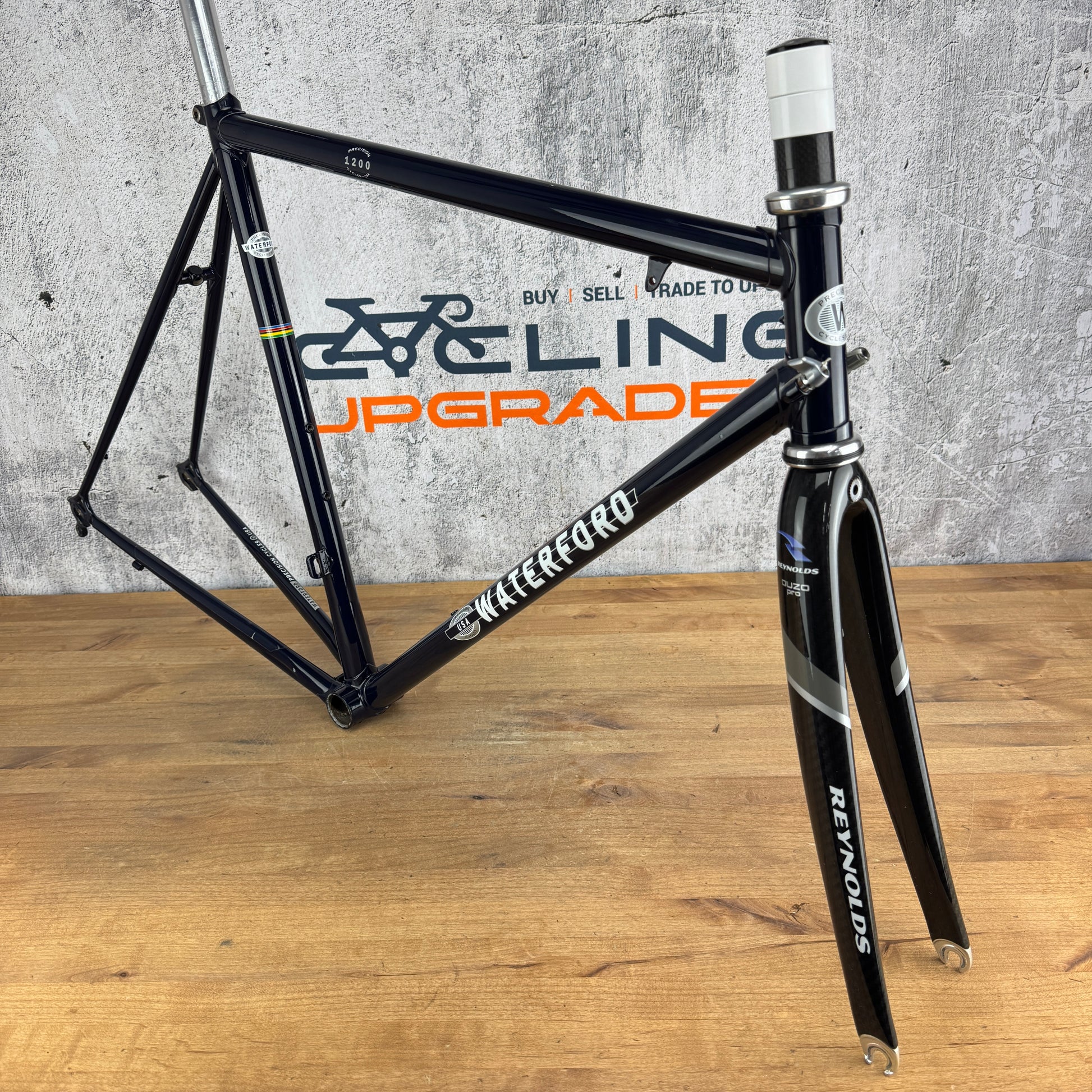

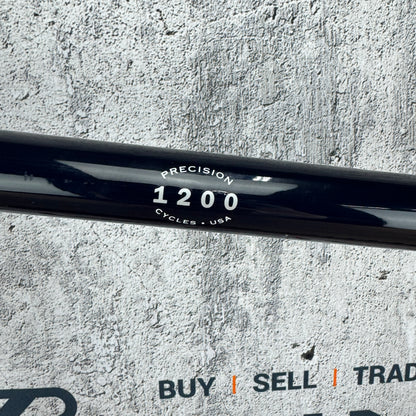

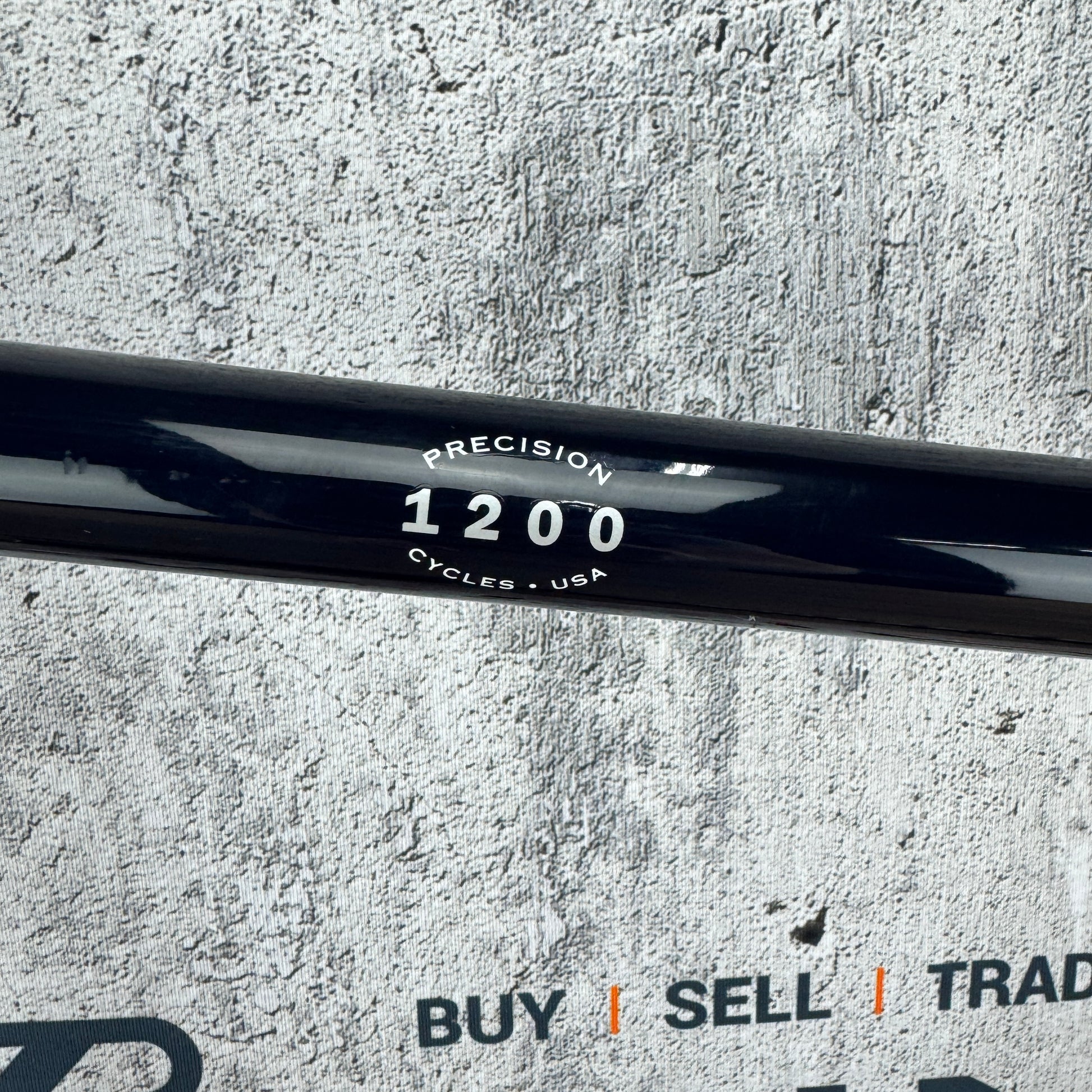

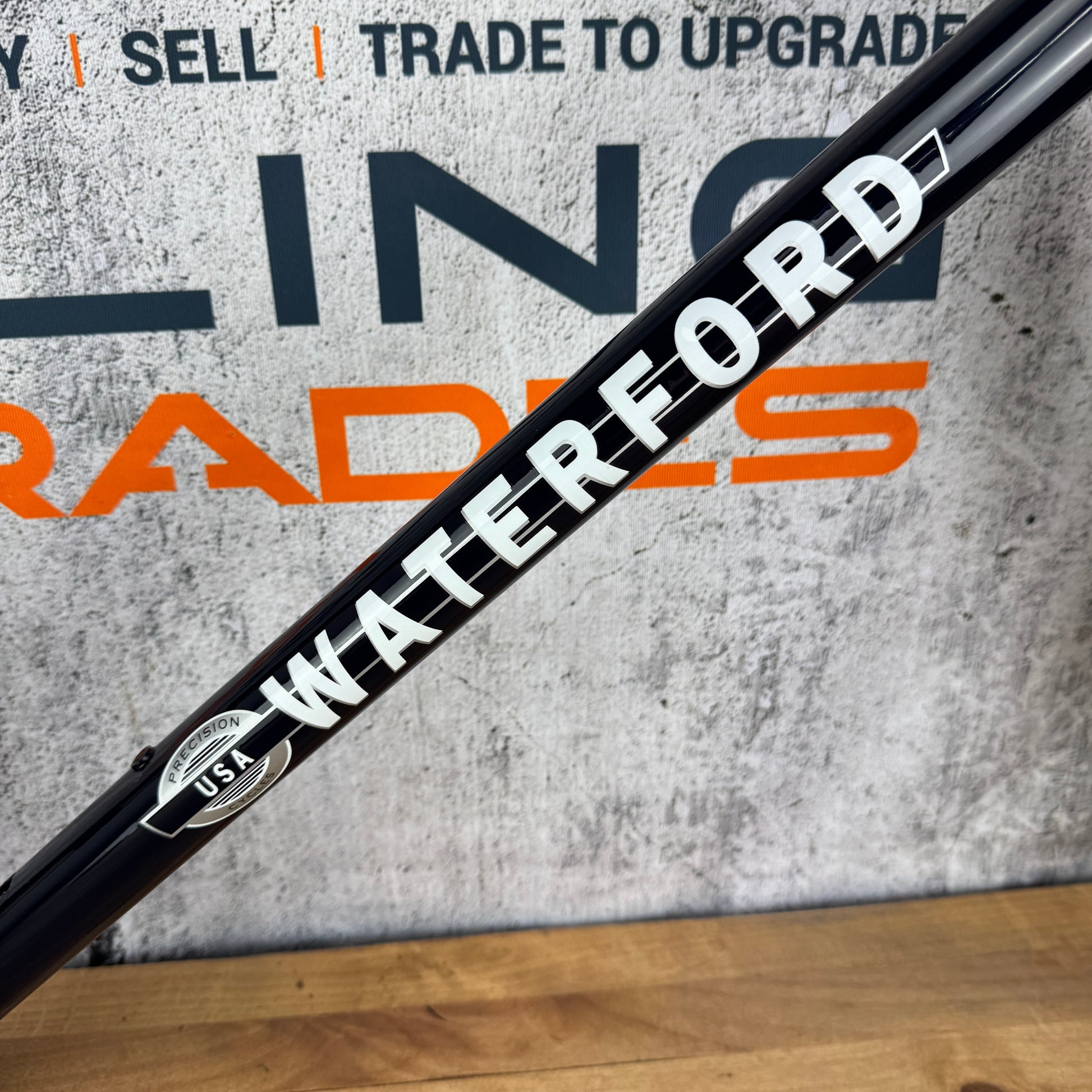

Frame: Waterford 1200
Fork: Reynolds Ouzo Pro carbon fork
Headset: Campagnolo headset
Color: Blue
Material: Steel
Tire Clearance: 28mm
Brake type: Center-Mount rim brake

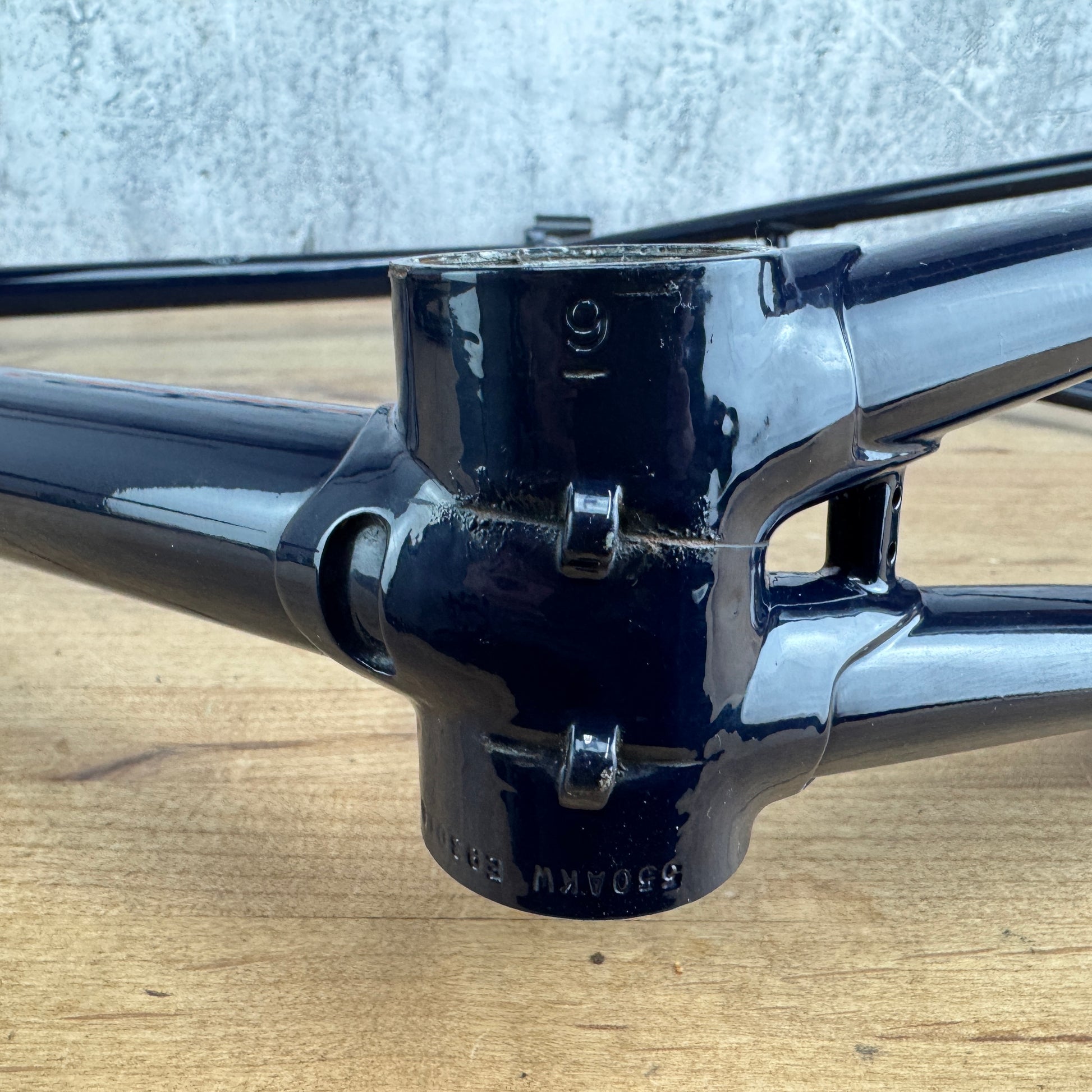

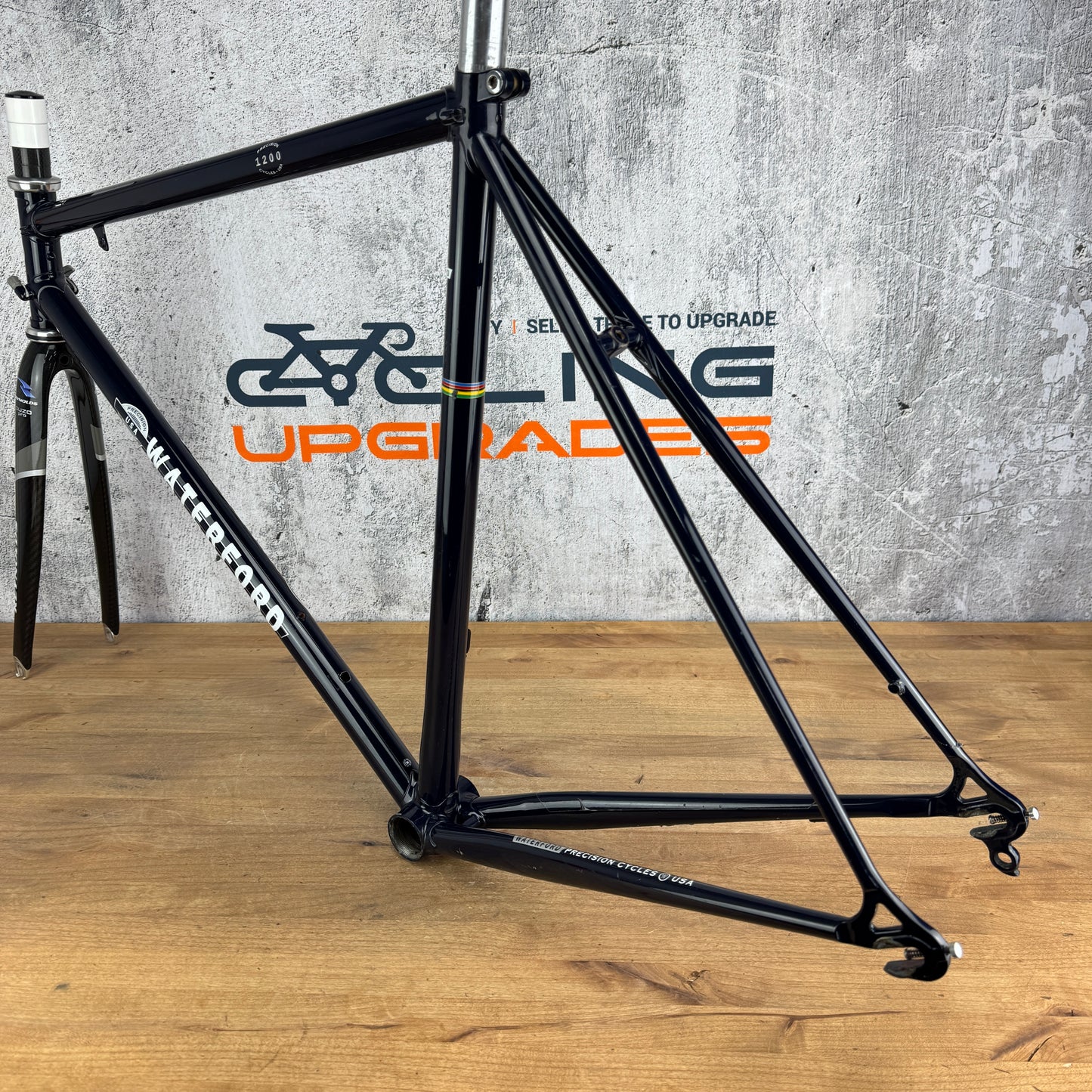

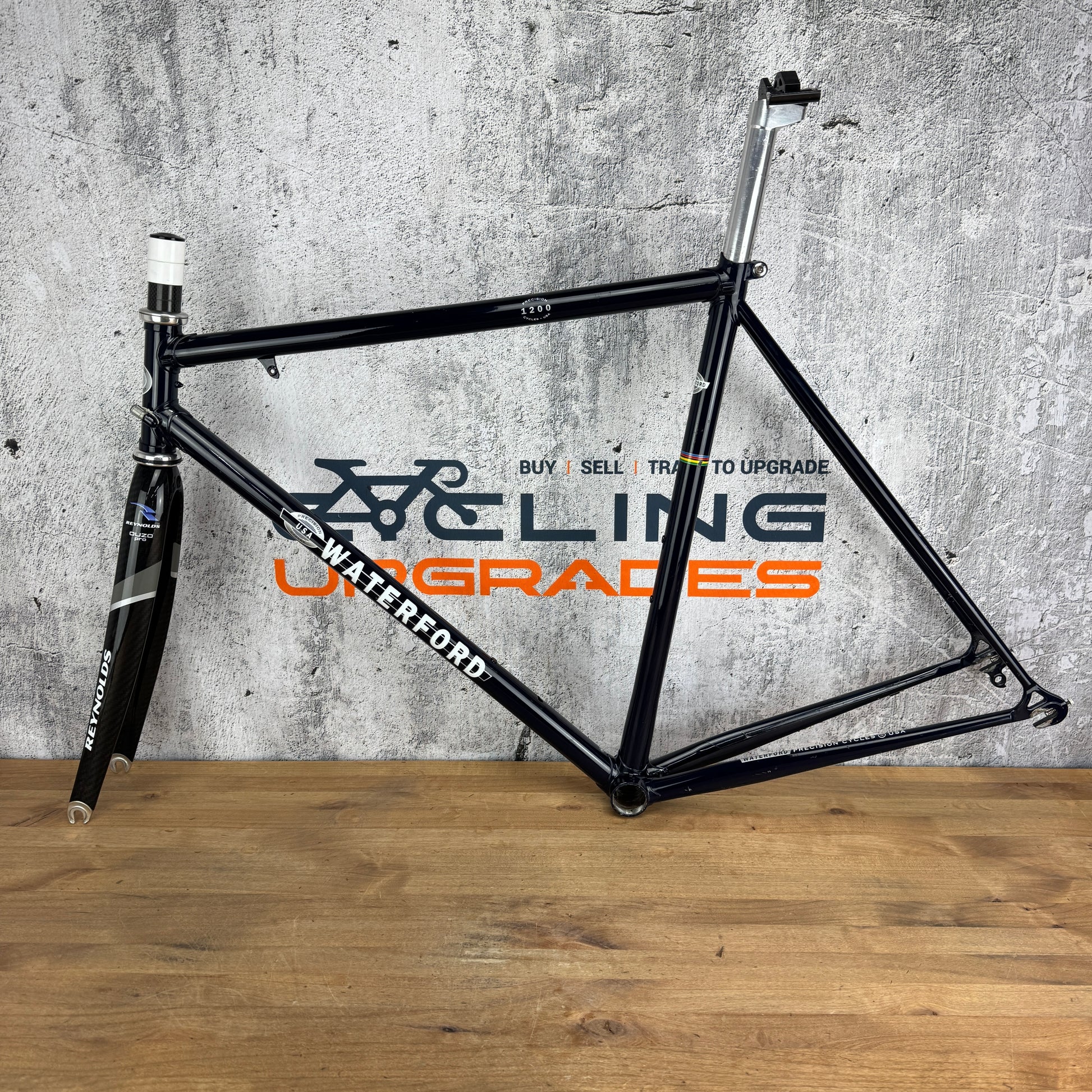

Size: Stamped with a 55 under the bottom bracket. Actual measurements taken by hand are approximate and are as follows: 550mm actual top tube center to center. 530mm center of bottom bracket to center of top tube. 550mm center of bottom bracket to top of seat tube. Head tube 125mm. 415mm chainstay length. If other measurements or take-offs are needed, please feel free to ask. We have included in our last picture a photo of the frame with a wheelset on it to show the head and seat tube angles and top tube slope.

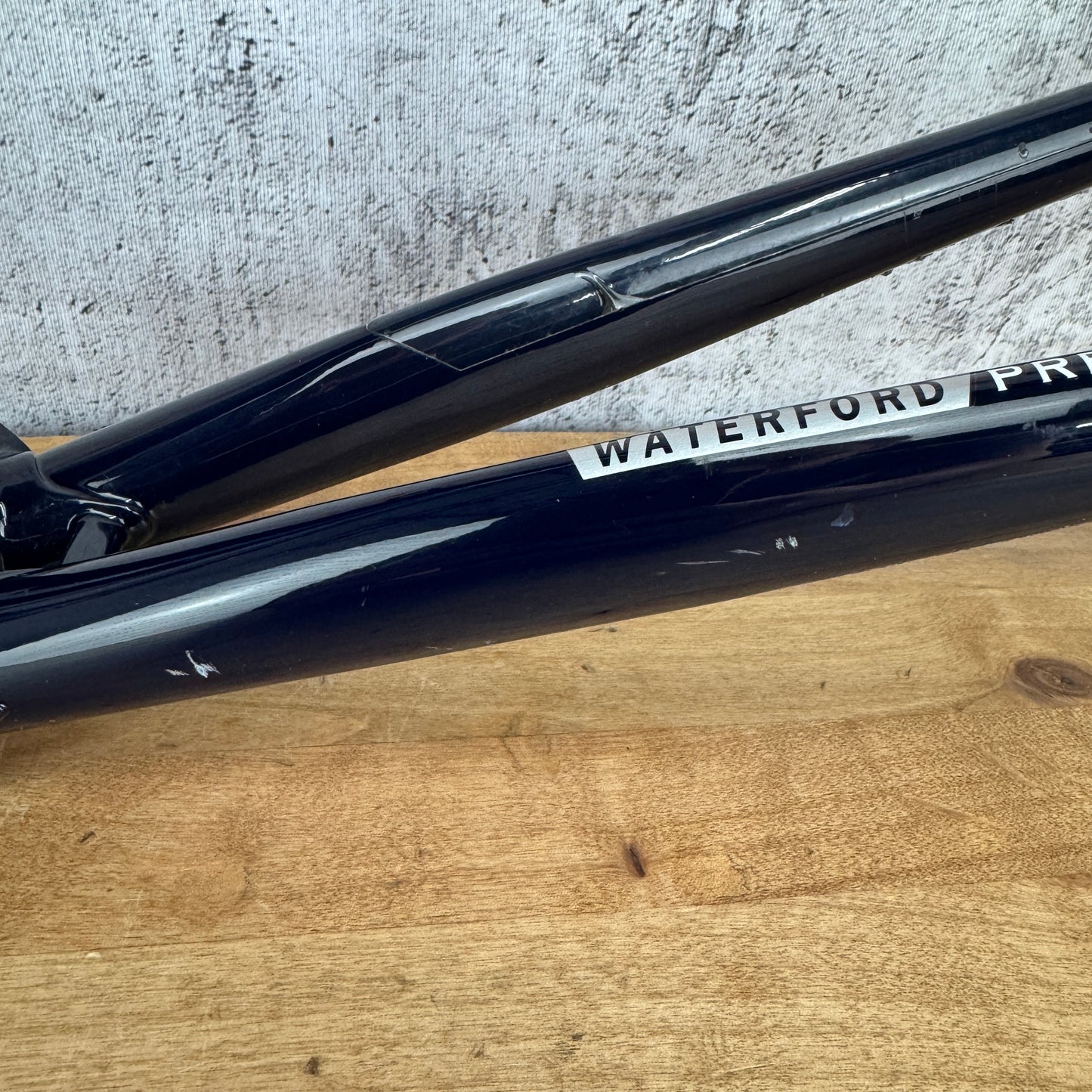

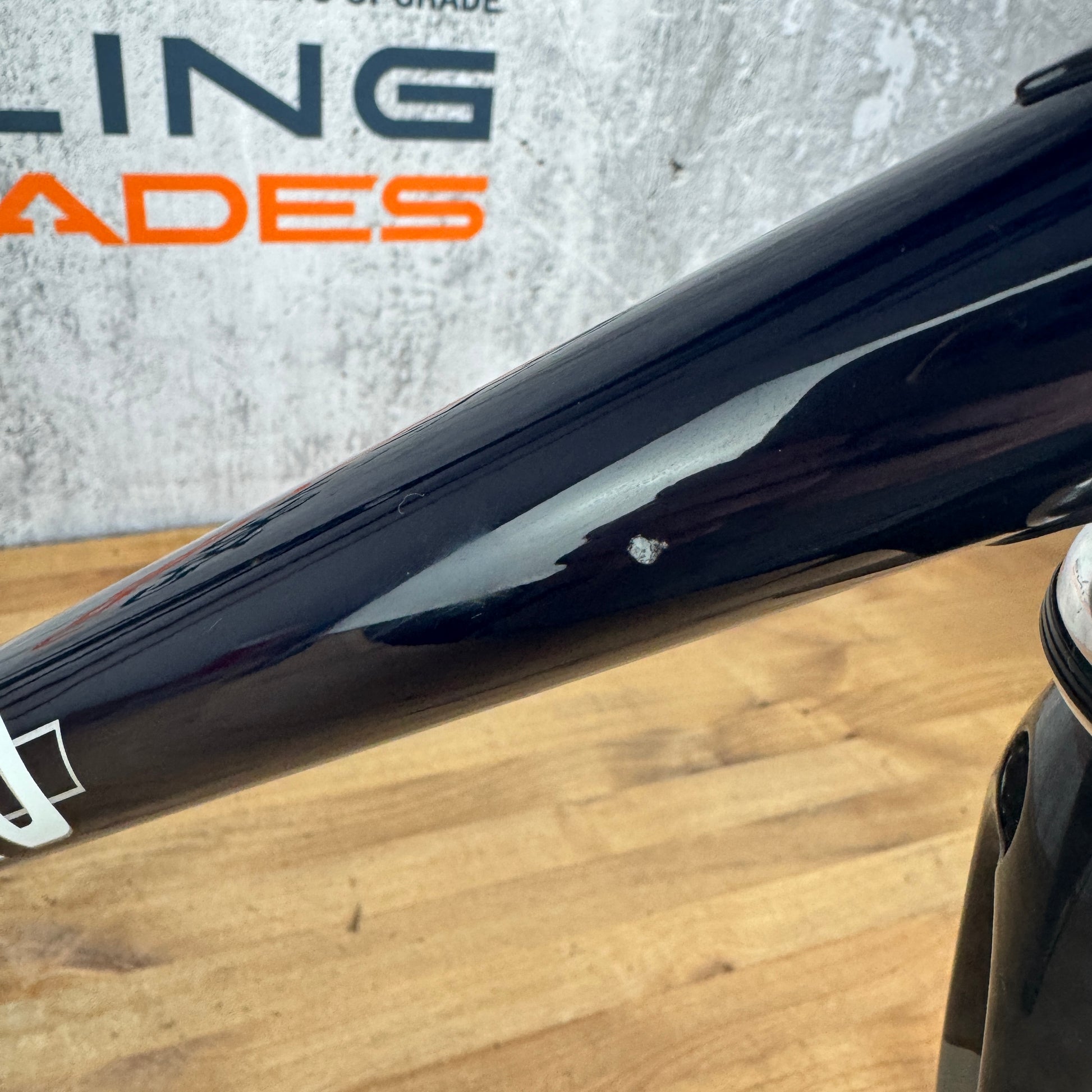

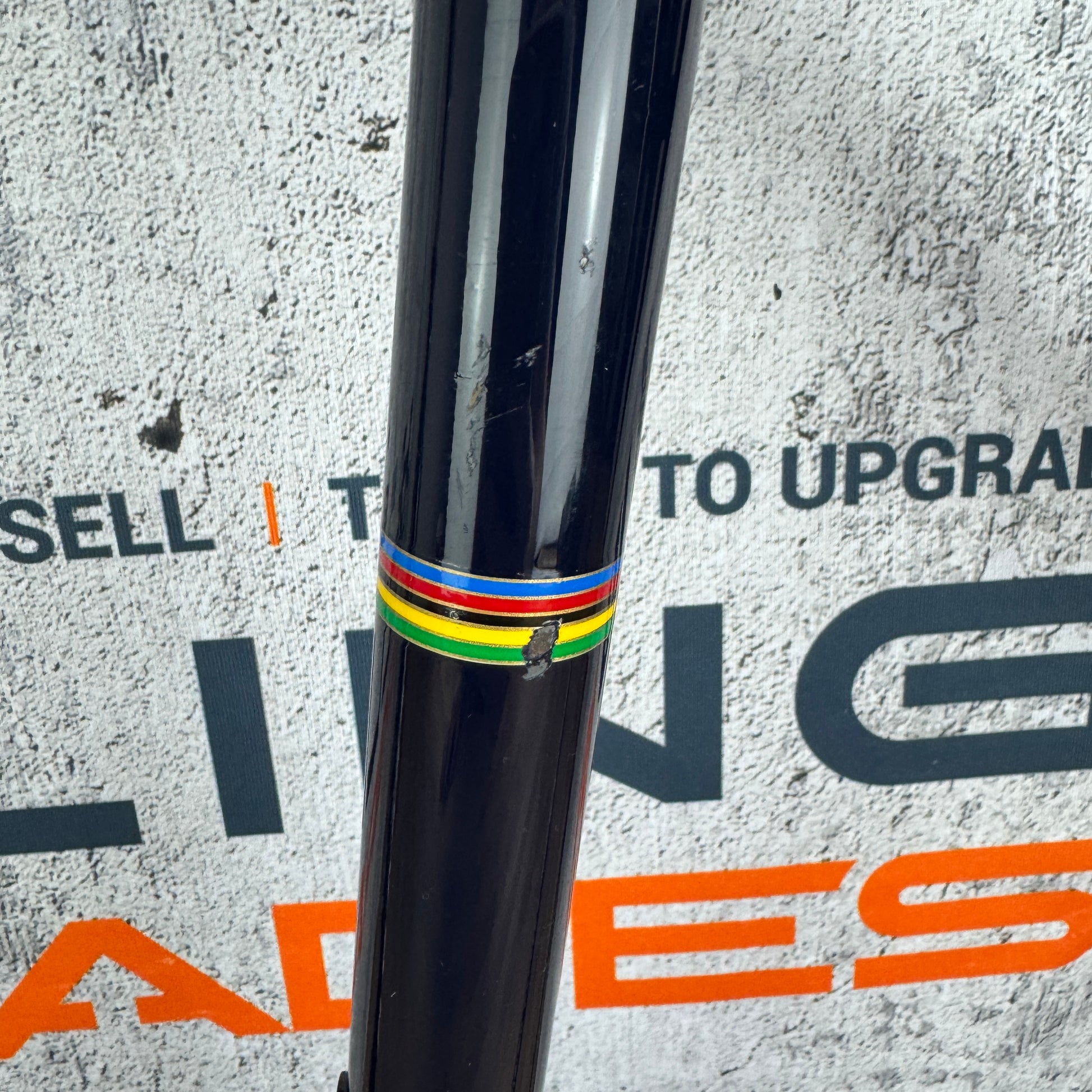

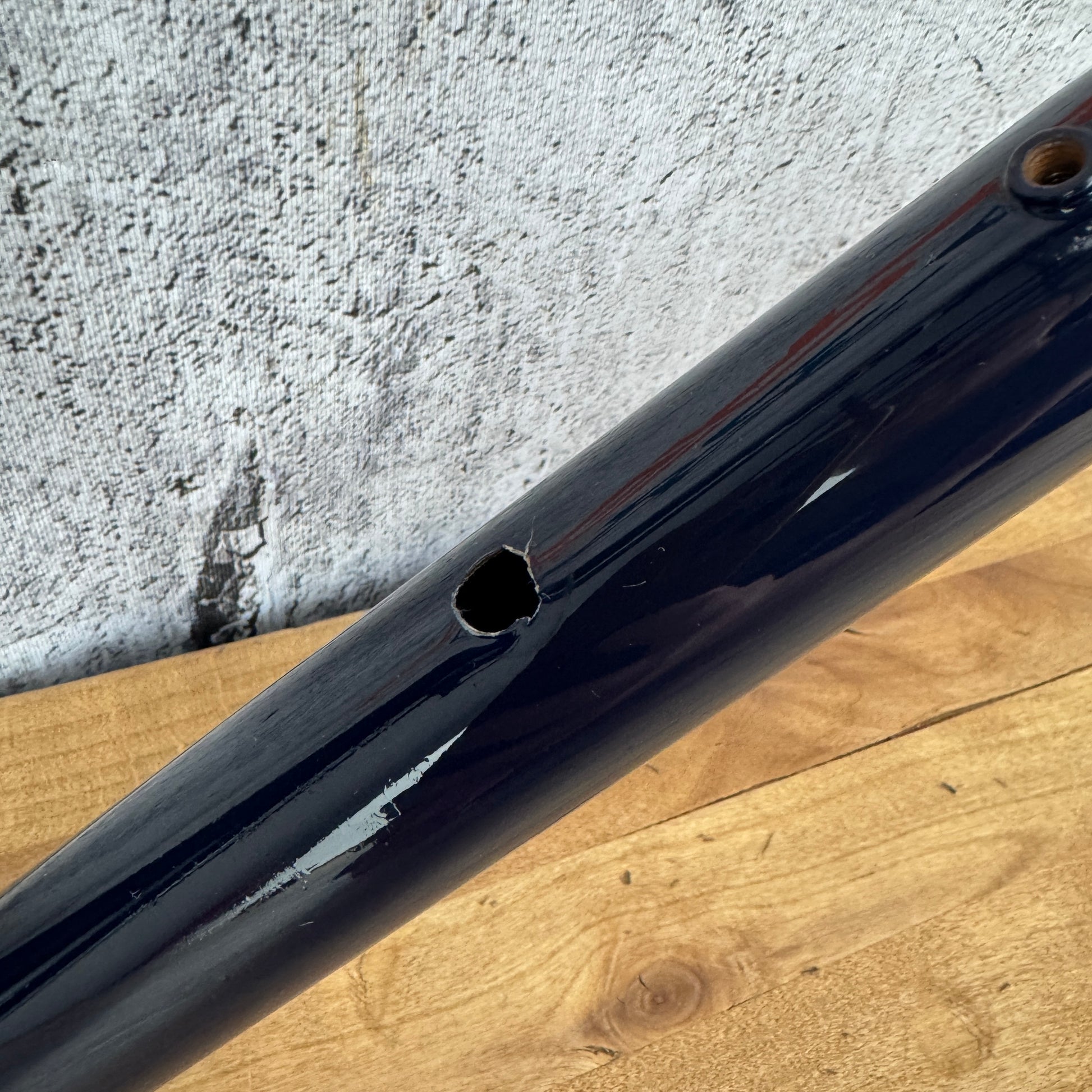

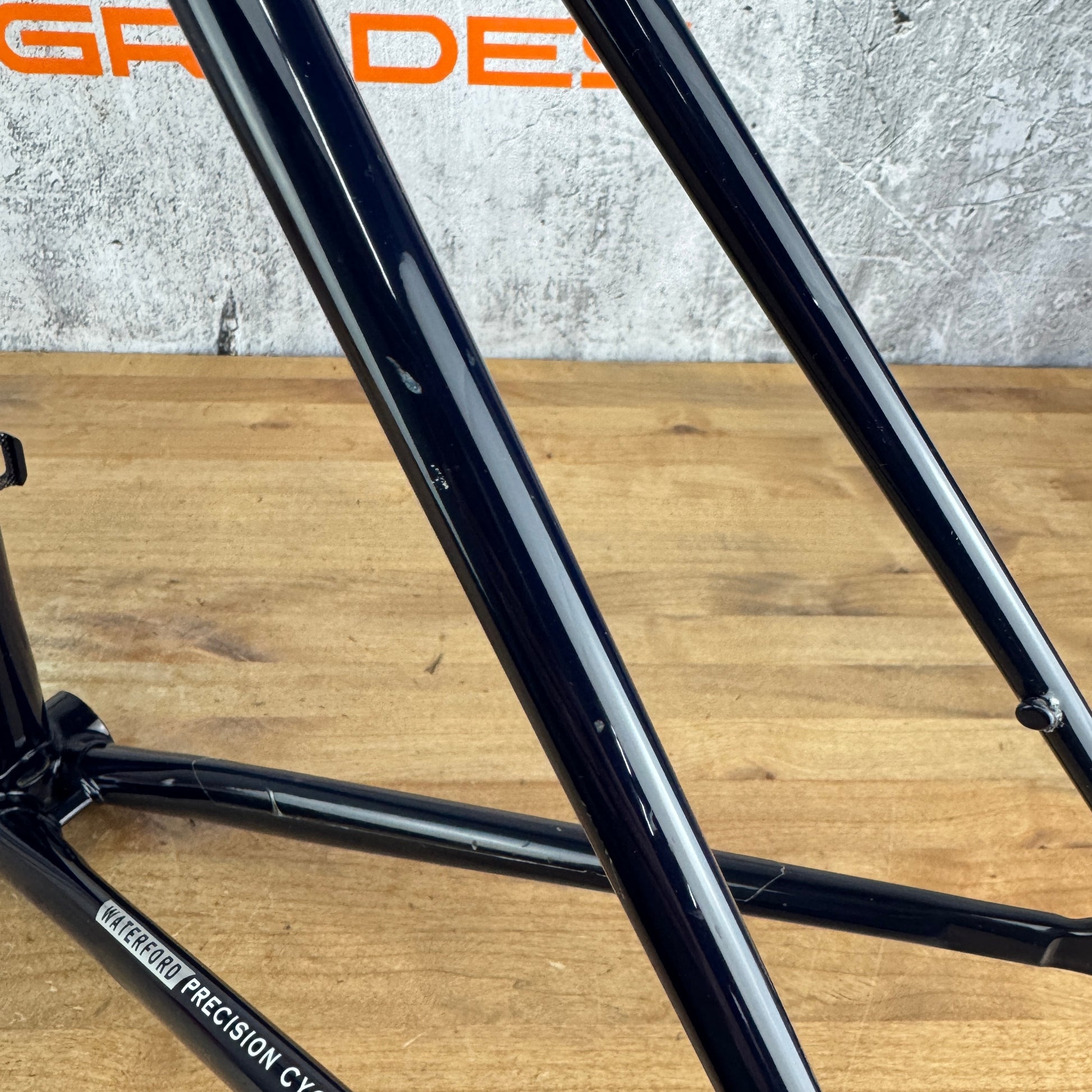

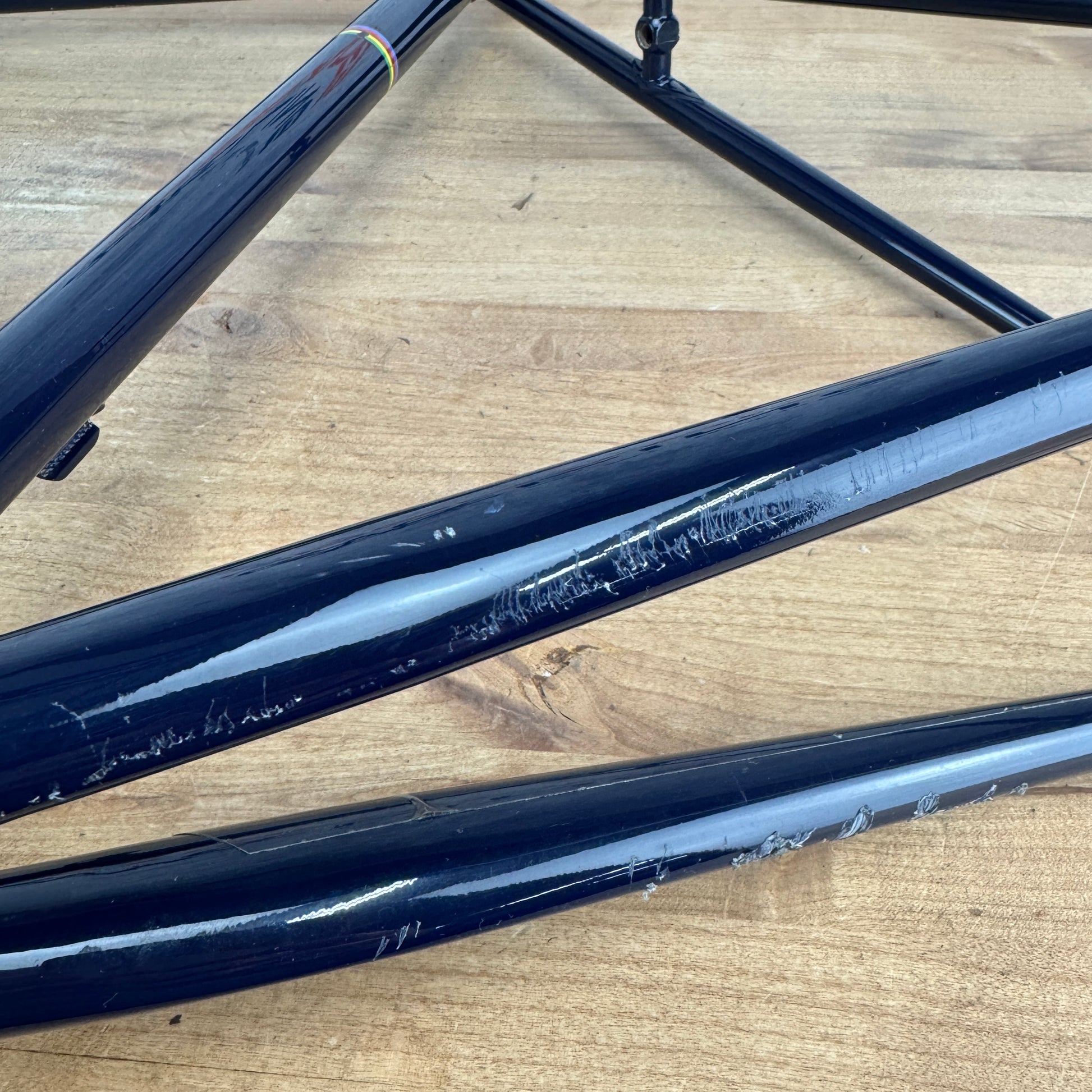

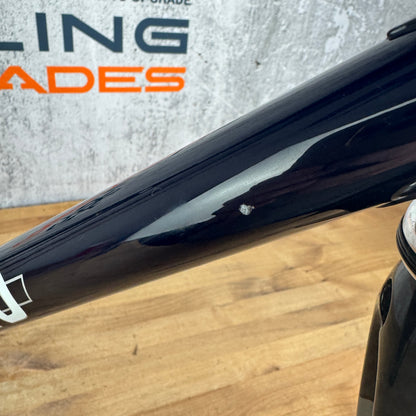

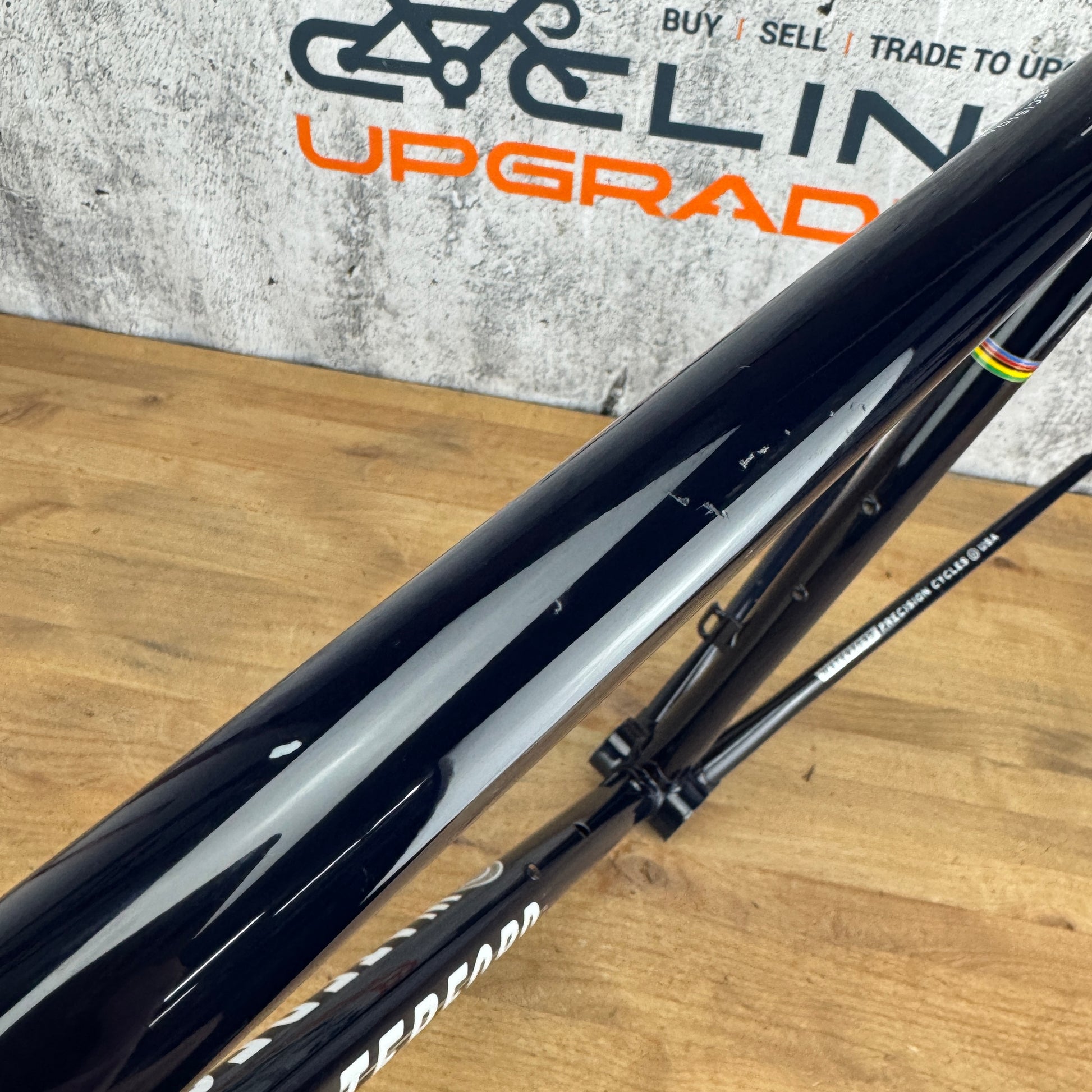

Condition: No cracks or defects were identified through a thorough visual inspection. The cosmetic imperfections to highlight include: The lower bottle cage rivet on the down tube has failed - shown in pic #8, some scratches on the down tube shown in pic #9, some scratches on the top tube shown in pic #10, some scratches on the seat tube shown in pic #11, and some scratches on the chainstays and seatstays shown in pics #12-14. We have attempted to show all noticeable imperfections in specific close-up pictures, however other minor imperfections and light signs of use may exist.
Groupset compatibility: Frame can be setup for eTap or mechanical groupsets. This frame is not compatible with Di2, or EPS setups.

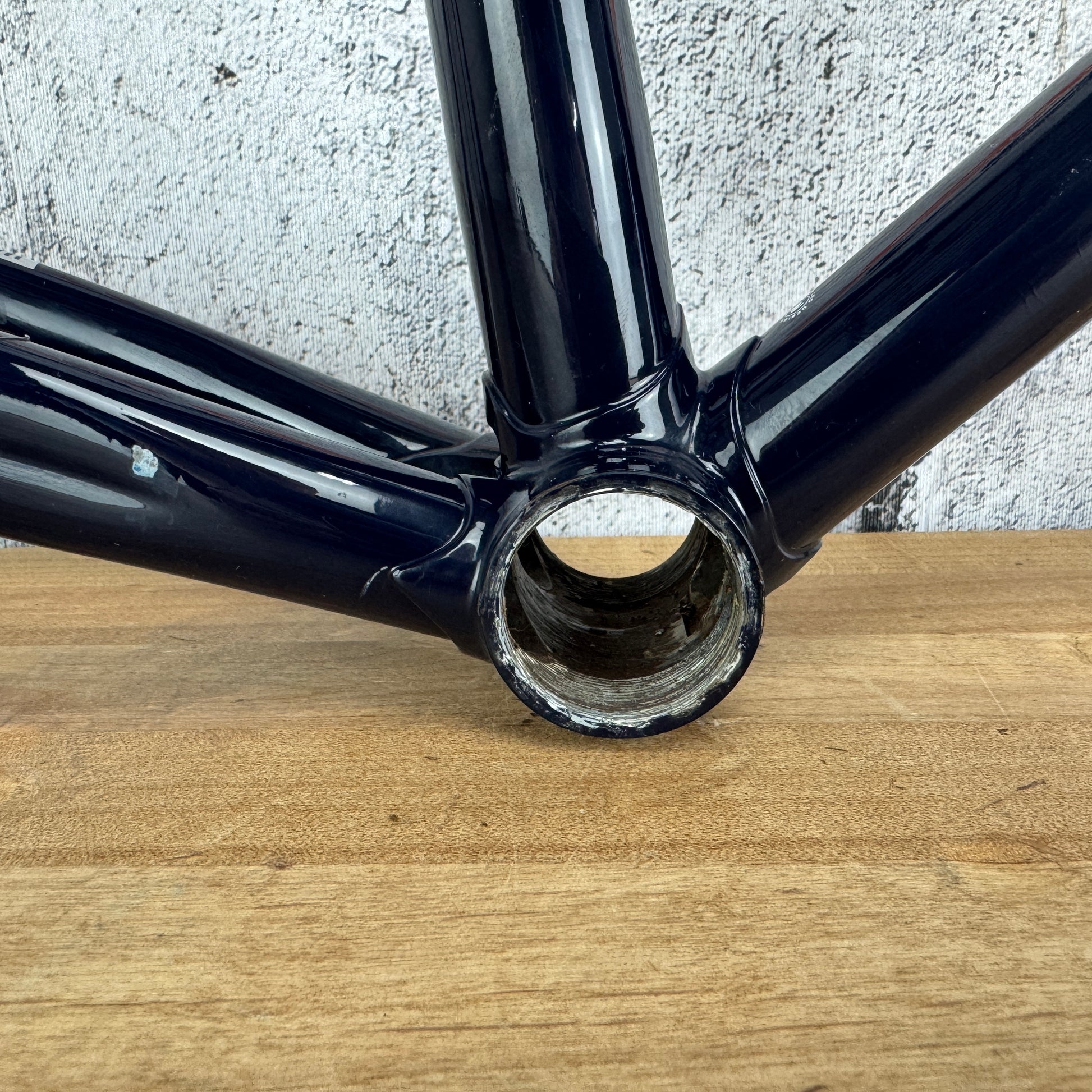

Bottom bracket: English threaded bottom bracket shell type. No bottom bracket is currently installed or included. We have a handful of lightly used basic bottom brackets on hand, let us know what you need and we can try to ship the frame with the right bottom bracket installed. Additionally, CyclingUpgrades is a Ceramicspeed and Cane Creek Authorized Dealer, if you prefer to have the frame setup with a certain bottom bracket we can add and install it at an additional cost before shipping - message with inquiries/requests.

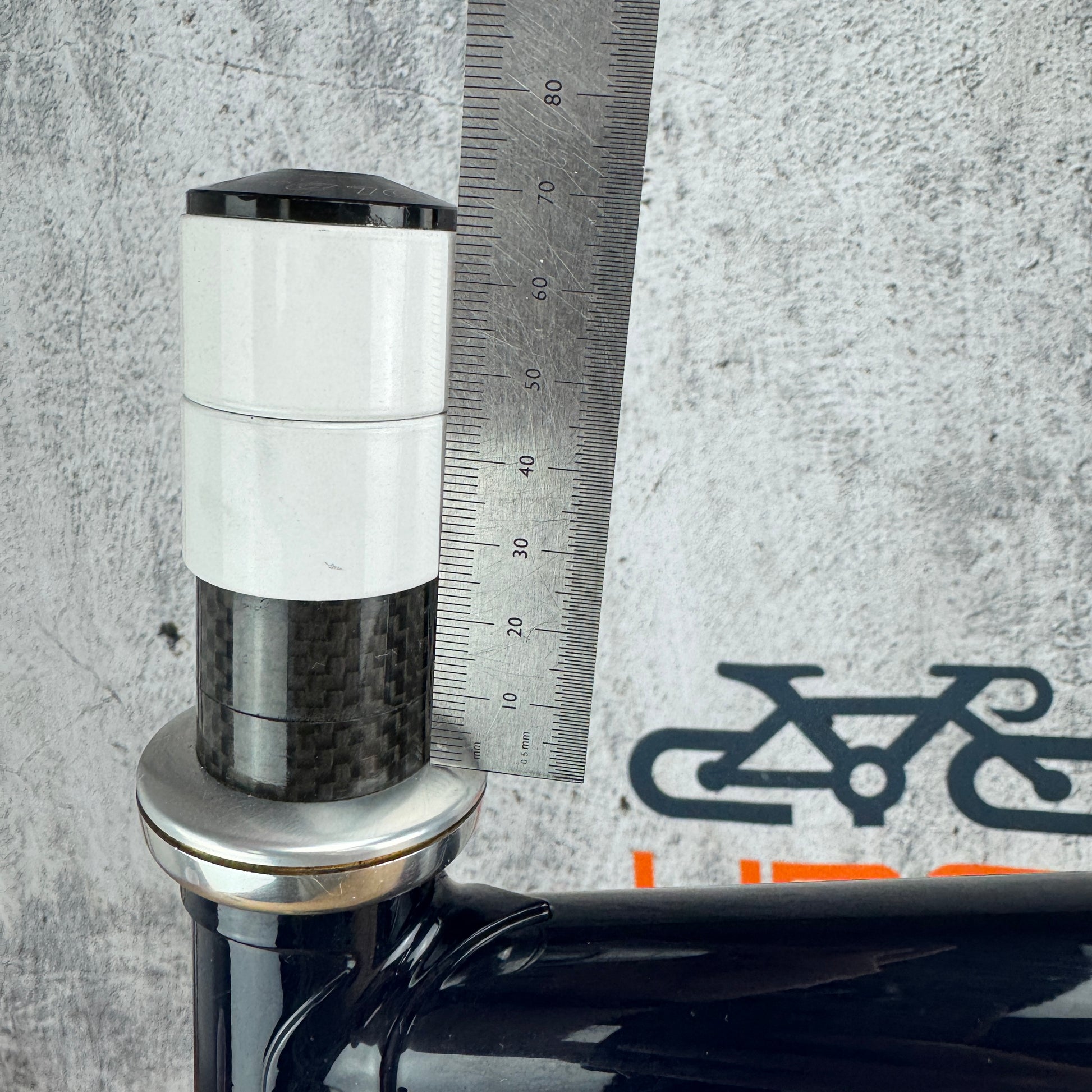

Steerer length: 65mm of steerer above the top tube. 25mm of spacers below the stem plus the headset cover.
Seatpost: Round alloy setback seatpost included.
Dropout Spacing: QR x 100mm front, QR x 130mm rear.
Weight: 2512 grams as pictured with headset, seatpost, frame hardware, etc.
What's included: Frame, fork, headset, seatpost
