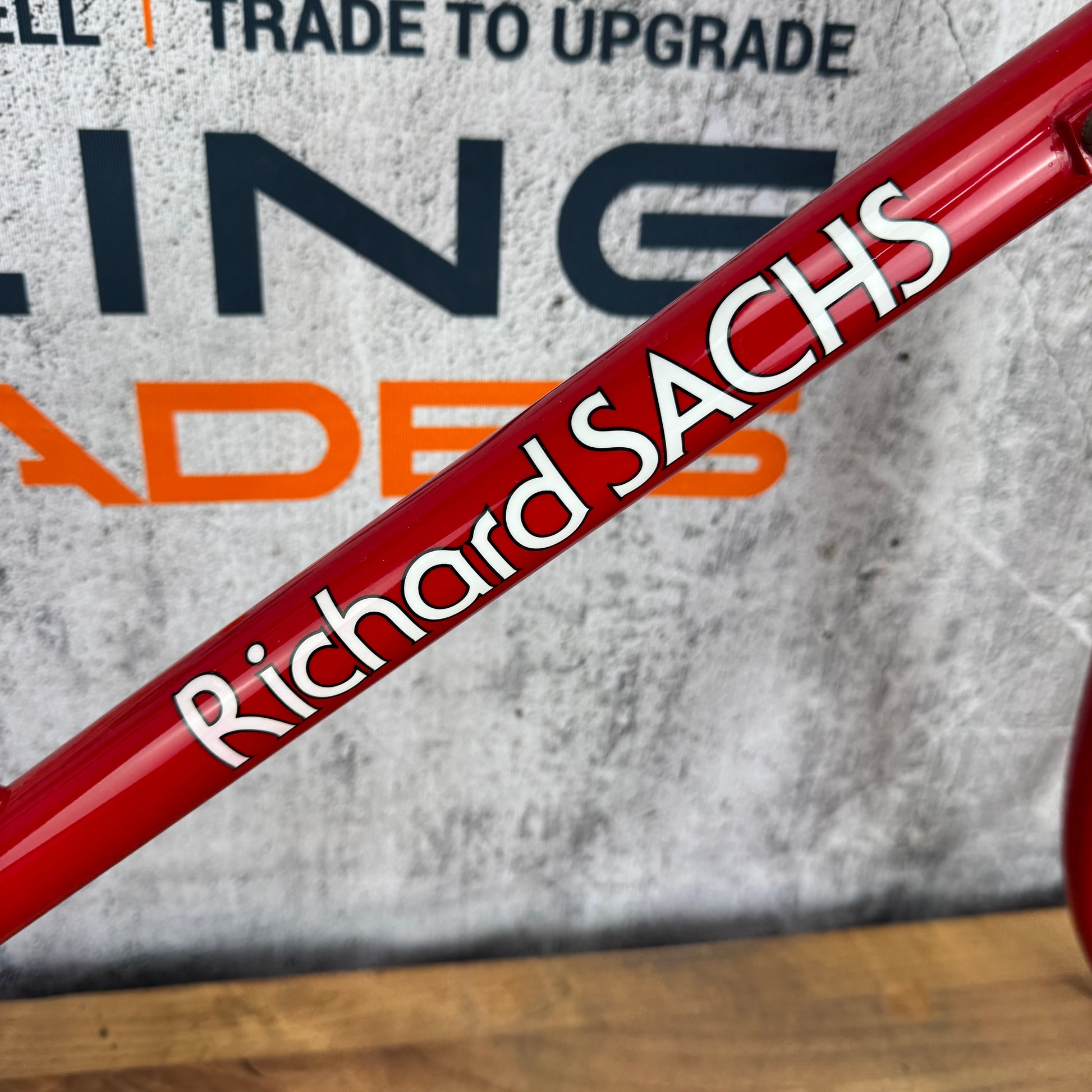

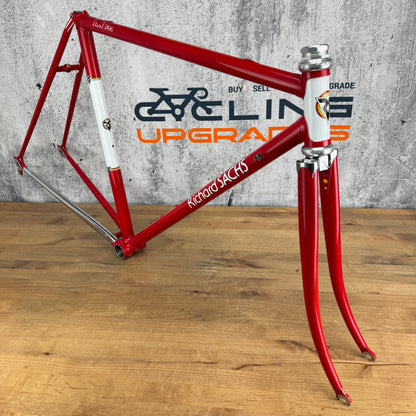

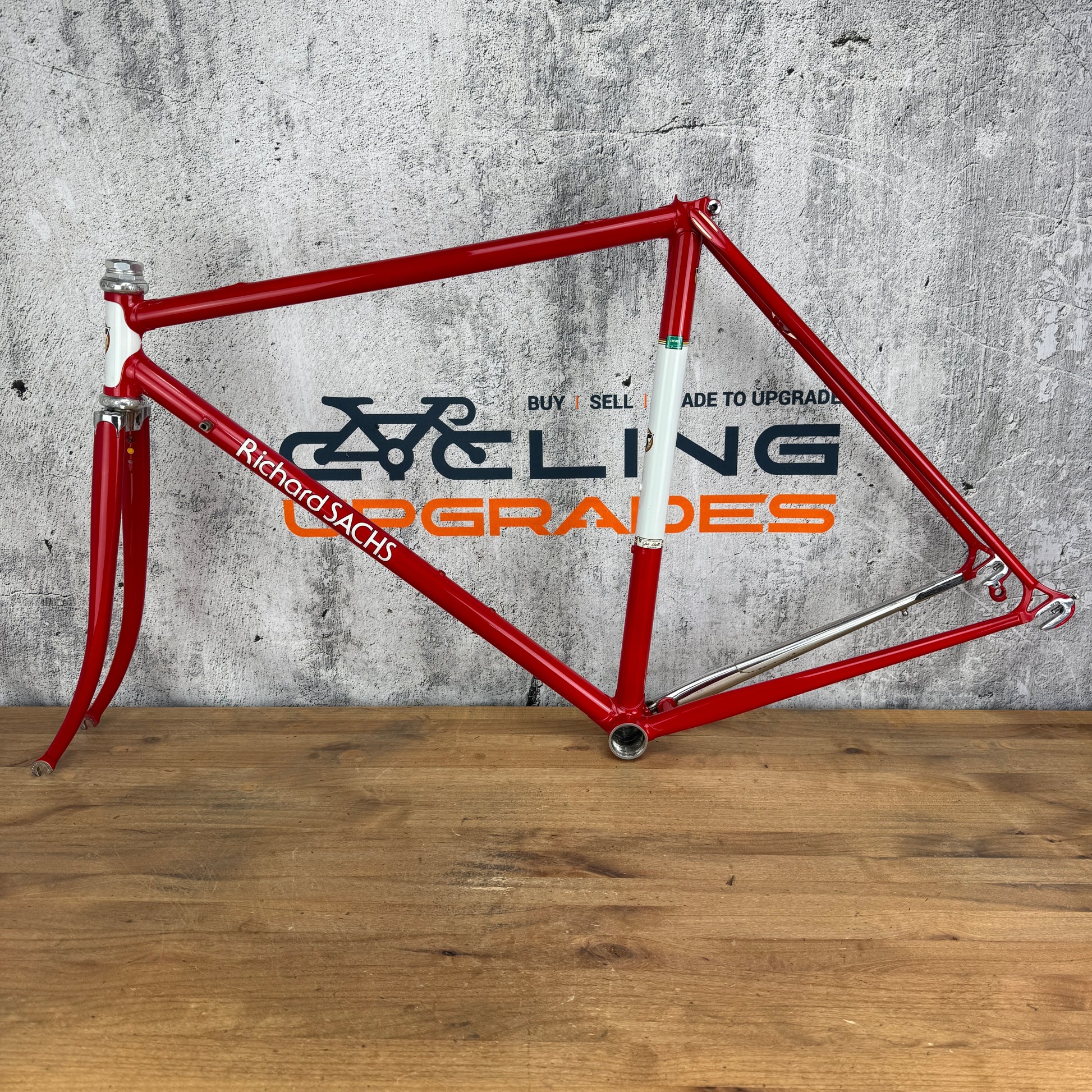

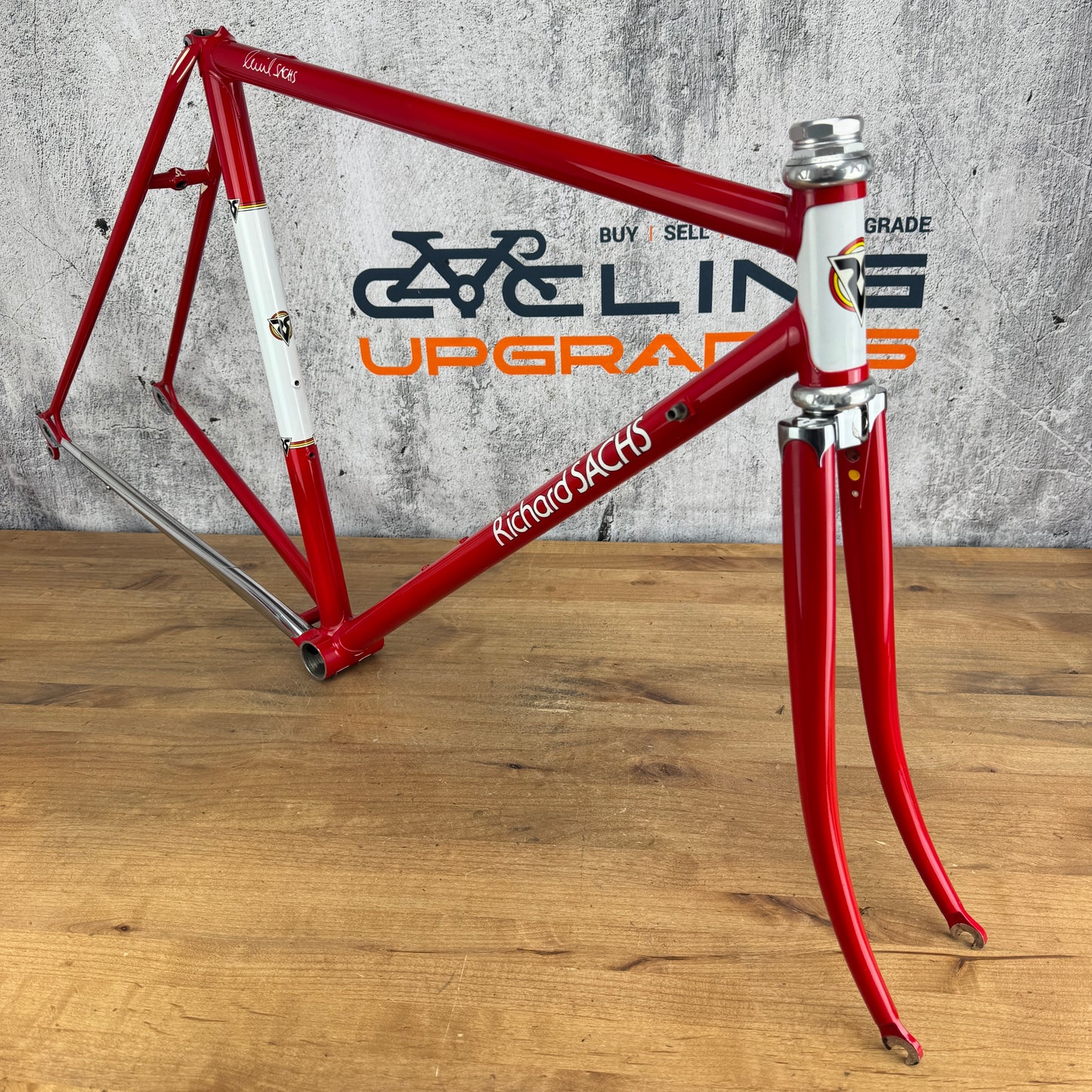

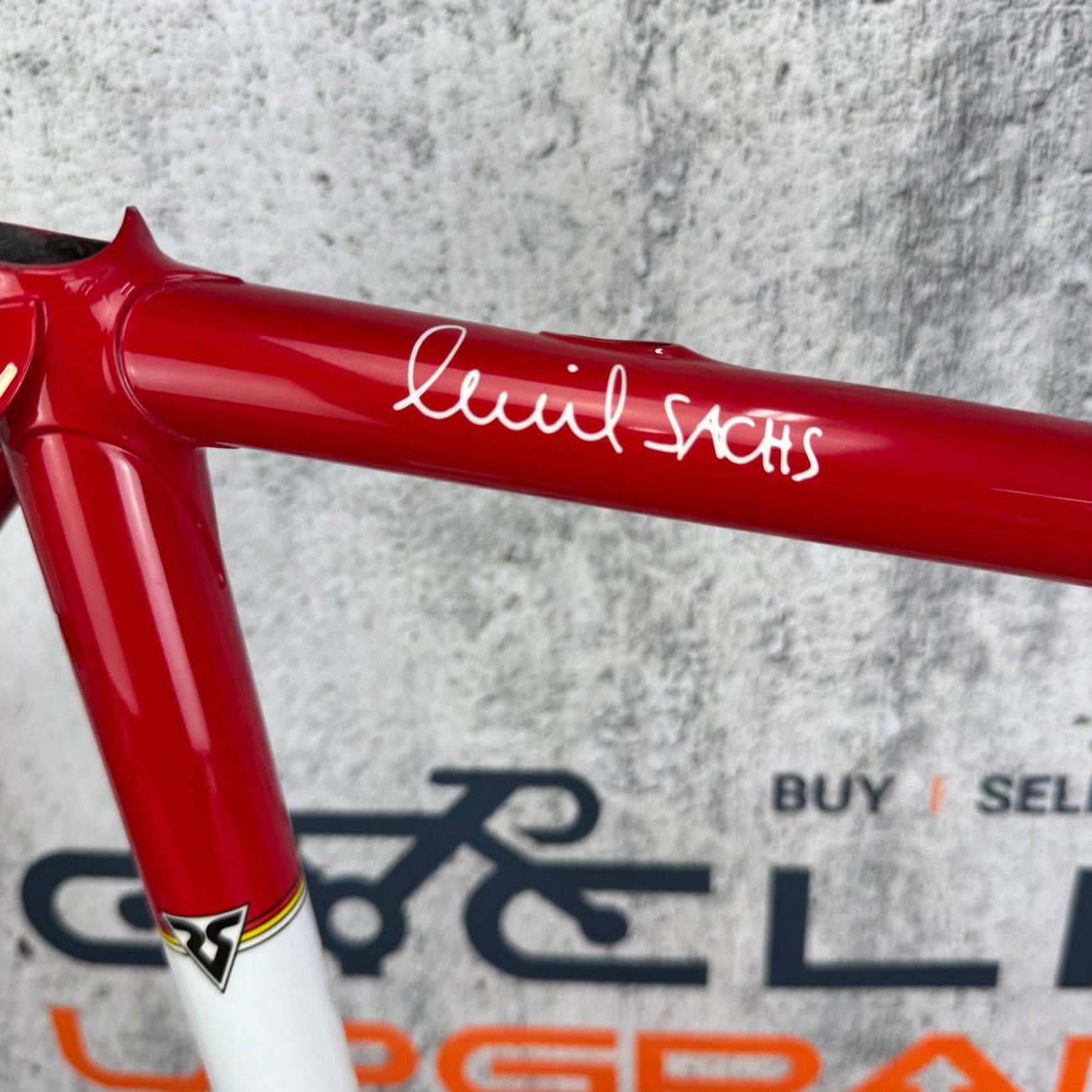

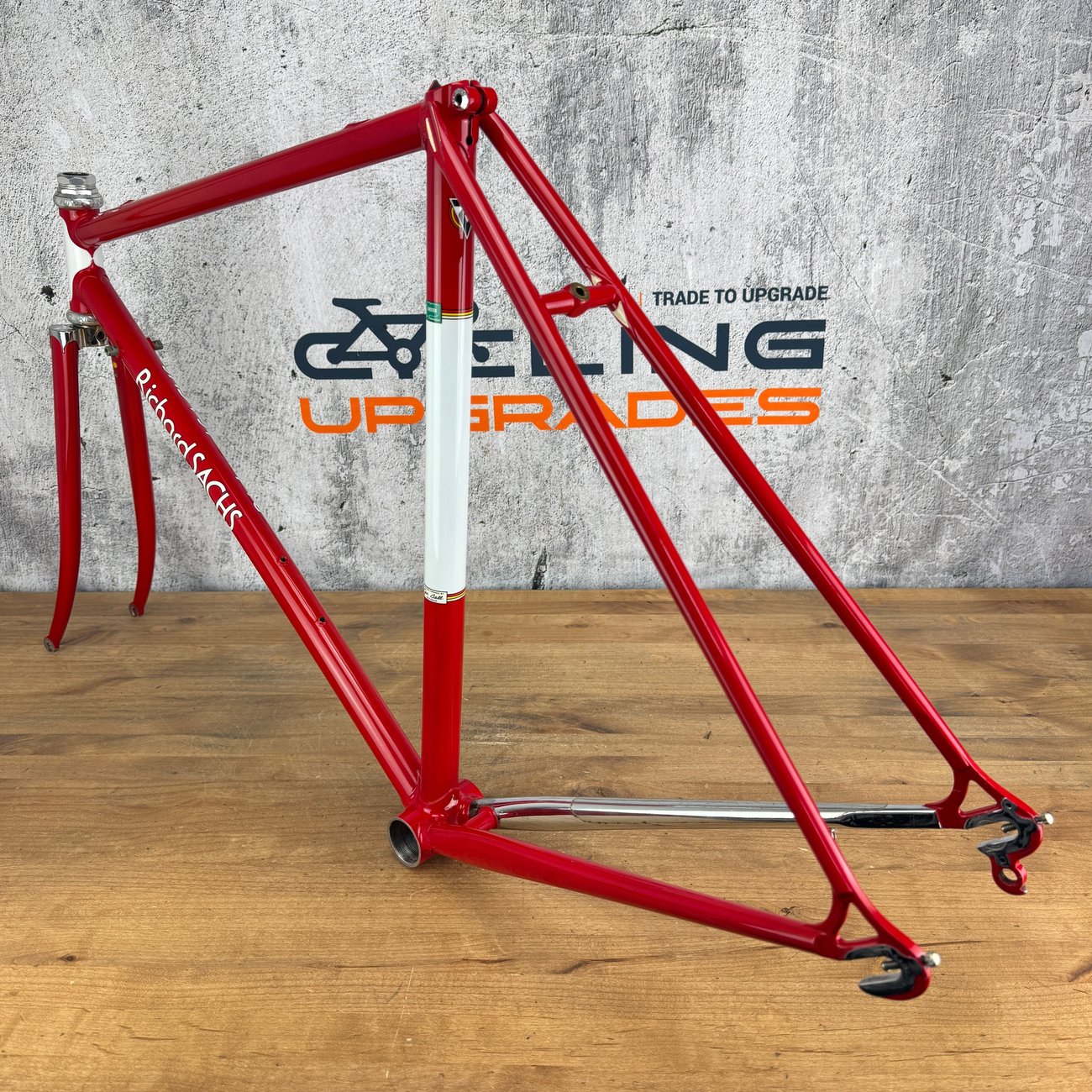

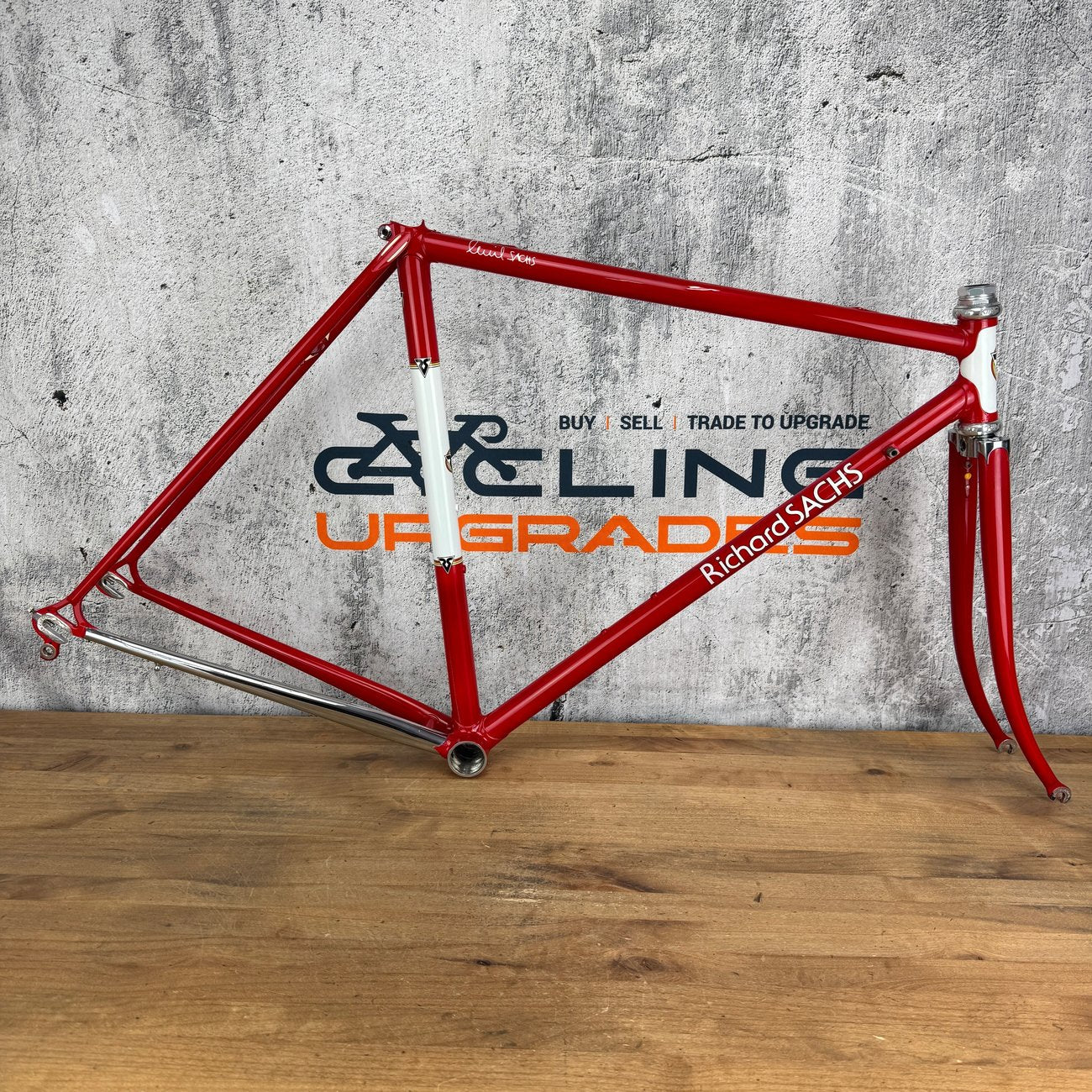

Frame: Richard Sachs
Color: Red, and white. This frameset was repainted by Joe Bell
Tire Clearance: 28mm
Tubing Type: Columbus Steel
Brake type: Center-Mount rim brake

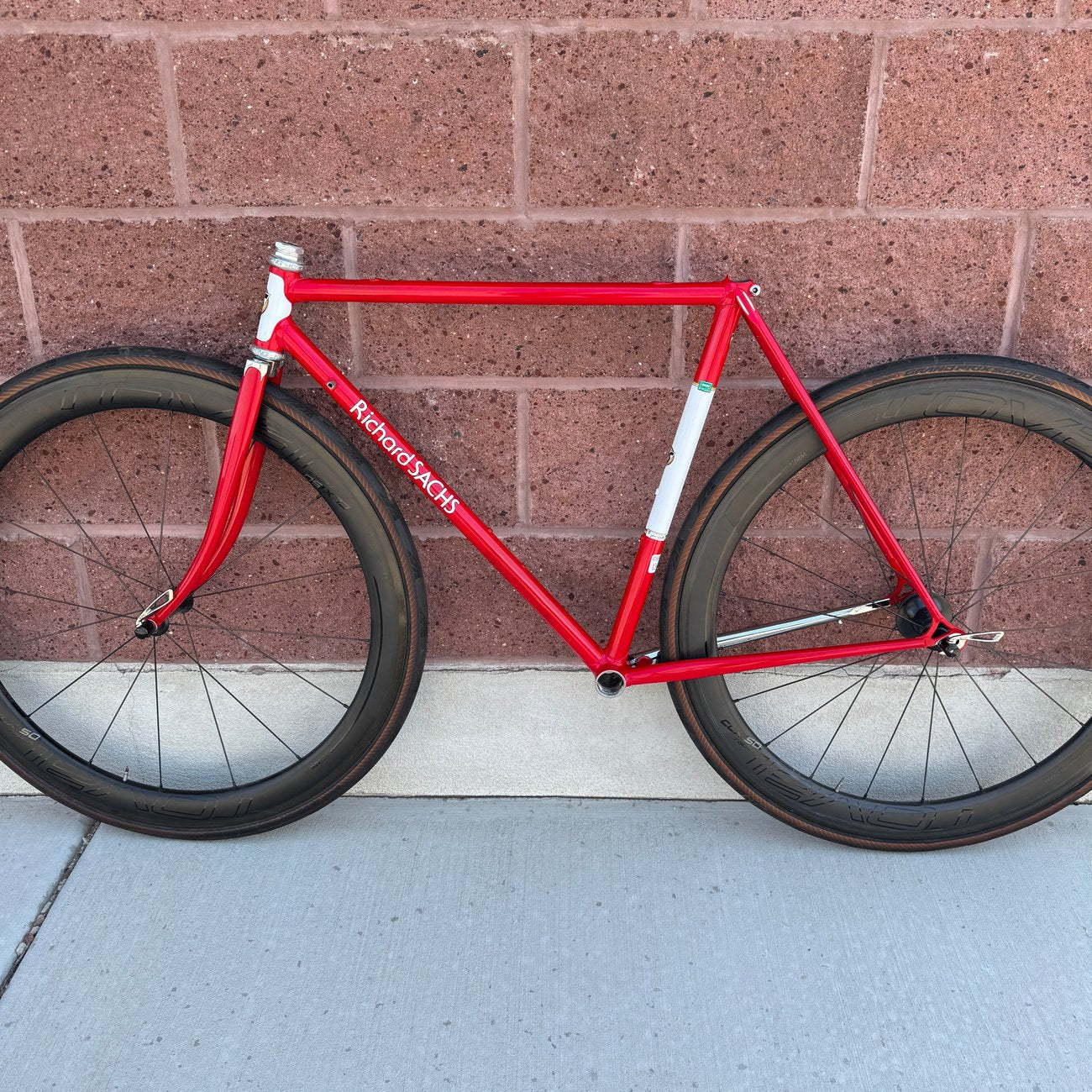

Size: Actual measurements taken by hand are approximate and are as follows: 540mm actual top tube center to center. 510mm center of bottom bracket to center of top tube. 525mm center of bottom bracket to top of seat tube. Head tube 95mm. 415mm chainstay length. If other measurements or take-offs are needed, please feel free to ask. We have included in our last picture a photo of the frame with a wheelset on it to show the head and seat tube angles and top tube slope.

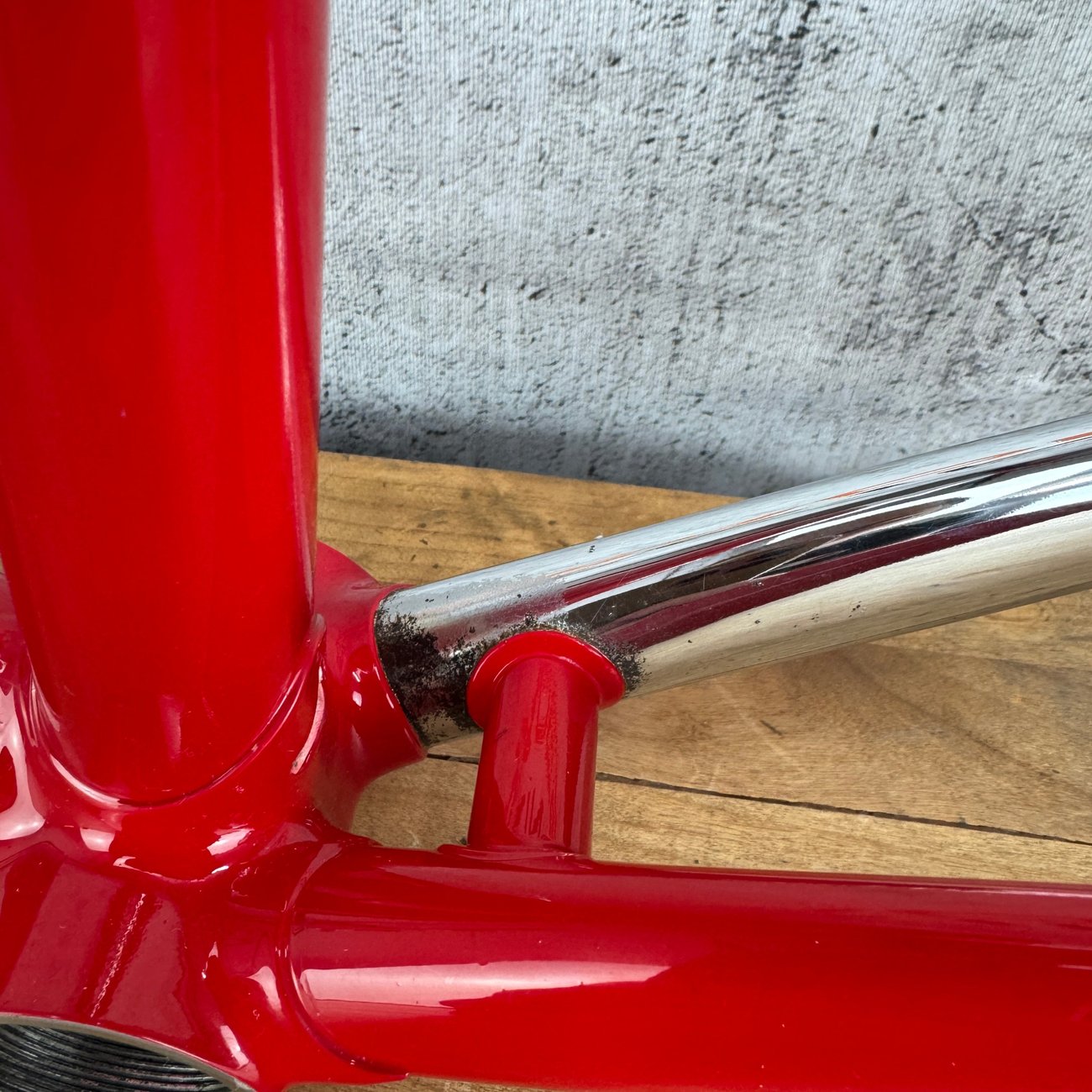

Condition: No cracks or carbon defects were identified through a thorough visual inspection. The cosmetic imperfections to highlight include: a small scratch on the head tube shown in pic #8, and some oxidation on the chainstay shown in pic #9. We have attempted to show all noticeable imperfections in specific close-up pictures, however other minor imperfections and light signs of use may exist.
Groupset compatibility: Frame can be setup for eTap or mechanical groupsets. This frame is not compatible with Di2, or EPS setups.

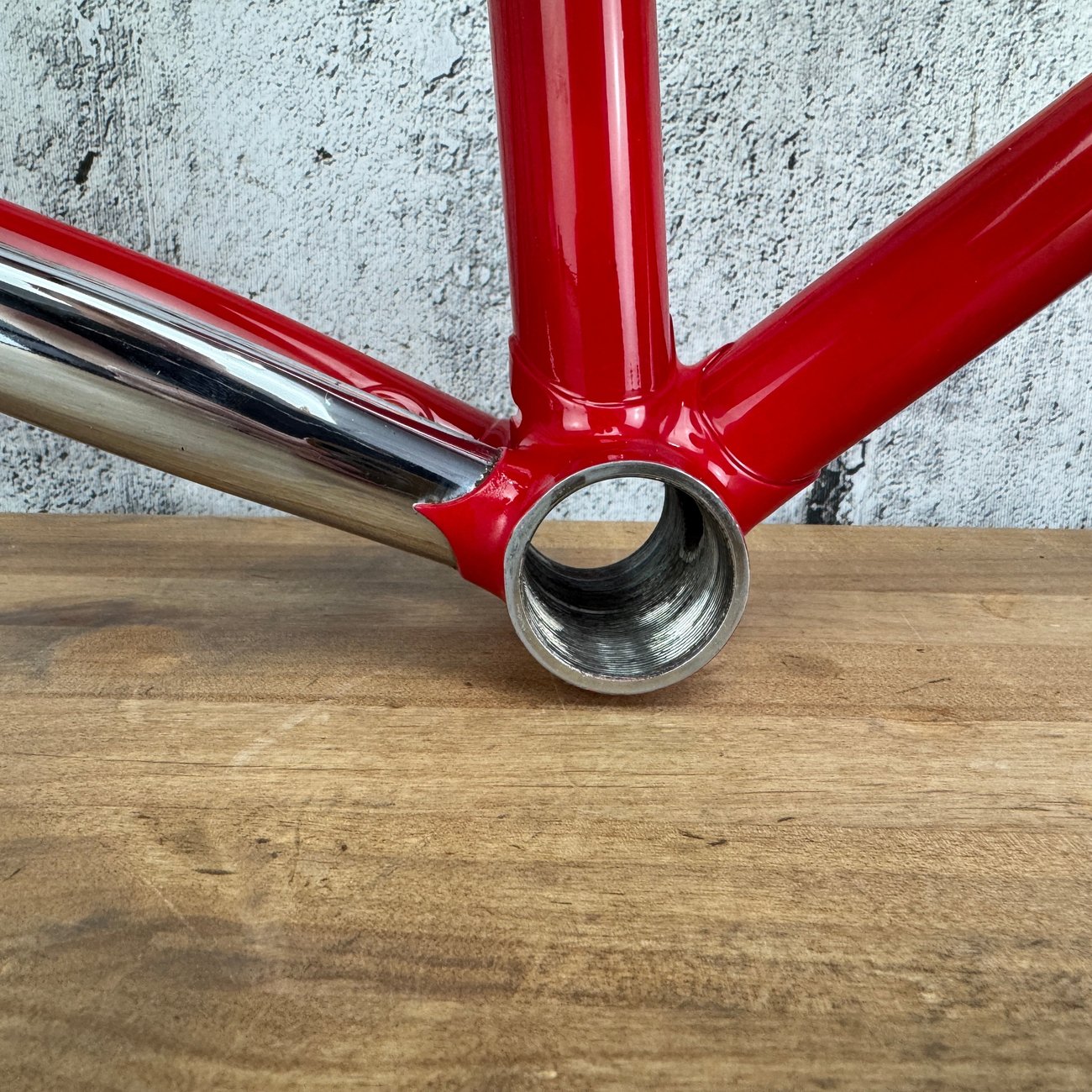

Bottom bracket: English threaded bottom bracket shell type. No bottom bracket is currently installed or included. We have a handful of lightly used basic bottom brackets on hand, let us know what you need and we can try to ship the frame with the right bottom bracket installed. Additionally, CyclingUpgrades is a Ceramicspeed and Cane Creek Authorized Dealer, if you prefer to have the frame setup with a certain bottom bracket we can add and install it at an additional cost before shipping - message with inquiries/requests.
Seatpost: 27.2mm diameter. No seatpost included.
Dropout Spacing: QR x 100mm front, QR x 126mm rear.
Weight: 2678 grams as pictured with headset, frame hardware, etc.

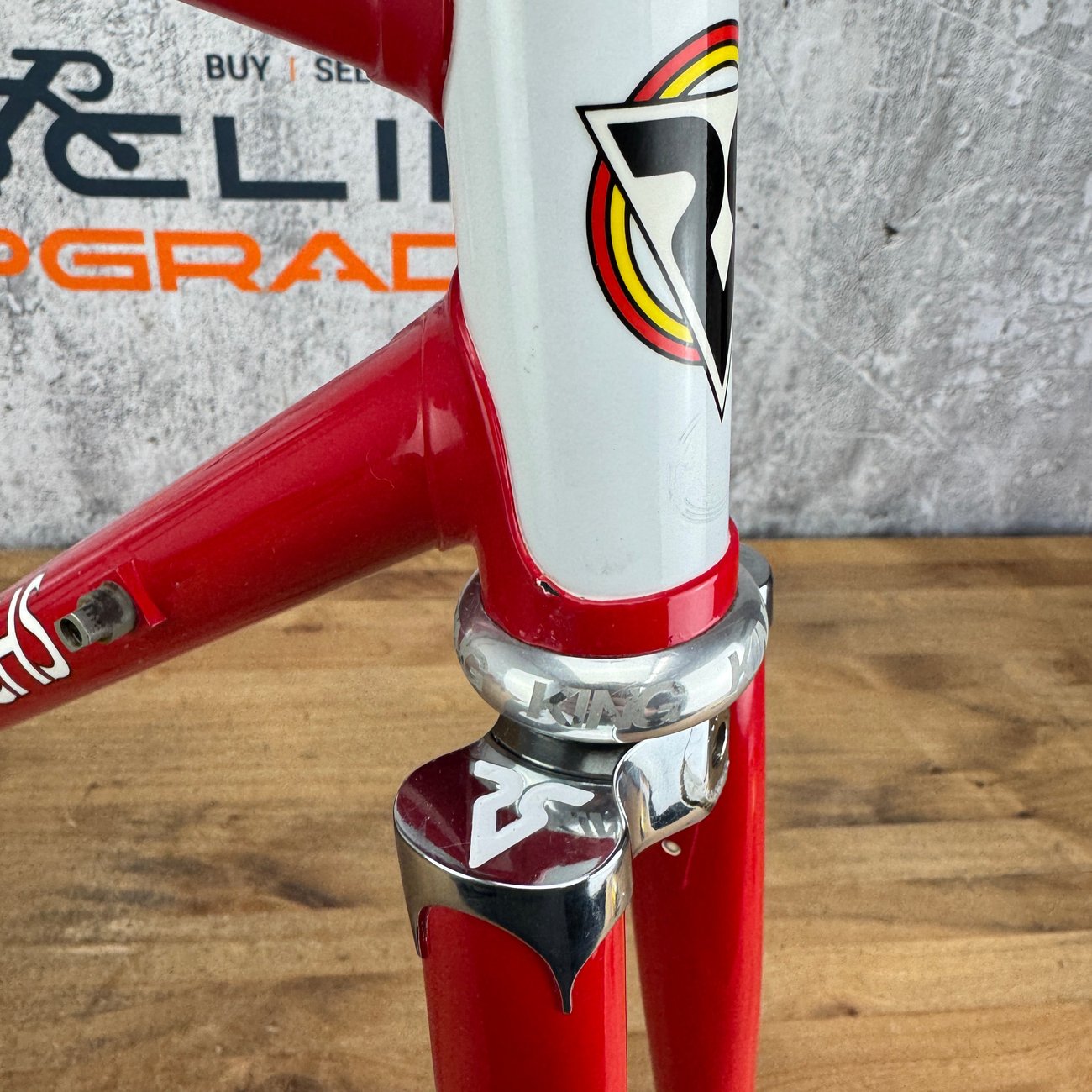

What's included: Frame, fork, Chris King headset
