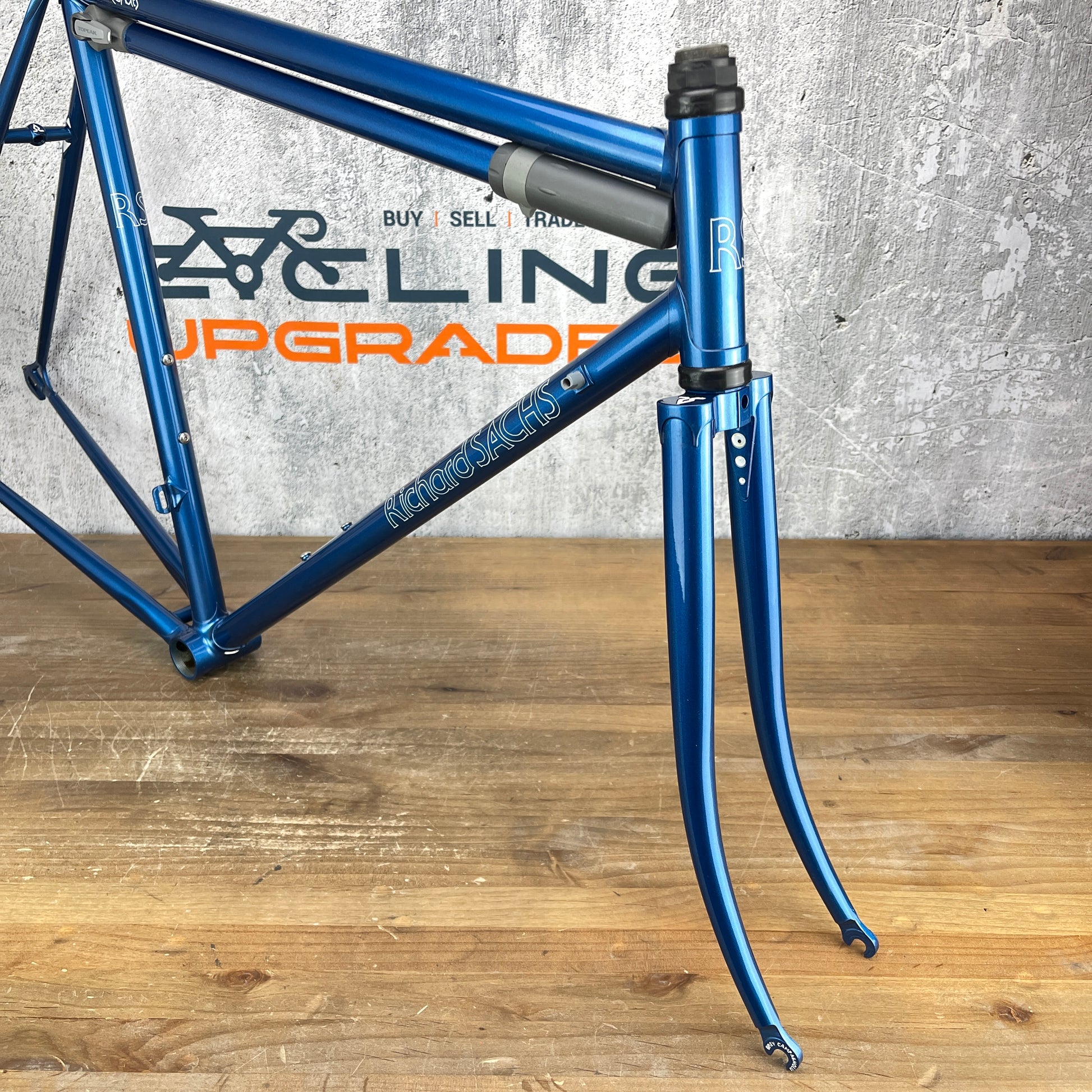

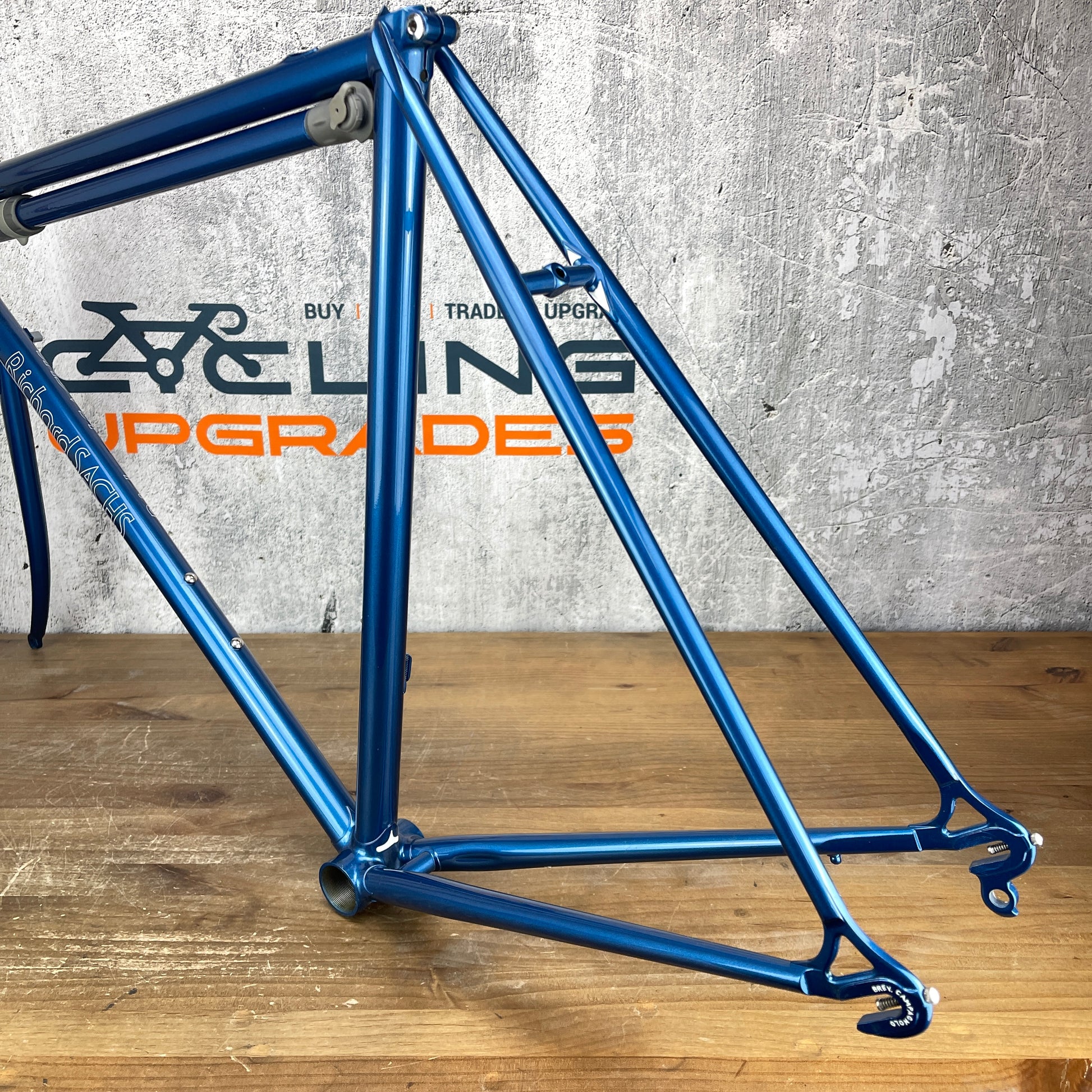

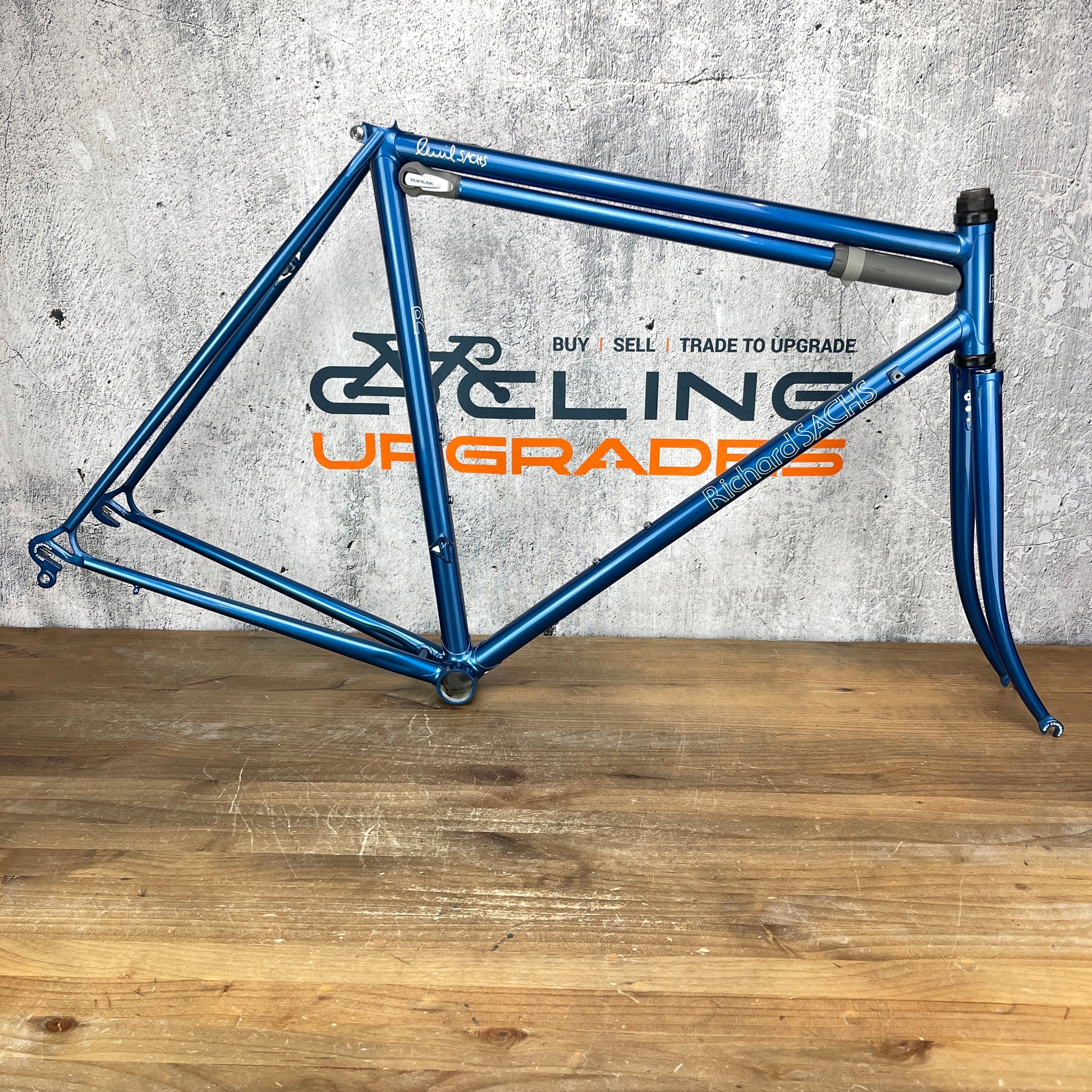

Frame: 1990s Richard Sachs, new paint by Foresta Frames, also includes a paint matched Topeak frame pump.

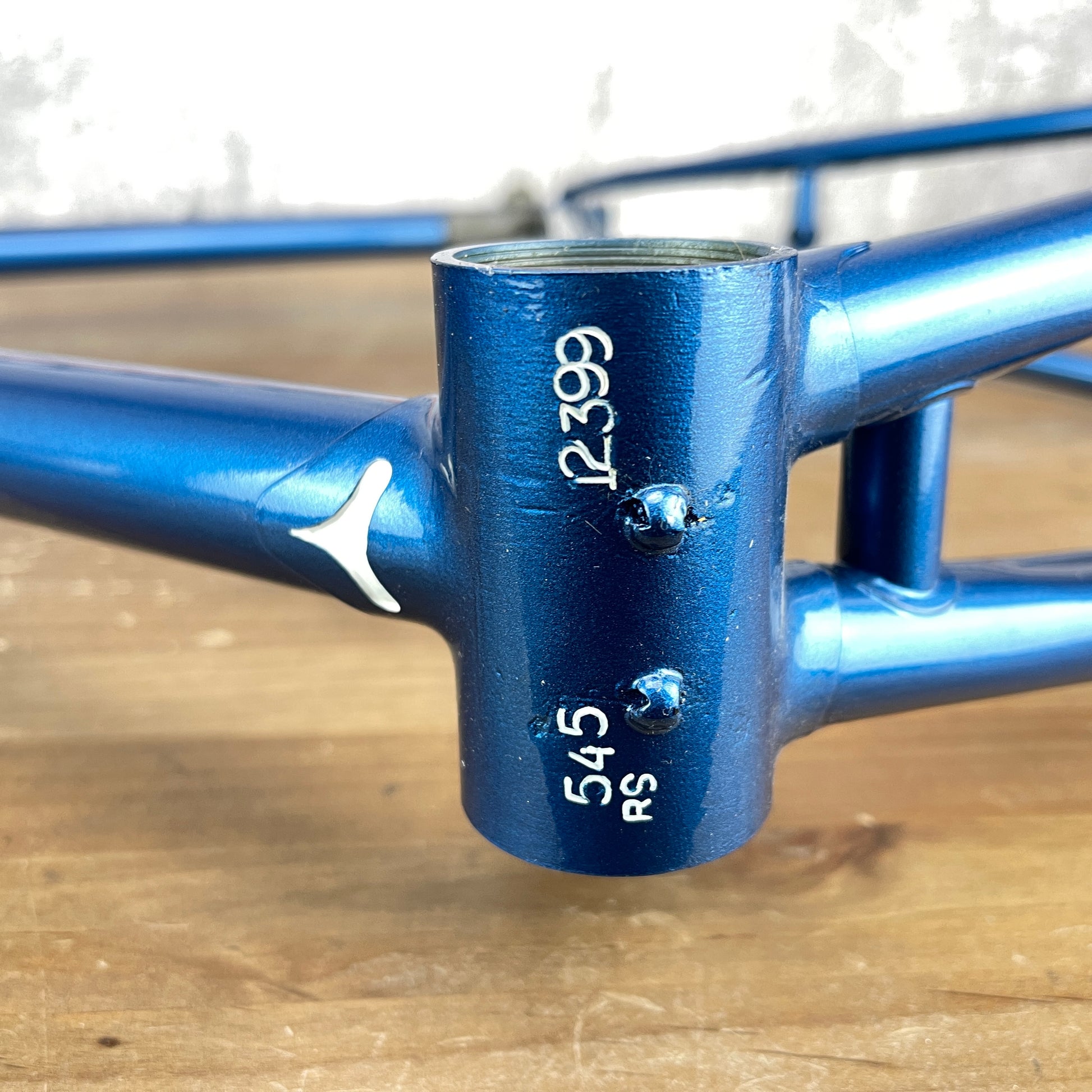

Serial #: 12399
History: From the prior owner "Its a 1990s frame which I acquired used from Richard in 2013 when he handled a sale for his client. The original paint was hammered and Joe Bell’s queue was too long so I had Craig at Foresta frames (no longer doing business) do a respray in dark blue.

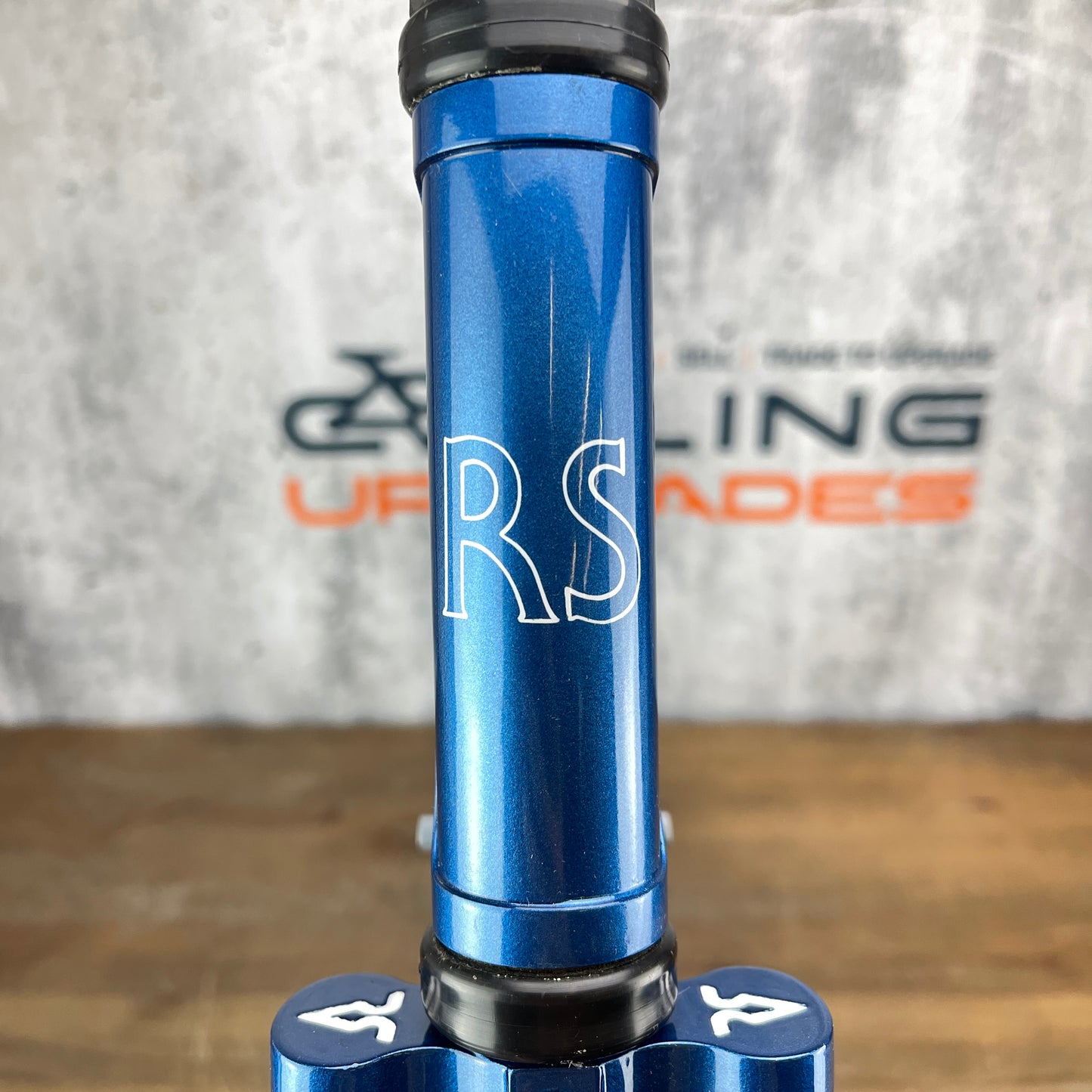

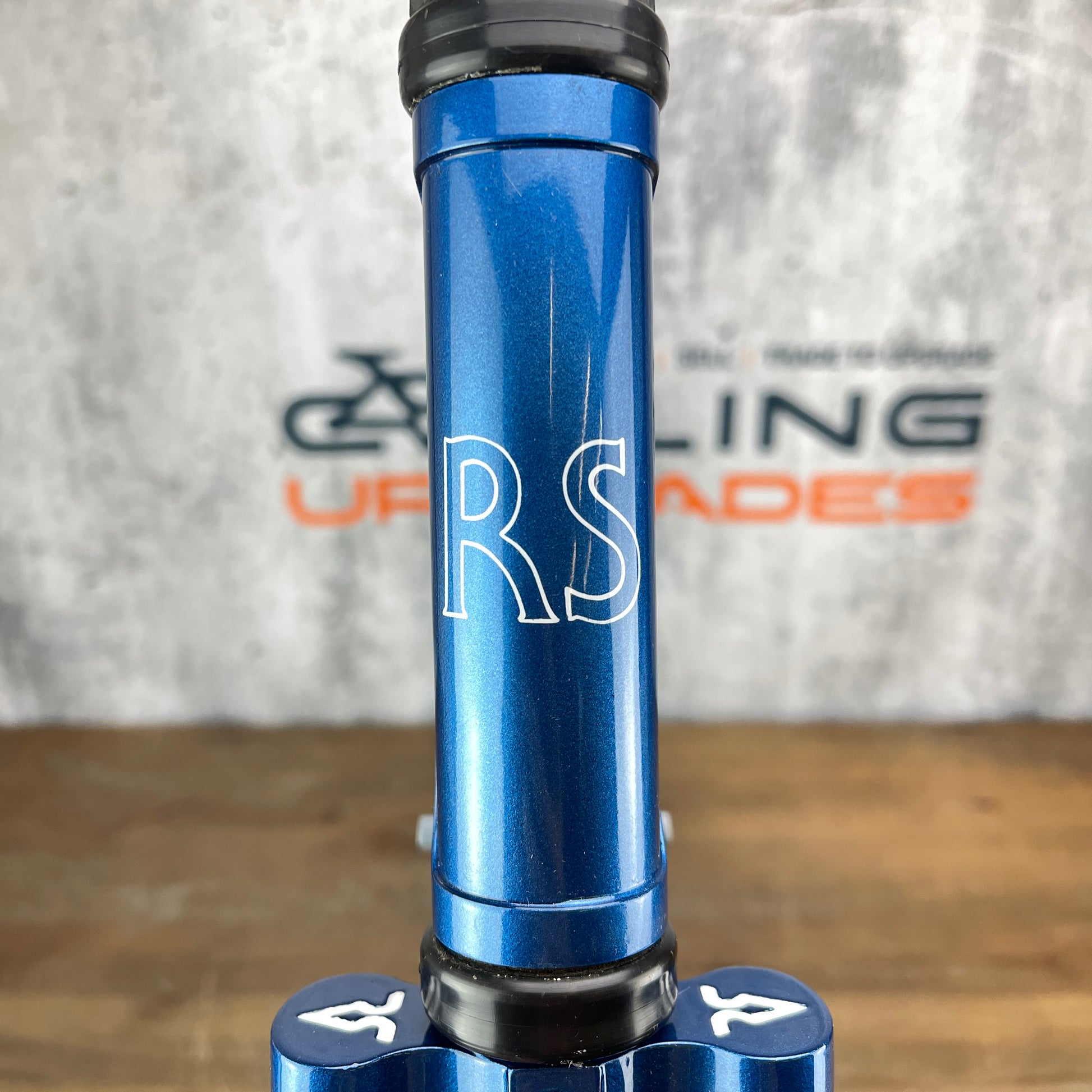

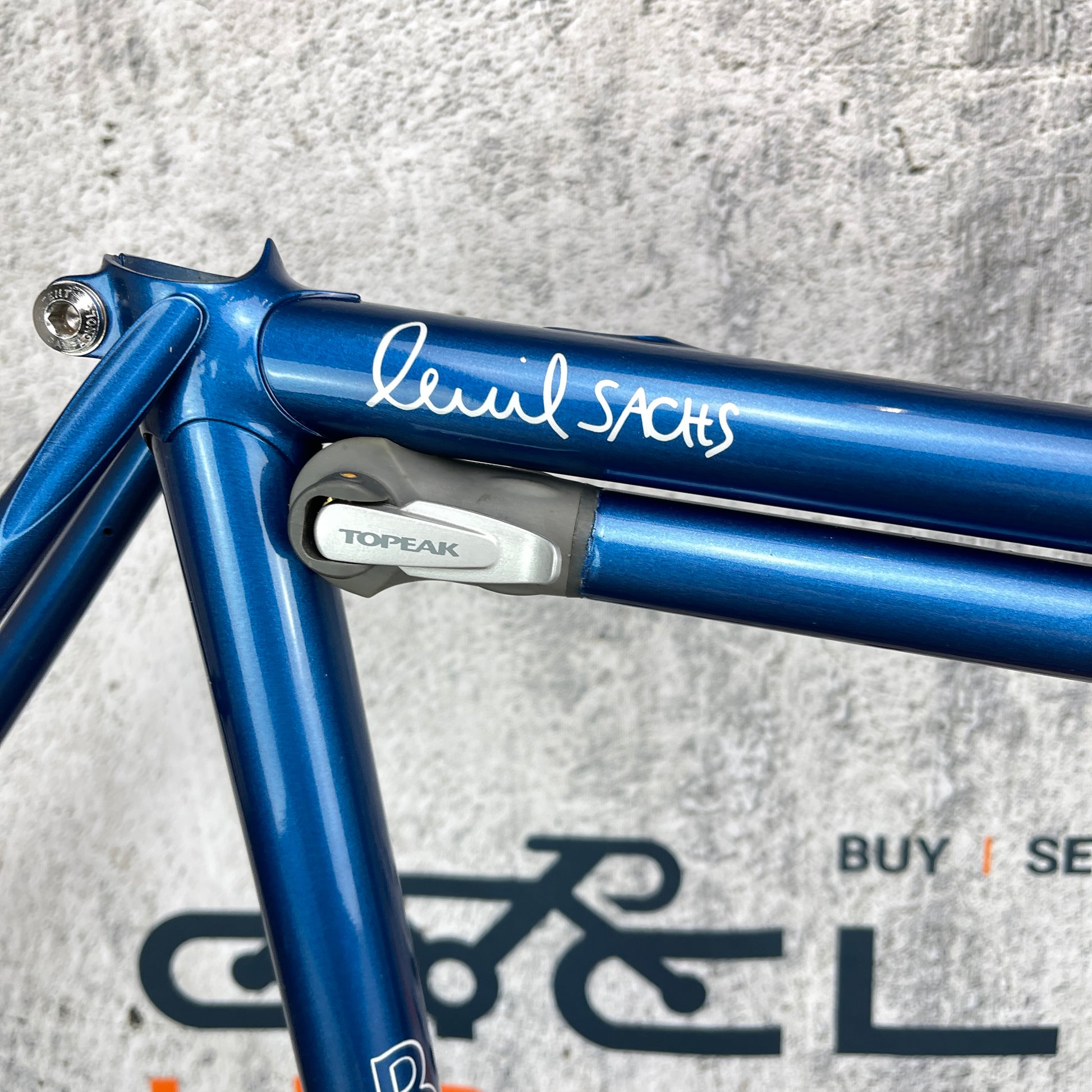

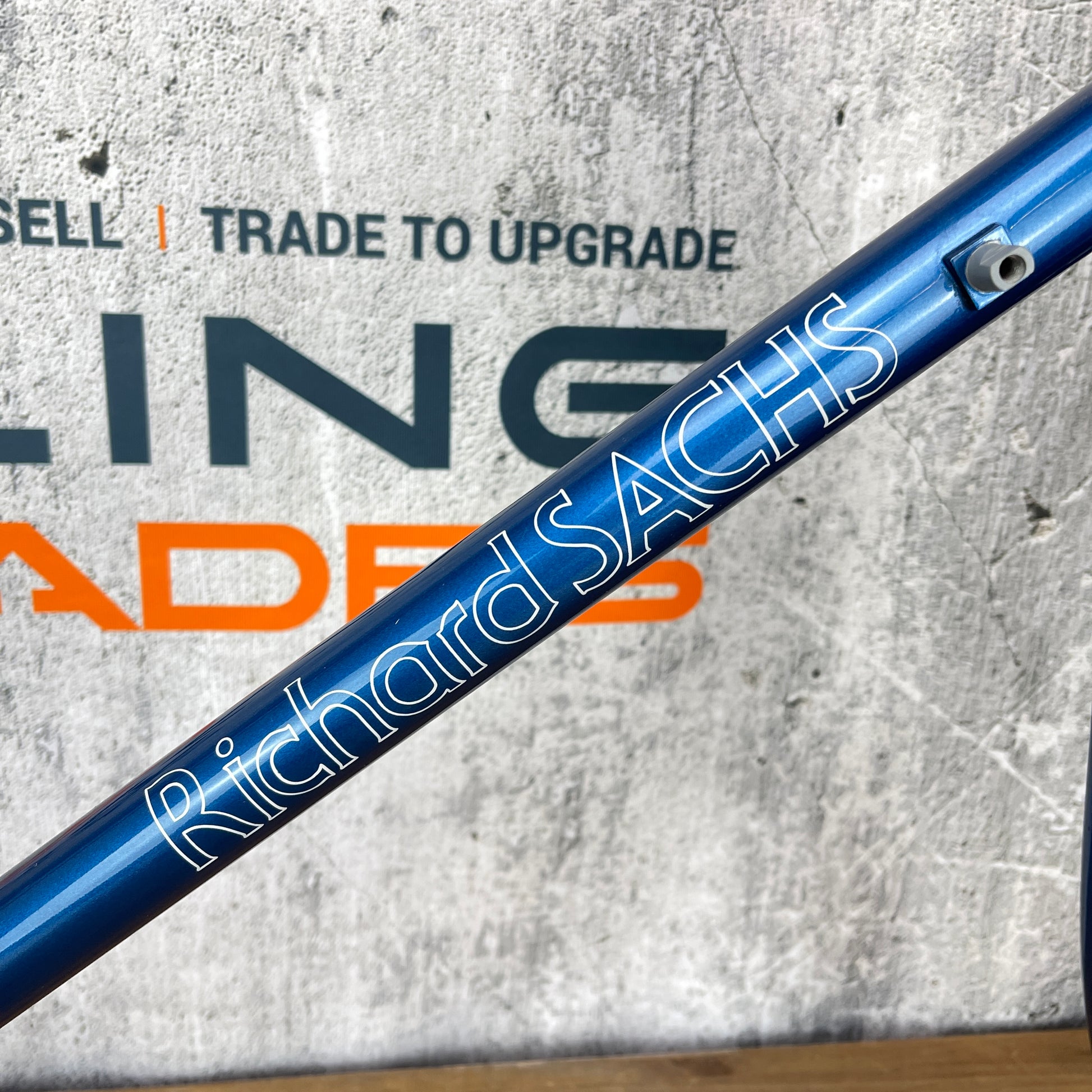

Instead of using a decal package, Richard allowed us to copy his original fonts and look. Craig duplicated the Sachs logos and signature, created spray templates and painted them on. So rather than decals, the white “Sachs” logos are real paint. Craig told me Richard “loved it”. Which is worthless, but what the heck it’s a fun frame story and we love this stuff."
Color: Blue
Brake type: Center-Mount rim brake.

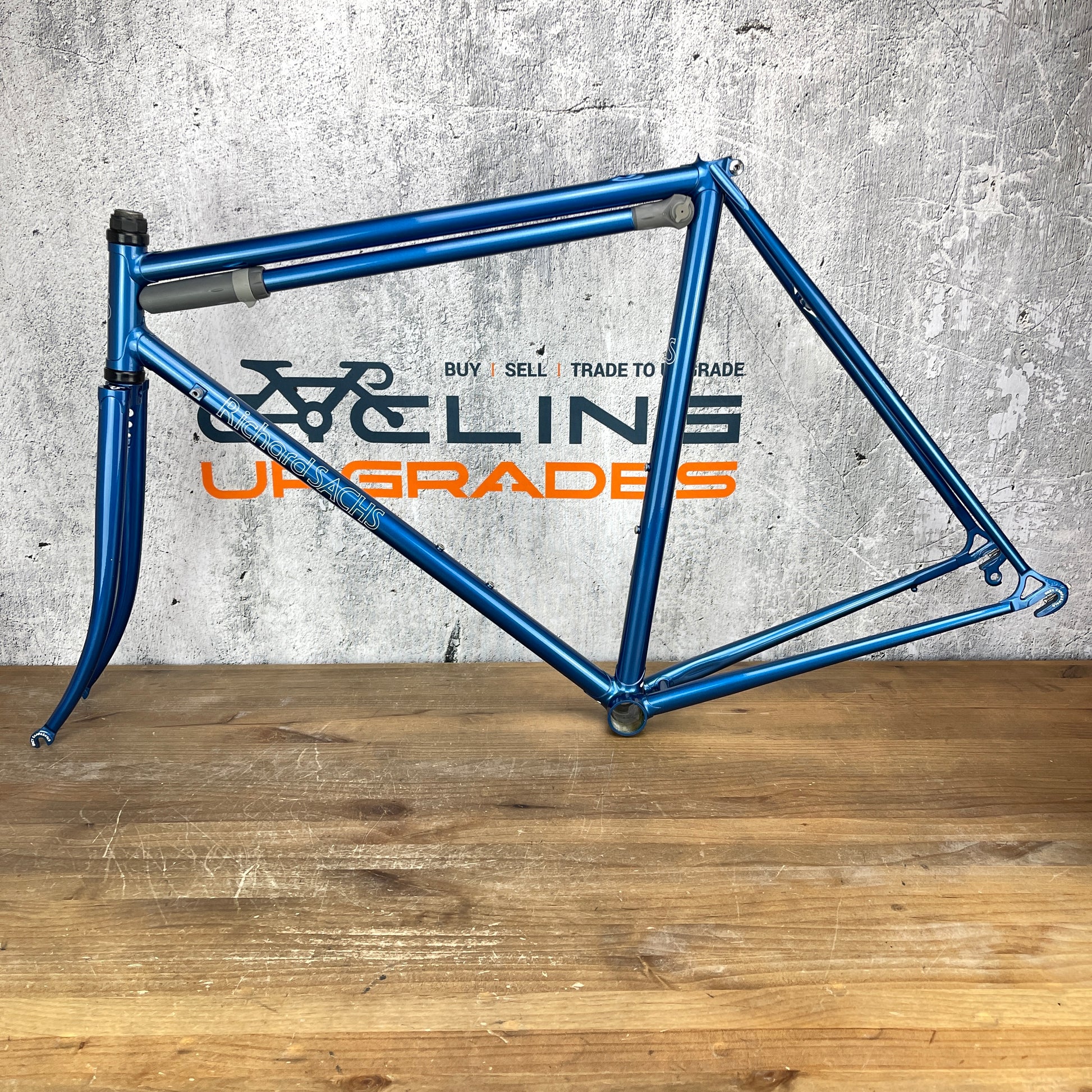

Size: 54.5cm, Actual measurements taken by hand are approximate and are as follows: 535mm stack, 395mm reach, 785mm standover height. 545mm actual top tube center to center. 530mm center of bottom bracket to center of top tube. 545mm center of bottom bracket to top of seat tube. Head tube 110mm. 410-420mm chainstay length. If other measurements or take-offs are needed, please feel free to ask. We have included in our last picture a photo of the frame with a wheelset on it to show the head and seat tube angles and top tube slope.
Condition: This frame is like new condition with new paint performed in 2013 as mentioned above, the frame has not been built or ridden after the repaint.
Groupset compatibility: Frame can be setup for eTap or mechanical groupsets. This frame is not compatible with Di2, or EPS setups. Mechanical cable guide below the bottom bracket intact.

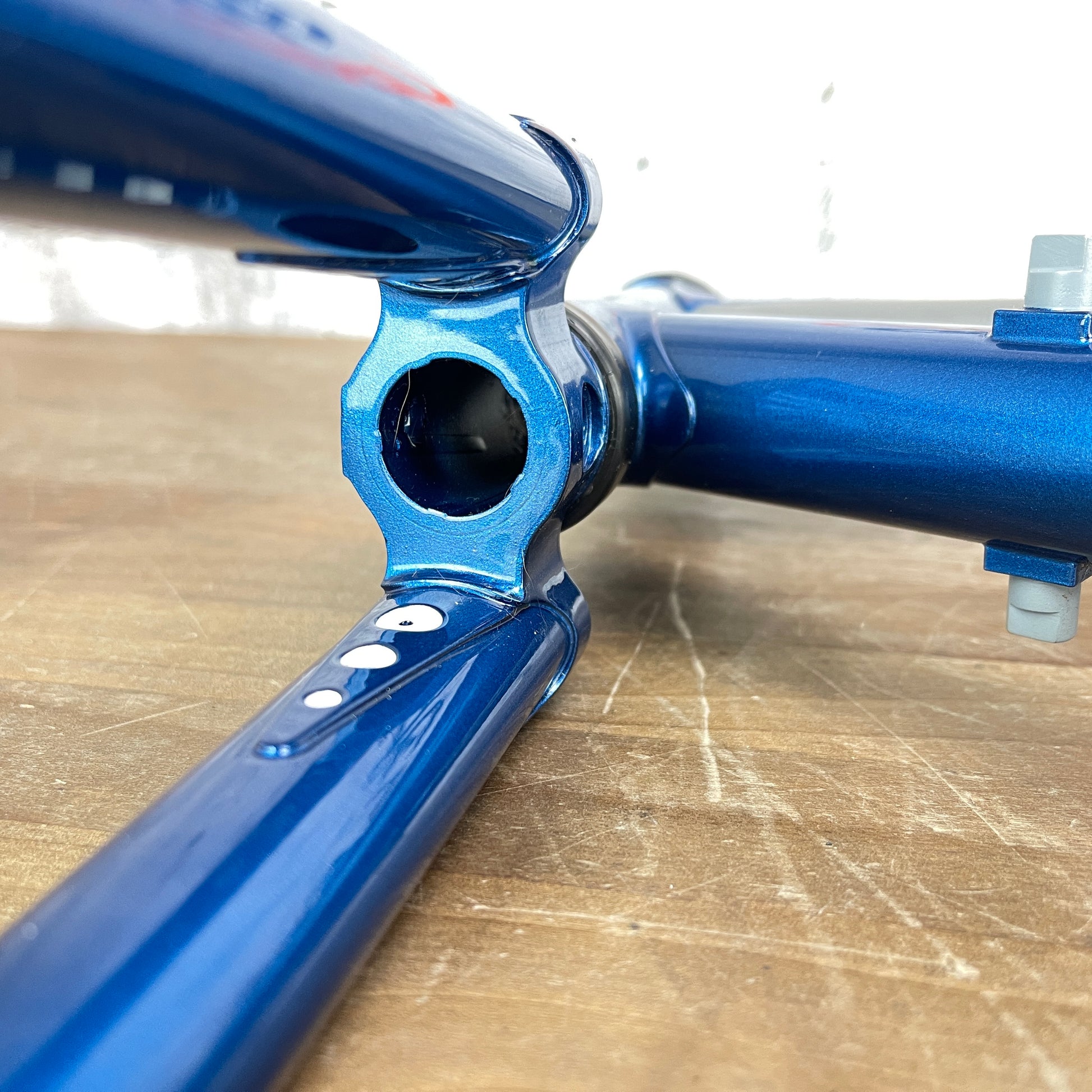

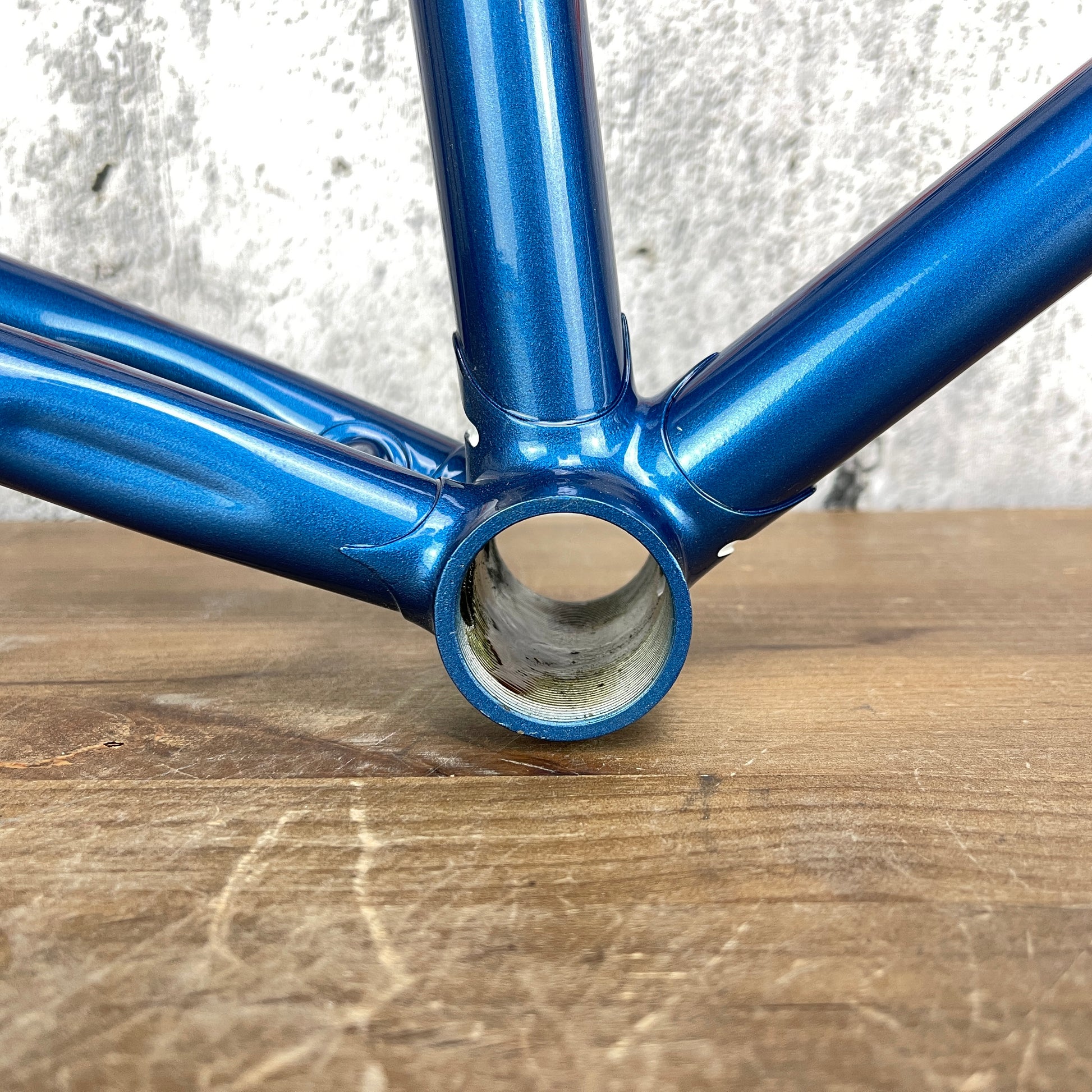

Bottom bracket: English threaded bottom bracket shell type. No bottom bracket currently installed. We have a handful of lightly used basic bottom brackets on hand, let us know what you need and we can try to ship the frame with the right bottom bracket installed. Additionally, CyclingUpgrades is a Wheels Manufacturing, and a Ceramicspeed Authorized Dealer, if you prefer to have the frame setup with a certain Wheels Manufacturing, or Ceramicspeed bottom bracket we can add and install it at an additional cost before shipping - message with inquiries/requests.
Steerer length: N/A - this frame/fork uses a quill style stem.
Seatpost: 27.2mm diameter. No seatpost included.
Dropout Spacing: QR x 100mm front, QR x 130mm rear.
Weight: 2629 grams without the frame pump.
What's included: Frame, fork, and pump. A plastic temporary headset was put on the frame for pictures, but is not included.
