Item Specifics
- Brand: Enve
- Bottom bracket shell type: T47/86
- Brake type: Disc Brake
- Dropout spacing: Front 12mm Thru Axle x 100mm, Rear 12mm Thru Axle x 142mm
- Fork type: Rigid
- Groupset compatibility: Frame can be setup for Di2, EPS, eTap, or mechanical groupsets. This frame was previously setup with an eTap groupset. Other frame/cable stops may be needed for Di2 or mechanical setups. Mechanical cable guide below the bottom bracket intact.
- Material: Carbon
- Model: Melee
- Mount type: Flat-Mount
- Part type: Bicycle Frame
- Steerer tube diameter: 1 1/8 in
- Wheel size: 700C
Product description
Product description

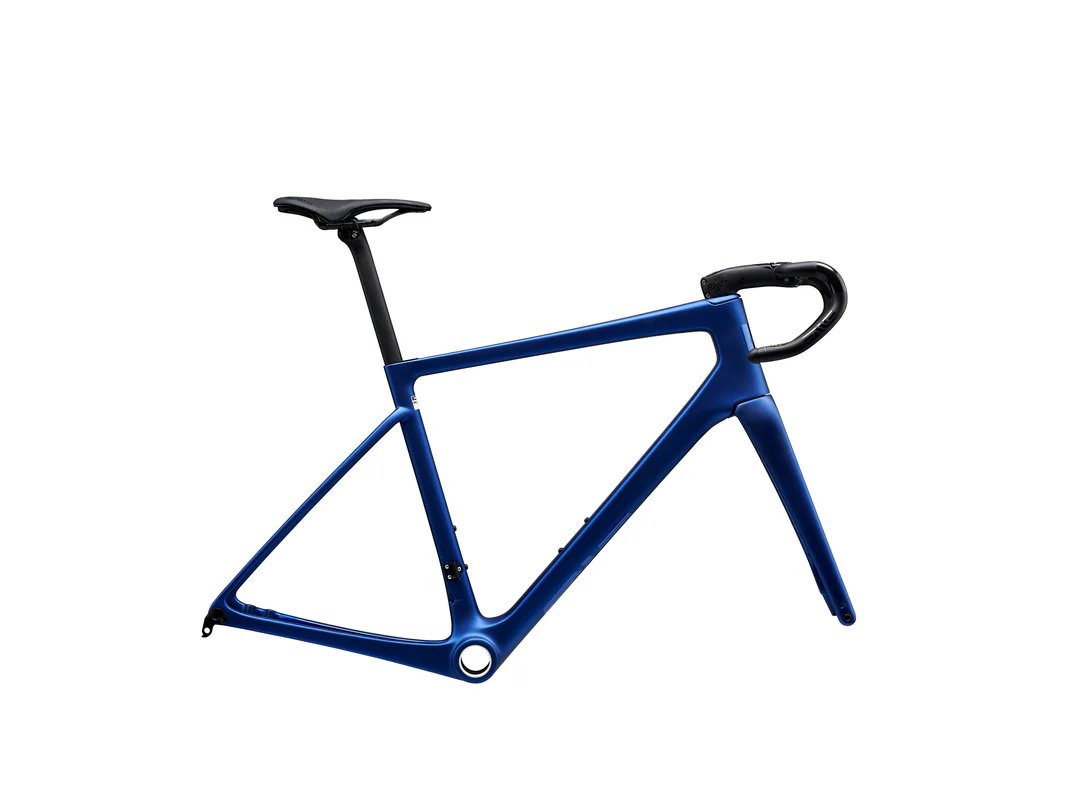

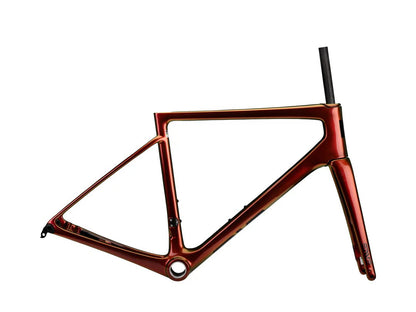

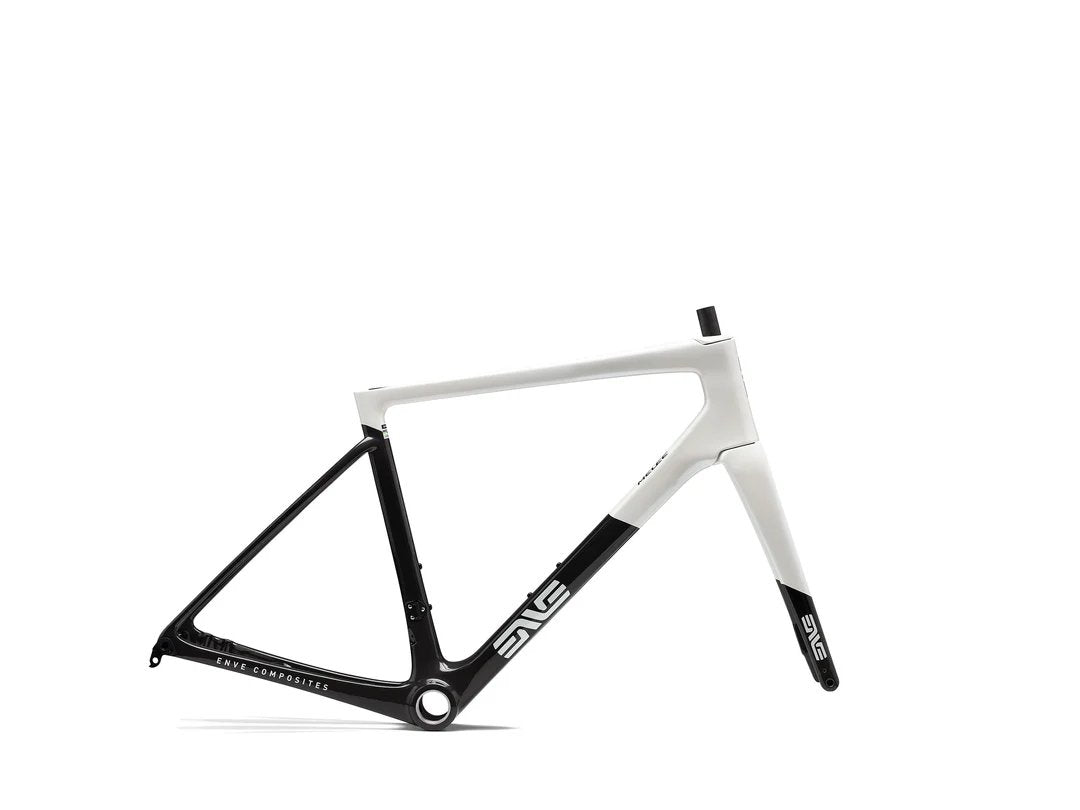

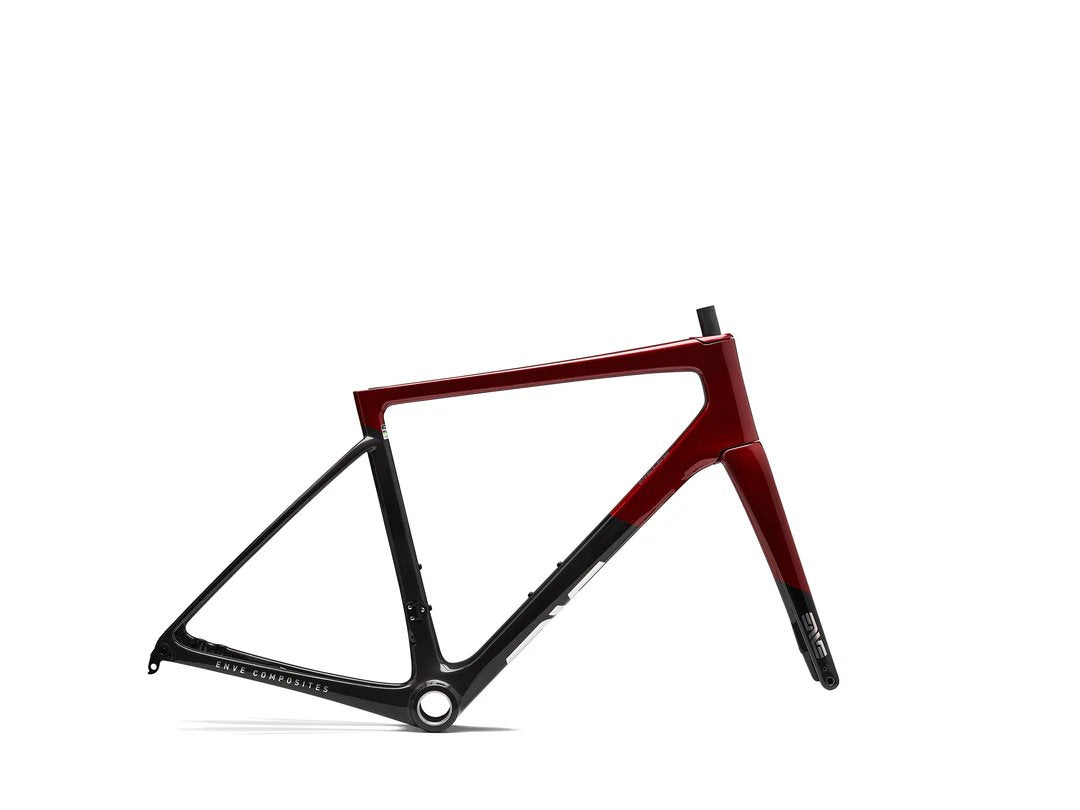

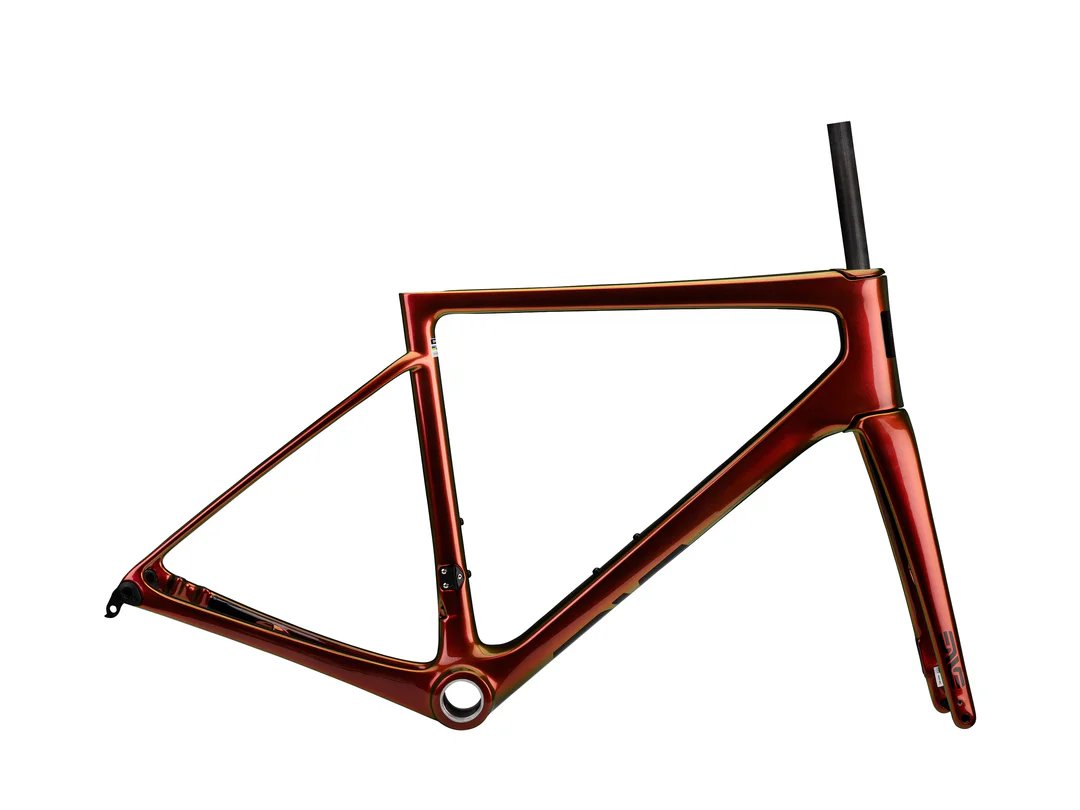

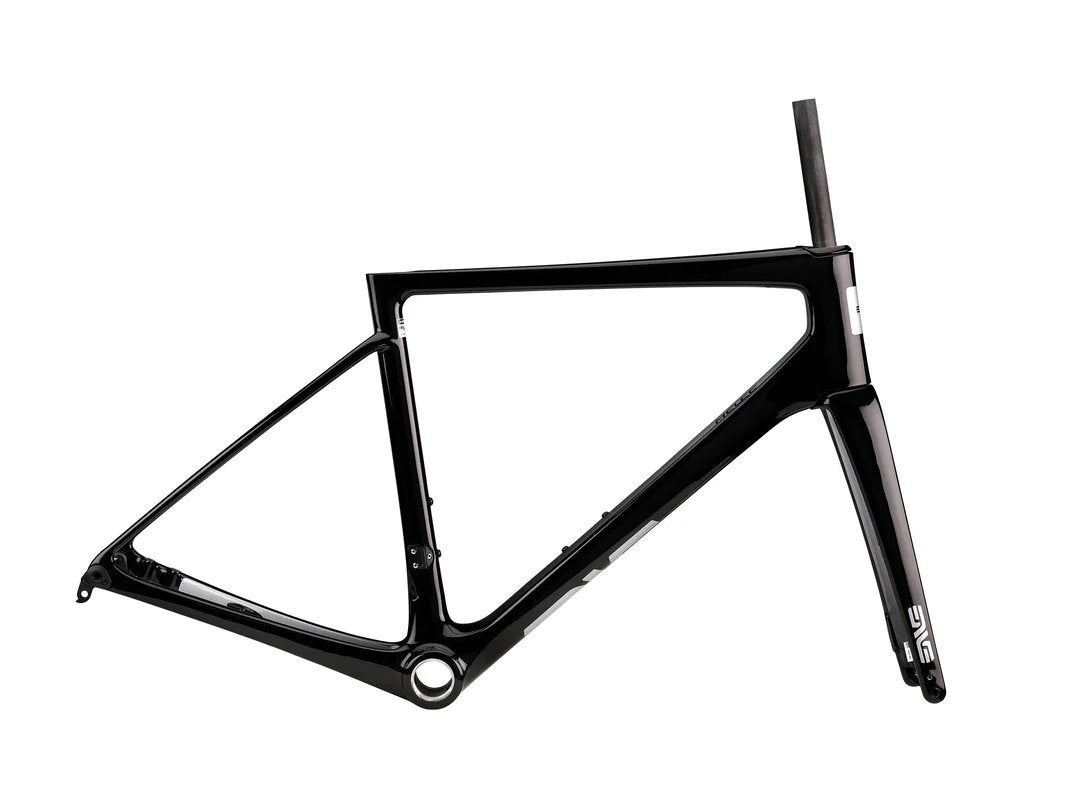

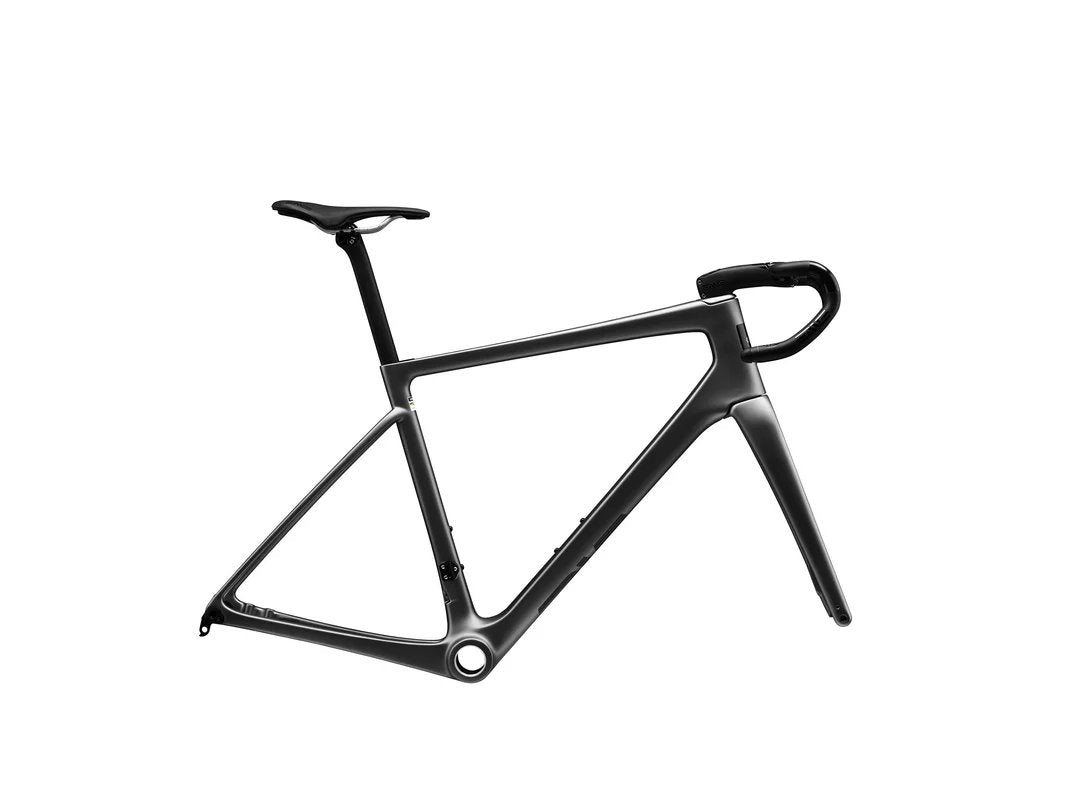

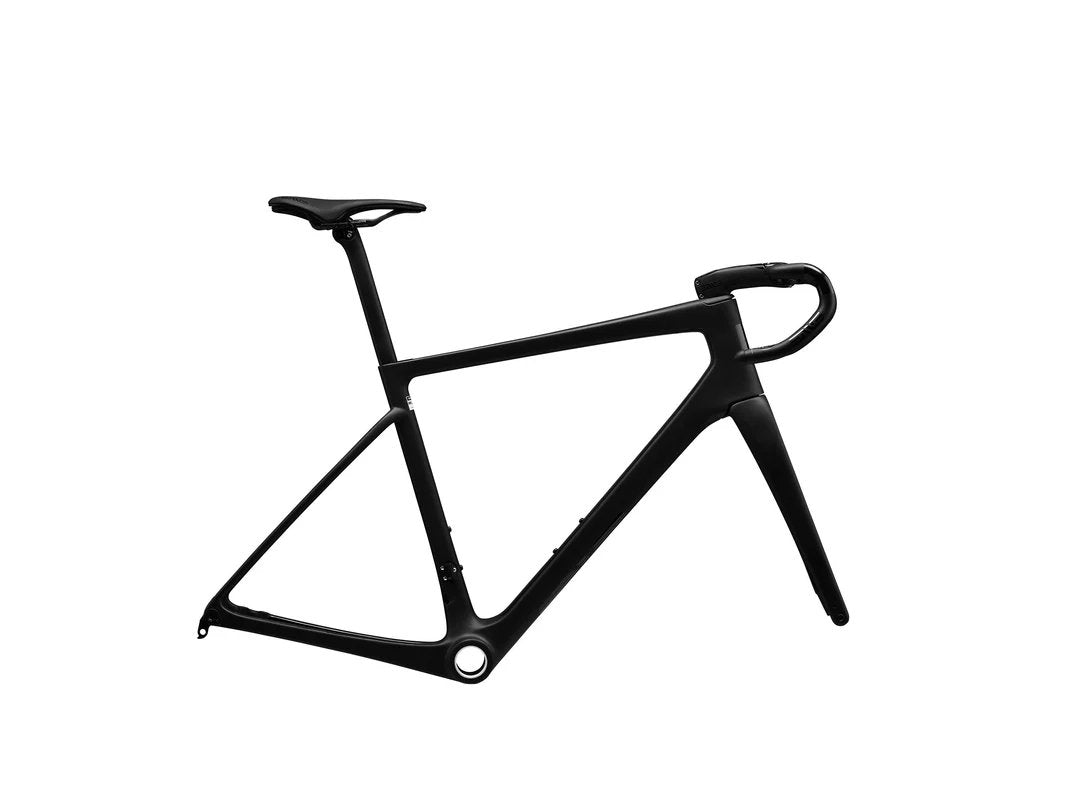

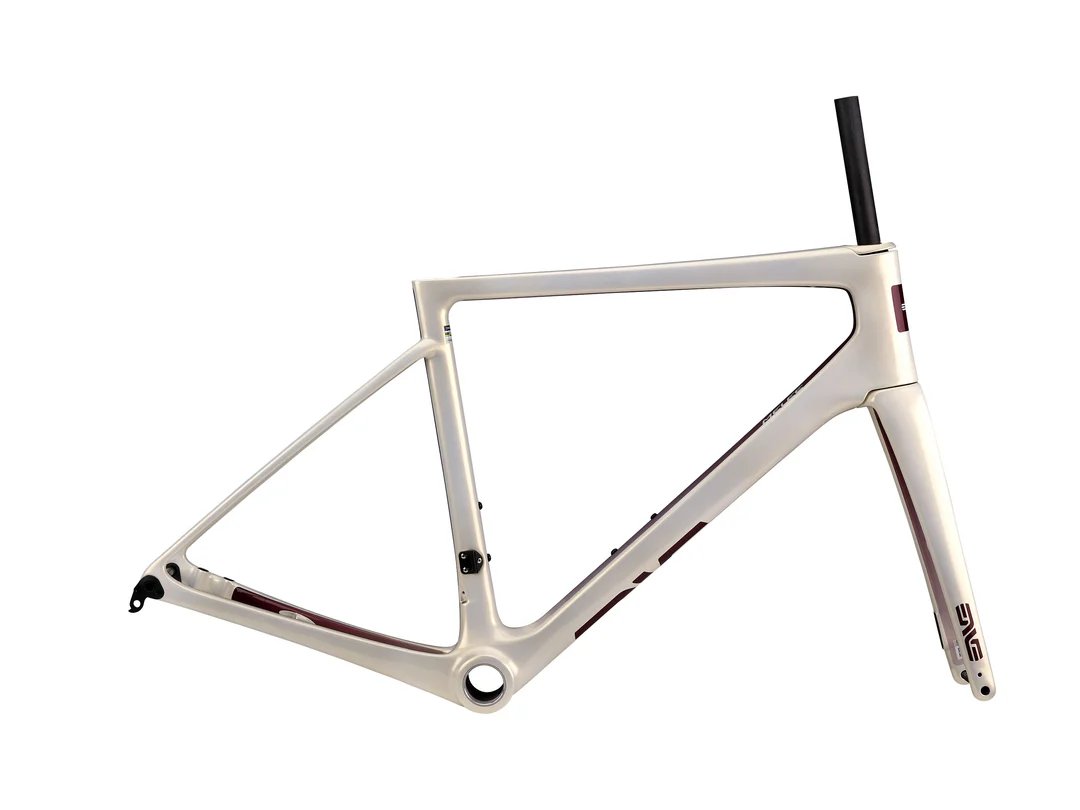

Frame: Enve Melee
Product Details
-
Real-World Fast™ Aero Optimization
-
Aero Tube Shapes Designed to Complement ENVE SES Rim Profiles
-
Maximum Tire Clearance: 35mm
-
Internal Cable Routing
-
Designed for Road Racing & Performance Riding
Frame & Fork
-
Frame Material: ENVE M.O.D Carbon
-
Fork Material: ENVE M.O.D Carbon
-
Bottom Bracket: T47 Inboard Bearing
-
Headset: ENVE Integrated IS52/IS52 Internal Drop-In
-
Headset Bearings: 1.5" IS52 Upper & Lower
-
Seatpost: ENVE Aero Seatpost
-
Brake Mount: Flat Mount Disc
-
Front Axle: 12x100mm
-
Rear Axle: 12x142mm
Frame Weight
-
850g ±2% (Size 56cm, Painted, No Hardware)
Tire Clearance
-
Minimum Tire Size: 25c
-
Optimal Tire Size: 27–32c
-
Maximum Tire Clearance: 35c

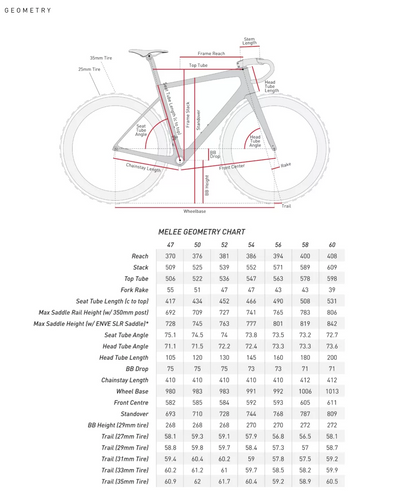

Available Sizes
-
47cm
-
50cm
-
52cm
-
54cm
-
56cm
-
58cm
-
60cm
Drivetrain Compatibility
-
Shimano Mechanical 1x: Yes
-
Shimano Mechanical 2x: Yes
-
Shimano Electronic Di2 (1x/2x): Yes
-
SRAM Mechanical 1x: Yes
-
SRAM Mechanical 2x: No (Melee requires continuous housing for front derailleur)
-
SRAM AXS (1x/2x): Yes
-
Campagnolo Mechanical 1x: Yes
-
Campagnolo Mechanical 2x: No (Melee requires continuous housing for front derailleur)
-
Campagnolo Wired EPS: No
-
Campagnolo Wireless EPS: Yes
Component Compatibility
-
Handlebars: ENVE IN-Route Recommended
-
Stem: ENVE IN-Route Recommended
-
Seatpost: ENVE Aero Seatpost
Brake Rotor Compatibility
-
Front Fork: 160mm Rotor Only
-
Rear Frame: 140mm Rotor
-
Rear Frame: 160mm Rotor with Adapter
Included
-
ENVE Melee Frame
-
ENVE Melee Fork
-
Front Axle
-
Rear Axle
-
Front Derailleur Mount
-
Rear Derailleur Hanger
-
M5 Button Head Accessory Bolts
-
Fender Mount Set Screws
-
Chainstay Protector
-
Disc Brake Rotor Protector
-
Front Derailleur Housing Grommet
-
Front Derailleur Di2 Grommet
-
Front Derailleur Cable Hole Grommet
-
Seatpost Clamp Kit
-
Headset Kit
-
Top Headset Bearing Cover (Frame Color Dependent)
-
Fork Compression Plug
-
Fork Brake Caliper Bolts & Washers
-
Owner's Manual
-
Torque Wrench with Extra Accessory Bits
-
Frame Finishing Kit (Cable Sheathing, Heat Shrink & Padded Foam)
Condition: This item is new. CyclingUpgrades is an authorized dealer.
