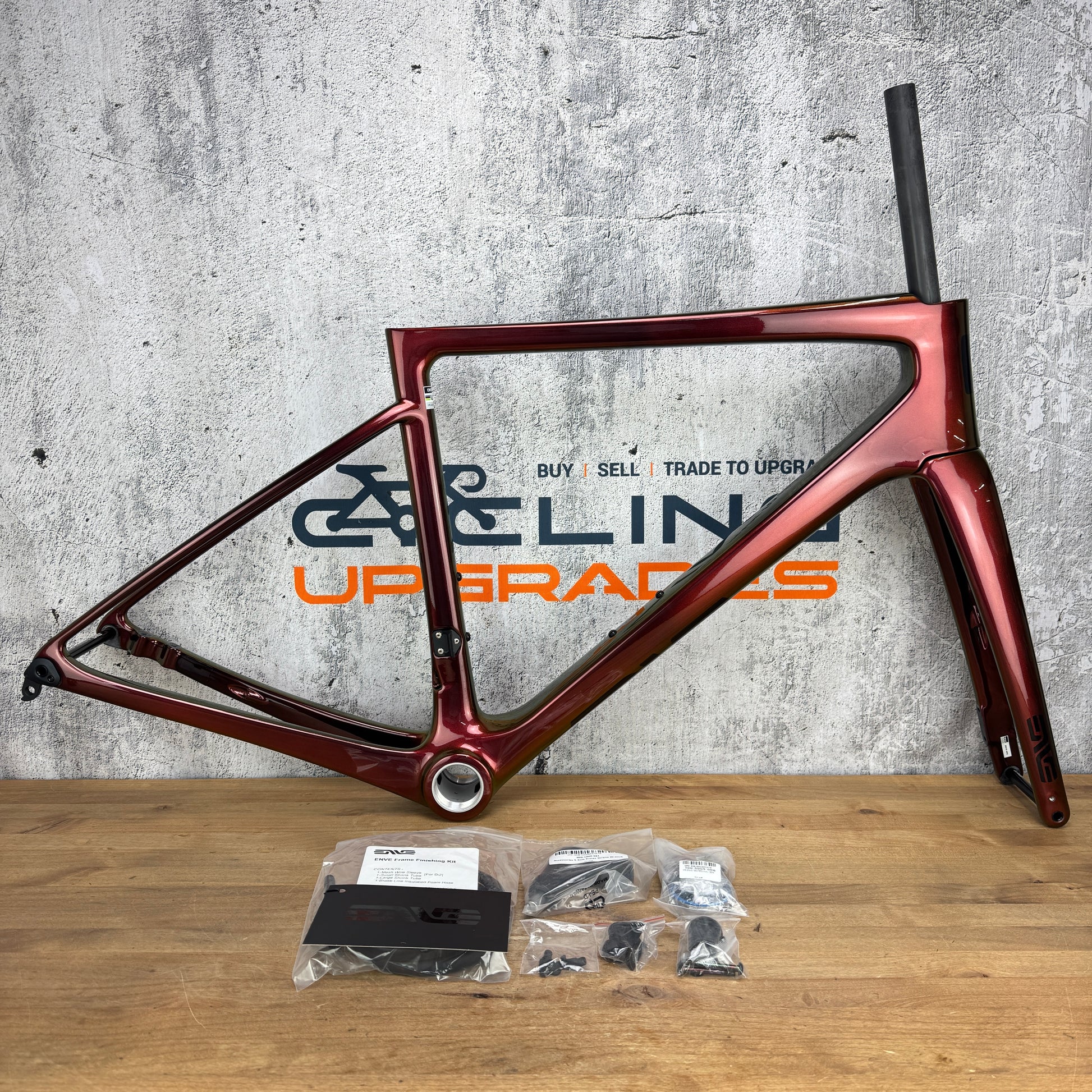

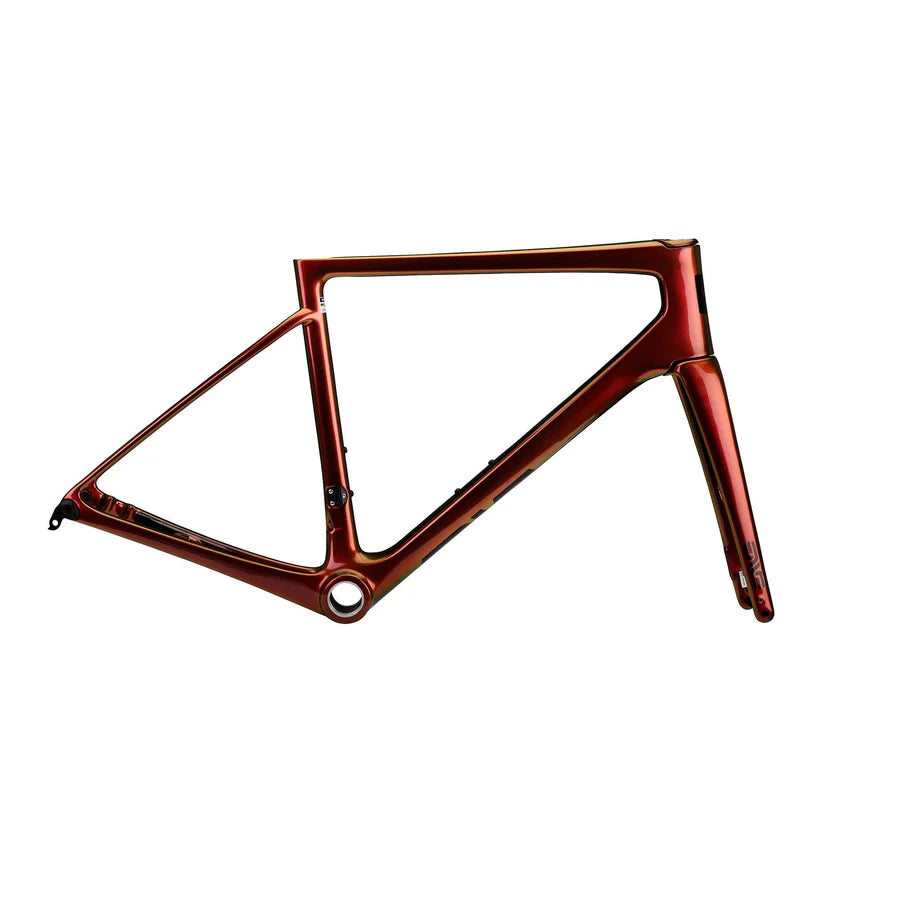

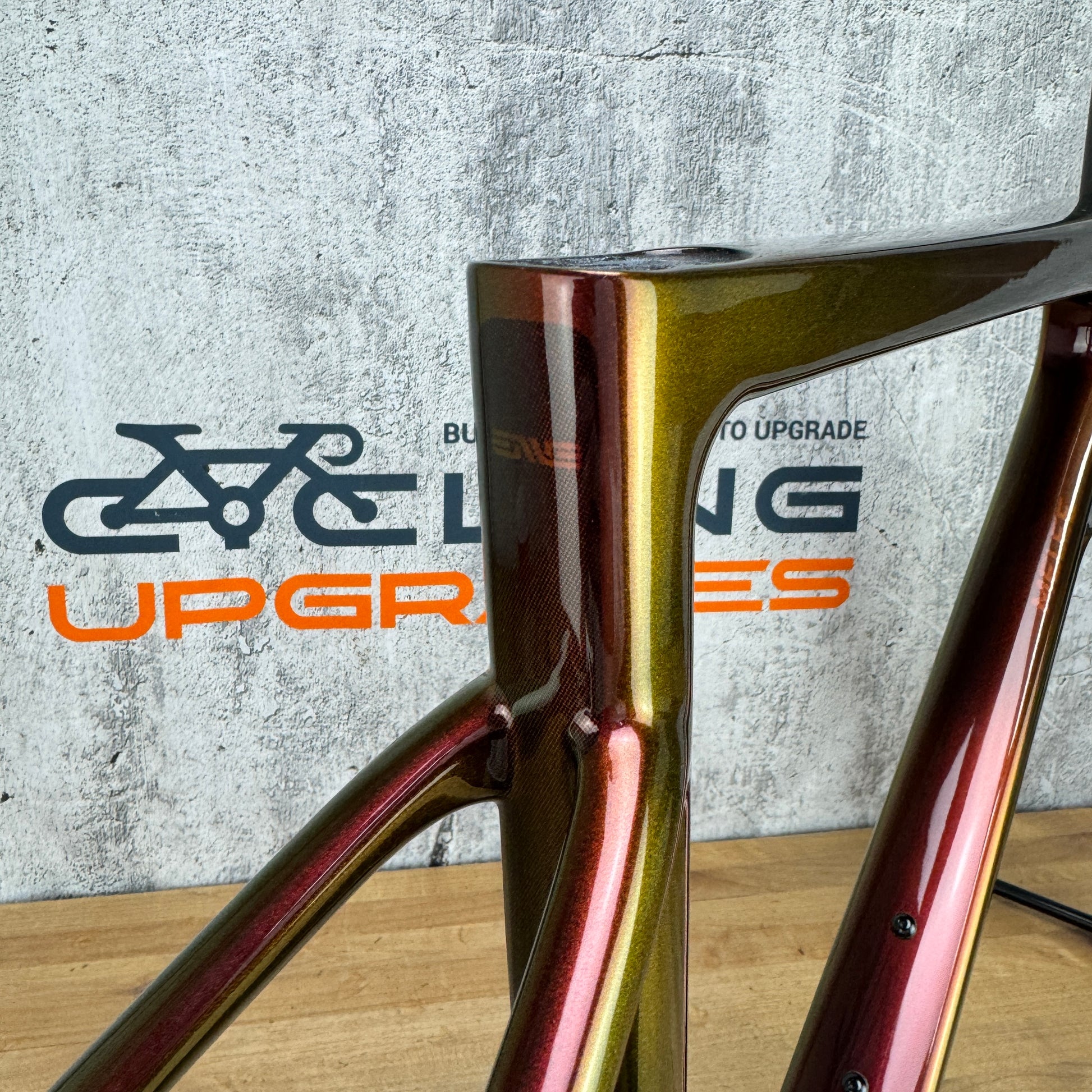

Frame: Enve Melee

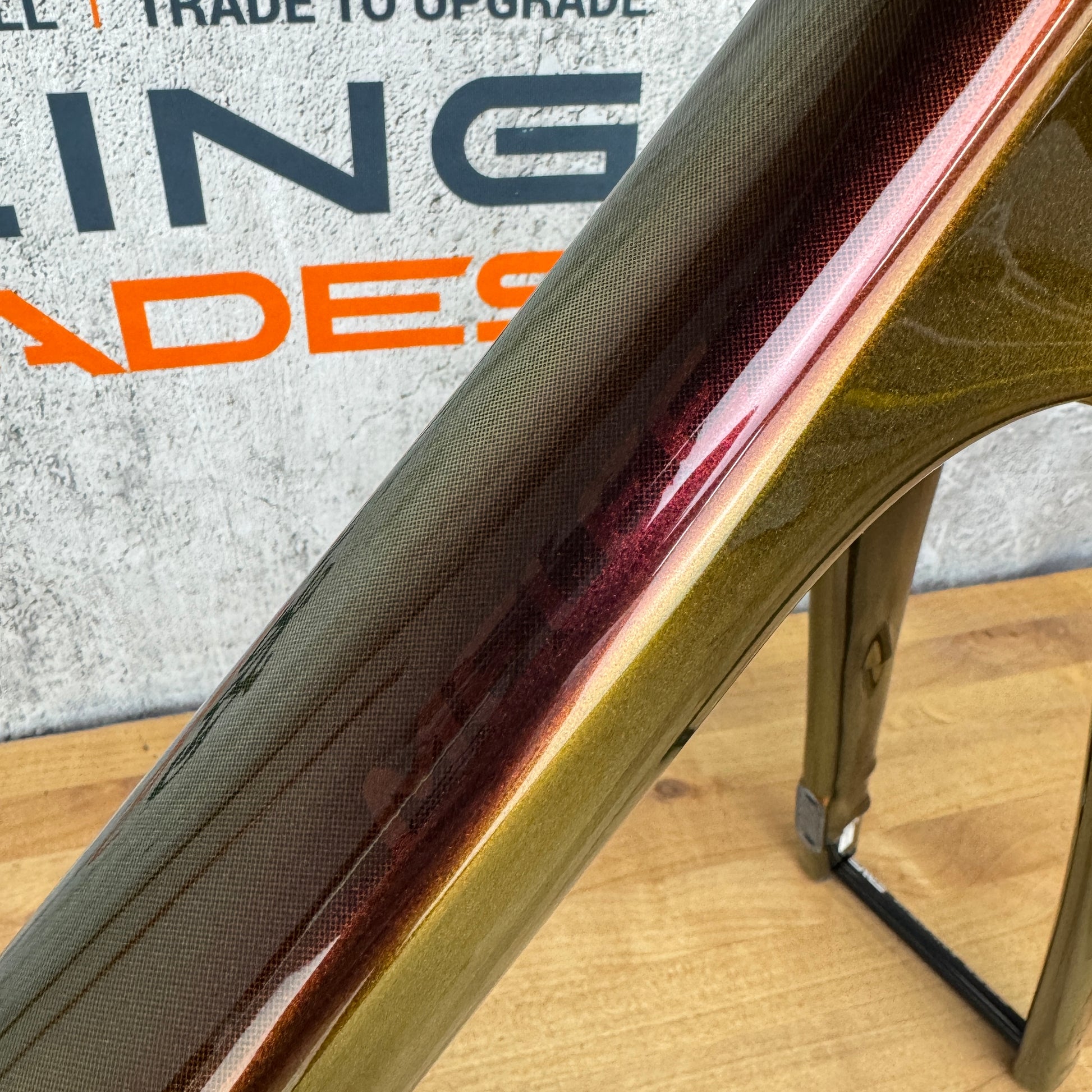

Color: Poison Apple
Brake Type:
Size: 54cm. 547mm Top Tube. Stack - 552mm. Reach - 386mm. Head Tube 145mm. Recommend buyer confirm and research full geometry online.
Key Features
-
Real-World Fast™ aero-optimized tube shapes complement ENVE SES rim designs
-
Lightweight performance road frame
-
Max tire clearance: 35 mm
-
Frame weight: 850 g (56 cm, painted, no hardware)
Frame Specifications
-
Frame Material: ENVE M.O.D. Carbon
-
Fork Material: ENVE M.O.D. Carbon
-
Target Application: Road Race / Performance
-

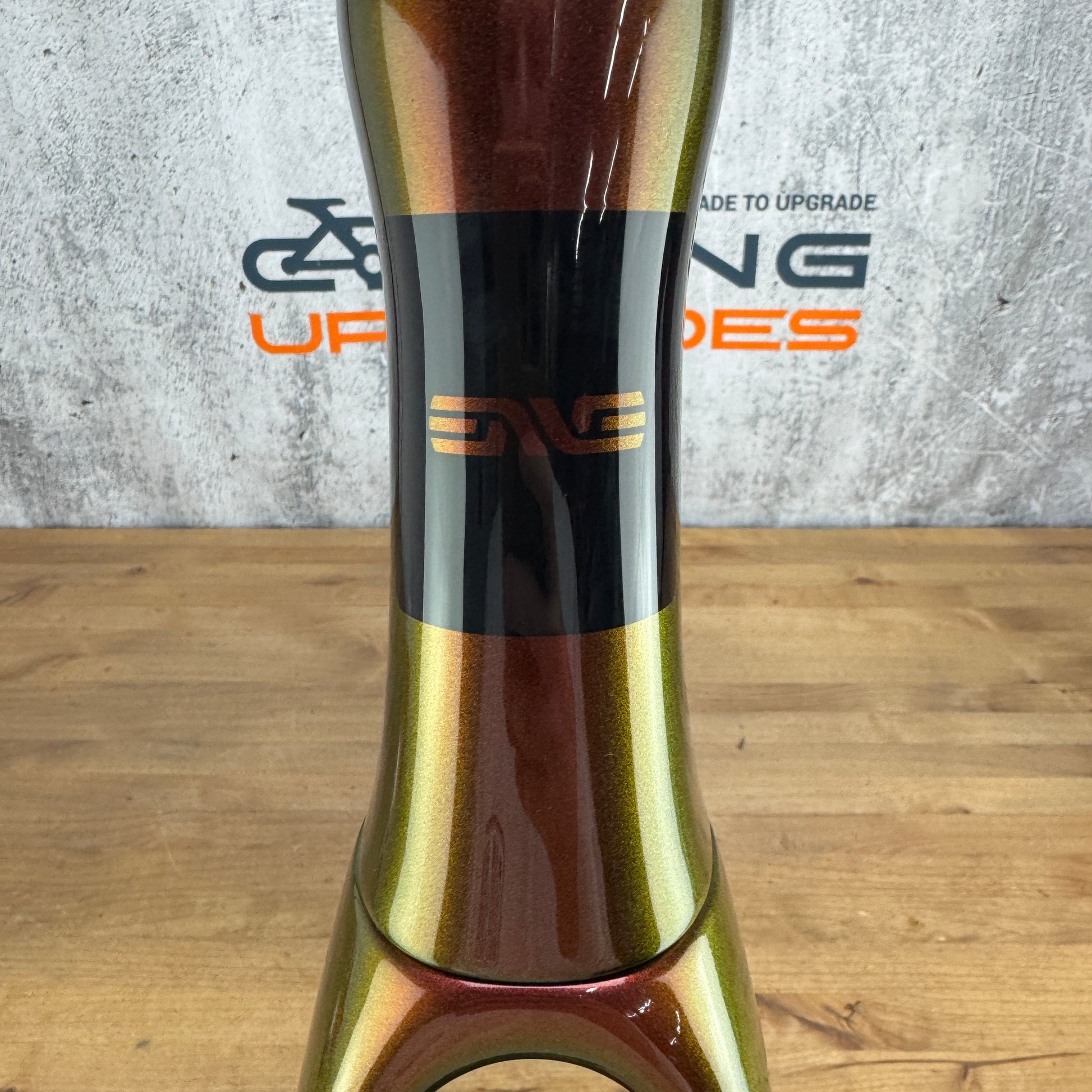

Headset: ENVE Integrated IS52/IS52 (Internal Drop-In)
-
Headset Bearings: 1.5″ IS52 upper & lower
-
Seatpost Diameter: ENVE Aero
-
Bottom Bracket Type: T47 Inboard Bearing
-
Brake Mount: Flat Mount Disc
-
Axles:
-
Front: 12 × 100 mm (Total Length 122 mm / TP 1.5 / TL 15)
-
Rear: 12 × 142 mm (Total Length 168 mm / TP 1.5 / TL 14)
-
-
Frame Routing: Internal
Tire Compatibility
-
Minimum: 25c
-
Optimal: 27c – 32c
-
Maximum: 35c
Condition: This item is new. CyclingUpgrades is an authorized Enve dealer.

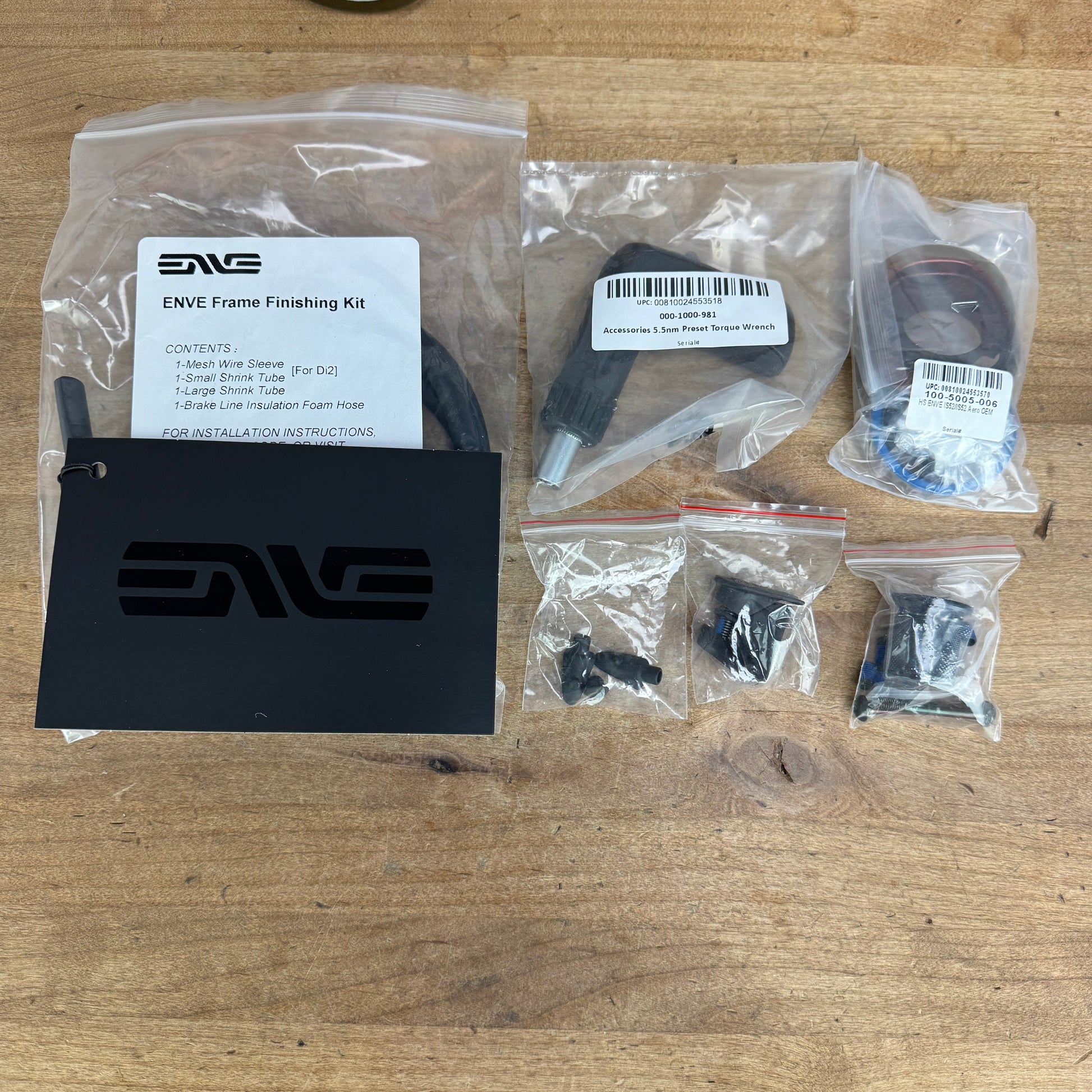

What's included: Frame, fork, headset, rear derailleur hanger, thru axles, frame finishing kit.
