Brand/Model: Ceramicspeed T47/86 Inboard 105150
From CeramicSpeed:

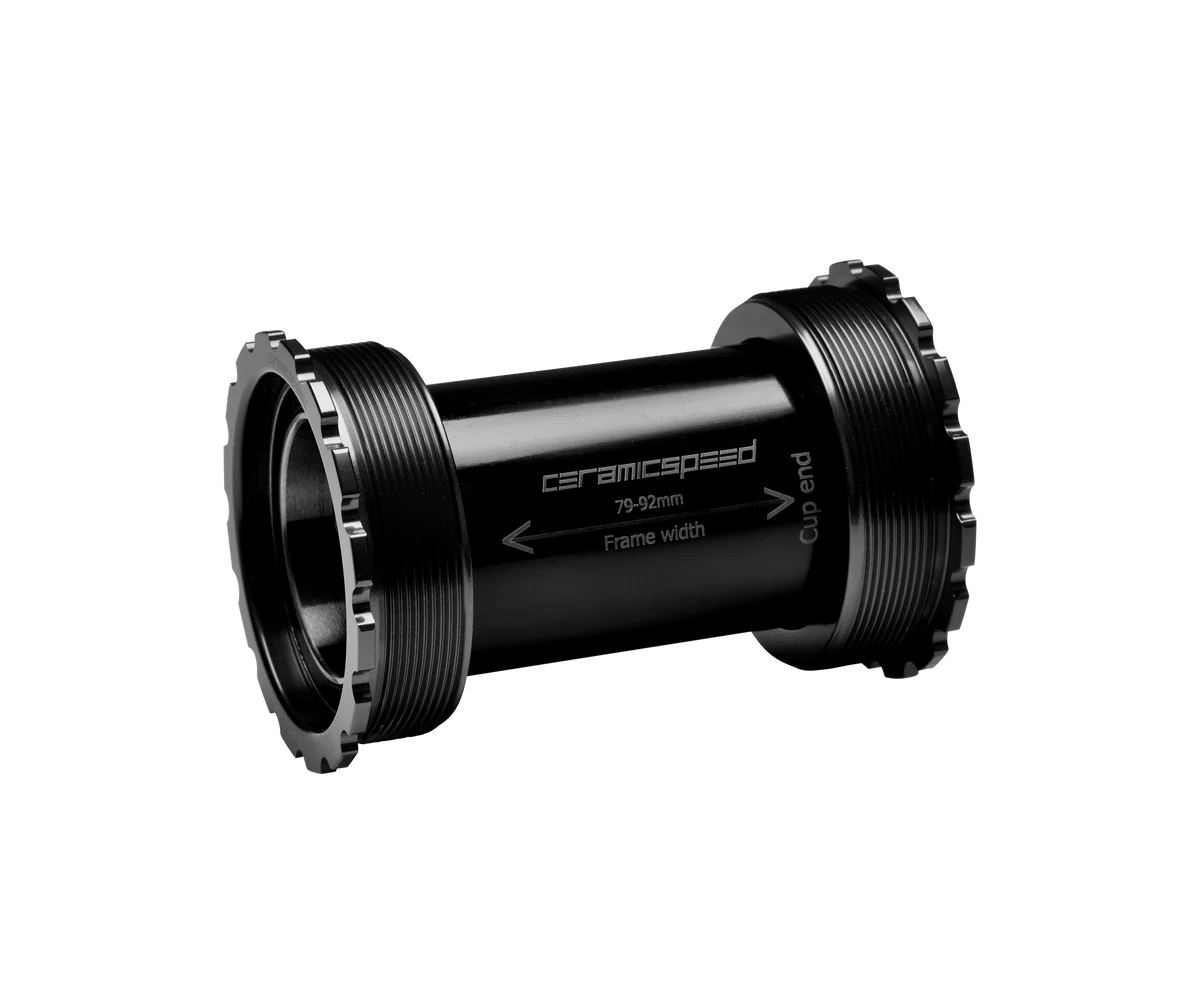

The T47 threaded bottom bracket shell utilizes an oversized interface of PF30 and EVO386, but with the benefit and peace of mind of a threaded interface. T47/86 places the bearings within the width of the frame and is compatible with 85,5mm wide Trek frames, as well as standard 86mm wide T47 Inboard frame designs. T47 is a standard created by custom frame builders. It’s threaded, has an inner diameter of 47mm, and is 86mm wide. It has the design benefits of being oversized and wide, but also the practical benefits of threads.
This kit pairs those bb’s with 30mm spindle cranks. The cups have CeramicSpeed bearings pressed in. There are two bearing options. The Standard Bearing has CeramicSpeed Balls and hardened-steel races. The Coated Bearing has the same balls running on a 3-micron thick coating placed on top of those hardened-steel races for greater durability and less friction still.
This BB is compatible with 86mm frames, and also compatible with TREK T47 85.5mm wide frames.
Part Number: 105150
Bearing Type: Ceramic
Weight: 94 grams
For Spindle Type: 30mm
For Bottom Bracket Type: T47
Condition: This item is new in box with warranty. CyclingUpgrades is an authorized CeramicSpeed dealer.
At CyclingUpgrades, we fulfill all orders next business day or sooner. Generally we are able to fulfill orders placed by 12pm MT on the same day, however it is not guaranteed. We ship all items via USPS except for frames/wheels which ship via UPS or Fedex. Please check our other listings for additional cycling upgrades and thank you for shopping our store!
