Brand/Model: Ceramicspeed BB Alpha

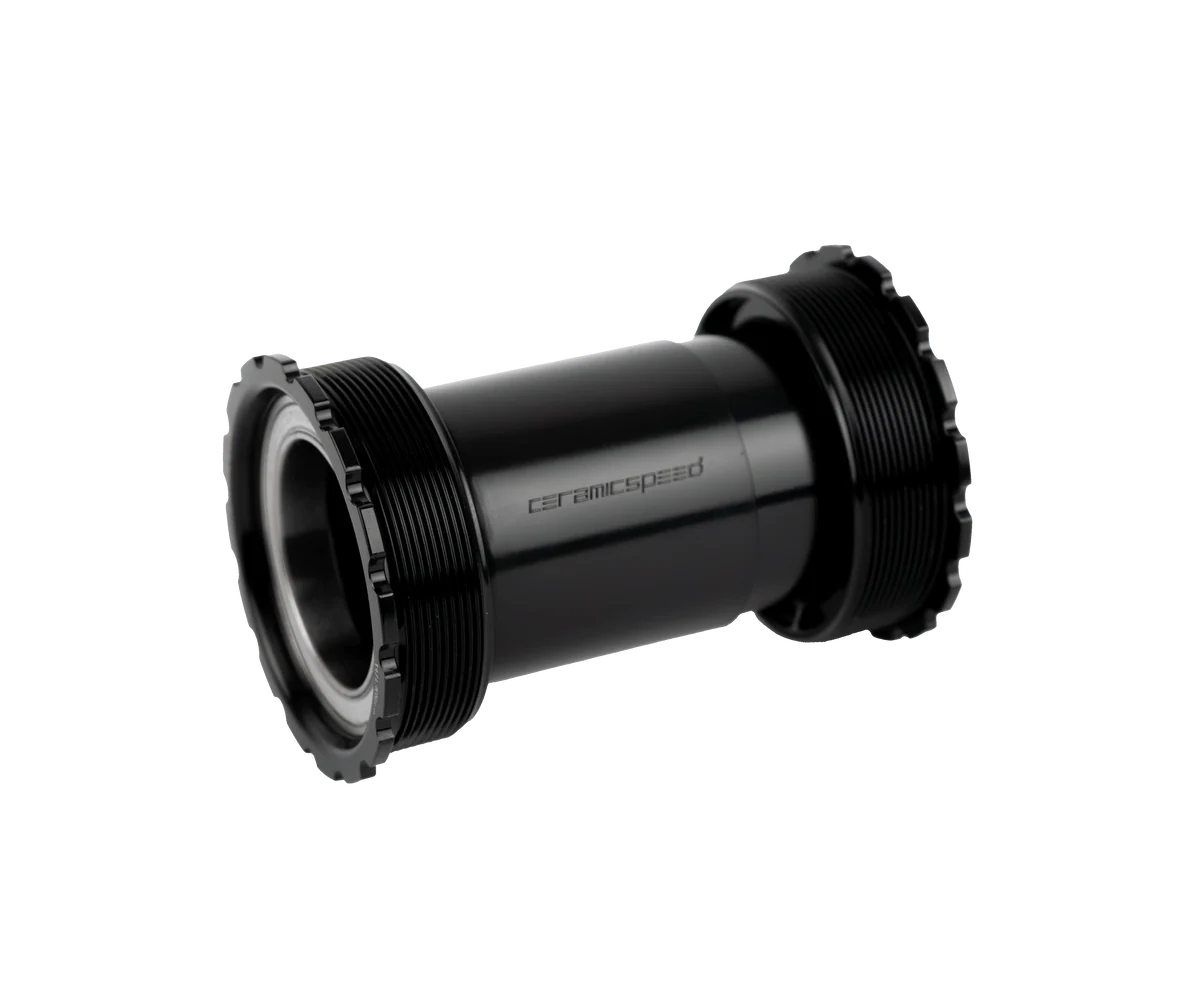

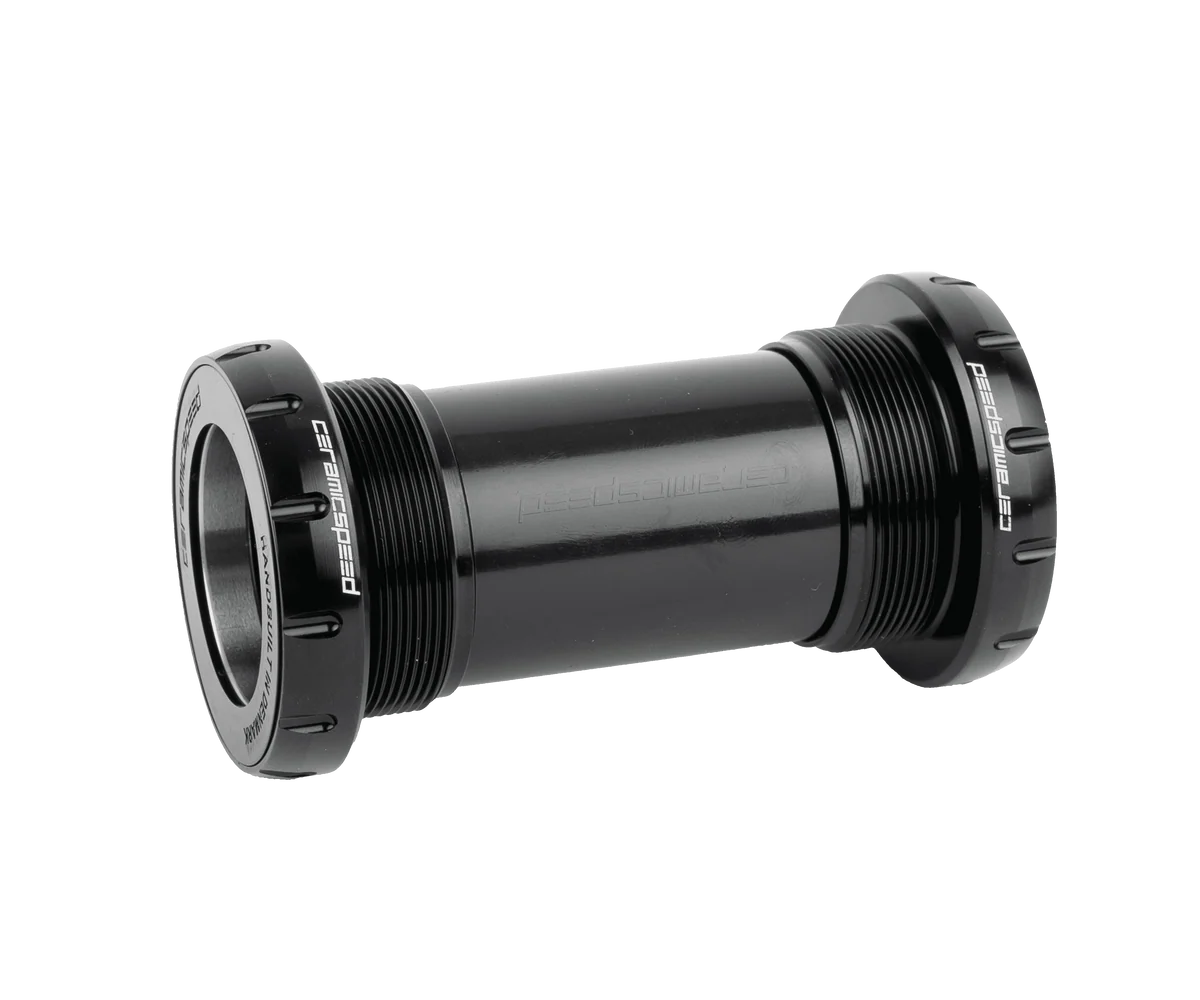

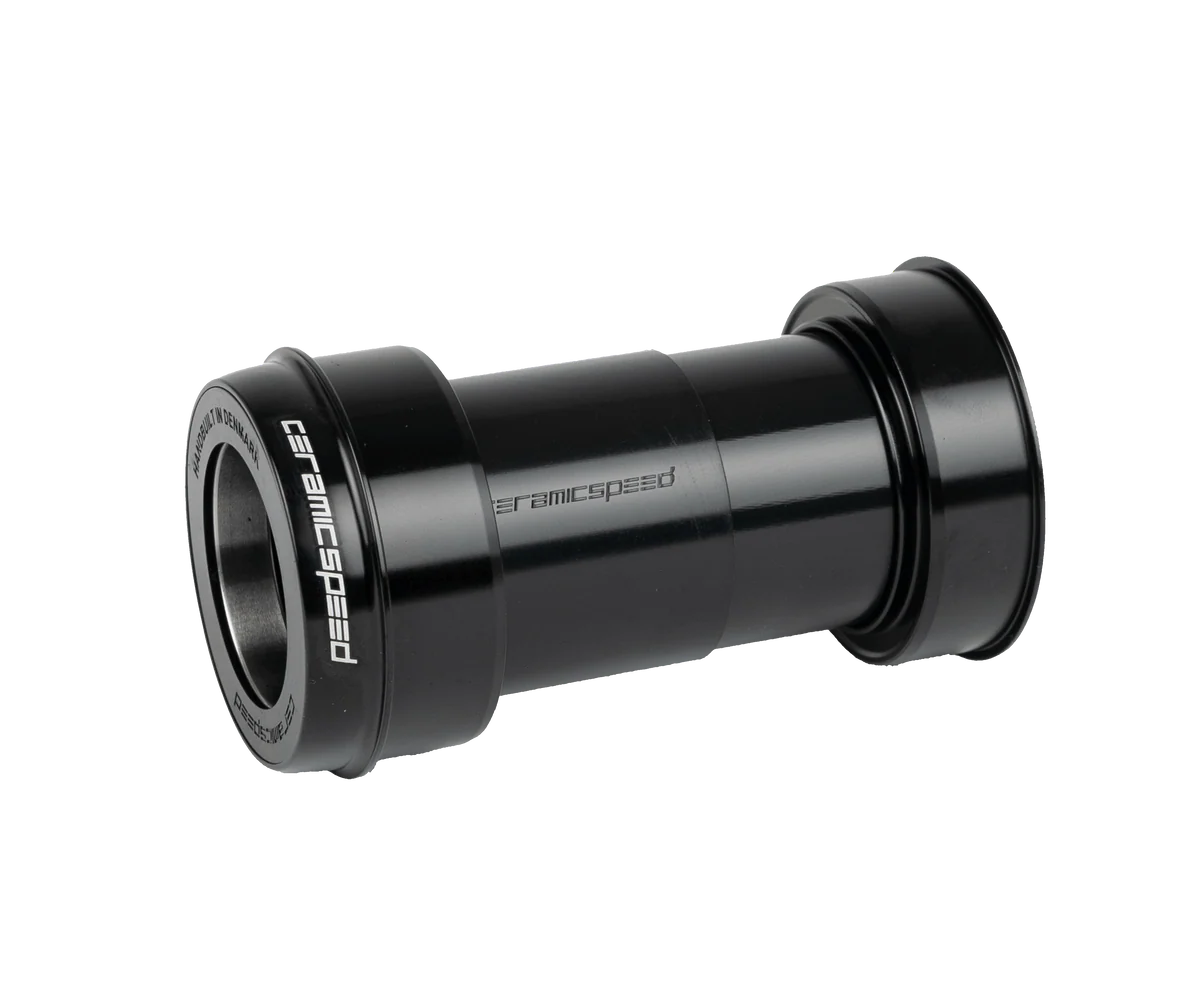

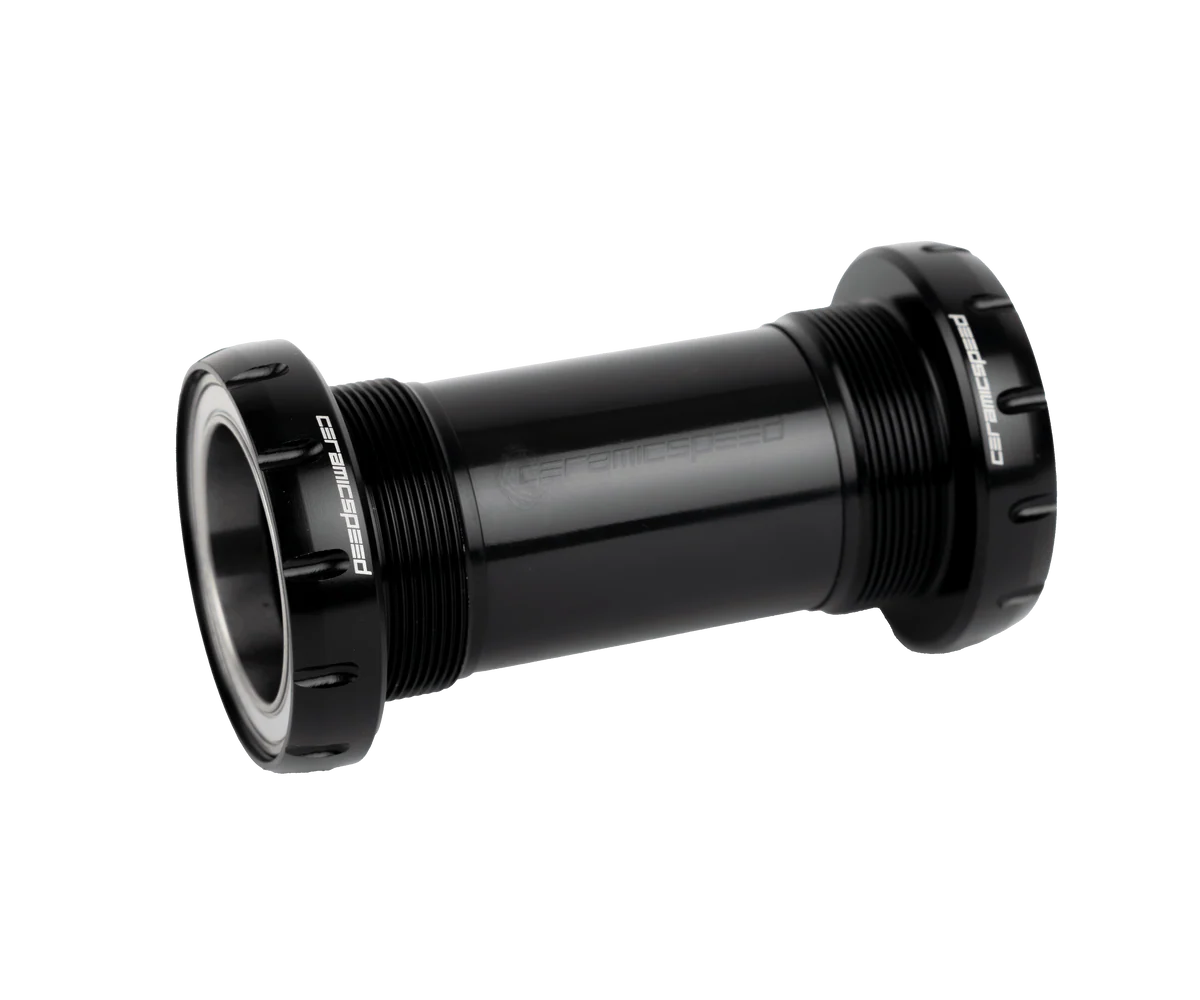

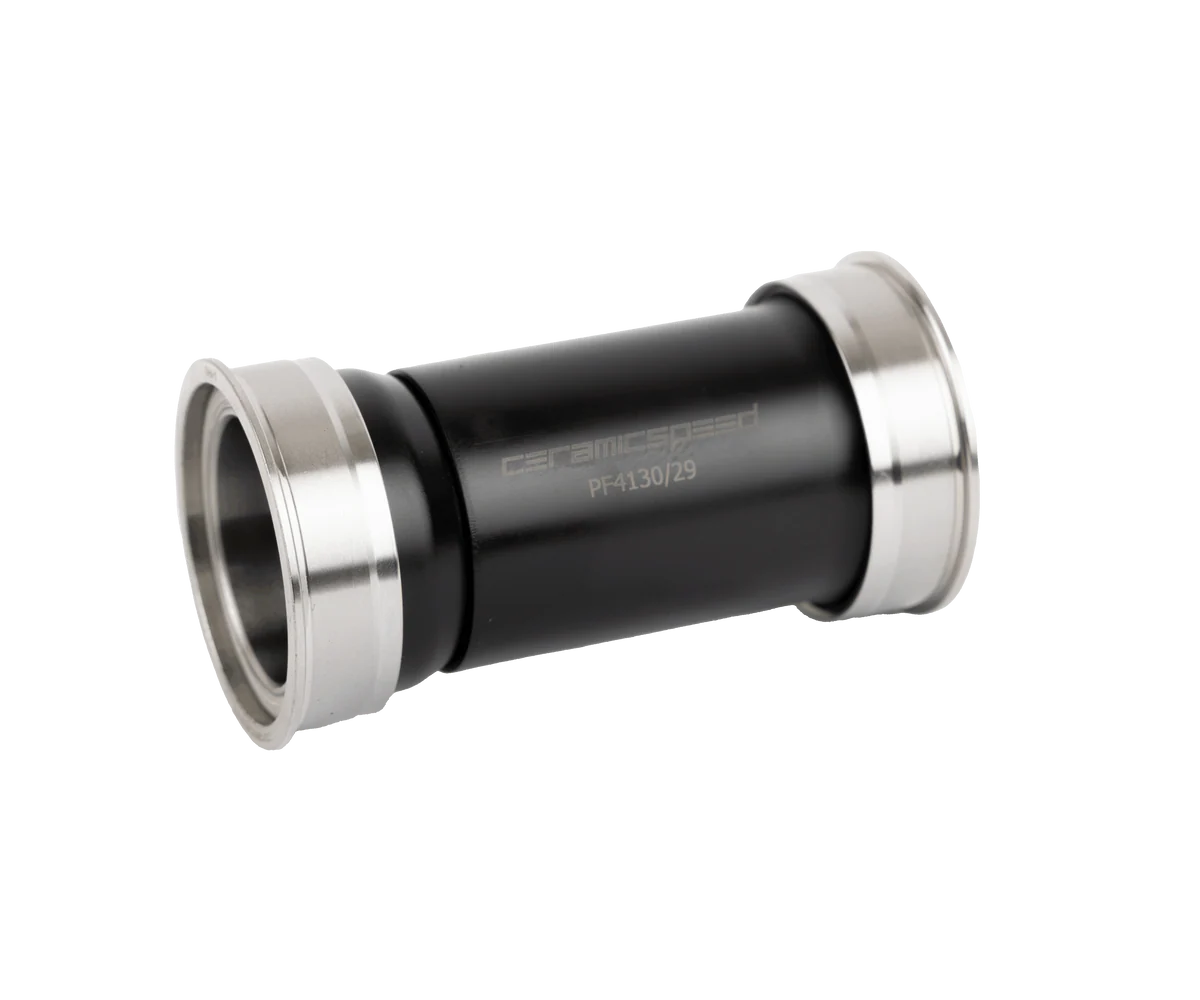

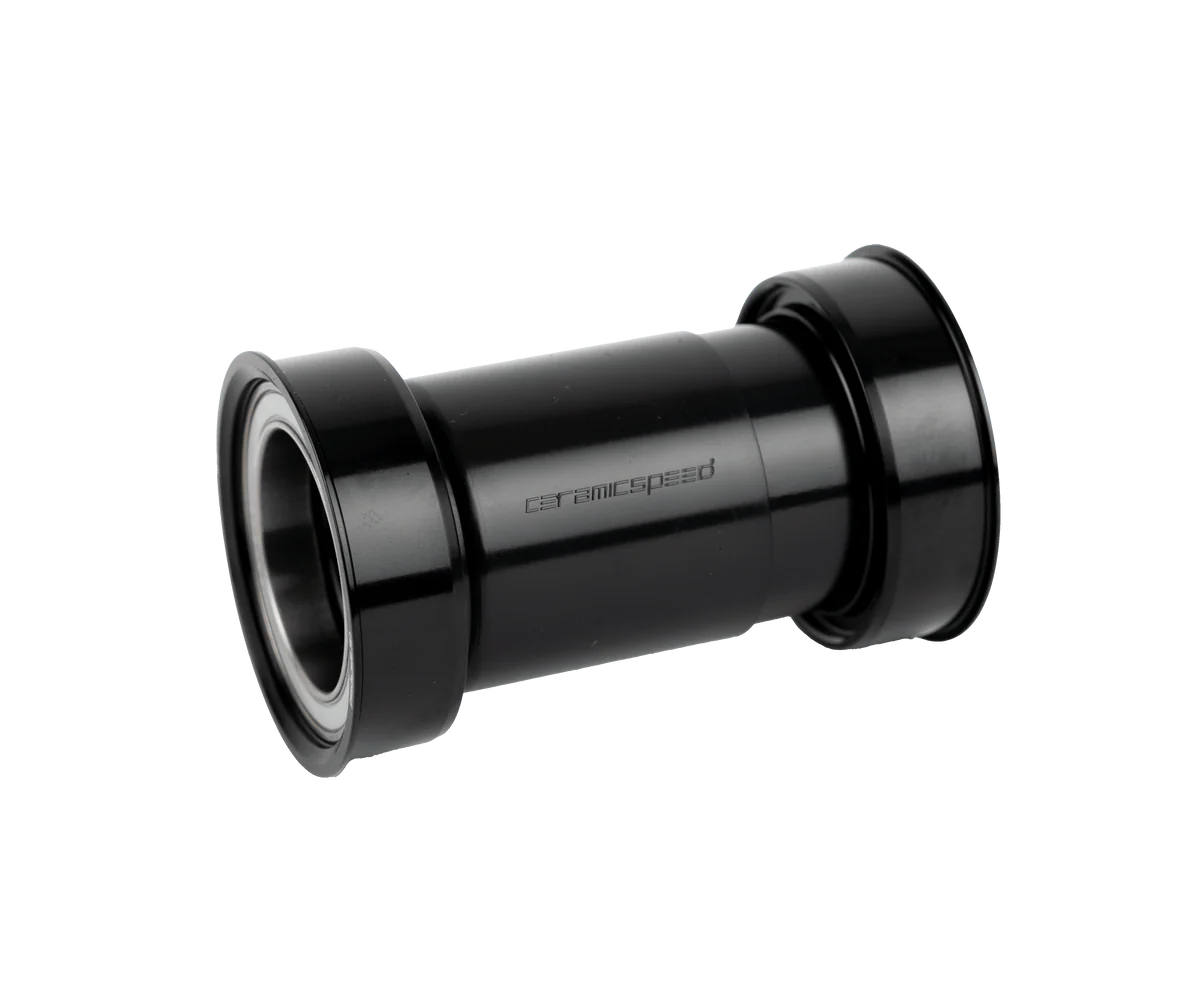

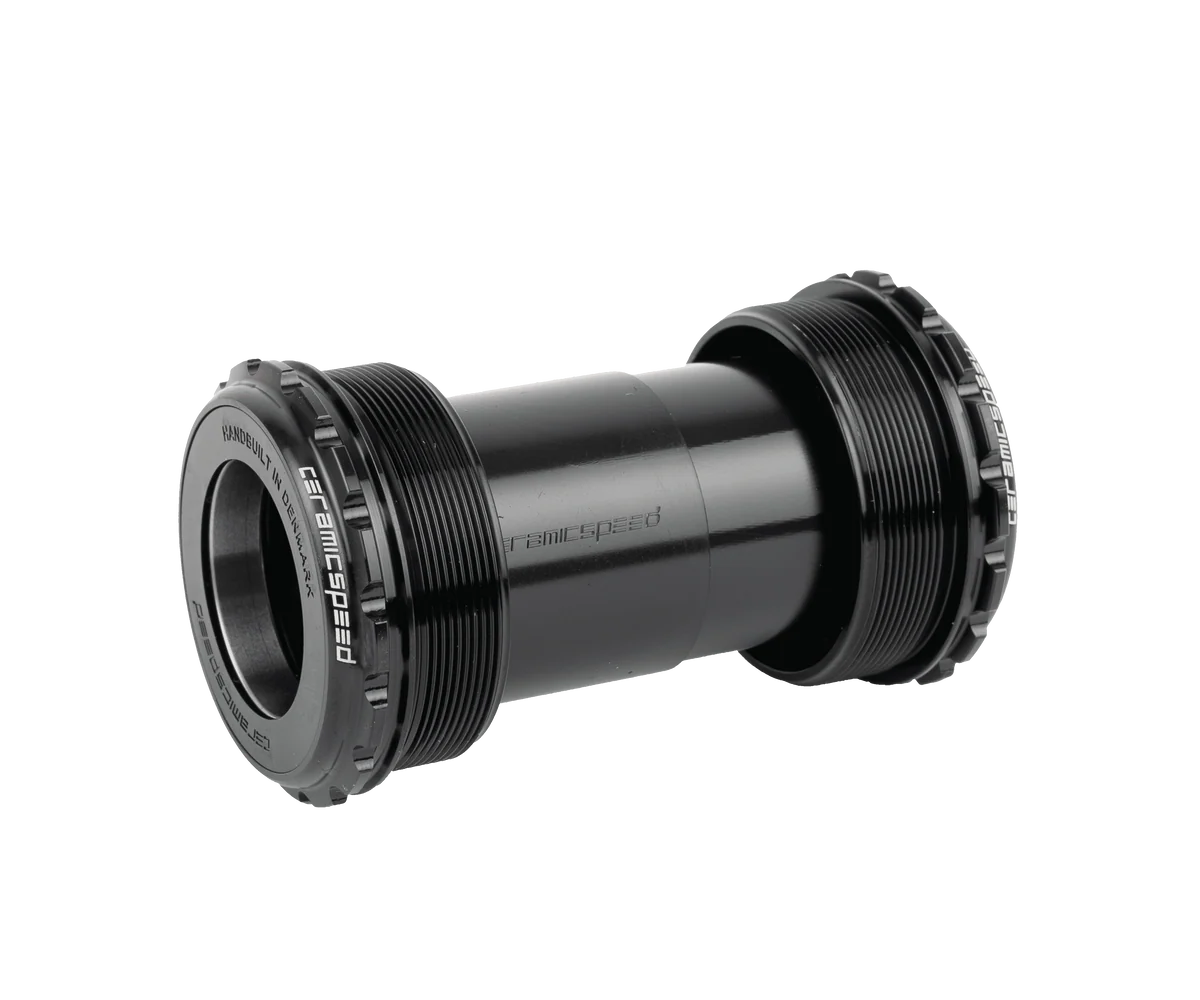

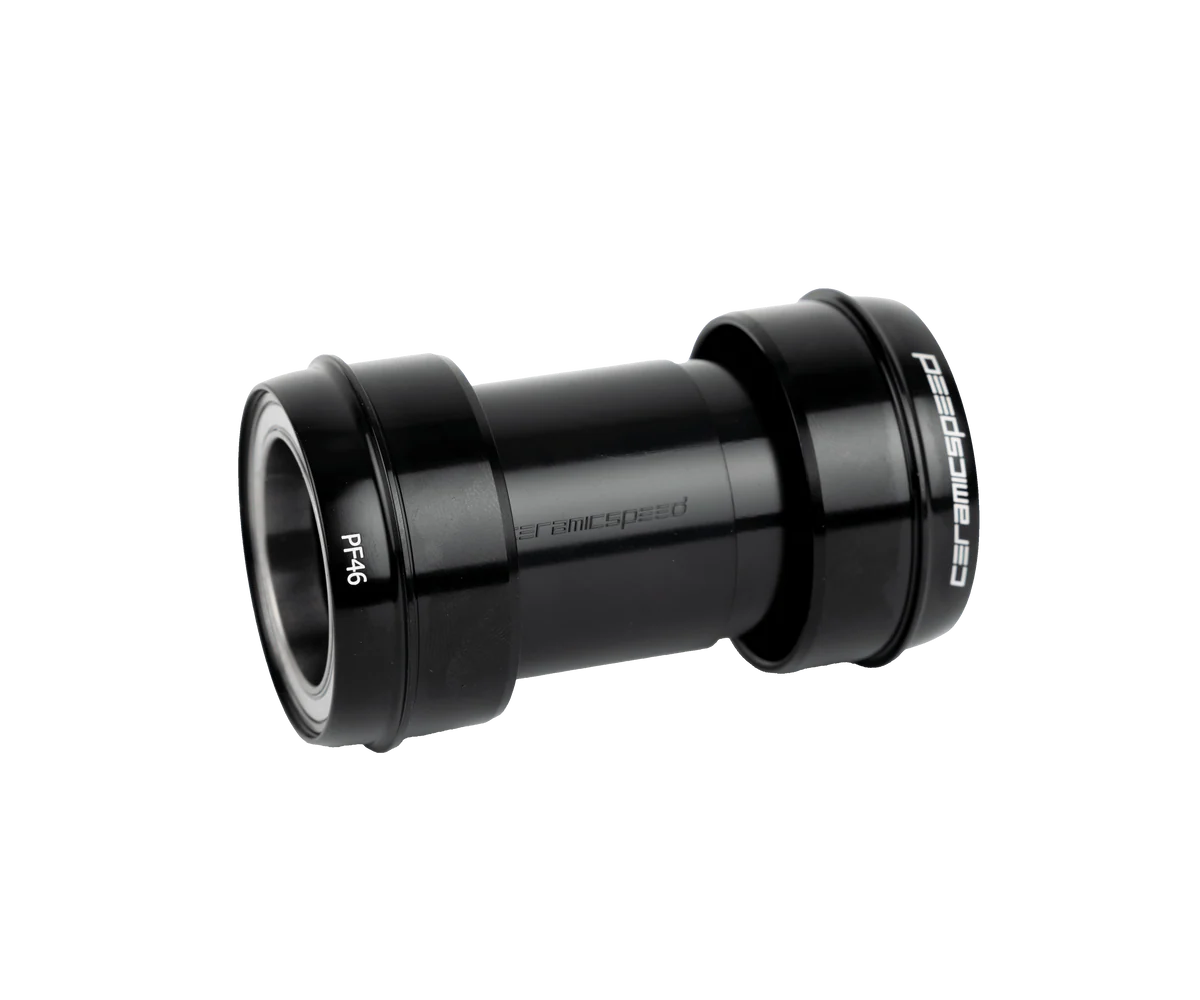

A bottom bracket built to outlast your frame. BB ALPHA features hardened stainless-steel races hand-built with grade-3 Silicon Nitride ceramic balls, custom-engineered seals and precision dust covers, delivering up to 500% better moisture protection, while still providing ultra-low friction performance. The simplified spacer tube design and lighter cups ensure quick installation and a 10% weight reduction over previous generations. All CeramicSpeed BB ALPHA models are backed by a lifetime warranty.
Bearing Type: Ceramic
For Spindle Type: 30mm
Shell Type References:
PF30 - 46mm diameter shell openings and 68-73mm shell widths.
PF30a - 46mm diameter shell openings and 73mm shell widths. Cannondale specific
386EVO - 46mm shell openings and 86.5mm shell widths
T47/68 - threaded bottom bracket 46mm diameter, 68mm width. Bearings will go past the threads
T47/86 - threaded bottom bracket 46mm diameter, 86mm width. Bearings sit flush with the threads
T47a - threaded bottom bracket 46mm diameter, 77mm width. One bearing goes past the threads
BB86/BB92 - 41mm shell openings and 86 to 92mm shell widths
BBright - 46mm diameter shell openings with 79mm shell widths.Â
BB30 - 42mm diameter shell openings with 68mm shell width (73mm for mtb). - mostly on S-Works
Trek BB90 - 37mm diameter shell openings with 90.5mm shell width
Trek BB95 - 37mm diameter, 95.5mm width
OSBB - 46mm diameter, 61mm width.
BSA (English Threaded) - 1.37 x 24 TPI
ITA (Italian Threaded) - 36 x 24 TPI
Condition: This item is new. CyclingUpgrades is an authorized dealer.
