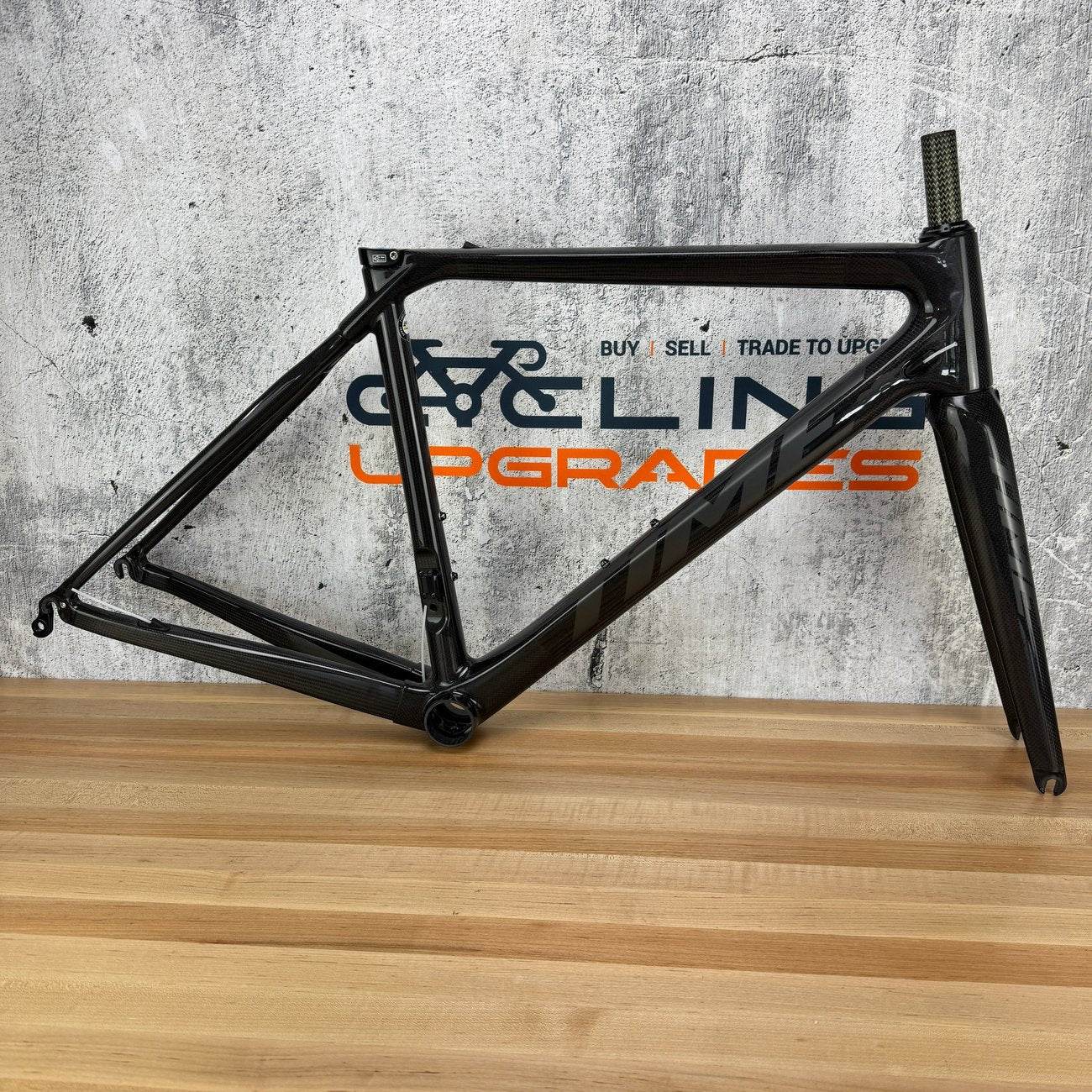

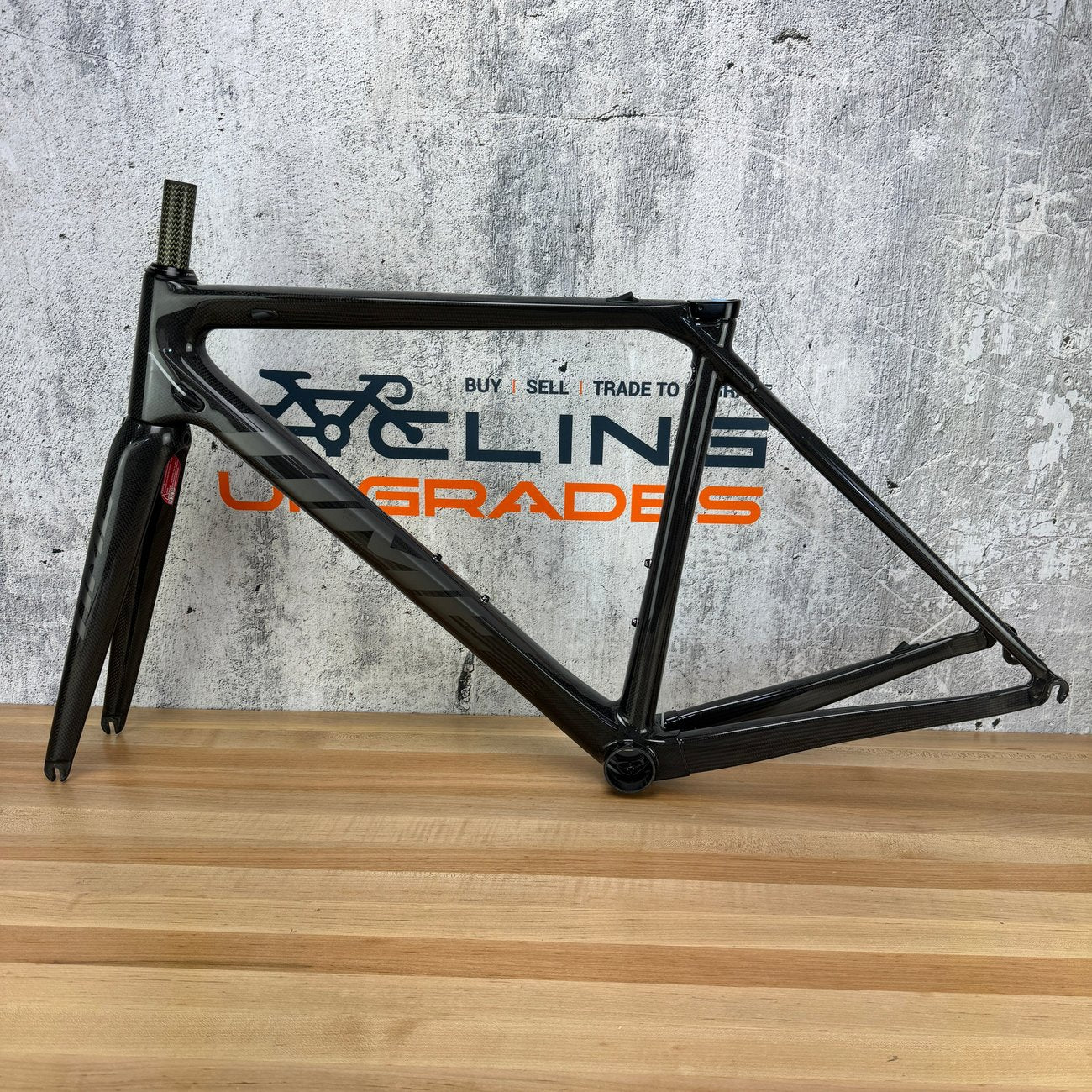

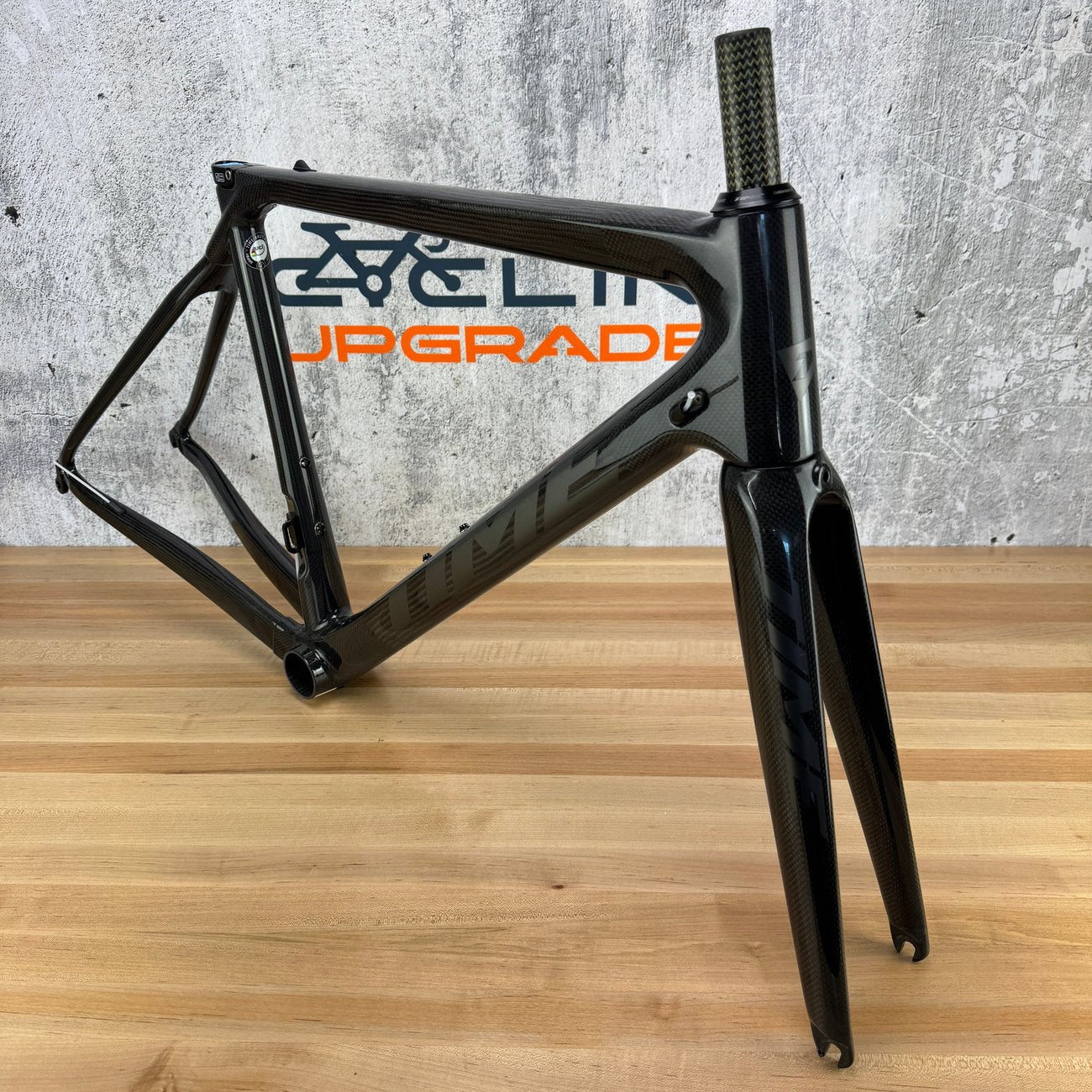

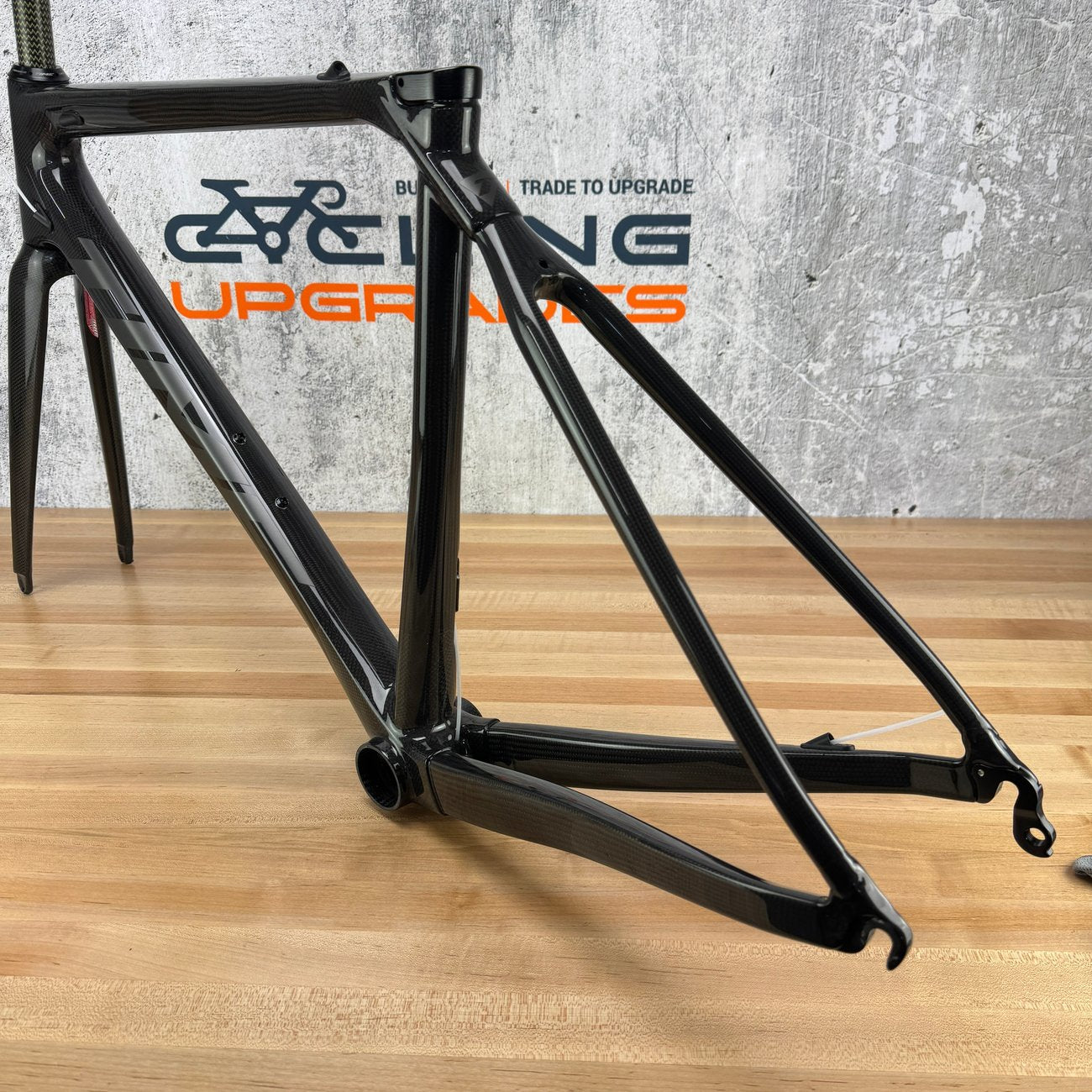

Frame: 2024 Time Alpe D'Huez 21
Color: Black
Brake type: Center-Mount rim brake
Size: XS. 530mm Effective Top Tube. Stack - 526mm. Reach - 374mm. Head tube 133mm. Recommend buyer confirm and research full geometry online.

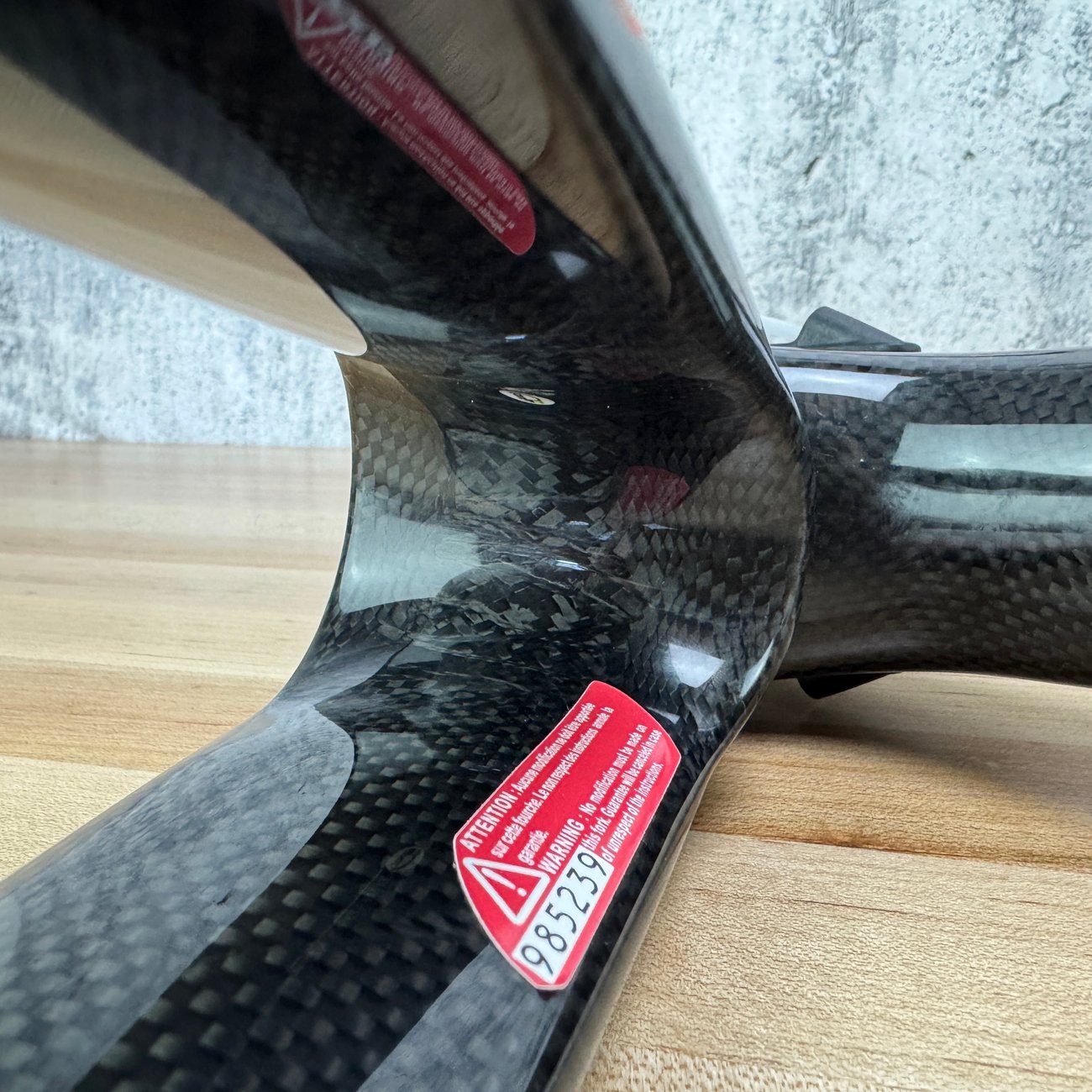

Condition: This frame is brand new. There are no imperfections to specifically picture, only very minor signs of shipping and handling may exist.
Groupset compatibility: Frame can be setup for Di2, EPS, eTap, or mechanical groupsets. This frame was previously setup with an eTap groupset. Other frame/cable stops may be needed for Di2 or mechanical setups.

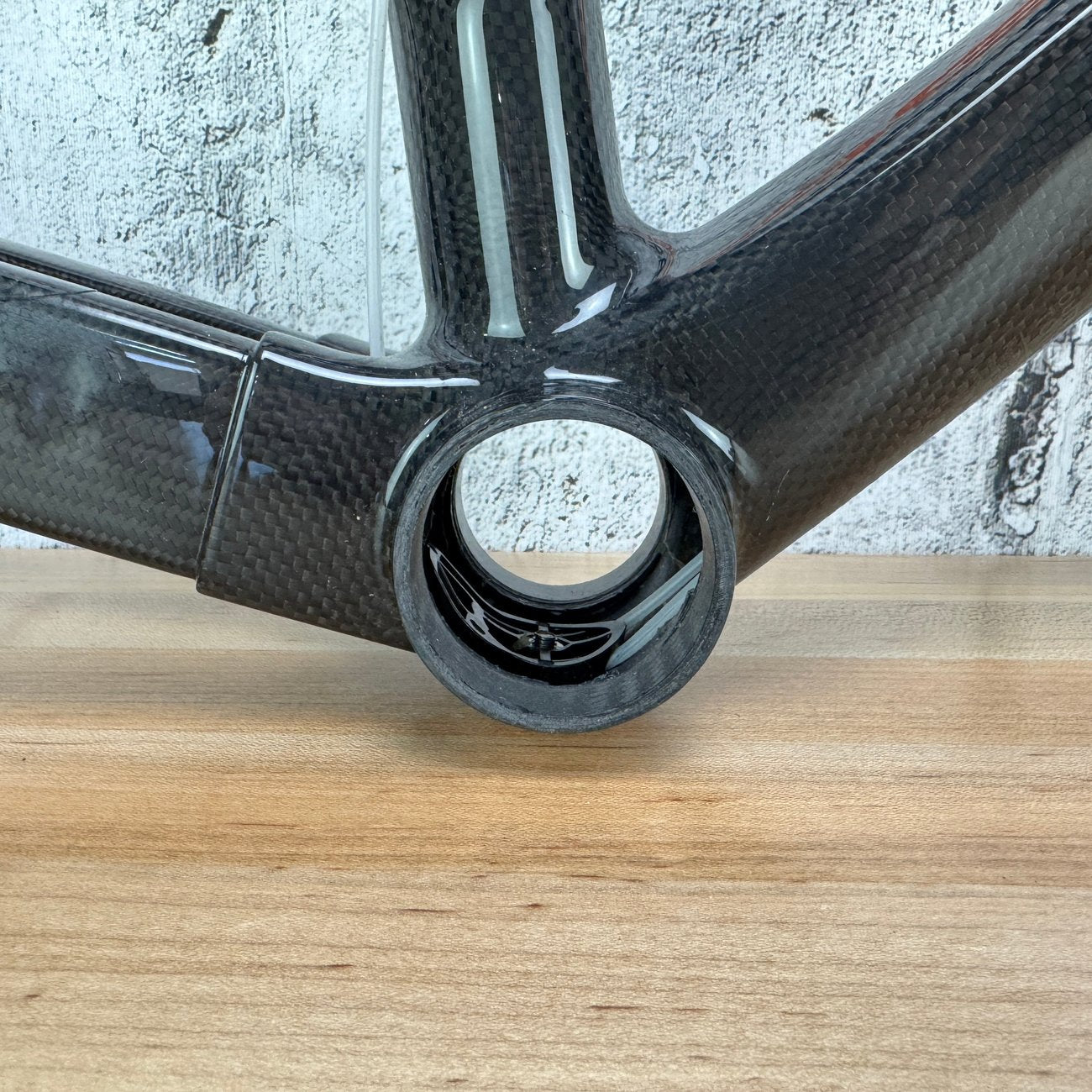

Bottom bracket: BB386 EVO bottom bracket shell type. No bottom bracket is currently installed or included. We have a handful of lightly used basic bottom brackets on hand, let us know what you need and we can try to ship the frame with the right bottom bracket installed. Additionally, CyclingUpgrades is a Ceramicspeed and Cane Creek Authorized Dealer, if you prefer to have the frame setup with a certain bottom bracket we can add and install it at an additional cost before shipping - message with inquiries/requests.

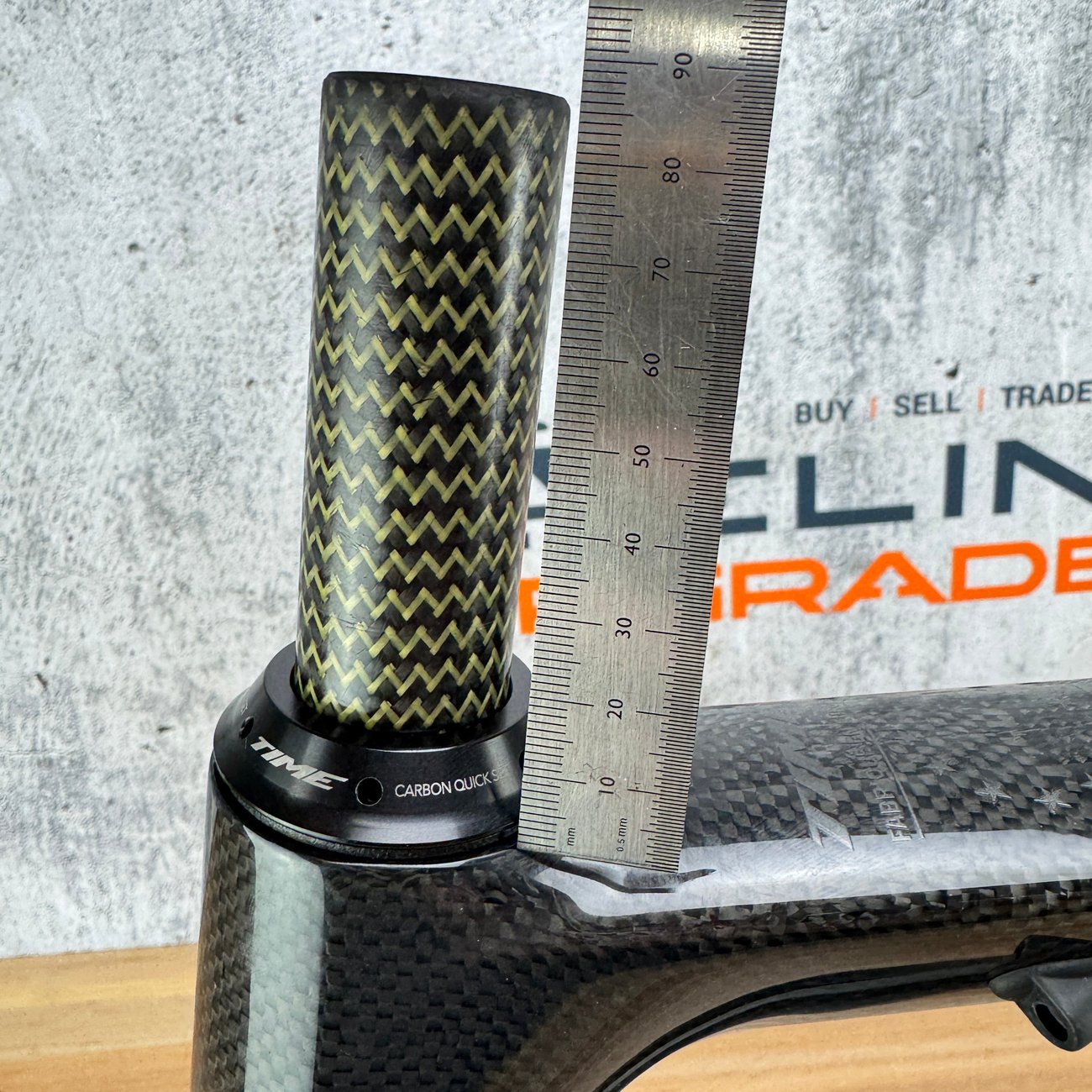

Steerer length: 85mm of steerer above the top tube.

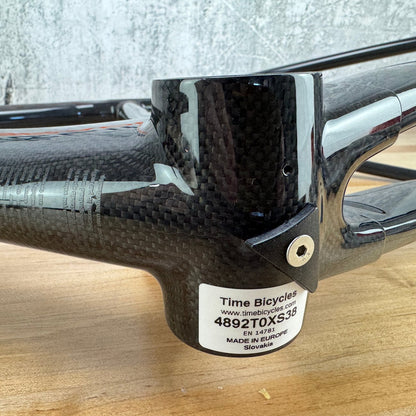

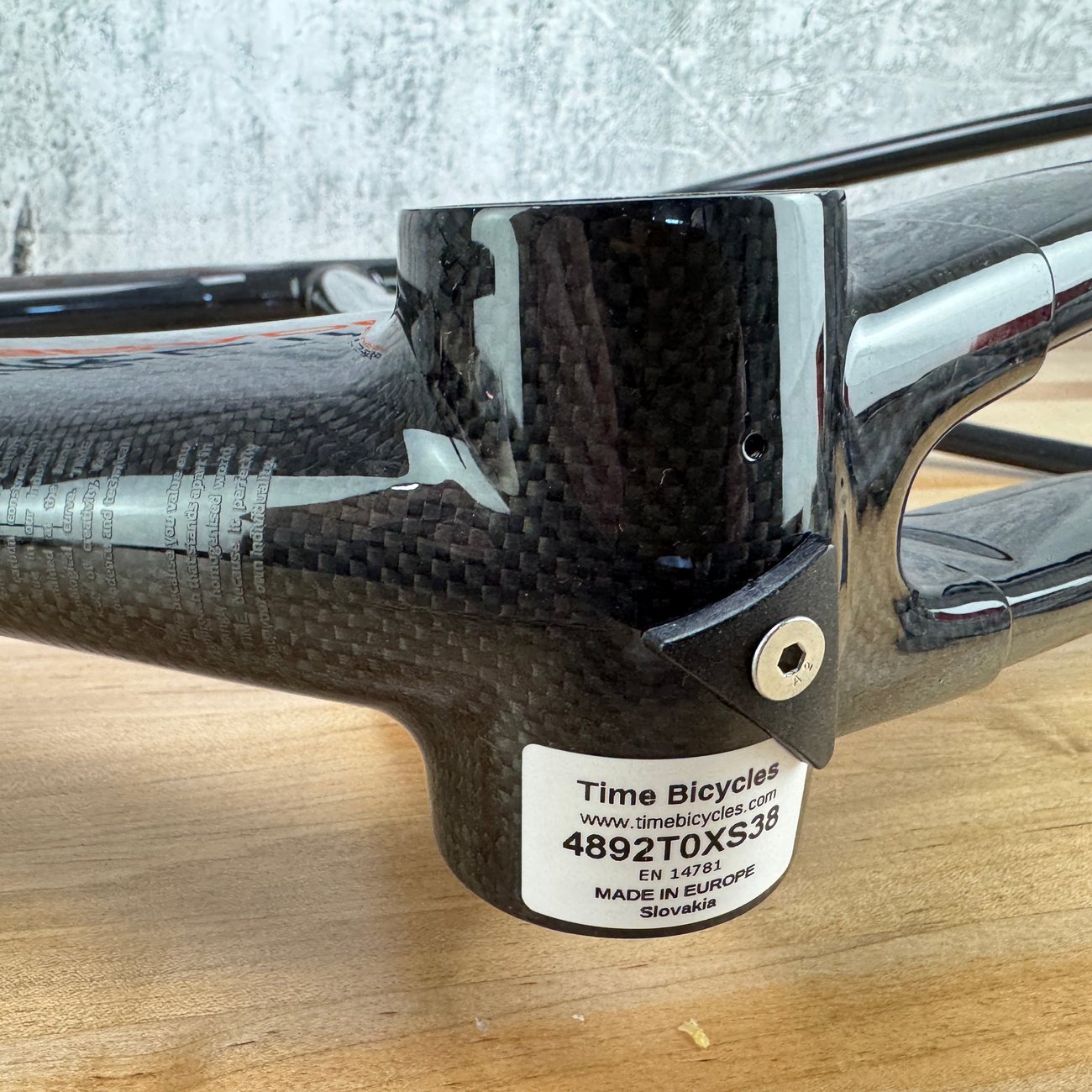

Seatpost: 27.2mm diameter. No seatpost included.
Dropout Spacing: QR x 100mm front, QR x 130mm rear.
Weight: 1482 grams as pictured with headset, frame hardware, etc.

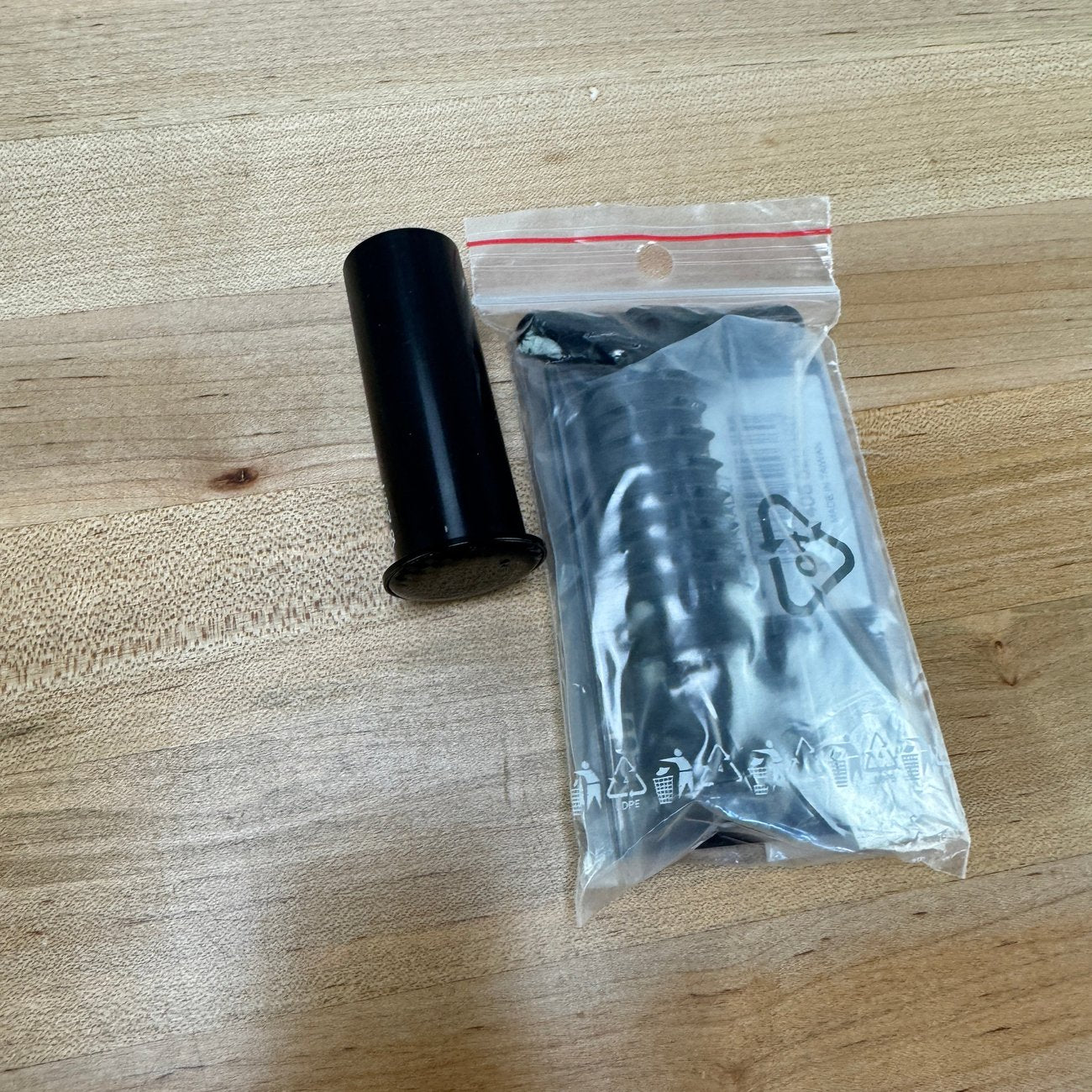

What's included: Frame, fork, headset, rear derailleur hanger
