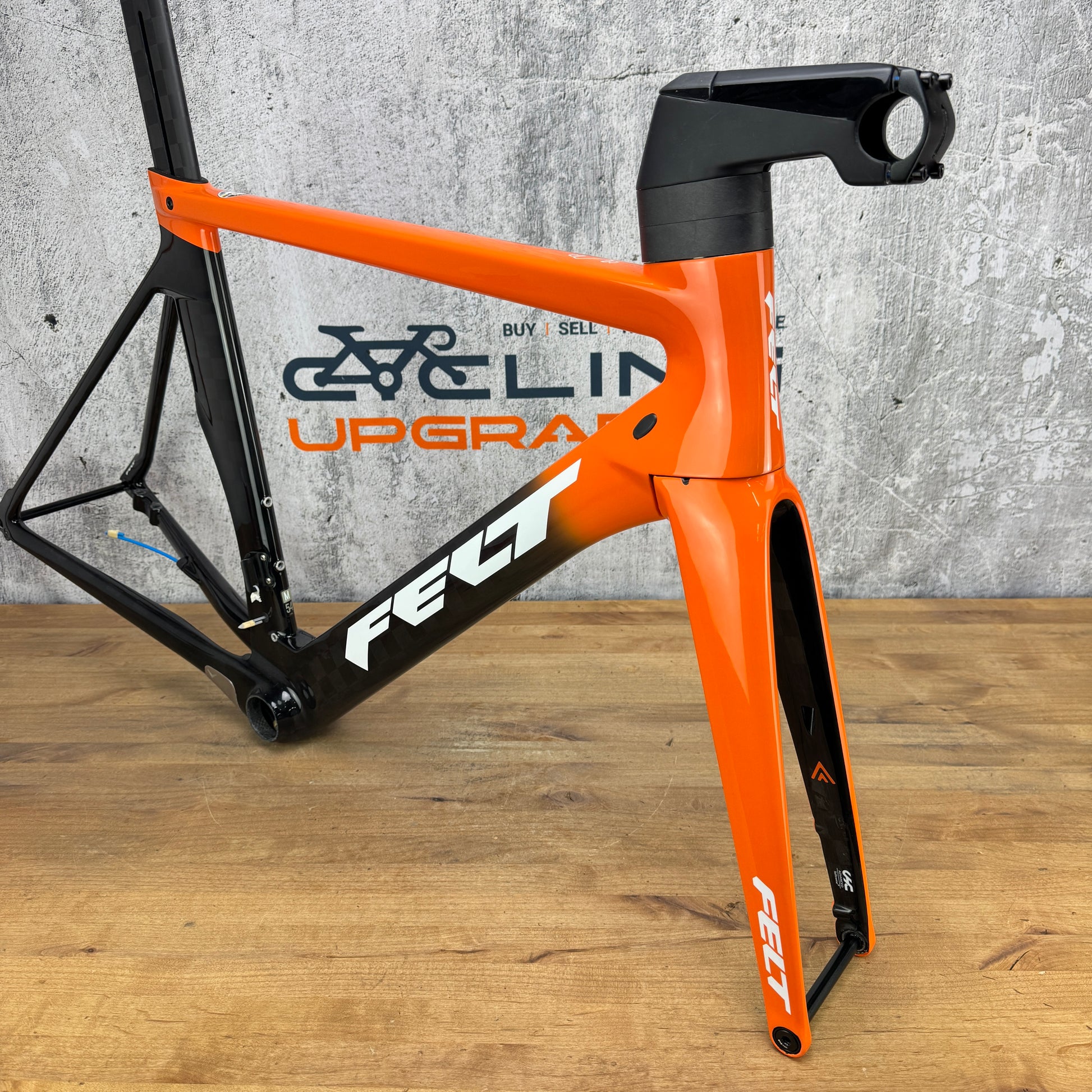

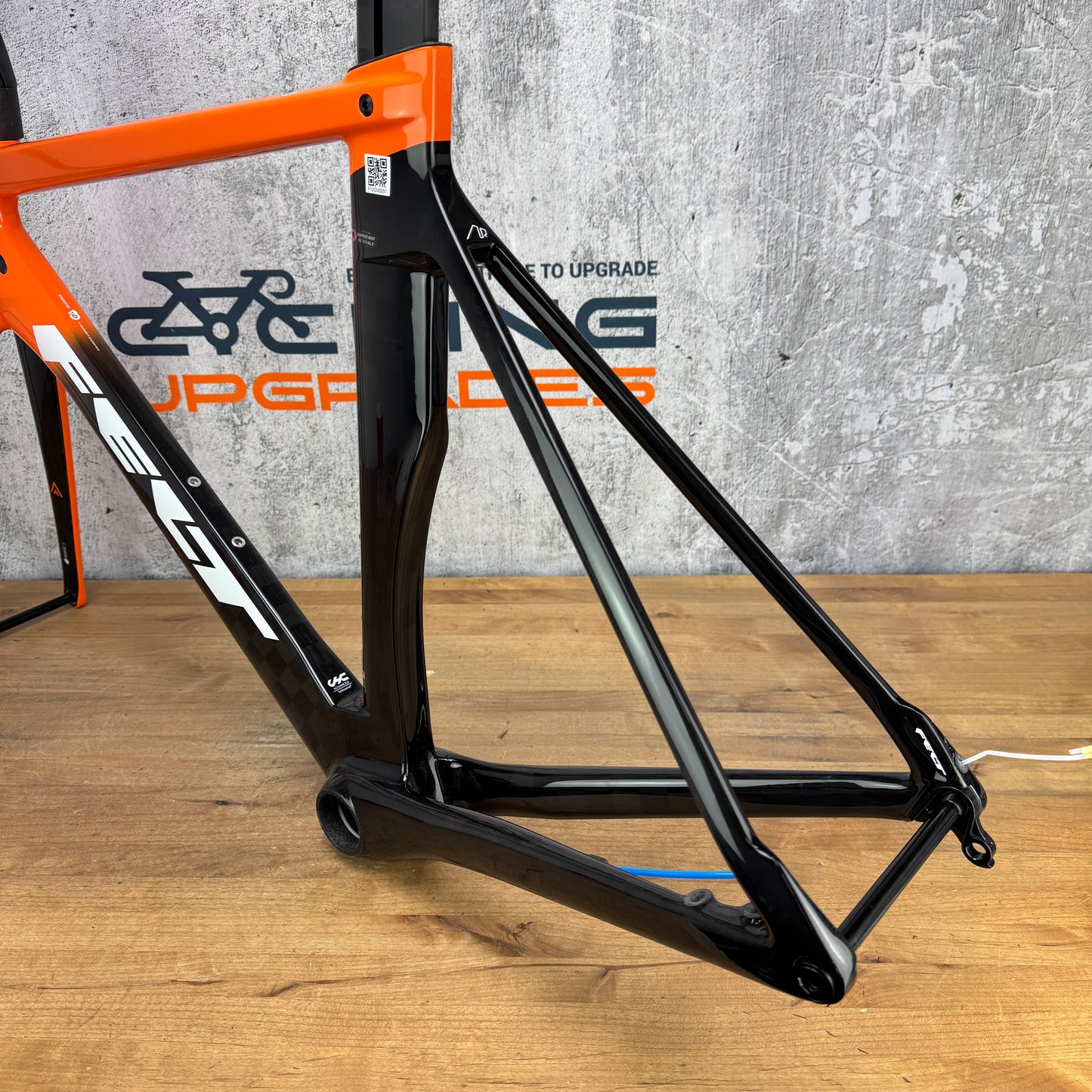

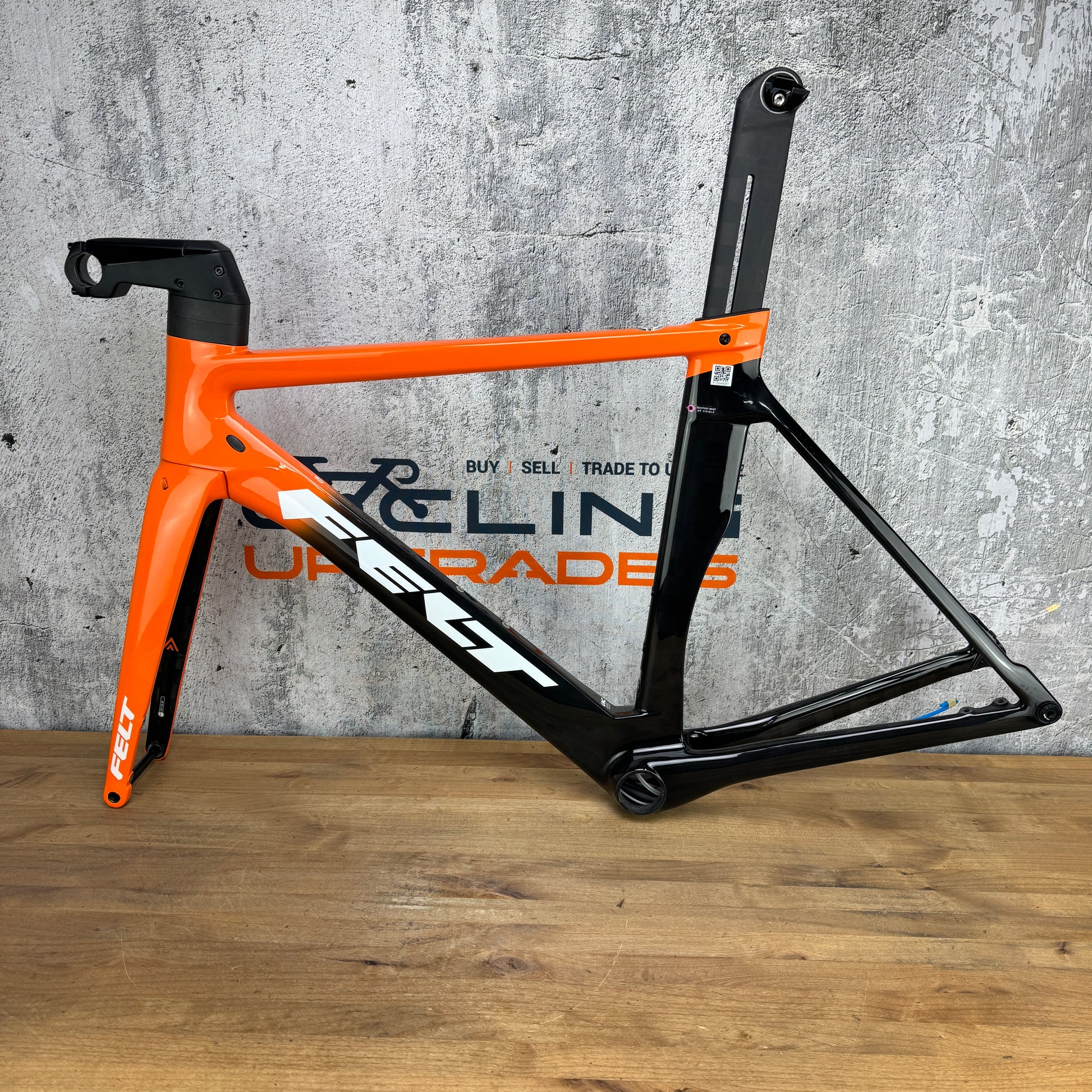

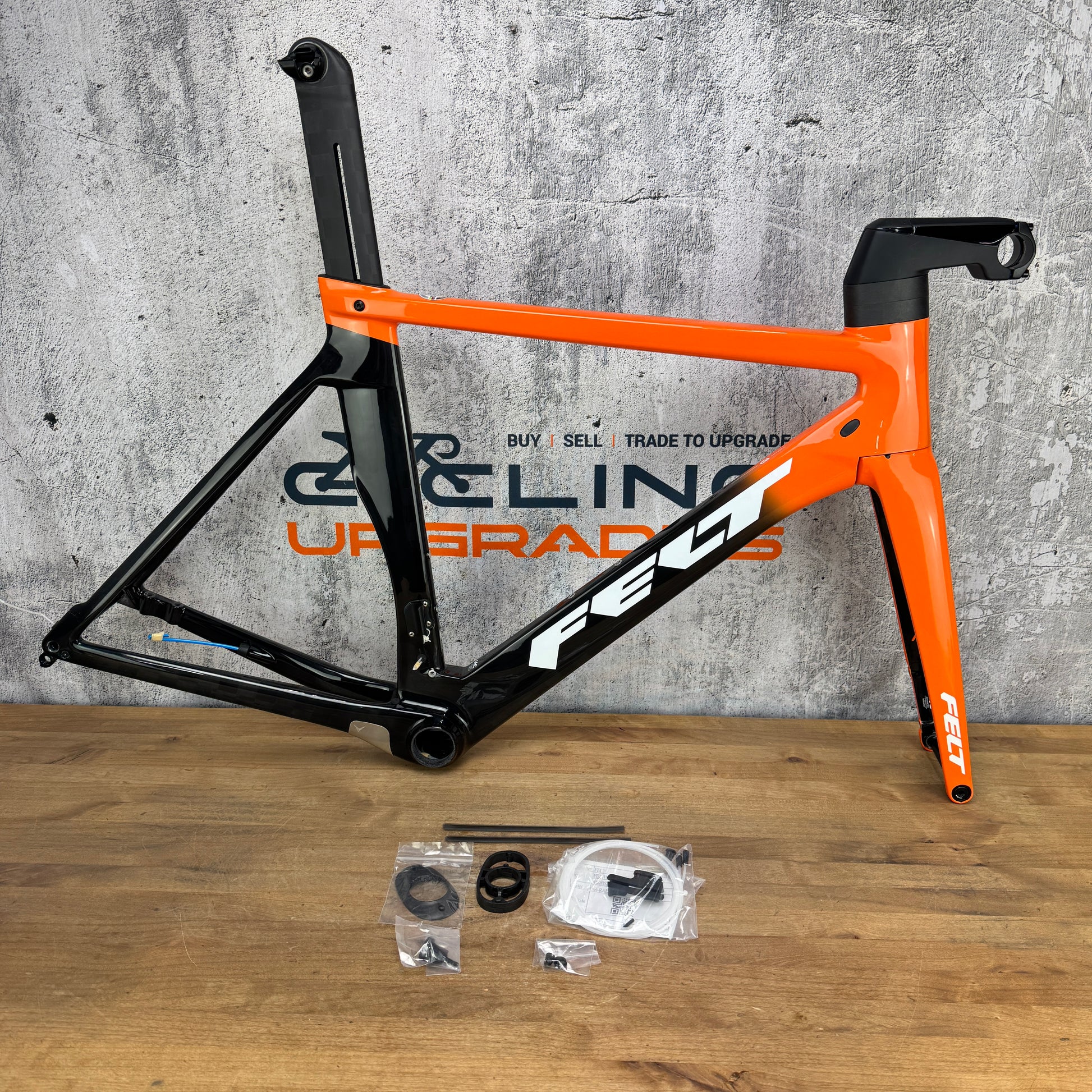

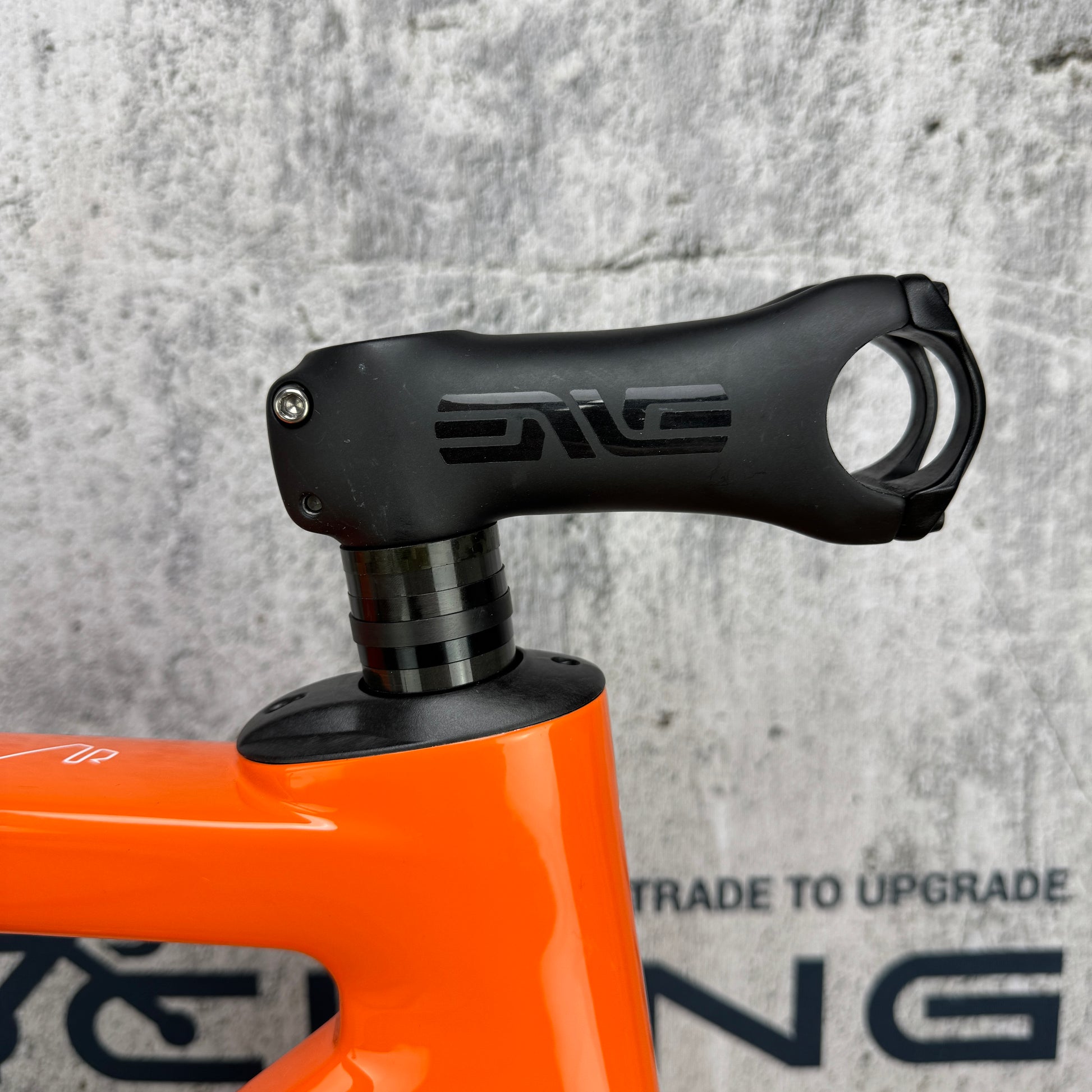

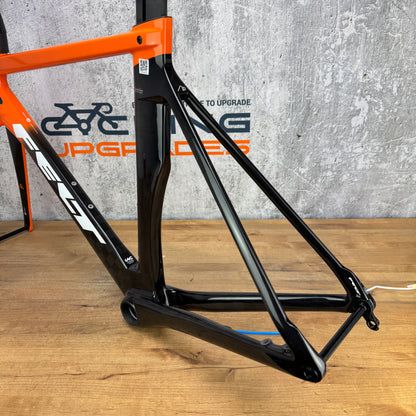

Frame: 2020 Felt AR Advanced Team Rally Edition. This frame has fully integrated cable routing using the factory Felt stem, as pictured. The frame is also compatible with external cable routing with any regular 1 1/8" stem using the included alternate headset plate (See last picture for reference - ENVE stem not included).

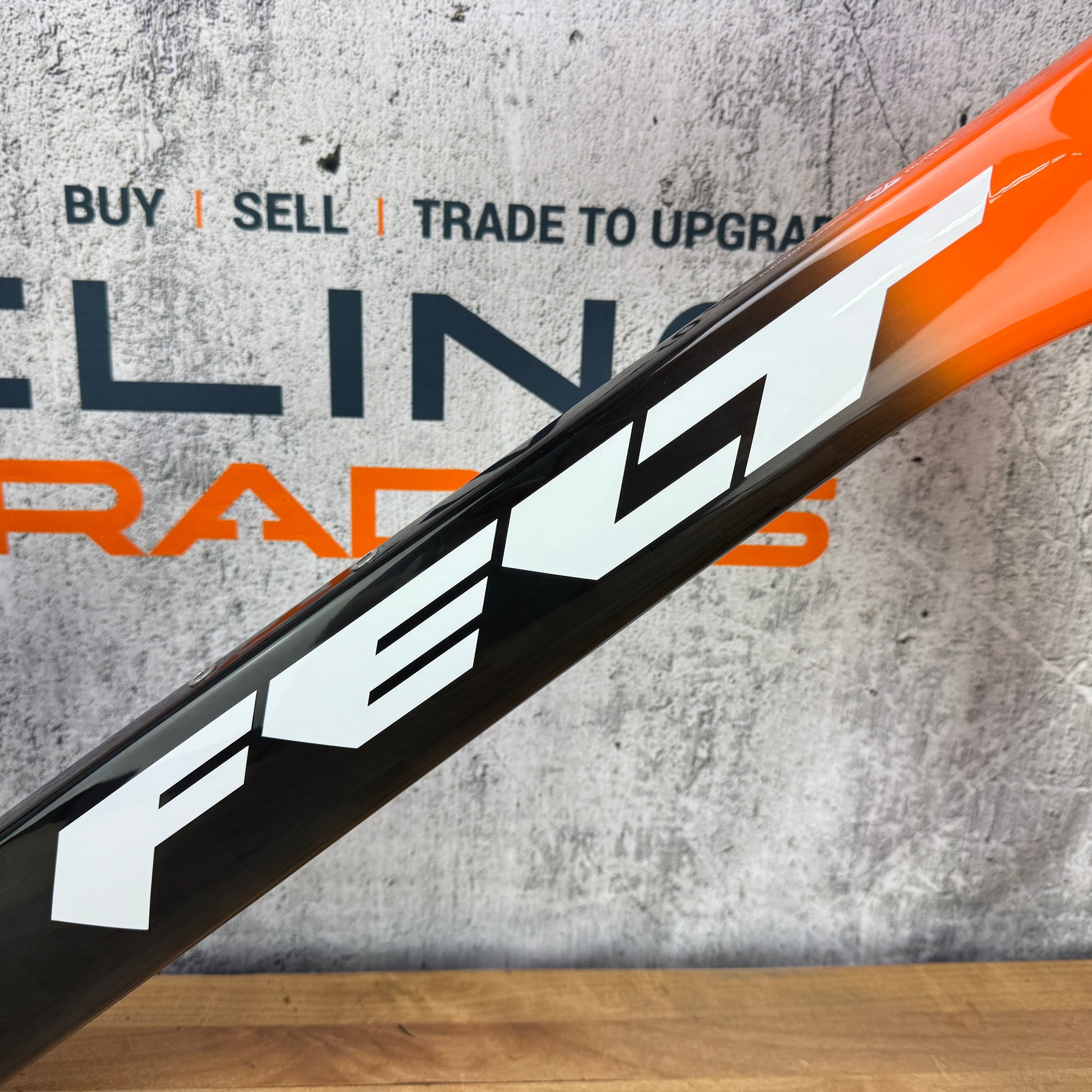

Color: Team Rally Orange and Black
Brake type: Flat-Mount disc brake.

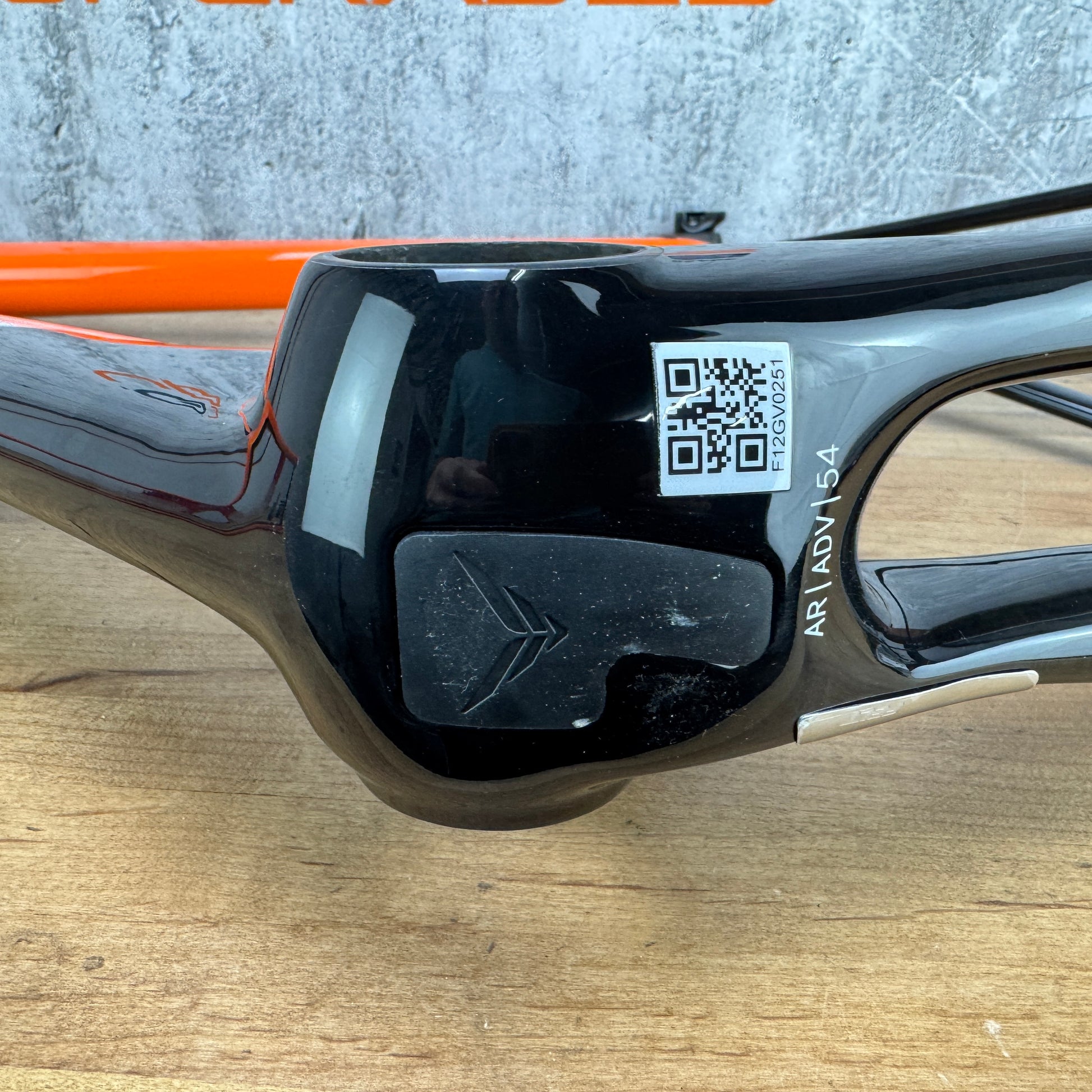

Size: 54cm. 543mm Effective Top Tube. Stack - 545mm. Reach - 382mm. Head tube 127mm. Recommend buyer confirm and research full geometry online.

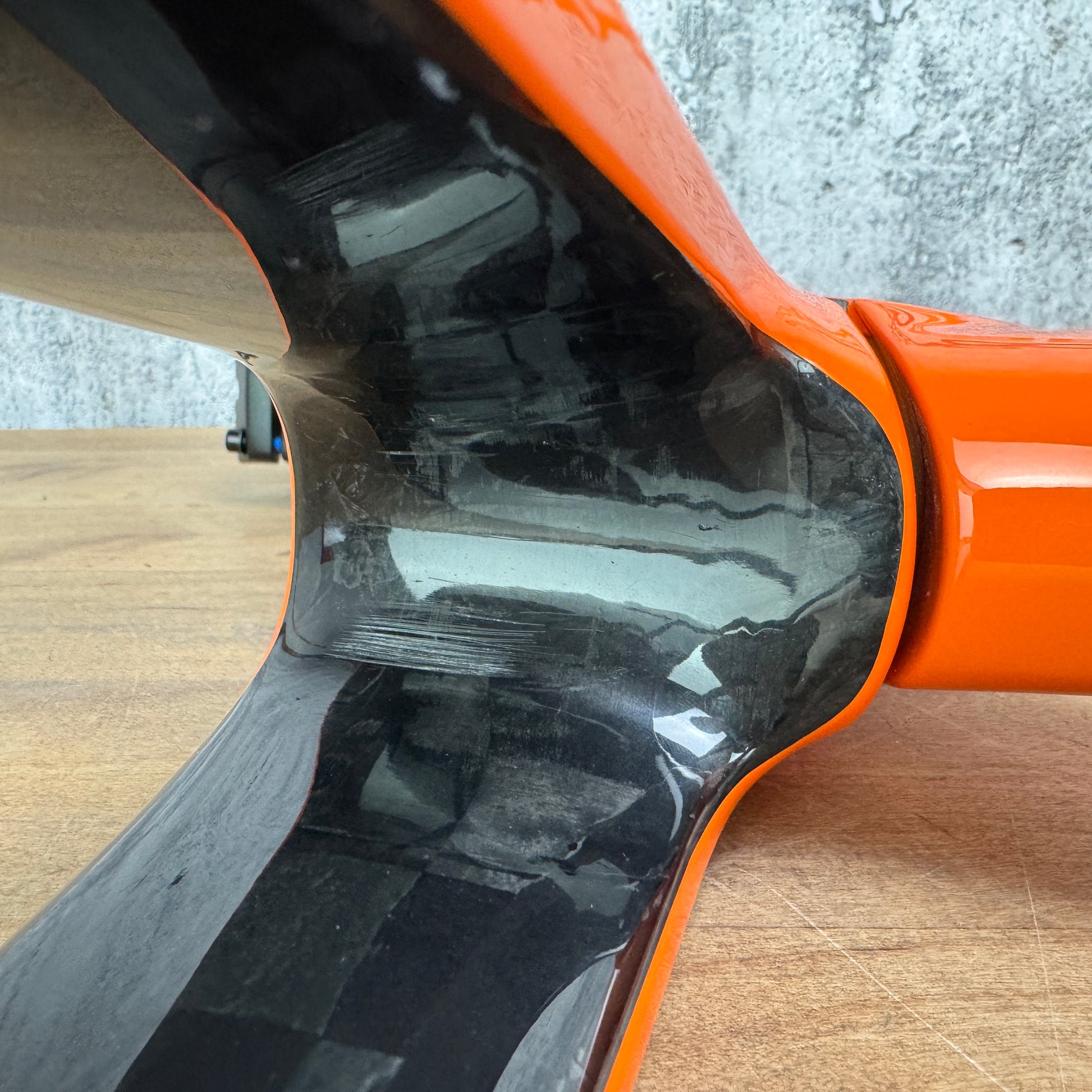

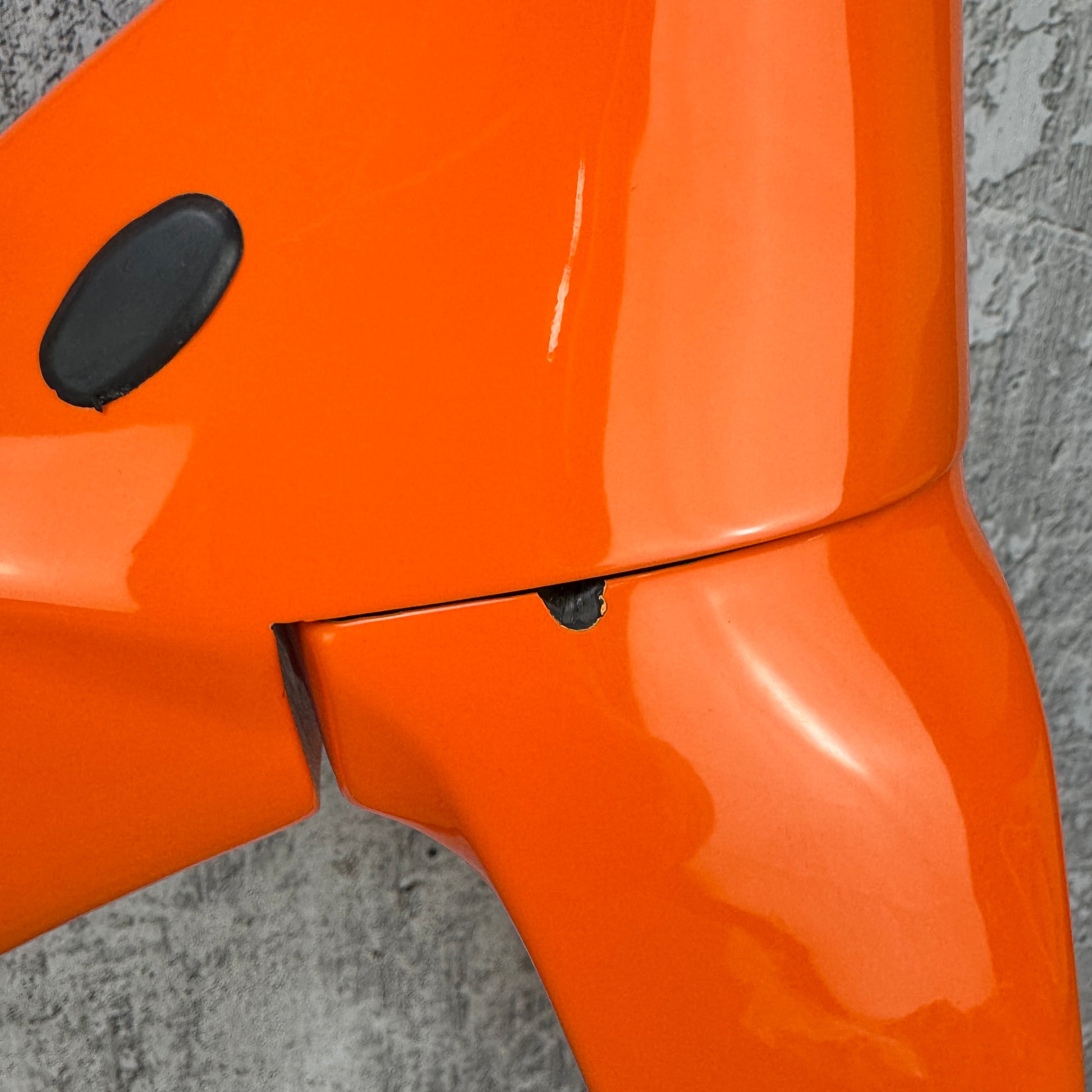

Condition: The frame is brand new. The fork has been slightly used. There is a paint chip shown in pic #7, and some road debris wear in the fork crown shown in pic #8. Other light signs of shipping and handling may exist.
Groupset compatibility: This frameset is compatible with Di2, EPS, eTap, or mechanical groupsets.

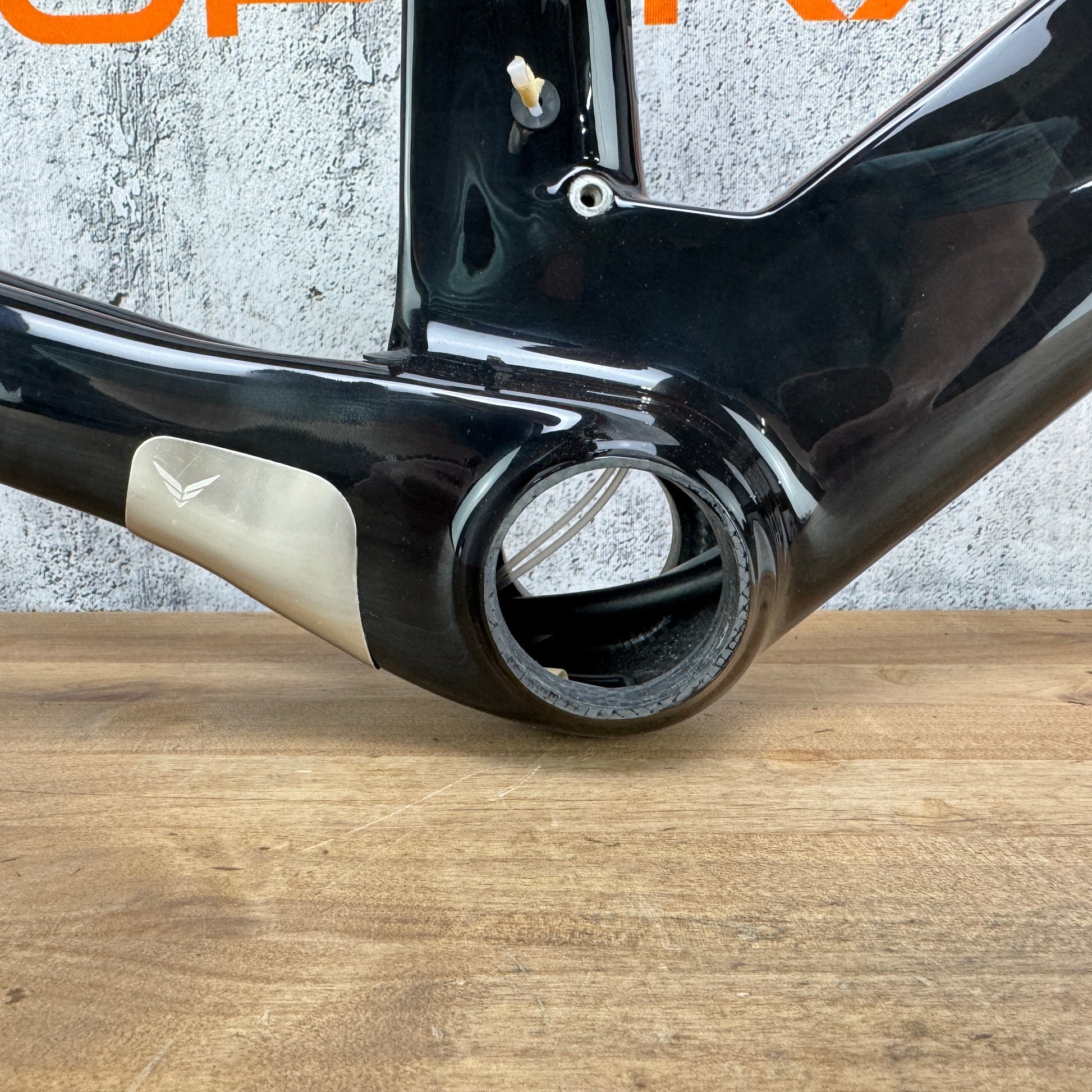

Bottom bracket: BB386EVO bottom bracket shell type (46mm shell diameter, 86mm shell width). No bottom bracket currently installed or included. We have a handful of lightly used basic bottom brackets on hand, let us know what you need and we can try to ship the frame with the right bottom bracket installed. Additionally, CyclingUpgrades is a Ceramicspeed and Cane Creek Authorized Dealer, if you prefer to have the frame setup with a certain bottom bracket we can add and install it at an additional cost before shipping - message with inquiries/requests.
Steerer length: 85mm of steerer above the top tube. It comes with 2x 20mm spacers, and 1x 10mm spacer. Additional spacers are available if needed.

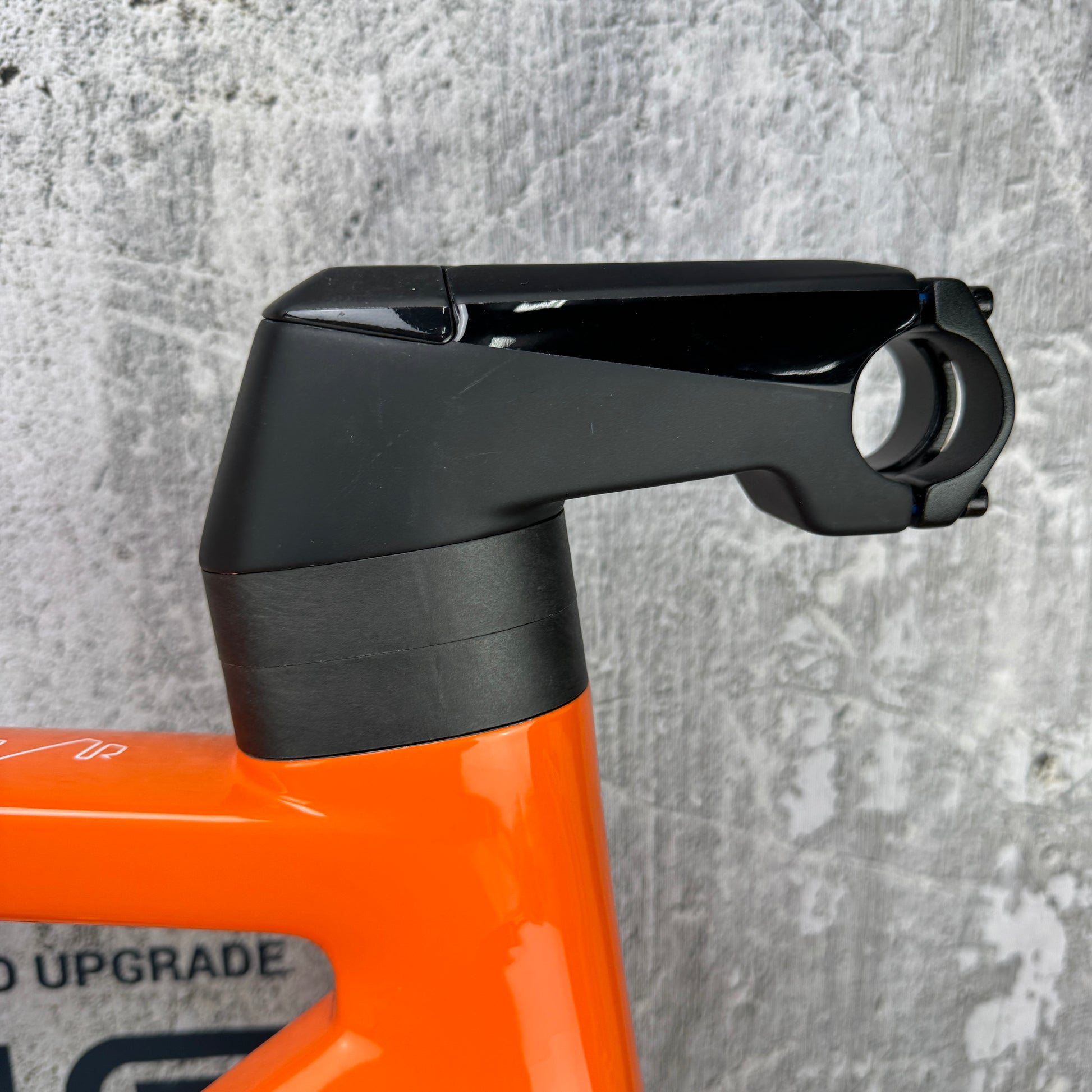

Stem: Pictured with the Felt AR carbon stem kit which is fully internal cable routing compatible. We have an assortment of stem lengths available which is subject to change, available lengths are: 90mm, 100mm (limited), 110mm (limited), 120mm, and 130mm. We can also sell without the carbon stem kit for $150 less - message with requests. These frames do include a headset adapter to use a regular 1 1/8" stem with external cable routing. A 100mm stem is pictured on this frame as a reference.
Seatpost: Frame specific carbon seatpost included. This seatpost has a 0-20mm offset via the flippable saddle clamp assembly.
Dropout Spacing: Front 12mm Thru Axle x 100mm, Rear 12mm Thru Axle x 142mm.
Weight: 2468 grams as pictured with headset, thru axles, stem, seatpost, frame hardware, etc.

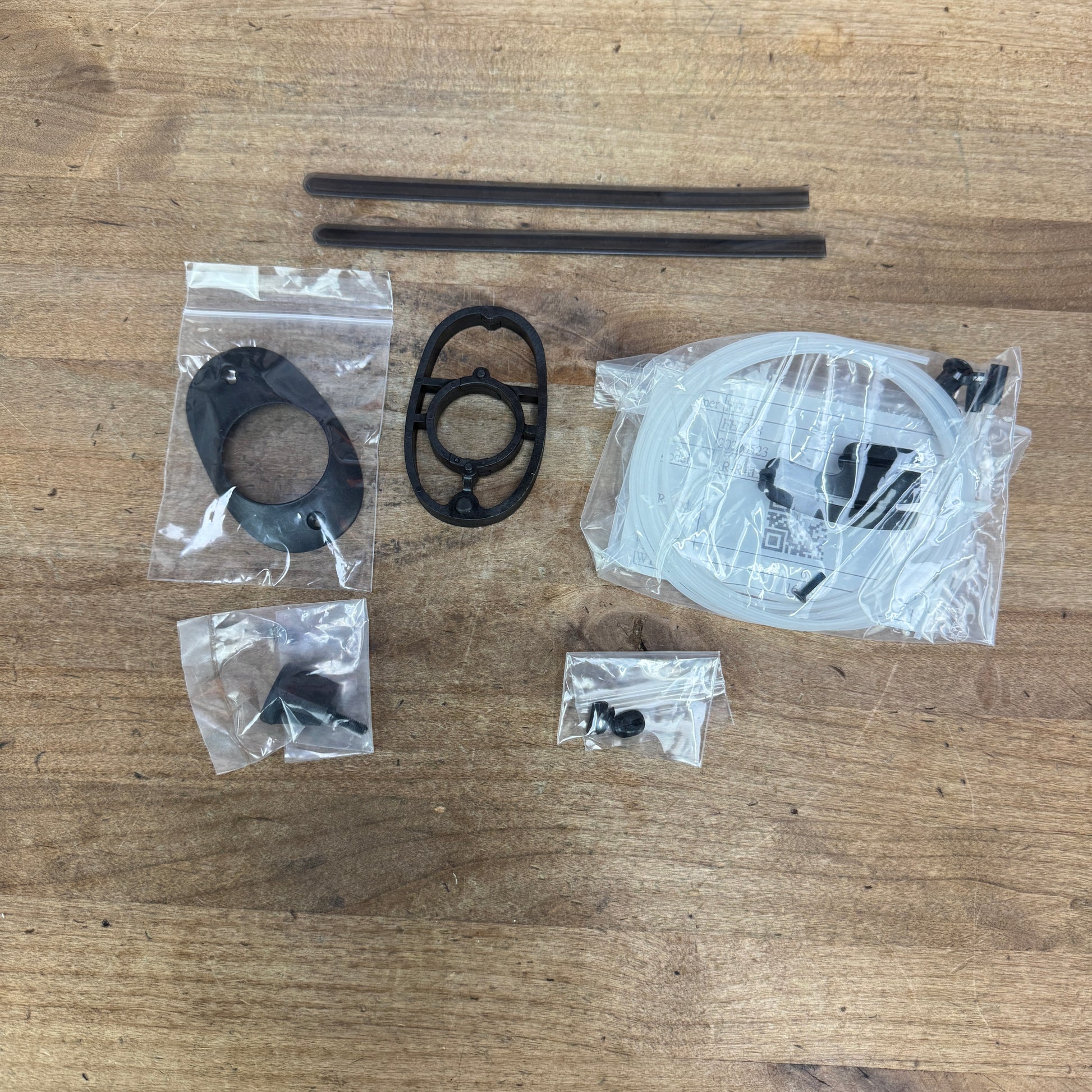

What's included: Frame, fork, headset, rear derailleur hanger, thru axles, stem, seatpost, mechanical cable guide, chain catcher, Di2 frame/cable stops, alternate headset cover, stem spacers.
