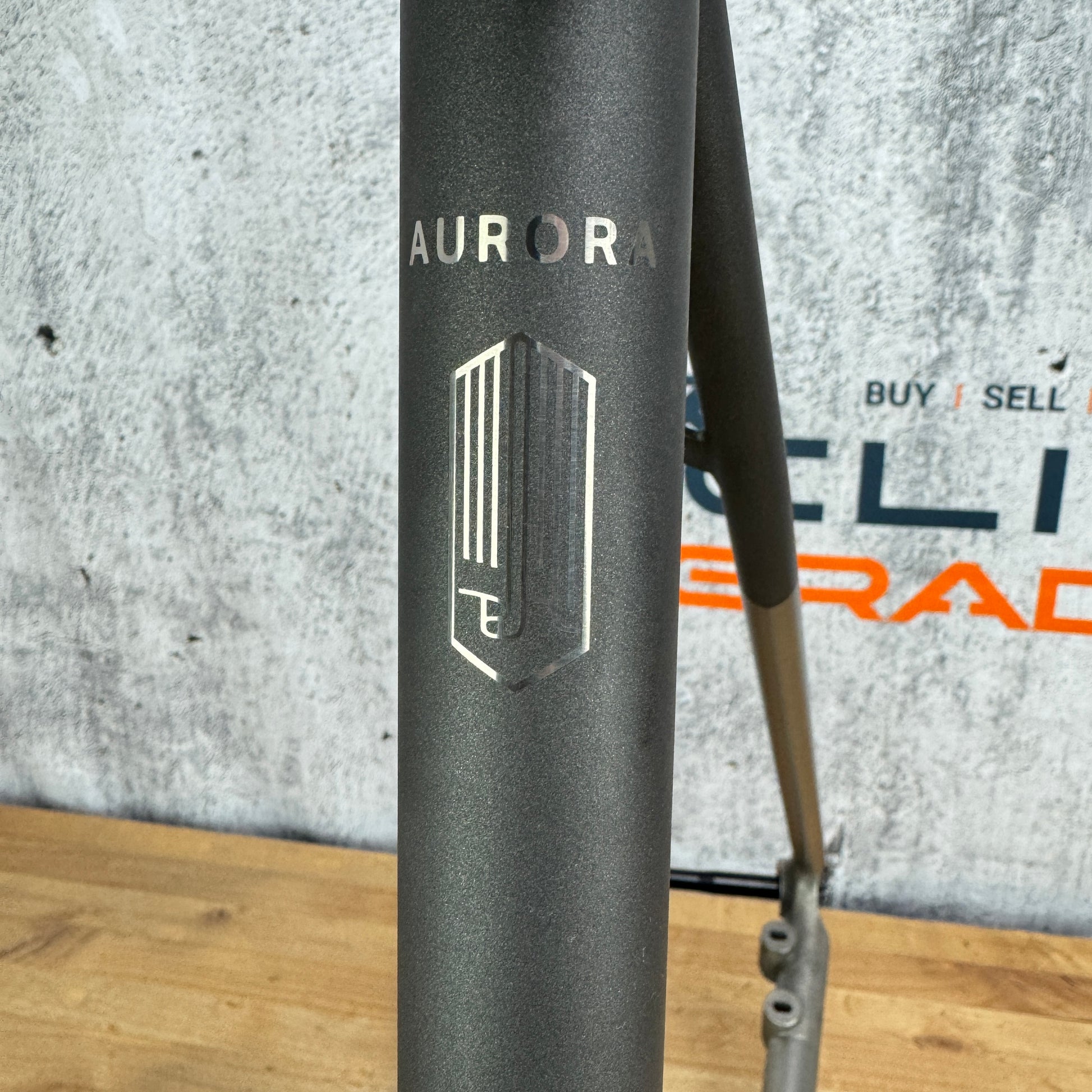

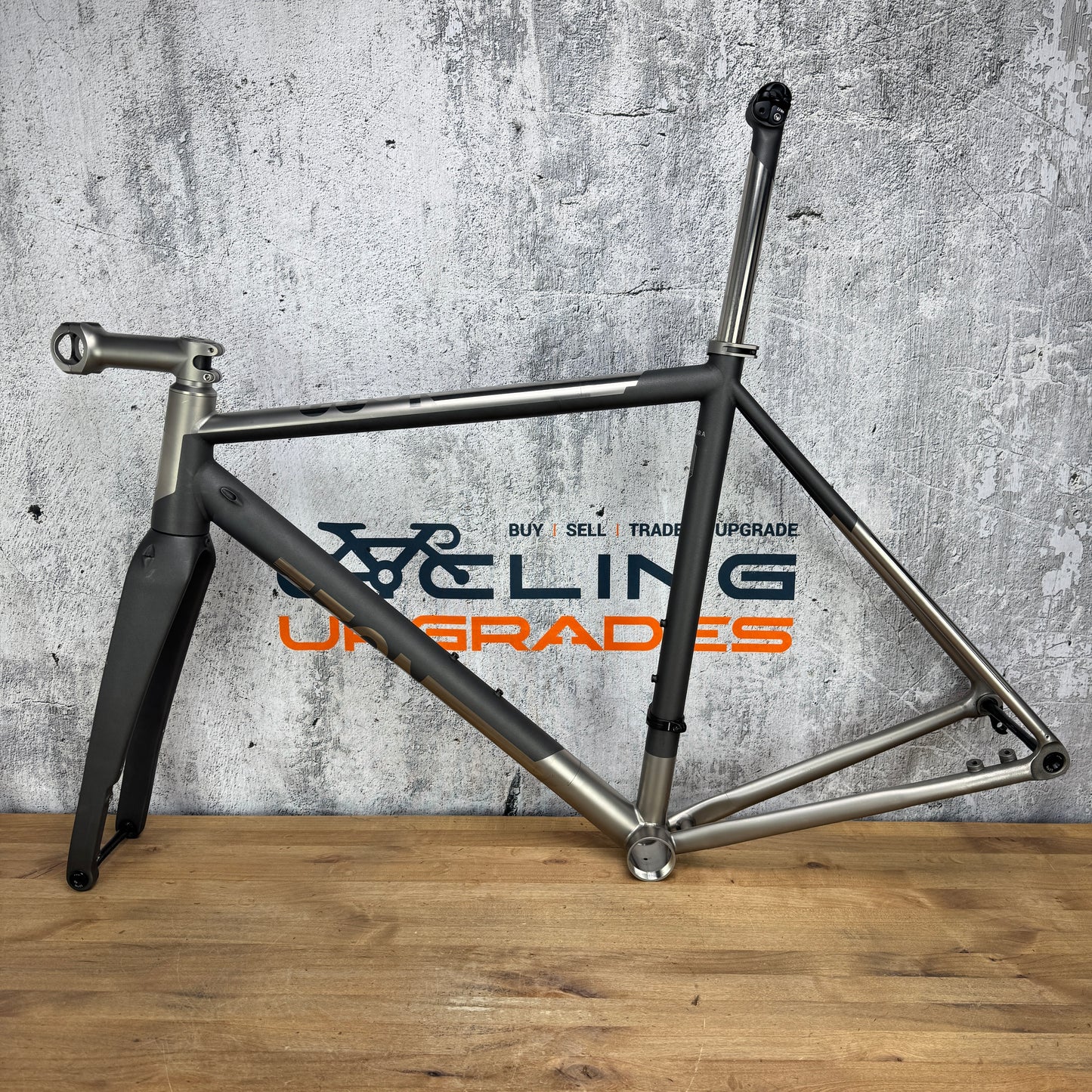

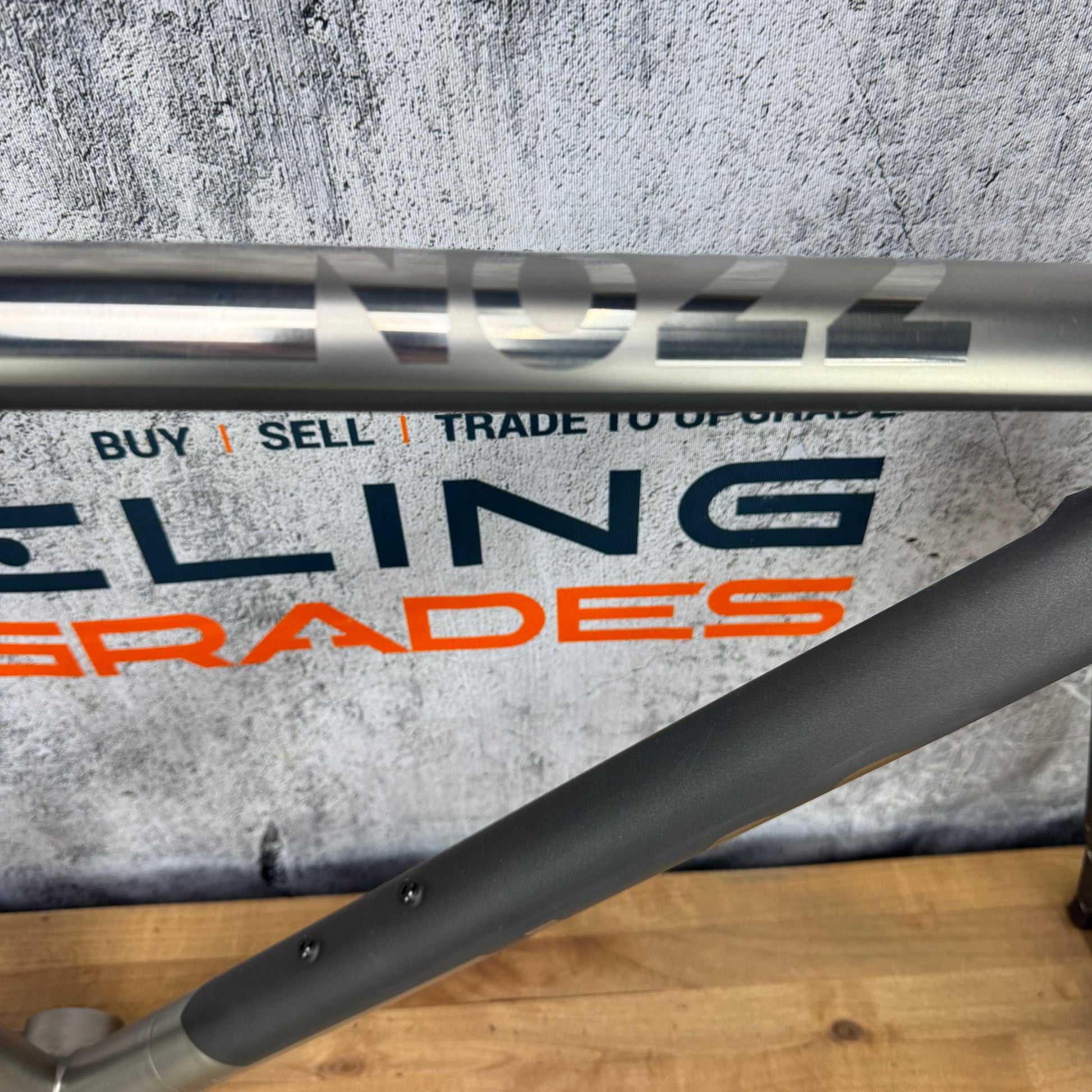

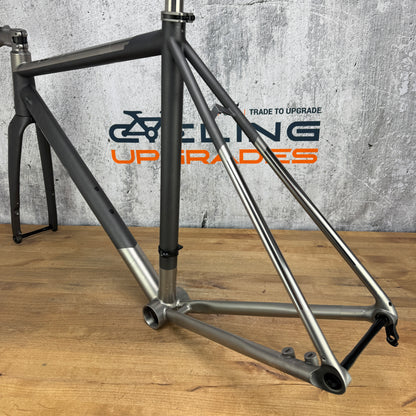

Frame: No. 22 Aurora. This frame has travel couplers, and 3x hydro couplers.
Material: Titanium with a Cerakote finish
Tire Clearance: 34mm
Brake type: Flat-Mount disc brake.
Size: 54cm. 541mm Effective Top Tube. Stack - 553mm. Reach - 391mm. Head tube 140mm. A full geometry chart is shown in the last picture.
Condition: This frame is in mint condition. There are no imperfections to specifically picture, only very minor imperfections and light signs of use may exist.
Groupset compatibility: Frame can be setup for Di2, EPS, or eTap groupsets. This frame was previously setup with an eTap groupset. Other frame/cable stops may be needed for Di2 or EPS setups. This frame is not compatible with mechanical groupsets.

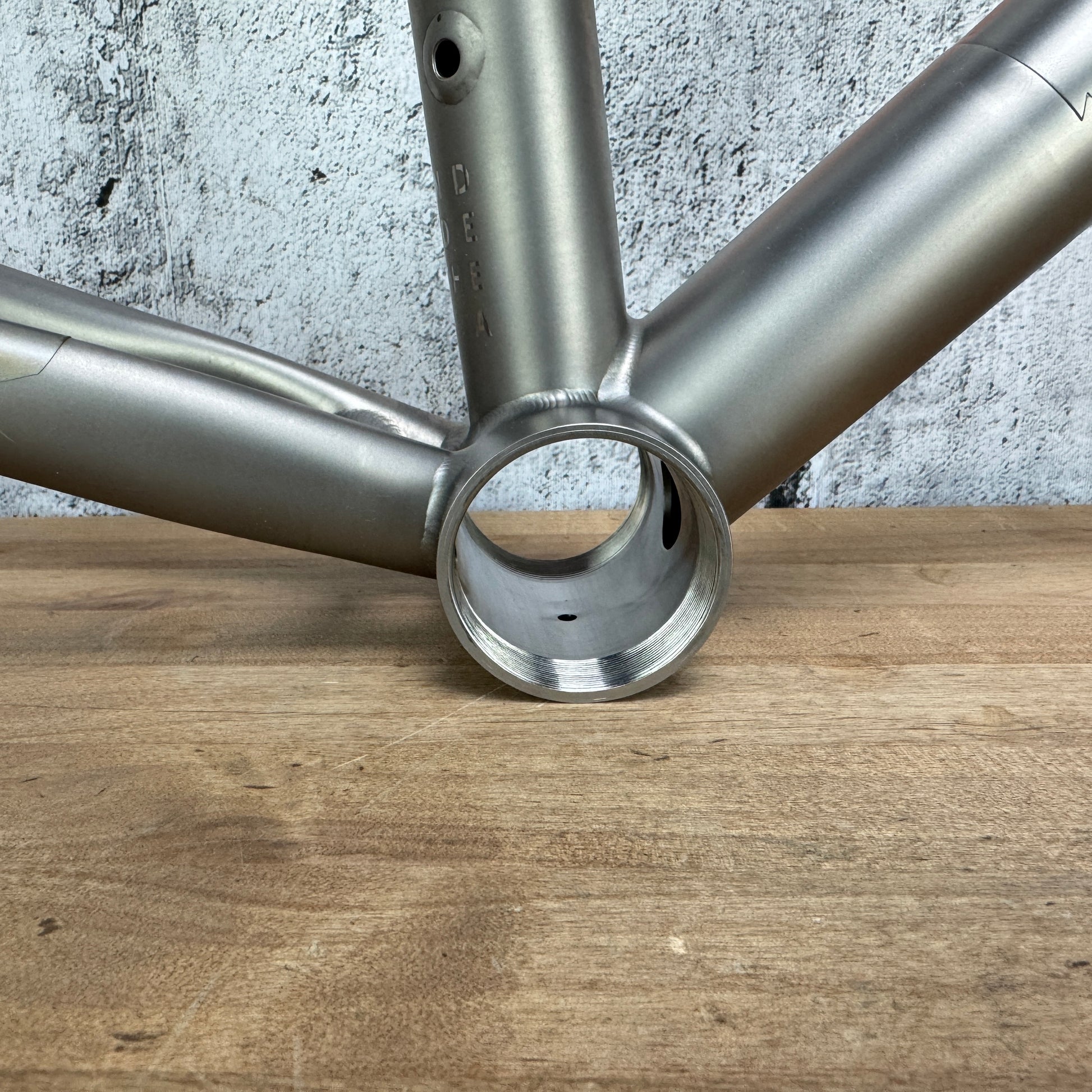

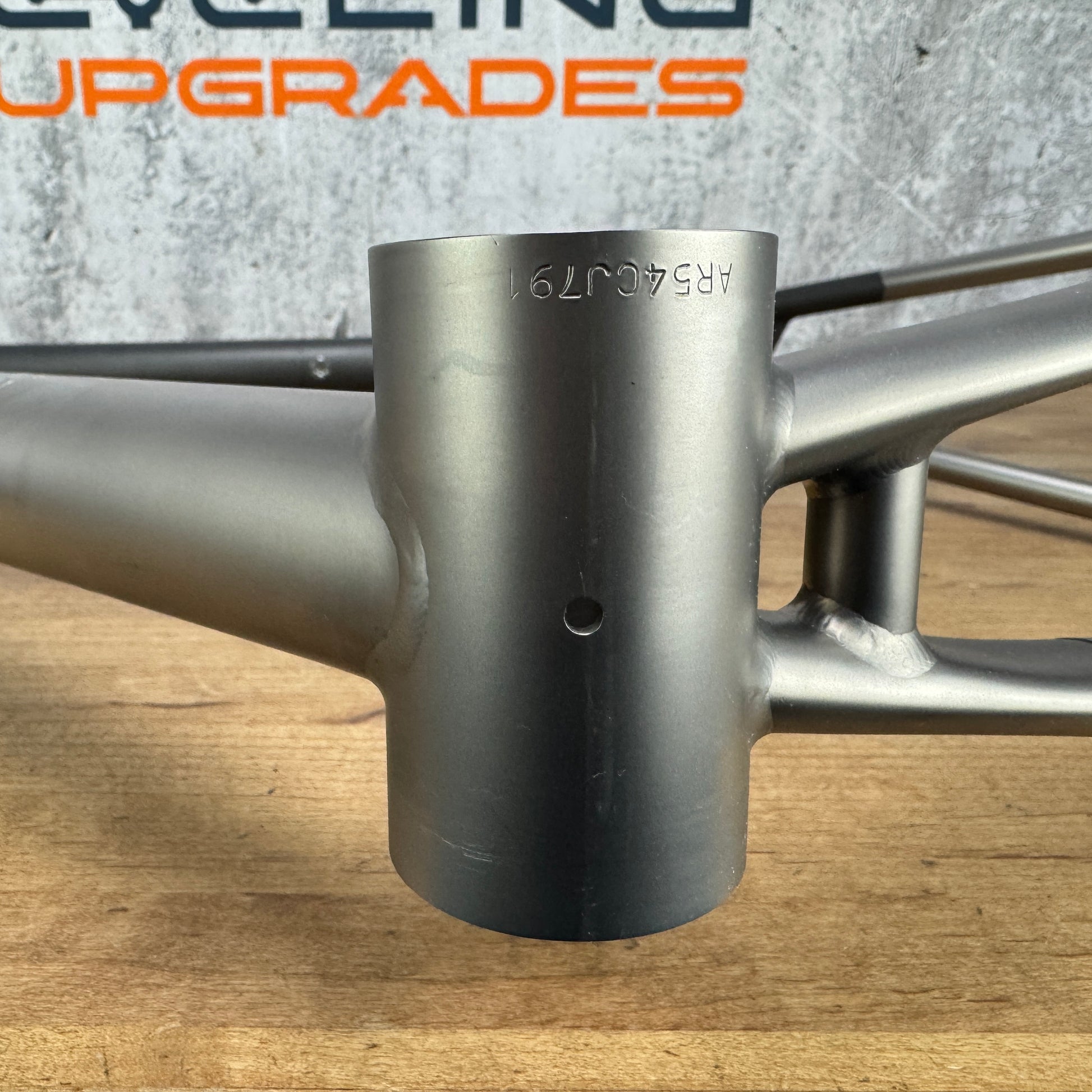

Bottom bracket: Threadfit T47/86 bottom bracket shell type. No bottom bracket currently installed or included. We have a handful of lightly used basic bottom brackets on hand, let us know what you need and we can try to ship the frame with the right bottom bracket installed. Additionally, CyclingUpgrades is a Ceramicspeed and Cane Creek Authorized Dealer, if you prefer to have the frame setup with a certain bottom bracket we can add and install it at an additional cost before shipping - message with inquiries/requests.

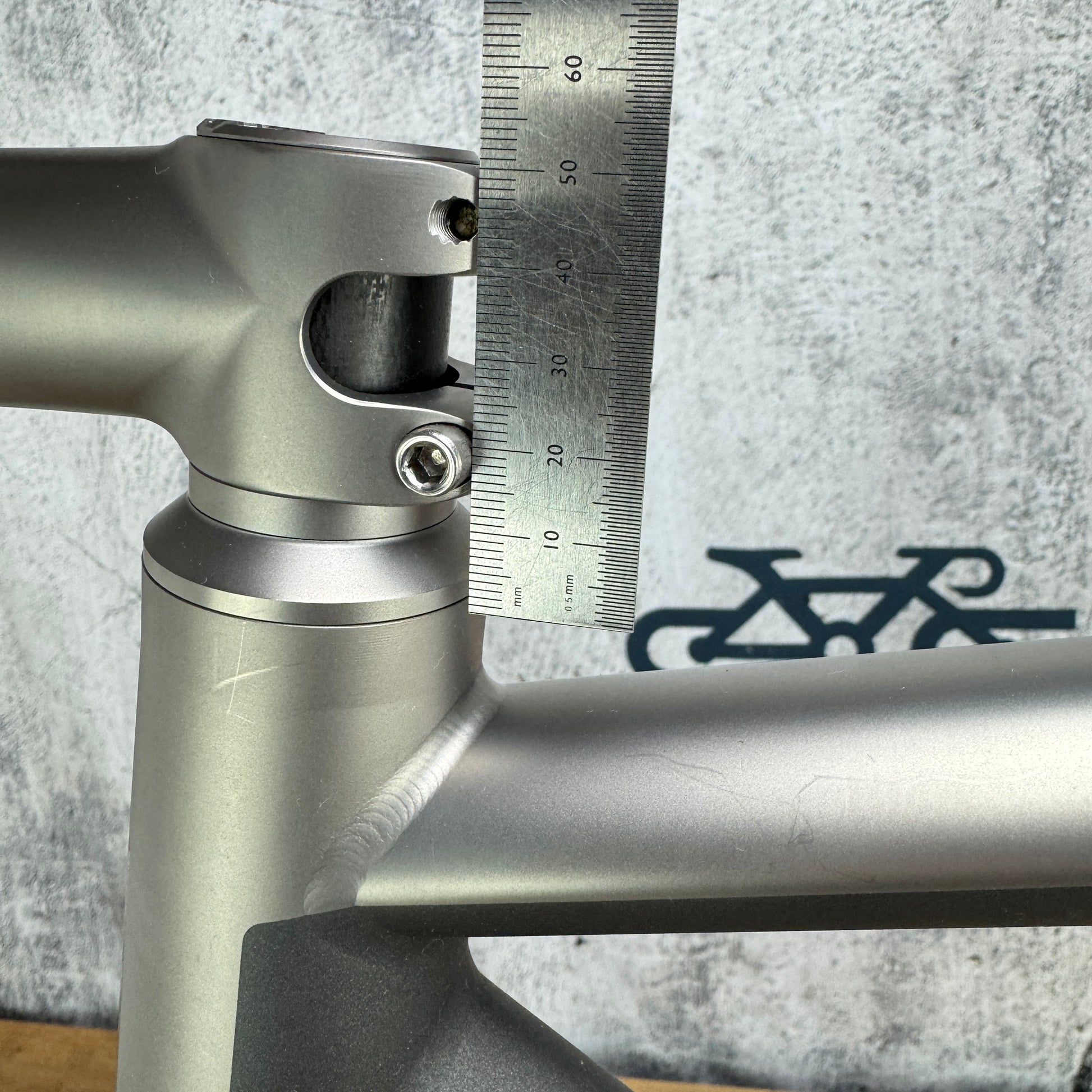

Steerer length: 50mm of steerer above the top tube. 5mm of spacers below the stem plus the headset cover. We may have an option available to safely extend the steerer tube by 15-18mm - message us for additional details.

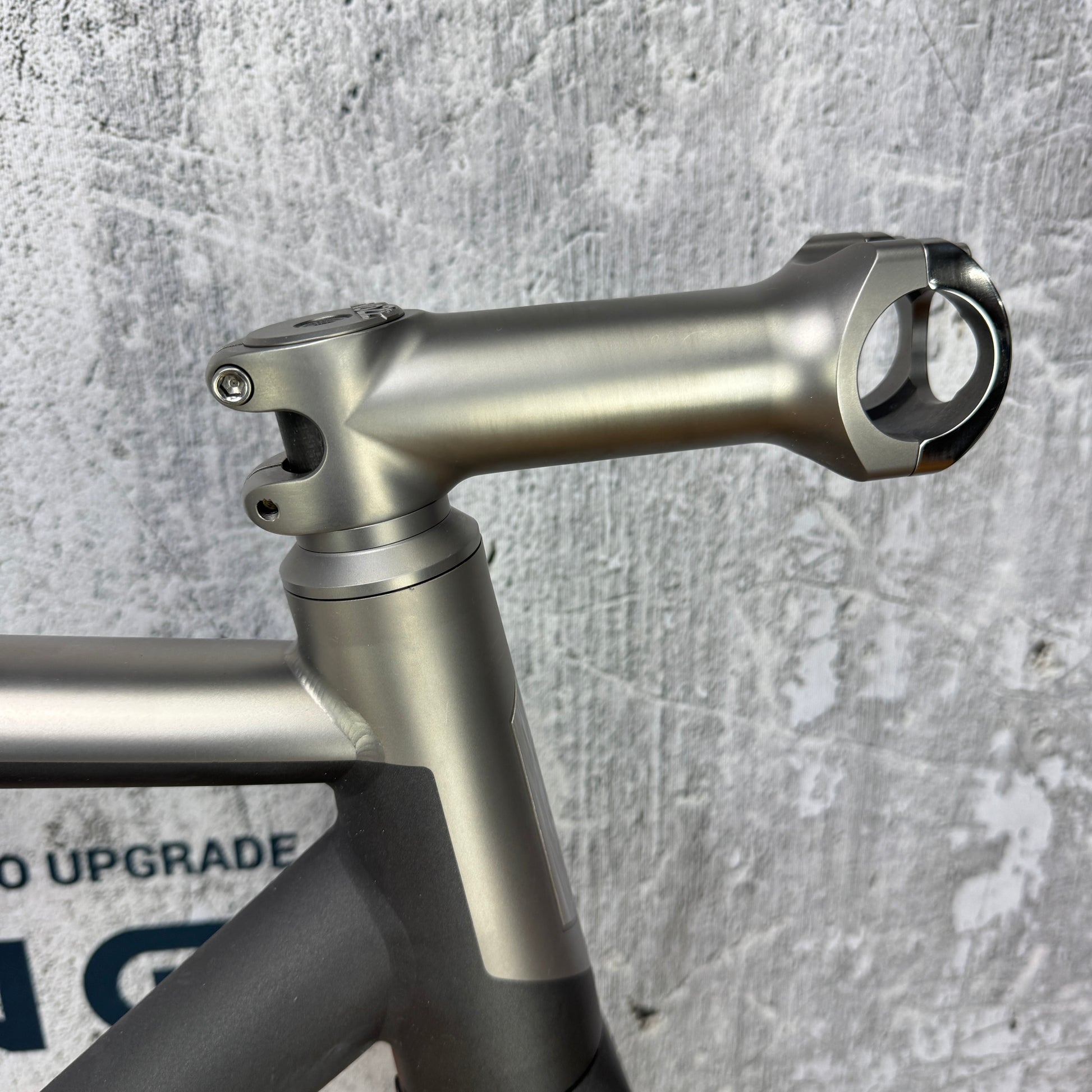

Stem: No. 22 Titanium 120mm stem.
Seatpost: No. 22 titanium 27.2mm diameter seatpost.
Dropout Spacing: Front 12mm Thru Axle x 100mm, Rear 12mm Thru Axle x 142mm.
Weight: 2935 grams as pictured with headset, thru axles, seatpost, frame hardware, etc.

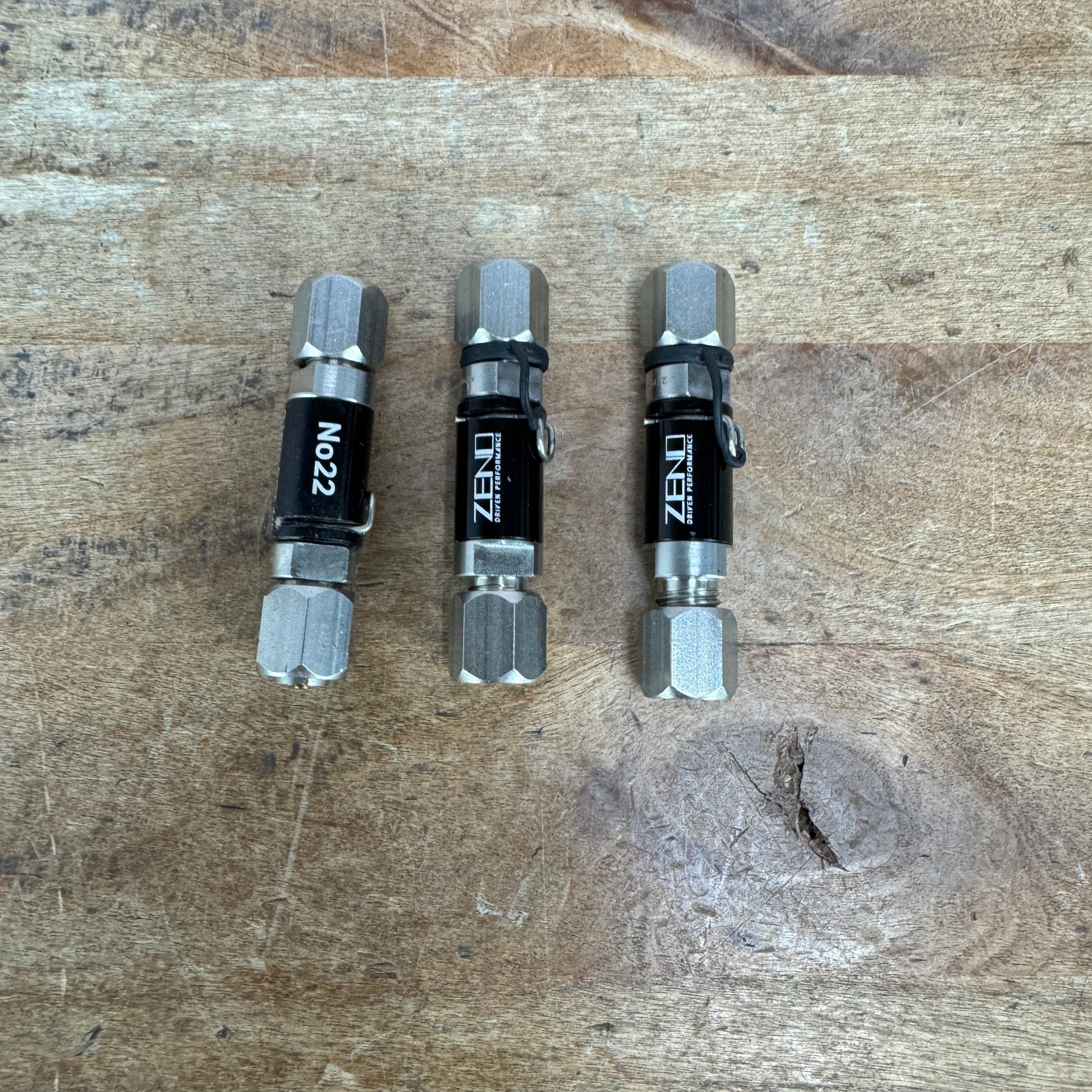

What's included: Frame, fork, headset, thru axles, stem, seatpost, 3x Hydraulic couplers
