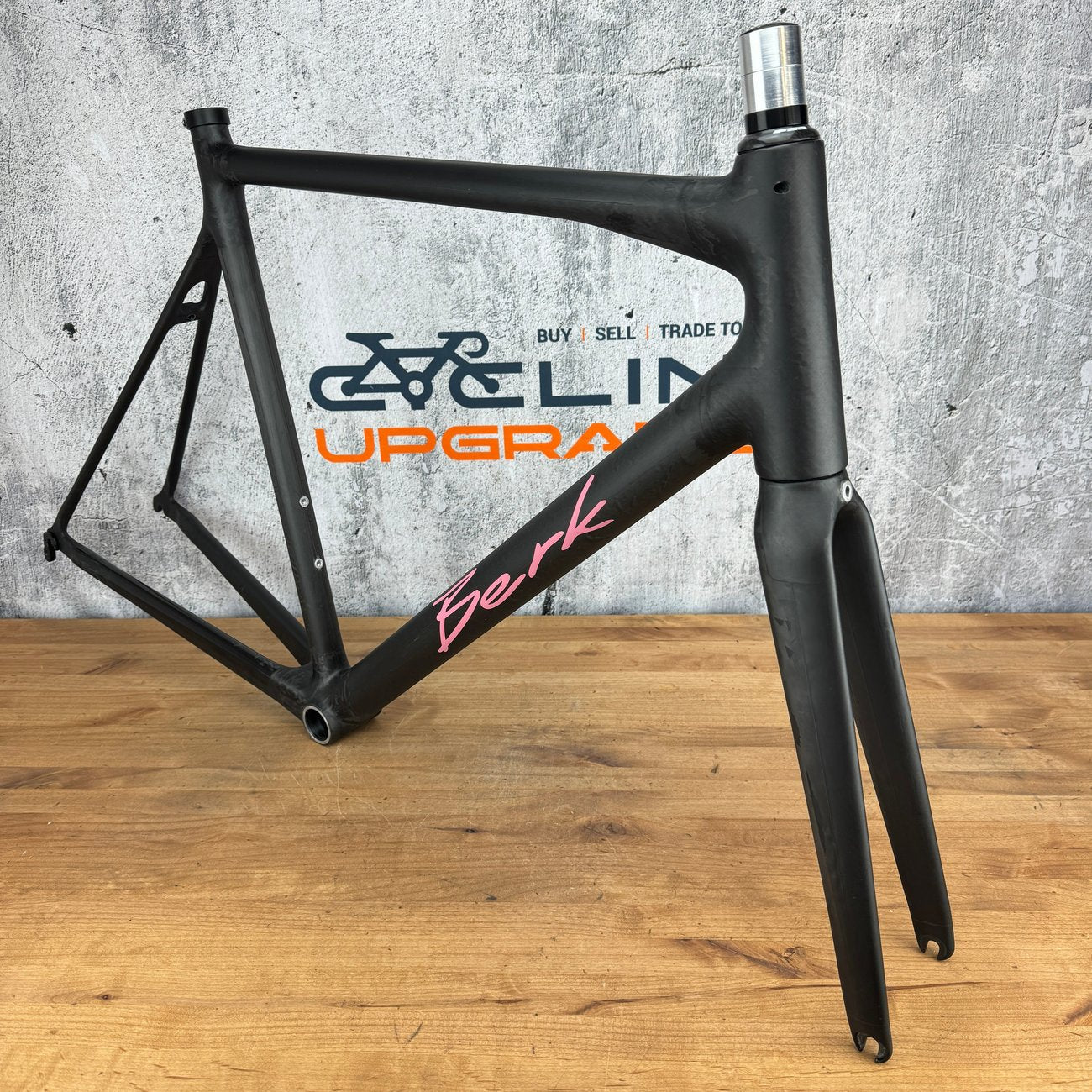

Frame: Berk Allroad
Color: Natural carbon
Tire Clearance: Clears 28mm tires
Brake type: Center-Mount rim brake

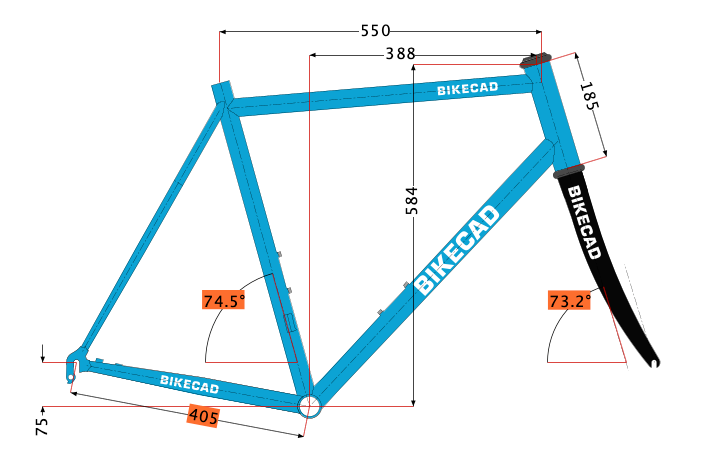

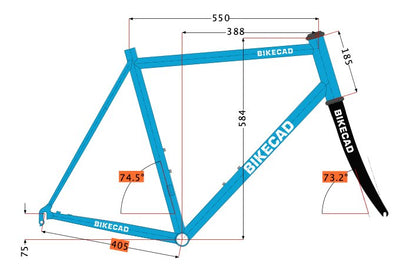

Size: Custom geometry built around a size 55cm. 550mm Effective Top Tube. Stack - 584mm. Reach - 388mm. Head tube 185mm. As we were not able to obtain a copy of the original geometry chart for this frame, CyclingUpgrades reverse engineered a geometry chart using a combination of measurements obtained from setting the frame in a Benchmark Tooling frame building fixture and manual measurements taken by hand. A copy of this geometry chart is shown in the last listing photo.

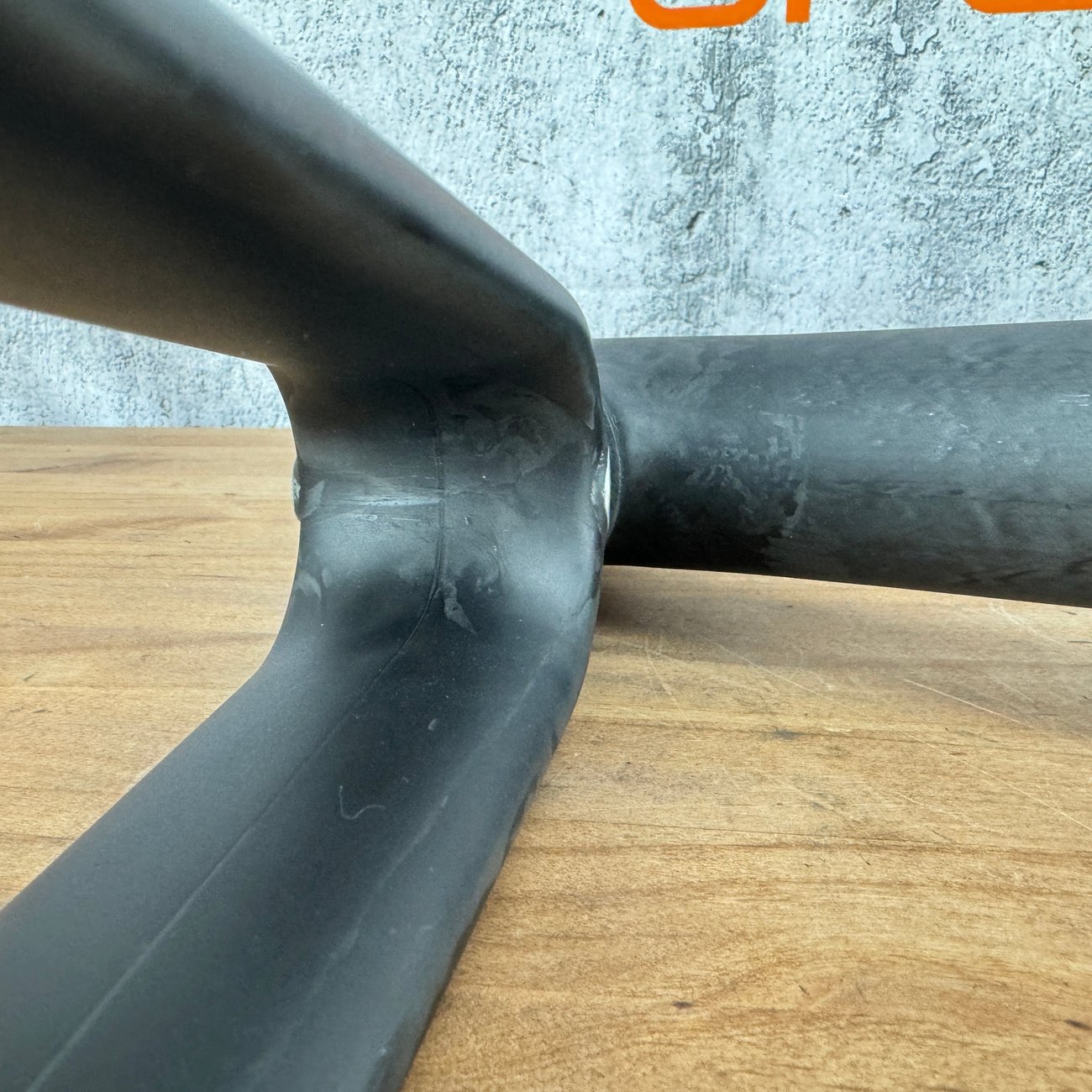

Condition: This frame is in mint condition. There are no imperfections to specifically picture, only very minor imperfections and light signs of use may exist.
Groupset compatibility: This frame can be setup with eTap grousets only.

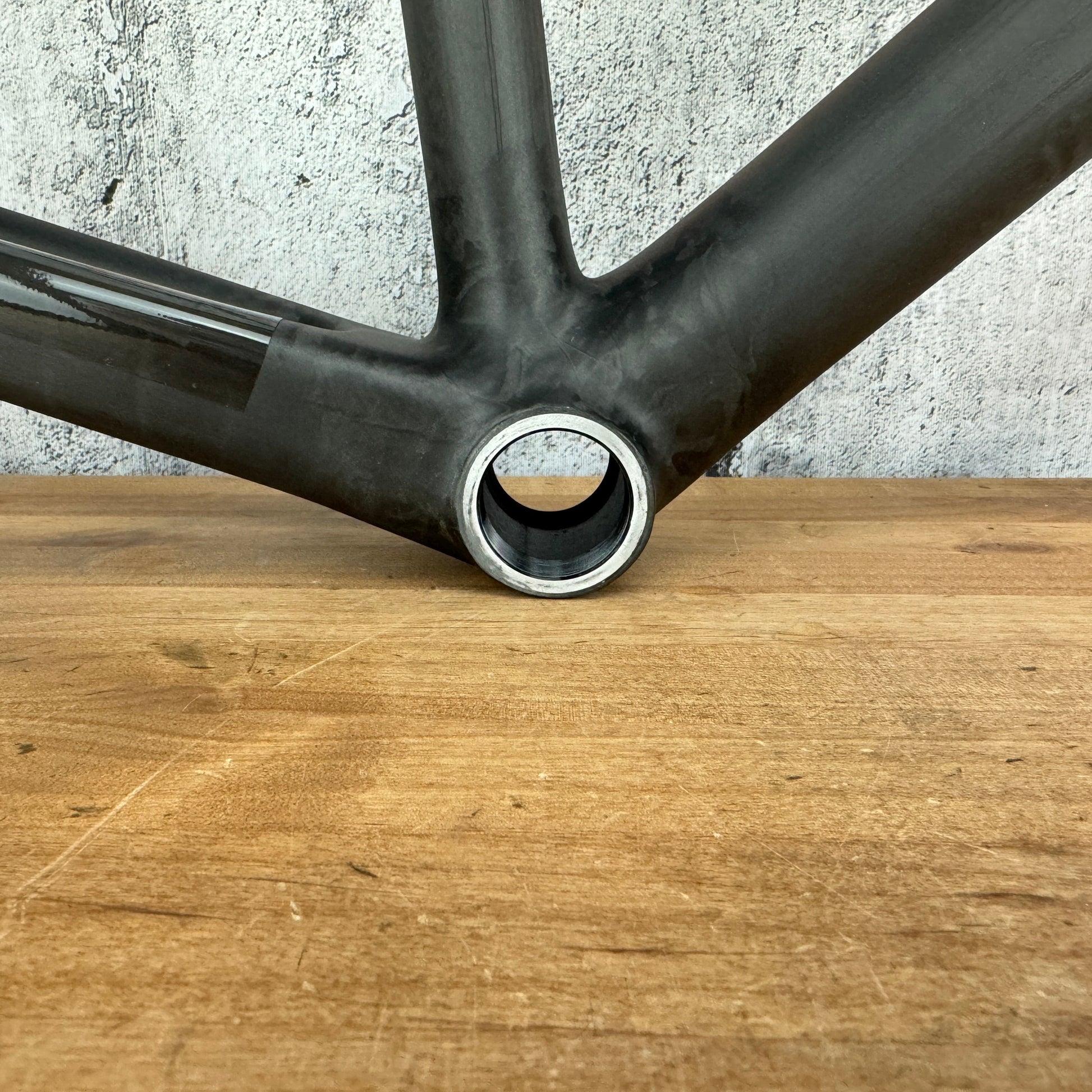

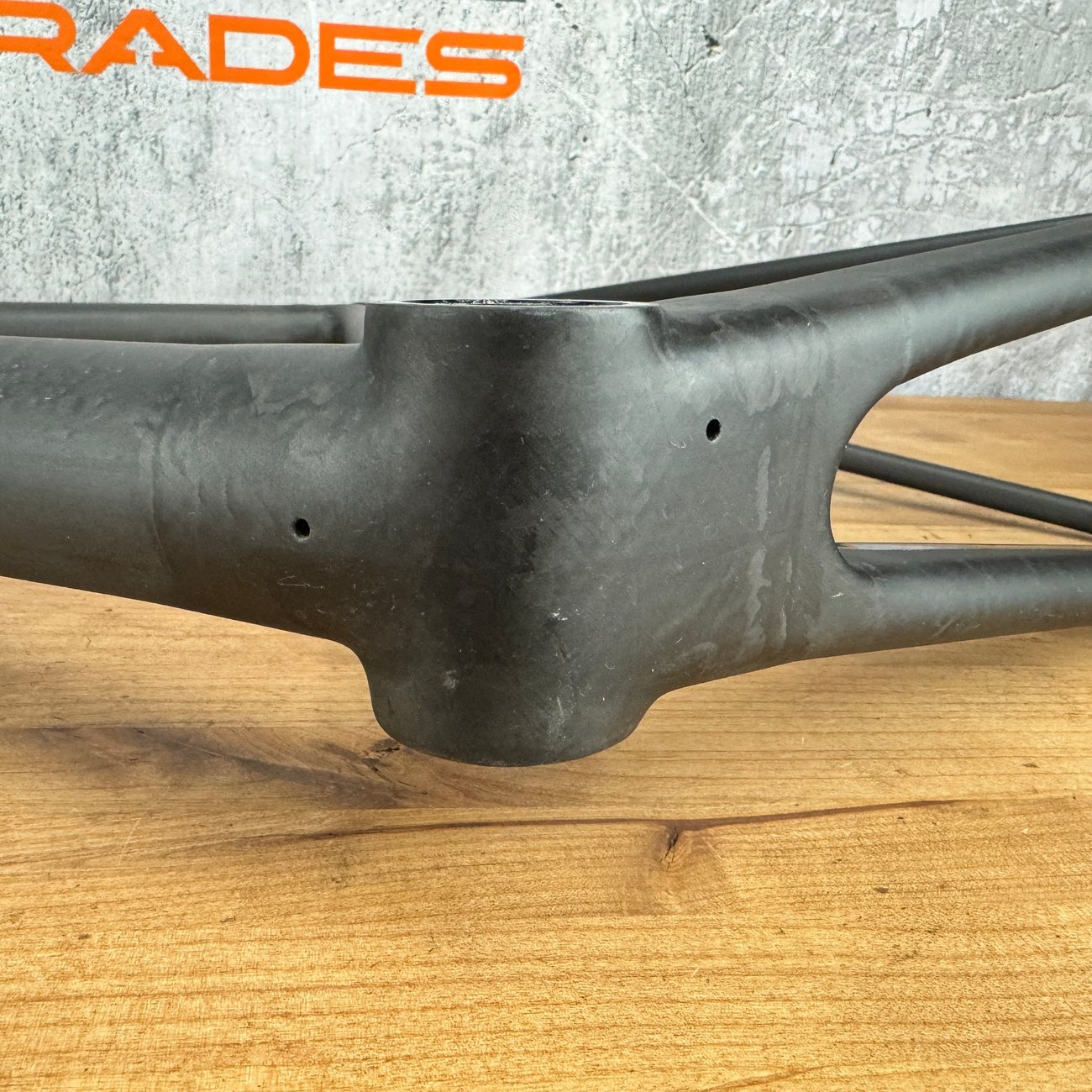

Bottom bracket: English threaded bottom bracket shell type. No bottom bracket is currently installed or included. We have a handful of lightly used basic bottom brackets on hand, let us know what you need and we can try to ship the frame with the right bottom bracket installed. Additionally, CyclingUpgrades is a Wheels Manufacturing, and a Ceramicspeed Authorized Dealer, if you prefer to have the frame setup with a certain Wheels Manufacturing, or Ceramicspeed bottom bracket we can add and install it at an additional cost before shipping - message with inquiries/requests.

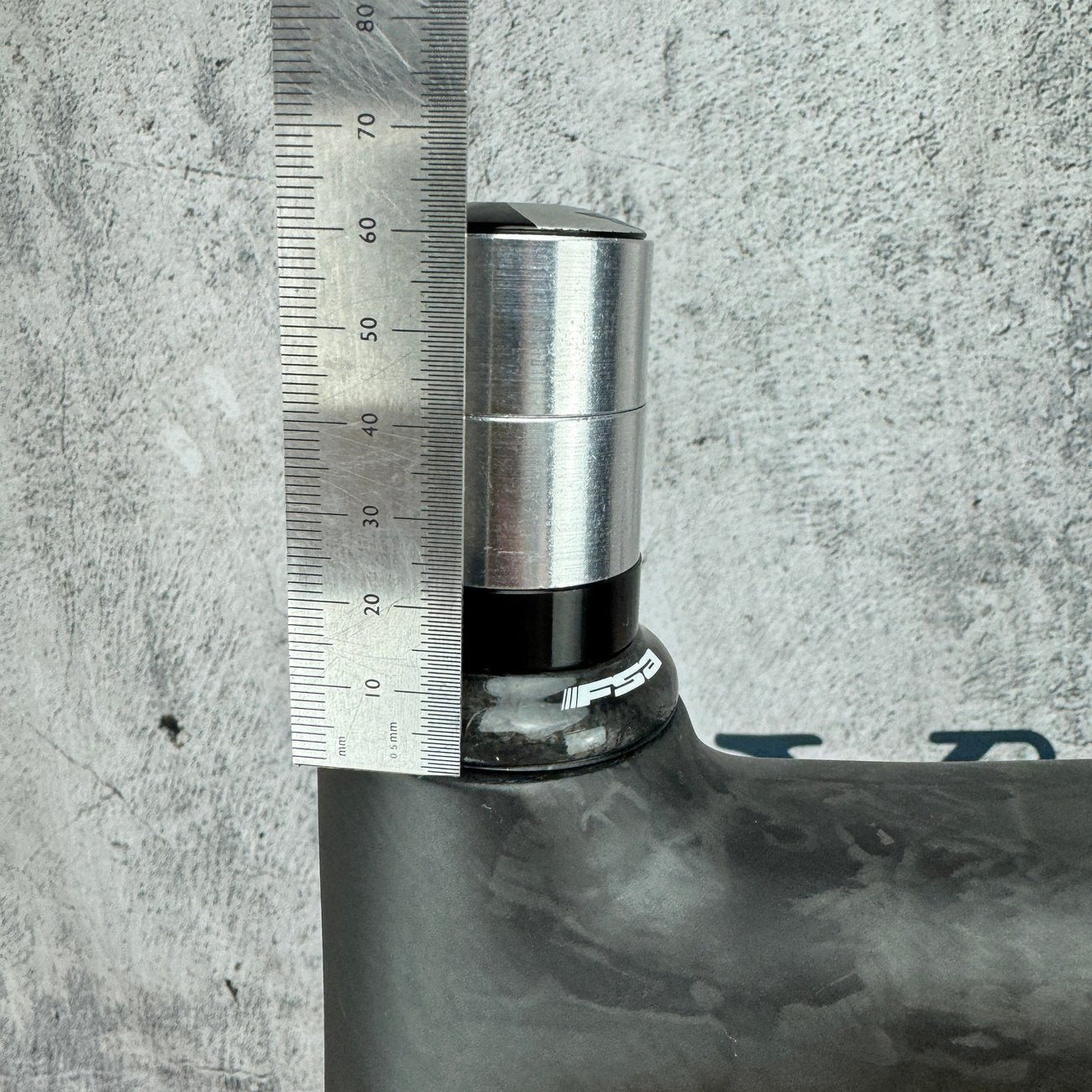

Steerer length: 58mm of steerer above the top tube. 10mm of spacers below the stem plus the headset cover. We do have an option available to safely extend the steerer tube by 15-18mm - message us for additional details.
Seatpost: 27.2mm diameter. No seatpost included.
Dropout Spacing: QR x 100mm front, QR x 130mm rear.
Weight: 1551 grams as pictured with headset, frame hardware, etc.
What's included: Frame, fork, headset, rear derailleur hanger
