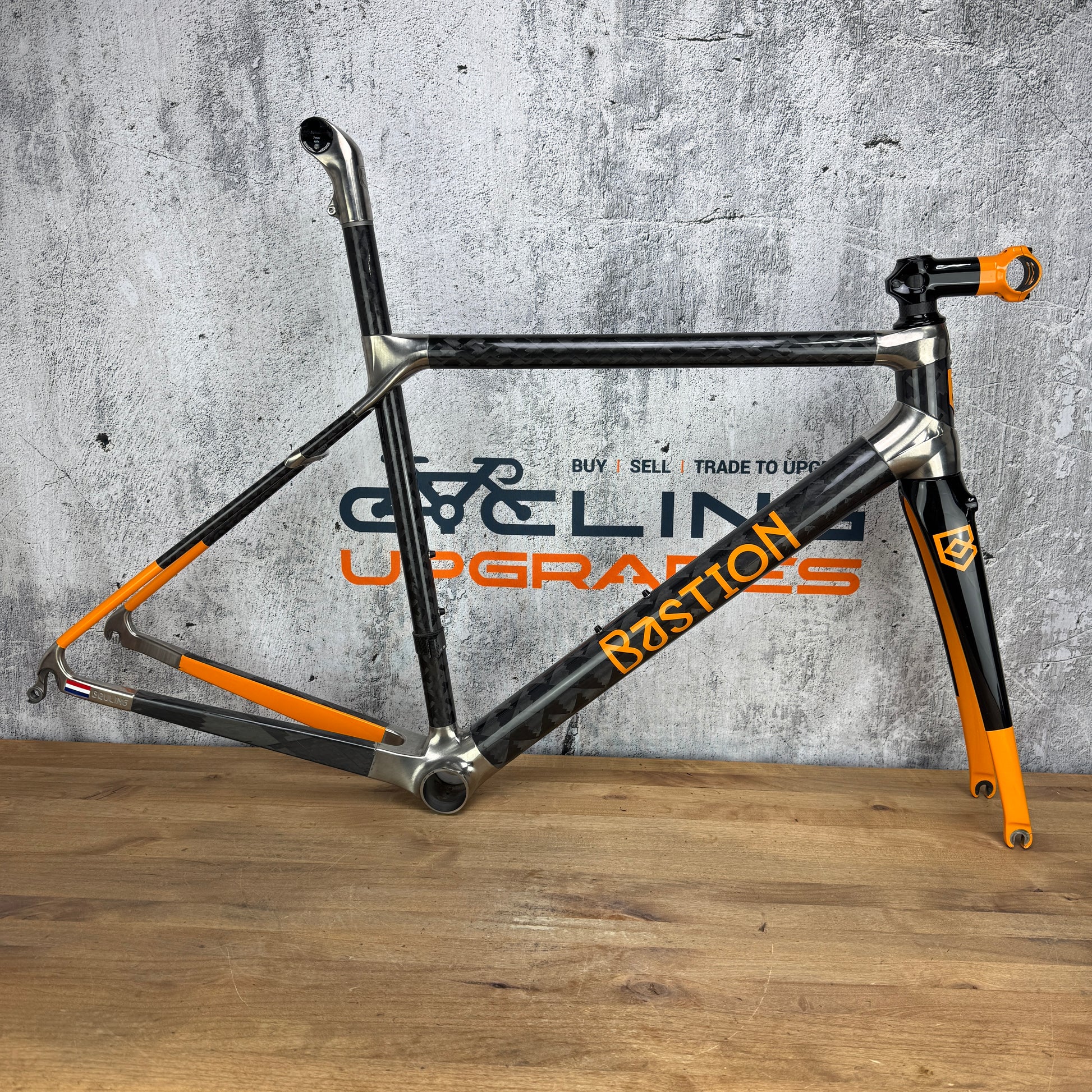

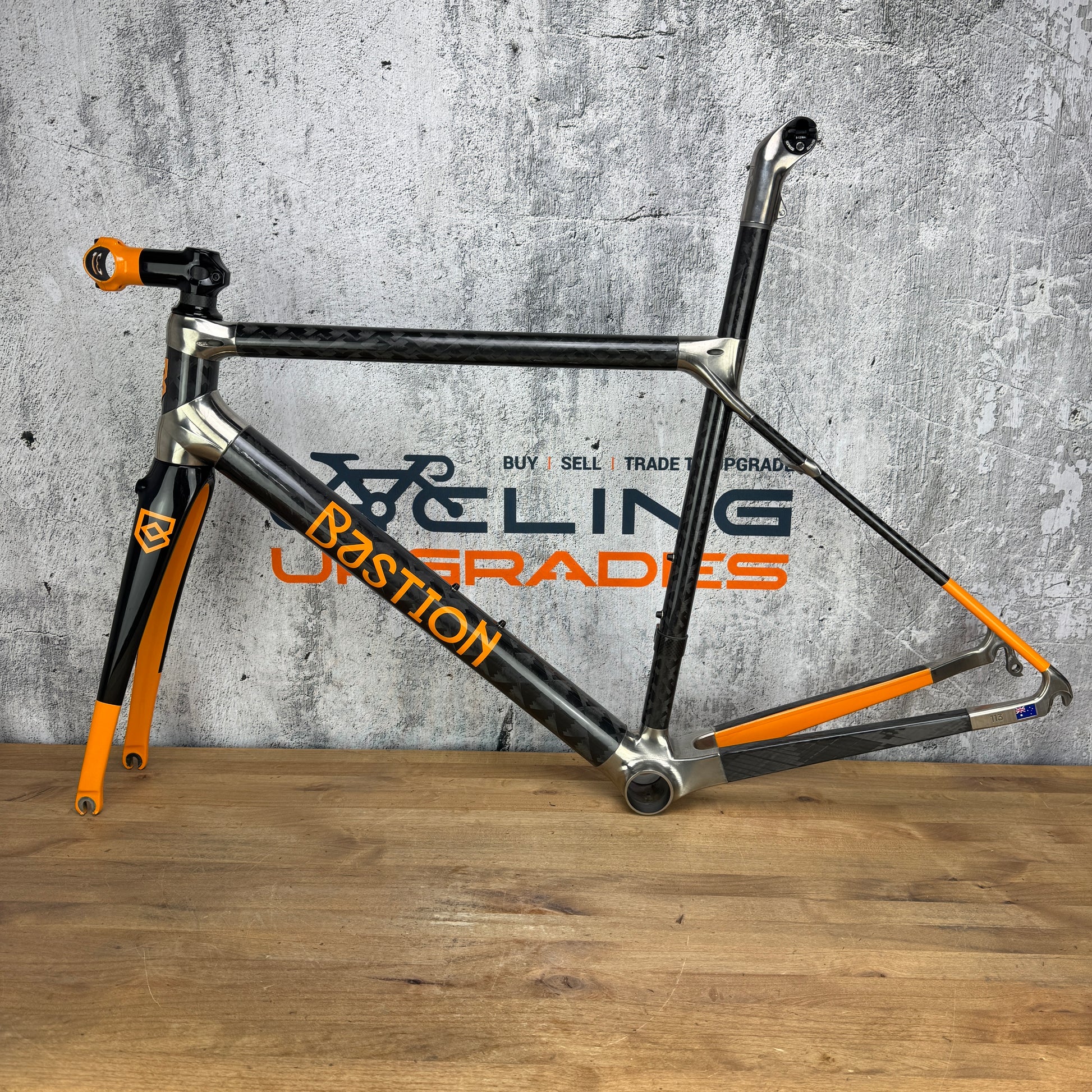

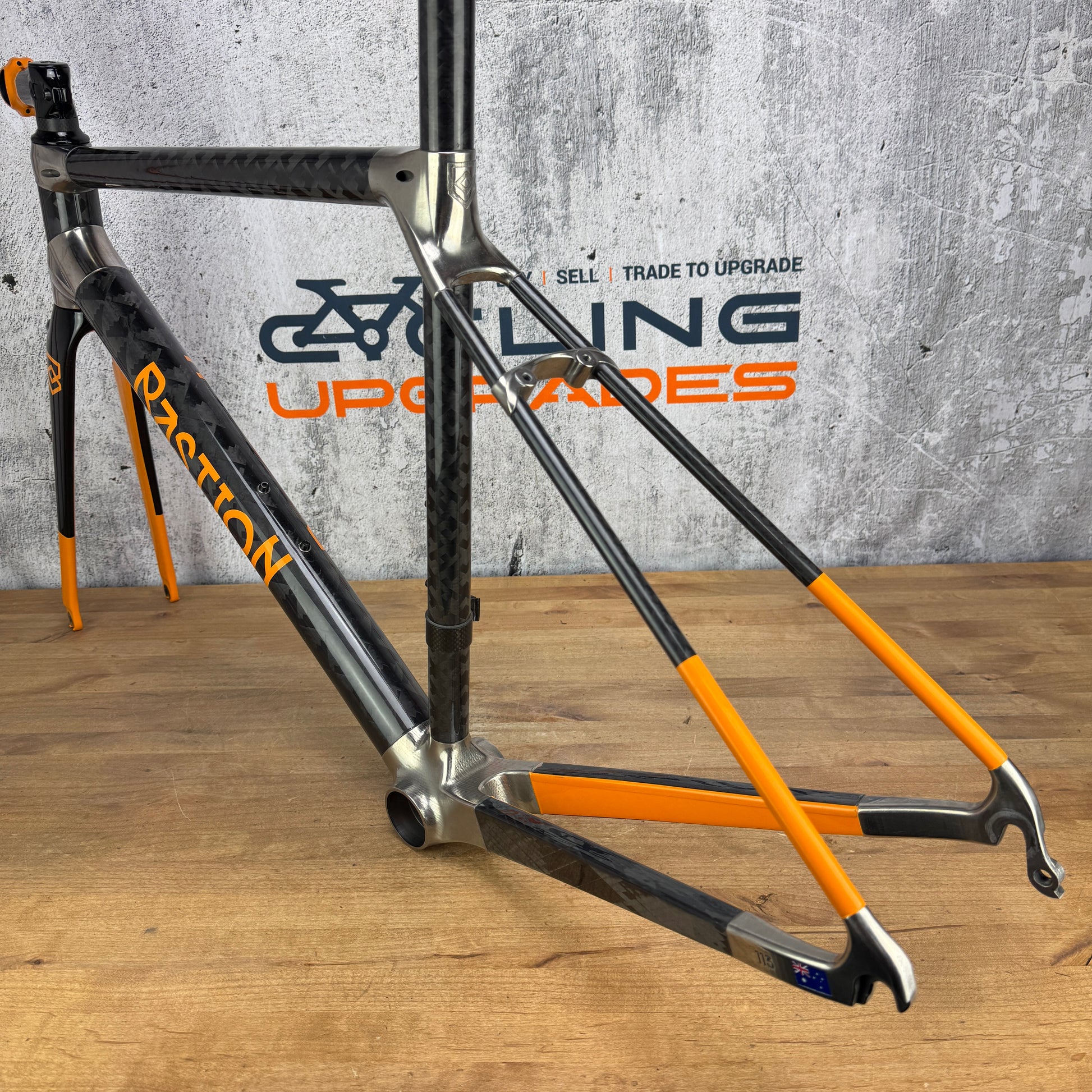

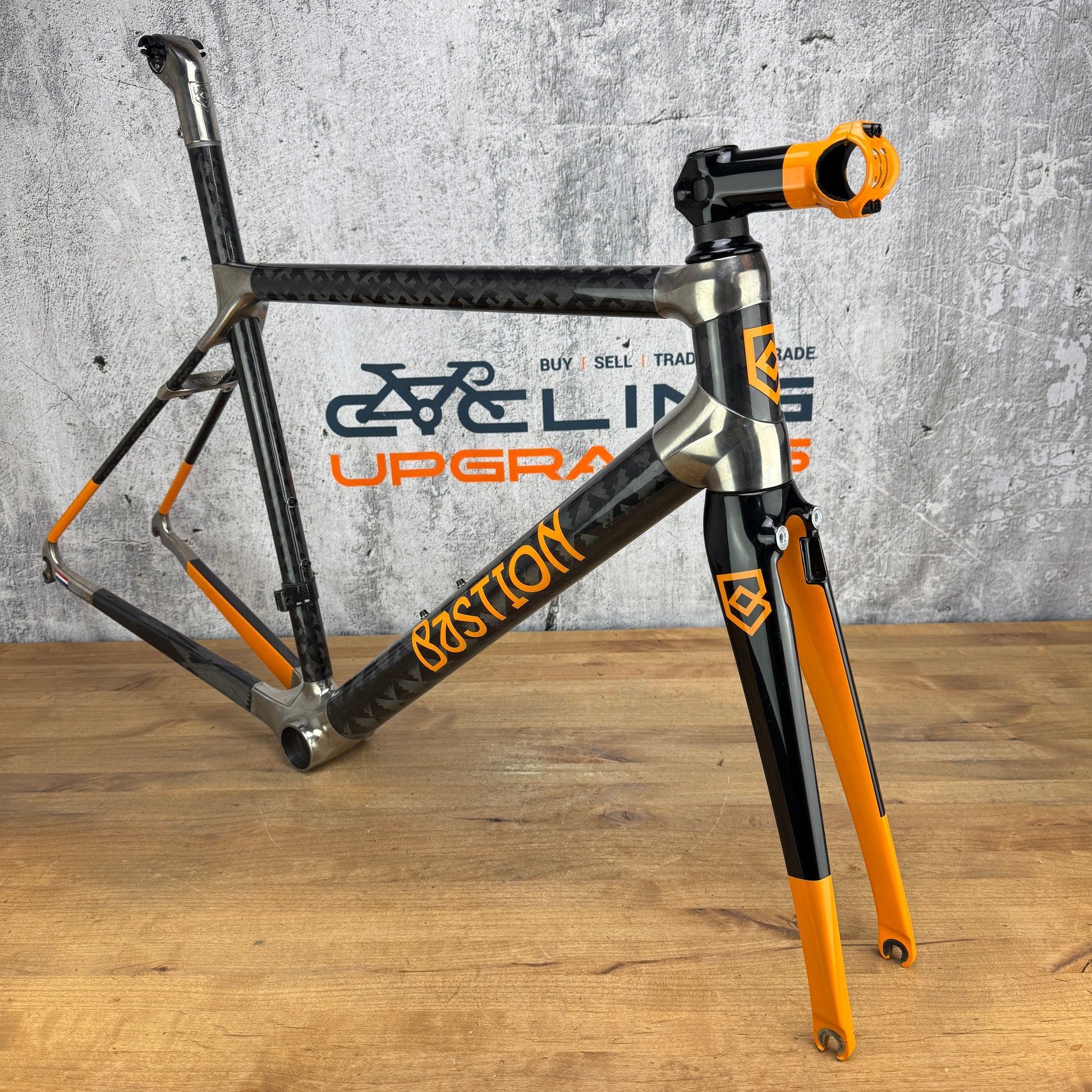

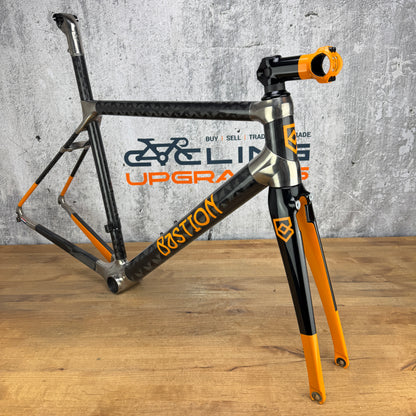

Mint! Bastion Road 54cm Rim Brake Carbon Titanium Frameset 700c 1864g

Frame: Bastion Road

Color: Black, and orange

Tire Clearance:

Brake type: Direct-Mount rim brake

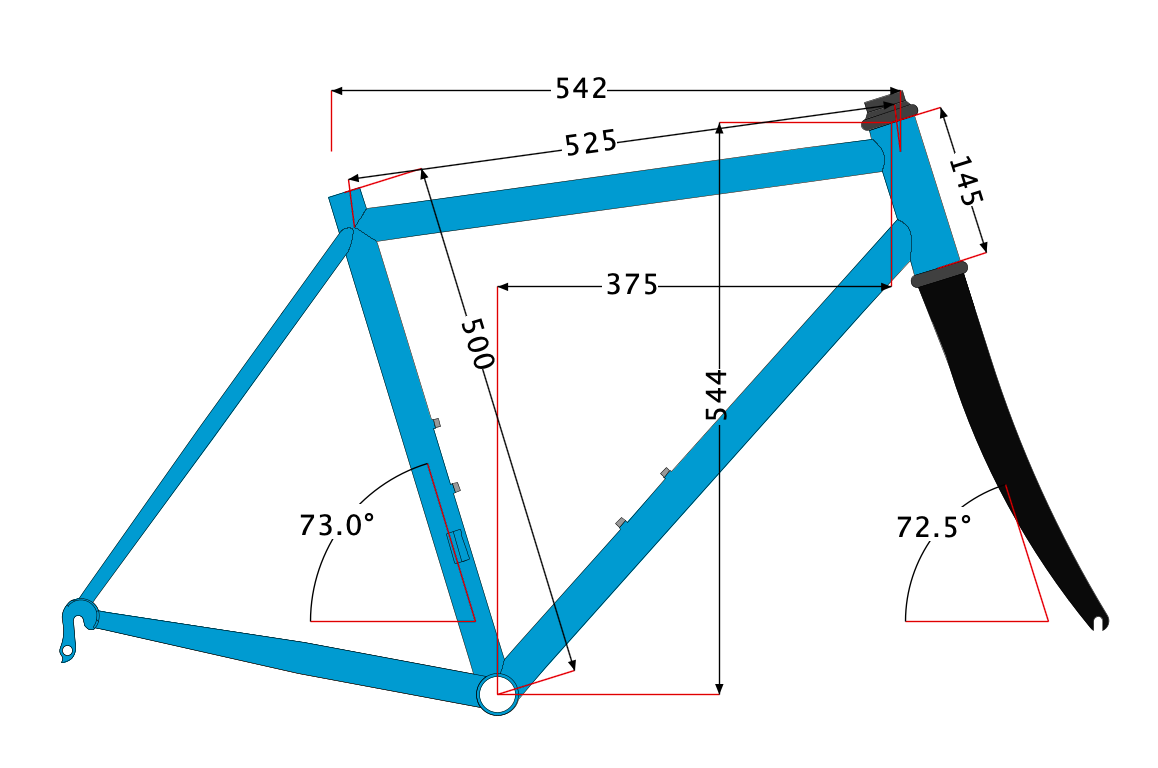

Size: 54cm. 542mm Effective Top Tube. Stack - 544mm. Reach - 375mm. Head tube 145mm. Recommend buyer confirm and research full geometry online. As we were not able to obtain a copy of the original geometry chart for this frame, CyclingUpgrades reverse engineered a geometry chart using a combination of measurements obtained from setting the frame in a Benchmark Tooling frame building fixture and manual measurements taken by hand. A copy of this geometry chart is shown in the last listing photo.

Condition: This frame is in mint condition. There are no imperfections to specifically picture, only very minor imperfections and light signs of use may exist.

Groupset compatibility: This frameset is compatible with eTap groupsets only

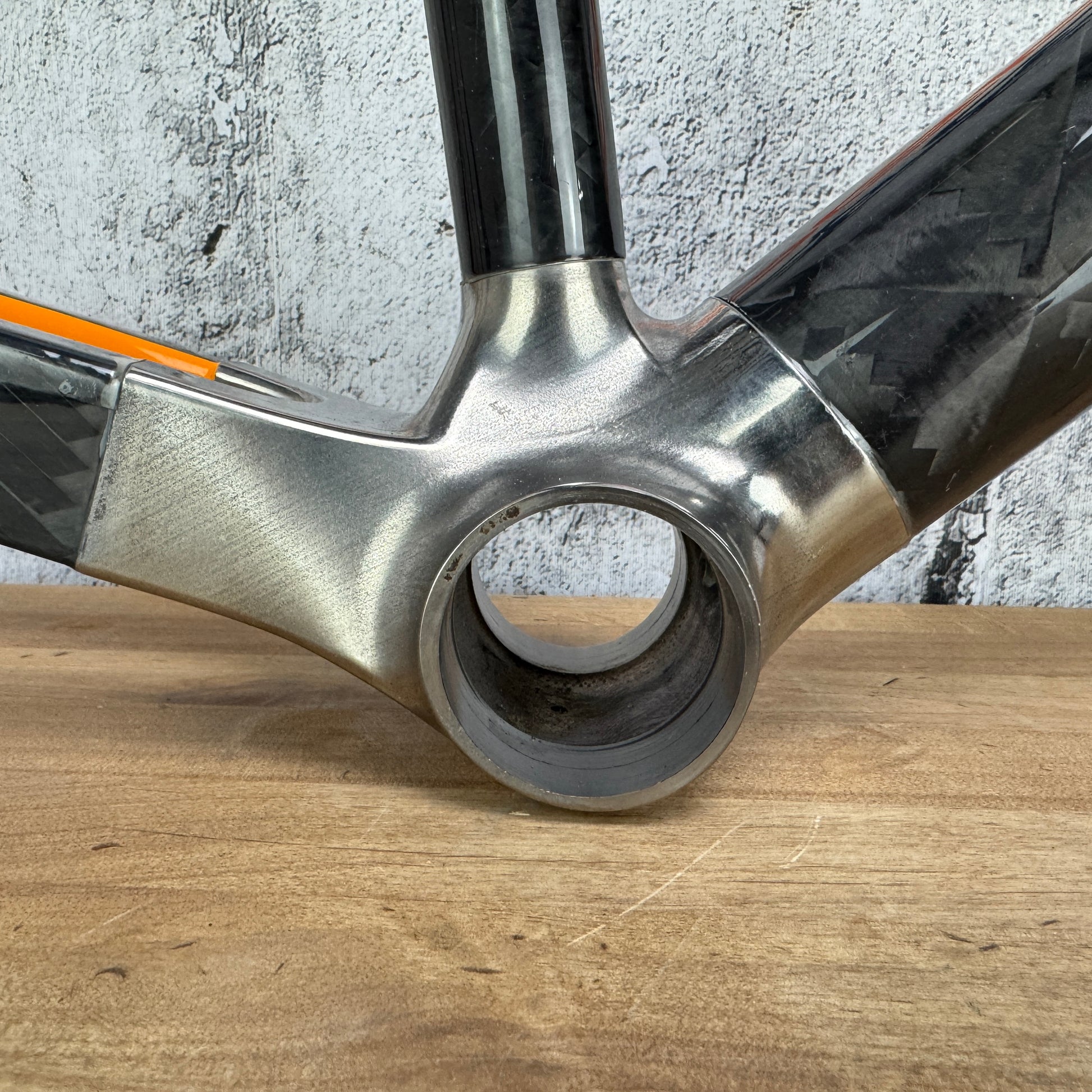

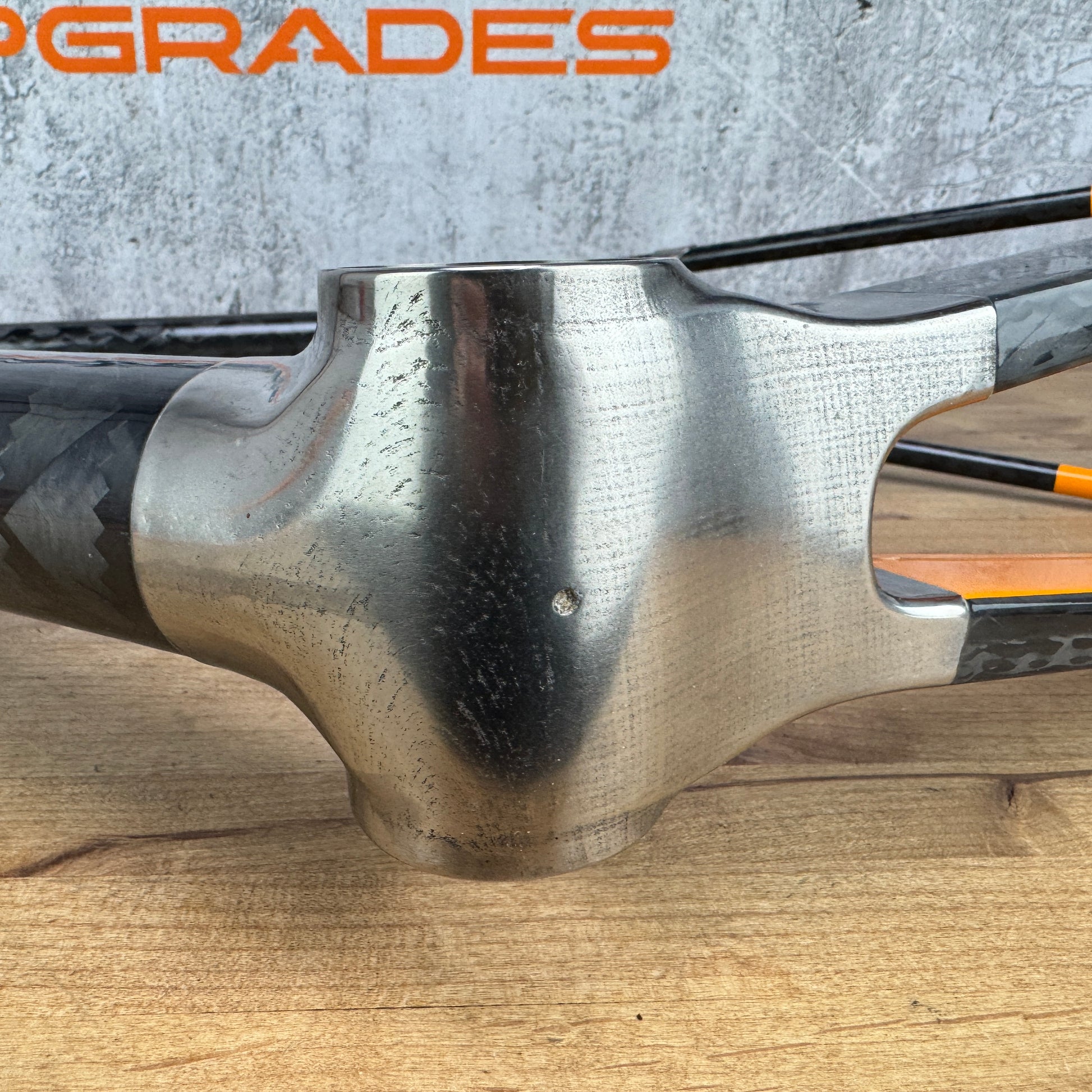

Bottom bracket: BB386EVO bottom bracket shell type (46mm shell diameter, 86mm shell width). No bottom bracket is currently installed or included. We have a handful of lightly used basic bottom brackets on hand, let us know what you need and we can try to ship the frame with the right bottom bracket installed. Additionally, CyclingUpgrades is a Ceramicspeed and Cane Creek Authorized Dealer, if you prefer to have the frame setup with a certain bottom bracket we can add and install it at an additional cost before shipping - message with inquiries/requests.

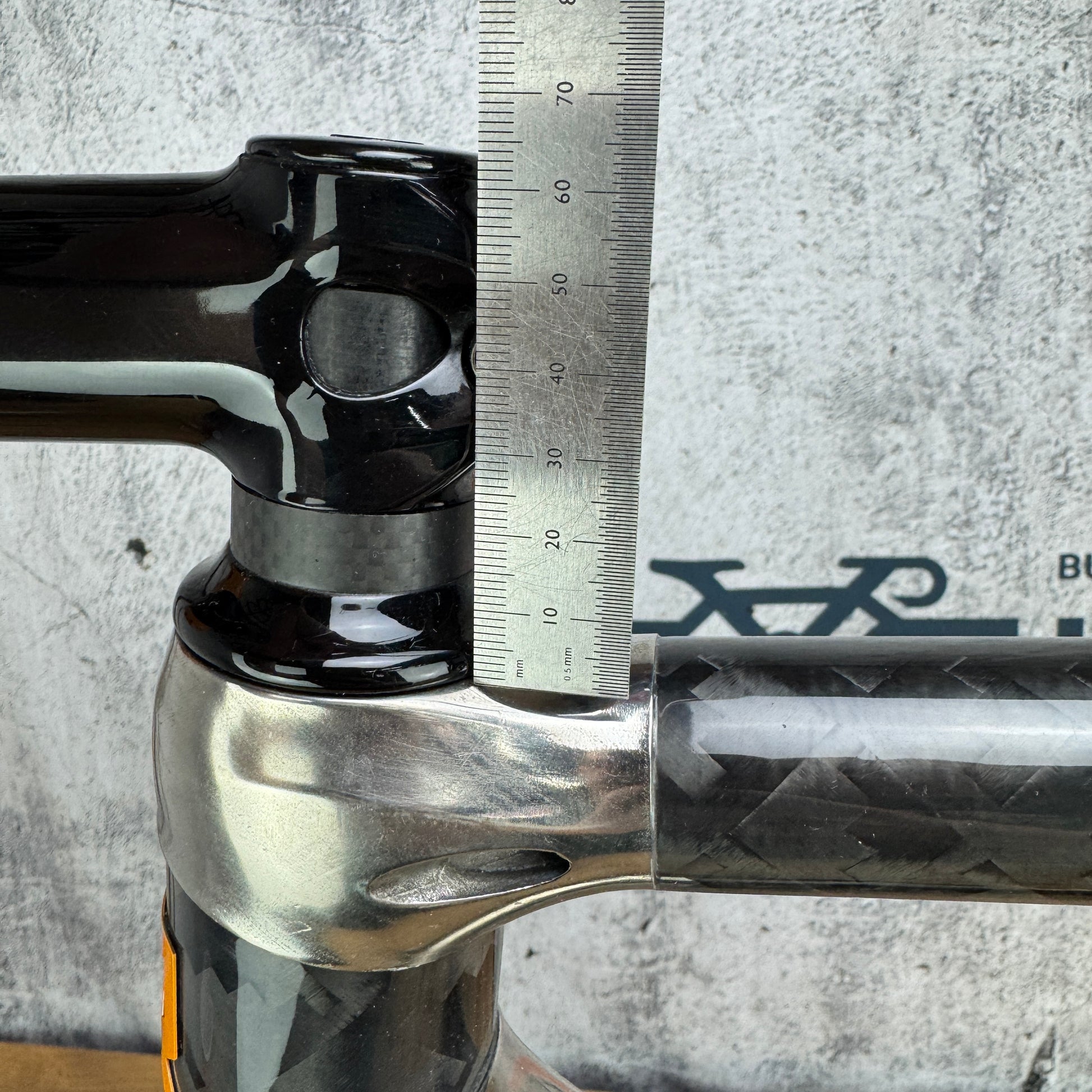

Steerer length: 65mm of steerer above the top tube. 10mm of spacers below the stem plus the headset cover. We may have an option available to safely extend the steerer tube by 15-18mm - message us for additional details.

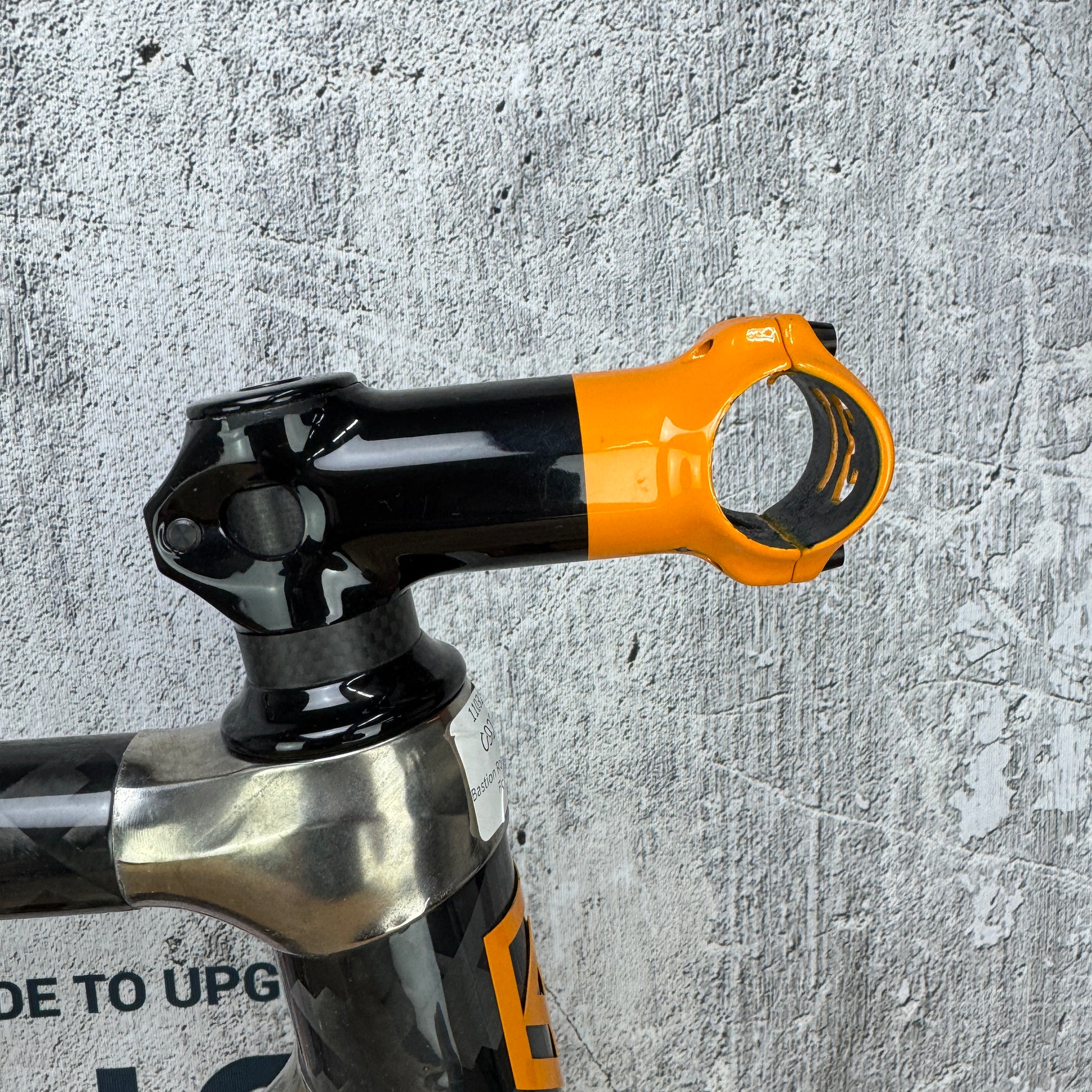

Stem: 3T paint matched 90mm carbon stem included.

 Seatpost: Seatmast height is 640mm from center of bottom bracket. The minimum height to saddle rails is 675mm, and the maximum height to the saddle rails is 690mm. Add your saddle stack height to determine max saddle height from center of bottom bracket. Seatmast cap included.

Dropout Spacing: QR x 100mm front, QR x 130mm rear.

Weight: 1864 grams as pictured with headset, Bottom bracket, seatpost, frame hardware, etc.

What's included: Frame, fork, headset, rear derailleur hanger, seatpost, Bottom Bracket
