Frame: 2021 Open MIN.D Large
Color: Midnight Blue
Brake Type: Flat-Mount disc brake
Size: L. 569mm Effective Top Tube. Stack - 585mm. Reach - 385mm. Head Tube 184mm. Recommend buyer confirm and research full geometry online.
Condition: This frame has approximately 240 miles of use, per prior owner claim. No cracks or carbon defects were identified through a thorough visual inspection. The cosmetic imperfections to highlight include: There is some very light cable rub on the head tube, see picture #10. Other light scratches can be seen in the rear drop out area, see picture #9. We have attempted to show all noticeable imperfections in specific close-up pictures, however other minor imperfections and light signs of use may exist.
Groupset Compatibility: Frame can be setup for Di2, EPS, or eTap groupsets. This frame was previously setup with an eTap groupset. This frame is not compatible with mechanical groupsets.

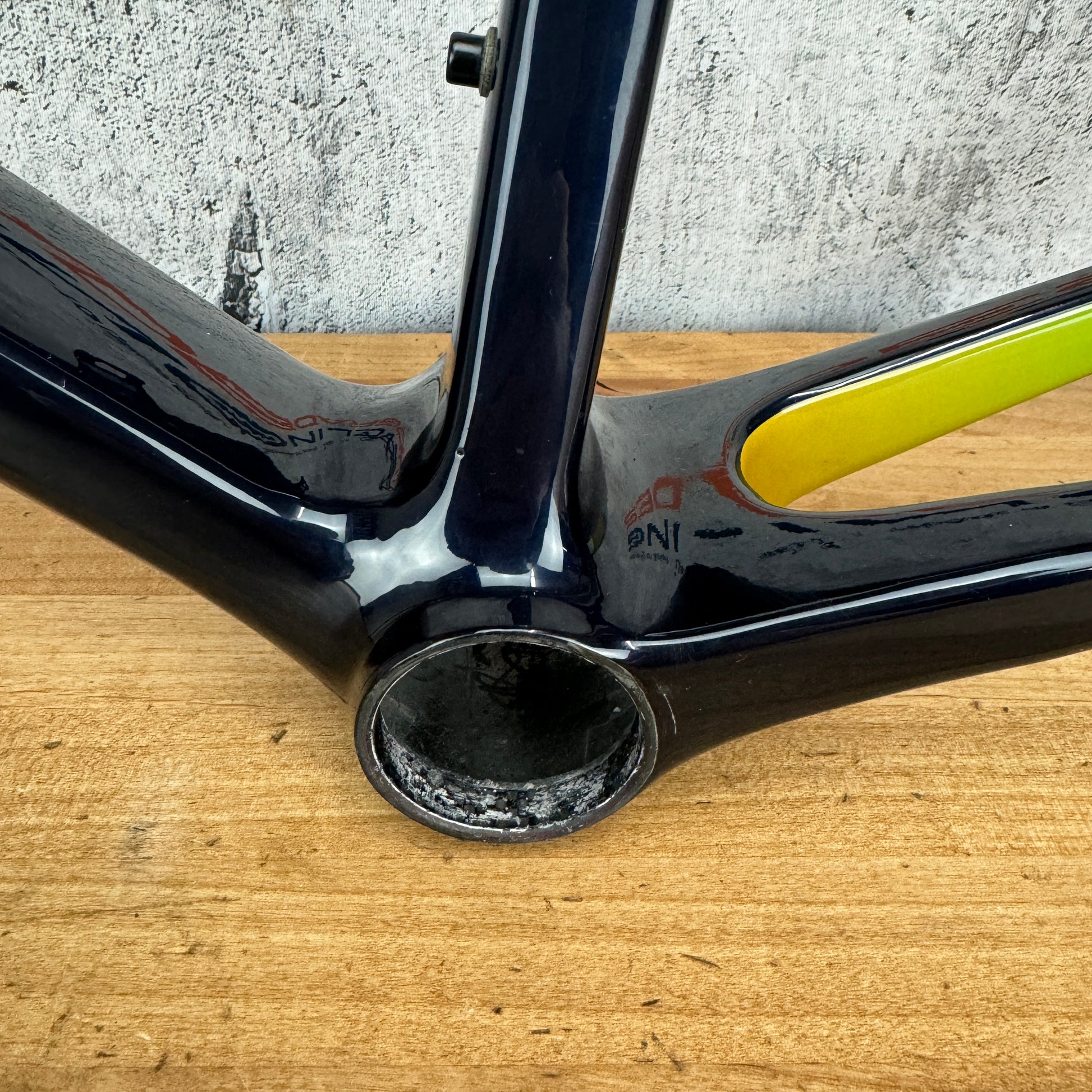

Bottom bracket: 386EVO bottom bracket shell type (46mm shell diameter, 86mm shell width). No bottom bracket currently installed or included. We have a handful of lightly used basic bottom brackets on hand, let us know what you need and we can try to ship the frame with the right bottom bracket installed. Additionally, CyclingUpgrades is a Wheels Manufacturing, and a Ceramicspeed Authorized Dealer, if you prefer to have the frame setup with a certain Wheels Manufacturing, or Ceramicspeed bottom bracket we can add and install it at an additional cost before shipping - message with inquiries/requests.
Steerer Length: 75mm of steerer above the top tube. 30mm of spacers below the stem plus the headset cover. We do have an option available to safely extend the steerer tube by 15-18mm - message us for additional details.
Seat Mast: Maximum seatmast height of 76.5cm and a minimum height of 73.25cm measured from center of bottom bracket to center of saddle rail clamps. Extra seat mast spacers and saddle rail clamp ears are included. This measurement is to saddle rails, add your saddle stack height to determine max saddle height.
Dropout Spacing: Front 12mm Thru Axle x 100mm, Rear 12mm Thru Axle x 142mm.
Weight: 1580 grams as pictured.
What's included: Frame, fork, headset, rear derailleur hanger, thru axles, seat mast, other frame parts and hardware.
At CyclingUpgrades, we fulfill all orders next business day or sooner. Generally we are able to fulfill orders placed by 12pm MT on the same day, however it is not guaranteed. We ship all items via USPS except for frames/wheels which ship via UPS or Fedex. Please check our other listings for additional cycling upgrades and thank you for shopping our store!
