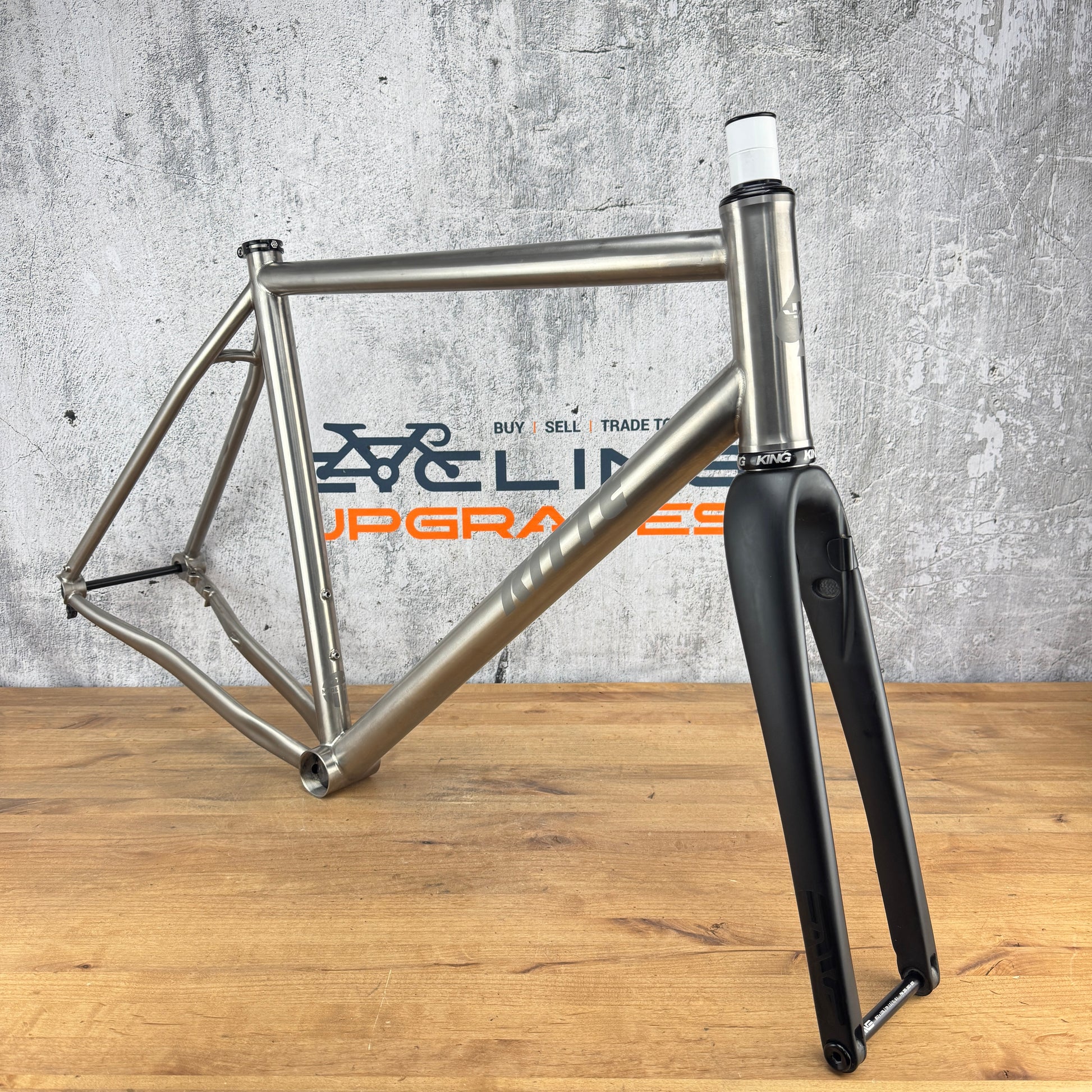

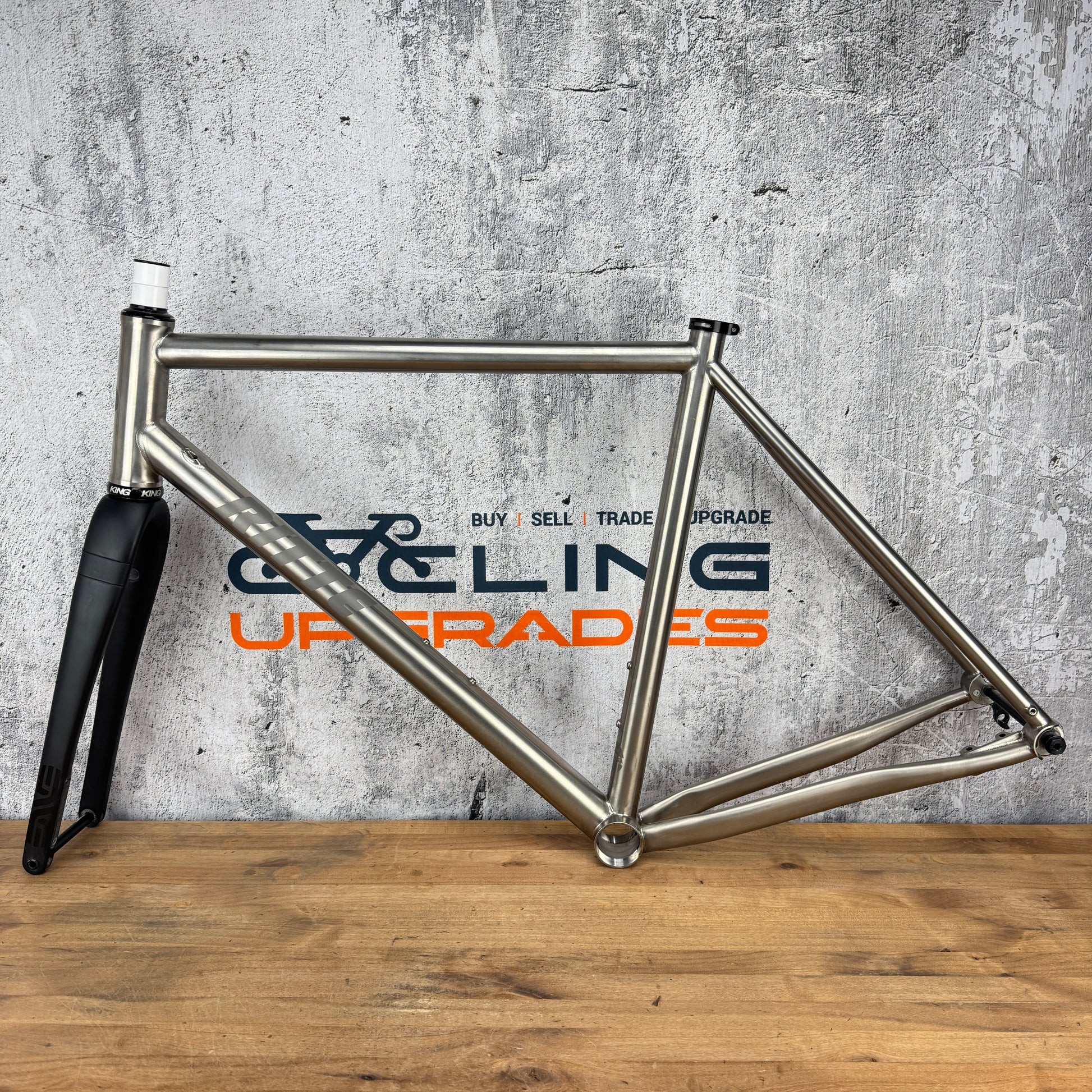

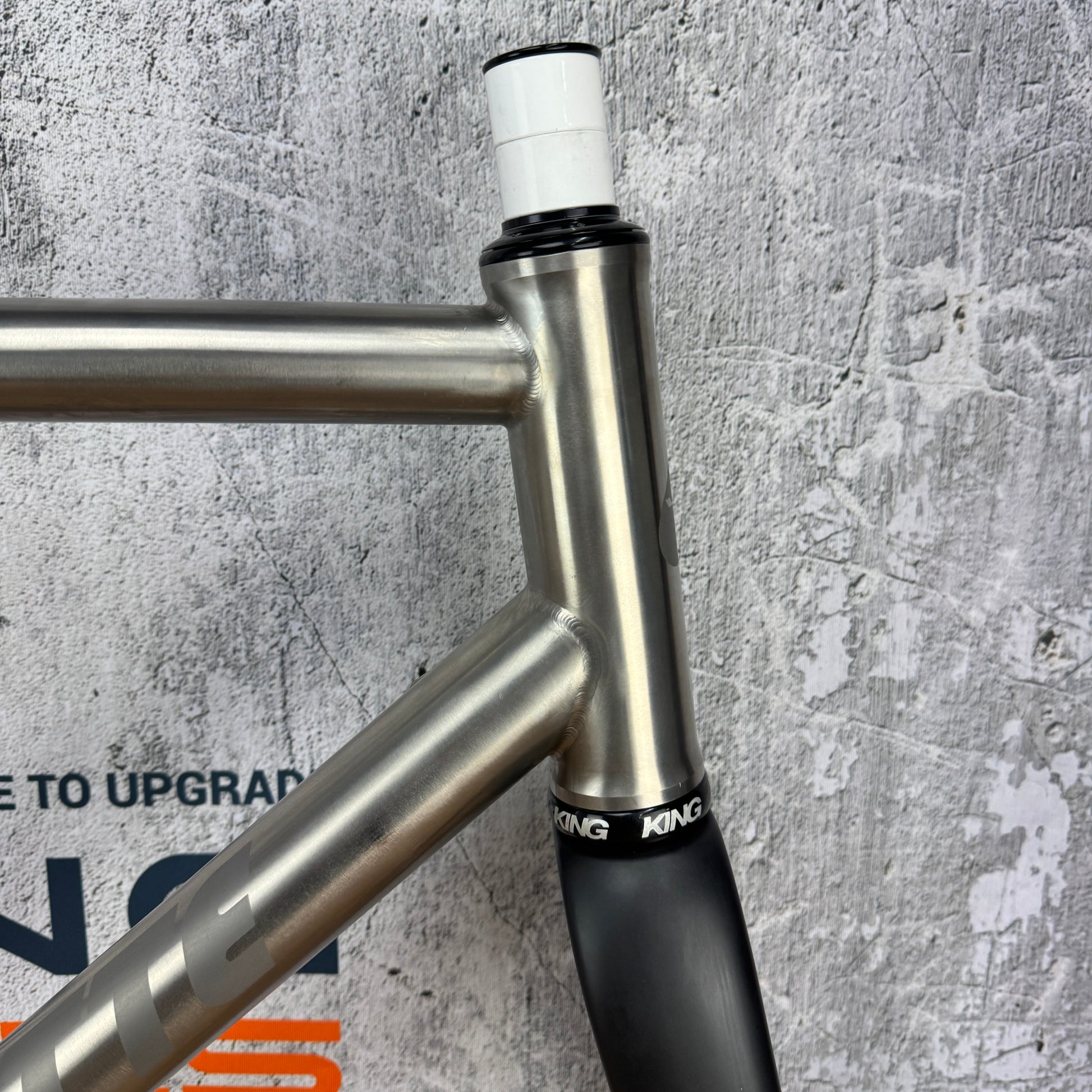

Frame: 2024 Ritte SaTyr
Fork: Enve AR (All-Road)
Tire clearance:
Frame - 650B: 47mm to 55mm/2.2" or 700C: 32mm to 50mm
Fork - Tire Clearance Up to 35mm (38mm w/o Fender)
Color: Raw Titanium/Black Fork
Brake Type: Flat-Mount disc brake

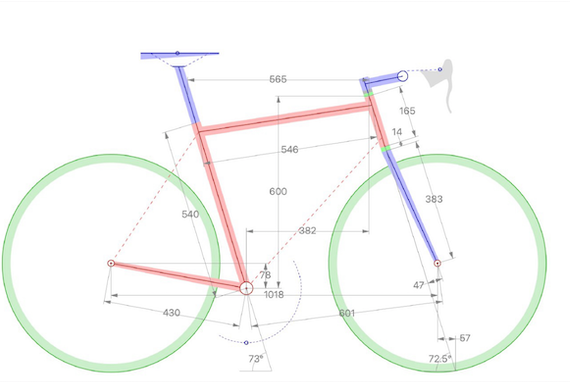

Size: 56cm. 565mm Effective Top Tube. Stack - 600mm. Reach - 382mm. Head Tube 165mm. See the last photo for a full geometry chart.

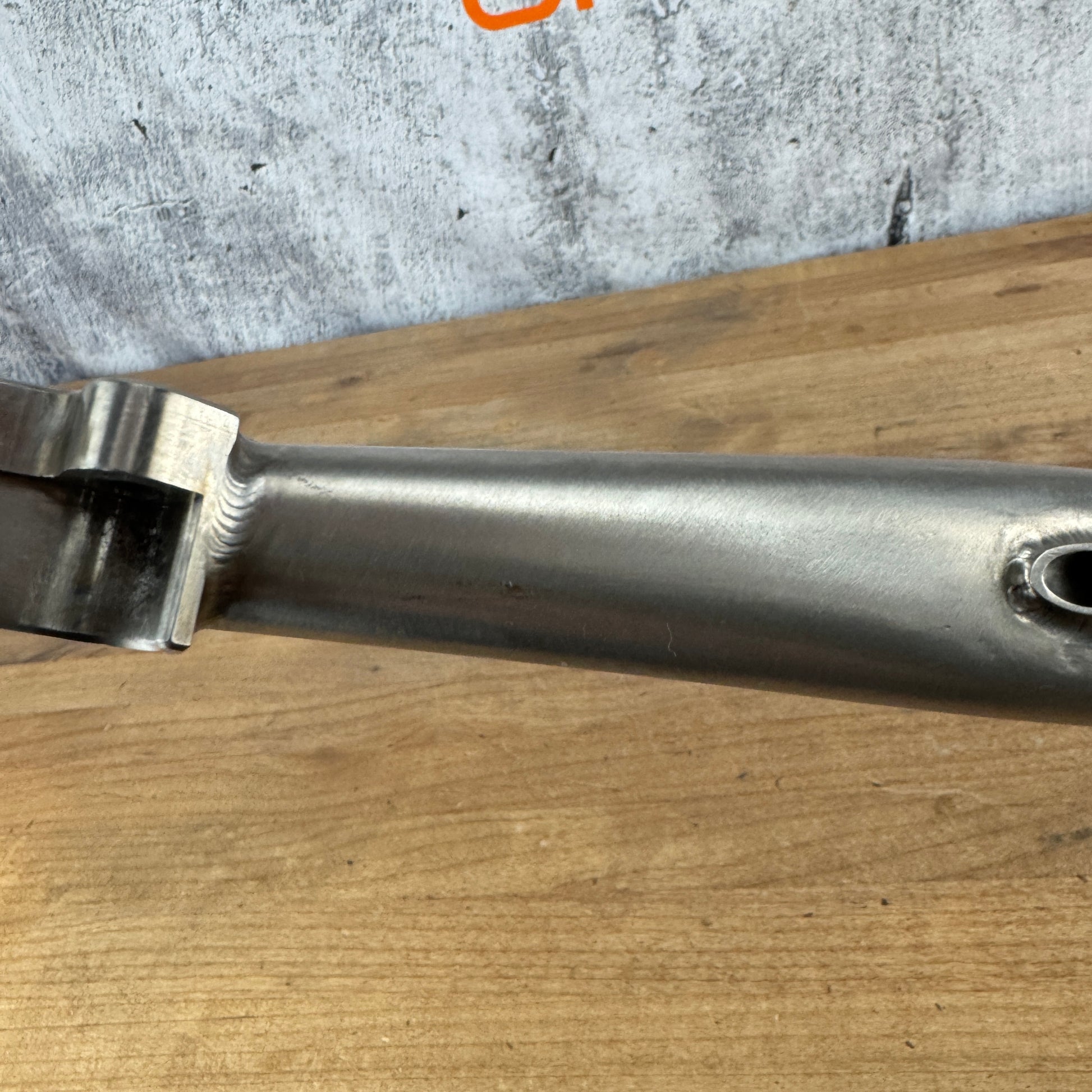

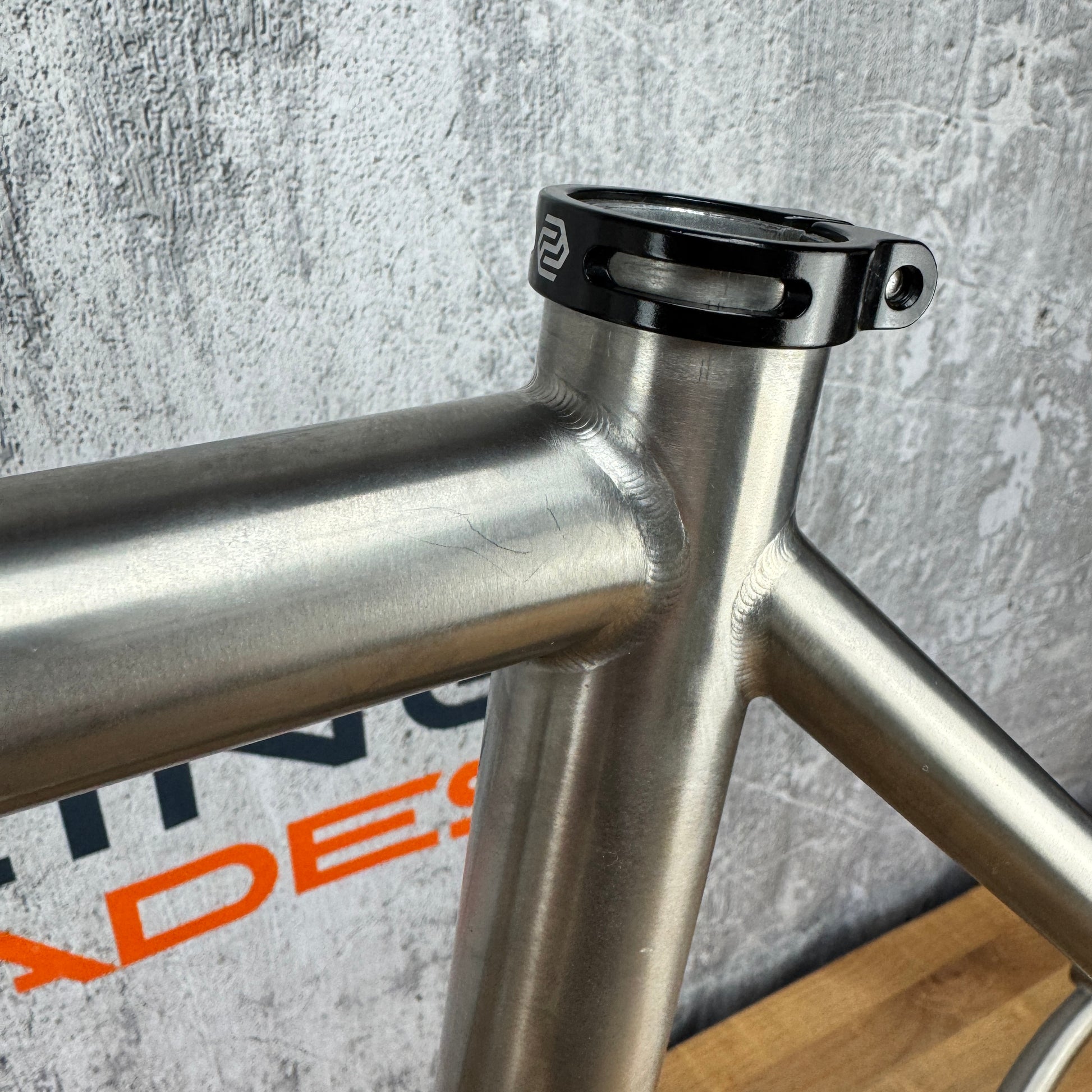

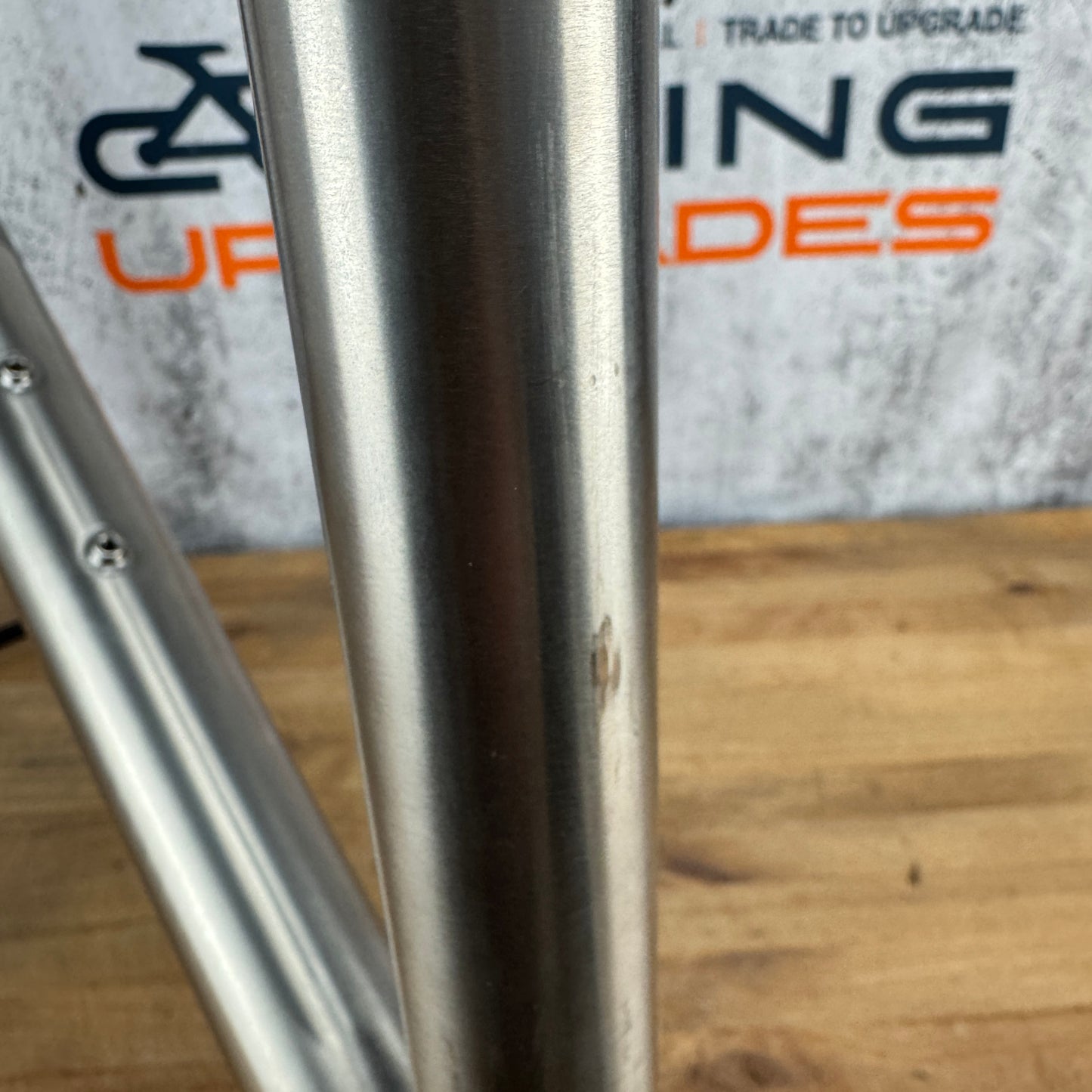

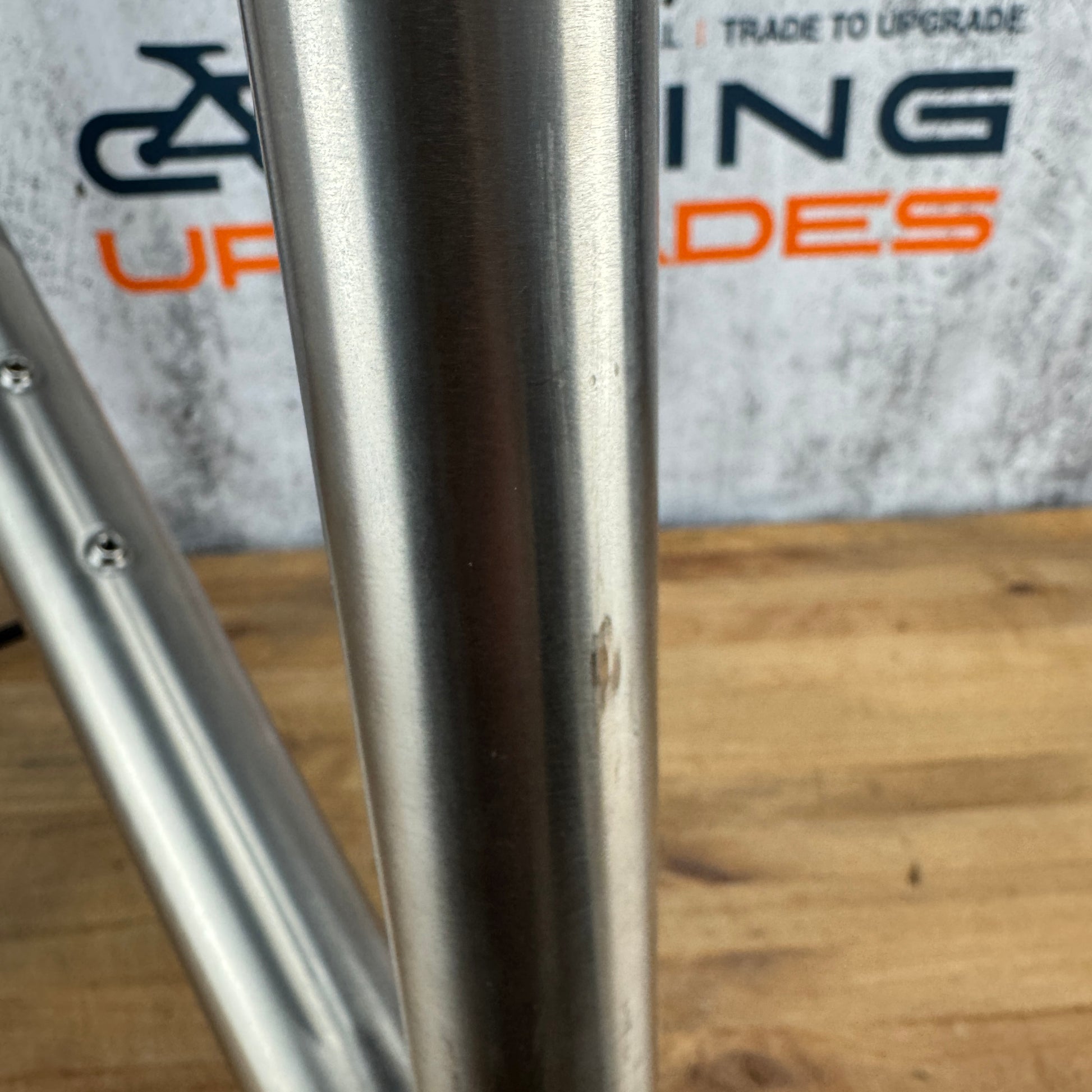

Condition: No cracks or carbon defects were identified through a thorough visual inspection. The cosmetic imperfections to highlight include: There are some light marks and blemishes on the titanium from prior use and handling. A few areas to highlight include the top tube, seat tube, and chain stays, see pictures #12-14. We have attempted to show all noticeable imperfections in specific close-up pictures, however other minor imperfections and light signs of use may exist.
Groupset Compatibility: Frame can be setup for Sram Wireless groupsets only. This frame is not compatible with Di2, EPS, or mechanical setups.

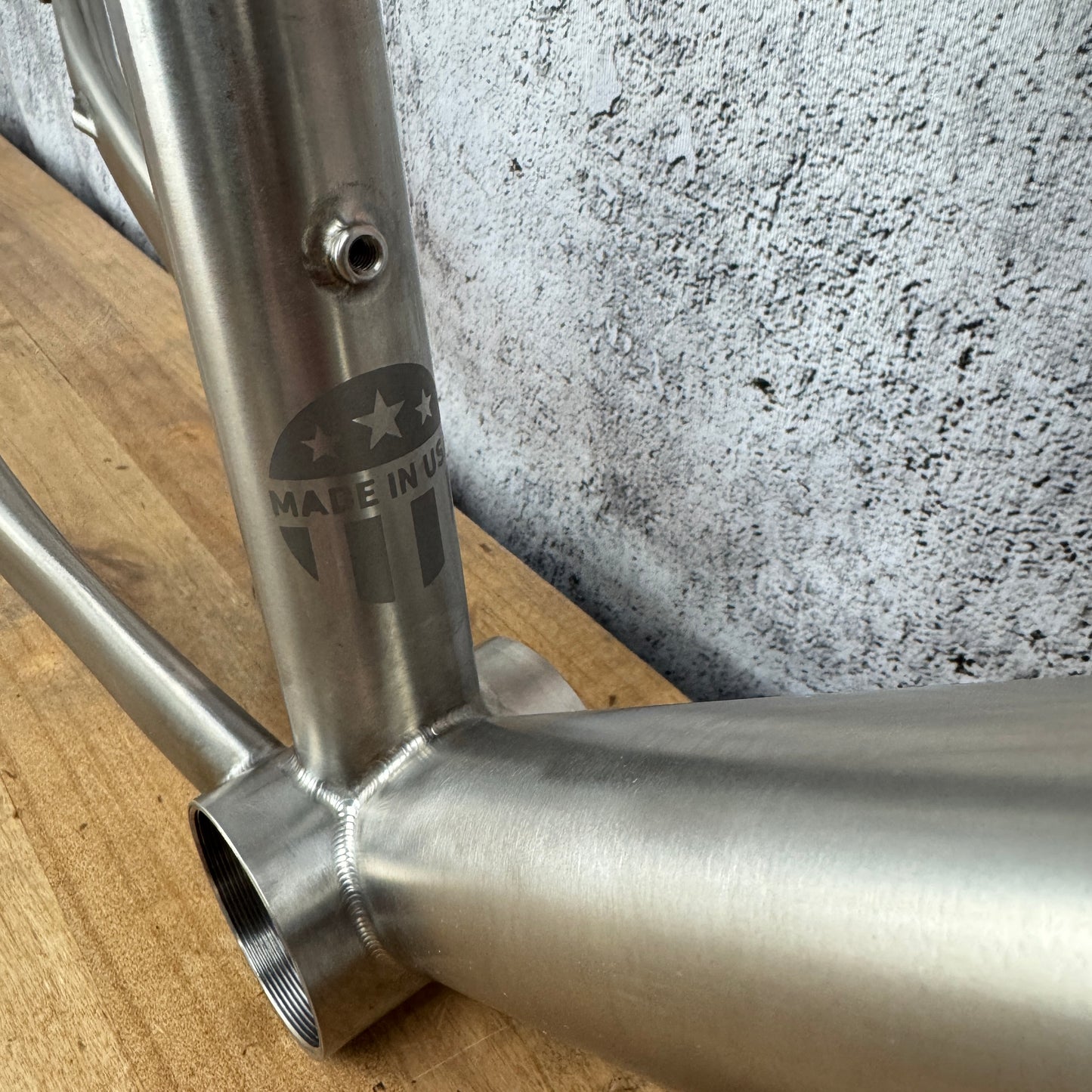

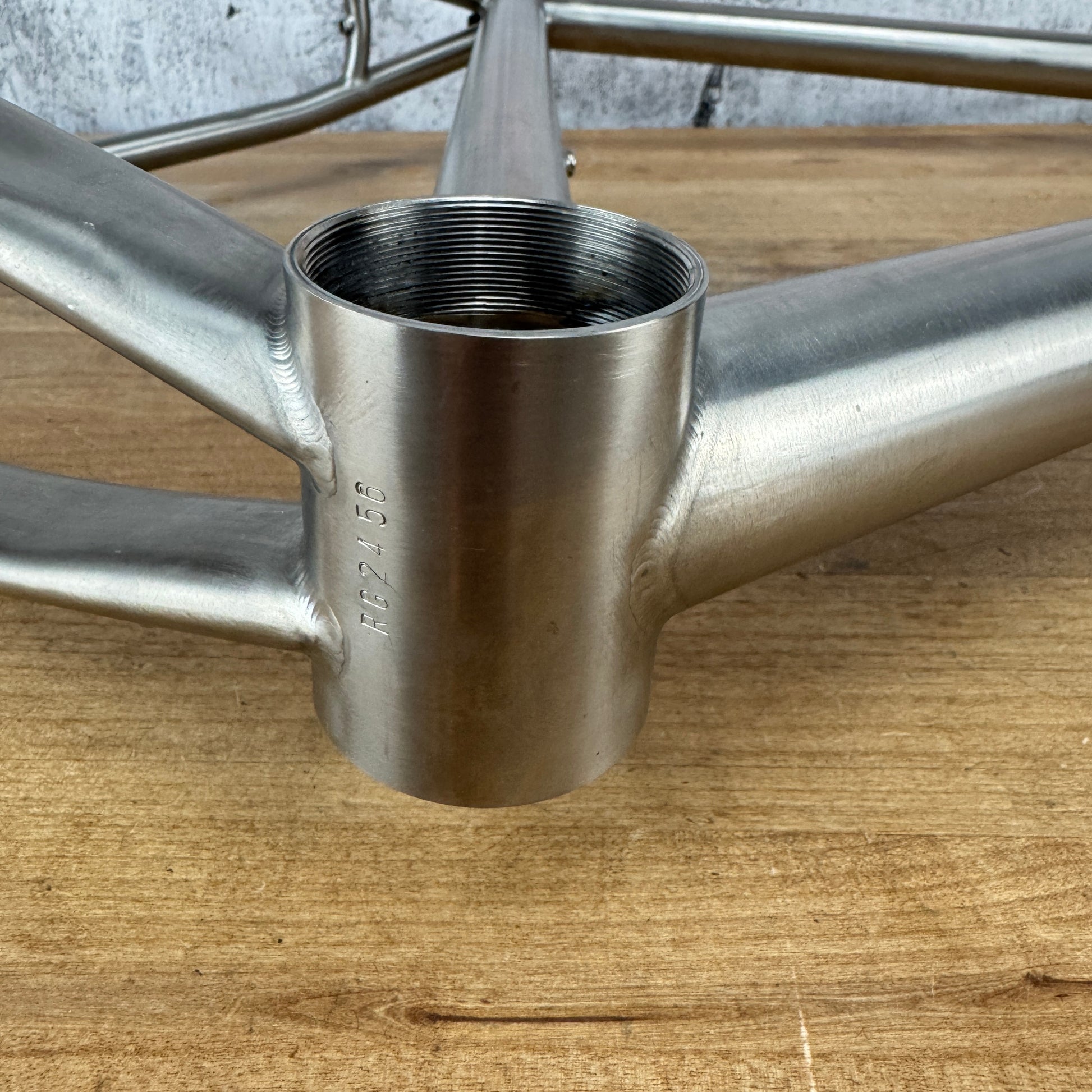

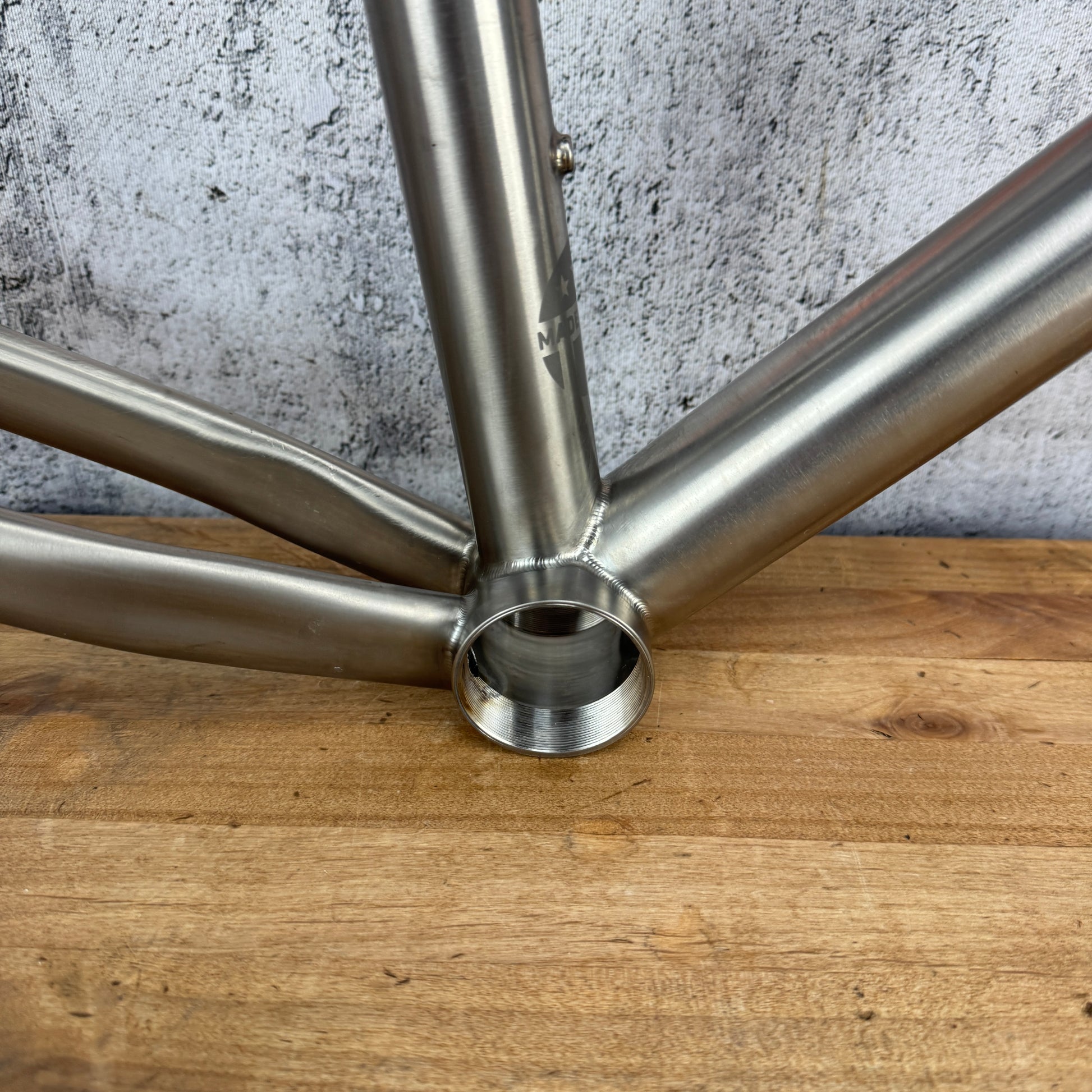

Bottom bracket: T47/68 bottom bracket shell type (threaded bottom bracket 46mm diameter, 68mm width). No bottom bracket currently installed or included. We have a handful of lightly used basic bottom brackets on hand, let us know what you need and we can try to ship the frame with the right bottom bracket installed. Additionally, CyclingUpgrades is a Wheels Manufacturing, and a Ceramicspeed Authorized Dealer, if you prefer to have the frame setup with a certain Wheels Manufacturing, or Ceramicspeed bottom bracket we can add and install it at an additional cost before shipping - message with inquiries/requests.

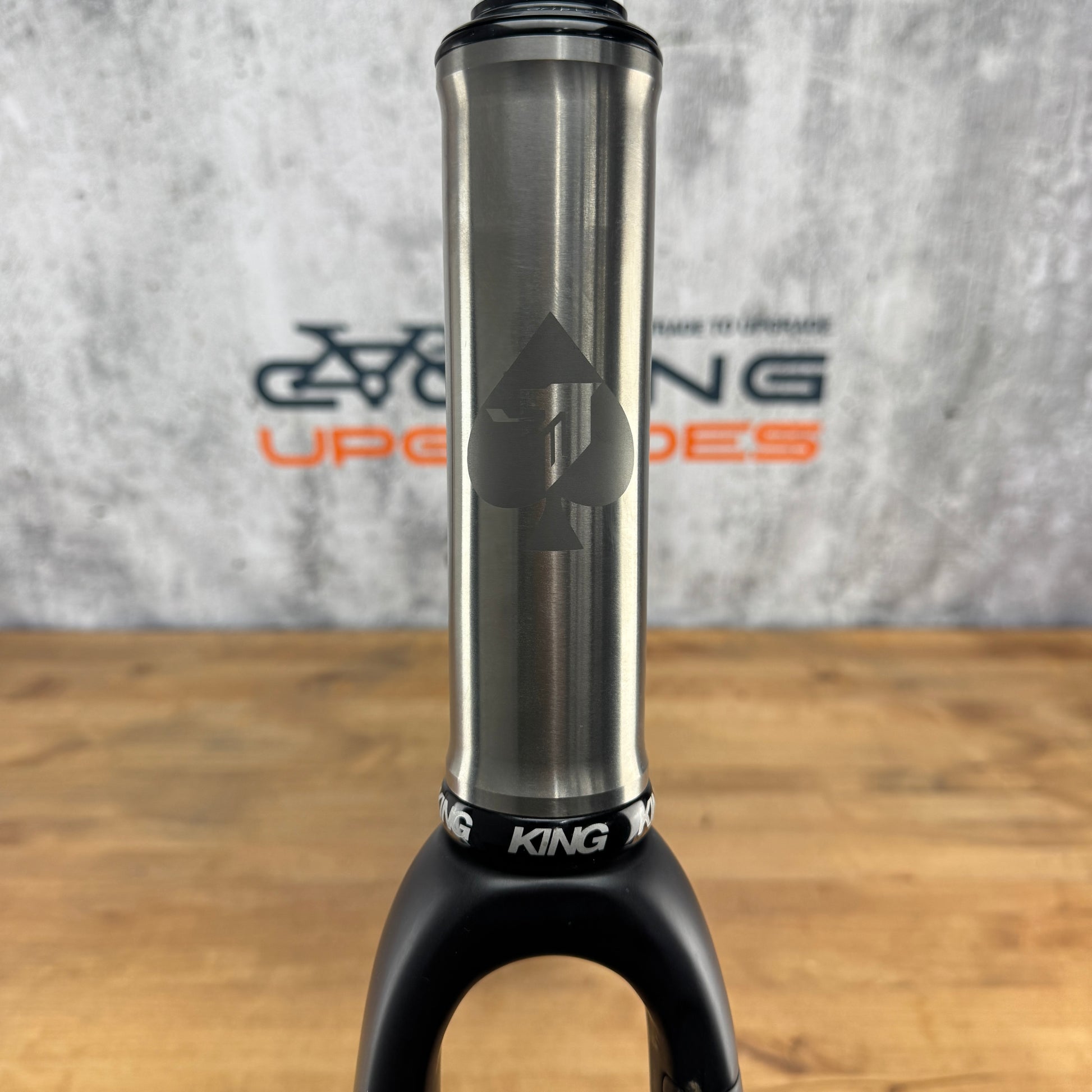

Steerer Length: 40mm of steerer above the top tube. 5mm of spacers below the stem plus the headset cover. We do have an option available to safely extend the steerer tube by 15-18mm - message us for additional details.
Seatpost: 27.2mm diameter. No seatpost included
Dropout Spacing: Front 12mm Thru Axle x 100mm, Rear 12mm Thru Axle x 142mm.
Weight: 2260 grams as pictured.
What's included: Frame, fork, headset, rear derailleur hanger, thru axles
