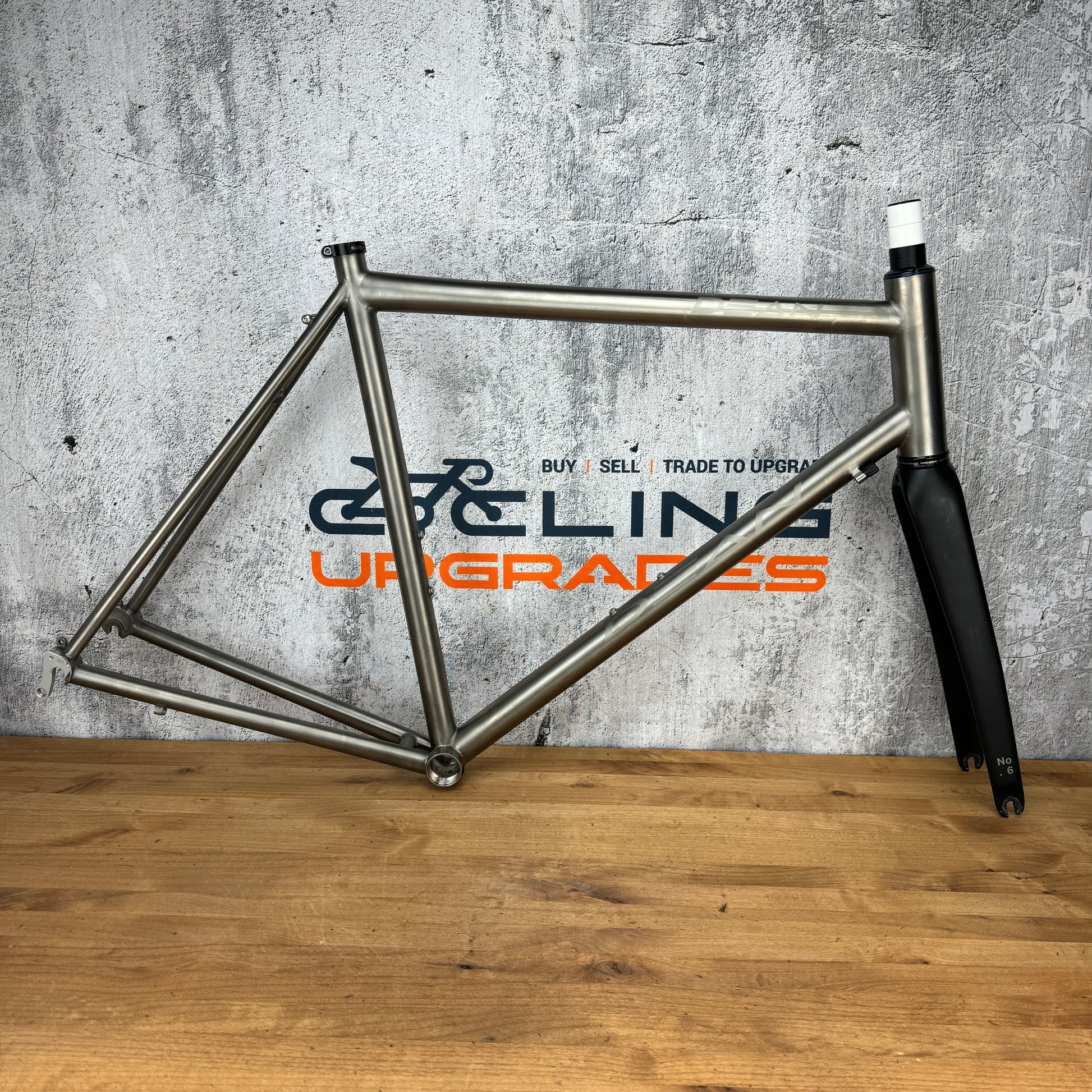

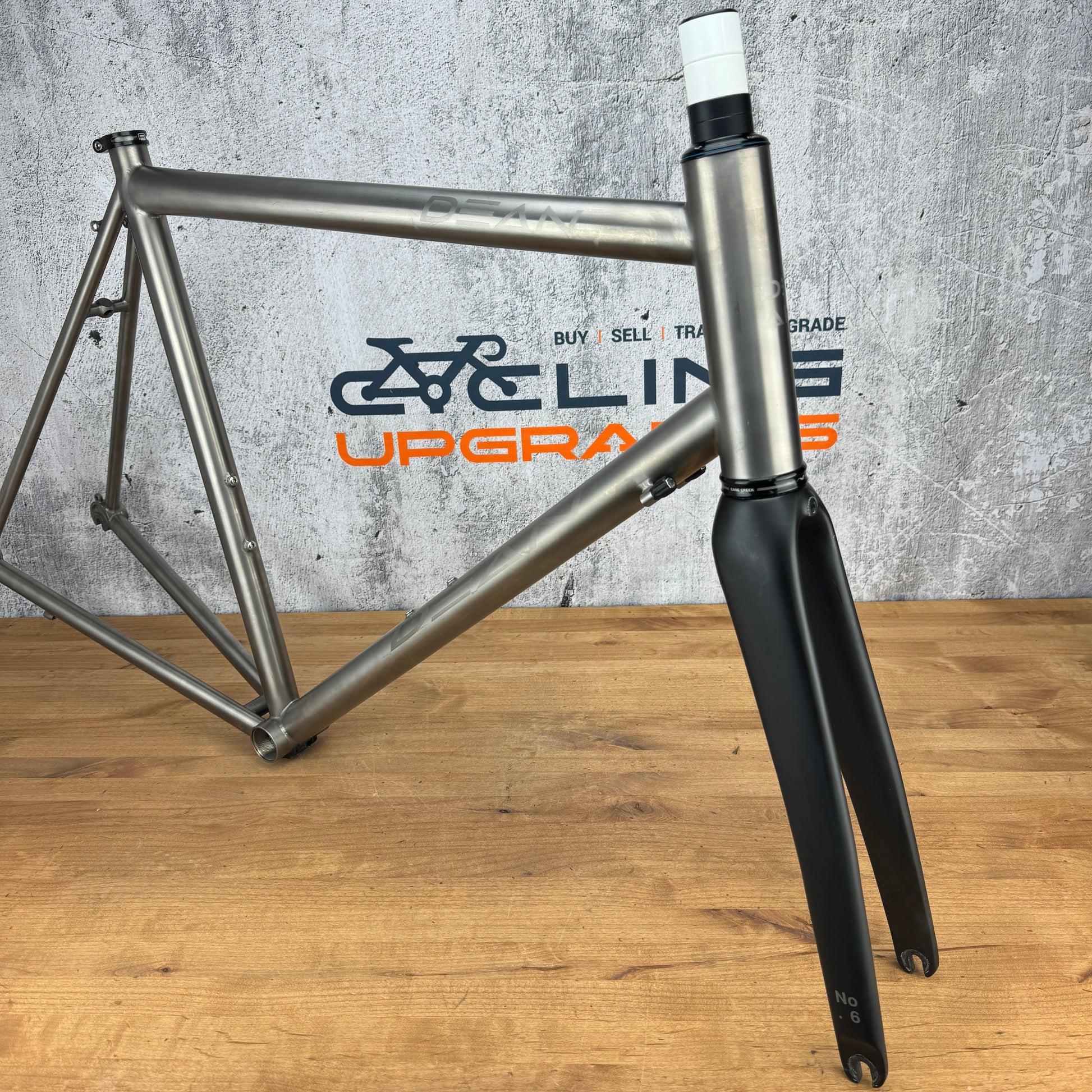

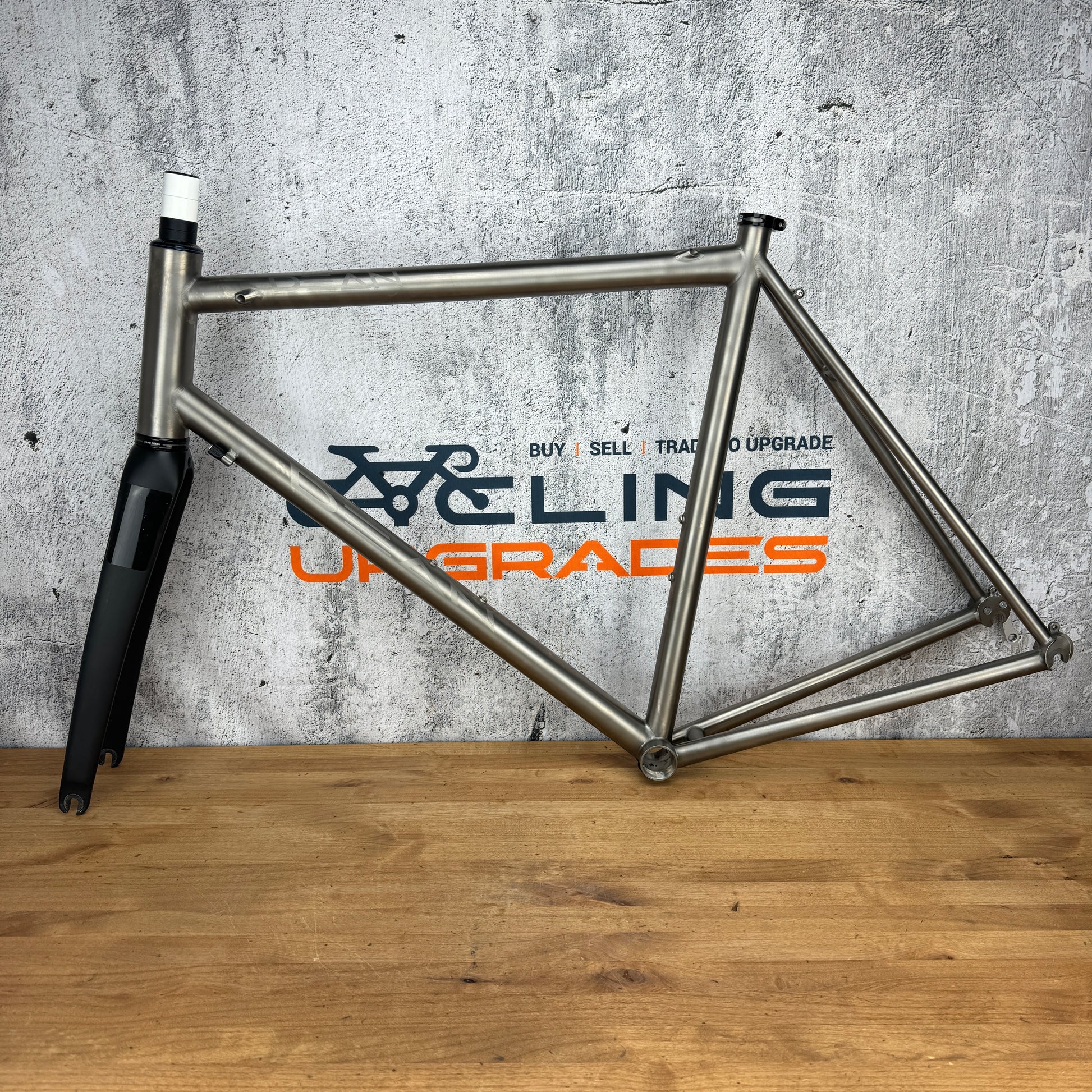

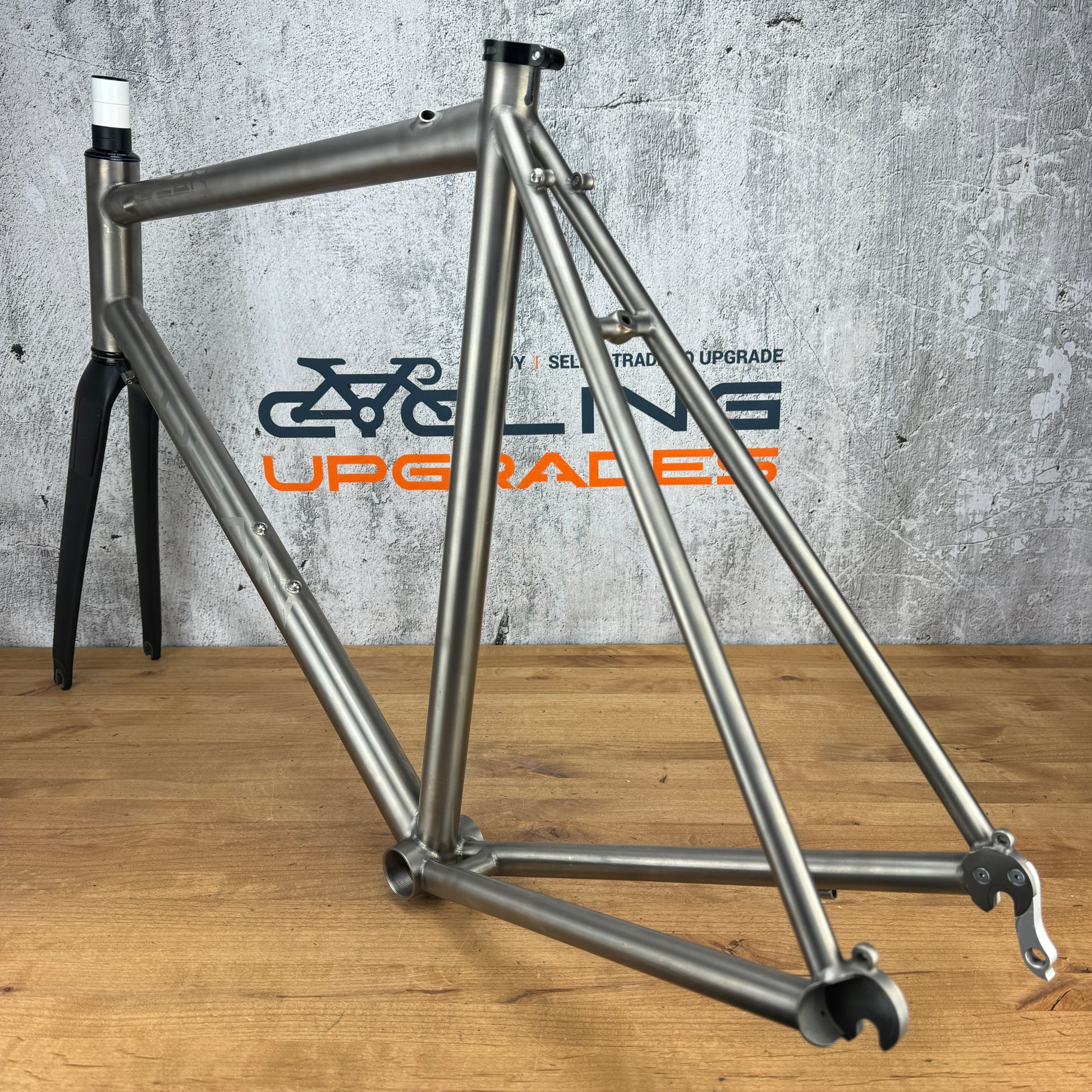

Frame: Dean El Diente
Fork: Whisky No. 9 carbon road fork. We can sell for $250 less without the fork - message with requests before purchasing.
Material: 3/2.5 Cold-worked and stress-relieved titanium
Max Tire Clearance: 30mm
Brake type: Center-Mount rim brake
Size: 58cm. 576mm Effective Top Tube. Stack - 593mm. Reach - 384mm. Head tube 180mm. Recommend buyer confirm and research full geometry online.
Condition: This frame is in mint condition. There are no imperfections to specifically picture, only very minor imperfections and light signs of use may exist. Per prior owner claims, this frame has less than 300 miles on it.
Groupset compatibility: Frame can be setup for eTap or mechanical groupsets. This frame is not compatible with Di2, or EPS setups. Mechanical cable guide below the bottom bracket intact.

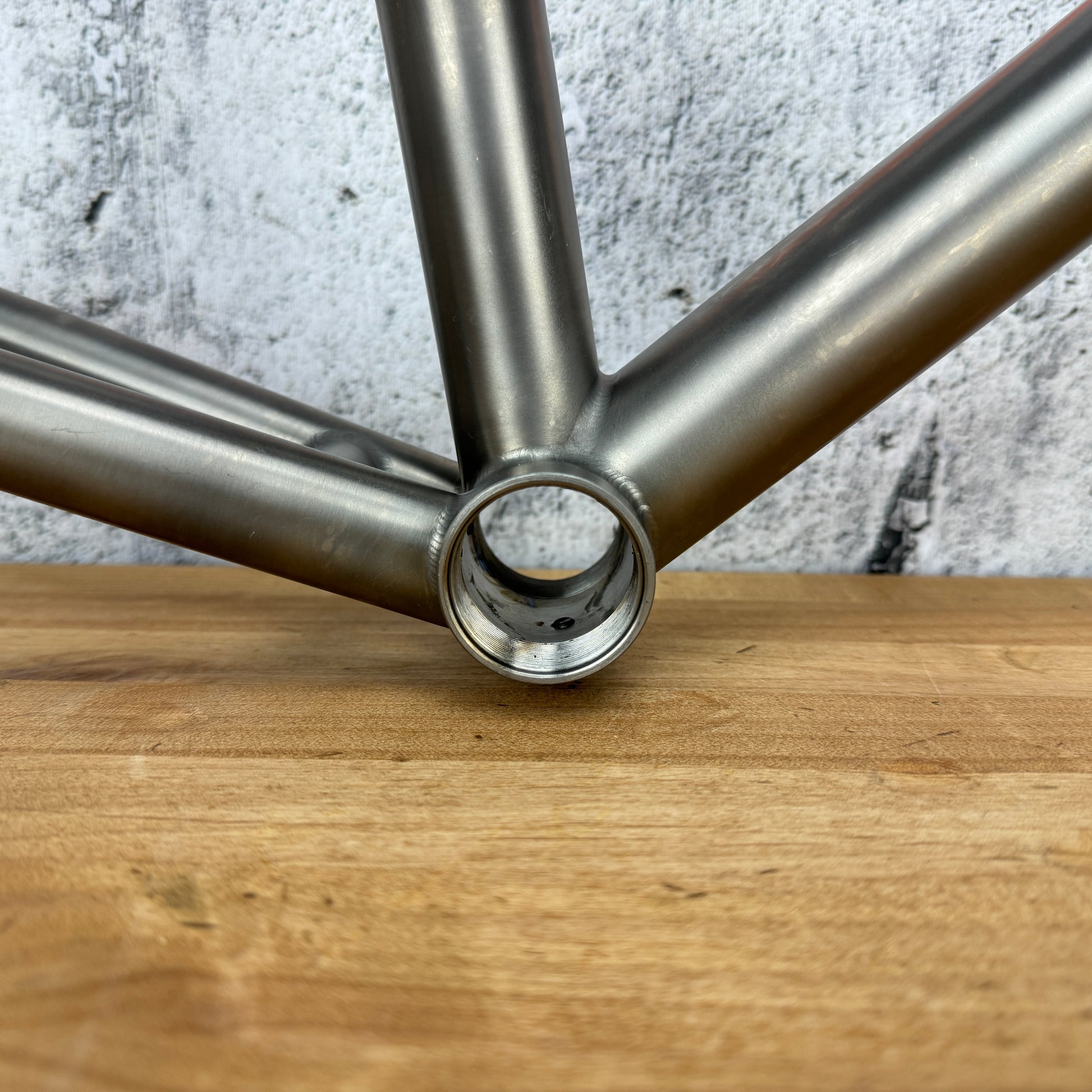

Bottom bracket: English threaded bottom bracket shell type. No bottom bracket is currently installed or included. We have a handful of lightly used basic bottom brackets on hand, let us know what you need and we can try to ship the frame with the right bottom bracket installed. Additionally, CyclingUpgrades is a Ceramicspeed and Cane Creek Authorized Dealer, if you prefer to have the frame setup with a certain bottom bracket we can add and install it at an additional cost before shipping - message with inquiries/requests.

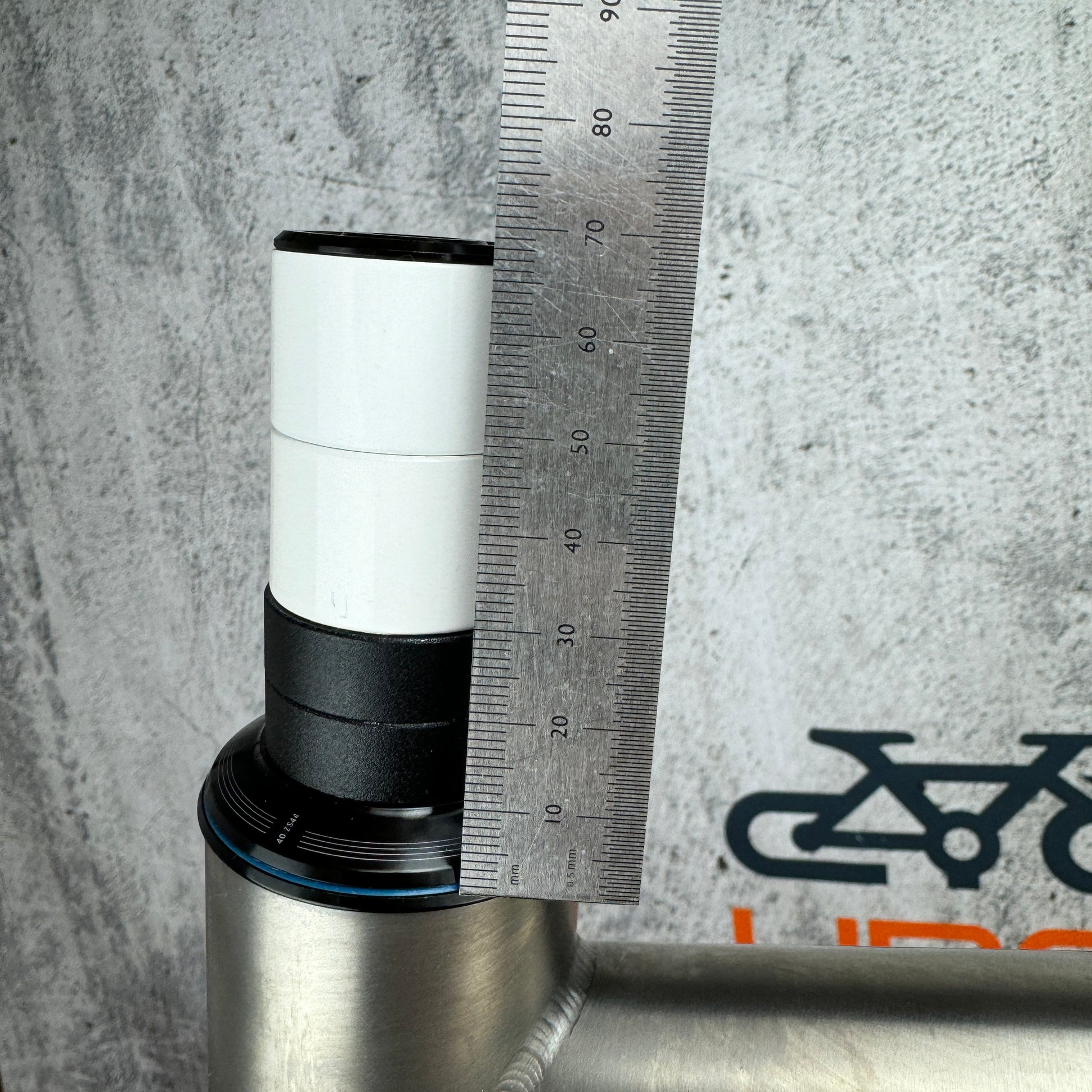

Steerer length: 65mm of steerer above the top tube. 20mm of spacers below the stem plus the headset cover. We do have an option available to safely extend the steerer tube by 15-18mm - message us for additional details.
Seatpost: 27.2mm diameter. No seatpost included
Dropout Spacing: QR x 100mm front, QR x 130mm rear.
Weight: 2334 grams as pictured with headset, frame hardware, etc.
What's included: Frame, fork, headset, rear derailleur hanger
