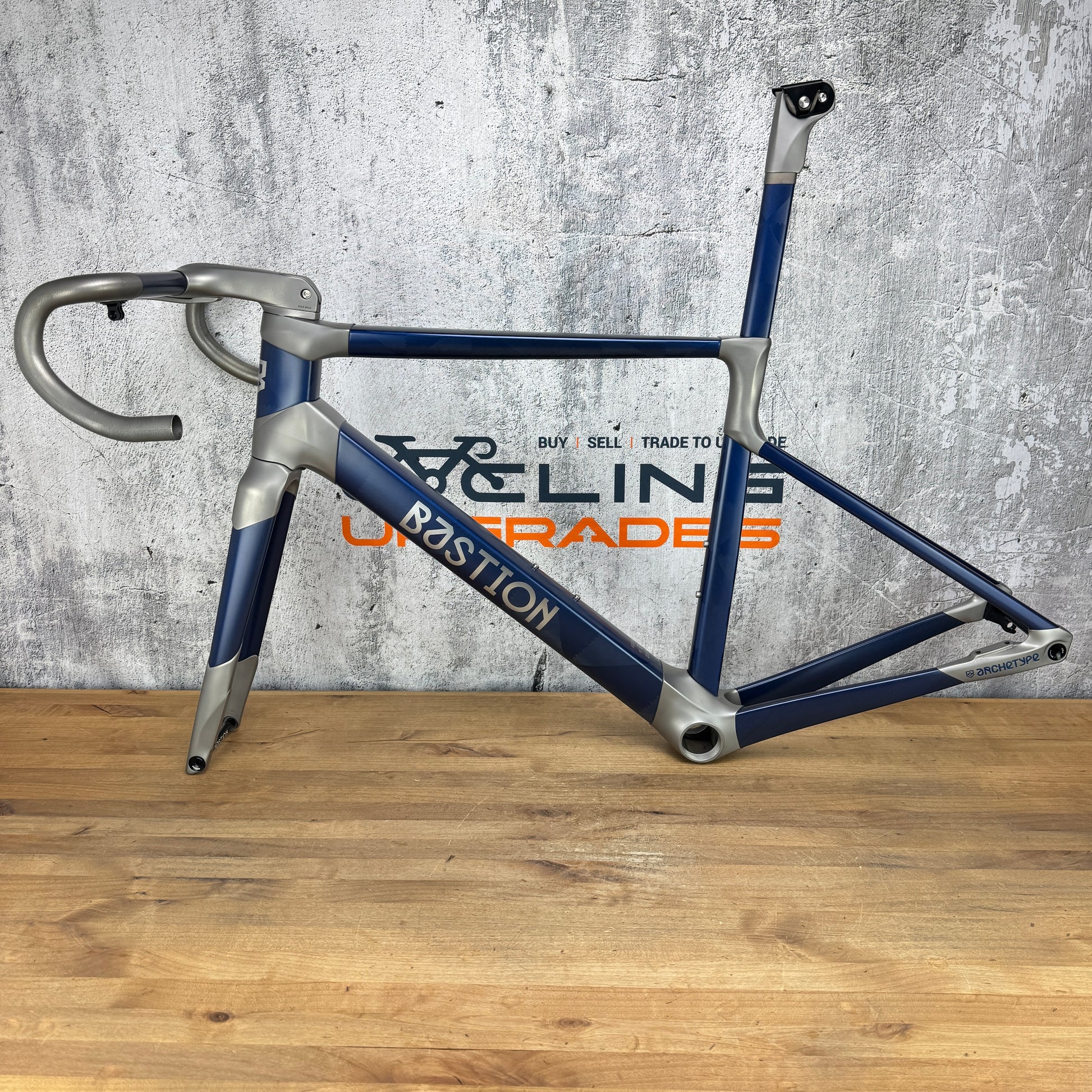

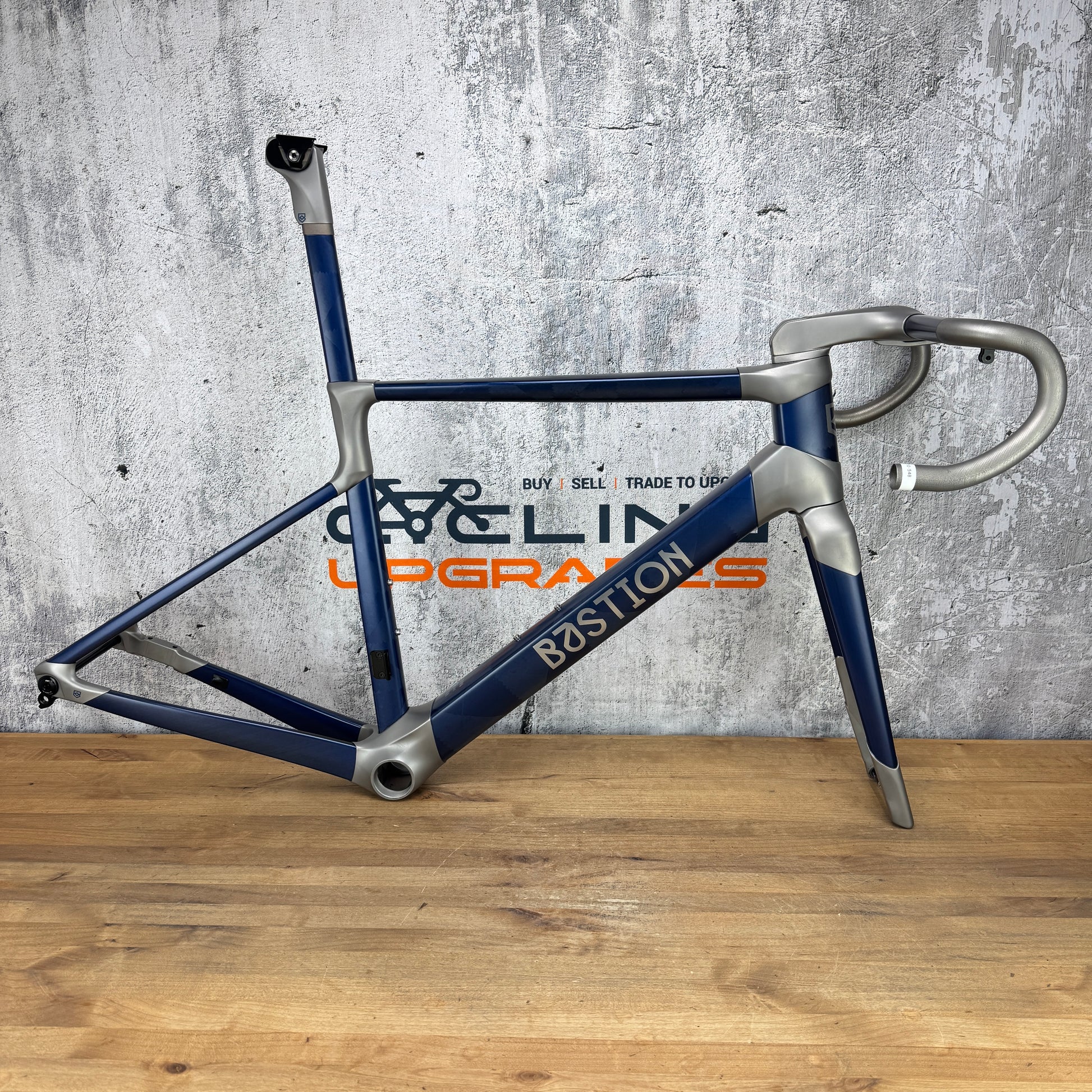

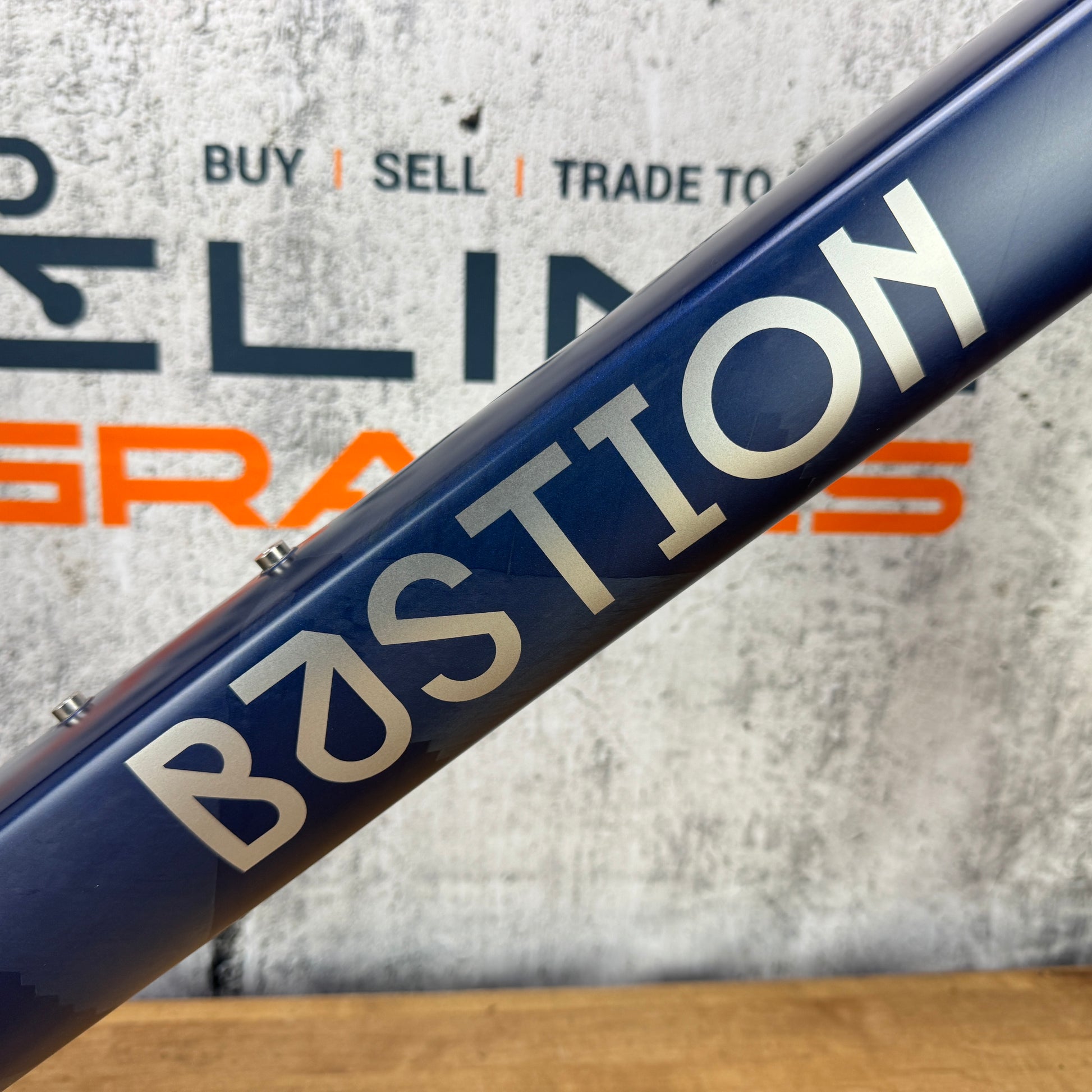

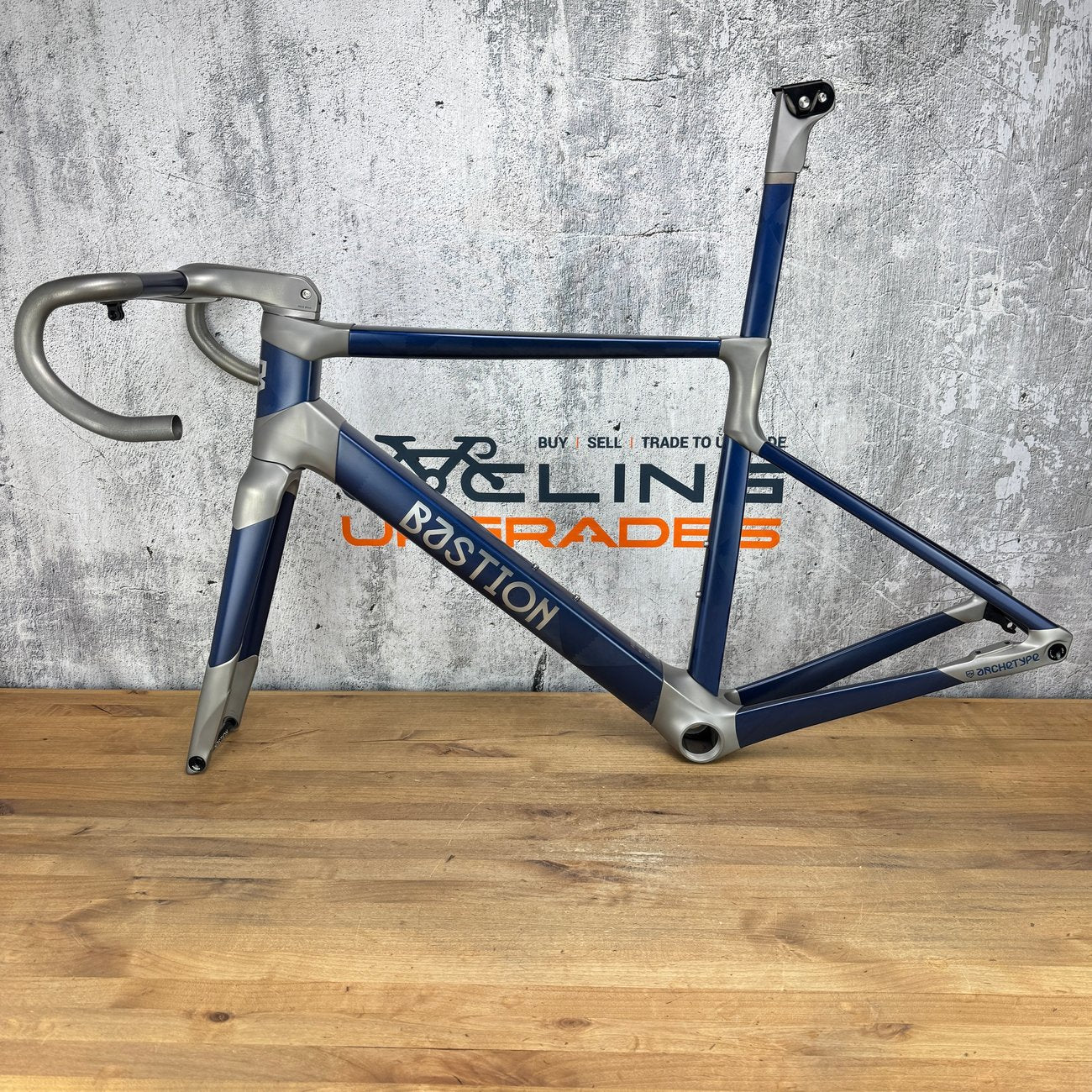

Frame: Bastion Archetype
Color: Blue
Material: Carbon and Titanium
Brake type: Flat-Mount disc brake.

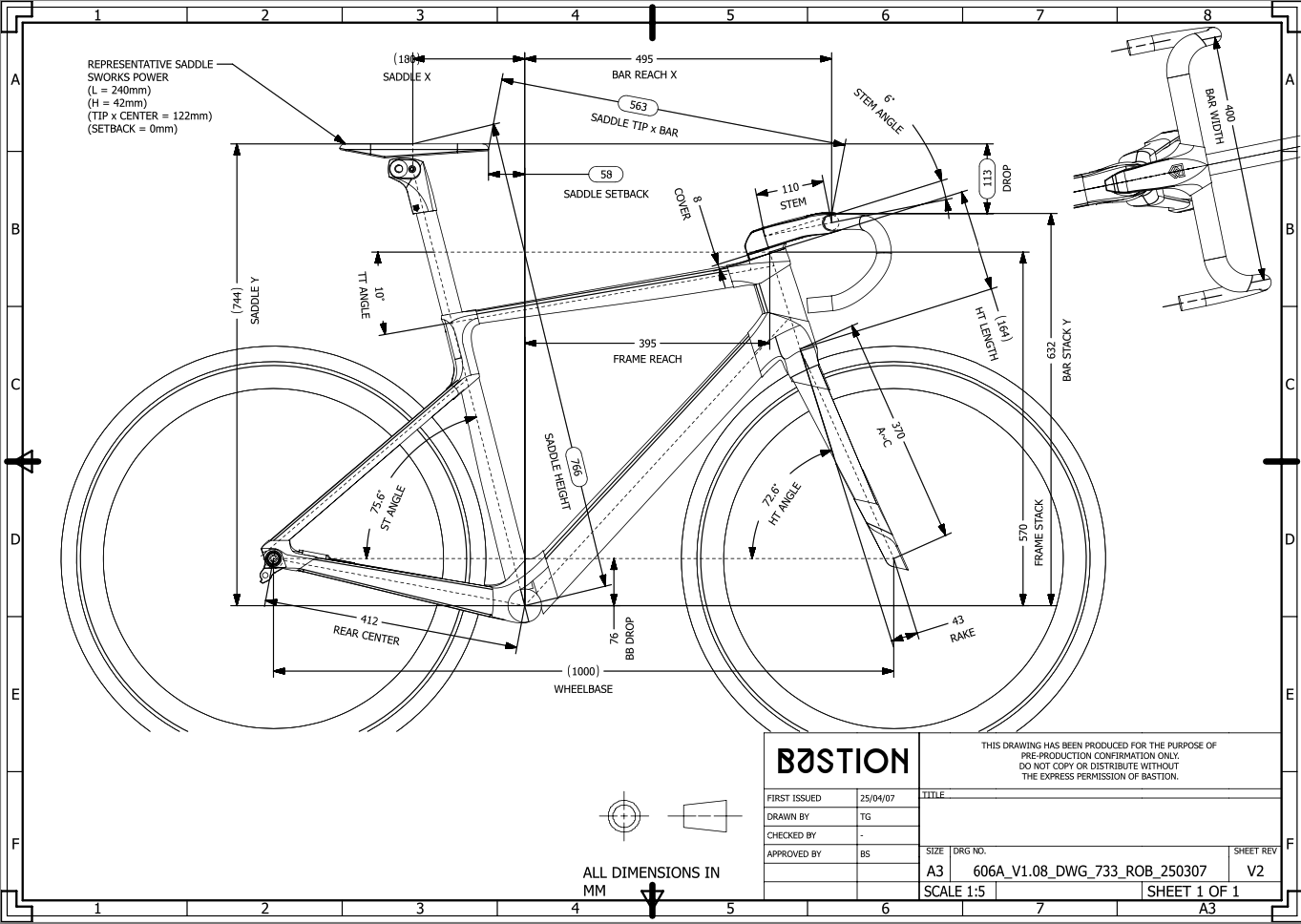

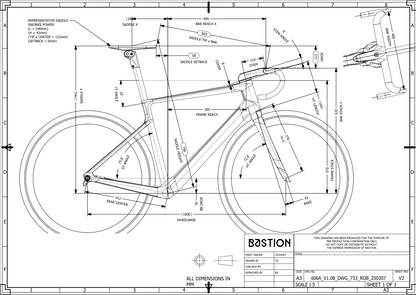

Size: 54cm. 541mm Effective Top Tube. Stack - 570mm. Reach - 395mm. Head tube 164mm. A full geometry chart is shown in the last picture

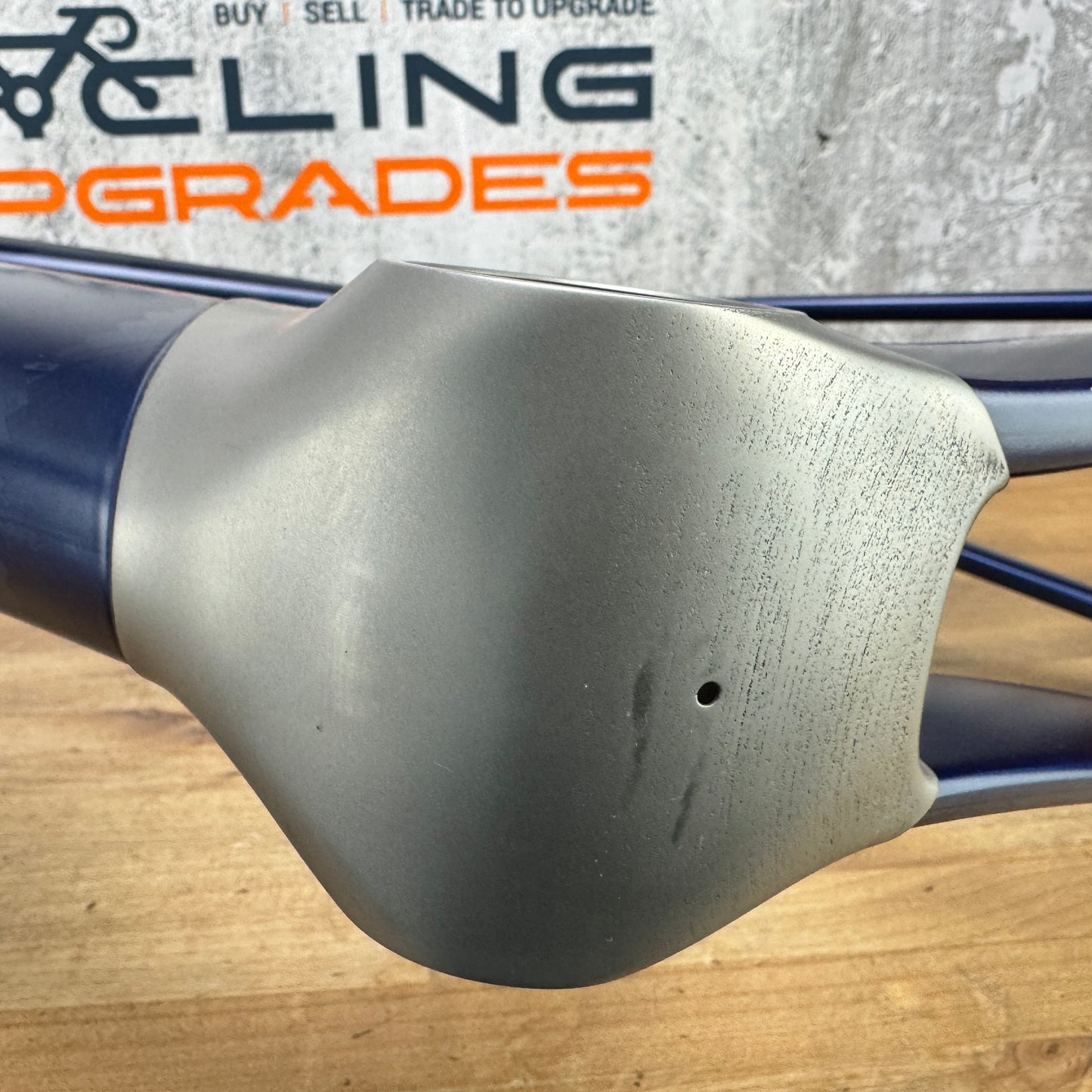

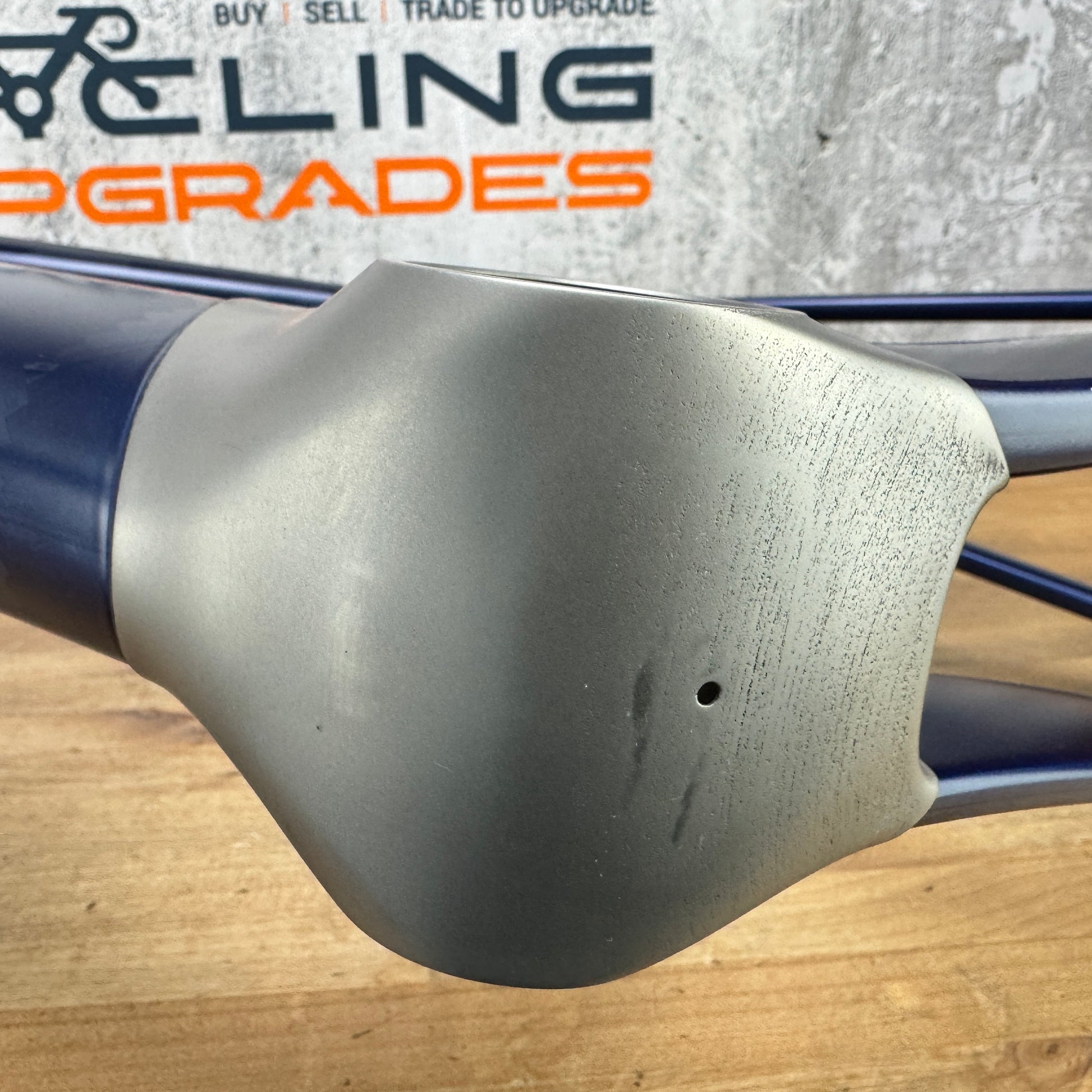

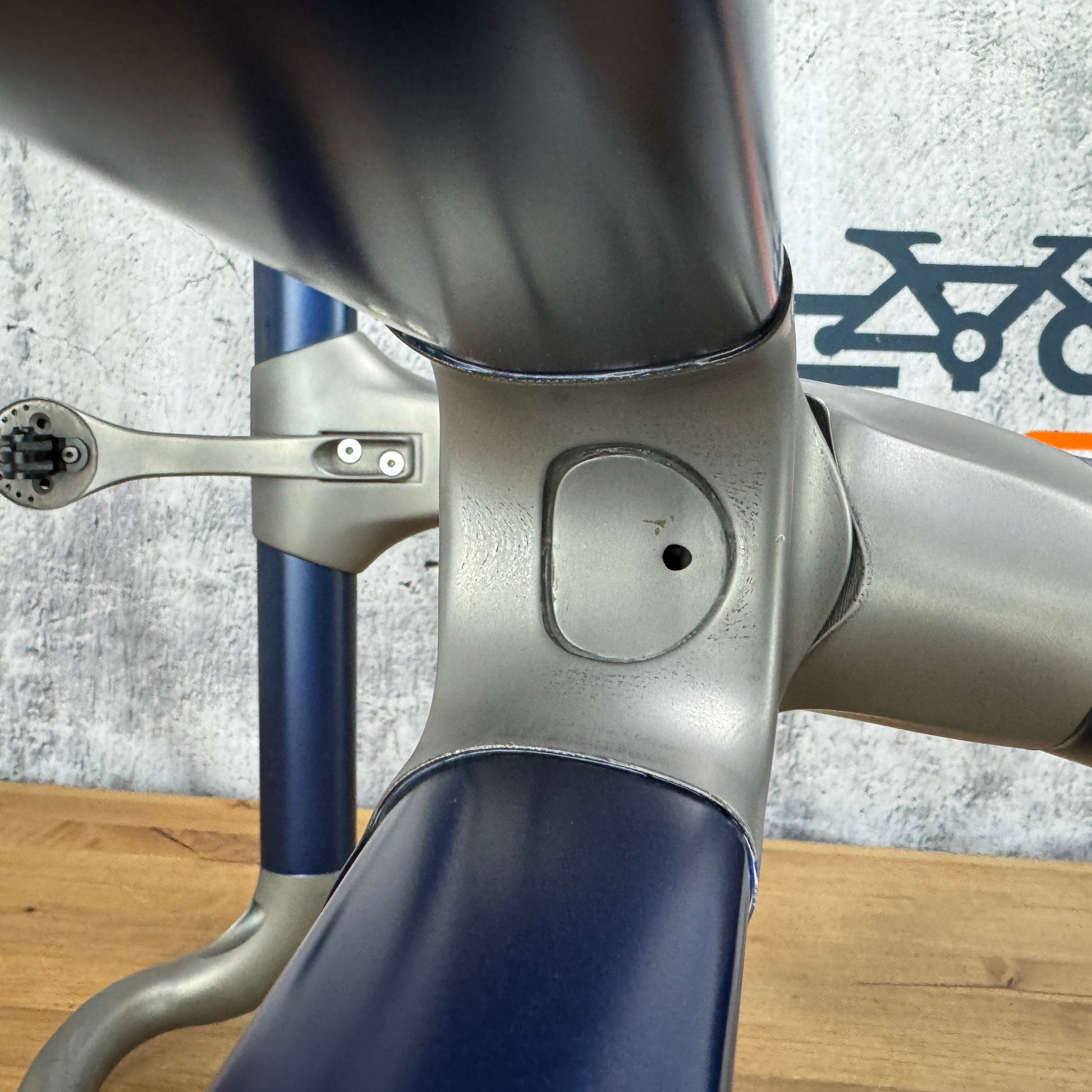

Condition: This frame is in mint condition. There are no imperfections to specifically picture, only very minor imperfections and light signs of use may exist. Per prior owner claims this frame only has a few rides on it.
Groupset compatibility: Frame can be setup for Di2, EPS, or eTap groupsets. This frame was previously setup with an eTap groupset. Other frame/cable stops may be needed for Di2 or EPS setups. This frame is not compatible with mechanical groupsets.

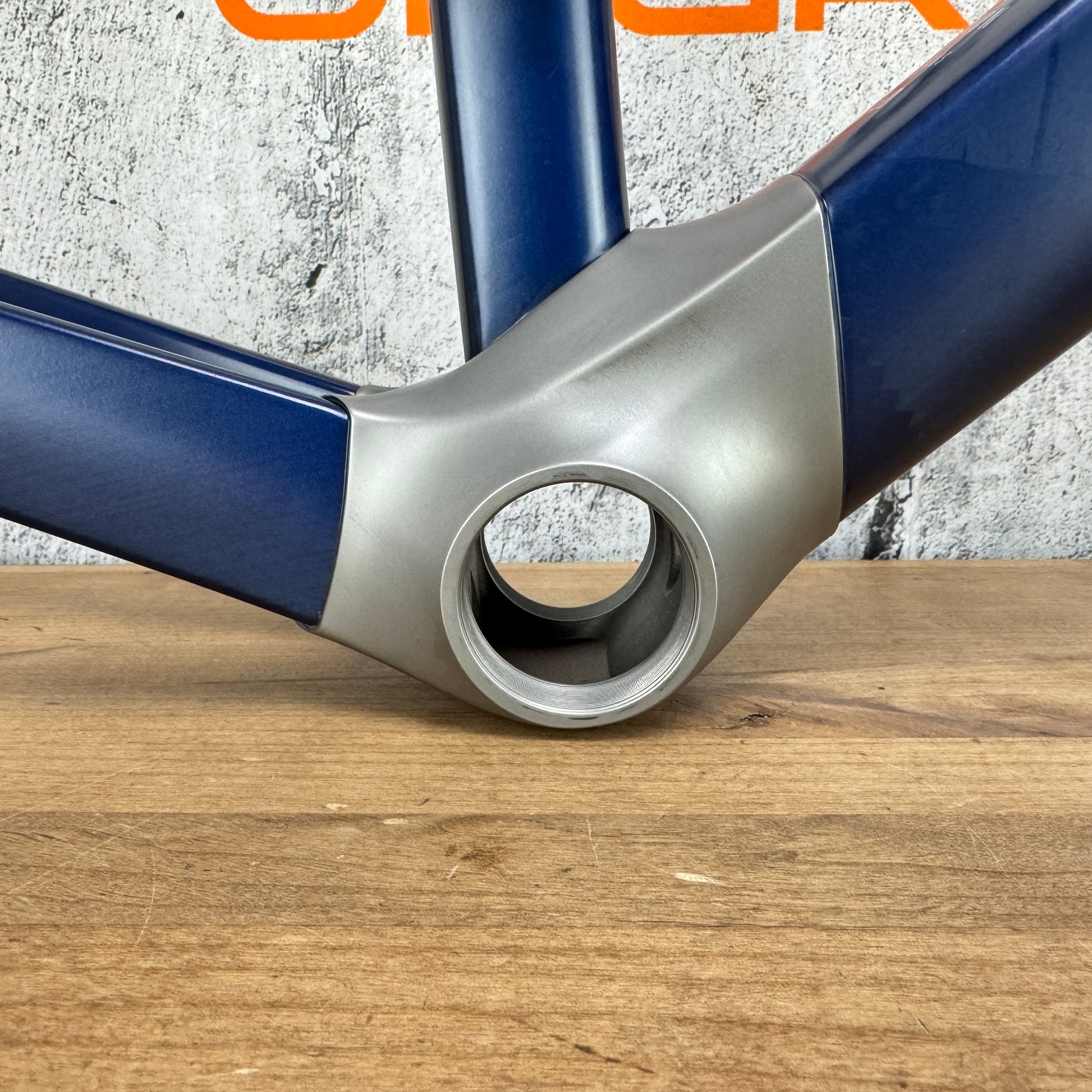

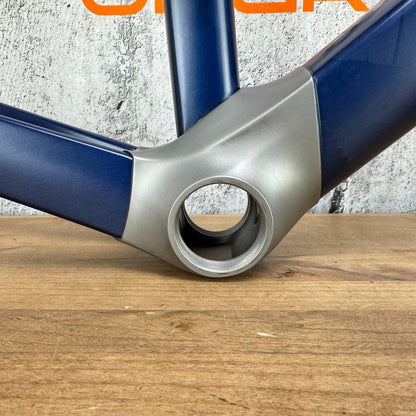

Bottom bracket: Threadfit T47/86 bottom bracket shell type. No bottom bracket currently installed or included. We have a handful of lightly used basic bottom brackets on hand, let us know what you need and we can try to ship the frame with the right bottom bracket installed. Additionally, CyclingUpgrades is a Ceramicspeed and Cane Creek Authorized Dealer, if you prefer to have the frame setup with a certain bottom bracket we can add and install it at an additional cost before shipping - message with inquiries/requests.

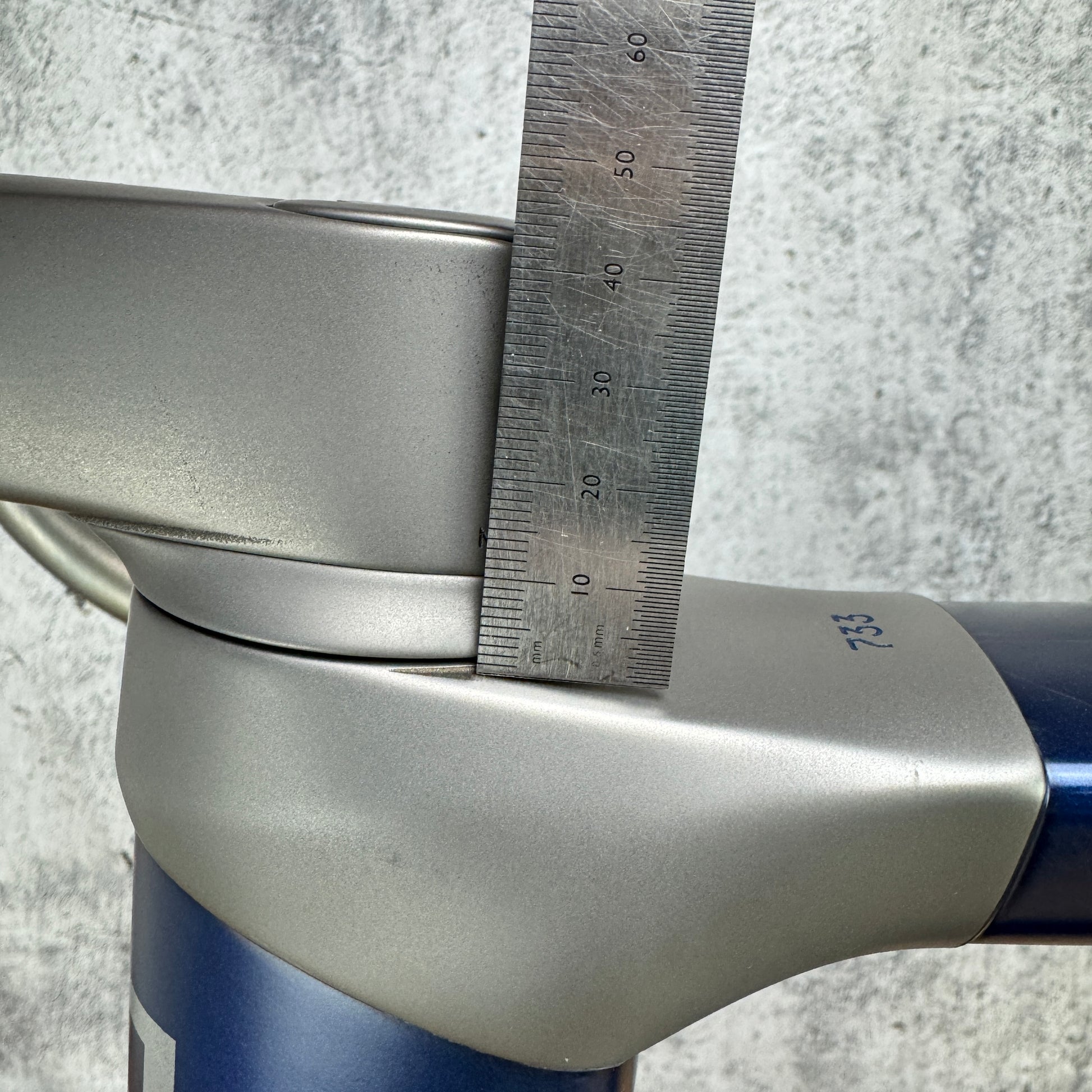

Steerer length: 45mm of steerer above the top tube. We may have an option available to safely extend the steerer tube by 15-18mm - message us for additional details.

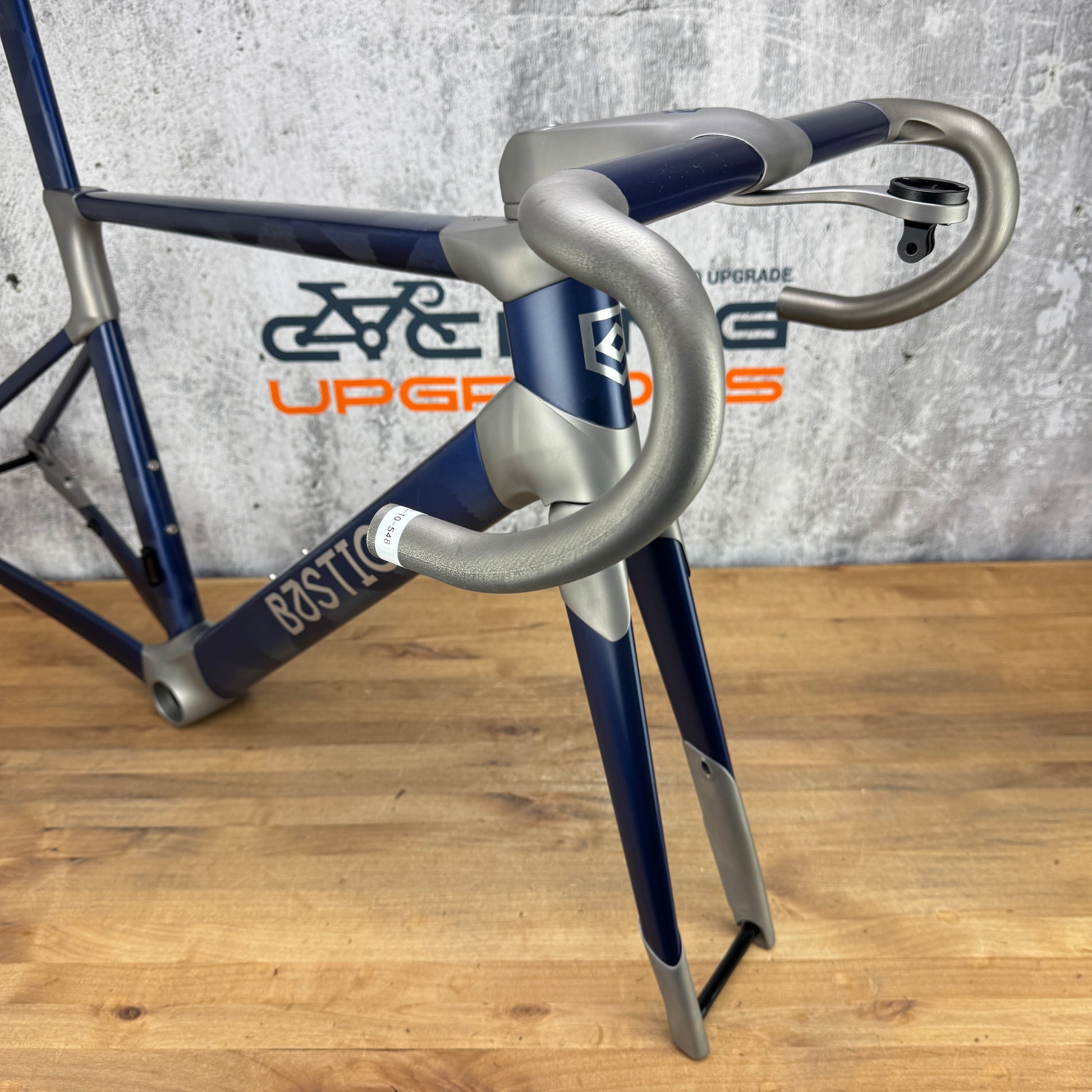

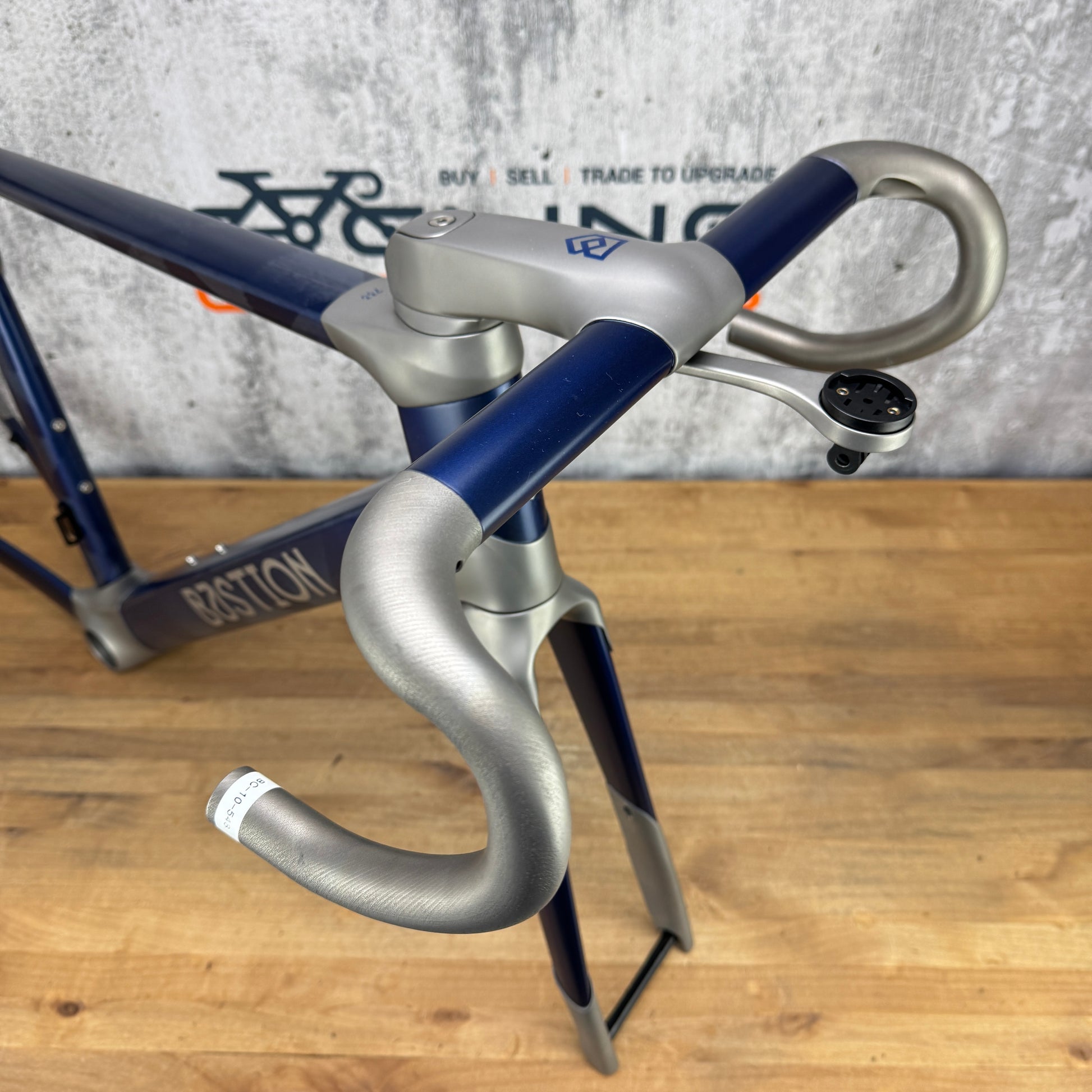

Handlebar: Bastion 40cm x 110mm handlebar with out front titanium computer mount.
 Seatpost: Seatmast height is 690mm from center of bottom bracket. The minimum height to saddle rails is 725mm, and the maximum height to the saddle rails is 740mm. Add your saddle stack height to determine max saddle height from center of bottom bracket. Titanium seatmast cap included.Â
Dropout Spacing: Front 12mm Thru Axle x 100mm, Rear 12mm Thru Axle x 142mm.
Weight: 3021 grams as pictured with headset, thru axles, handlebar, seatmast cap, frame hardware, etc.Â
What's included: Frame, fork, headset, UDH rear derailleur hanger, handlebar, seatmast cap, thru axles
