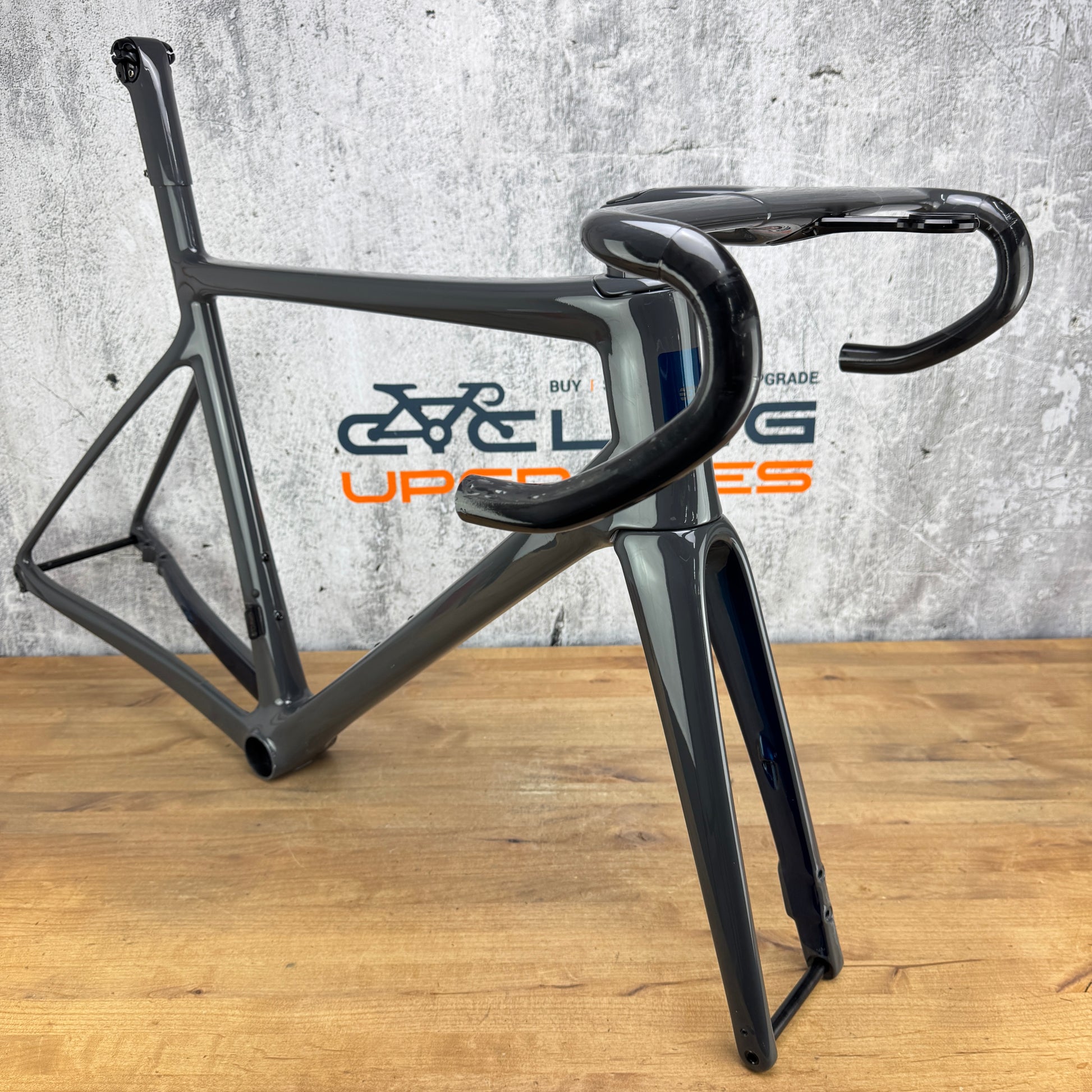

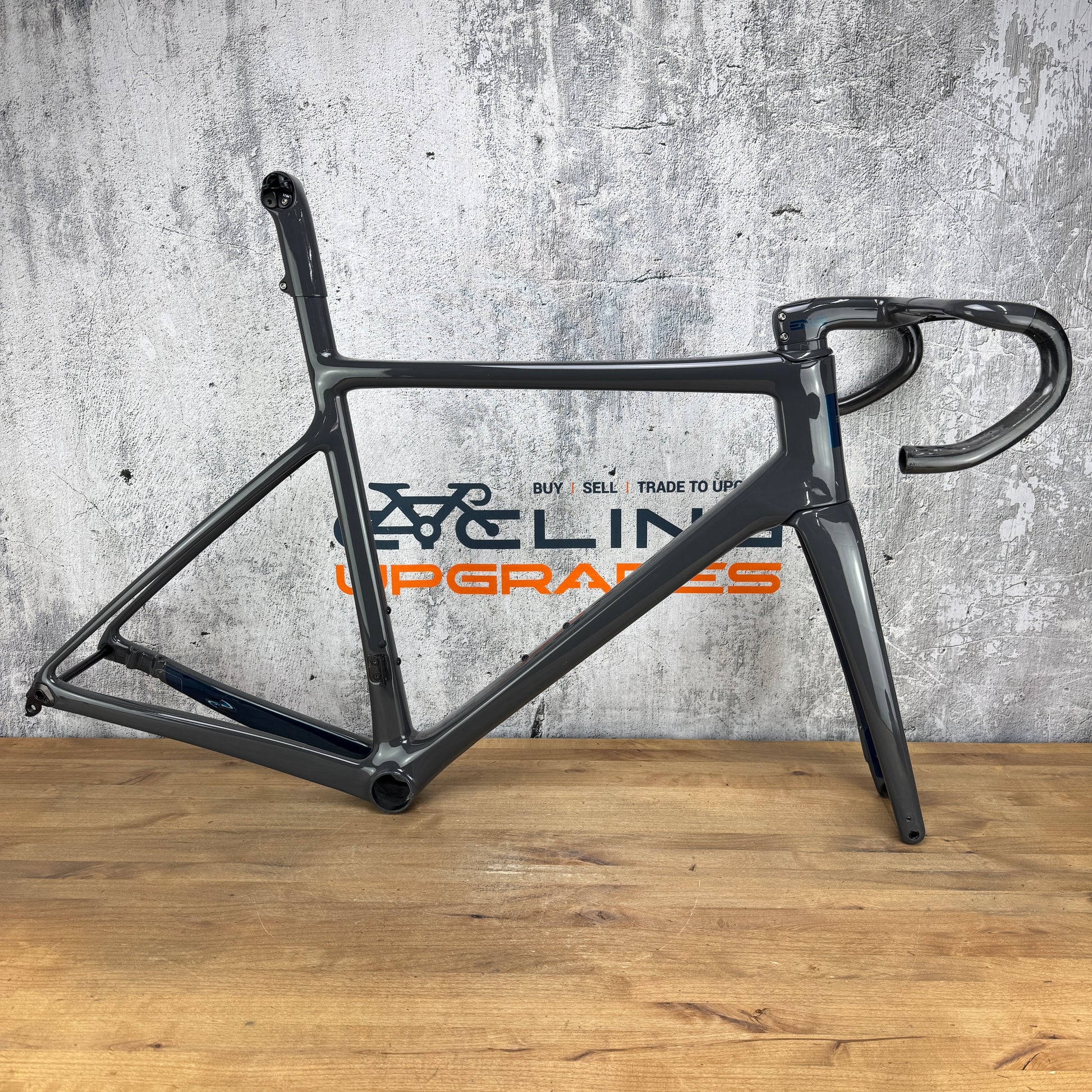

Frame: 2023 Enve Custom Road
Color: Gray
Brake type: Flat-Mount disc brake.

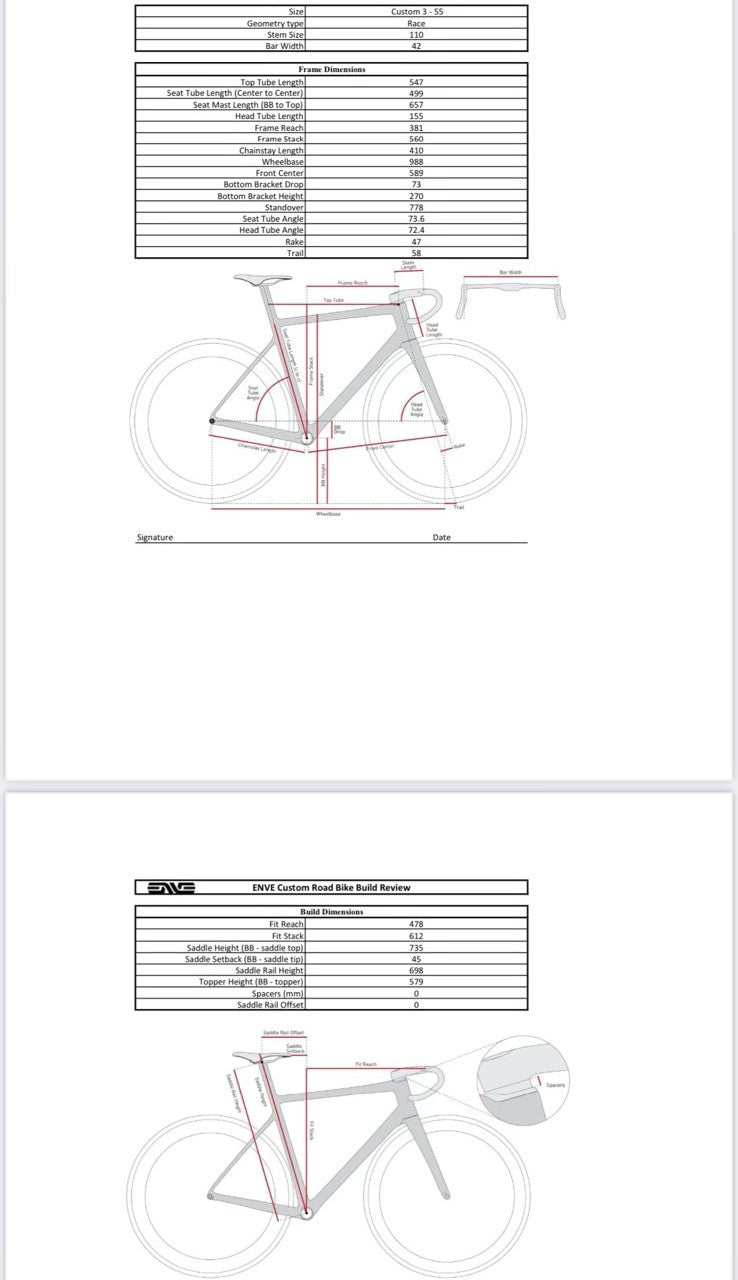

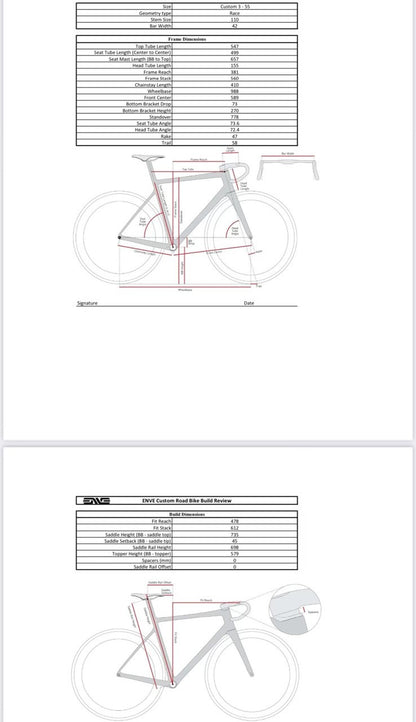

Size: 55cm. 547mm Effective Top Tube. Stack - 560mm. Reach - 381mm. Head tube 155mm. A full geometry chart is shown in the last photo.

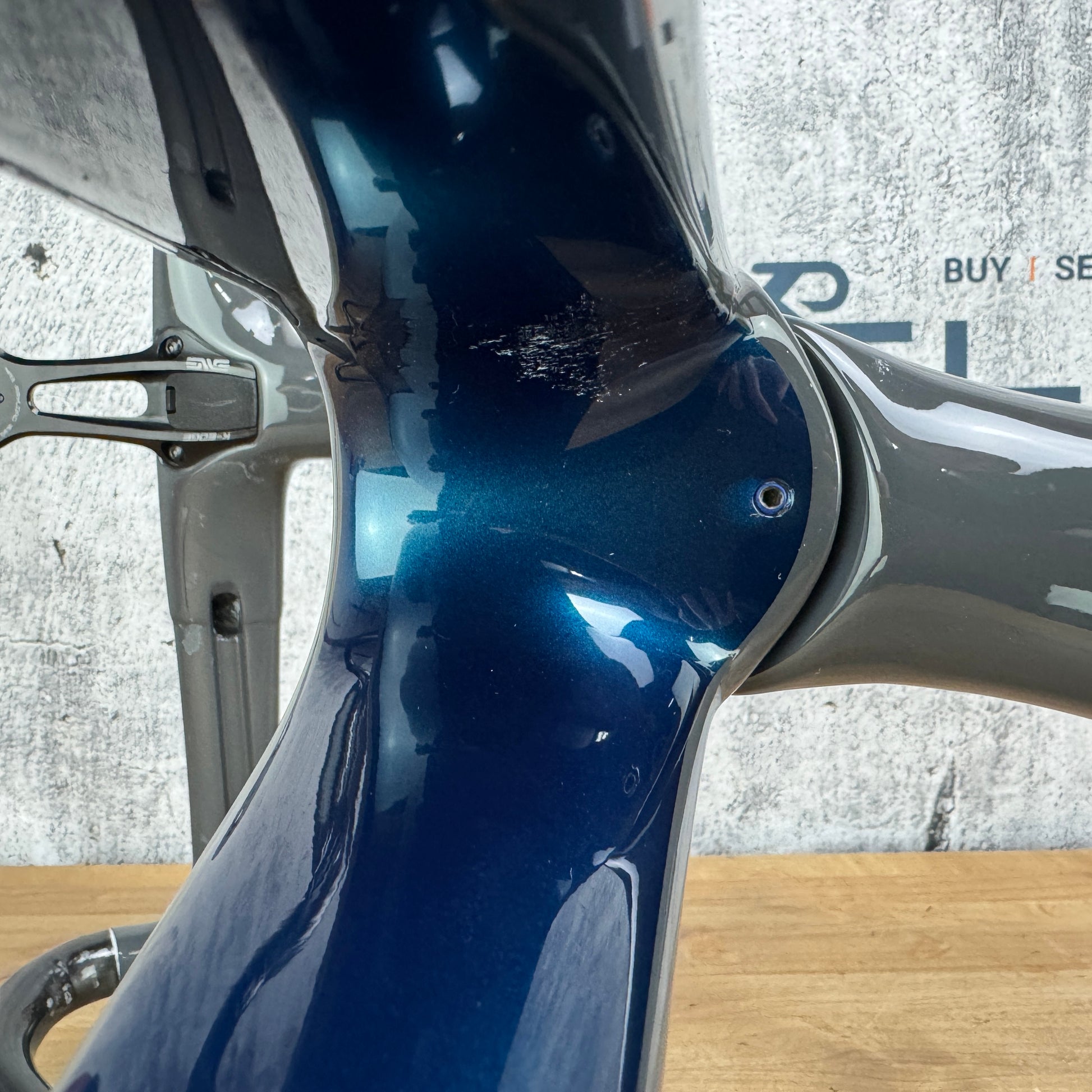

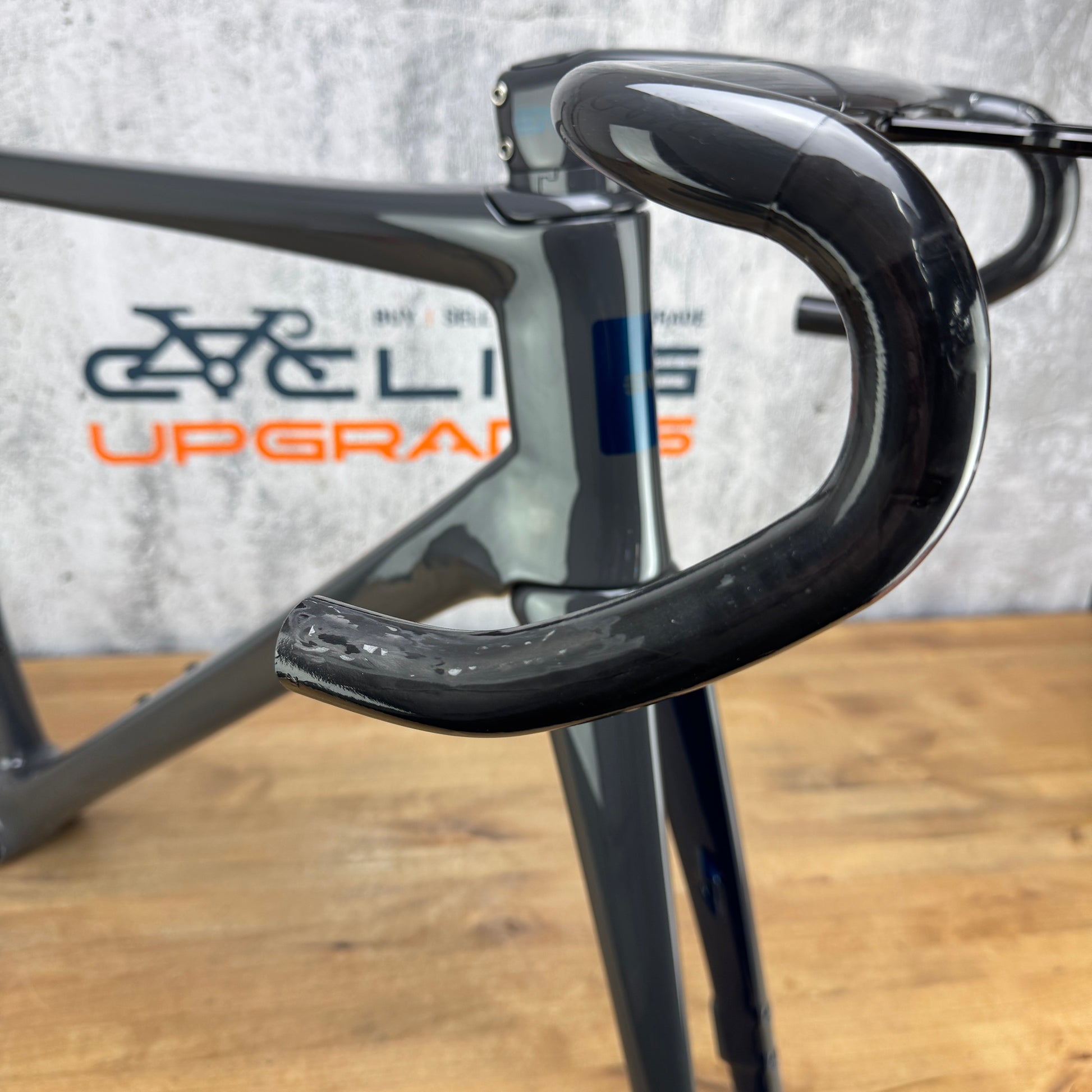

Condition: No cracks or carbon defects were identified through a thorough visual inspection. The cosmetic imperfections to highlight include: Some scuffs on the handlebar shown in pic #6. We have attempted to show all noticeable imperfections in specific close-up pictures, however other minor imperfections and light signs of use may exist.
Groupset compatibility: Frame can be setup for Di2, EPS, or eTap groupsets. This frame was previously setup with an eTap groupset. Other frame/cable stops may be needed for Di2 or EPS setups. This frame is not compatible with mechanical groupsets.

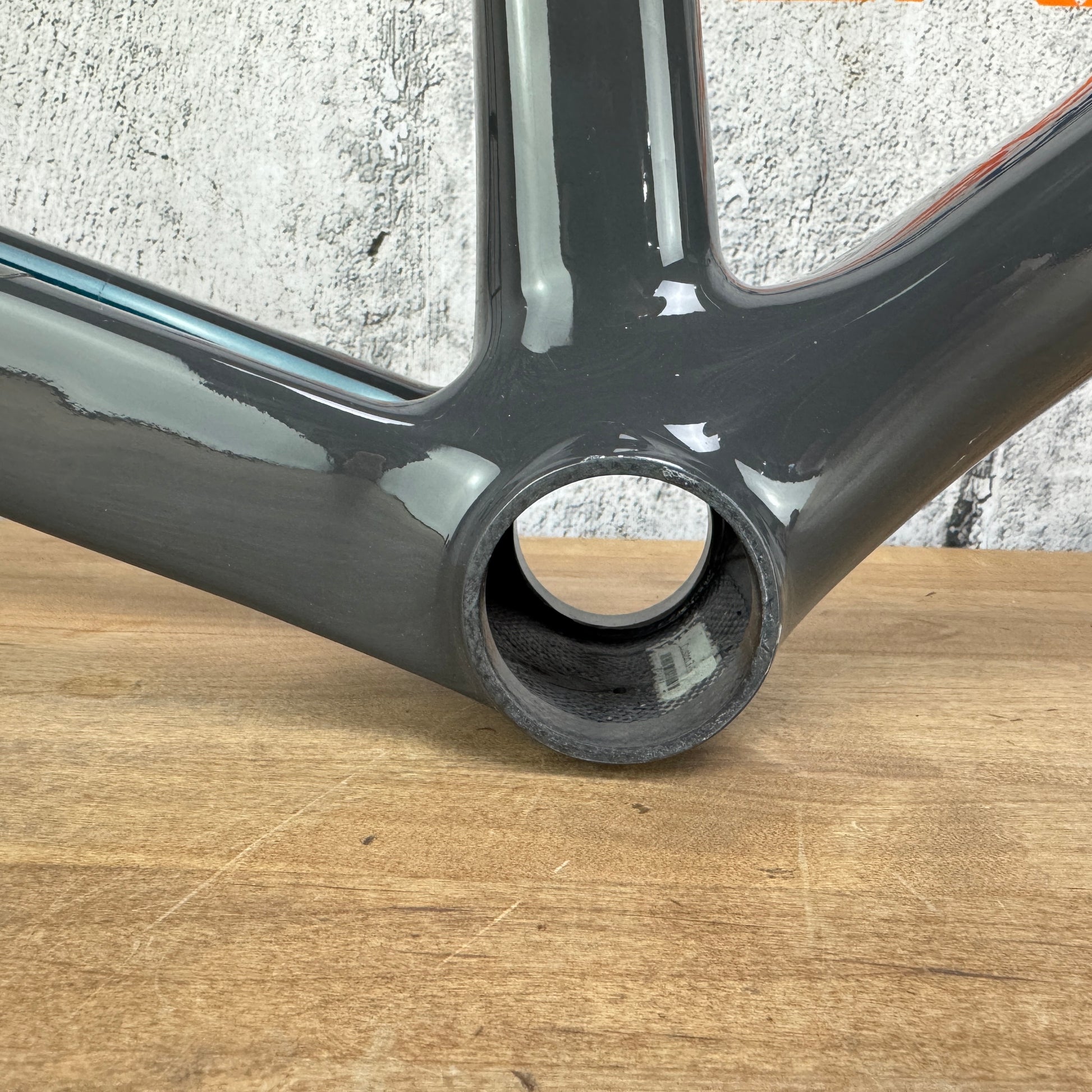

Bottom bracket: PF30 bottom bracket shell type (46mm shell diameter, 83mm shell width). No bottom bracket currently installed or included. We have a handful of lightly used basic bottom brackets on hand, let us know what you need and we can try to ship the frame with the right bottom bracket installed. Additionally, CyclingUpgrades is a Ceramicspeed and Cane Creek Authorized Dealer, if you prefer to have the frame setup with a certain bottom bracket we can add and install it at an additional cost before shipping - message with inquiries/requests.
Steerer length: 55mm of steerer above the top tube. 10mm of spacers below the stem plus the headset cover. We may have an option available to safely extend the steerer tube by 15-18mm - message us for additional details.
Handlebar: Enve SES AR integrated carbon handlebar 42cm x 110mm
Seatpost: Seatmast height is 660mm from center of bottom bracket. The minimum height to saddle rails is 690mm, and the maximum height to the saddle rails is 720mm. Add your saddle stack height to determine max saddle height from center of bottom bracket.
Dropout Spacing: Front 12mm Thru Axle x 100mm, Rear 12mm Thru Axle x 142mm.
Weight: 2246 grams as pictured with headset, thru axles, handlebar, seatmast cap, frame hardware, etc.
What's included: Frame, fork, headset, rear derailleur hanger, handlebar, seatmast cap, thru axles
