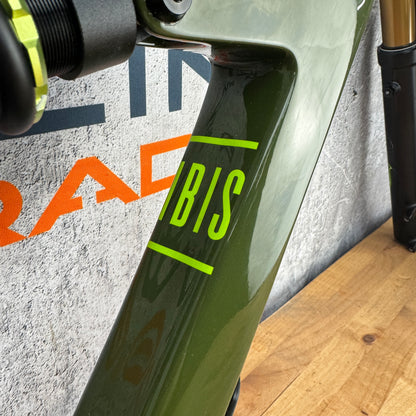

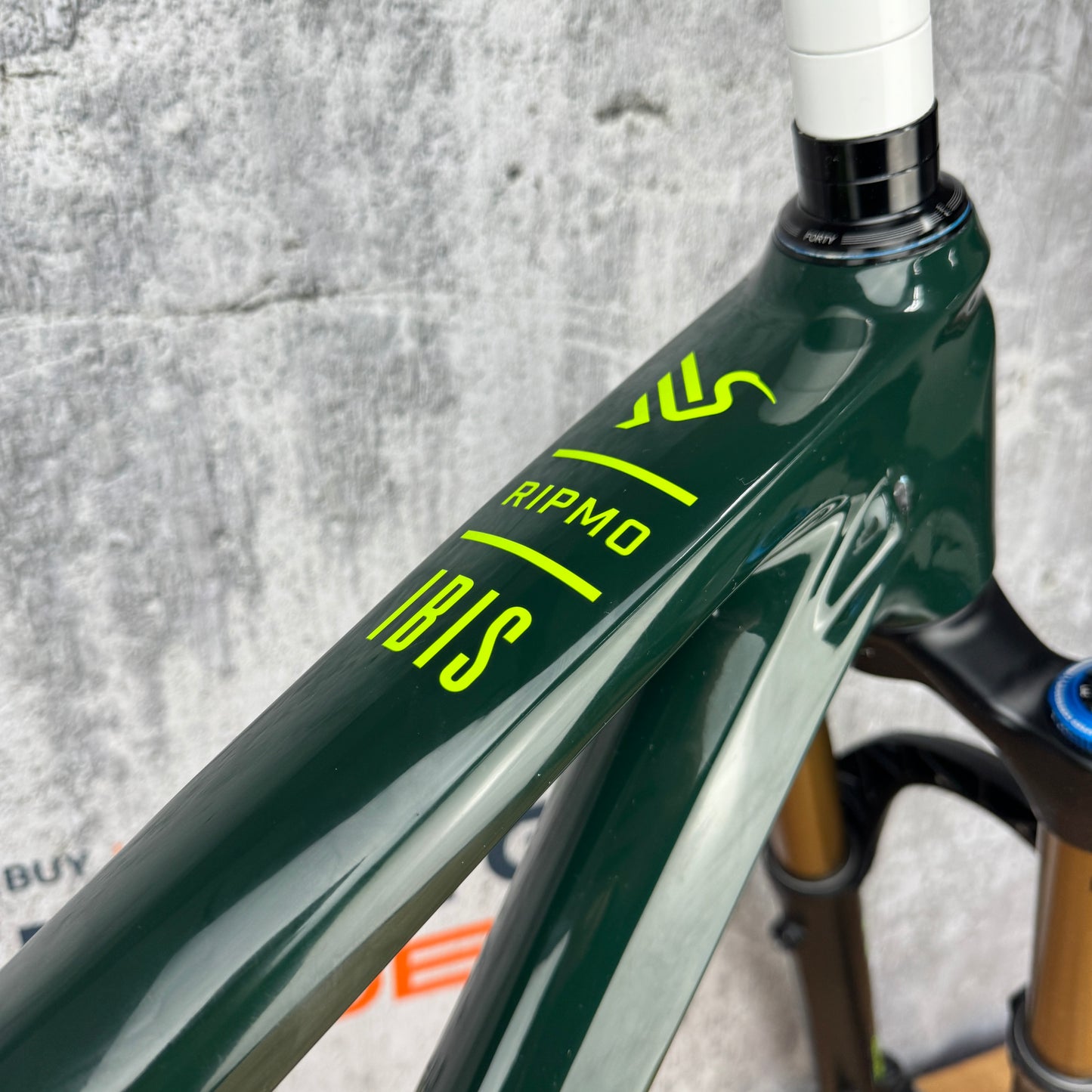

Frame: Ibis 2022 Ripmo V2S XL 170mm front travel, 150mm rear travel
Fork: Fox Factory 38 Kashima Grip X2 (Adjustments: LSC, HSR, LSC, HSR) 170mm Travel. We can sell the frameset without the fork for $500 less.
Rear Shock: DVO Jade X Coil Shock 210×55, this is an upgraded rear shock from the factory shock.
Color: Bruce Banner
Brake Type: Post-Mount disc brake
Size: XL. 655mm Effective Top Tube. Stack - 640mm. Reach - 500mm. Head Tube 120mm. Recommend buyer confirm and research full geometry online.
Condition: Per prior owner claims, this frameset has less than 250 miles on it. No cracks or carbon defects were identified through a thorough visual inspection. The cosmetic imperfections to highlight include: There are some light blemishes on the chain stays, see pictures #18-19. There are a couple of light marks on the down tube, see pictures #20-21. Some light trail debris wear can be seen in the rear chain stay crown, see picture #22. We have attempted to show all noticeable imperfections in specific close-up pictures, however other minor imperfections and light signs of use may exist.
Groupset Compatibility: Frame can be setup for electronic or mechanical groupsets.
Bottom bracket: BSA (English) bottom bracket shell type. No bottom bracket currently installed or included. We have a handful of lightly used basic bottom brackets on hand, let us know what you need and we can try to ship the frame with the right bottom bracket installed. Additionally, CyclingUpgrades is a Wheels Manufacturing, and a Ceramicspeed Authorized Dealer, if you prefer to have the frame setup with a certain Wheels Manufacturing, or Ceramicspeed bottom bracket we can add and install it at an additional cost before shipping - message with inquiries/requests.
Steerer Length: 65mm of steerer above the top tube. 20mm of spacers below the stem plus the headset cover. We do have an option available to safely extend the steerer tube by 15-18mm - message us for additional details.
Seatpost: 31.6mm diameter. No seatpost included
Dropout Spacing: Boost (Front 15mm Thru Axle x 110mm, Rear 12mm Thru Axle x 148mm)
Weight: 13.12 lbs grams as pictured.
What's included: Frame, fork, headset, rear derailleur hanger, thru axles
