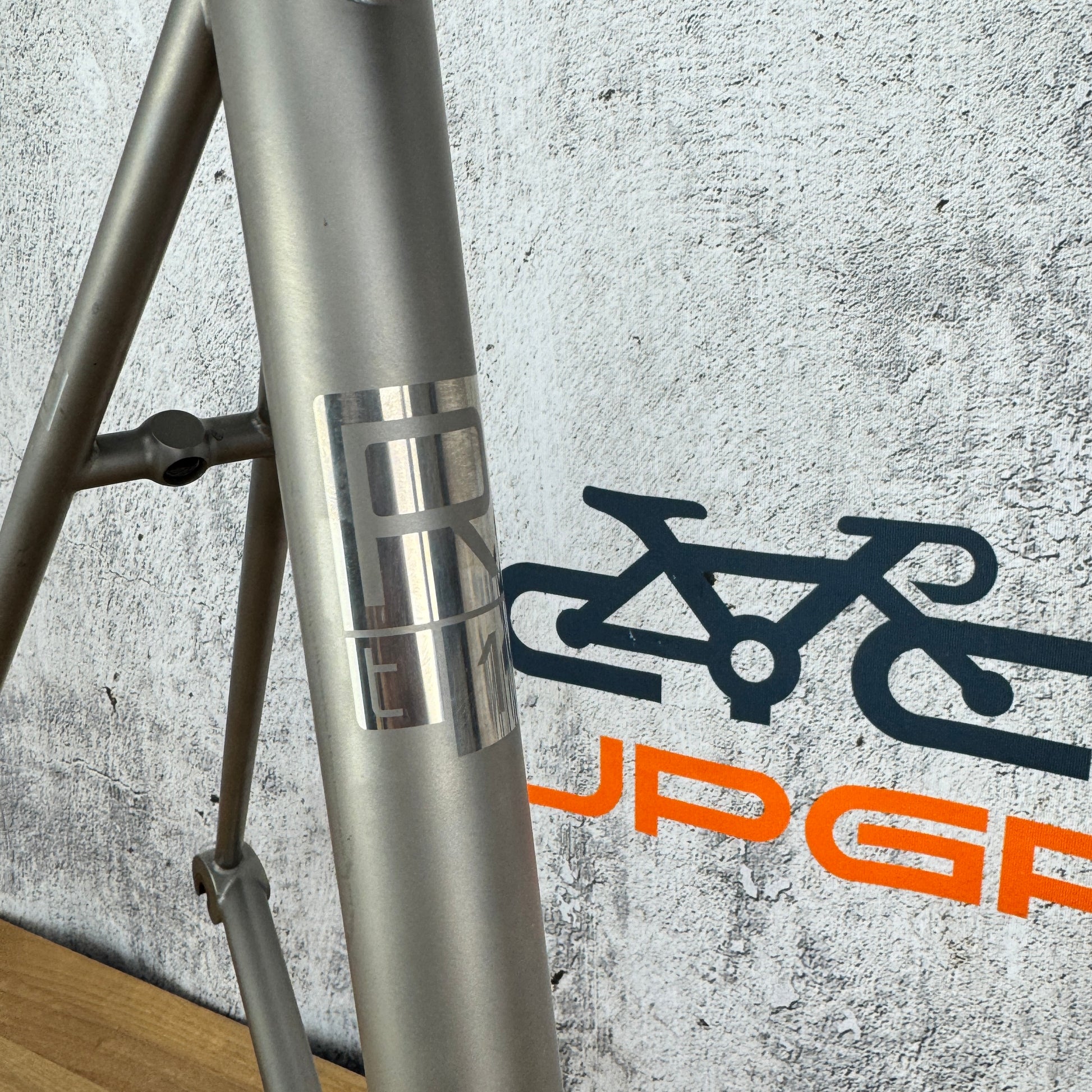

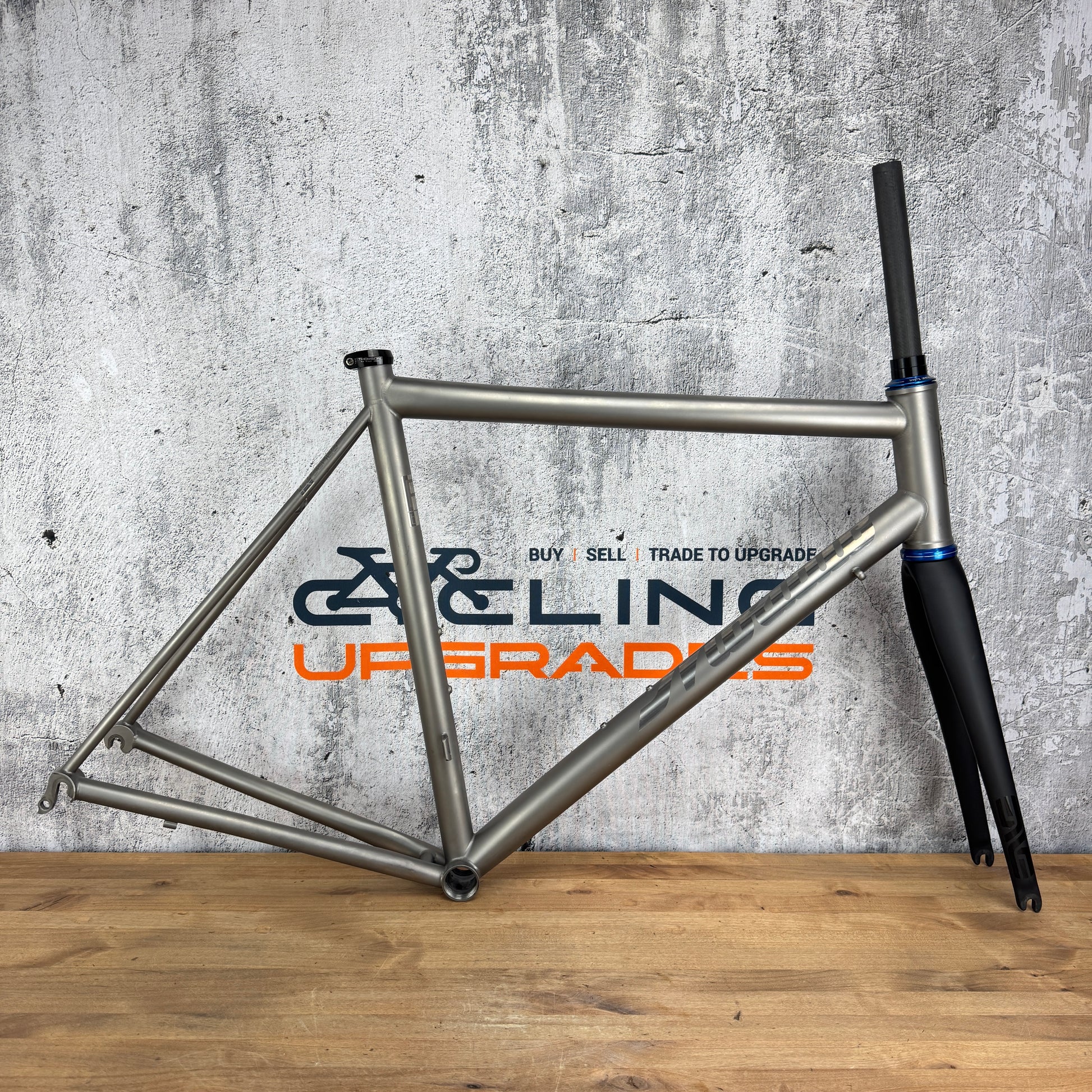

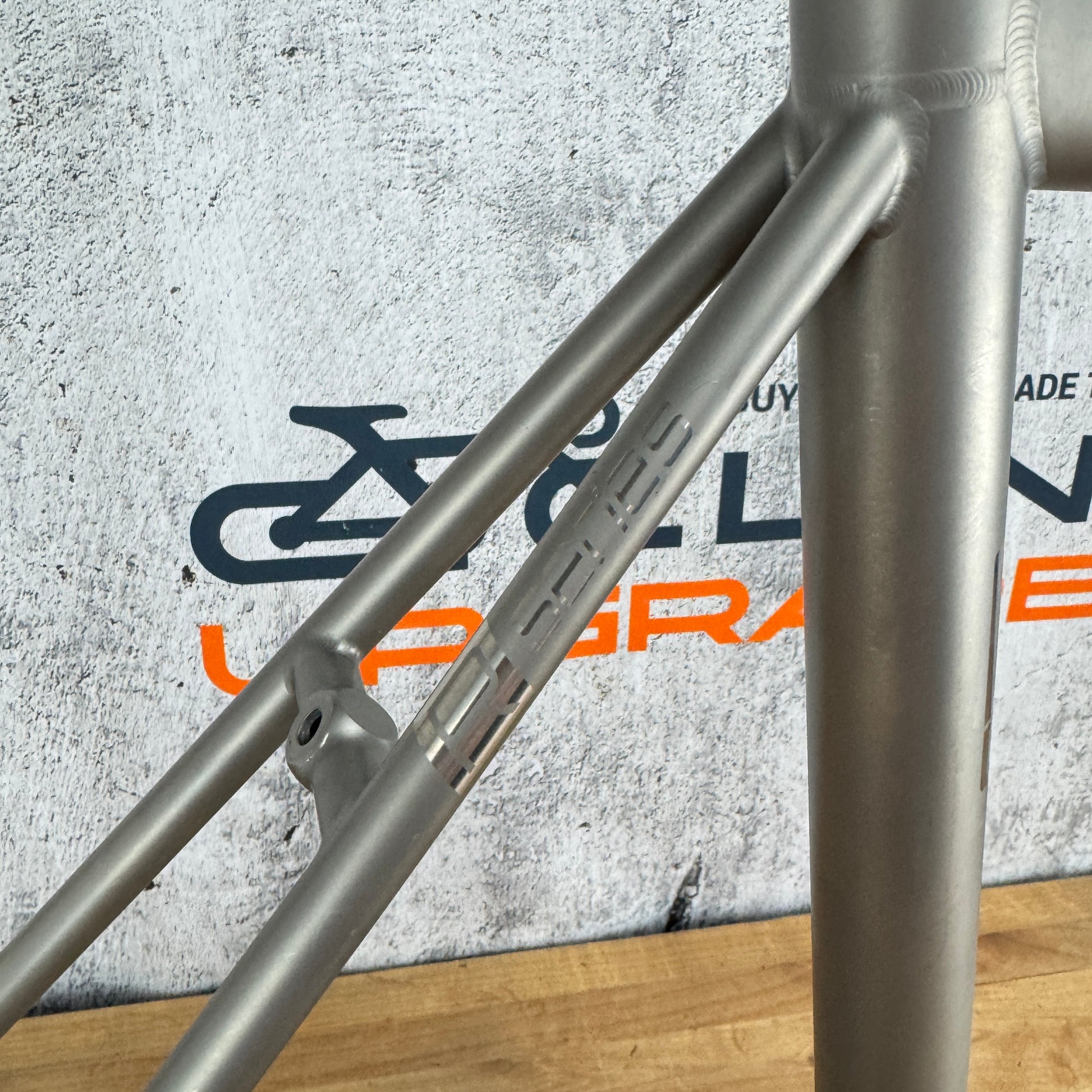

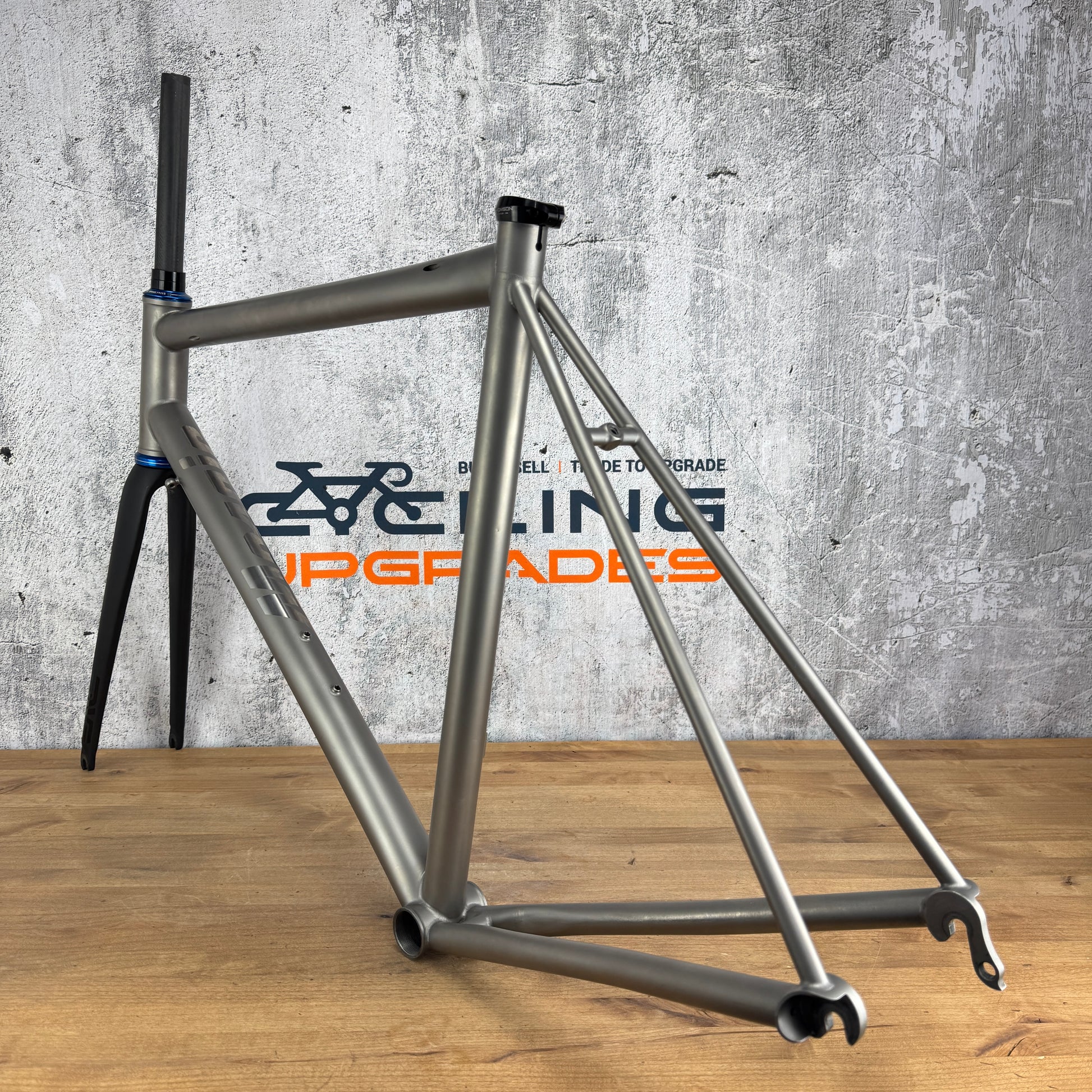

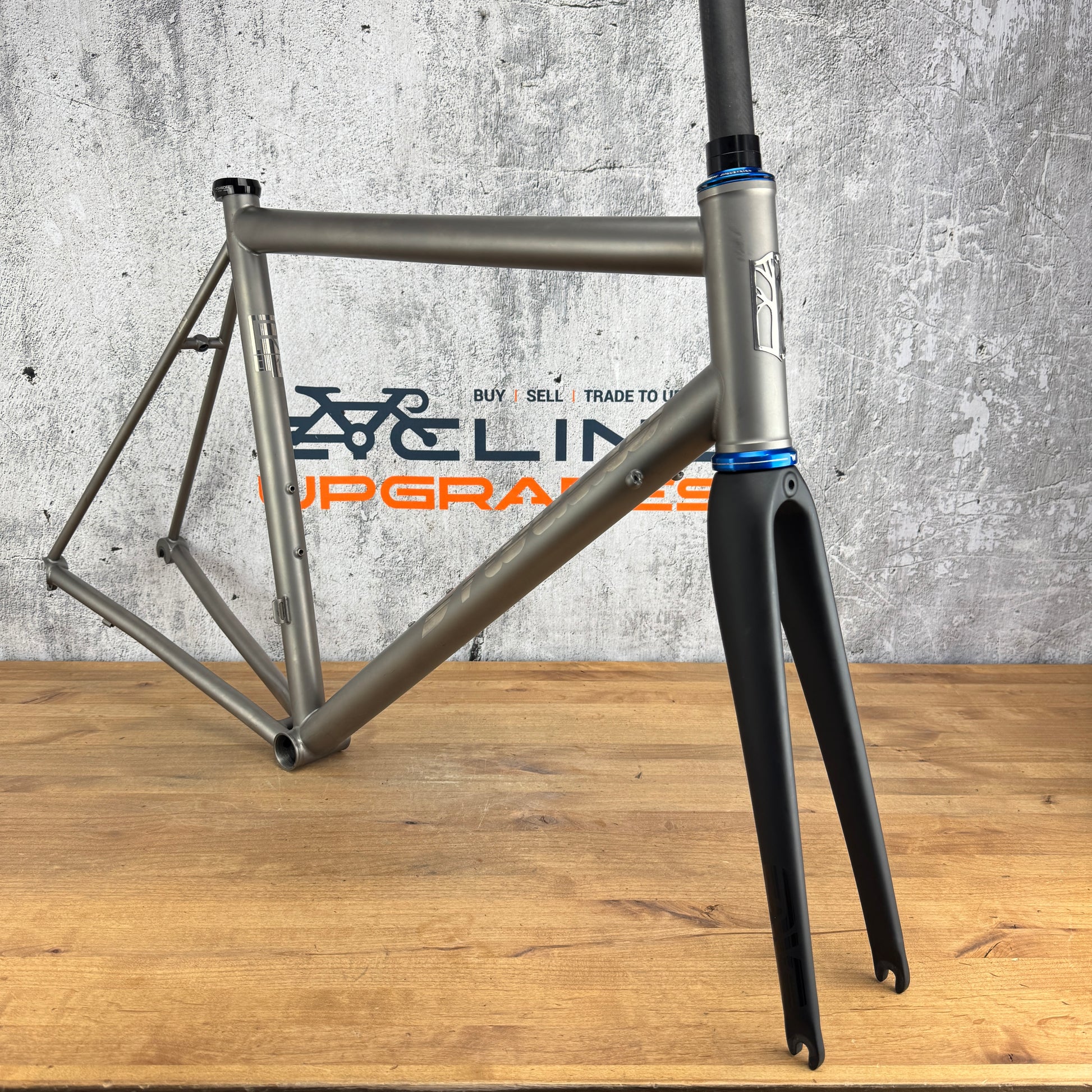

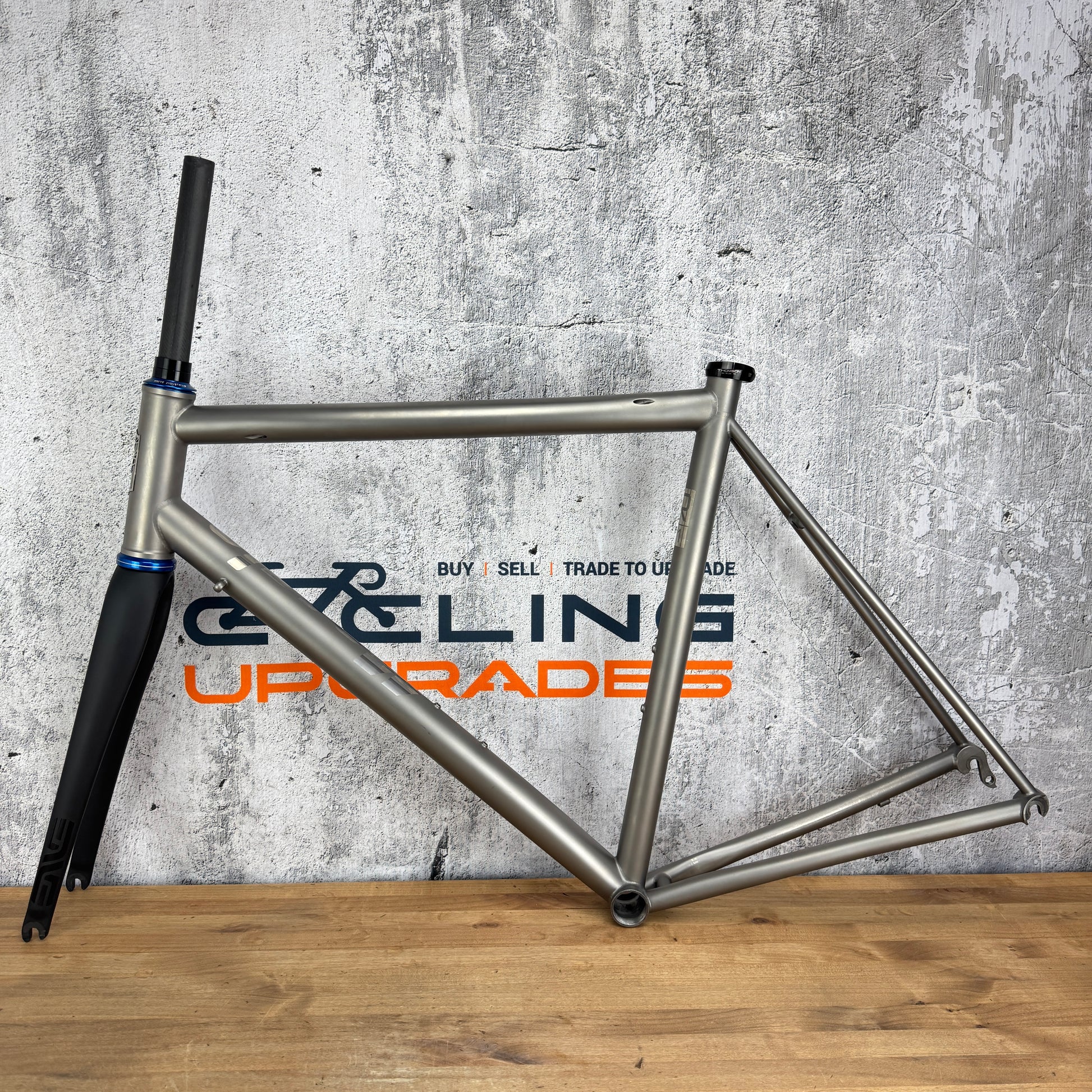

Frame: Mosaic 2019 RT-1

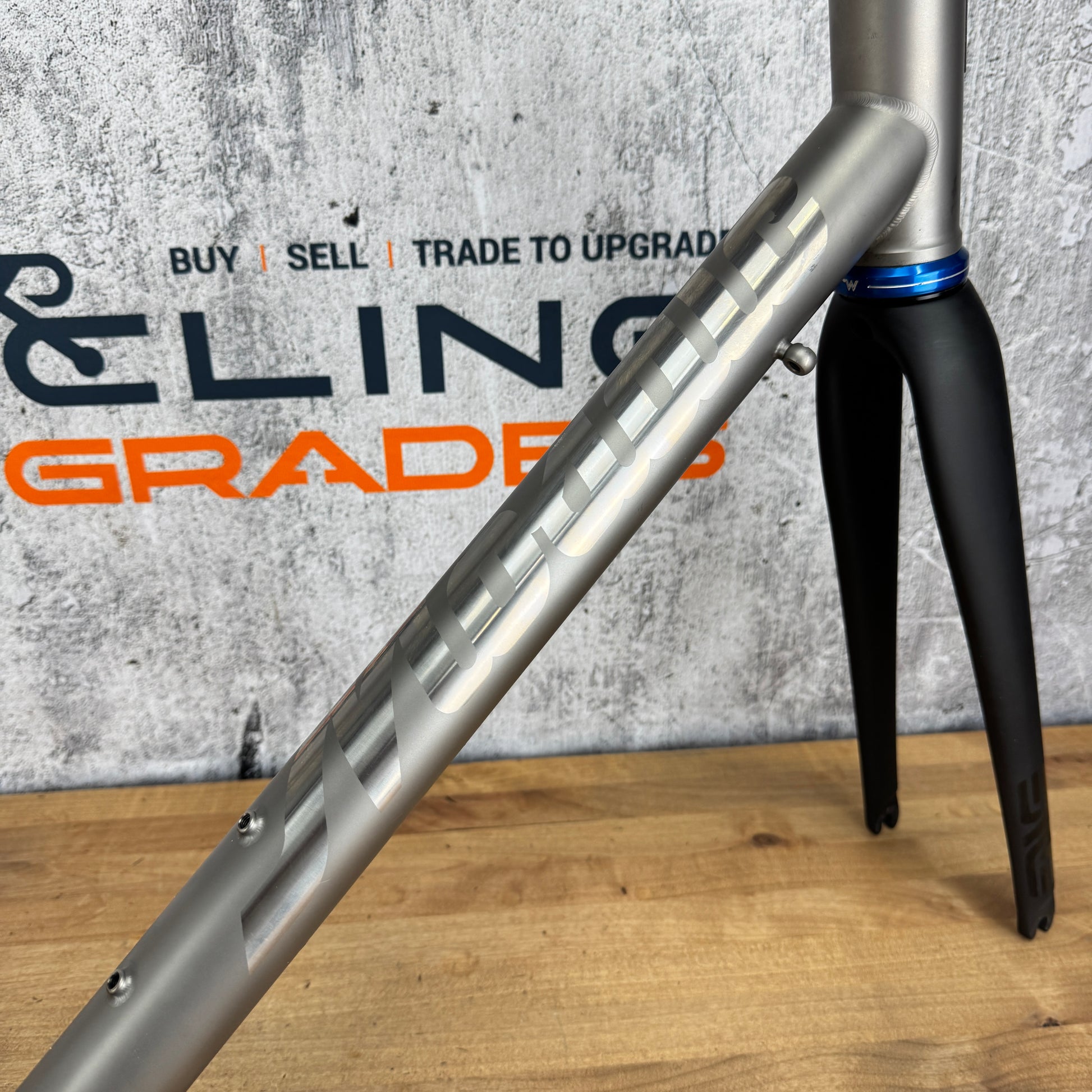

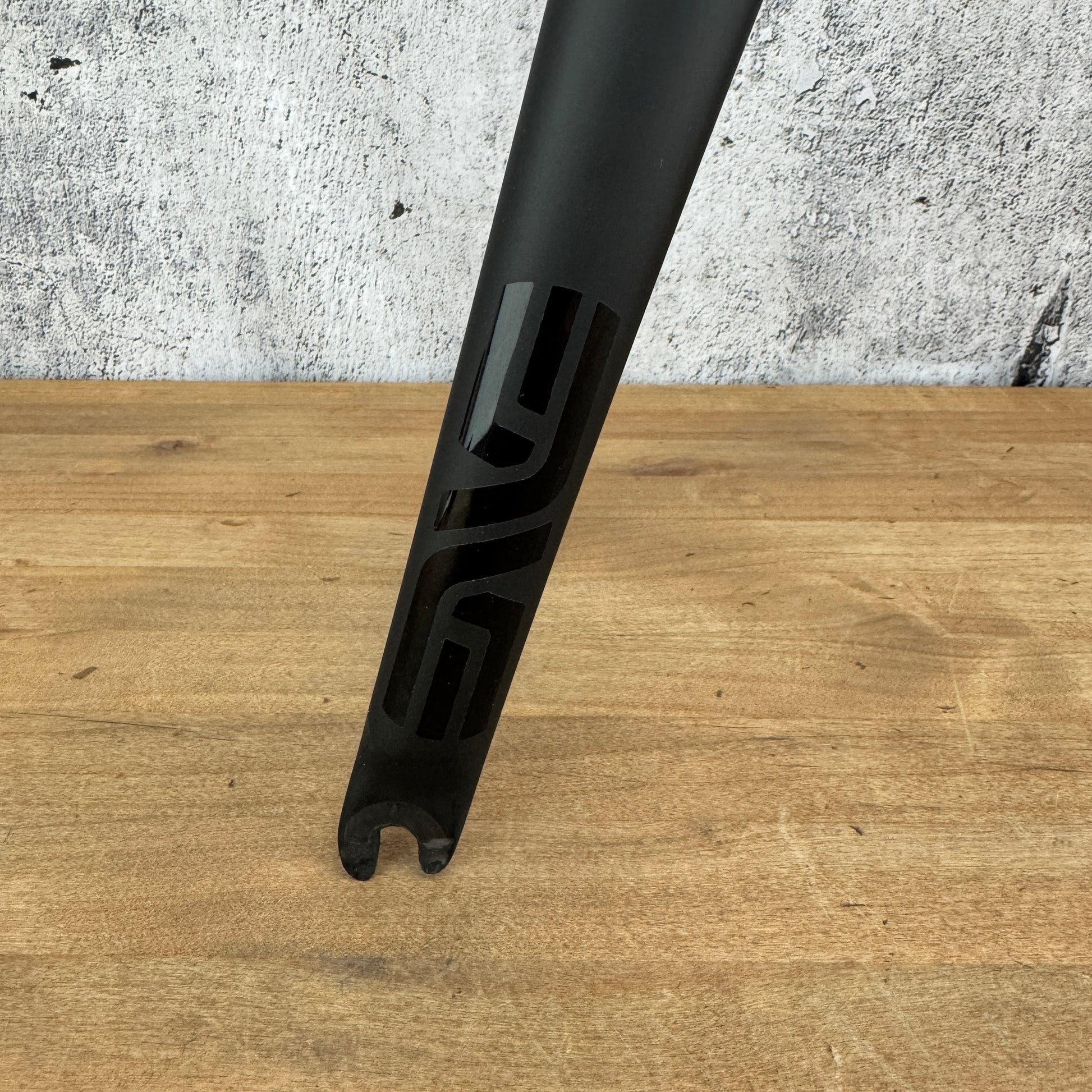

Fork: Includes a brand new Enve 2.0 Rim Brake Carbon Fork with 400mm uncut steerer. We can sell the frameset for $400 less without the fork.

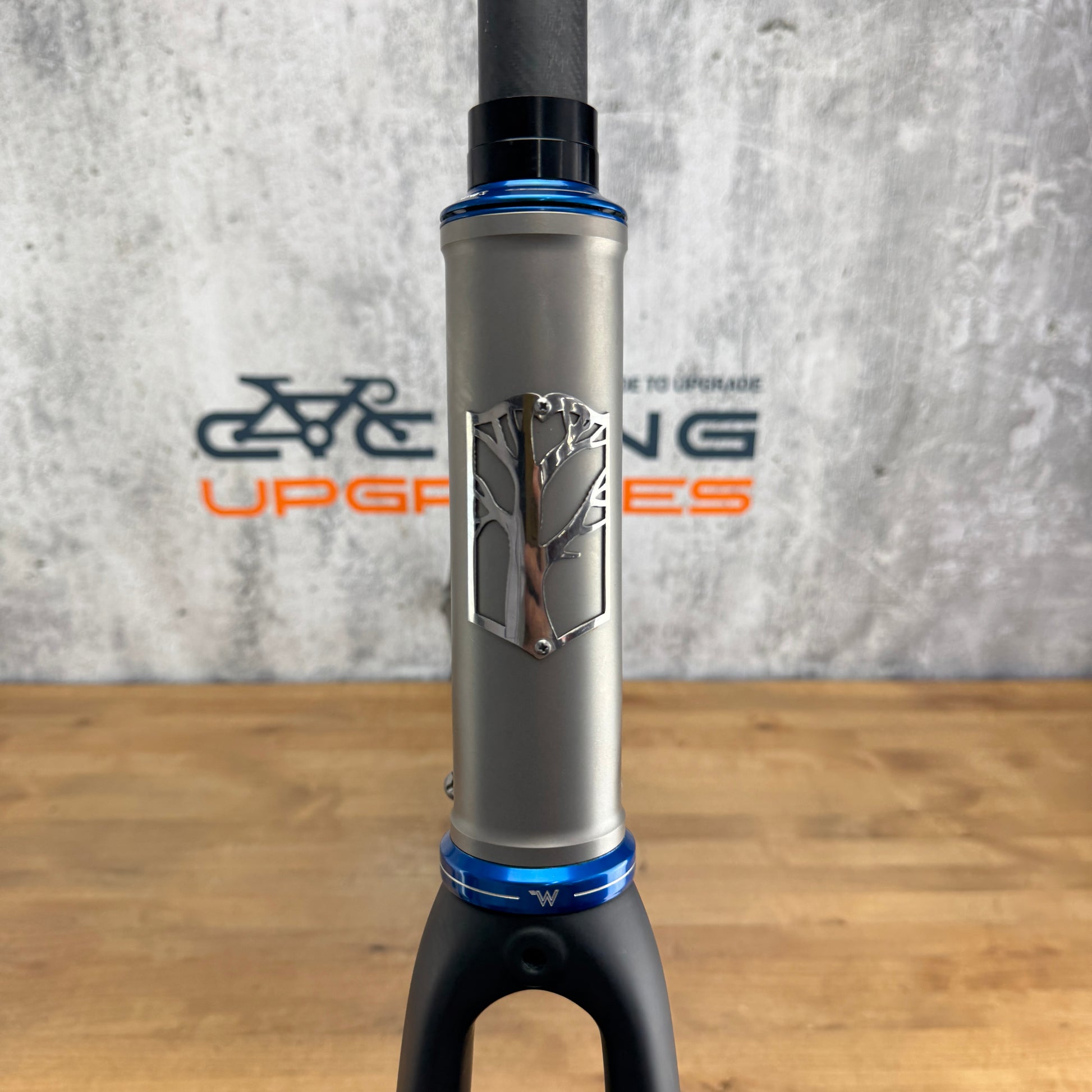

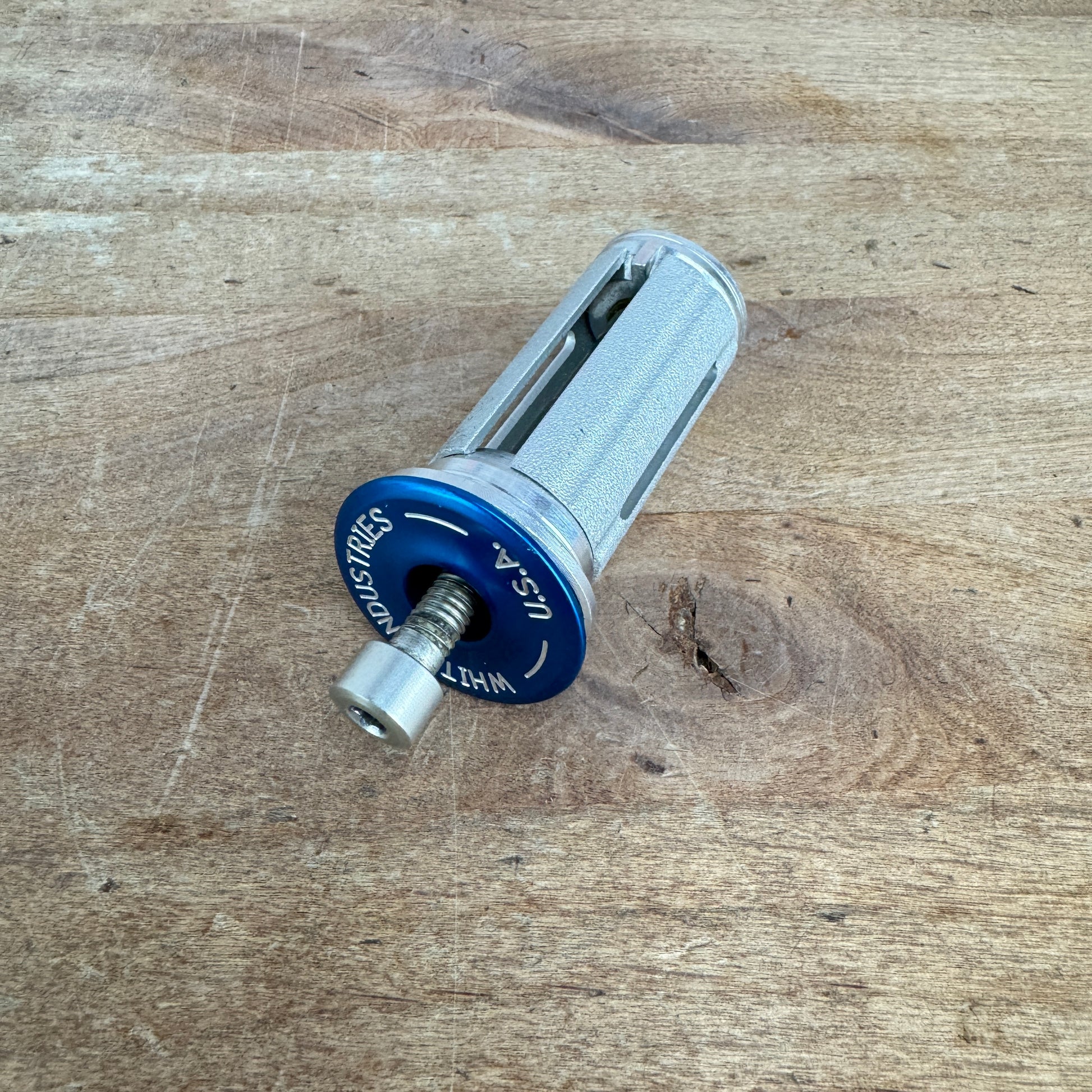

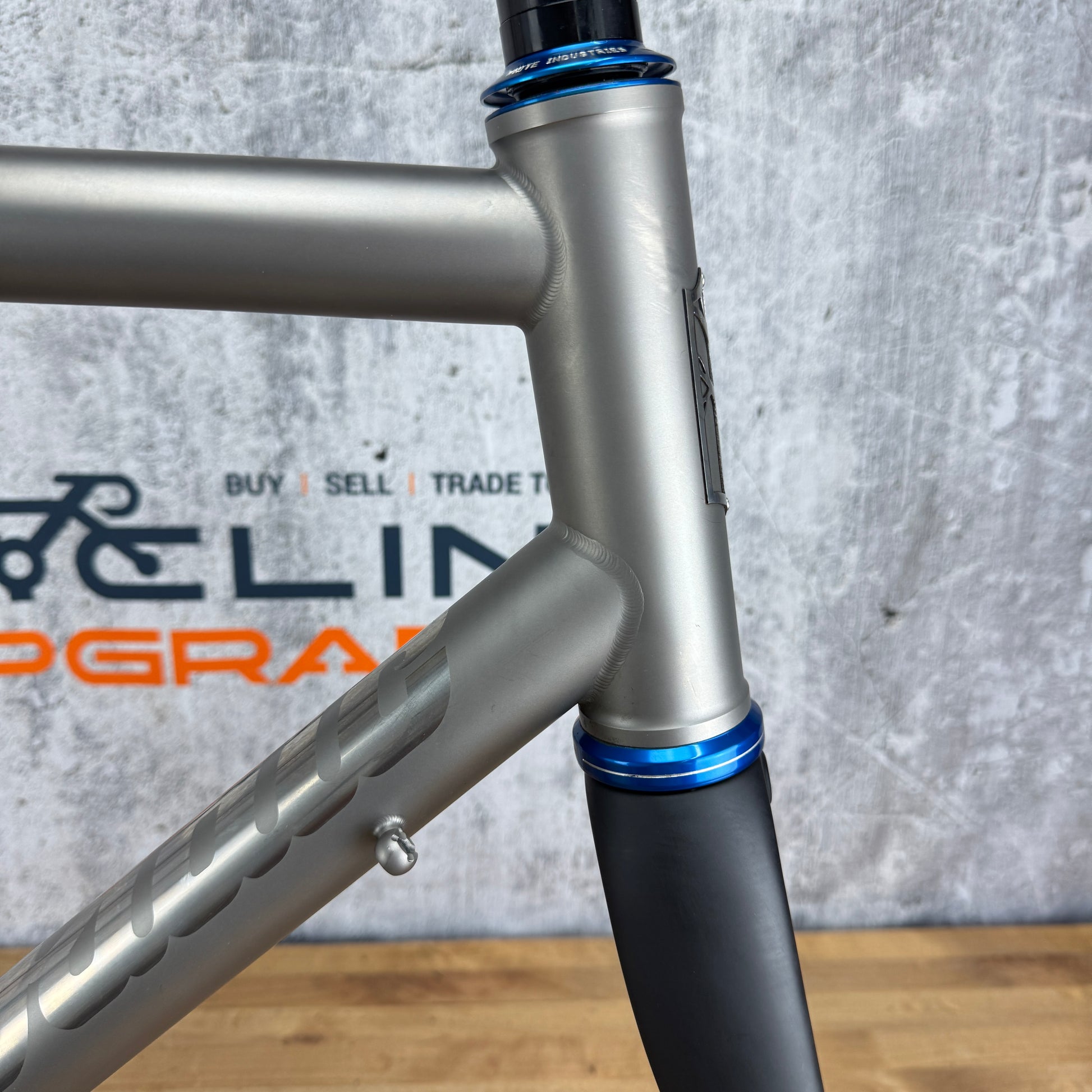

Headset: White Industries Blue external headset. We can sell the frameset for $100 less without the headset.
Tire Clearance: 28mm
Brake Type: Center-Mount rim brake

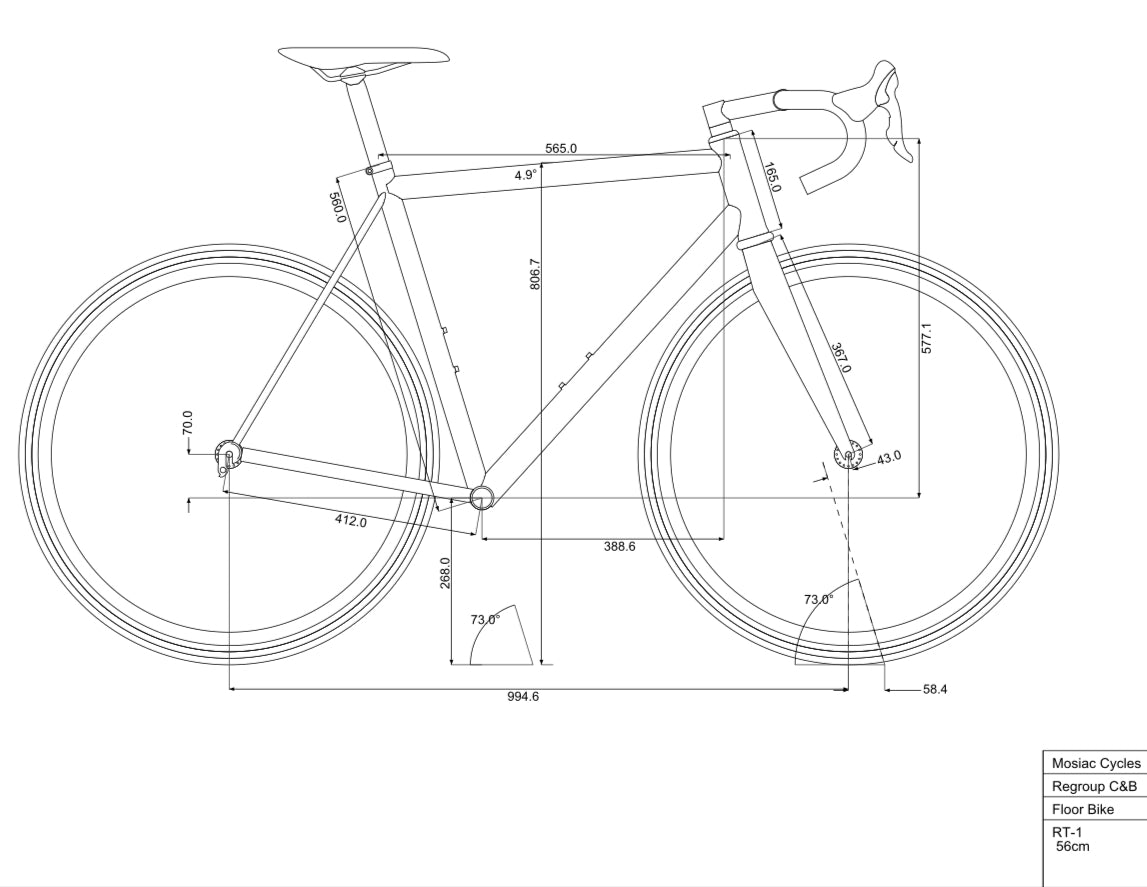

Size: 56cm. 565mm Effective Top Tube. Stack - 577.1mm. Reach - 388.6mm. Head Tube 165mm. A full geometry sheet is included in the photos.

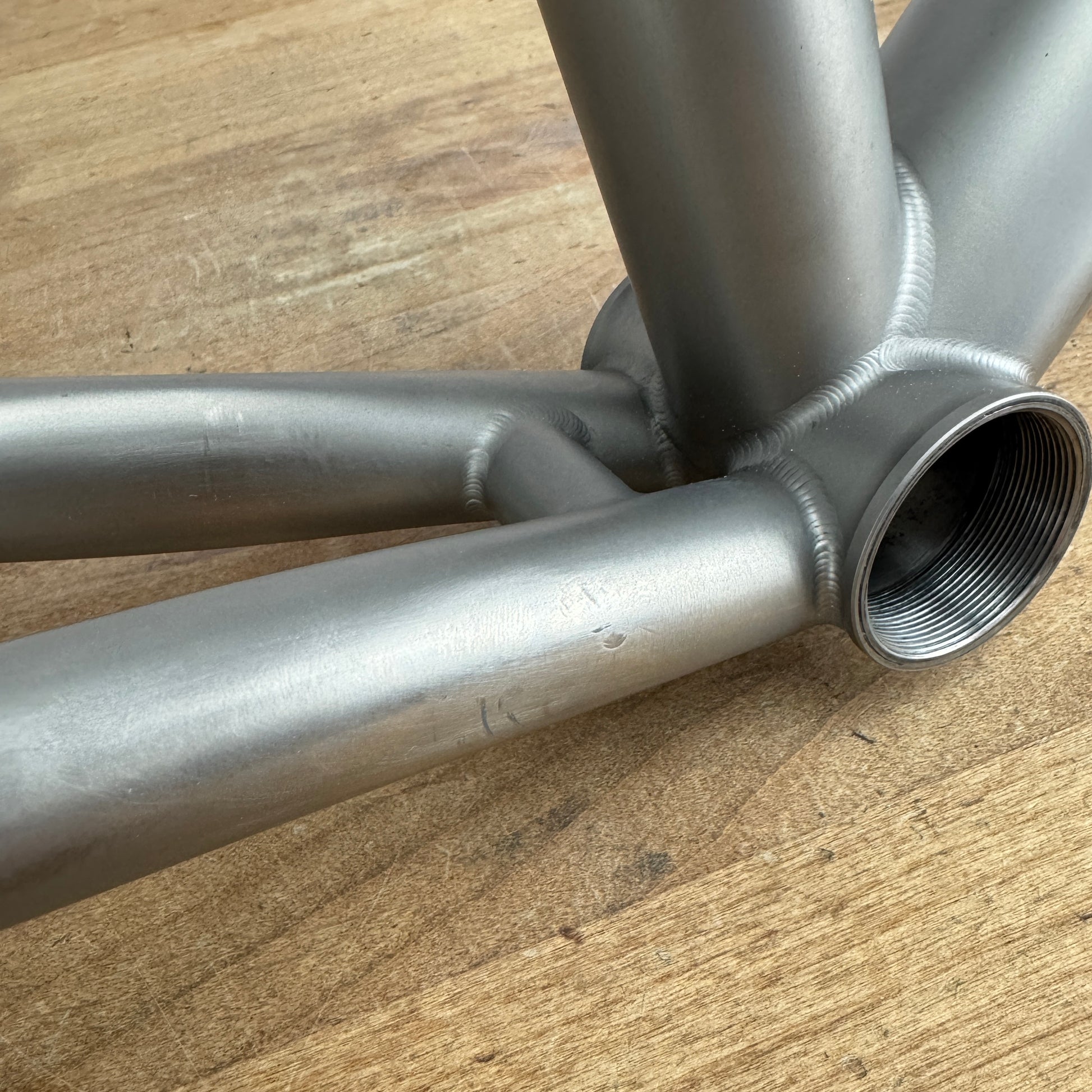

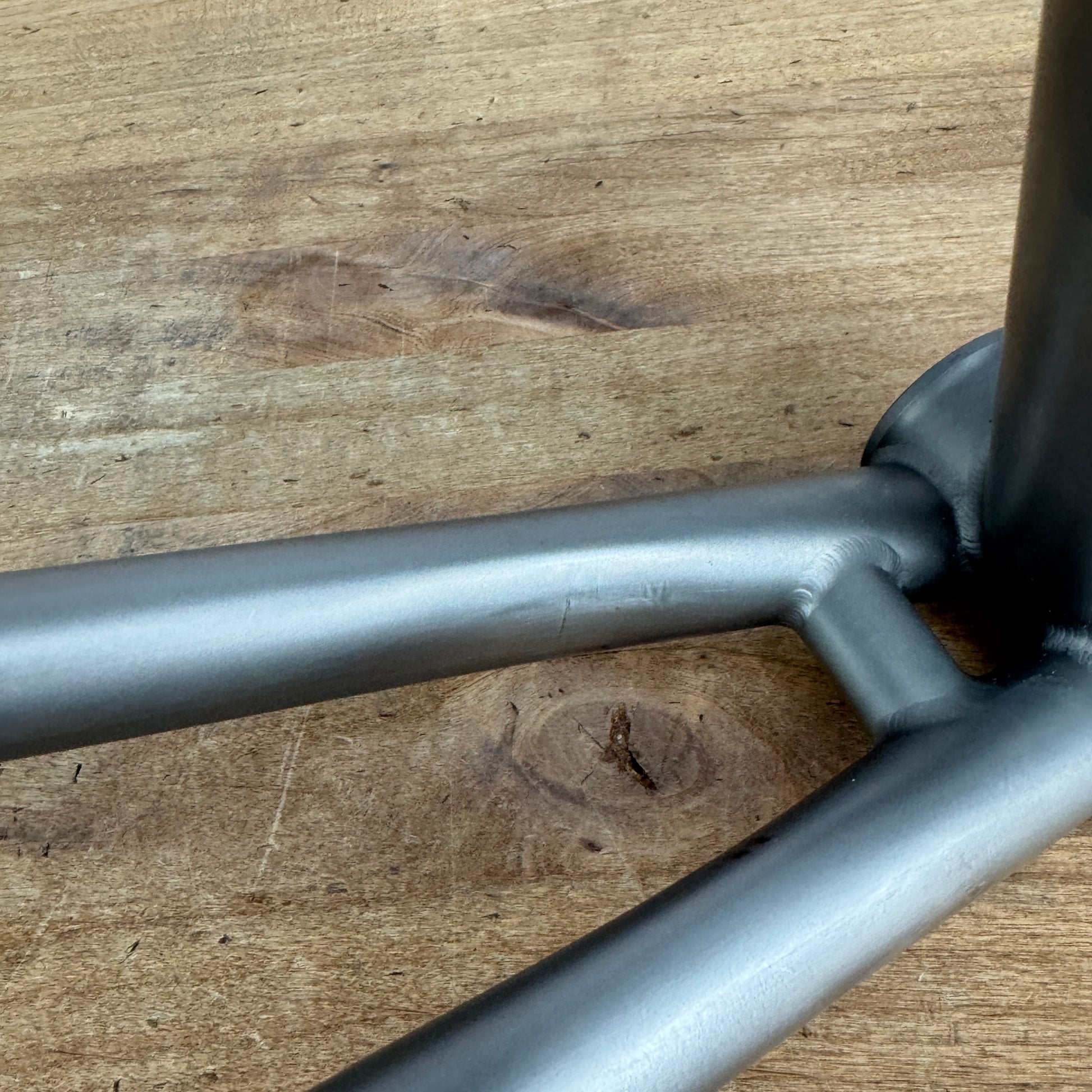

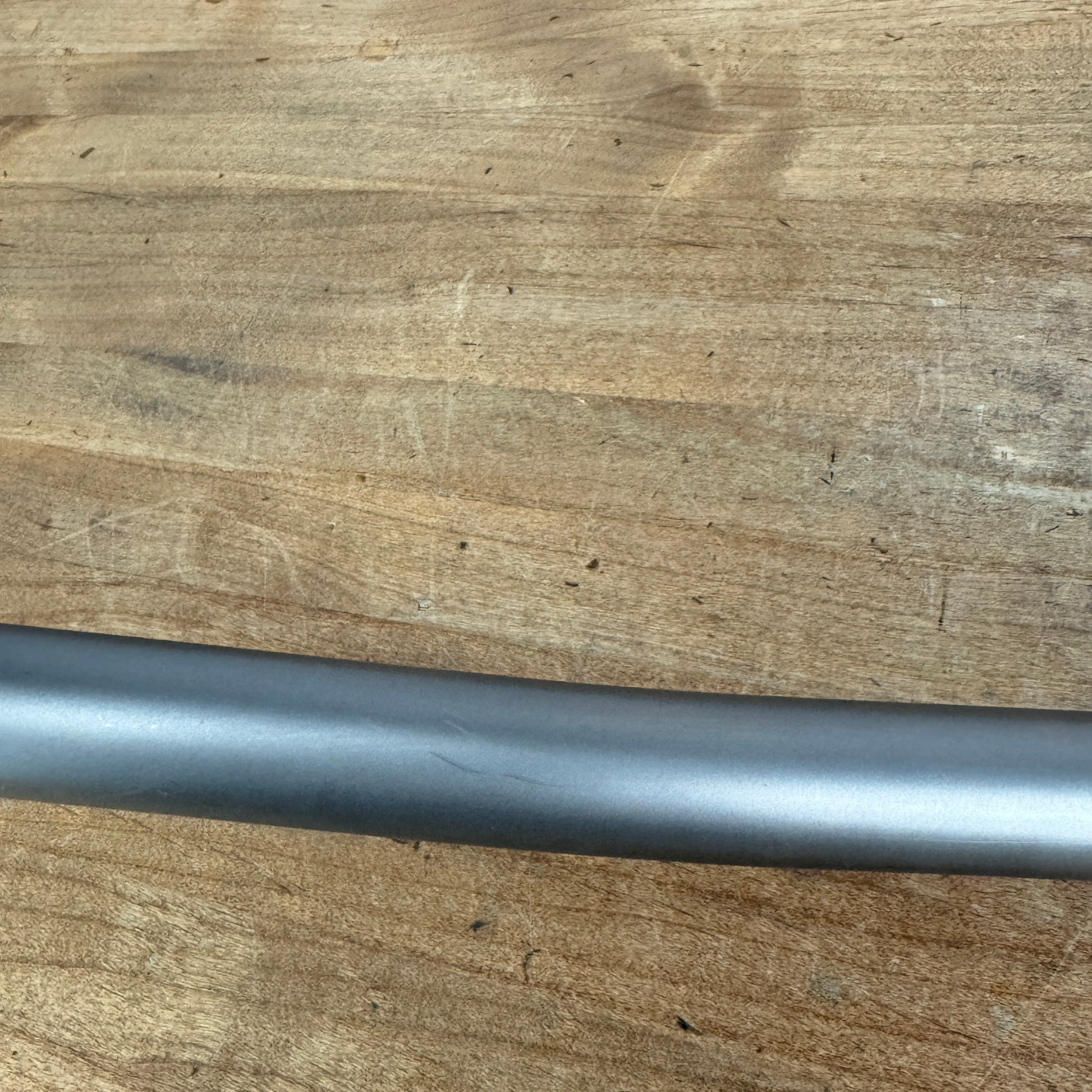

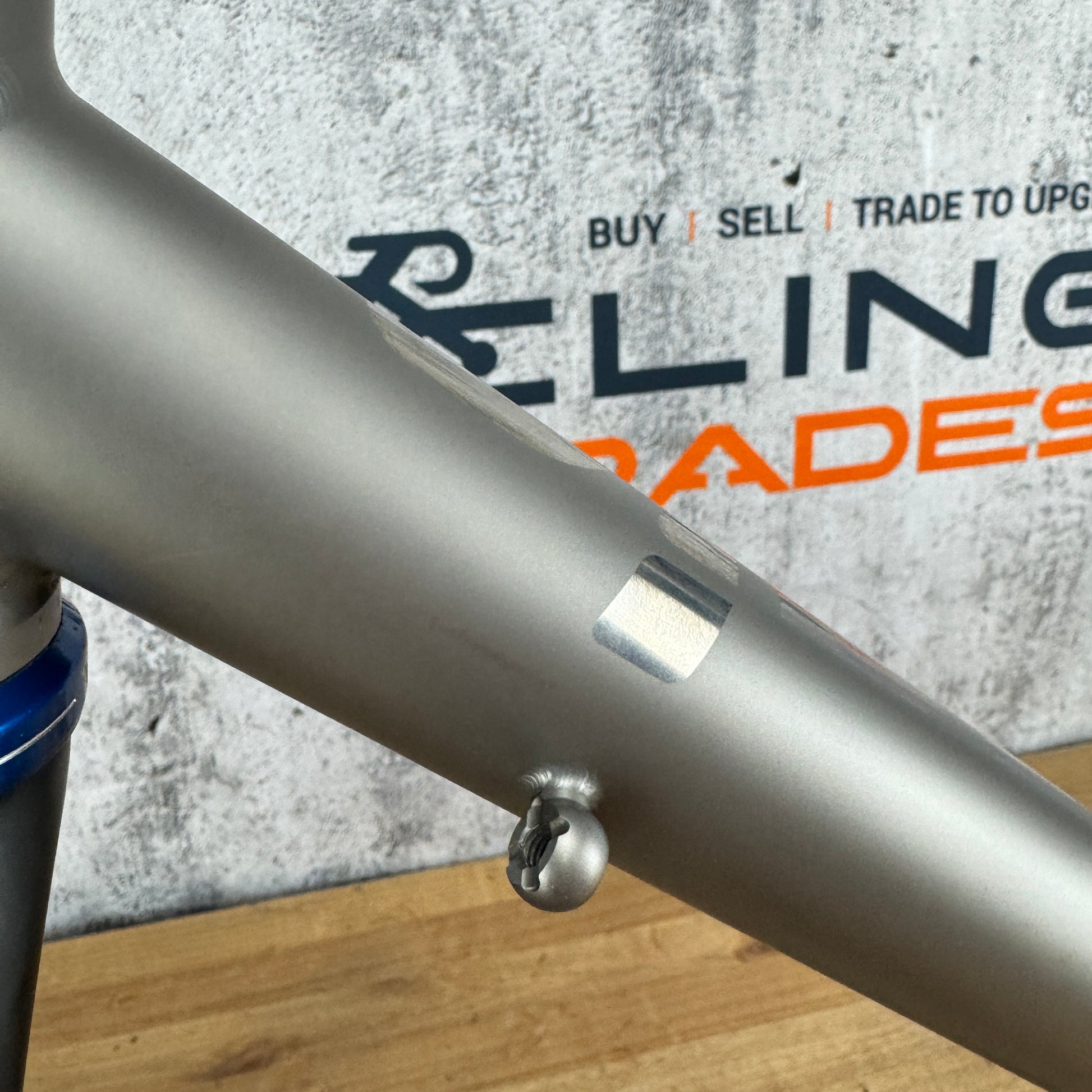

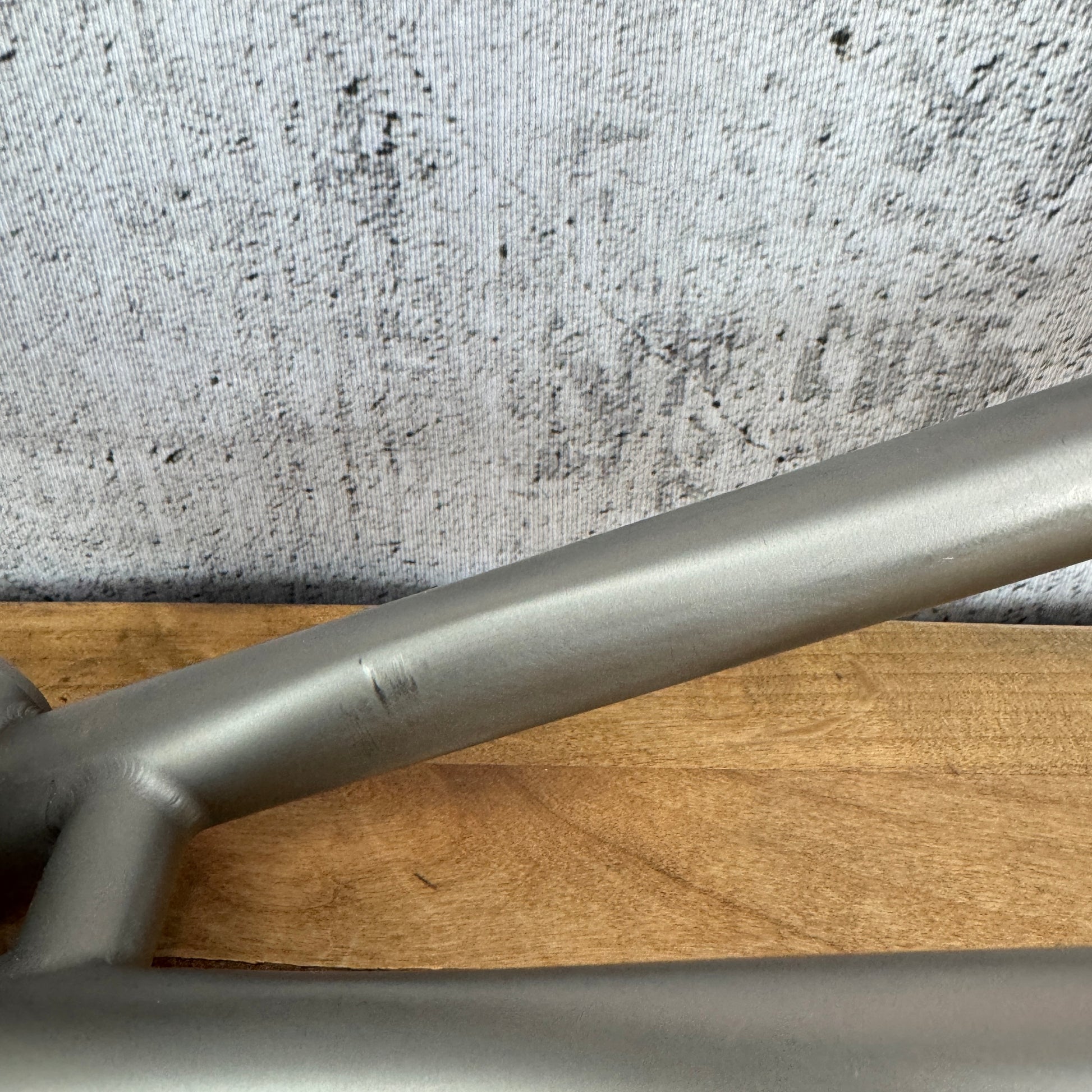

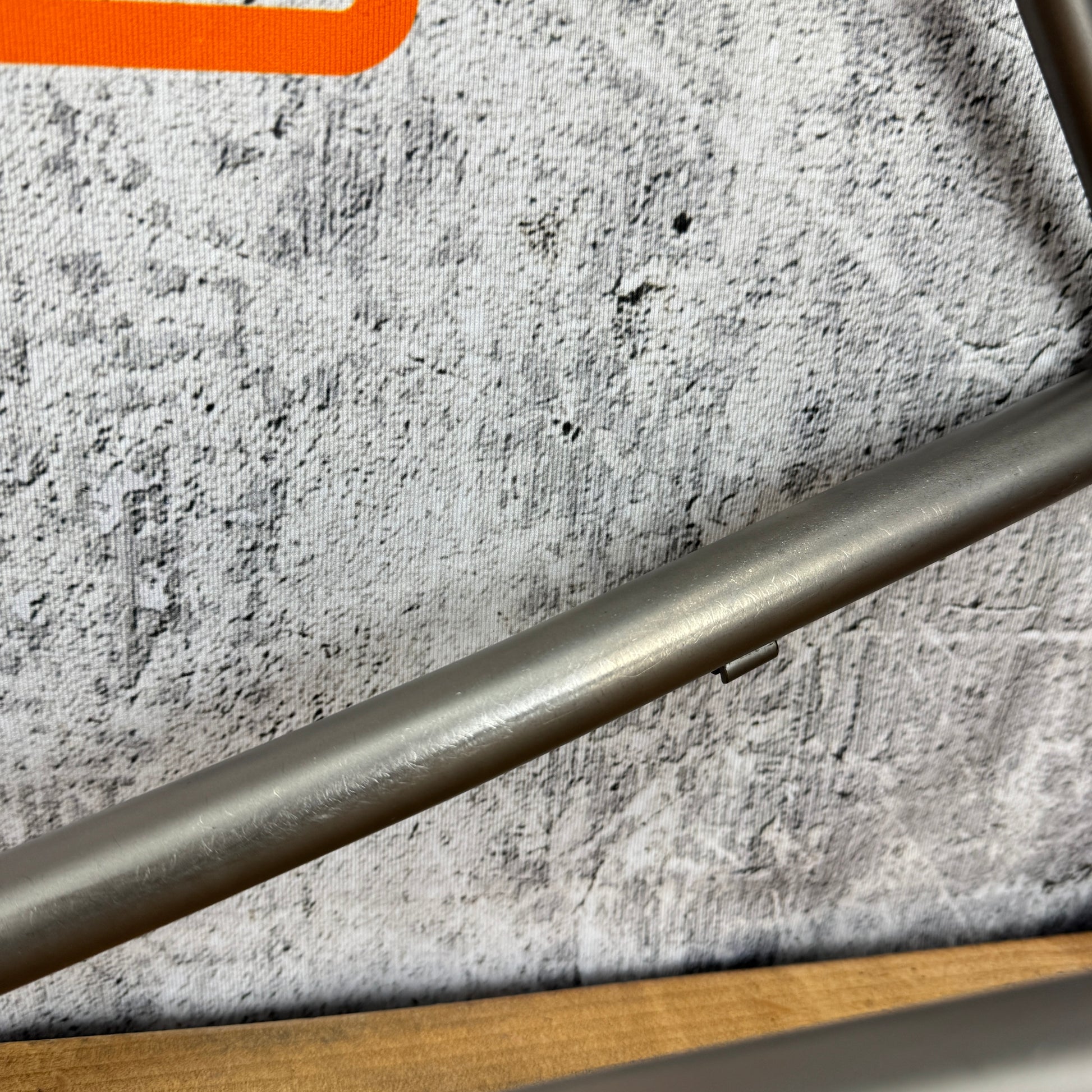

Condition: No cracks or defects were identified through a thorough visual inspection. The cosmetic imperfections to highlight include: Light tire rube wear and other light marks on the chain stays, see pictures #13-15. A couple of light marks on the down tube and top tube, see pictures #16-17. A couple of light scuffs near the bottom bracket on the drive side, see picture #18. We have attempted to show all noticeable imperfections in specific close-up pictures, however other minor imperfections and light signs of use may exist.
Groupset Compatibility: Frame can be setup for eTap or mechanical groupsets. This frame is not compatible with Di2, or EPS setups.

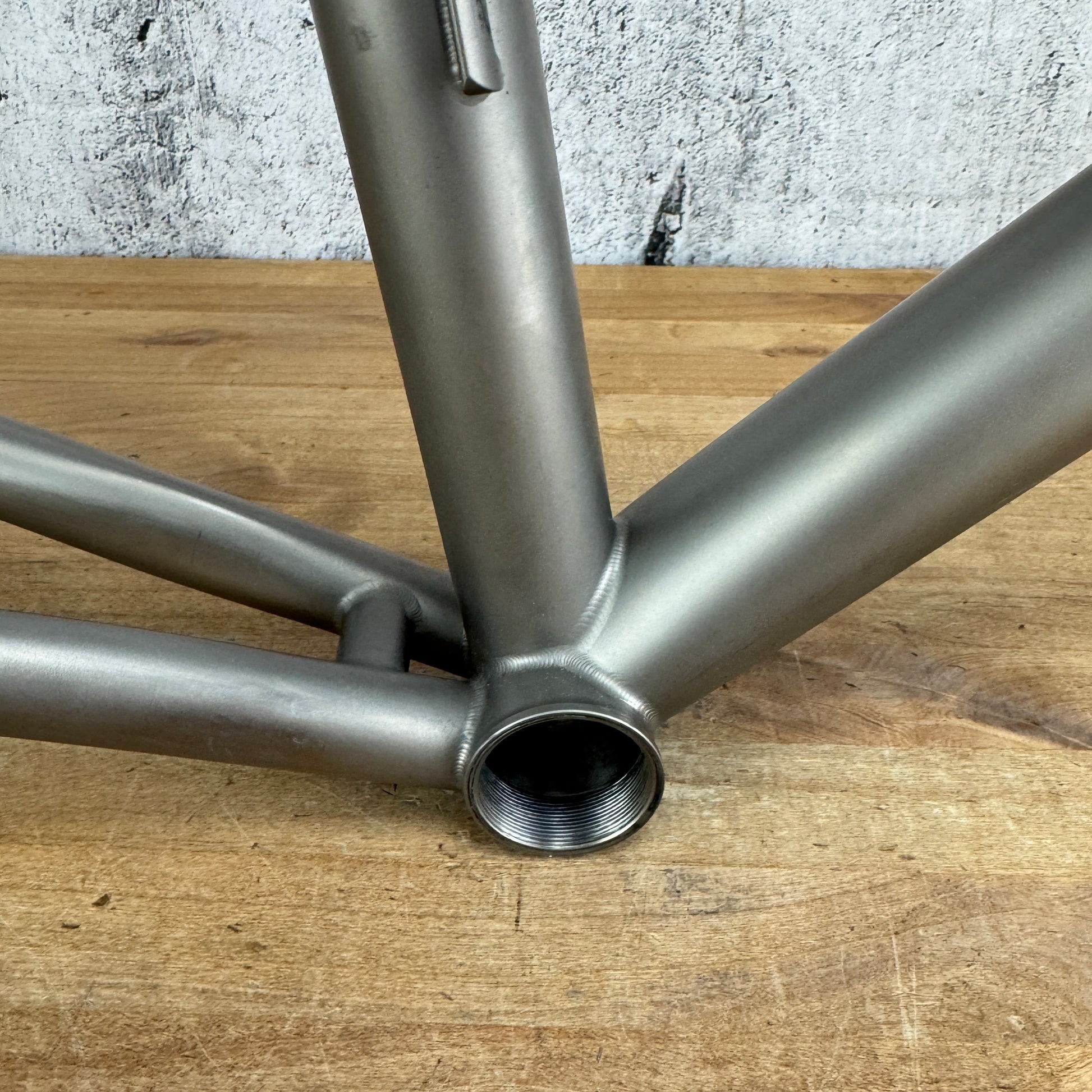

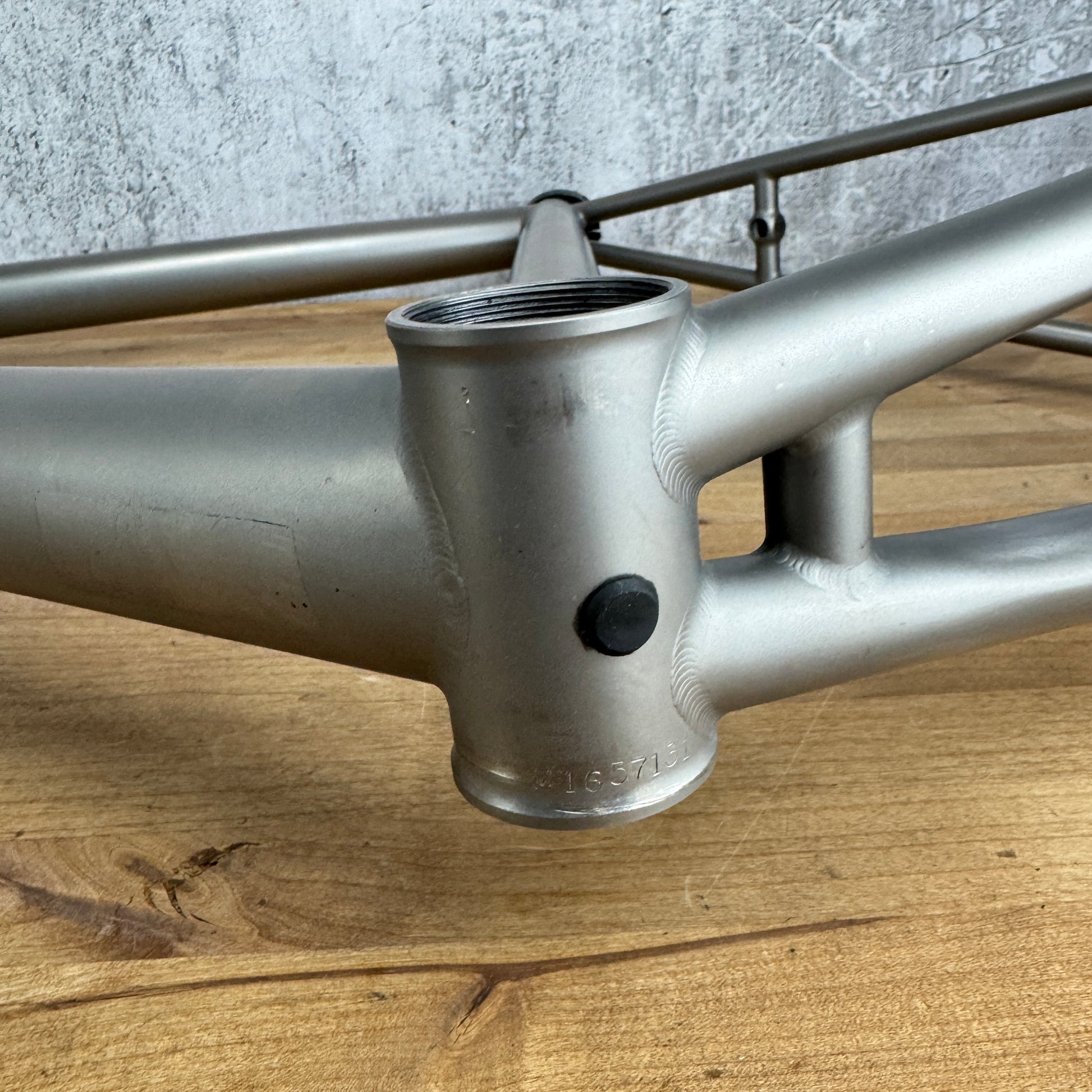

Bottom bracket: BSA (English) bottom bracket shell type. No bottom bracket currently installed or included. We have a handful of lightly used basic bottom brackets on hand, let us know what you need and we can try to ship the frame with the right bottom bracket installed. Additionally, CyclingUpgrades is a Wheels Manufacturing, and a Ceramicspeed Authorized Dealer, if you prefer to have the frame setup with a certain Wheels Manufacturing, or Ceramicspeed bottom bracket we can add and install it at an additional cost before shipping - message with inquiries/requests.
Steerer Length: 400mm (new and uncut)
Seatpost: 30.9mm diameter. No seatpost included
Dropout Spacing: QR x 100mm front, QR x 130mm rear.
Weight: 1660 grams as pictured.
What's included: Frame, fork, headset, rear derailleur hanger
