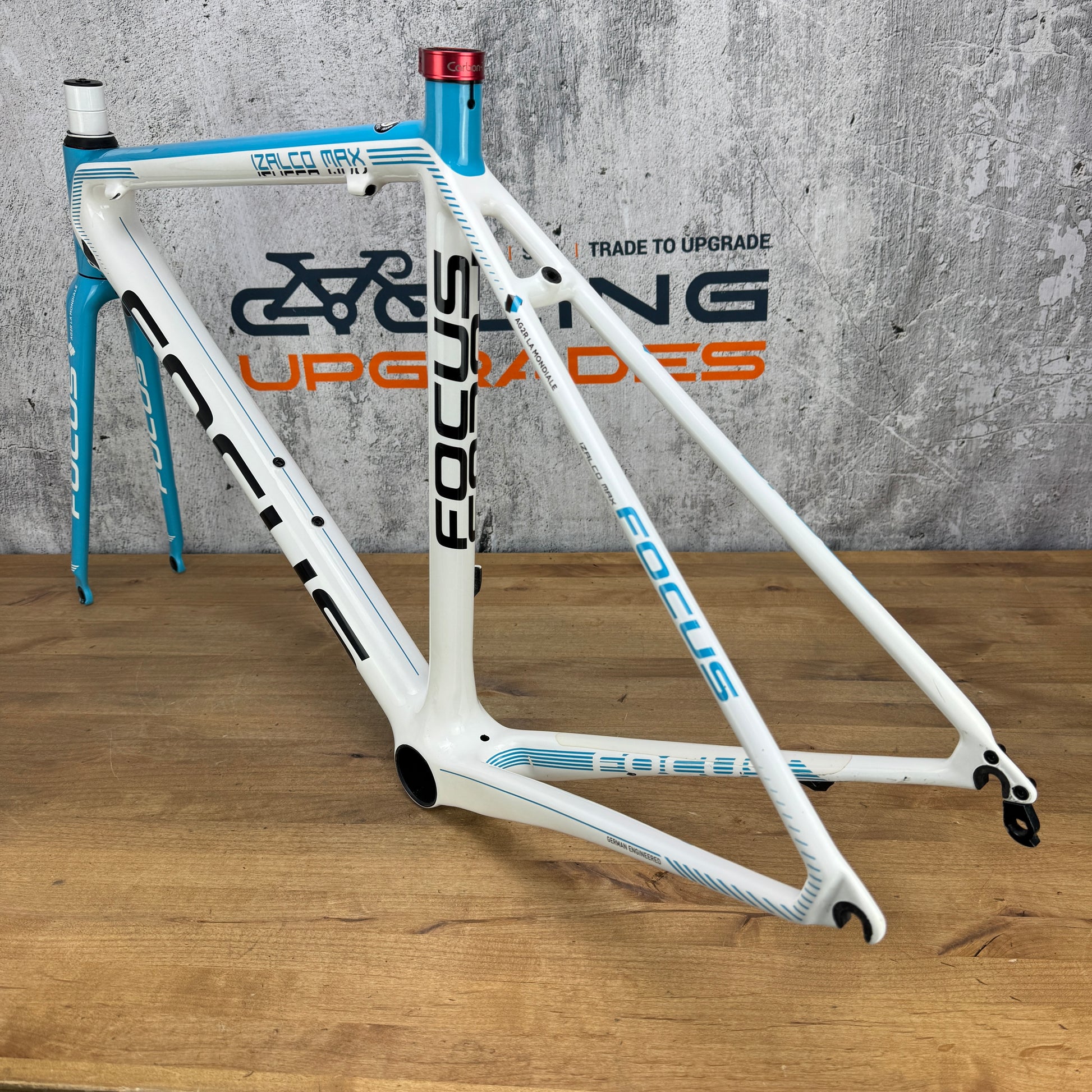

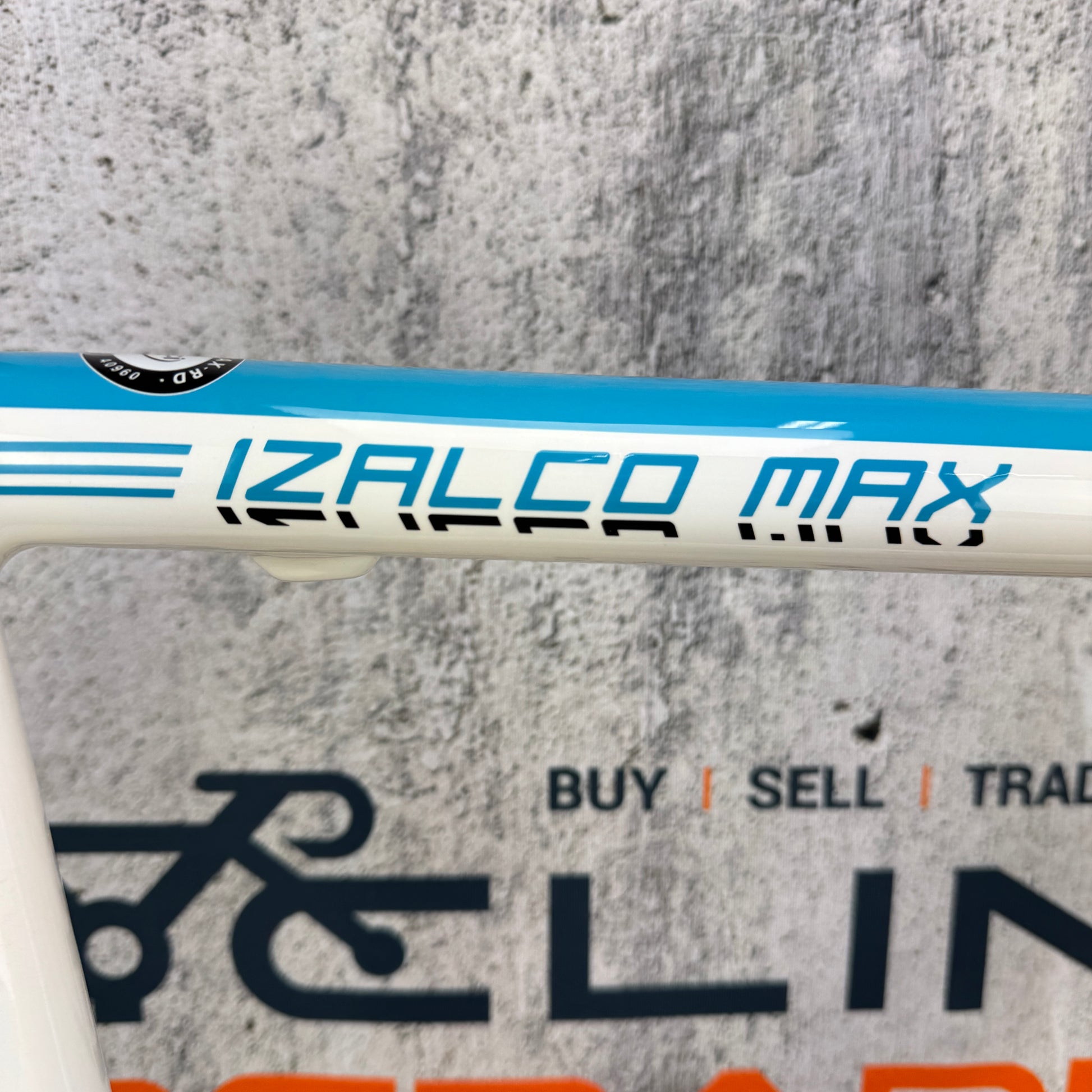

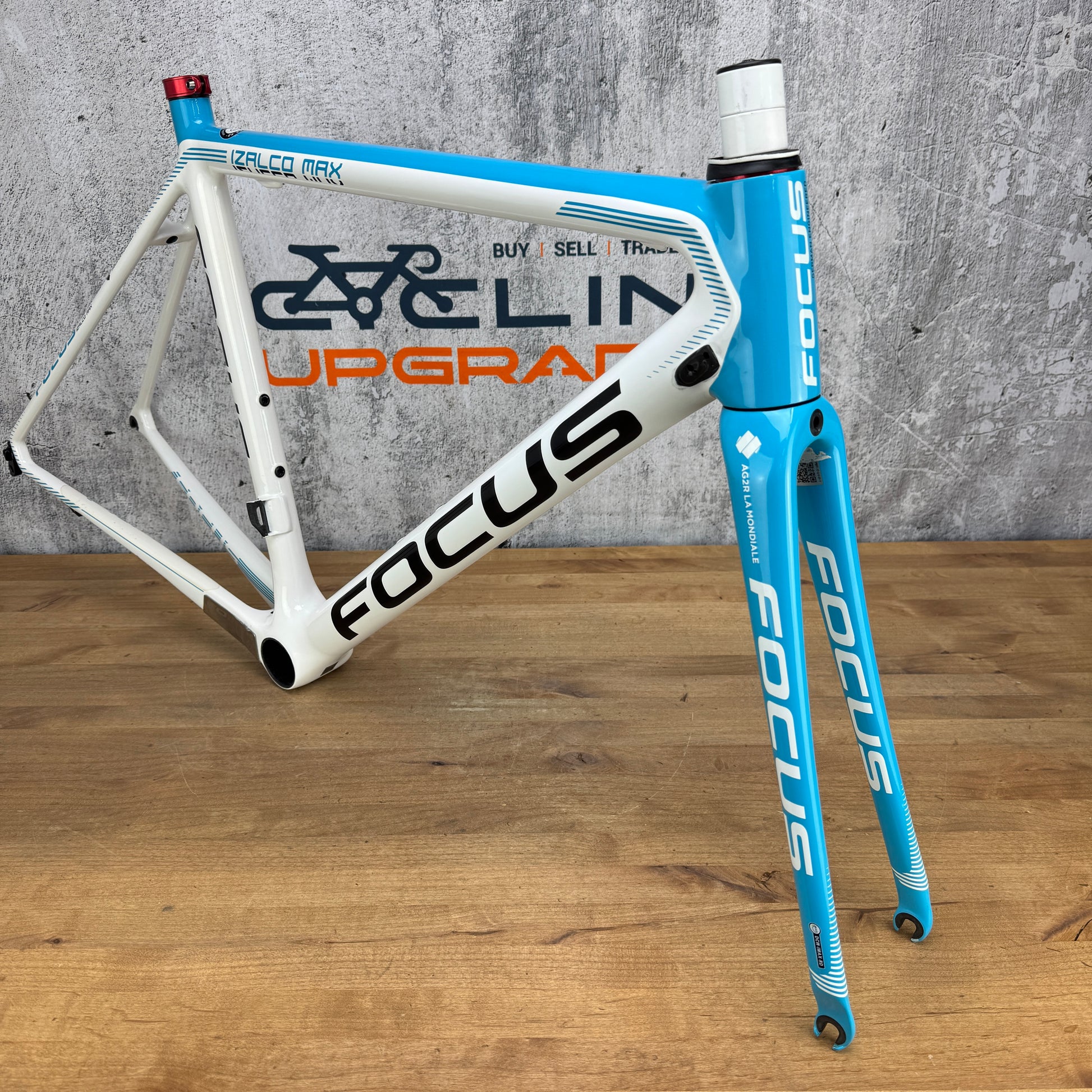

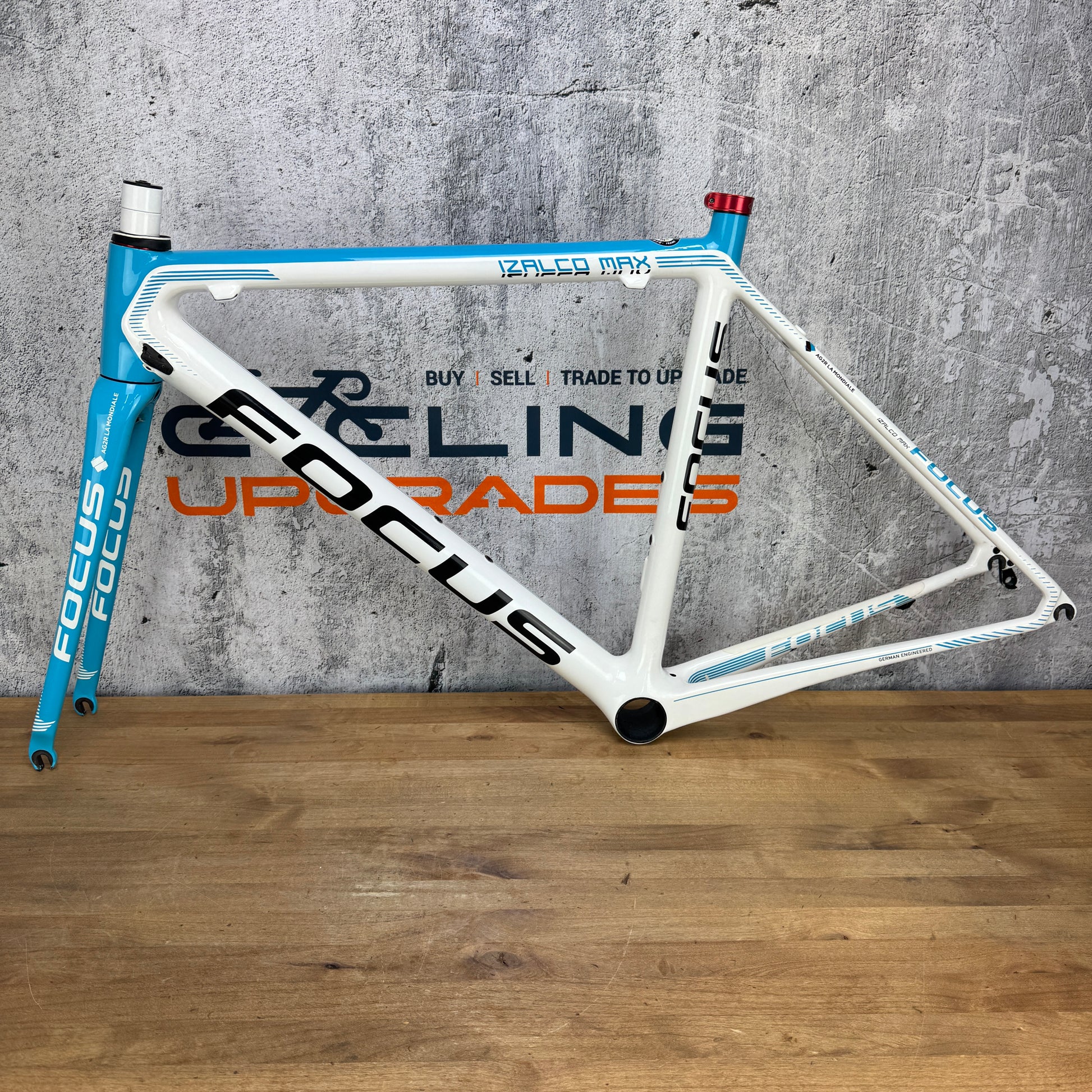

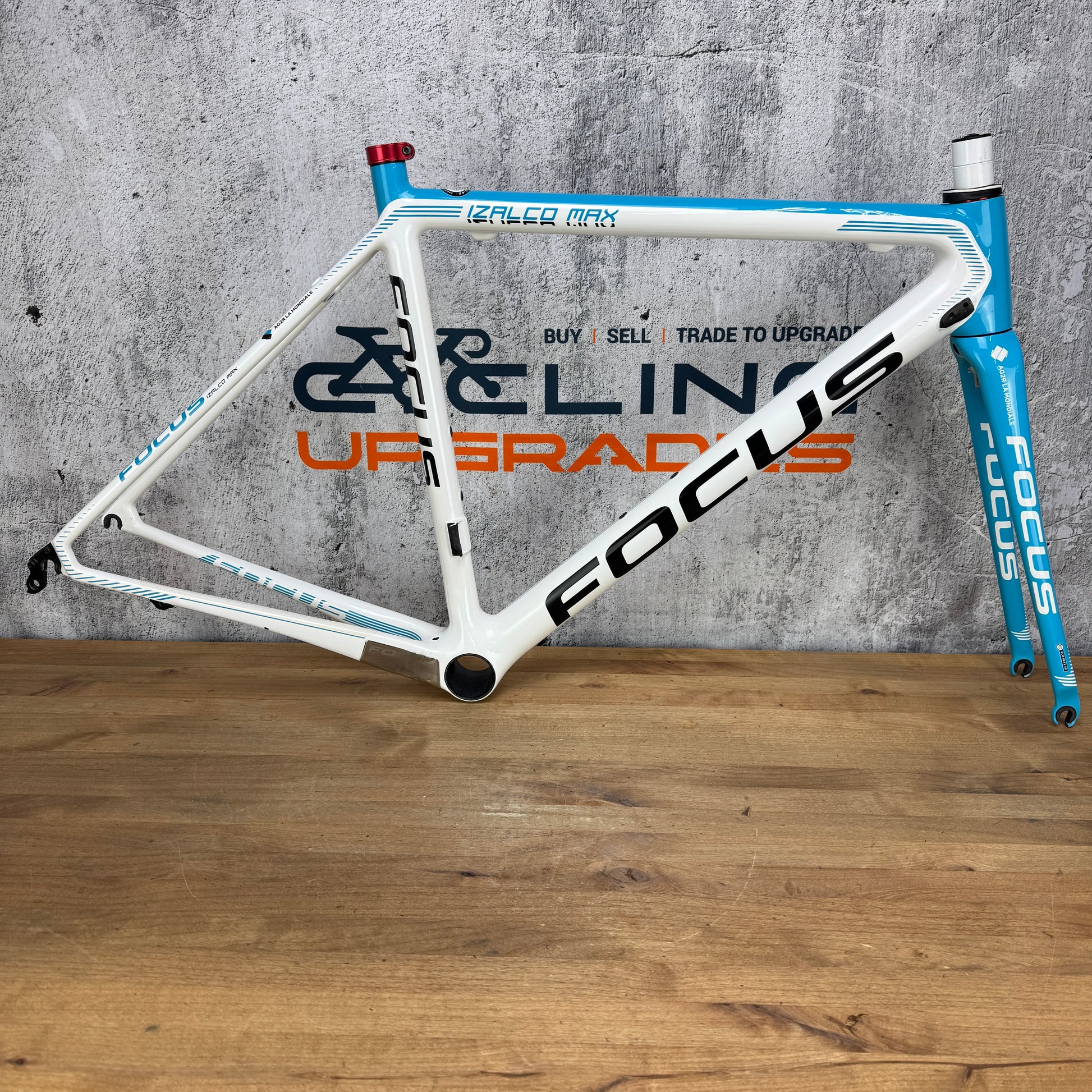

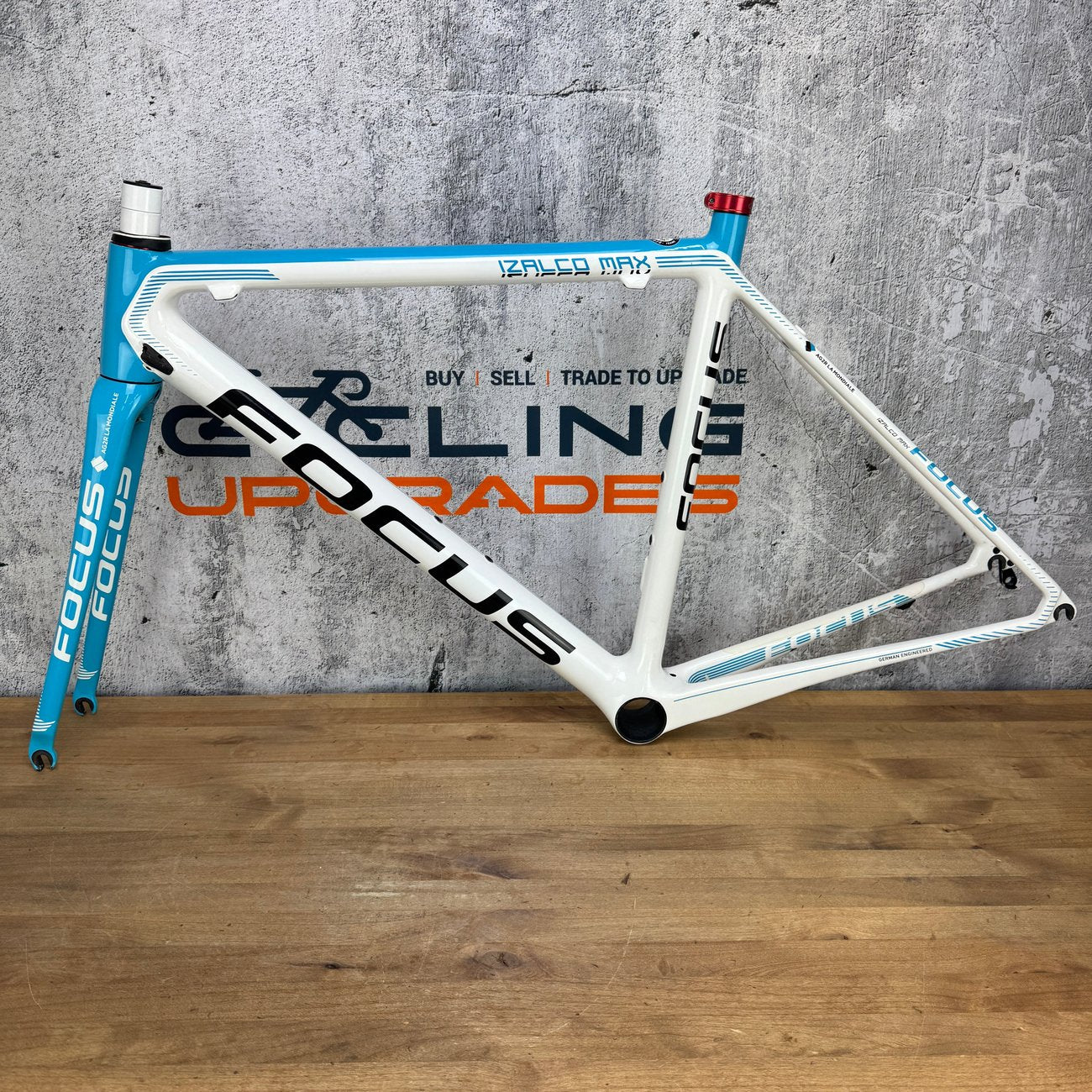

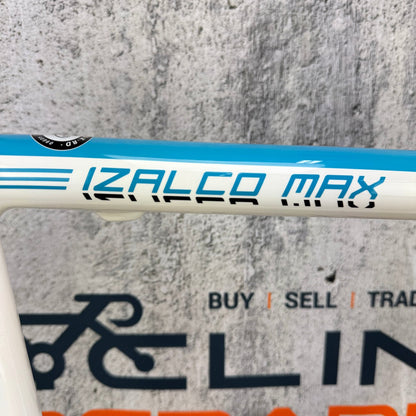

Frame: Focus Izalco Max
Color: White, and blue
Tire Clearance: 28mm
Brake type: Center-Mount rim brake
Size: 50cm. 500mm Effective Top Tube. Stack - 515mm. Reach - 379mm. Head tube 115mm. Recommend buyer confirm and research full geometry online.

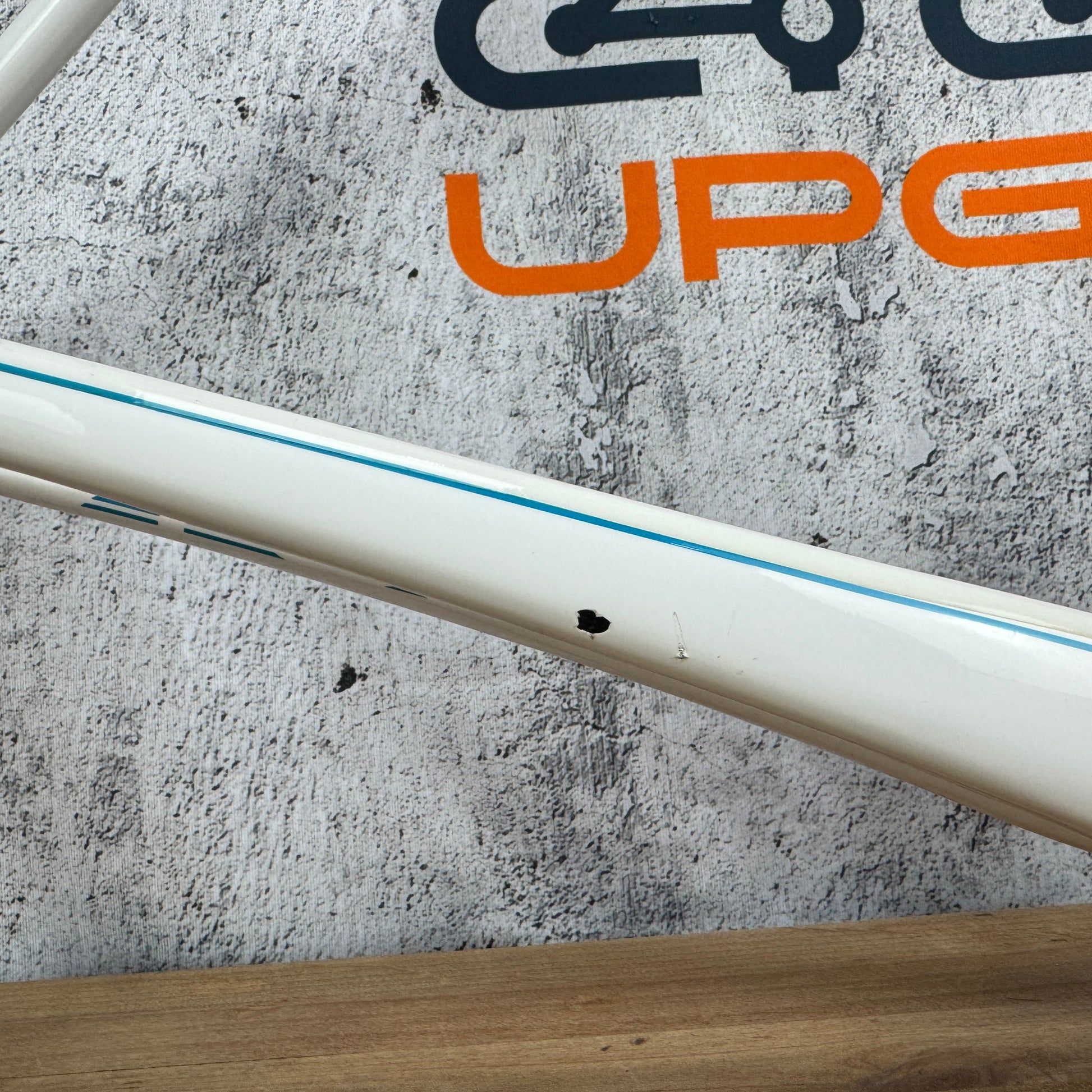

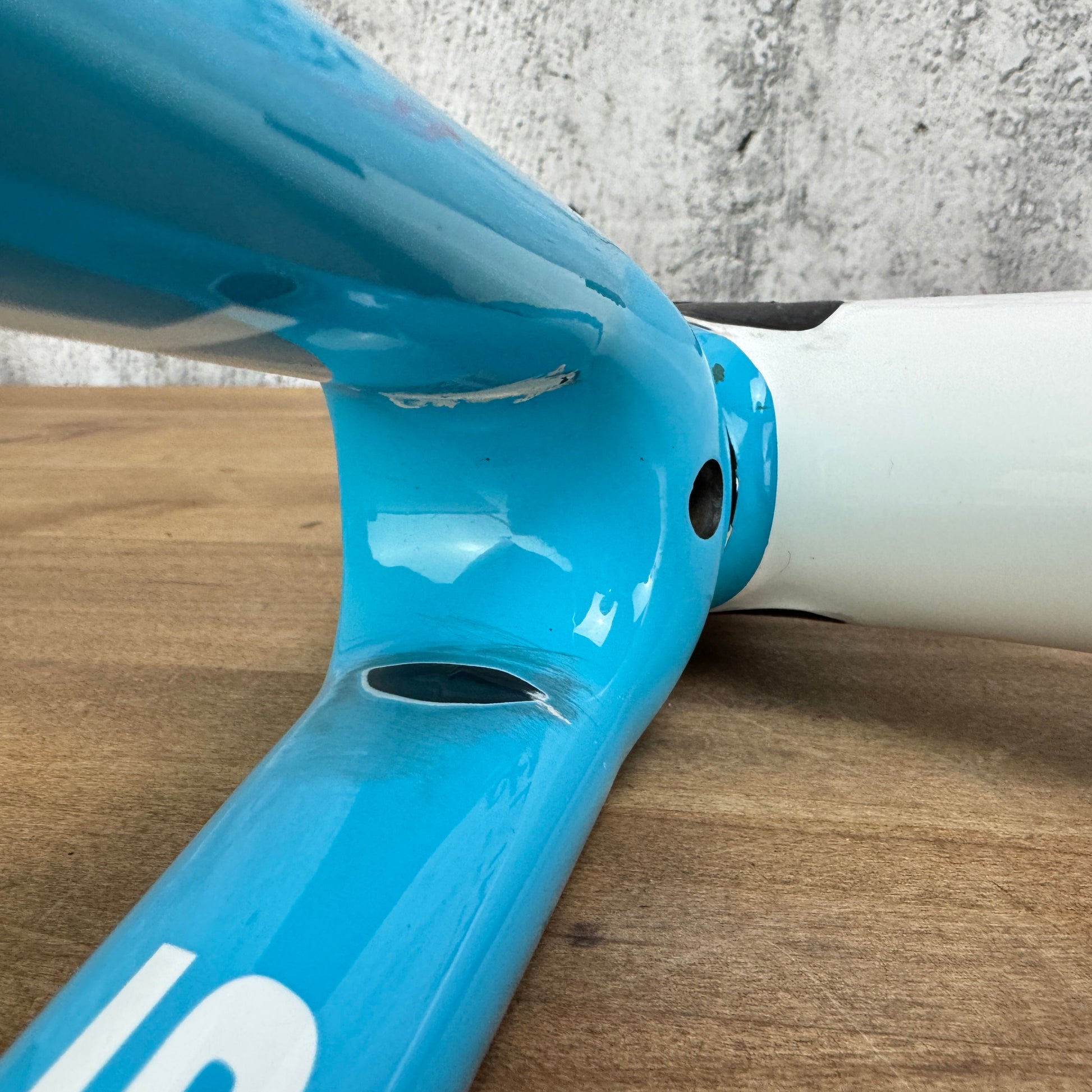

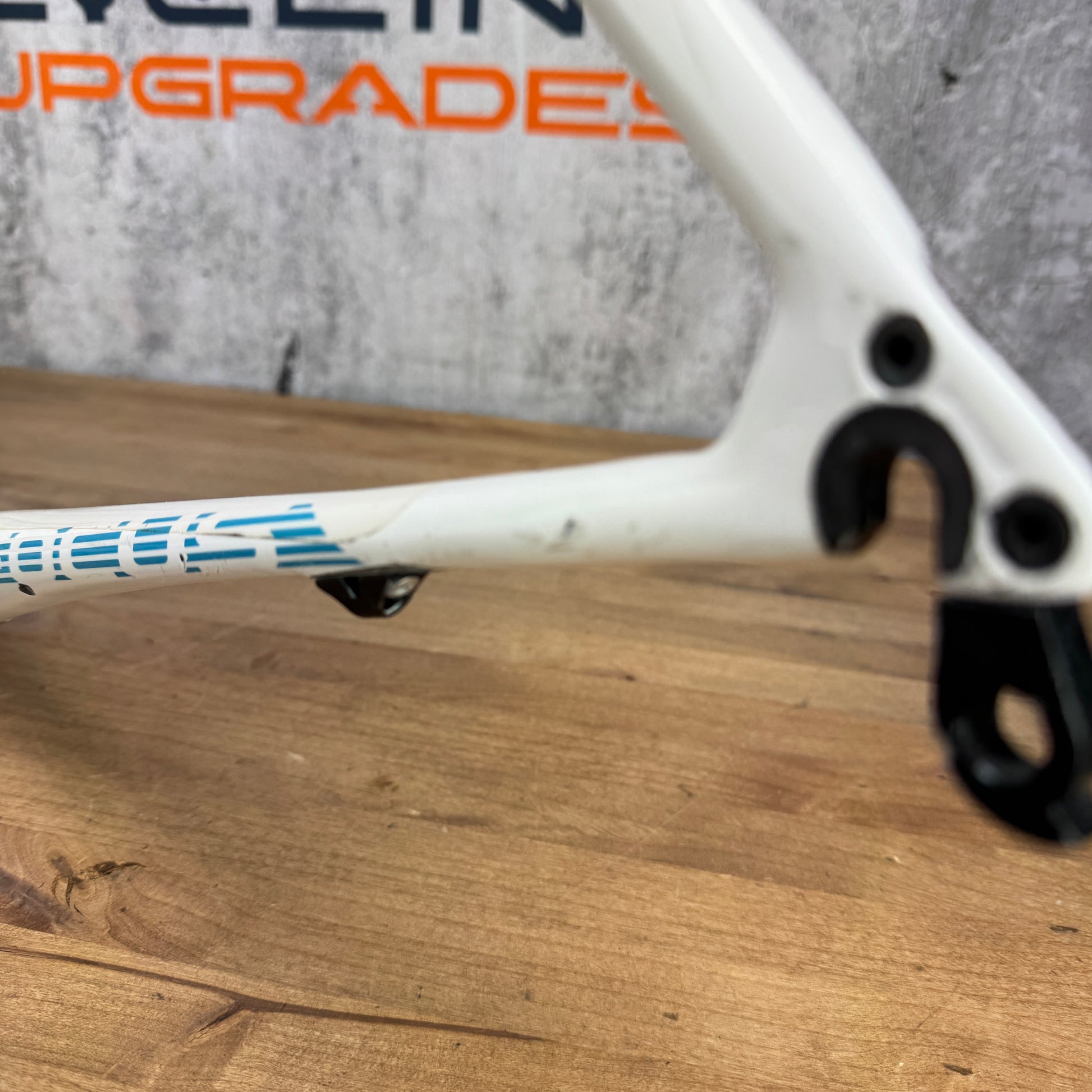

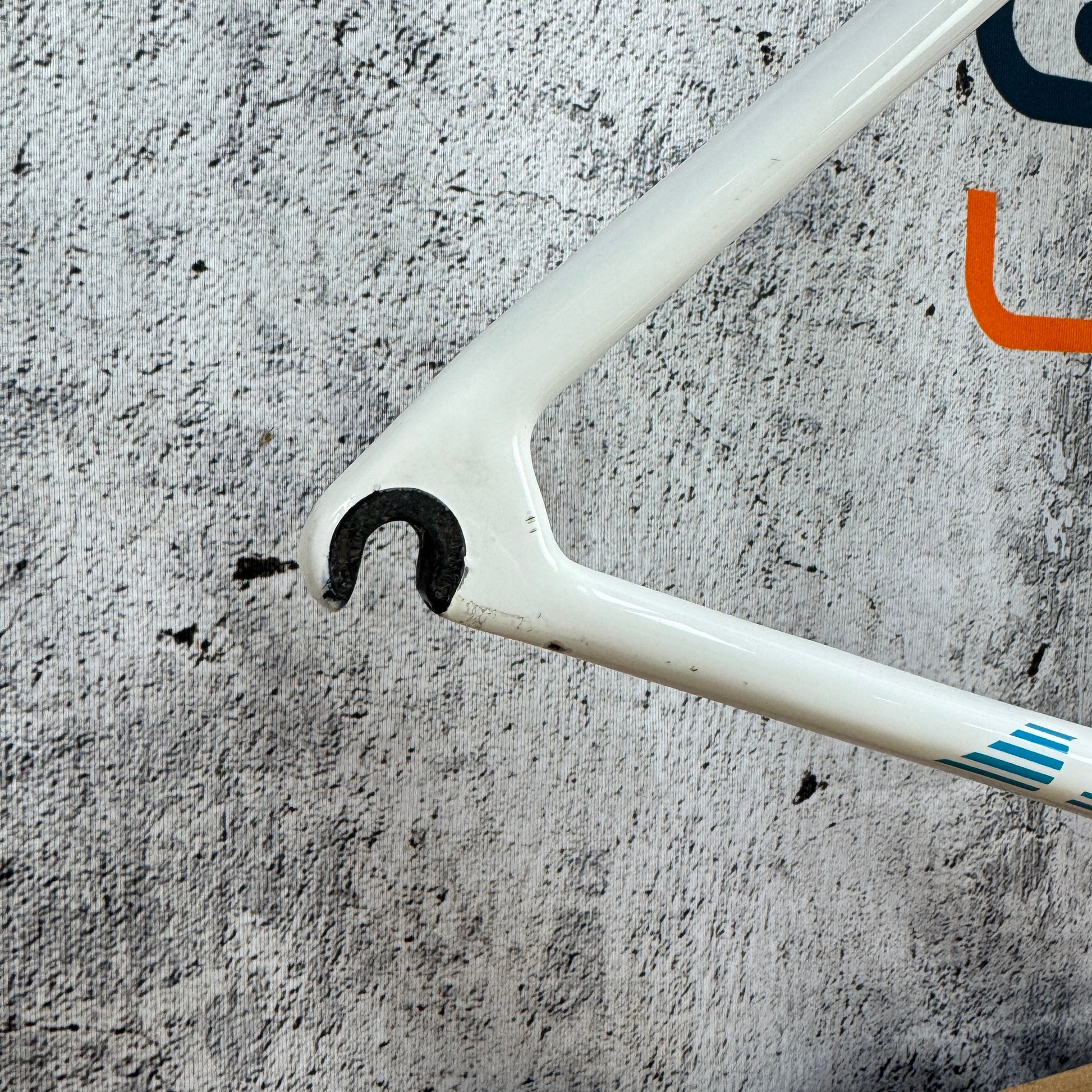

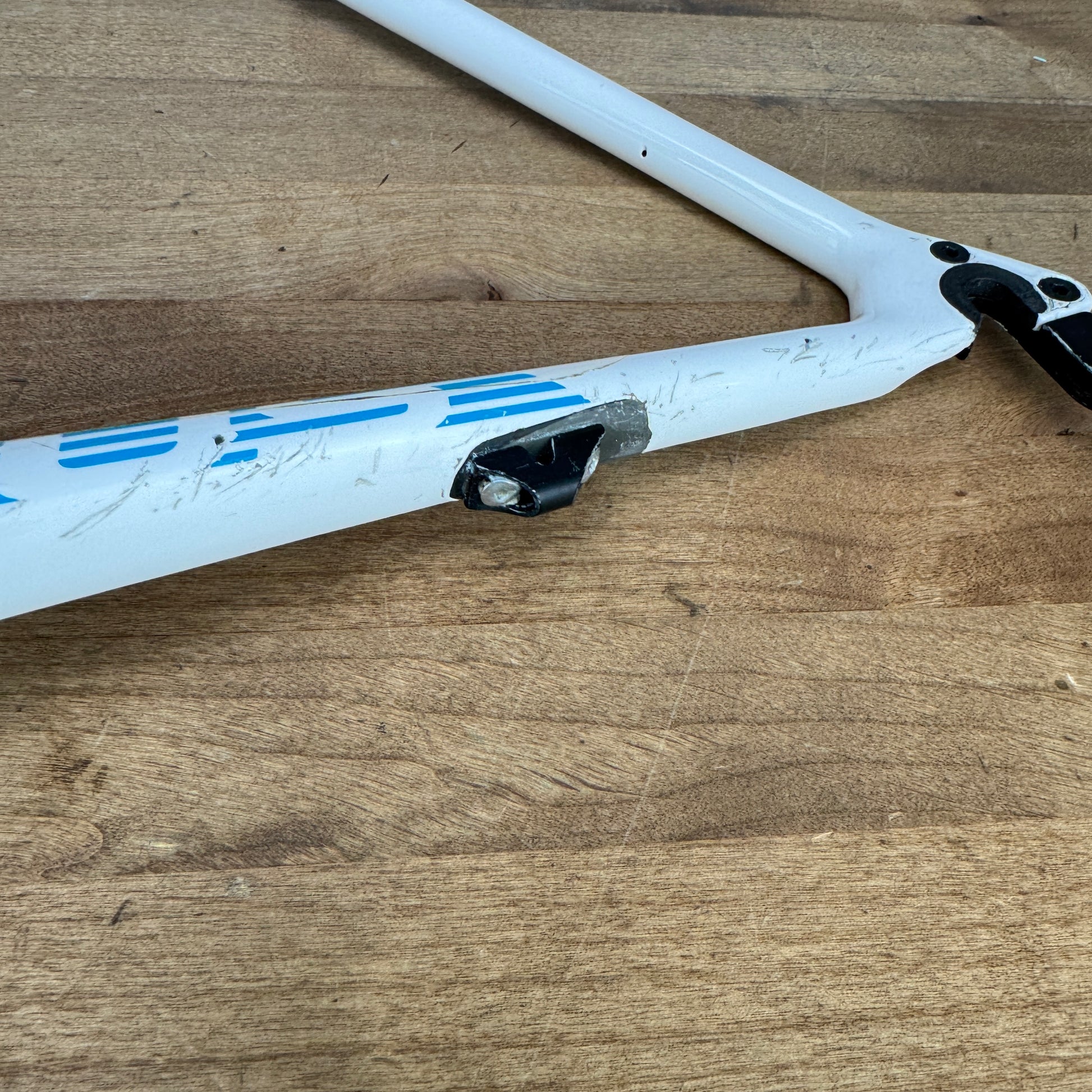

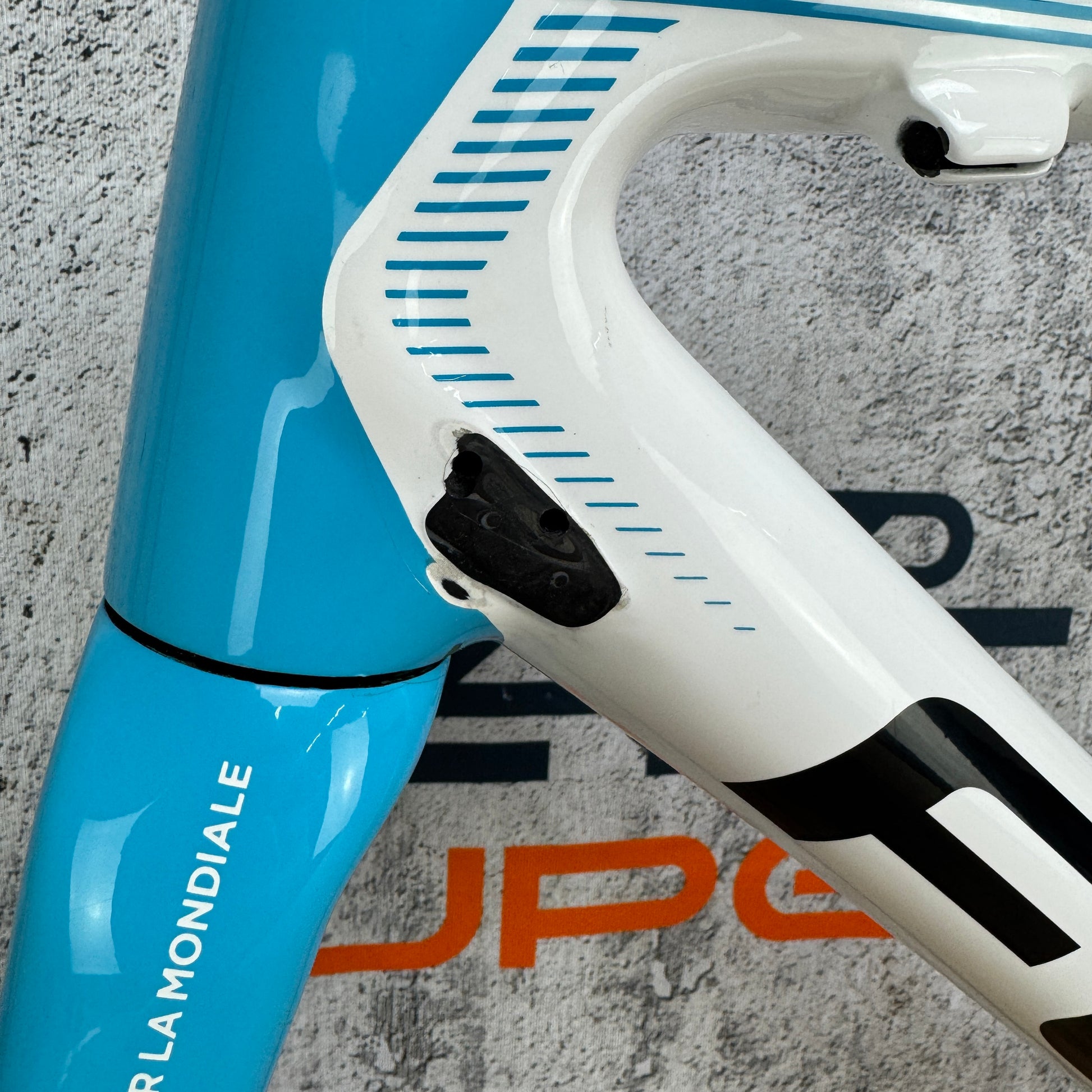

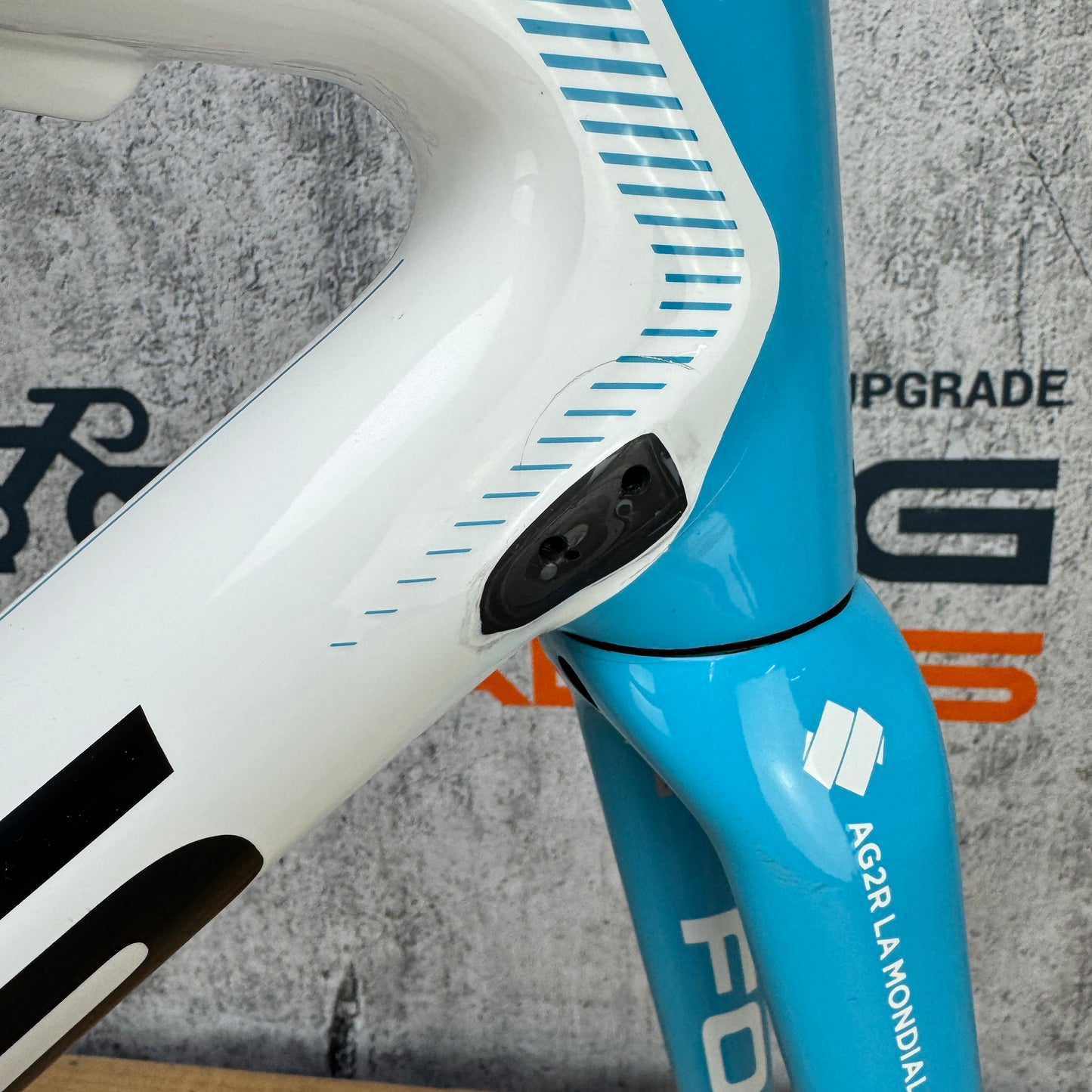

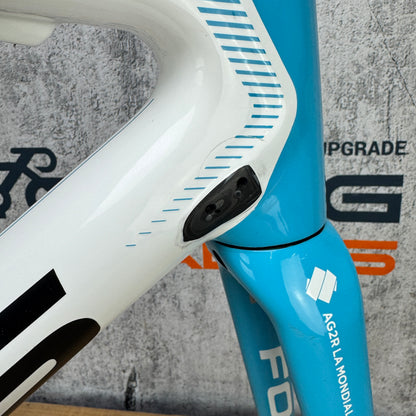

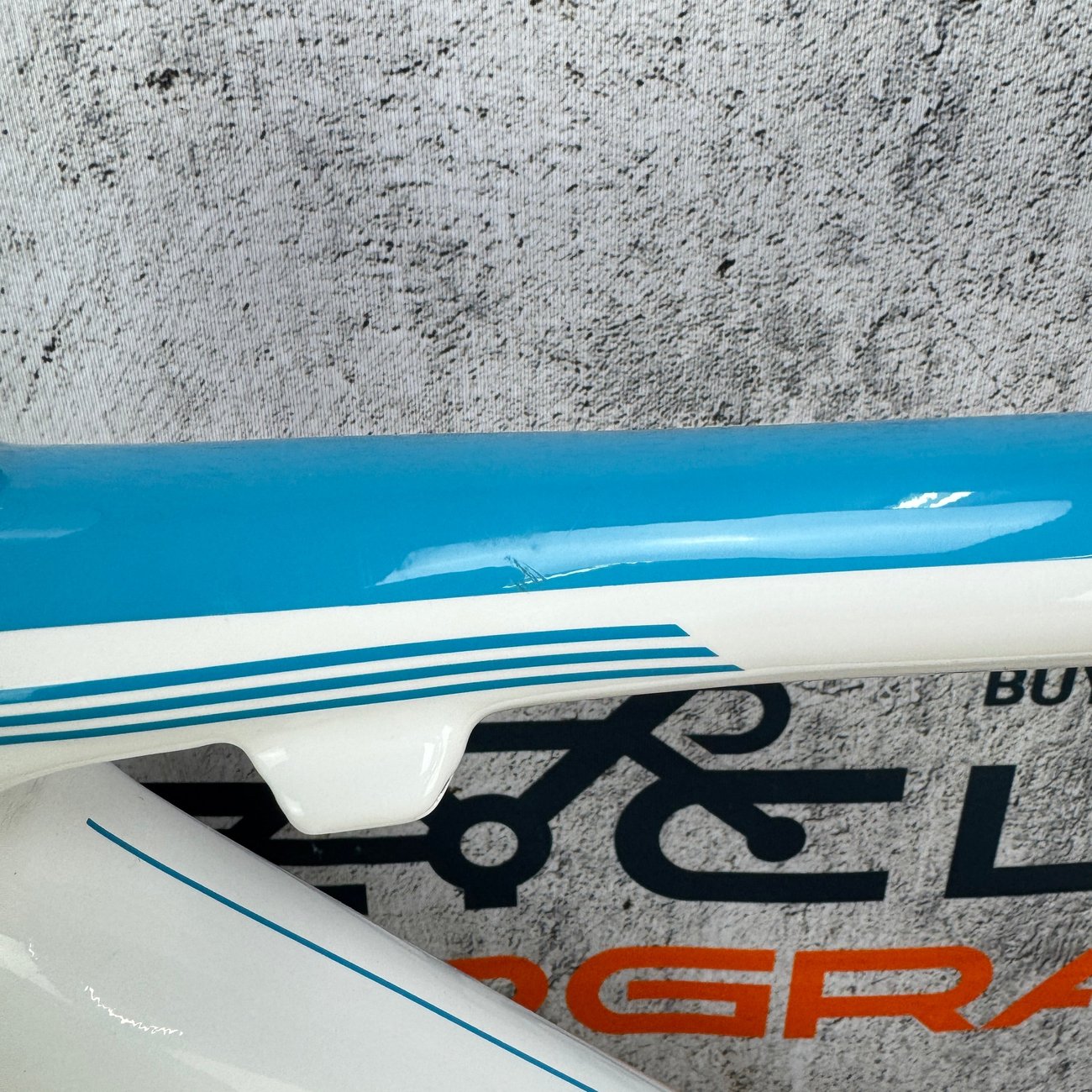

Condition: No cracks or carbon defects were identified through a thorough visual inspection. The cosmetic imperfections to highlight include: Some scratches and scuffs on the chainstays shown in pics #8-11, The cable stop on the chainstay appears to have been reinforced, or reglued shown in pic #9, some scratches on the top tube shown in pic #12, some tire rub wear in the fork crown shown in pic #13, and the down tube cable stops have been removed shown in pics #13 & 14. We have attempted to show all noticeable imperfections in specific close-up pictures, however other minor imperfections and light signs of use may exist.
Groupset compatibility: This frameset is compatible with eTap or mechanical groupsets. The mechanical cable guides are missing from the frame, and the buyer will need to source the cable guides in order to setup with mechanical groupsets.

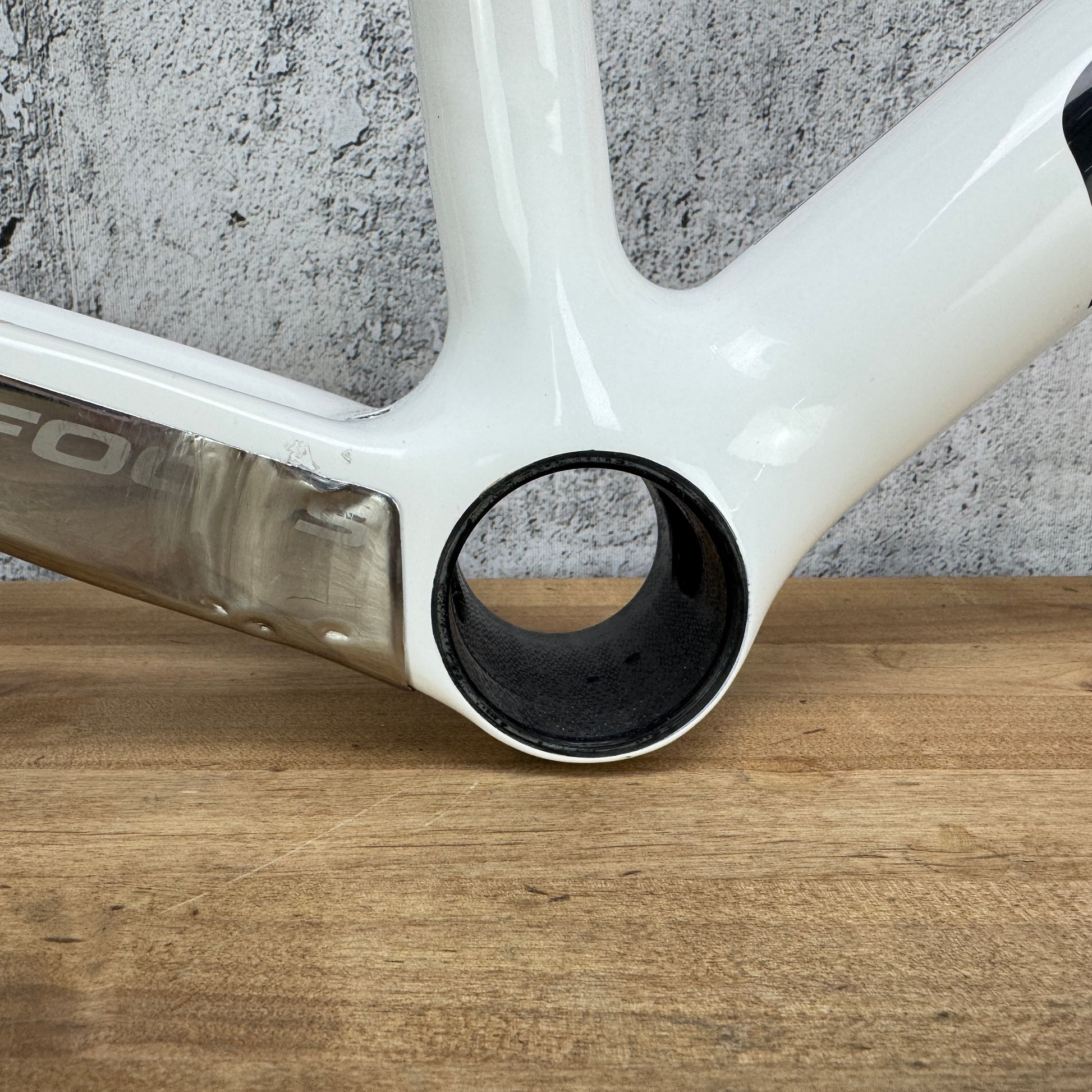

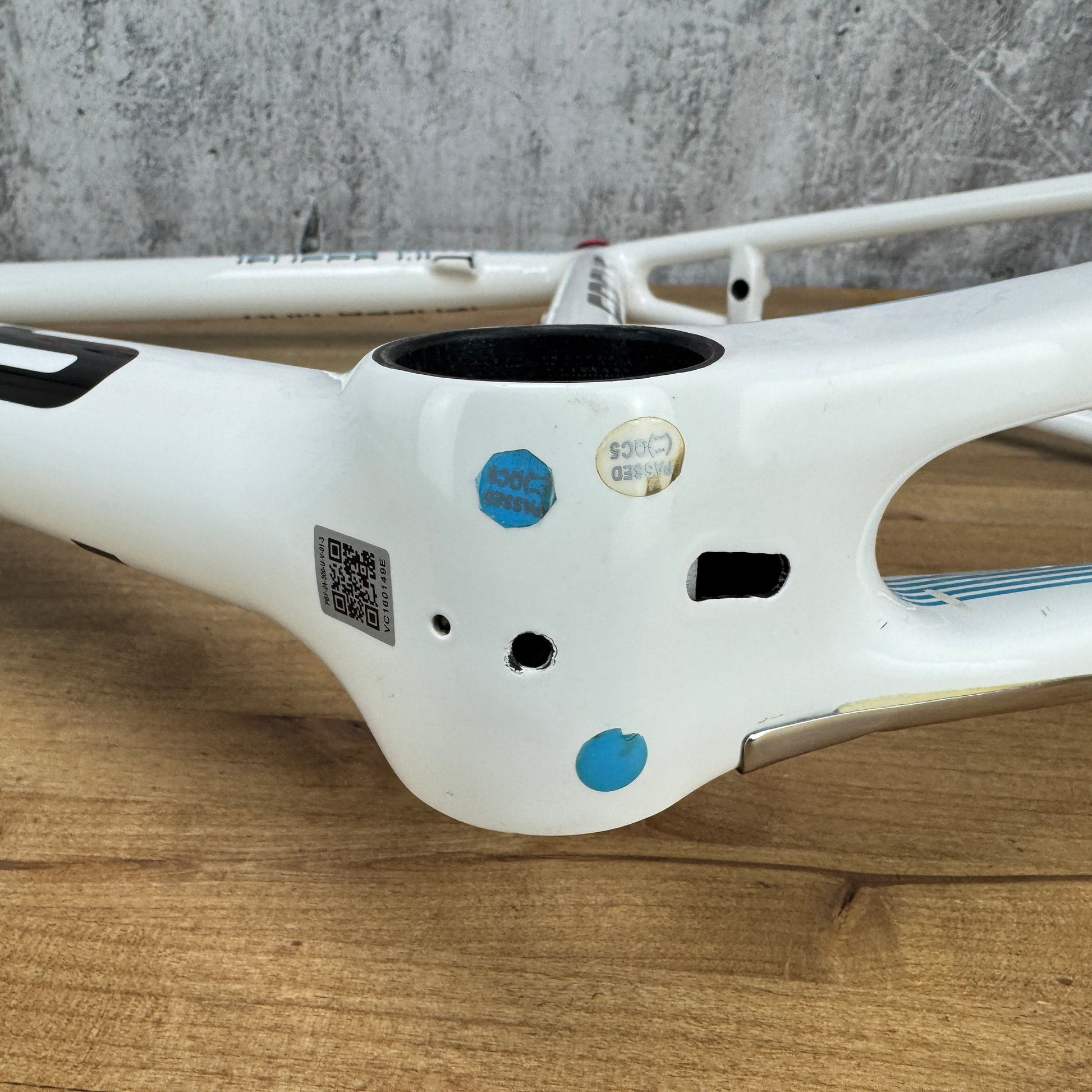

Bottom bracket: PF30 bottom bracket shell type (46mm shell diameter, 68mm shell width). No bottom bracket is currently installed or included. We have a handful of lightly used basic bottom brackets on hand, let us know what you need and we can try to ship the frame with the right bottom bracket installed. Additionally, CyclingUpgrades is a Ceramicspeed and Cane Creek Authorized Dealer, if you prefer to have the frame setup with a certain bottom bracket we can add and install it at an additional cost before shipping - message with inquiries/requests.

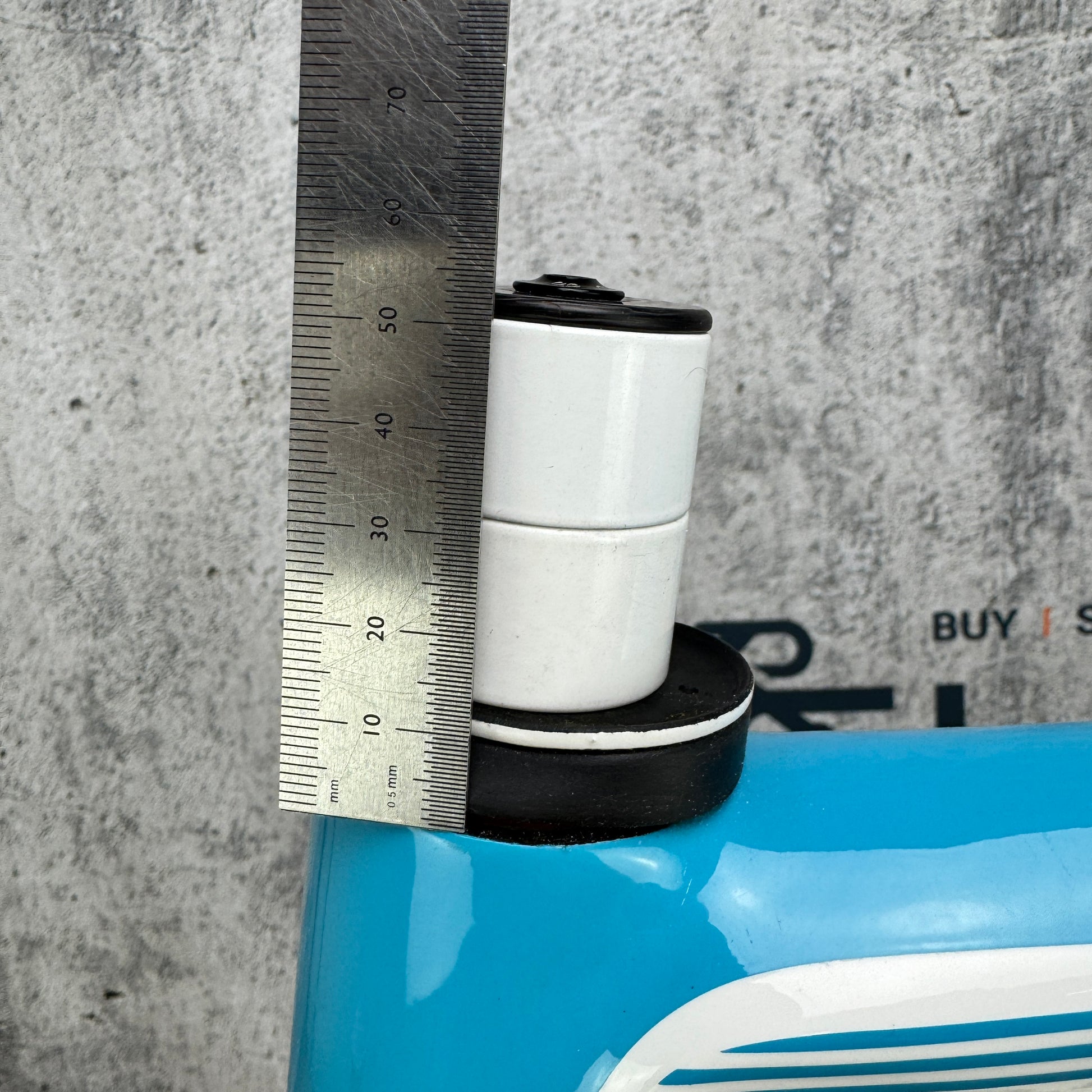

Steerer length: 50mm of steerer above the top tube. We may have an option available to safely extend the steerer tube by 15-18mm - message us for additional details.
Seatpost: 27.2mm diameter. No seatpost included.
Dropout Spacing: QR x 100mm front, QR x 130mm rear.
Weight: 1157 grams as pictured with headset, frame hardware, etc.
What's included: Frame, fork, headset, rear derailleur hanger
