2017 Eddy Merckx EM525 Endurance Medium Carbon Disc Brake Frameset 700c 2041g

2017 Eddy Merckx EM525 Endurance Medium Carbon Disc Brake Frameset 700c 2041g

Regular price $995.00
$995.00 Regular price Sale price
Sale Sold out
Condition: Used / Pre-owned

Item Specifics

  • Brand: Eddy Merckx
  • Bottom bracket shell type: BB86
  • Brake type: Disc Brake
  • Color: Black/White
  • Frame size: M
  • Item weight: 2041g
  • Material: Carbon
  • Model: EM525 Endurance
  • Mount type: Flat-Mount
  • Part type: Bicycle Frame
  • Steerer tube diameter: 1 1/8 in
  • Wheel size: 700C
  • We clean all parts before selling!
  • We test and inspect all parts!
  • We create detailed listings!
  • We package like professionals!
  • We ship quickly!
  • We accept 30-day returns!
View full details
Product Description

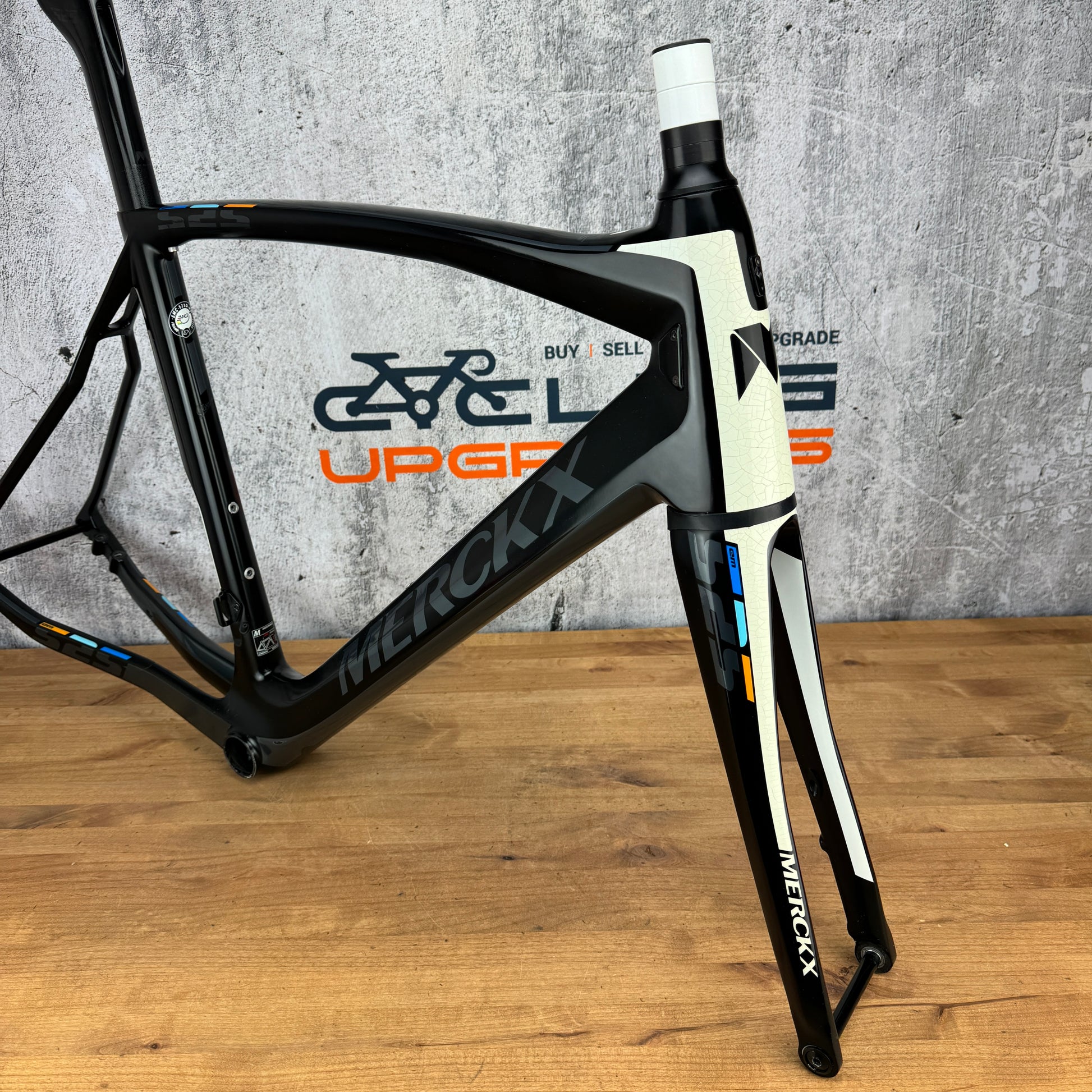

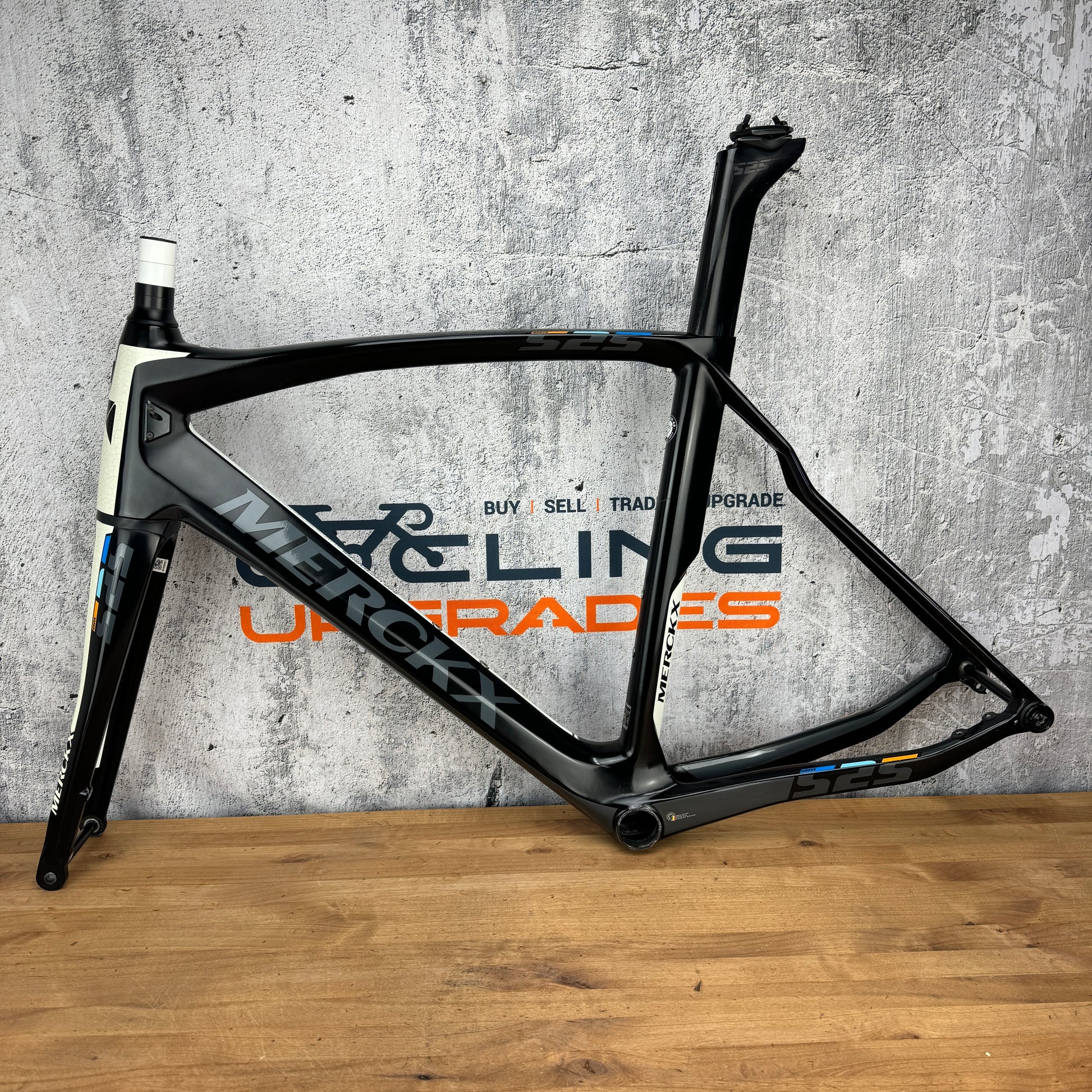

Frame: 2017 Eddy Merckx EM525 Endurance

Color: Black, and white

Brake type: Flat-Mount disc brake.

Size: Medium. 551mm Effective Top Tube. Stack - 576mm. Reach - 380mm. Head tube 180mm. Recommend buyer confirm and research full geometry online.

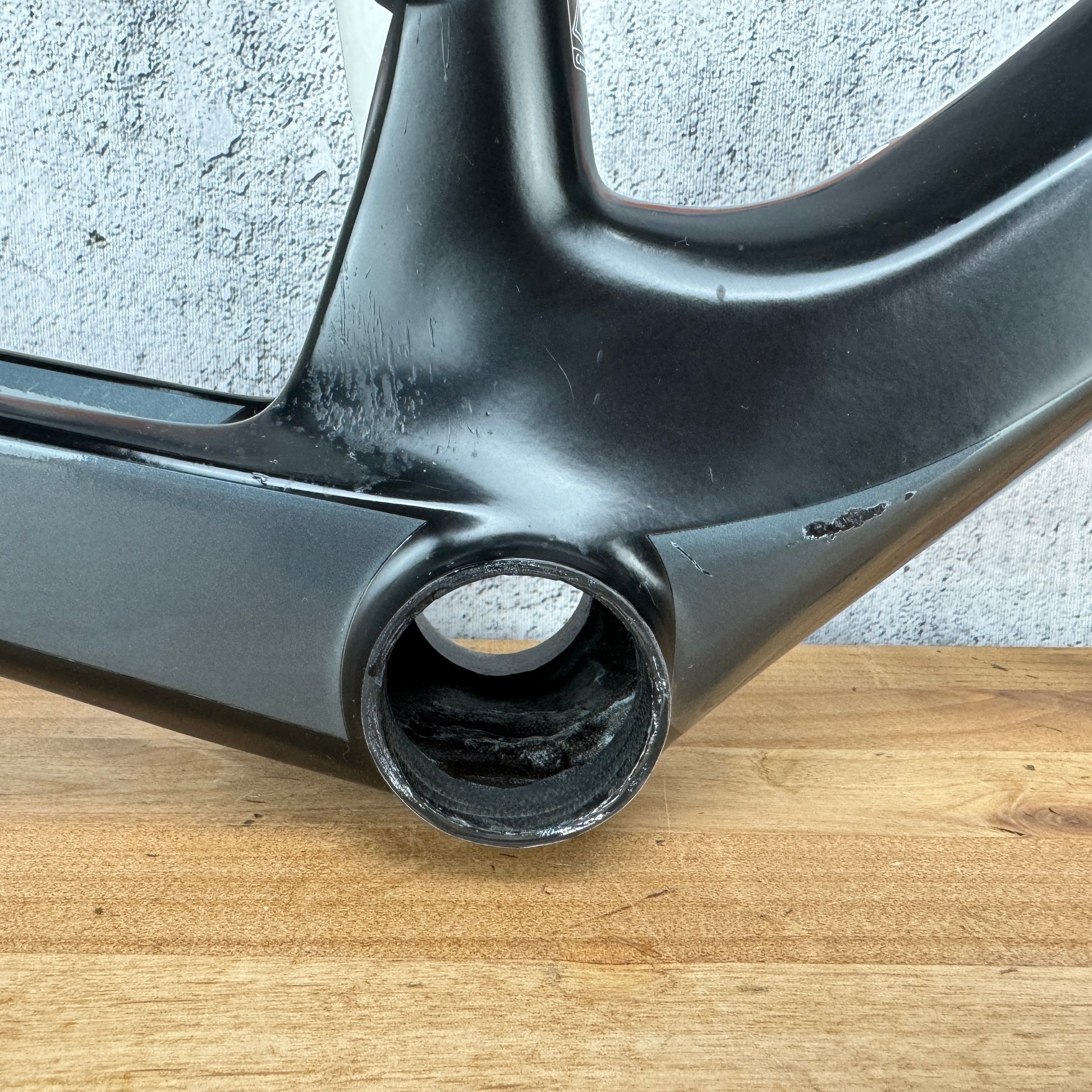

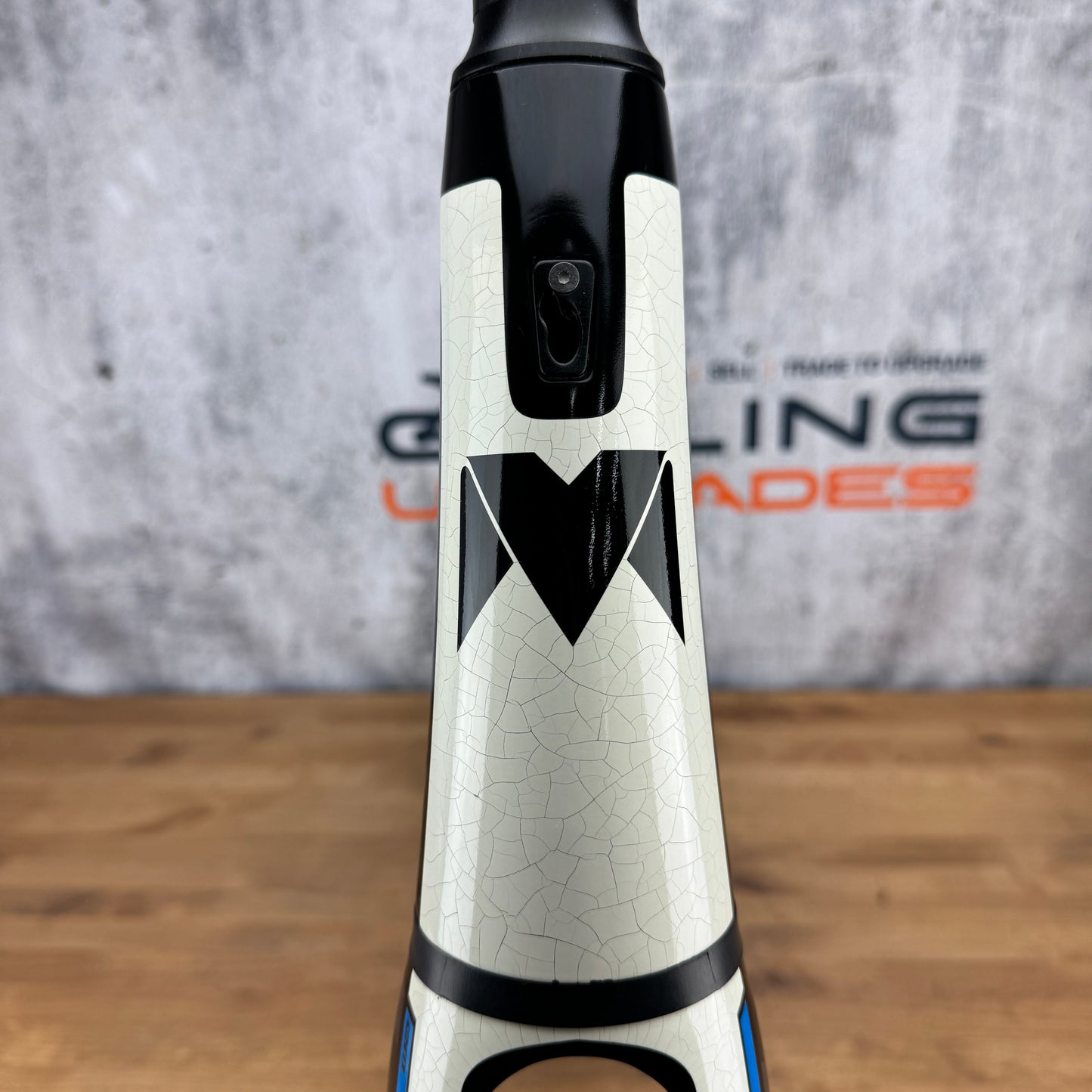

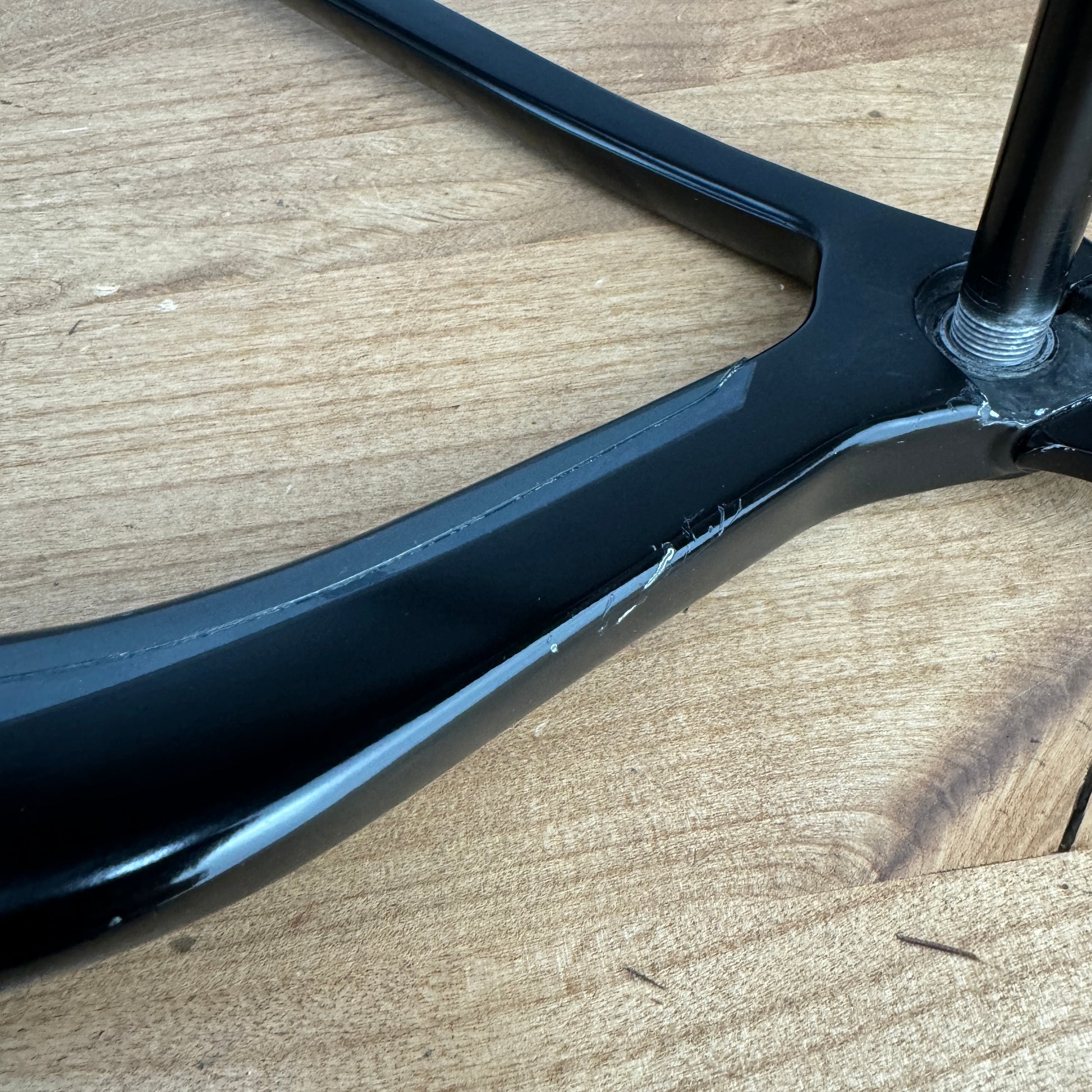

Condition: No cracks or carbon defects were identified through a thorough visual inspection. The cosmetic imperfections to highlight include: some scratches near the bottom bracket on the drive side shown in pic #5, some paint cracks are present on the white section on the head tube and the fork shown in pic #6, and some scratches on the chainstays shown in pics #7 & 8. We have attempted to show all noticeable imperfections in specific close-up pictures, however other minor imperfections and light signs of use may exist.

Groupset compatibility: Frame can be setup for Di2, EPS, eTap, or mechanical groupsets. This frame was previously setup with a Di2 groupset. Other frame/cable stops may be needed for mechanical or wireless setups.

Bottom bracket: BB86 bottom bracket shell type (41mm shell diameter, 86mm shell width). No bottom bracket currently installed or included. We have a handful of lightly used basic bottom brackets on hand, let us know what you need and we can try to ship the frame with the right bottom bracket installed. Additionally, CyclingUpgrades is a Ceramicspeed and Cane Creek Authorized Dealer, if you prefer to have the frame setup with a certain bottom bracket we can add and install it at an additional cost before shipping - message with inquiries/requests.

Steerer length: 75mm of steerer above the top tube. 20mm of spacers below the stem plus the headset cover. We do have an option available to safely extend the steerer tube by 15-18mm - message us for additional details.

Seatpost: Frame specific carbon seatpost included.

Dropout Spacing: Front 12mm Thru Axle x 100mm, Rear 12mm Thru Axle x 142mm.

Weight: 2041 grams as pictured with headset, thru axles, seatpost, frame hardware, etc.

What's included: Frame, fork, headset, rear derailleur hanger, seatpost, thru axles
