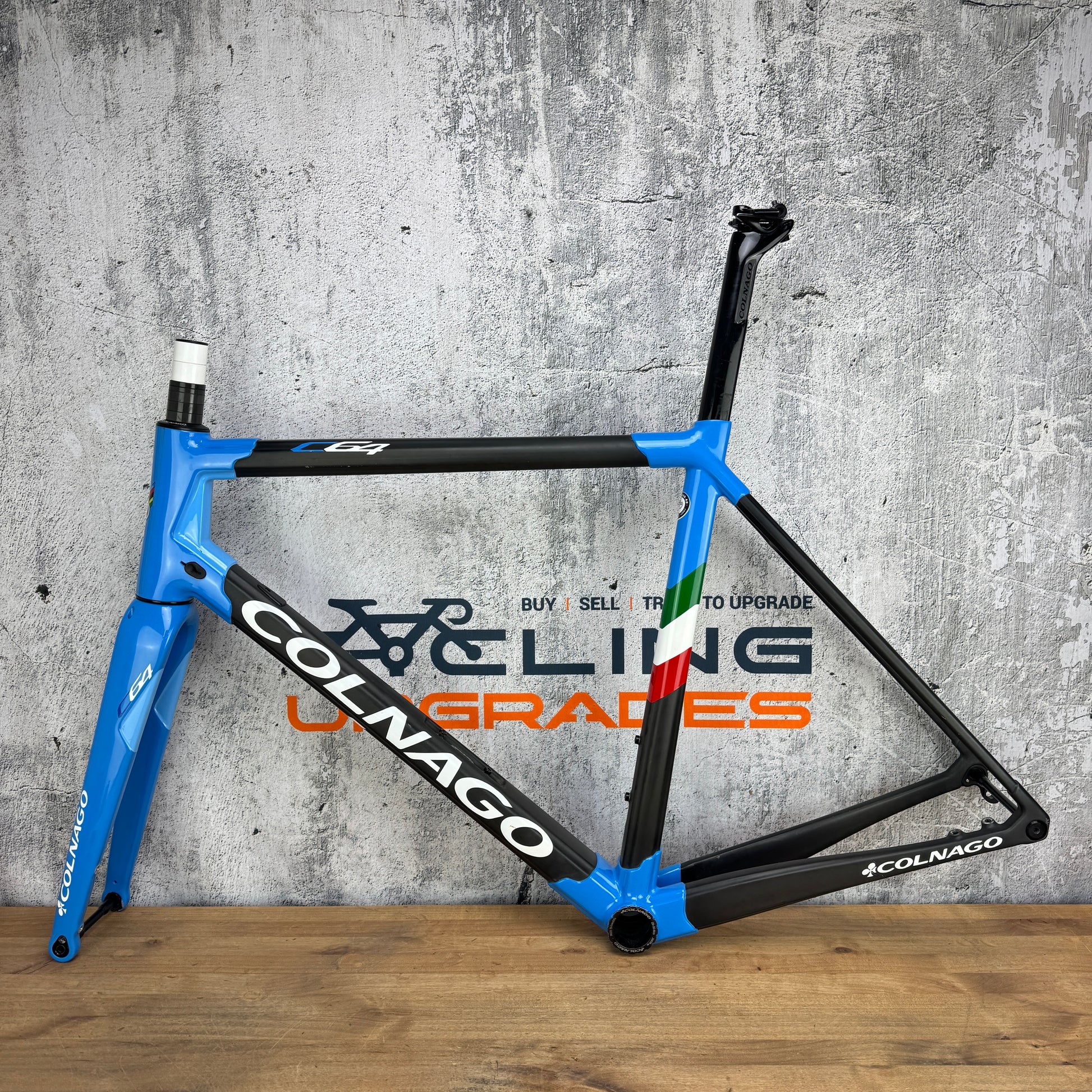

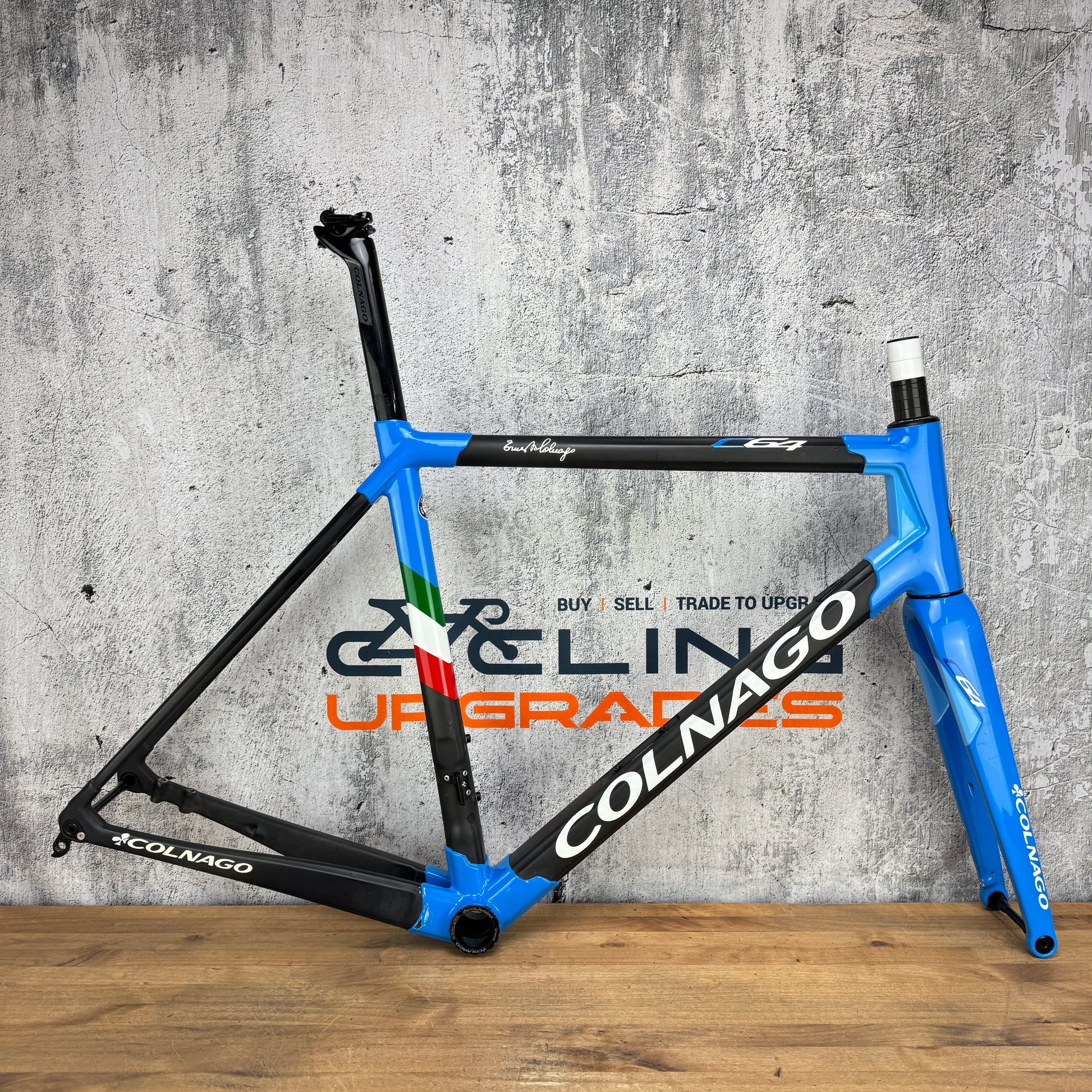

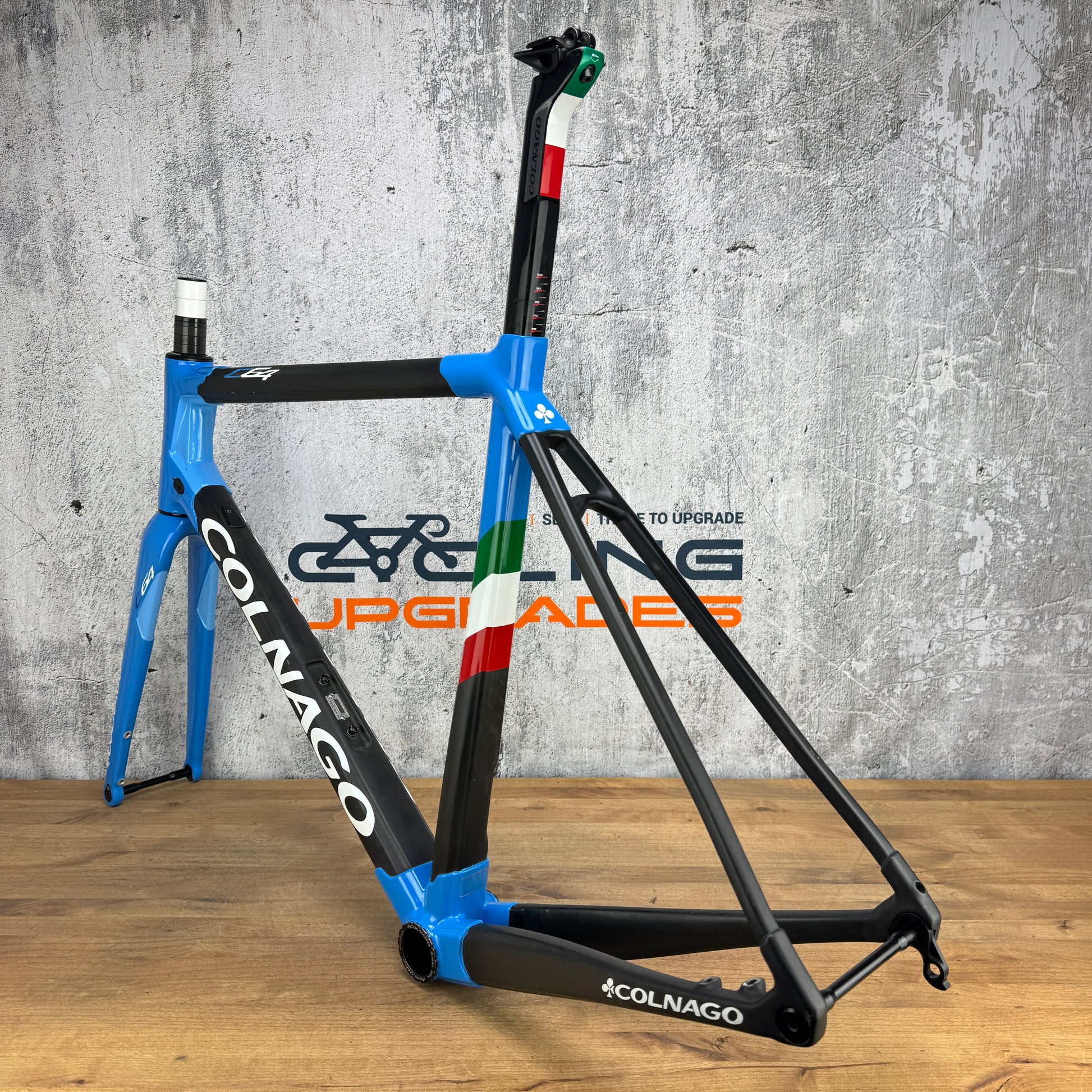

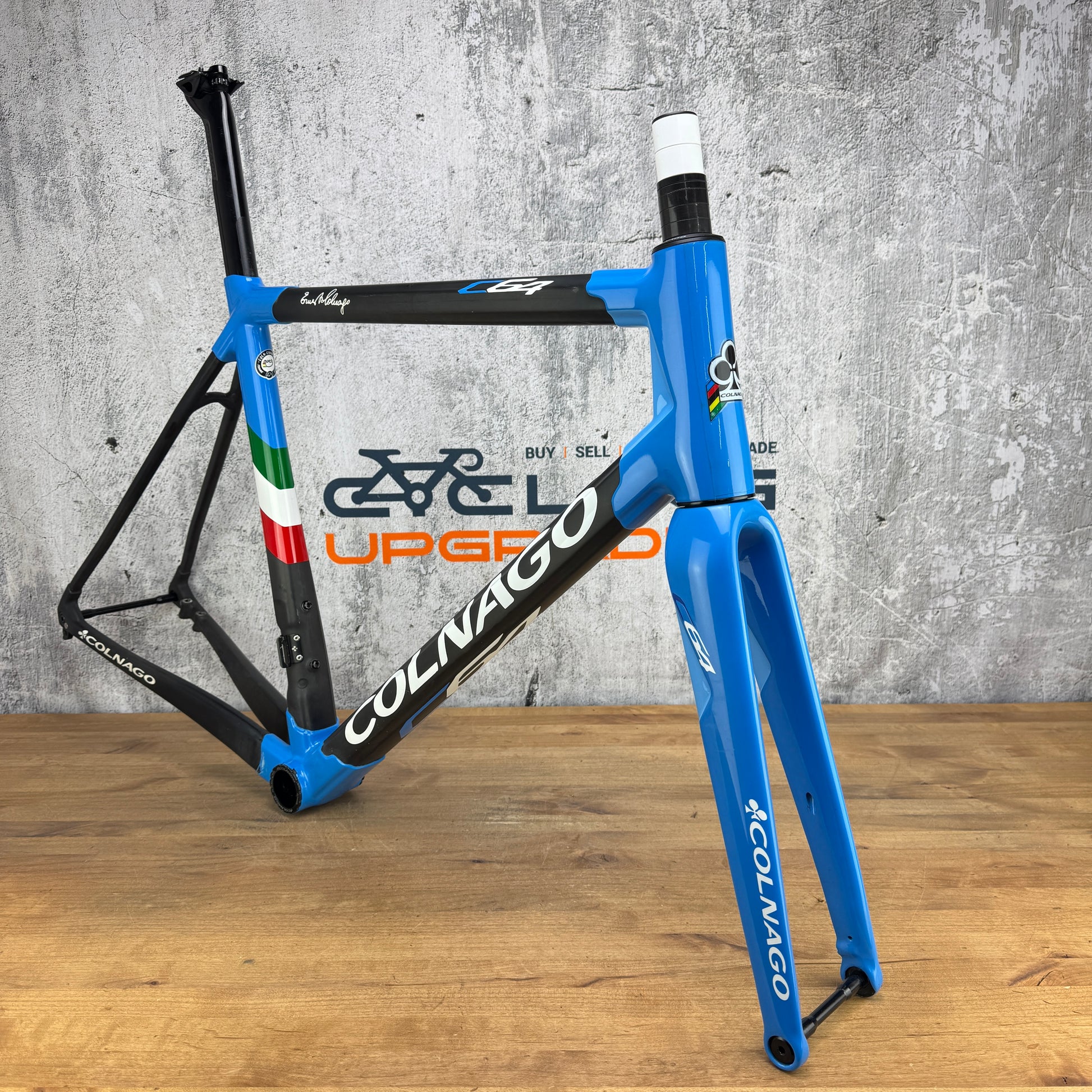

Frame: Colnago C64 Disc 54s PJUS
Color: PJUS
Brake Type: Flat-Mount disc brake
Size: 56cm. 565mm Effective Top Tube. Stack - 583mm. Reach - 385mm. Head Tube 175mm. Recommend buyer confirm and research full geometry online.

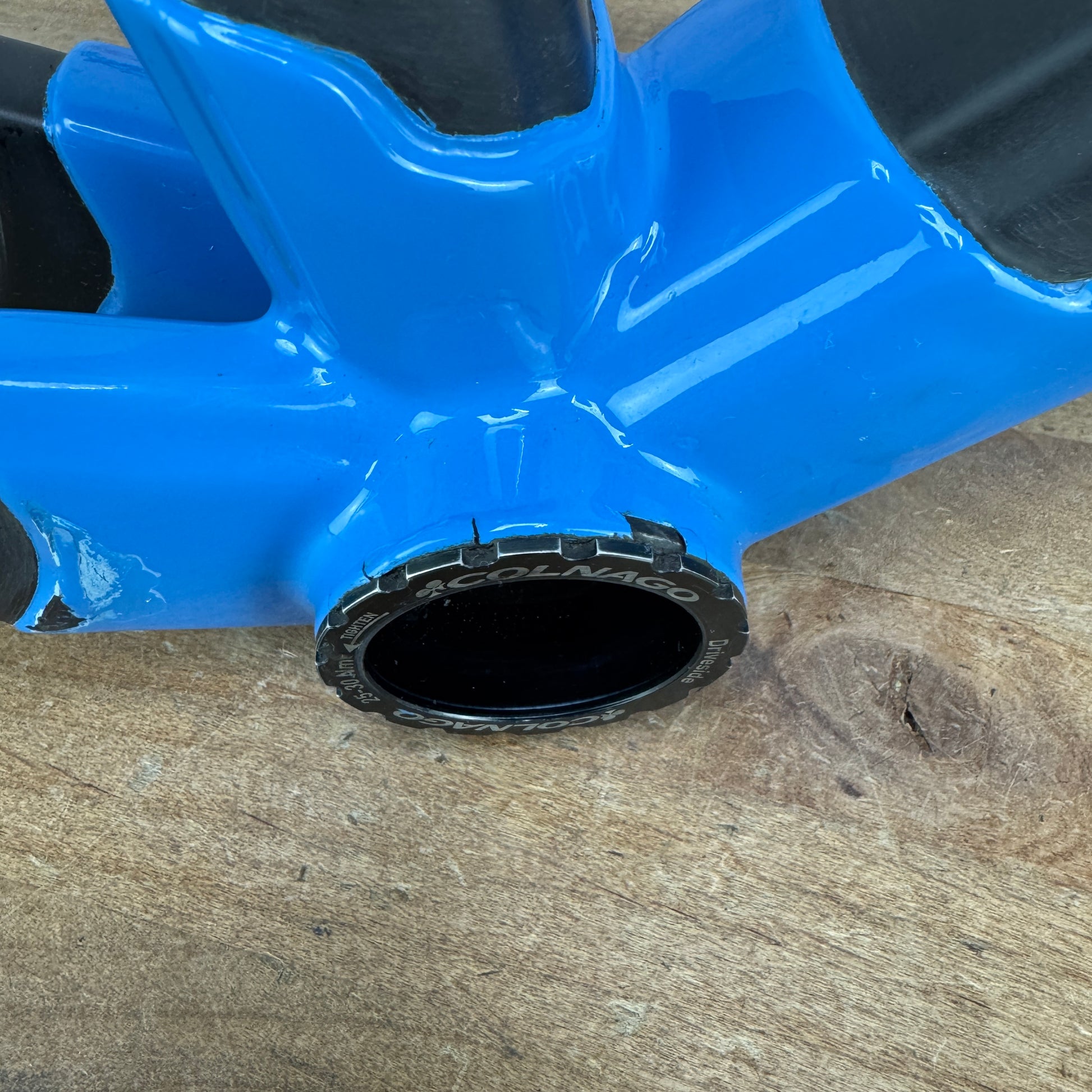

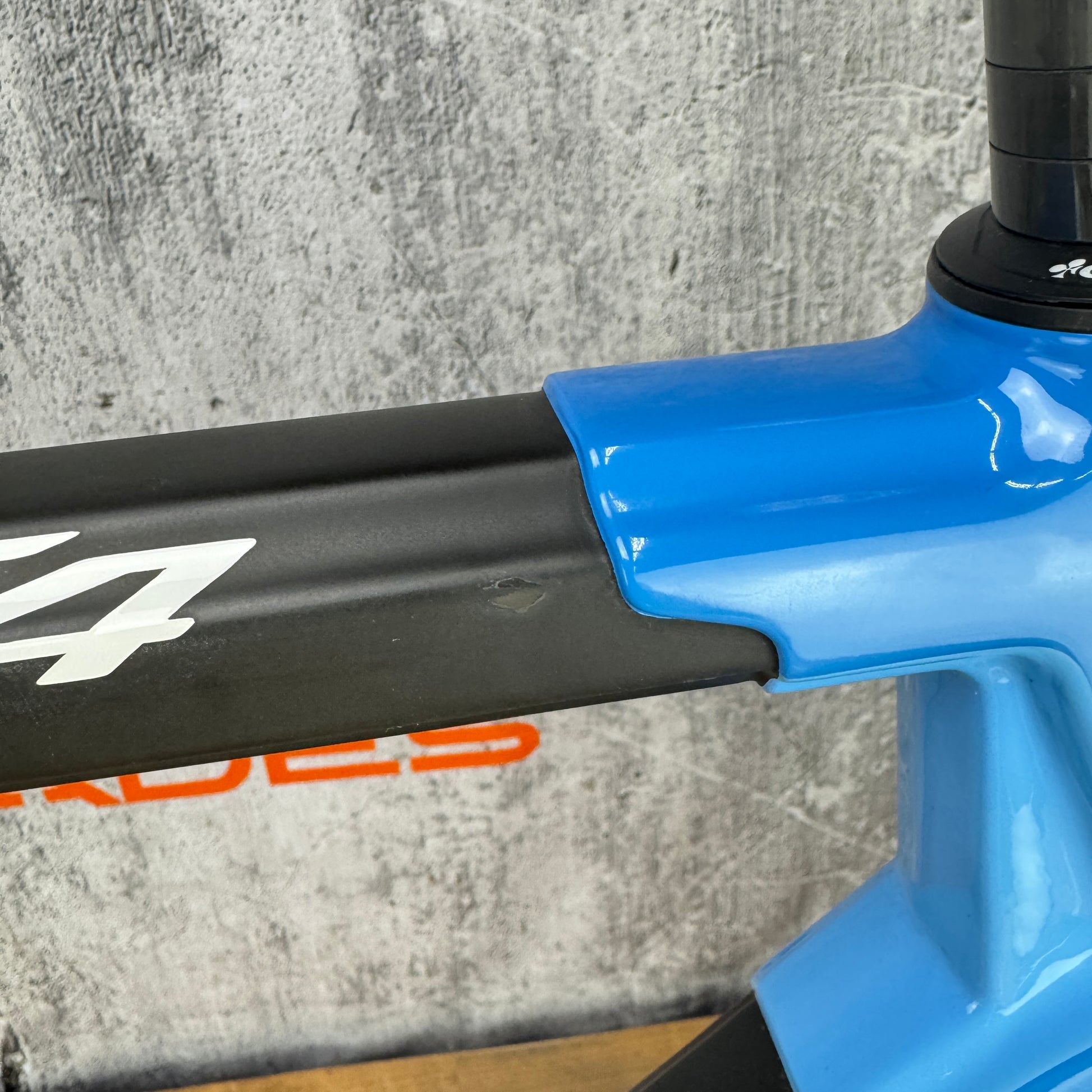

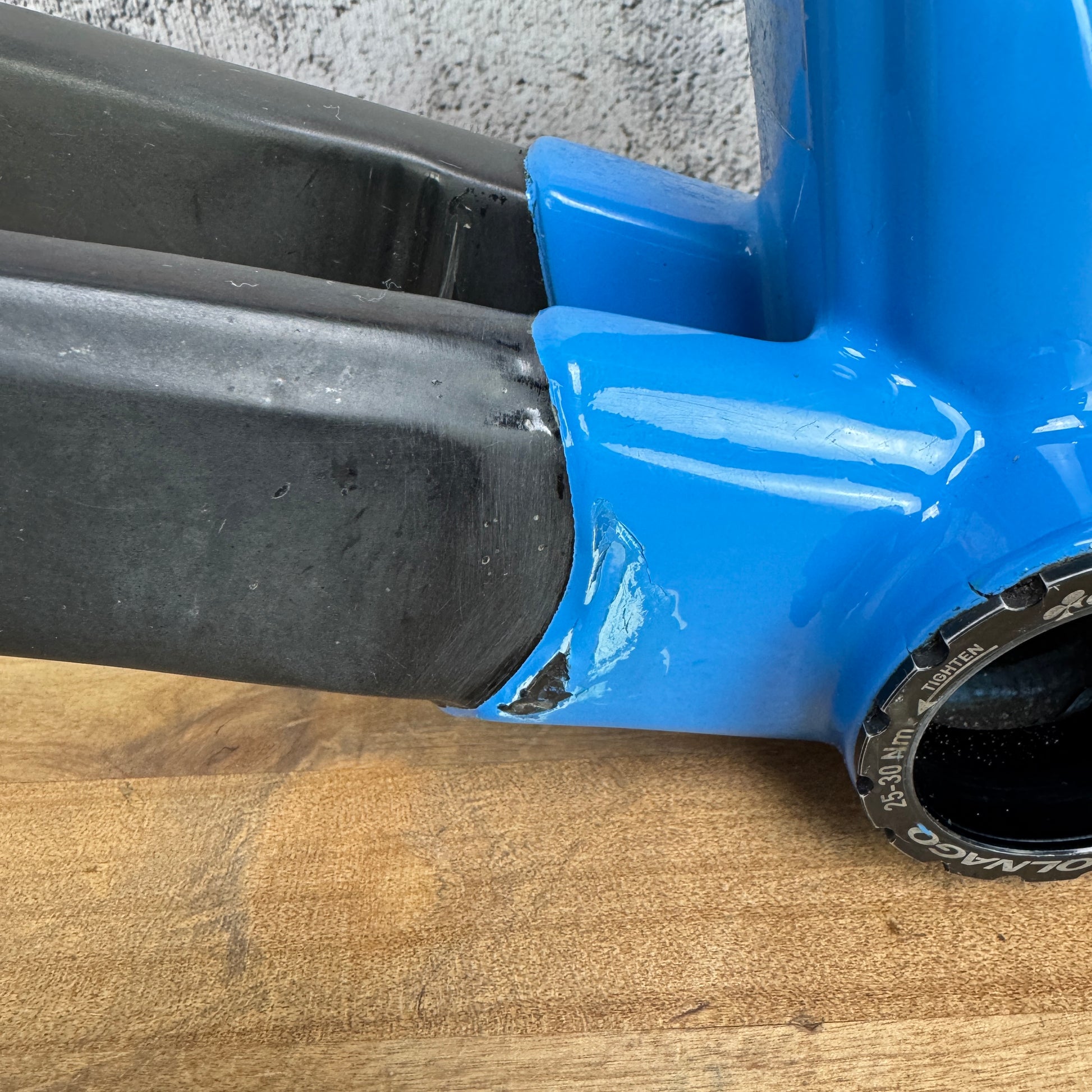

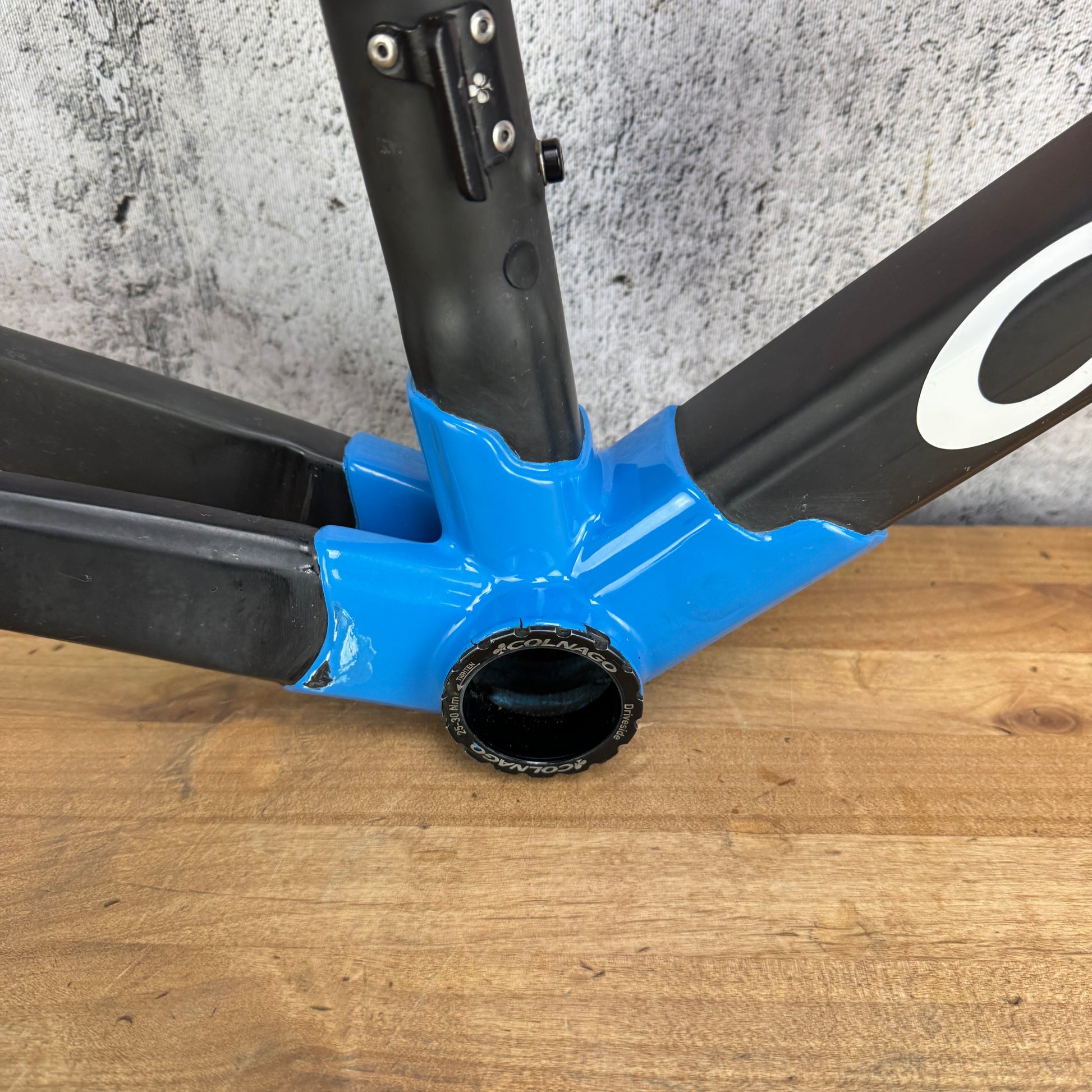

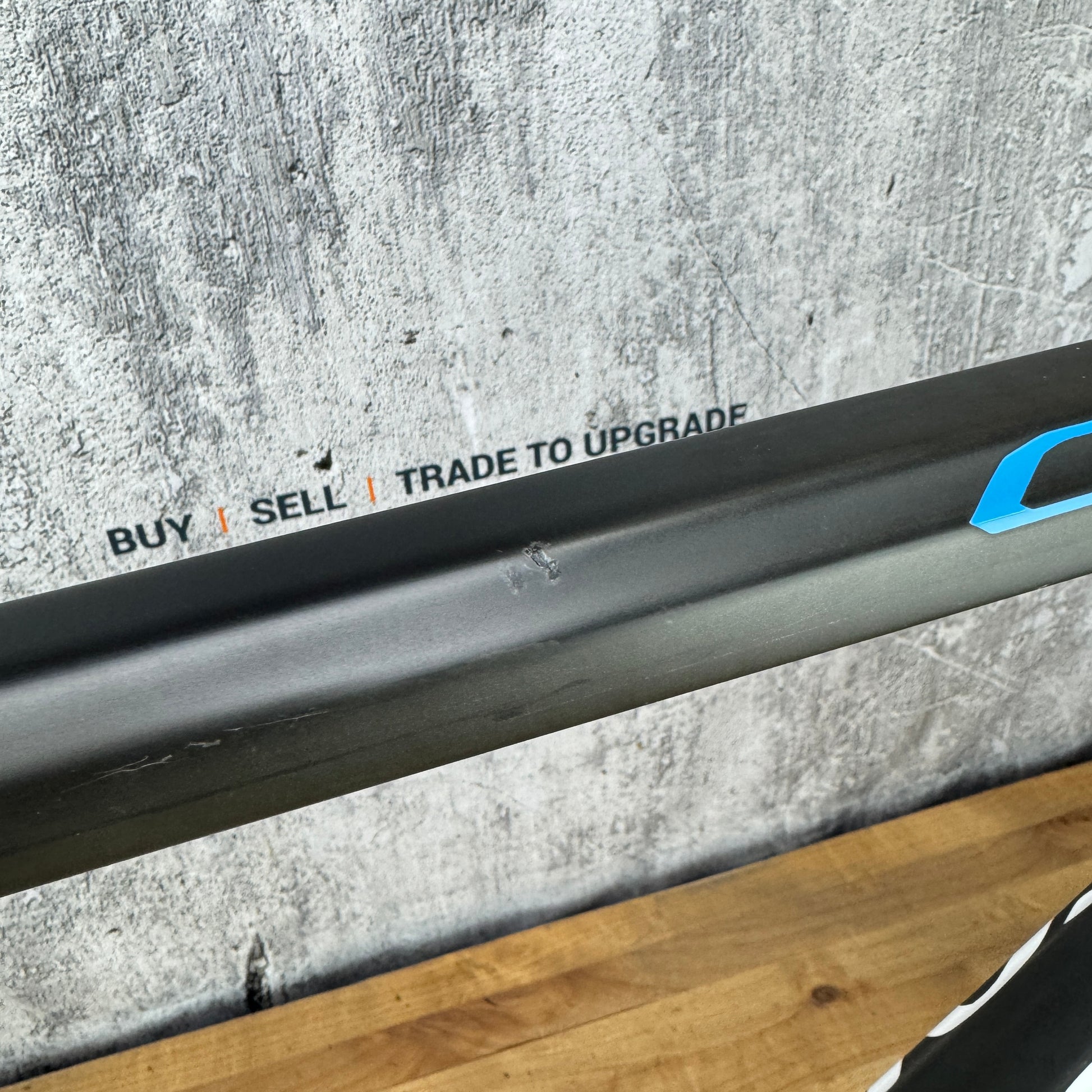

Condition: No cracks or carbon defects were identified through a thorough visual inspection. The cosmetic imperfections to highlight include: There is a scuff near the bottom bracket as well as some paint chipping behind the bottom bracket cup on the drive side, see pictures #14-15. There are some light marks on the top tube and chain stays, see pictures #16-17 There are a couple of light scuffs on the top tube, see pictures #18-19. We have attempted to show all noticeable imperfections in specific close-up pictures, however other minor imperfections and light signs of use may exist.
Groupset Compatibility: Frame can be setup for Di2, EPS, eTap, or mechanical groupsets. This frame was previously setup with an eTap groupset. Other frame/cable stops may be needed for Di2 or mechanical setups.

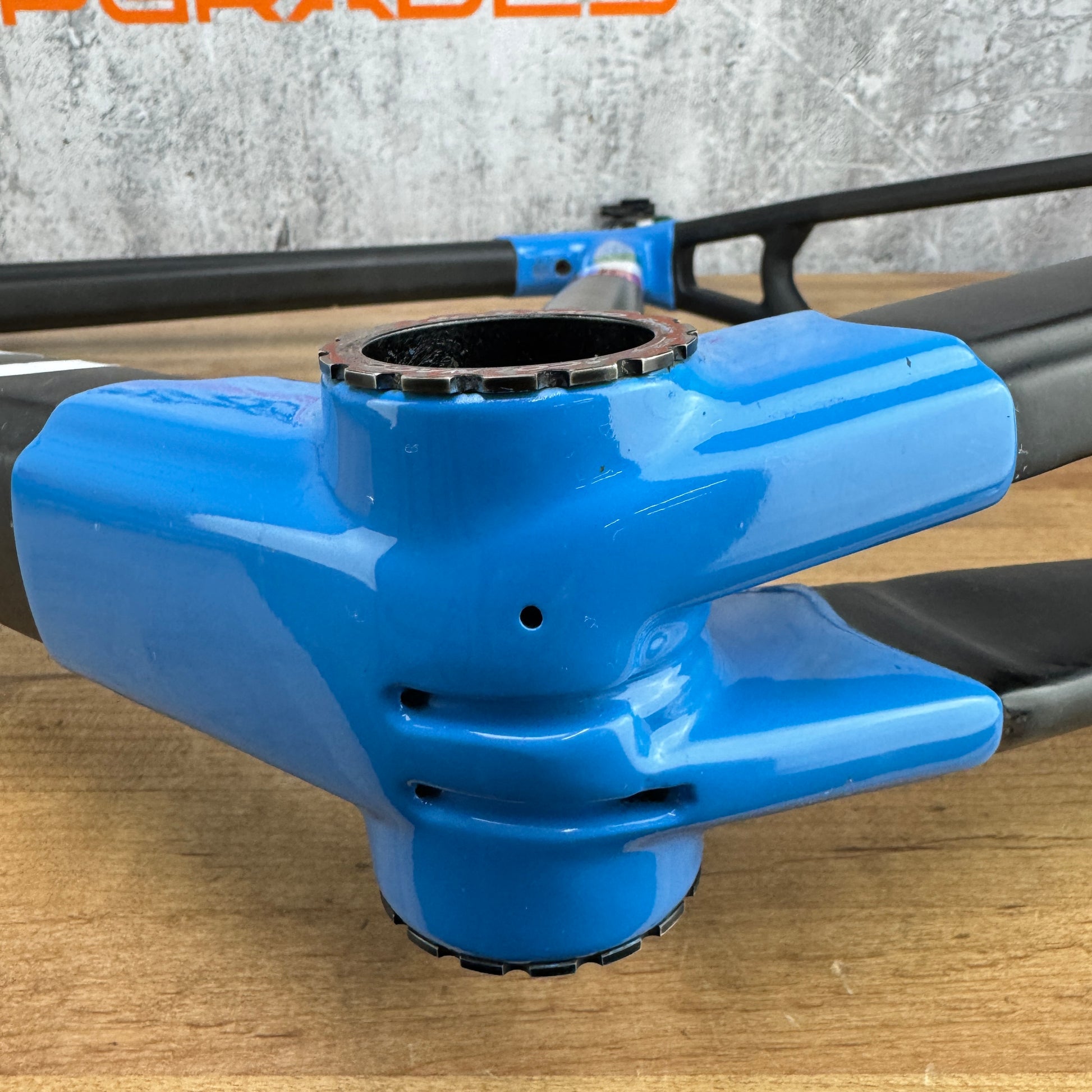

Bottom bracket: Colnago T45 bottom bracket shell type with Colnago PF86 threadfit cups installed, and included (41mm shell diameter, 86mm shell width). No bottom bracket bearings currently installed or included. We have a handful of lightly used basic bottom brackets on hand, let us know what you need and we can try to ship the frame with the right bottom bracket installed. Additionally, CyclingUpgrades is a Wheels Manufacturing, and a Ceramicspeed Authorized Dealer, if you prefer to have the frame setup with a certain Wheels Manufacturing, or Ceramicspeed bottom bracket we can add and install it at an additional cost before shipping - message with inquiries/requests.
Steerer Length: 75mm of steerer above the top tube. 40mm of spacers below the stem plus the headset cover. We may have an option available to safely extend the steerer tube by 15-18mm - message us for additional details.

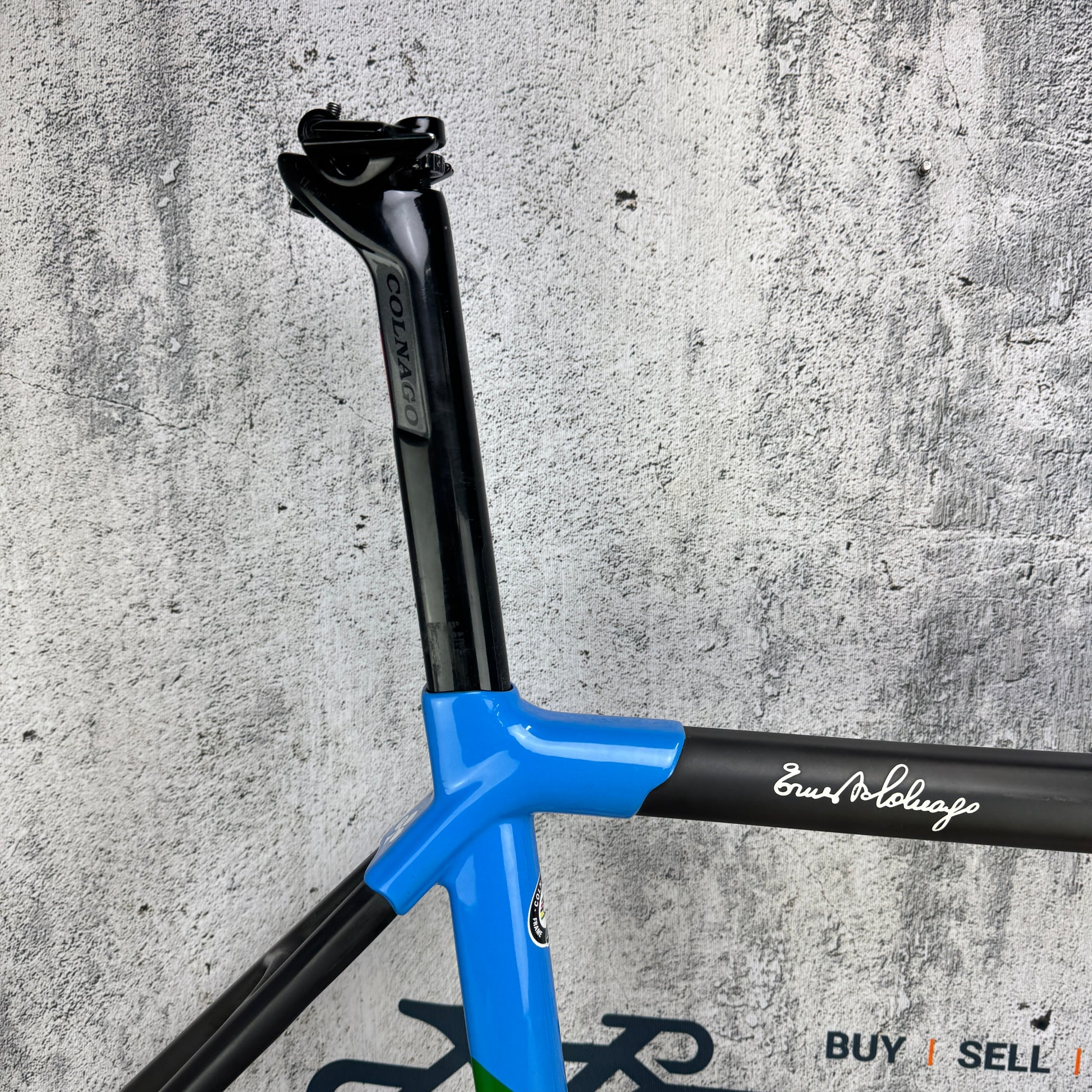

Seatpost: Colnago C64 seatpost included
Dropout Spacing: Front 12mm Thru Axle x 100mm, Rear 12mm Thru Axle x 142mm.
Weight: 1969 grams as pictured.
What's included: Frame, fork, headset, rear derailleur hanger, bottom bracket cups, thru axles, seatpost
