2022 Trek Emonda SLR 800 OCLV 60cm Carbon Road Bike Frameset 700c 1795g H1.5
2022 Trek Emonda SLR 800 OCLV 60cm Carbon Road Bike Frameset 700c 1795g H1.5
Item Specifics
- Brand: Trek
- Bottom bracket shell type: T47/86
- Brake type: Disc Brake
- Color: Black
- Frame size: 60 cm
- Item weight: 1795g
- Material: Carbon
- Model: 2022 60cm Emonda SLR
- Mount type: Flat-Mount
- Part type: Bicycle Frame
- Steerer tube diameter: 1 1/8 in
- Wheel size: 700C
- We clean all parts before selling!
- We test and inspect all parts!
- We create detailed listings!
- We package like professionals!
- We ship quickly!
- We accept 30-day returns!
Share
Frame: Trek 2022 60cm Emonda SLR H1.5 Race Fit geometry.
Color: Deep Smoke
Brake Type: Flat-Mount disc brake
Size: H1.5 Race 60cm. 586mm Effective Top Tube. Stack - 601mm. Reach - 399mm. Head Tube 191mm. Recommend buyer confirm and research full geometry online.

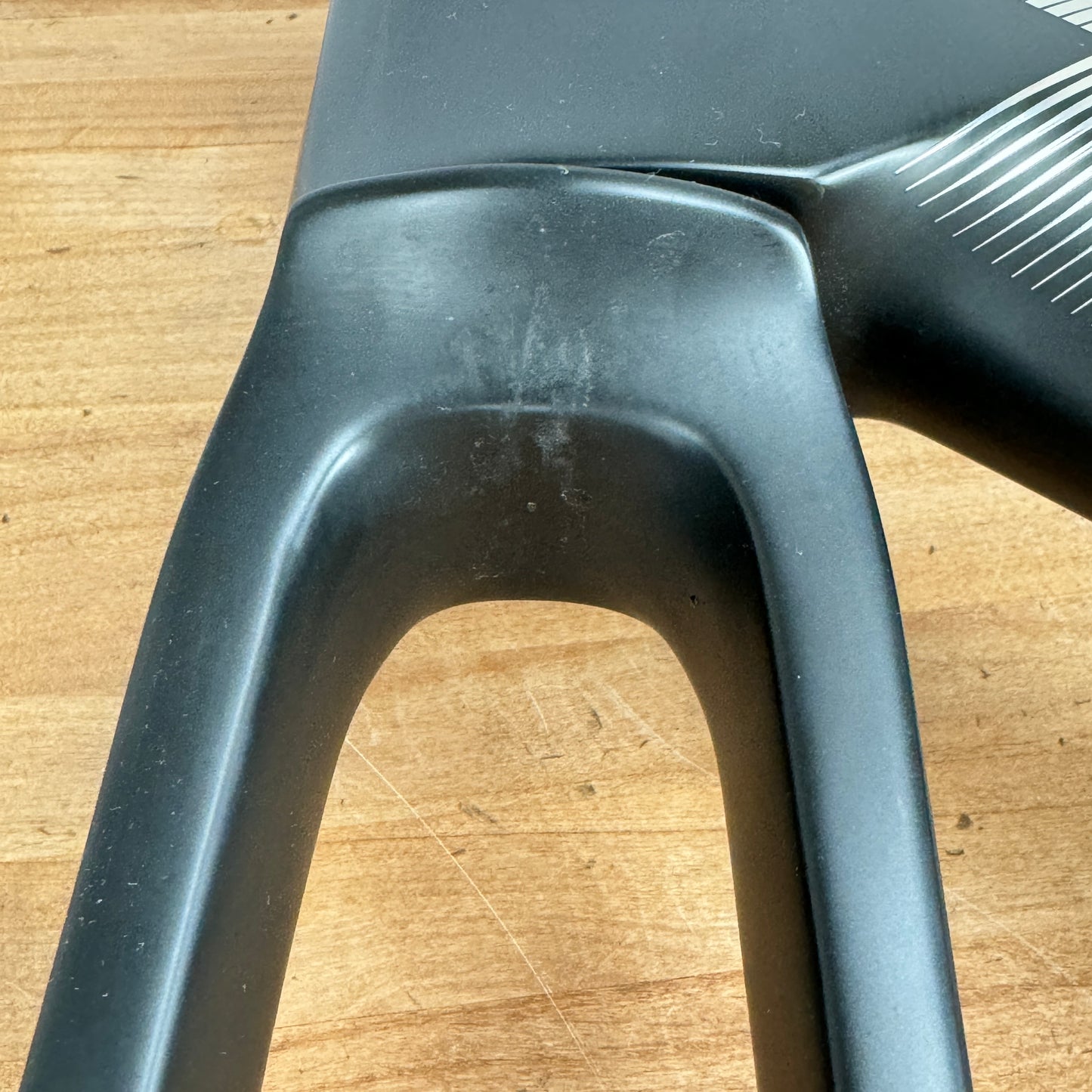

Condition: No cracks or carbon defects were identified through a thorough visual inspection. The cosmetic imperfections to highlight include: There are some light paint nicks on the head tube as well as the rear dropout area, see pictures #8-10. Some light road debris marks can be seen in the fork crown and under the frame on the bottom tube and bottom bracket areas, see pictures #11-13. We have attempted to show all noticeable imperfections in specific close-up pictures, however other minor imperfections and light signs of use may exist.
Groupset Compatibility: Frame can be setup for Di2, EPS, or eTap groupsets. This frame is not compatible with mechanical groupsets.
Bottom bracket: T47/86 bottom bracket shell type. No bottom bracket currently installed or included. We have a handful of lightly used basic bottom brackets on hand, let us know what you need and we can try to ship the frame with the right bottom bracket installed. Additionally, CyclingUpgrades is a Wheels Manufacturing, and a Ceramicspeed Authorized Dealer, if you prefer to have the frame setup with a certain Wheels Manufacturing, or Ceramicspeed bottom bracket we can add and install it at an additional cost before shipping - message with inquiries/requests.
Steerer Length: 65mm of steerer above the top tube. We do have an option available to safely extend the steerer tube by 15-18mm - message us for additional details.
Seat Mast: Frame specific carbon 175mm 25mm offset seat mast installed and included. 81cm maximum saddle height measured from center of bottom bracket to middle of saddle rail clamps. The seat mast can be lowered 60mm lower than the maximum height. A shorter seat mast can be purchased online as well. We can sell without the seatmast for $150 less.
Dropout Spacing: Front 12mm Thru Axle x 100mm, Rear 12mm Thru Axle x 142mm.
Weight: 1795 grams as pictured.
What's included: Frame, fork, headset, rear derailleur hanger, thru axles, seat mast.
At CyclingUpgrades, we fulfill all orders next business day or sooner. Generally we are able to fulfill orders placed by 12pm MT on the same day, however it is not guaranteed. We ship all items via USPS except for frames/wheels which ship via UPS or Fedex. Please check our other listings for additional cycling upgrades and thank you for shopping our store!
