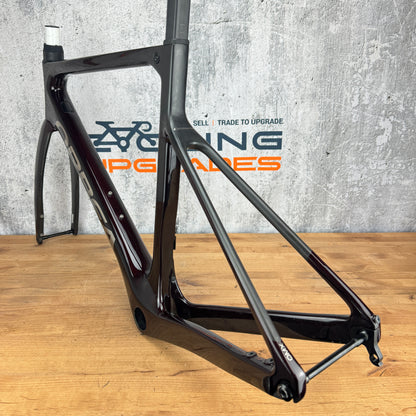

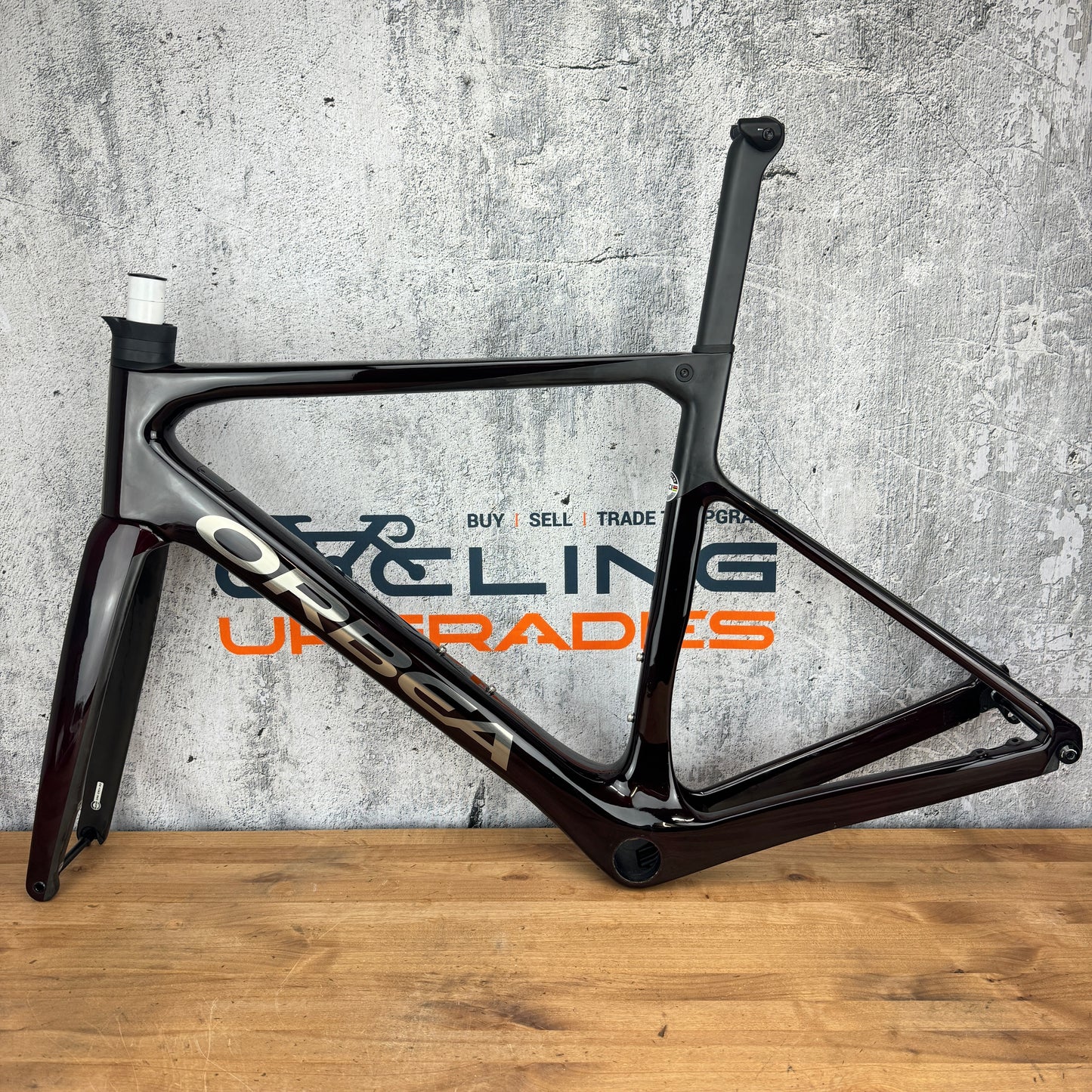

Frame: Orbea 2023 Orca M20 OMX
Color: Red Wine
Brake Type: Flat-Mount disc brake
Size: Orbea Size 53 (55cm). 548mm Effective Top Tube. Stack - 559mm. Reach - 382mm. Head Tube 148mm. Recommend buyer confirm and research full geometry online.

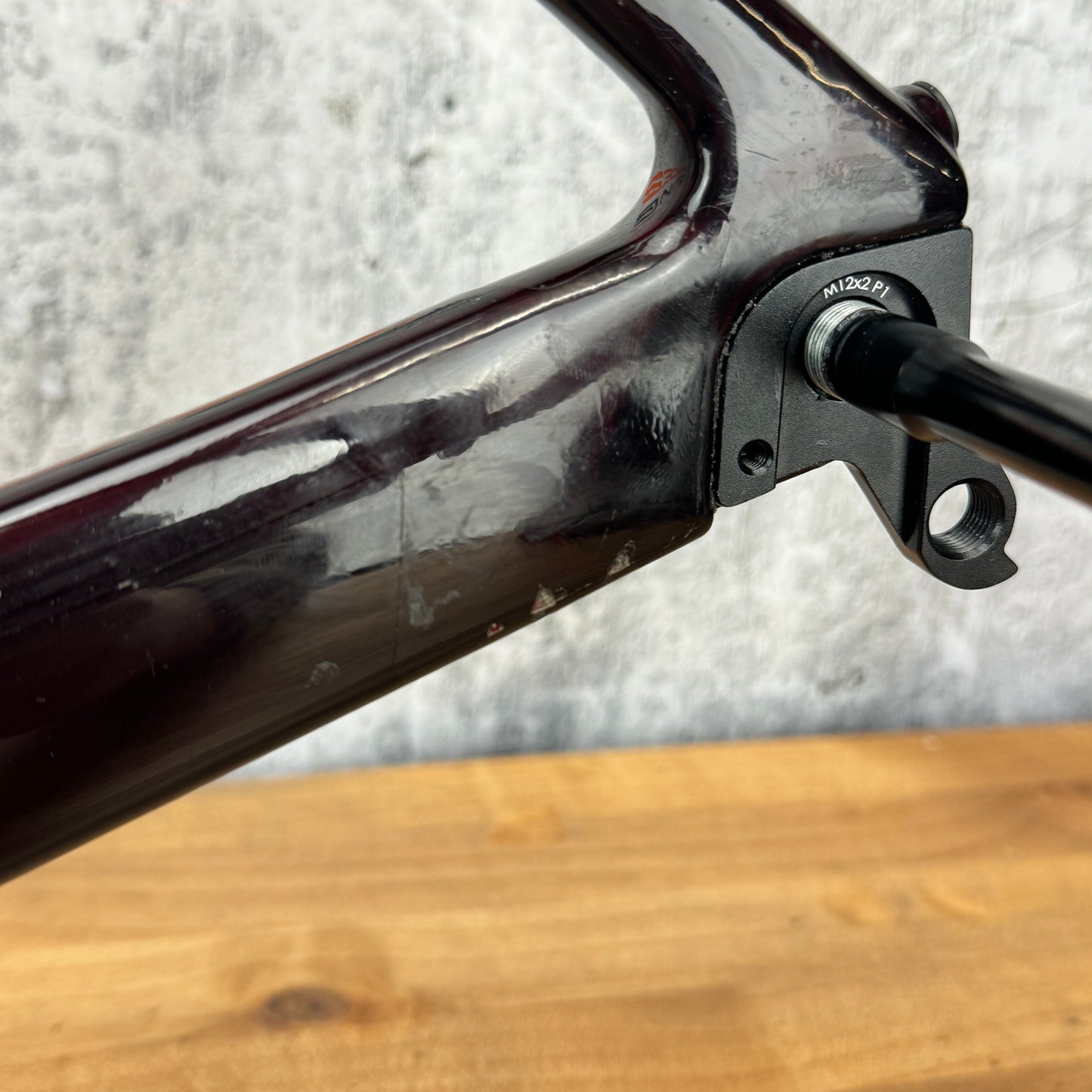

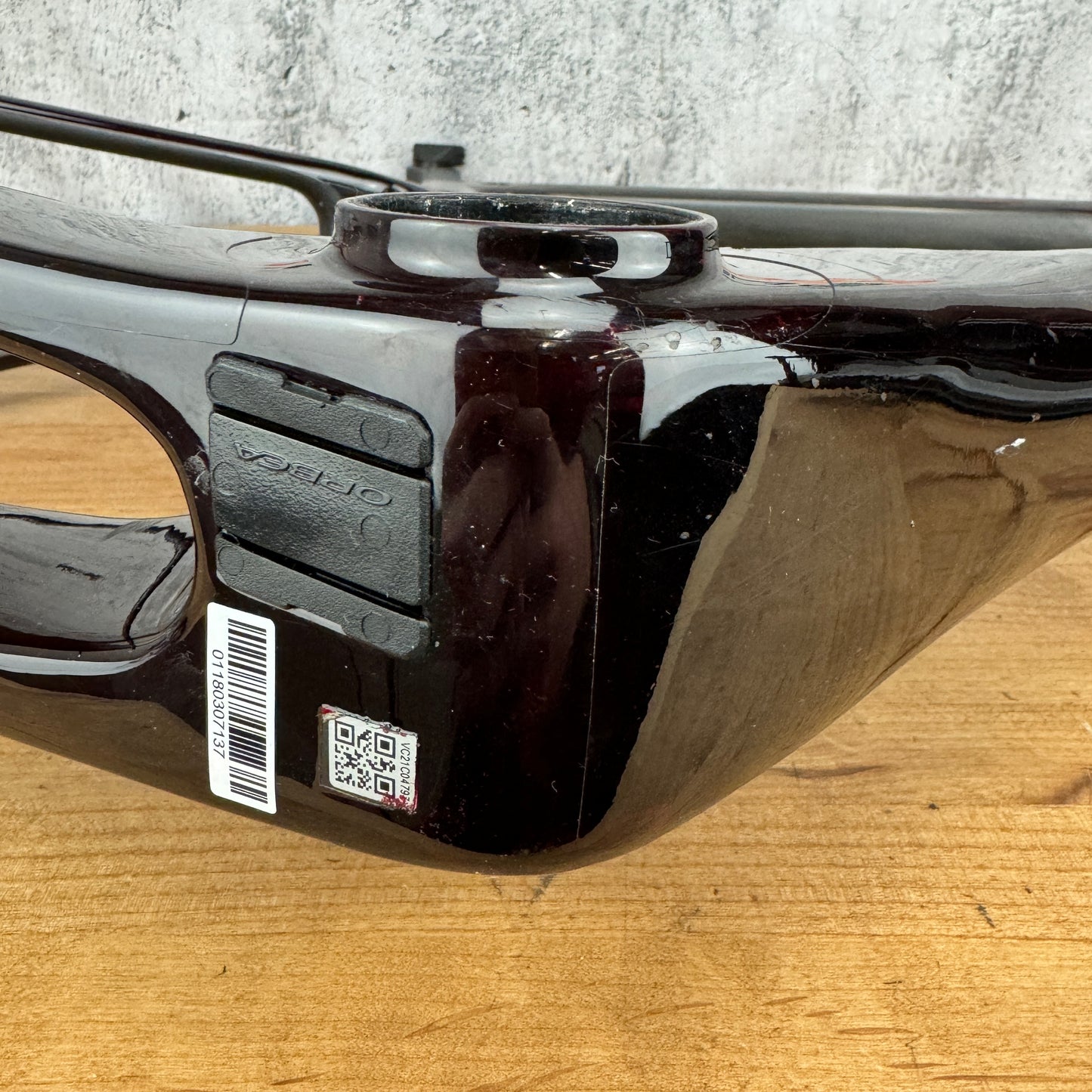

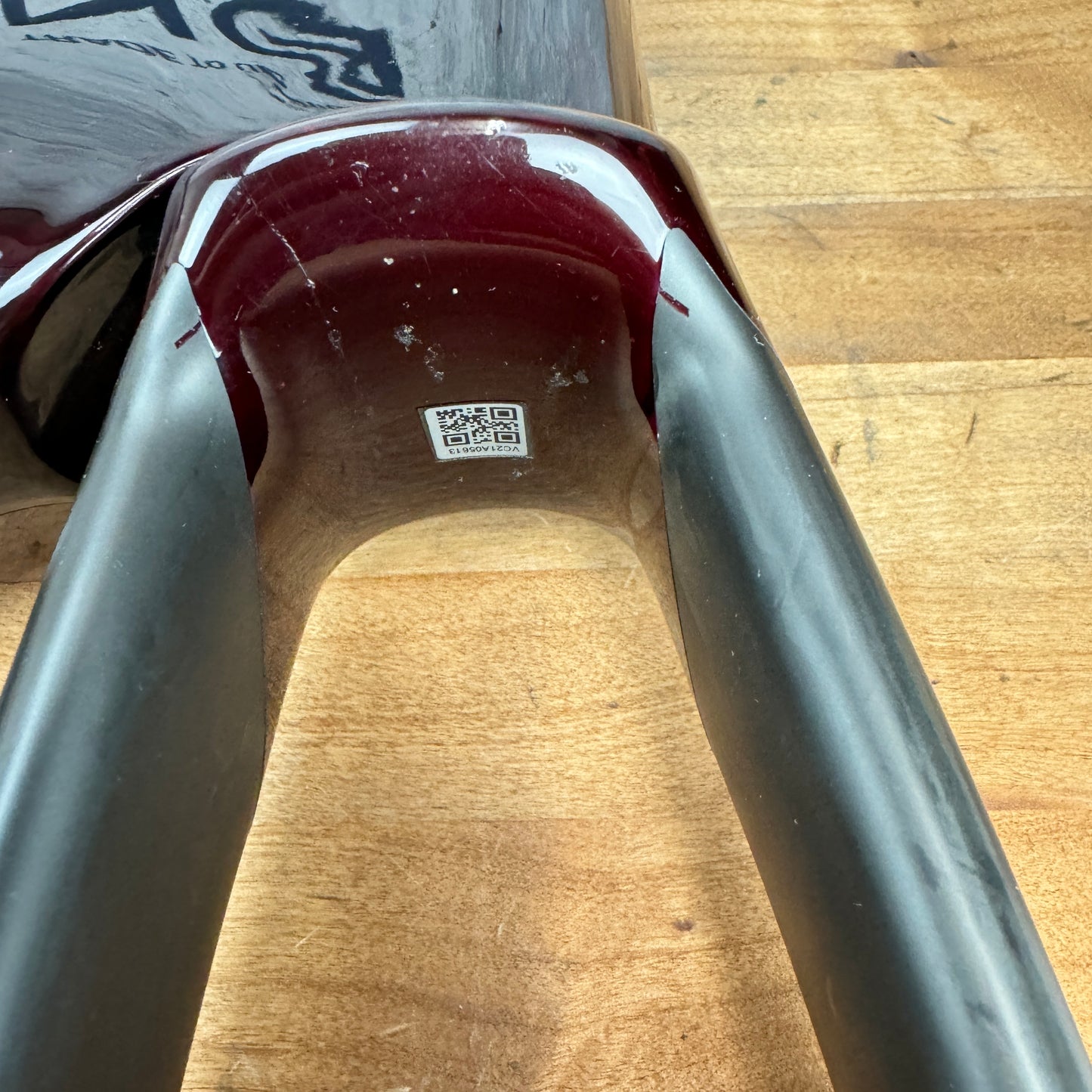

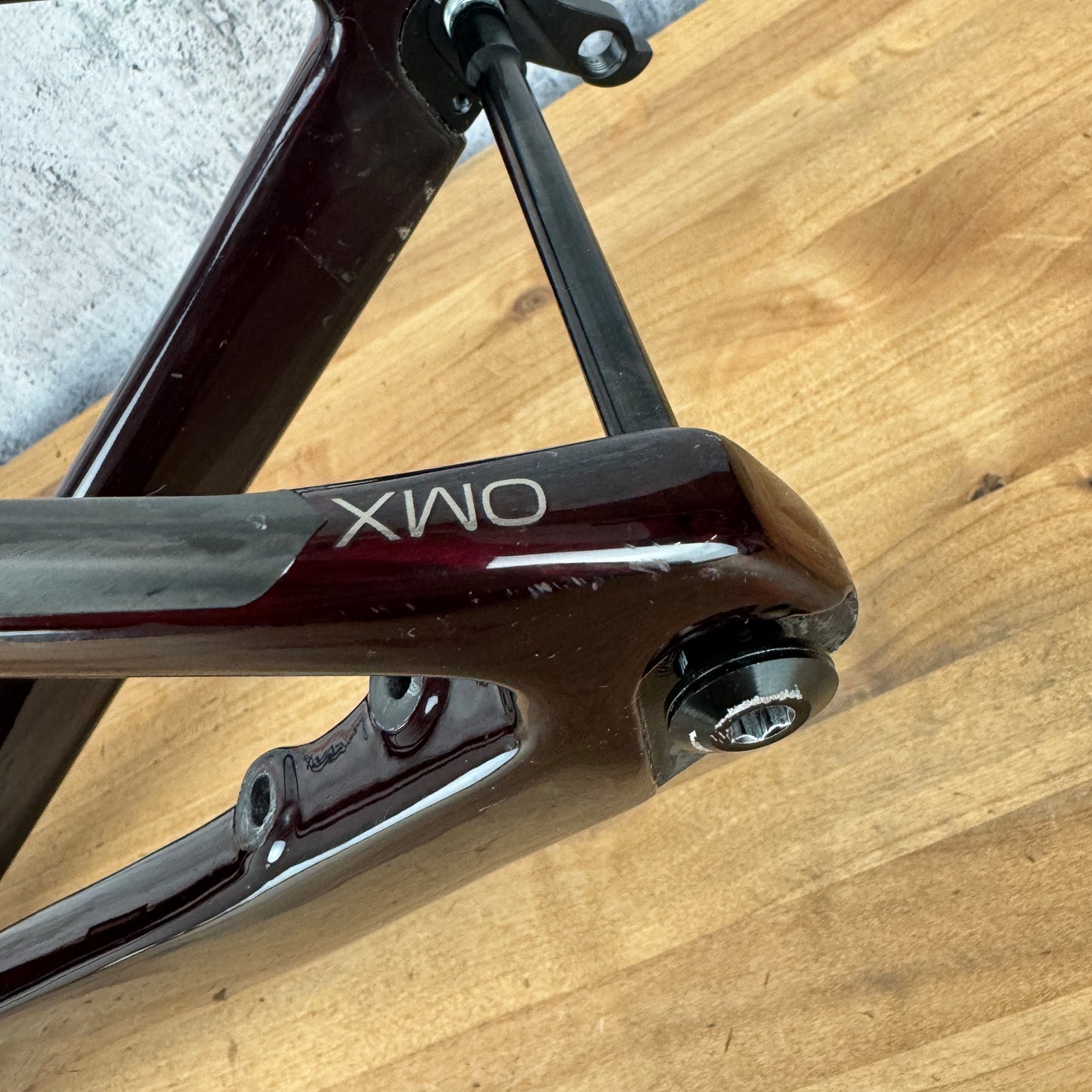

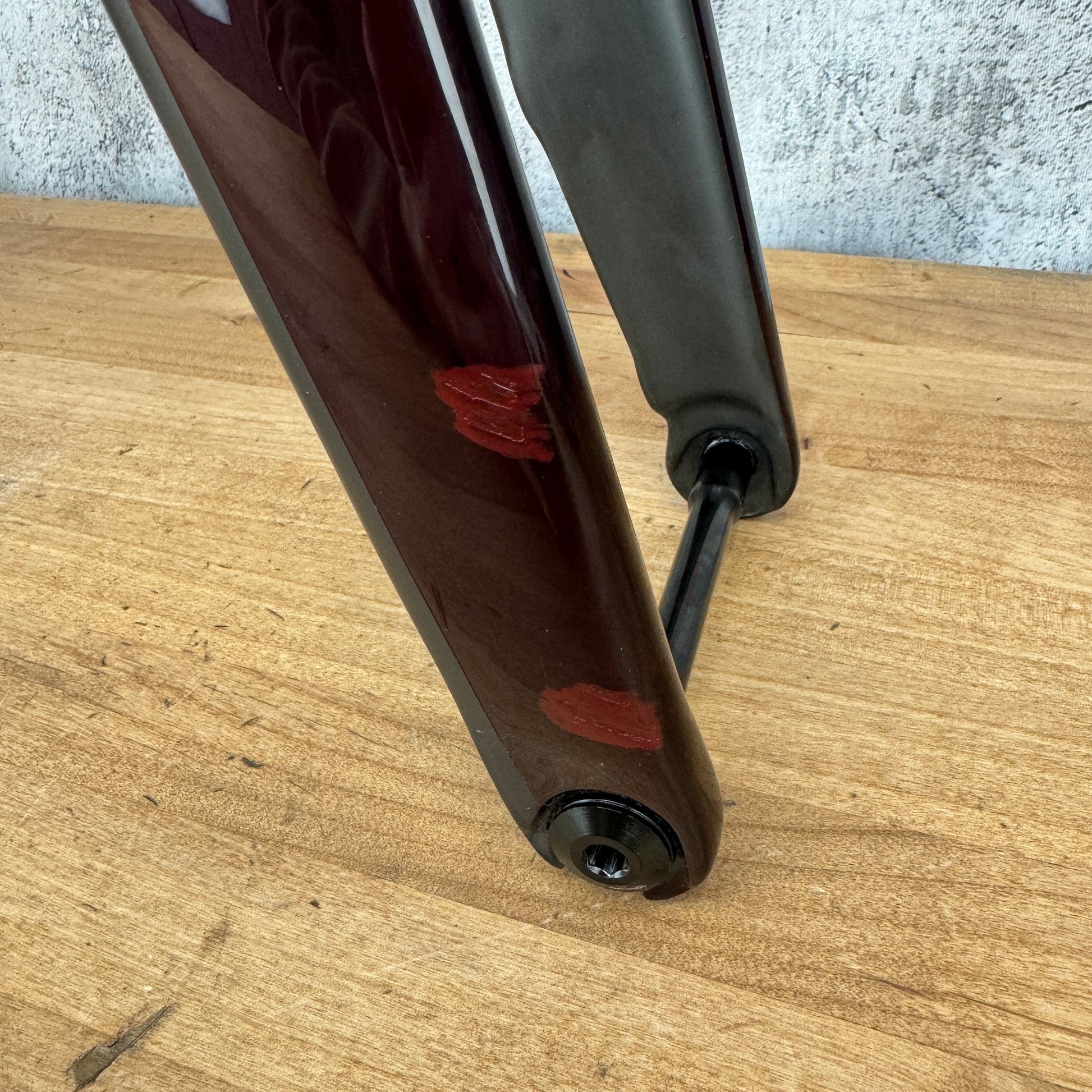

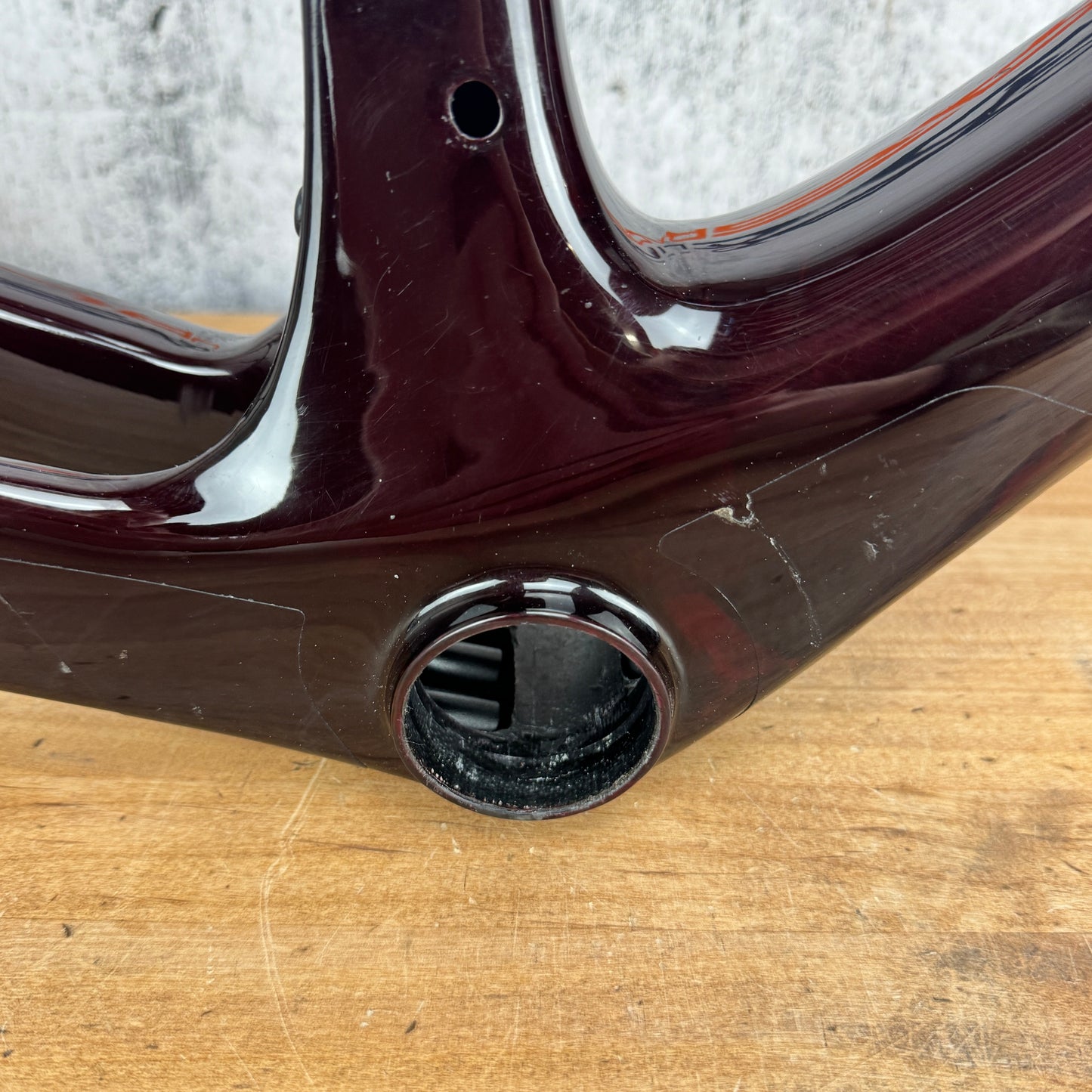

Condition: No cracks or carbon defects were identified through a thorough visual inspection. The cosmetic imperfections to highlight include: There are two small scuffs on the front fork that were covered with some touch-up paint, see picture #11. There are some light scratches and signs of use on the drive side of the bottom bracket, and rear dropouts. there is some light road debris wear in the fork crown, see picture #10. We have attempted to show all noticeable imperfections in specific close-up pictures, however other minor imperfections and light signs of use may exist.
Groupset Compatibility: Frame can be setup for Di2, EPS, eTap, or mechanical groupsets. This frame was previously setup with a Di2 groupset. Includes all necessary parts needed for your desired groupset.
Bottom bracket: 386EVO bottom bracket shell type (46mm shell diameter, 86mm shell width). No bottom bracket currently installed or included. We have a handful of lightly used basic bottom brackets on hand, let us know what you need and we can try to ship the frame with the right bottom bracket installed. Additionally, CyclingUpgrades is a Wheels Manufacturing, and a Ceramicspeed Authorized Dealer, if you prefer to have the frame setup with a certain Wheels Manufacturing, or Ceramicspeed bottom bracket we can add and install it at an additional cost before shipping - message with inquiries/requests.
Steerer Length: 80mm of steerer above the top tube. Includes all the spacers necessary for your desired set up. We do have an option available to safely extend the steerer tube by 15-18mm - message us for additional details.
Seatpost: Orbea seatpost installed and included
Dropout Spacing: Front 12mm Thru Axle x 100mm, Rear 12mm Thru Axle x 142mm.
Weight: 1780 grams as pictured

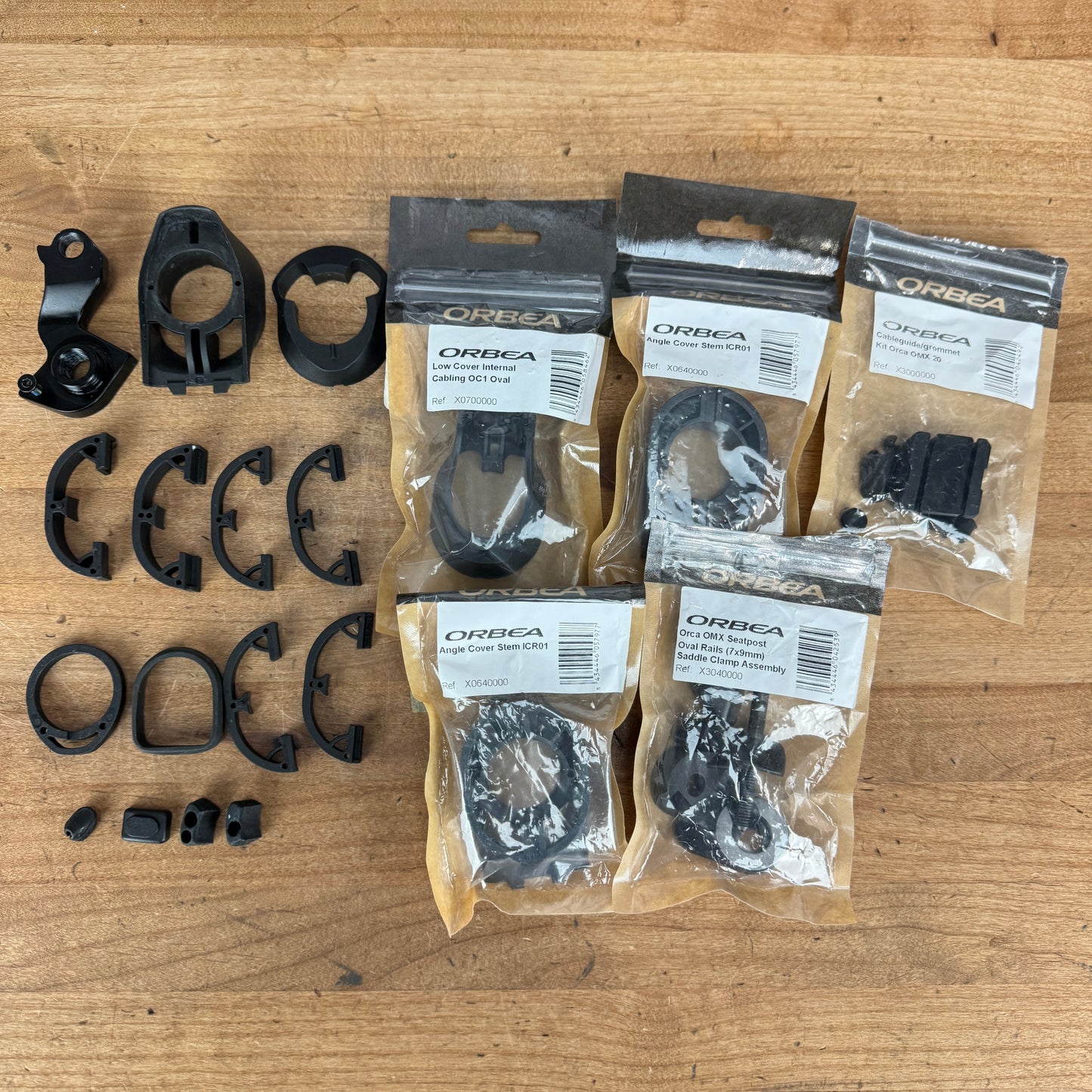

What's included: Frame, fork, headset, rear derailleur hanger, seatpost, thru axles
