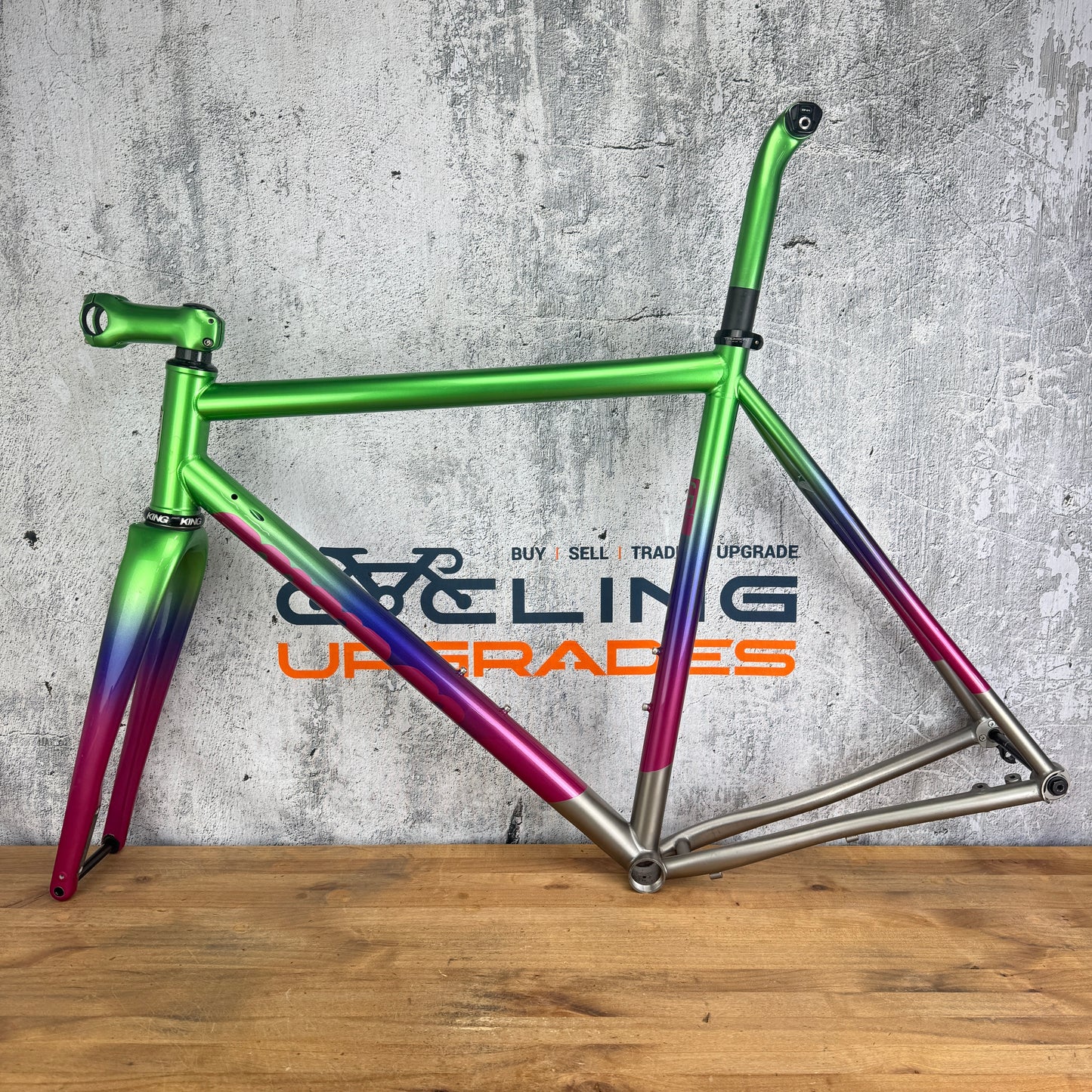

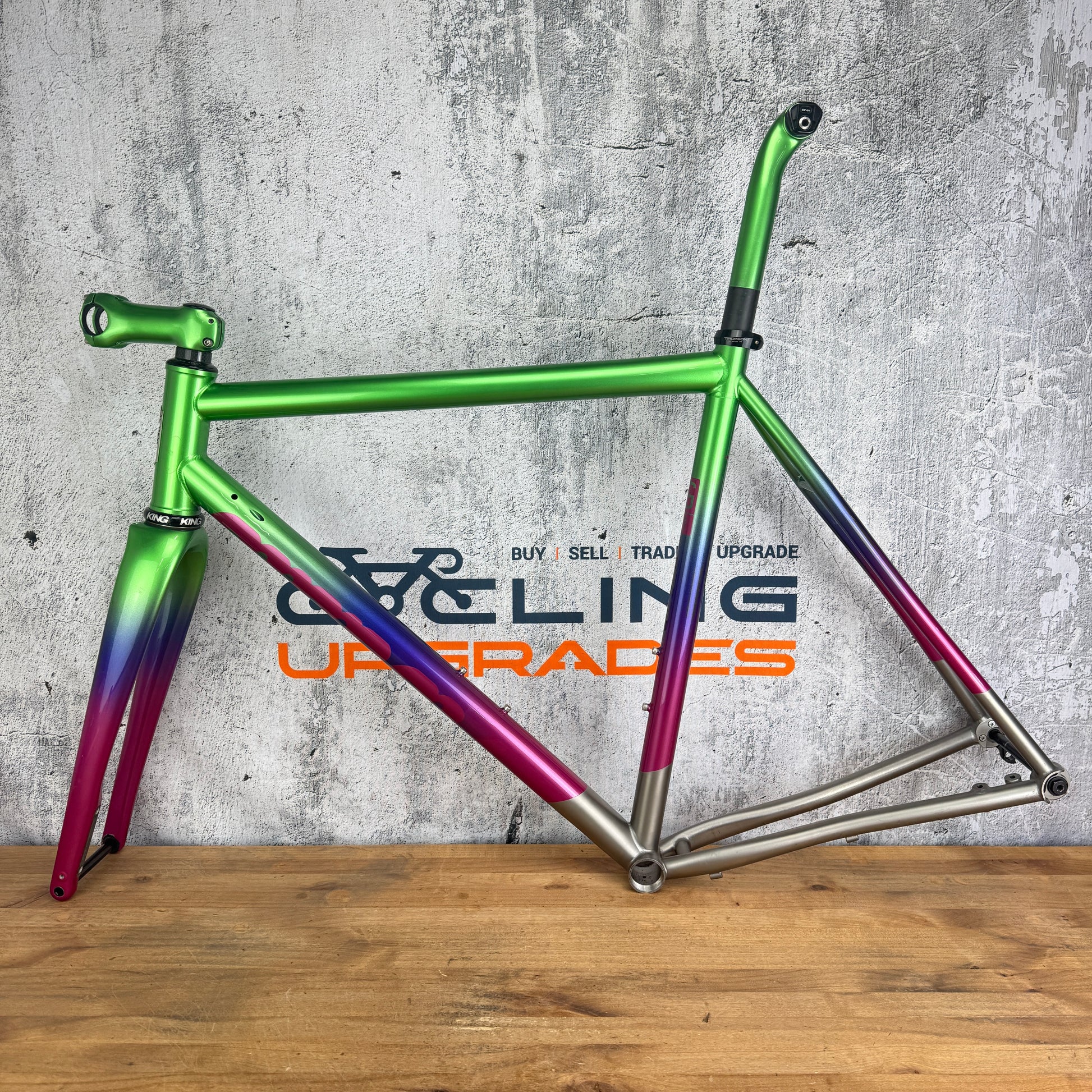

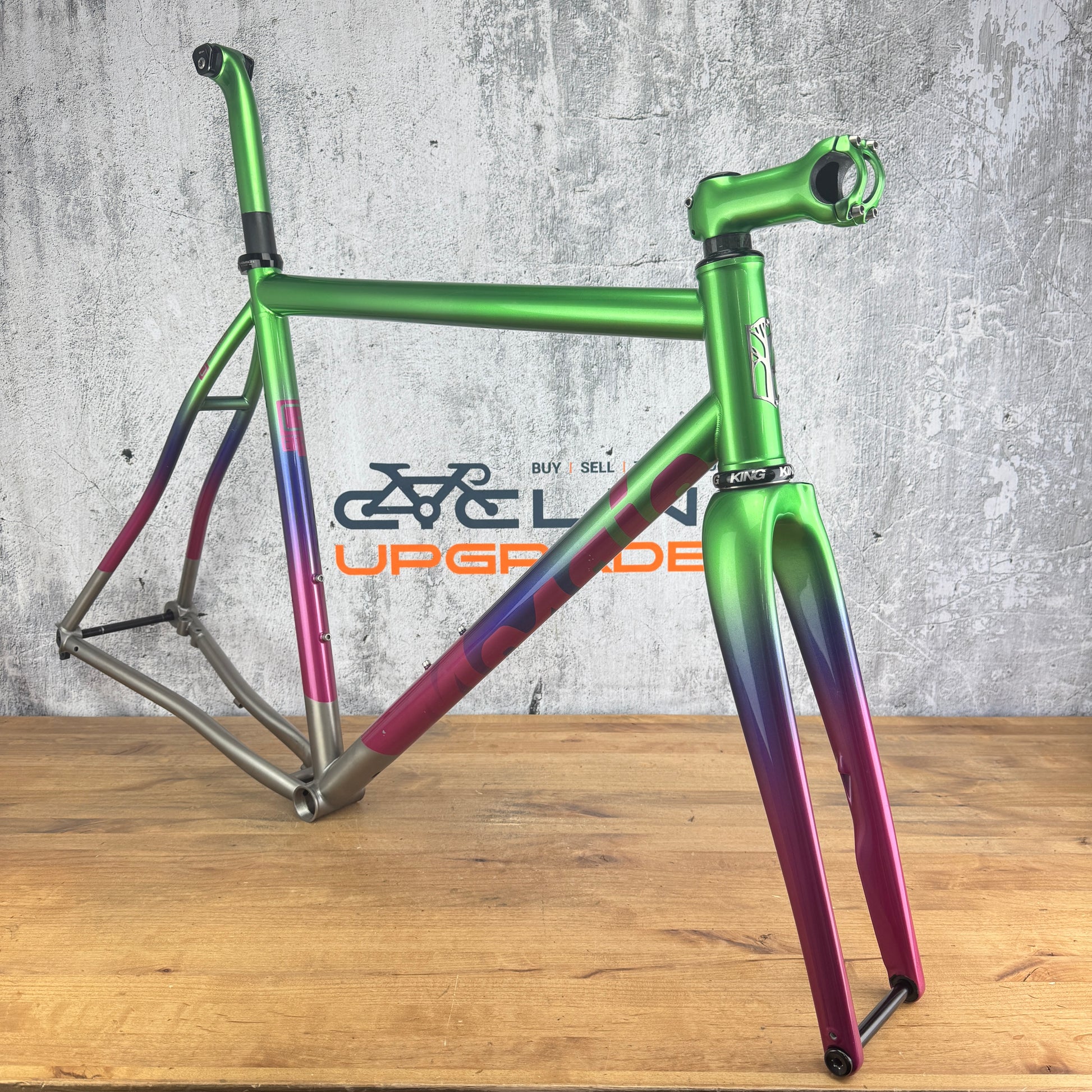

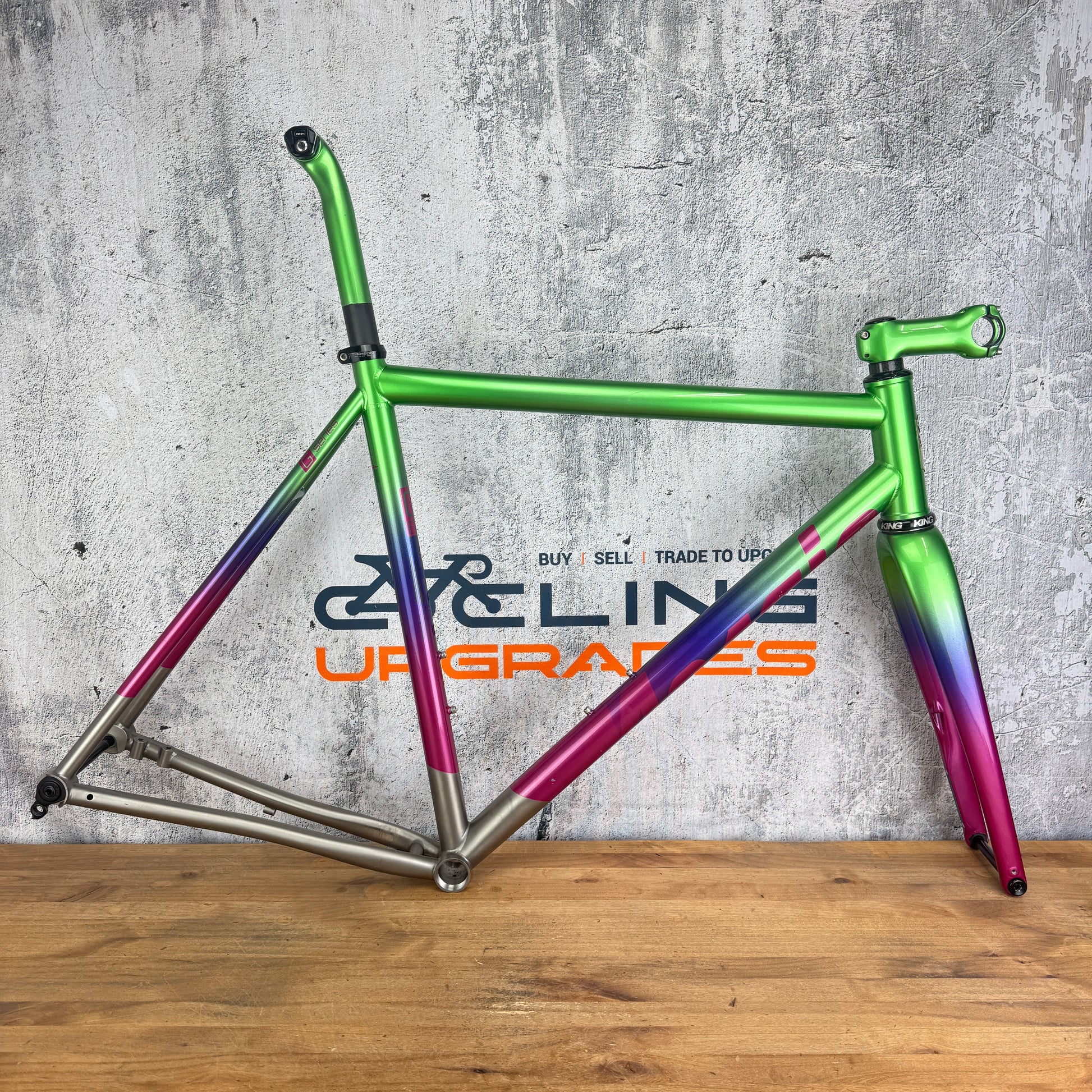

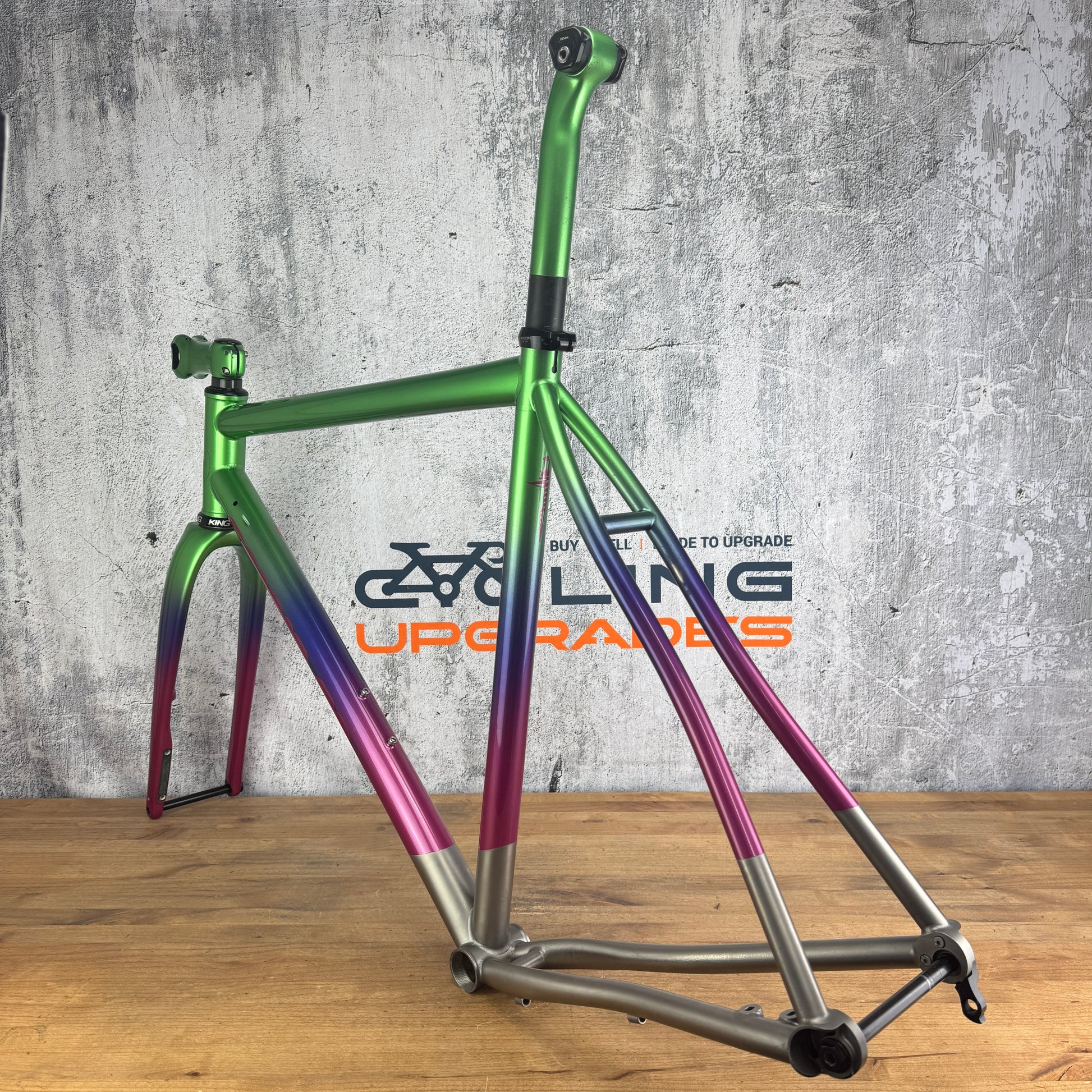

Frame: Mosaic 2021 GT-1 AR

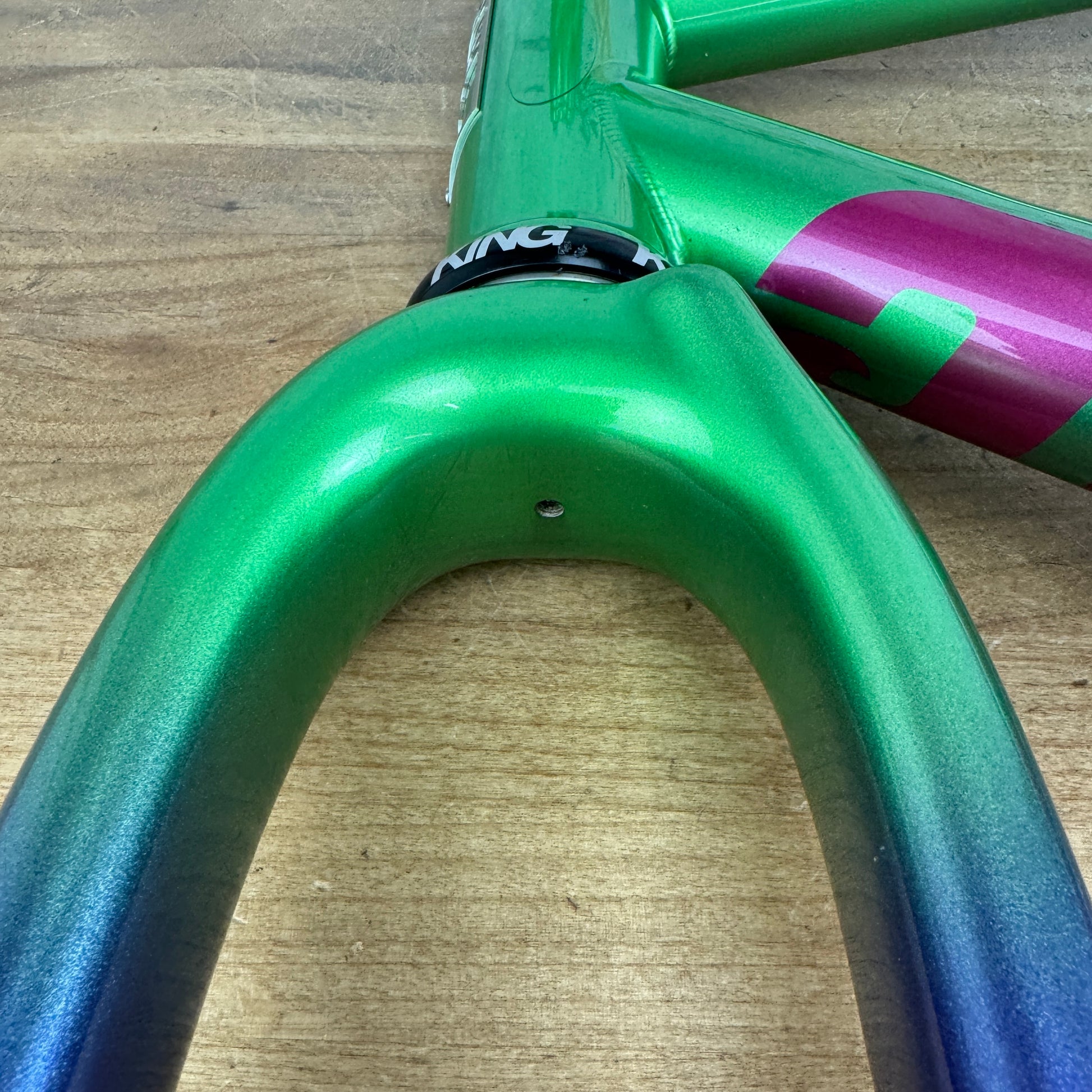

Fork: Enve Gravel Disc Carbon Fork

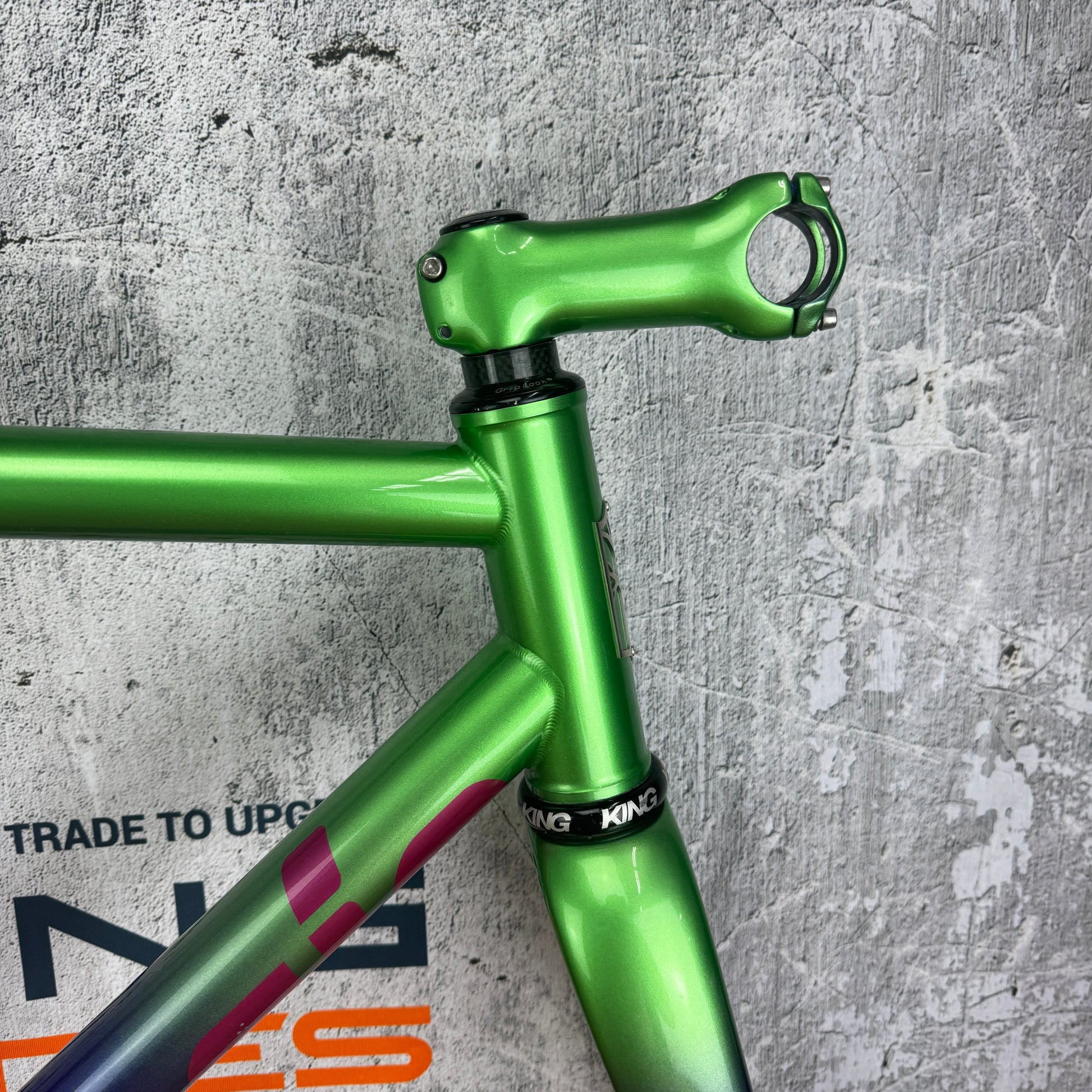

Stem: Enve Road 100mm -6 degree carbon stem

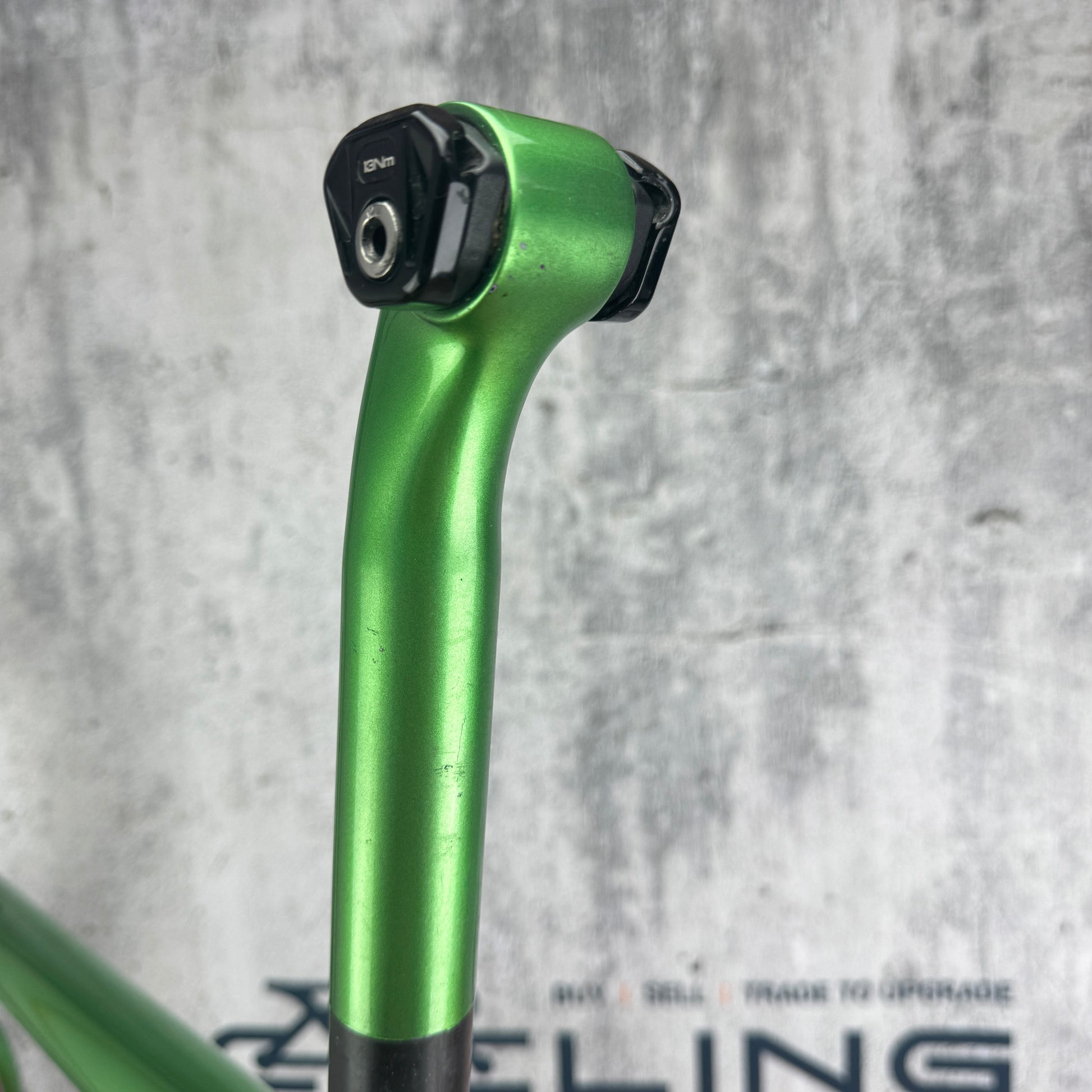

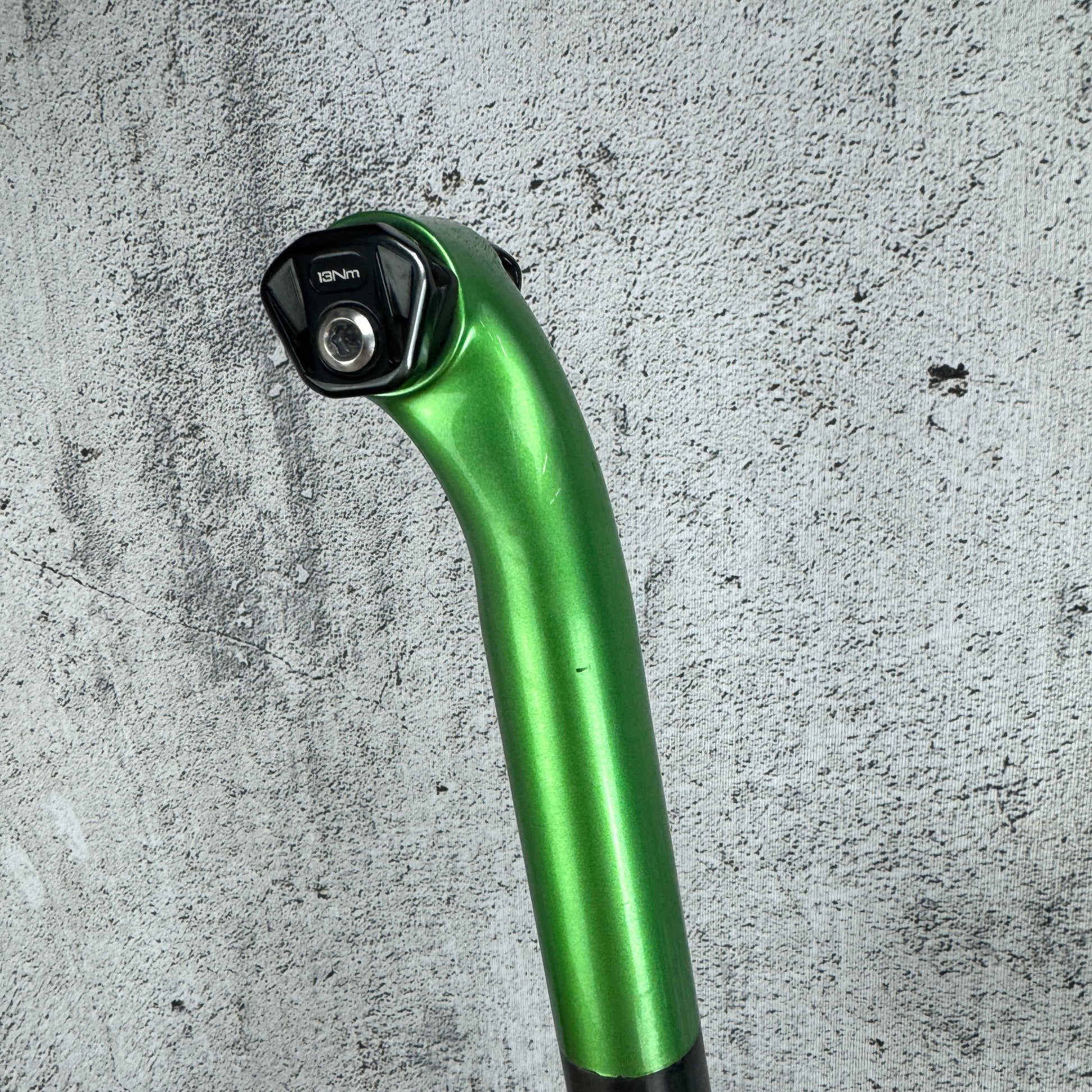

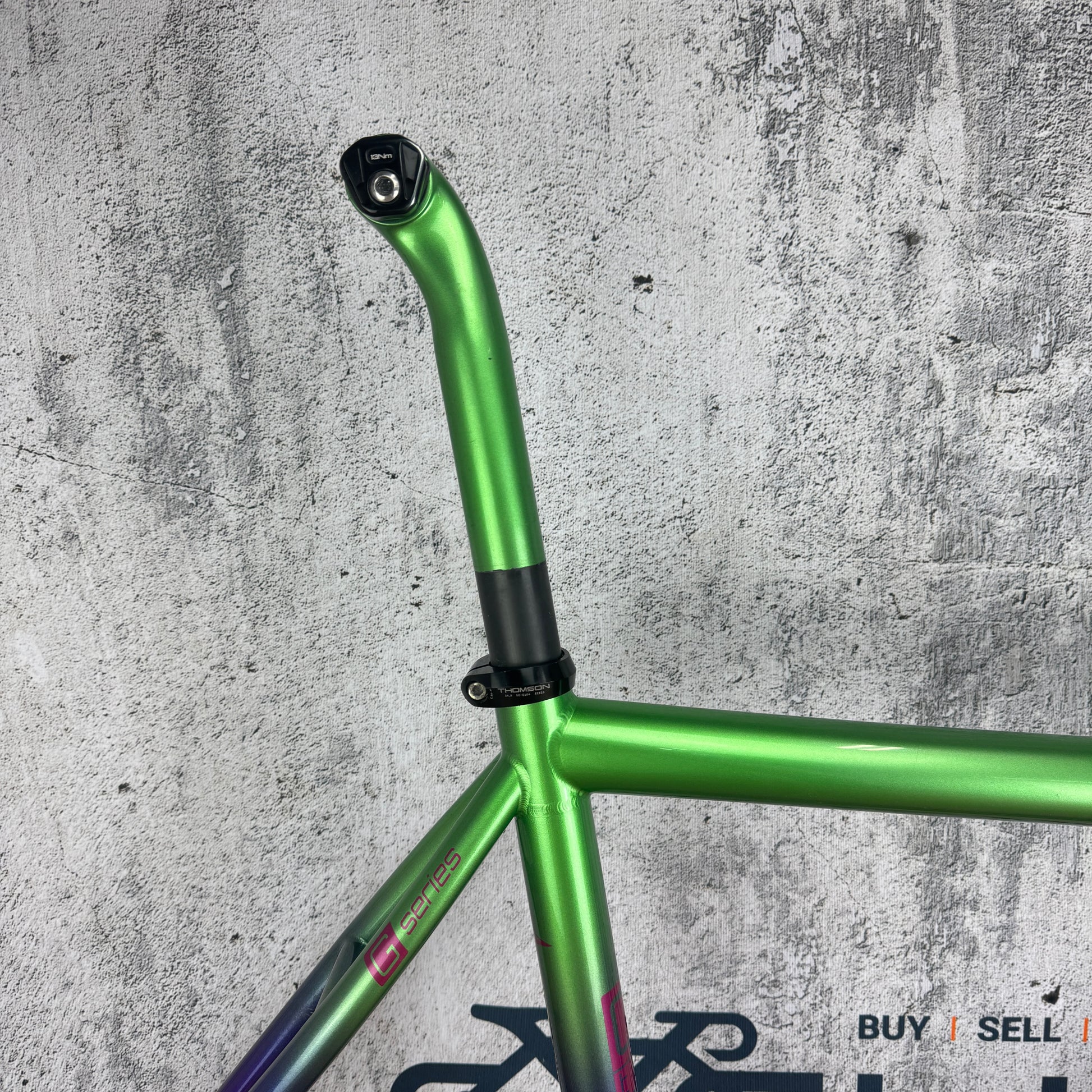

Seatpost: Enve Round Carbon 25mm Offset. Clamp ears for 7x7mm round saddle rails are installed.
Tire Clearance: 700c x 45mm or 650b x 48mm
Brake Type: Flat-Mount disc brake

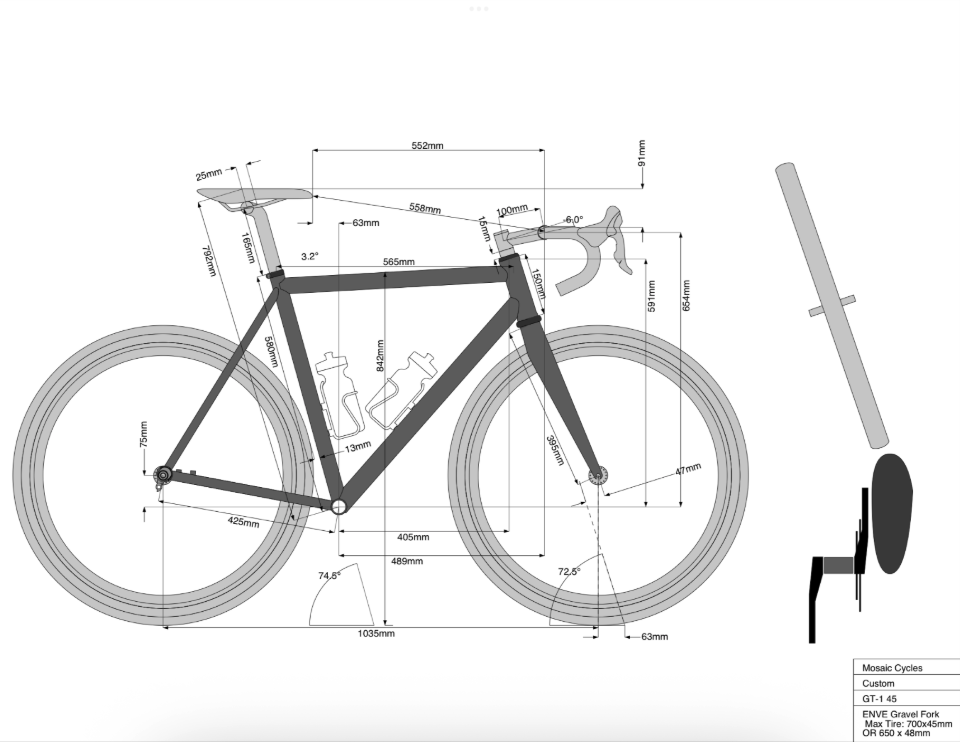

Size: 56.5cm. 565mm Effective Top Tube. Stack - 591mm. Reach - 405mm. Head Tube 150mm. A full custom geometry chart is included in the photos.

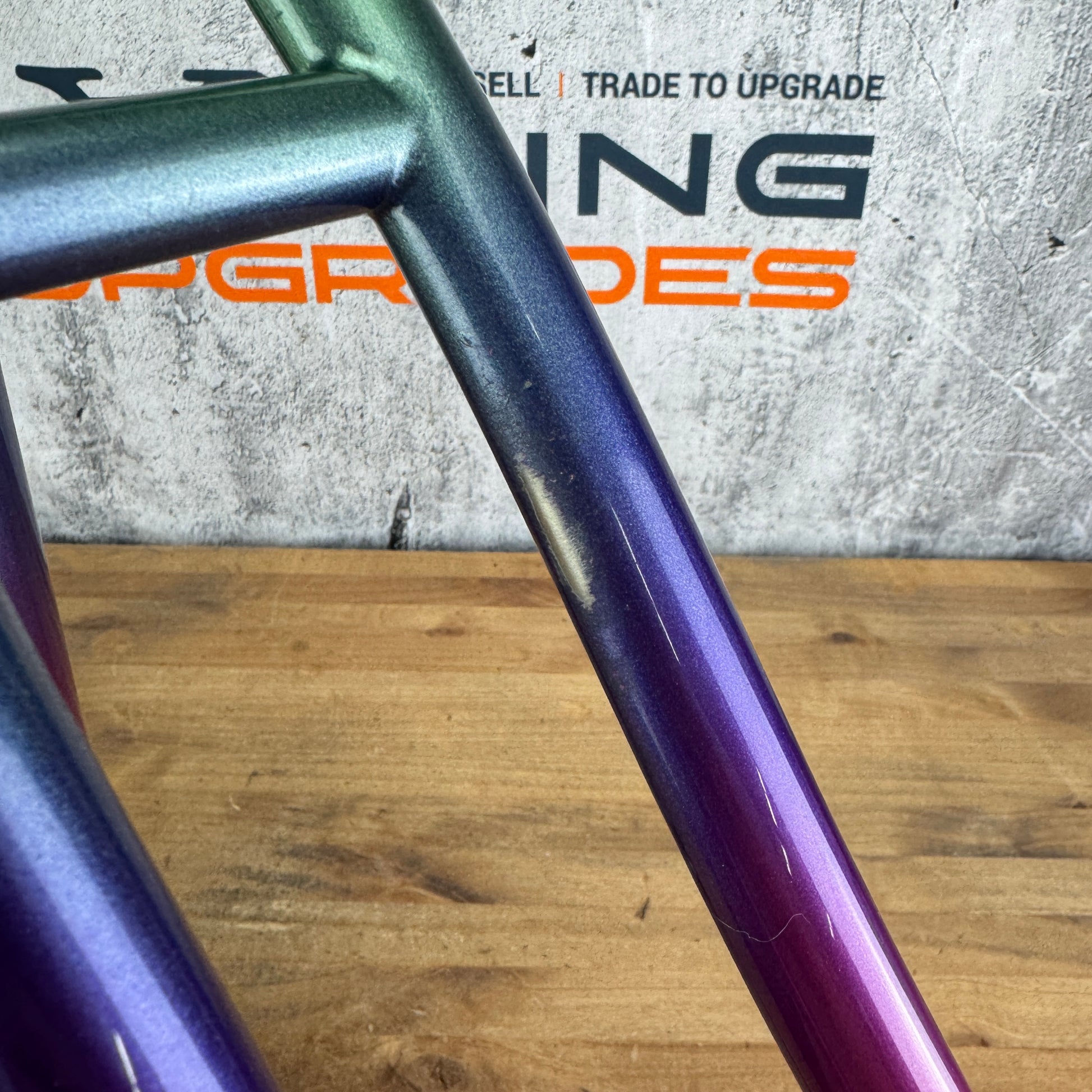

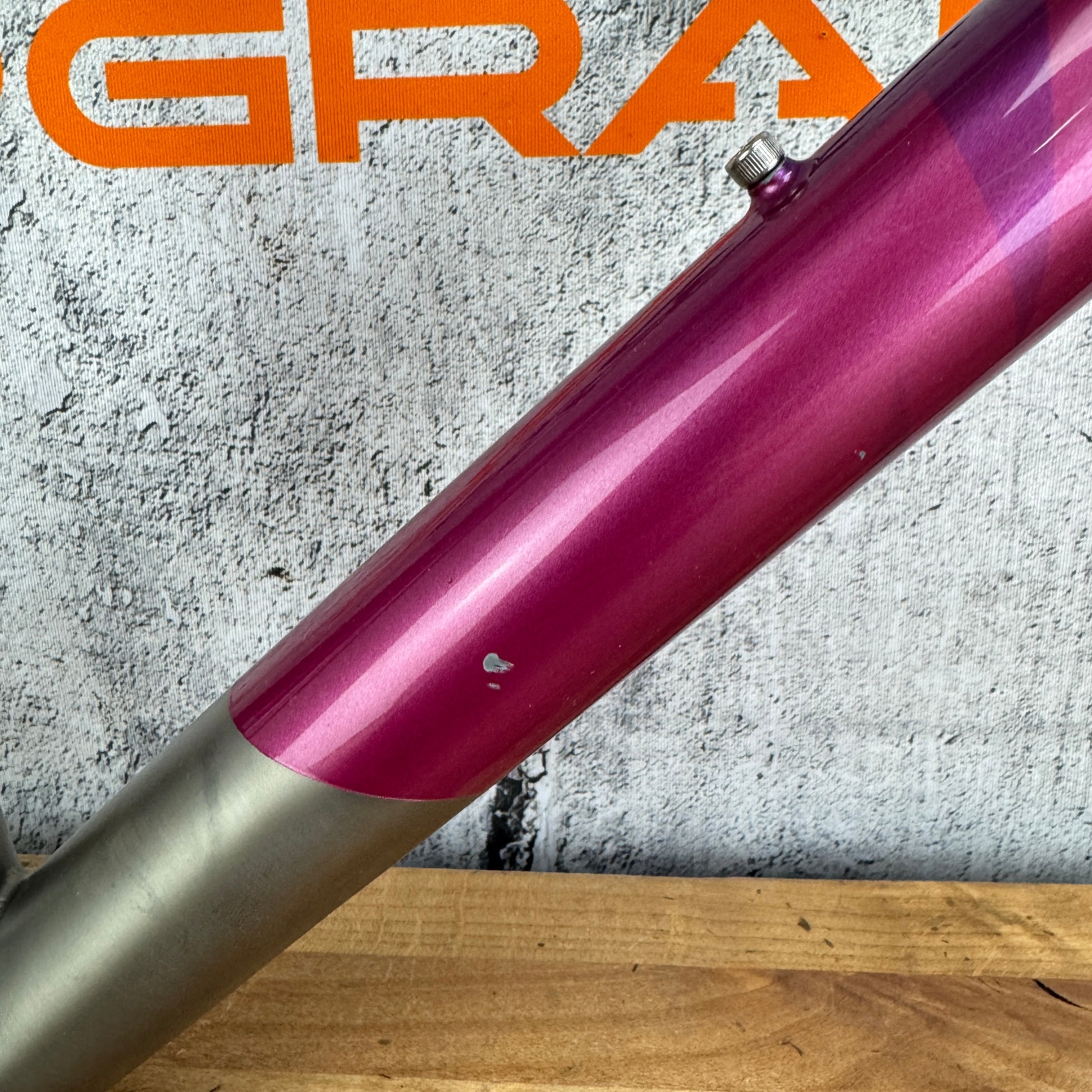

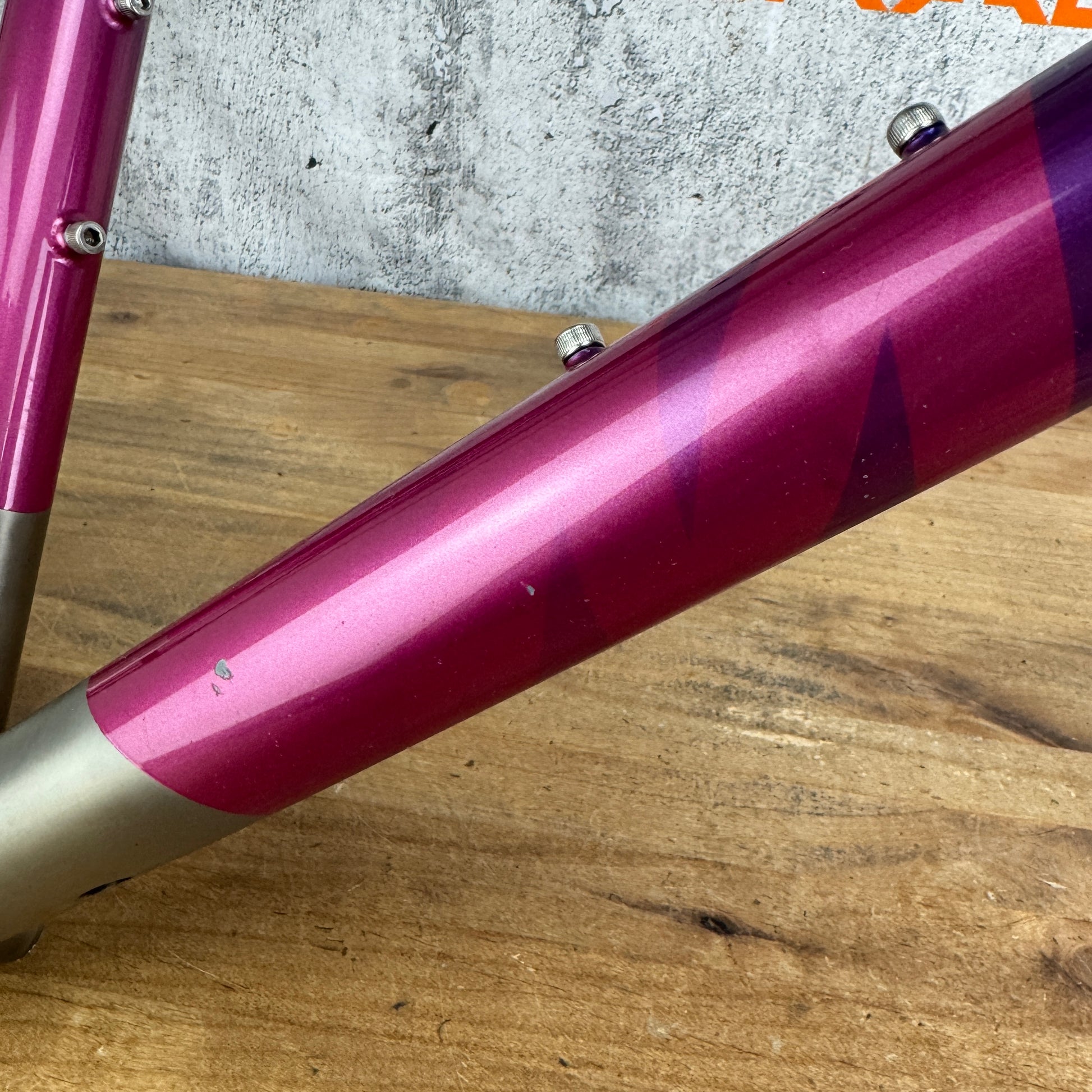

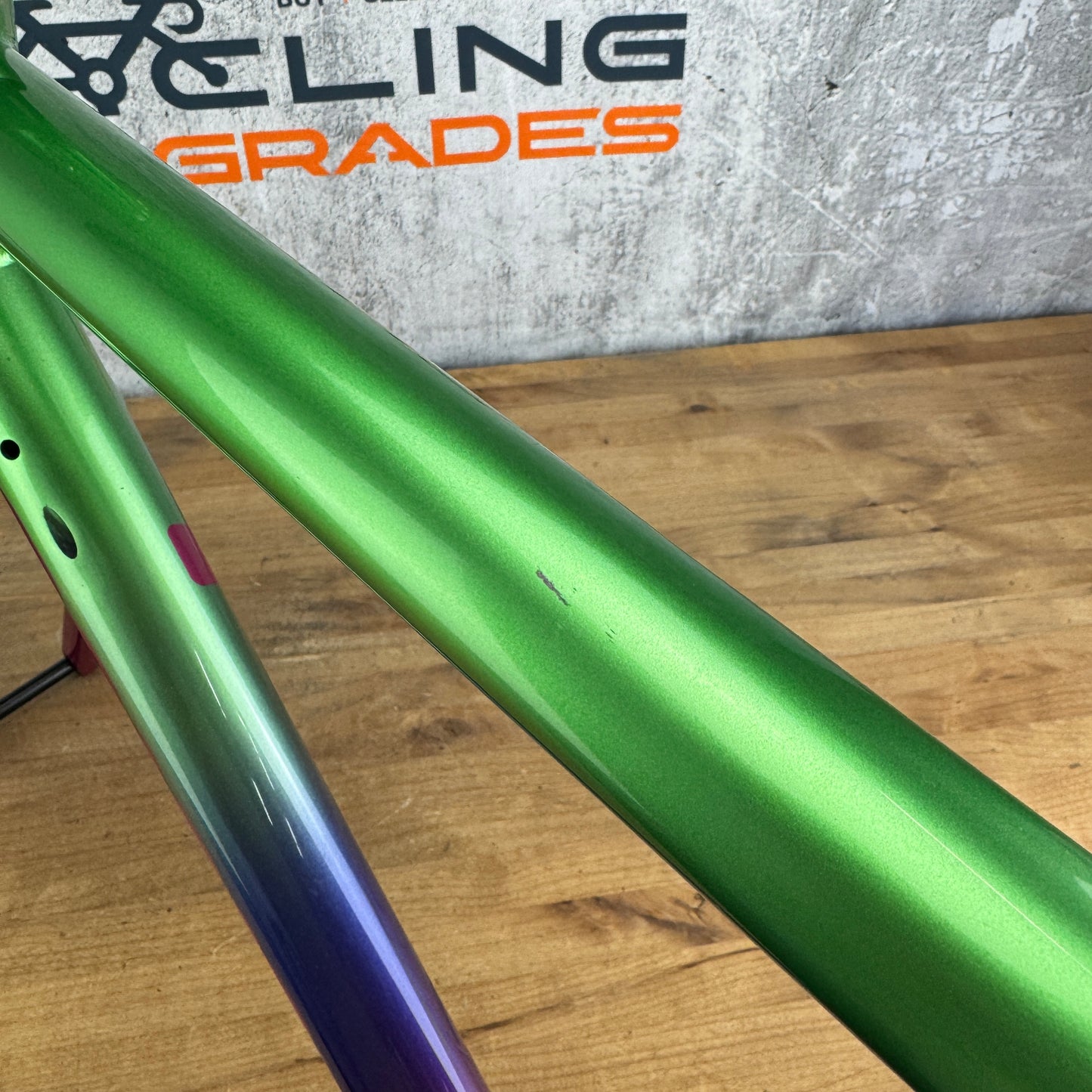

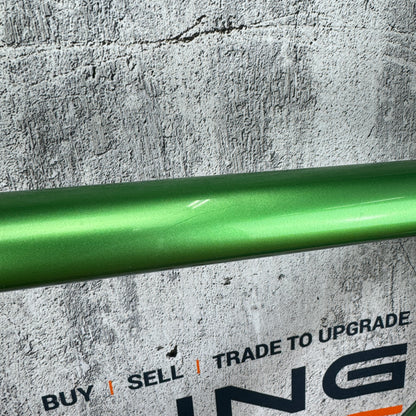

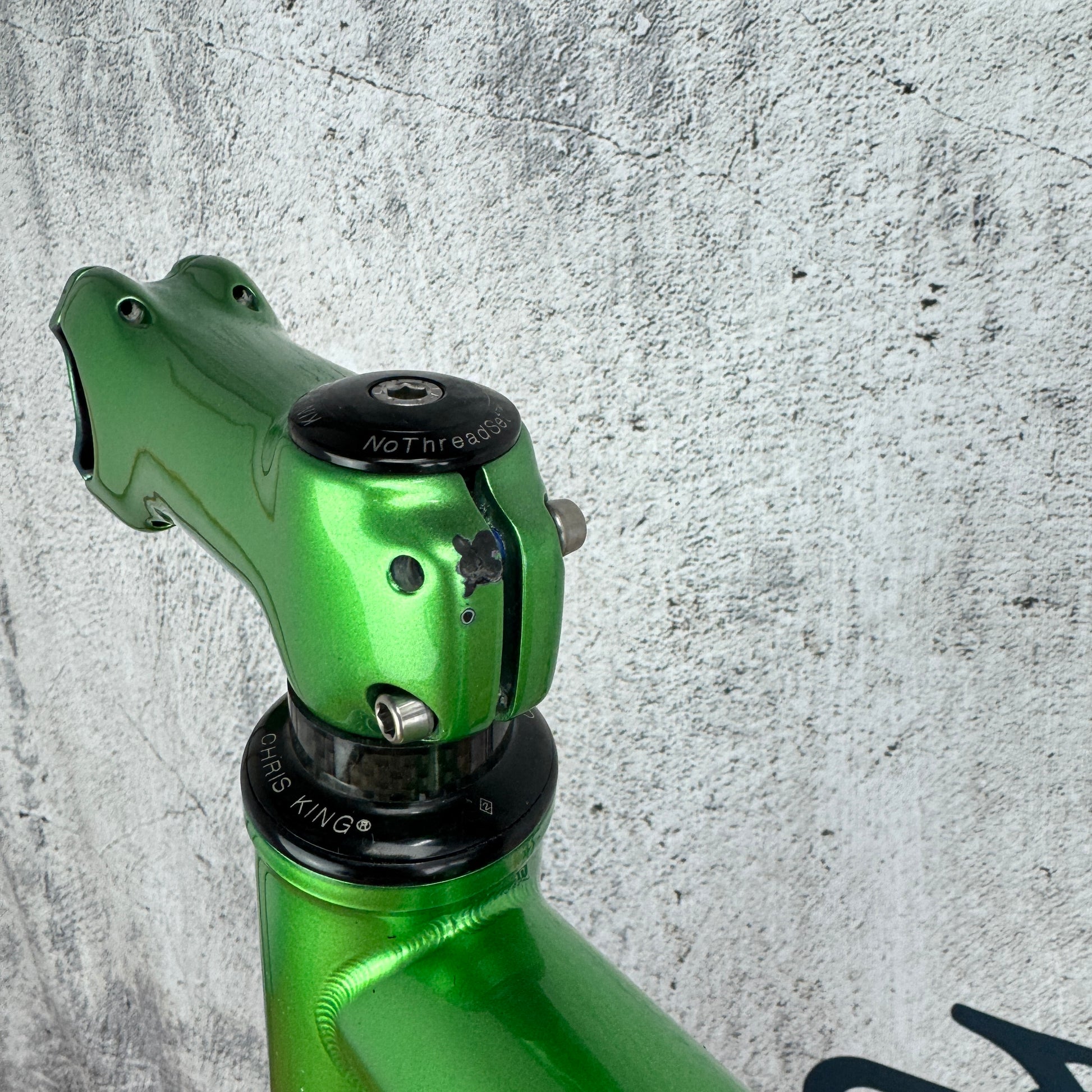

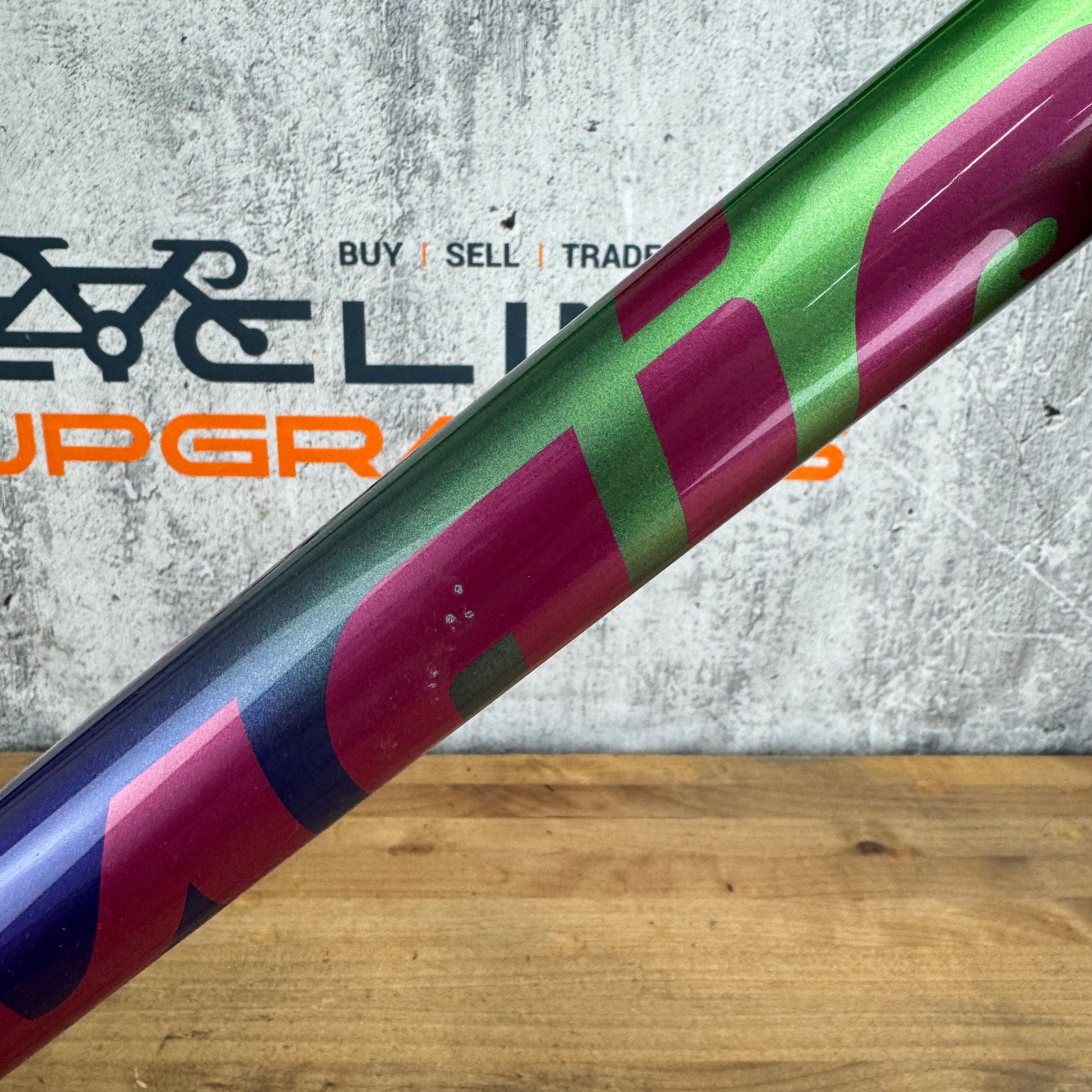

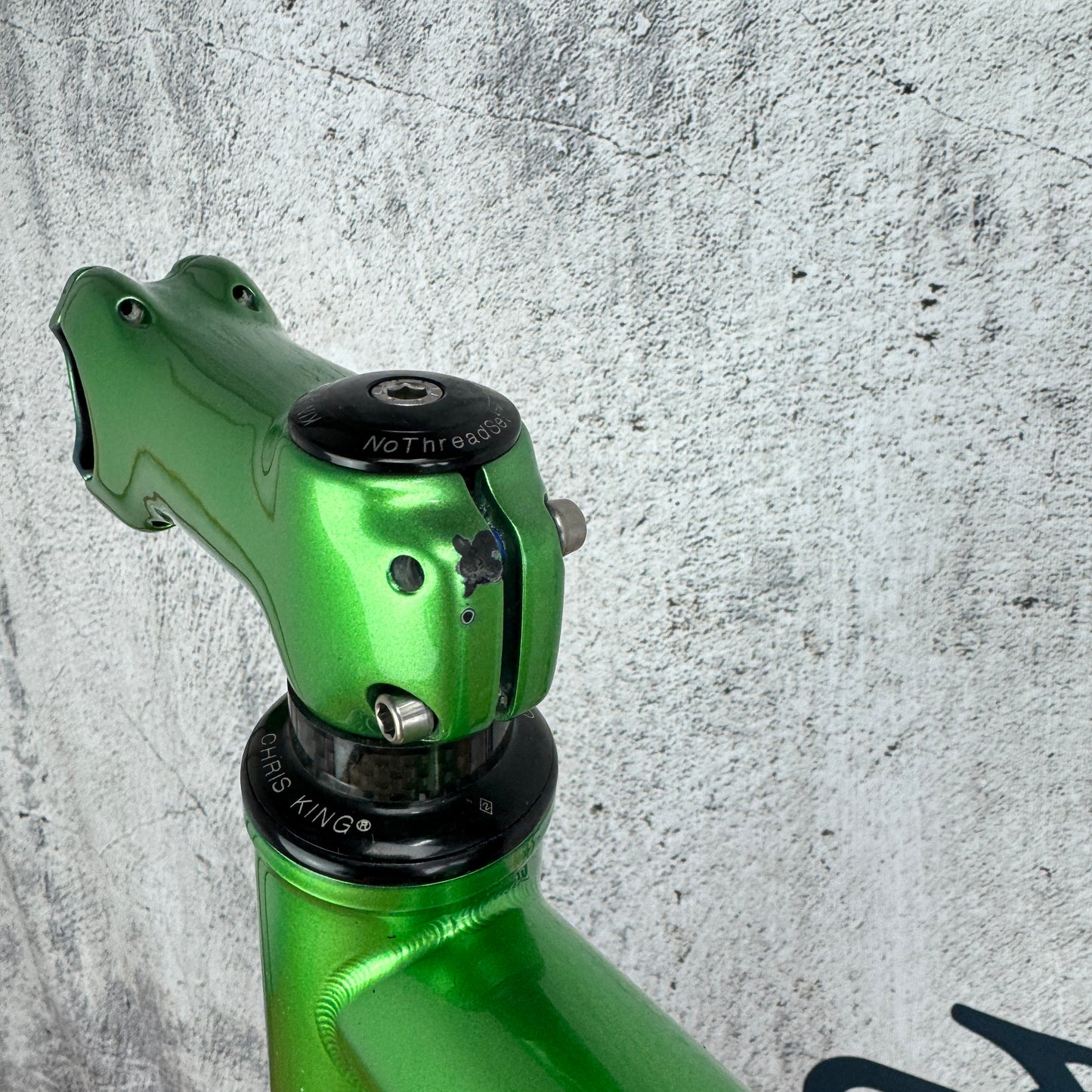

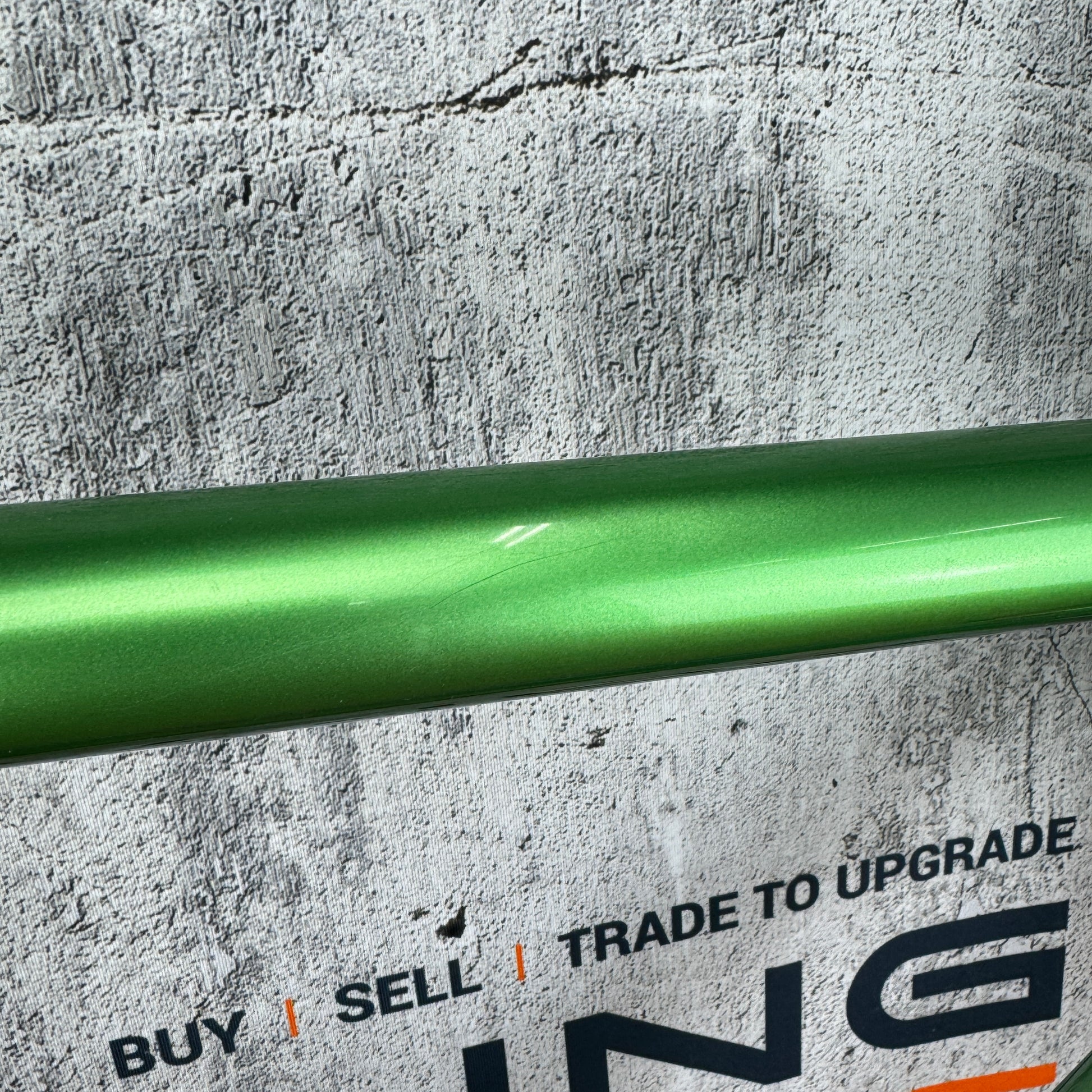

Condition: No cracks or carbon defects were identified through a thorough visual inspection. The cosmetic imperfections to highlight include: Some light paint chips and a light scratch can be seen on the top tube and down tube, see pictures #11-15. There is a scuff on the back side of the stem, see picture # 16. Some light wear and marks can be seen on the seatpost, see. pictures #17-18. Some light tire rub can be seen in the rear triangle, see picture #19. Other typical imperfections can be seen in the dropouts. We have attempted to show all noticeable imperfections in specific close-up pictures, however other minor imperfections and light signs of use may exist.
Groupset Compatibility: Frame can be setup for eTap or Di2 groupsets. This frame is not compatible with mechanical cable setups. For Di2 setups this frame is not compatible with a Di2 front derailleur (no cable exit hole for Di2 cable on the seatpost).Â

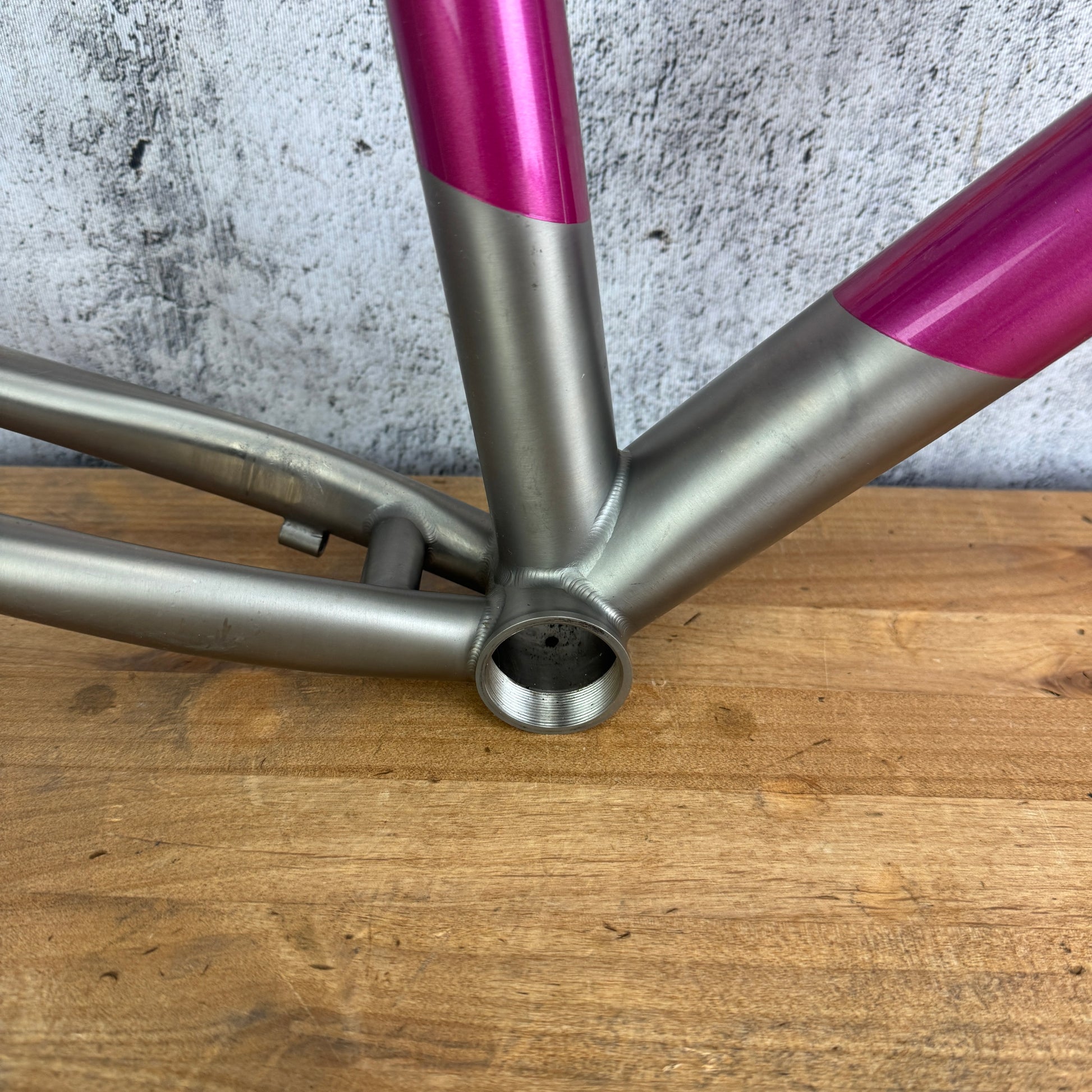

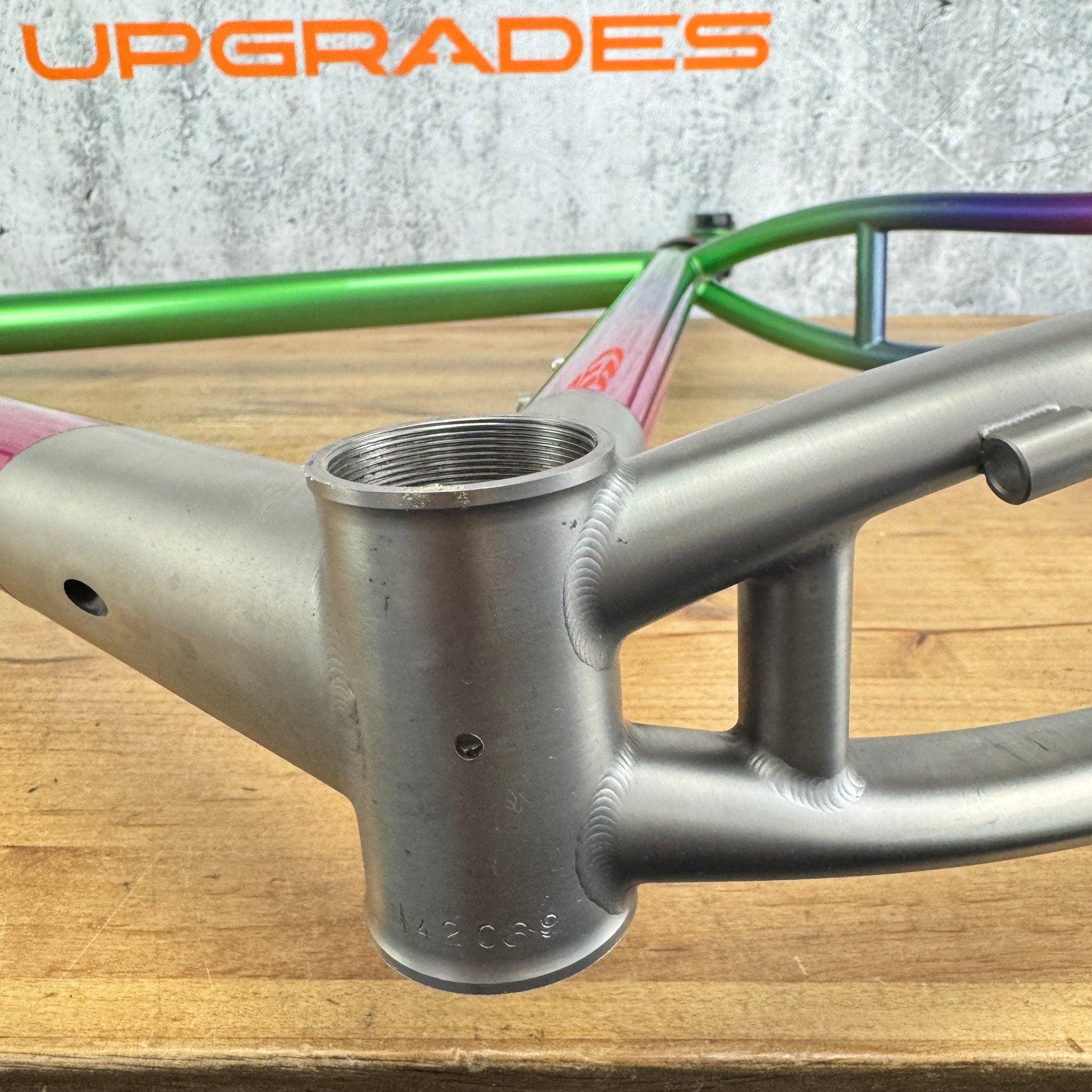

Bottom bracket: BSA (English) bottom bracket shell type. No bottom bracket currently installed or included. We have a handful of lightly used basic bottom brackets on hand, let us know what you need and we can try to ship the frame with the right bottom bracket installed. Additionally, CyclingUpgrades is a Wheels Manufacturing, and a Ceramicspeed Authorized Dealer, if you prefer to have the frame setup with a certain Wheels Manufacturing, or Ceramicspeed bottom bracket we can add and install it at an additional cost before shipping - message with inquiries/requests.
Steerer Length: 50mm of steerer above the top tube. 10mm of spacers below the stem plus the headset cover. We may have an option available to safely extend the steerer tube by 15-18mm - message us for additional details.
Dropout Spacing: Front 12mm Thru Axle x 100mm, Rear 12mm Thru Axle x 142mm.
Weight: 2695 grams as pictured.
What's included: Frame, fork, headset, seatpost, stem, rear derailleur hanger, thru axles
