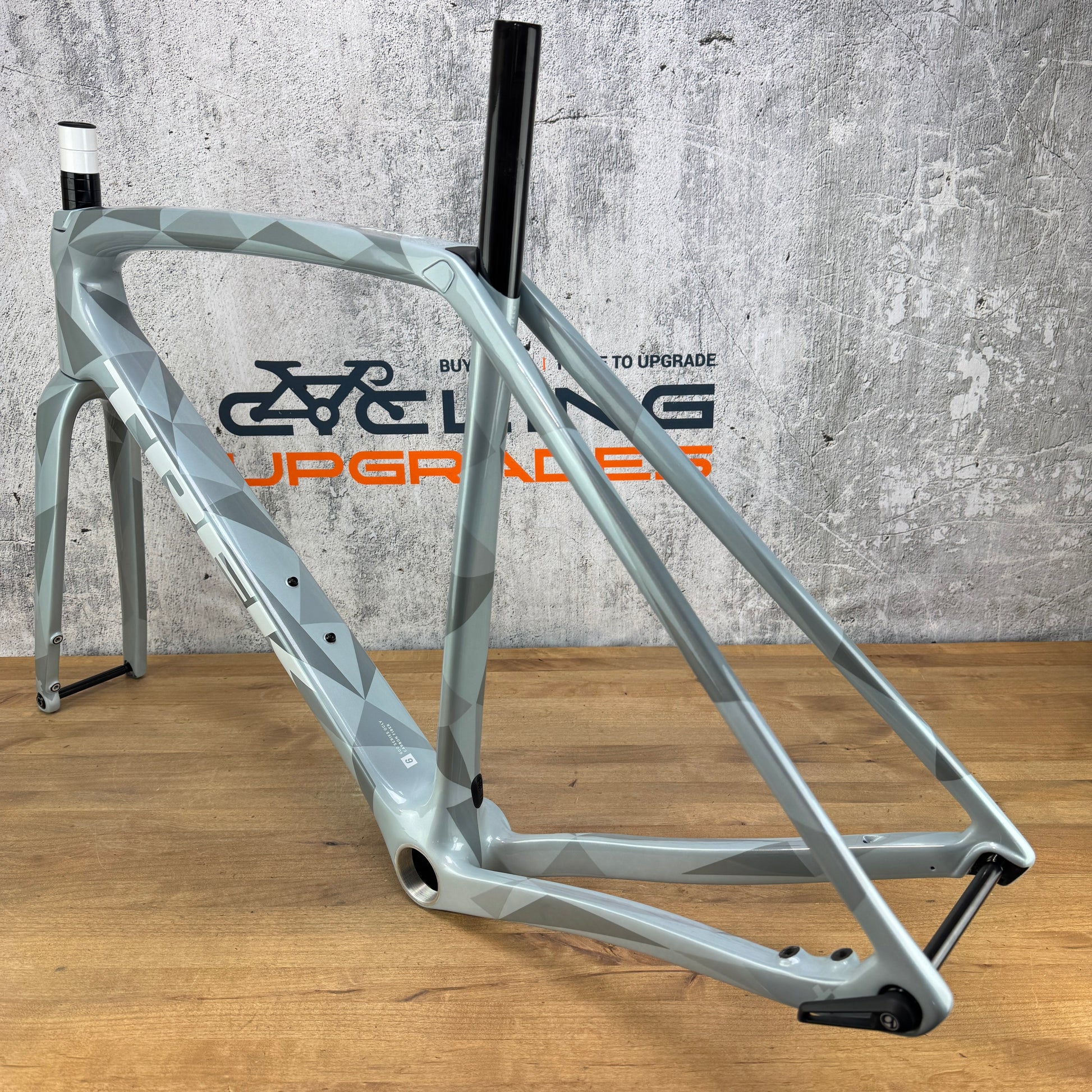

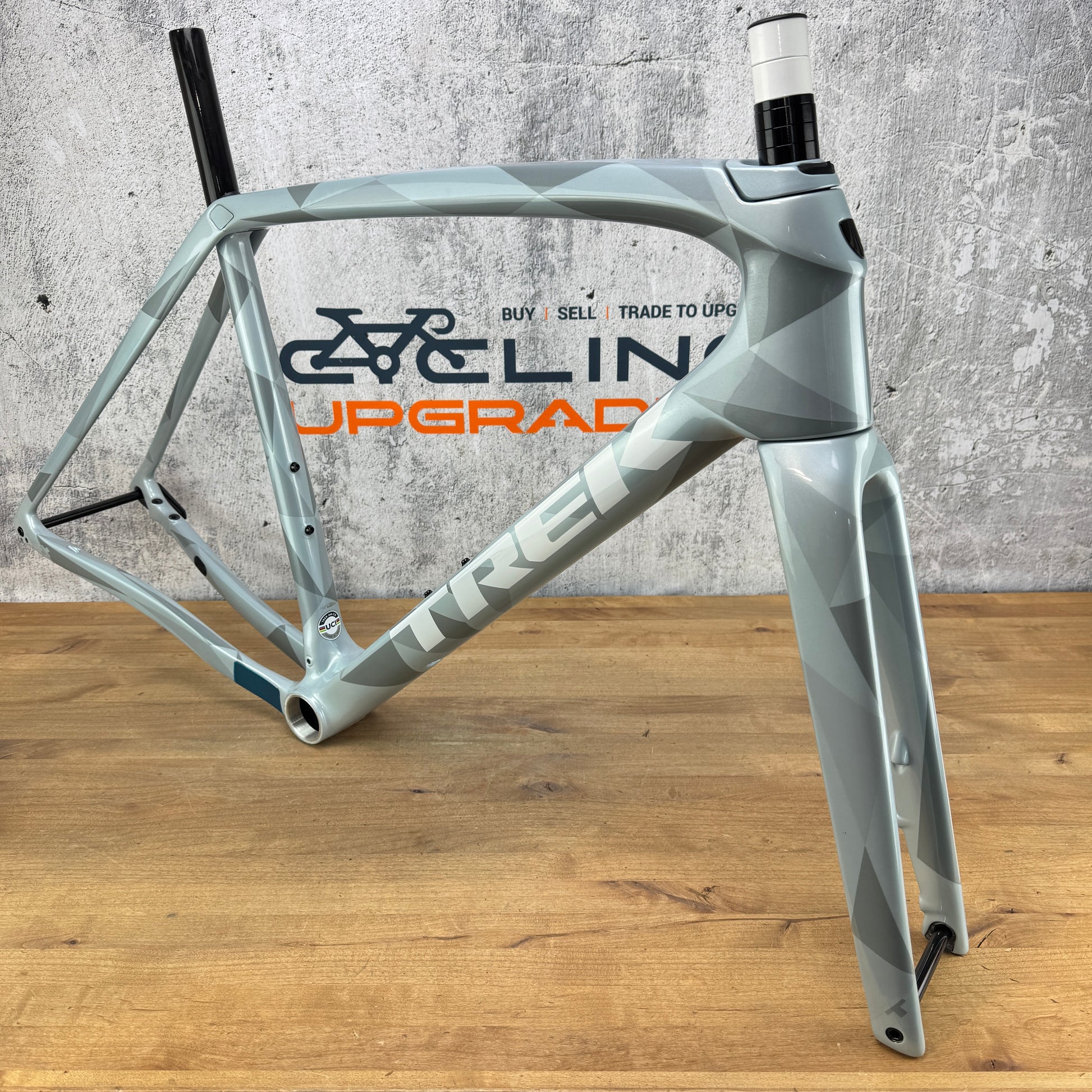

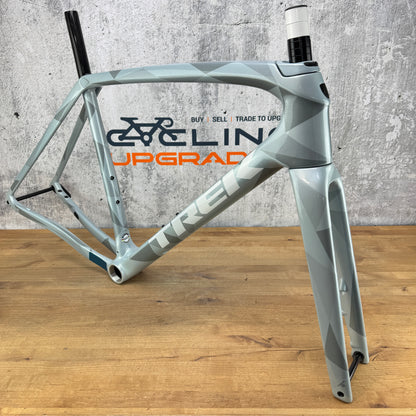

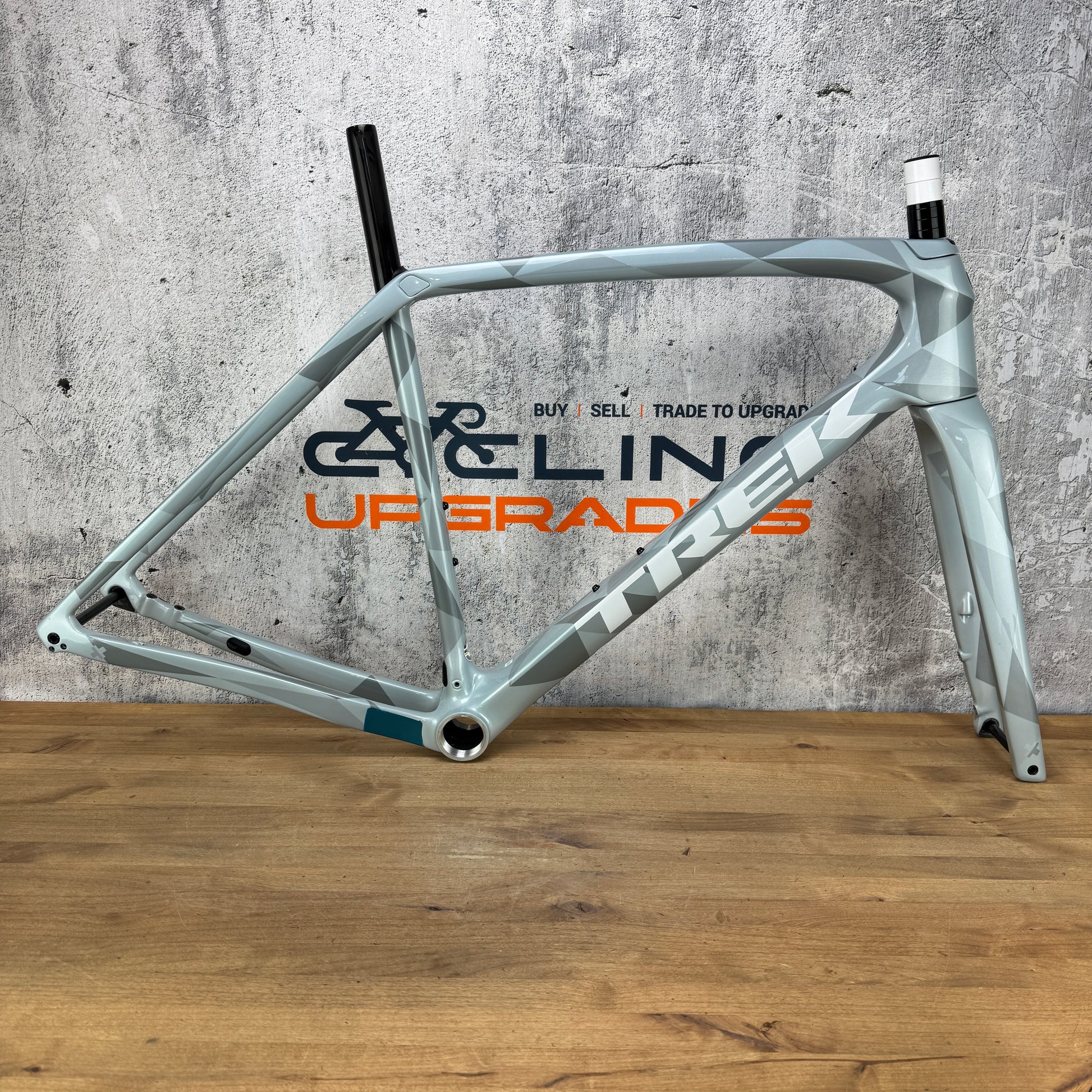

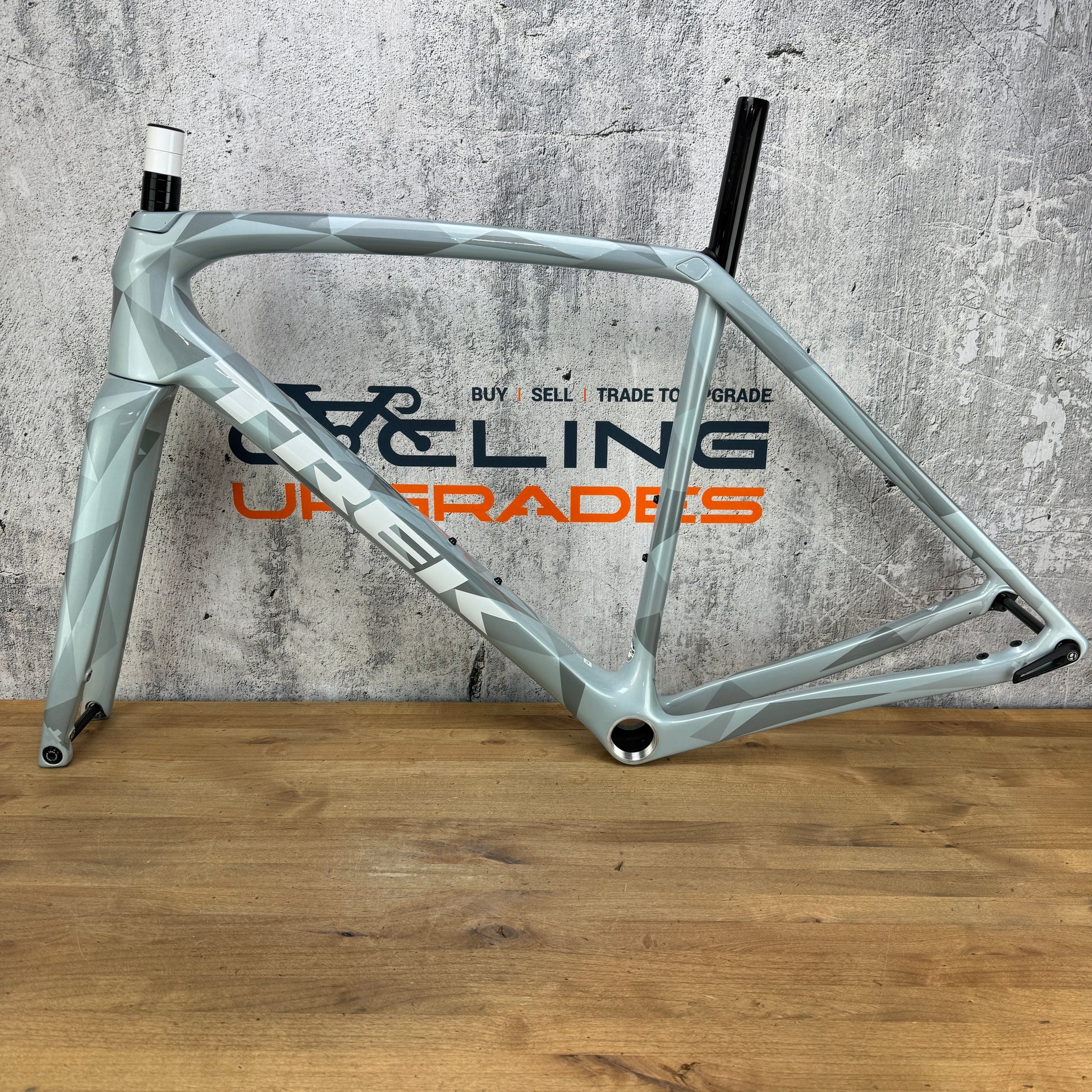

Frame: 2025 Trek Boone
Color: Plasma Grey Pearl
Brake type: Flat-Mount disc brake.
Size: 56cm. 558mm Effective Top Tube. Stack - 580mm. Reach - 387mm. Head tube 157mm. Recommend buyer confirm and research full geometry online.

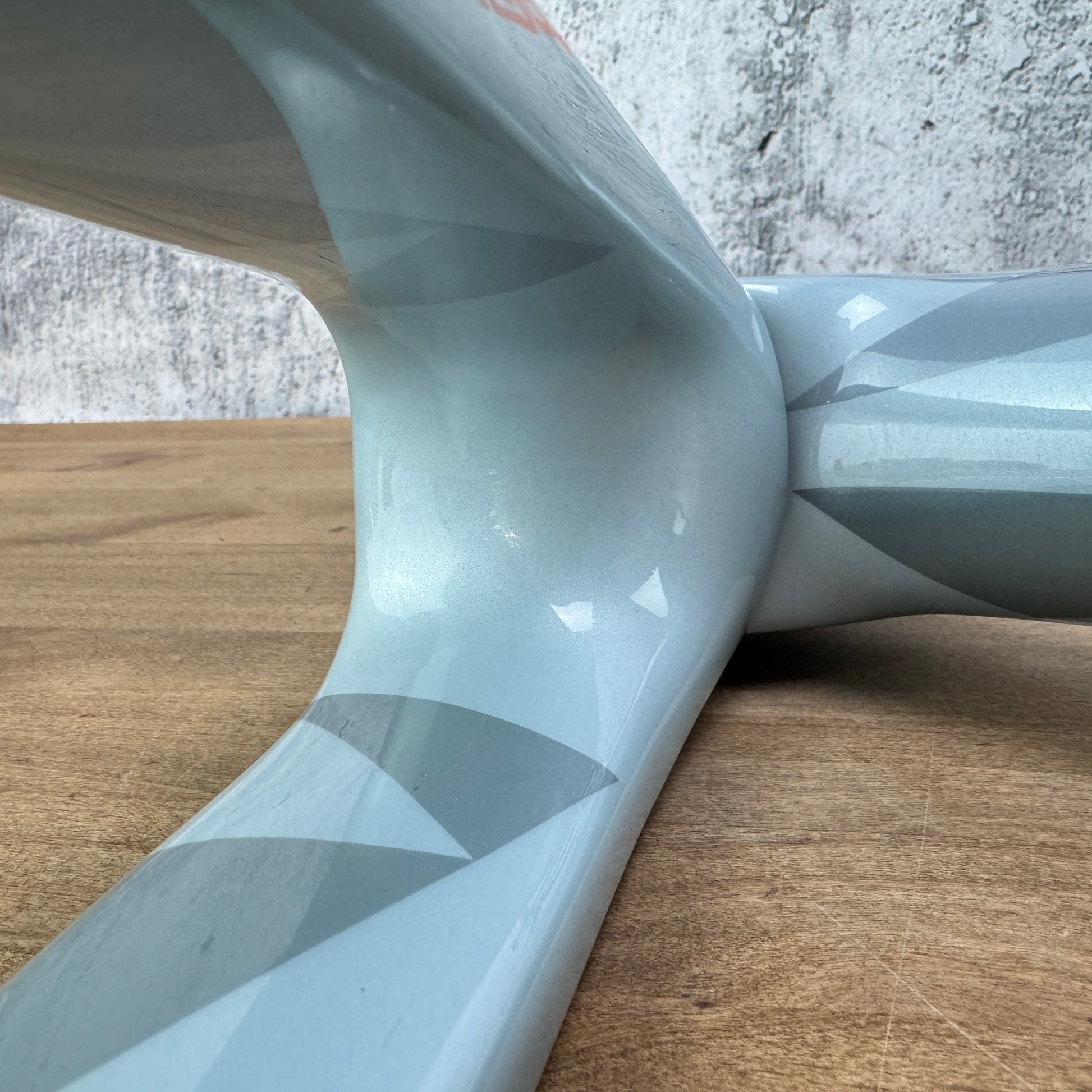

Condition: This frame is in mint condition. There are no imperfections to specifically picture, only very minor imperfections and light signs of use may exist.
Groupset compatibility: Frame can be setup for Di2, EPS, eTap, or mechanical groupsets. This frame was previously setup with an eTap groupset. Other frame/cable stops may be needed for Di2 or mechanical setups. Mechanical cable guide below the bottom bracket intact.

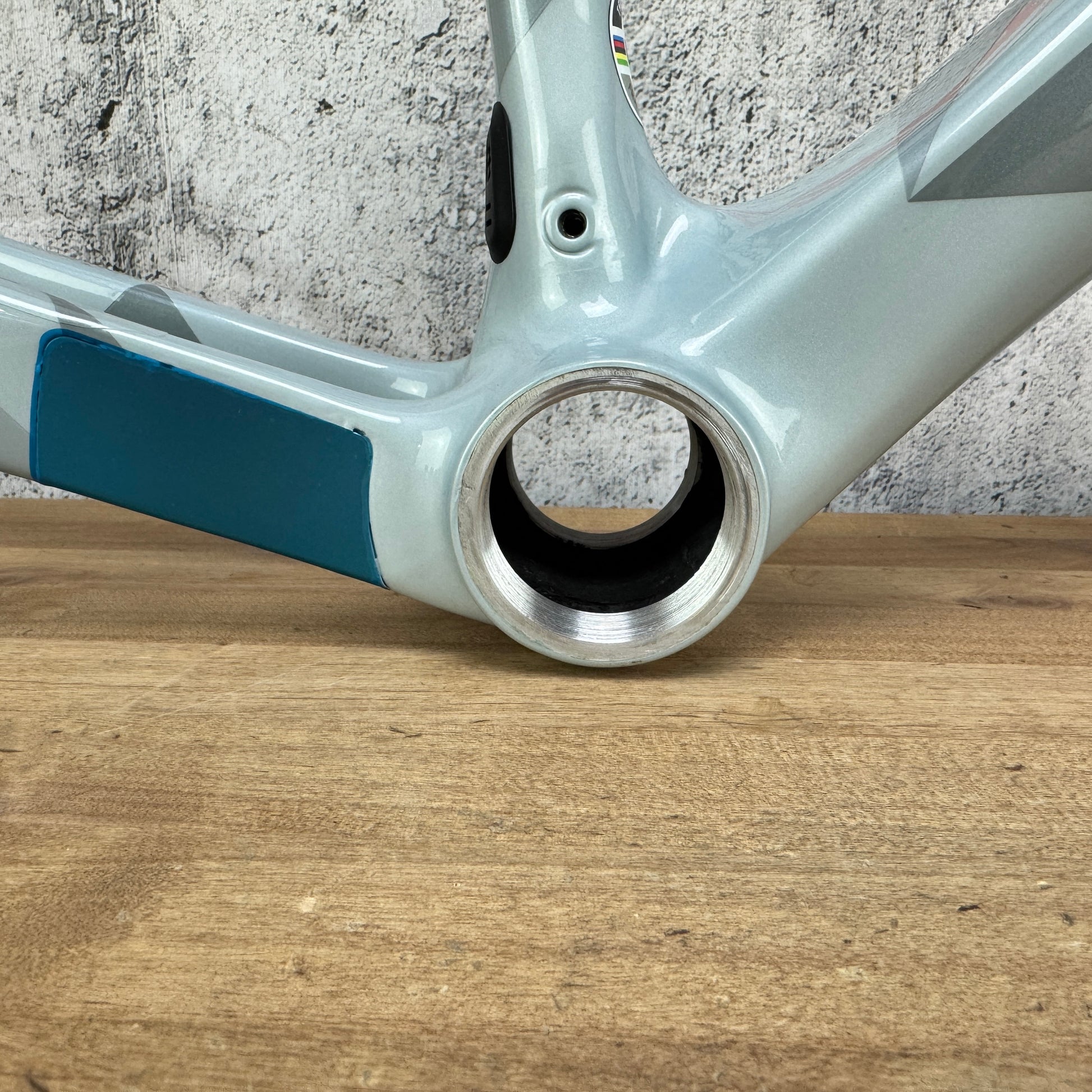

Bottom bracket: Threadfit T47/86 bottom bracket shell type. No bottom bracket currently installed or included. We have a handful of lightly used basic bottom brackets on hand, let us know what you need and we can try to ship the frame with the right bottom bracket installed. Additionally, CyclingUpgrades is a Ceramicspeed and Cane Creek Authorized Dealer, if you prefer to have the frame setup with a certain bottom bracket we can add and install it at an additional cost before shipping - message with inquiries/requests.

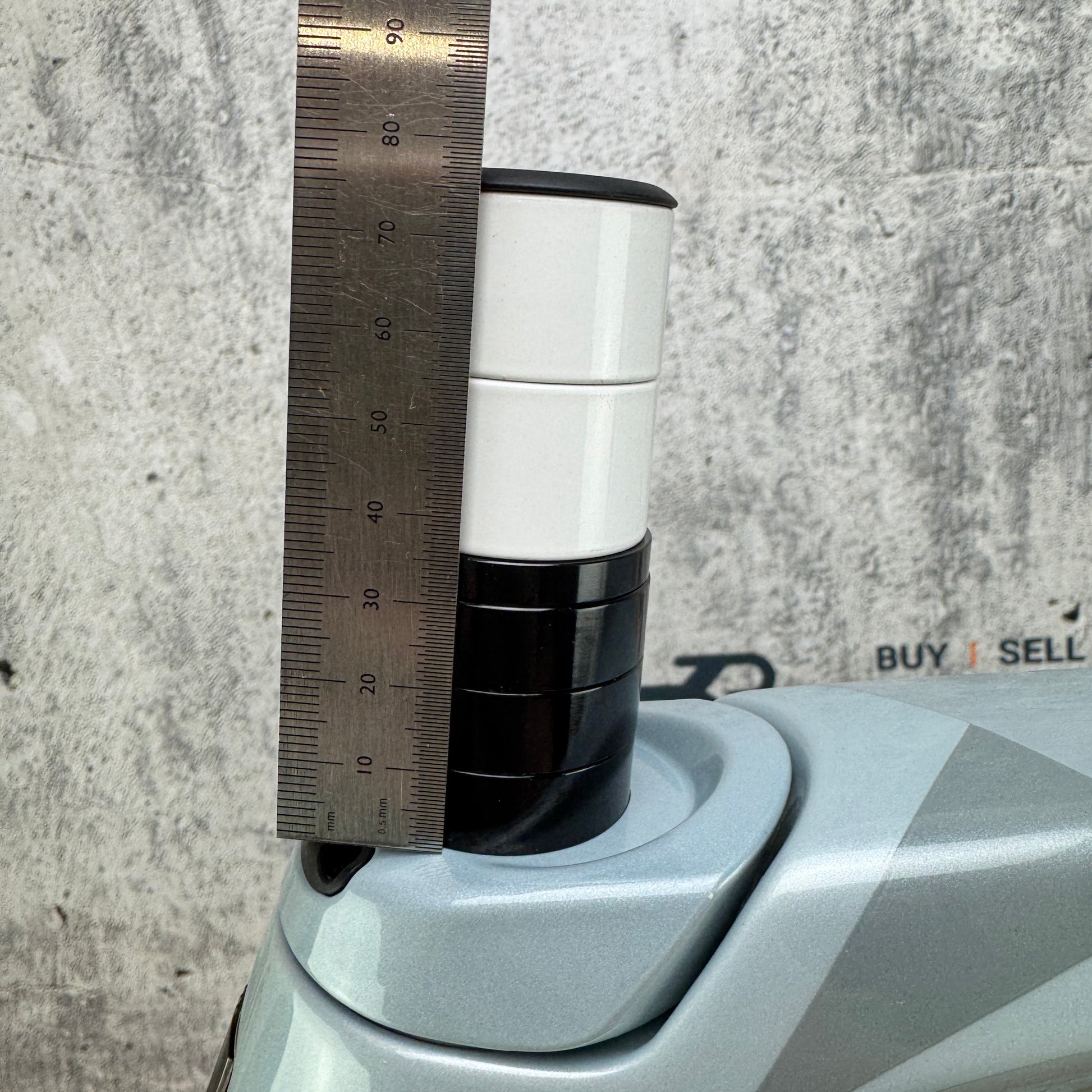

Steerer length: 75mm of steerer above the top tube. 35mm of spacers below the stem plus the headset cover. We may have an option available to safely extend the steerer tube by 15-18mm - message us for additional details.
 Seatpost: Seatmast height is 630mm from center of bottom bracket. No seatmast cap included.Â
Dropout Spacing: Front 12mm Thru Axle x 100mm, Rear 12mm Thru Axle x 142mm.
Weight: 1835 grams as pictured with headset, thru axles, frame hardware, etc.Â
What's included: Frame, fork, headset, bottom bracket, thru axles, rear derailleur hanger (not pictured but included)
