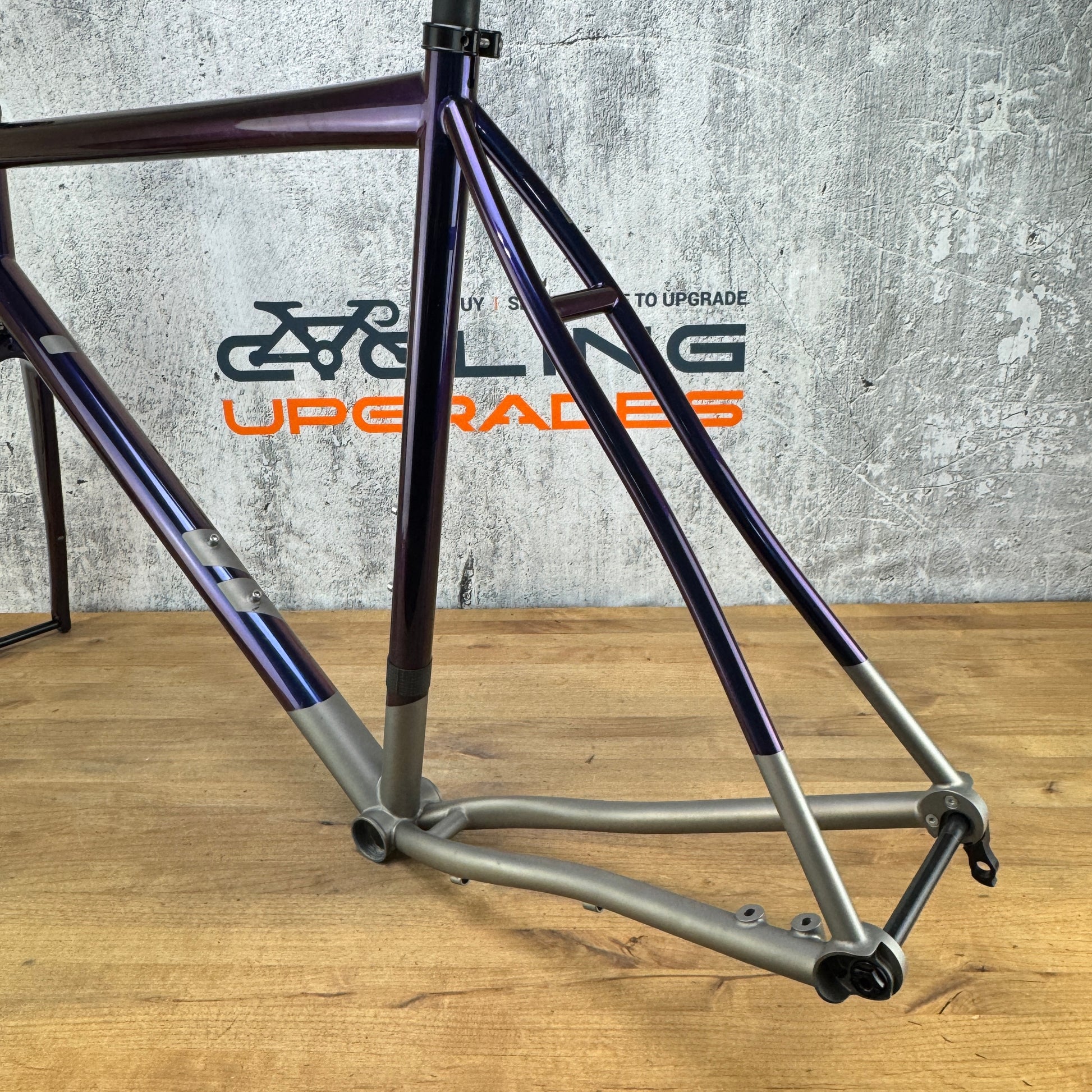

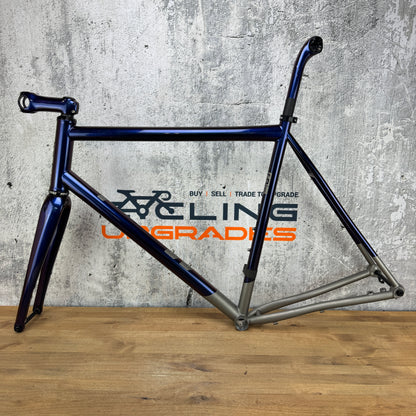

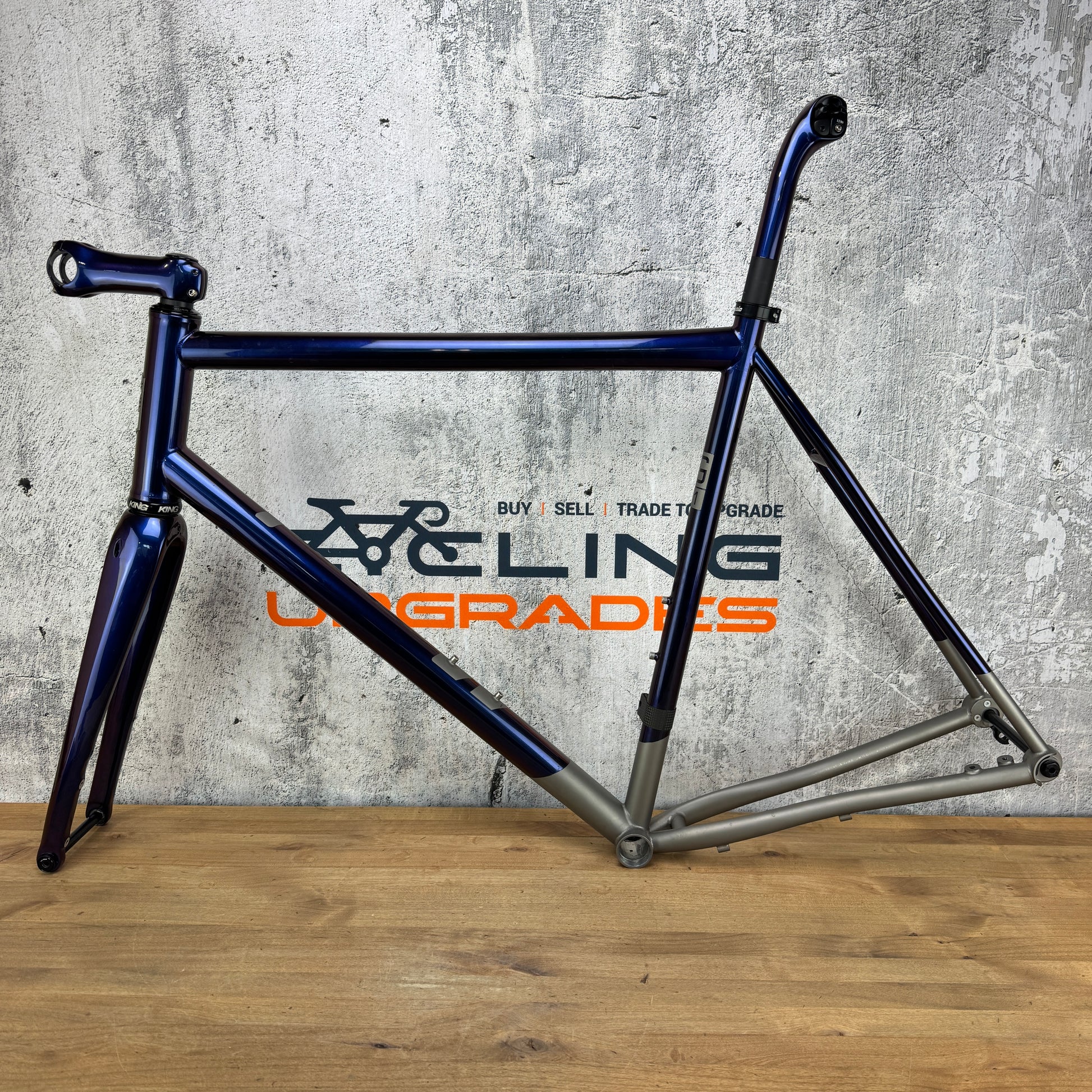

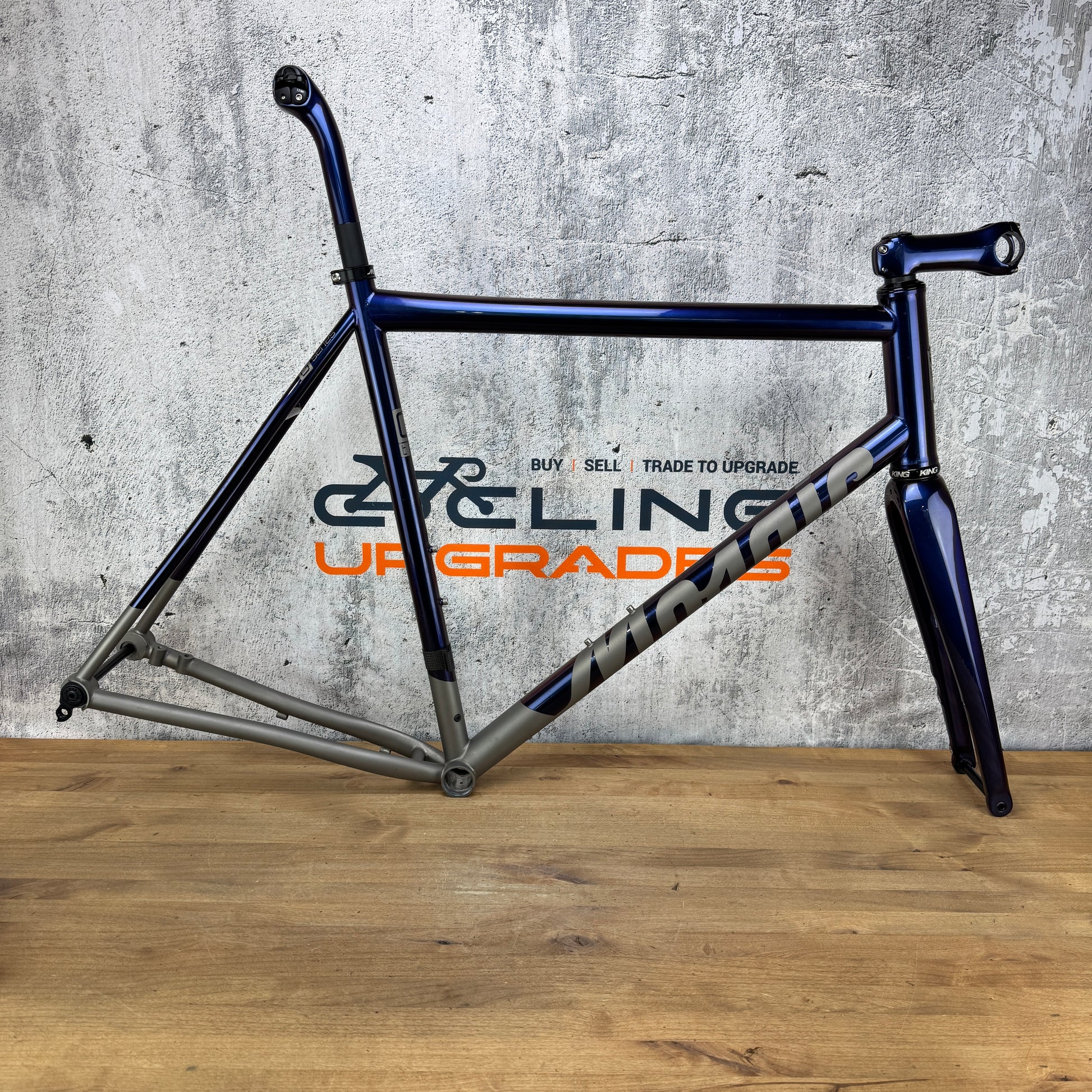

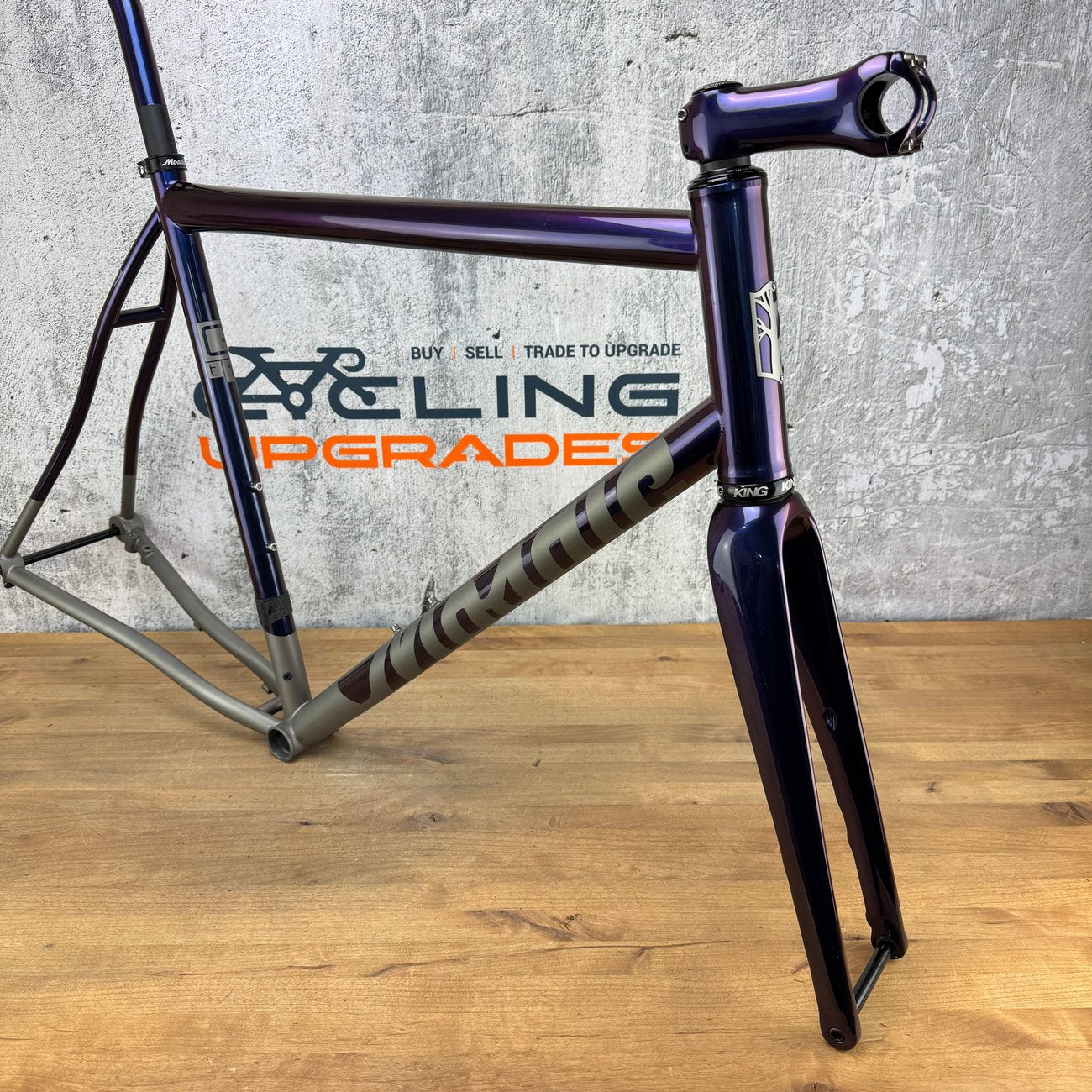

Frame: 2025 Mosaic GT-1 AR
Color: Chameleon
Brake type: Flat-Mount disc brake.

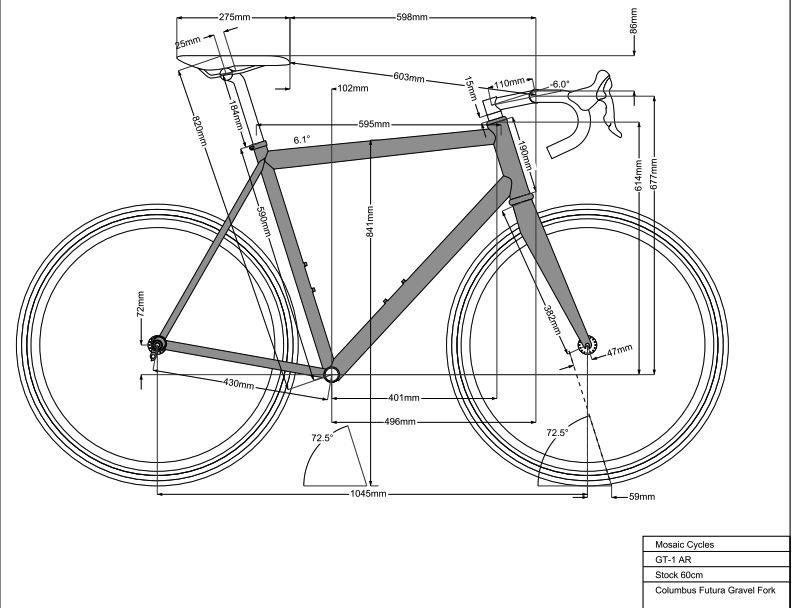

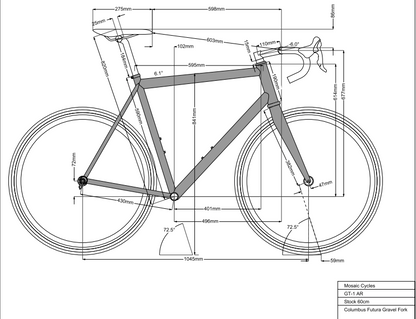

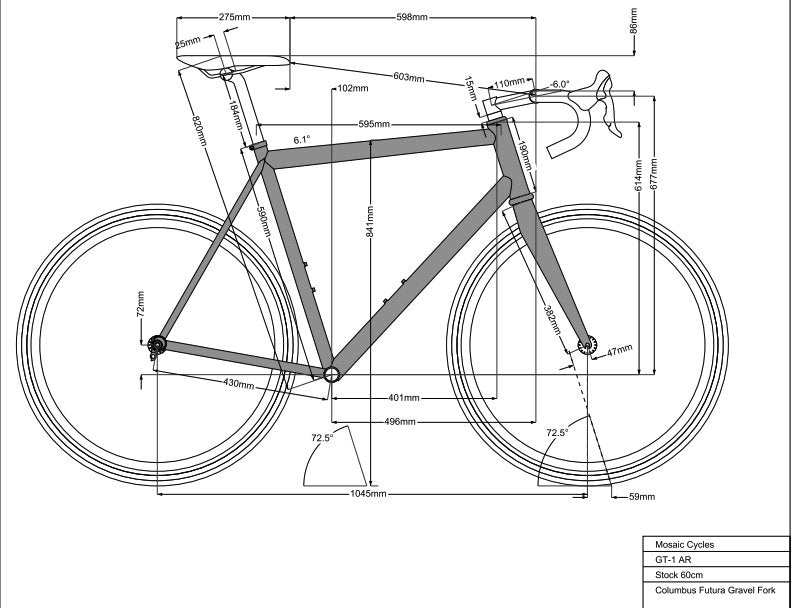

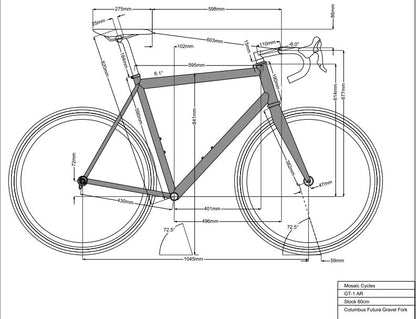

Size: 60cm. 595mm Effective Top Tube. 614mm Stack. Head tube 190mm. A full geometry chart is shown in the last picture

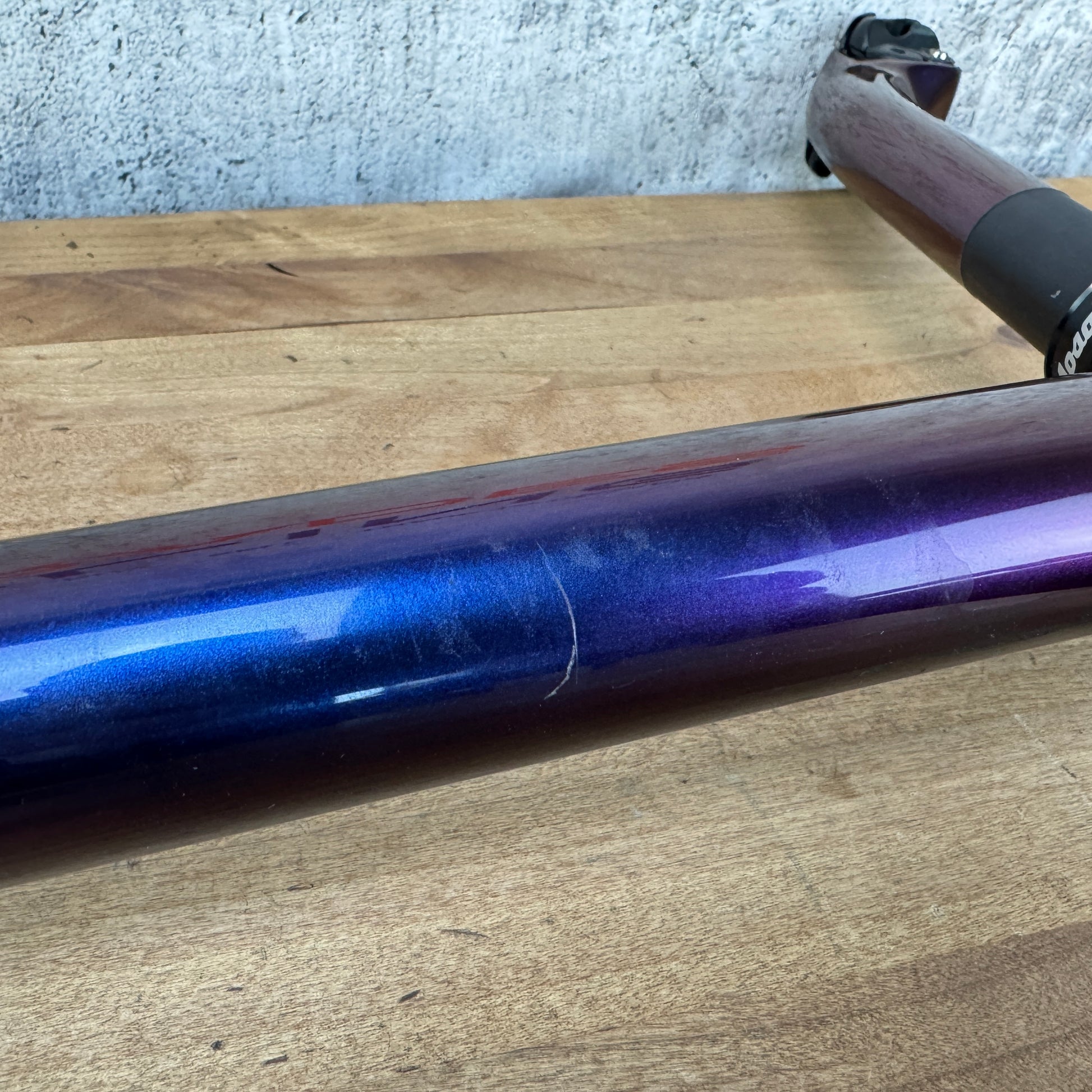

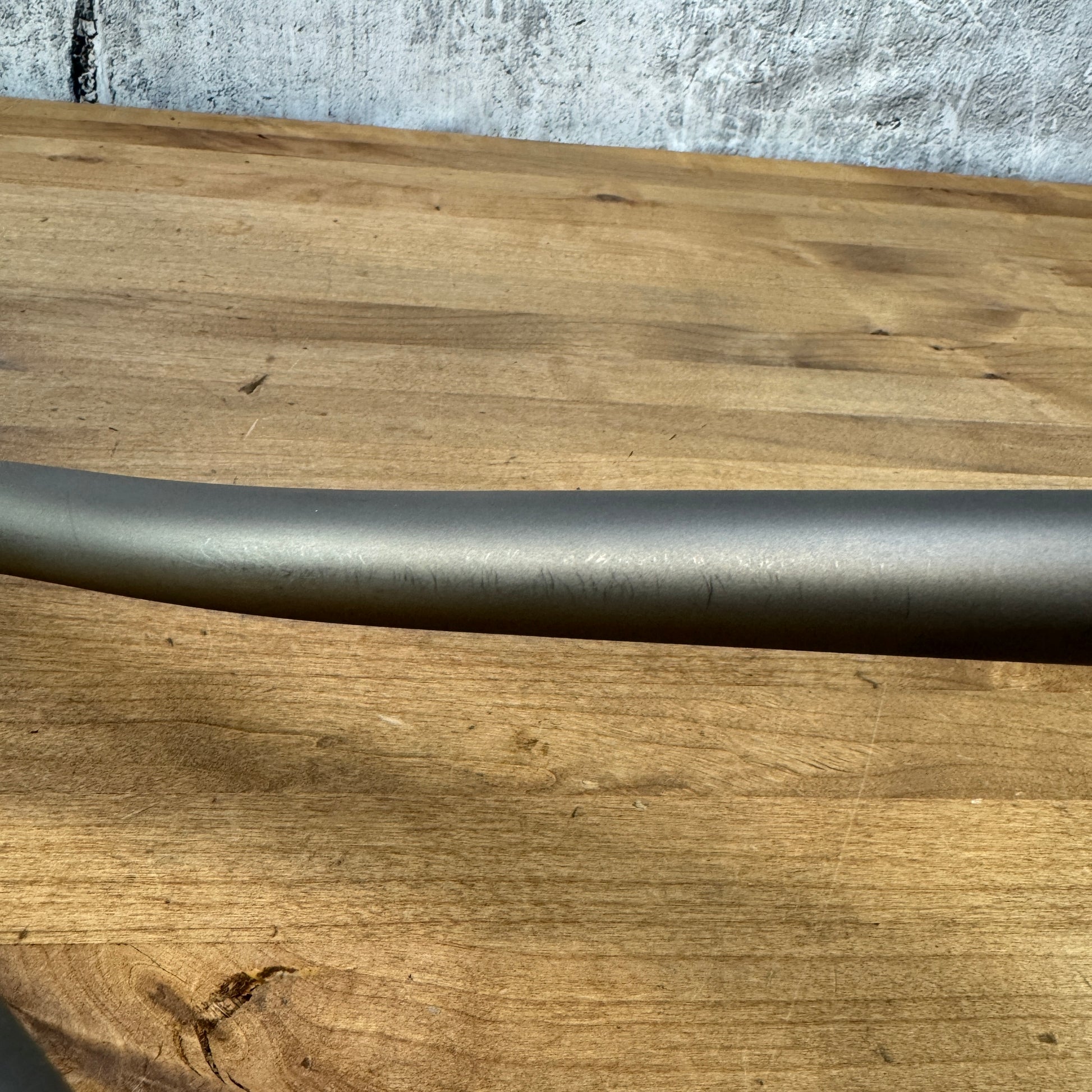

Condition: No cracks or defects were identified through a thorough visual inspection. The cosmetic imperfections to highlight include: some light scratches on the chainstay shonw in pic #9. We have attempted to show all noticeable imperfections in specific close-up pictures, however other minor imperfections and light signs of use may exist.
Groupset compatibility: Frame can be setup for Di2, EPS, or eTap groupsets. This frame was previously setup with an eTap groupset. Other frame/cable stops may be needed for Di2 or EPS setups. This frame is not compatible with mechanical groupsets.

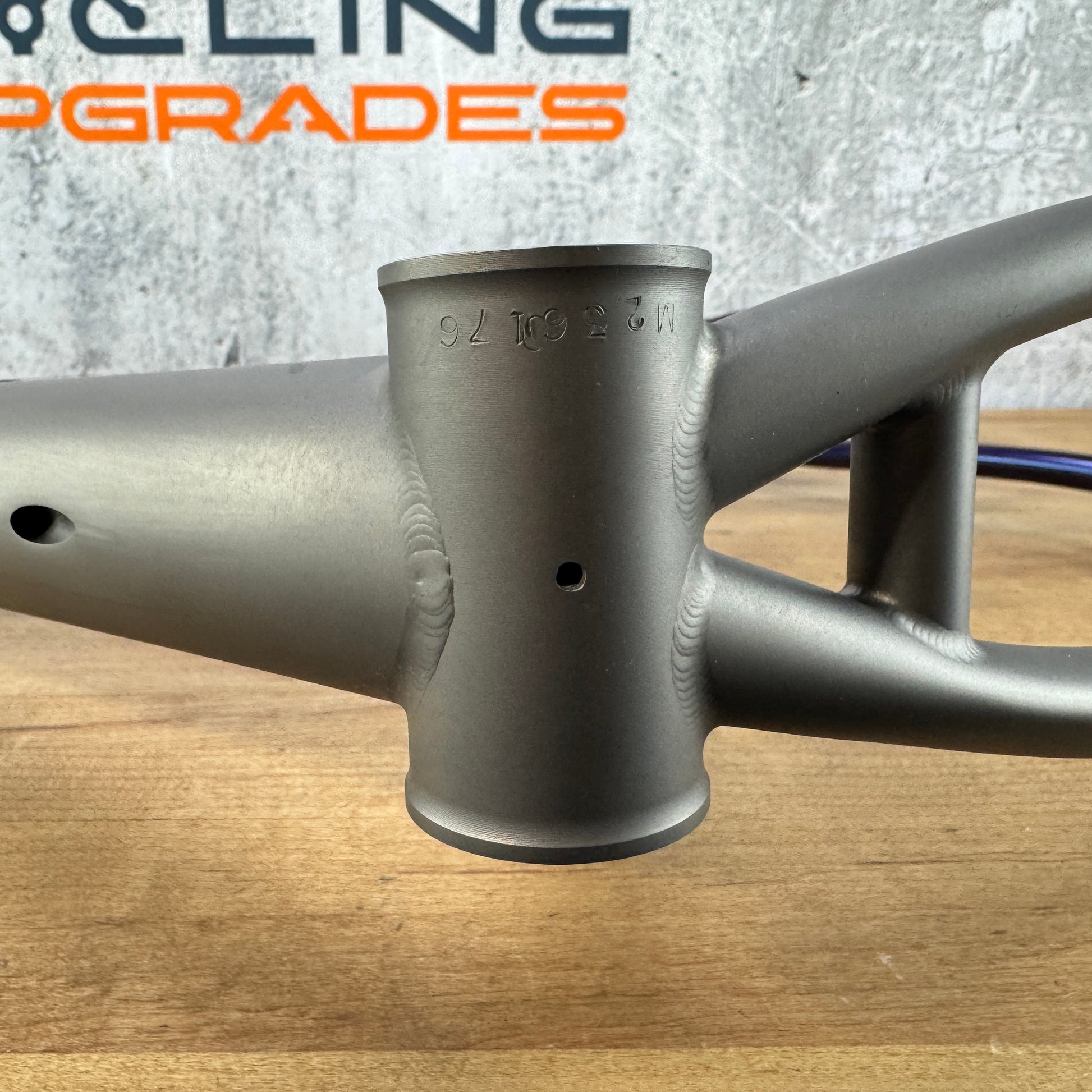

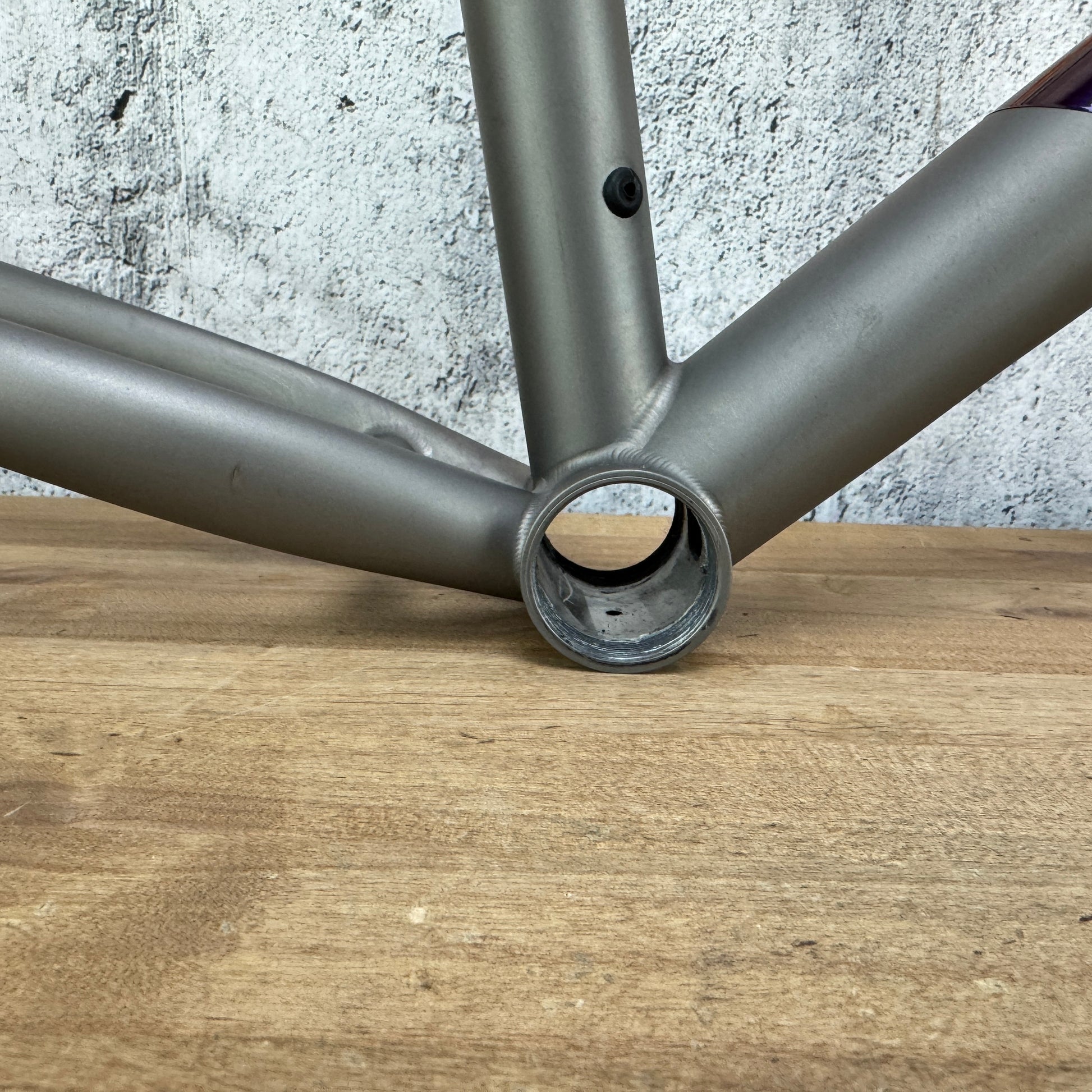

Bottom bracket: English threaded bottom bracket shell type. No bottom bracket currently installed or included. We have a handful of lightly used basic bottom brackets on hand, let us know what you need and we can try to ship the frame with the right bottom bracket installed. Additionally, CyclingUpgrades is a Ceramicspeed and Cane Creek Authorized Dealer, if you prefer to have the frame setup with a certain bottom bracket we can add and install it at an additional cost before shipping - message with inquiries/requests.

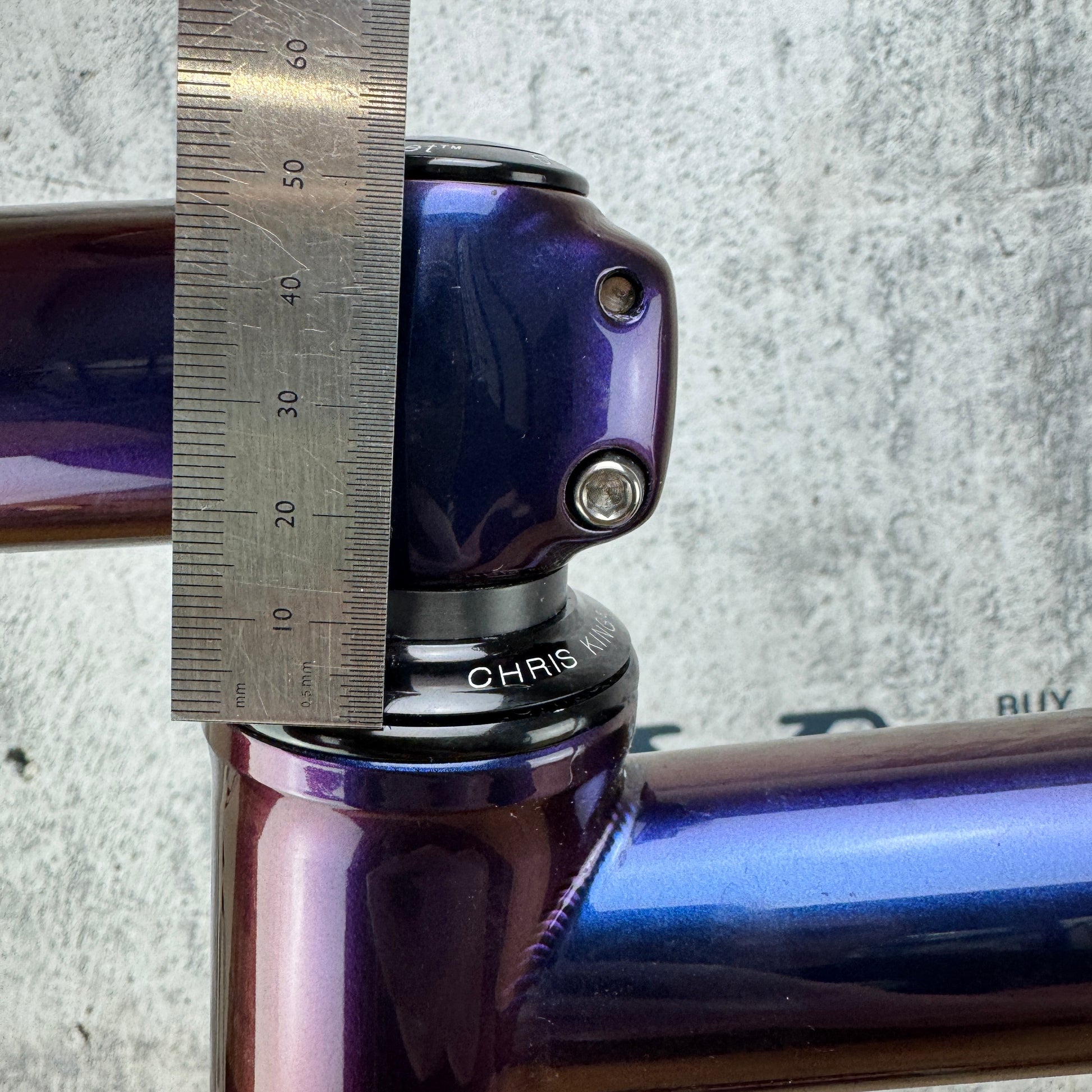

Steerer length: 55mm of steerer above the top tube. 5mm of spacers below the stem plus the headset cover. We may have an option available to safely extend the steerer tube by 15-18mm - message us for additional details.
Seatpost: Paint matched enve carbon setback seatpost included
Headset: Chris King black headset

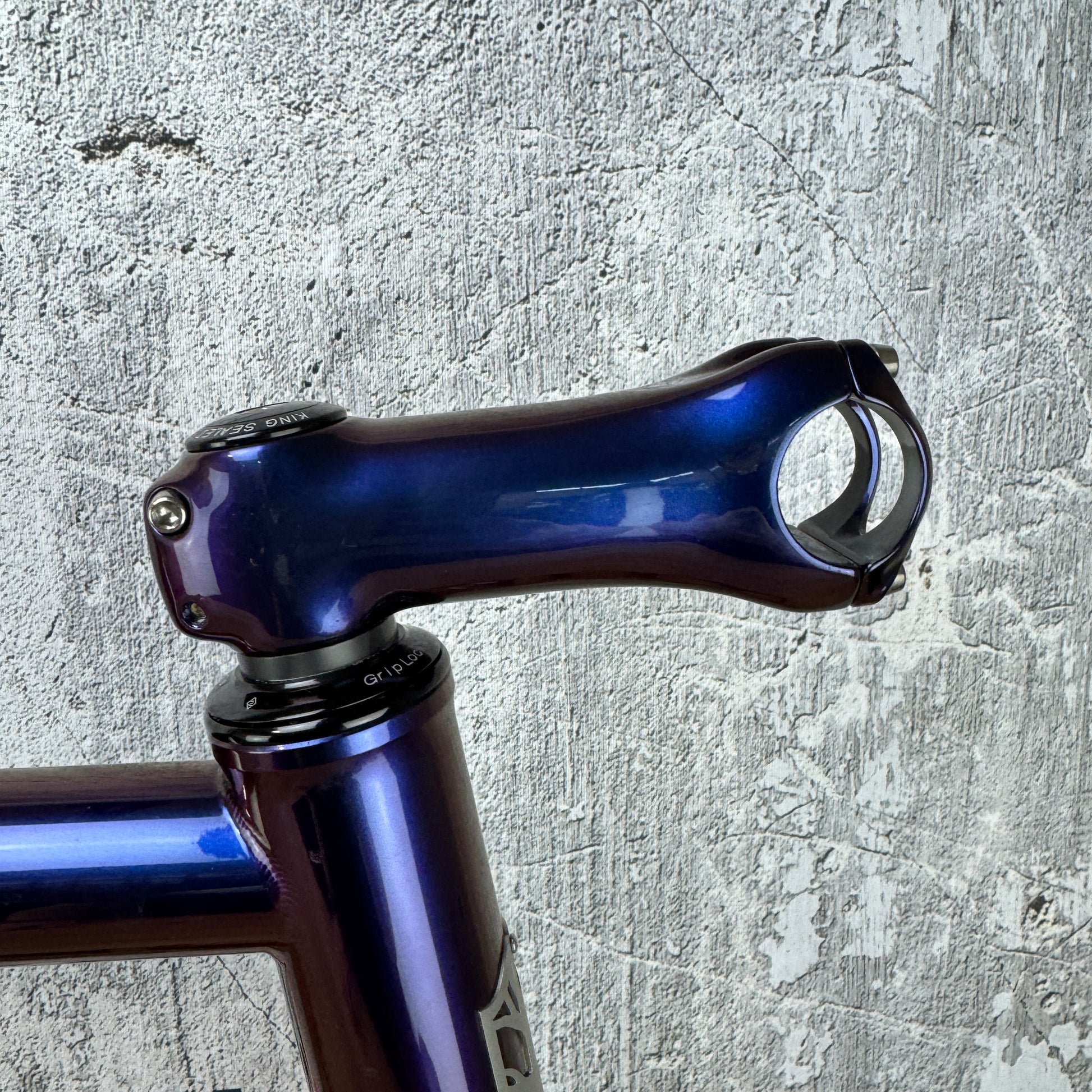

Stem: Paint matched Enve carbon 110mm stem included.
Dropout Spacing: Front 12mm Thru Axle x 100mm, Rear 12mm Thru Axle x 142mm.
Weight: 2640 grams as pictured with headset, thru axles, stem, seatpost, frame hardware, etc.Â
What's included: Frame, fork, headset, rear derailleur hanger, stem, seatpost, thru axles
