2023 Trek Madone SLR Gen 7 58cm Carbon Disc Frameset 700c Quicksilver 2403g

2023 Trek Madone SLR Gen 7 58cm Carbon Disc Frameset 700c Quicksilver 2403g

Regular price $3,995.00
$3,995.00 Regular price Sale price
Sale Sold out
Condition: Used / Pre-owned

Item Specifics

  • Brand: Trek
  • Bottom bracket shell type: T47/86
  • Brake type: Disc Brake
  • Color: Silver
  • Frame size: 58 cm
  • Item weight: 2403g
  • Material: Carbon
  • Model: Madone SLR Gen 7
  • Mount type: Flat-Mount
  • Part type: Bicycle Frame
  • Steerer tube diameter: 1 1/8 in
  • Wheel size: 700C
  • We clean all parts before selling!
  • We test and inspect all parts!
  • We create detailed listings!
  • We package like professionals!
  • We ship quickly!
  • We accept 30-day returns!
View full details
Product Description

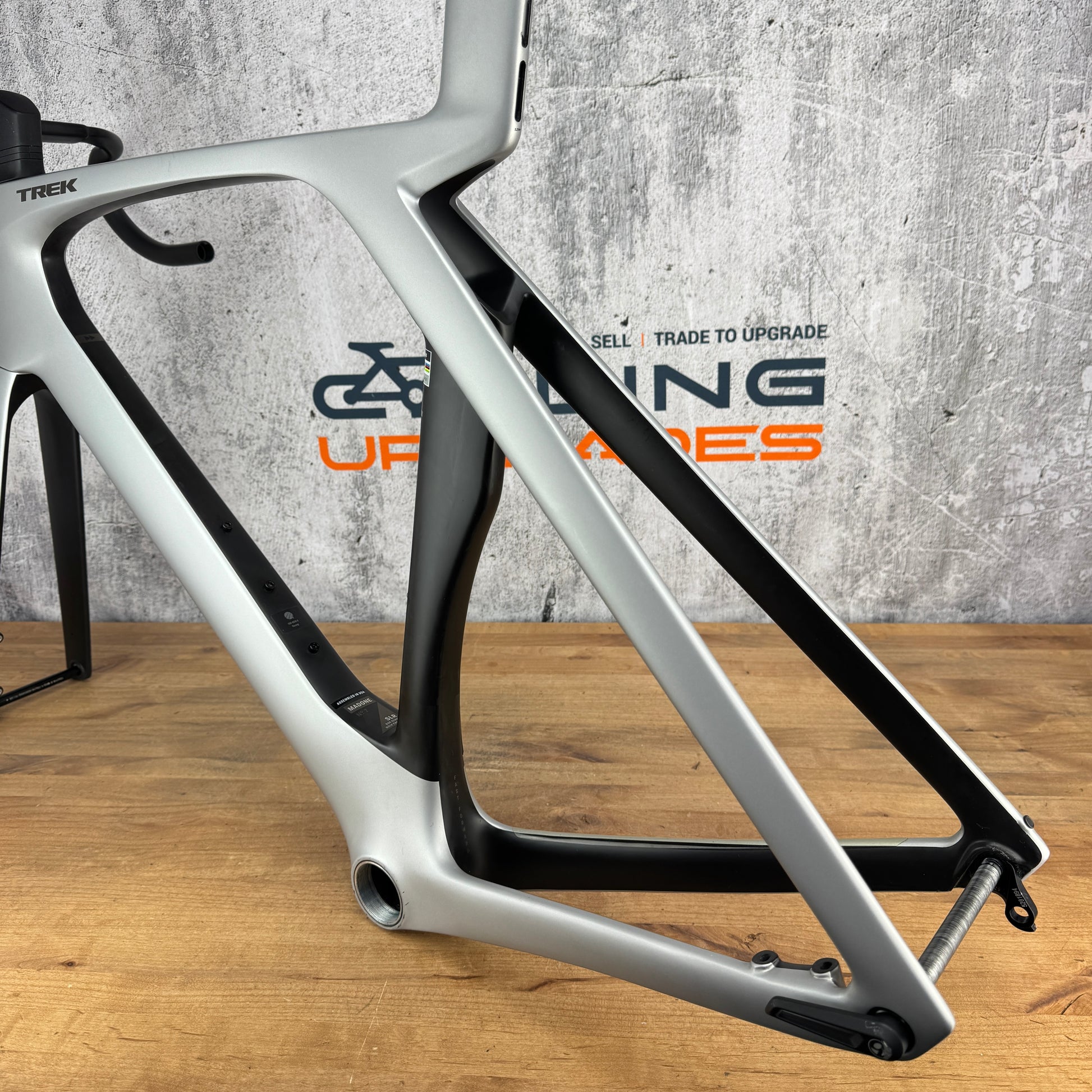

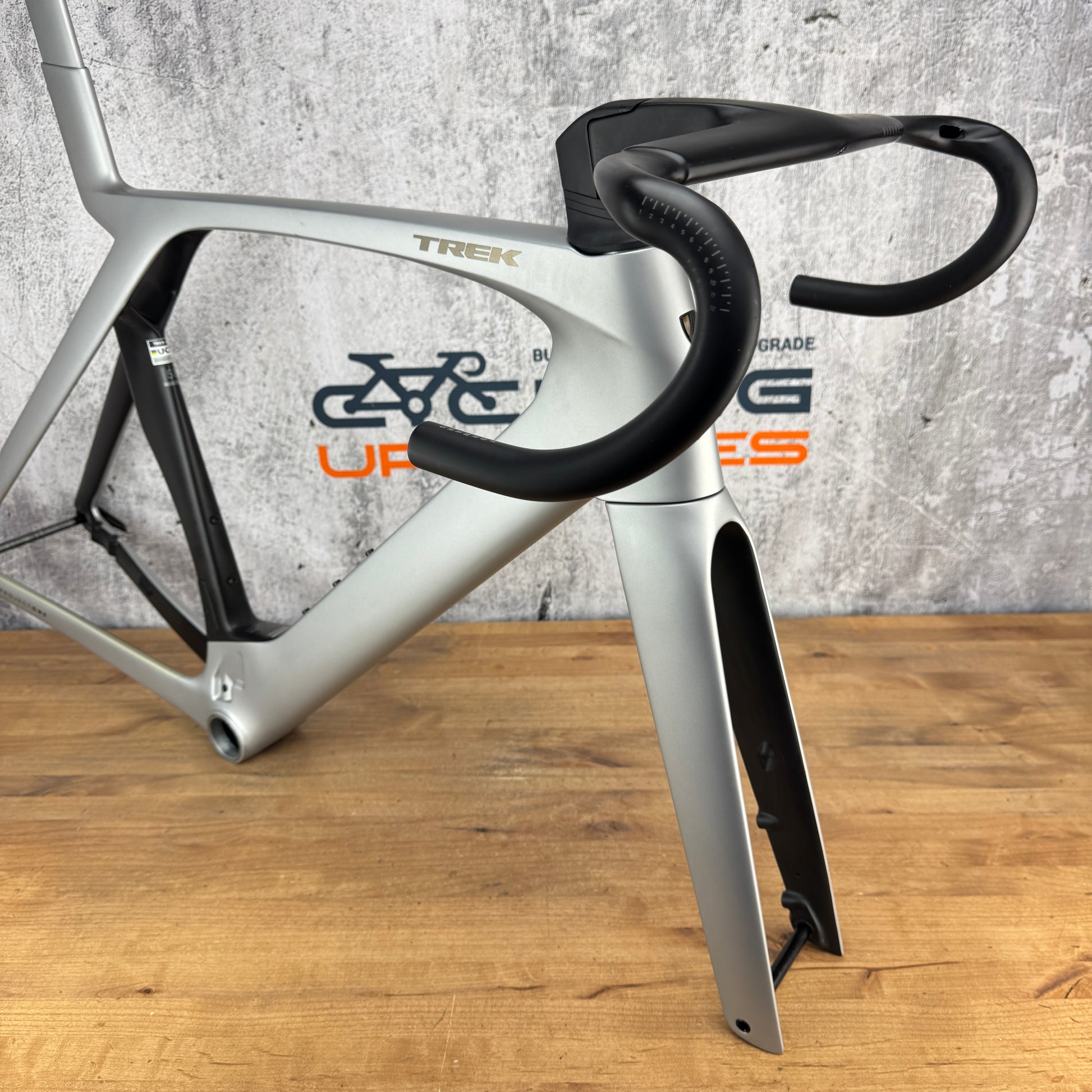

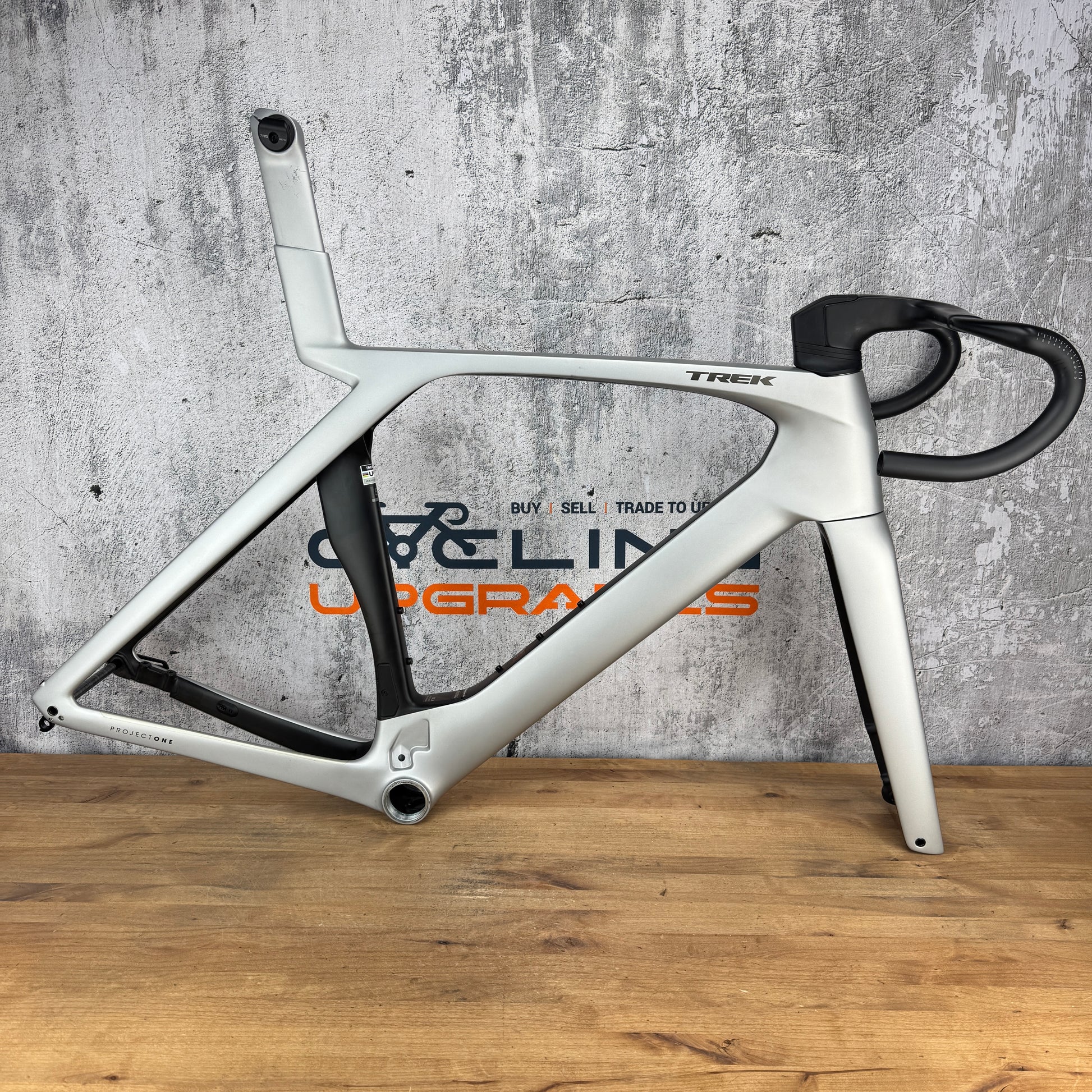

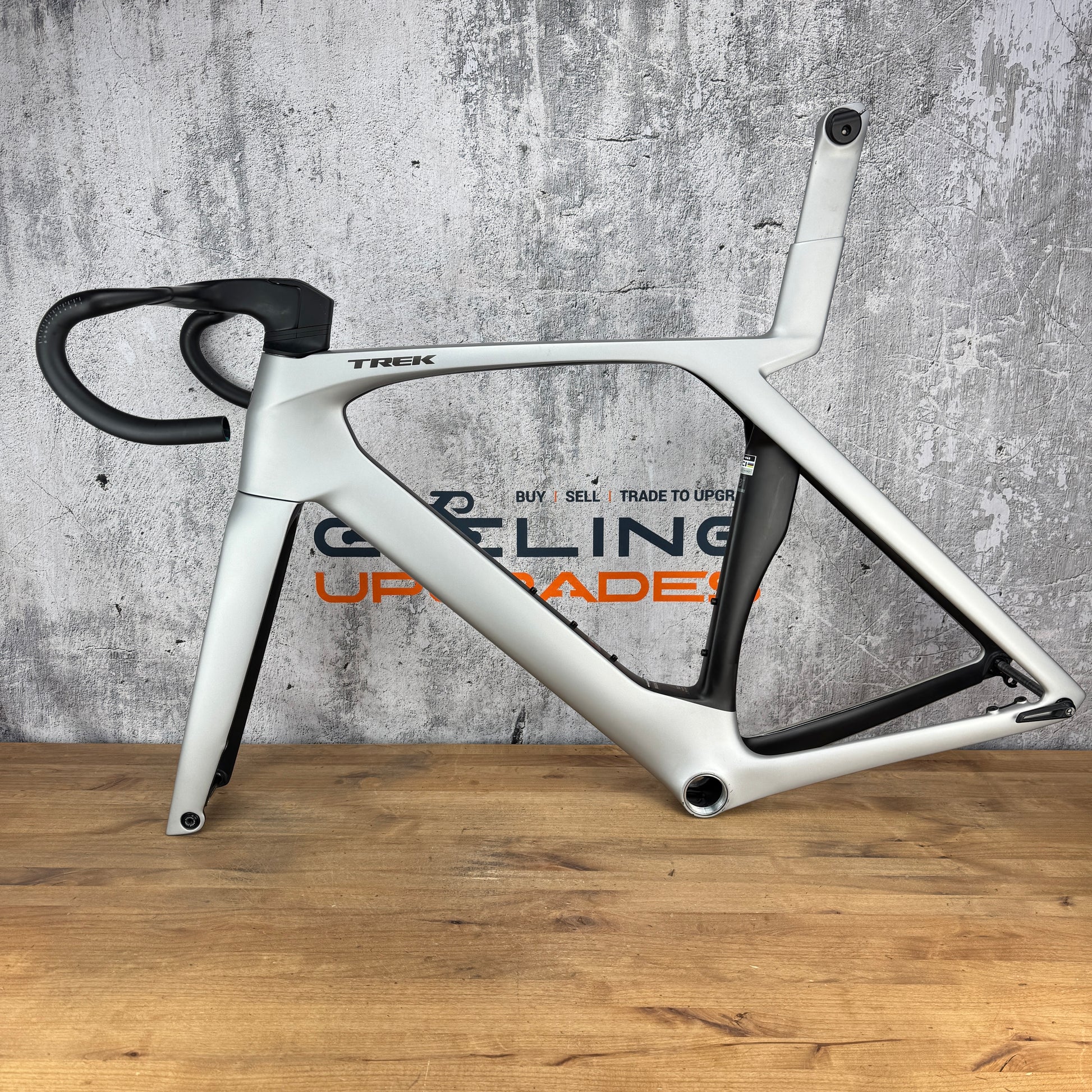

Frame: 2023 Trek Madone SLR Gen 7

Color: Satin quicksilver

Brake type: Flat-Mount disc brake.

Size: 58cm. 574mm Effective Top Tube. Stack - 581mm. Reach - 396mm. Head tube 171mm. Recommend buyer confirm and research full geometry online.

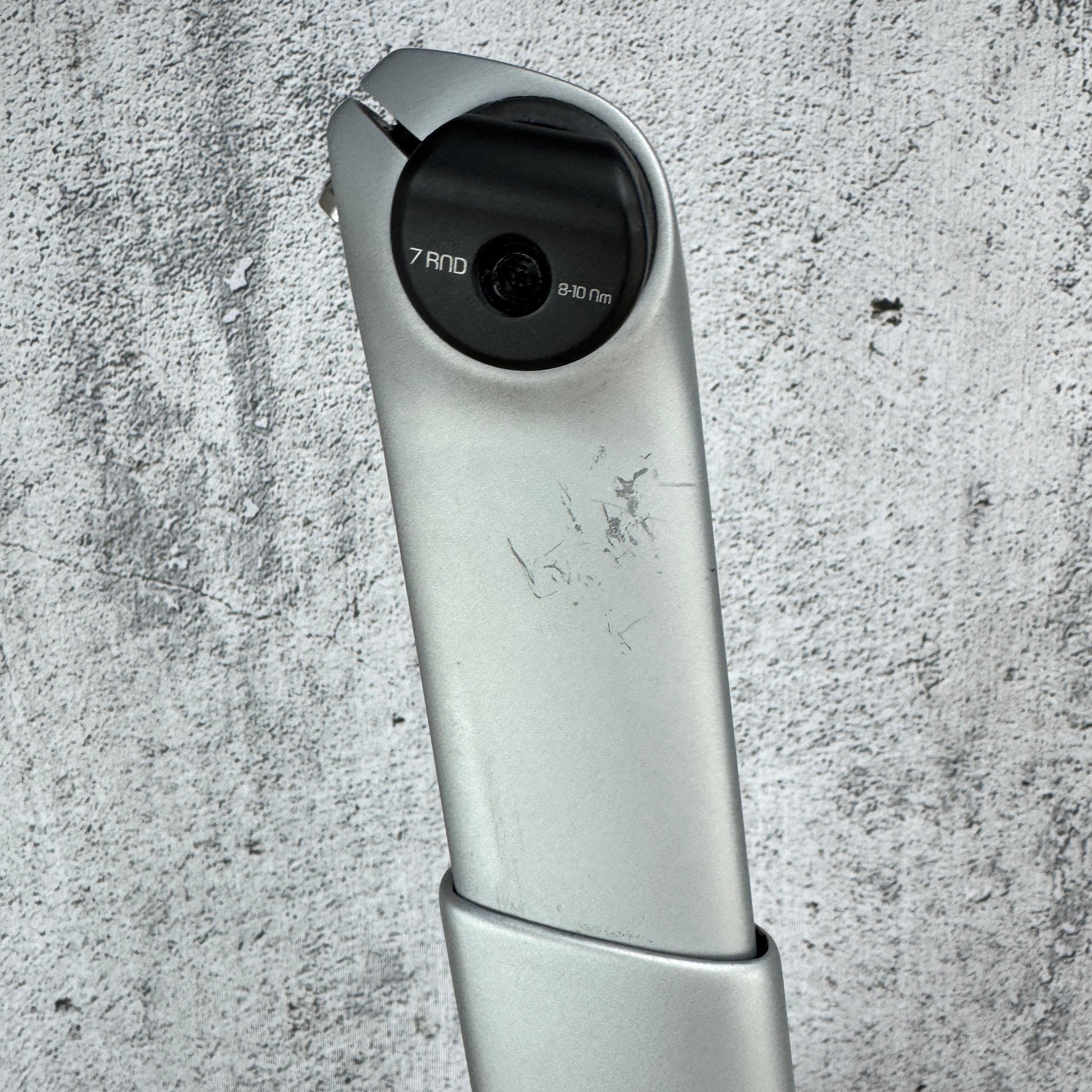

Condition: No cracks or carbon defects were identified through a thorough visual inspection. The cosmetic imperfections to highlight include: Some light scratches on the seatpost shown in pic #8, and some light scratches on the chainstay shown in pic #9. We have attempted to show all noticeable imperfections in specific close-up pictures, however other minor imperfections and light signs of use may exist.

Groupset compatibility: Frame can be setup for Di2, EPS, eTap, or mechanical groupsets. This frame was previously setup with an eTap groupset. Other frame/cable stops may be needed for Di2 or mechanical setups. Mechanical cable guide below the bottom bracket intact.

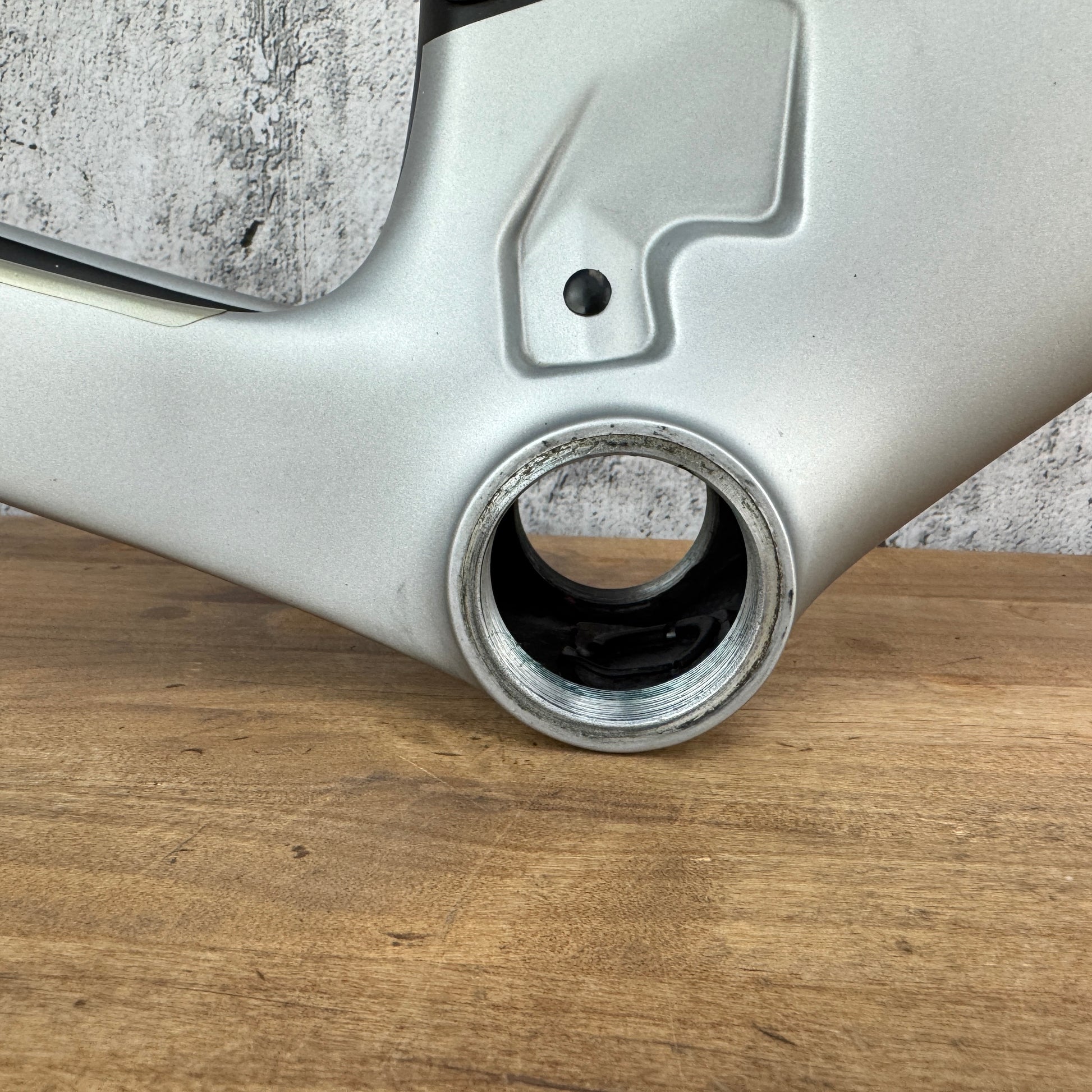

Bottom bracket: Threadfit T47/86 bottom bracket shell type. No bottom bracket currently installed or included. We have a handful of lightly used basic bottom brackets on hand, let us know what you need and we can try to ship the frame with the right bottom bracket installed. Additionally, CyclingUpgrades is a Ceramicspeed and Cane Creek Authorized Dealer, if you prefer to have the frame setup with a certain bottom bracket we can add and install it at an additional cost before shipping - message with inquiries/requests.

Steerer length: 60mm of steerer above the top tube. 10mm of spacers below the stem plus the headset cover. We may have an option available to safely extend the steerer tube by 15-18mm - message us for additional details.

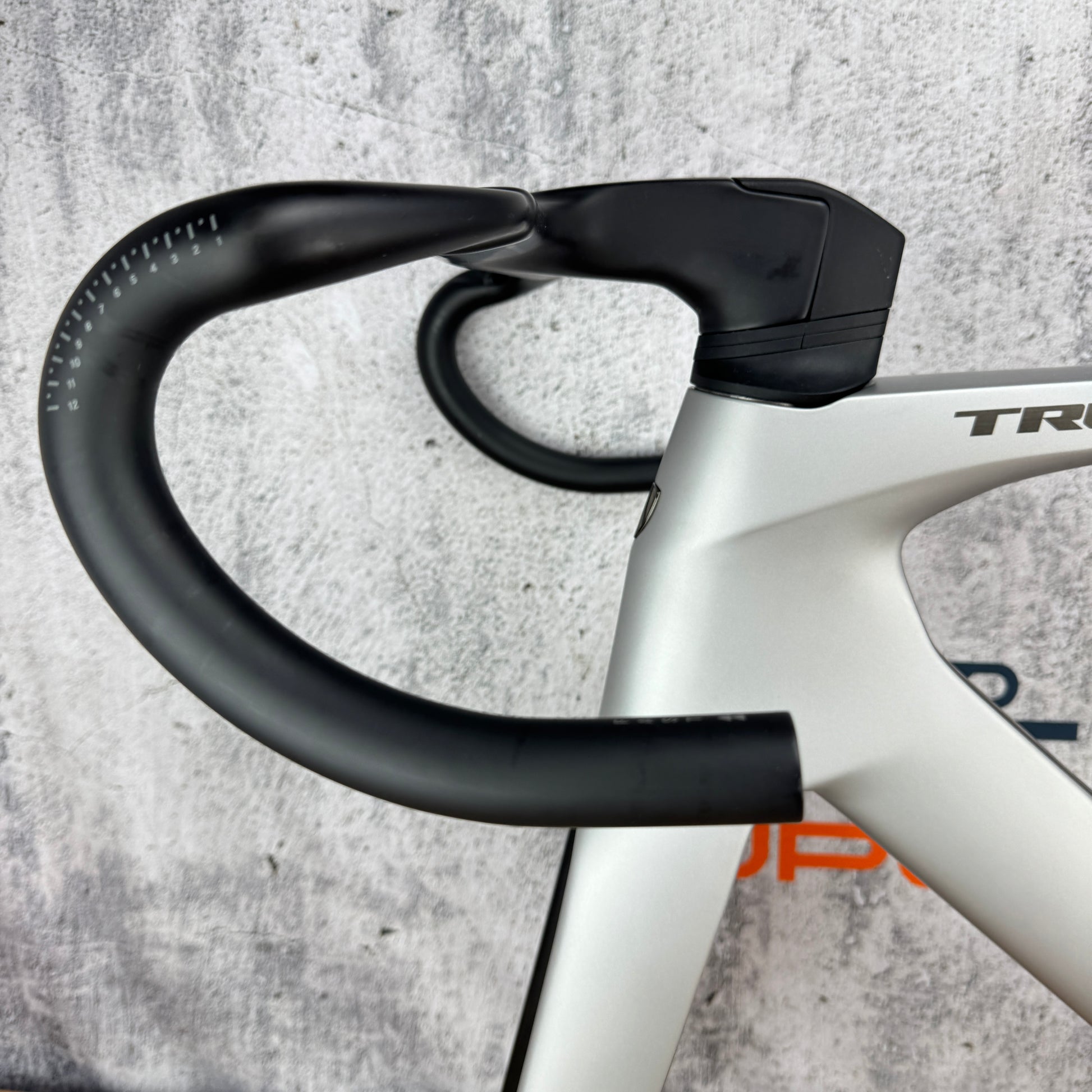

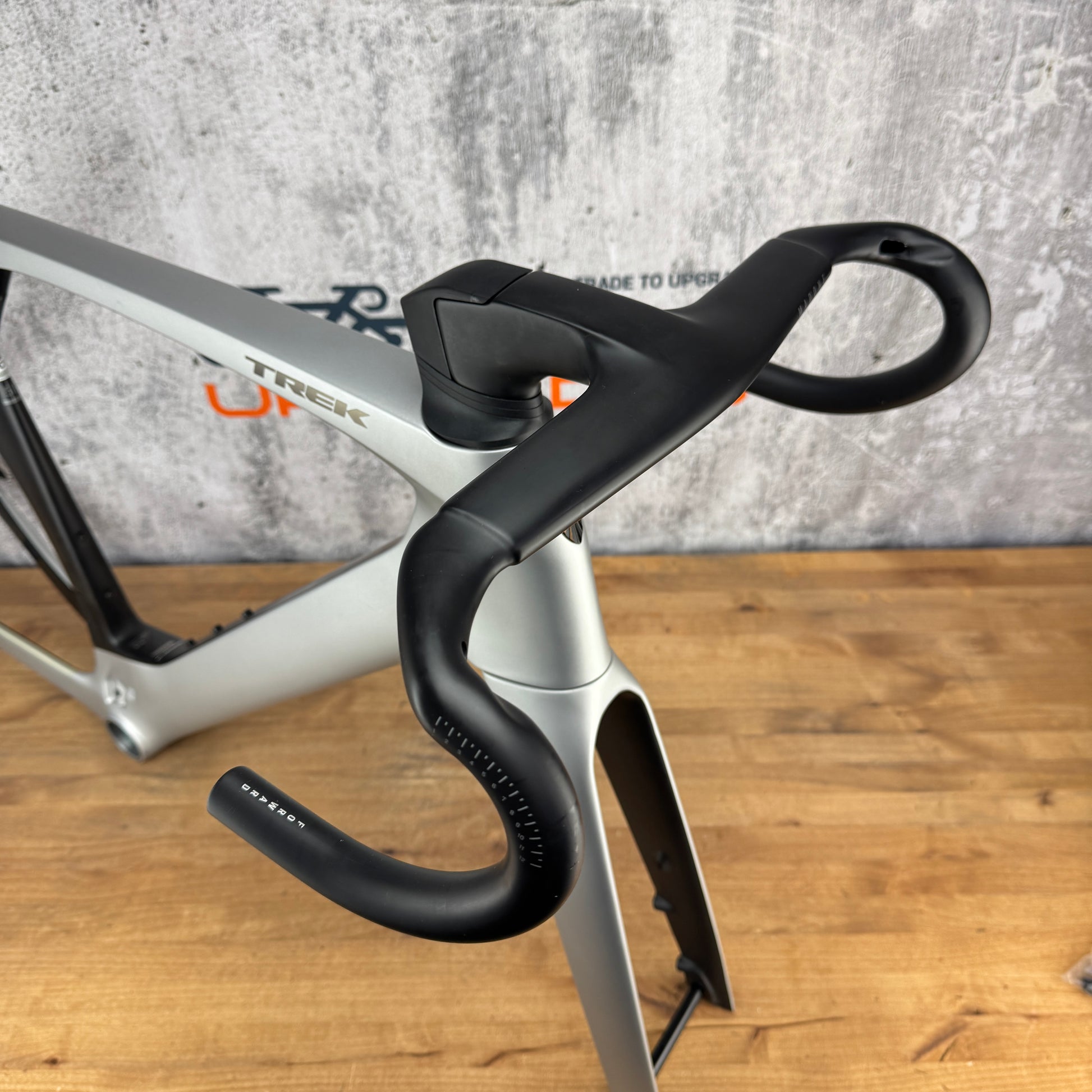

Handlebar: Trek Madone carbon 42cm x 100mm -7 degree handlebar.

Seatpost: Frame specific carbon zero setback seatpost included.

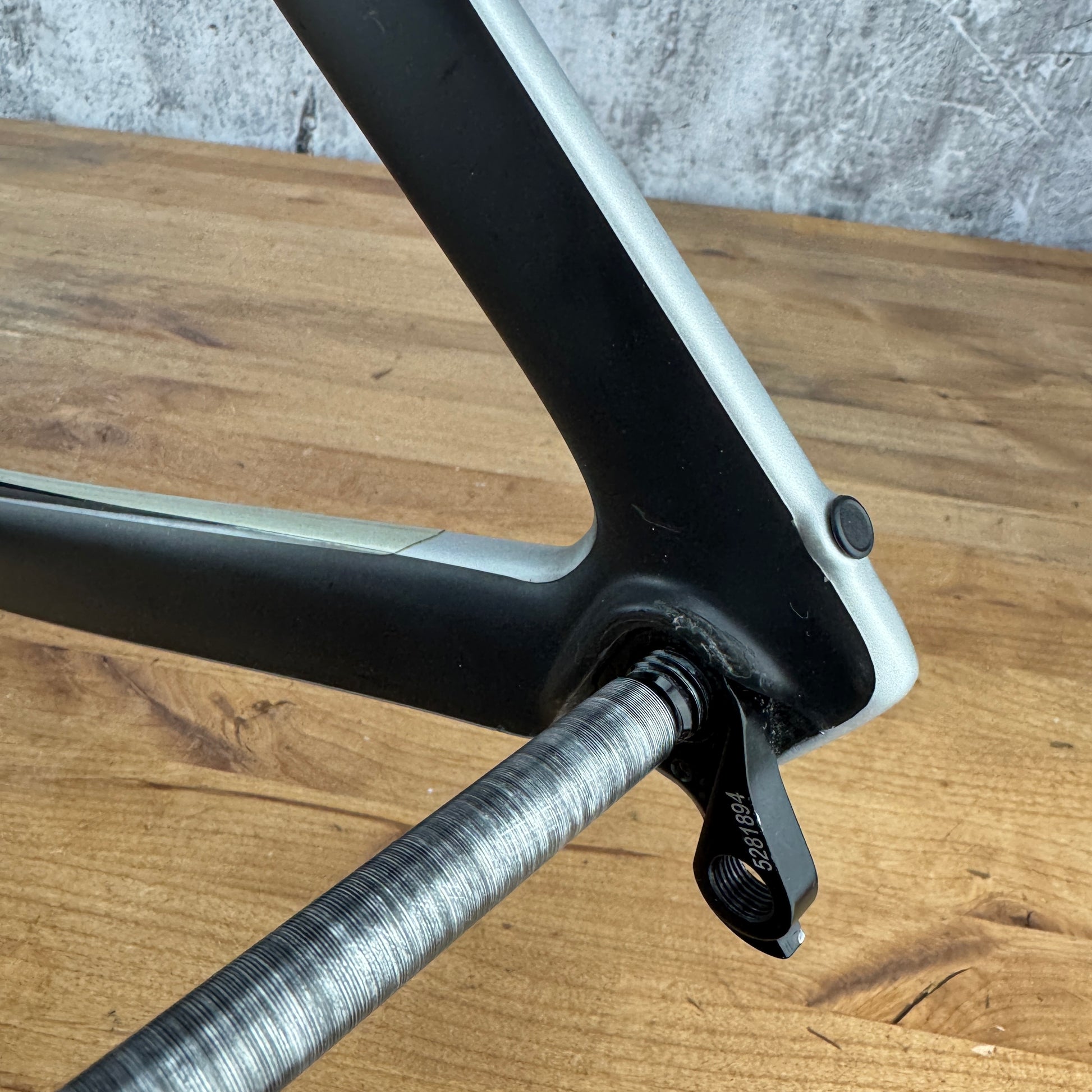

Dropout Spacing: Front 12mm Thru Axle x 100mm, Rear 12mm Thru Axle x 142mm.

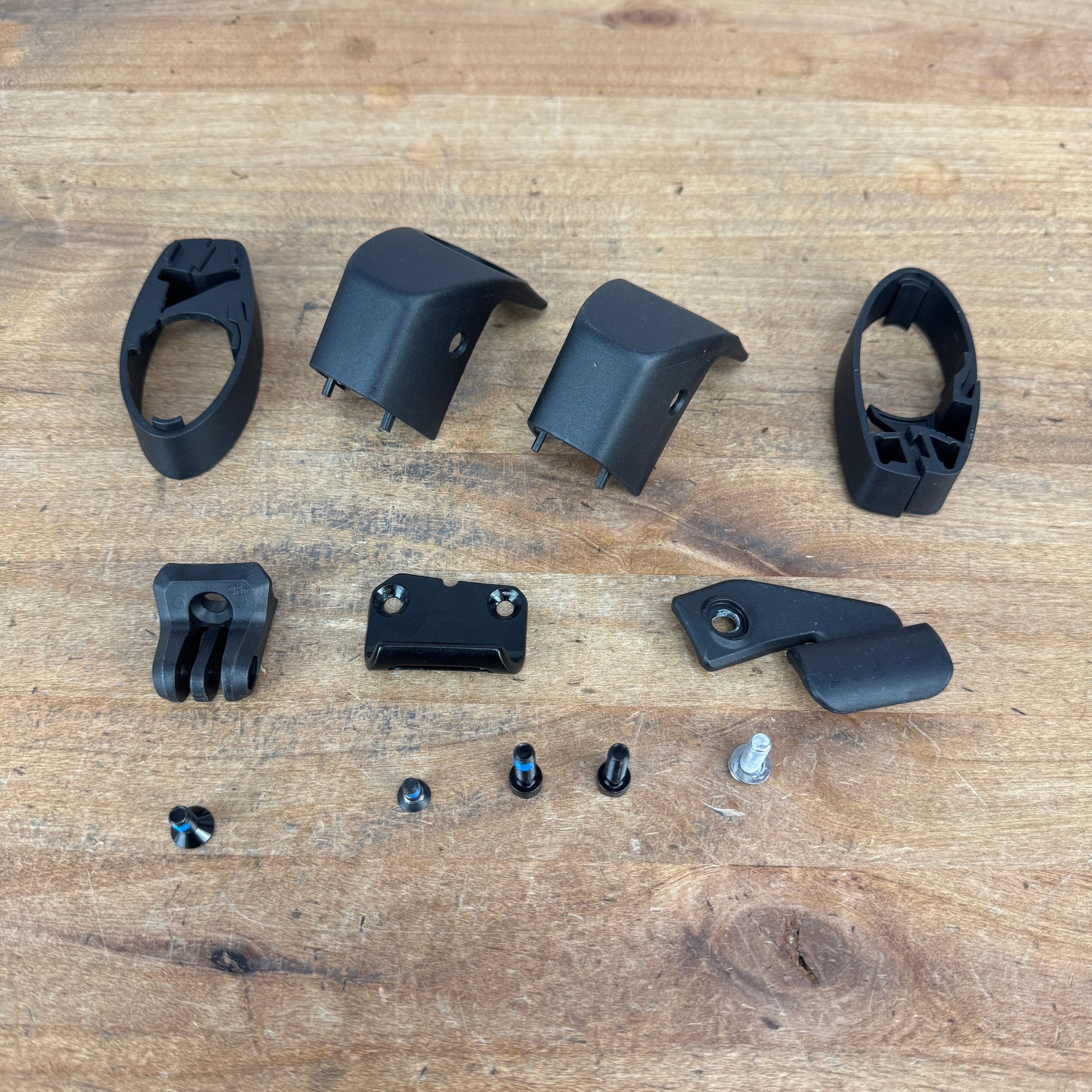

Weight: 2403 grams as pictured with headset, thru axles, bottom bracket, seatpost, handlebar, frame hardware, etc.

What's included: Frame, fork, headset, rear derailleur hanger, handlebar, seatpost, thru axles
