2022 Winspace T1500 XL Disc Brake Carbon Road Bike Frameset 700c 2545g

2022 Winspace T1500 XL Disc Brake Carbon Road Bike Frameset 700c 2545g

Regular price $956.00
$956.00 Regular price $0.00 Sale price
Sale Sold out
Condition: Used / Pre-owned

Item Specifics

  • Brand: Winspace
  • Bottom bracket shell type: BB86
  • Brake type: Disc Brake
  • Color: White
  • Frame size: XL
  • Item weight: 2545g
  • Material: Carbon
  • Model: T1500
  • Mount type: Flat-Mount
  • Part type: Bicycle Frame
  • Steerer tube diameter: 1 1/8 in
  • Wheel size: 700C
  • We clean all parts before selling!
  • We test and inspect all parts!
  • We create detailed listings!
  • We package like professionals!
  • We ship quickly!
  • We accept 30-day returns!
View full details
Product Description

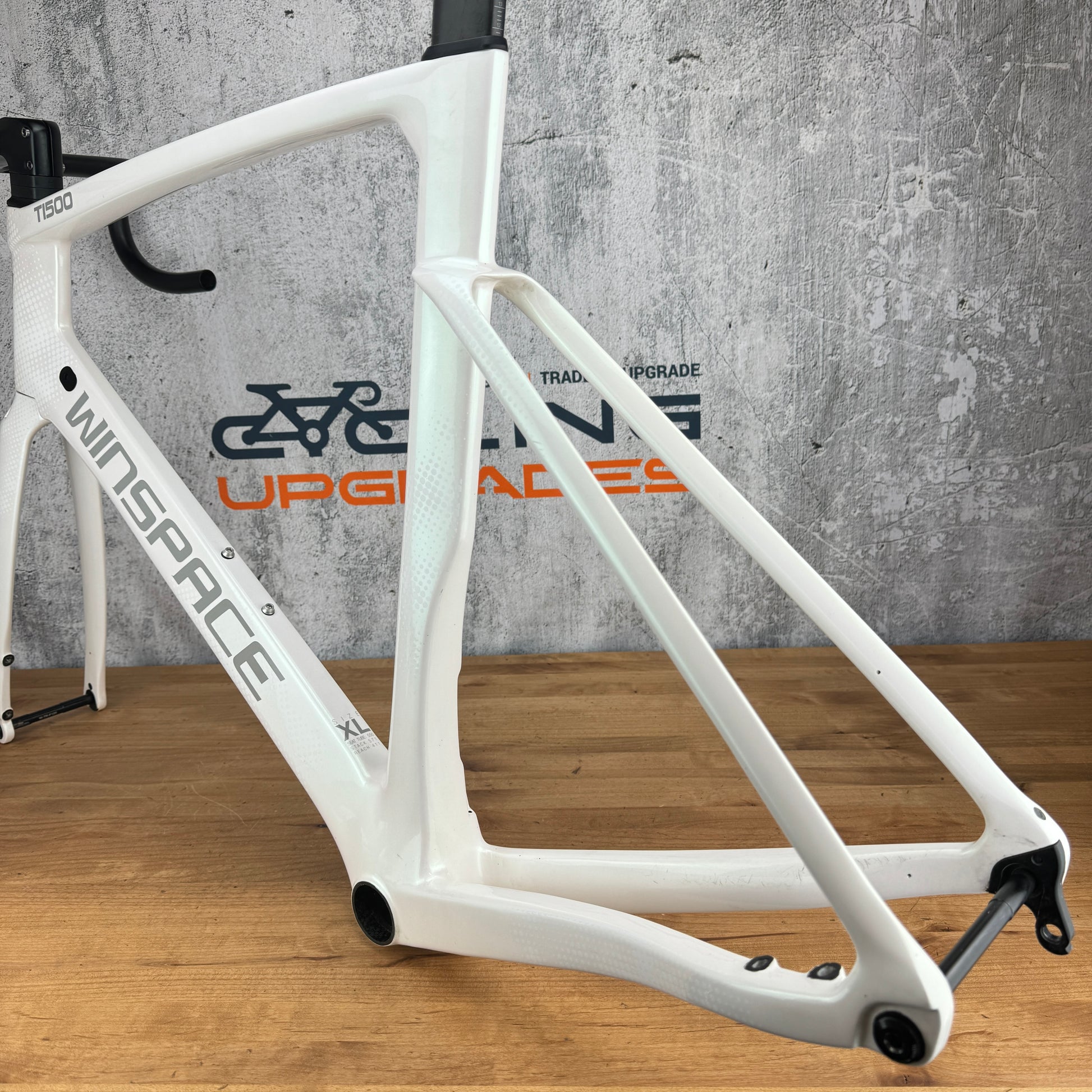

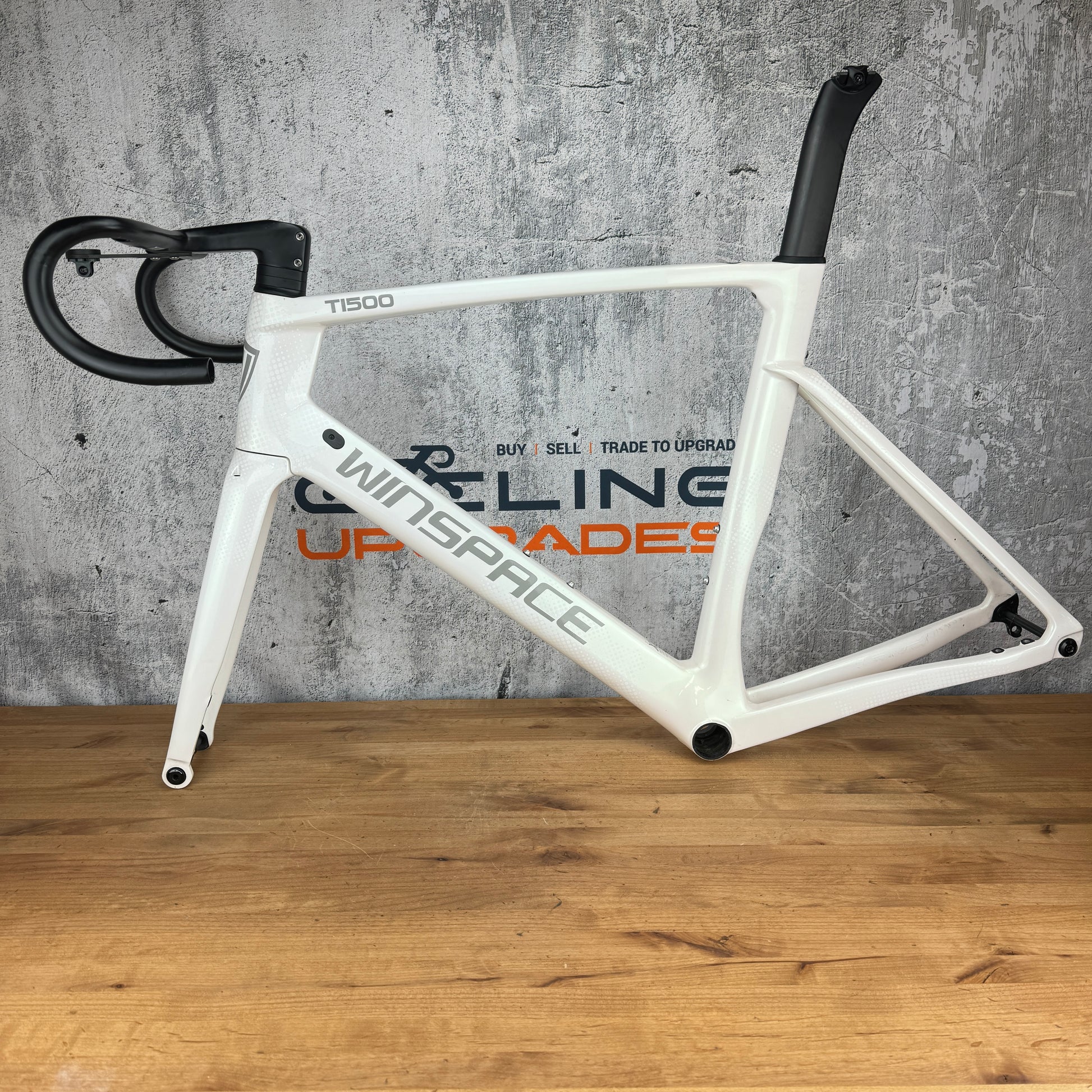

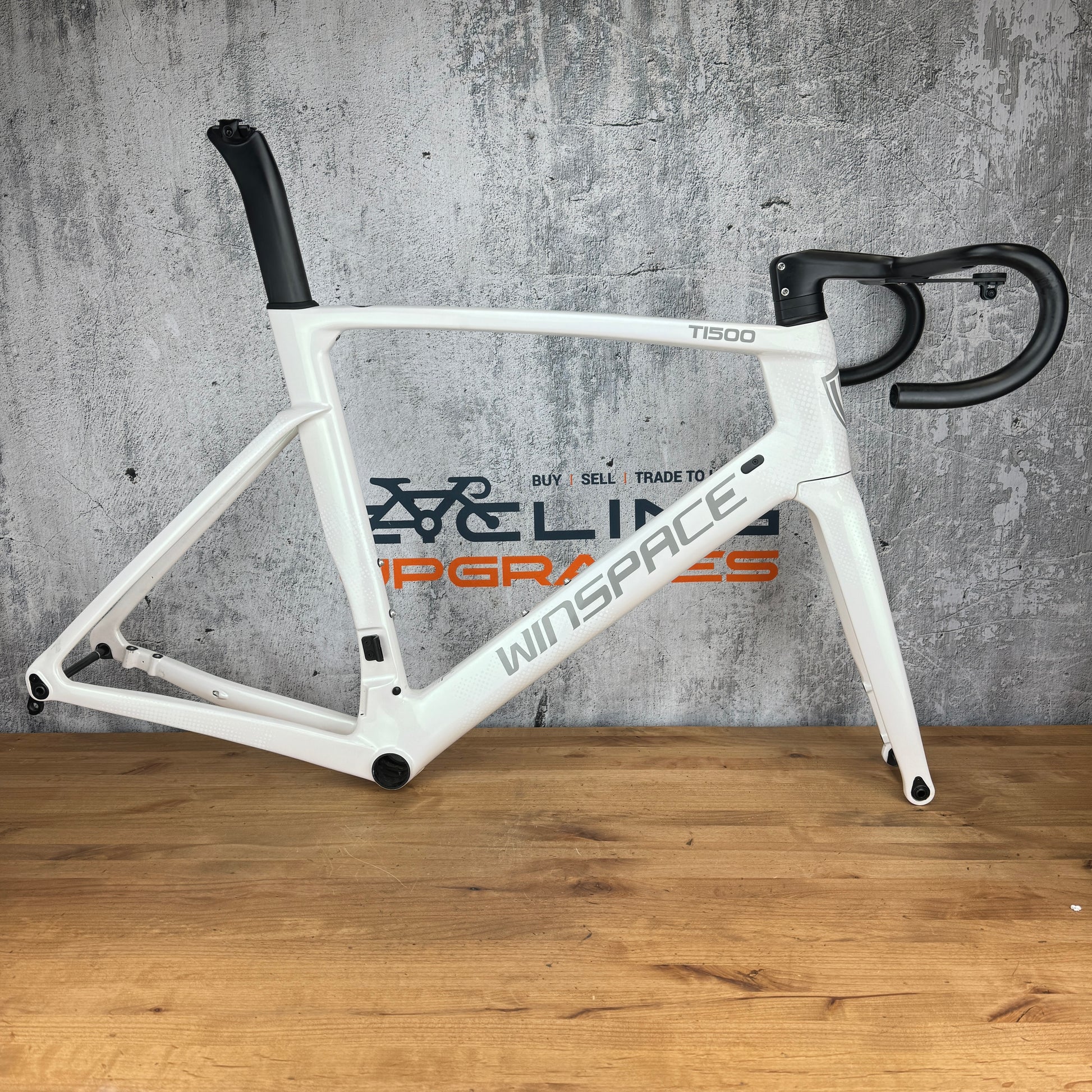

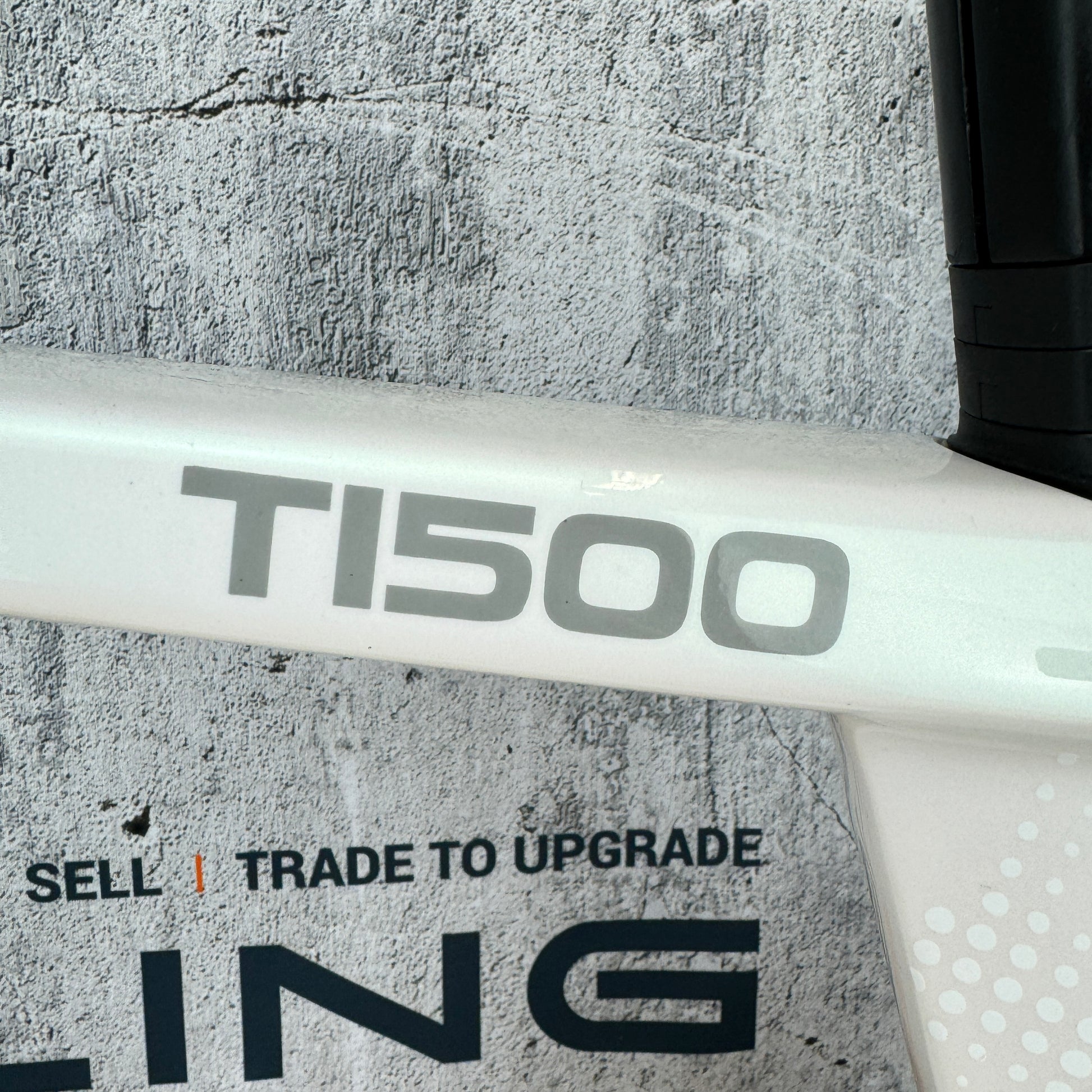

Frame: 2022 Winspace T1500, this frame supports internal cable routing.

Color: White

Brake type: Flat-Mount disc brake.

Size: XL. 580mm Effective Top Tube. Stack - 571mm. Reach - 411mm. Head tube 170mm. Recommend buyer confirm and research full geometry online.

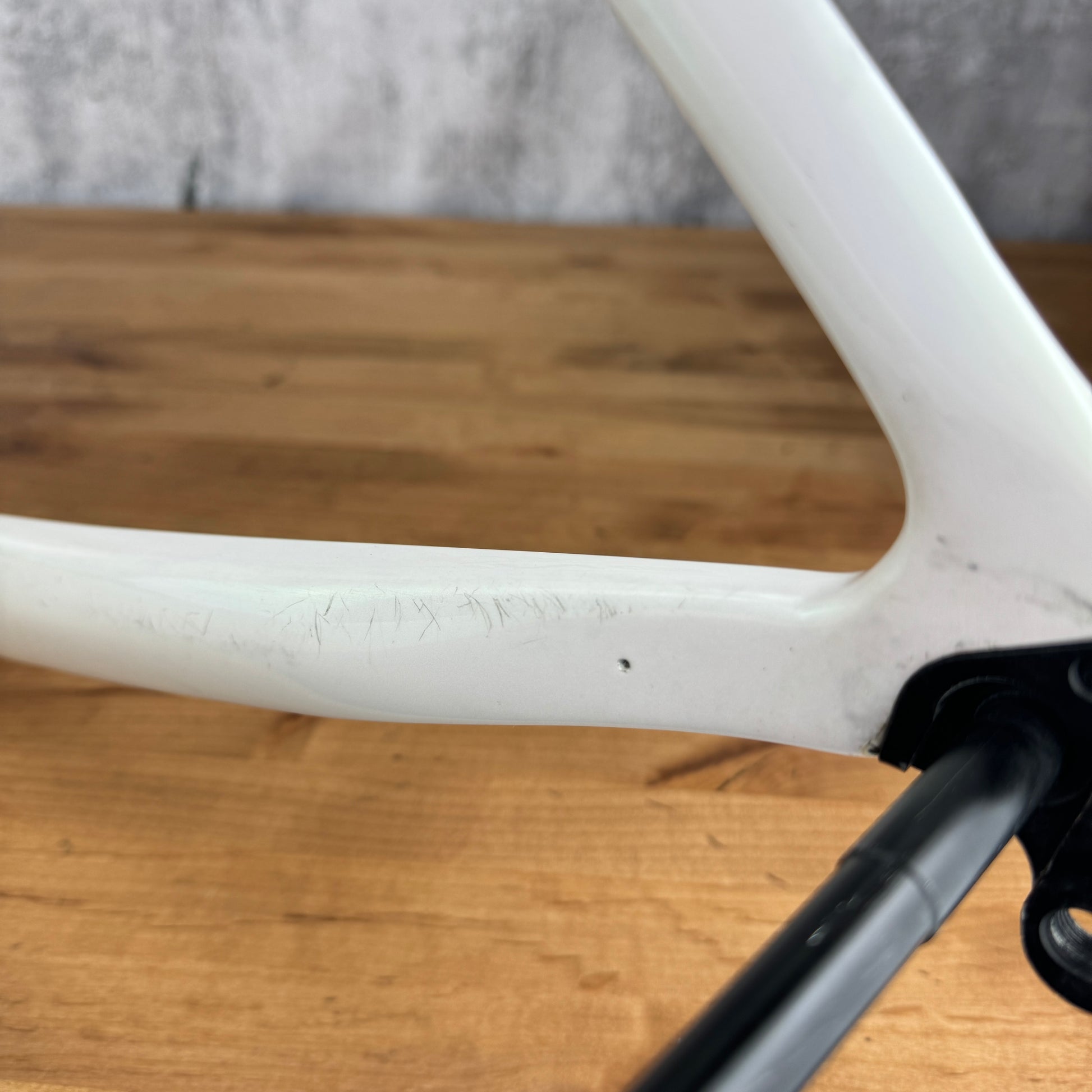

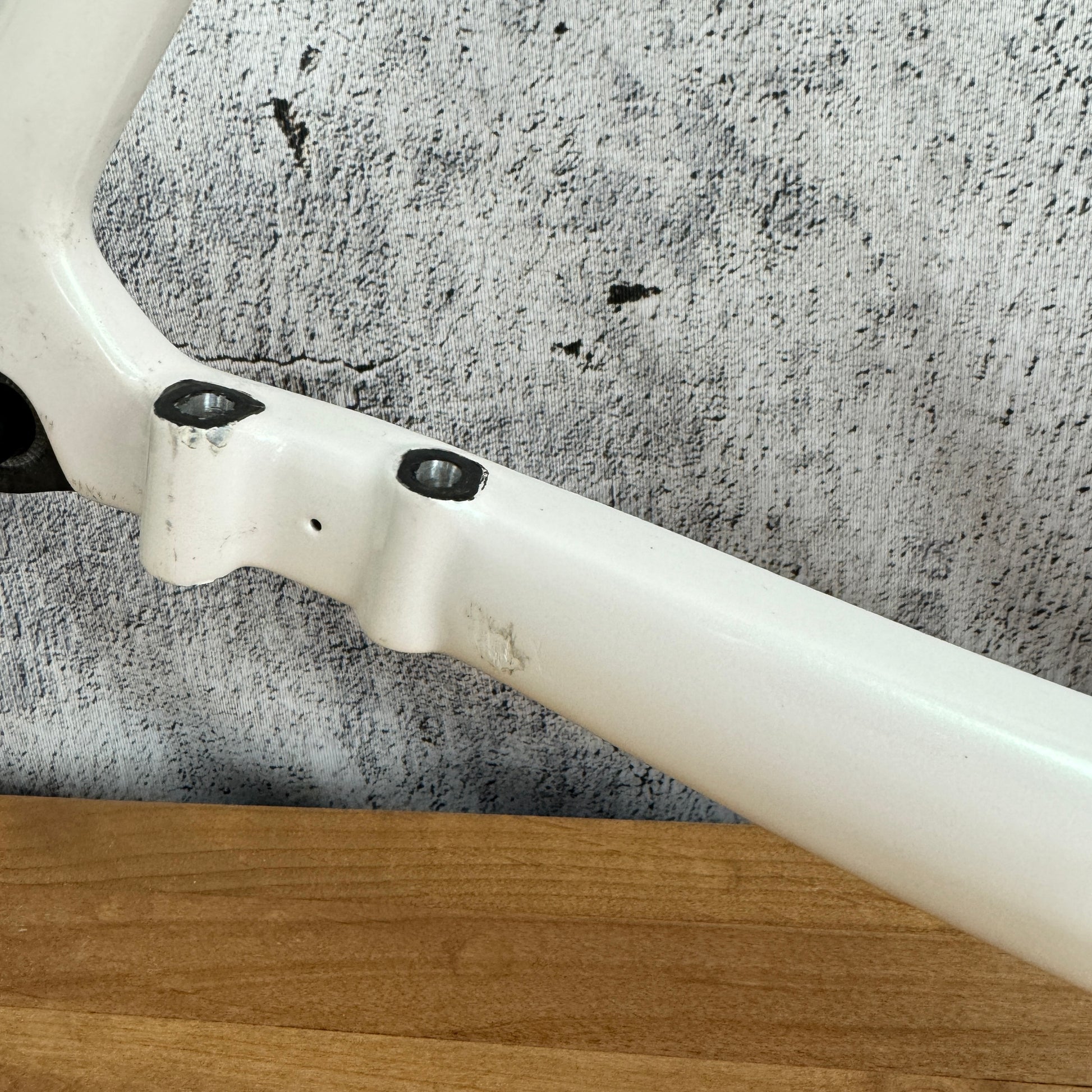

Condition: No cracks or carbon defects were identified through a thorough visual inspection. The cosmetic imperfections to highlight include: some scratches on the chainstay shown in pics #6 & 7. We have attempted to show all noticeable imperfections in specific close-up pictures, however other minor imperfections and light signs of use may exist.

Groupset compatibility: Frame can be setup for Di2, EPS, eTap, or mechanical groupsets. This frame was previously setup with an eTap groupset. Other frame/cable stops may be needed for Di2 or mechanical setups.

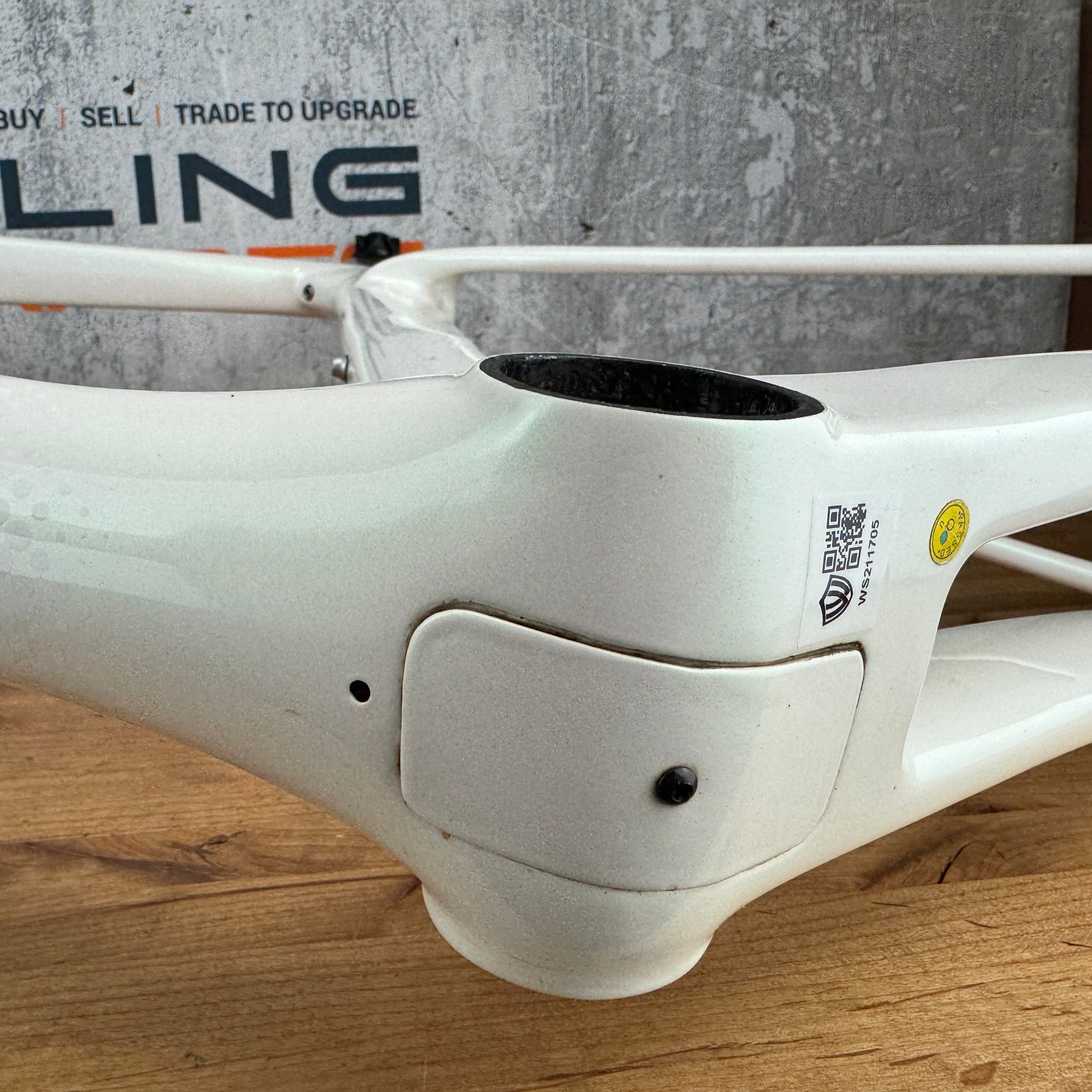

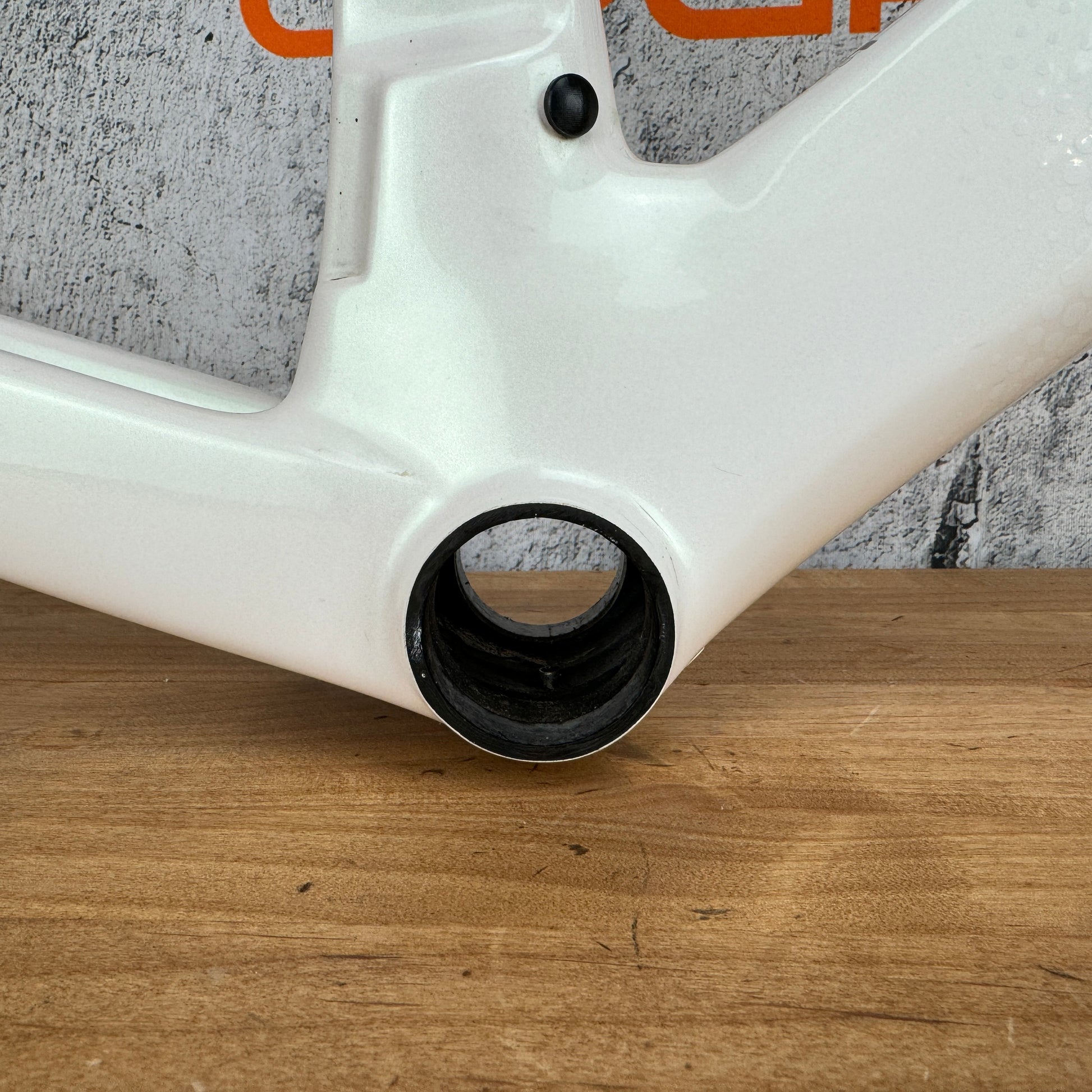

Bottom bracket: BB86 bottom bracket shell type (41mm shell diameter, 86mm shell width). No bottom bracket currently installed or included. We have a handful of lightly used basic bottom brackets on hand, let us know what you need and we can try to ship the frame with the right bottom bracket installed. Additionally, CyclingUpgrades is a Wheels Manufacturing, and a Ceramicspeed Authorized Dealer, if you prefer to have the frame setup with a certain Wheels Manufacturing, or Ceramicspeed bottom bracket we can add and install it at an additional cost before shipping - message with inquiries/requests.

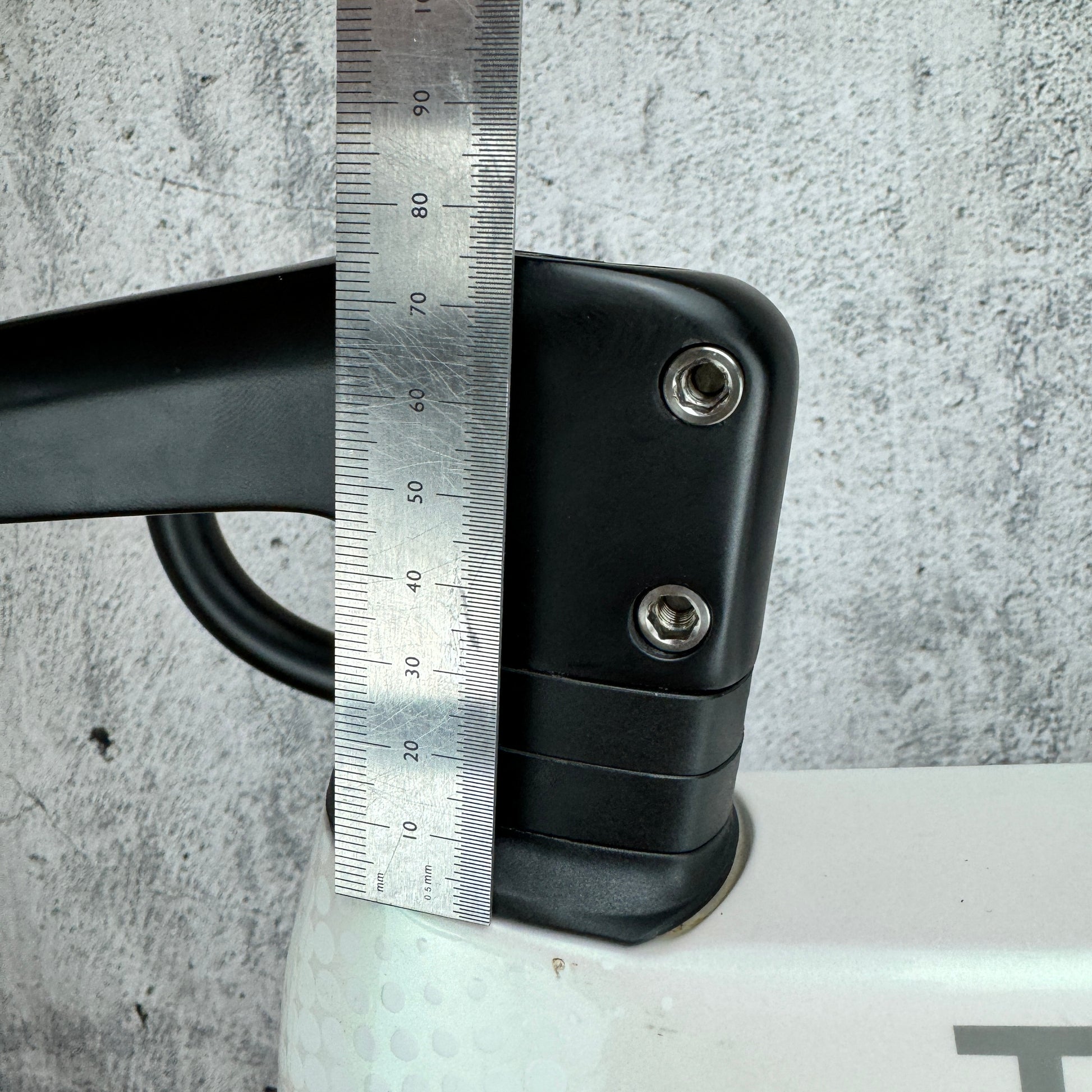

Steerer length: 70mm of steerer above the top tube. 20mm of spacers below the stem plus the headset cover. We do have an option available to safely extend the steerer tube by 15-18mm - message us for additional details.

Seatpost: Frame specific carbon seatpost included.

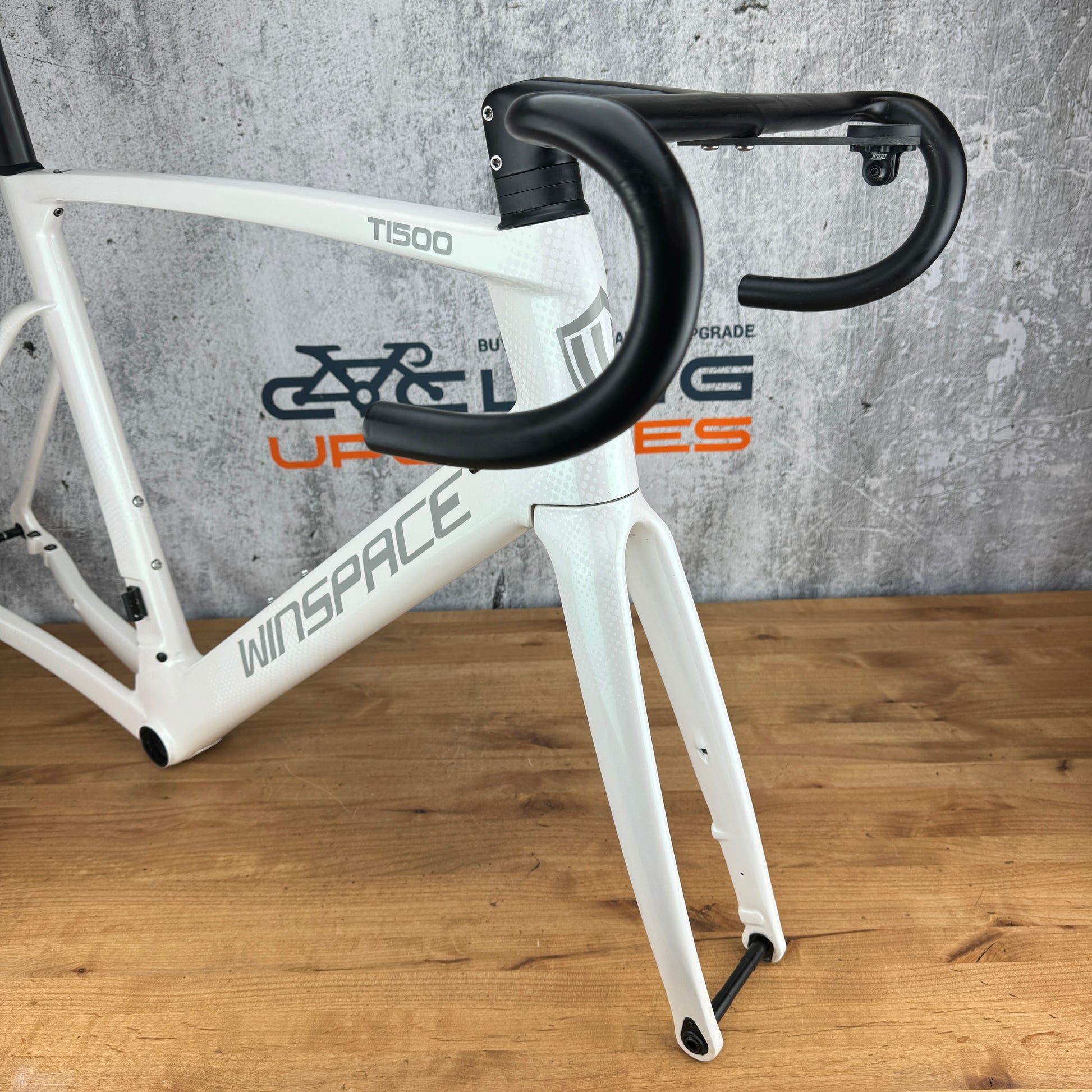

Handlebar: winspace Zero integrated barstem handlebar. 40cm x 125mm carbon. Can sell without the handlebar for $200 less.

Dropout Spacing: Front 12mm Thru Axle x 100mm, Rear 12mm Thru Axle x 142mm.

Weight: 2545 grams as pictured with headset, thru axles, handlebar, seatpost, frame hardware, etc.

What's included: Frame, fork, headset, rear derailleur hanger, handlebar, seatpost, thru axles

At CyclingUpgrades, we fulfill all orders next business day or sooner. Generally we are able to fulfill orders placed by 12pm MT on the same day, however it is not guaranteed. We ship all items via USPS except for frames/wheels which ship via UPS or Fedex. Please check our other listings for additional cycling upgrades and thank you for shopping our store!
