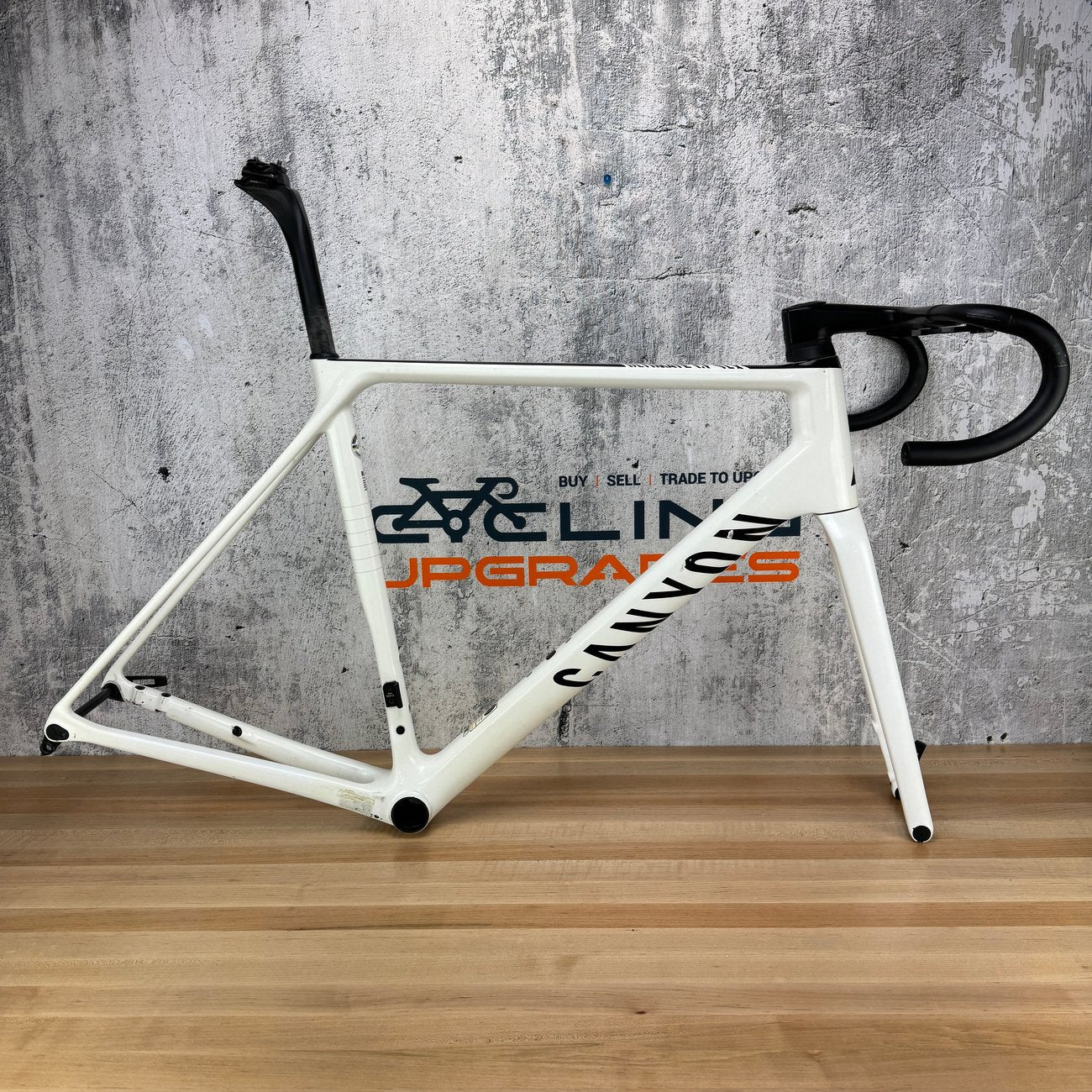

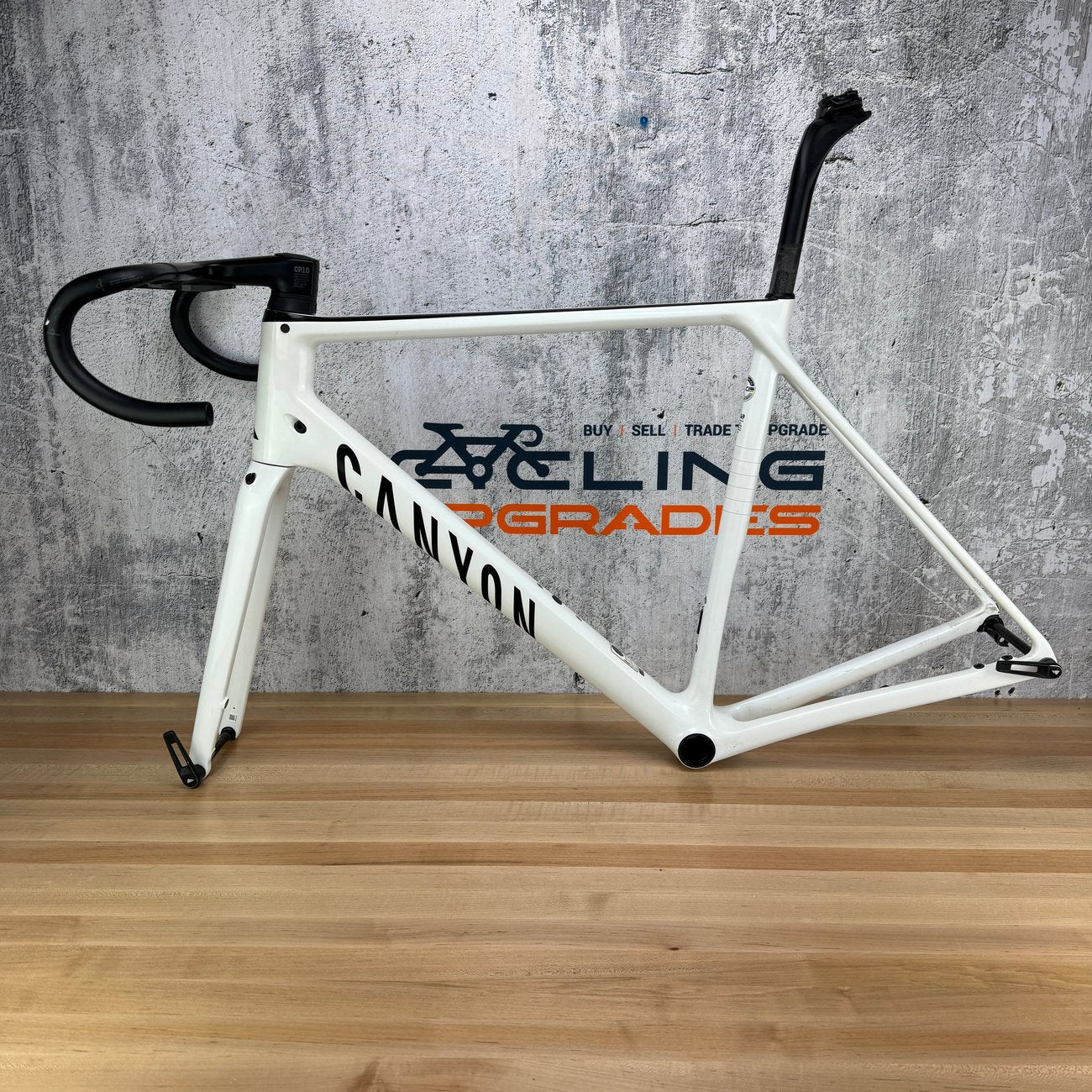

2022 Canyon Ultimate CF SLX Large (57cm) Disc Brake Carbon Frameset 700c 2134g

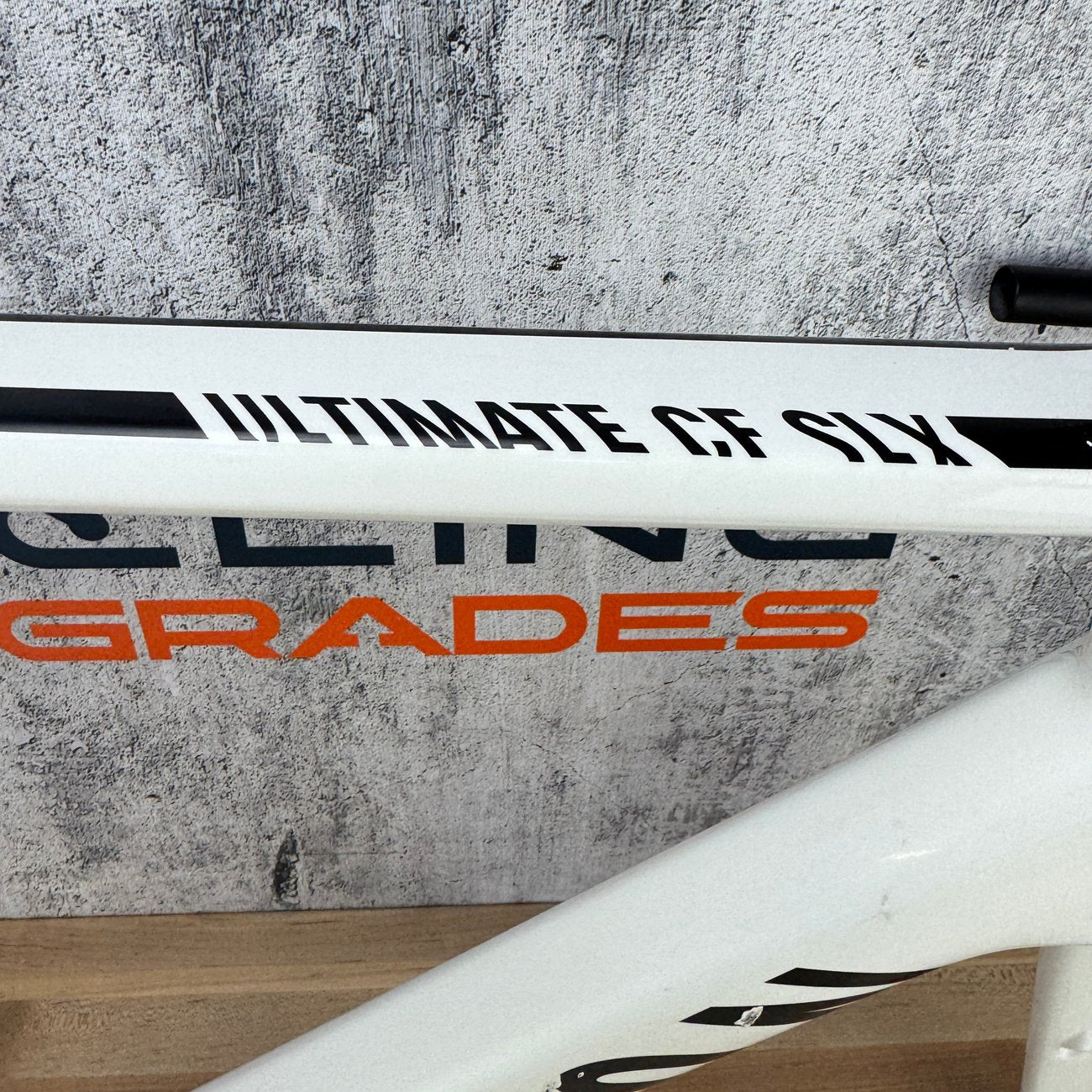

Frame: 2022 Canyon Ultimate CF SLX

Color: White

Brake type: Flat-Mount disc brake.

Size: Large. 571mm Effective Top Tube. Stack - 592mm. Reach - 399mm. Head tube 174mm. Recommend buyer confirm and research full geometry online.

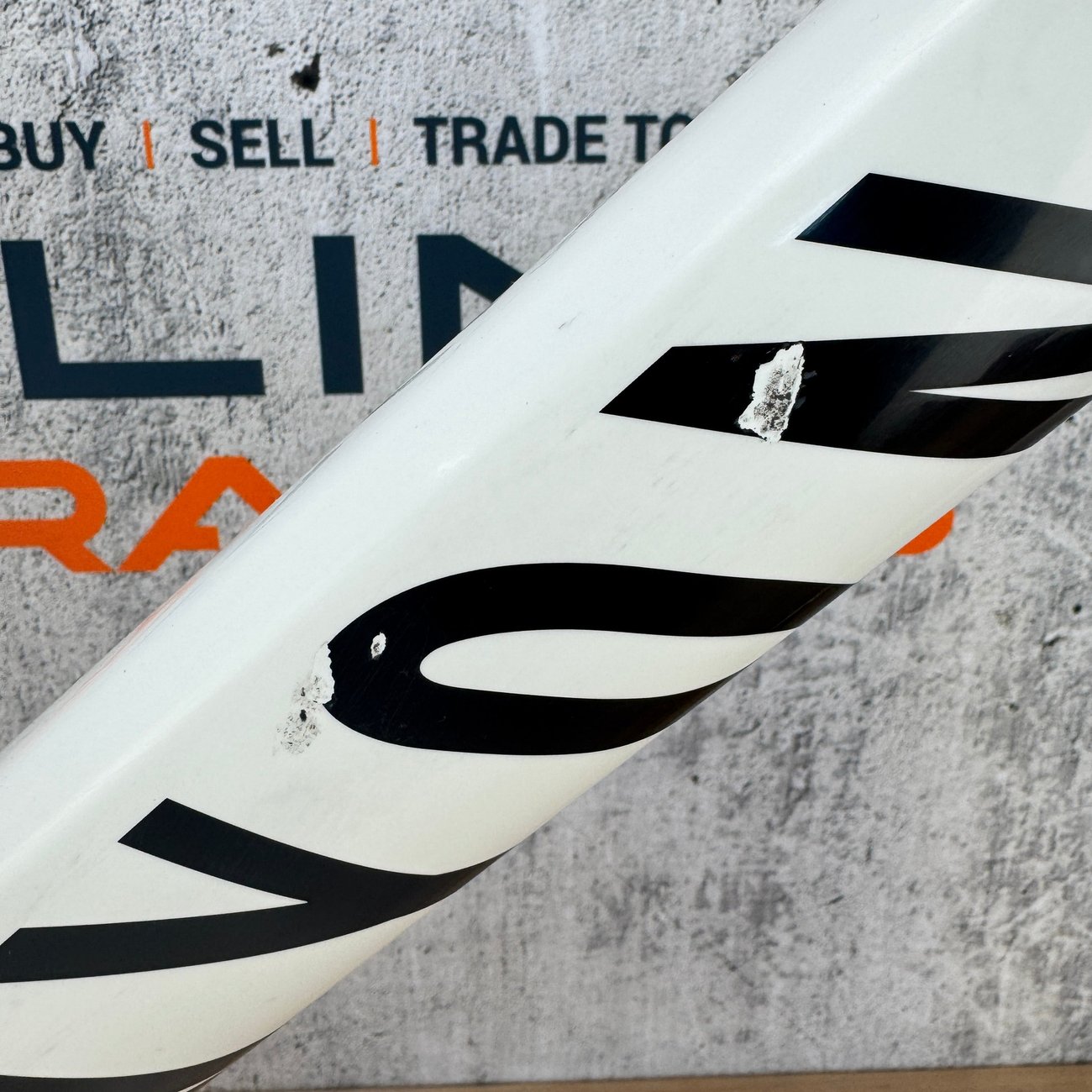

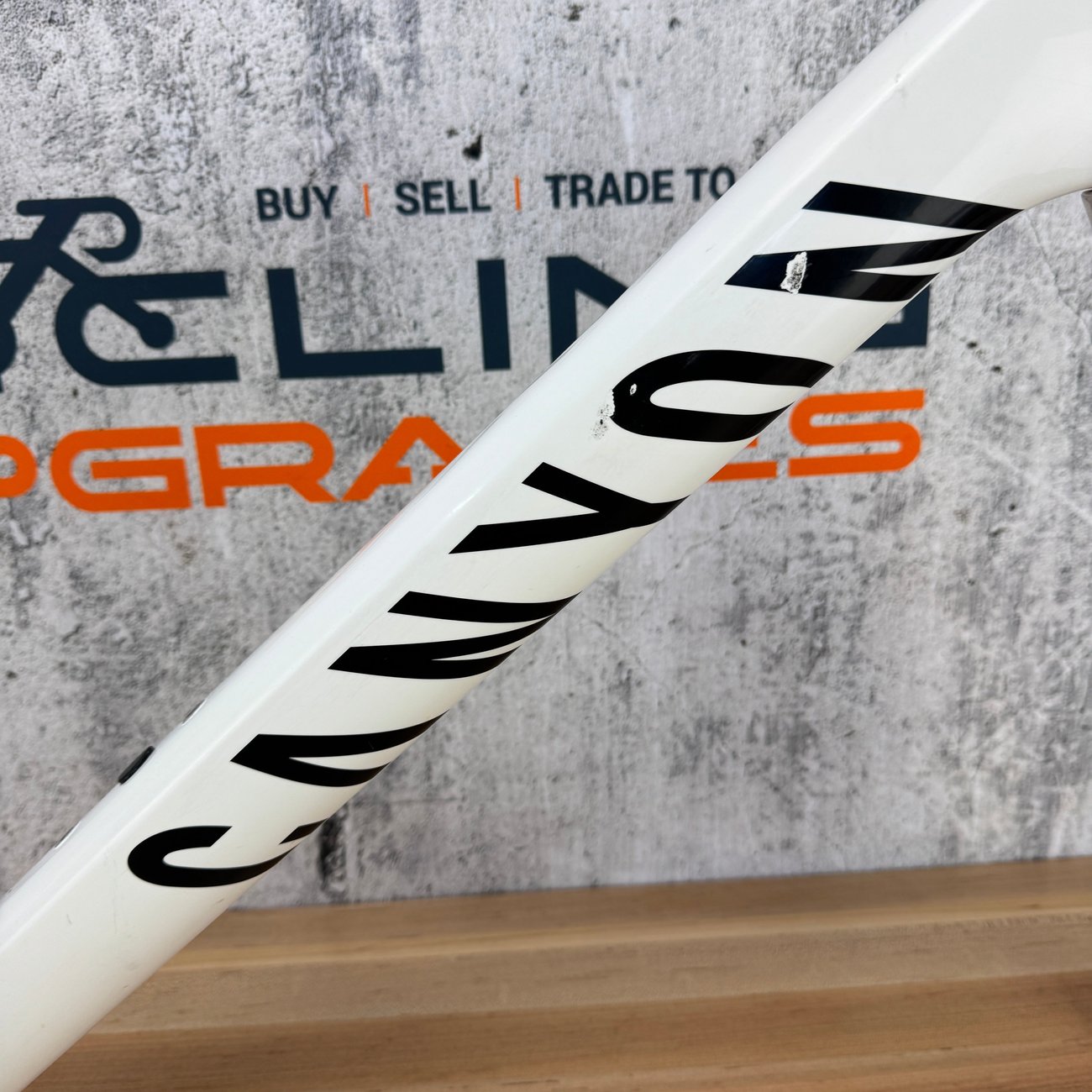

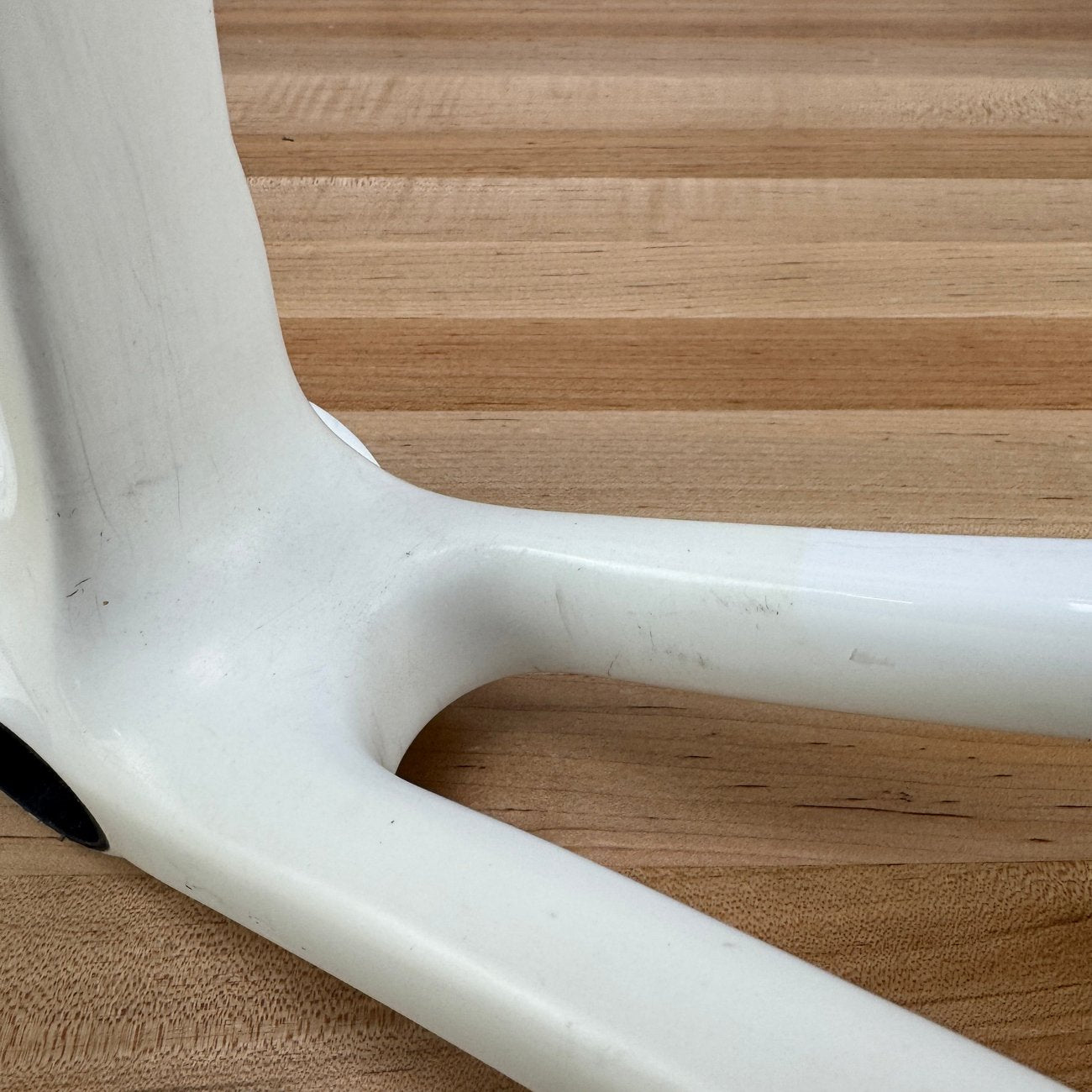

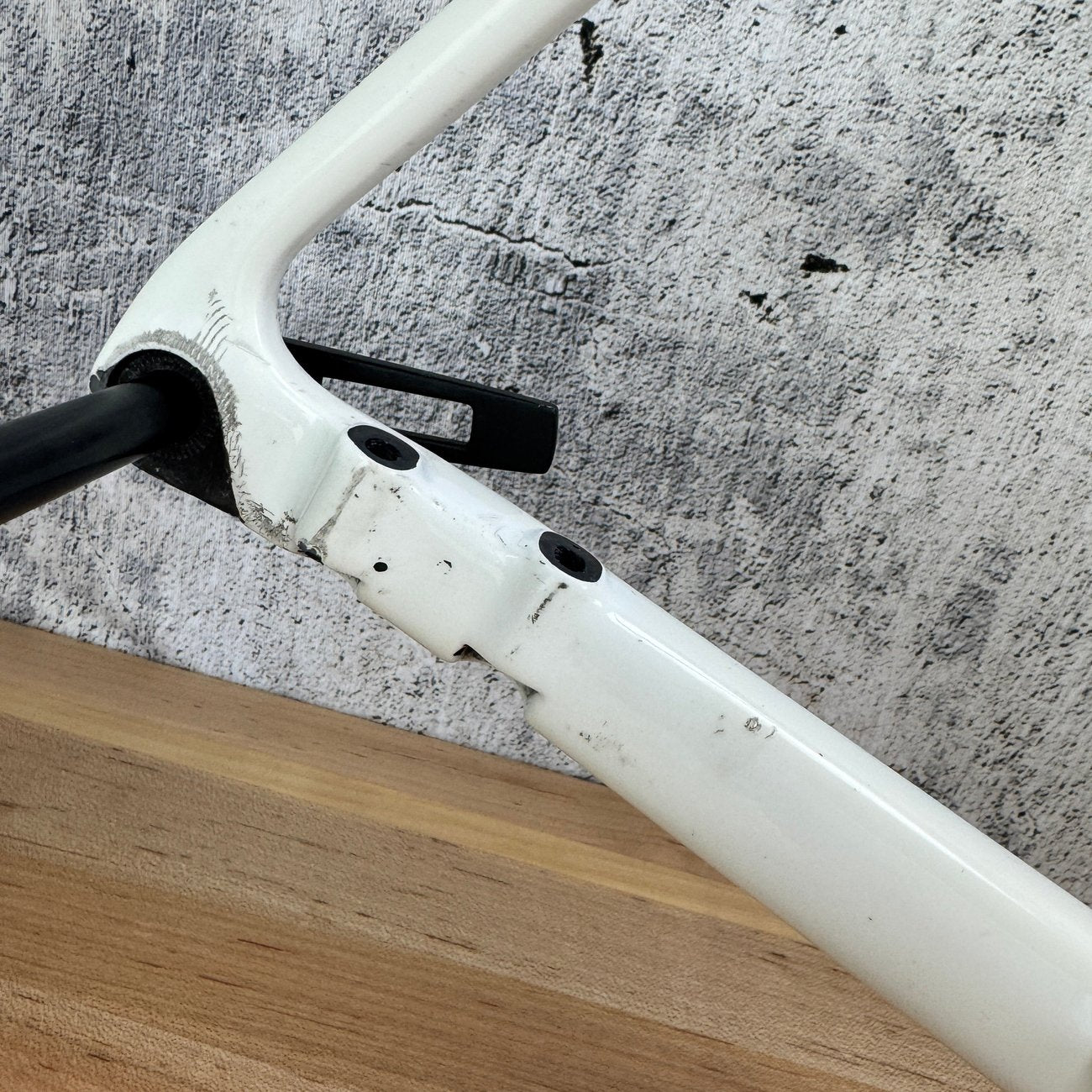

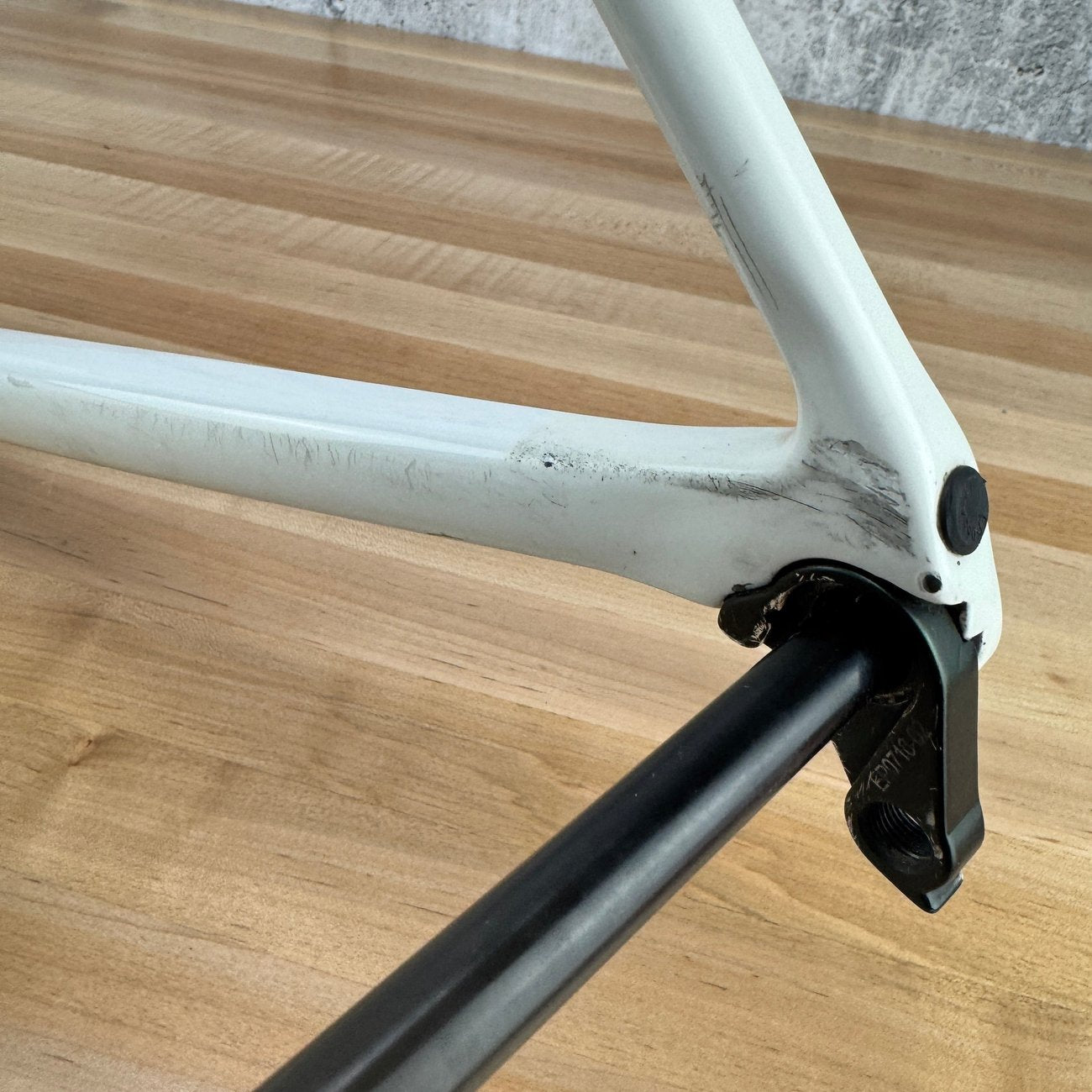

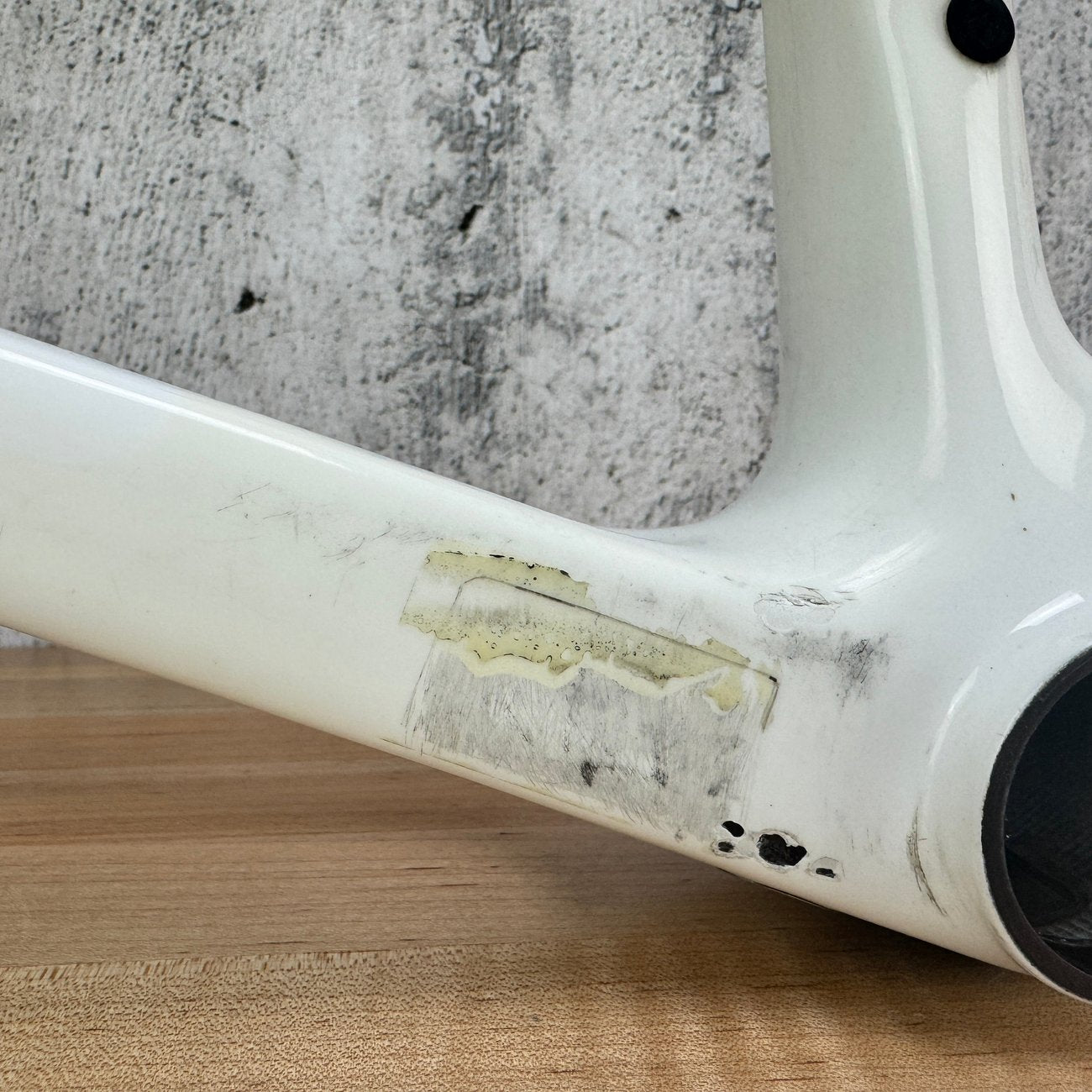

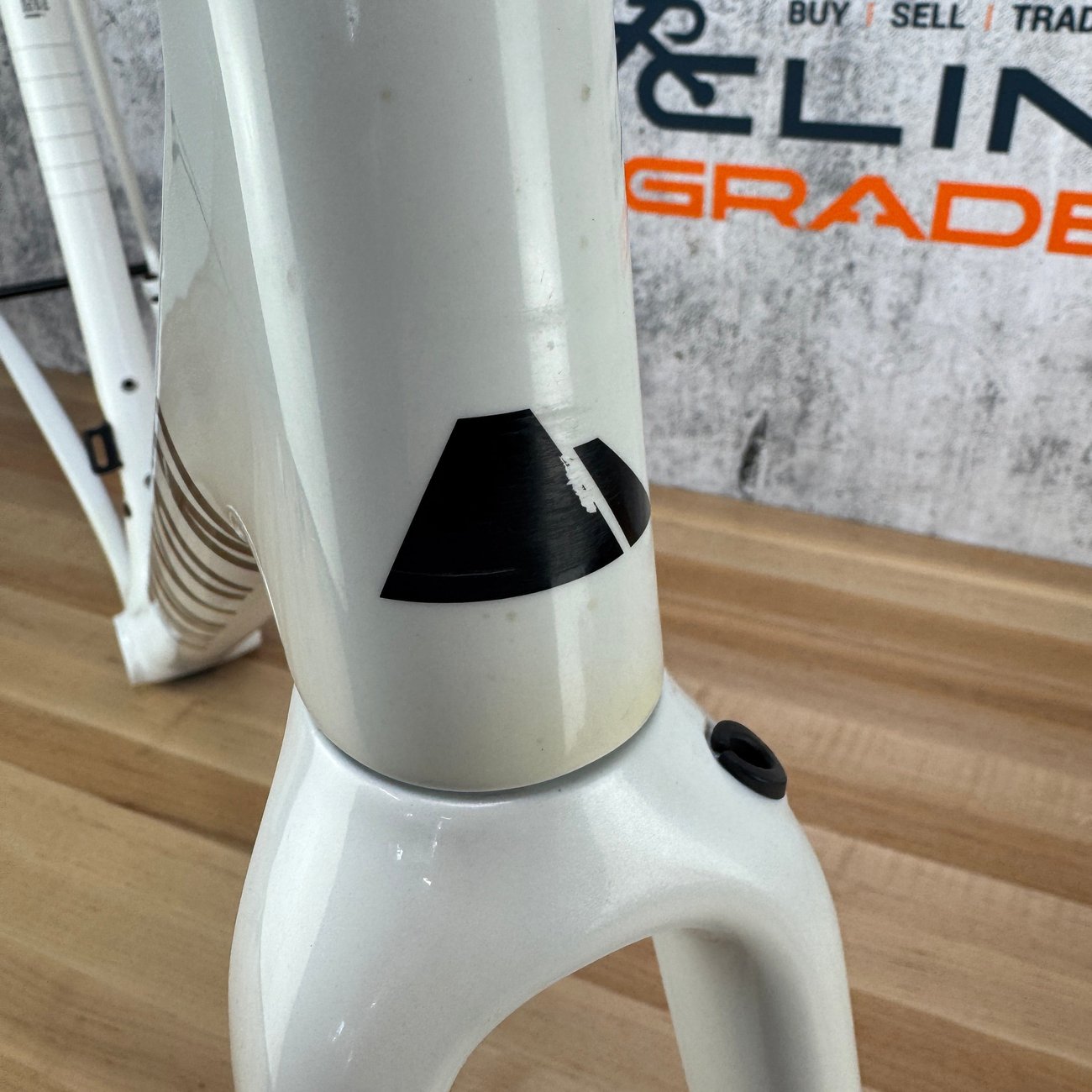

Condition: No cracks or carbon defects were identified through a thorough visual inspection. The cosmetic imperfections to highlight include: Some scratching on the chainstays shown in pics #5-9, some scratches on the down tube shown in pic #11, and some rub wear on the head tube shown in pic #12. We have attempted to show all noticeable imperfections in specific close-up pictures, however other minor imperfections and light signs of use may exist.

Groupset compatibility: Frame can be setup for Di2, EPS, or eTap groupsets. This frame was previously setup with a Di2 groupset. This frame is not compatible with mechanical setups.

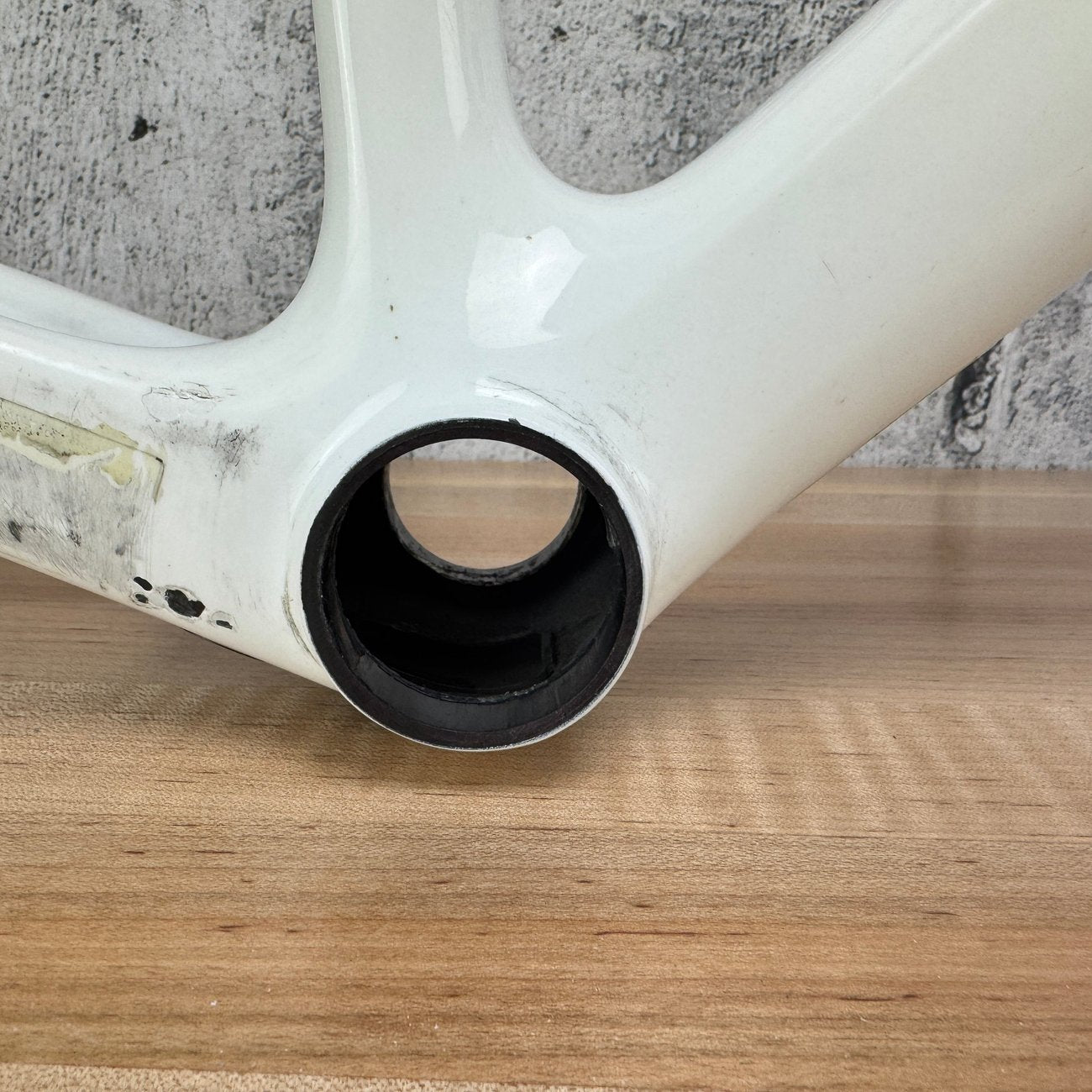

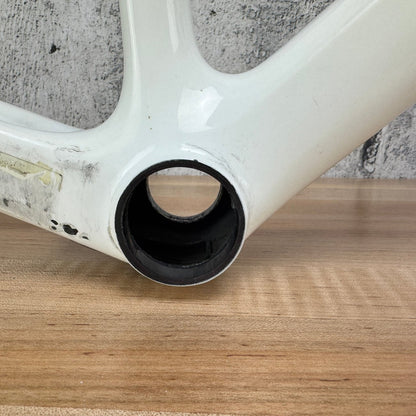

Bottom bracket: BB86 bottom bracket shell type (41mm shell diameter, 86mm shell width). No bottom bracket currently installed or included. Alternatively, we have a handful of lightly used basic bottom brackets on hand, let us know what you need and we can try to ship the frame with the right bottom bracket installed. Additionally, CyclingUpgrades is a Wheels Manufacturing, and a Ceramicspeed Authorized Dealer, if you prefer to have the frame setup with a certain Wheels Manufacturing, or Ceramicspeed bottom bracket we can add and install it at an additional cost before shipping - message with inquiries/requests.

Steerer length: 65mm of steerer above the top tube. 20mm of spacers below the stem plus the headset cover.

Seatpost: 27.2mm diameter. Carbon Canyon setback seatpost included.

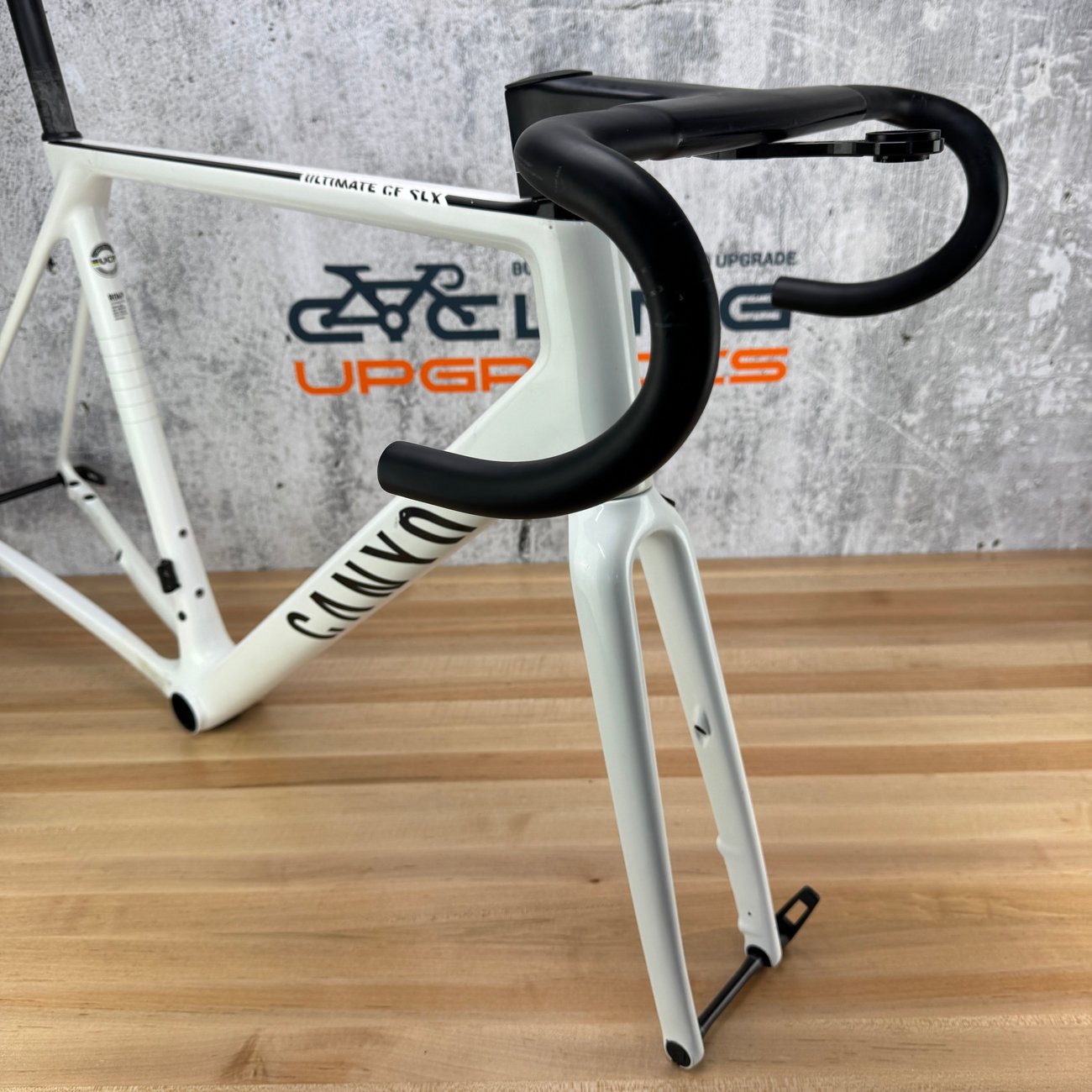

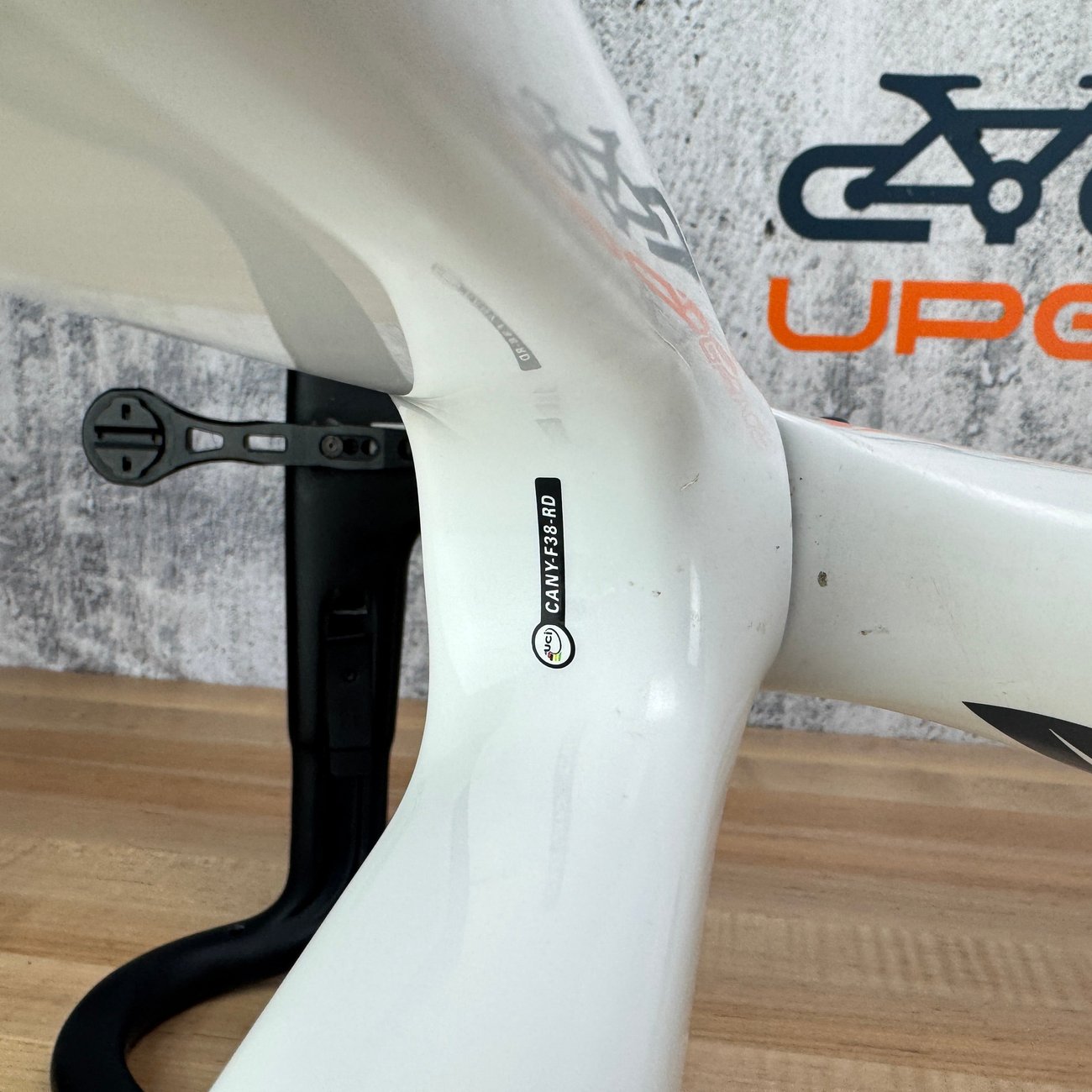

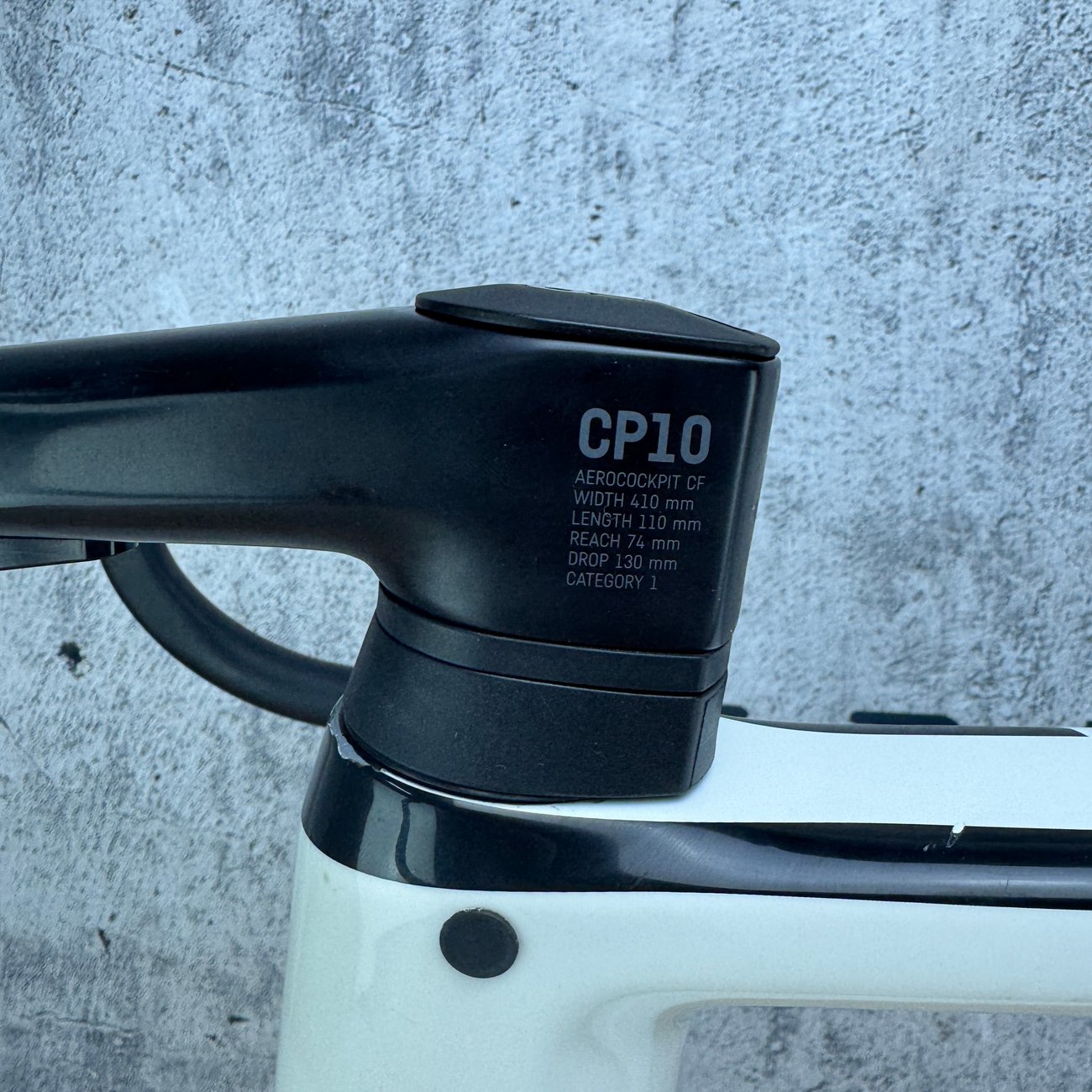

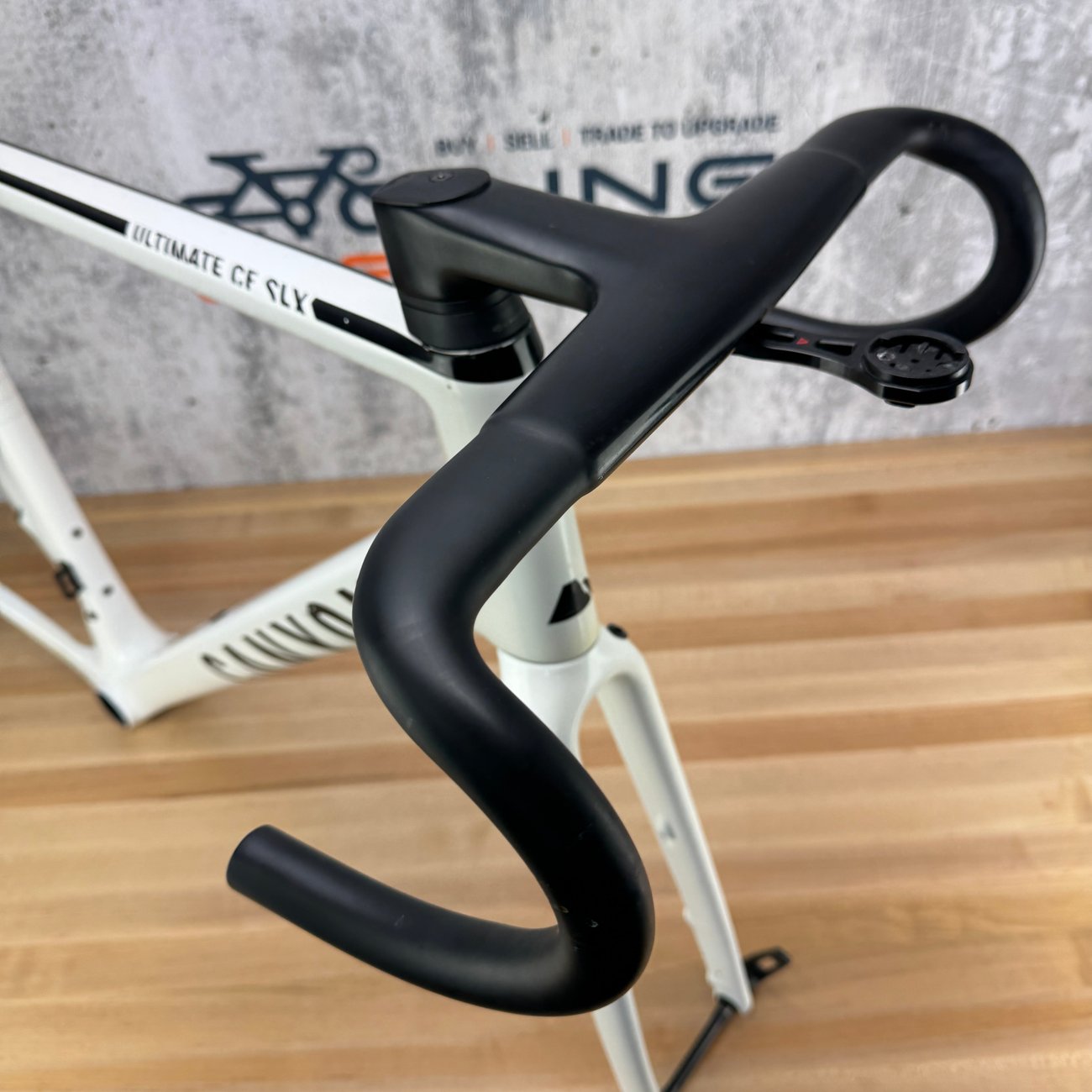

Handlebars: Canyon CP10 carbon barstem. 41cm width, 100mm stem length, 74mm reach, 130mm drop. We can sell without the handlebar for $250 less - message with requests before purchasing

Dropout Spacing: Front 12mm Thru Axle x 100mm, Rear 12mm Thru Axle x 142mm.

Weight: 2134 grams as pictured with headset, thru axles, bottom bracket, handlebar, seatpost, frame hardware, etc.

What's included: Frame, fork, headset, rear derailleur hanger, bottom bracket, thru axles, seatpost, handlebar.
