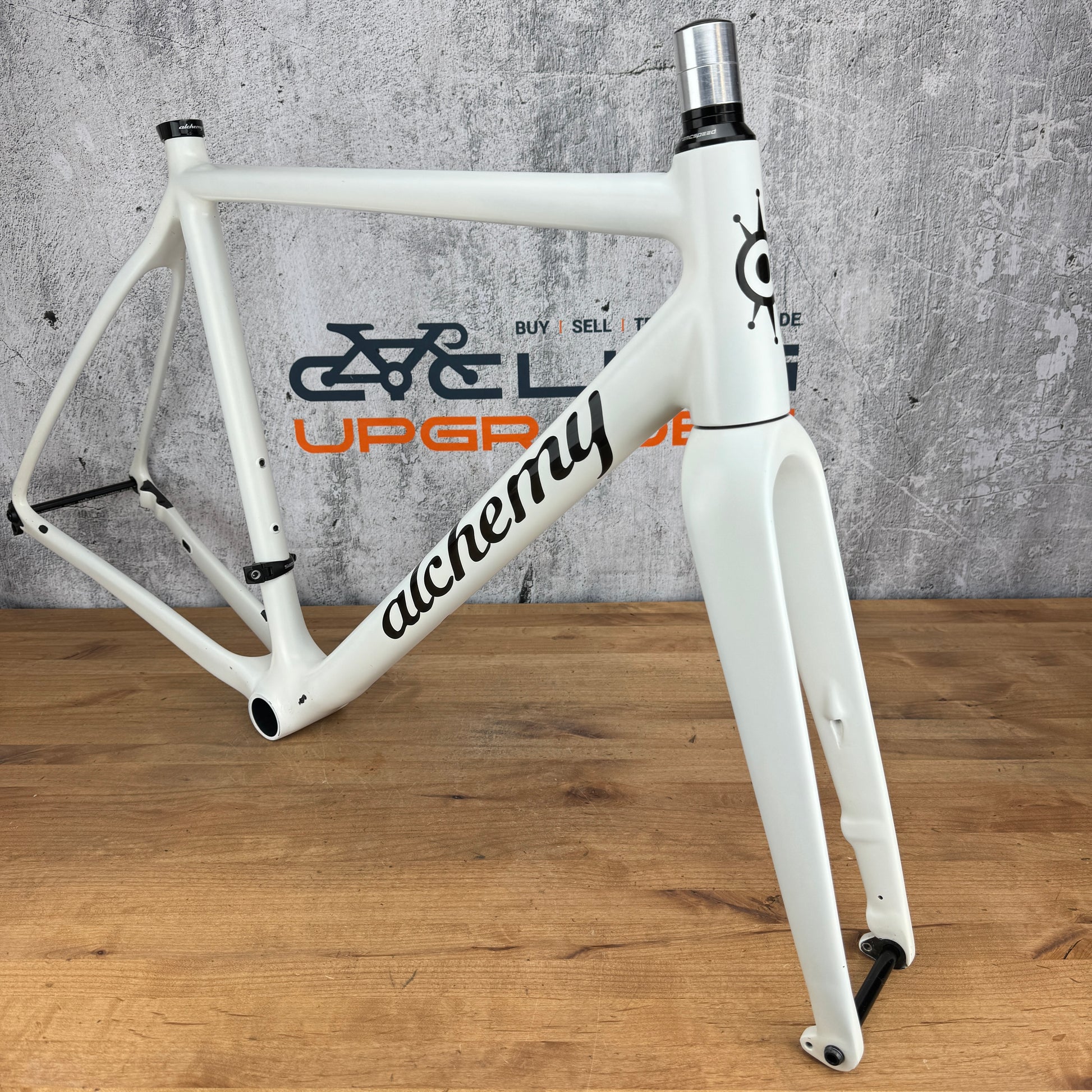

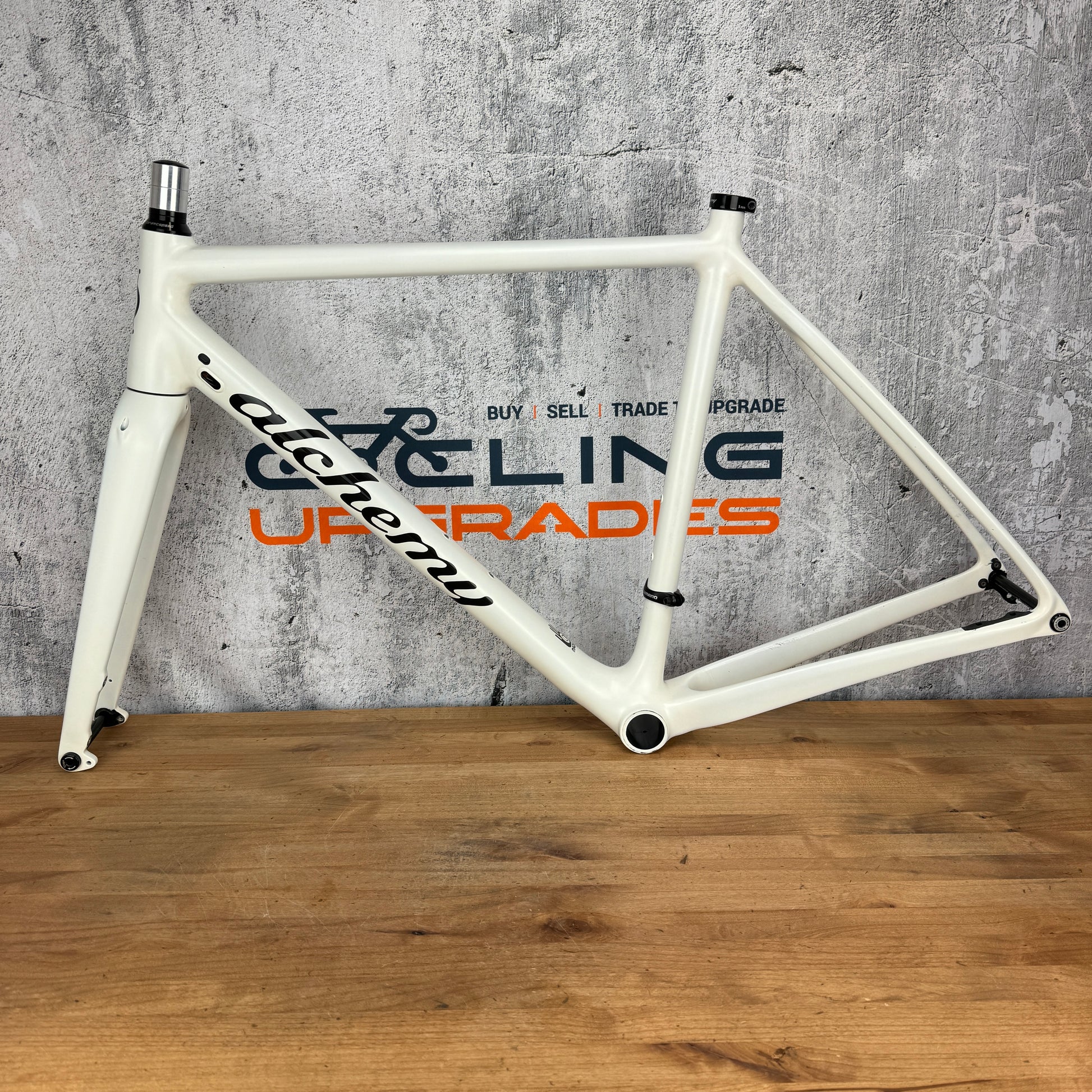

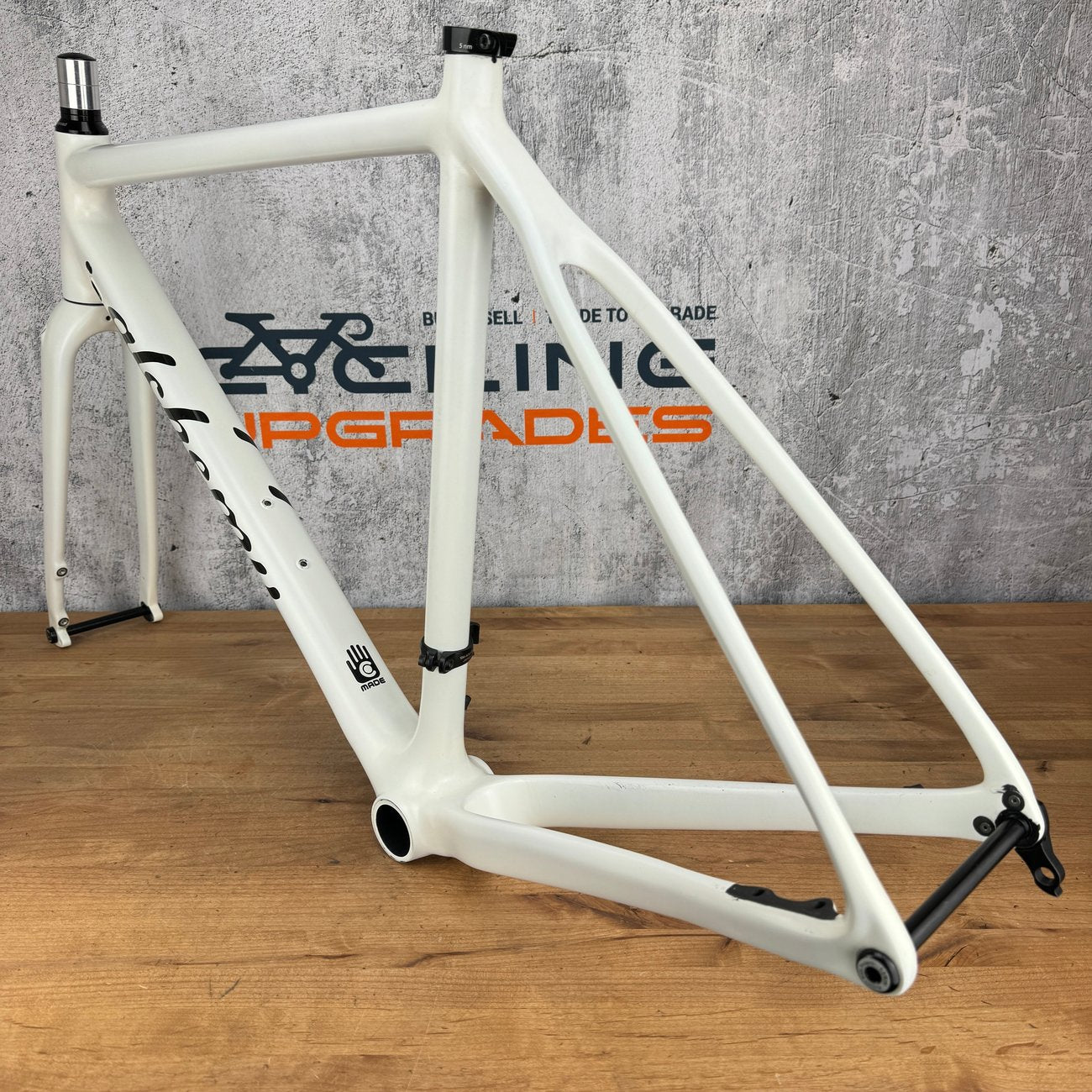

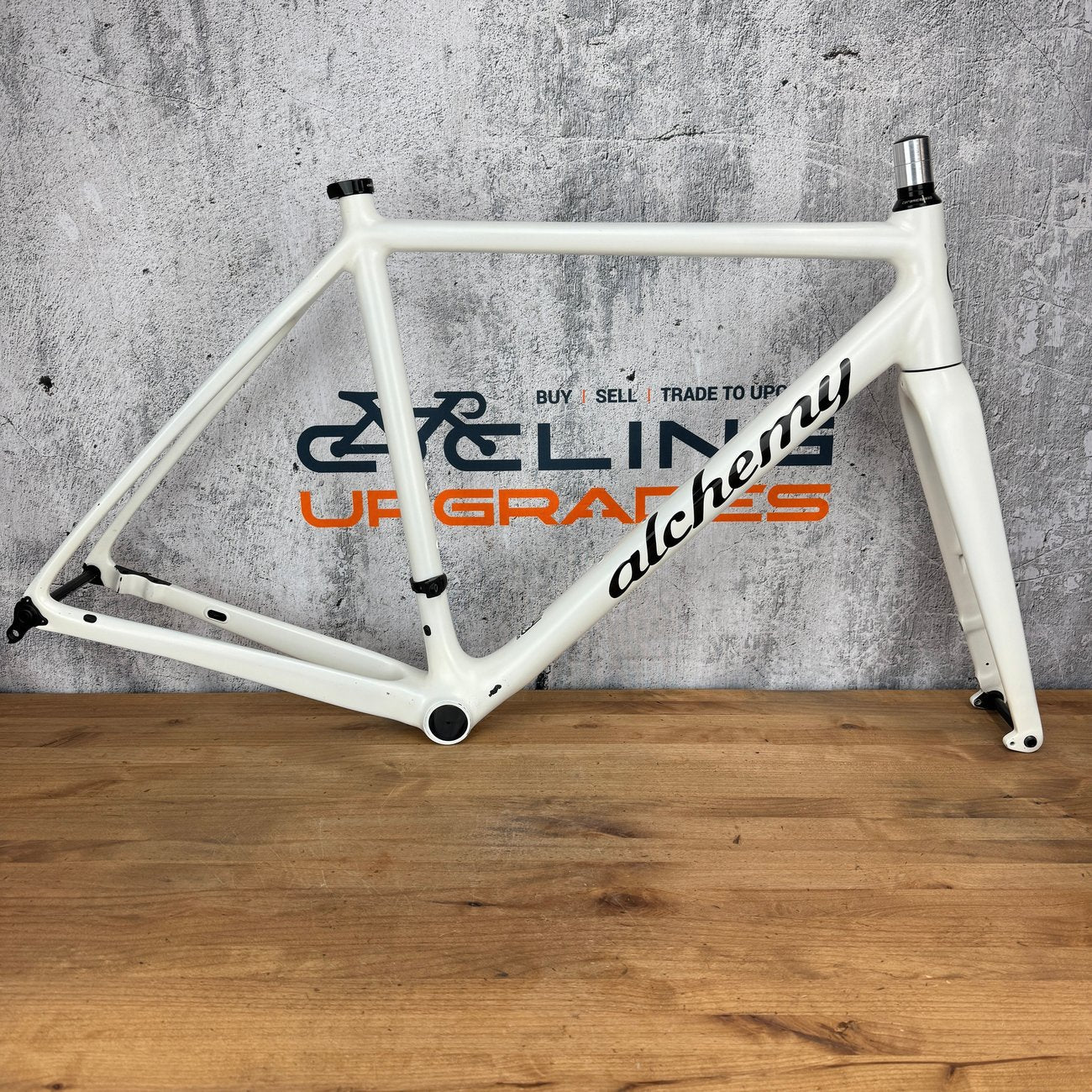

Frame: 2022 Alchemy Atlas All Road
Tire Clearance: 38mm claimed by Alchemy, we measured for fitment around 45mm x 700c. 60mm edge to edge in the fork, and 58mm edge to edge in the chainstay, and 56cm in the seatstays.

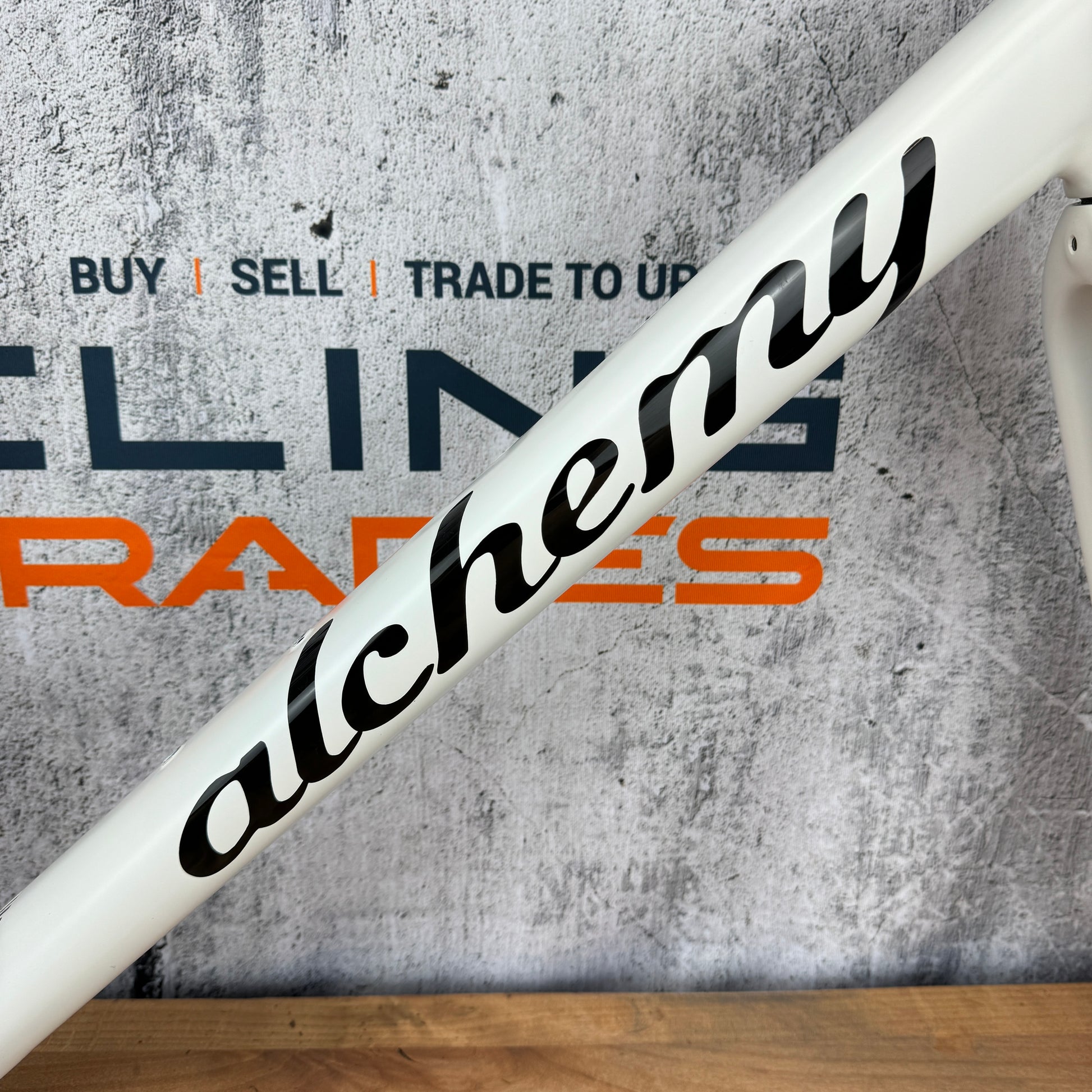

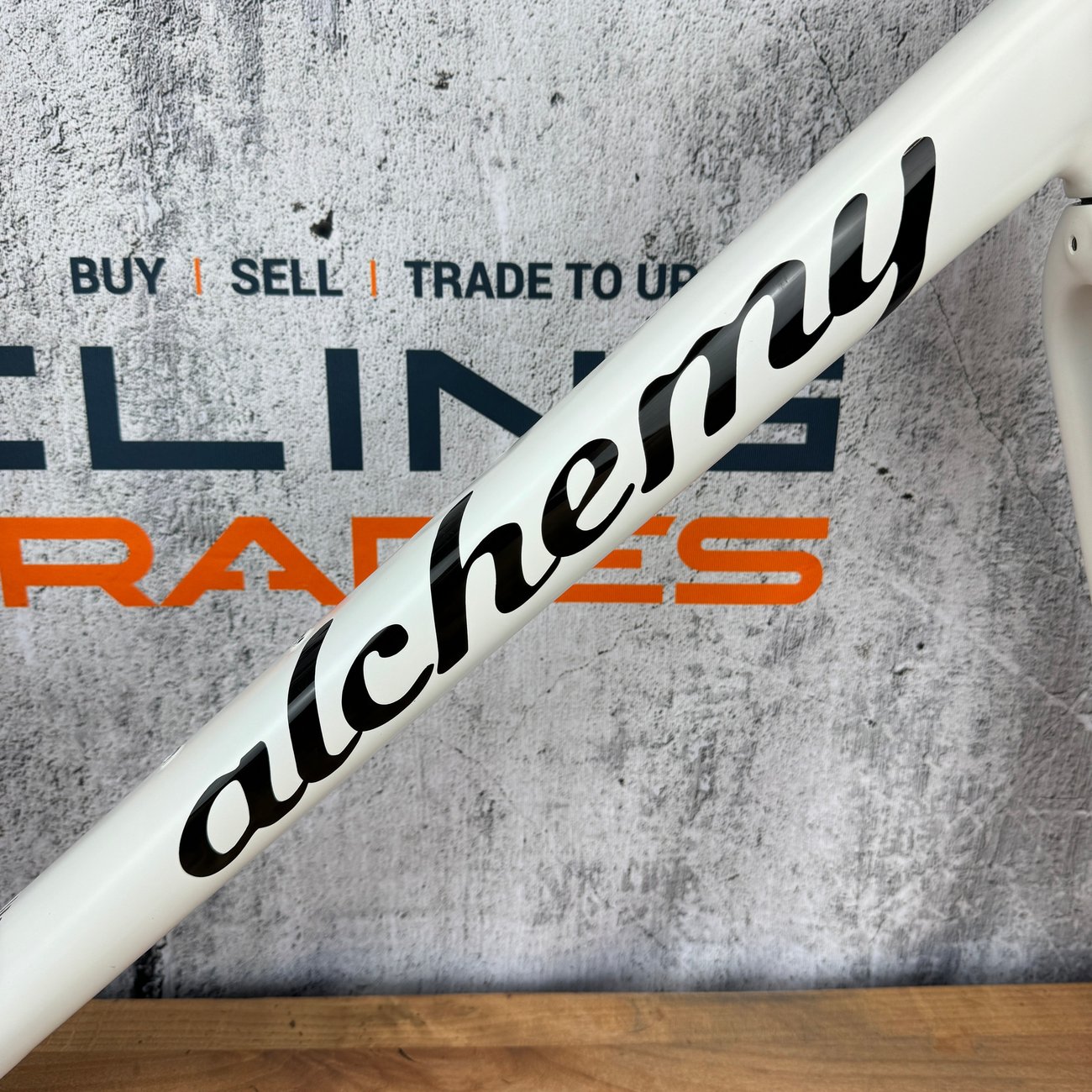

Color: White with black decals
Brake type: Flat-Mount disc brake.

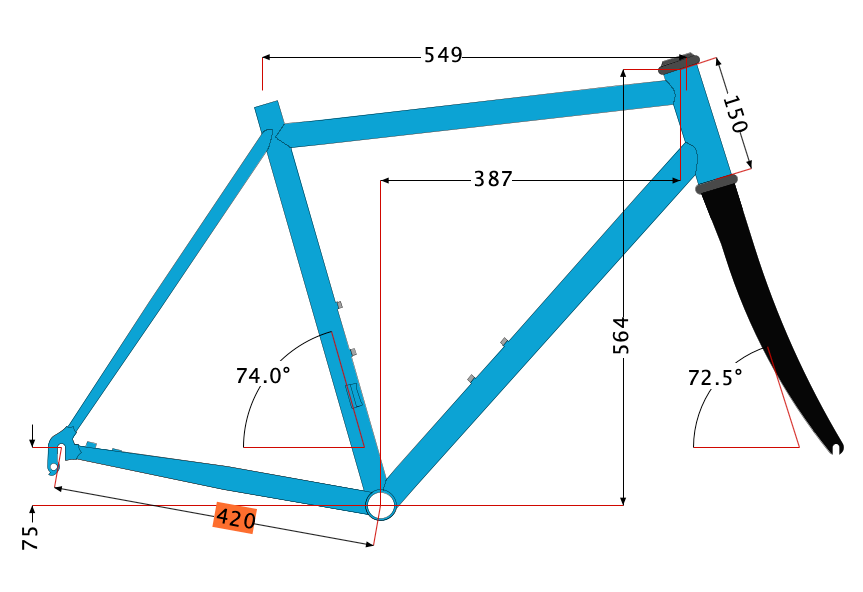

Size: 55cm. 549mm Effective Top Tube. Stack - 387mm. Reach - 564mm. Head tube 150mm. As we were not able to obtain a copy of the original geometry chart for this frame, CyclingUpgrades reverse engineered a geometry chart using a combination of measurements obtained from setting the frame in a Benchmark Tooling frame building fixture and manual measurements taken by hand. A copy of this geometry chart is shown in the last listing photo.

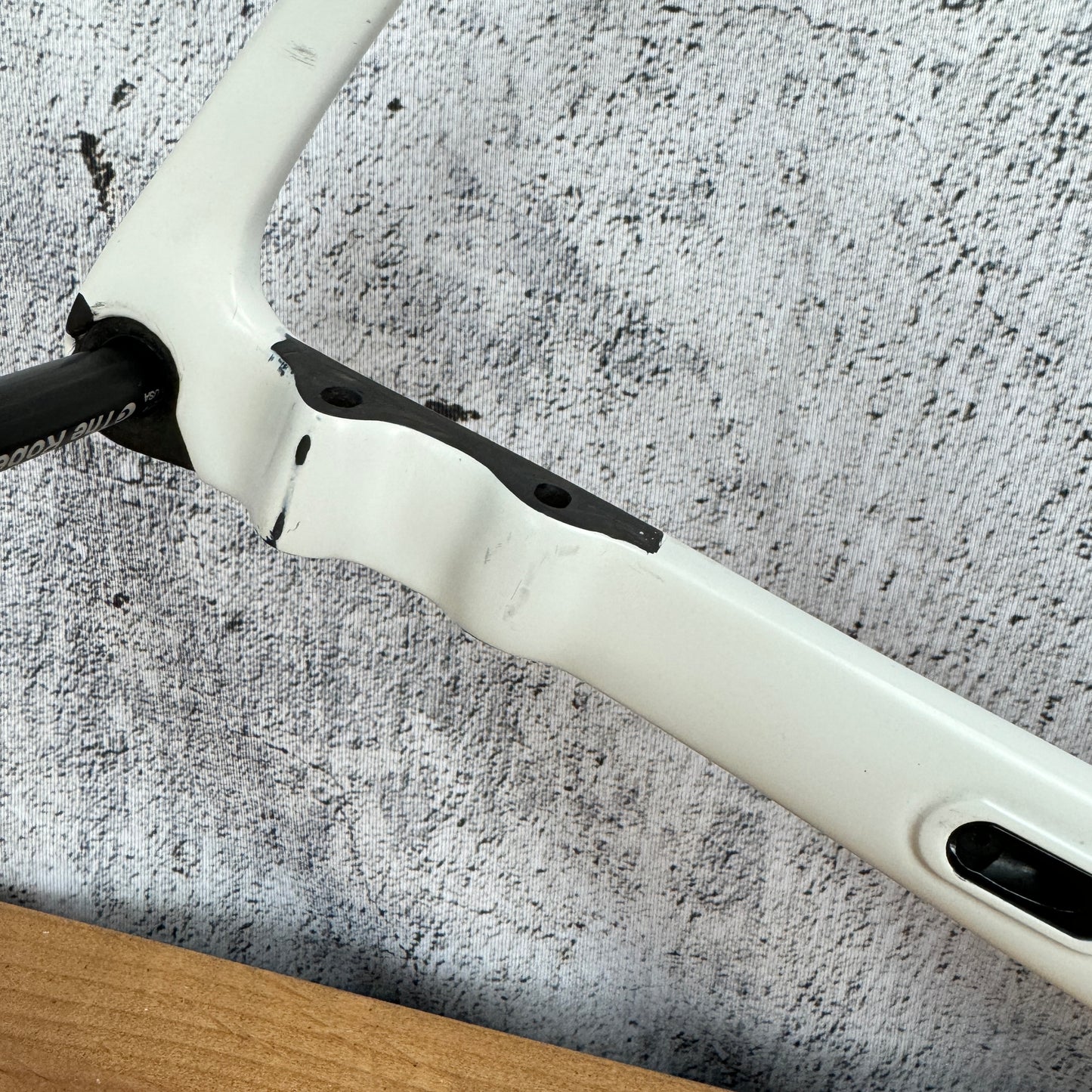

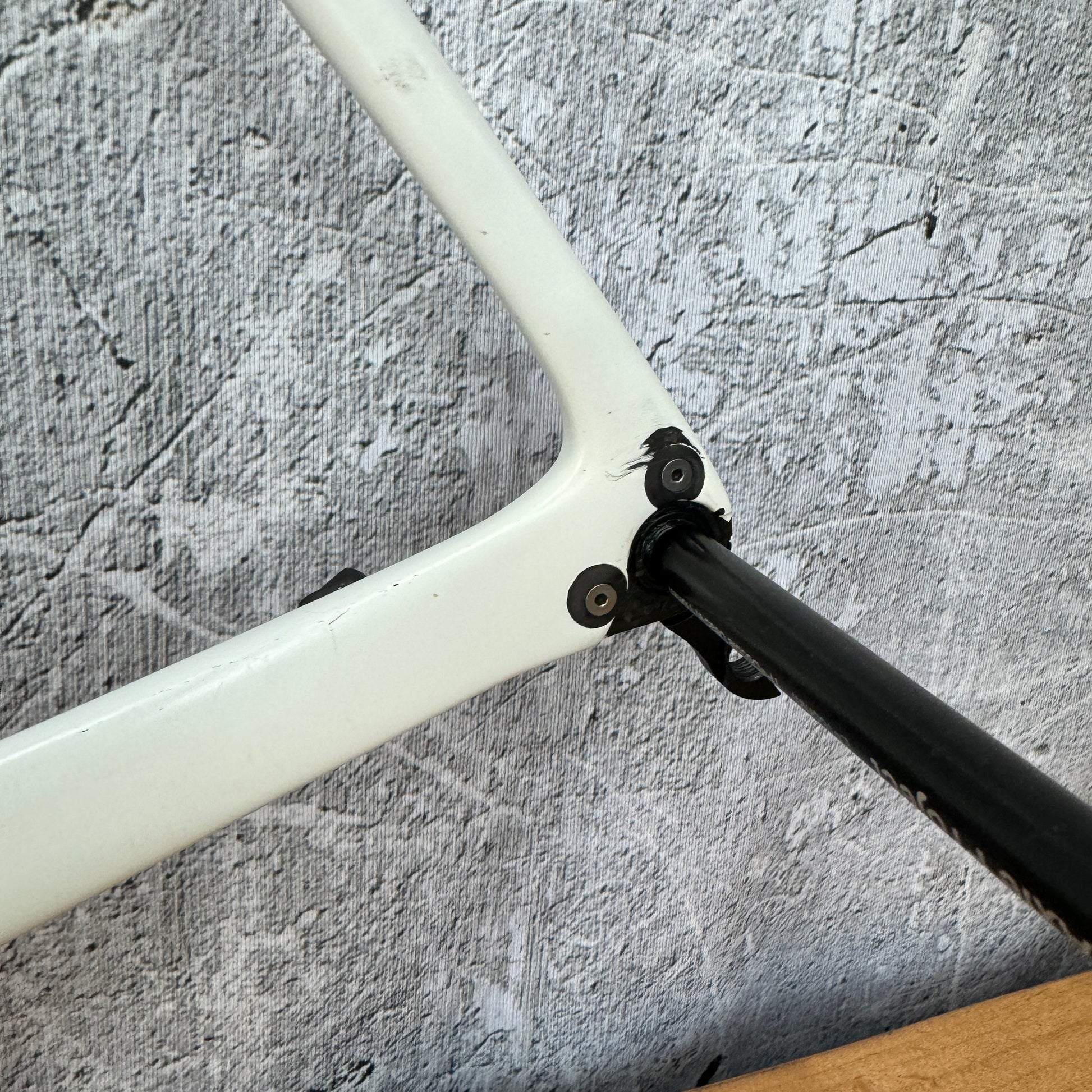

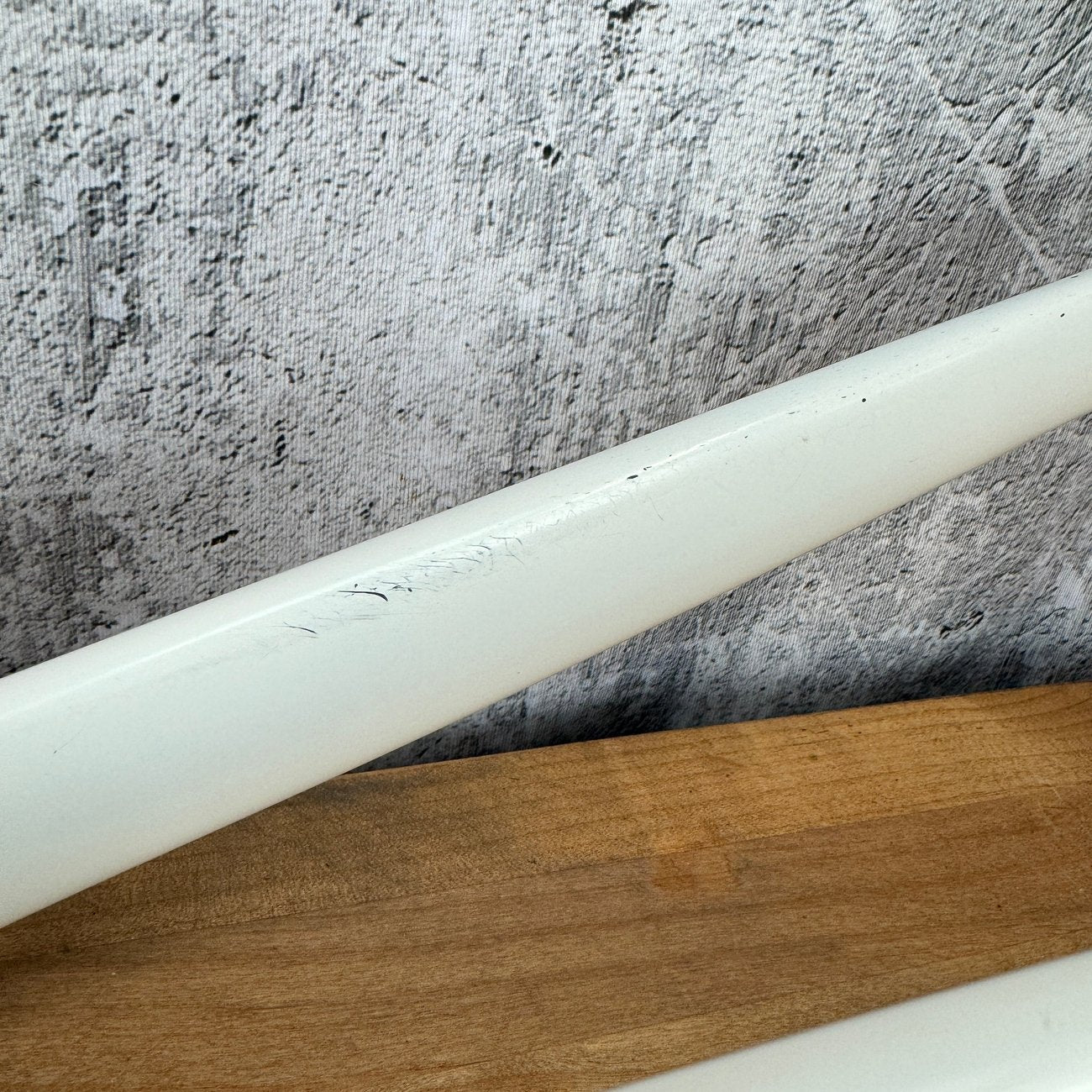

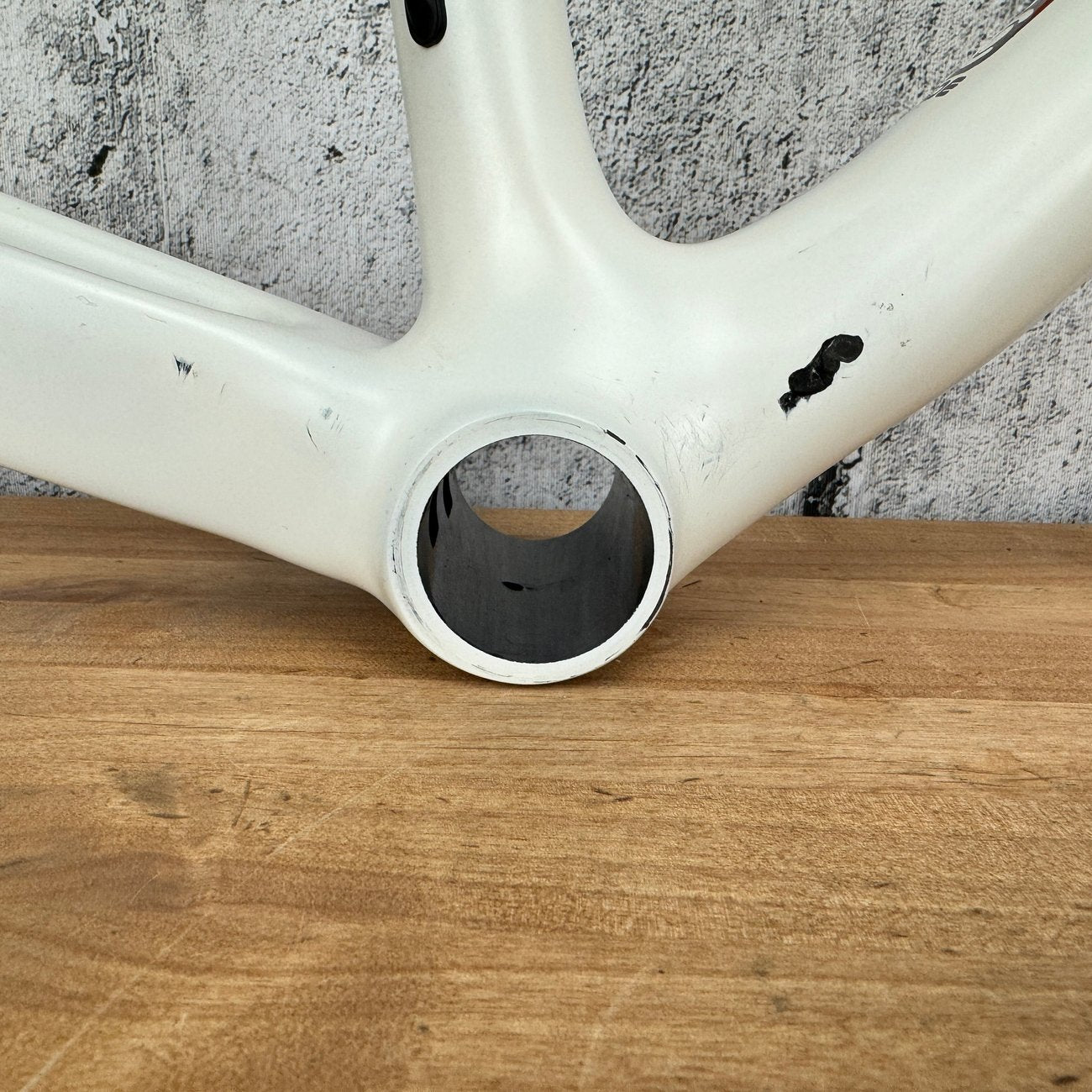

Condition: No cracks or carbon defects were identified through a thorough visual inspection. The cosmetic imperfections to highlight include: a scratch from chain drop near the bottom bracket shown in pic #5, and some scratches on the chainstays shown in pics #6-8. We have attempted to show all noticeable imperfections in specific close-up pictures, however other minor imperfections and light signs of use may exist.
Groupset compatibility: Frame can be setup for Di2, EPS, or eTap groupsets. This frame was previously setup with a Di2 groupset. Other frame/cable stops may be needed for eTap or EPS setups. This frame is not compatible with mechanical groupsets.
Bottom bracket: BB86 bottom bracket shell type (41mm shell diameter, 86mm shell width). No bottom bracket currently installed or included. We have a handful of lightly used basic bottom brackets on hand, let us know what you need and we can try to ship the frame with the right bottom bracket installed. Additionally, CyclingUpgrades is a Ceramicspeed and Cane Creek Authorized Dealer, if you prefer to have the frame setup with a certain bottom bracket we can add and install it at an additional cost before shipping - message with inquiries/requests.

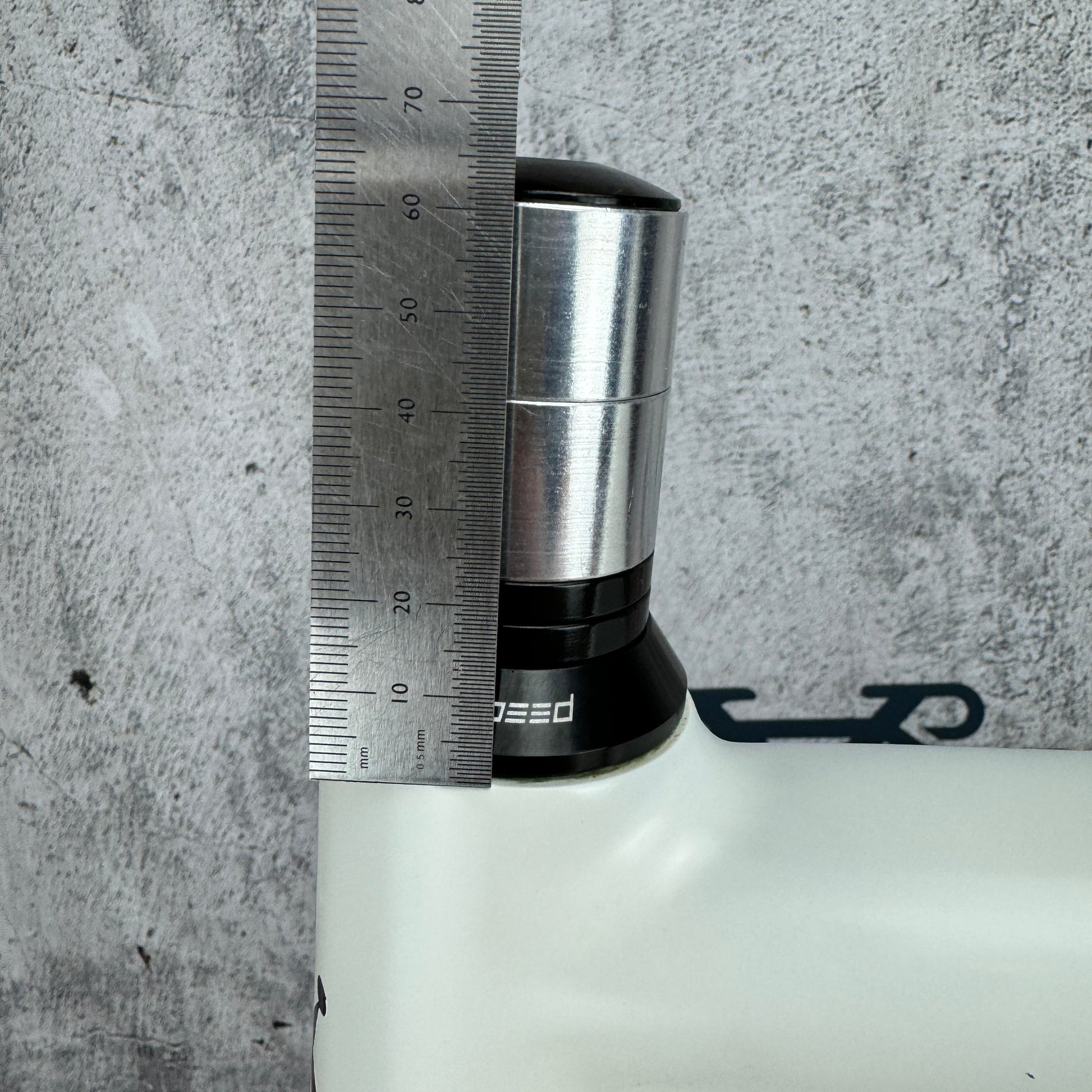

Steerer length: 60mm of steerer above the top tube. 10mm of spacers below the stem plus the headset cover. We do have an option available to safely extend the steerer tube by 15-18mm - message us for additional details.
Headset: Ceramicspeed headset
Seatpost: 27.2mm diameter. No seatpost included
Dropout Spacing: Front 12mm Thru Axle x 100mm, Rear 12mm Thru Axle x 142mm.
Weight: 1906 grams as pictured with headset, thru axles, frame hardware, etc.
What's included: Frame, fork, Ceramicspeed headset, rear derailleur hanger, thru axles
