2021 Trek Boone CX 56cm 600 OCLV Carbon Disc Frameset 700c 1899g + Seatmast

2021 Trek Boone CX 56cm 600 OCLV Carbon Disc Frameset 700c 1899g + Seatmast

Regular price $1,695.00
$1,695.00 Regular price $0.00 Sale price
Sale Sold out
Condition: Used / Pre-owned

Item Specifics

  • Brand: Trek
  • Bottom bracket shell type: BB90
  • Brake type: Disc Brake
  • Frame size: 56 cm
  • Item weight: 1899g
  • Material: Carbon
  • Model: Boone
  • Mount type: Flat-Mount
  • Part type: Bicycle Frame
  • Steerer tube diameter: 1 1/8 in
  • Wheel size: 700C
  • We clean all parts before selling!
  • We test and inspect all parts!
  • We create detailed listings!
  • We package like professionals!
  • We ship quickly!
  • We accept 30-day returns!
View full details
Product Description

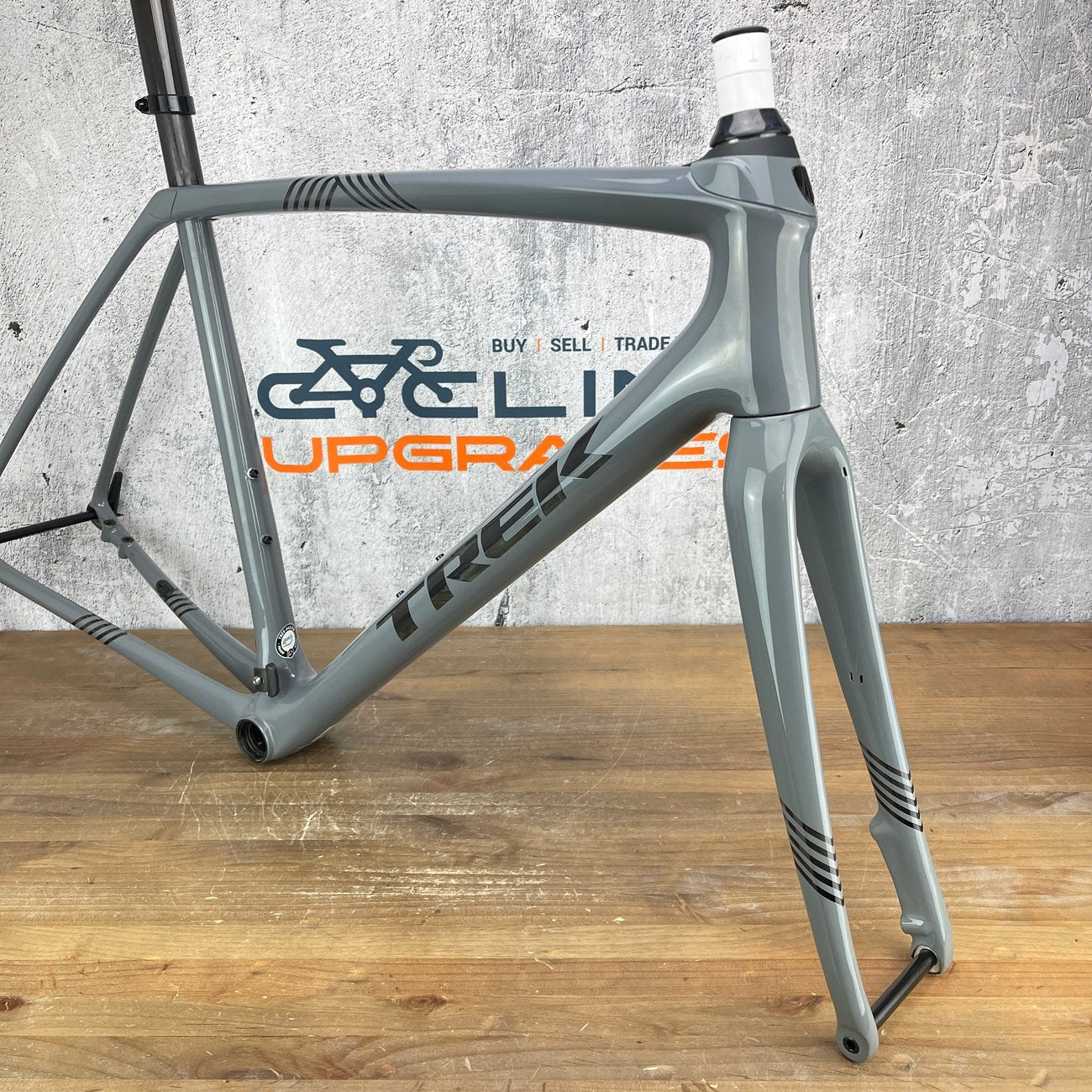

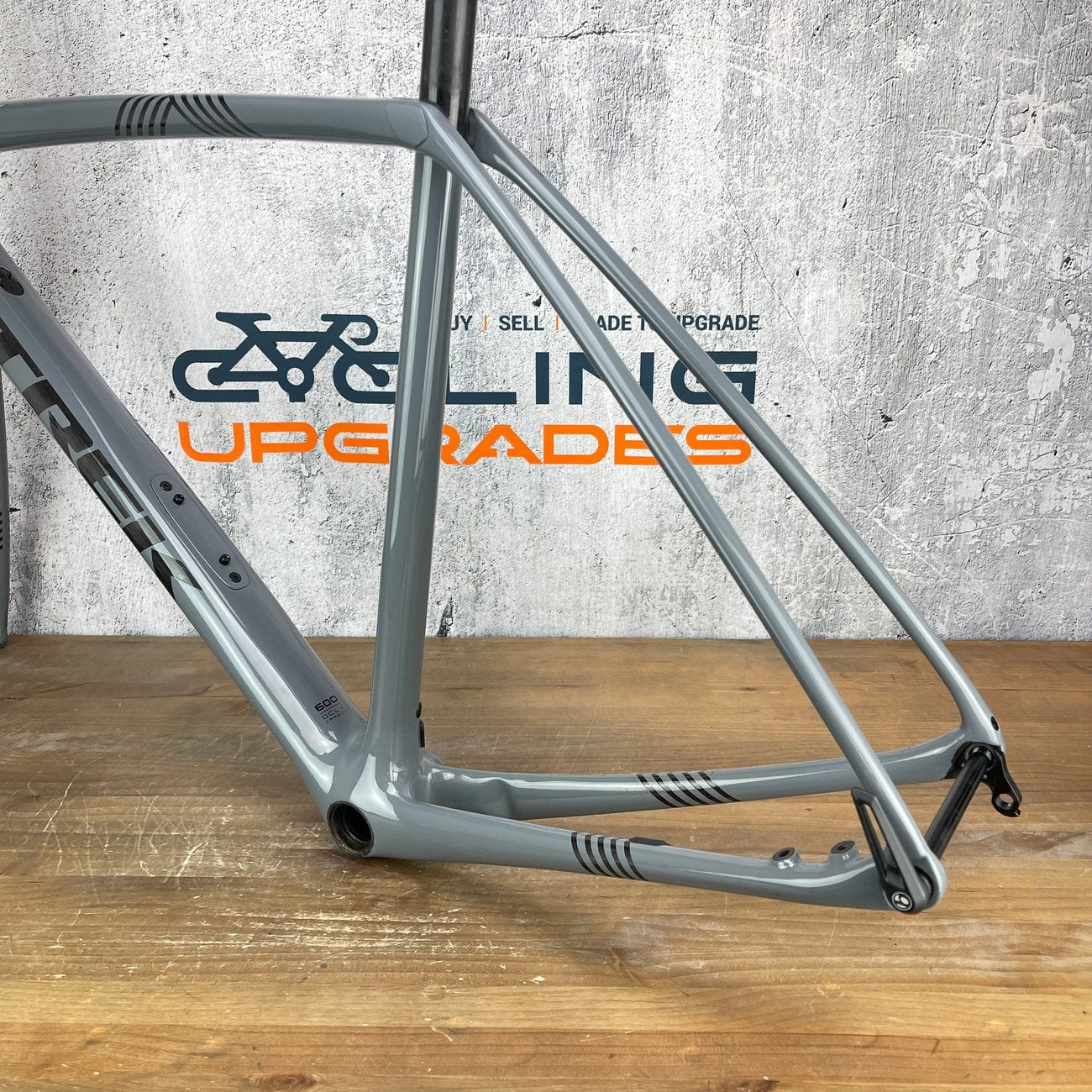

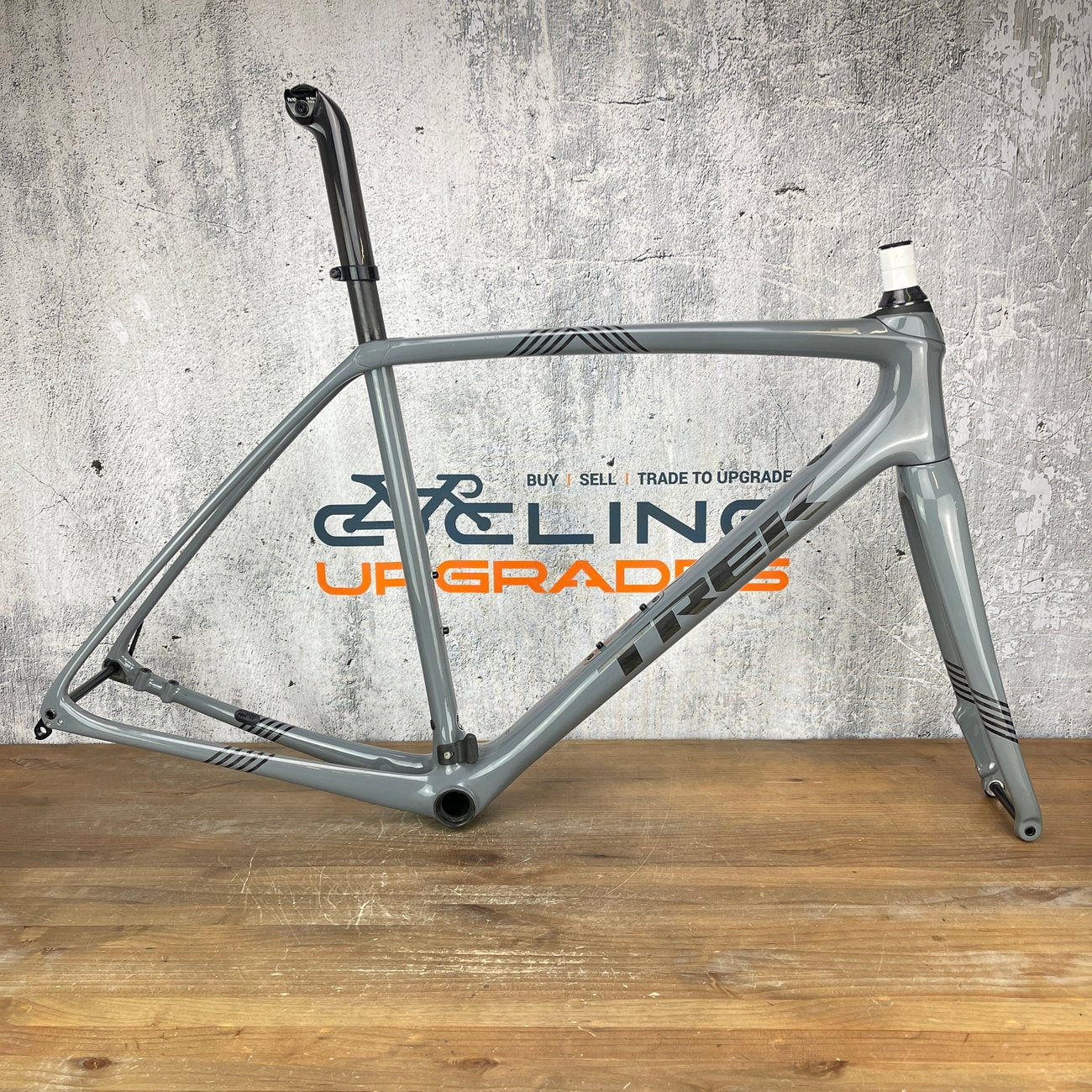

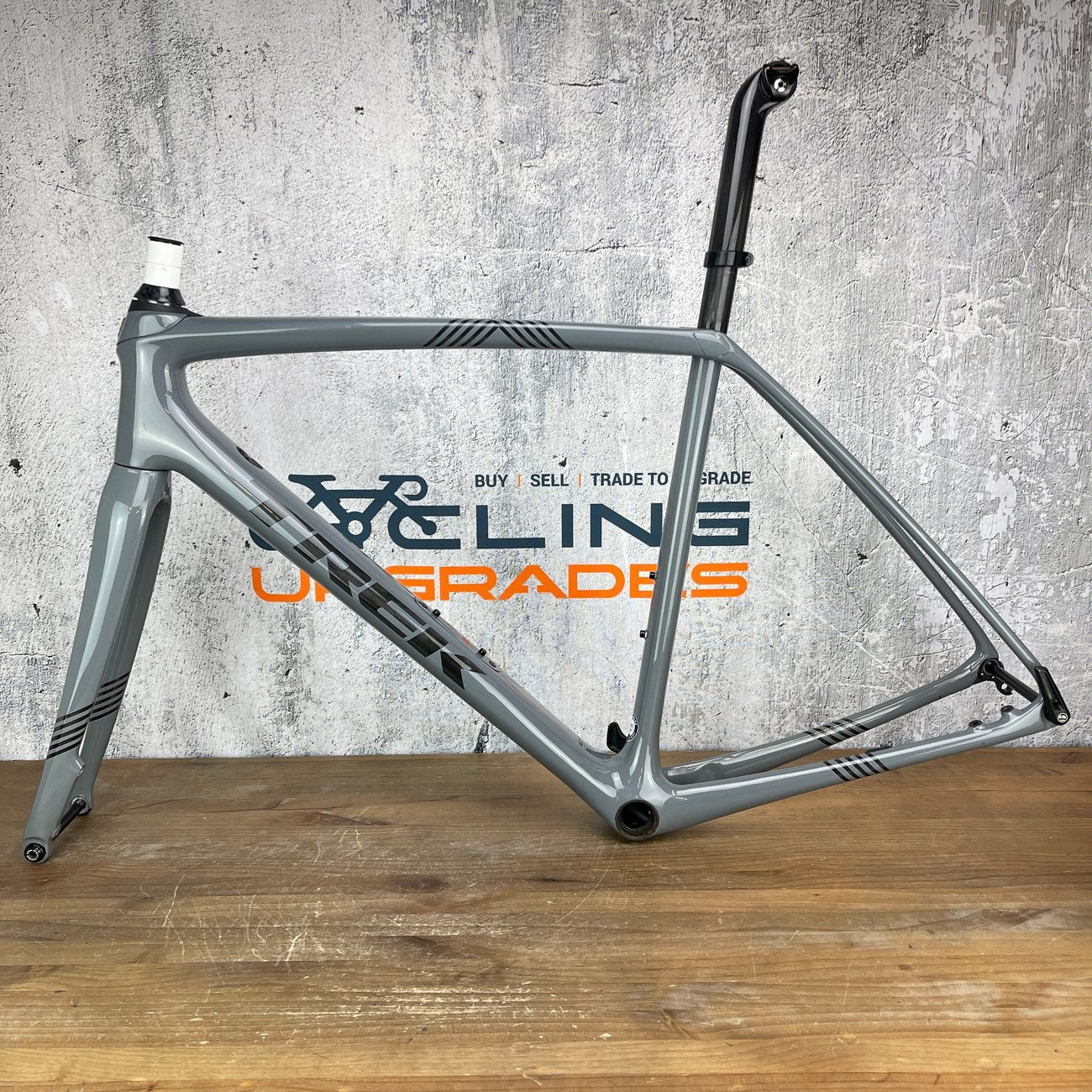

Frame: 2021 Trek Boone

Color: Cement Gray

Brake type: Flat-mount disc brake.

Size: 56cm. Effective Top Tube 558mm. Stack - 580mm. Reach - 387mm. Head tube 157mm. Recommend buyer confirm and research full geometry online.

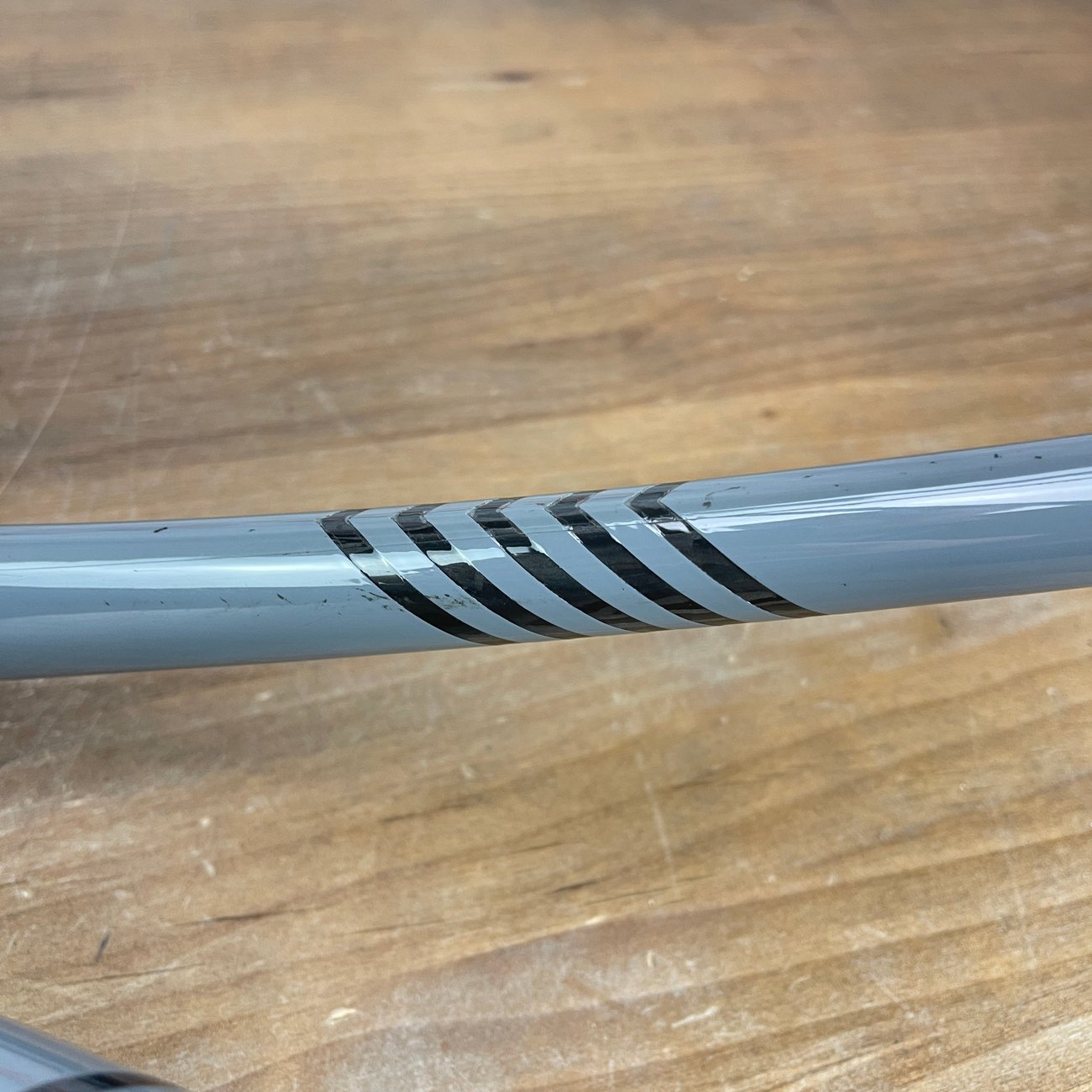

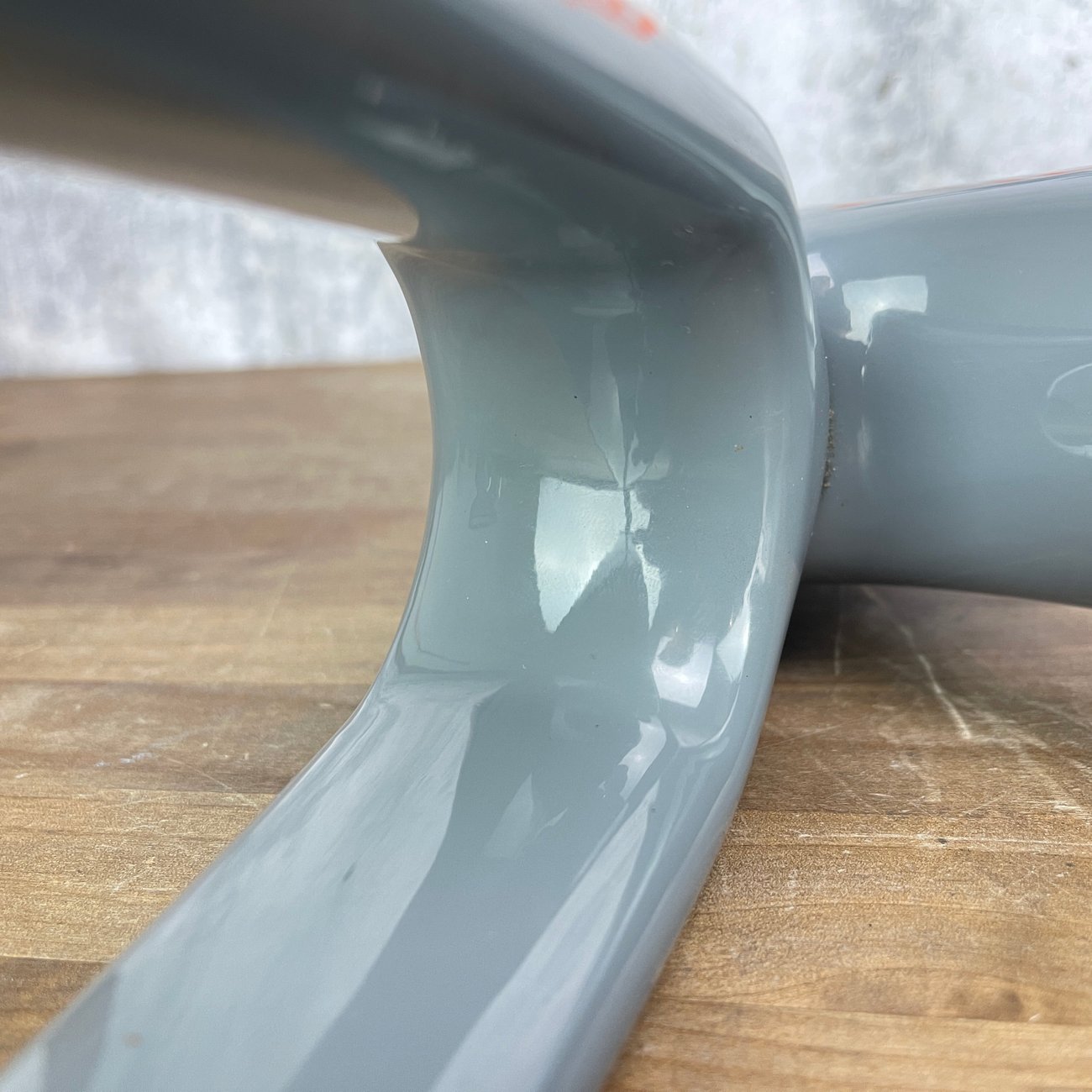

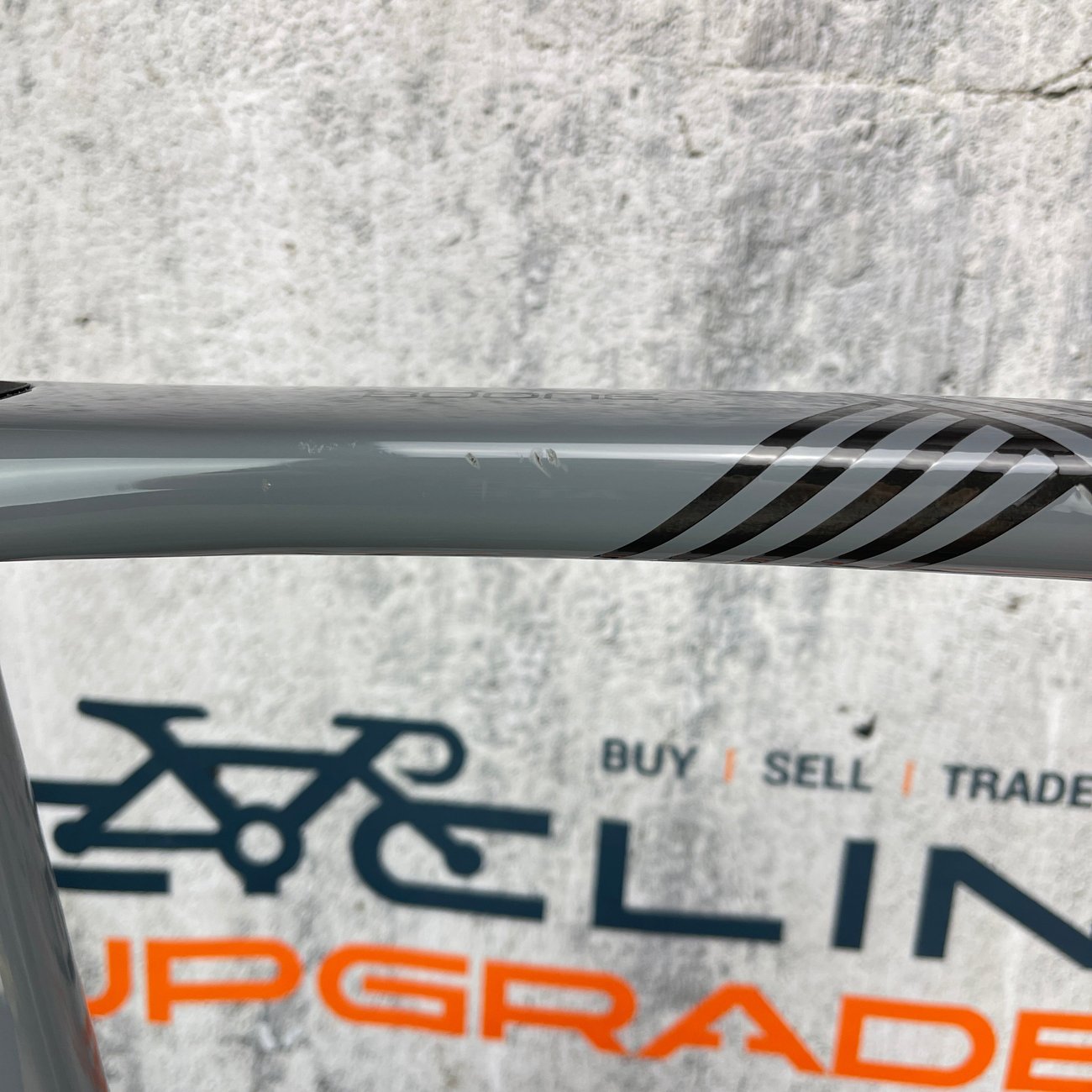

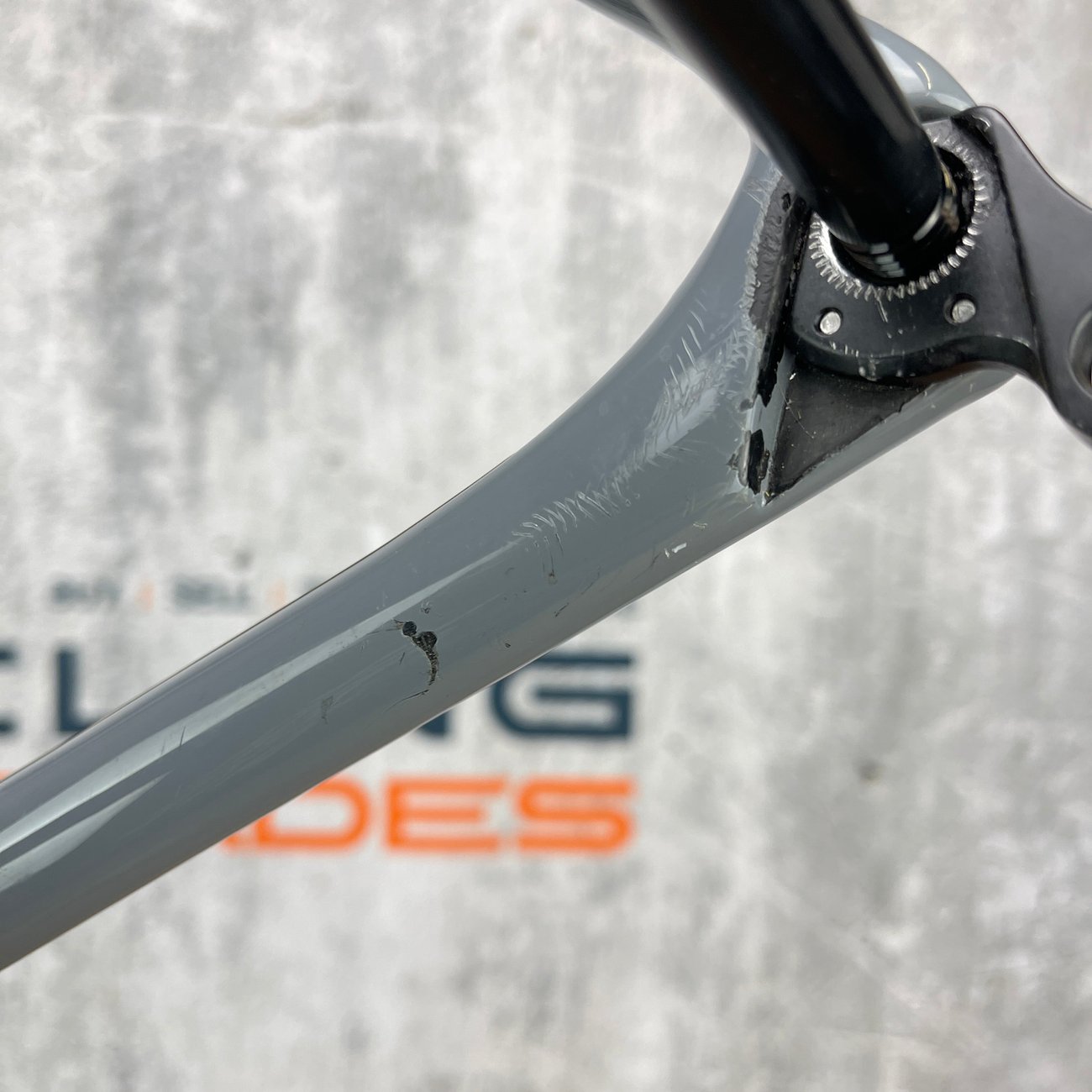

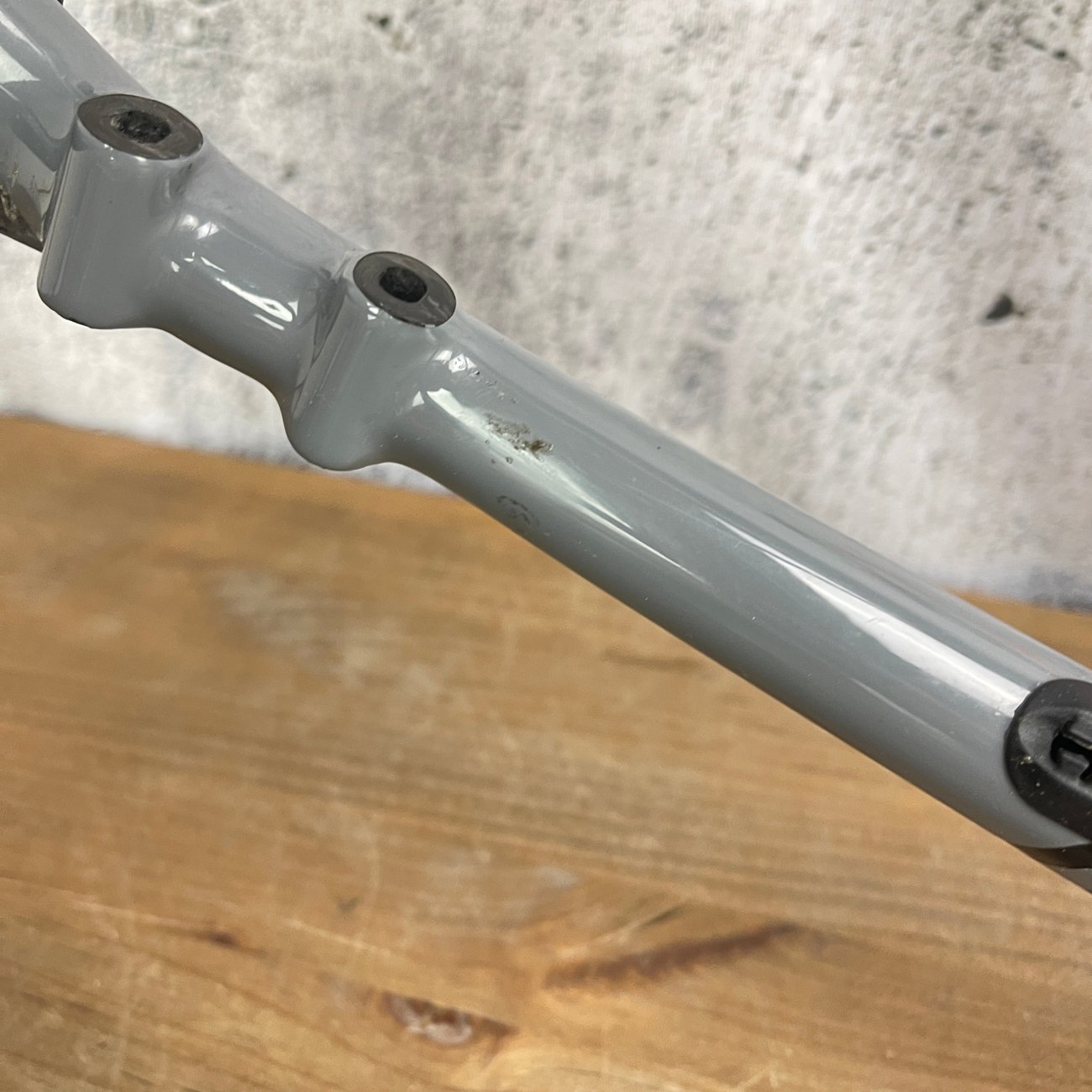

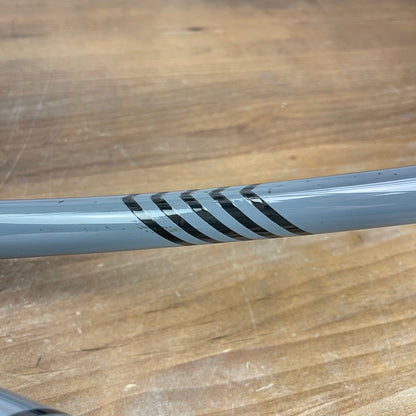

Condition: No cracks or carbon defects were identified through a thorough visual inspection. The cosmetic imperfections to highlight include: some scratches on the top tube shown in pic #6, and some scratches on the chainstays shown in pics #7-9. We have attempted to show all noticeable imperfections in specific close-up pictures, however other minor imperfections and light signs of use may exist.

Groupset compatibility: Frame can be setup for Di2, EPS, eTap, or mechanical groupsets. This frame was previously setup with an eTap groupset. Other frame/cable stops may be needed for Di2 or mechanical setups.

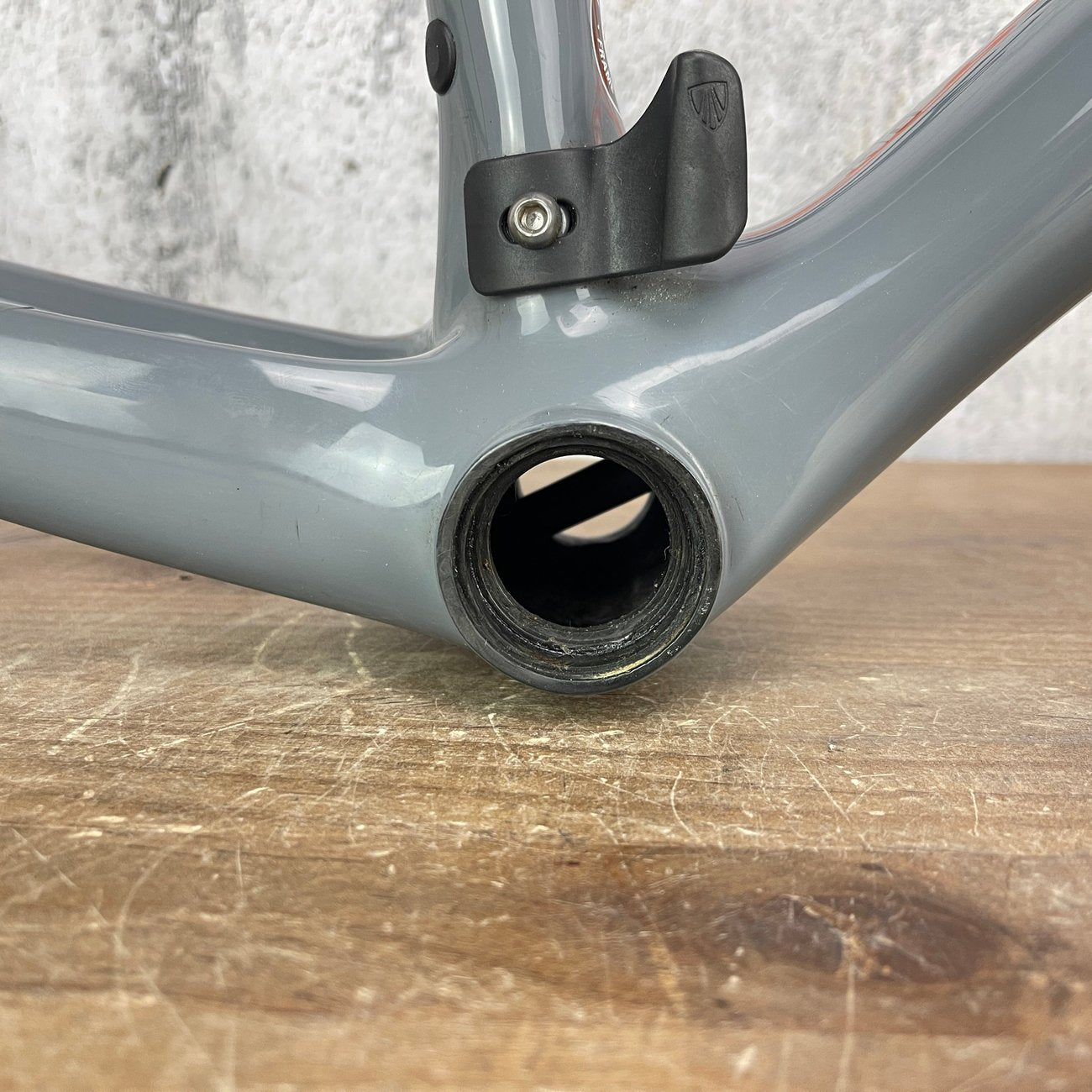

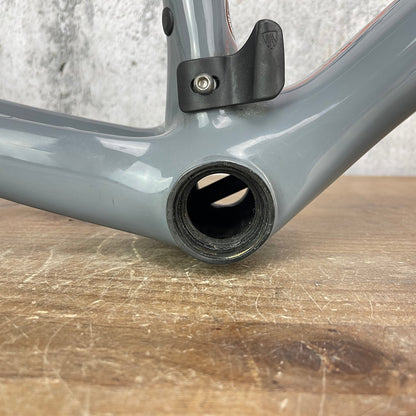

Bottom bracket: BB90 bottom bracket shell type (37mm shell diameter, 90mm shell width). No bottom bracket currently installed. We have a handful of lightly used basic bottom brackets on hand, let us know what you need and we can try to ship the frame with the right bottom bracket installed. Additionally, CyclingUpgrades is a Wheels Manufacturing, and a Ceramicspeed Authorized Dealer, if you prefer to have the frame setup with a certain Wheels Manufacturing, or Ceramicspeed bottom bracket we can add and install it at an additional cost before shipping - message with inquiries/requests.

Steerer length: 60mm of steerer above the top tube. No spacers below the stem plus the headset cover. We do have an option available to safely extend the steerer tube by 15-18mm - message us for additional details.

Seatpost: 20mm offset 175mm carbon seatmast cap included. Factory seatmast height is 615mm from center of bottom bracket. The minimum height to saddle rails is 700mm, and the maximum height to the saddle rails is 750mm. Add your saddle stack height to determine max saddle height from center of bottom bracket. Can sell without the seatmast at a $160 discount.

Dropout Spacing: 12mm thru axle x 100mm front, 12m thru axle x 142mm rear.

Weight: 1899 grams as pictured with headset, thru axles, seatmast cap, frame hardware, etc.

What's included: Frame, fork, headset, thru axles, rear derailleur hanger, seatmast cap
