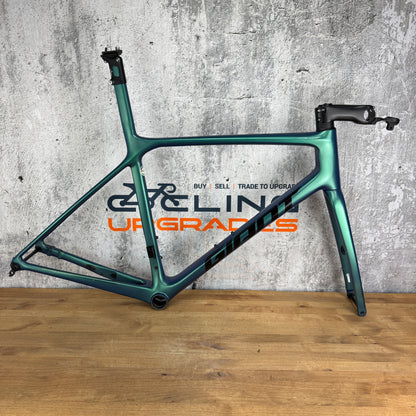

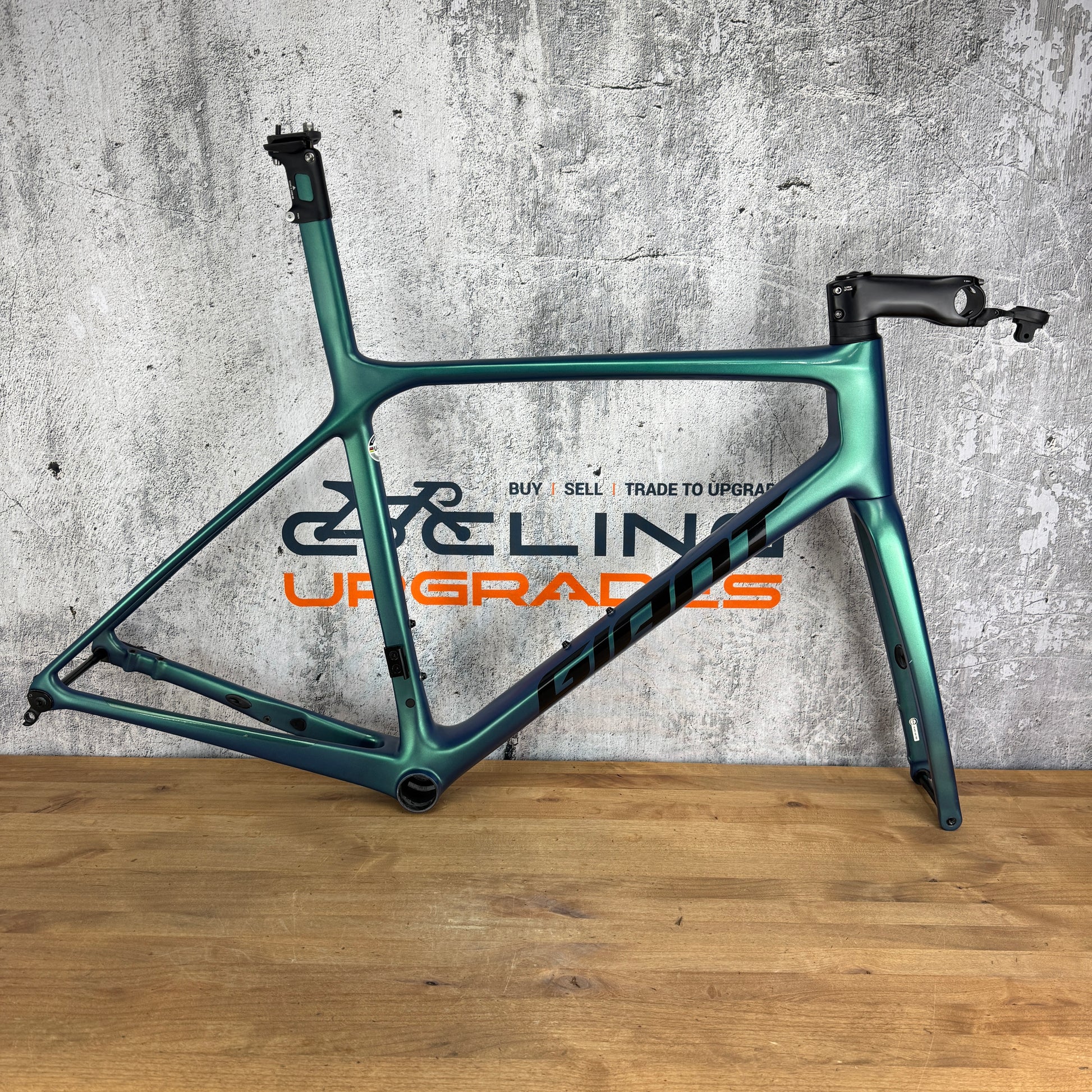

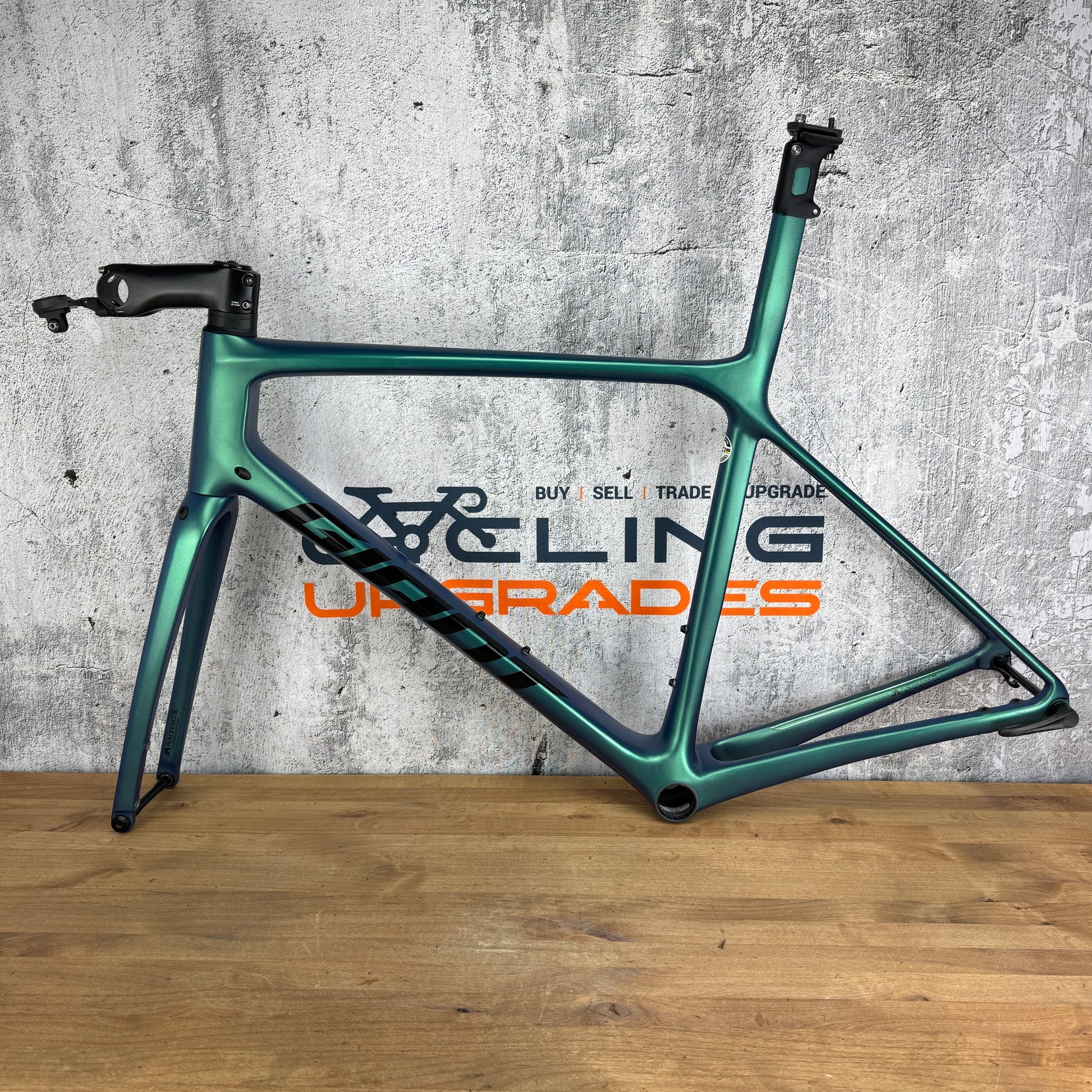

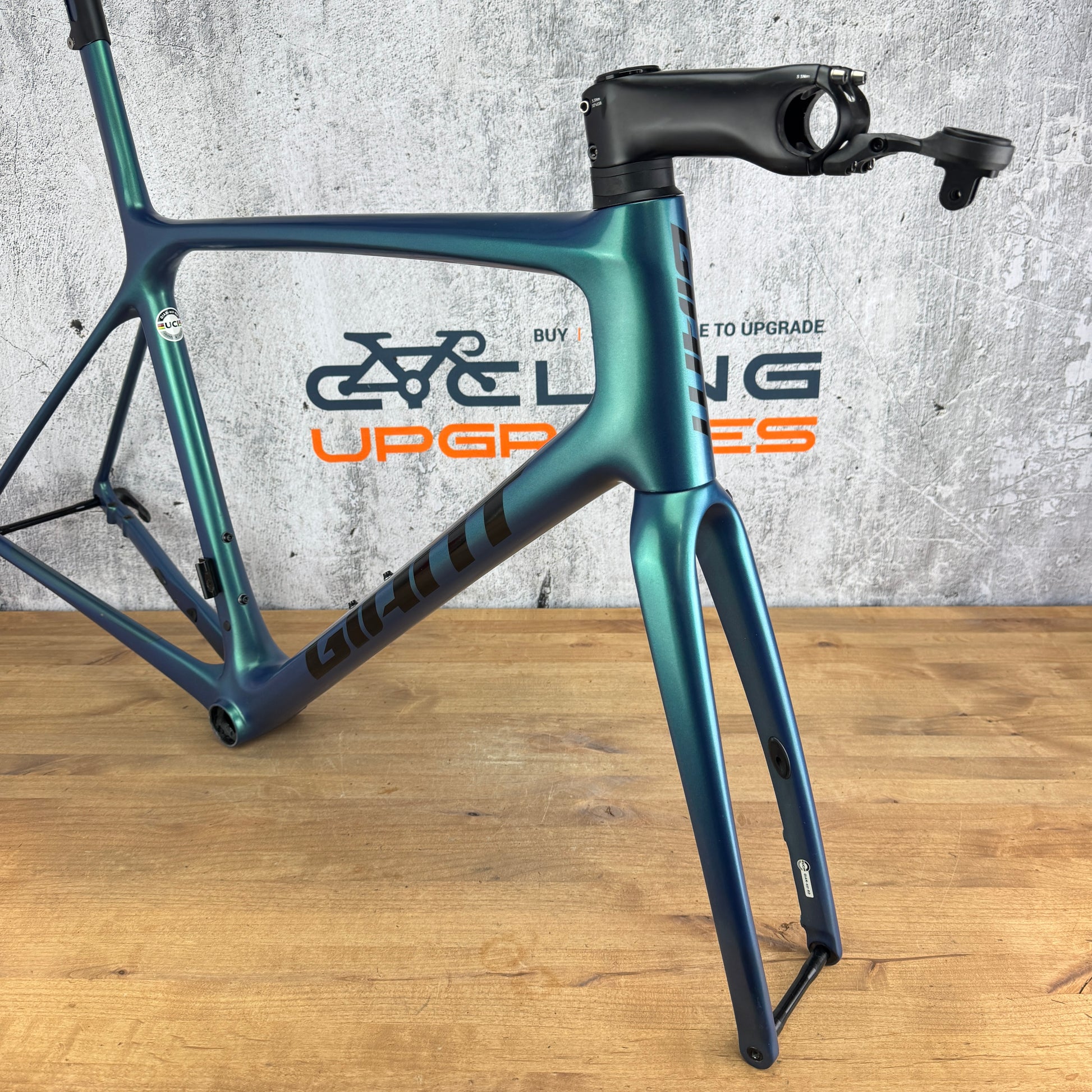

Frame: Giant 2021 TCR Advanced SL
Color: Chrysocolla
Brake Type: Flat-Mount disc brake
Size: M/L (56.5cm). 565mm Effective Top Tube. Stack - 562mm. Reach - 393mm. Head Tube 165mm. Recommend buyer confirm and research full geometry online.

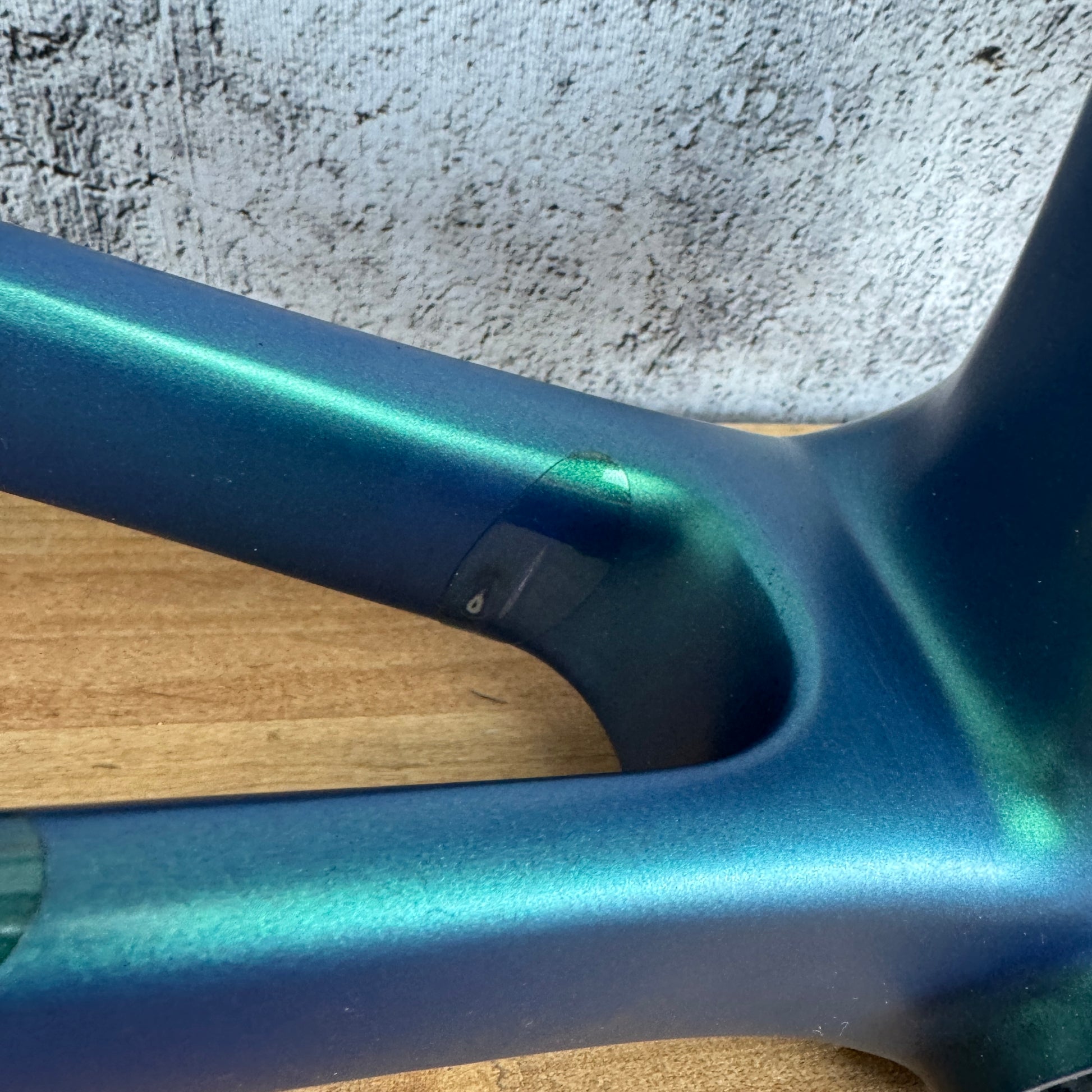

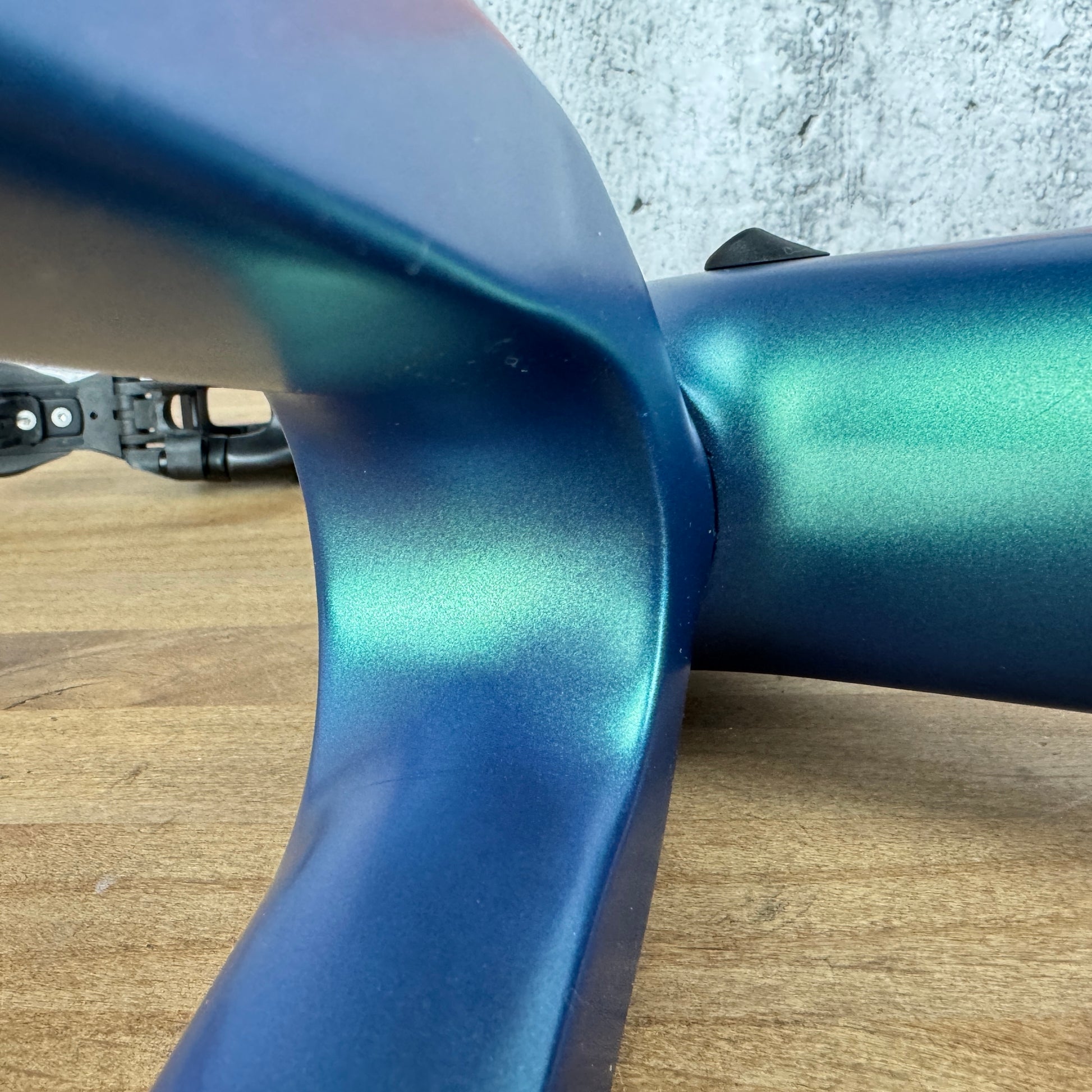

Condition: This frame shows very little signs of wear. No cracks or carbon defects were identified through a thorough visual inspection. The cosmetic imperfections to highlight include: Some tire rub can be seen in the rear triangle, see picture #8. The lettering in the chain stay is wearing off, see picture #9. We have attempted to show all noticeable imperfections in specific close-up pictures, however other minor imperfections and light signs of use may exist.
Groupset Compatibility: Frame can be setup for Di2, EPS, or eTap groupsets. This frame was previously setup with an eTap groupset. Other frame/cable stops may be needed for Di2 or EPS setups. This frame is not compatible with mechanical groupsets.

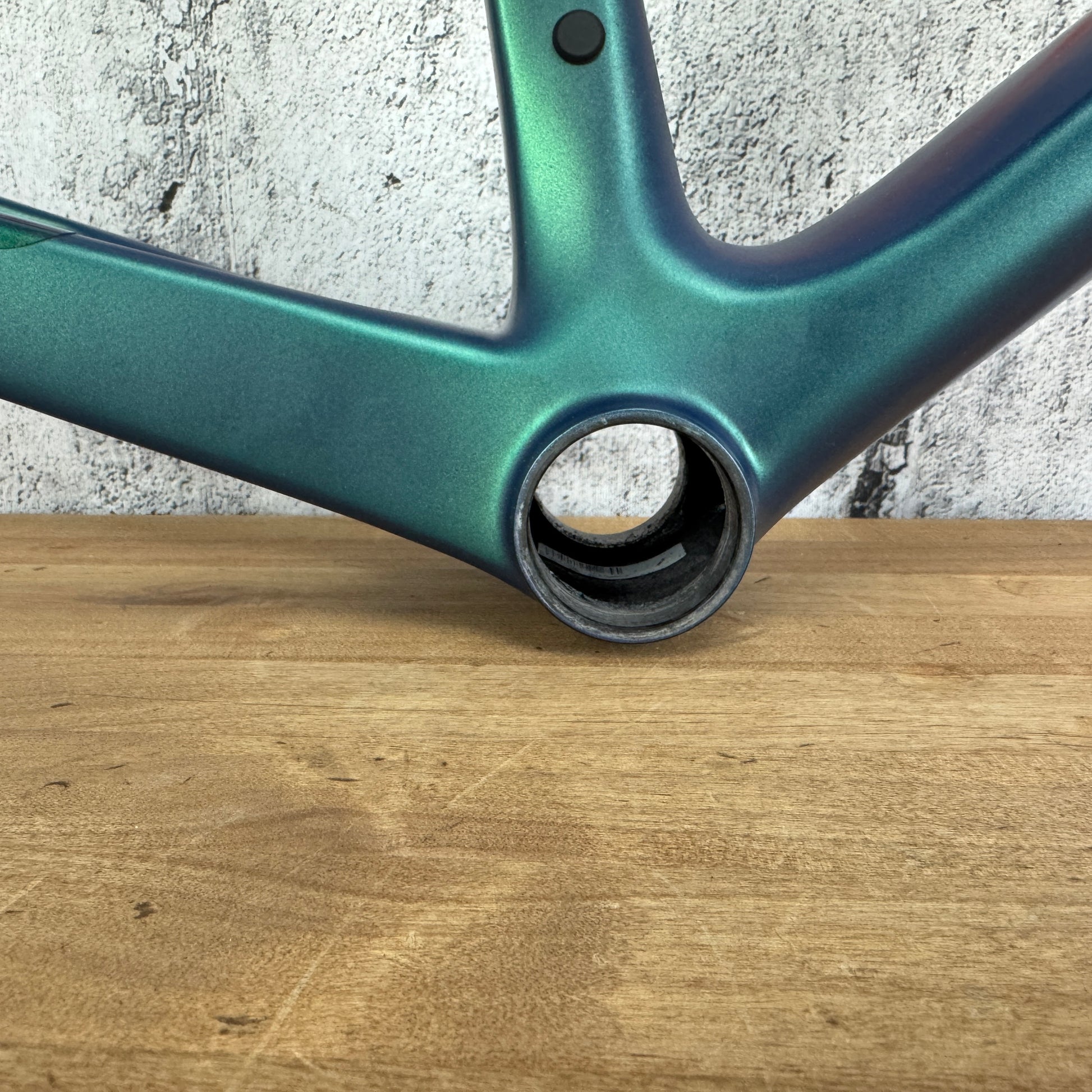

Bottom bracket: BB86 bottom bracket shell type (41mm shell diameter, 86mm shell width). No bottom bracket currently installed or included. We have a handful of lightly used basic bottom brackets on hand, let us know what you need and we can try to ship the frame with the right bottom bracket installed. Additionally, CyclingUpgrades is a Wheels Manufacturing, and a Ceramicspeed Authorized Dealer, if you prefer to have the frame setup with a certain Wheels Manufacturing, or Ceramicspeed bottom bracket we can add and install it at an additional cost before shipping - message with inquiries/requests.

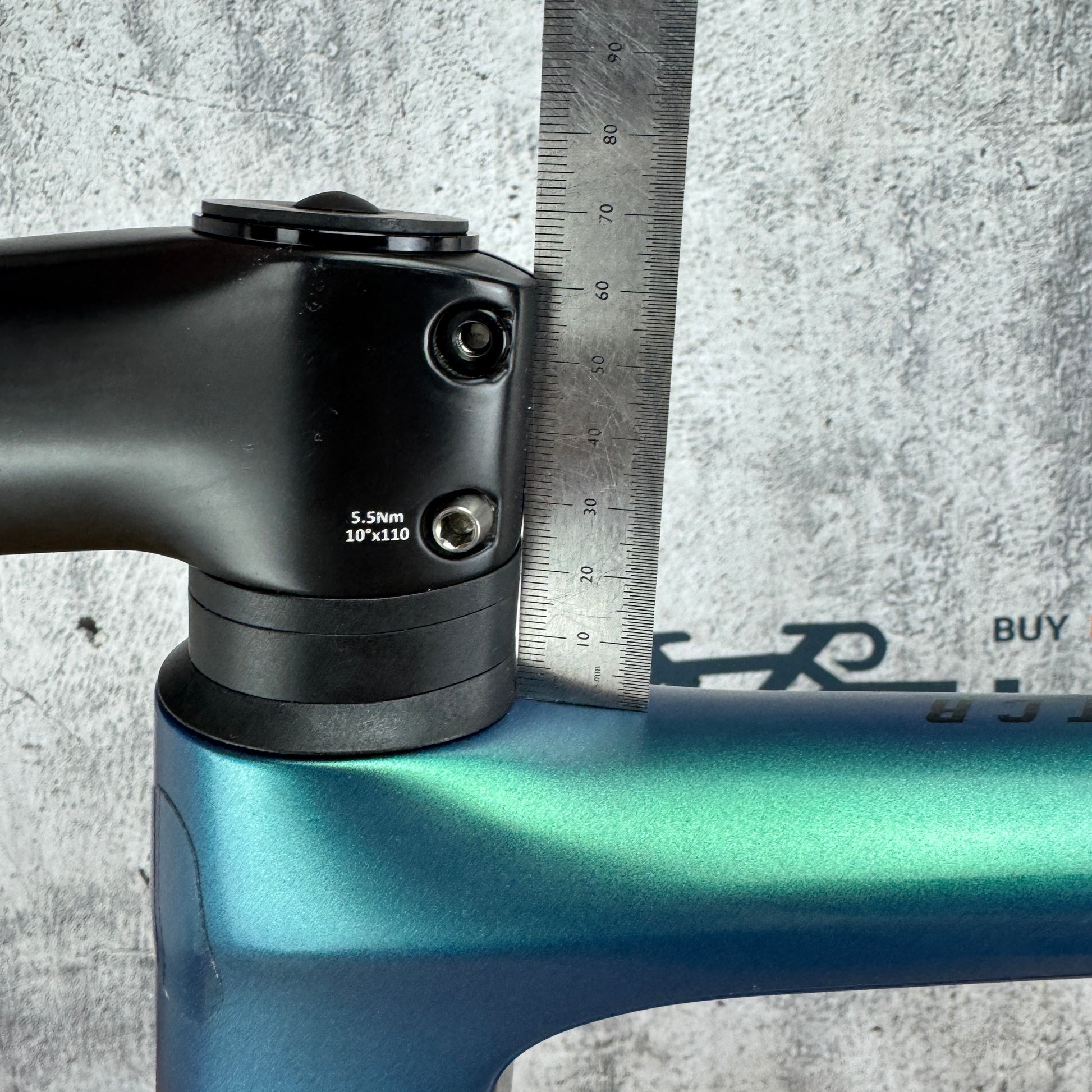

Steerer Length: 55mm of steerer above the top tube. 15mm of spacers below the stem plus the headset cover. We do have an option available to safely extend the steerer tube by 15-18mm - message us for additional details.
Seat Mast: Giant seat mast is included. The seat tube is un-cut and can be cut shorter to accommodate other riders. Seatmast height is 720mm from center of bottom bracket. The minimum height to saddle rails is 740mm, and the maximum height to the saddle rails is 765mm. Add your saddle stack height to determine max saddle height from center of bottom bracket. Includes one seat mast spacer. Buyer may need to purchase an additional spacer to allow for the maximum saddle hight.

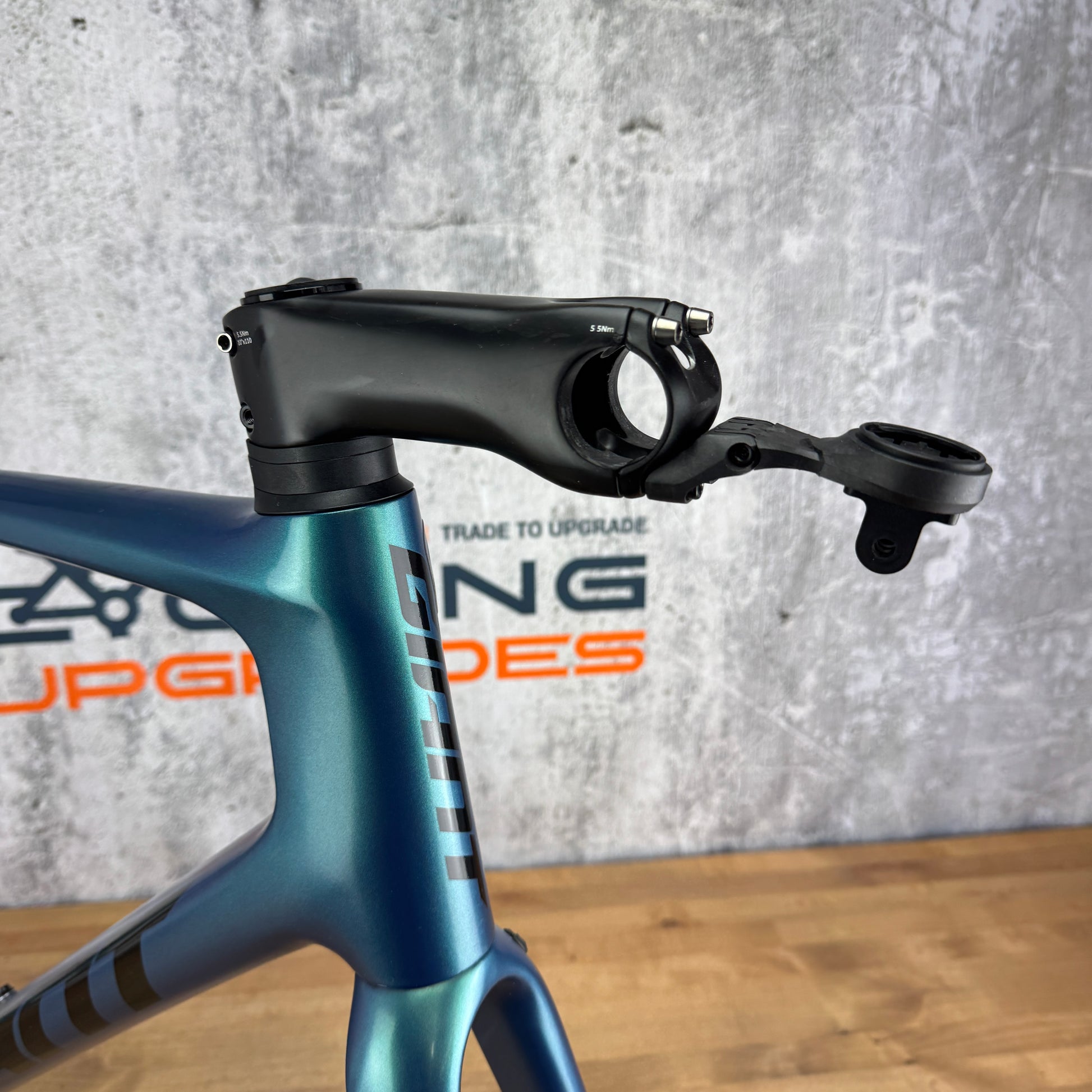

Stem: Giant Contact SLR OD2 110mm -10 Degree Carbon stem with computer mount. We can sell the frameset without the stem for $200 less.
Dropout Spacing: Front 12mm Thru Axle x 100mm, Rear 12mm Thru Axle x 142mm.
Weight: 1751 grams as pictured with stem, seatpost, thru axles.
What's included: Frame, fork, headset, rear derailleur hanger, thru axles, stem, seat mast cap.
