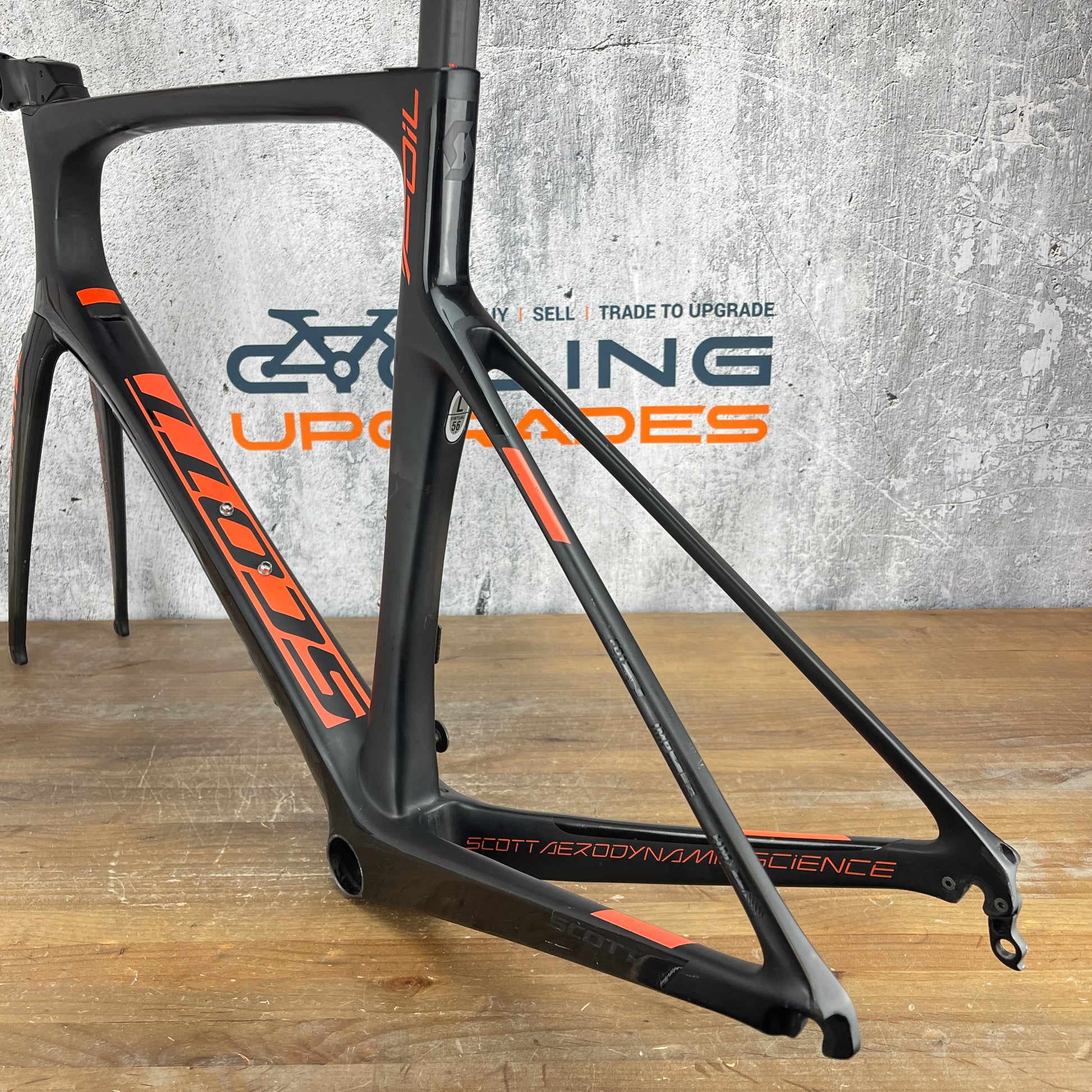

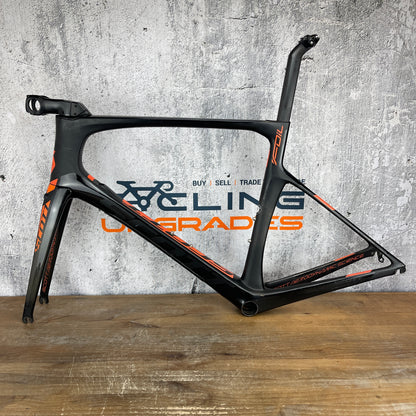

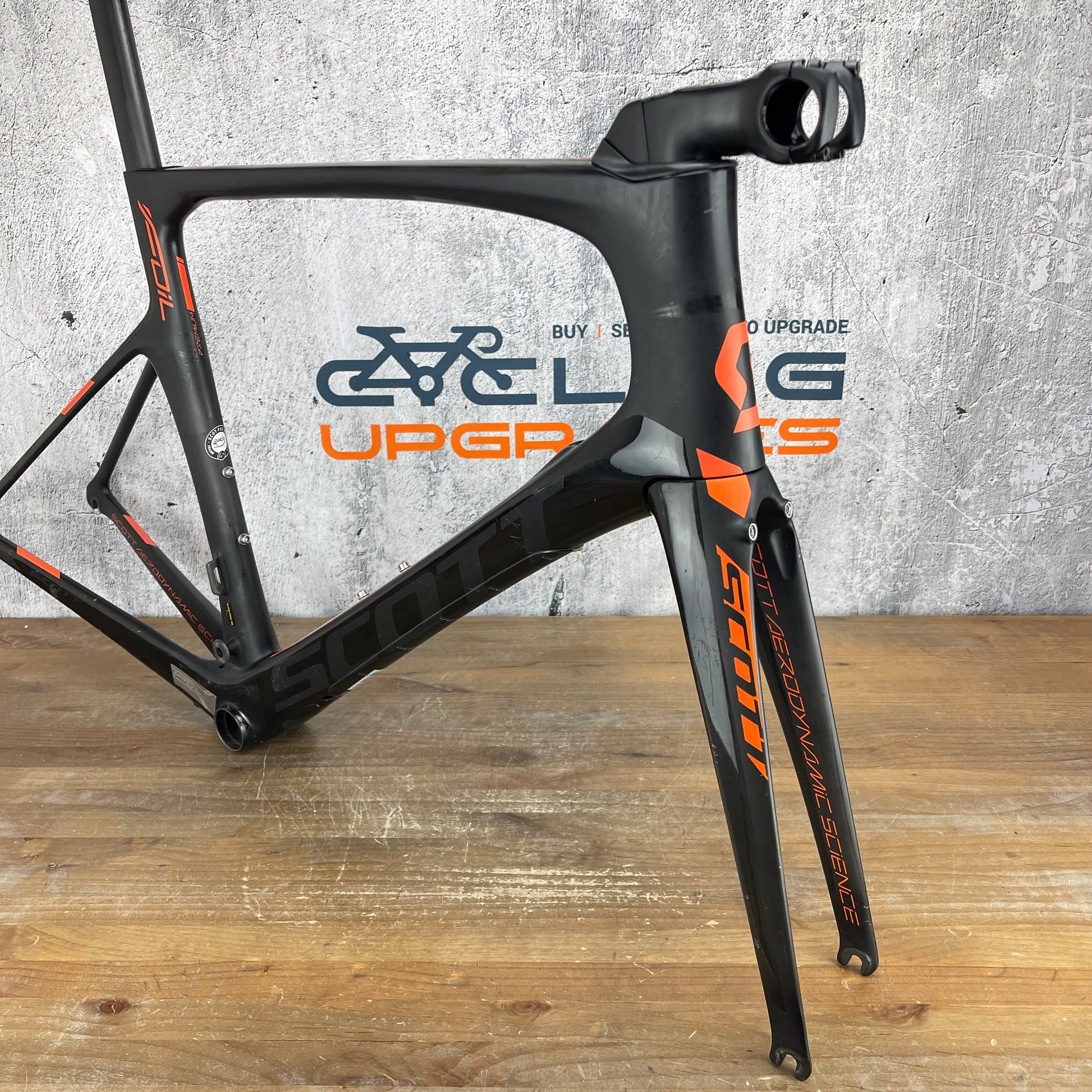

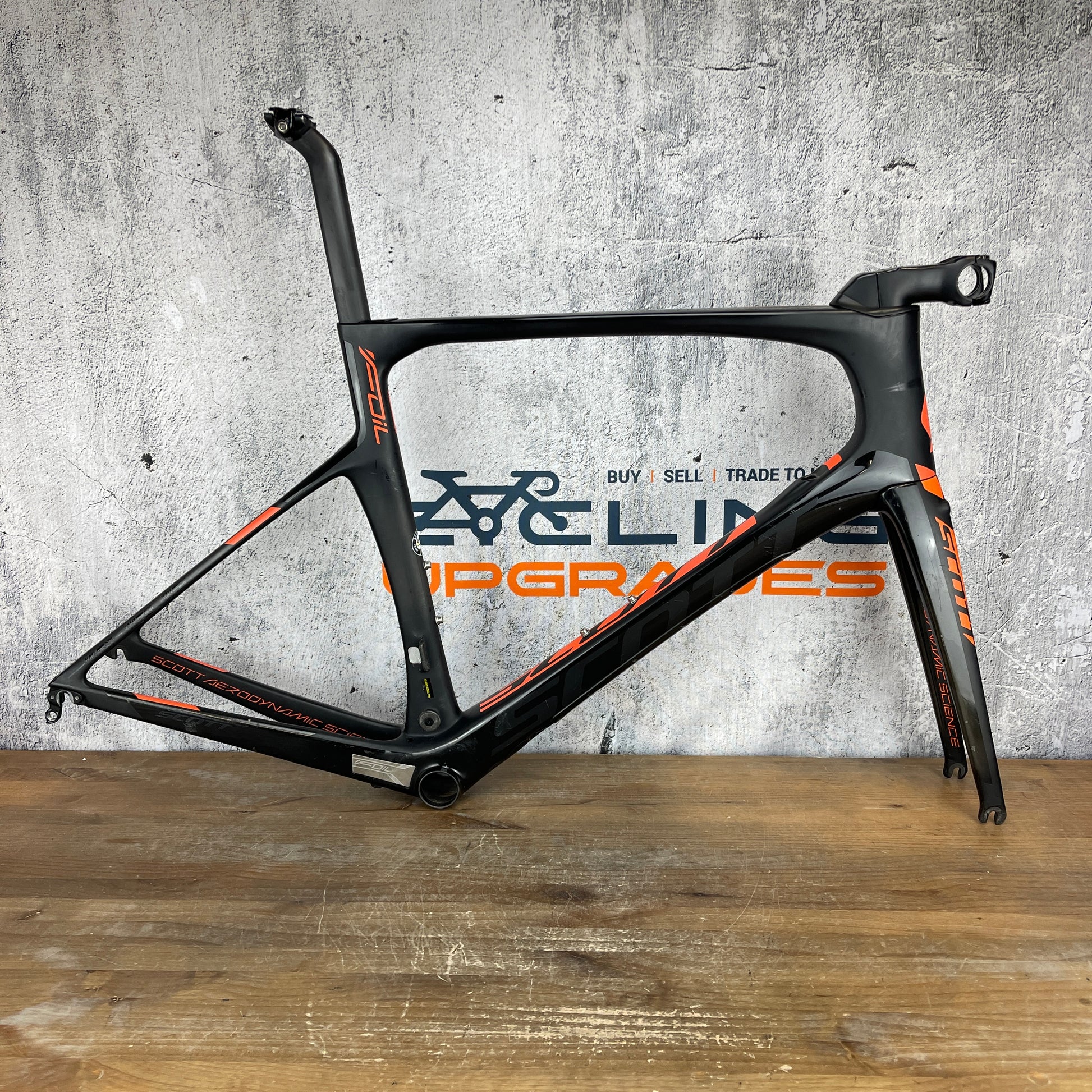

Frame: 2016 Scott Foil
Color: Black, and orange.
Brake type: Direct-Mount rim brake. The rear brake is a chainstay mount.
Size: Large 56cm. 565mm Effective Top Tube. Stack - 568.3mm. Reach - 394.5mm. Head tube 170mm. Recommend buyer confirm and research full geometry online.

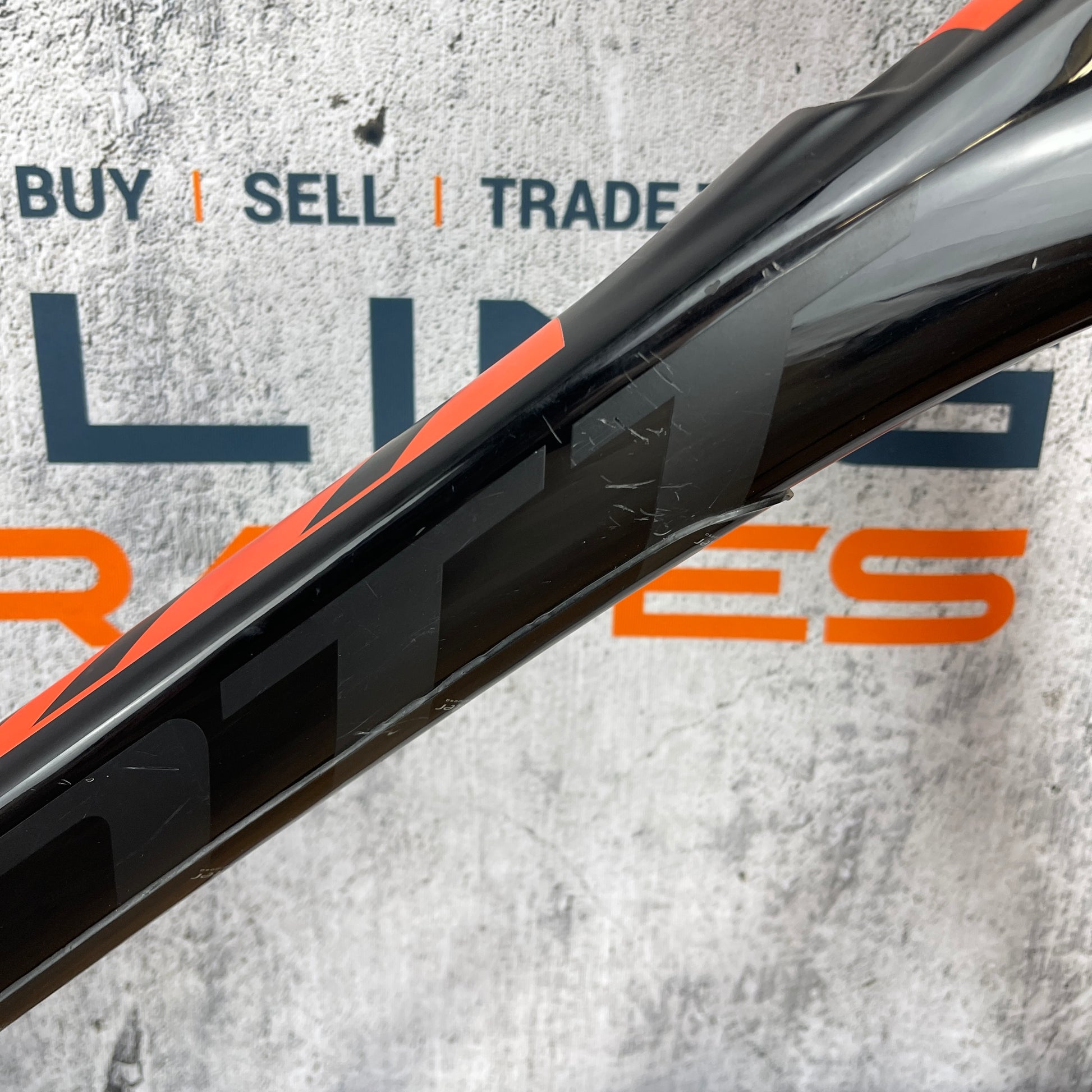

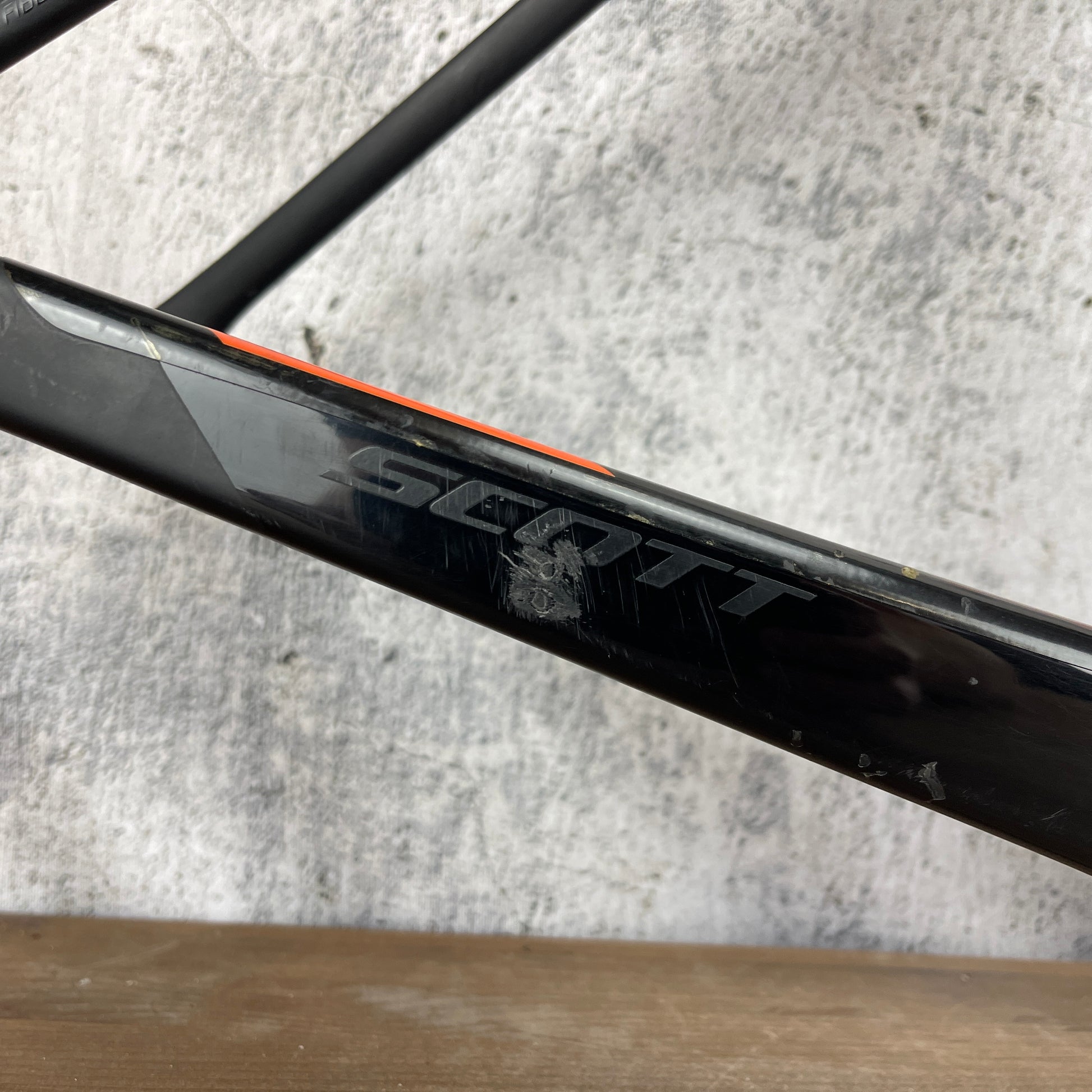

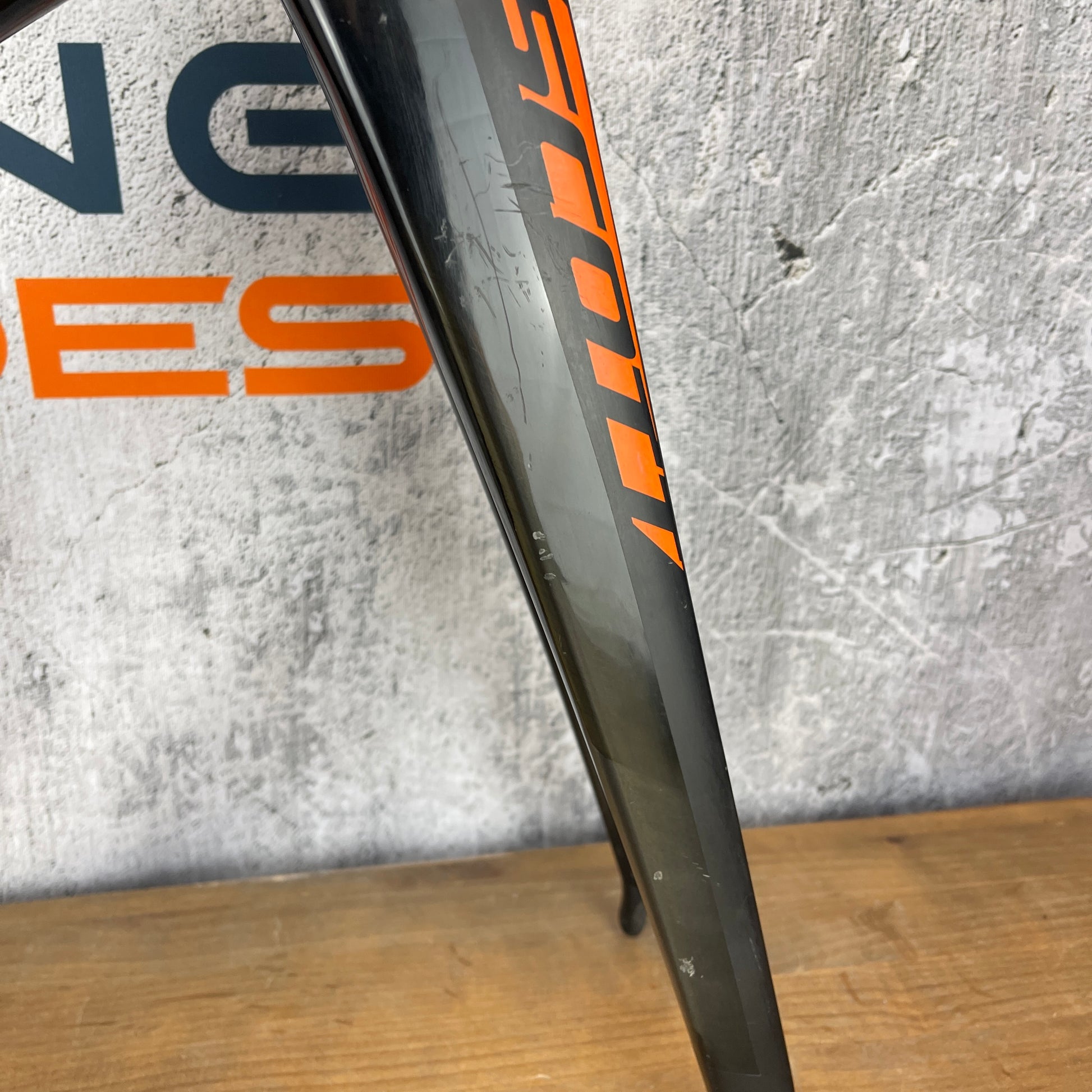

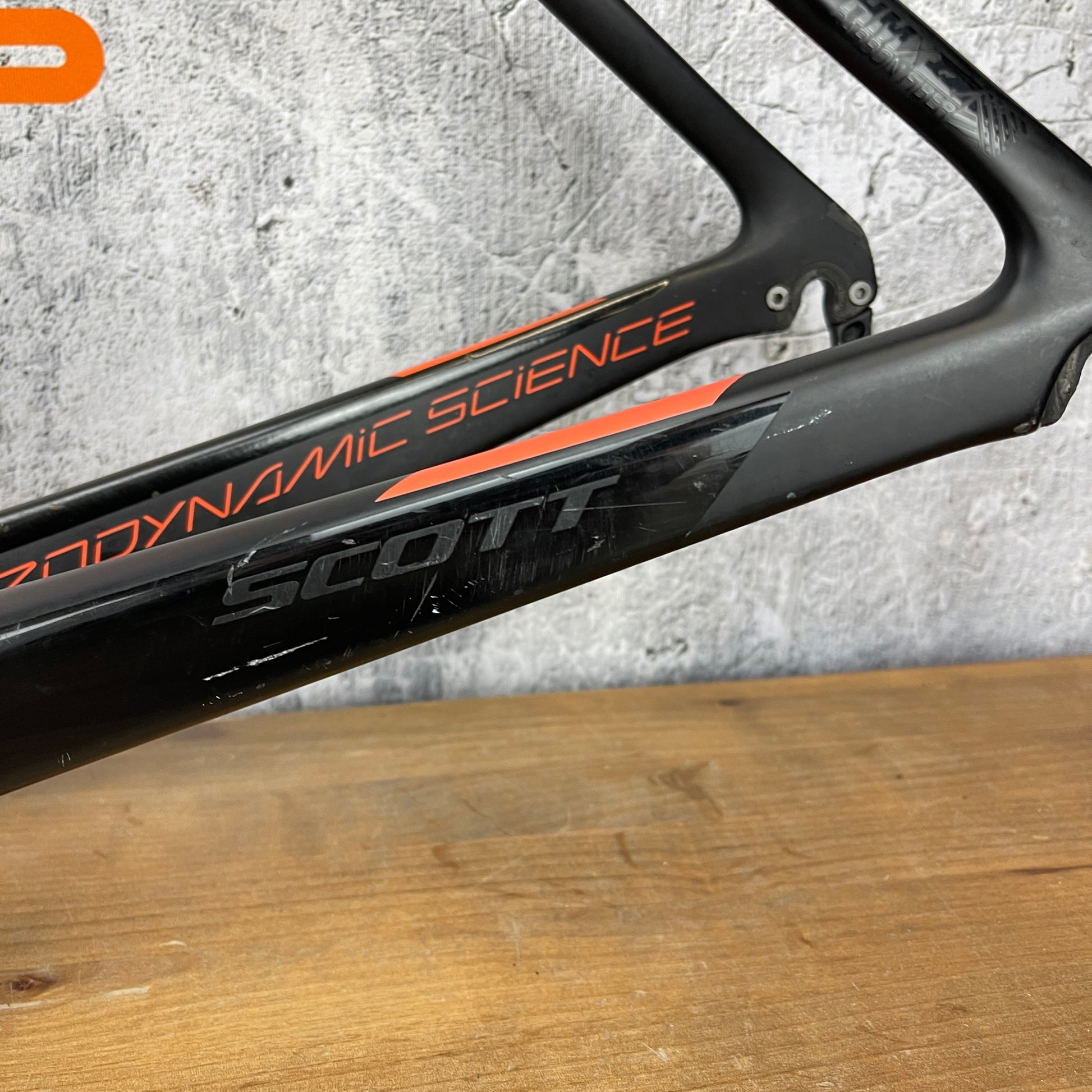

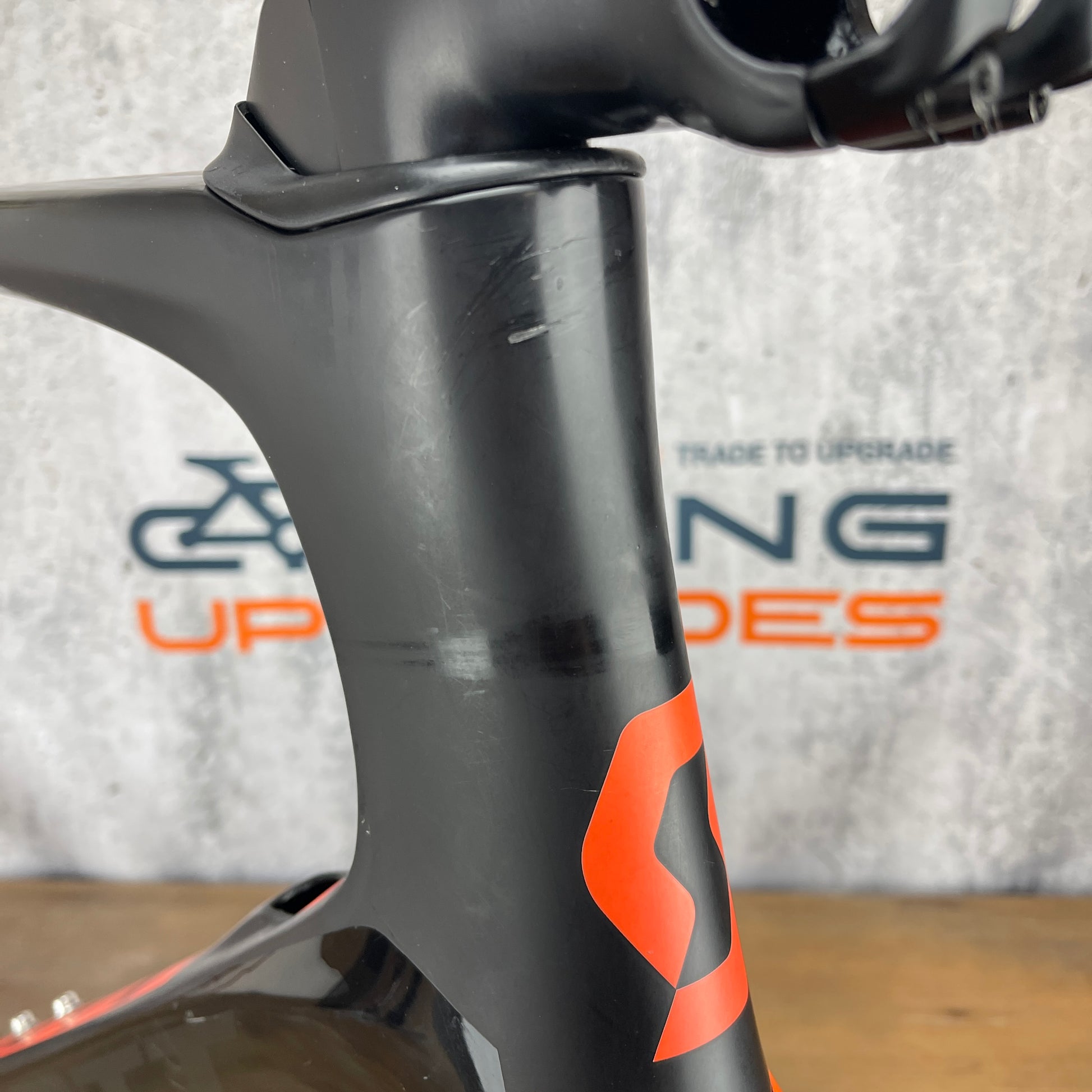

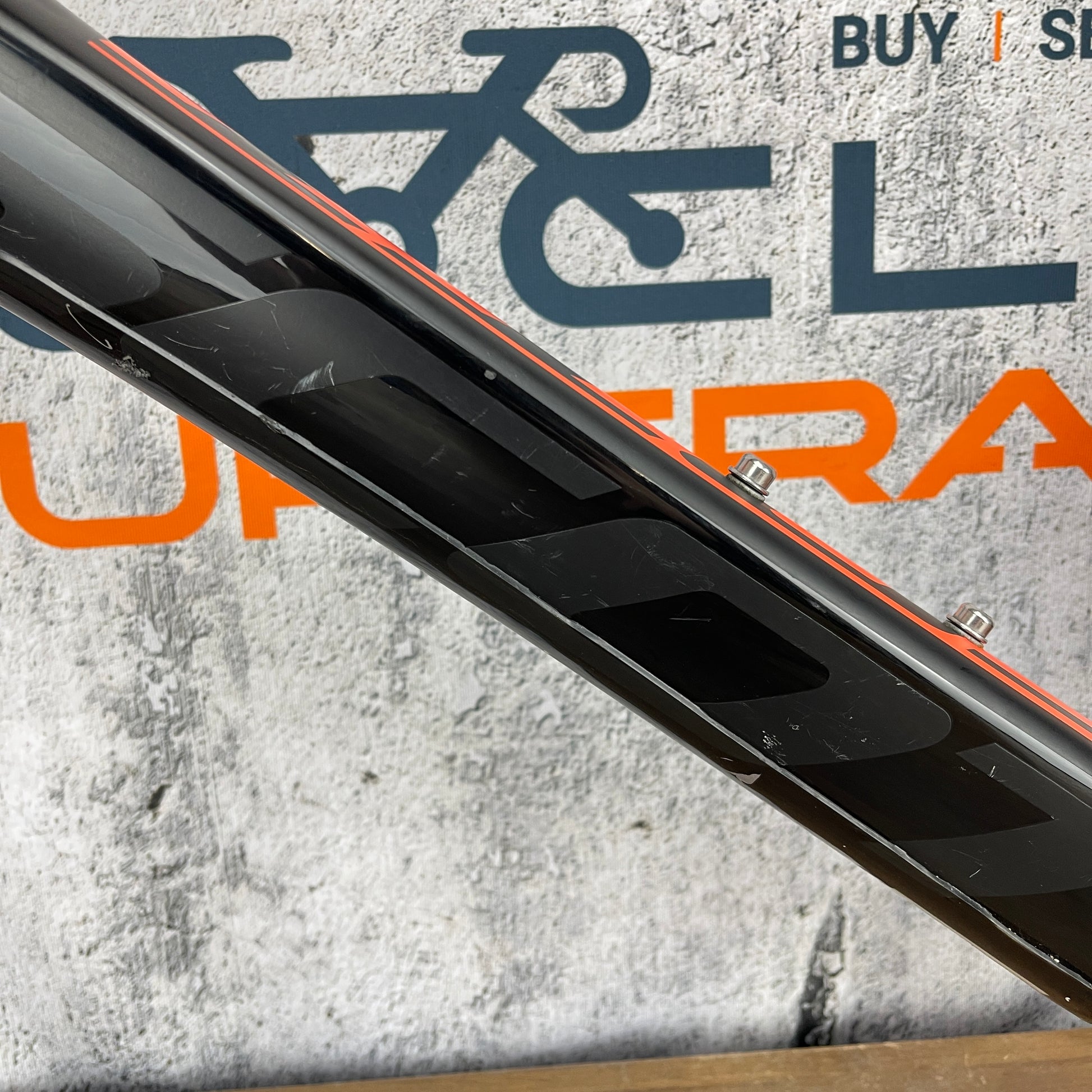

Condition: No cracks or carbon defects were identified through a thorough visual inspection. The cosmetic imperfections to highlight include: some scratches on the chainstays shown in pics #6 & 7, some scratches on the down tube shown in pics #8 & 9, some scratches on the fork shown in pic #10, and some scratches on the head tube shown in pic #11. We have attempted to show all noticeable imperfections in specific close-up pictures, however other minor imperfections and light signs of use may exist.
Groupset compatibility: Frame can be setup for Di2, EPS, eTap, or mechanical groupsets. This frame was previously setup with a mechanical groupset. Other frame/cable stops may be needed for Di2 or EPS setups. Mechanical cable guide below the bottom bracket intact.

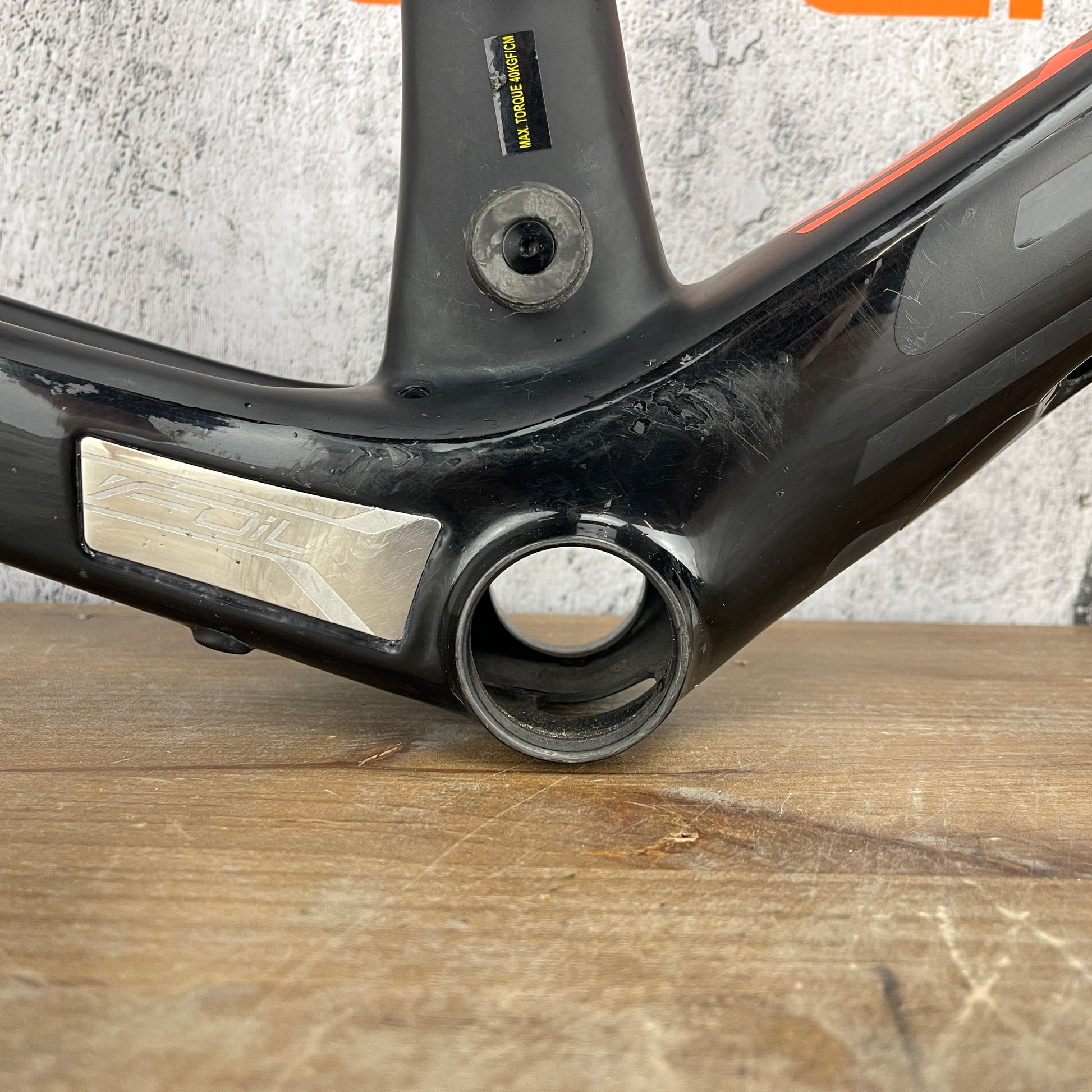

Bottom bracket: BB86 bottom bracket shell type (41mm shell diameter, 86mm shell width). No bottom bracket is currently installed or included. We have a handful of lightly used basic bottom brackets on hand, let us know what you need and we can try to ship the frame with the right bottom bracket installed. Additionally, CyclingUpgrades is a Wheels Manufacturing, and a Ceramicspeed Authorized Dealer, if you prefer to have the frame setup with a certain Wheels Manufacturing, or Ceramicspeed bottom bracket we can add and install it at an additional cost before shipping - message with inquiries/requests.
Steerer length: 40mm of steerer above the top tube. We do have an option available to safely extend the steerer tube by 15-18mm - message us for additional details.
Seatpost: Frame specific Syncros Aero RR1.0 seatpost.
Stem: Syncros Aero RR1.5 80mm alloy stem.
Dropout Spacing: QR x 100mm front, QR x 130mm rear.
Weight: 1885 grams as pictured with headset, stem, seatpost, frame hardware, etc.

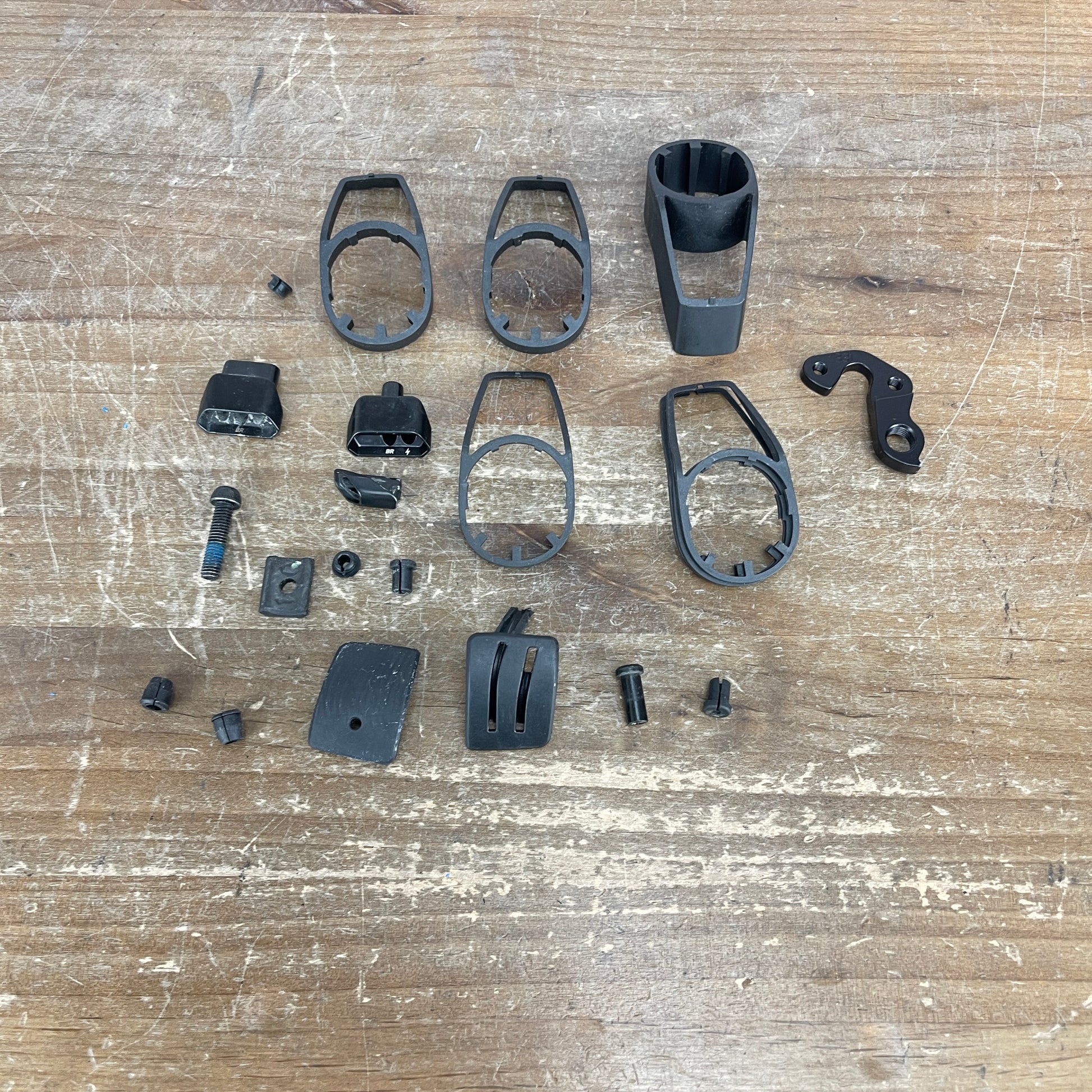

What's included: Frame, fork, headset, rear derailleur hanger, seatpost, stem
