Vintage! Serotta Legend 58cm Rim Brake Titanium Frameset 700c F1 Carbon Fork
SKU: 05042026-1937-01
Ships next business day or sooner. Trade toward it
Pickup available at CyclingUpgrades Spanish Fork (new location)
Usually ready in 24 hours
View store information
-
CyclingUpgrades Spanish Fork (new location)
Pickup available · Usually ready in 24 hours
3544 North Main Street
Unit 110
Spanish Fork UT 84660
United States
- Cleaned before listing
- Inspected and function-tested
- Photos of the actual item, flaws included
- Specs and condition recorded for every listing
- Packed securely to arrive as listed
- 30-day returns
Item Specs
- Brand
- Serotta
- Model
- Legend
- Part type
- Bicycle Frame
- Wheel size
- 700C
- Brake type
- Rim Brake
- Frame size
- 58cm
- Material
- Titanium
Further product information
Description

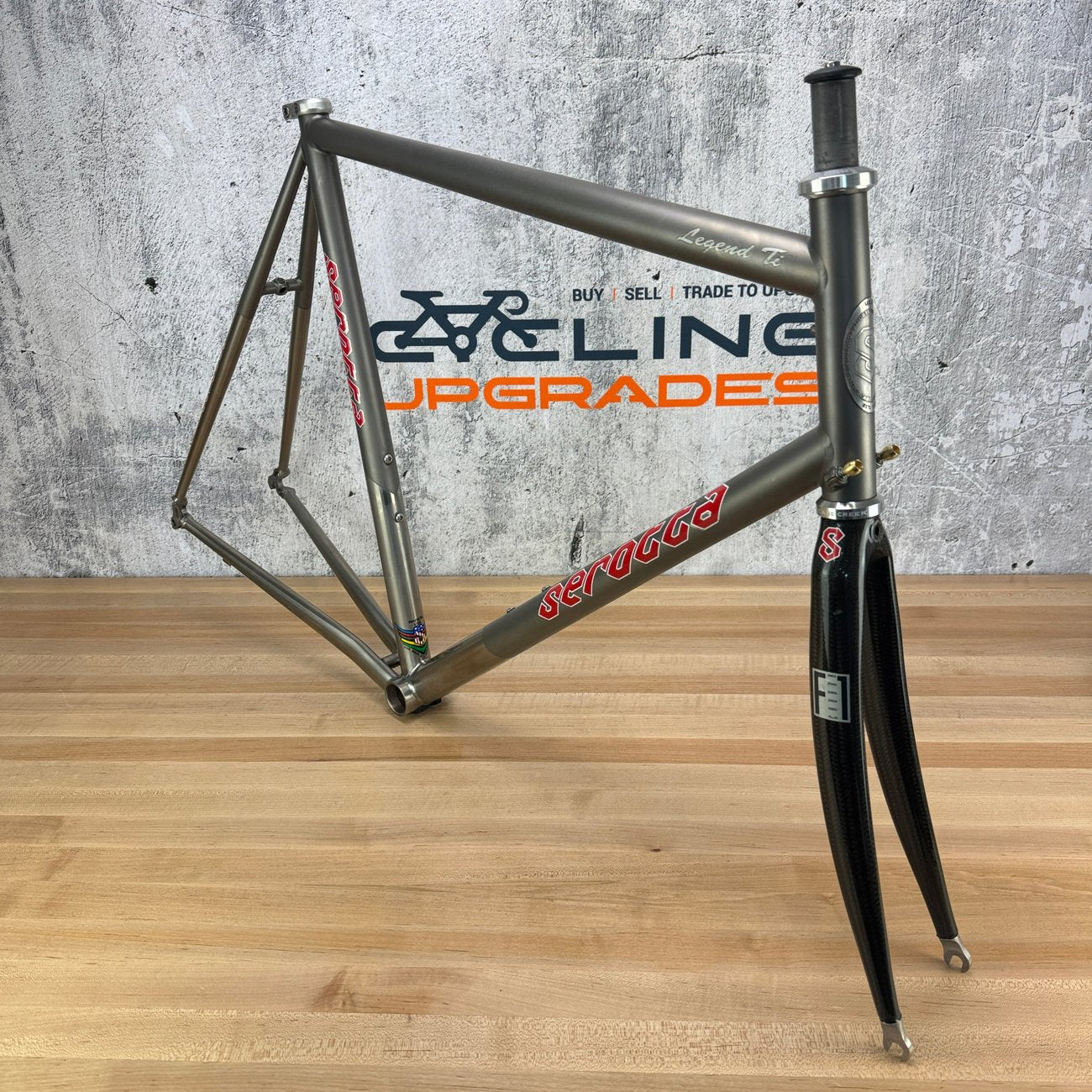

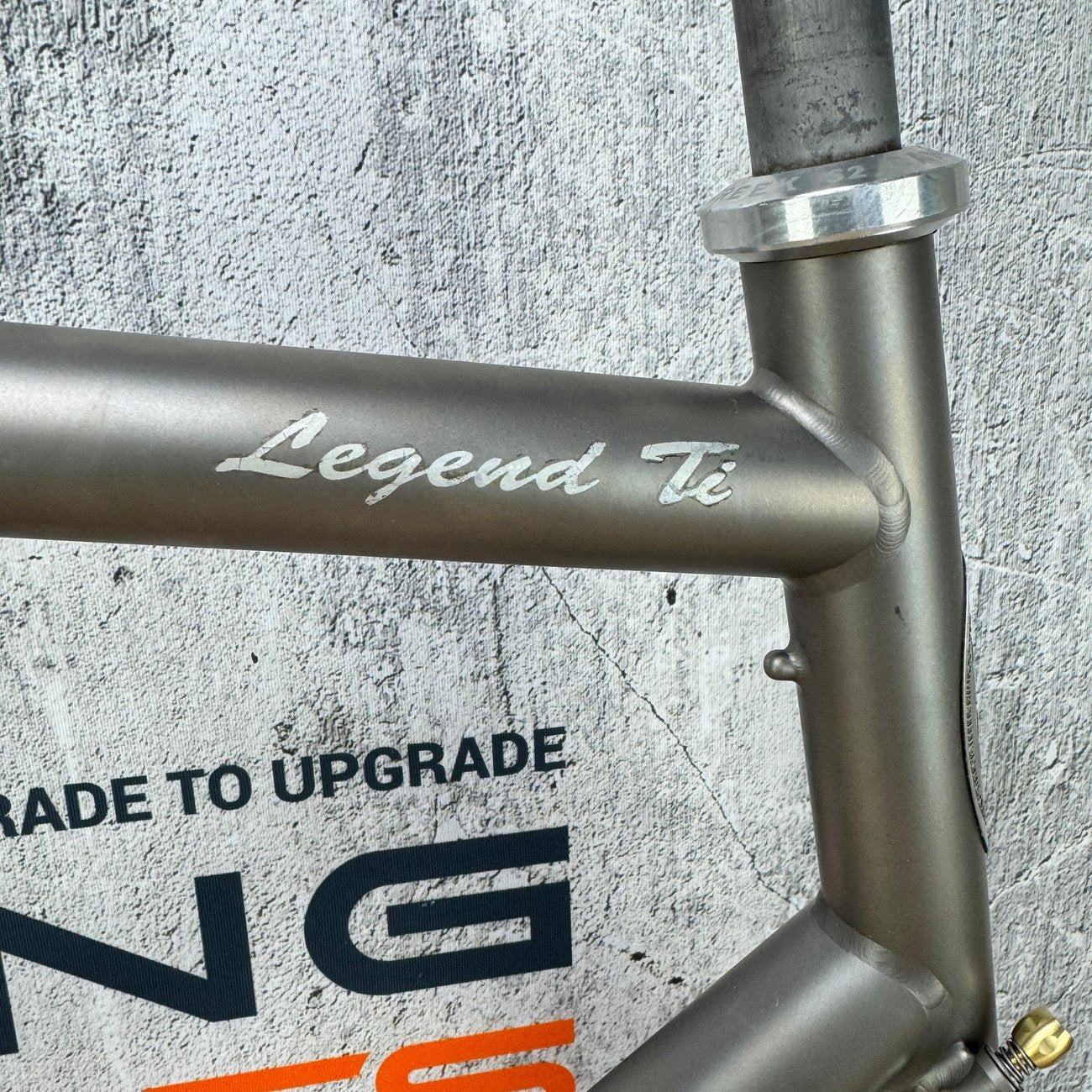

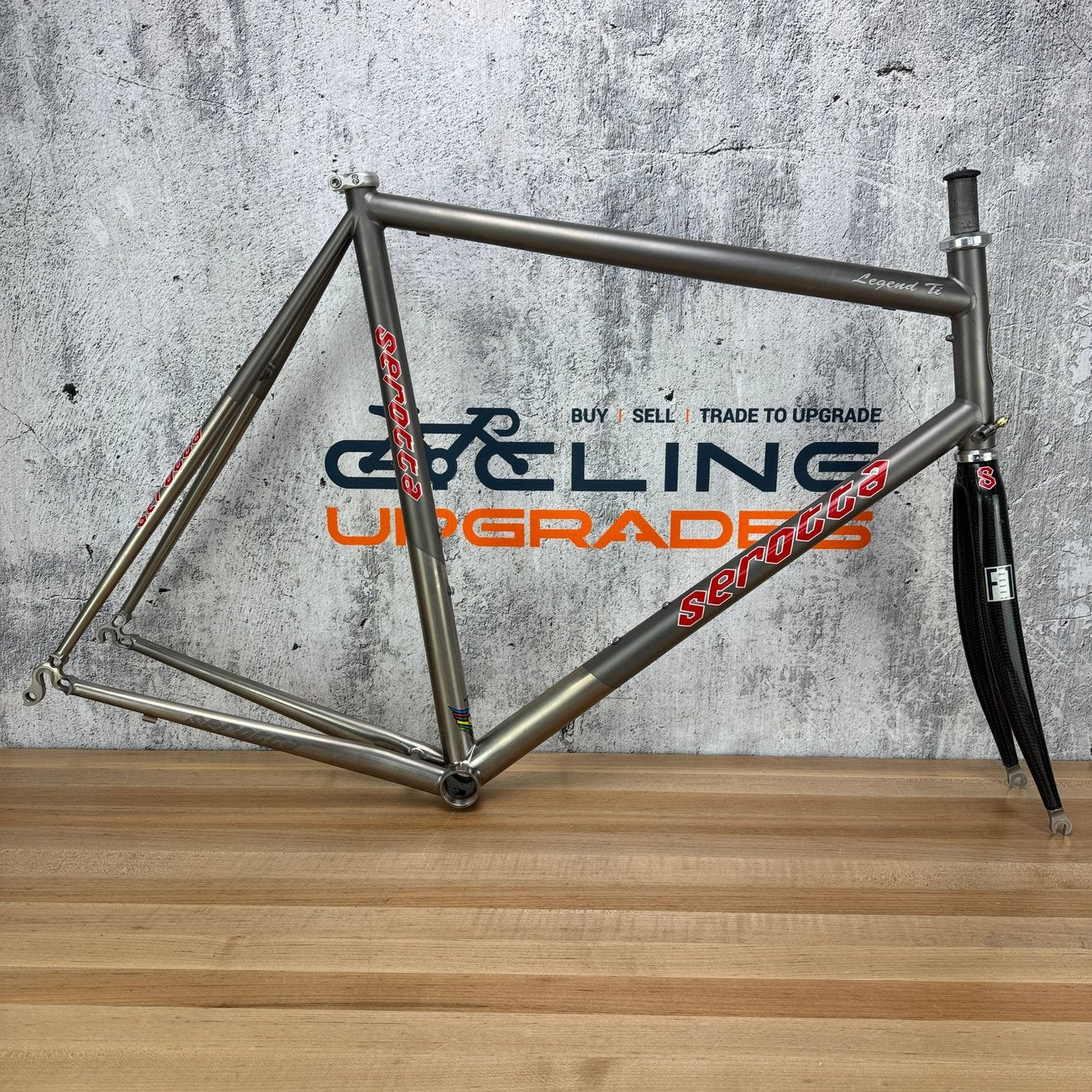

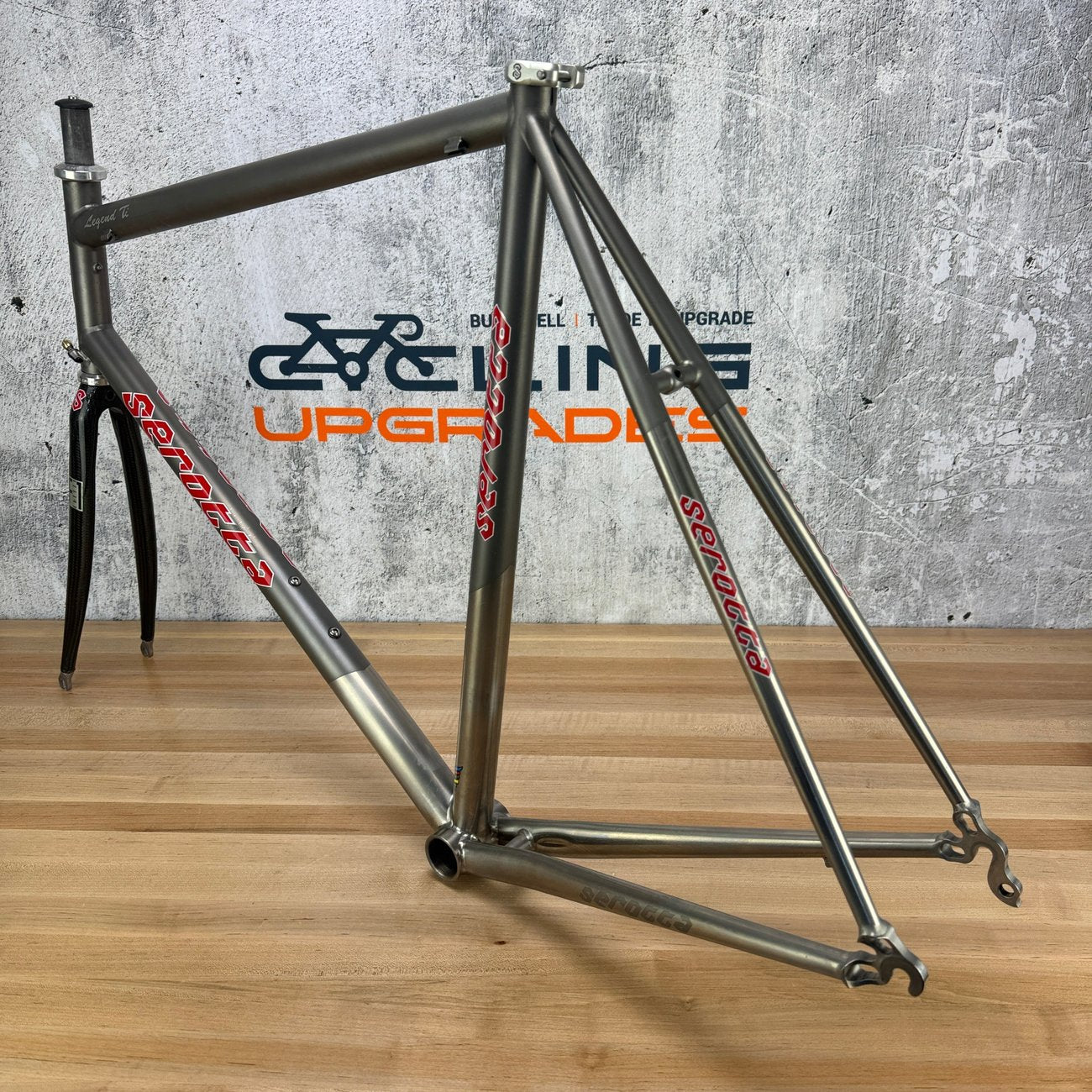

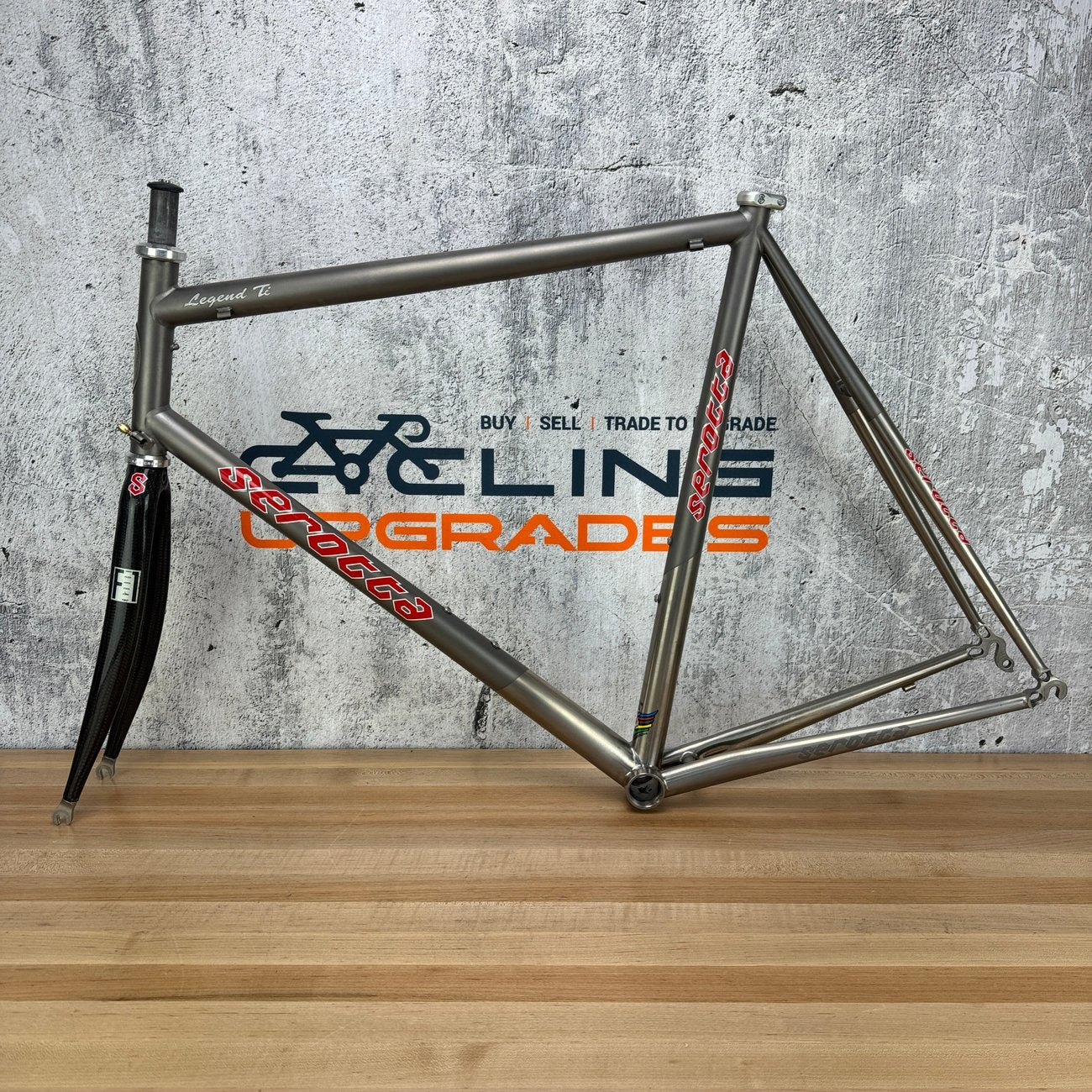

Frame: Serotta Legend Ti

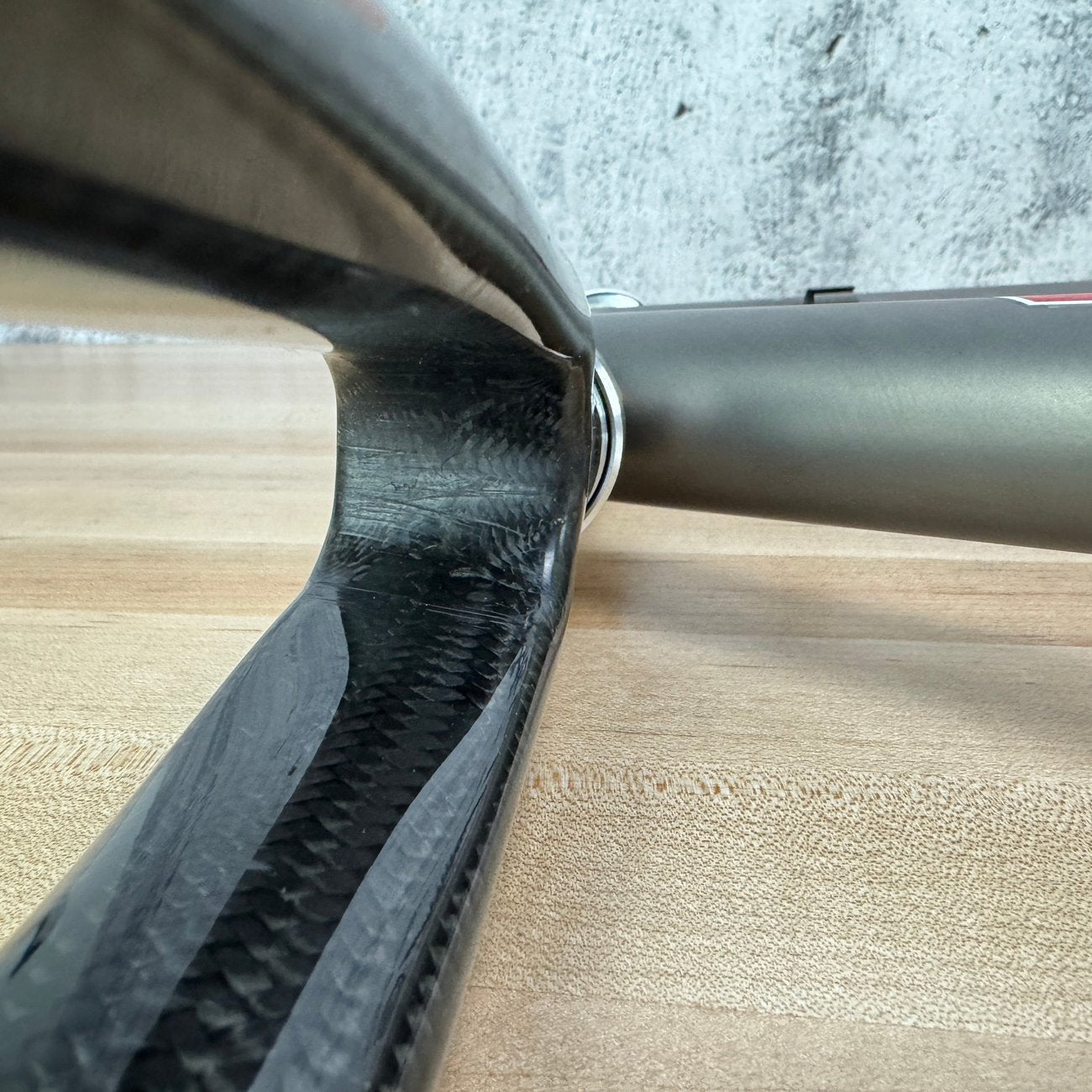

Fork: Serotta F1 1" steerer carbon fork
Material: Titanium
Tire Clearance: 25mm
Brake type: Center-Mount rim brake

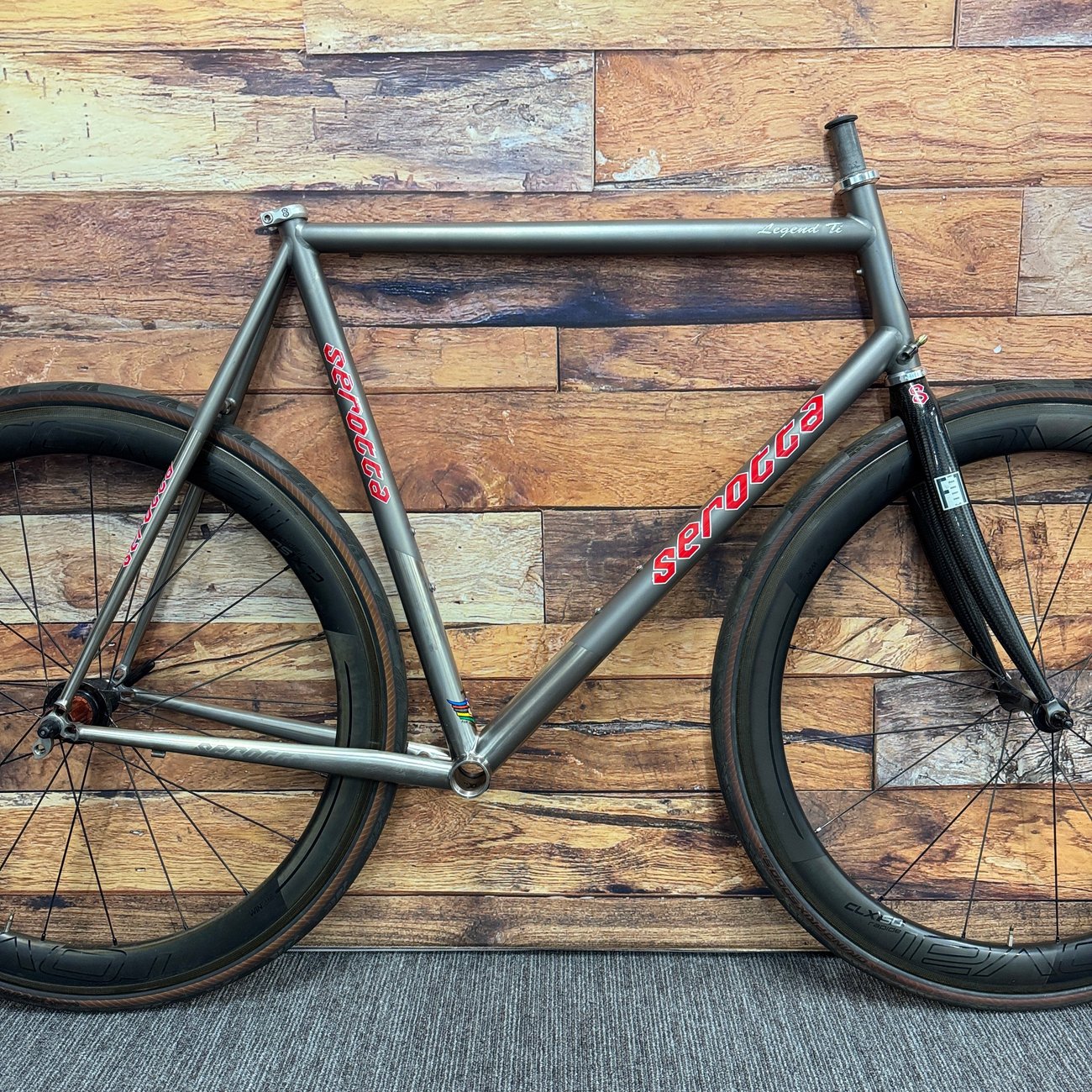

Size: Actual measurements taken by hand are approximate and are as follows: 580mm actual top tube center to center. 580mm center of bottom bracket to center of top tube. 600mm center of bottom bracket to top of seat tube. Head tube 185mm. 410mm chainstay length. If other measurements or take-offs are needed, please feel free to ask. We have included in our last picture a photo of the frame with a wheelset on it to show the head and seat tube angles and top tube slope.

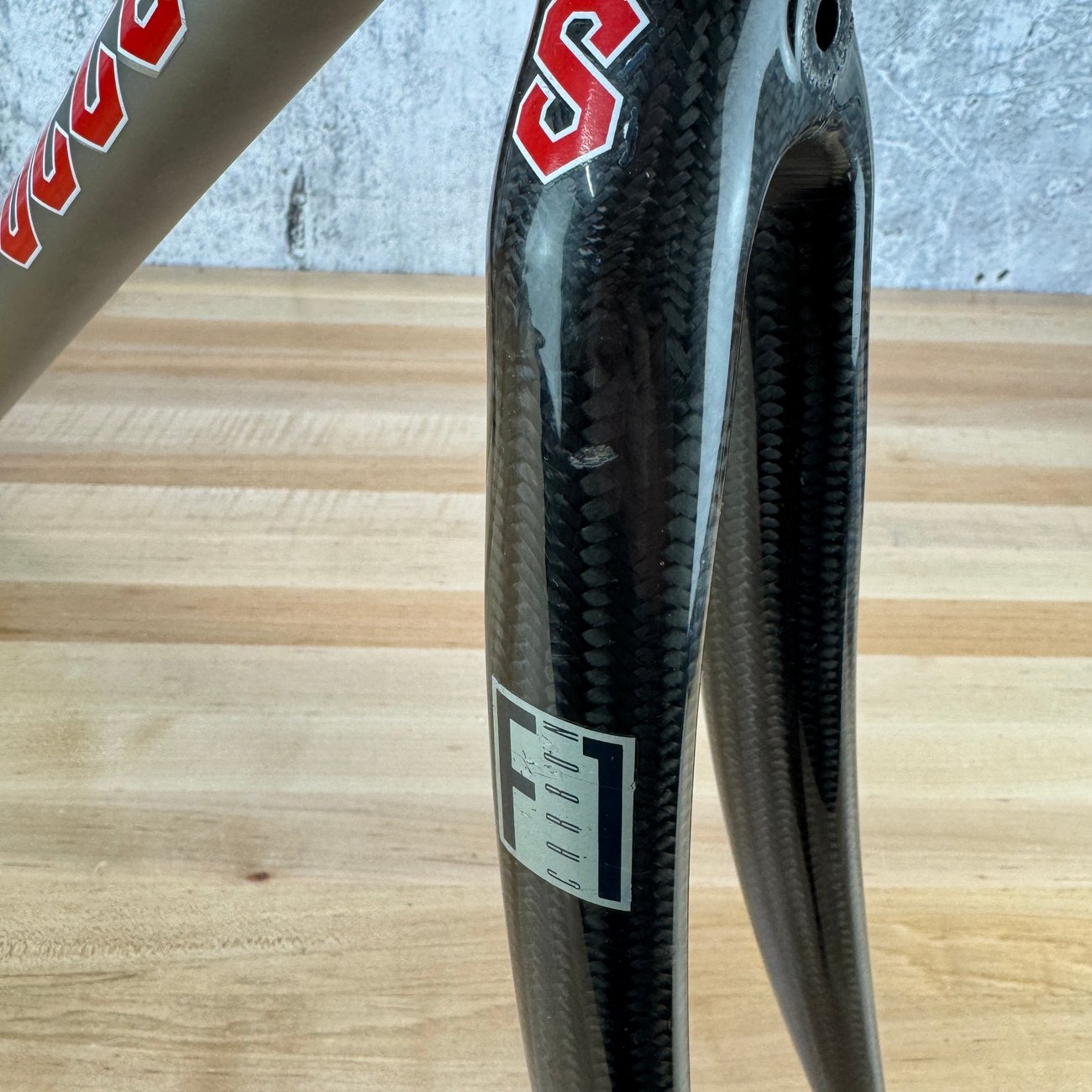

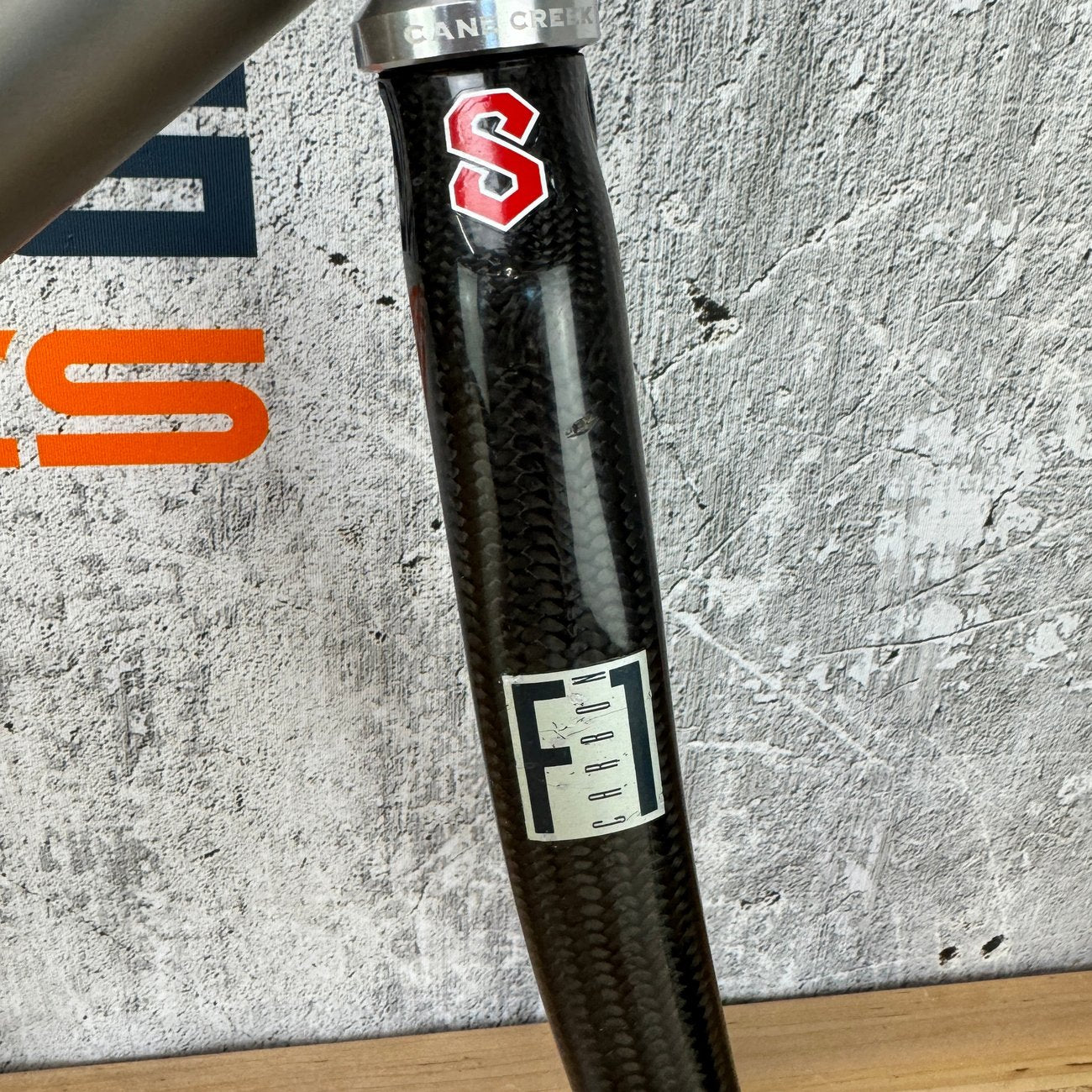

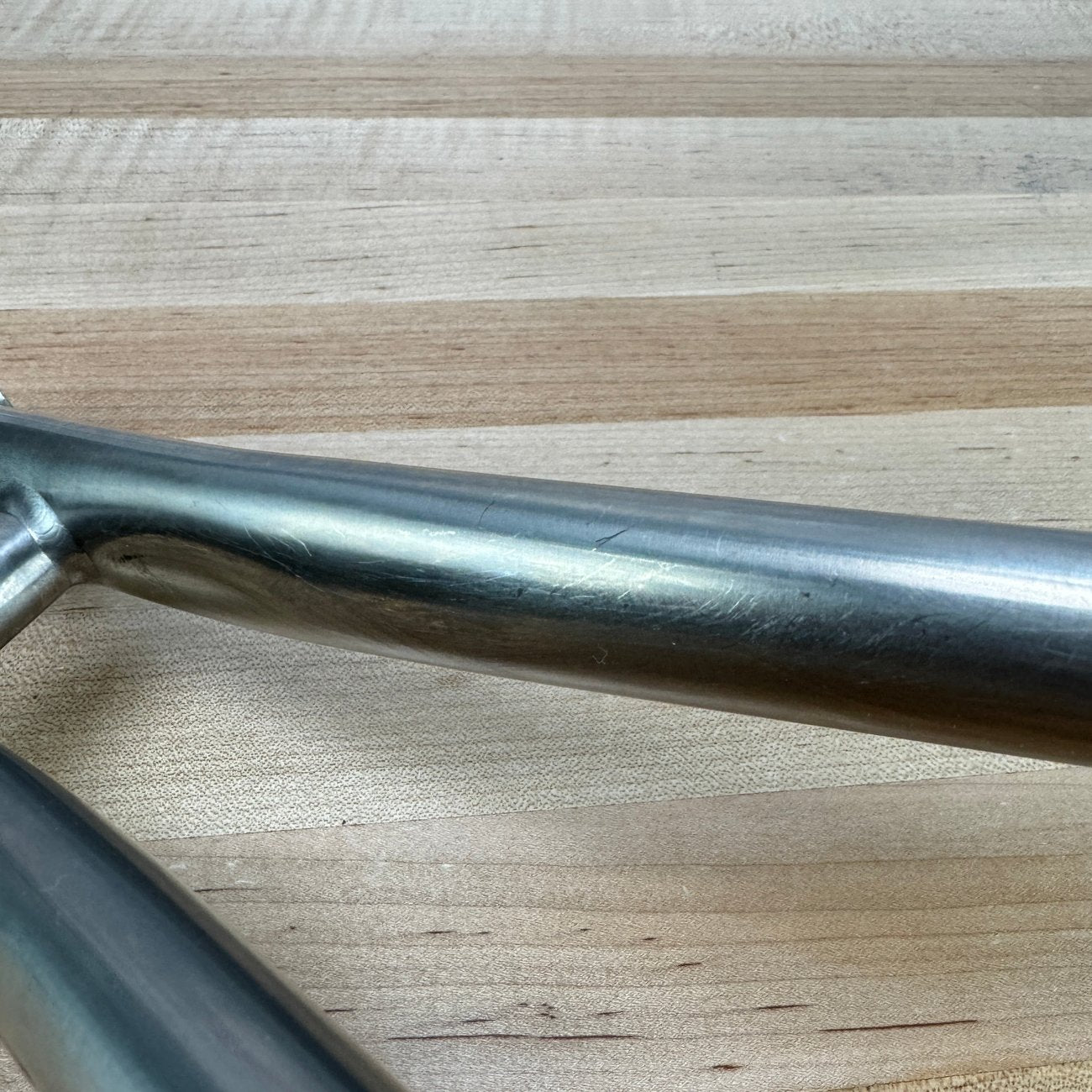

Condition: No cracks or defects were identified through a thorough visual inspection. The cosmetic imperfections to highlight include: a scratch on the fork shown in pic #9, and some scratches on the chainstays shown in pic #10. We have attempted to show all noticeable imperfections in specific close-up pictures, however other minor imperfections and light signs of use may exist.
Groupset compatibility: Frame can be setup for eTap or mechanical groupsets. This frame is not compatible with Di2, or EPS setups.

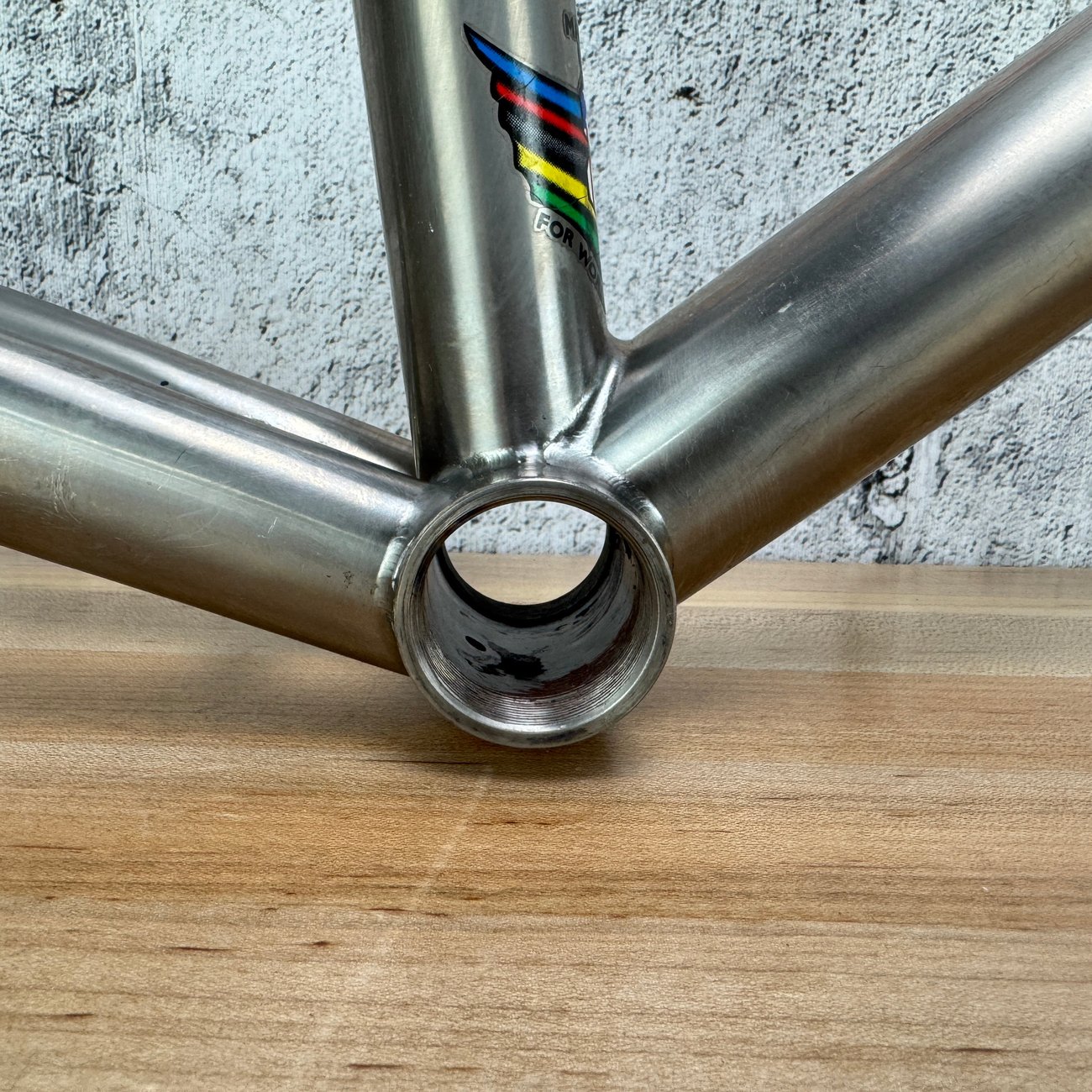

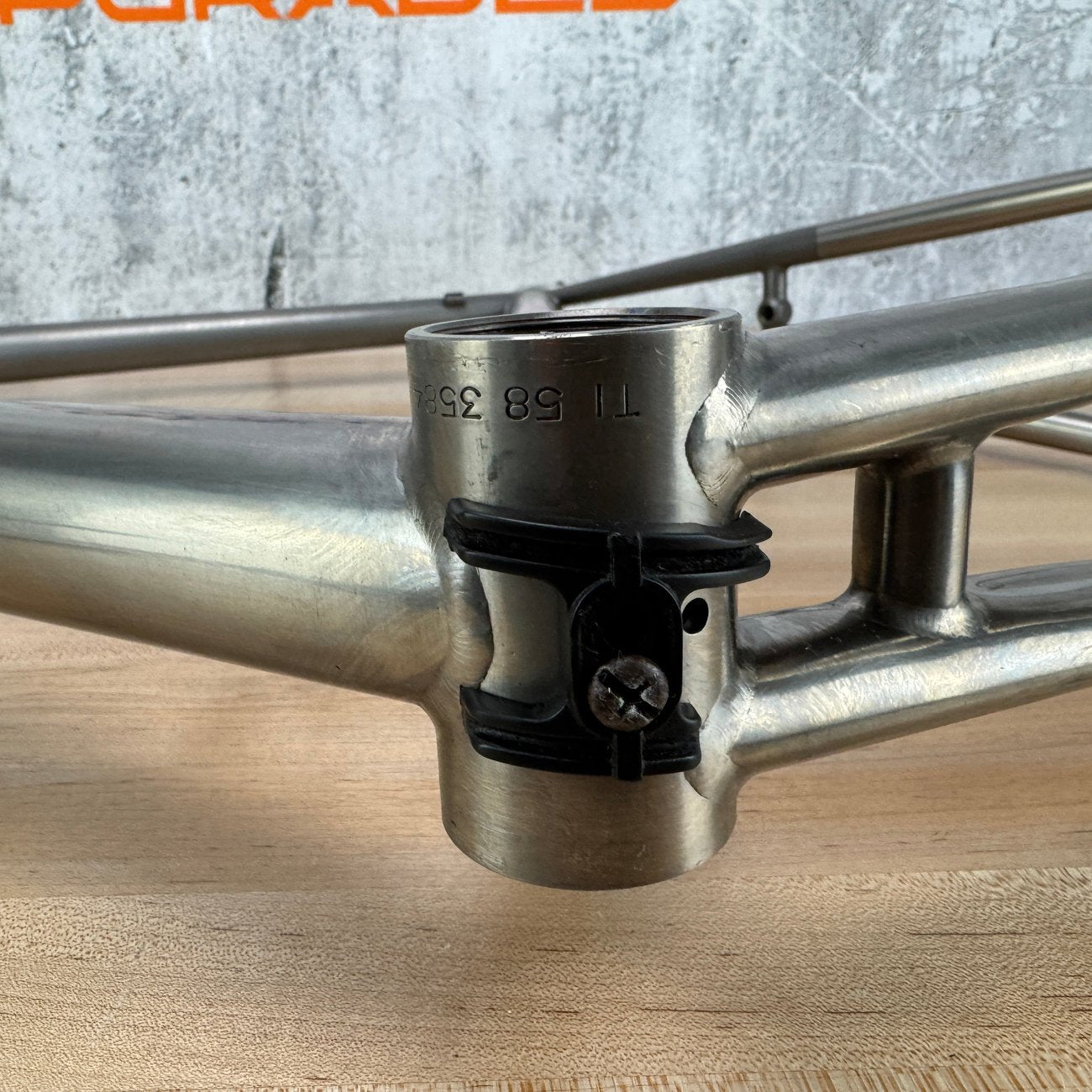

Bottom bracket: English threaded bottom bracket shell type. No bottom bracket is currently installed or included. We have a handful of lightly used basic bottom brackets on hand, let us know what you need and we can try to ship the frame with the right bottom bracket installed. Additionally, CyclingUpgrades is a Ceramicspeed and Cane Creek Authorized Dealer, if you prefer to have the frame setup with a certain bottom bracket we can add and install it at an additional cost before shipping - message with inquiries/requests.

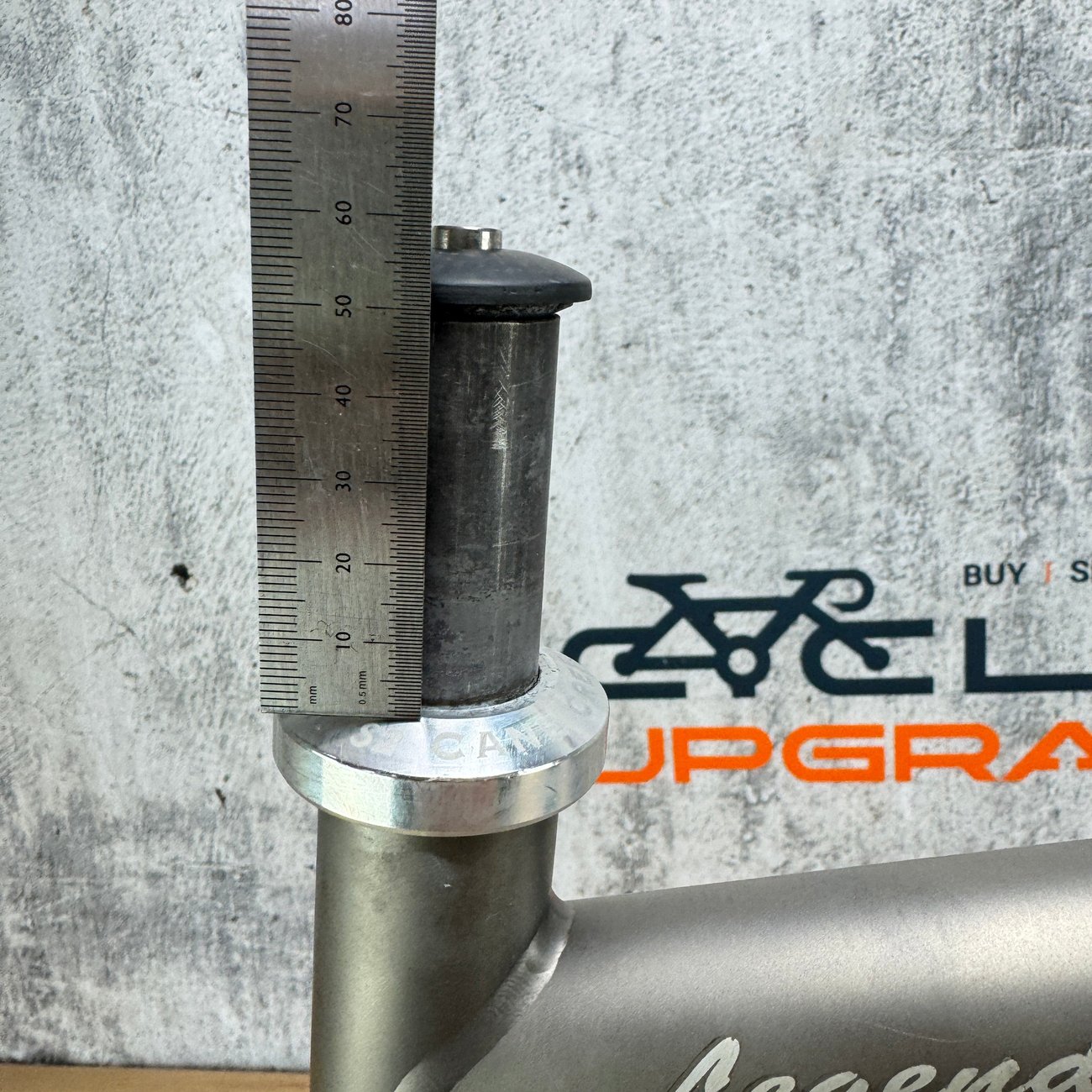

Steerer length: 50mm of steerer above the top tube.
Seatpost: 27.2mm diameter. No seatpost included.
Dropout Spacing: QR x 100mm front, QR x 130mm rear.
Weight: 2432 grams as pictured with headset, frame hardware, etc.
What's included: Frame, fork, headset.
