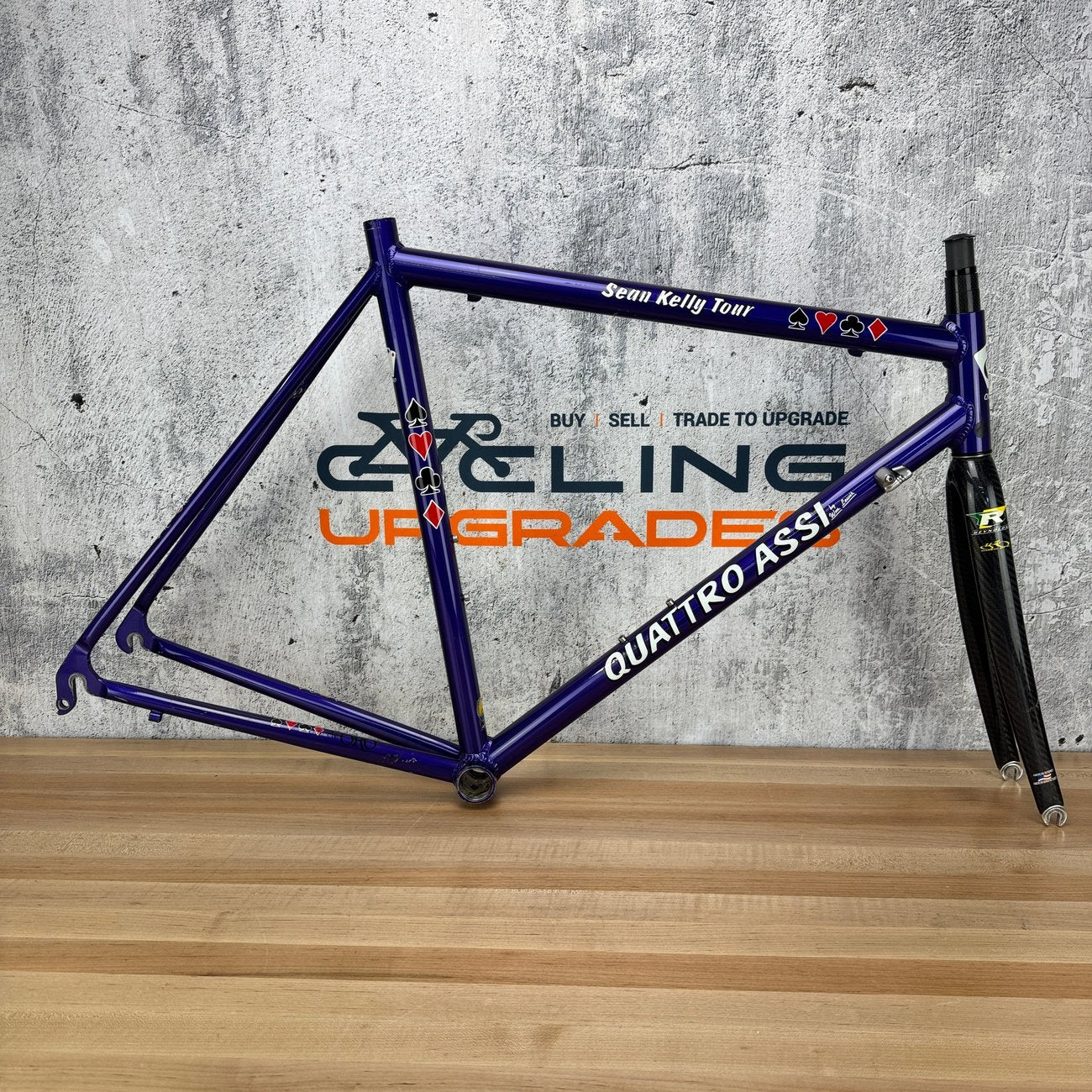

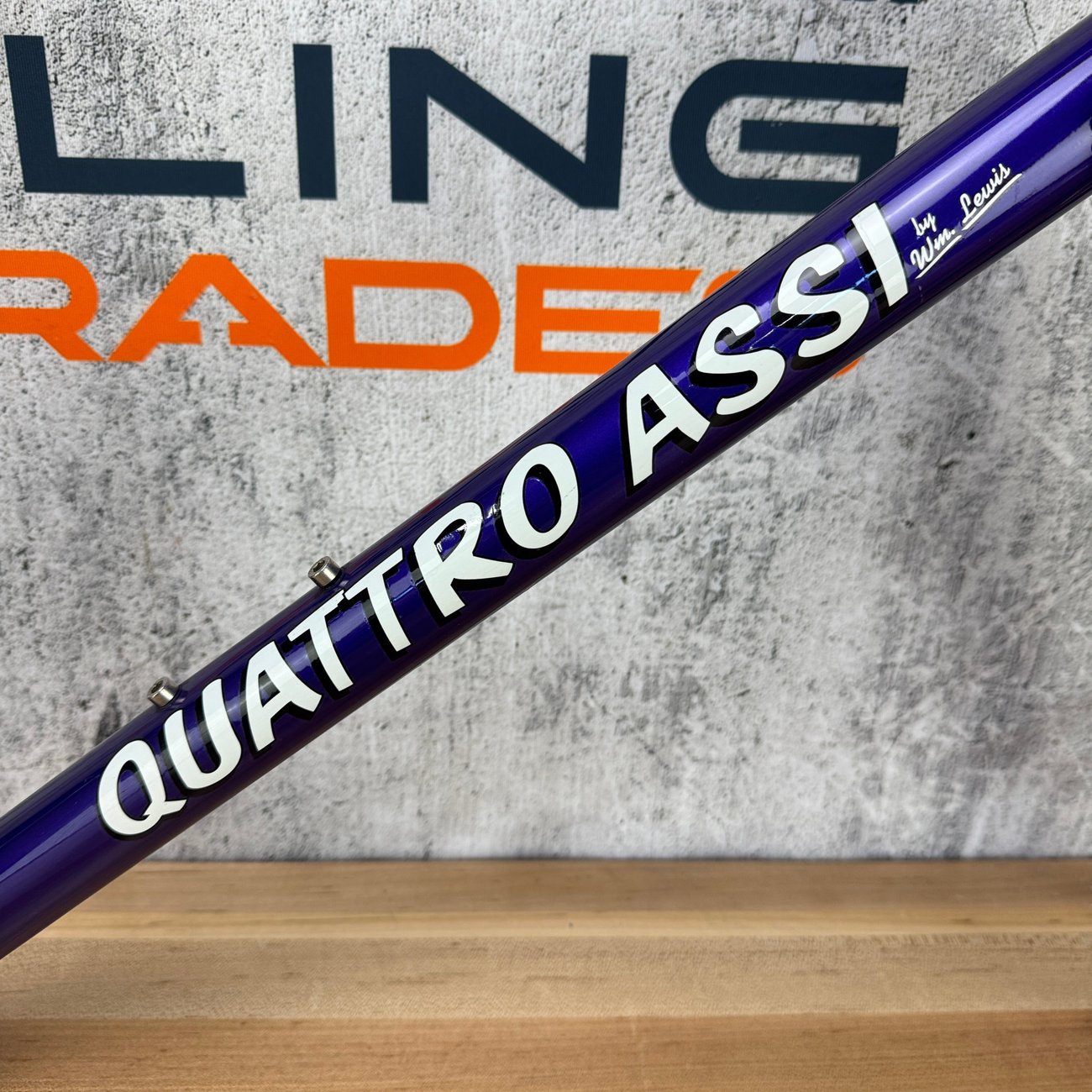

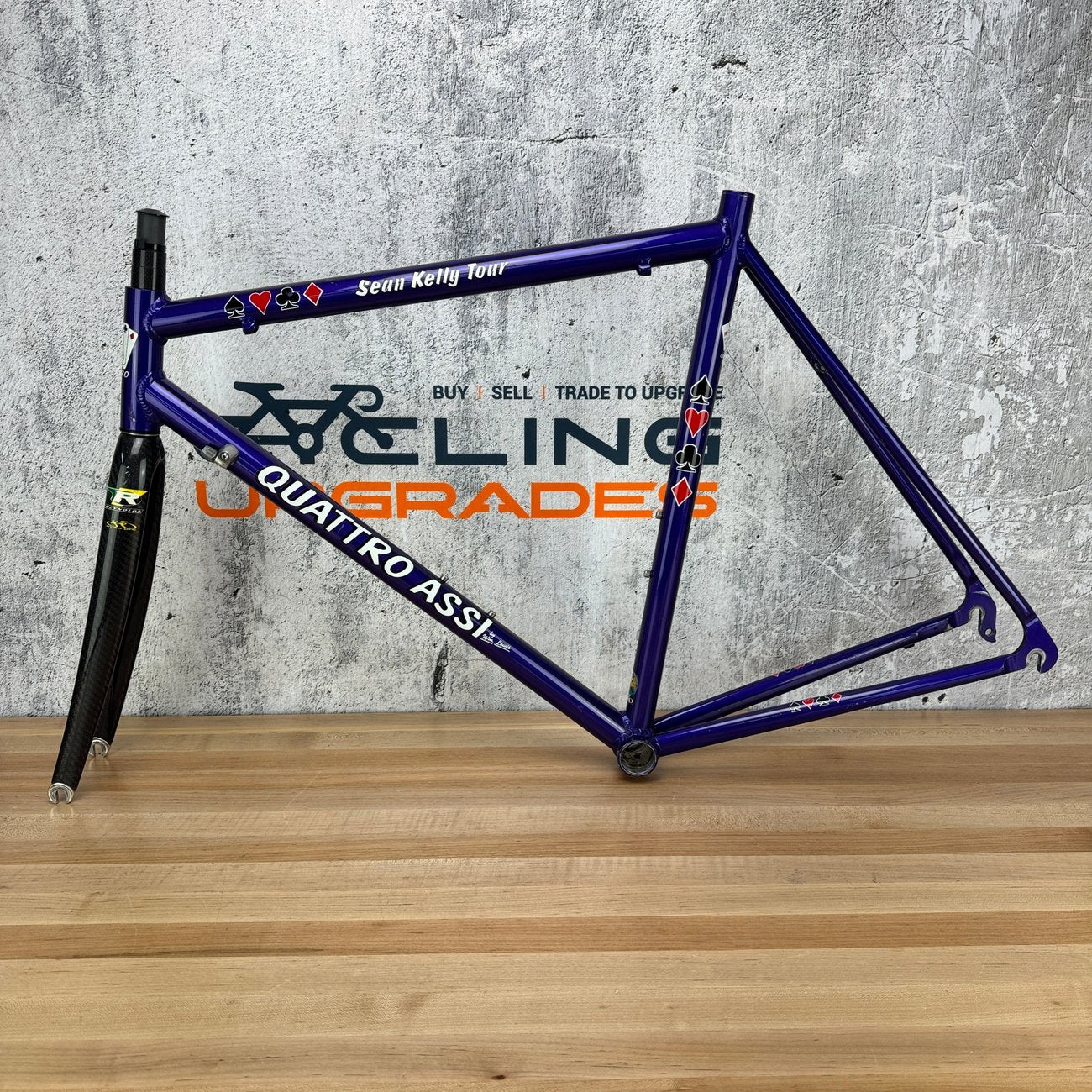

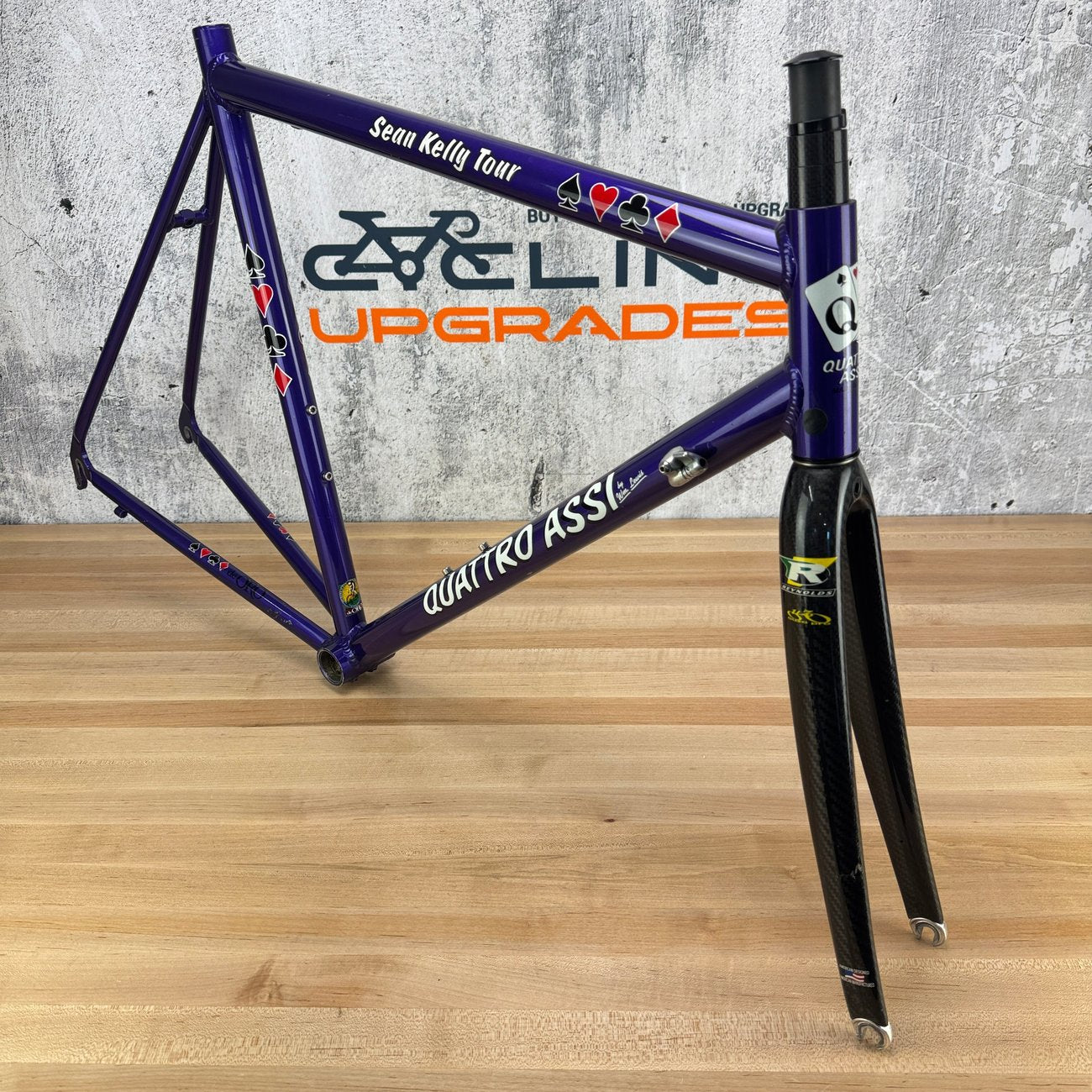

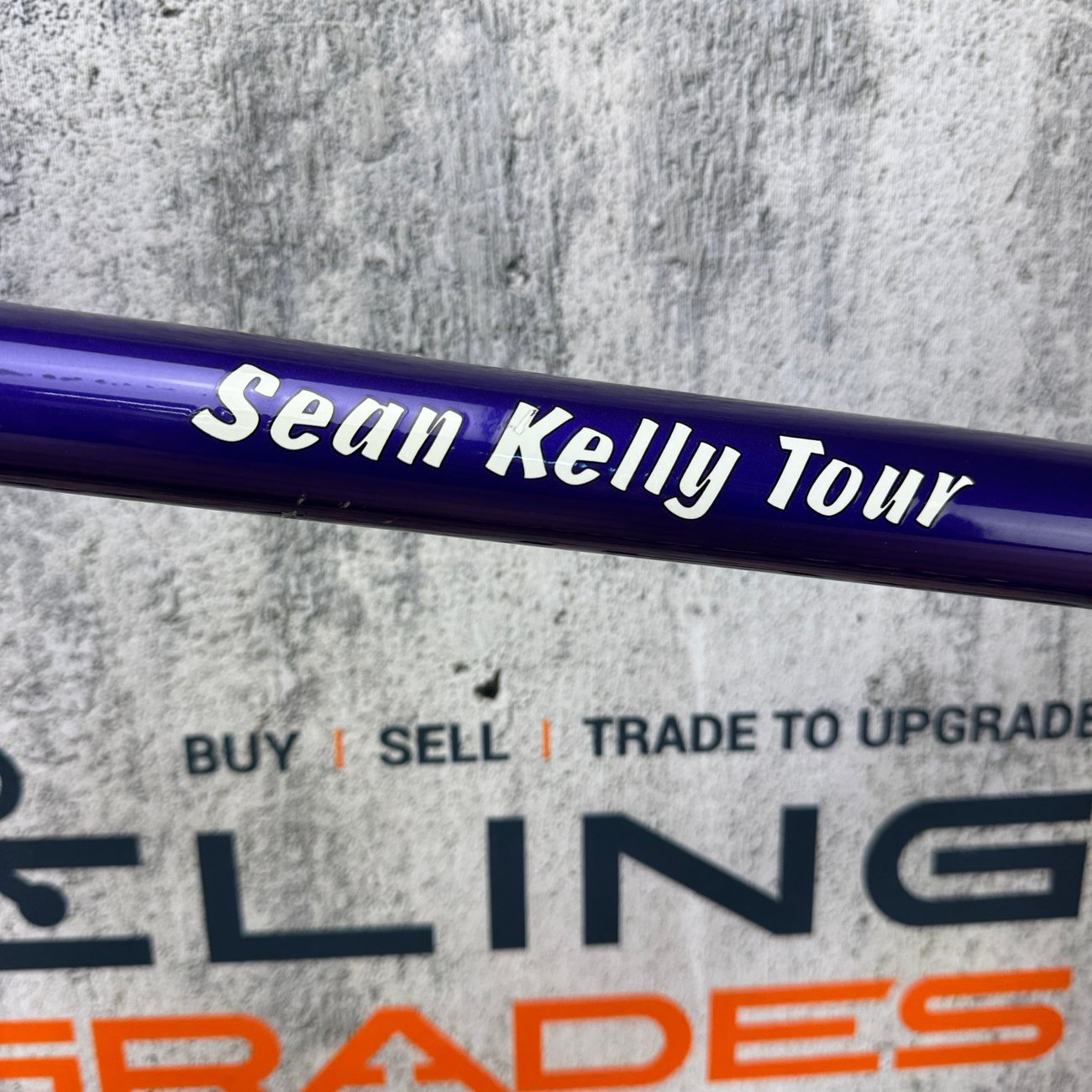

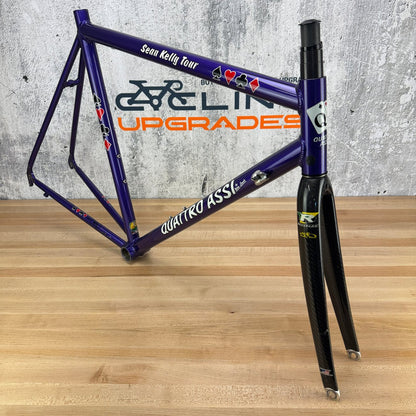

Frame: Quattro Assi Sean Kelly Tour

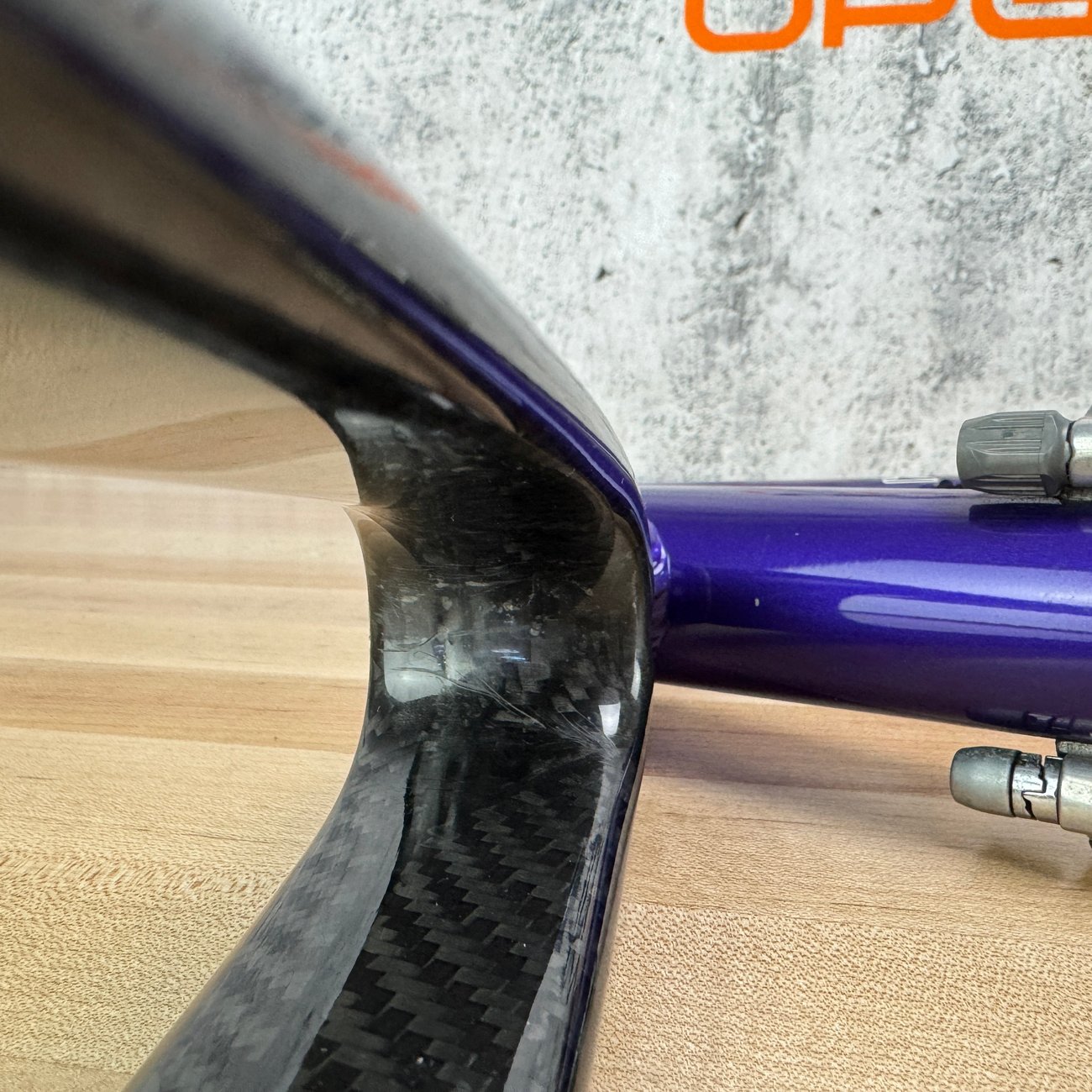

Fork: Reynolds carbon fork
Color: Purple
Tire Clearance: 28mm
Brake type: Center-Mount rim brake

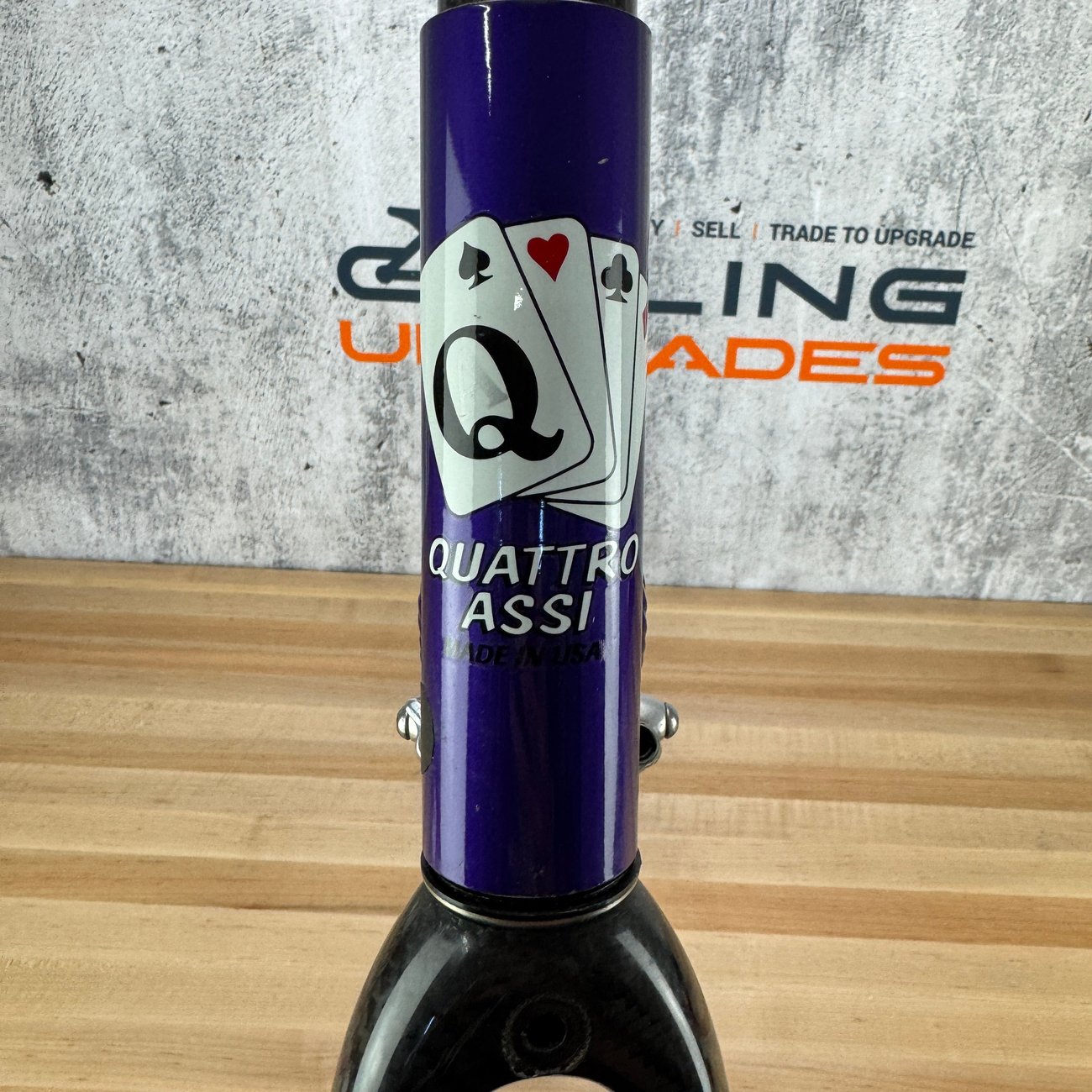

Size: Actual measurements taken by hand are approximate and are as follows: 580mm actual top tube center to center. 540mm center of bottom bracket to center of top tube. 580mm center of bottom bracket to top of seat tube. Head tube 135mm. 410mm chainstay length. If other measurements or take-offs are needed, please feel free to ask.

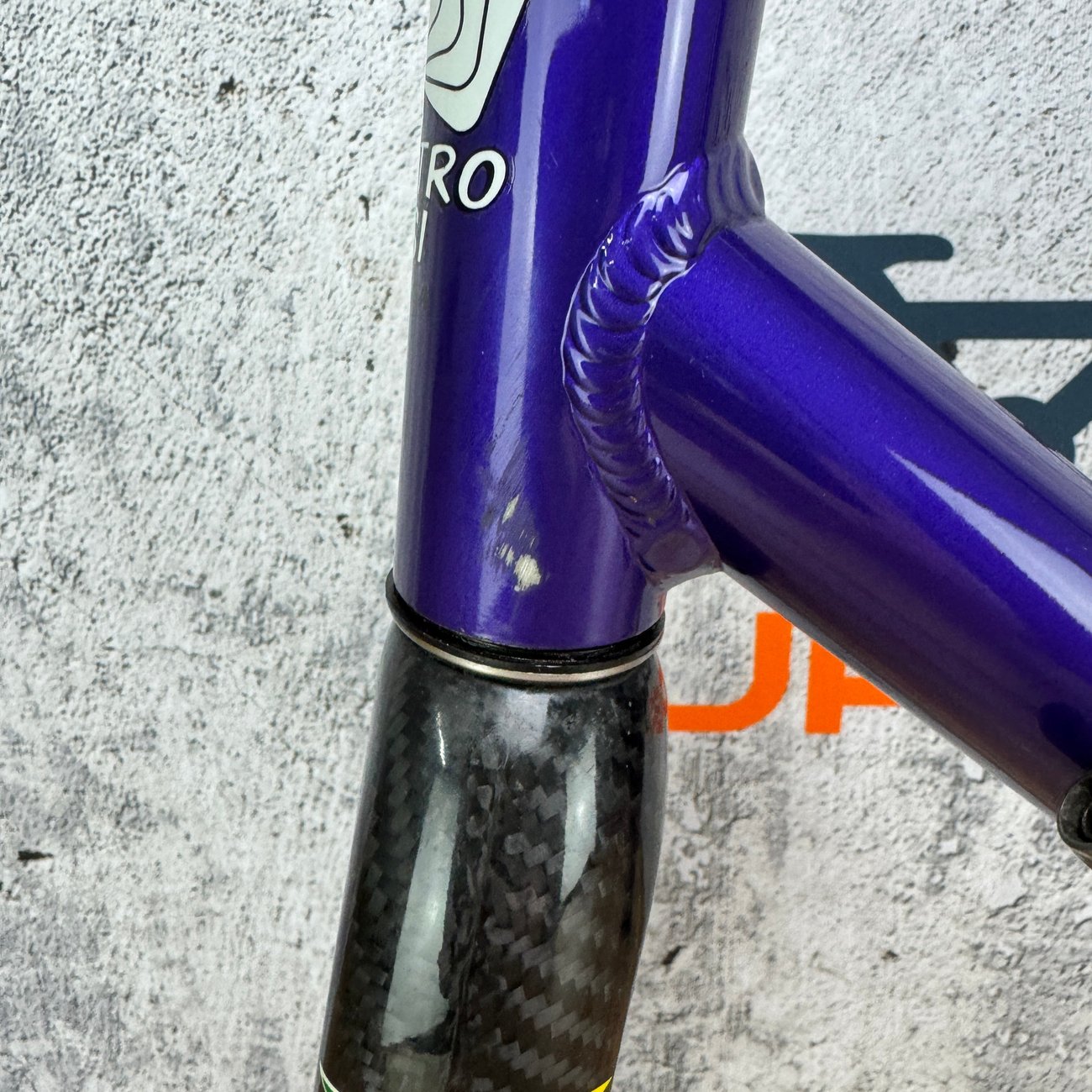

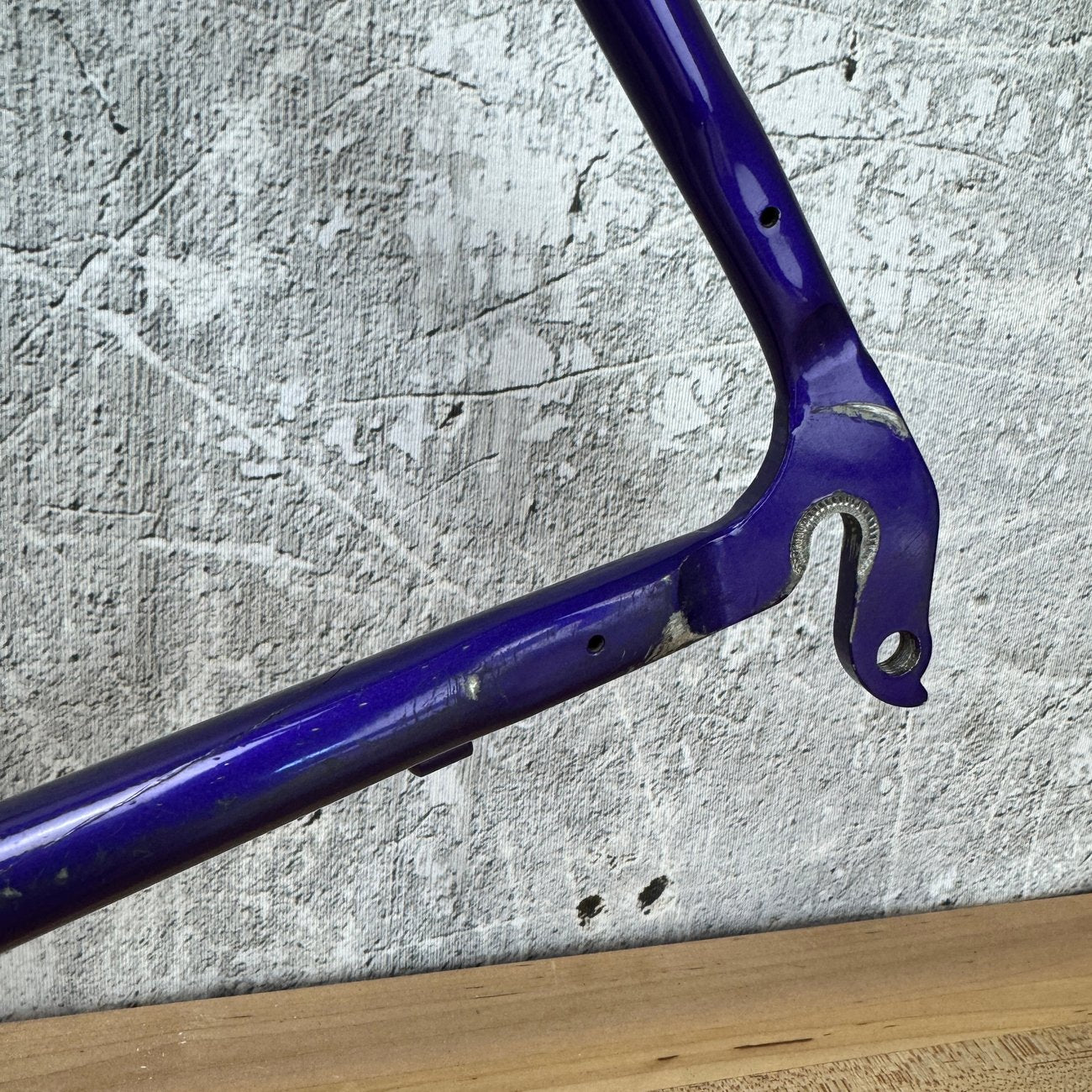

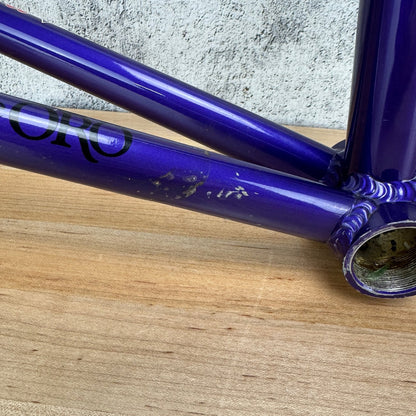

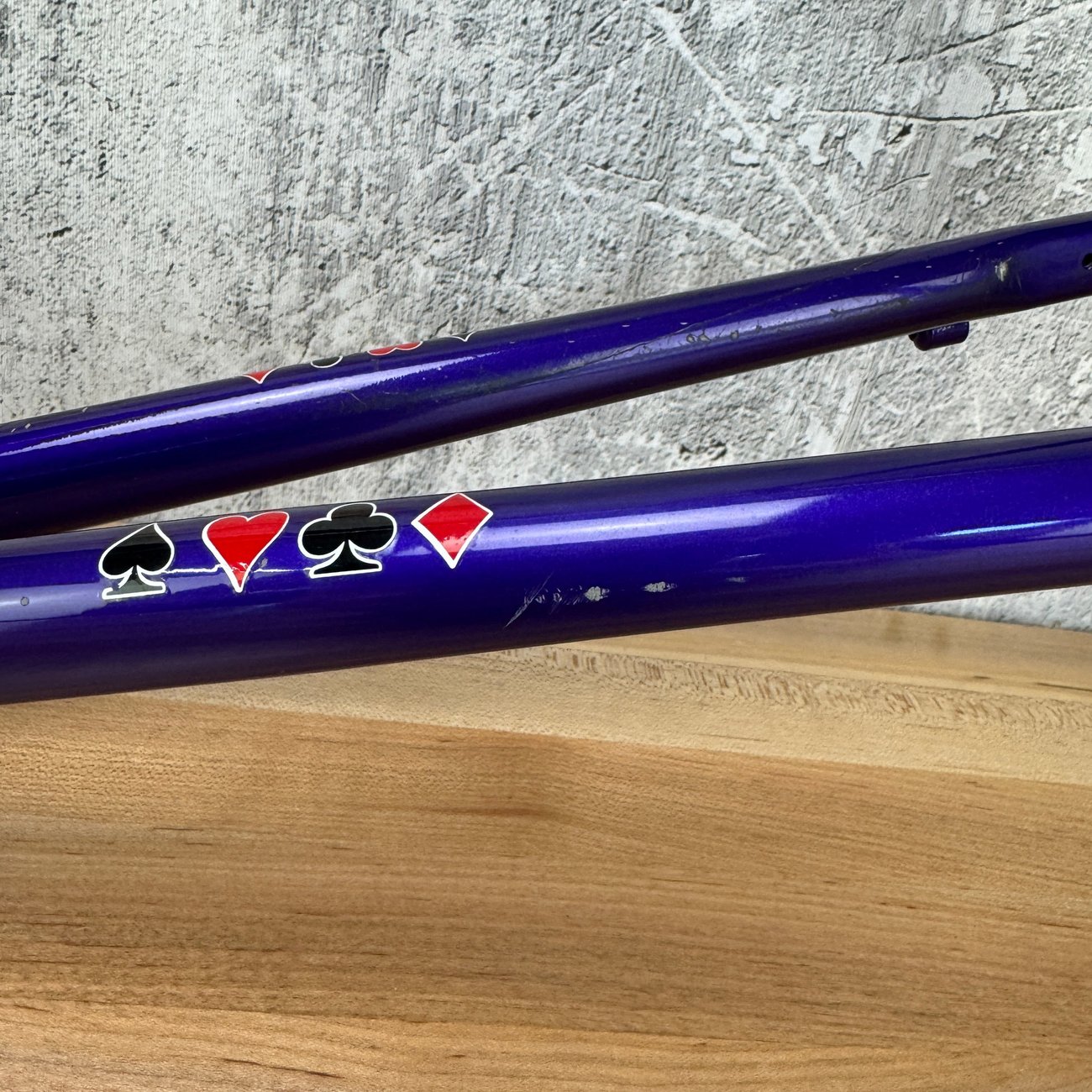

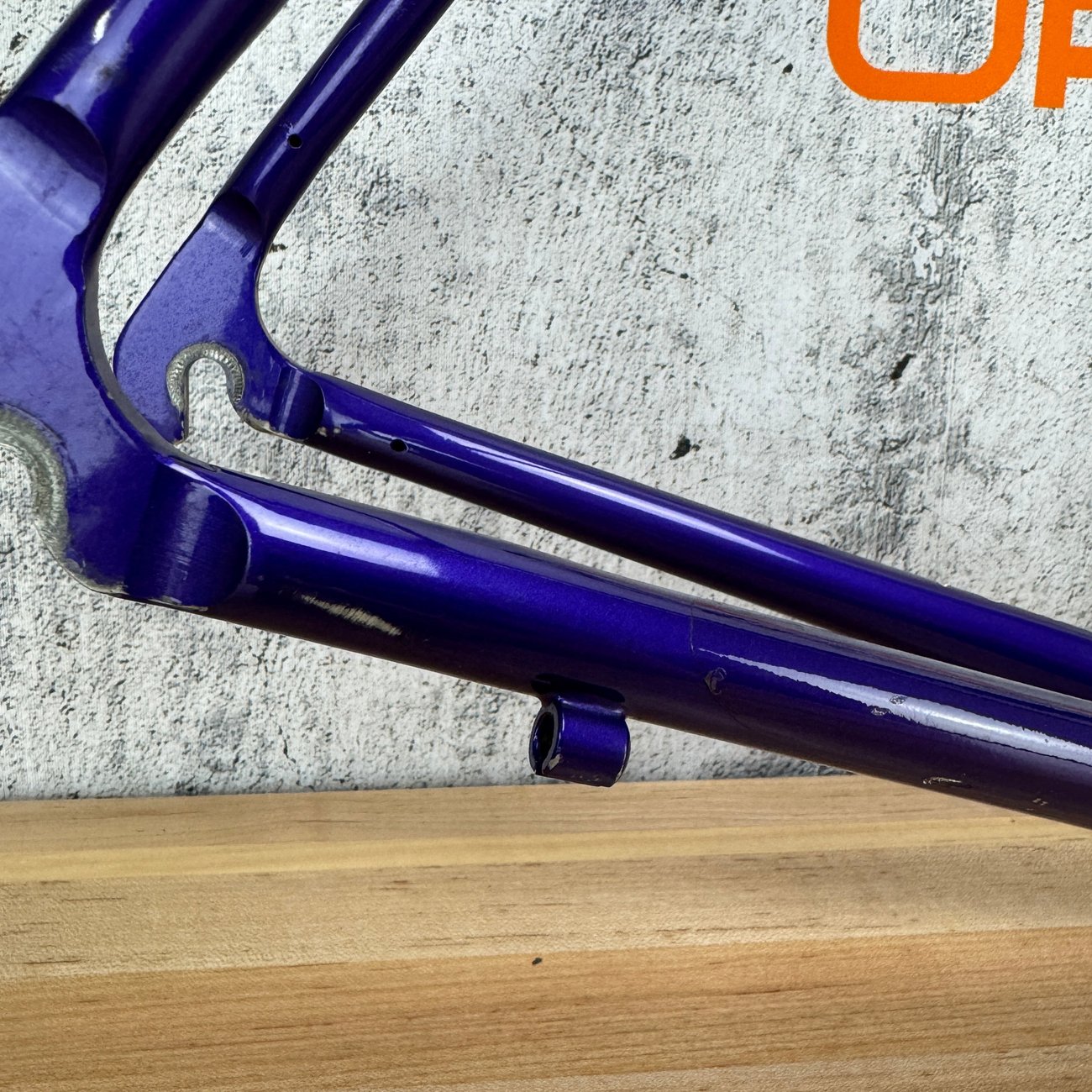

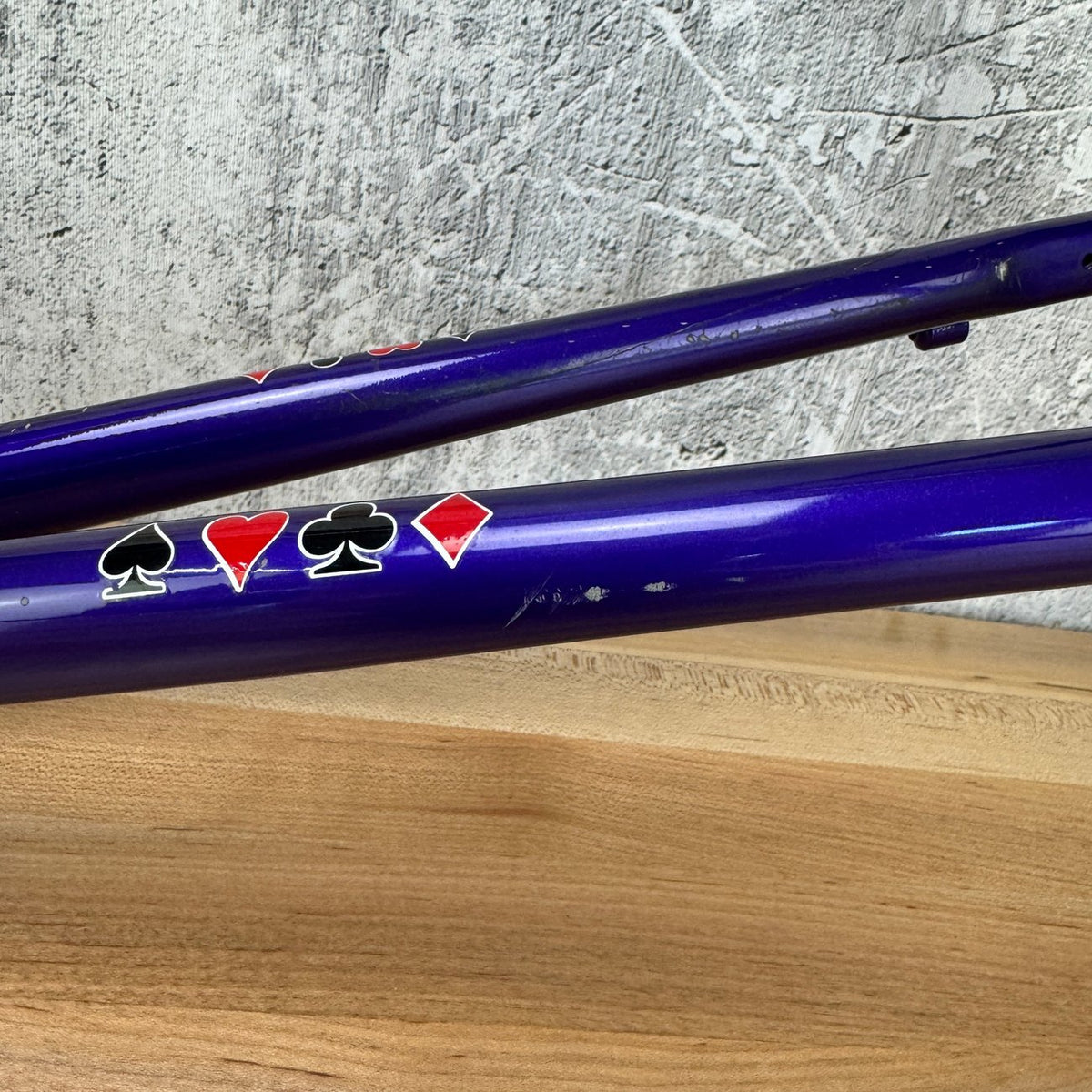

Condition: No cracks or defects were identified through a thorough visual inspection. The cosmetic imperfections to highlight include: some scratches on the chainstays shown in pics #7-10, and some scratches on the head tube shown in pic #11. We have attempted to show all noticeable imperfections in specific close-up pictures, however other minor imperfections and light signs of use may exist.
Groupset compatibility: Frame can be setup for eTap or mechanical groupsets. This frame is not compatible with Di2, or EPS setups.

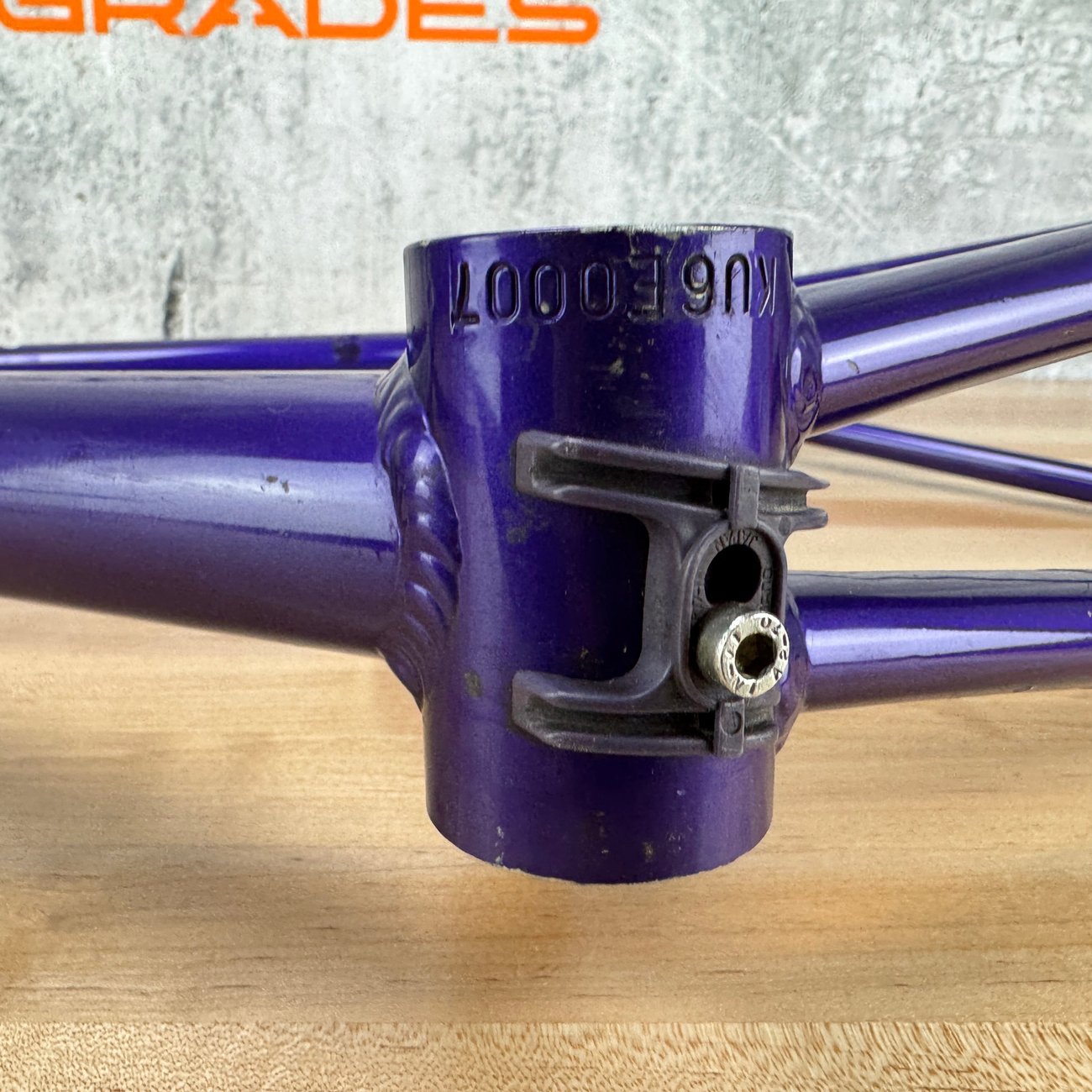

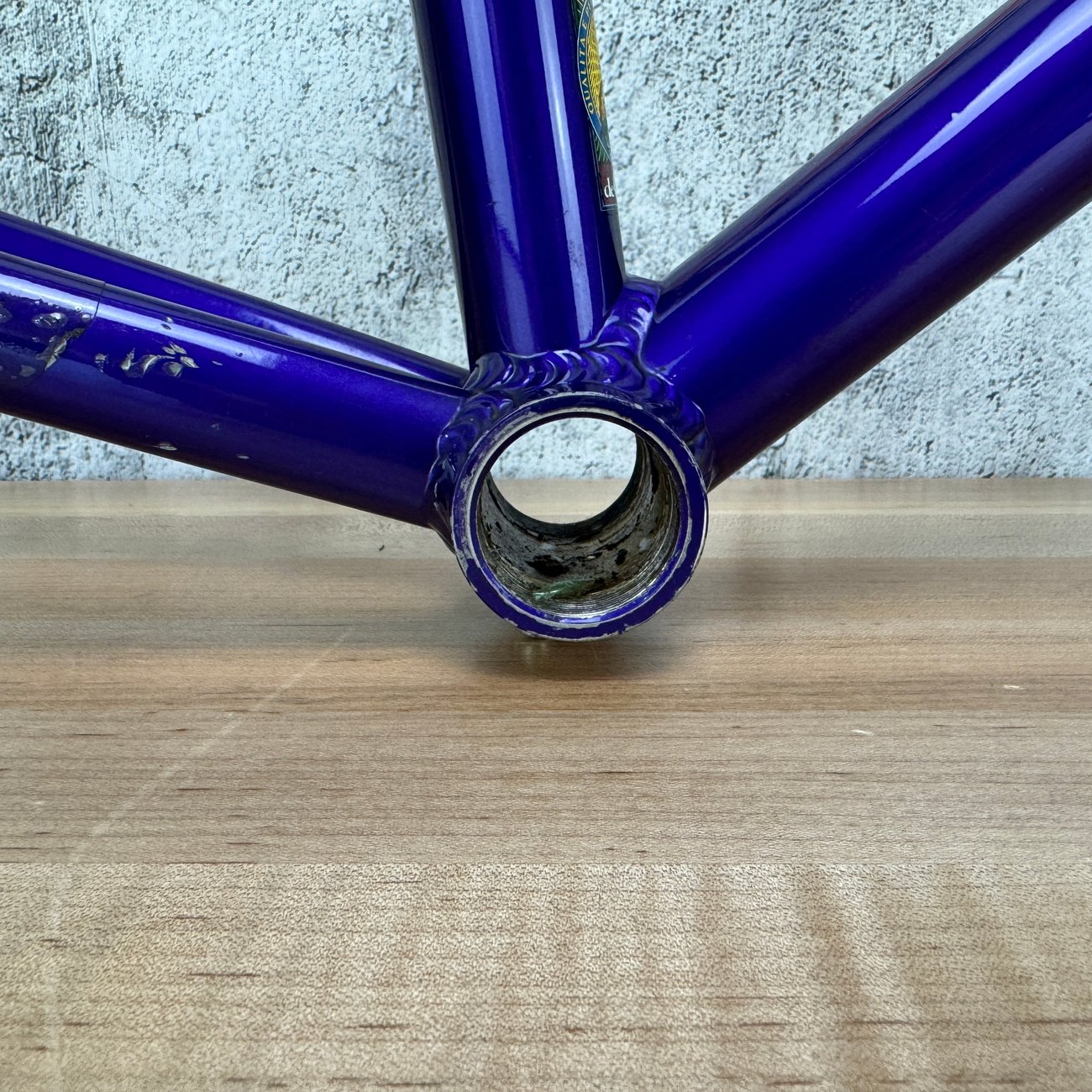

Bottom bracket: English threaded bottom bracket shell type. No bottom bracket is currently installed or included. We have a handful of lightly used basic bottom brackets on hand, let us know what you need and we can try to ship the frame with the right bottom bracket installed. Additionally, CyclingUpgrades is a Ceramicspeed and Cane Creek Authorized Dealer, if you prefer to have the frame setup with a certain bottom bracket we can add and install it at an additional cost before shipping - message with inquiries/requests.
Steerer length: 65mm of steerer above the top tube. 35mm of spacers below the stem. No headset included.
Seatpost: 27.2mm diameter. No seatpost included.
Dropout Spacing: QR x 100mm front, QR x 130mm rear.
Weight: 2102 grams as pictured.
What's included: Frame, and fork
