Time Alpe D'Huez XS (53cm TT) Carbon Disc Brake Frameset 700c 1728g
SKU: 01212025-0006-01
Ships next business day or sooner. Trade toward it
Pickup available at CyclingUpgrades Spanish Fork (new location)
Usually ready in 24 hours
View store information
-
CyclingUpgrades Spanish Fork (new location)
Pickup available · Usually ready in 24 hours
3544 North Main Street
Unit 110
Spanish Fork UT 84660
United States
- Cleaned before listing
- Inspected and function-tested
- Photos of the actual item, flaws included
- Specs and condition recorded for every listing
- Packed securely to arrive as listed
- 30-day returns
Item Specs
- Brand
- Time
- Model
- Alpe D'Huez
- Part type
- Bicycle Frame
- Wheel size
- 700C
- Brake type
- Disc Brake
- Frame size
- XS
- Material
- Carbon
- Color
- Black
Further product information
Description

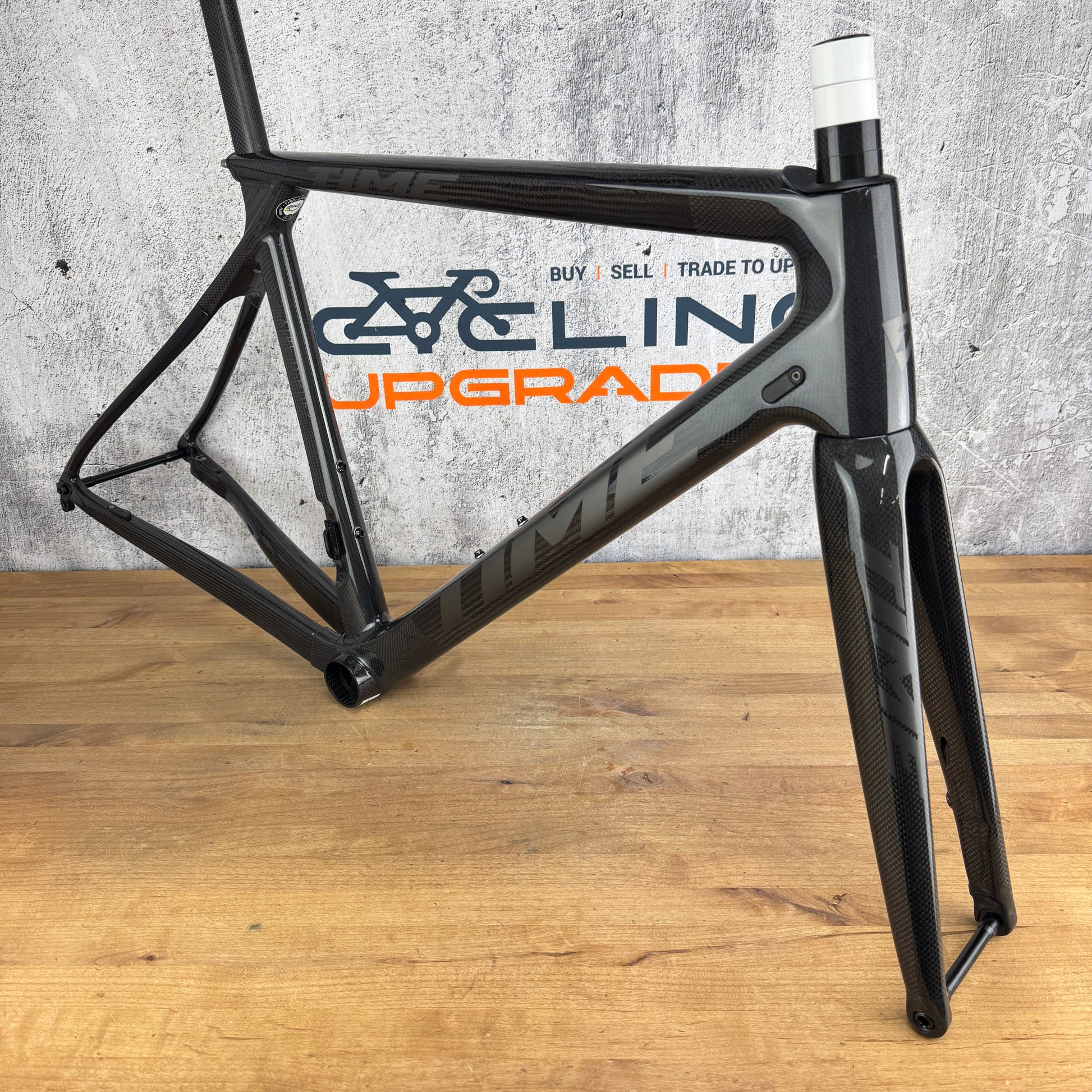

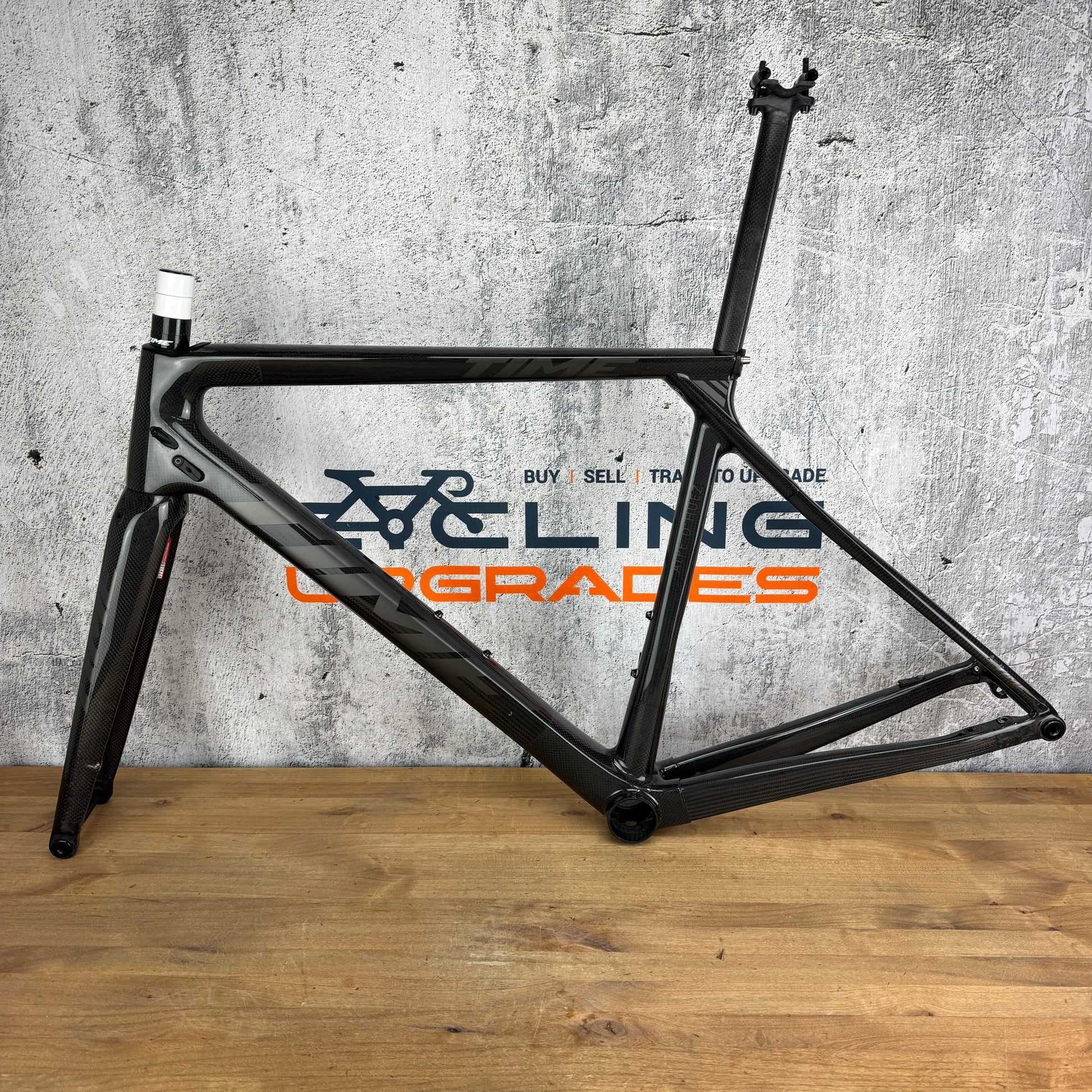

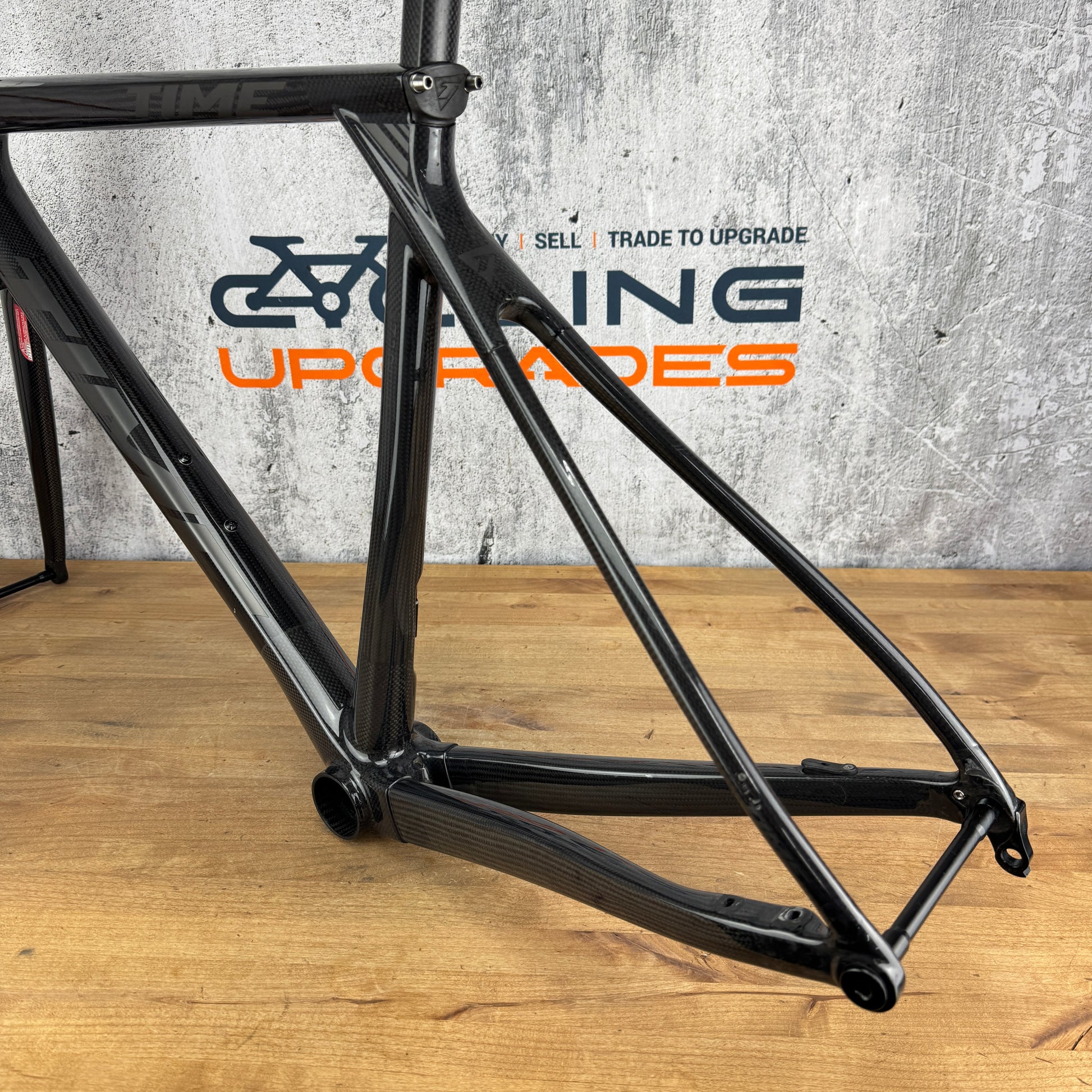

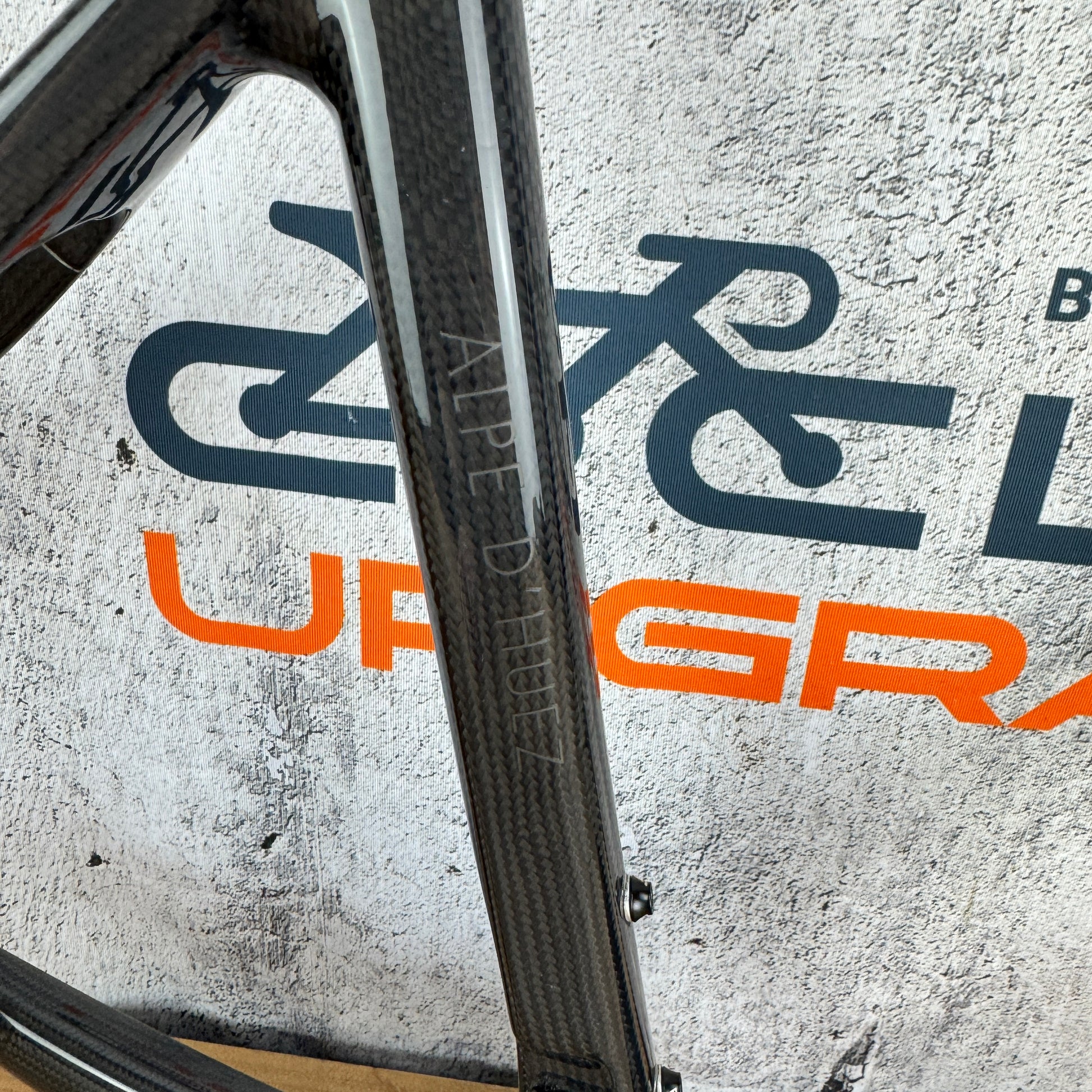

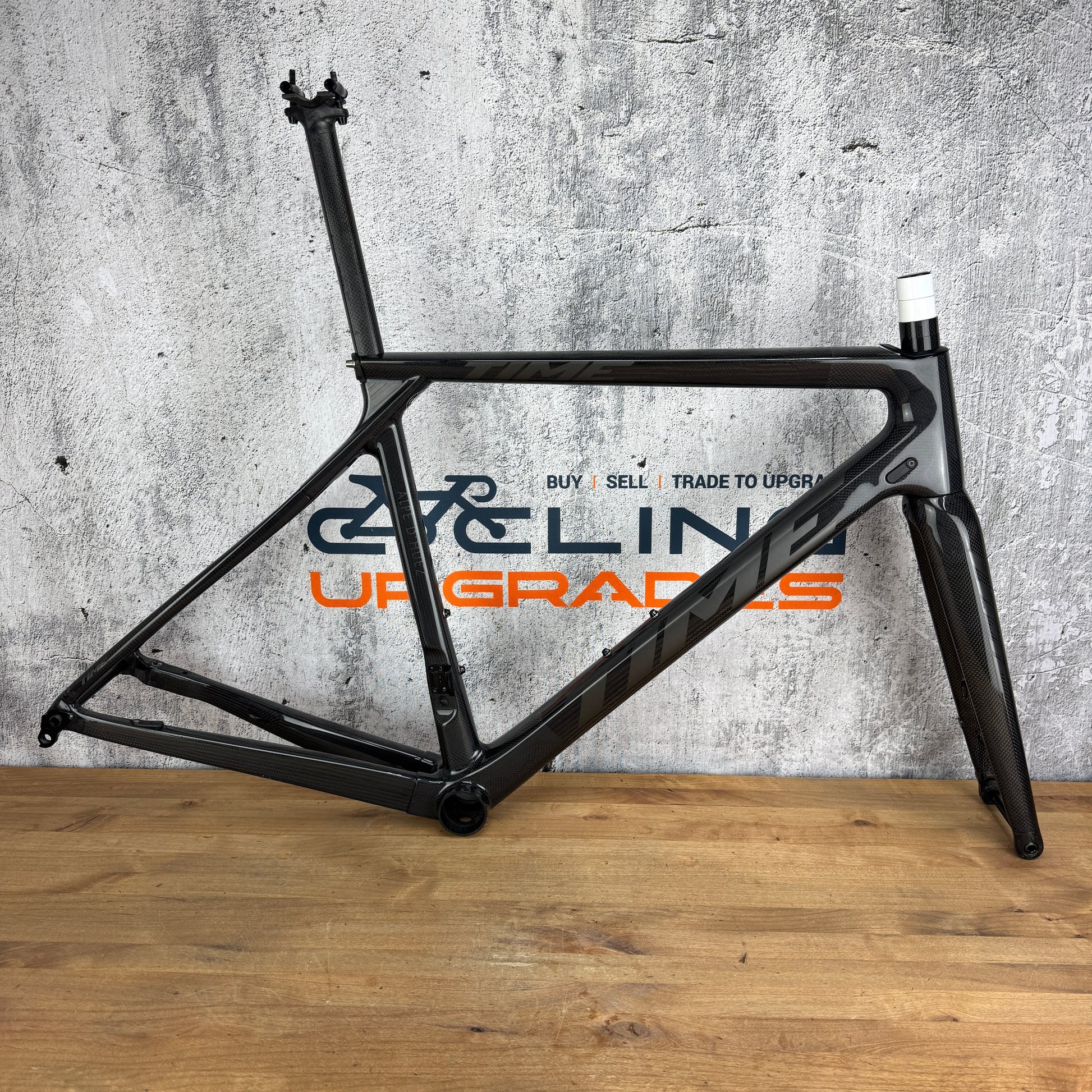

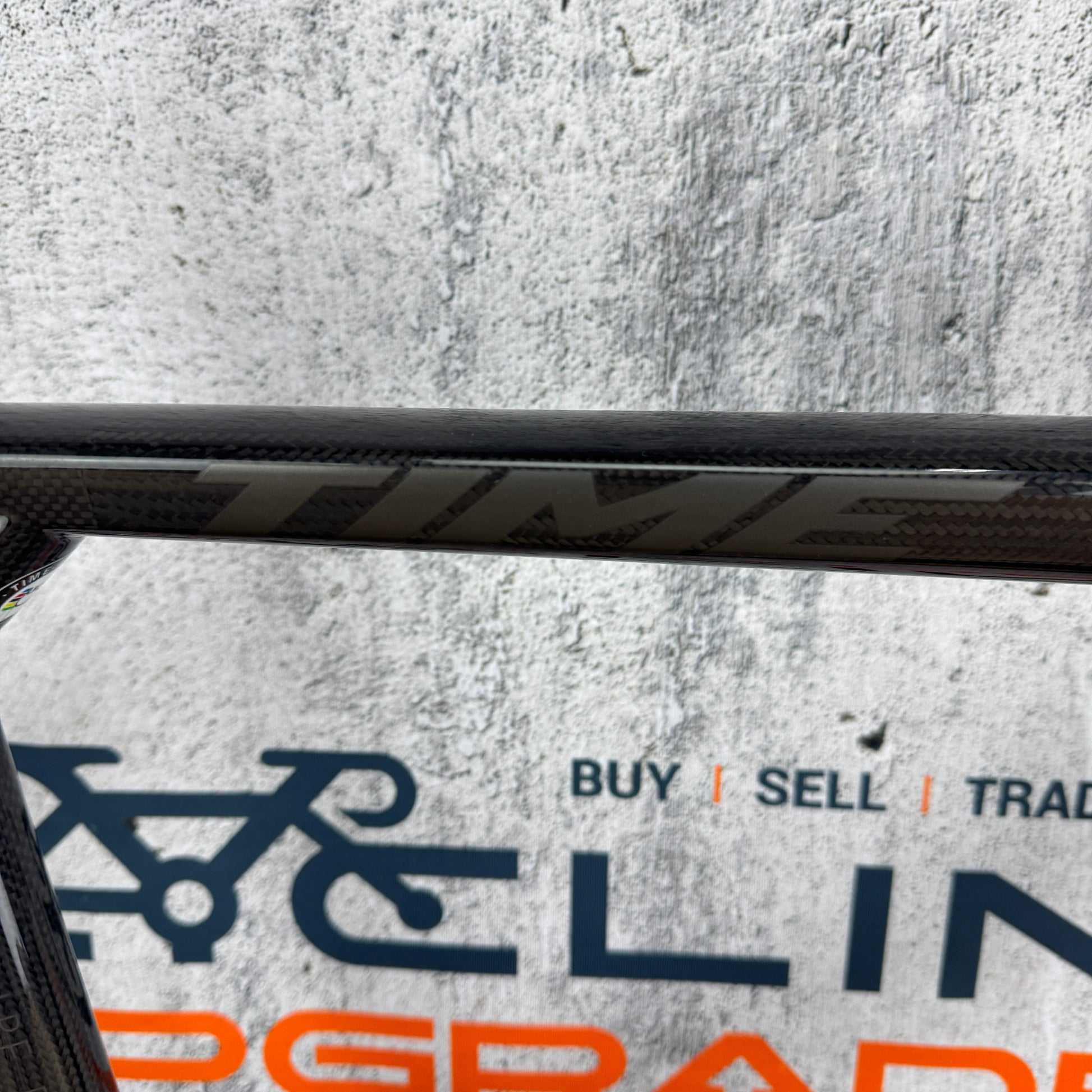

Frame: Time Alpe D'Huez
Color: Carbon black
Brake type: Flat-Mount disc brake.
Size: XS. 530mm Effective Top Tube. Stack - 526mm. Reach - 374mm. Head tube 133mm. Recommend buyer confirm and research full geometry online.

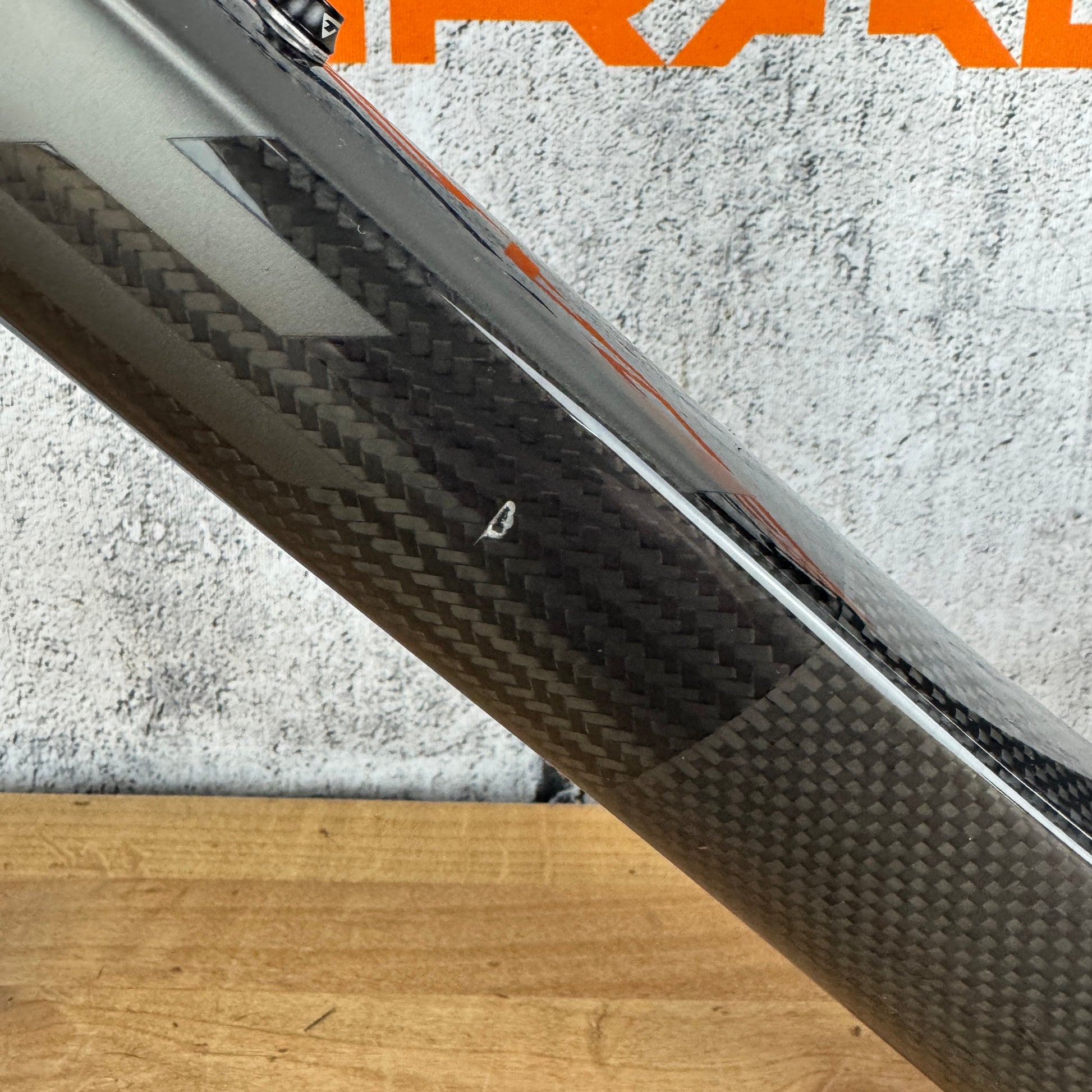

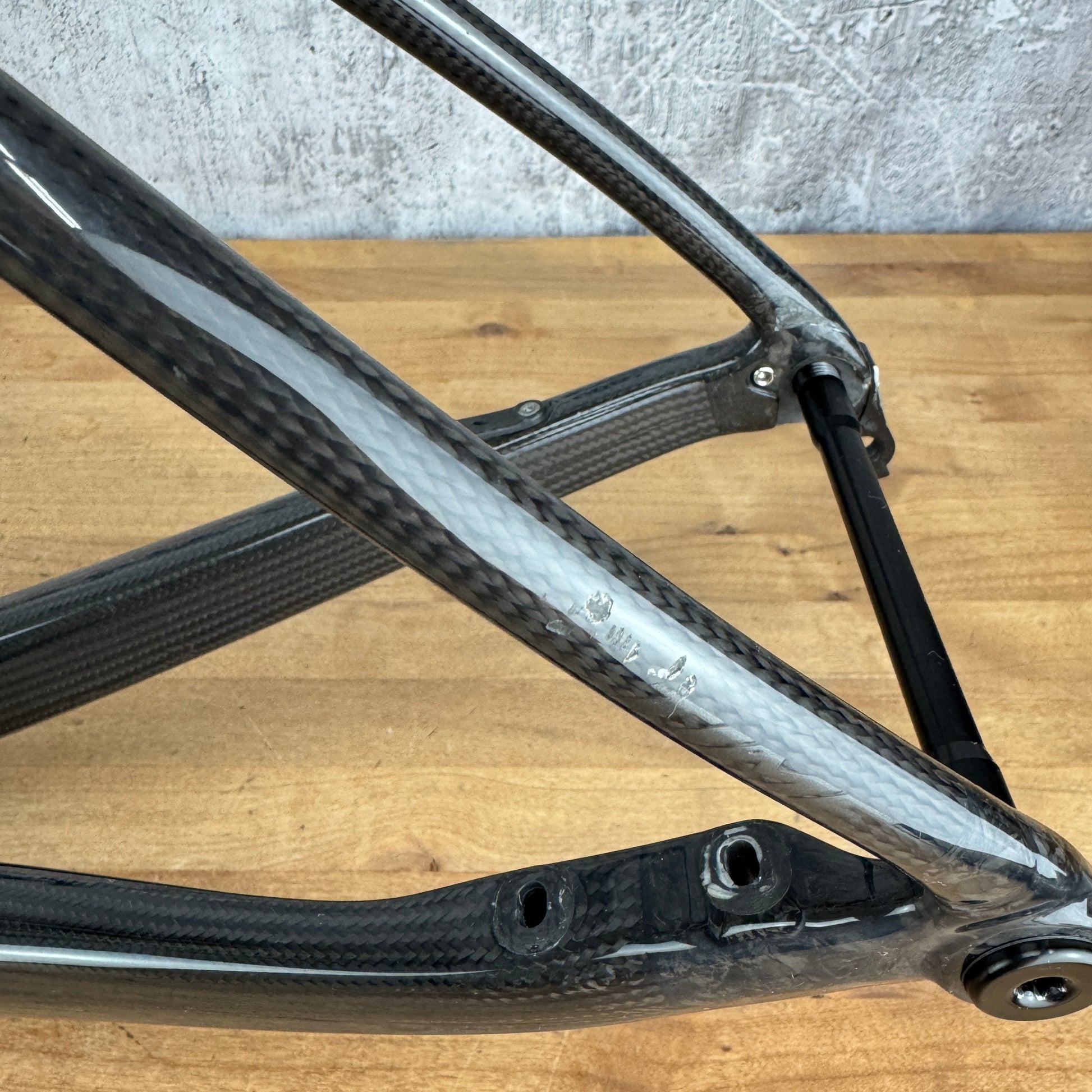

Condition: No cracks or carbon defects were identified through a thorough visual inspection. The cosmetic imperfections to highlight include: A scratch on the head tube shown in pic #7, a scratch on the down tube shown in pic #8, and some scuffs on the chainstay and seatstay shown in pics #9 & 10. We have attempted to show all noticeable imperfections in specific close-up pictures, however other minor imperfections and light signs of use may exist.
Groupset compatibility: Frame can be setup for Di2, EPS, eTap, or mechanical groupsets. This frame was previously setup with an eTap groupset. Other frame/cable stops may be needed for Di2 or mechanical setups.

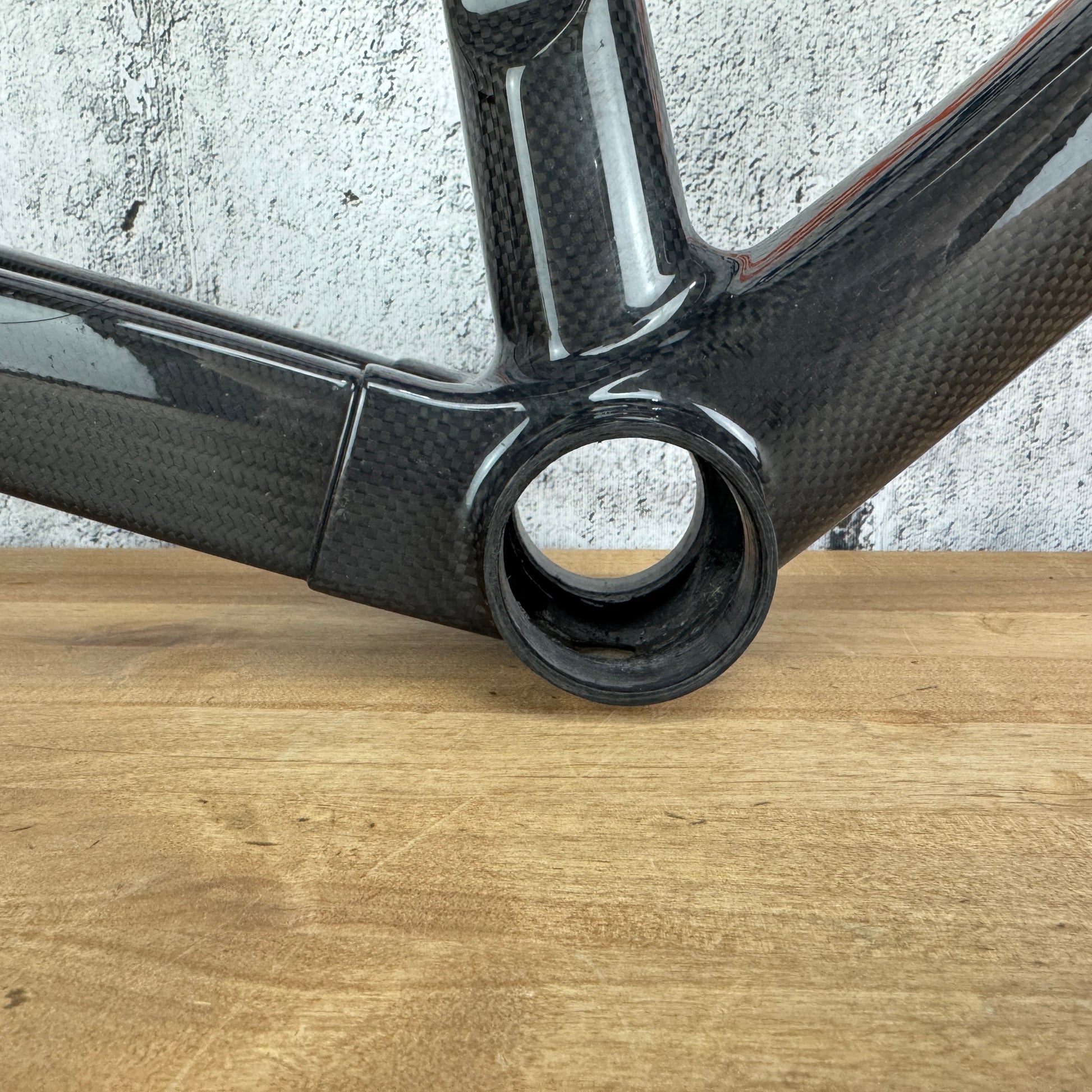

Bottom bracket: BB386EVO bottom bracket shell type (46mm shell diameter, 86mm shell width). No bottom bracket currently installed or included. We have a handful of lightly used basic bottom brackets on hand, let us know what you need and we can try to ship the frame with the right bottom bracket installed. Additionally, CyclingUpgrades is a Ceramicspeed and Cane Creek Authorized Dealer, if you prefer to have the frame setup with a certain bottom bracket we can add and install it at an additional cost before shipping - message with inquiries/requests.

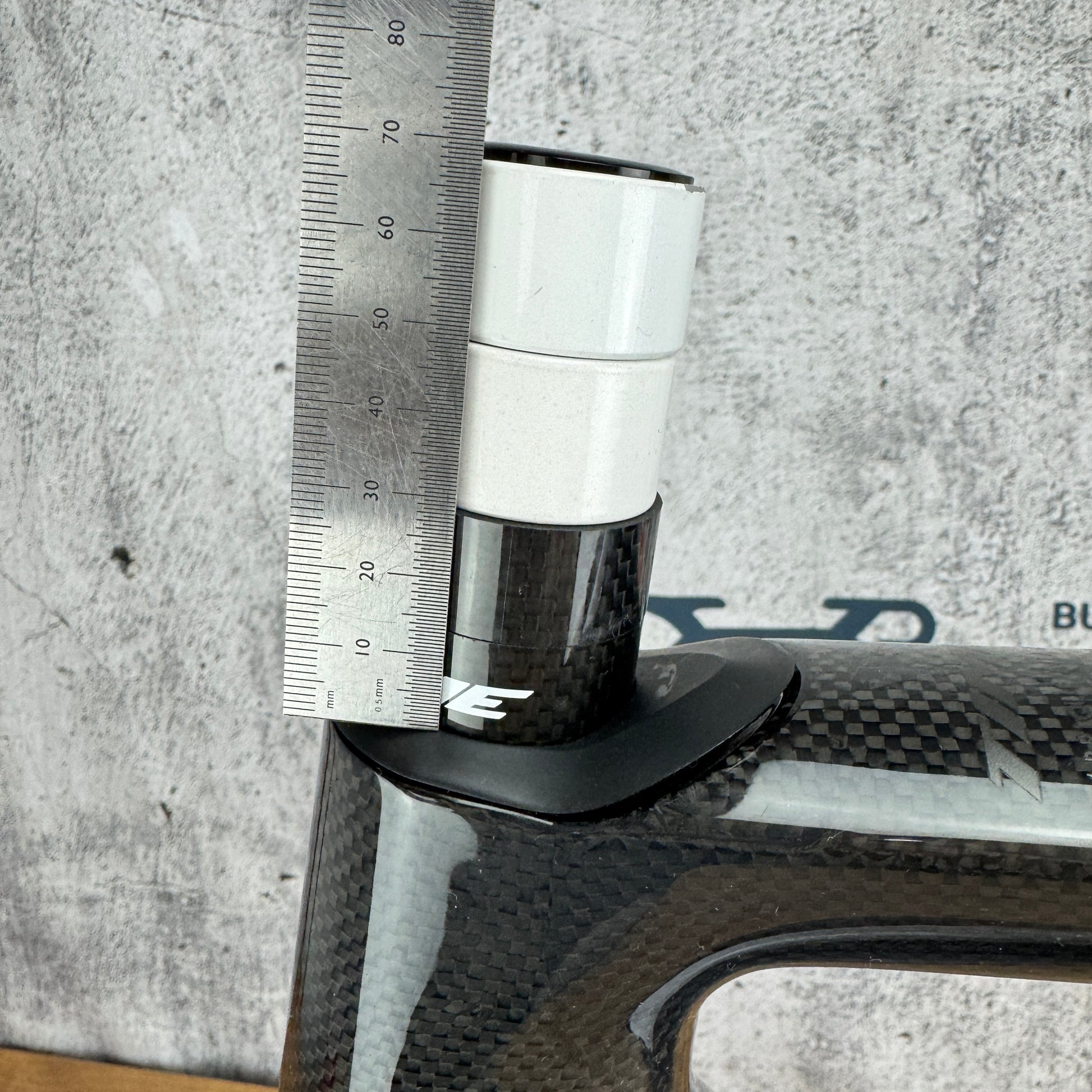

Steerer length: 70mm of steerer above the top tube. 30mm of spacers below the stem plus the headset cover. We may have an option available to safely extend the steerer tube by 15-18mm - message us for additional details.
Seatpost: Frame specific carbon zero setback seatpost included.
Dropout Spacing: Front 12mm Thru Axle x 100mm, Rear 12mm Thru Axle x 142mm.
Weight: 1728 grams as pictured with headset, thru axles, seatpost, frame hardware, etc.

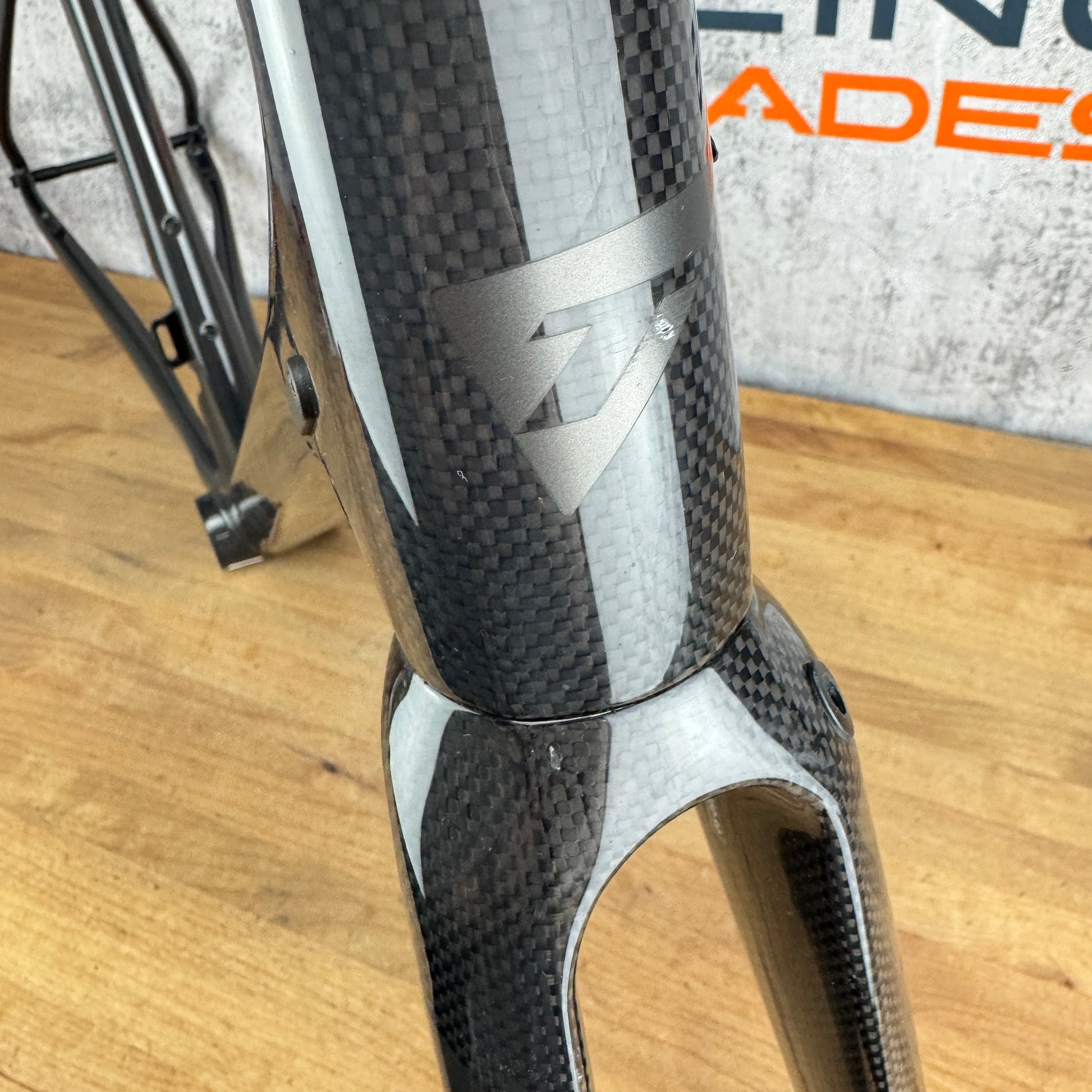

What's included: Frame, fork, headset, rear derailleur hanger, seatpost, thru axles
