Item Specifics

  • Brand: Enve
  • Bottom bracket shell type: T47/86
  • Brake type: Disc Brake
  • Dropout spacing: Front 12mm Thru Axle x 100mm, Rear 12mm Thru Axle x 142mm
  • Fork type: Rigid
  • Groupset compatibility: Frame can be setup for Di2, EPS, eTap, or mechanical groupsets. This frame was previously setup with an eTap groupset. Other frame/cable stops may be needed for Di2 or mechanical setups. Mechanical cable guide below the bottom bracket intact.
  • Material: Carbon
  • Model: Mog
  • Mount type: Flat-Mount
  • Part type: Bicycle Frame
  • Steerer tube diameter: 1 1/8 in
  • Wheel size: 700C

Product description

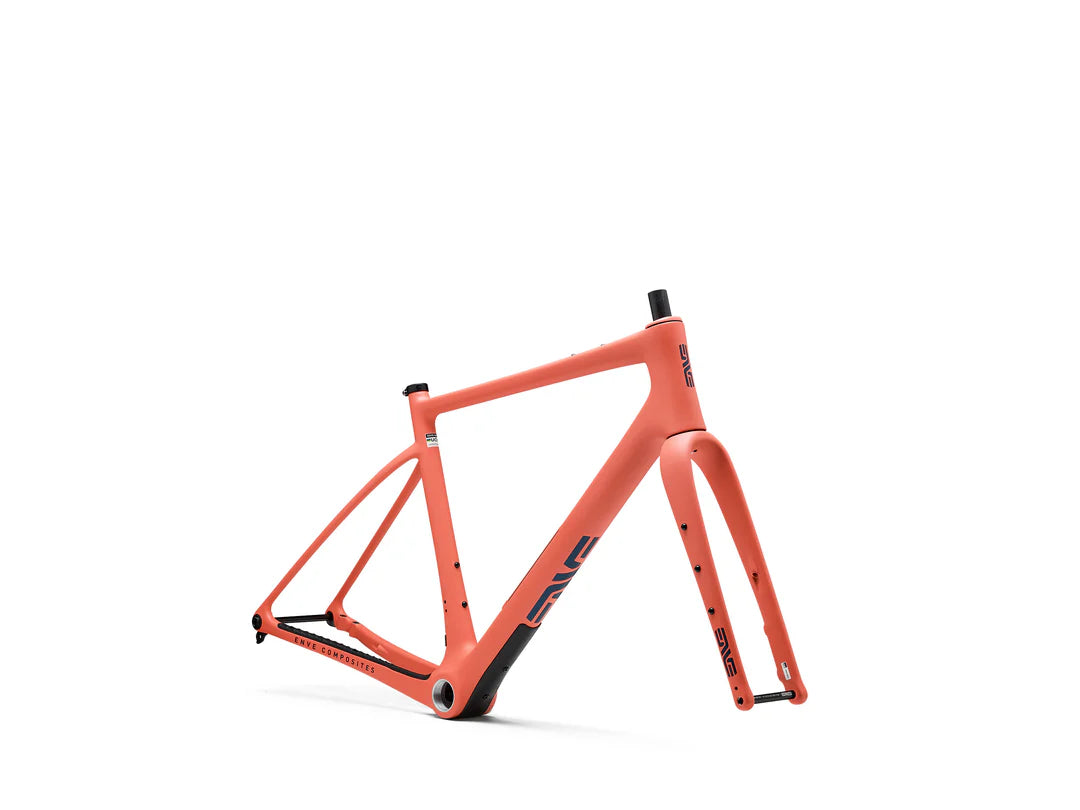

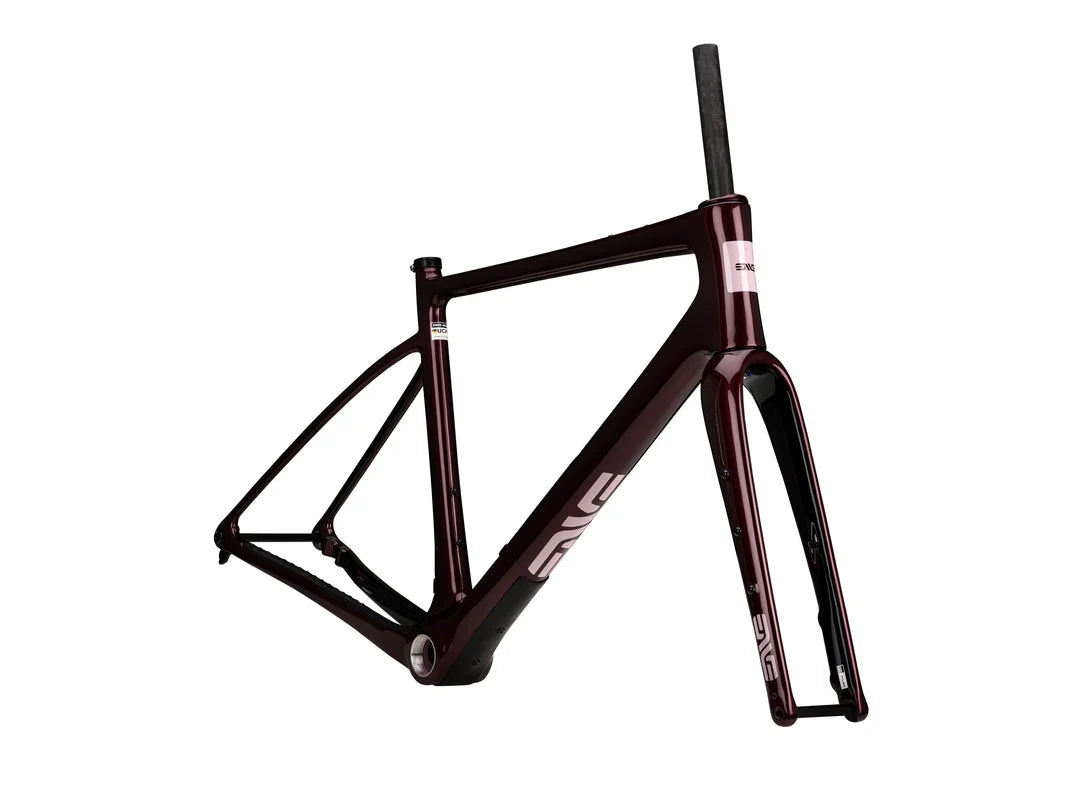

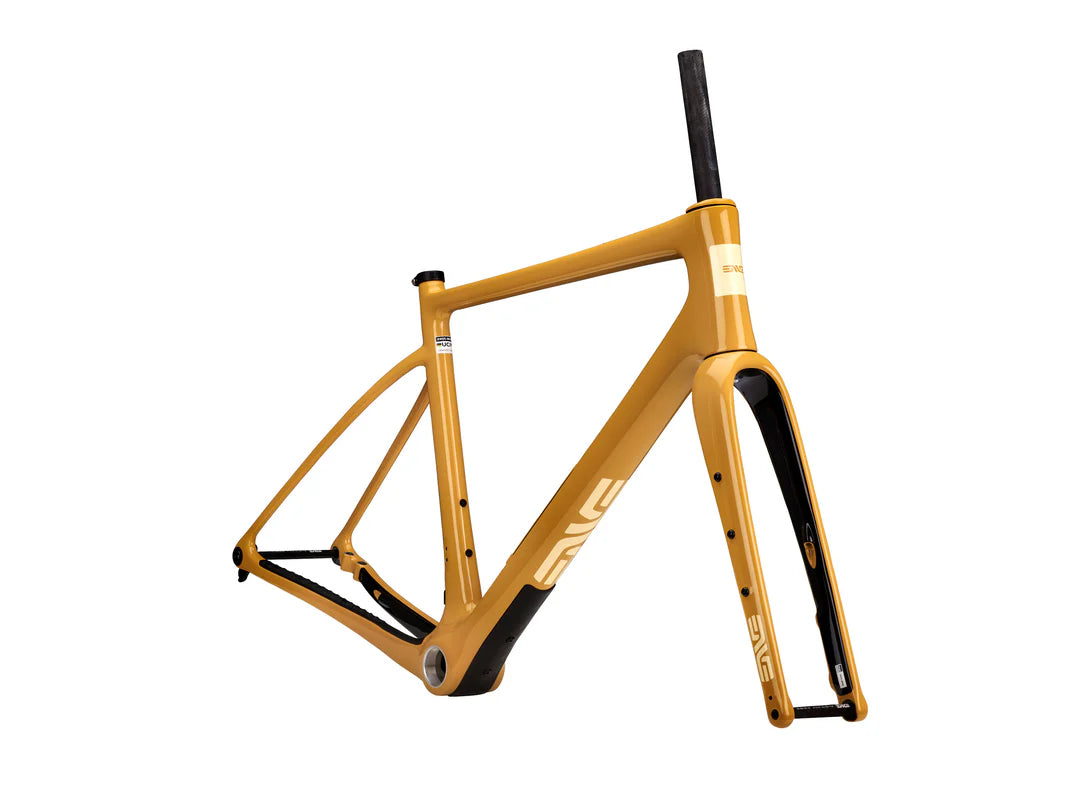

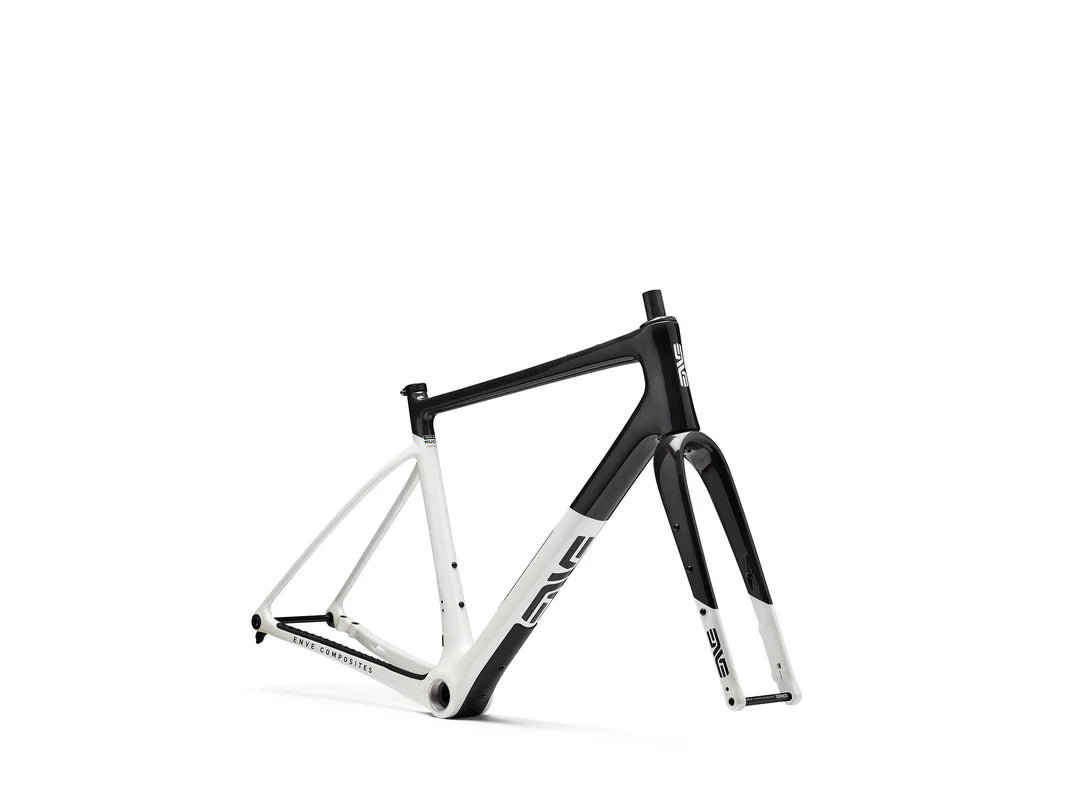

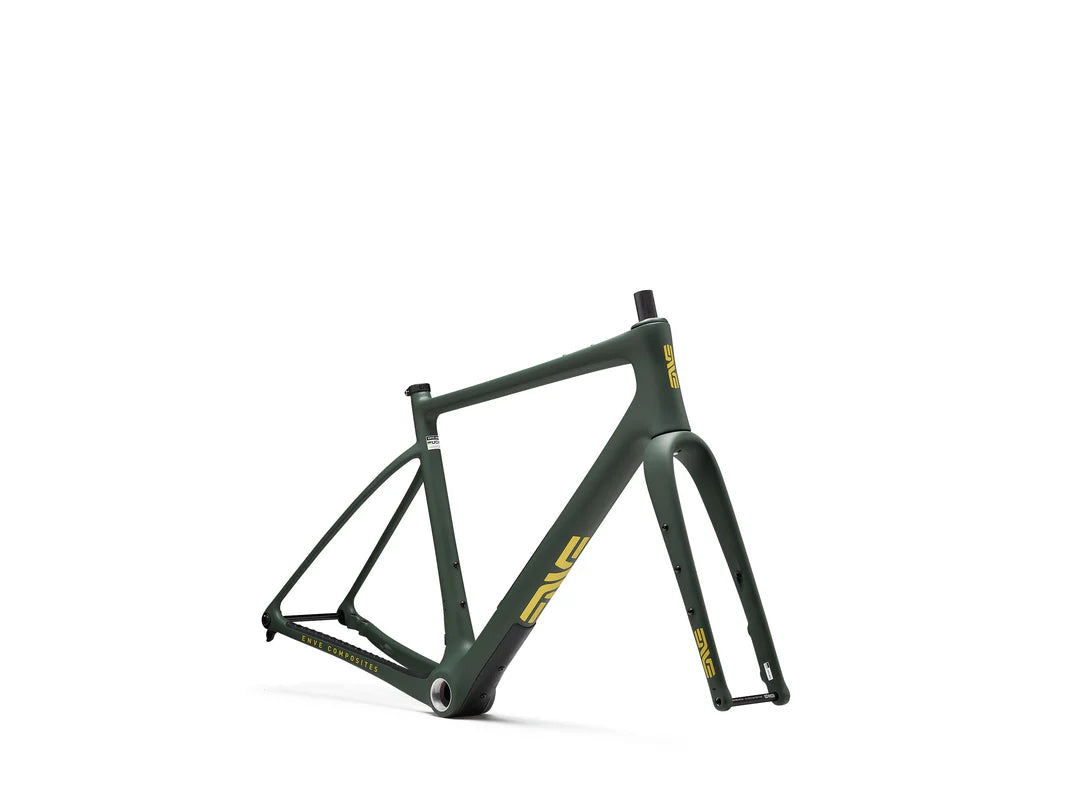

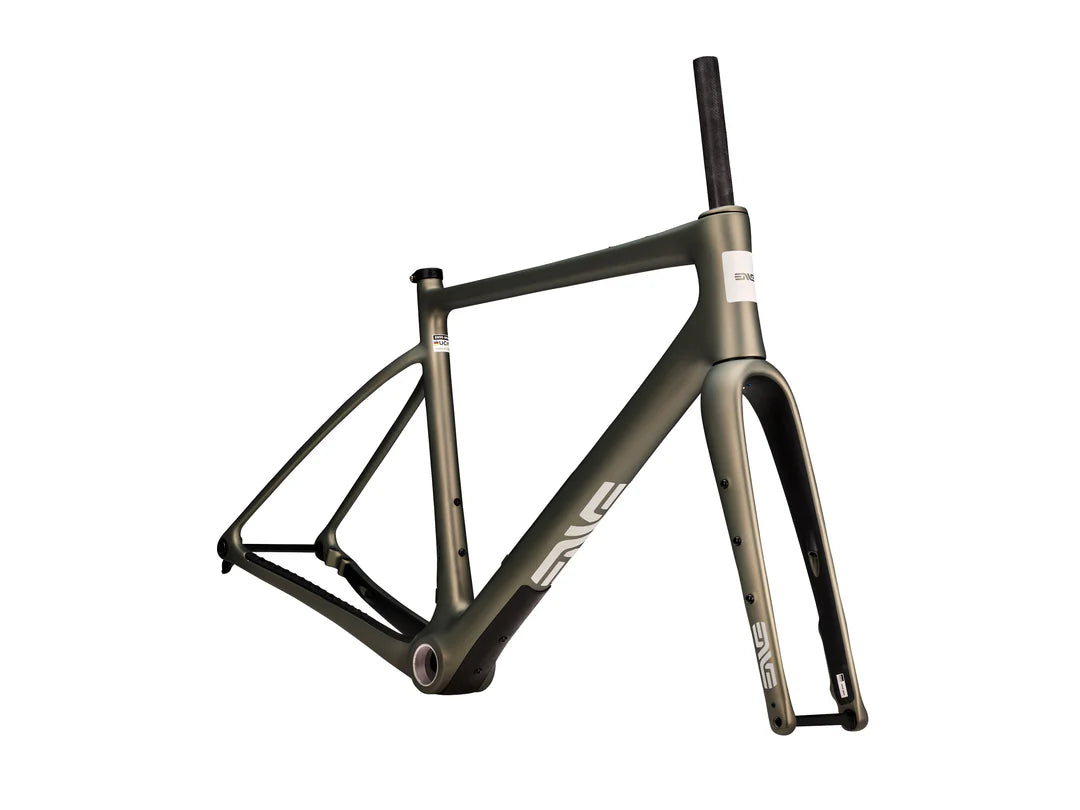

Frame: Enve Mog

The MOG embodies everything a modern gravel bike should be—purpose‑built, wildly capable, and ready for whatever terrain you point it toward. Its versatility starts with massive tire clearance, accommodating a 700c x 50 mm tire with room to spare for confident handling on everything from fast hardpack to rugged backcountry routes. Add in ENVE’s integrated Cargo Bay, which transforms the downtube’s open space into practical in‑frame storage, and you get a bike that carries your essentials without compromising ride quality or aesthetics.

Every detail reflects ENVE’s commitment to engineering a gravel platform that’s as efficient on race day as it is adaptable for long‑haul exploration. Whether you’re chasing podiums, chasing horizons, or simply chasing the perfect ride, the MOG delivers a blend of speed, stability, and smart design that sets the benchmark for gravel capability.

Product Details

Product Details

  • Frame Weight: 950g ±2% (Size 56cm, Painted, No Hardware)

  • Designed for Gravel Racing, Riding, Exploration & Adventure

  • ENVE M.O.D Carbon Frame & Fork

  • ENVE IN-Route Internal Cable Routing

  • Fender Compatible

  • Top Tube Mounts

  • Water Bottle Capacity: 3

  • Wheel Size: 700c

  • 650b Wheels Not Recommended

Frame & Fork

  • Frame Material: ENVE M.O.D Carbon

  • Fork Material: ENVE M.O.D Carbon

  • Bottom Bracket: T47 Inboard Bearing

  • Headset: ENVE Integrated IS52/IS52 Internal Drop-In

  • Headset Bearings: 1.5" IS52 Upper & Lower

  • Seatpost Diameter: 27.2mm

  • Brake Mount: Flat Mount Disc

  • Front Axle: 12x100mm

  • Rear Axle: 12x142mm

  • Fork Axle-to-Crown: 395mm

Tire Clearance

  • Minimum Tire Size: 700x36c

  • Optimal Tire Size: 700x40–44c

  • Maximum Listed Tire Clearance: 700x50c

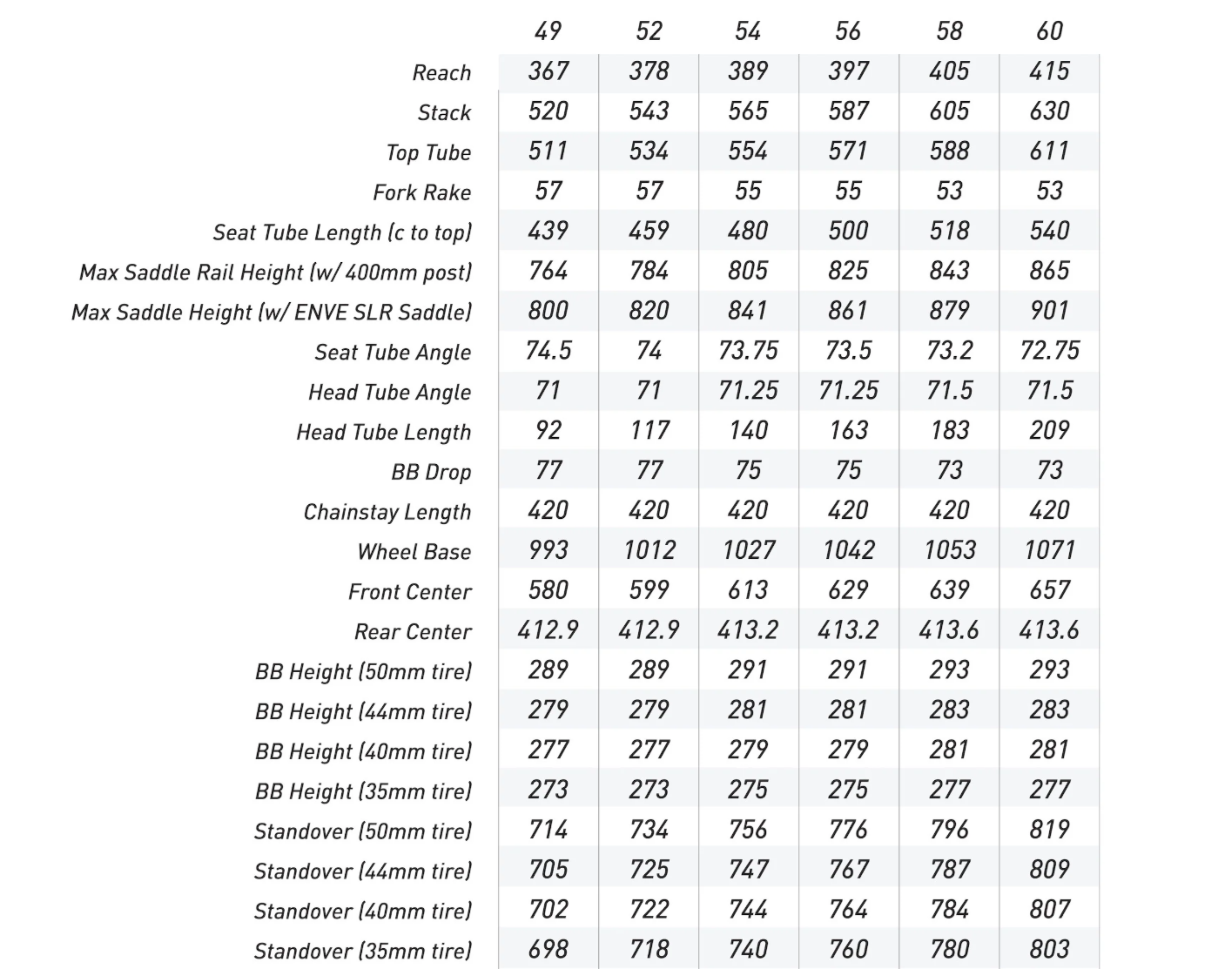

Available Sizes

  • 49cm

  • 52cm

  • 54cm

  • 56cm

  • 58cm

  • 60cm

Fork Rake

  • 49cm: 57mm

  • 52cm: 57mm

  • 54cm: 55mm

  • 56cm: 55mm

  • 58cm: 53mm

  • 60cm: 53mm

Component Compatibility

  • Handlebars:

    • Gravel

    • SES AR

    • Compact

    • SES Aero Road

  • Stem:

    • ENVE Aero

    • ENVE IN-Route System

    • Available Lengths: 80, 90, 100, 110, 120 & 130mm

  • Seatposts:

    • ENVE 27.2mm Seatpost

    • 300mm / 400mm Lengths

    • 0mm / 25mm Offset

    • G Series Dropper Post 27.2mm

Drivetrain Compatibility

  • Shimano Mechanical 1x: Yes

  • Shimano Mechanical 2x: Yes

  • Shimano Electronic Di2 (1x/2x): Yes

  • SRAM Mechanical 1x: Yes

  • SRAM Mechanical 2x: No (MOG requires continuous housing for front derailleur)

  • SRAM AXS (1x/2x): Yes

  • Campagnolo Mechanical 1x: Yes

  • Campagnolo Mechanical 2x: No (MOG requires continuous housing for front derailleur)

  • Campagnolo Electronic EPS: Not Compatible

Brake Rotor Compatibility

  • Front Fork: 160mm Rotor

  • Front Fork: 180mm Rotor with Adapter

  • Rear Frame: 140mm Rotor

  • Rear Frame: 160mm Rotor with Adapter

Frame Features

  • Internal Cable Routing

  • ENVE IN-Route System

  • 3 Water Bottle Mounts

  • Top Tube Mounts

  • Fender Mount Compatible

  • 700c Wheel Compatible

  • 650b Not Recommended

Color

  • Pantone 7528C

  • Equivalent to Sand

Condition: This item is new. CyclingUpgrades is an authorized dealer.

At CyclingUpgrades, we fulfill orders next business day or sooner. Generally we are able to fulfill orders placed by 9am MT on the same day, however it is not guaranteed. Generally we ship small items via USPS and frames/wheels via UPS. Please check our other listings for additional cycling upgrades and thank you for shopping our store!

New! Enve Mog Disc Brake 700c M.O.D. Carbon Gravel Bike Frameset 50mm Clearance

New! Enve Mog Disc Brake 700c M.O.D. Carbon Gravel Bike Frameset 50mm Clearance

$4,100.00
$4,100.00
Sale Sold out
Condition: New
Color
Size
  • We clean all parts before selling!
  • We test and inspect all parts!
  • We create detailed listings!
  • We package like professionals!
  • We ship quickly!
  • We accept 30-day returns!
