Frame: Enve Fray

The Fray embodies everything a modern all‑road bike should be: fast on pavement, composed on dirt, and built for riders who see every route as an open invitation. Its capability starts with generous tire clearance, accommodating up to a 700c x 40 mm tire to deliver confident handling whether you’re riding smooth tarmac, linking forgotten farm roads, or stretching a long ride into something more adventurous. Pair that with integrated frame storage that converts unused downtube space into practical, rattle-free capacity for tools and essentials, and you get a bike that stays clean, quiet, and ready for the unexpected without compromising its refined road aesthetics.

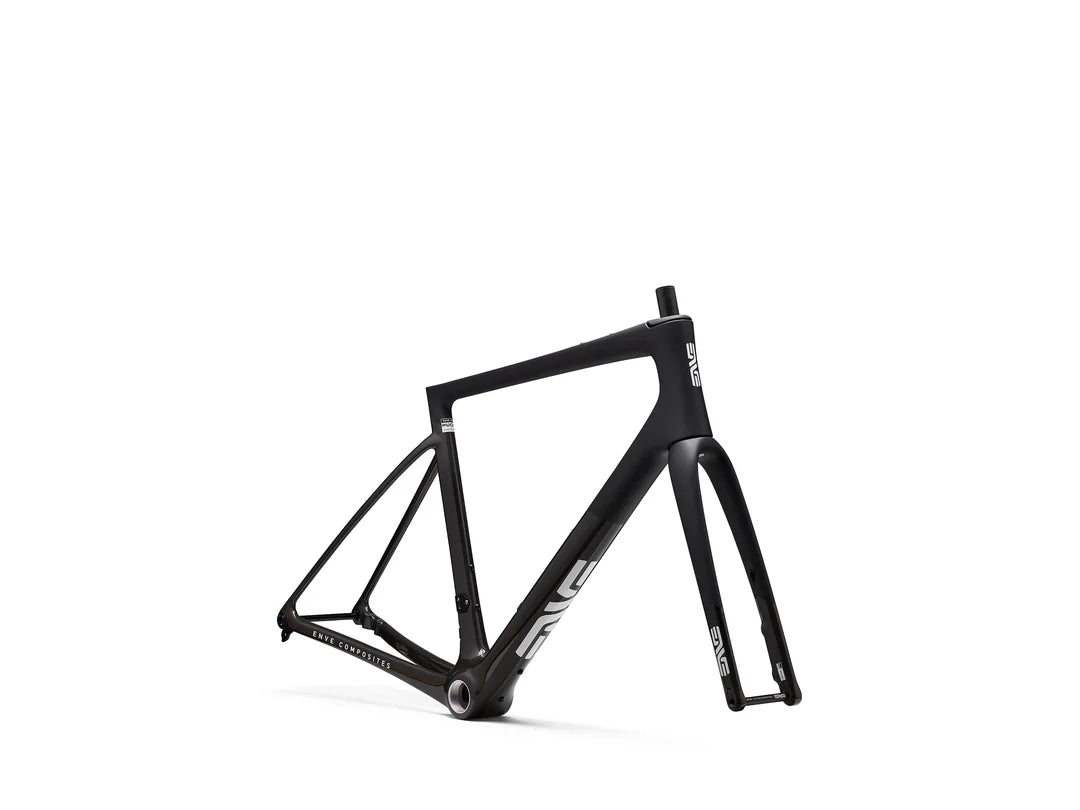

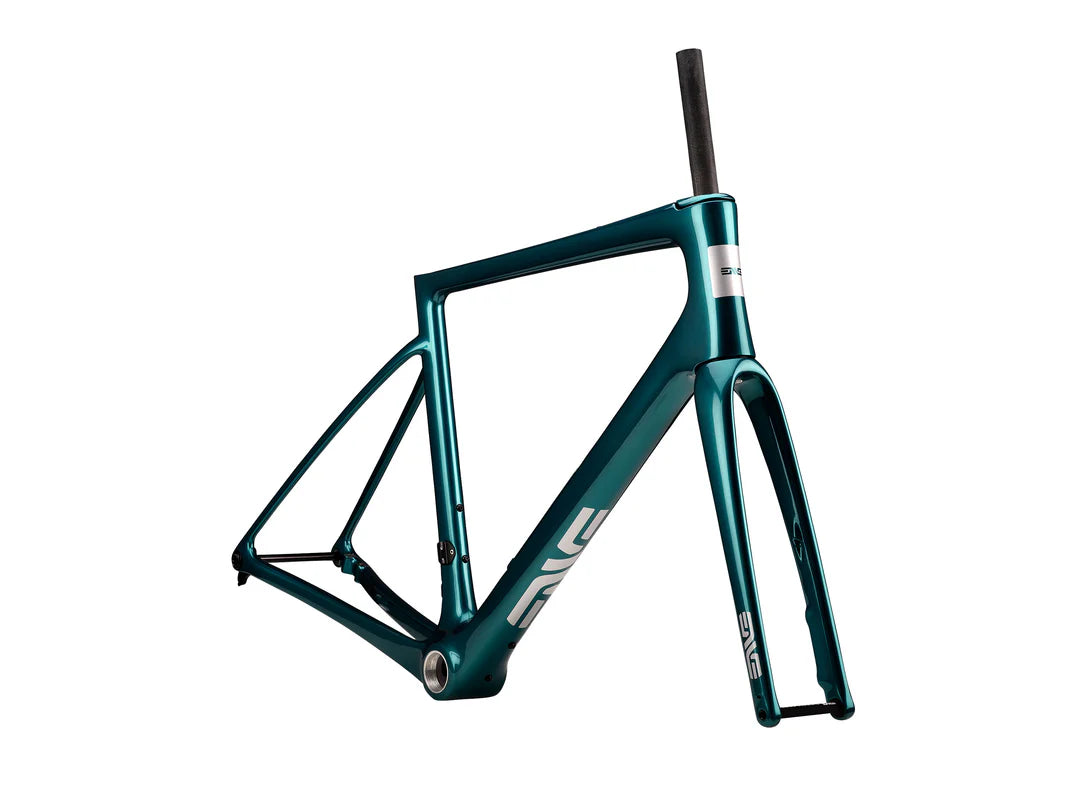

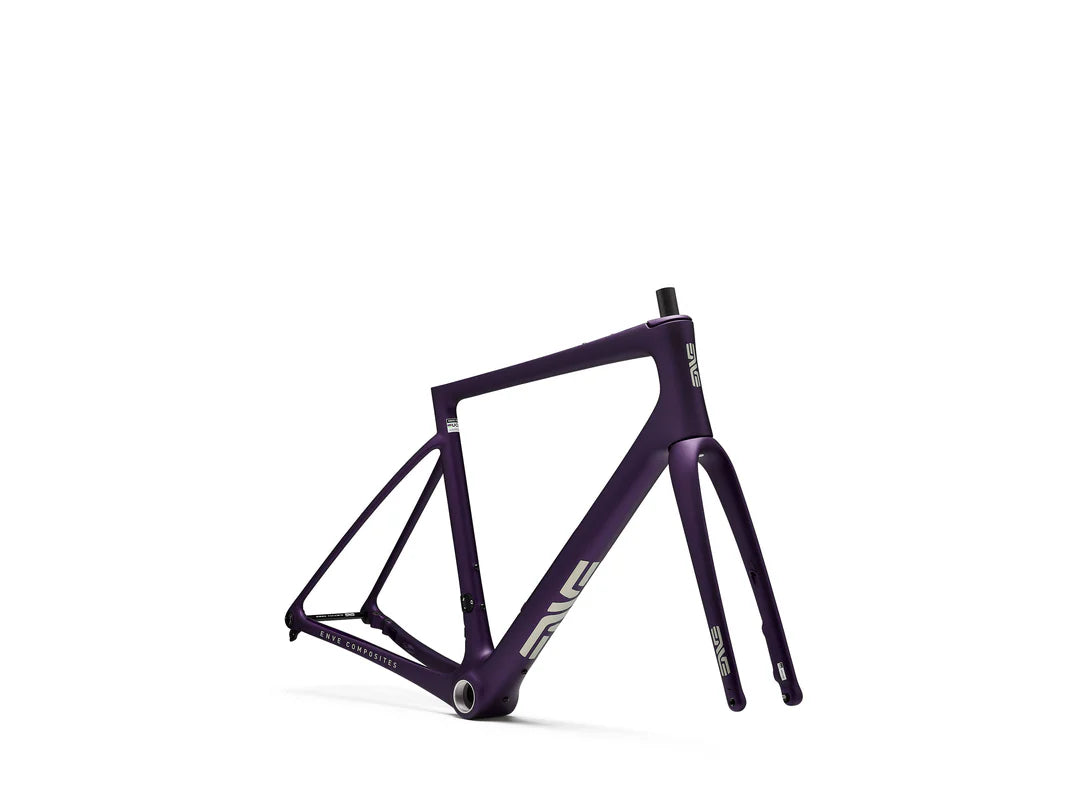

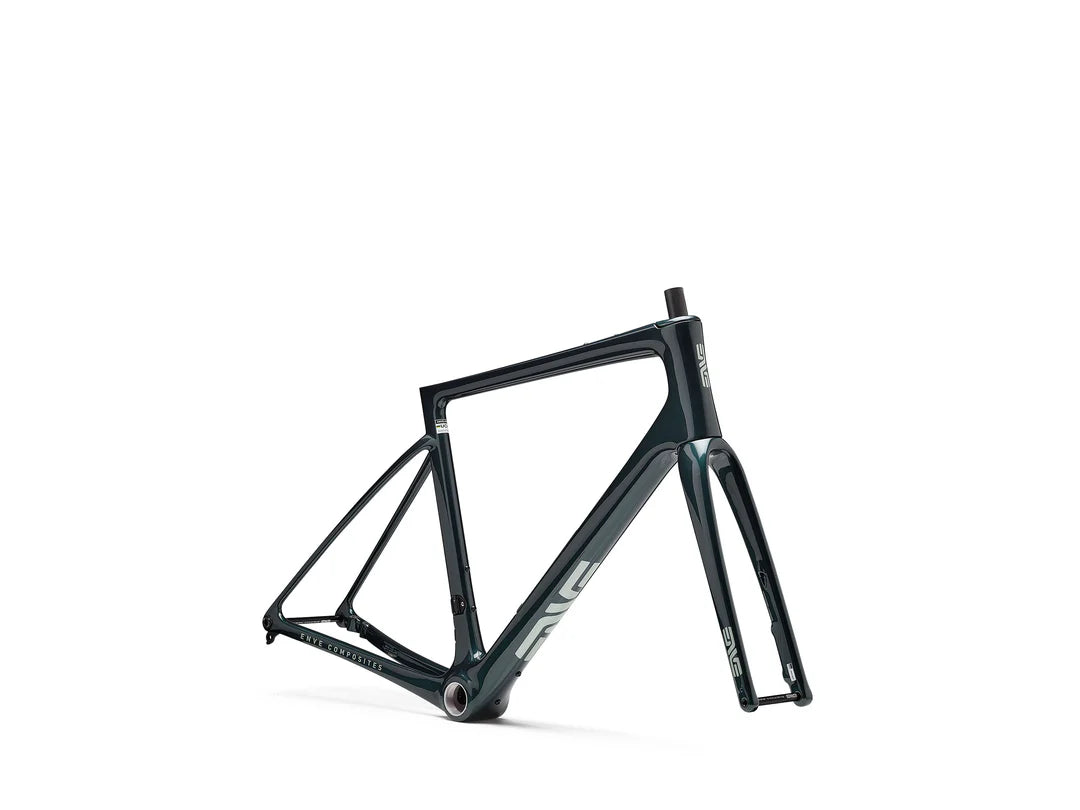

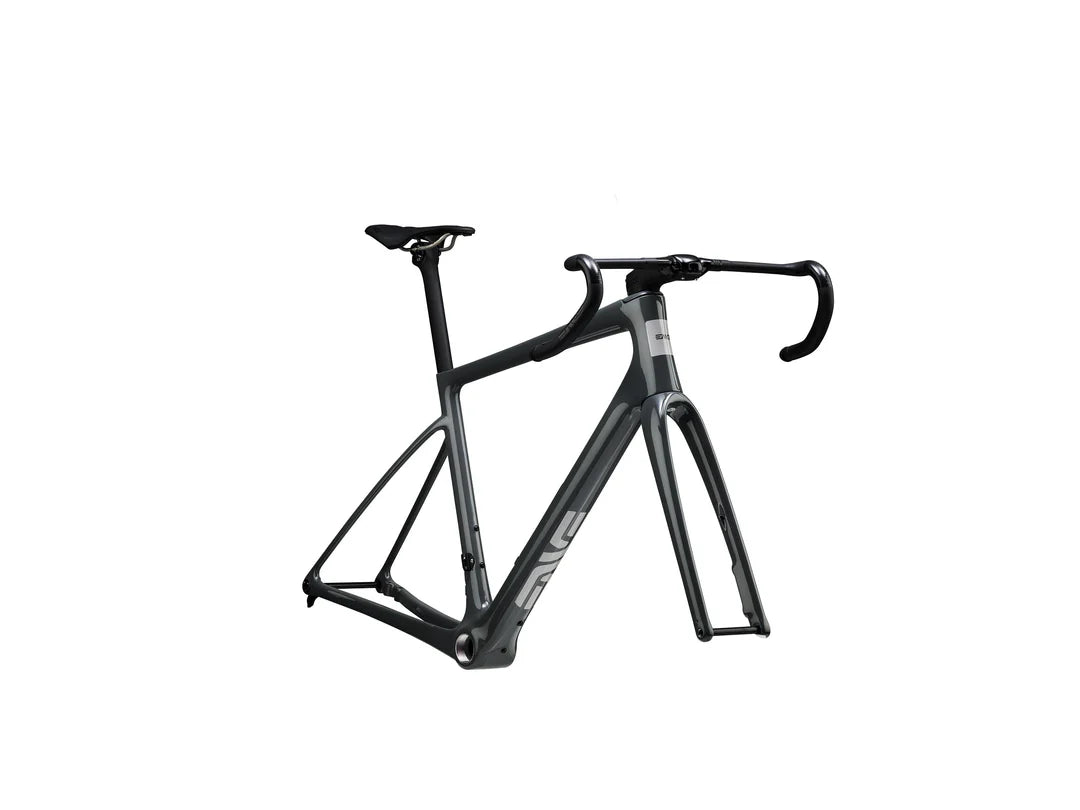

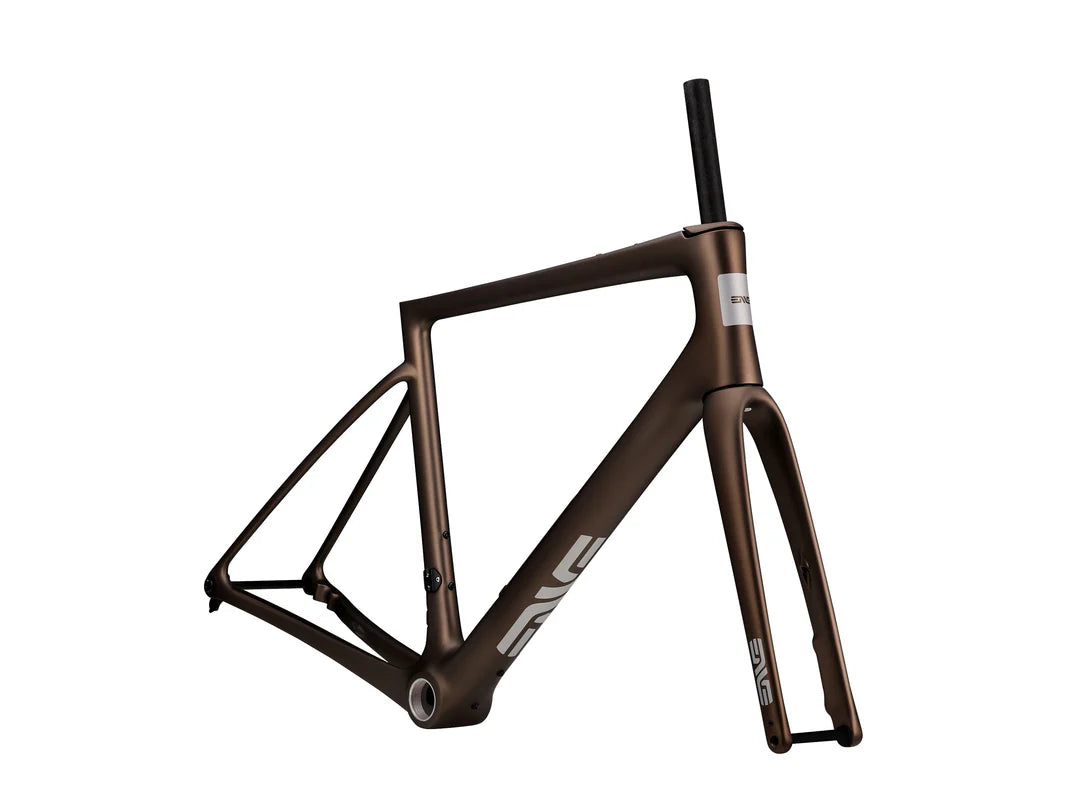

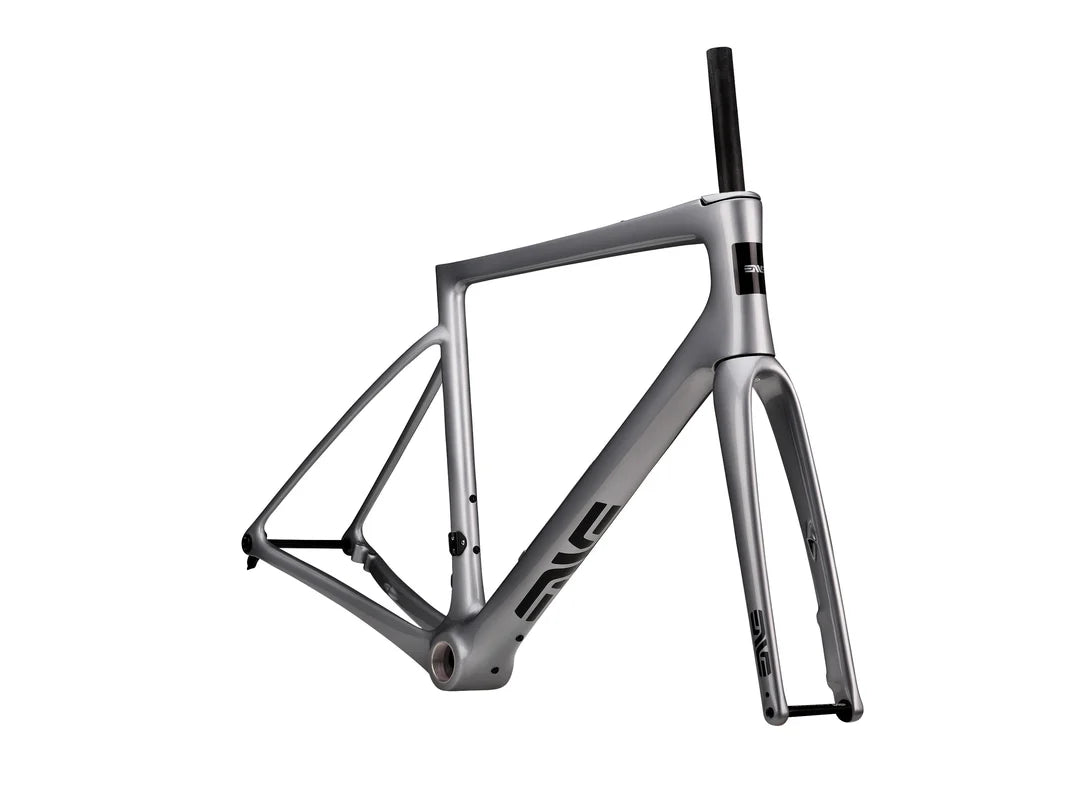

ENVE Fray Carbon Disc Brake Road Frameset

Product Details

• Real-World Fast™ Aero Optimization

• Geometry Optimized for 31–35mm Tires

• Maximum Tire Clearance:

  • 700x40mm with 1x Drivetrain

  • 700x38mm with 2x Drivetrain

• ENVE Cargo Bay Integrated Downtube Storage

• Includes 2 In-Frame Storage Bags

• Top Tube & Downtube Mounts for Bags, Bottles, Tools & Accessories

• Aero Tube Shapes Designed to Complement ENVE SES Rim Profiles

• Universal Derailleur Hanger (UDH) Compatible

• Internal Cable Routing

• Fender Compatible

• Water Bottle Capacity: 3

• Wheel Size: 700c

• Target Application:

  • All Road

  • Endurance

  • Mixed Surface

  • Sportif

  • Gran Fondo

Frame & Fork

• Frame Material: ENVE M.O.D Carbon

• Fork Material: ENVE M.O.D Carbon

• Bottom Bracket: T47 Inboard Bearing

• Headset: ENVE Integrated IS52/IS52 Internal Drop-In

• Headset Bearings: 1.5" IS52 Upper & Lower

• Seatpost: ENVE Aero Seatpost

• Brake Mount: Flat Mount Disc

• Front Axle: 12x100mm

• Rear Axle: 12x142mm

Frame Weight

• 900g ±2% (Size 56cm, Painted, No Hardware)

Tire Clearance

• Minimum Tire Size: 27mm

• Optimal Tire Size: 31–35mm

• Maximum Tire Clearance:

  • 40mm (1x Drivetrain)

  • 38mm (2x Drivetrain)

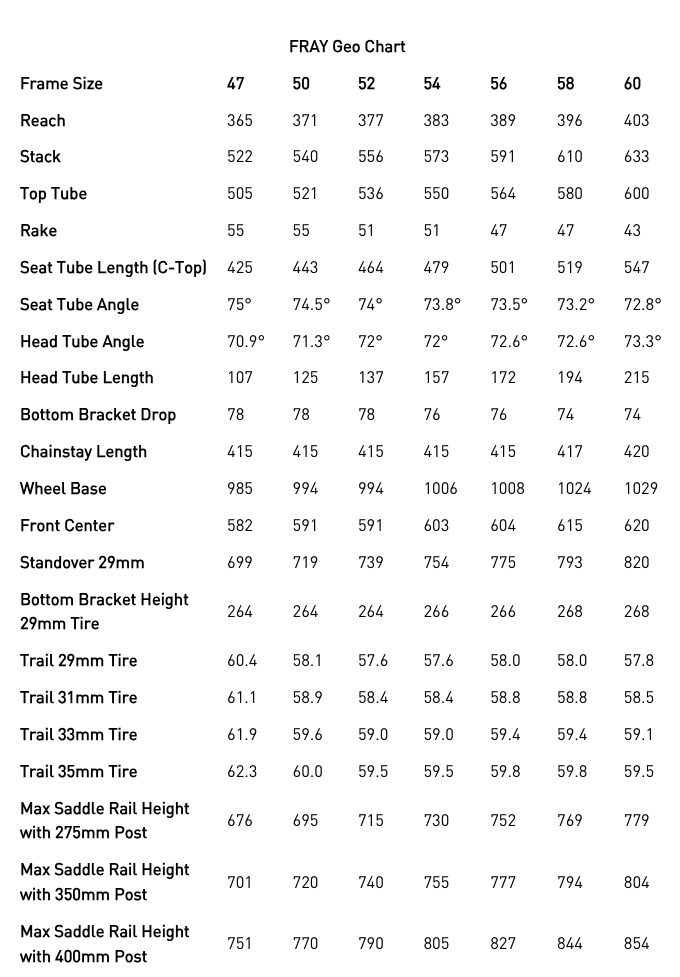

Available Sizes

• 47cm

• 50cm

• 52cm

• 54cm

• 56cm

• 58cm

• 60cm

Component Compatibility

• Handlebars: ENVE IN-Route Recommended

• Stem: ENVE IN-Route Recommended

• Seatpost: ENVE Aero Seatpost

Drivetrain Compatibility

• Shimano Mechanical 1x: Yes

• Shimano Mechanical 2x: Yes

• Shimano Electronic Di2 (1x/2x): Yes

• SRAM Mechanical 1x: Yes

• SRAM Mechanical 2x: No (Fray requires continuous housing for front derailleur)

• SRAM AXS (1x/2x): Yes

• Campagnolo Mechanical 1x: Yes

• Campagnolo Mechanical 2x: No (Fray requires continuous housing for front derailleur)

• Campagnolo Electronic EPS: Not Compatible

Brake Rotor Compatibility

• Front Fork: 160mm Rotor Only

• Rear Frame: 140mm Rotor

• Rear Frame: 160mm Rotor with Adapter

In-Frame Storage

• ENVE Cargo Bay Integrated Downtube Storage

• 2 Storage Bags Included

• Cargo Bay Door & Latch

• Cargo Bay Door Gasket

• Cargo Bay Hardware

• Cable Management Strap

Included

• ENVE Fray Frame

• ENVE Fray Fork (Rake Varies by Frame Size)

• Front Axle

• Rear Axle

• UDH Rear Derailleur Hanger & Bolt

• Front Derailleur Mount

• M5 Button Head Accessory Bolts

• Fender Mount Set Screws

• Chainstay Protector

• Disc Brake Rotor Protector

• Cargo Bay Frame Door & Latch

• Cargo Bay Door Gasket

• Cargo Bay Door Hardware

• Cargo Bay Latch Anti-Friction Sticker

• Cable Routing Hole Plug

• Di2 Wire Cable Grommet

• Blank Cable Grommet

• Shift Housing Cable Grommet

• Seatpost Clamp Kit

• Headset Kit

• Top Headset Bearing Cover (Frame Color Dependent)

• Fork Compression Plug

• 2 Cargo Bay Storage Bags

• Cable Management Strap

• Owner's Manual

• Torque Wrench with Extra Accessory Bits

• Frame Finishing Kit (Cable Sheathing, Heat Shrink & Padded Foam)

Condition: This item is new. CyclingUpgrades is an authorized dealer.
