New! 2025 Enve Mog Topo Green 54cm Carbon Gravel Bike Frameset 700c

New! 2025 Enve Mog Topo Green 54cm Carbon Gravel Bike Frameset 700c

$4,100.00
$4,100.00
Sale Sold out
Condition: New

Item Specifics

  • Brand: Enve
  • Brake type: Disc Brake
  • Color: Topo Green
  • Frame size: 54 cm
  • Material: Carbon
  • Model: Mog
  • Mount type: Flat-Mount
  • Part type: Bicycle Frame
  • Steerer tube diameter: 1 1/8 in
  • Wheel size: 700C
  • We clean all parts before selling!
  • We test and inspect all parts!
  • We create detailed listings!
  • We package like professionals!
  • We ship quickly!
  • We accept 30-day returns!
View full details
Product Description

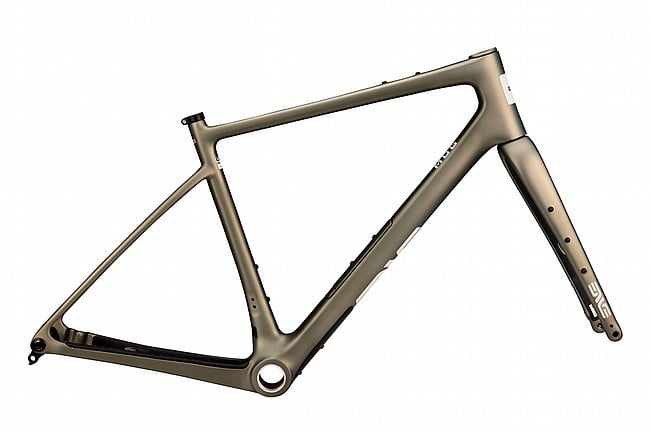

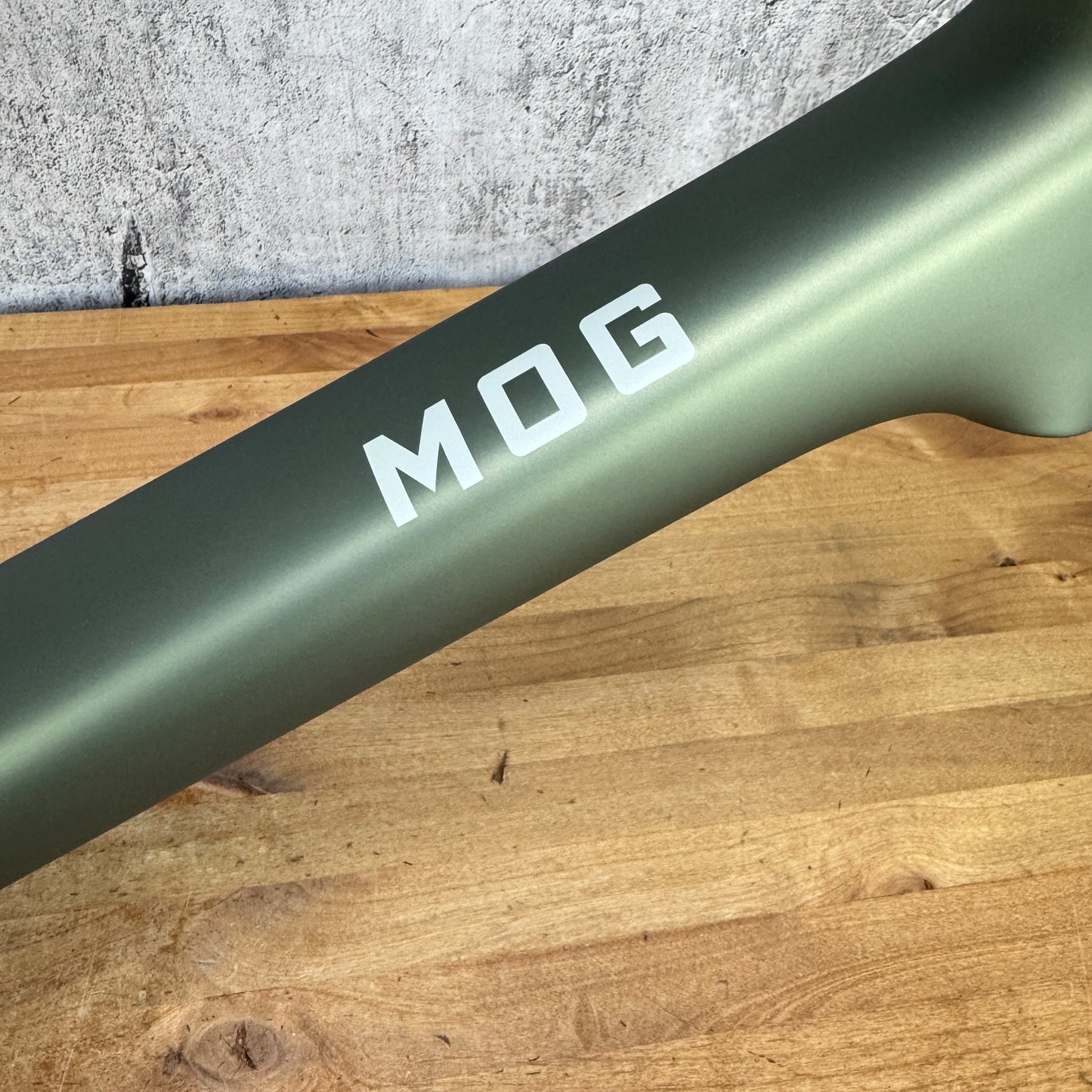

Frame: Enve Mog

An ENVE frameset is more than a starting point, it’s the foundation of a bike built with intention. By offering the MOG as a frameset, ENVE empowers you to craft a bike that reflects your riding priorities, personal fit, and uncompromising standards. With a broad selection of handlebar models, along with tailored options for bar dimensions, stem length, and seatpost setback, every detail of your cockpit is yours to define.

For fit guidance, consult your trusted ENVE retailer or professional bike fitter, and explore the ENVE Best-Fit Calculator to achieve a chassis configuration that’s as precise as it is personal.

  • Frame Material: ENVE M.O.D. Carbon, 12x142mm thru-axle, flat-mount disc, threaded T47 bottom bracket, internal routing, fender compatible

  • Fork Material: ENVE M.O.D. Carbon, 12x100mm thru-axle, flat-mount disc, internal routing, fender compatible

  • Intended Use: Gravel racing, endurance riding, exploration, and adventure

  • Available Sizes: 49, 52, 54, 56, 58, 60 cm

  • Fork Rake Options: 57mm, 55mm, 53mm (size-dependent)

  • Fork Axle-to-Crown: 395mm

  • Frame Size / Fork Rake Pairings: 49cm – 57mm | 52cm – 57mm | 54cm – 55mm | 56cm – 55mm | 58cm – 53mm | 60cm – 53mm

  • Frame Weight: 950g ±2% (size 56, painted, no hardware)

  • Headset: ENVE Integrated IS52/IS52 internal drop-in

  • Headset Bearings: 1.5" IS52 upper and lower

  • Seatpost Diameter: 27.2mm

  • Bottom Bracket Type: T47 inboard bearing

  • Brake Mount: Flat mount

  • Rotor Compatibility: Front: 160/180mm | Rear: 140/160mm (adapters required)

  • Axle Specs:

    • Front: 12x100mm (122mm total length, TP: 1.5, TL: 15)

    • Rear: 12x142mm (168mm total length, TP: 1.0, TL: 14)

  • Tire Compatibility:

    • Minimum: 700x36c

    • Optimal: 700x40–44c

    • Maximum Listed Clearance: 700x50c

  • Routing: ENVE IN-Route internal system

  • Bottle Mounts: 3 total

  • Top Tube Mounts: Yes

  • Fender Mount Compatible: Yes

  • Wheel Size: 700c (650b not recommended)

Color: Topo Green

Brake Type: Flat-Mount disc brake

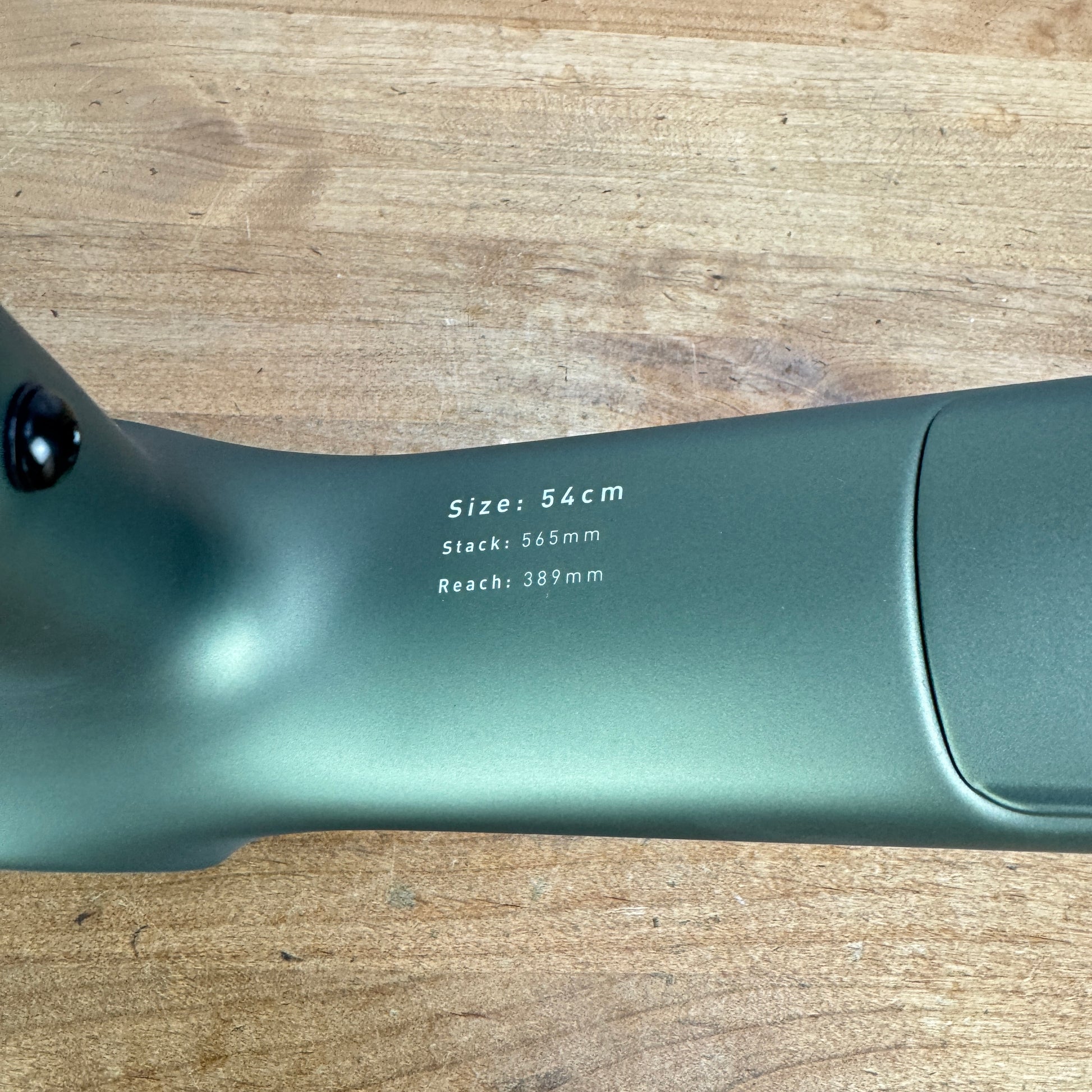

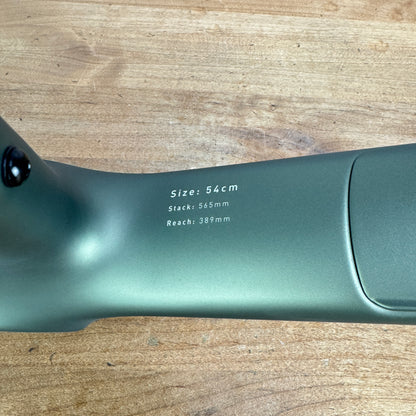

Size: 54cm. 554mm Effective Top Tube. Stack - 565mm. Reach - 389mm. Head Tube 140mm. Recommend buyer confirm and research full geometry online.

Condition: This item is new. CyclingUpgrades is an authorized dealer.

Groupset Compatibility: Frame can be setup for Di2, EPS, eTap, or mechanical groupsets.

Bottom bracket: T47/86 bottom bracket shell type. No bottom bracket currently installed or included. We have a handful of lightly used basic bottom brackets on hand, let us know what you need and we can try to ship the frame with the right bottom bracket installed. Additionally, CyclingUpgrades is a Wheels Manufacturing, and a Ceramicspeed Authorized Dealer, if you prefer to have the frame setup with a certain Wheels Manufacturing, or Ceramicspeed bottom bracket we can add and install it at an additional cost before shipping - message with inquiries/requests.

Seatpost: 27.2mm diameter. No seatpost included

Dropout Spacing: Front 12mm Thru Axle x 100mm, Rear 12mm Thru Axle x 142mm.

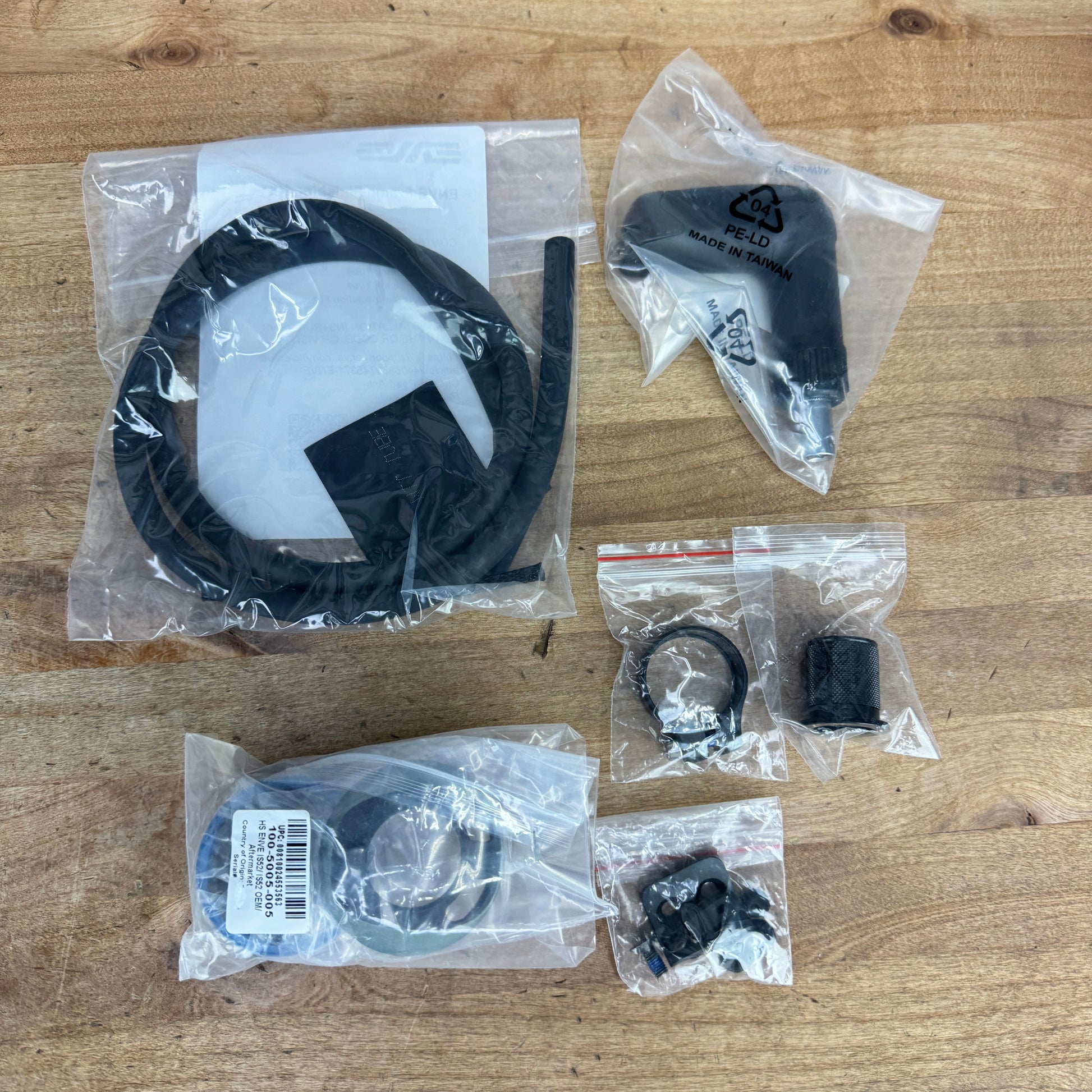

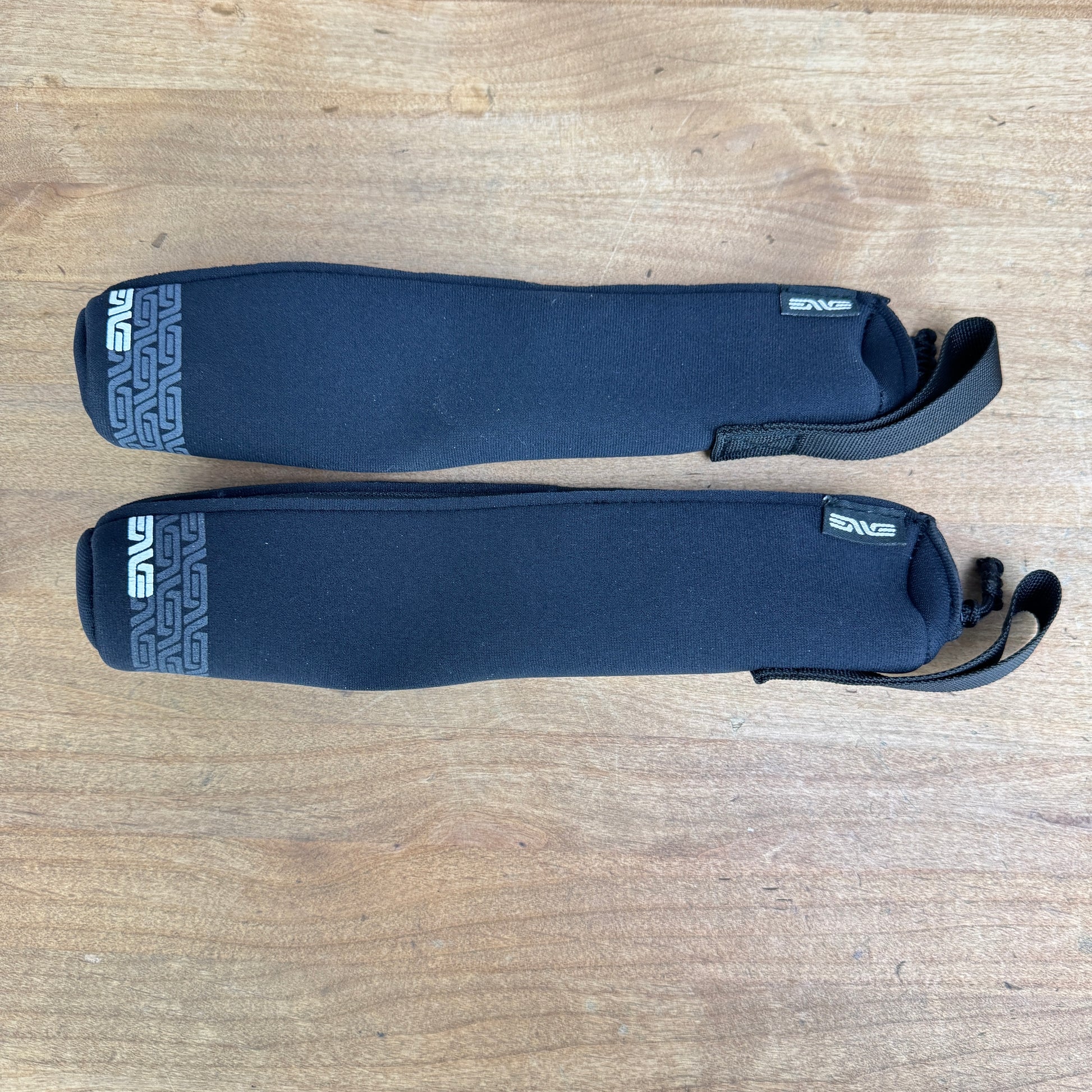

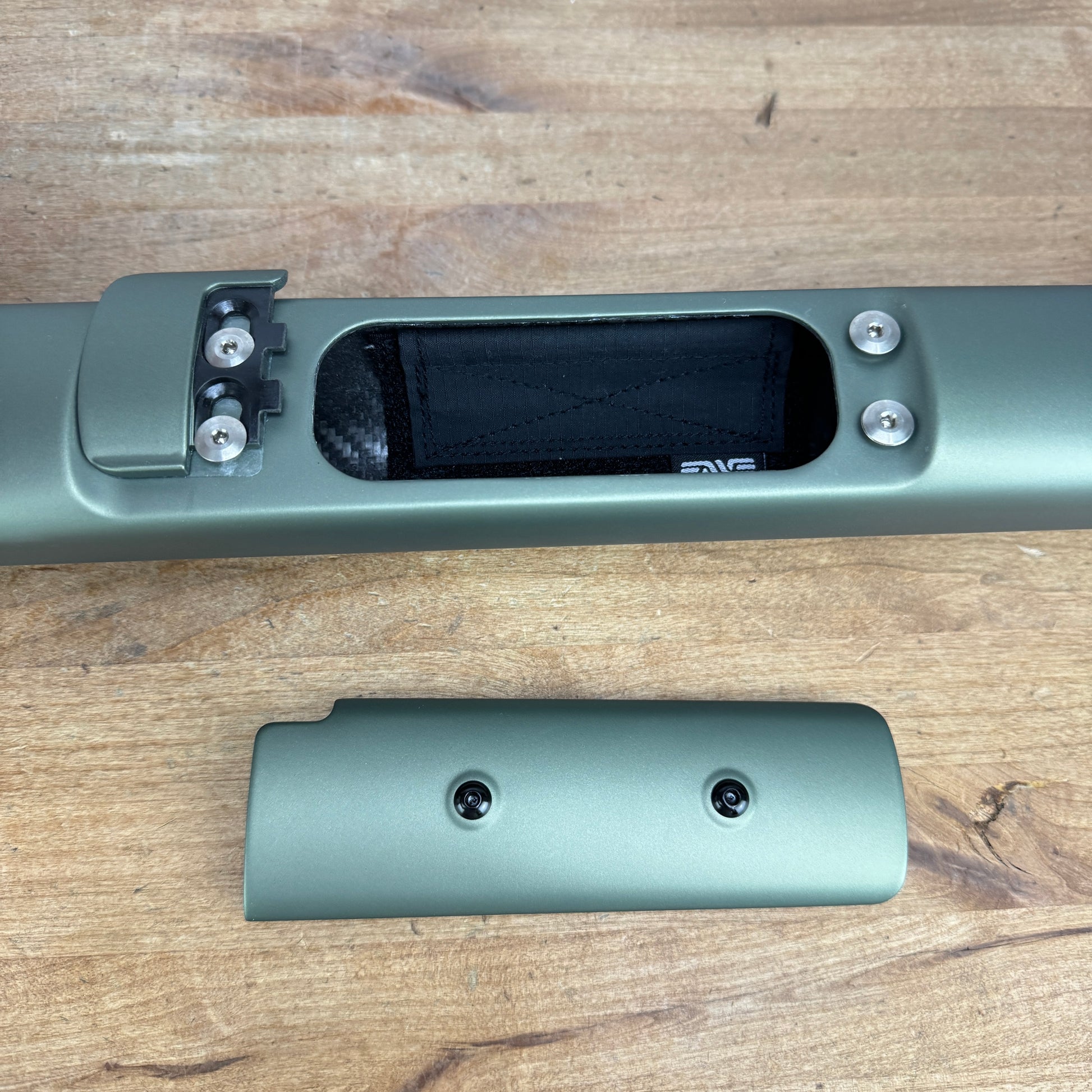

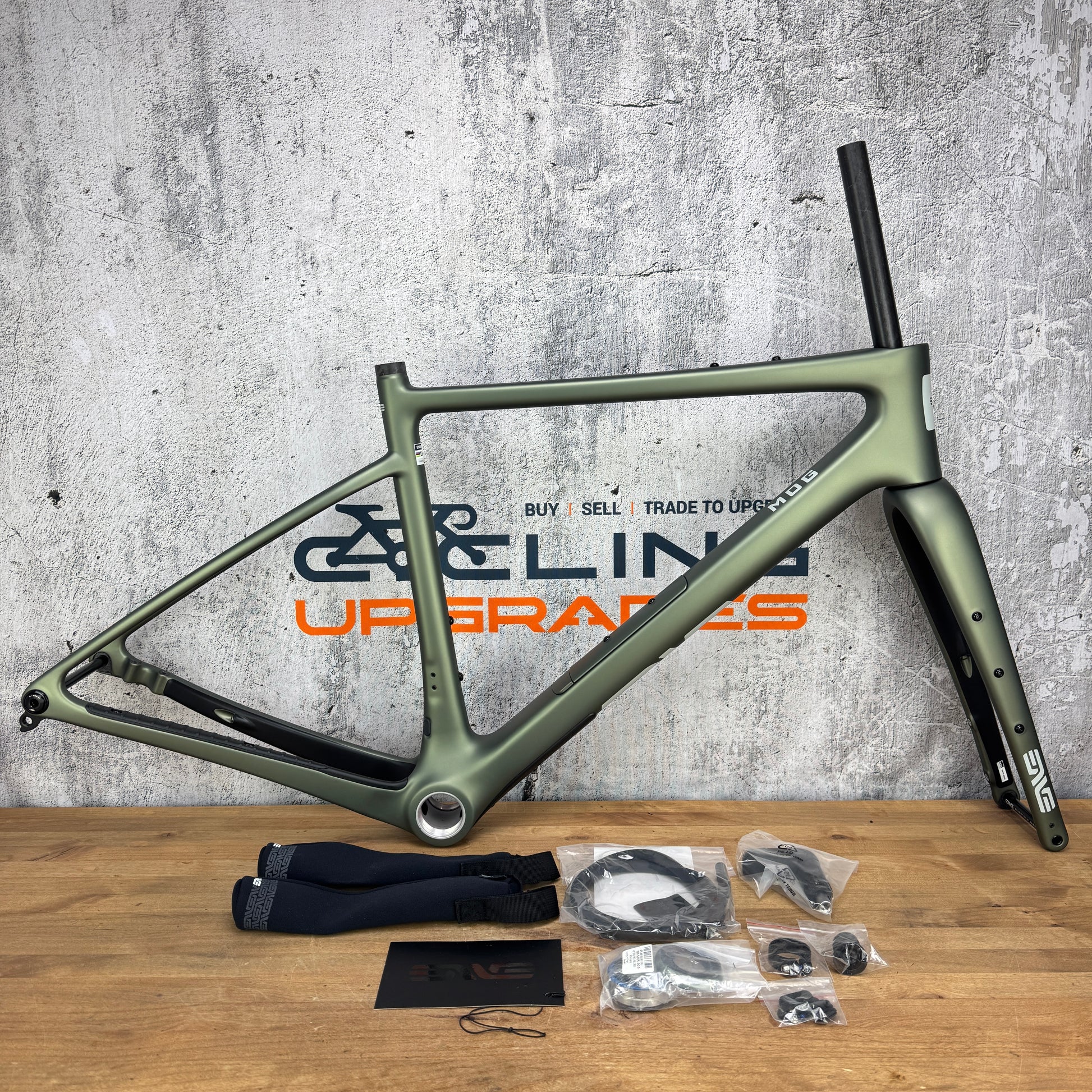

What's included: Frame, Fork, Front axle, Rear axle, UDH rear derailleur hanger and bolt, Front derailleur mount and screws, Accessory bolts, Fender mount set screws, Chainstay protector kit and screws, Downtube guard, Frame door and latch, Cargo bay door gasket, Cargo bay door hardware, Cargo bay latch anti-friction sticker, ENVE seatpost collar and bolt, Cable routing hole plug, Di2 wire cable grommet, Blank cable grommet, Shift housing cable grommet, Seatpost clamp kit, Headset kit, Top headset bearing cover, Fork compression plug, Cargo bay storage bags (2), Cable management strap, Owner’s manual, Torque wrench (includes extra accessory bits), Frame finishing kit (cable sheathing, heat shrink, padded foam)
