Brand/Model: Enve In-Route Aero Road
Often an overlooked part, but important in its function and integration of drivetrain components, the SES Aero Stem features a refined shape and carbon laminate that bridges the gap between the touch points of the handlebar and the bike. Fully integrating and concealing all cabling from the shifters to the frame, the SES Aero Stem is the final piece of the puzzle to a cleaner looking bike and clean airflow for real world aero performance. IN-Route Stems are designed to be used with ENVE's IN-Route System. This includes ENVE IN-Route handlebars, IN-Route compatible headsets, and ENVE IN-Route forks, specifically.
- Weight: 170g (80mm) - 194g (130mm) +/-5g
- Lengths: 80, 90, 100, 110, 120, 130
- Angle: -7 Degree

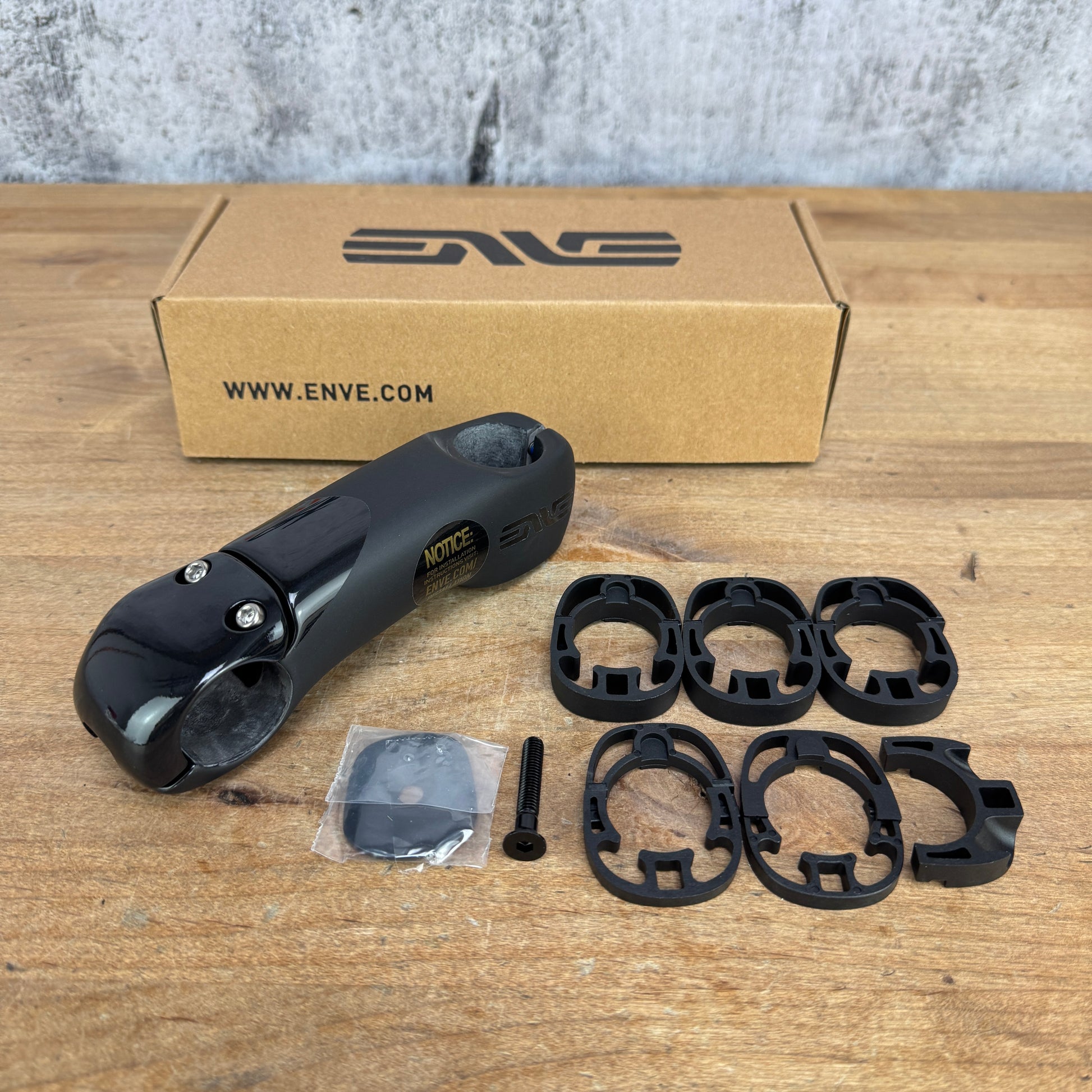

Includes:
-10mm Spacers
- 5mm Spacers
- 10mm Bypass Spacer
Product Description:
Hidden hoses and wires are the name of the game when it comes to the modern bicycle and the
expectations of the rider. ENVE's IN-Route
System is designed to hide hoses and wires from
the wind, improving the bike's aero performance
with a practical and user-friendly solution. This
doesn't come at the expense of limiting drivetrain
options - the RD, AR, and GRVL IN-Route forks,
bars, stems, spacer, and headset options are
compatible with most drivetrain brands, models,
and configurations on the market.
As a complete system, IN-Route provides a
variety of headset, stem, fork, and one-piece
bar/stem combos to get the right fit for any frame
material or rider size. Similarly, the headset
components and spacer design simplify stack
adjustment. These features make IN-Route a
complete top to bottom solution for cable/hose
integration.
Product Specs
-
Product: Aero Road Stem – IN-Route Compatible
-
Material: Carbon Fiber
-
Rise: –7°
-
Clamp Diameter: 31.8 mm
-
Steerer Tube Clamp Diameter: 1 1/8"
-
Faceplate Material: Aluminum
-
Hardware Material: Titanium
-
Cable Routing: IN-Route System (fully integrated)
-
Computer Mount: ENVE K-Edge Aero Road Computer Mount
-
Spacers: Round spacer style
-
Max Spacer Height: 40 mm
Torque Specs
-
Faceplate: 6 Nm
-
Steerer Tube: 6 Nm
Size & Weight Chart
-
80 mm: Reach 79.8 mm | Stack 12.5 mm | 170 g
-
90 mm: Reach 89.7 mm | Stack 10.4 mm | 176 g
-
100 mm: Reach 99.5 mm | Stack 8.2 mm | 177 g
-
110 mm: Reach 109.3 mm | Stack 5.8 mm | 179 g
-
120 mm: Reach 119.1 mm | Stack 3.4 mm | 190 g
-
130 mm: Reach 128.9 mm | Stack 0.8 mm | 194 g
Material: Carbon
Angle: -7 Degree
Clamp Diameter: 31.8mm
Steerer Tube Diameter: 1 1/8 in
Condition: This item is new. CyclingUpgrades is an authorized dealer.
