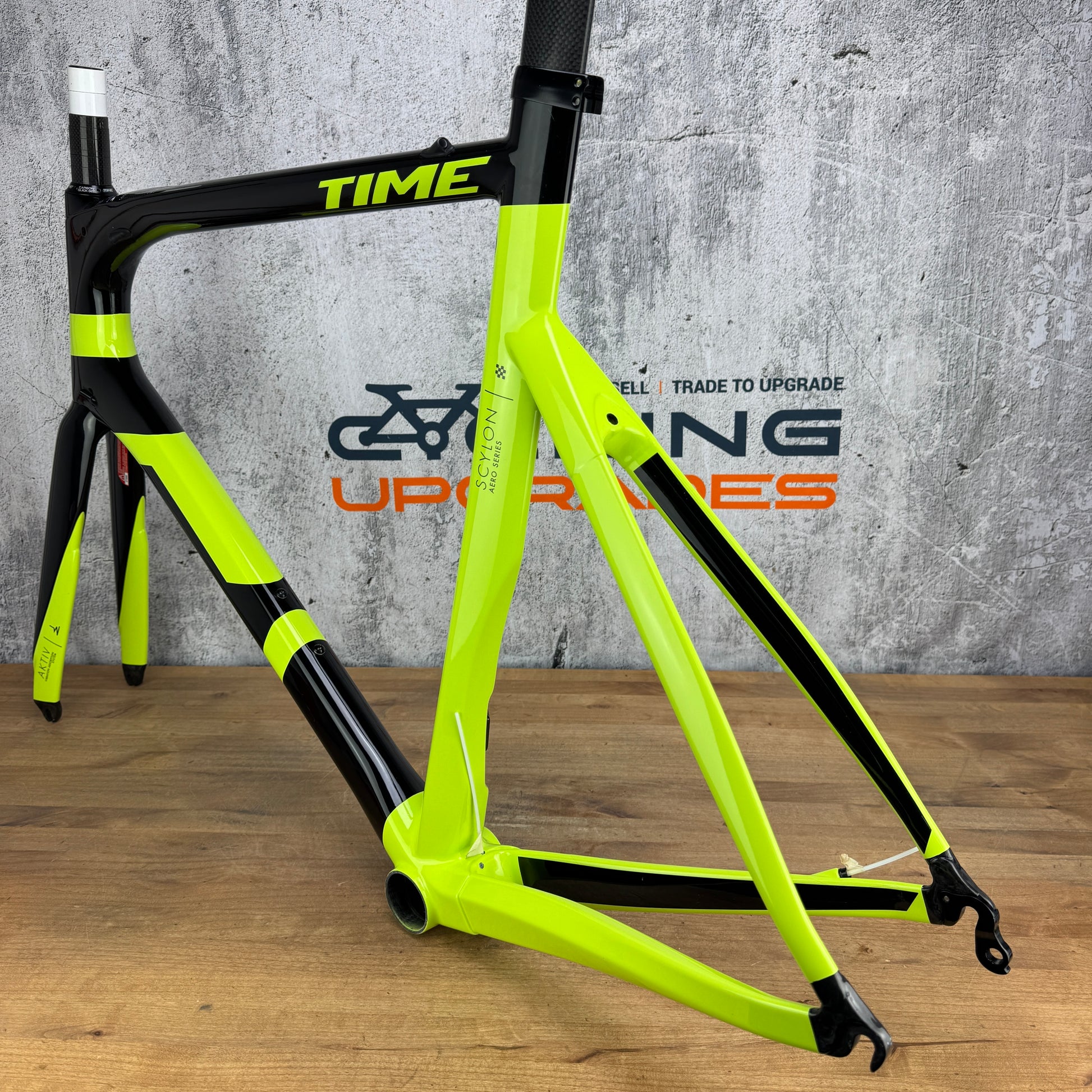

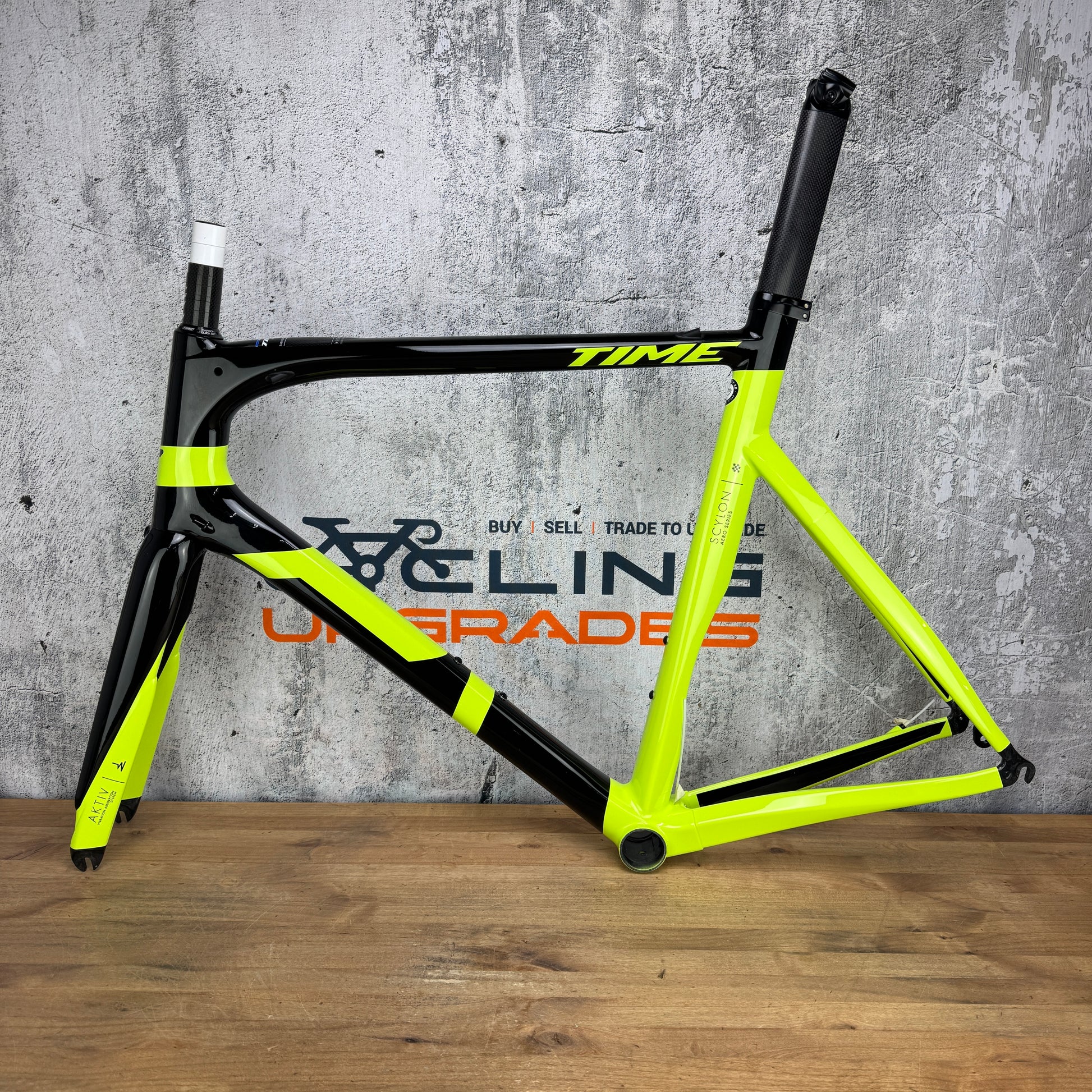

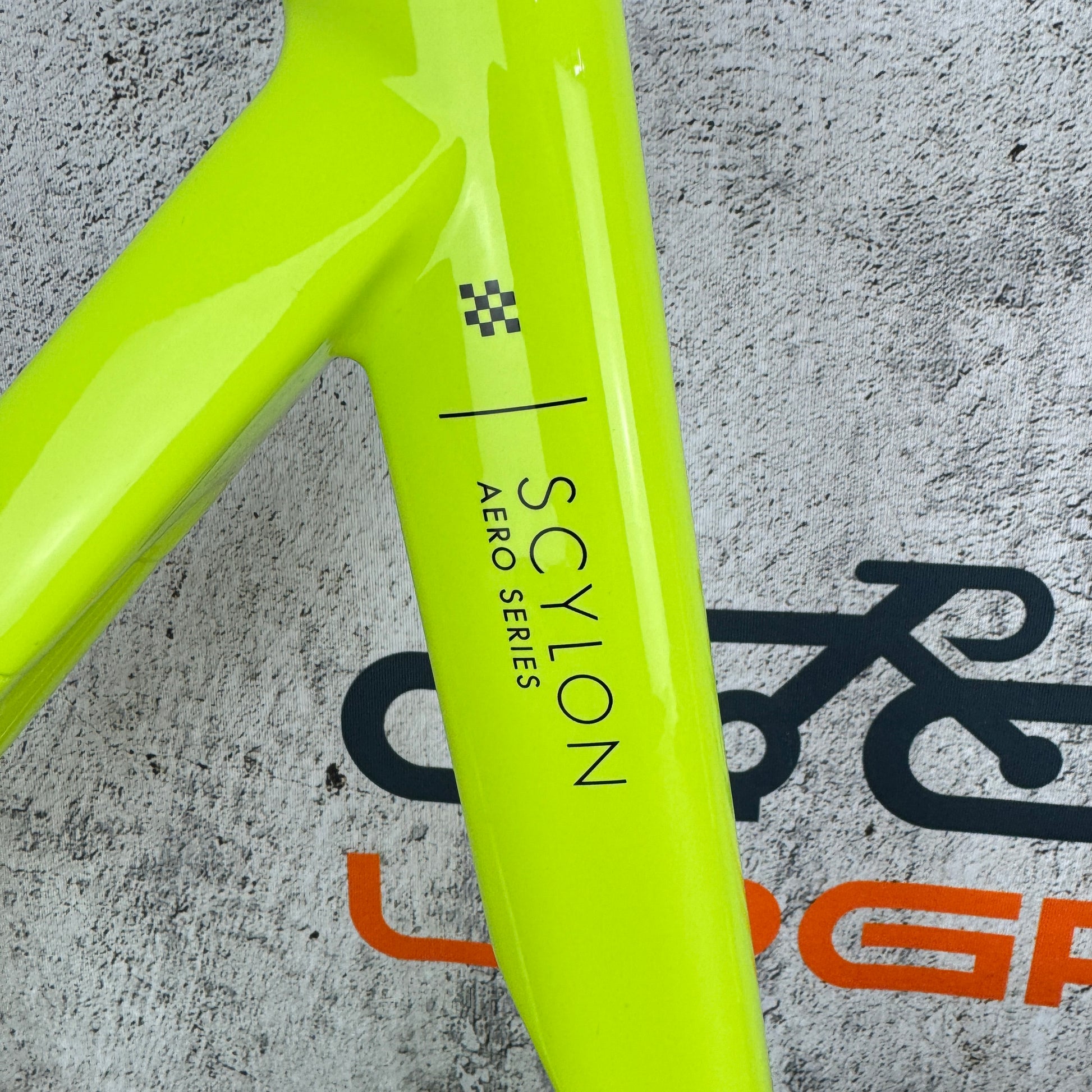

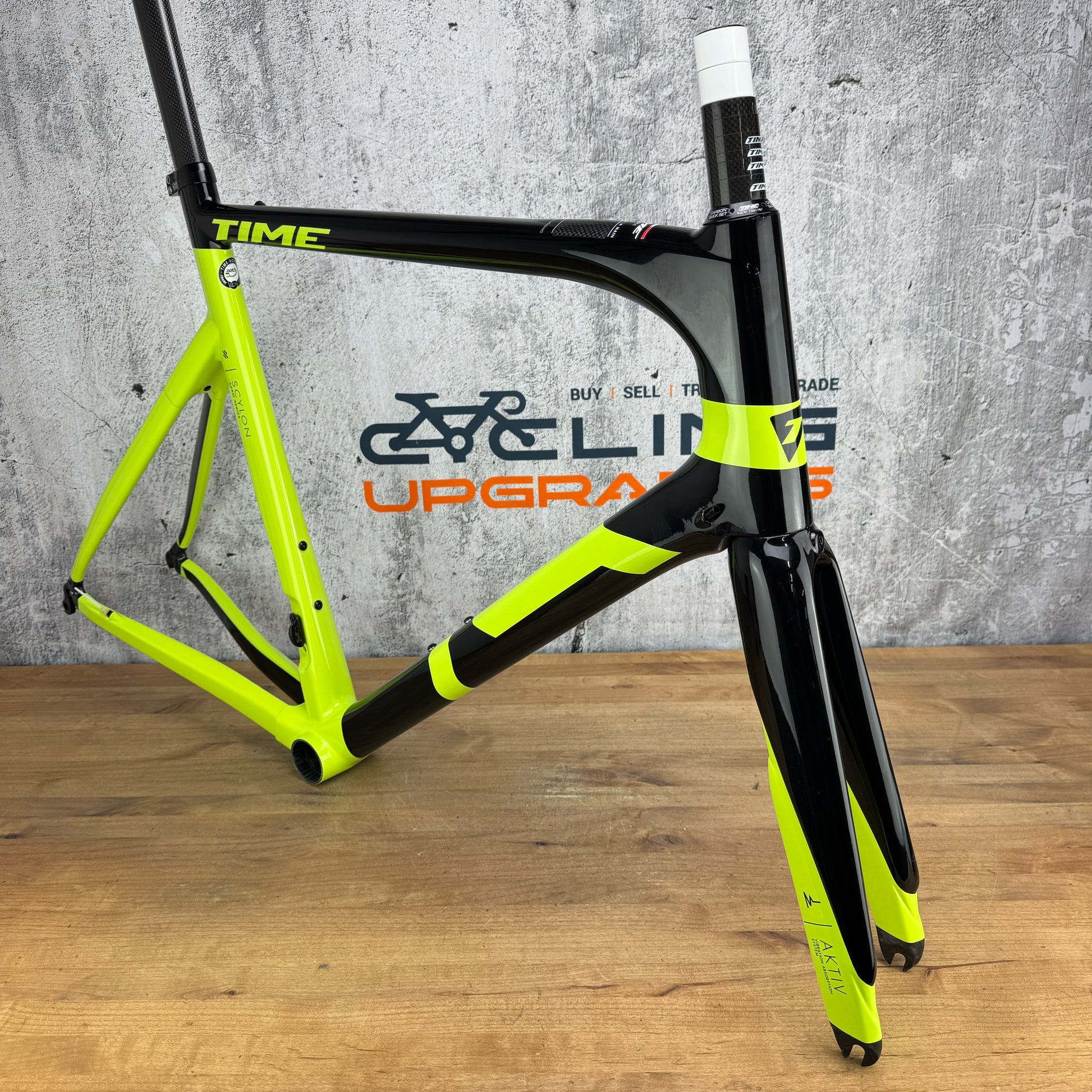

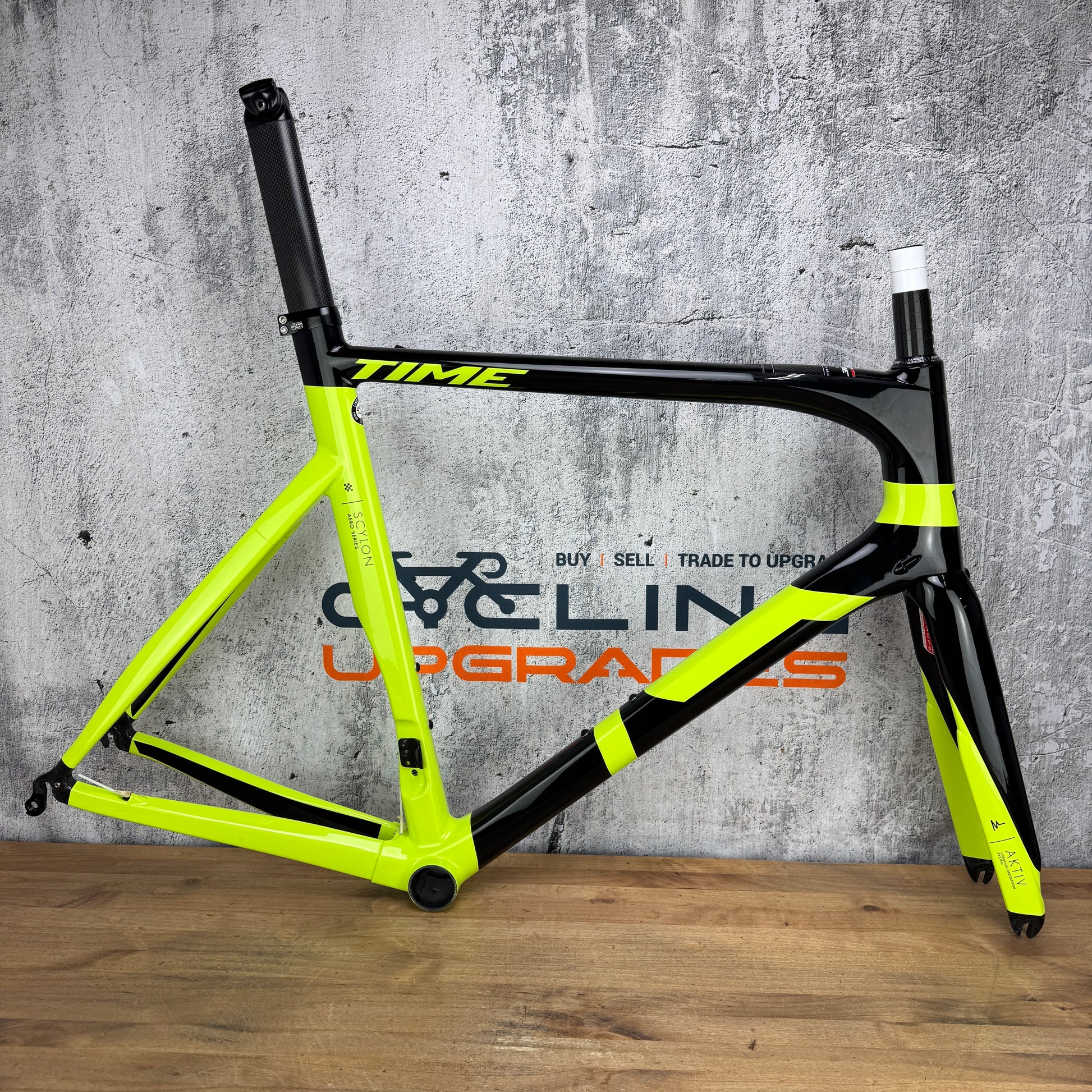

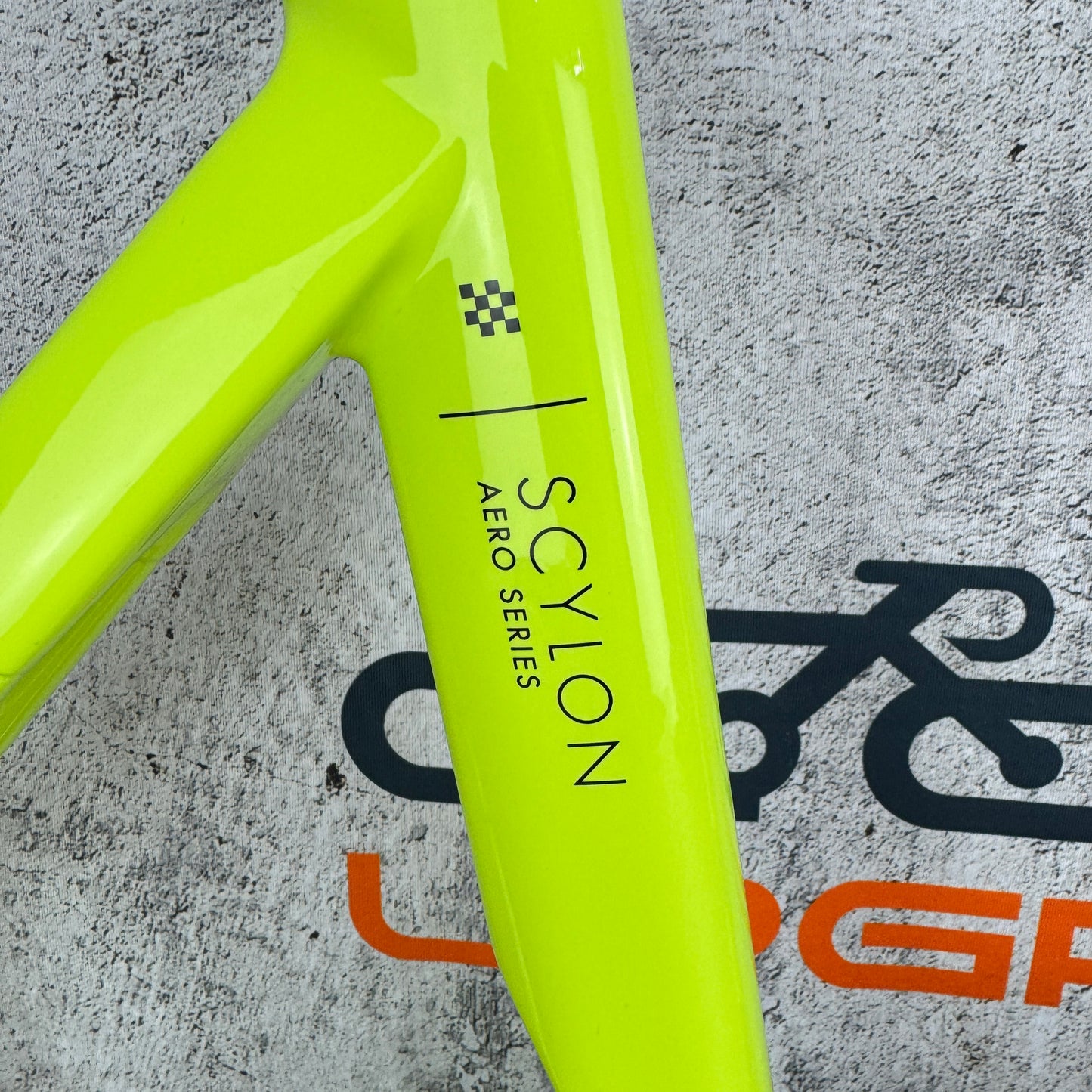

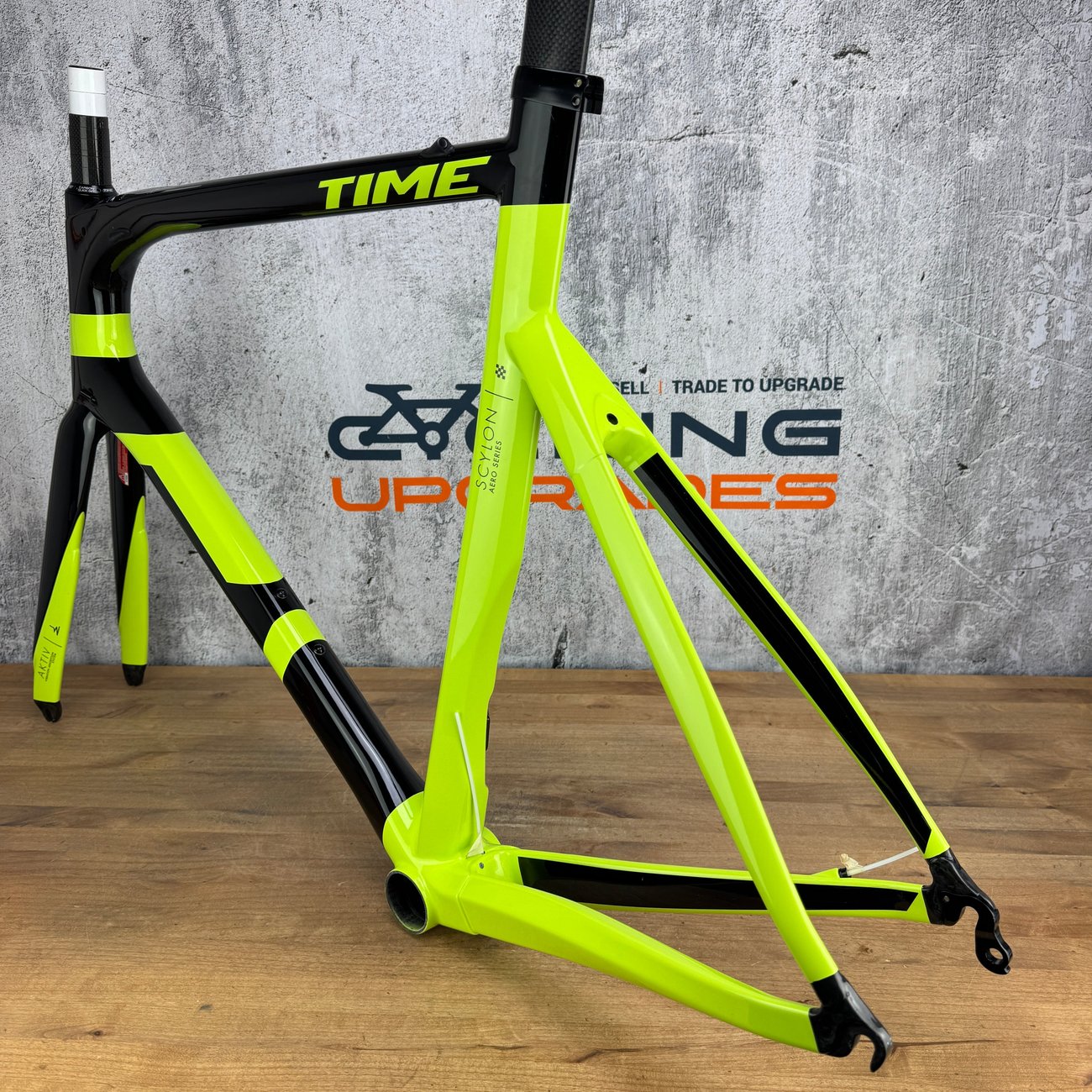

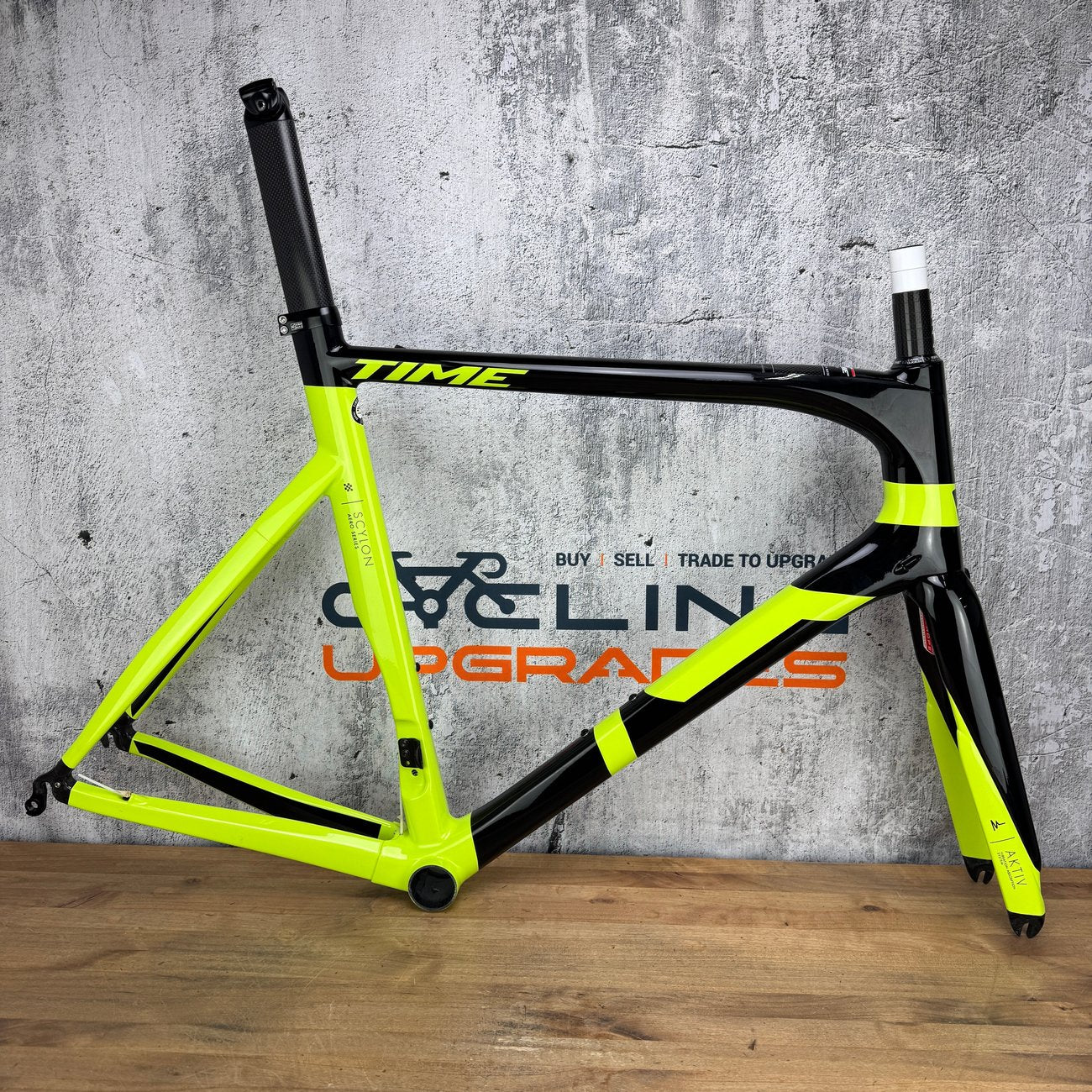

Frame: 2020 Time Scylon AKTIV
Color: Black, and yellow
Brake type: Center-Mount disc brake.
Size: XL. 580mm Effective Top Tube. Stack - 601mm. Reach - 397mm. Head tube 204mm. Recommend buyer confirm and research full geometry online.
Condition: This frame is brand new. There are no imperfections to specifically picture, only very minor imperfections and light signs of shipping and handling may exist.
Groupset compatibility: This frame is compatible with eTap, Di2, EPS, or mechanical setups

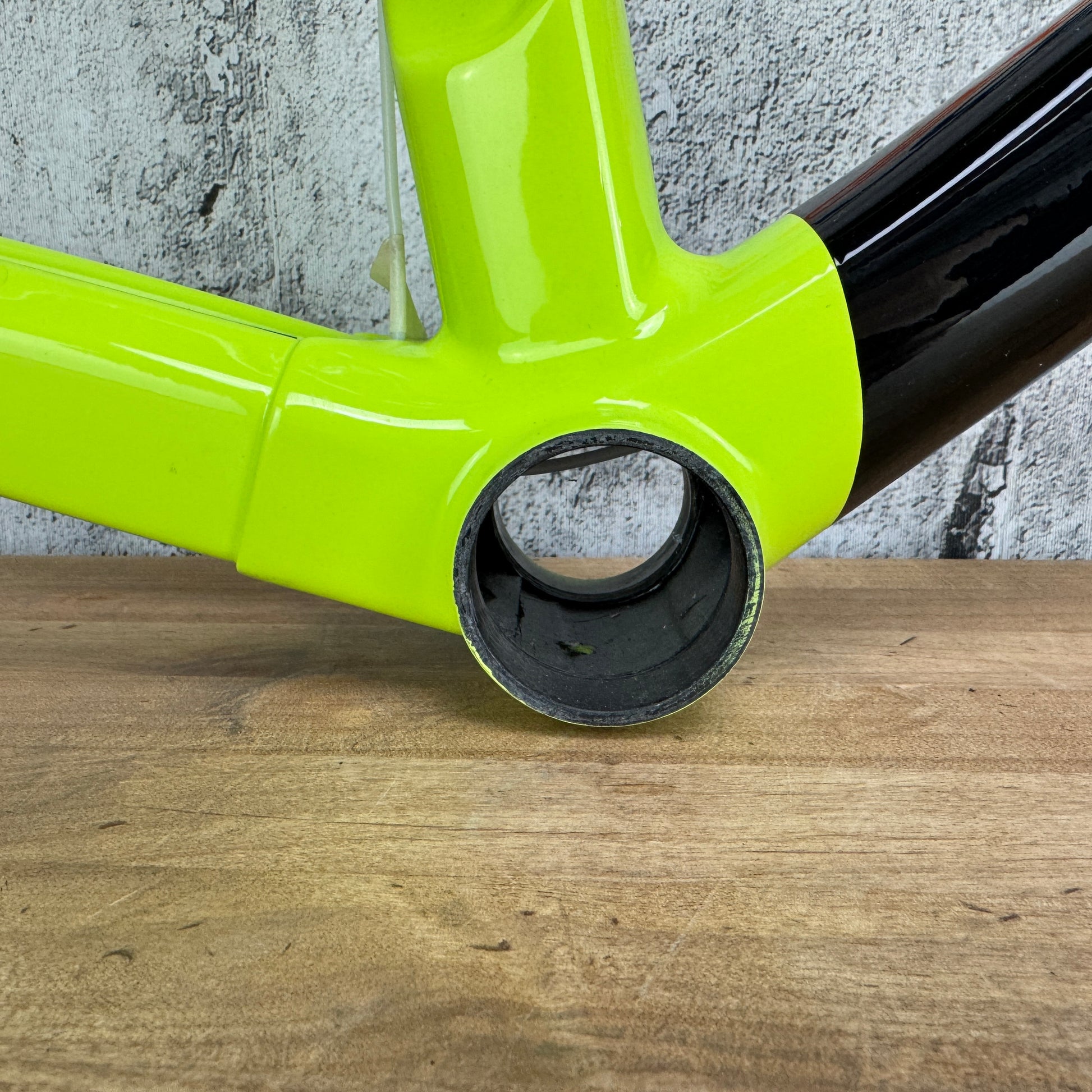

Bottom bracket: BB386EVO bottom bracket shell type (46mm shell diameter, 86mm shell width). No bottom bracket currently installed or included. We have a handful of lightly used basic bottom brackets on hand, let us know what you need and we can try to ship the frame with the right bottom bracket installed. Additionally, CyclingUpgrades is a Ceramicspeed and Cane Creek Authorized Dealer, if you prefer to have the frame setup with a certain bottom bracket we can add and install it at an additional cost before shipping - message with inquiries/requests.

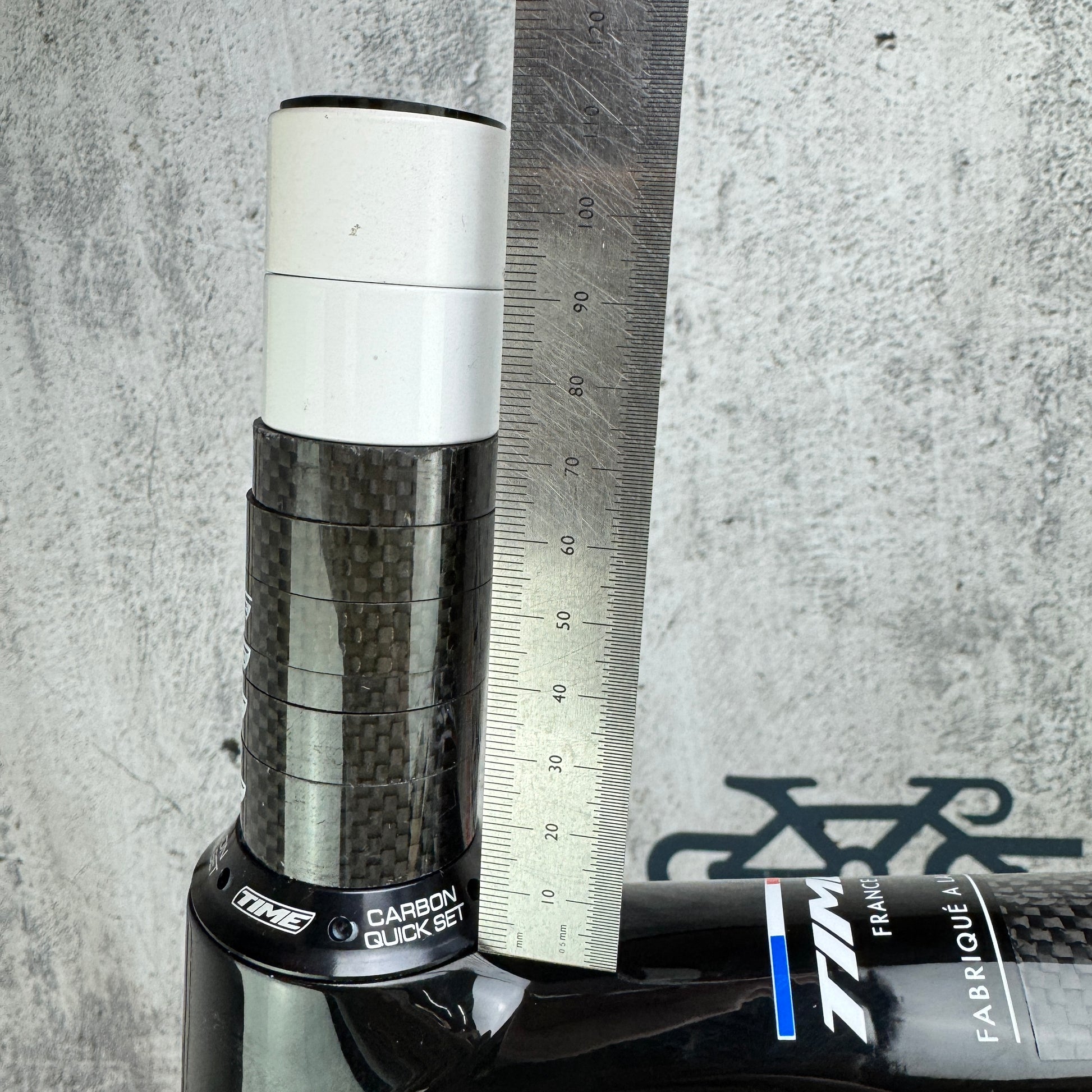

Steerer length: 110mm of steerer above the top tube. 60mm of spacers below the stem plus the headset cover. We may have an option available to safely extend the steerer tube by 15-18mm - message us for additional details.
 Seatpost: Frame specific carbon zero setback seatpost.Â
Dropout Spacing: Front QR x 100mm, Rear QR x 135mm.
Weight: 2068 grams as pictured with headset, seatpost, frame hardware, etc.Â
What's included: Frame, fork, headset, rear derailleur hanger, seatpost
