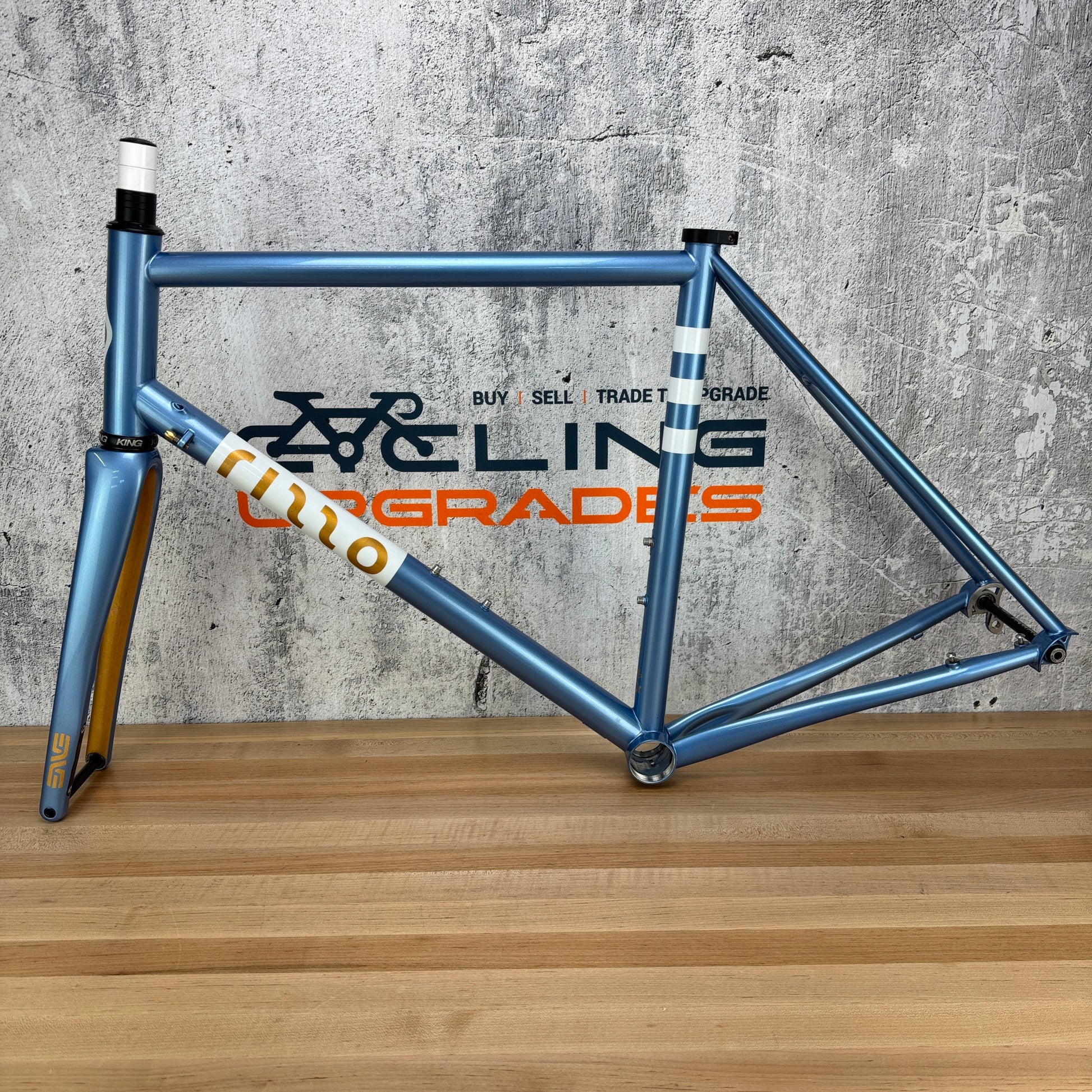

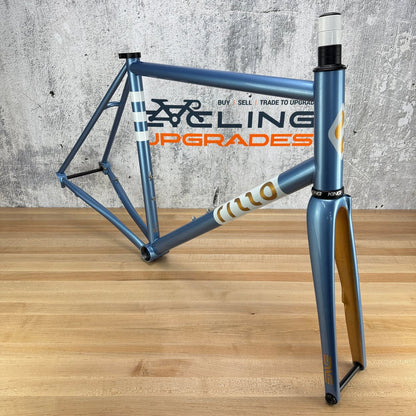

Frame: Rizzo XCR

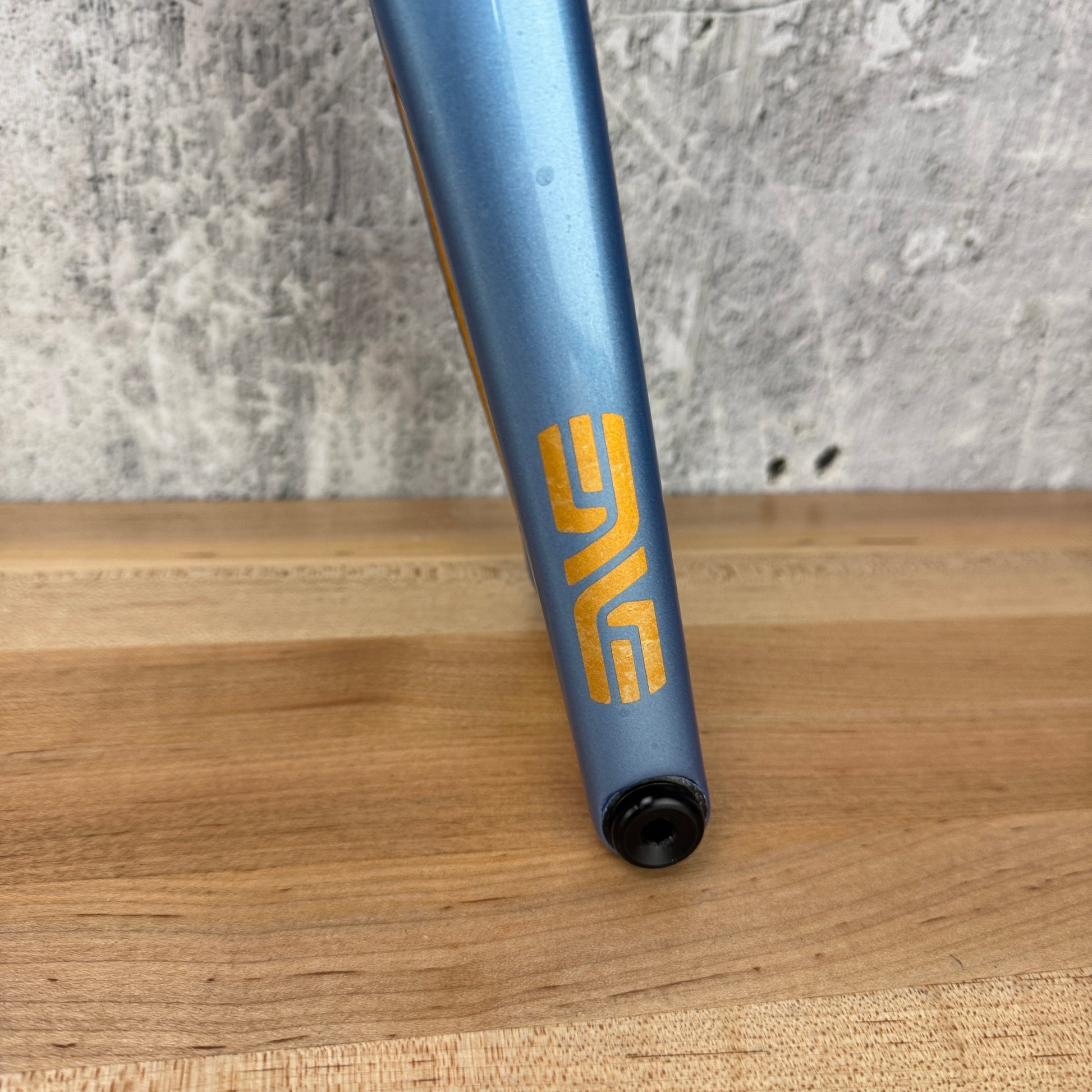

Fork: Enve paint matched carbon road fork.
Color: Ford Shelby GT inspired custom paint scheme
Brake type: Flat-Mount disc brake.

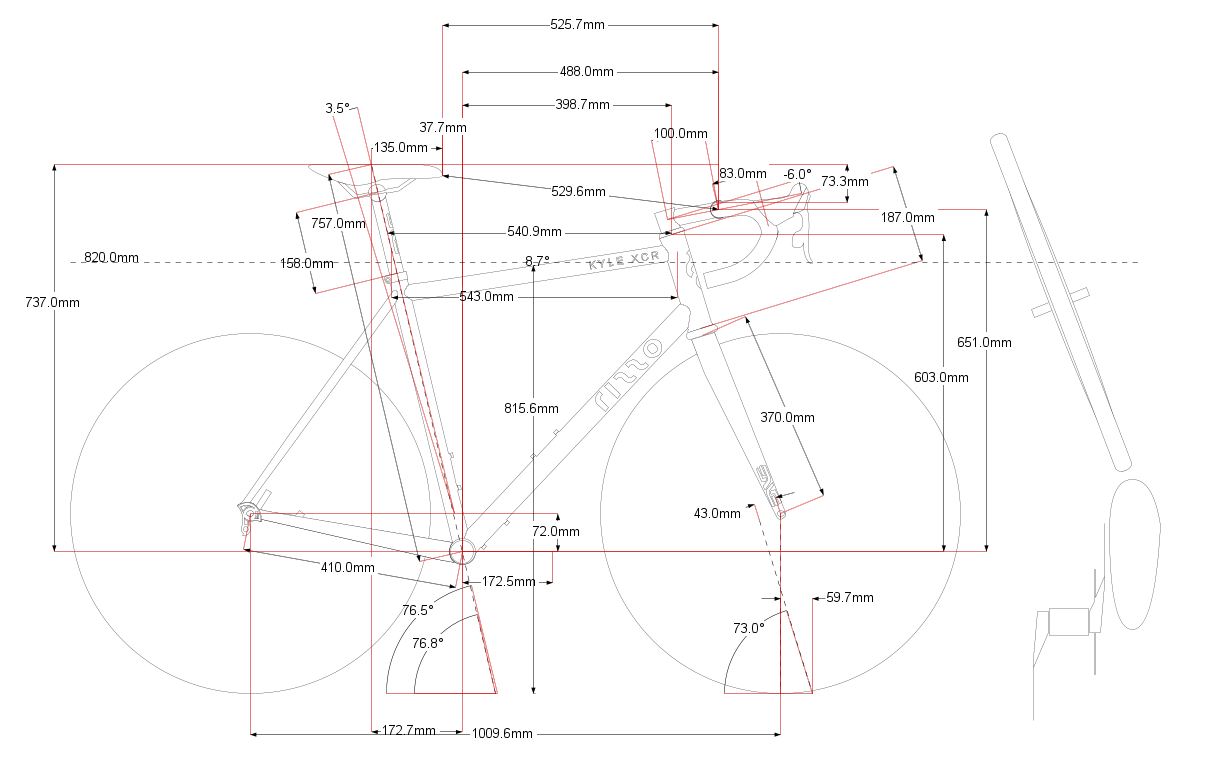

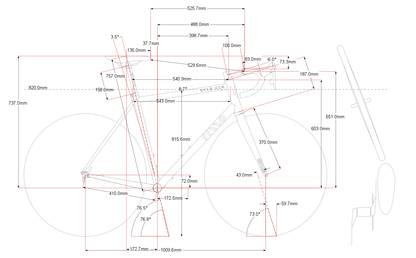

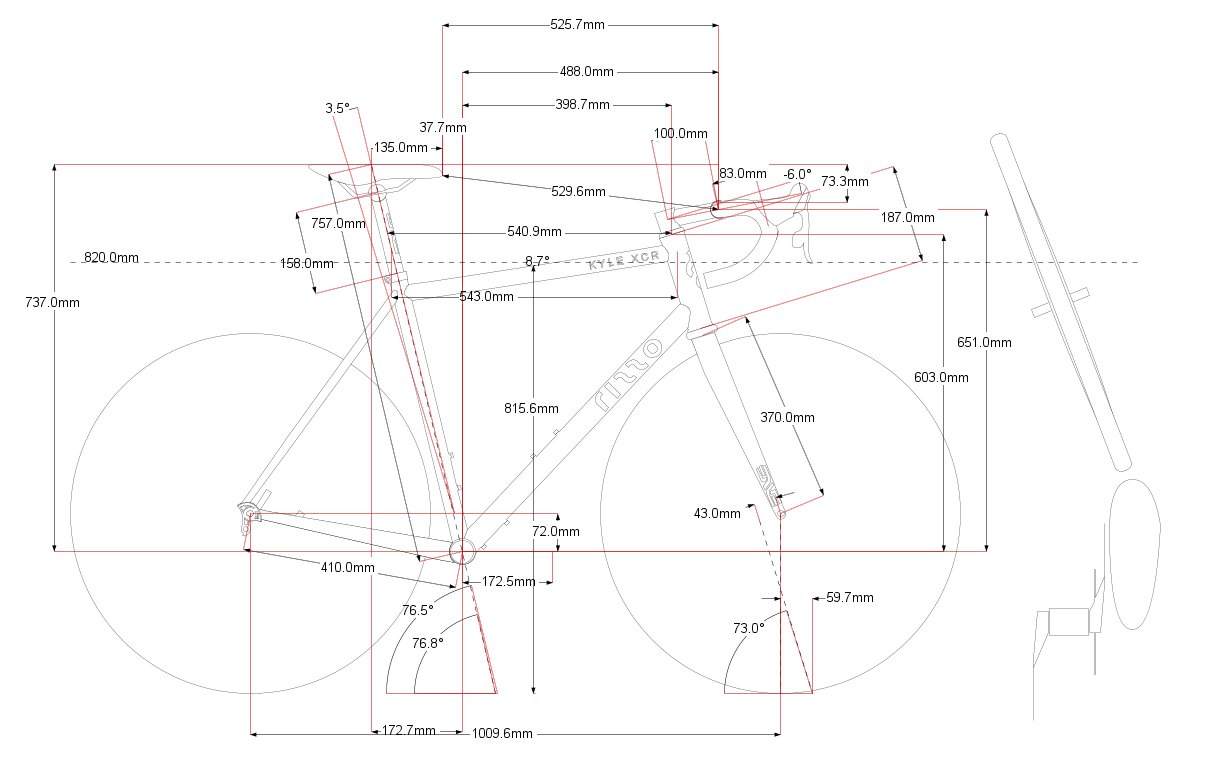

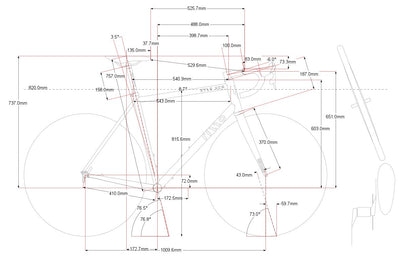

Size: 54cm. 540mm Effective Top Tube. Stack - 603mm. Reach - 398mm. Head tube 187mm. A full geometry chart is shown in the last photo.

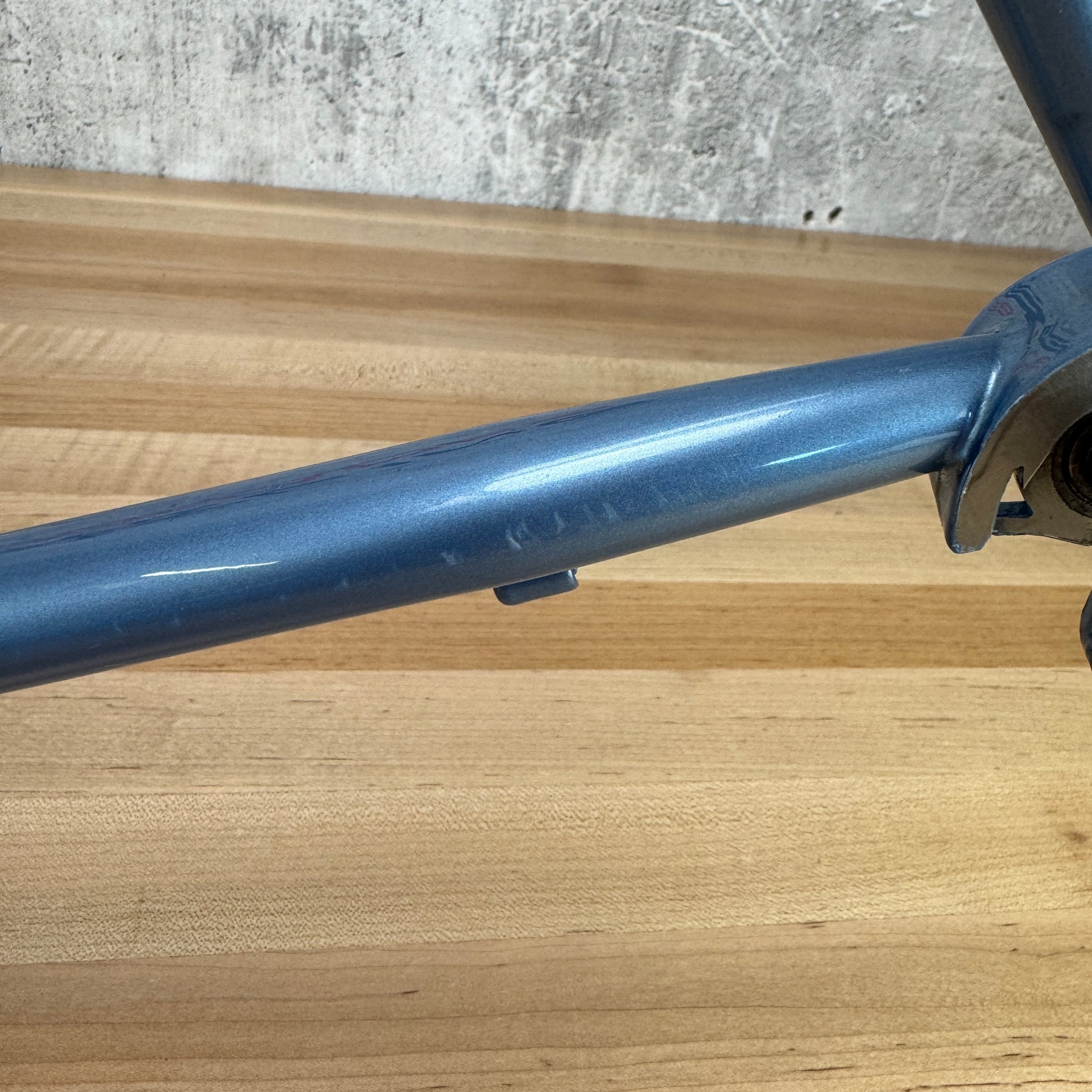

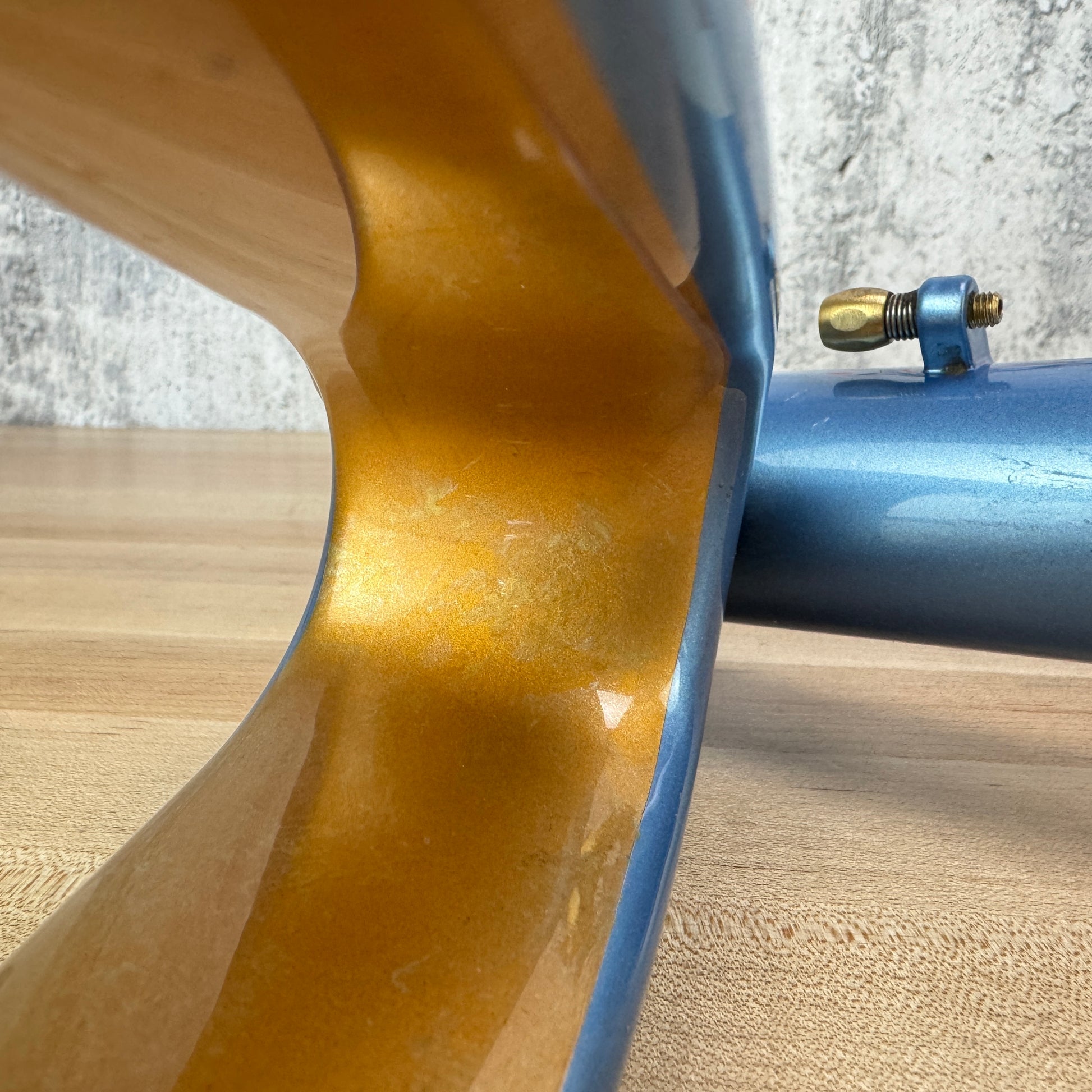

Condition: No cracks or carbon defects were identified through a thorough visual inspection. The cosmetic imperfections to highlight include: Some very light scratches on the chainstay shown in pic #6. We have attempted to show all noticeable imperfections in specific close-up pictures, however other minor imperfections and light signs of use may exist.
Groupset compatibility: This frame can be setup with 1x mechanical groupsets or AXS wireless groupsets. There is no down tube cable guide for a front derailleur, so it is not compatible with a mechanical front derailleur.

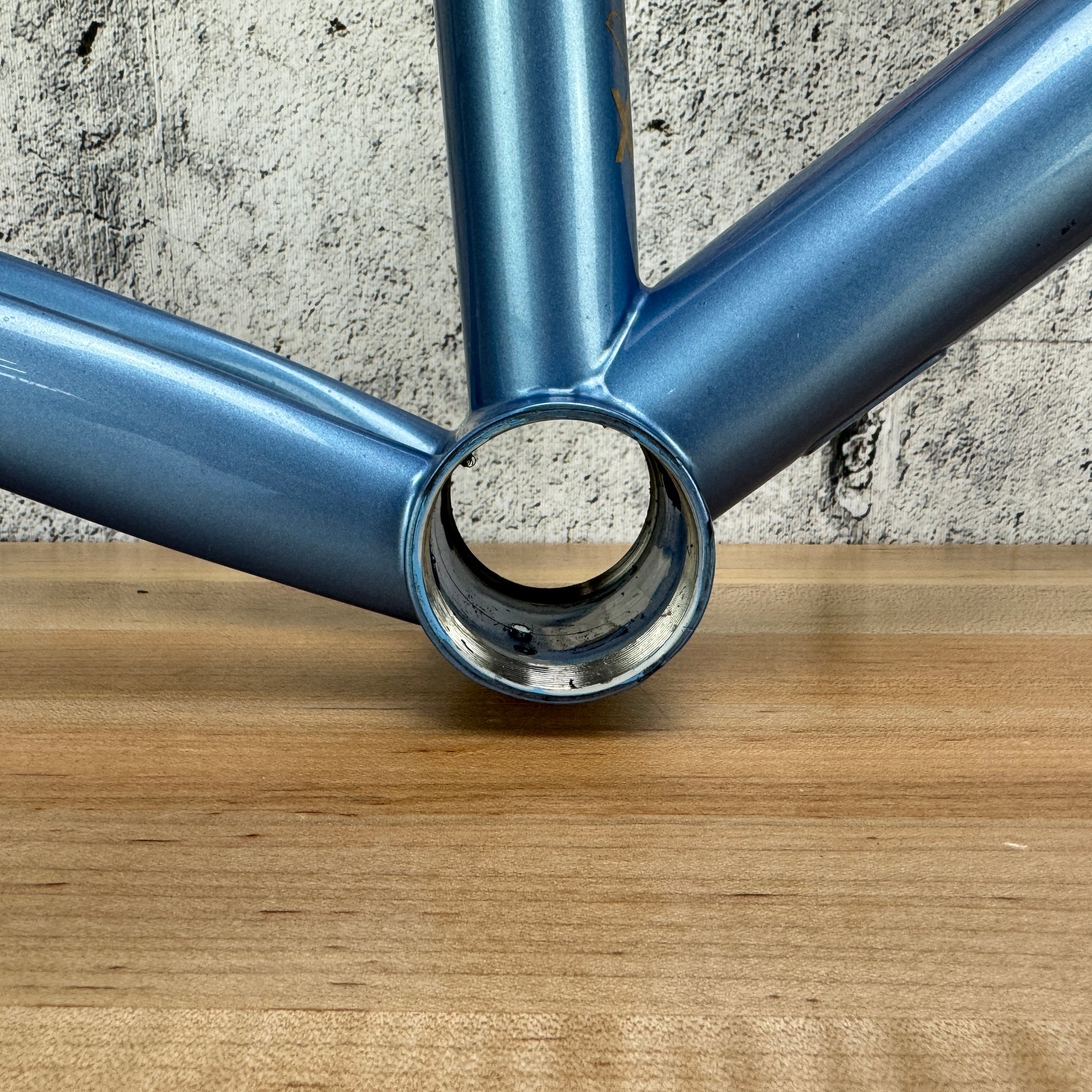

Bottom bracket: Threadfit T47/68 bottom bracket shell type. No bottom bracket currently installed or included. We have a handful of lightly used basic bottom brackets on hand, let us know what you need and we can try to ship the frame with the right bottom bracket installed. Additionally, CyclingUpgrades is a Ceramicspeed and Cane Creek Authorized Dealer, if you prefer to have the frame setup with a certain bottom bracket we can add and install it at an additional cost before shipping - message with inquiries/requests.

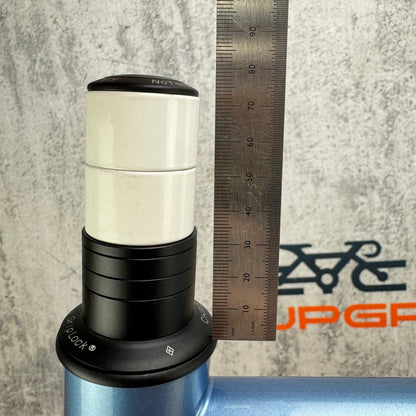

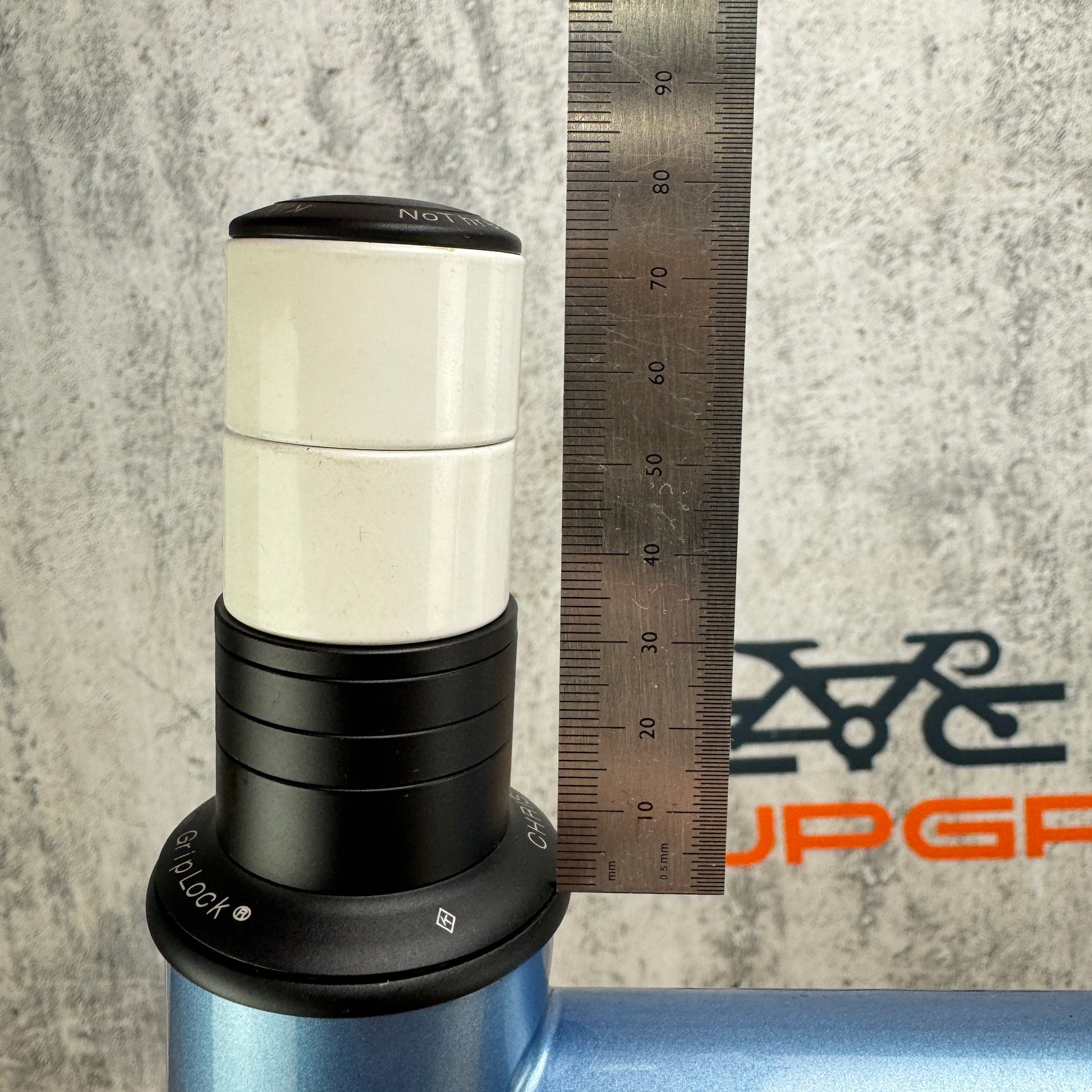

Steerer length: 70mm of steerer above the top tube. 25mm of spacers below the stem plus the headset cover. We may have an option available to safely extend the steerer tube by 15-18mm - message us for additional details.
Seatpost: 31.6mm diameter. No seatpost included.
Dropout Spacing: Front 12mm Thru Axle x 100mm, Rear 12mm Thru Axle x 142mm.
Weight: 2704 grams as pictured with headset, thru axles, frame hardware, etc.
What's included: Frame, fork, headset, Thru Axles.
