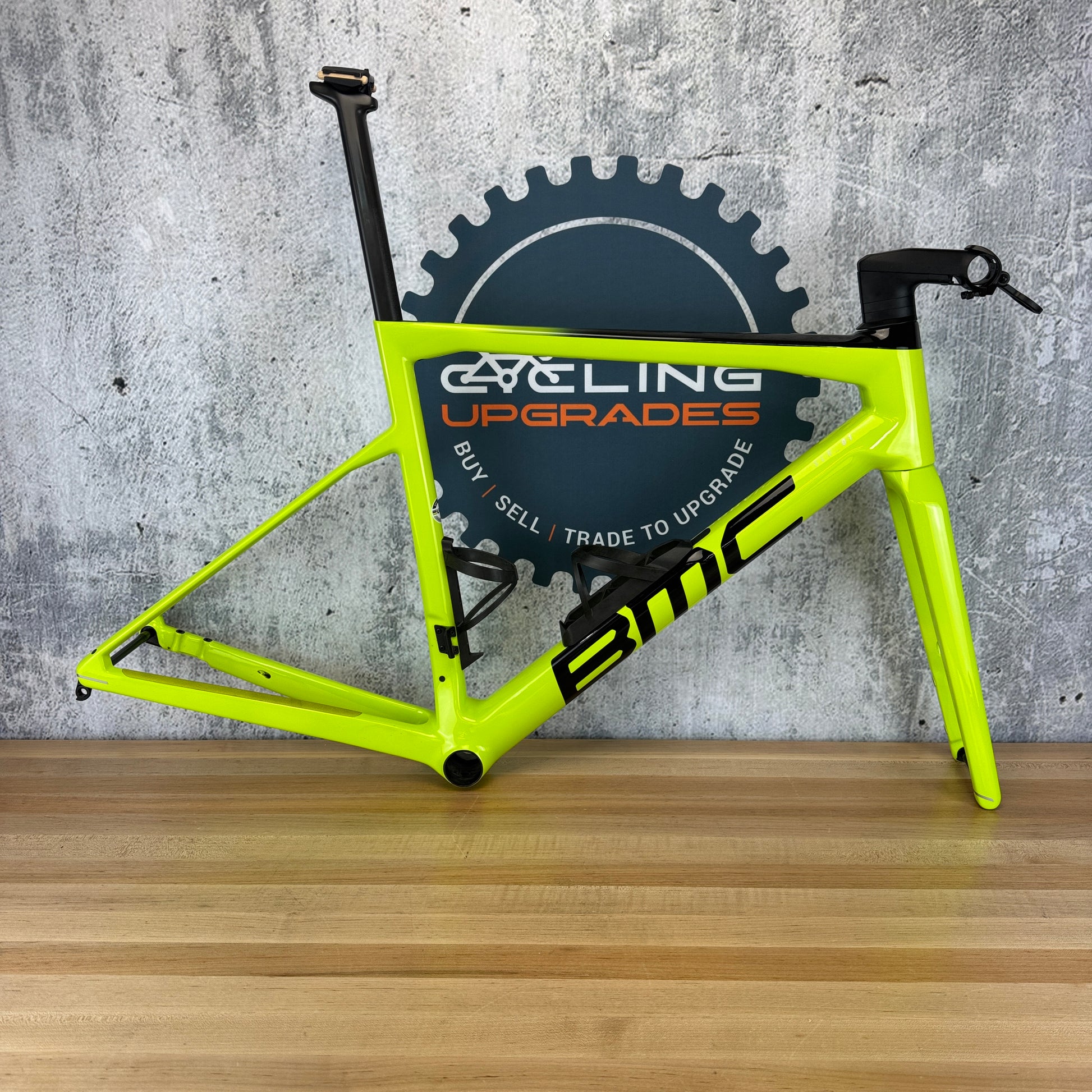

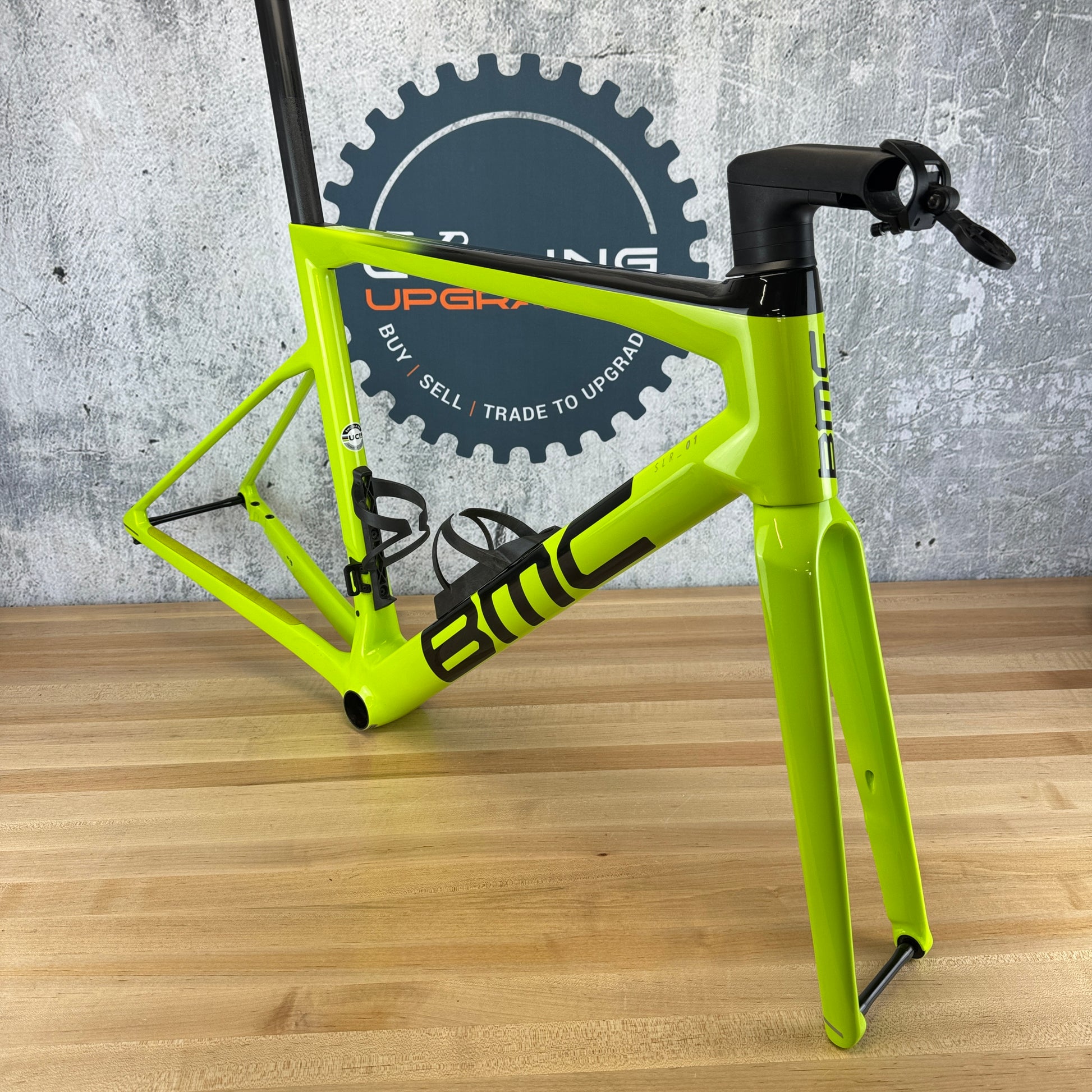

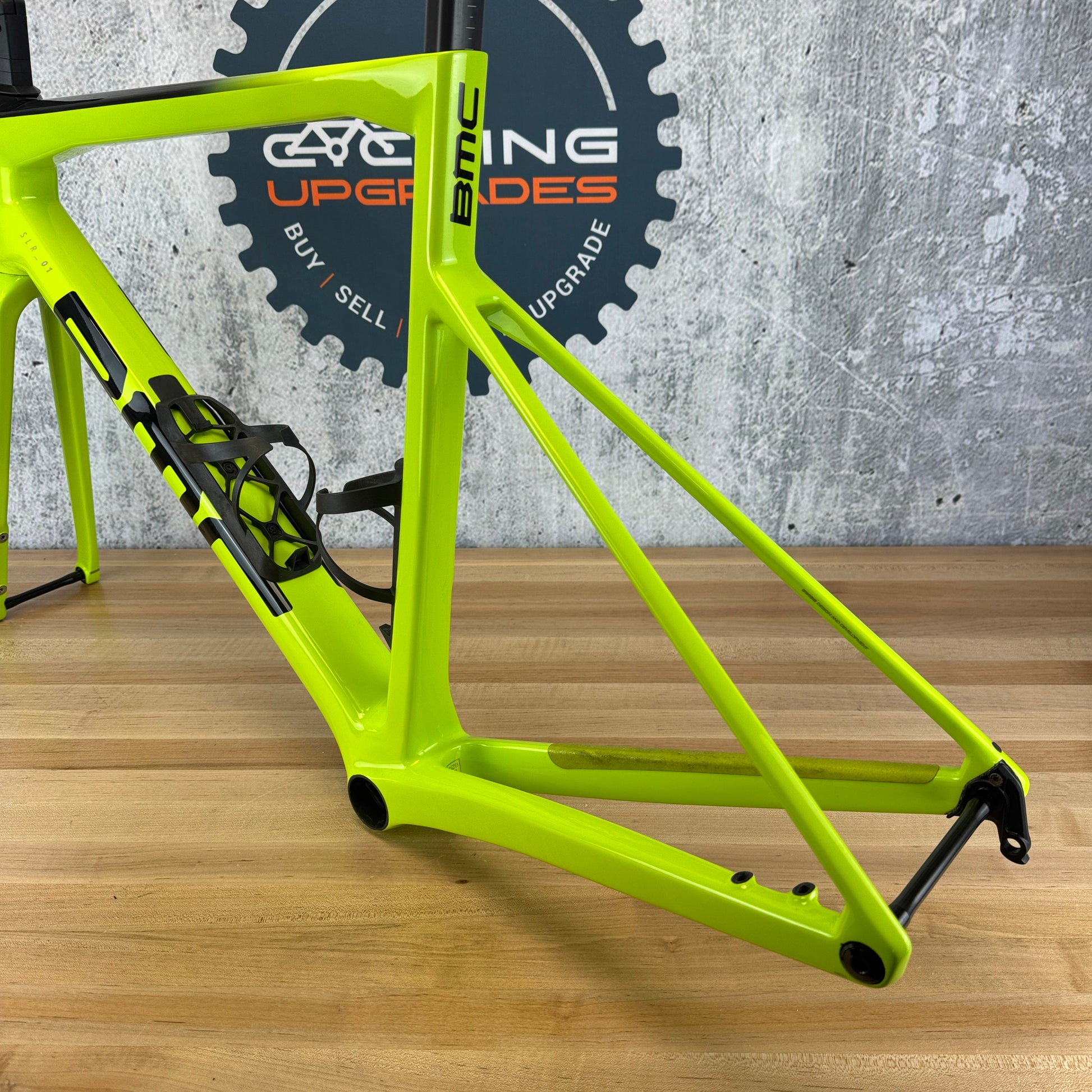

Frame: 2022 BMC Team Machine SLR 01

Color: Acid Yellow

Brake type: Flat-Mount disc brake.

Size: 54cm. 550mm Effective Top Tube. Stack - 550mm. Reach - 386mm. Head tube 153mm. Recommend buyer confirm and research full geometry online.

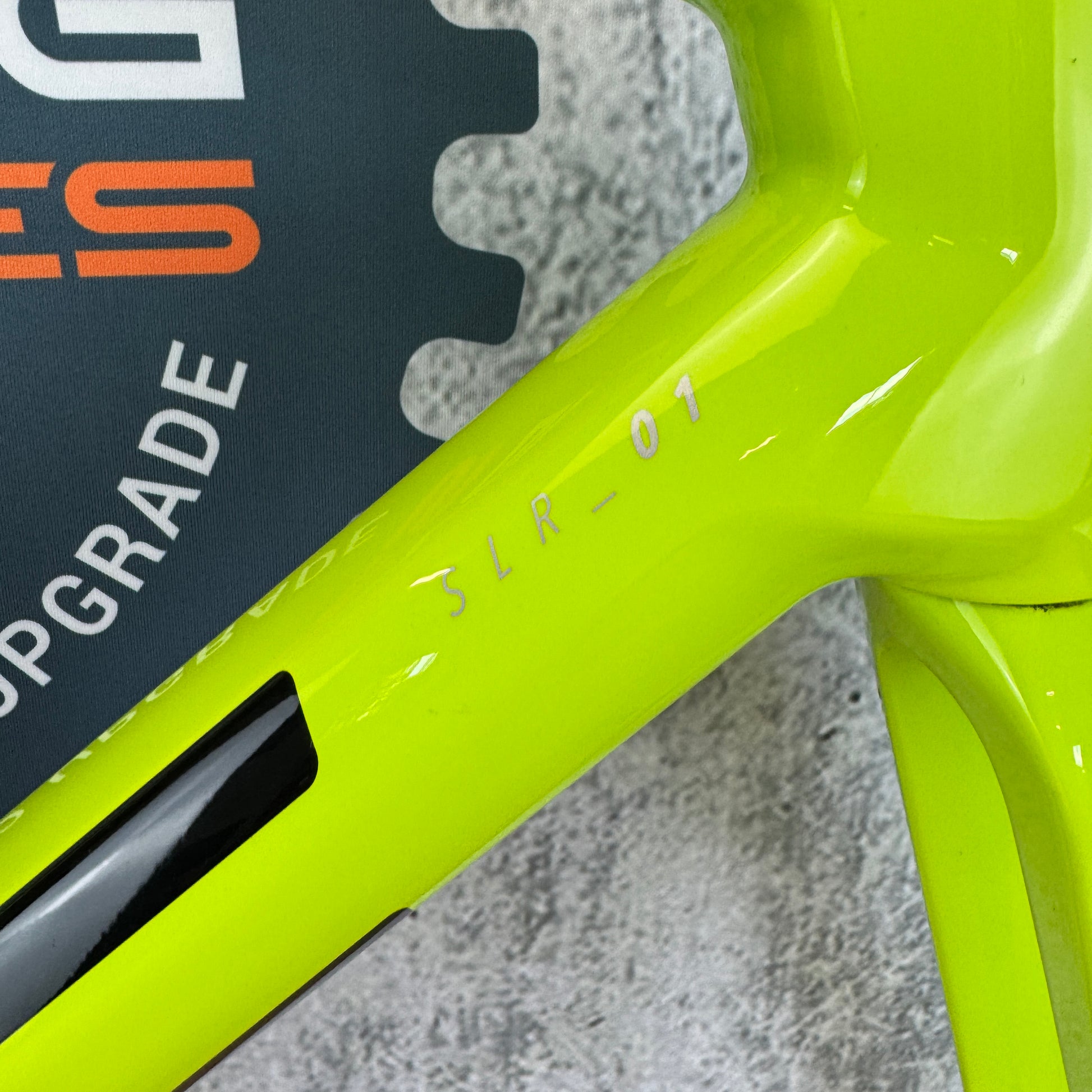

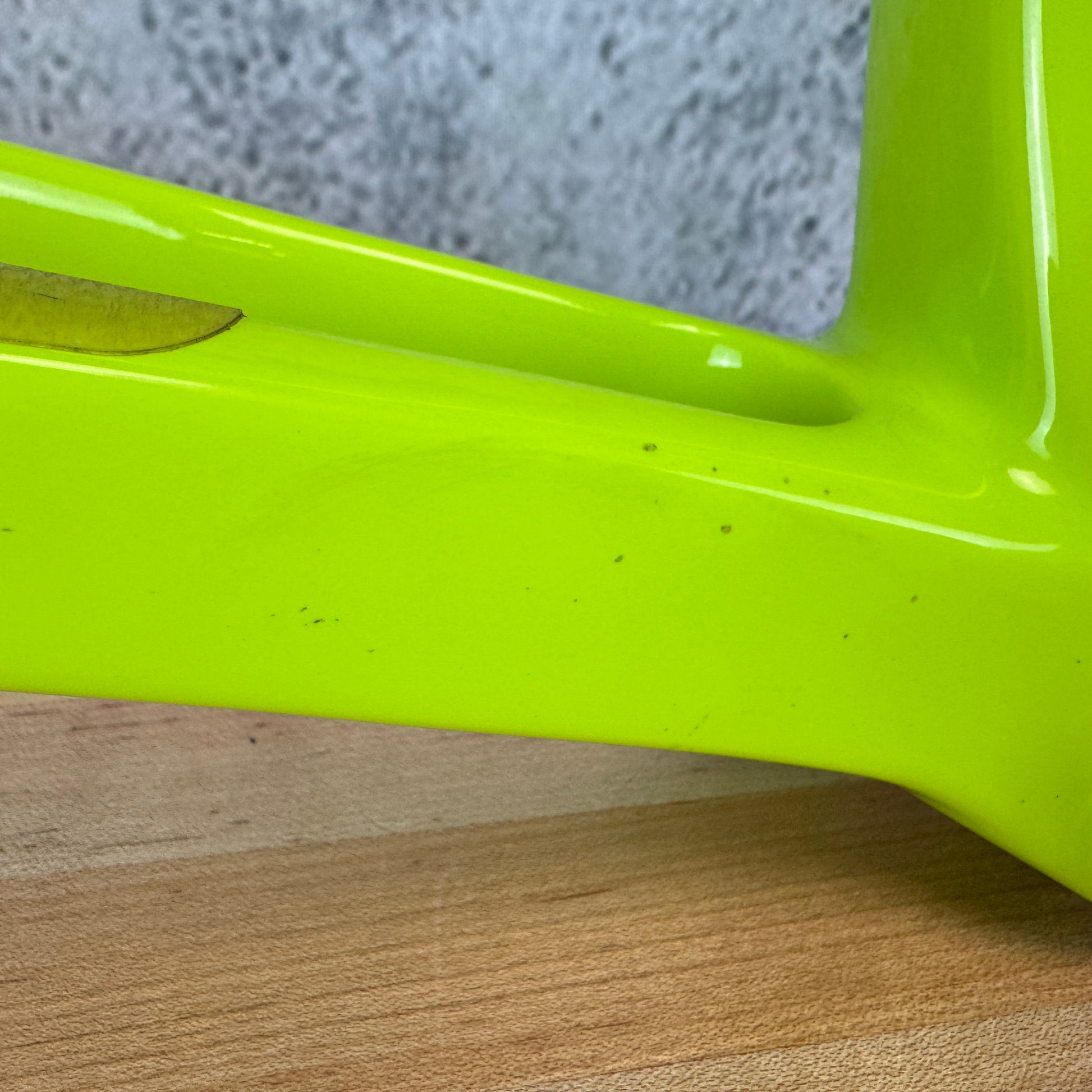

Condition: No cracks or carbon defects were identified through a thorough visual inspection. The cosmetic imperfections to highlight include: Light scratches are present on the chainstay shown in pic #6. We have attempted to show all noticeable imperfections in specific close-up pictures, however other minor imperfections and light signs of use may exist.

Groupset compatibility: Frame can be setup for Di2, EPS, or eTap groupsets. This frame was previously setup with an eTap groupset. Other frame/cable stops may be needed for Di2 or EPS setups. This frame is not compatible with mechanical groupsets.

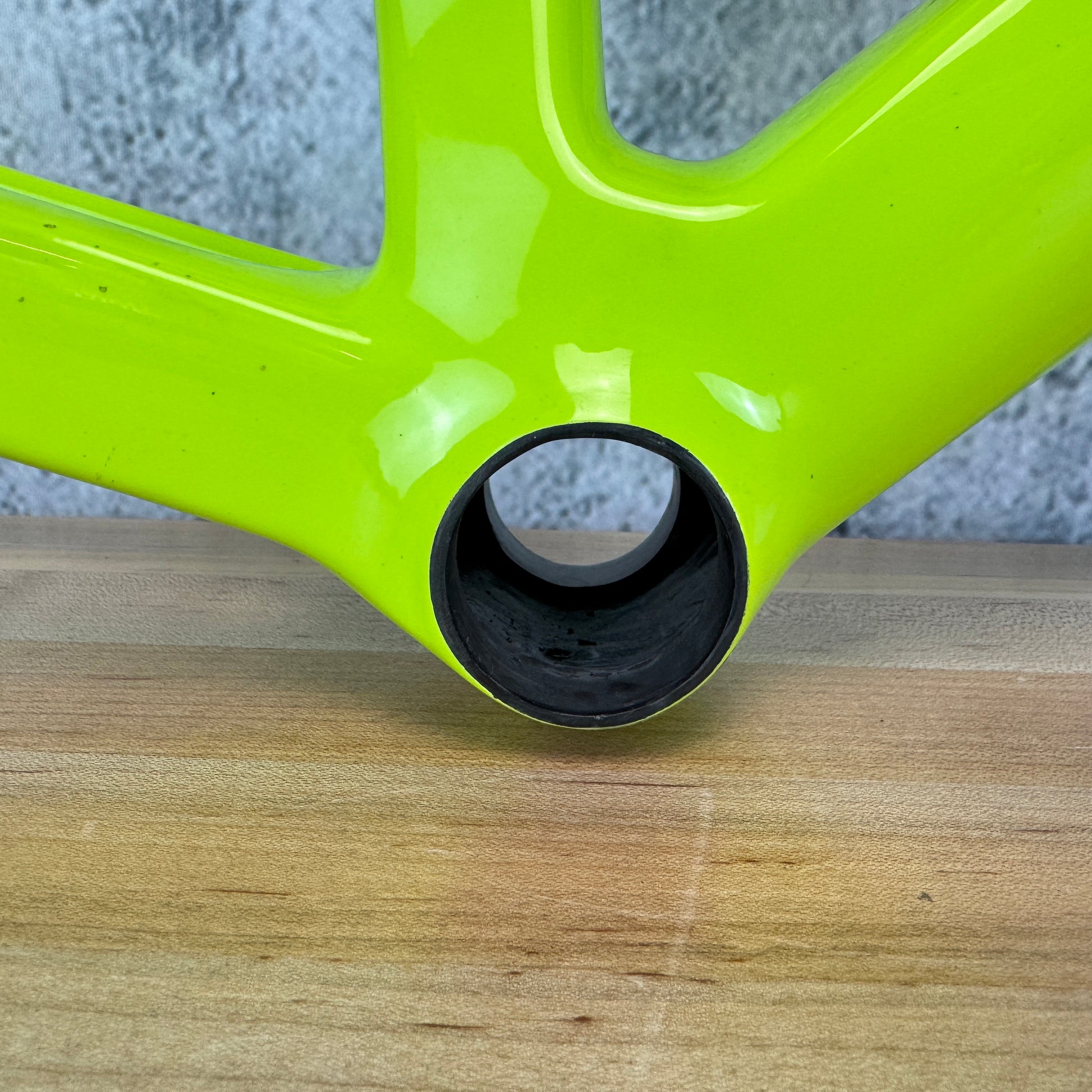

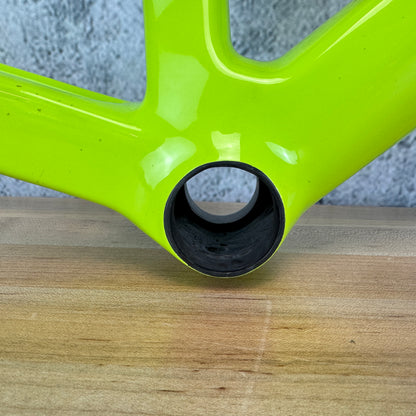

Bottom bracket: Pressfit BB86 bottom bracket shell type (41mm shell diameter, 86mm shell width). No bottom bracket currently installed or included. We have a handful of lightly used basic bottom brackets on hand, let us know what you need and we can try to ship the frame with the right bottom bracket installed. Additionally, CyclingUpgrades is a Ceramicspeed and Cane Creek Authorized Dealer, if you prefer to have the frame setup with a certain bottom bracket we can add and install it at an additional cost before shipping - message with inquiries/requests.

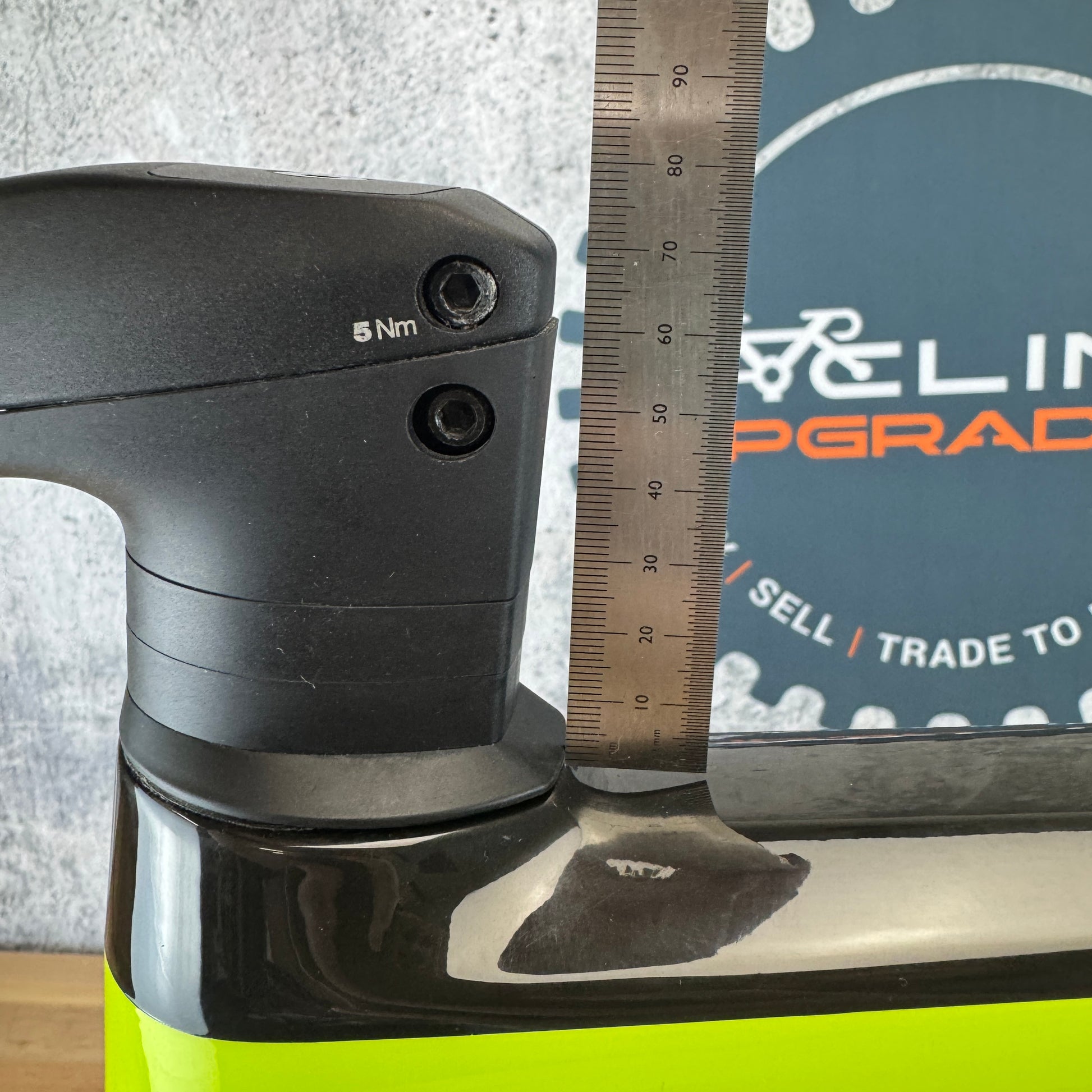

Steerer length: 75mm of steerer above the top tube. 20mm of spacers below the stem plus the headset cover. We may have an option available to safely extend the steerer tube by 15-18mm - message us for additional details.

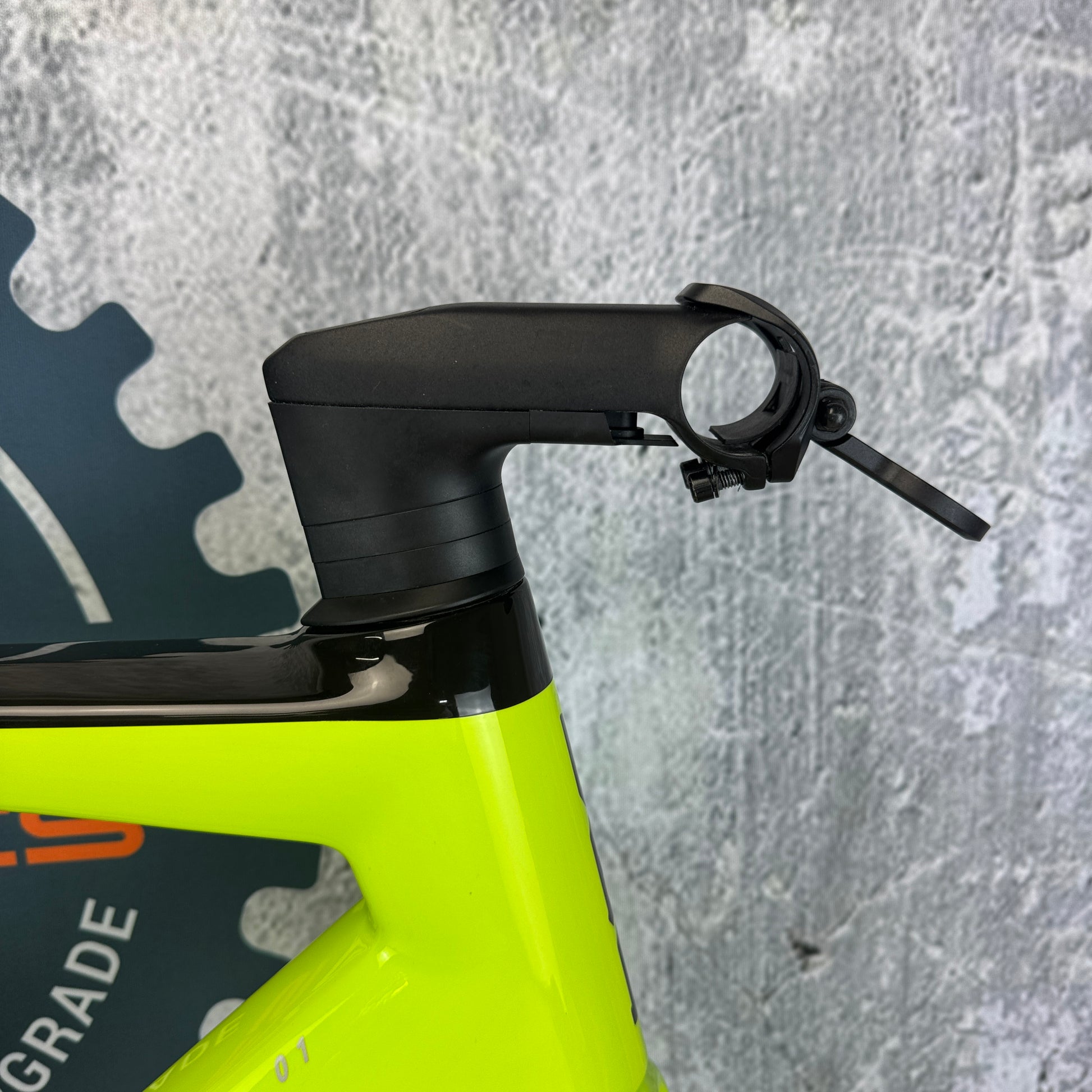

Stem: BMC ICS2 90mm alloy stem with out front computer mount.

Seatpost: Frame specific carbon seatpost included.

Dropout Spacing: Front 12mm Thru Axle x 100mm, Rear 12mm Thru Axle x 142mm.

Weight: 1700 grams as pictured with headset, thru axles, stem, seatpost, frame hardware, etc.

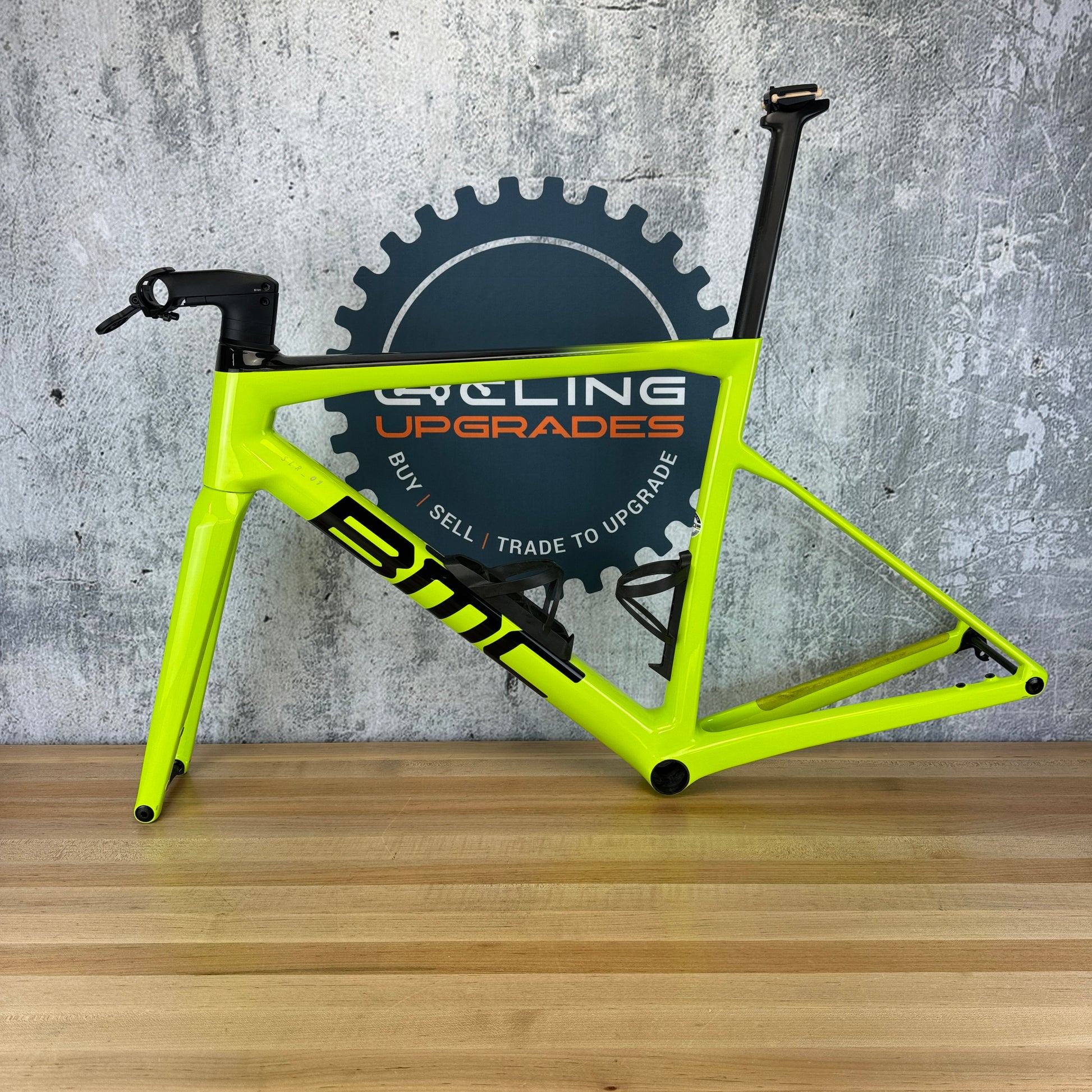

What's included: Frame, fork, headset, rear derailleur hanger, stem, seatpost, thru axles
