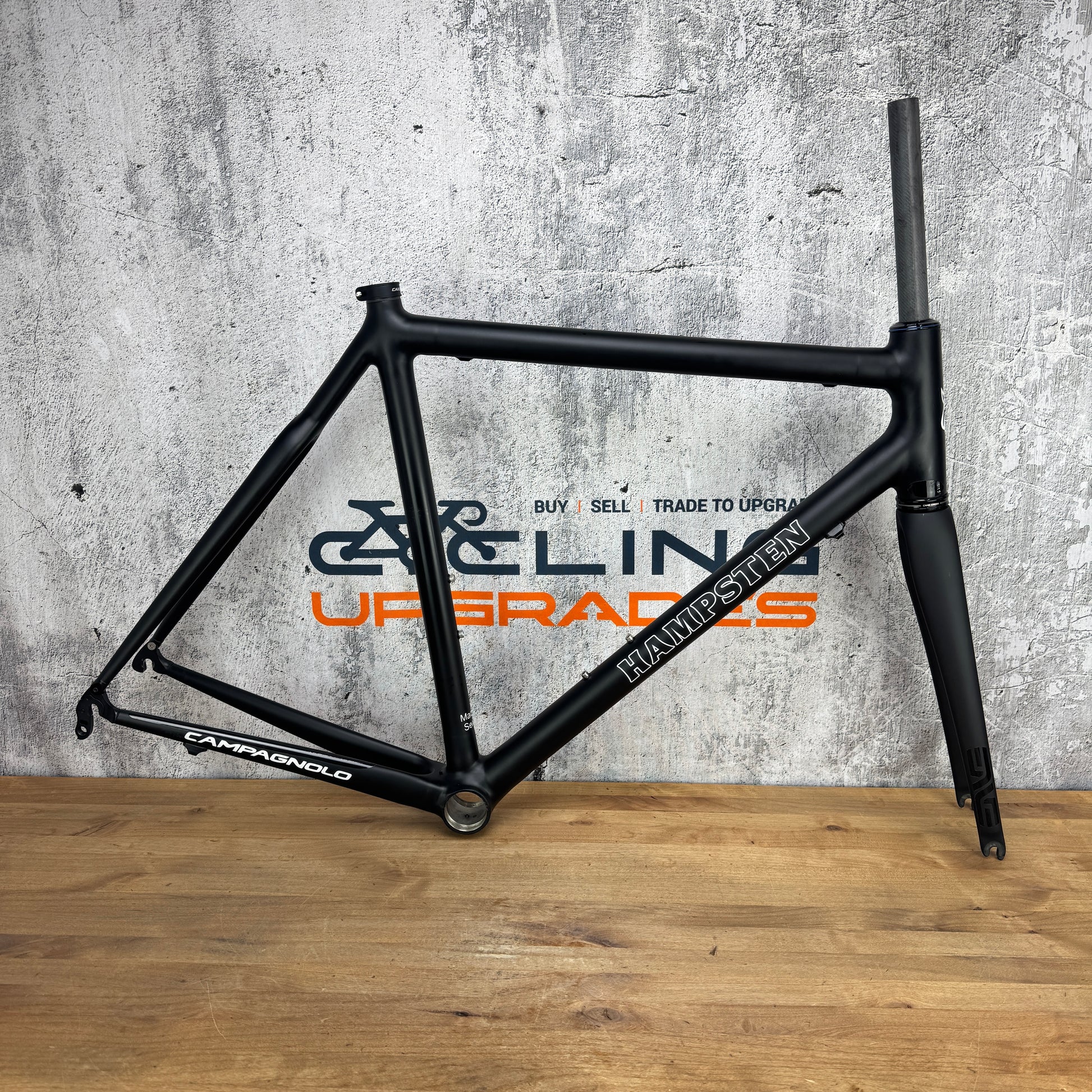

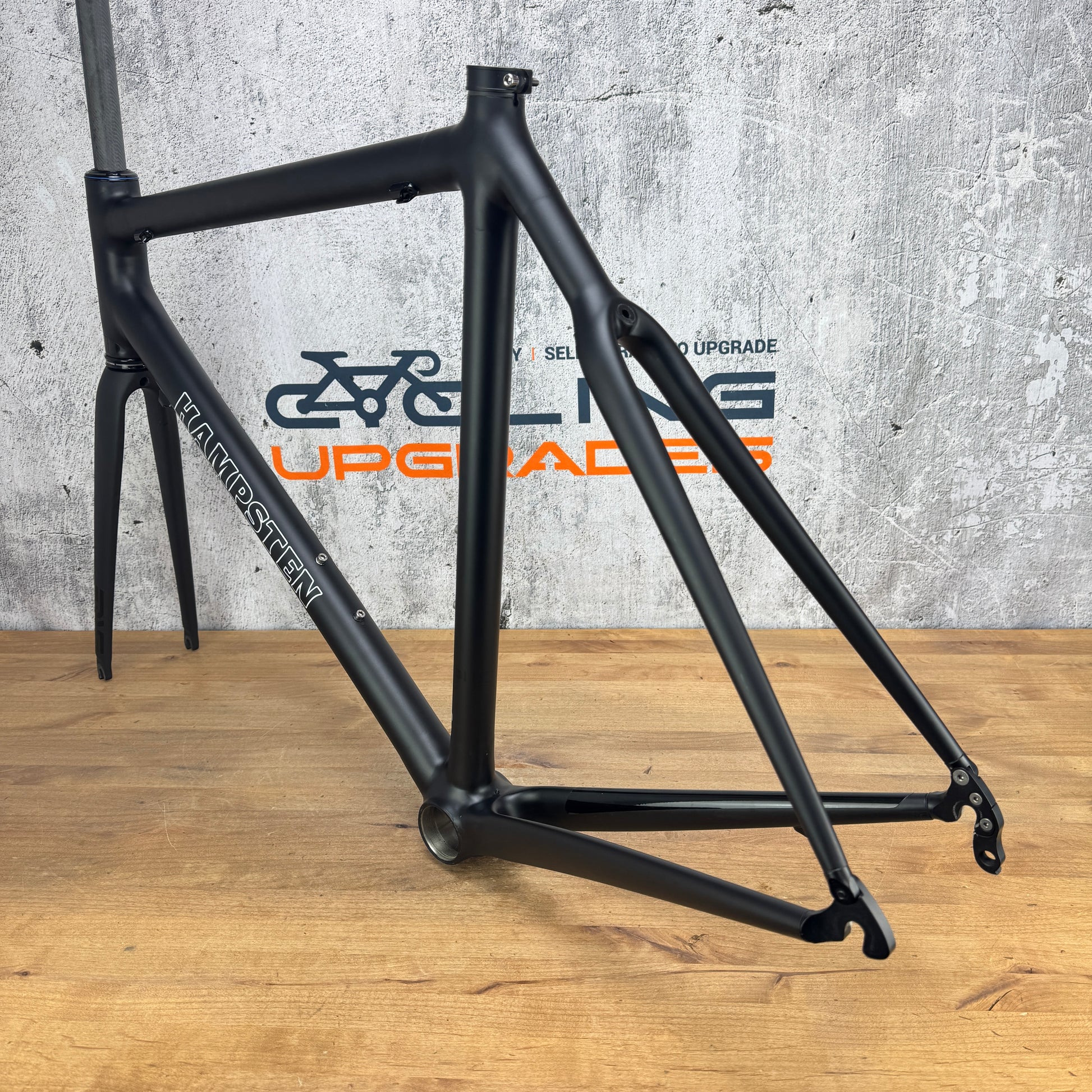

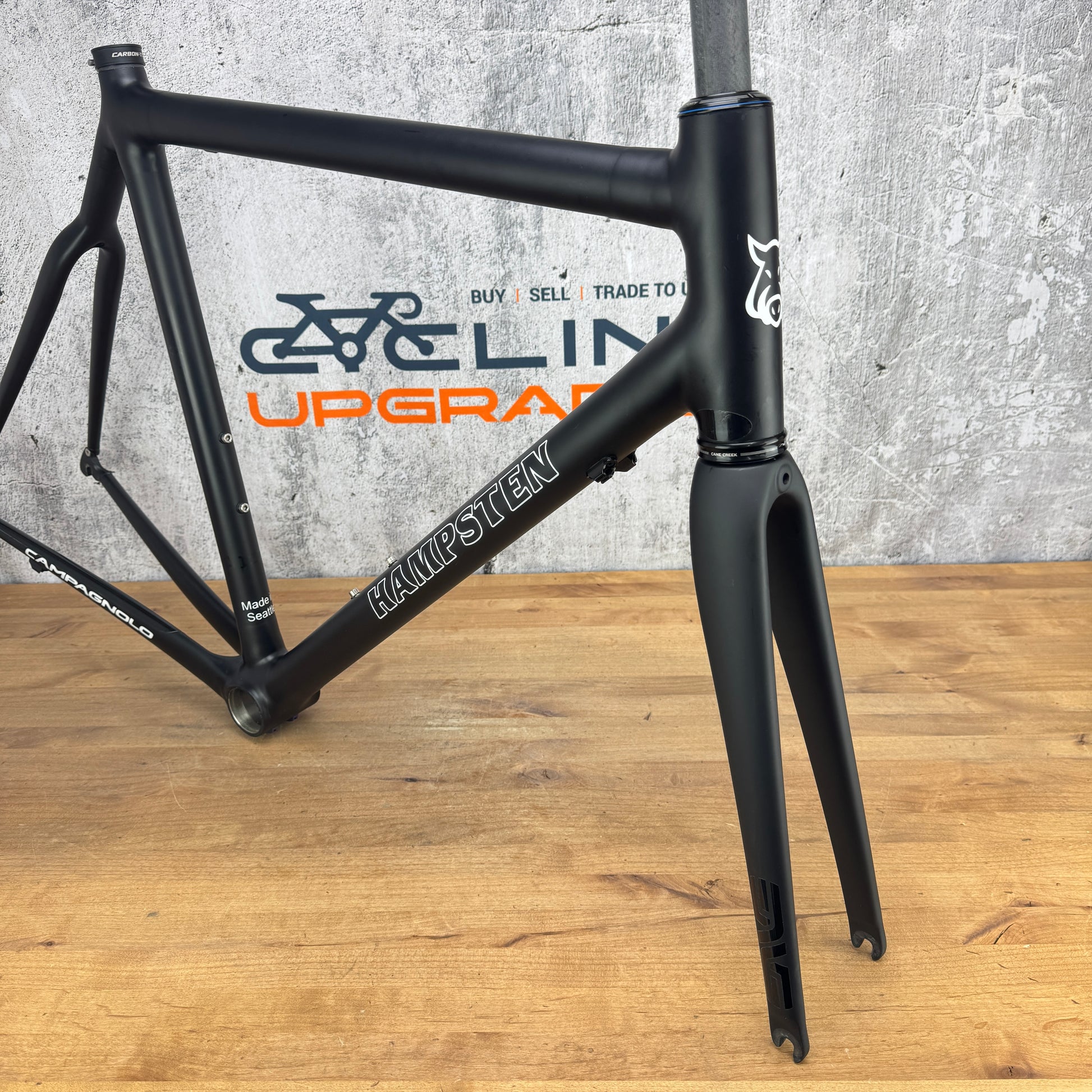

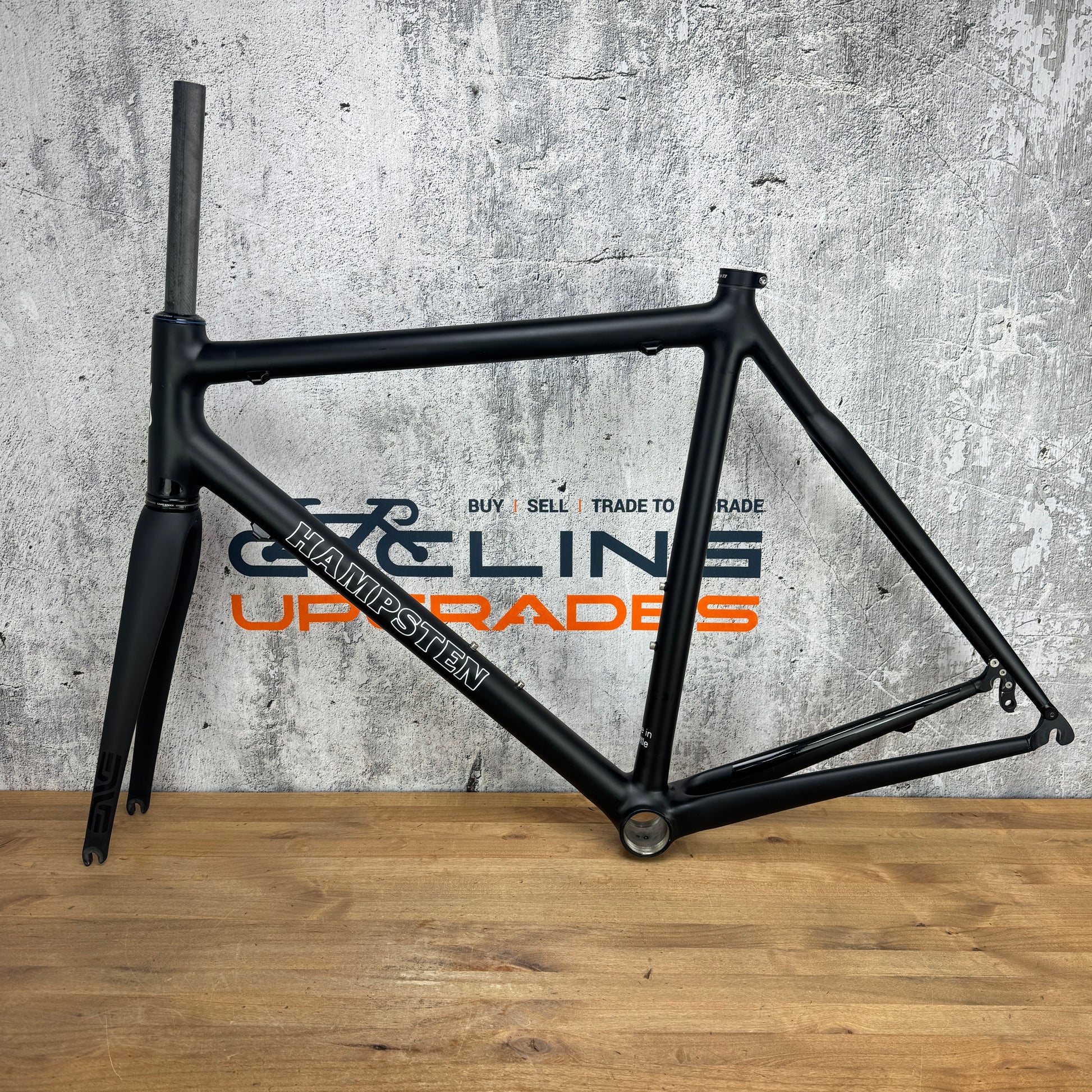

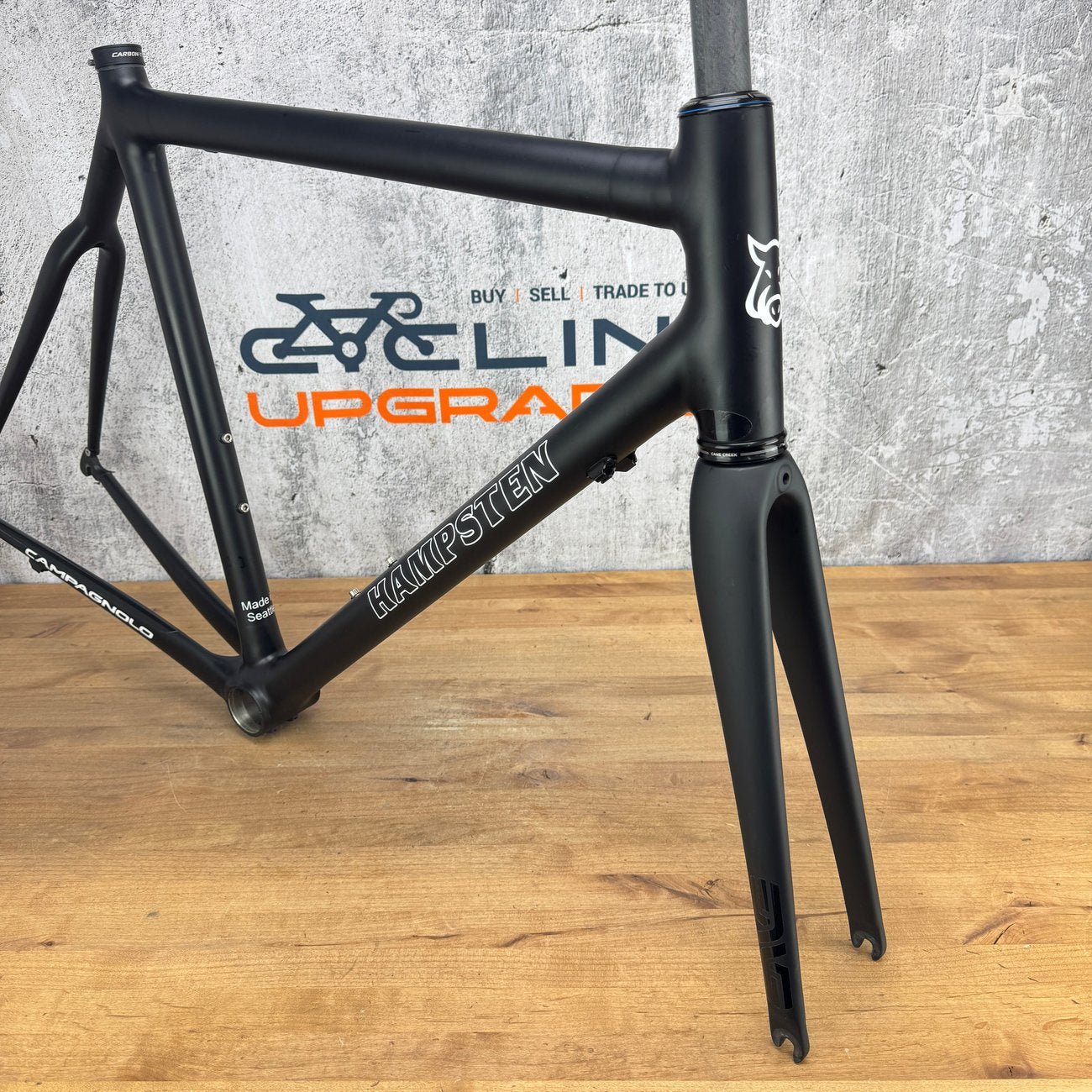

Hampsten Cycles Road 56cm Rim Brake Carbon Frameset 700c New Enve Fork 1718g
SKU: 08262025-0012-12
Ships next business day or sooner. Trade toward it
Pickup available at CyclingUpgrades Spanish Fork (new location) Store info
-
CyclingUpgrades Spanish Fork (new location)
Pickup available · Usually ready in 24 hours
3544 North Main Street
Unit 110
Spanish Fork UT 84660
United States
30-day returns, inspected before it ships Why buy from us
- Cleaned before listing
- Inspected and function-tested
- Photos of the actual item, flaws included
- Specs and condition recorded for every listing
- Packed securely to arrive as listed
- 30-day returns
Item Specs
- Brand
- Hampsten
- Model
- Road
- Part type
- Bicycle Frame
- Wheel size
- 700C
- Brake type
- Rim Brake
- Frame size
- 56cm
- Material
- Carbon
- Color
- Black
Further product information
Description

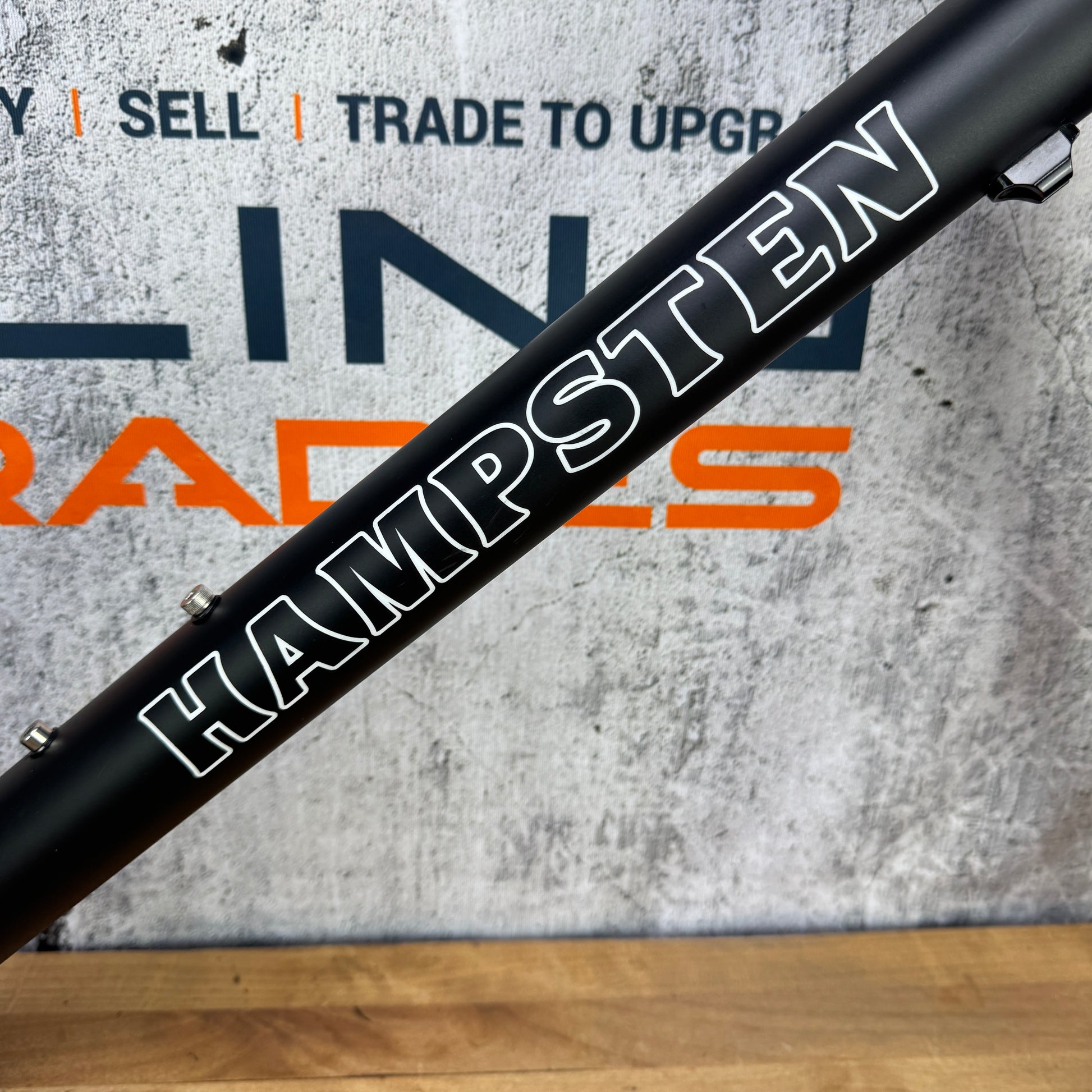

Frame: Hampsten Cycles road
Fork: New Enve Tapered fork 43mm rake with an uncut steerer. We can sell without the fork for $450 less - message with requests before purchasing.
Color: Black
Tire Clearance: 28mm
Brake type: Center-Mount rim brake

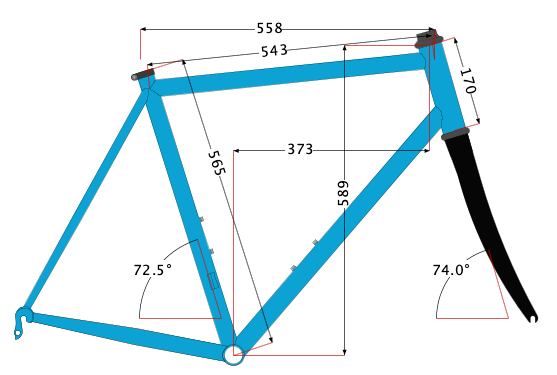

Size: 56cm. 558mm Effective Top Tube. Stack - 589mm. Reach - 373mm. Head tube 170mm. As we were not able to obtain a copy of the original geometry chart for this frame, CyclingUpgrades reverse engineered a geometry chart using a combination of measurements obtained from setting the frame in a Benchmark Tooling frame building fixture and manual measurements taken by hand. A copy of this geometry chart is shown in the last listing photo.

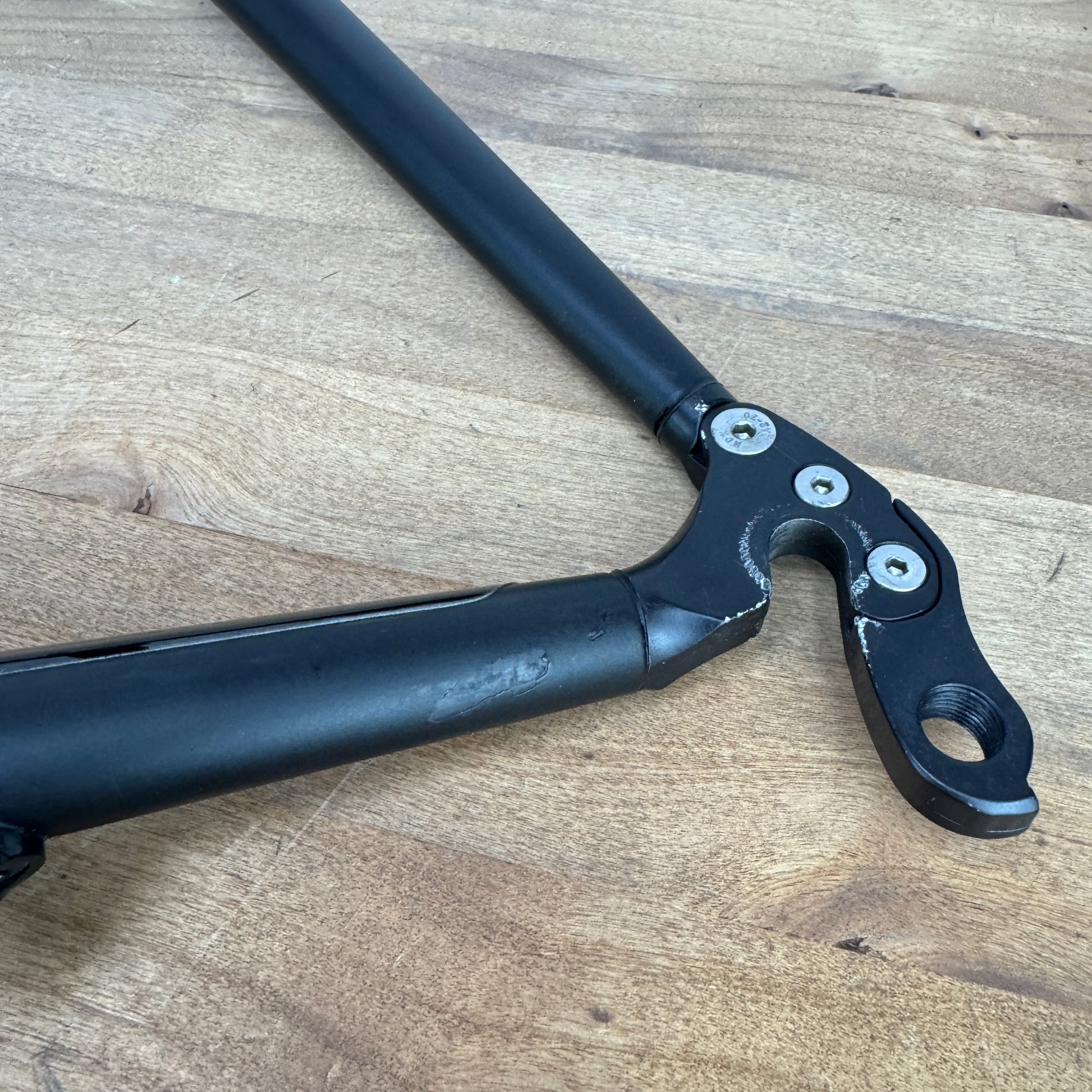

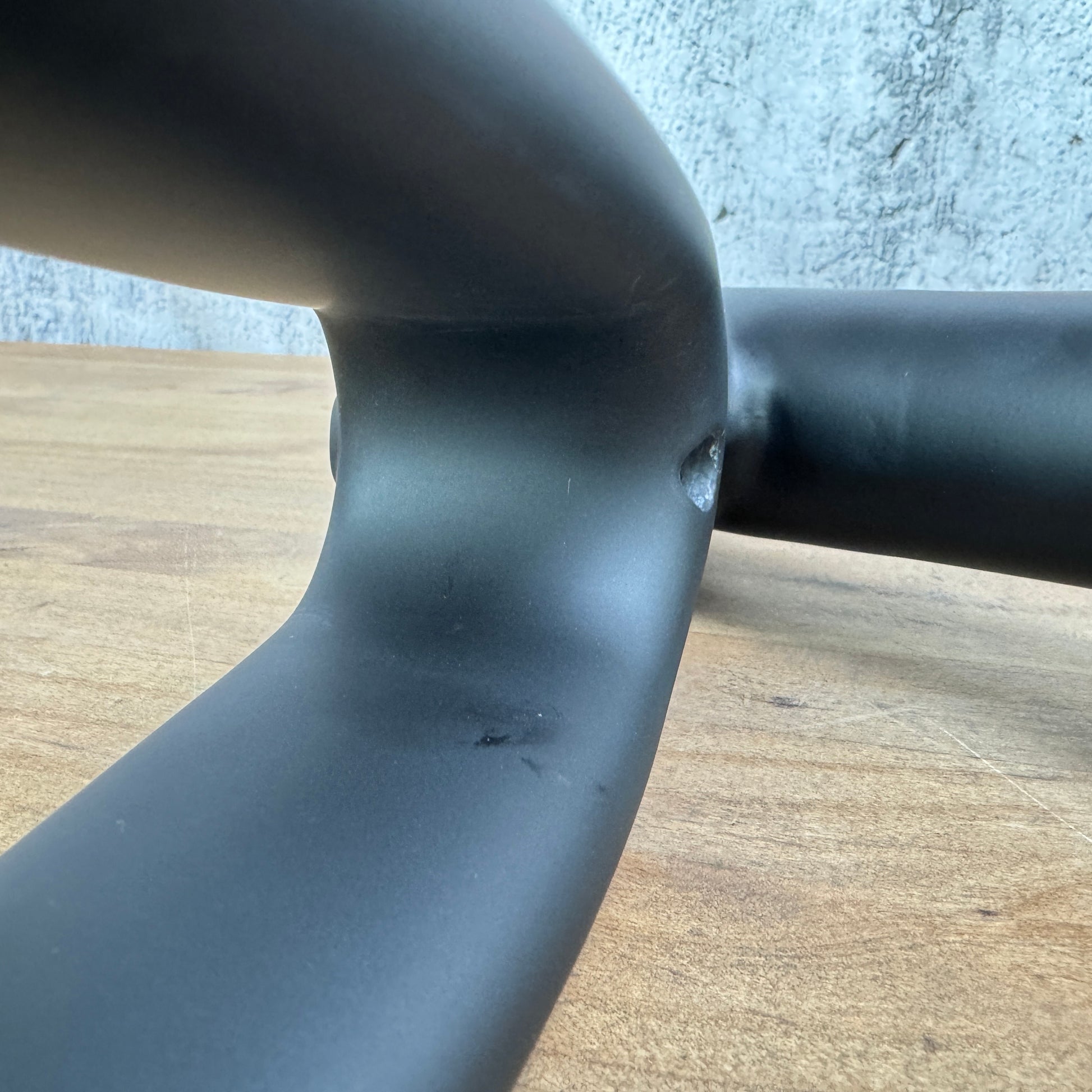

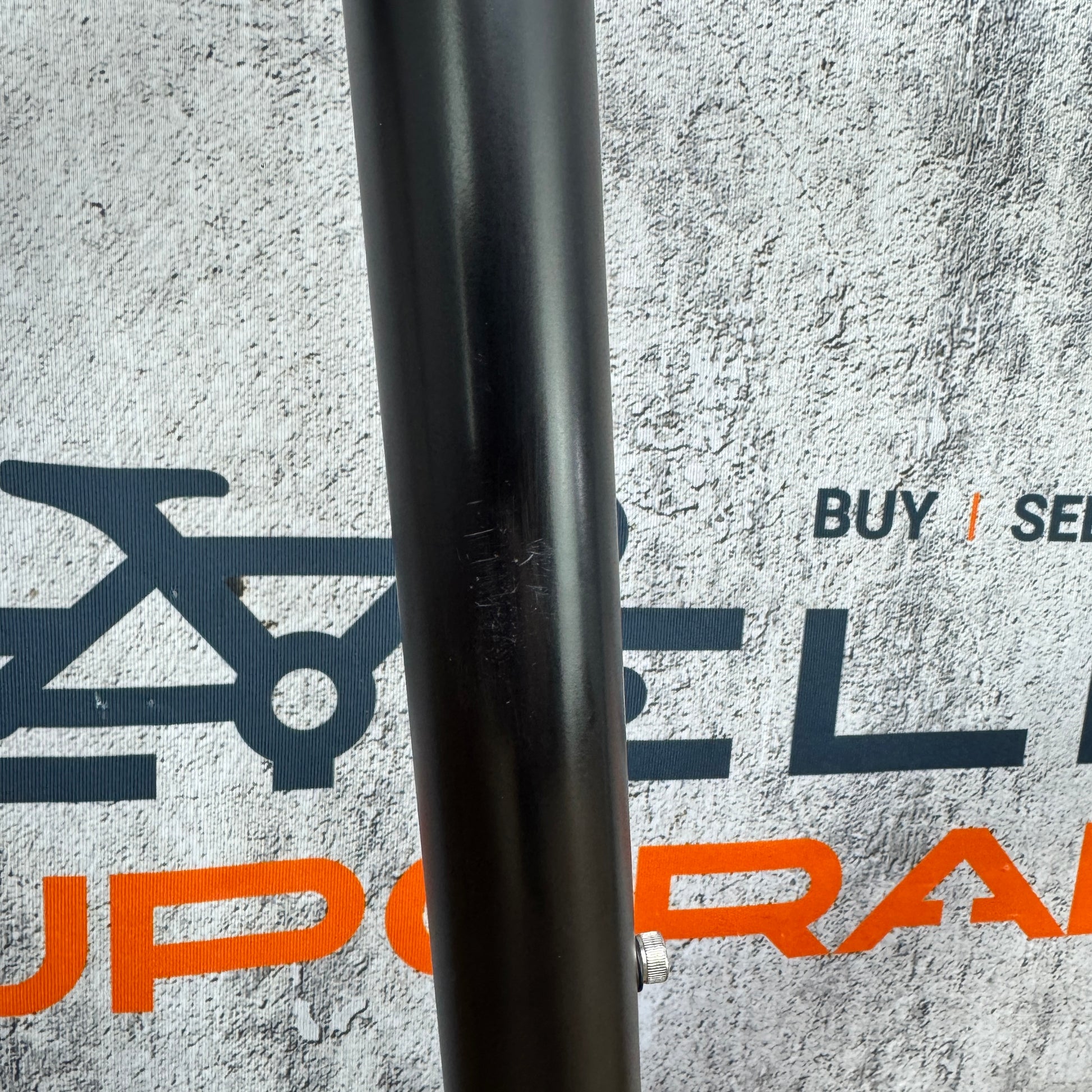

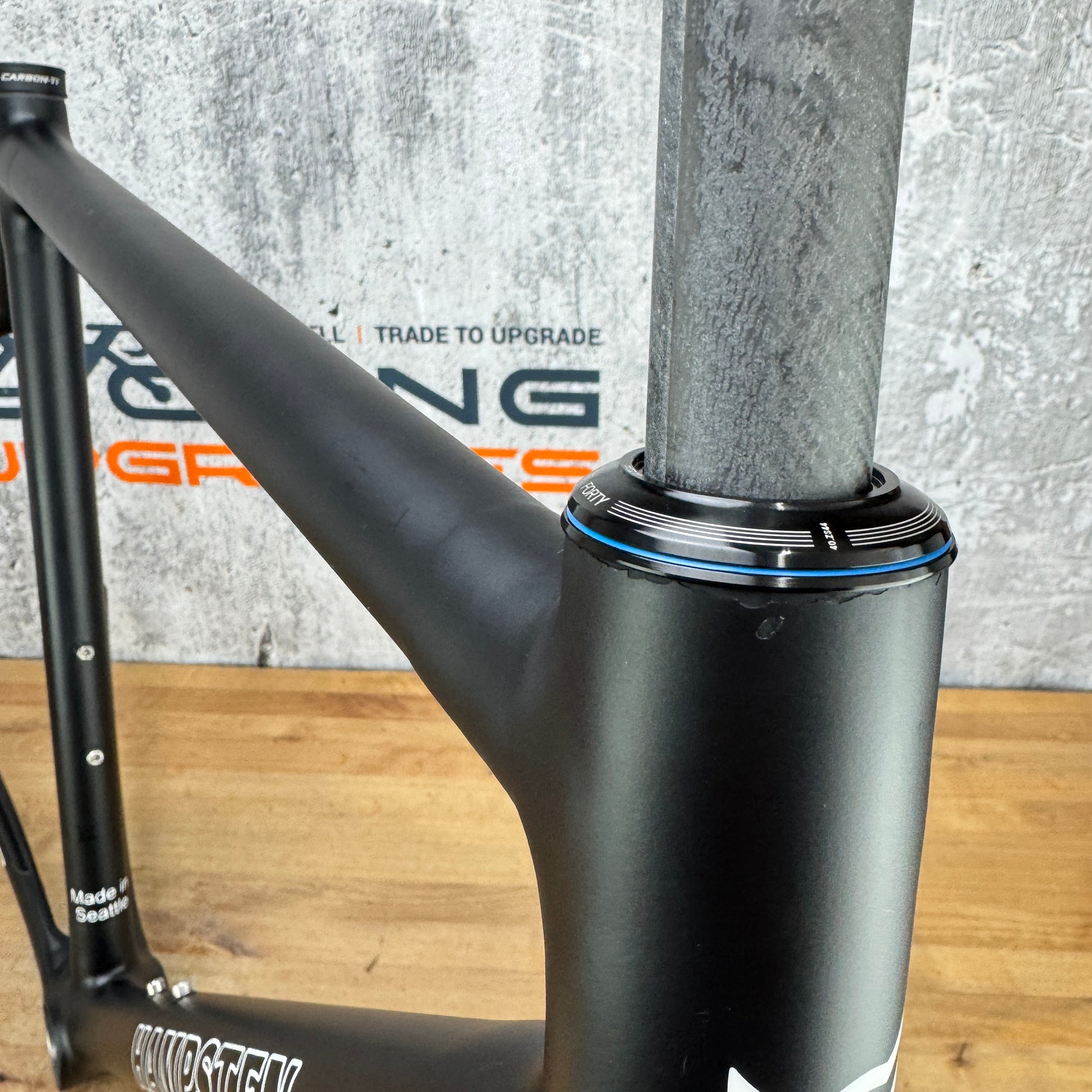

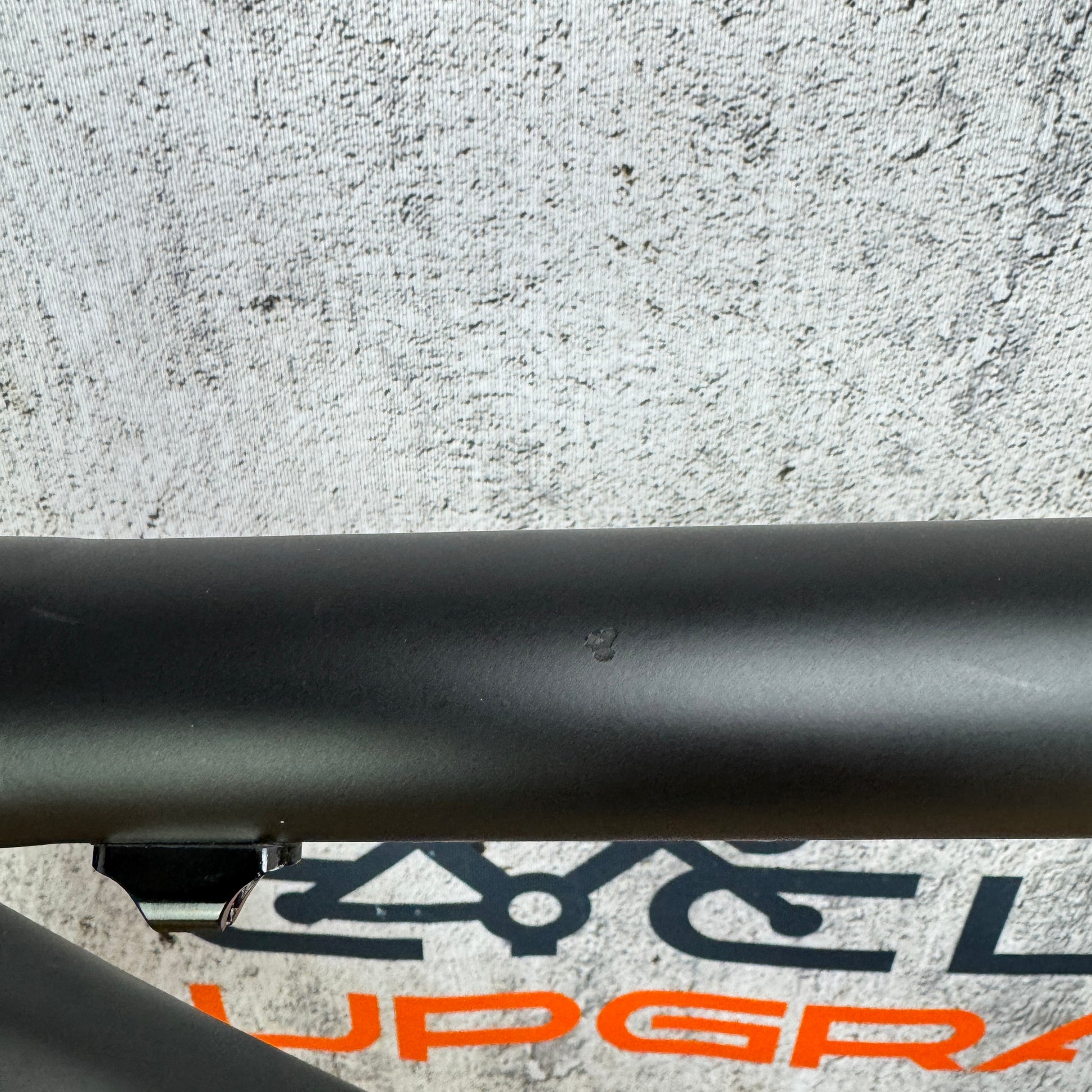

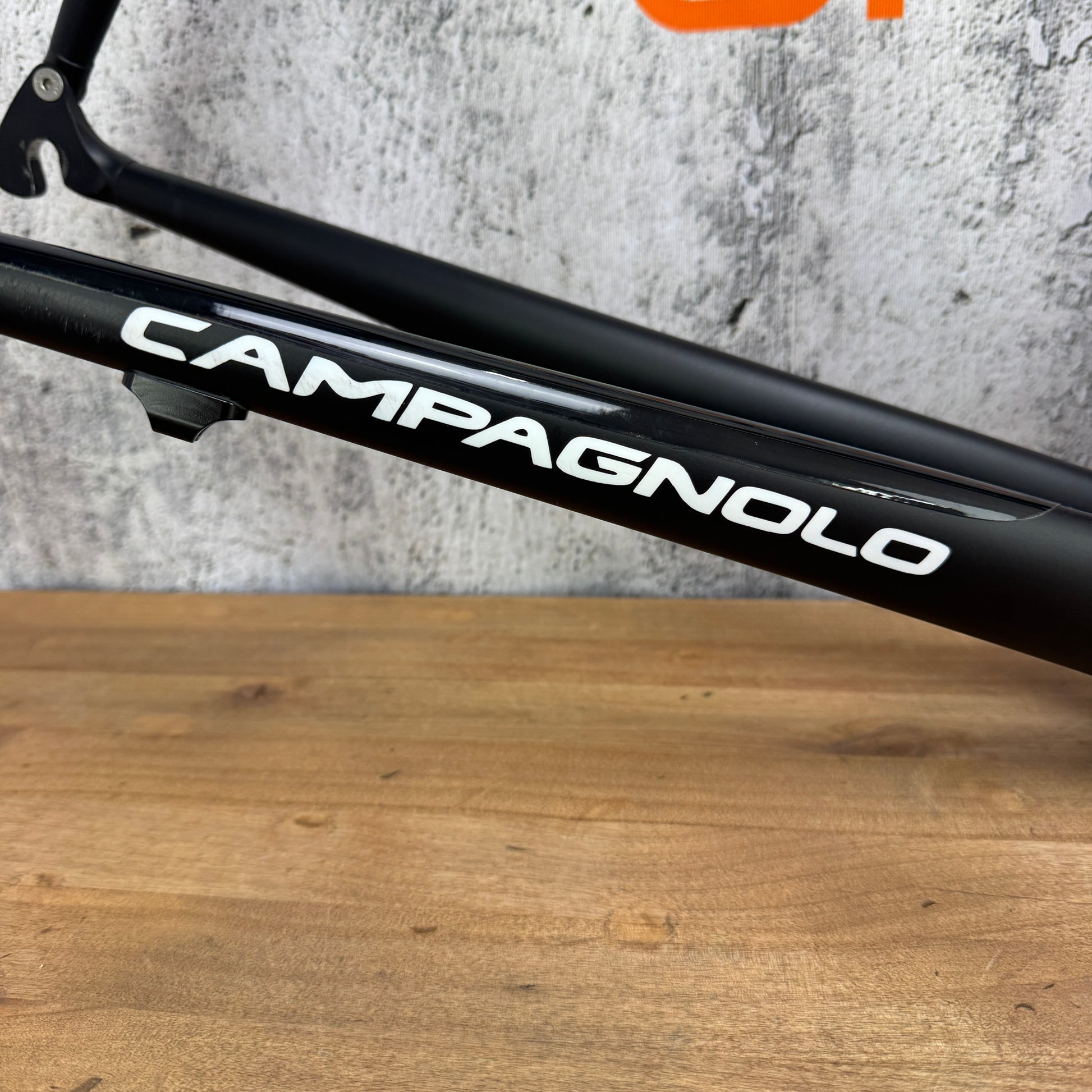

Condition: No cracks or carbon defects were identified through a thorough visual inspection. The cosmetic imperfections to highlight include: Some scratches on the seat tube shown in pic #9, some paint chips on the head tube shown in pic #10, a scratch on the top tube shown in pic #11, and some scratches on the chainstays shown in pic #12. We have attempted to show all noticeable imperfections in specific close-up pictures, however other minor imperfections and light signs of use may exist.

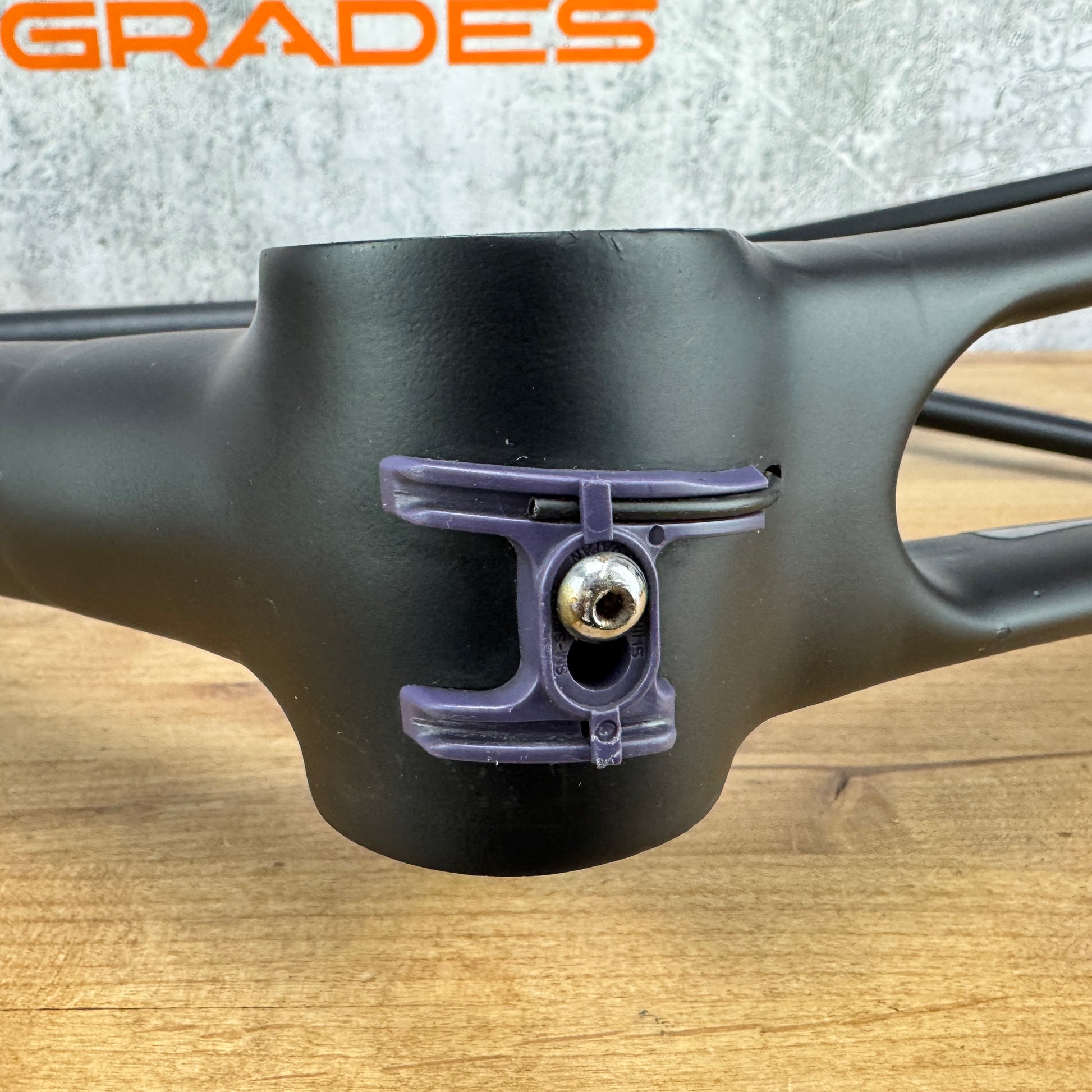

Groupset compatibility: Frame can be setup for eTap or mechanical groupsets. This frame is not compatible with Di2, or EPS setups. Mechanical cable guide below the bottom bracket intact.

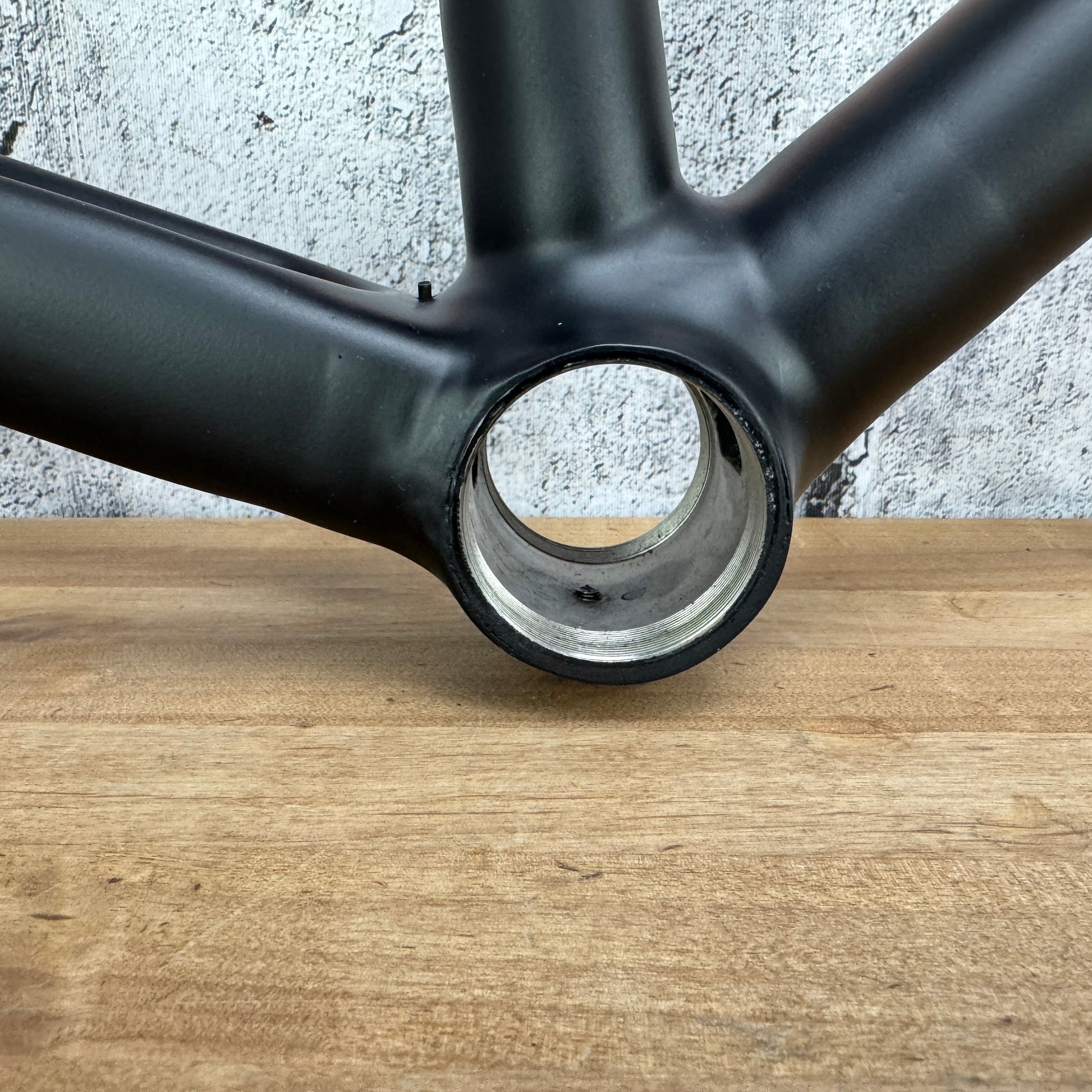

Bottom bracket: Threadfit T47/68 bottom bracket shell type. No bottom bracket is currently installed or included. We have a handful of lightly used basic bottom brackets on hand, let us know what you need and we can try to ship the frame with the right bottom bracket installed. Additionally, CyclingUpgrades is a Ceramicspeed and Cane Creek Authorized Dealer, if you prefer to have the frame setup with a certain bottom bracket we can add and install it at an additional cost before shipping - message with inquiries/requests.

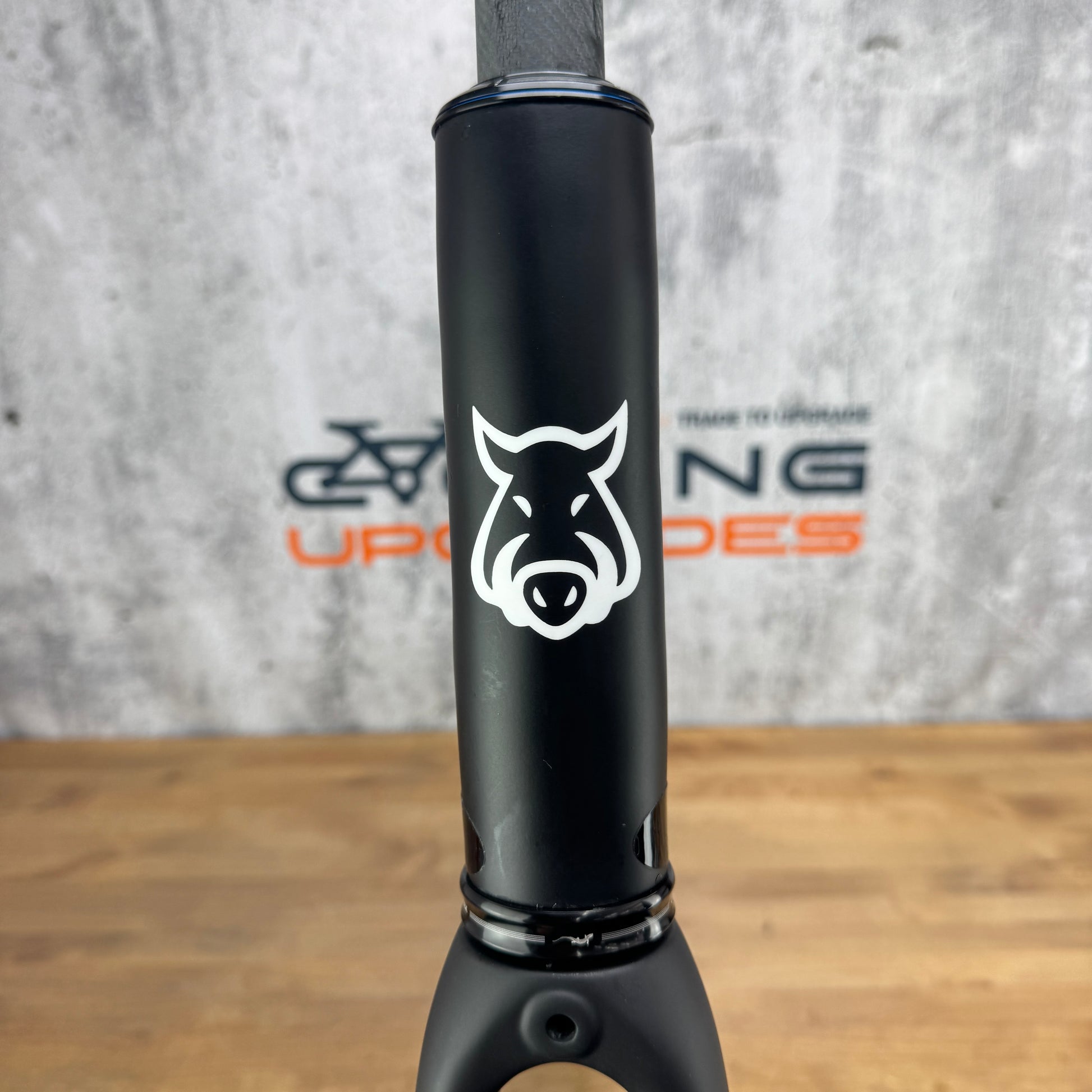

Headset: Cane Creek headset.
Seatpost: 27.2mm diameter. No seatpost included.
Dropout Spacing: QR x 100mm front, QR x 130mm rear.
Weight: 1718 grams as pictured with headset, frame hardware, etc.
What's included: Frame, fork, headset, rear derailleur hanger.
