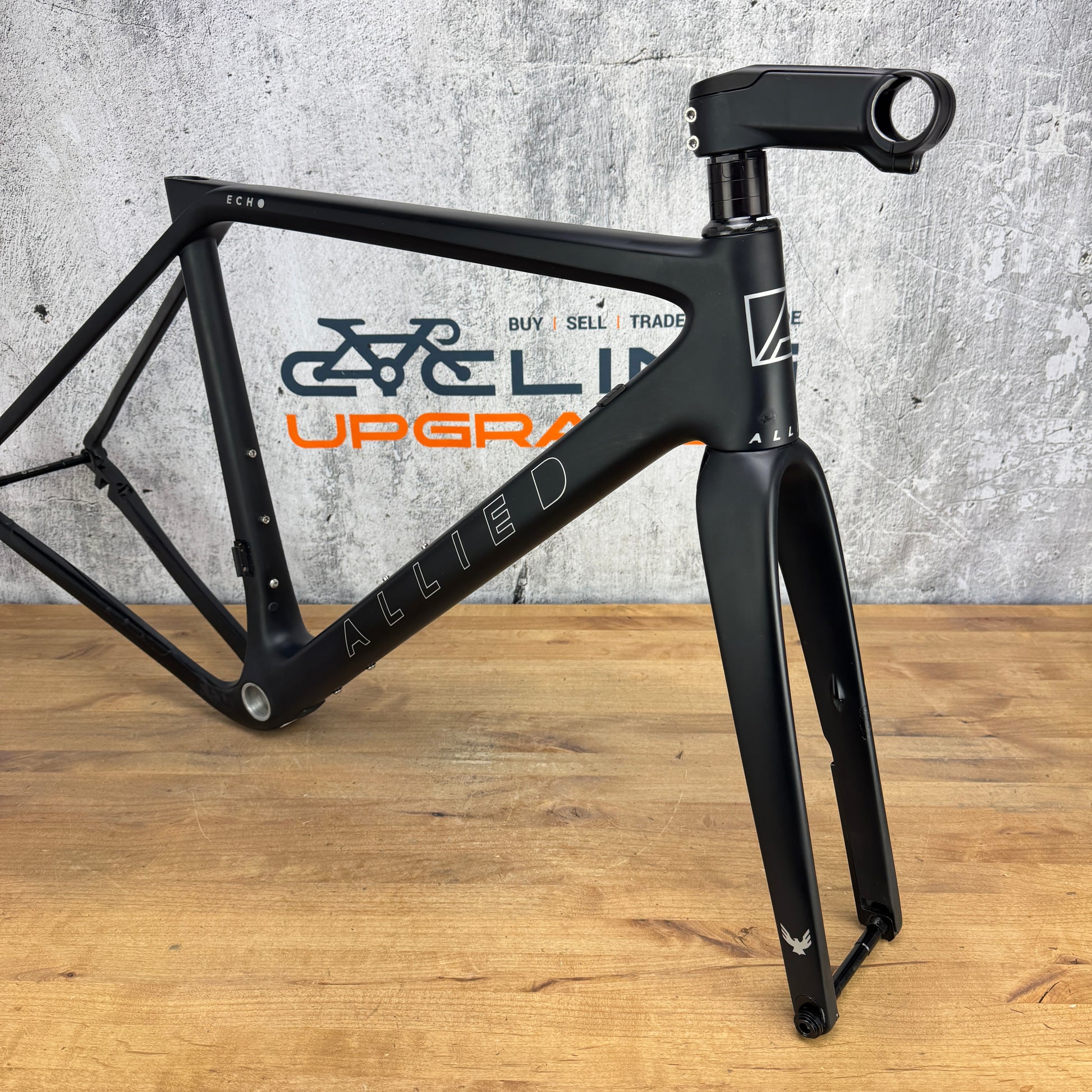

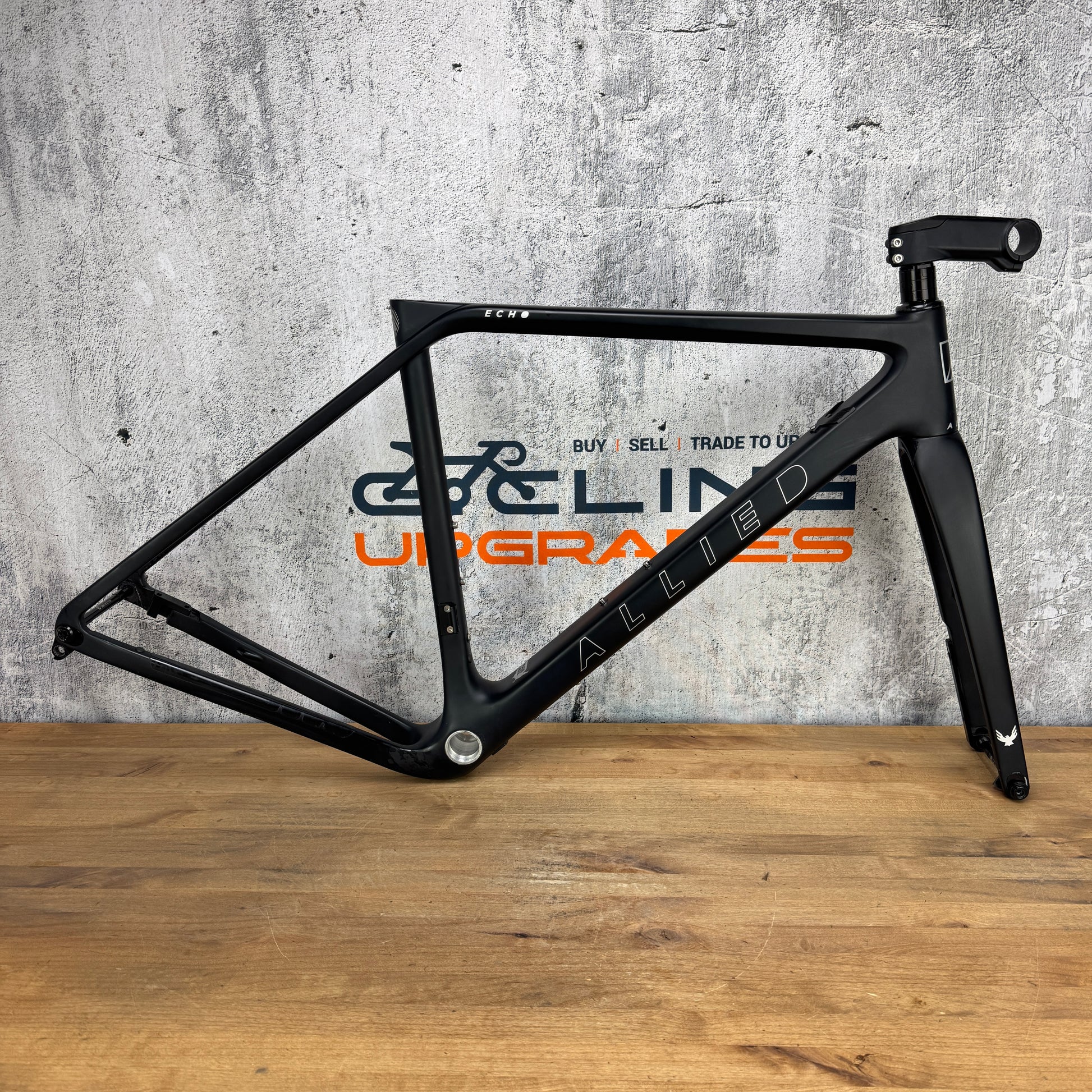

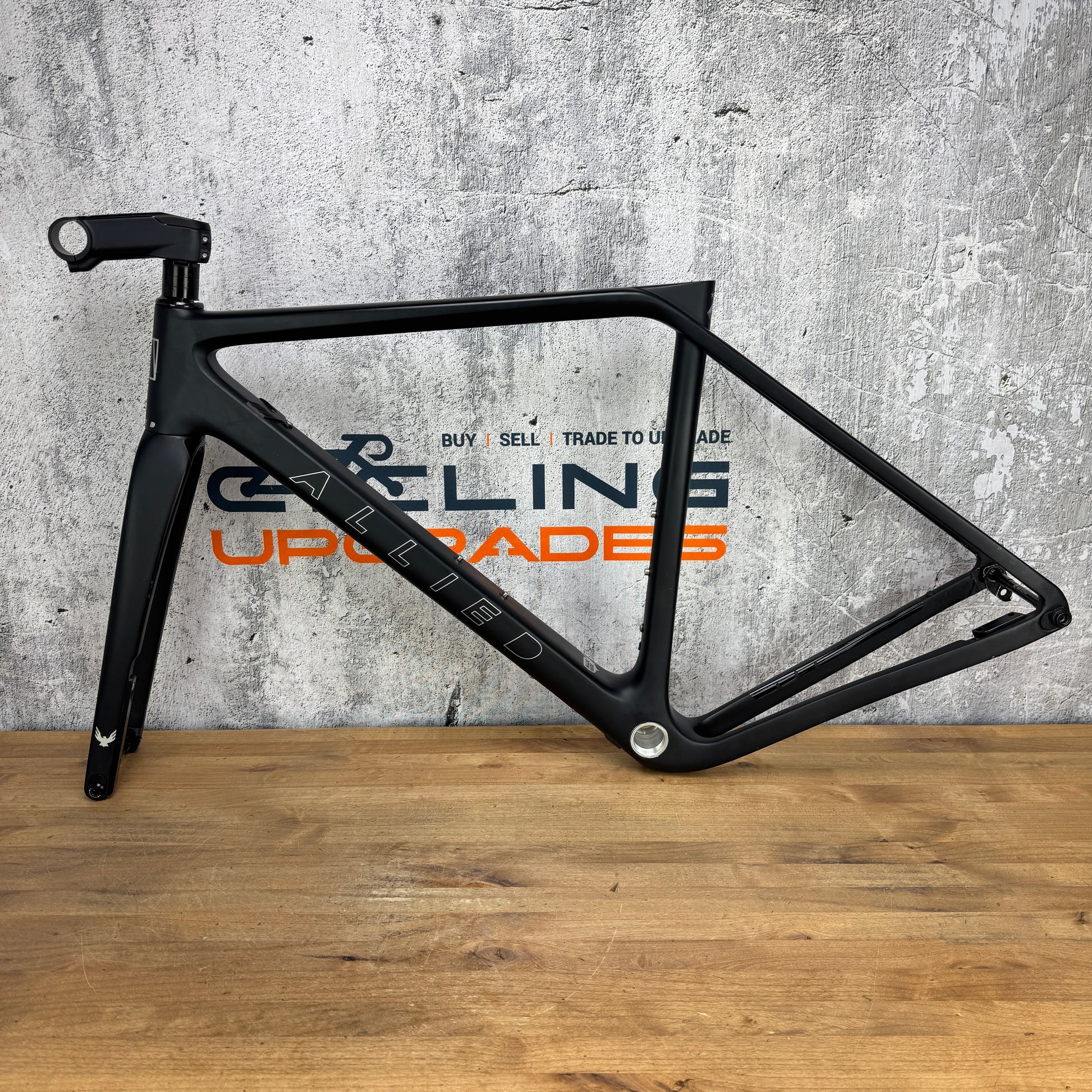

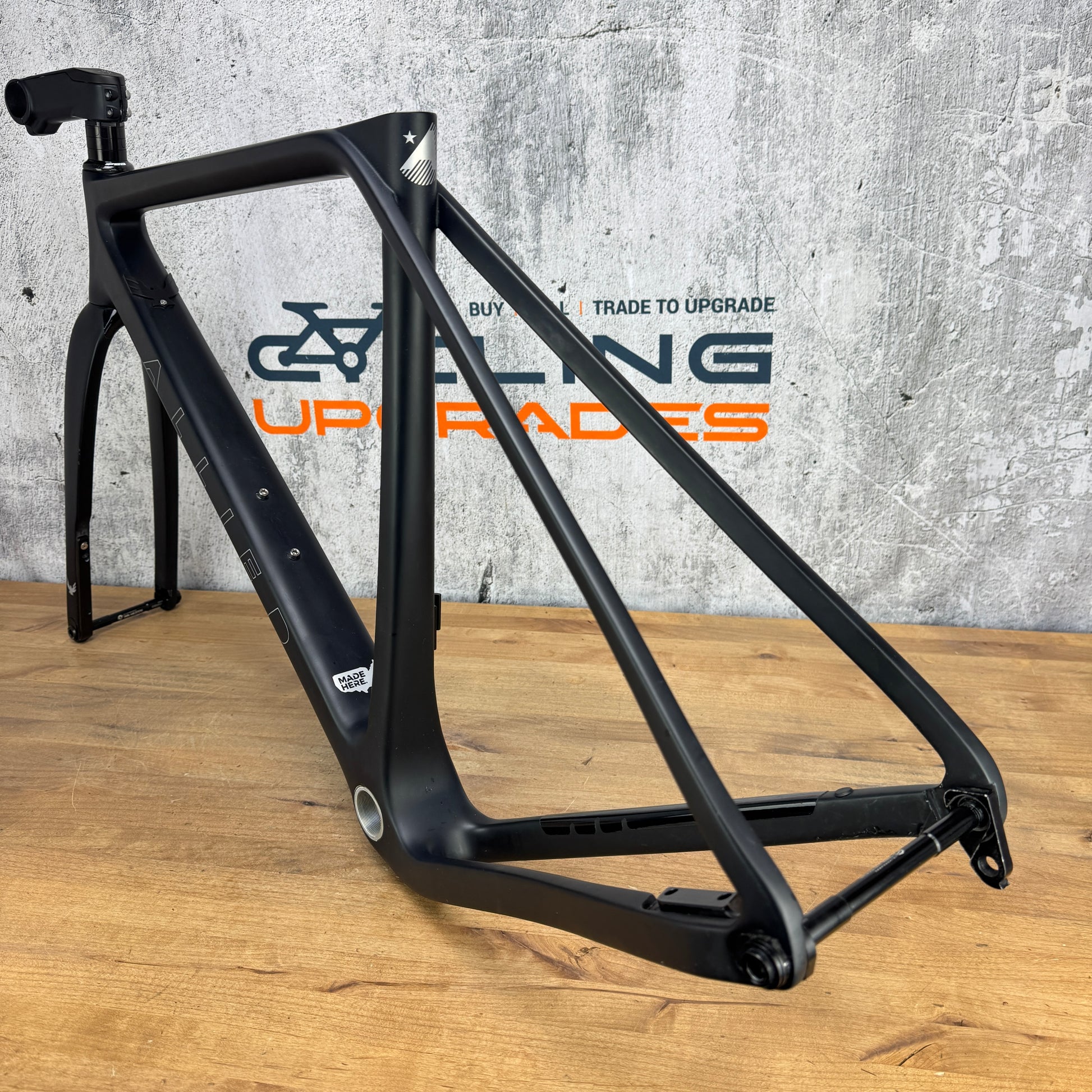

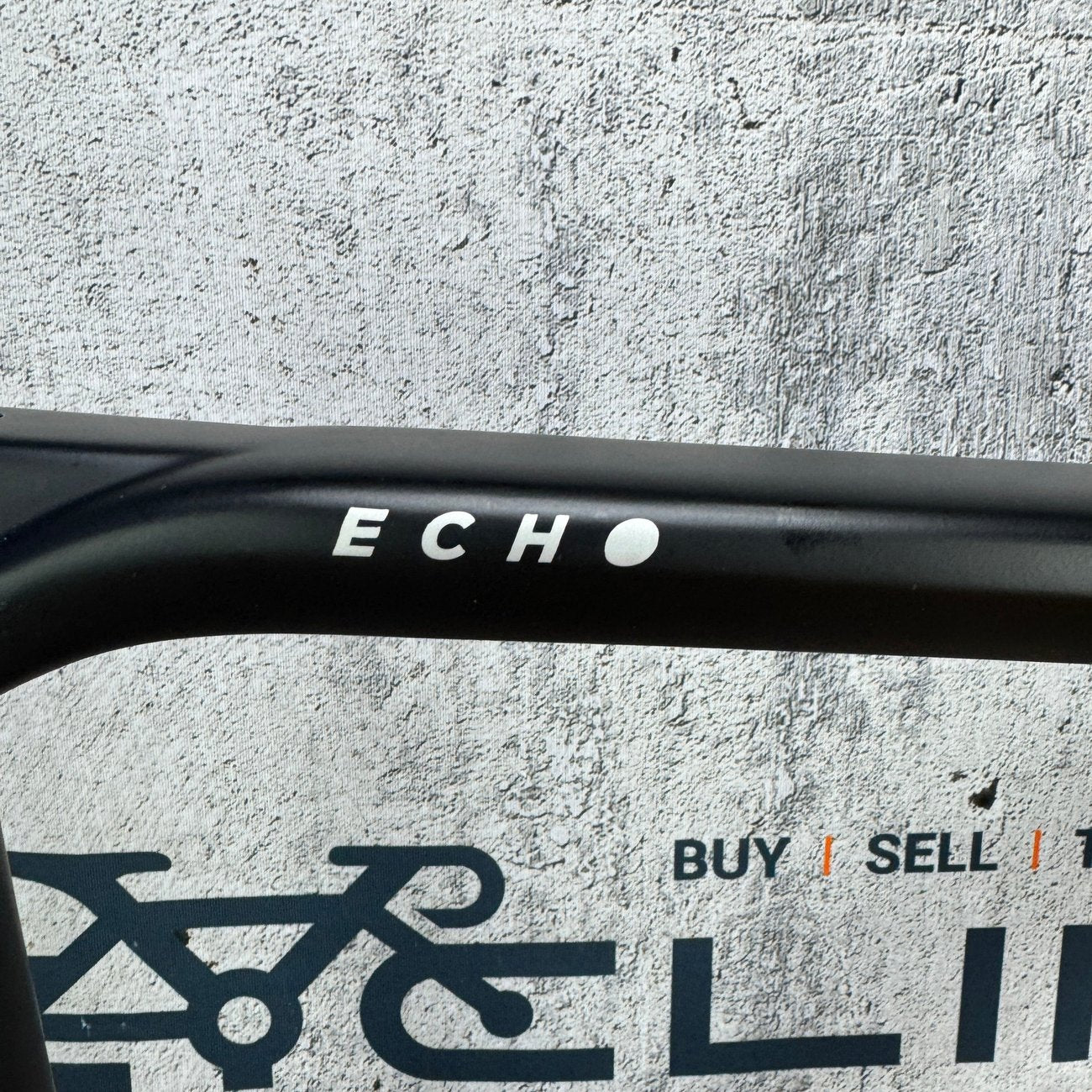

2023 Allied Echo Allroad/Gravel XS (52cm TT) Carbon Disc Brake Frameset 1966g
SKU: 09032025-1147-01
Ships next business day or sooner. Trade toward it
Pickup available at CyclingUpgrades Spanish Fork (new location)
Usually ready in 24 hours
View store information
-
CyclingUpgrades Spanish Fork (new location)
Pickup available · Usually ready in 24 hours
3544 North Main Street
Unit 110
Spanish Fork UT 84660
United States
- Cleaned before listing
- Inspected and function-tested
- Photos of the actual item, flaws included
- Specs and condition recorded for every listing
- Packed securely to arrive as listed
- 30-day returns
Item Specs
- Brand
- Allied
- Model
- Echo
- Part type
- Bicycle Frame
- Wheel size
- 700C
- Brake type
- Disc Brake
- Frame size
- XS
- Material
- Carbon
- Color
- Black
Further product information
Description
Frame: 2023 Allied Echo All Road
Color: Black
Tire Clearance:
Brake type: Flat-Mount disc brake.
Size: XS. Road Mode Geometry: 528mm Effective Top Tube. Stack - 530mm. Reach - 381mm. Head tube 123mm.
Gravel Mode Geometry: 515mm Effective Top Tube. Stack - 535mm. Reach - 376mm. Head tube 123mm. Recommend buyer confirm and research full geometry online.
Road Setup: Max tire clearance up to 30mm (shorter chainstays and steeper head angle).
Allroad / Gravel Setup: Max tire clearance up to 40mm using the frame's adjustable flip chips in the fork and rear dropouts.

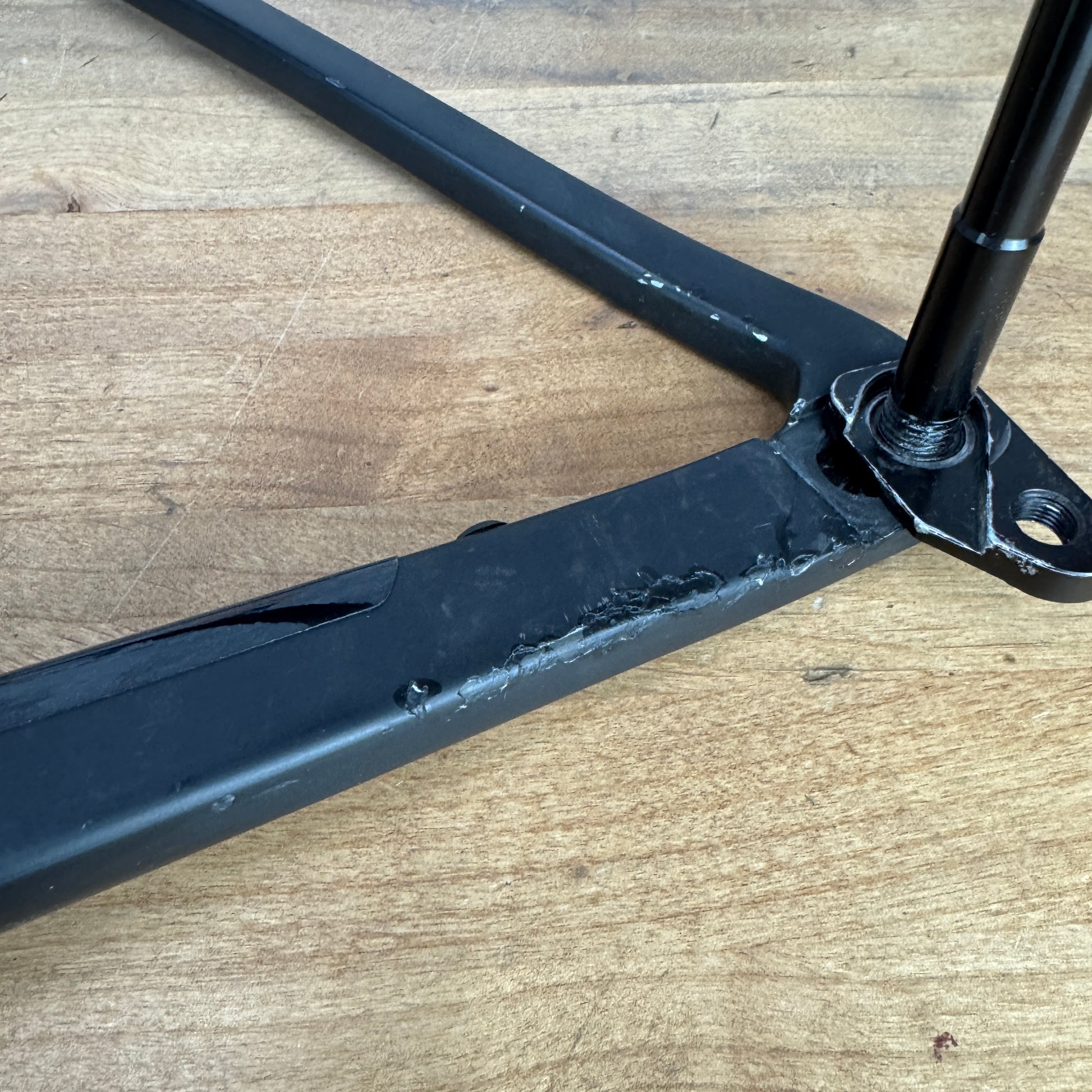

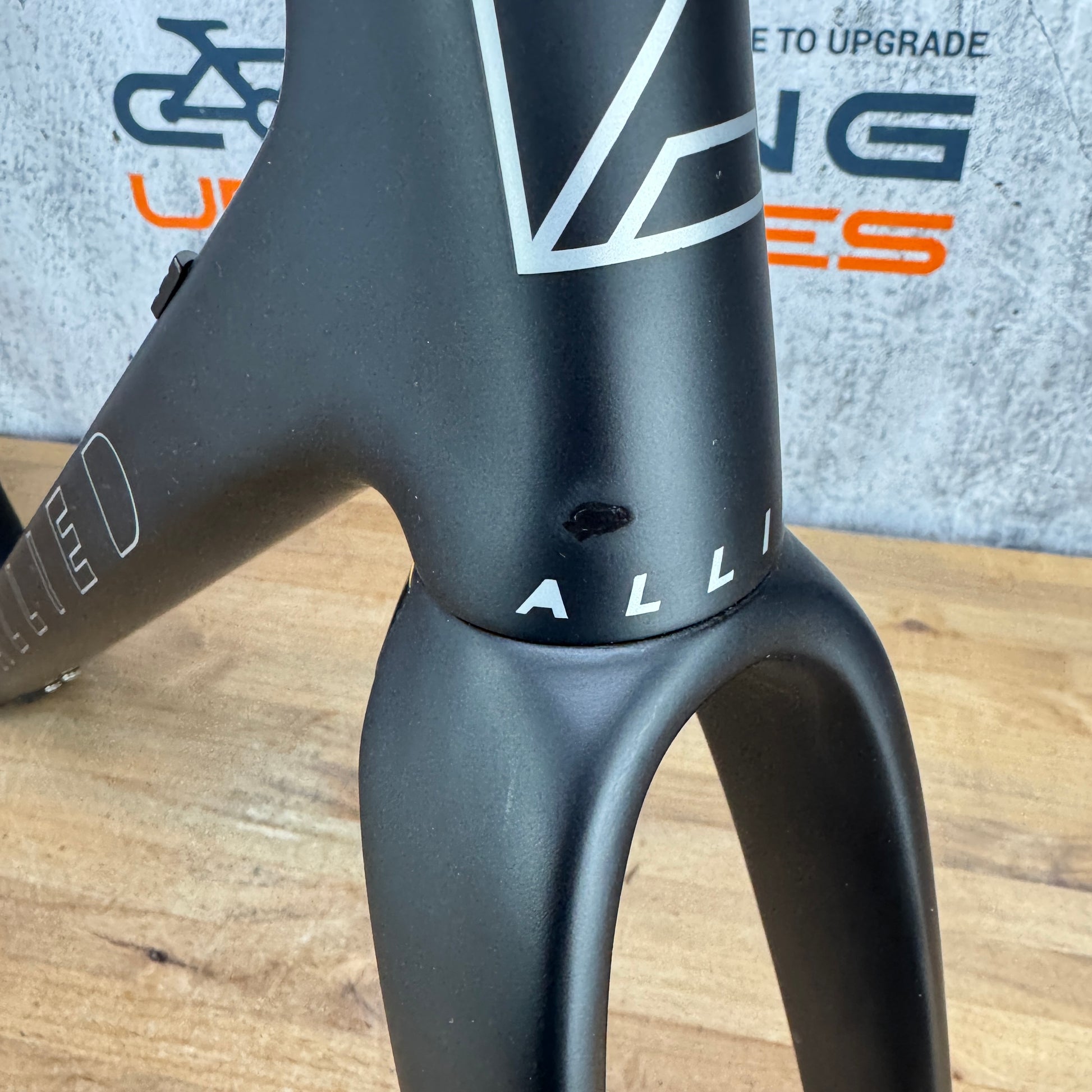

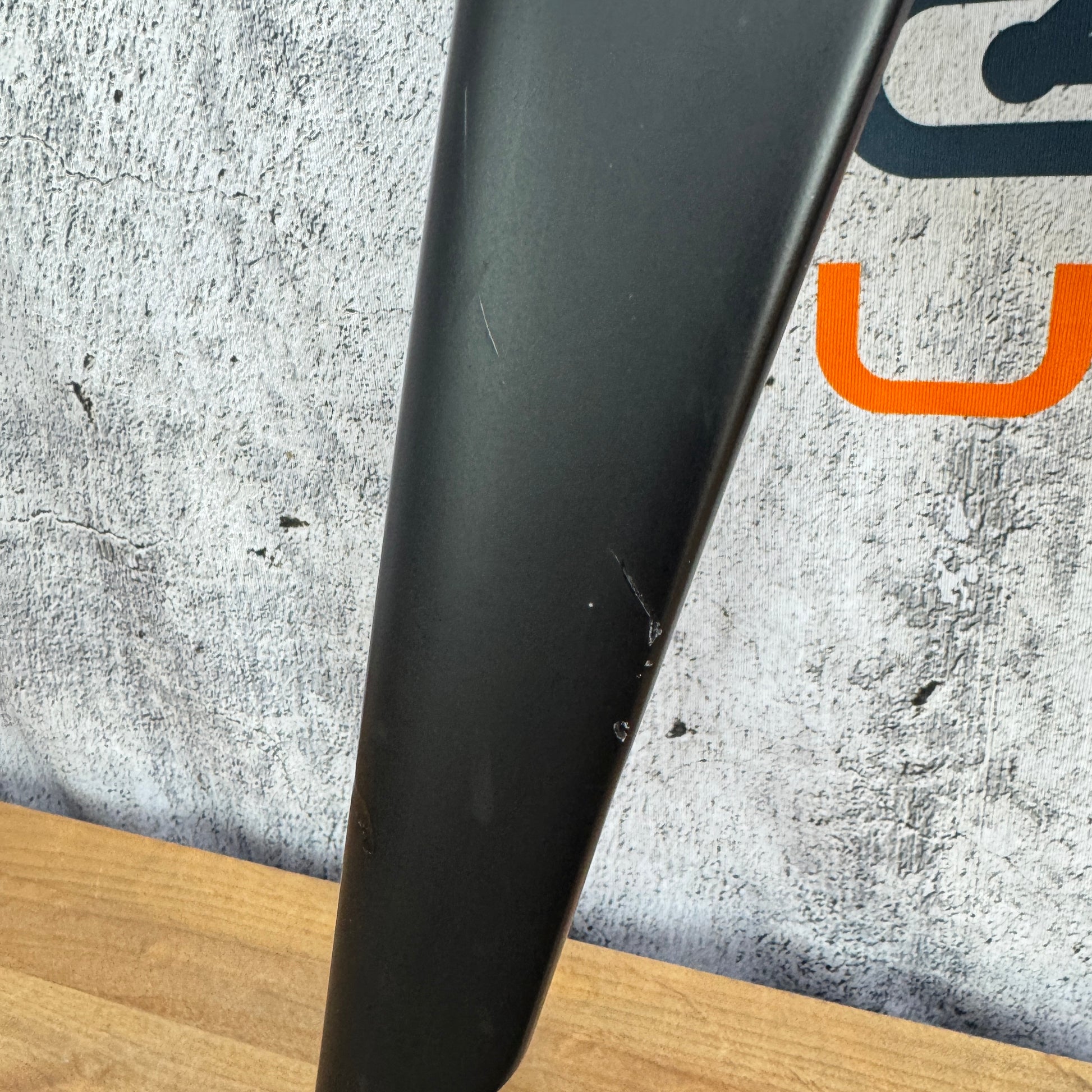

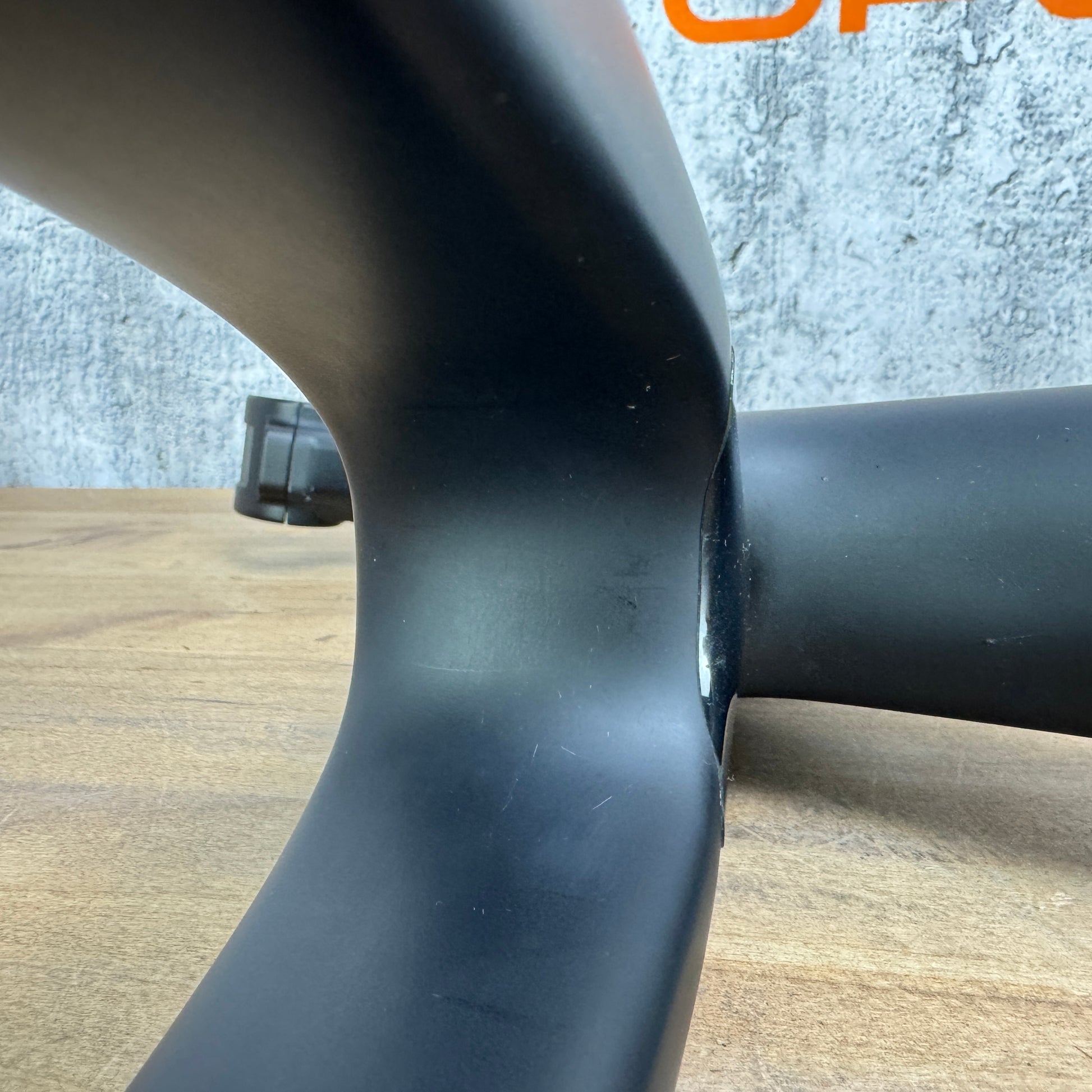

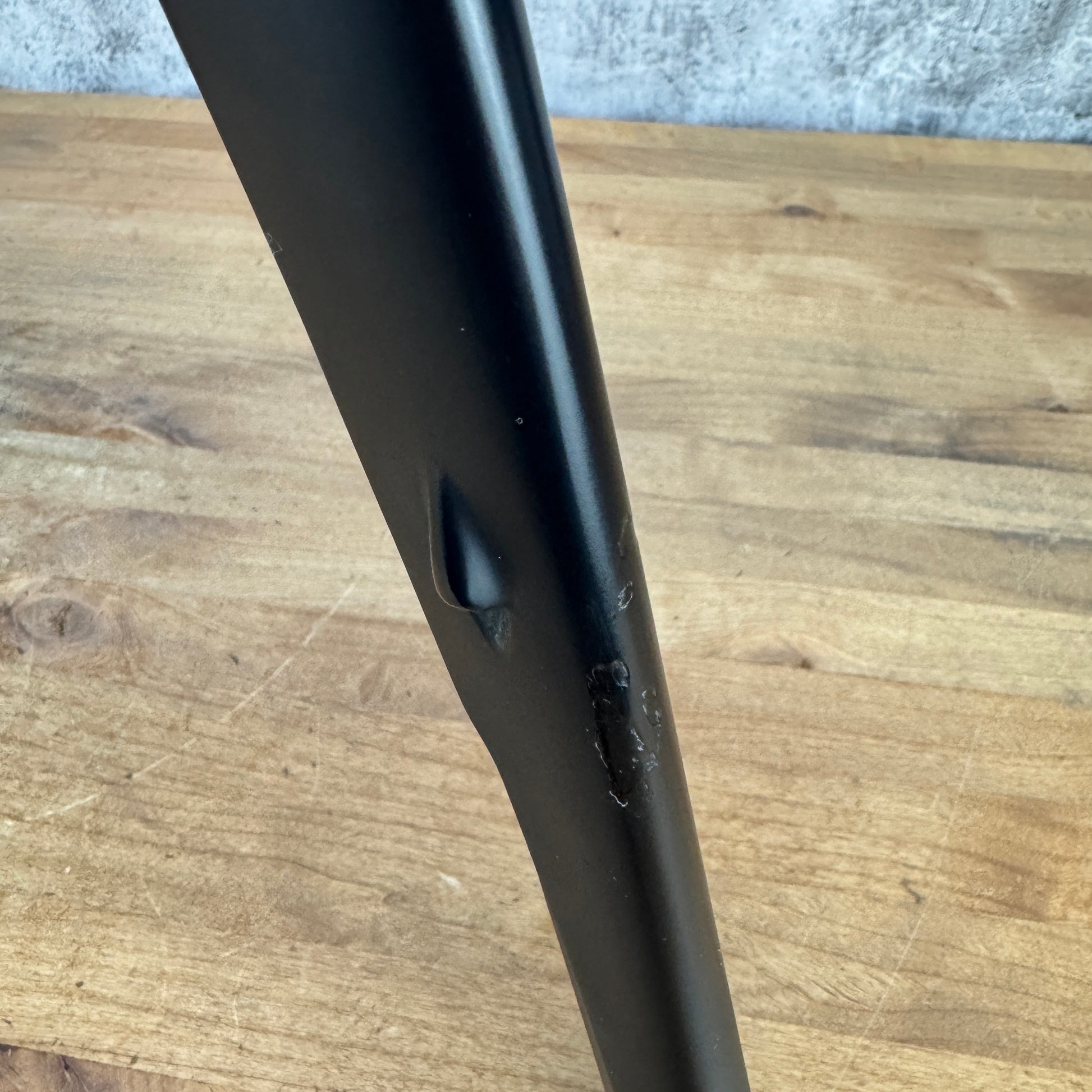

Condition: No cracks or carbon defects were identified through a thorough visual inspection. The cosmetic imperfections to highlight include: Some rub wear on the head tube shown in pic #9, some scratches on the fork shown in pics #10 & 11, and some scratches on the chainstay shown in pic #12. We have attempted to show all noticeable imperfections in specific close-up pictures, however other minor imperfections and light signs of use may exist.
Groupset compatibility: Frame can be setup for Di2, EPS, or eTap groupsets. This frame was previously setup with an eTap groupset. Other frame/cable stops may be needed for Di2 or EPS setups. This frame is not compatible with mechanical groupsets.

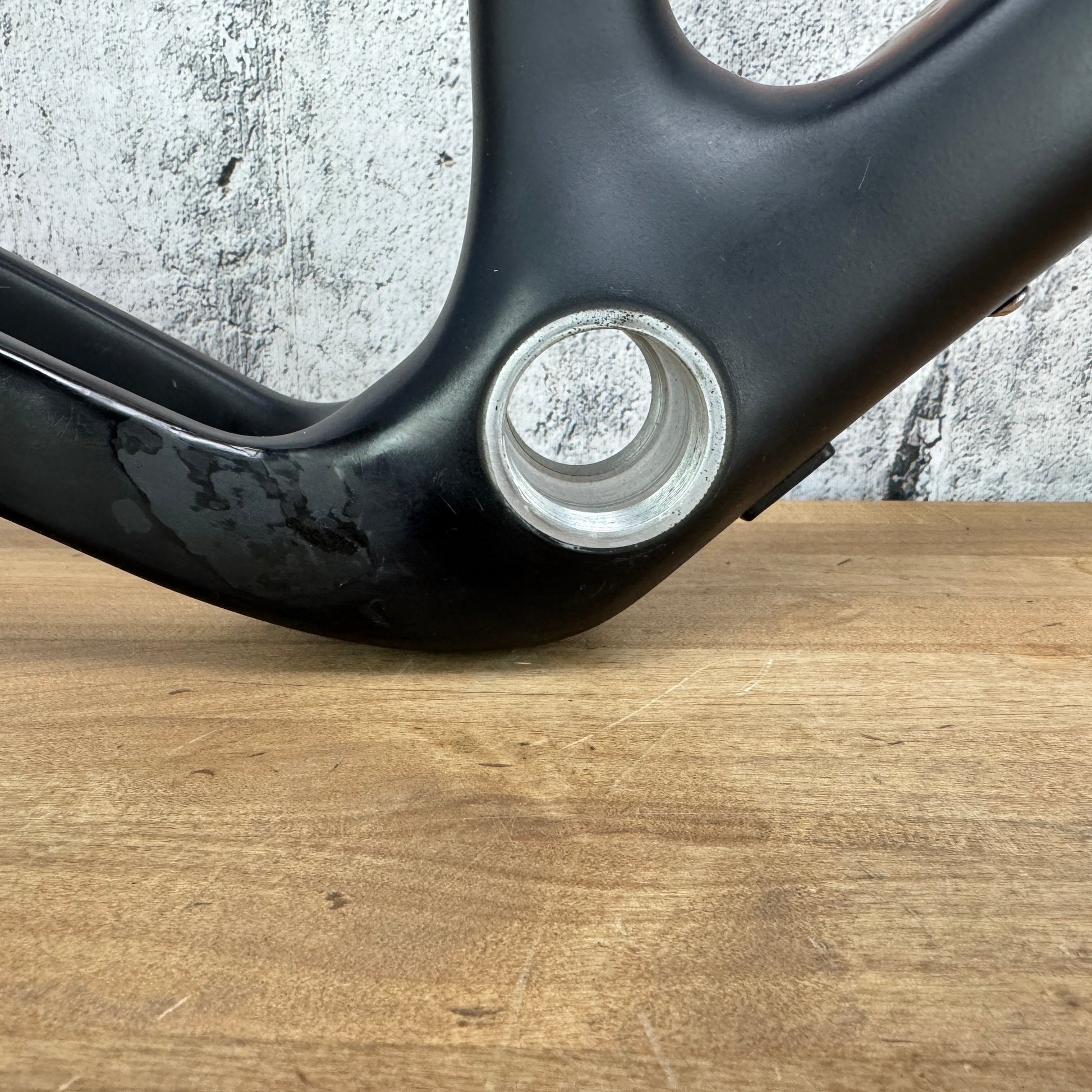

Bottom bracket: English threaded bottom bracket shell type. No bottom bracket currently installed and included. Alternatively, we have a handful of lightly used basic bottom brackets on hand, let us know what you need and we can try to ship the frame with the right bottom bracket installed. Additionally, CyclingUpgrades is a Ceramicspeed and Cane Creek Authorized Dealer, if you prefer to have the frame setup with a certain bottom bracket we can add and install it at an additional cost before shipping - message with inquiries/requests.

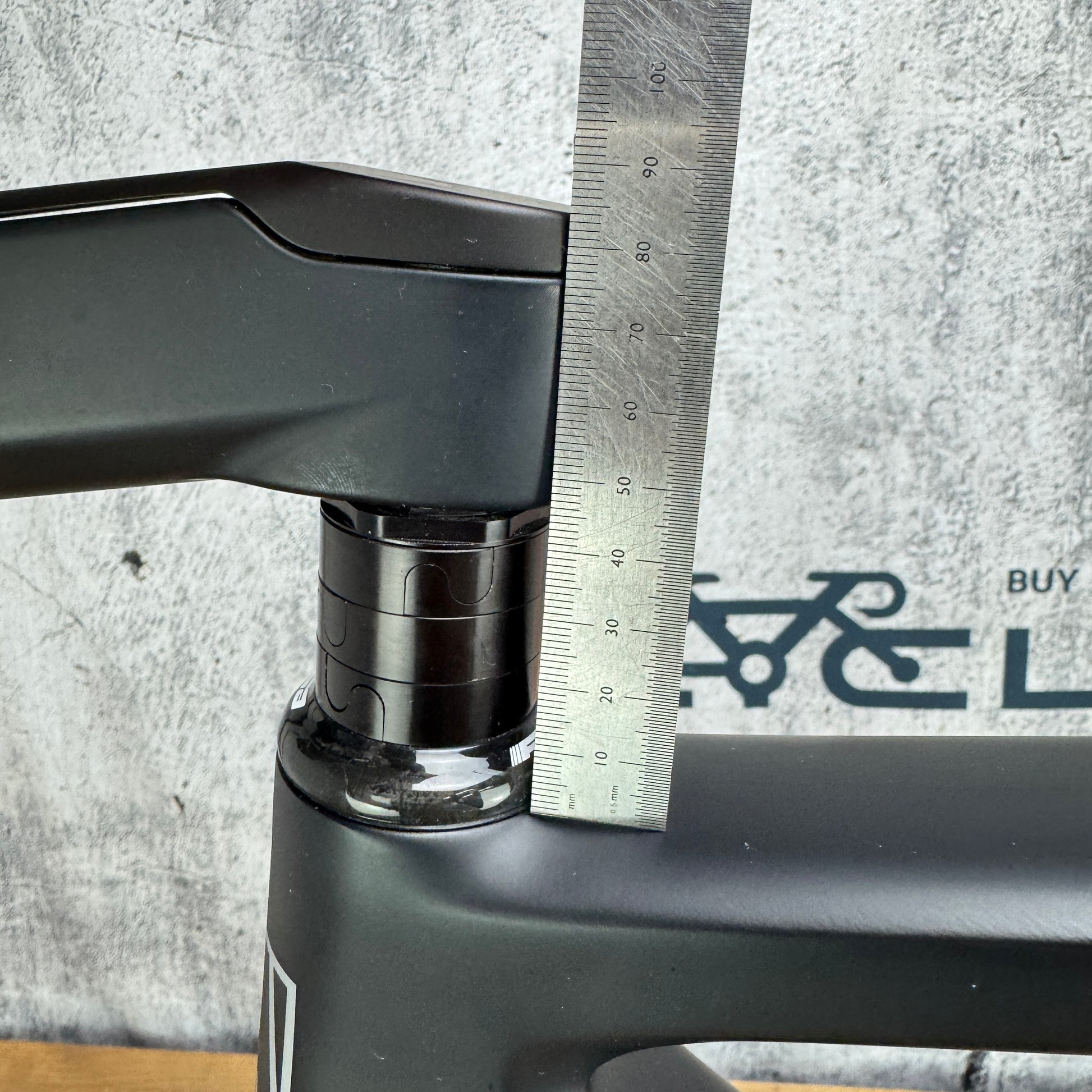

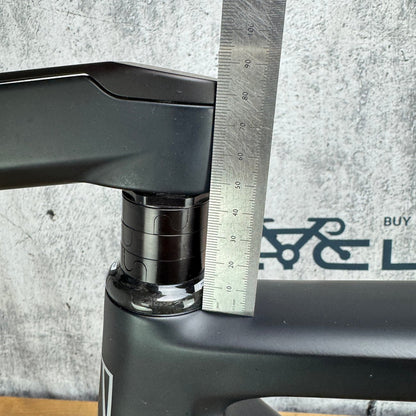

Steerer length: 80mm of steerer above the top tube. 30mm of spacers below the stem plus the headset cover. We may have an option available to safely extend the steerer tube by 15-18mm - message us for additional details.

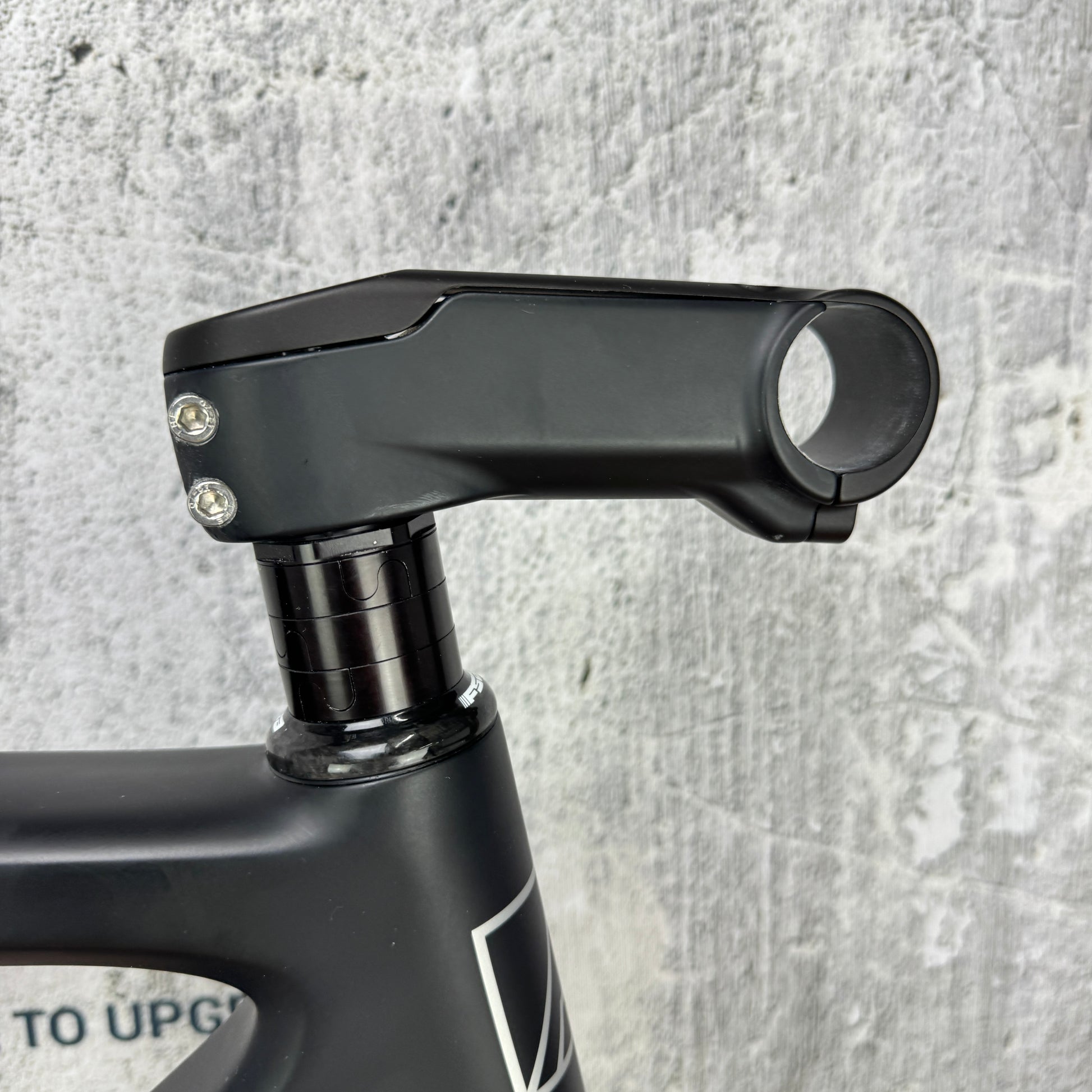

Stem: Allied alloy 100mm stem included.
Seatpost: 27.2mm diameter. No seatpost included.
Dropout Spacing: Front 12mm Thru Axle x 100mm, Rear 12mm Thru Axle x 142mm.
Weight: 1966 grams as pictured with headset, thru axles, stem, frame hardware, etc.
What's included: Frame, fork, headset, rear derailleur hanger, stem, thru axles
At CyclingUpgrades, we fulfill all orders next business day or sooner. Generally we are able to fulfill orders placed by 12pm MT on the same day, however it is not guaranteed. We ship all items via USPS except for large items which ship via UPS or Fedex. Please check our other listings for additional cycling upgrades and thank you for shopping our store!
