2022 Scott Addict eRIDE Ultimate HMX Large Mahle X20 56cm Carbon eBike Frameset
SKU: 11212024-1120-01
Ships next business day or sooner. Trade toward it
Pickup available at CyclingUpgrades Spanish Fork (new location) Store info
-
CyclingUpgrades Spanish Fork (new location)
Pickup available · Usually ready in 24 hours
3544 North Main Street
Unit 110
Spanish Fork UT 84660
United States
30-day returns, inspected before it ships Why buy from us
- Cleaned before listing
- Inspected and function-tested
- Photos of the actual item, flaws included
- Specs and condition recorded for every listing
- Packed securely to arrive as listed
- 30-day returns
Item Specs
- Brand
- Scott
- Model
- 2022 Addict eRIDE Ultimate HMX
- Part type
- Bicycle Frame
- Freehub driver type
- Options Available / See Description
- Wheel size
- 700C
- Brake type
- Disc Brake
- Frame size
- 56cm
- Material
- Carbon
- Color
- Black
Further product information
Description

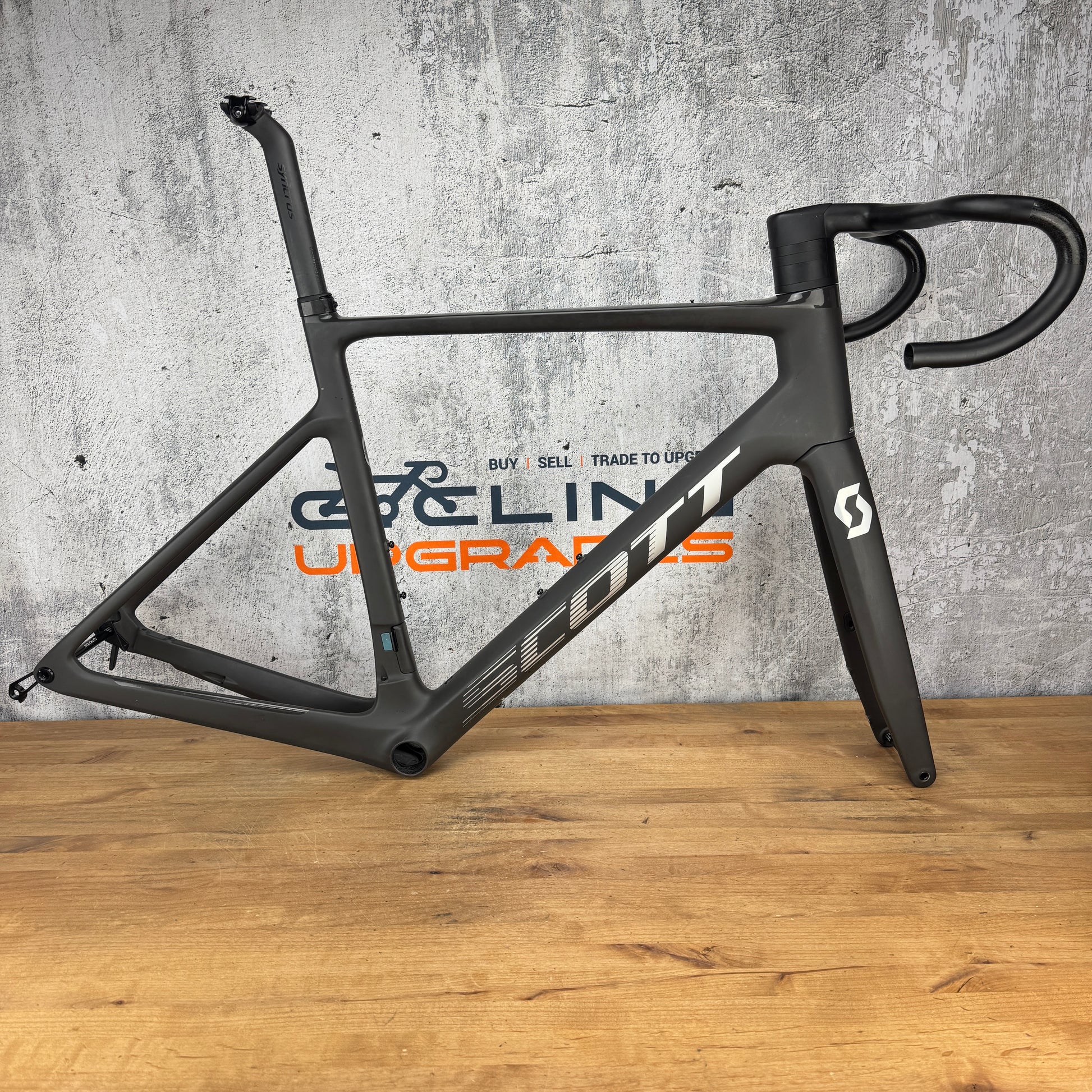

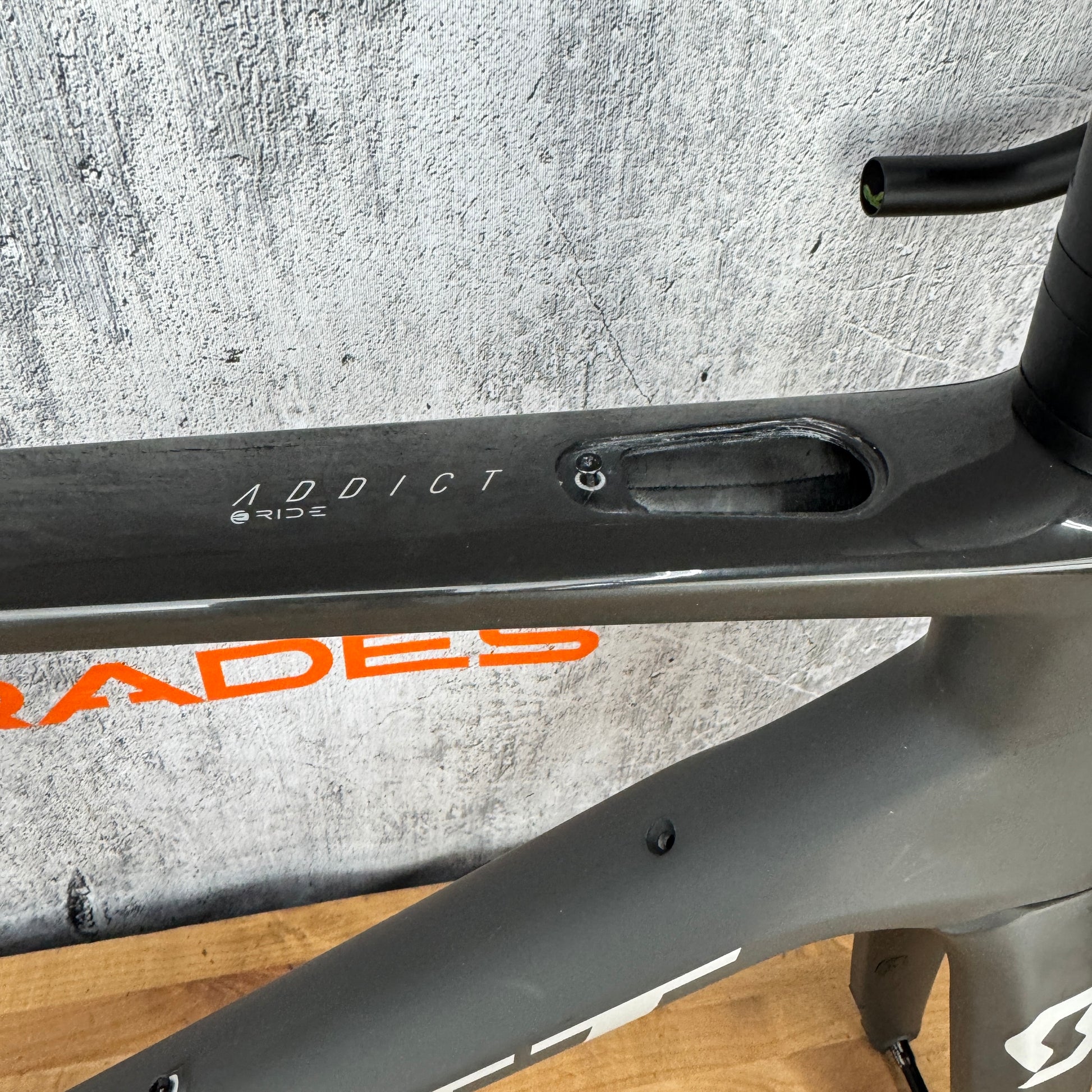

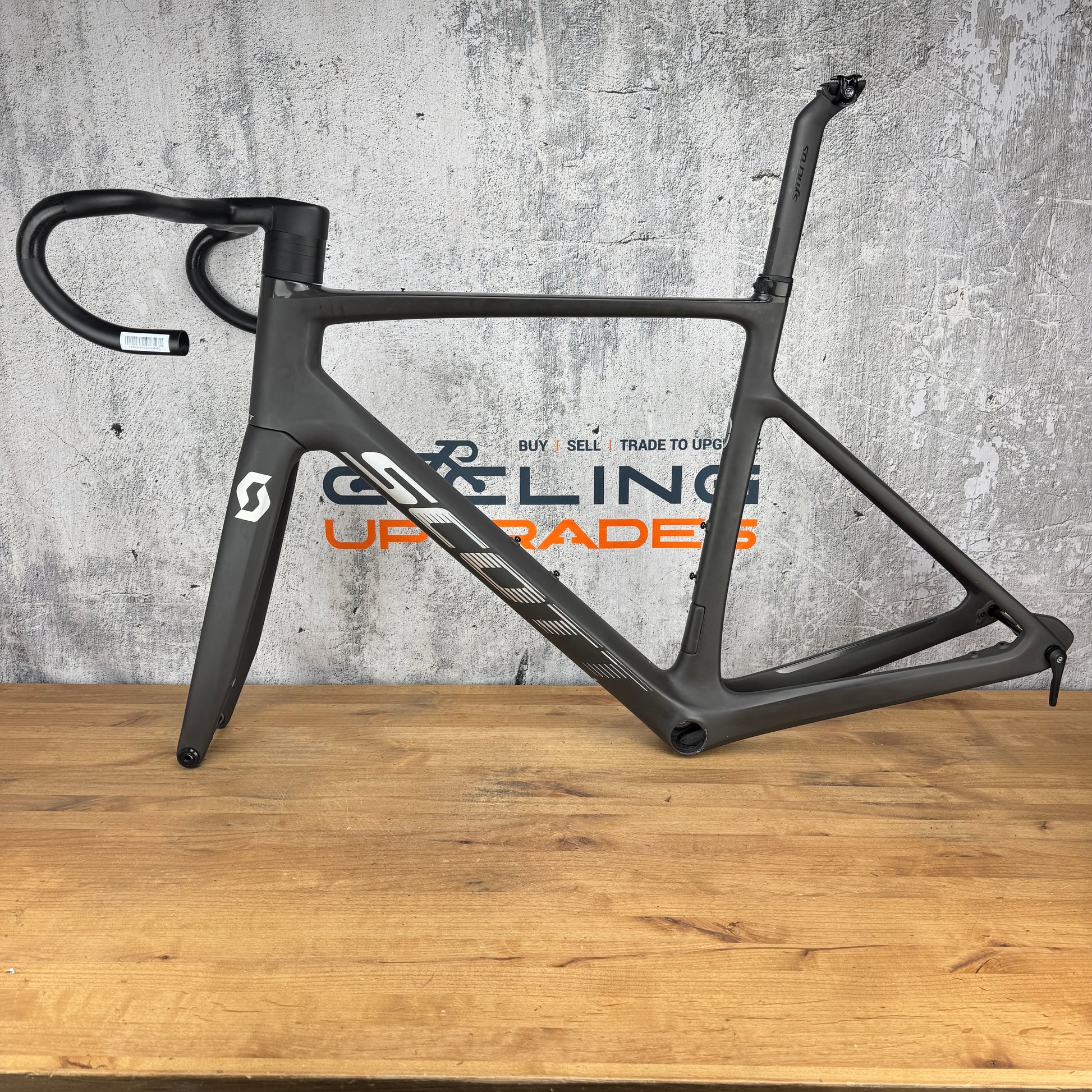

Frame: 2022 Scott Addict eRIDE Ultimate HMX. This frame was originally a full E-Bike, but all the electronics and internals have been removed, and it is now being sold as a bare frameset. This frame can be built up as a normal road bike, or rebuilt as an e-bike with added Mahle ebike parts. It was previously fitted with a Mahle X20 system. We may be willing to sell just the frame, fork, or handlebar separately - message us with requests.

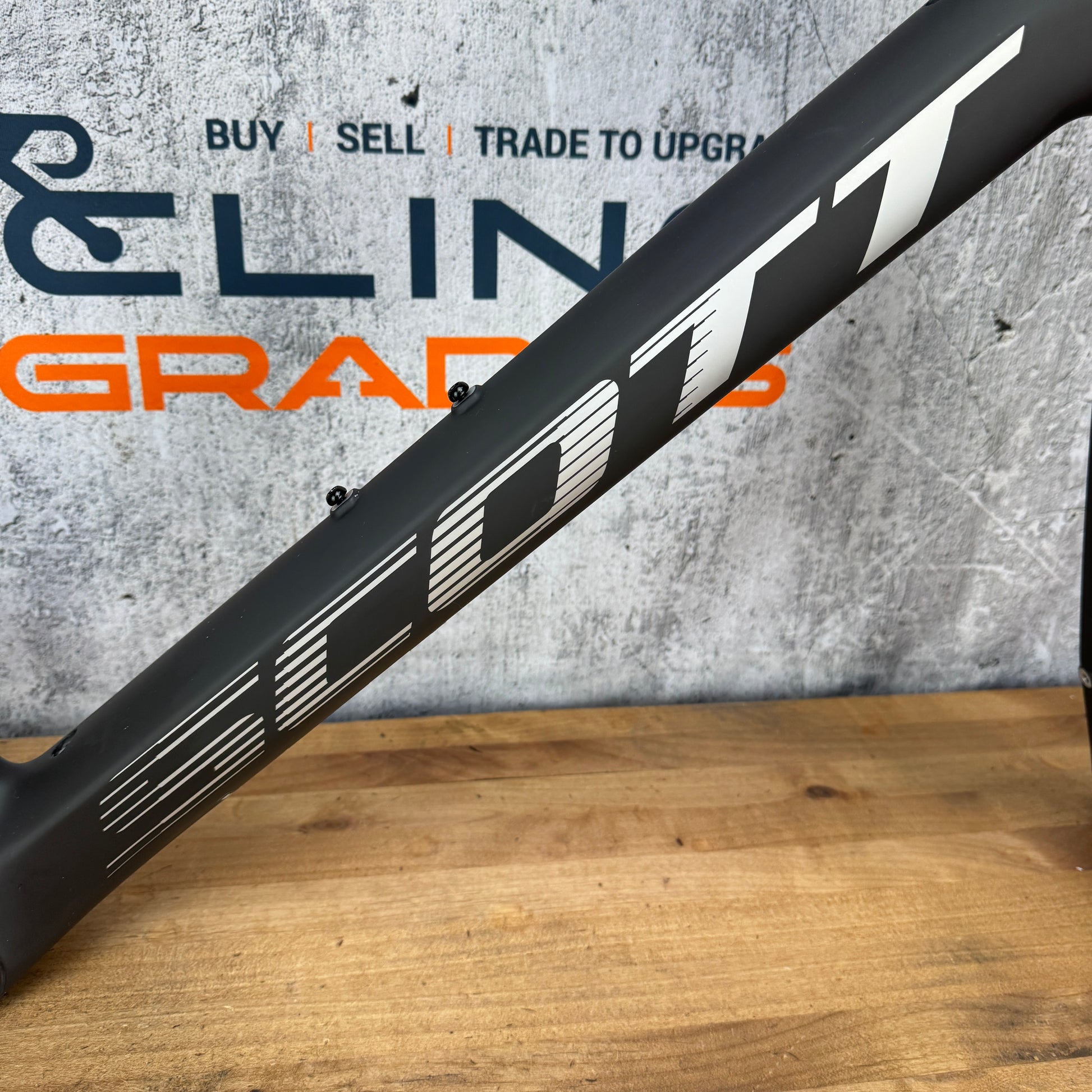

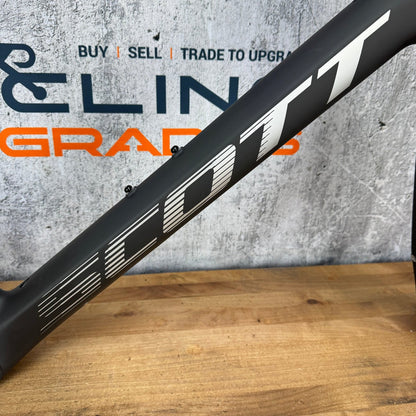

Color: Black with silver decals
Brake type: Flat-Mount disc brake.
Size: Large 56cm. 560mm Effective Top Tube. Stack - 593mm. Reach - 384mm. Head tube 165mm. Recommend buyer confirm and research full geometry online.
Condition: This frameset very low mile with only a few rides on it. There are no imperfections to specifically picture, only very minor imperfections and light signs of handling may exist.
Groupset compatibility: Frame can be setup for Di2, EPS, or eTap groupsets. This frame was previously setup with a Di2 groupset. Other frame/cable stops may be needed for mechanical setups.

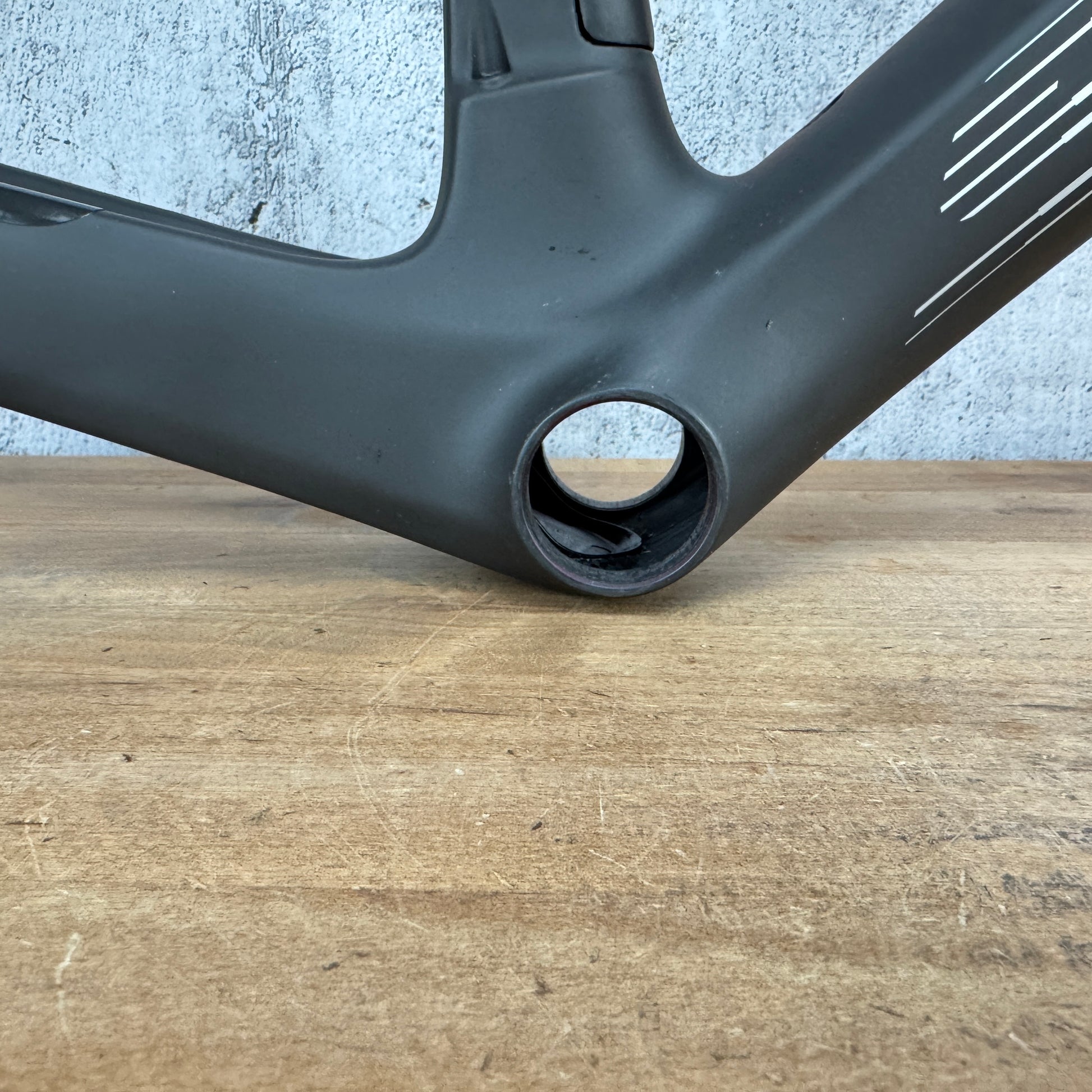

Bottom bracket: BB86 bottom bracket shell type (41mm shell diameter, 86mm shell width). Bottom bracket for 24mm spindles currently installed and included. Alternatively, we have a handful of lightly used basic bottom brackets on hand, let us know what you need and we can try to ship the frame with the right bottom bracket installed. Additionally, CyclingUpgrades is a Ceramicspeed and Cane Creek Authorized Dealer, if you prefer to have the frame setup with a certain bottom bracket we can add and install it at an additional cost before shipping - message with inquiries/requests.
Steerer length: 80mm of steerer above the top tube. 45mm of spacers below the stem plus the headset cover.
Seatpost: Frame specific carbon seatpost included.

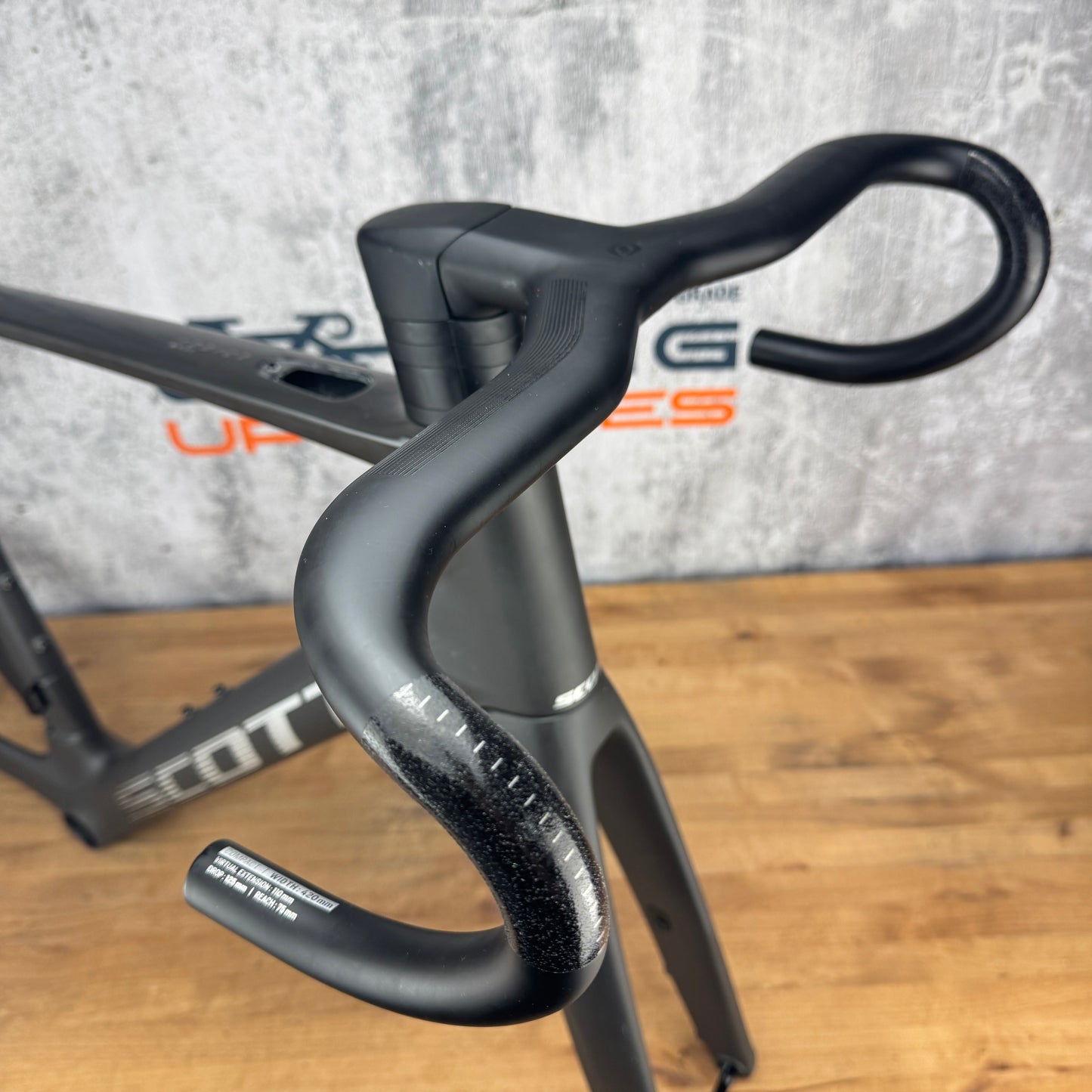

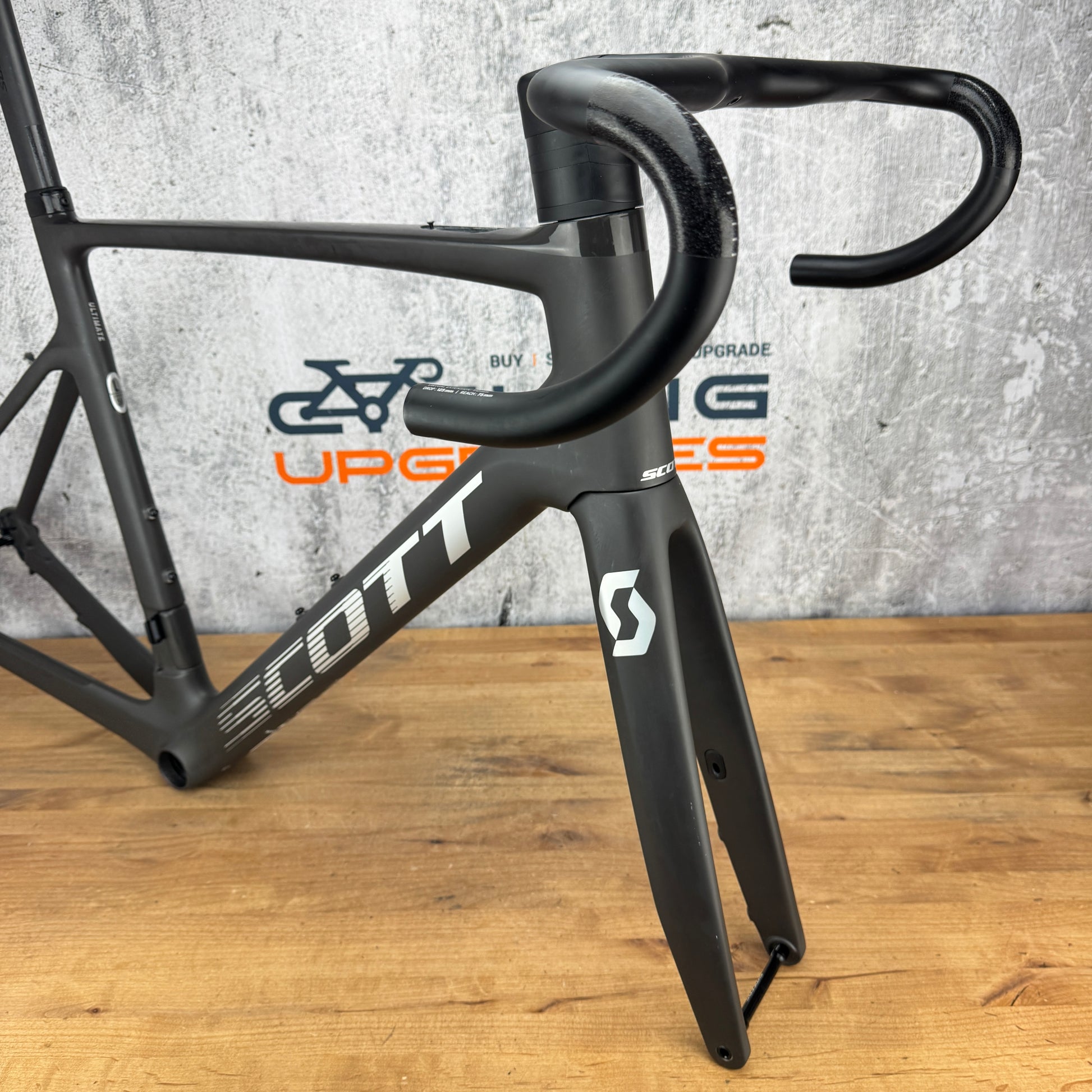

Handlebar: Syncros Creston IC SL 110mm x 42cm carbon handlebar. 125mm drop, 75mm reach. We can sell without the handlebar for $300 less - message with requests before purchasing.
Dropout Spacing: Front 12mm Thru Axle x 100mm, Rear 12mm Thru Axle x 142mm.
Frame Weight: 2446 grams as pictured with headset, thru axles, handlebar, seatpost, frame hardware, etc.
What's included: Frame, fork, headset, rear derailleur hanger, thru axles, seatpost, handlebar.
At CyclingUpgrades, we fulfill all orders next business day or sooner. Generally we are able to fulfill orders placed by 12pm MT on the same day, however it is not guaranteed. We ship all items via USPS except for large items which ship via UPS or Fedex. Please check our other listings for additional cycling upgrades and thank you for shopping our store!
