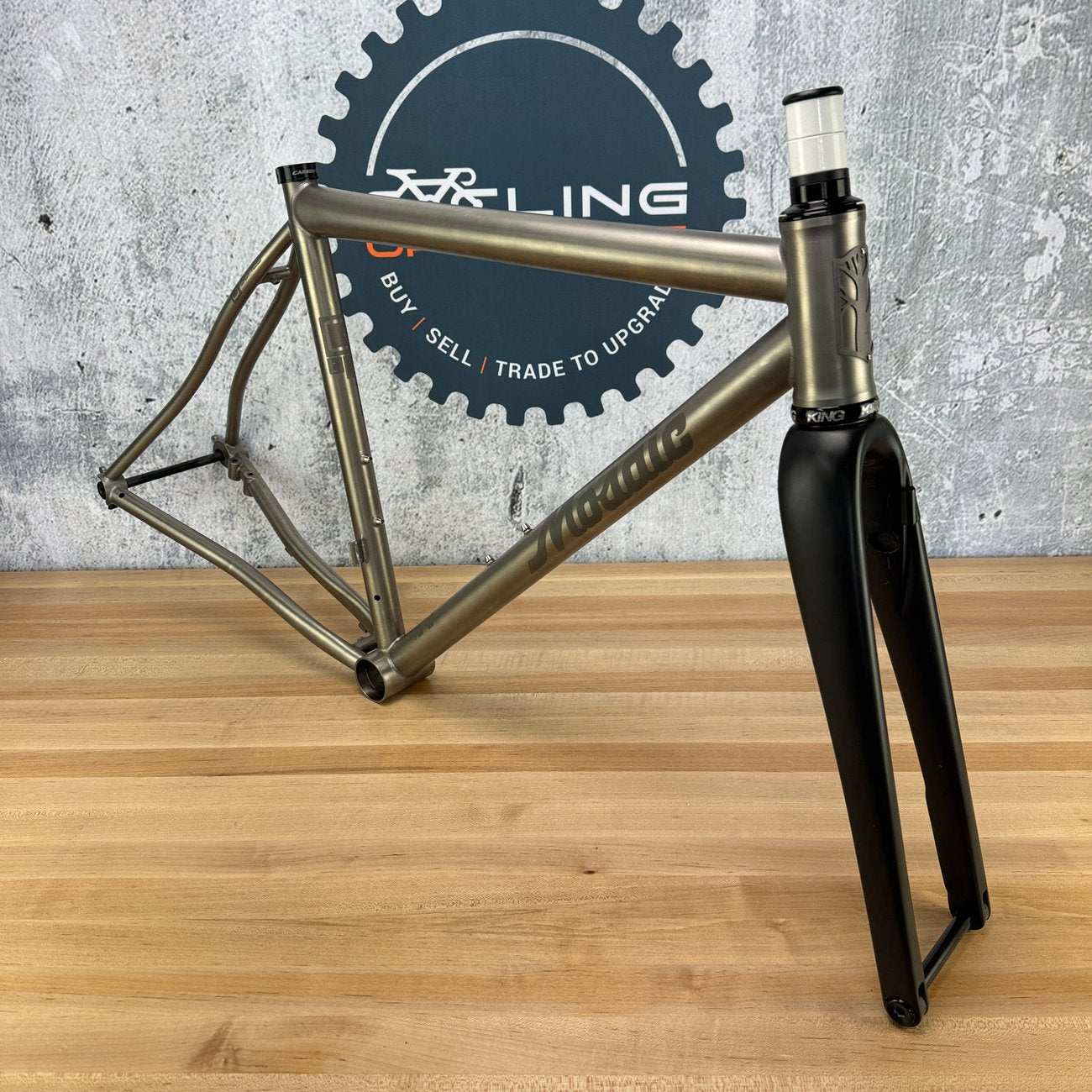

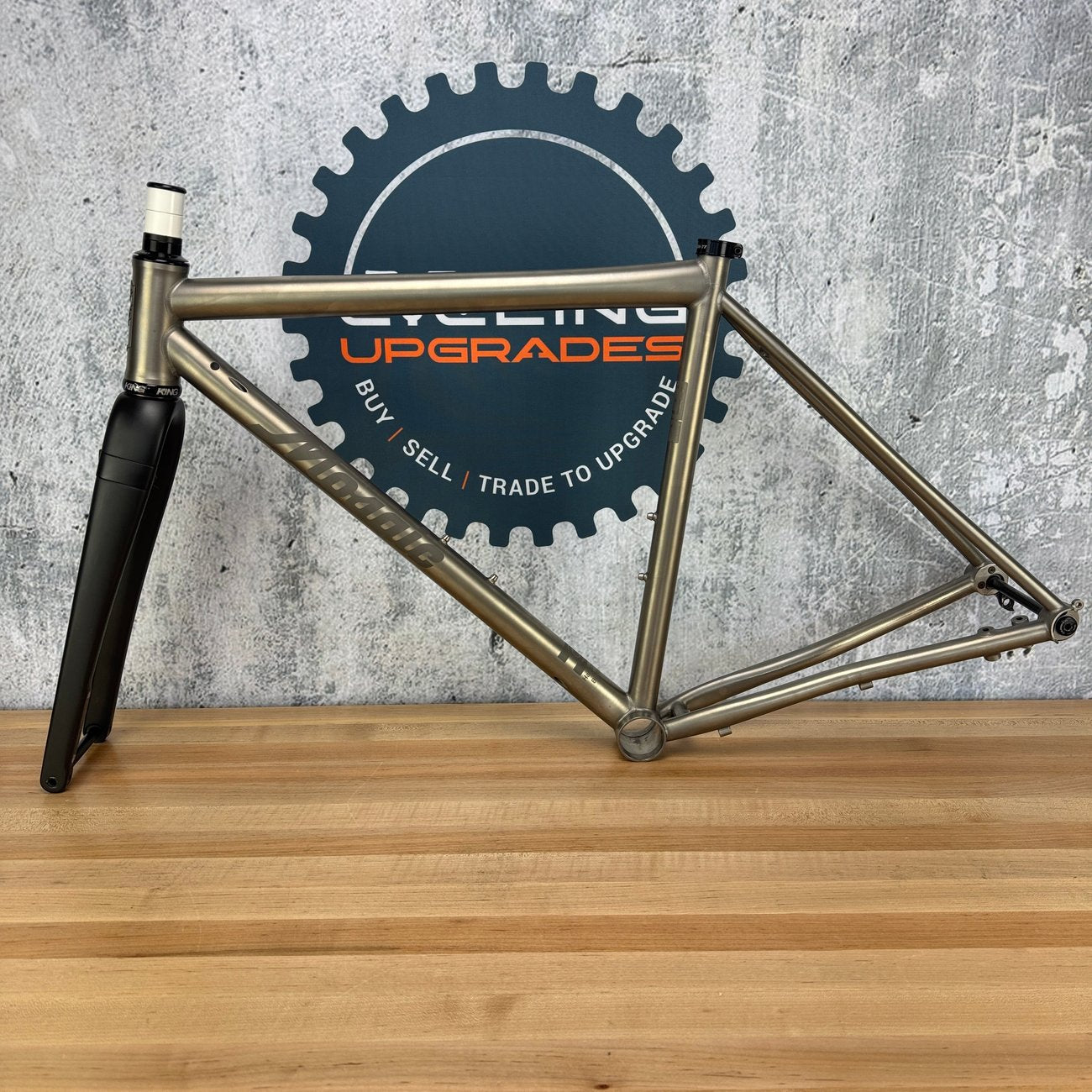

2018 Mosaic GT-1 AR 53cm Titanium Gravel Frameset 700c Chris King Enve Carbon

SKU: 06122026-0025-01

Price $2,076.00 Regular price $2,595.00One in stock
1 of 1

Ships next business day or sooner. Trade toward it

Pickup available at CyclingUpgrades Spanish Fork (new location) Store info
  • CyclingUpgrades Spanish Fork (new location) Pickup available · Usually ready in 24 hours

    3544 North Main Street
    Unit 110
    Spanish Fork UT 84660
    United States

30-day returns, inspected before it ships Why buy from us
  • Cleaned before listing
  • Inspected and function-tested
  • Photos of the actual item, flaws included
  • Specs and condition recorded for every listing
  • Packed securely to arrive as listed
  • 30-day returns

Item Specs

Brand
Mosaic
Model
GT-1 AR
Part type
Bicycle Frame
Wheel size
700C
Brake type
Disc Brake
Frame size
53cm
Material
Titanium

Further product information

Description

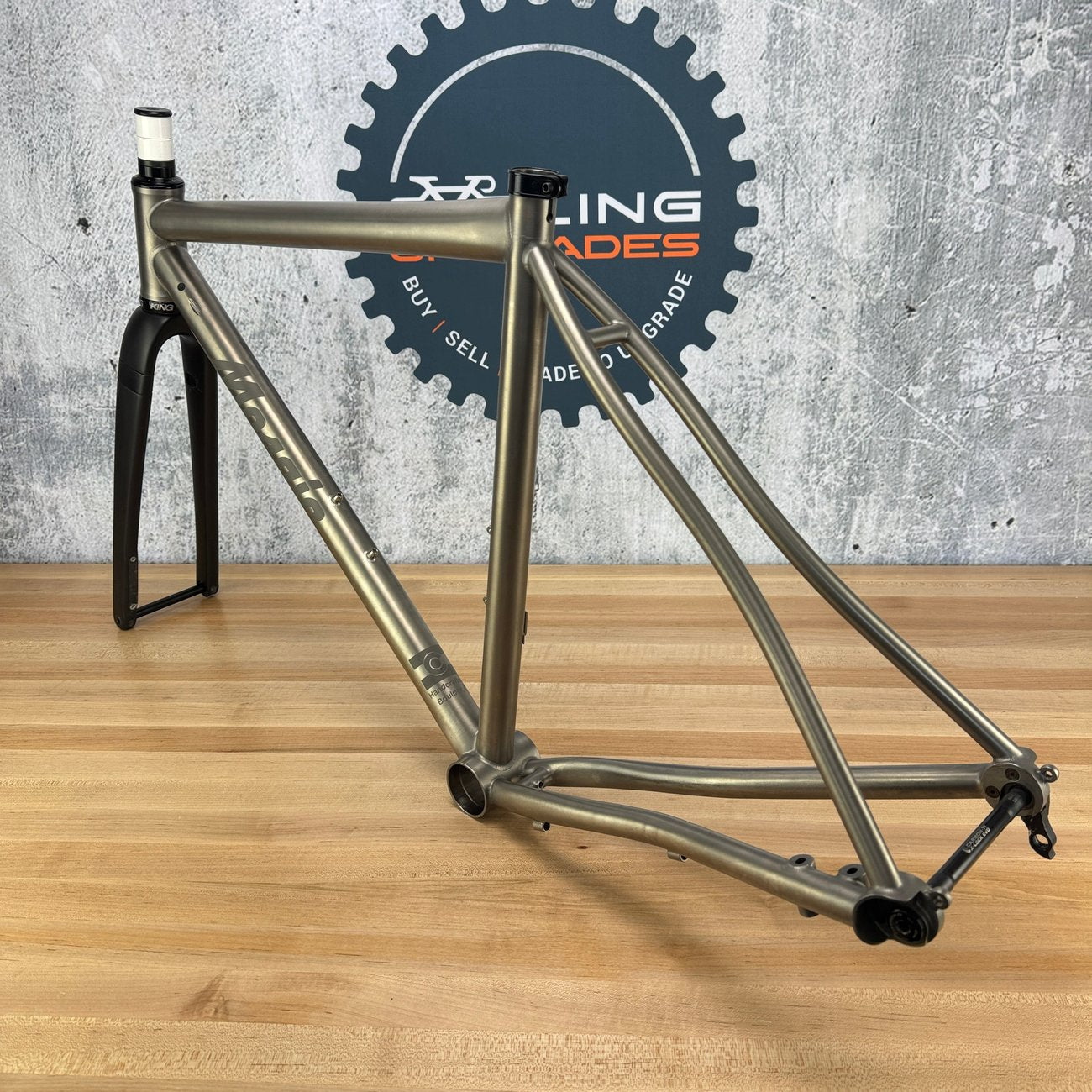

Frame: 2018 Mosaic GT-1 AR

Fork: Enve AR fork with an Enve carbon fender

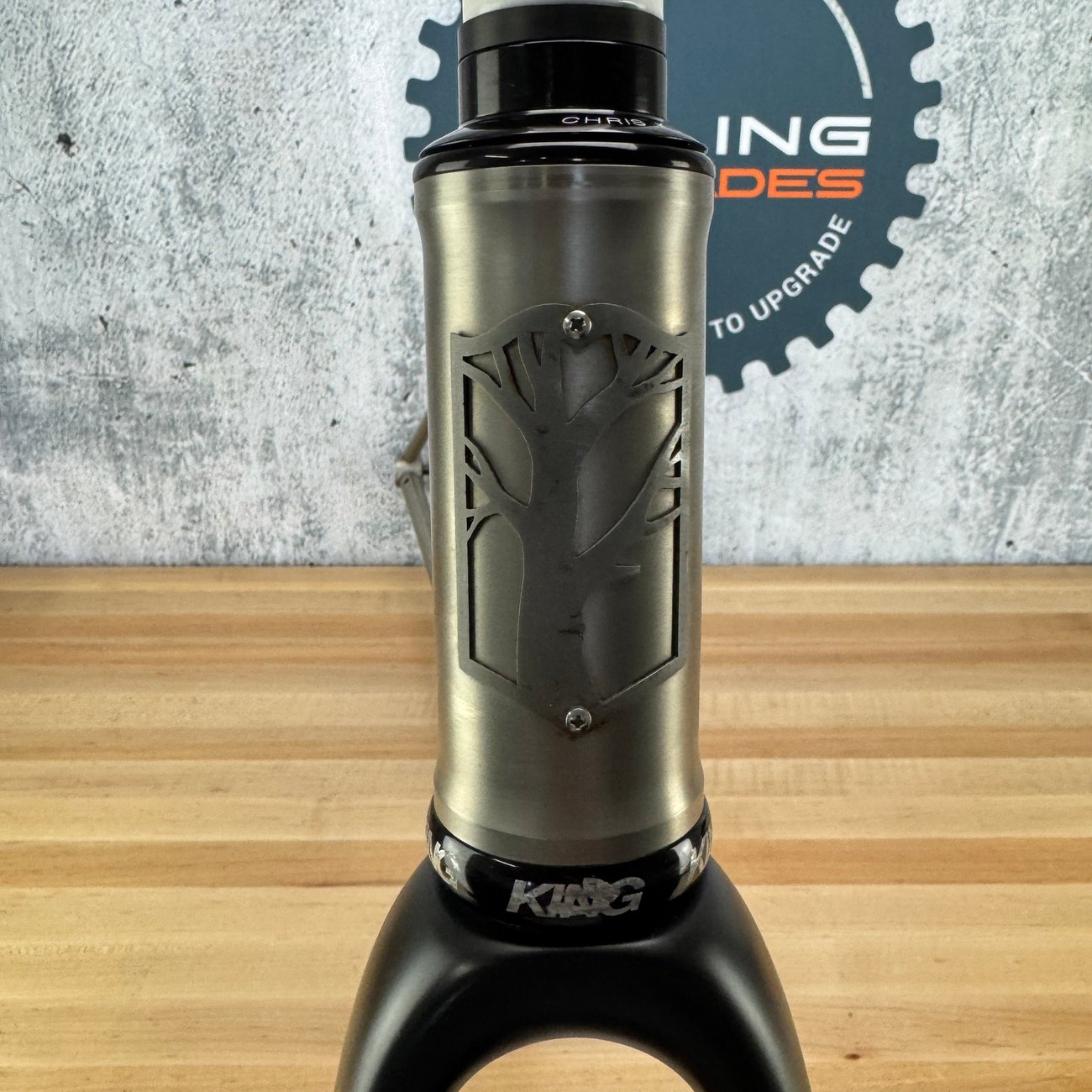

Headset: Chris King headset.

Material: Titanium.

Tire Clearance: 38mm

Brake type: Flat-Mount disc brake.

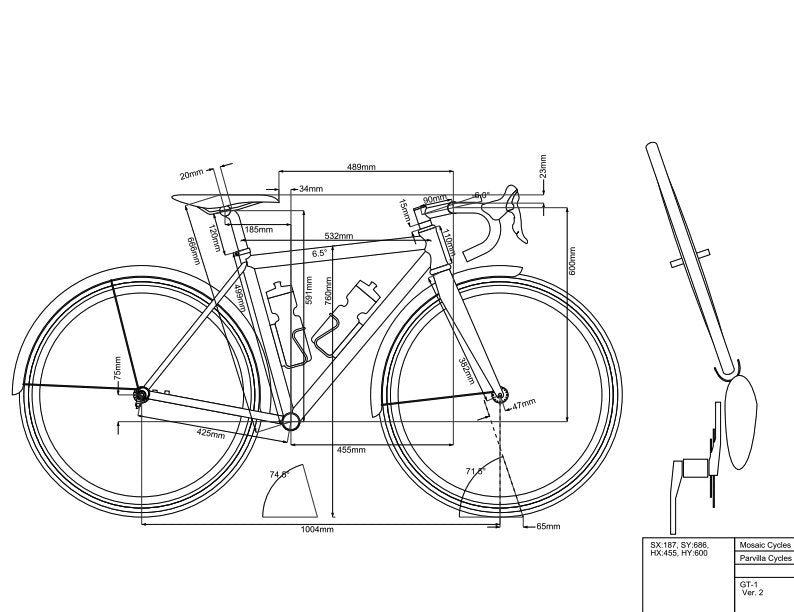

Size: 53cm. 532mm Effective Top Tube. Head tube 110mm. A full geometry chart is shown in the last picture

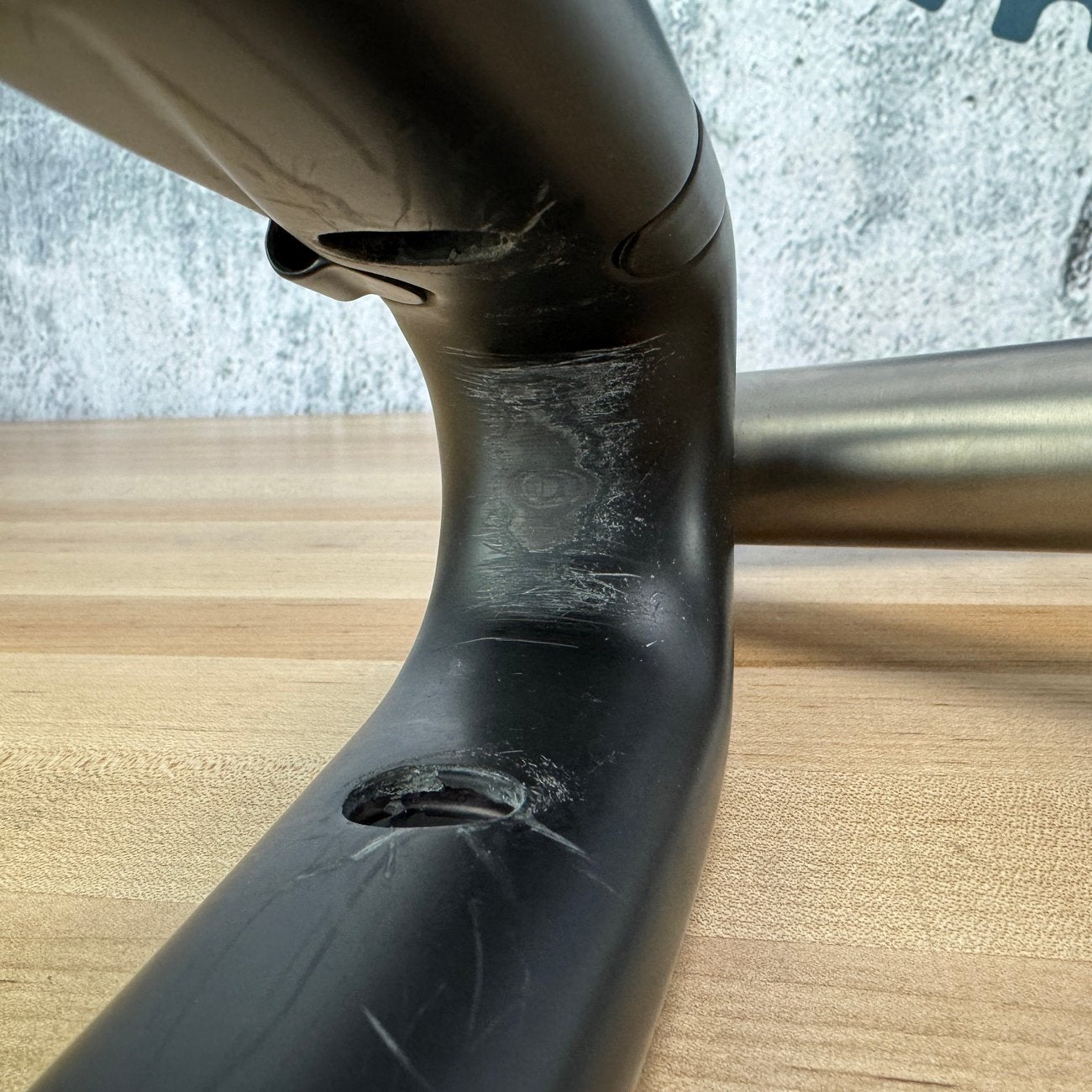

Condition: No cracks or defects were identified through a thorough visual inspection. The cosmetic imperfections to highlight include: heavy rub wear on the fork crown shown in pic #8. We have attempted to show all noticeable imperfections in specific close-up pictures, however other minor imperfections and light signs of use may exist.

Groupset compatibility: Frame can be setup for Di2, EPS, or eTap groupsets. This frame was previously setup with an eTap groupset. Other frame/cable stops may be needed for Di2 or EPS setups. This frame is not compatible with mechanical groupsets.

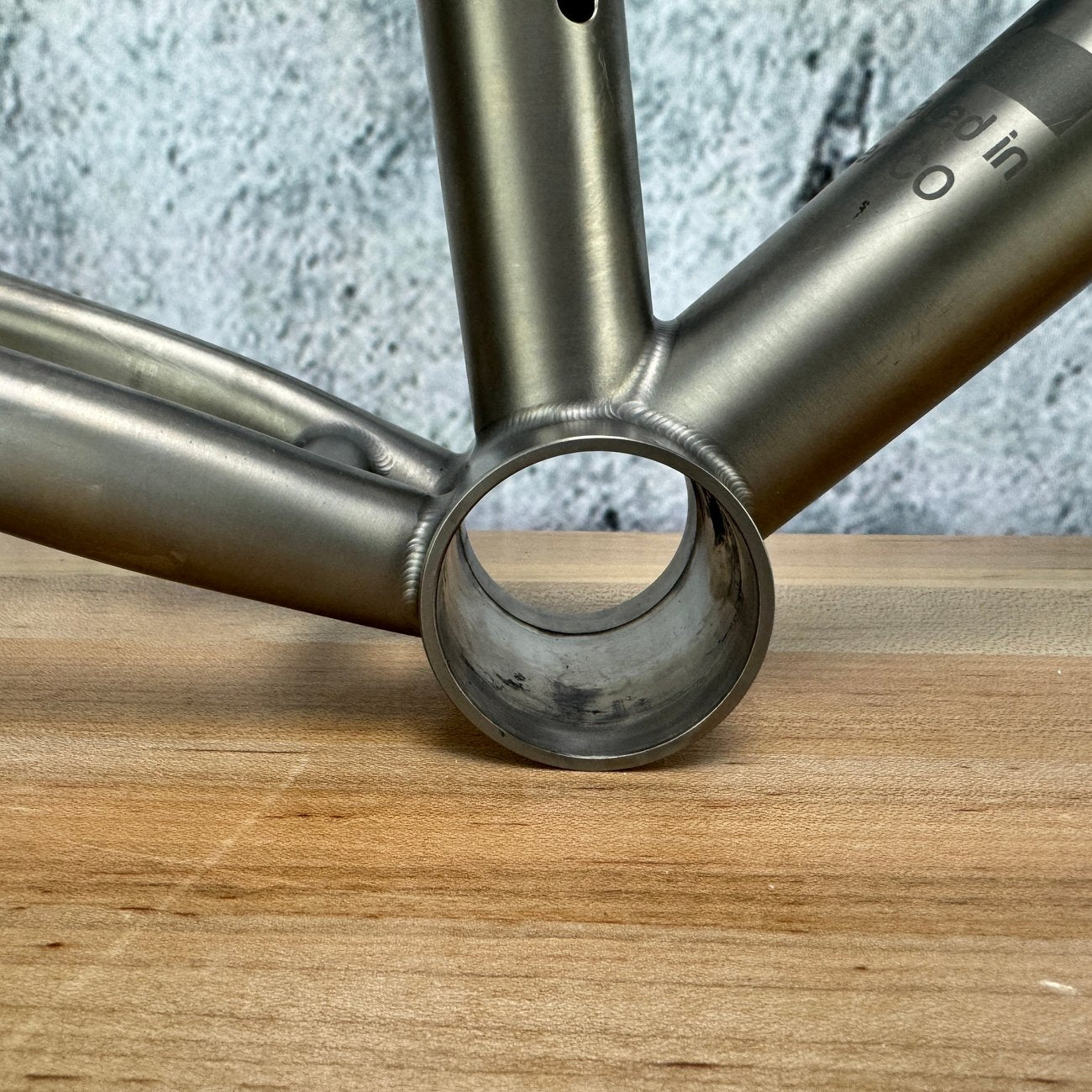

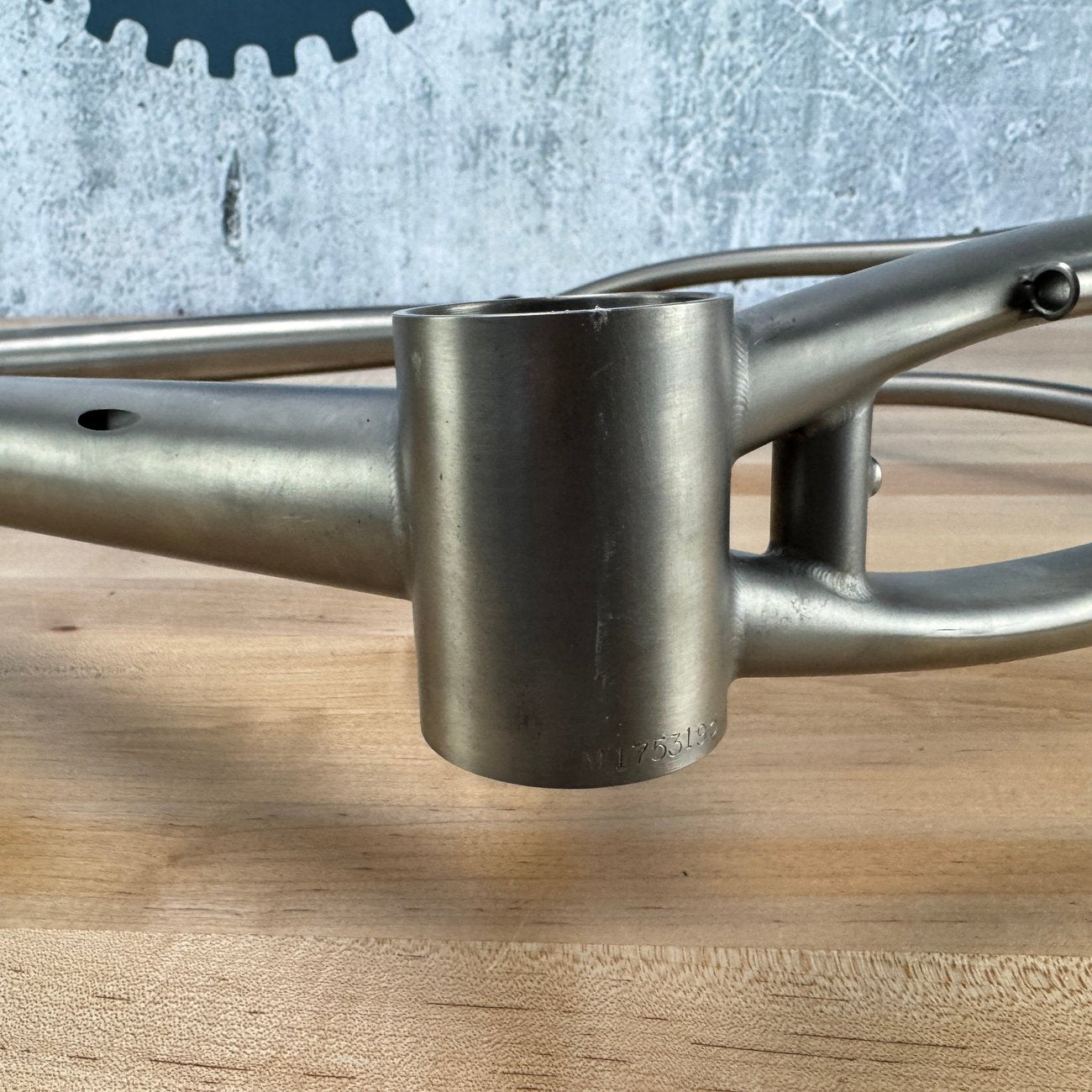

Bottom bracket: Pressfit PF30 bottom bracket shell type (46mm shell diameter, 68mm shell width). No bottom bracket currently installed or included. We have a handful of lightly used basic bottom brackets on hand, let us know what you need and we can try to ship the frame with the right bottom bracket installed. Additionally, CyclingUpgrades is a Ceramicspeed and Cane Creek Authorized Dealer, if you prefer to have the frame setup with a certain bottom bracket we can add and install it at an additional cost before shipping - message with inquiries/requests.

Steerer length: 60mm of steerer above the top tube. 15mm of spacers below the stem plus the headset cover. We may have an option available to safely extend the steerer tube by 15-18mm - message us for additional details.

Seatpost: 27.2mm diameter. No seatpost included.

Dropout Spacing: Front 12mm Thru Axle x 100mm, Rear 12mm Thru Axle x 142mm.

Weight: 2072 grams as pictured with headset, thru axles, bottom bracket, frame hardware, etc.

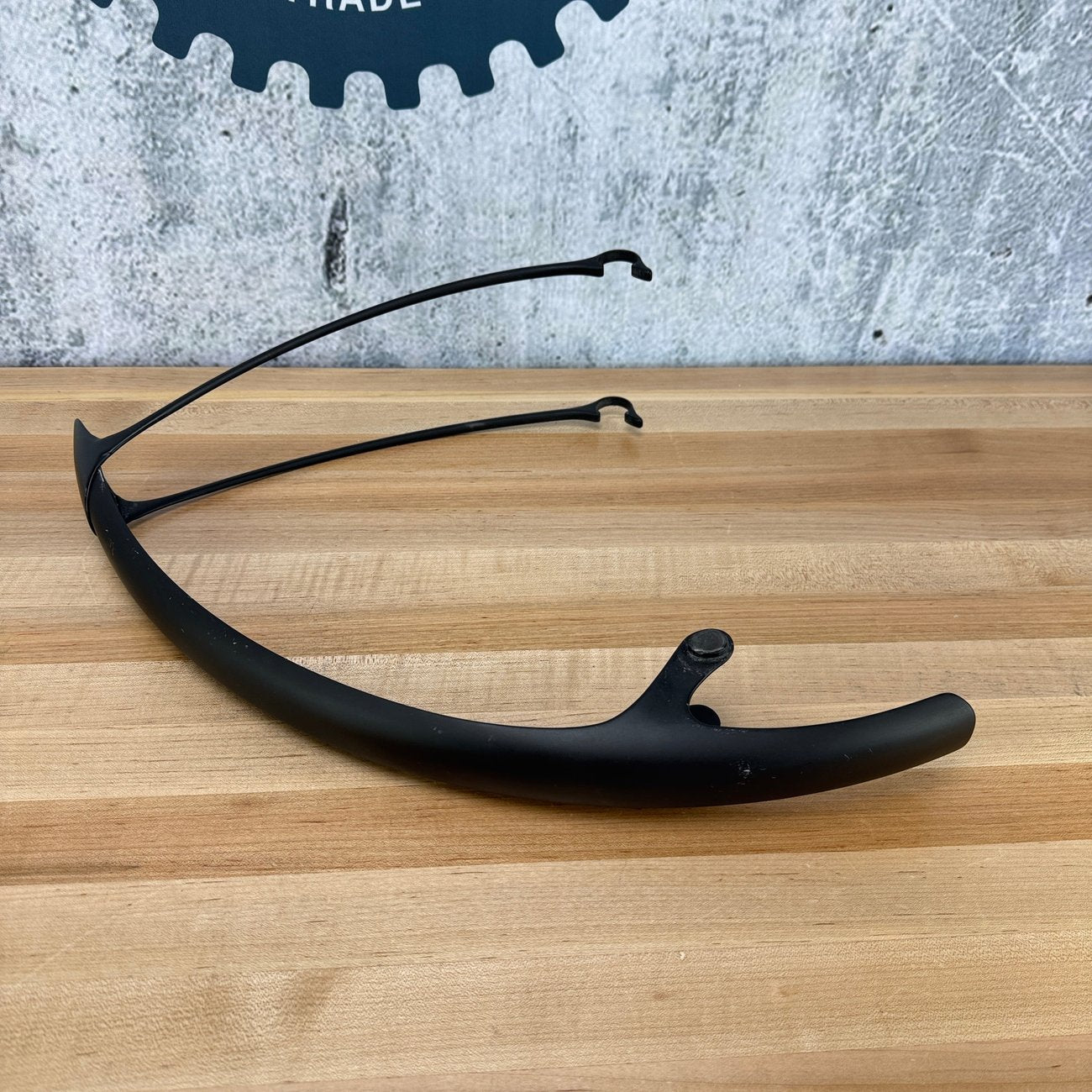

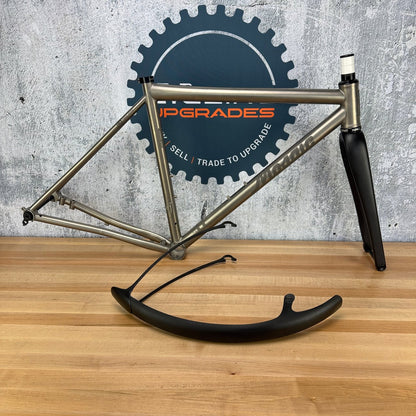

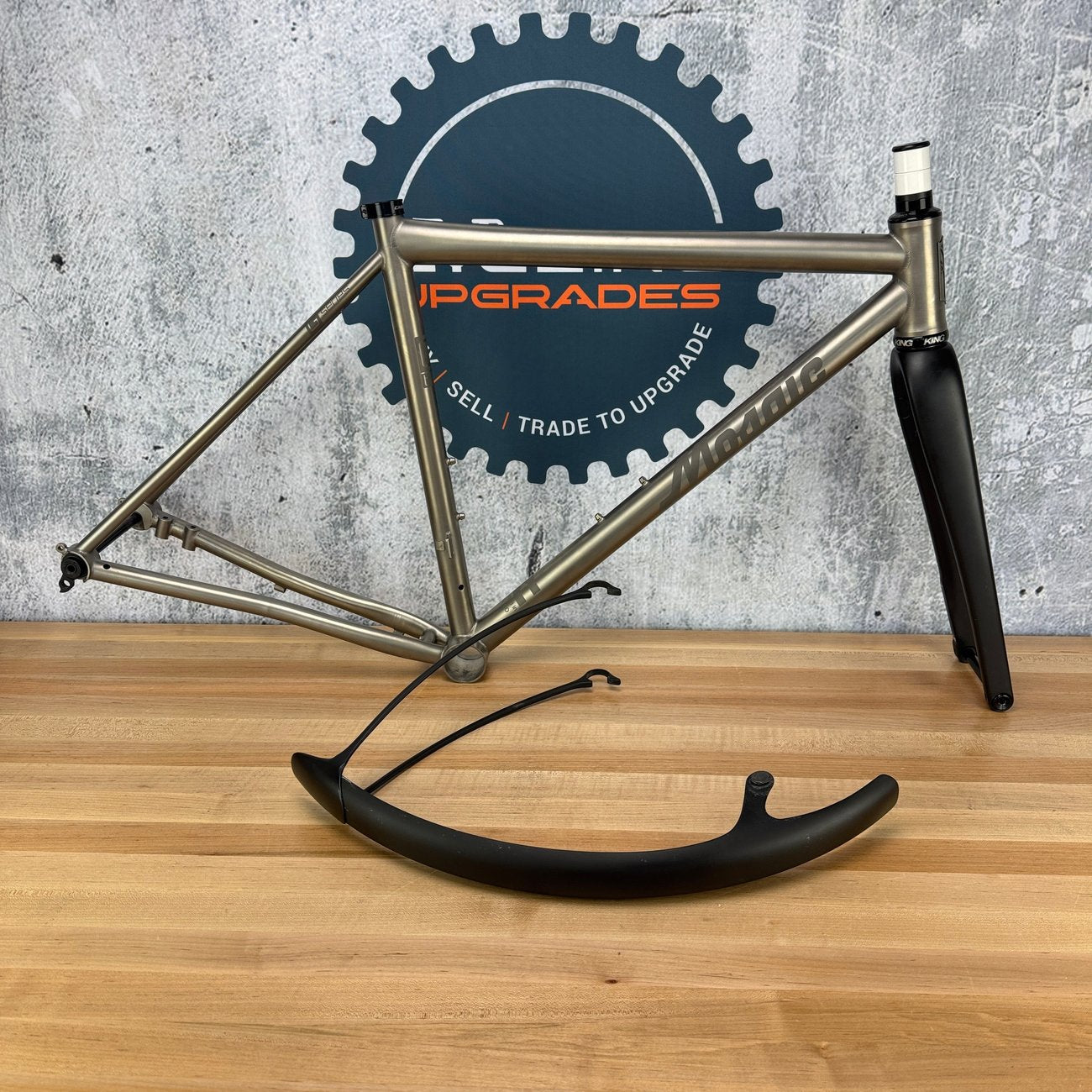

What's included: Frame, fork, headset, rear derailleur hanger, fender, thru axles
