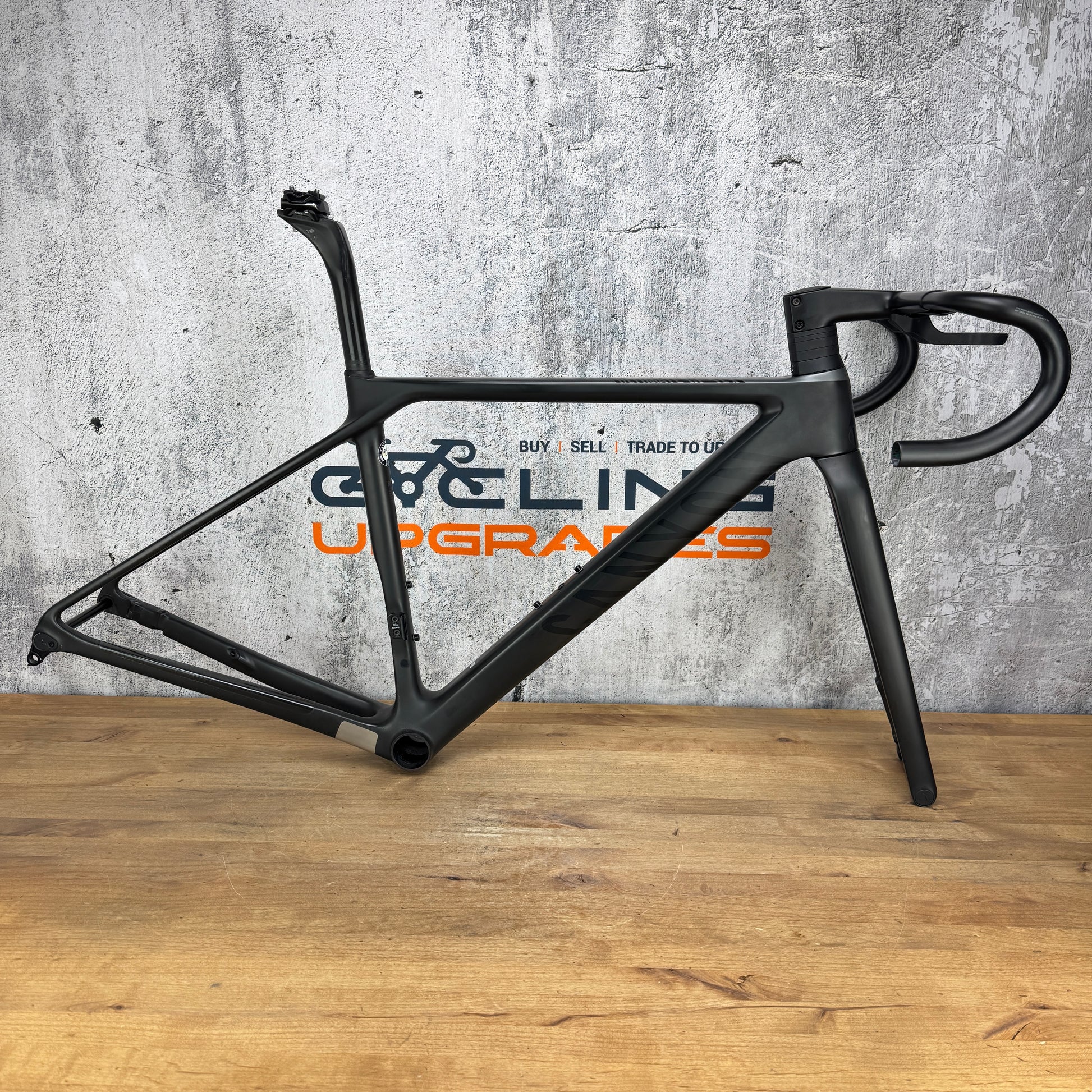

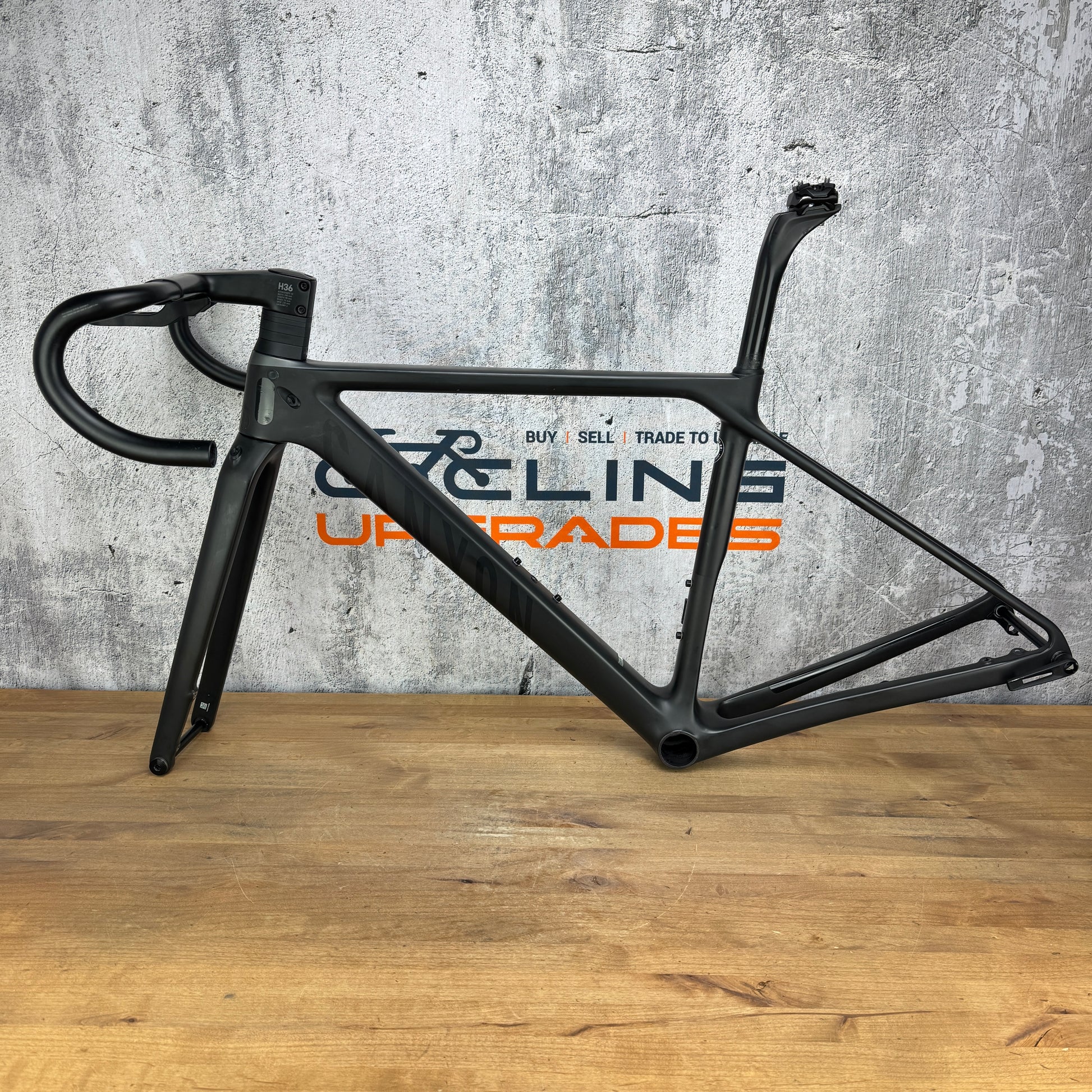

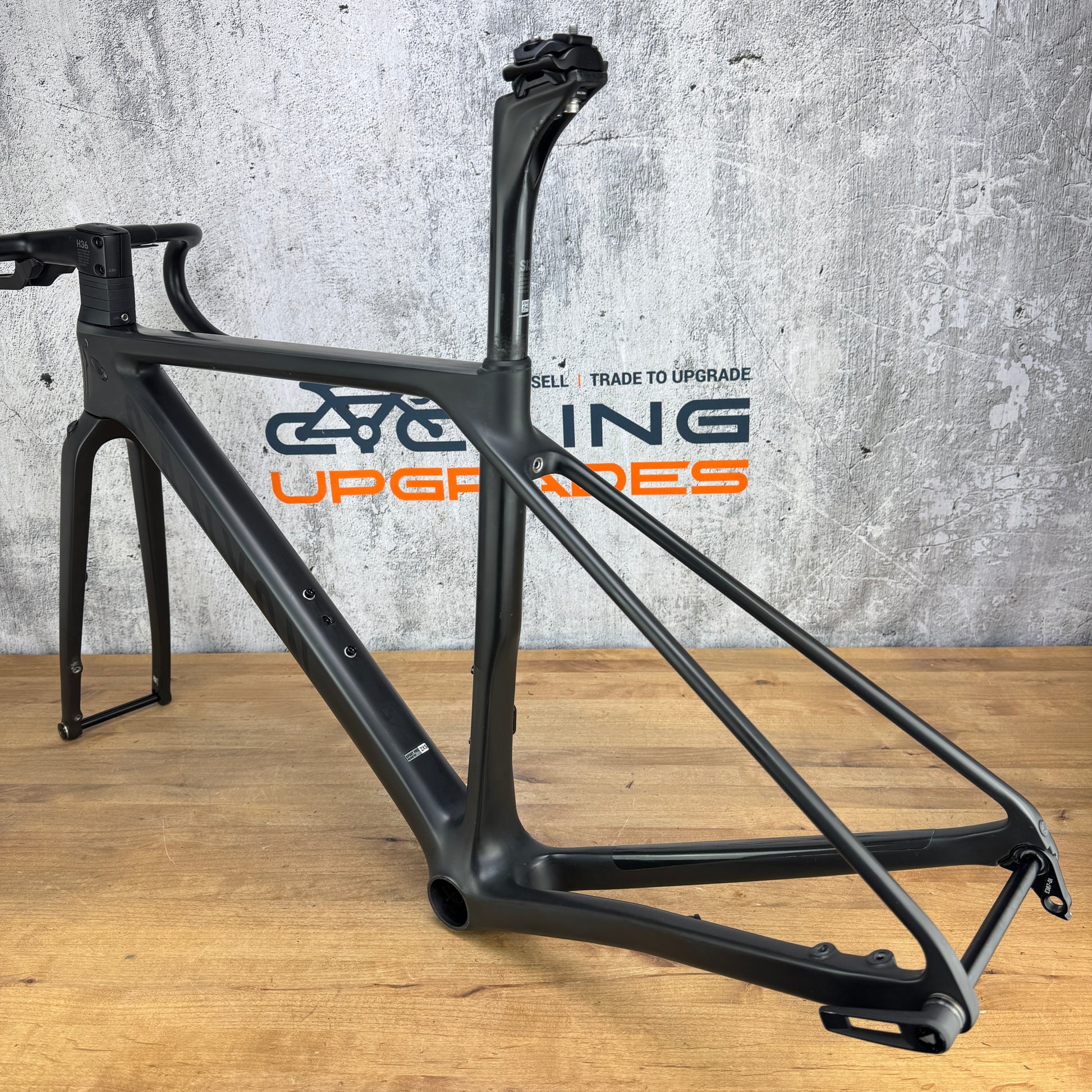

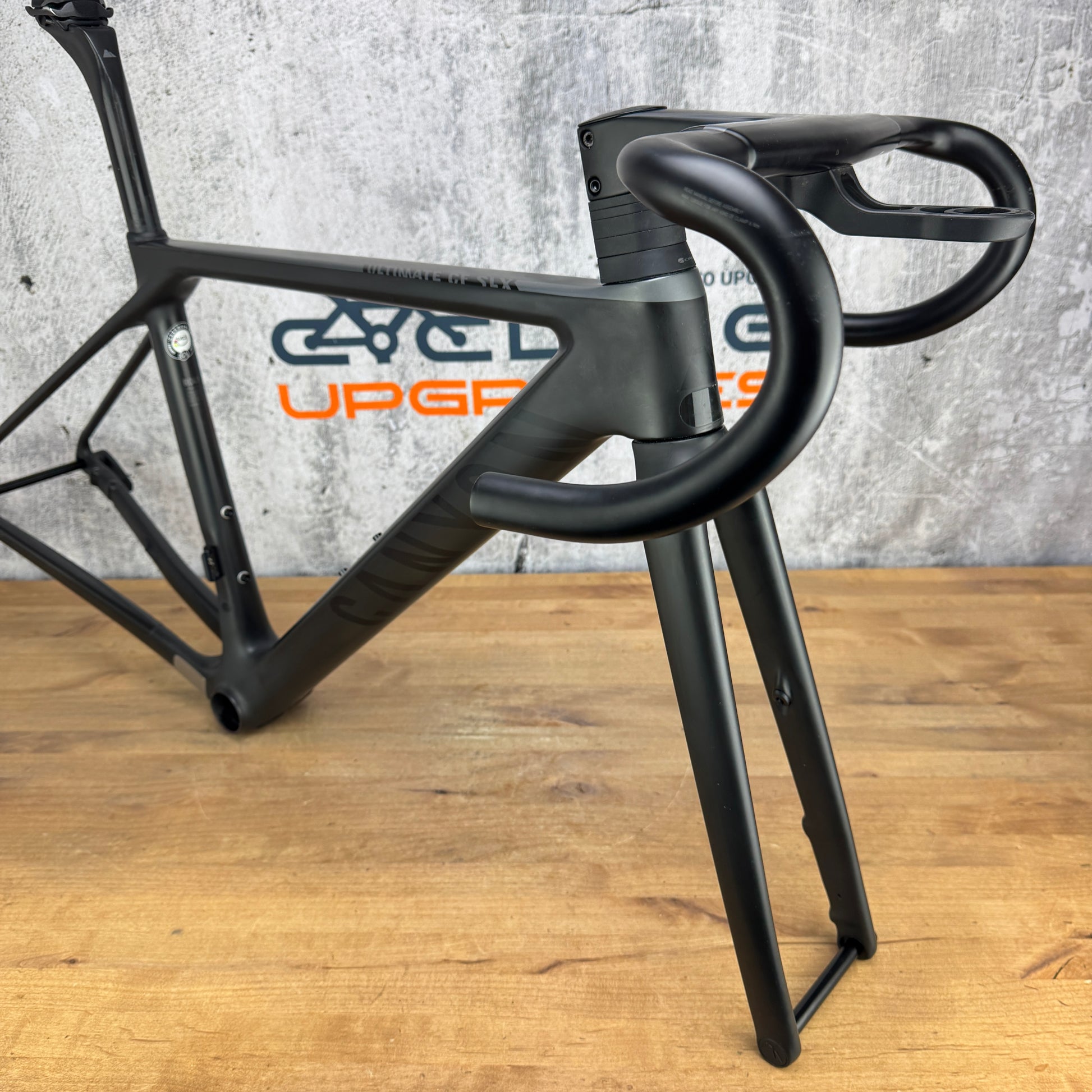

Frame: 2018 Canyon Ultimate CF SLX DB
Color: Black
Brake type: Flat-Mount disc brake.
Size: 2XS. 513mm Effective Top Tube. Stack - 500mm. Reach - 368mm. Head tube 95mm. Recommend buyer confirm and research full geometry online.

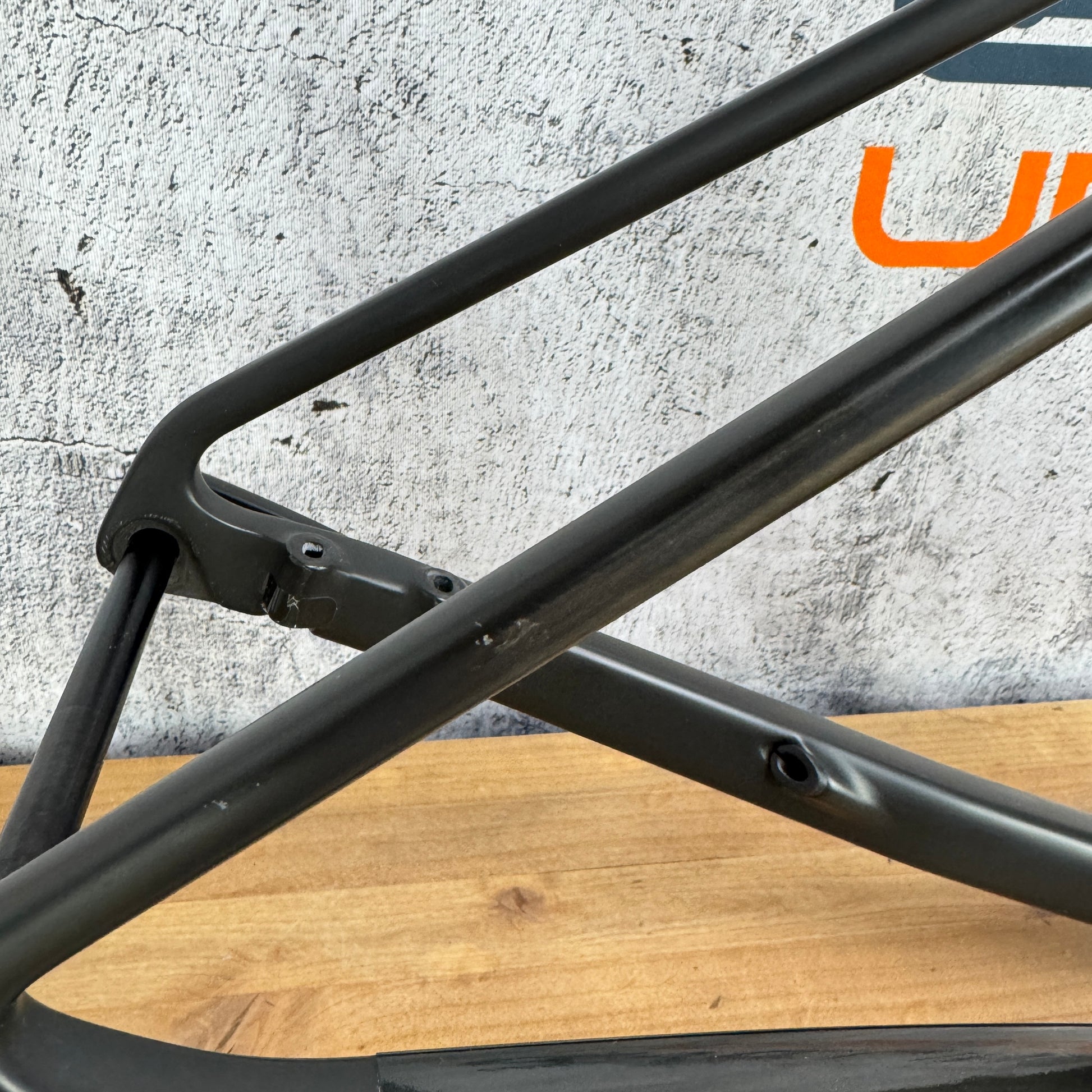

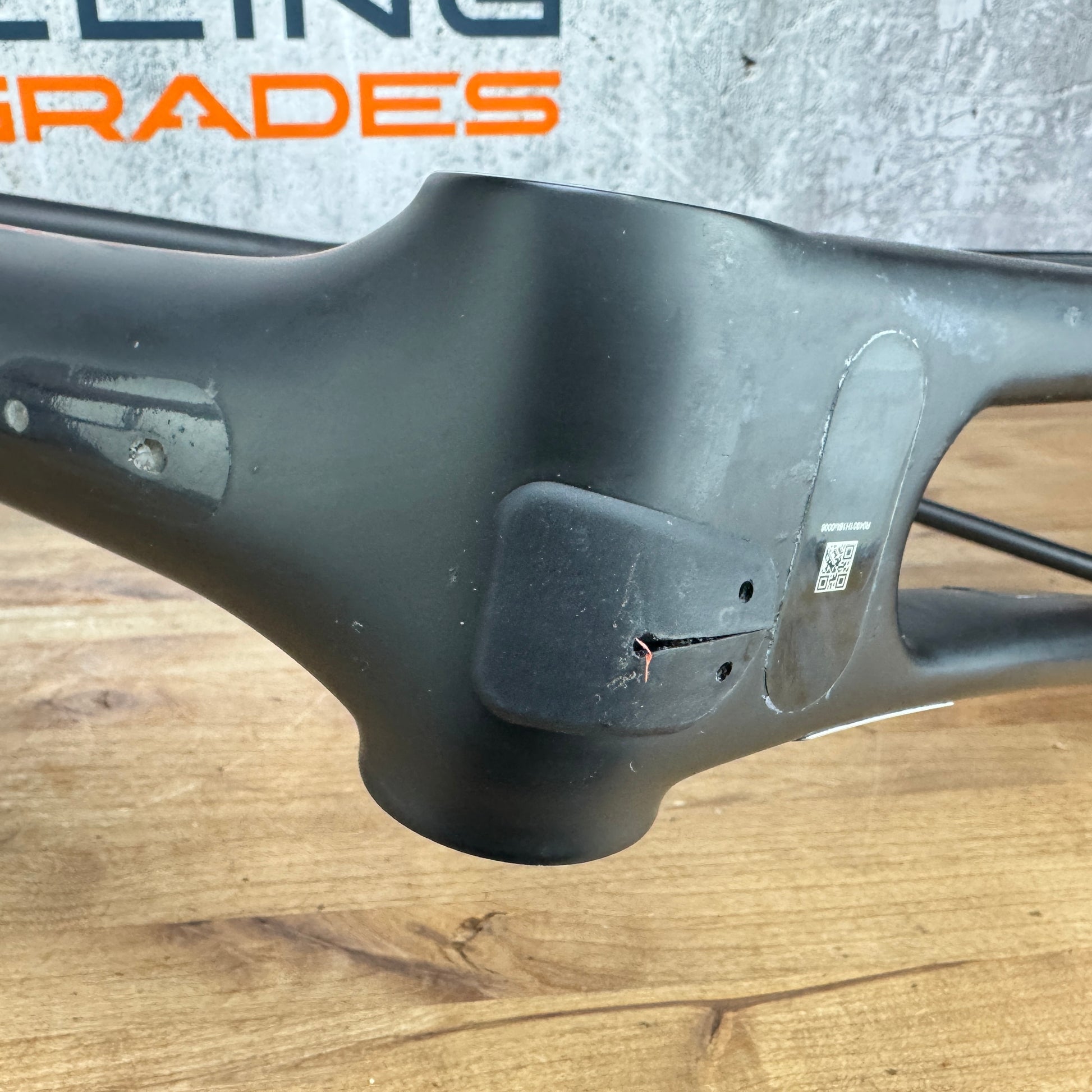

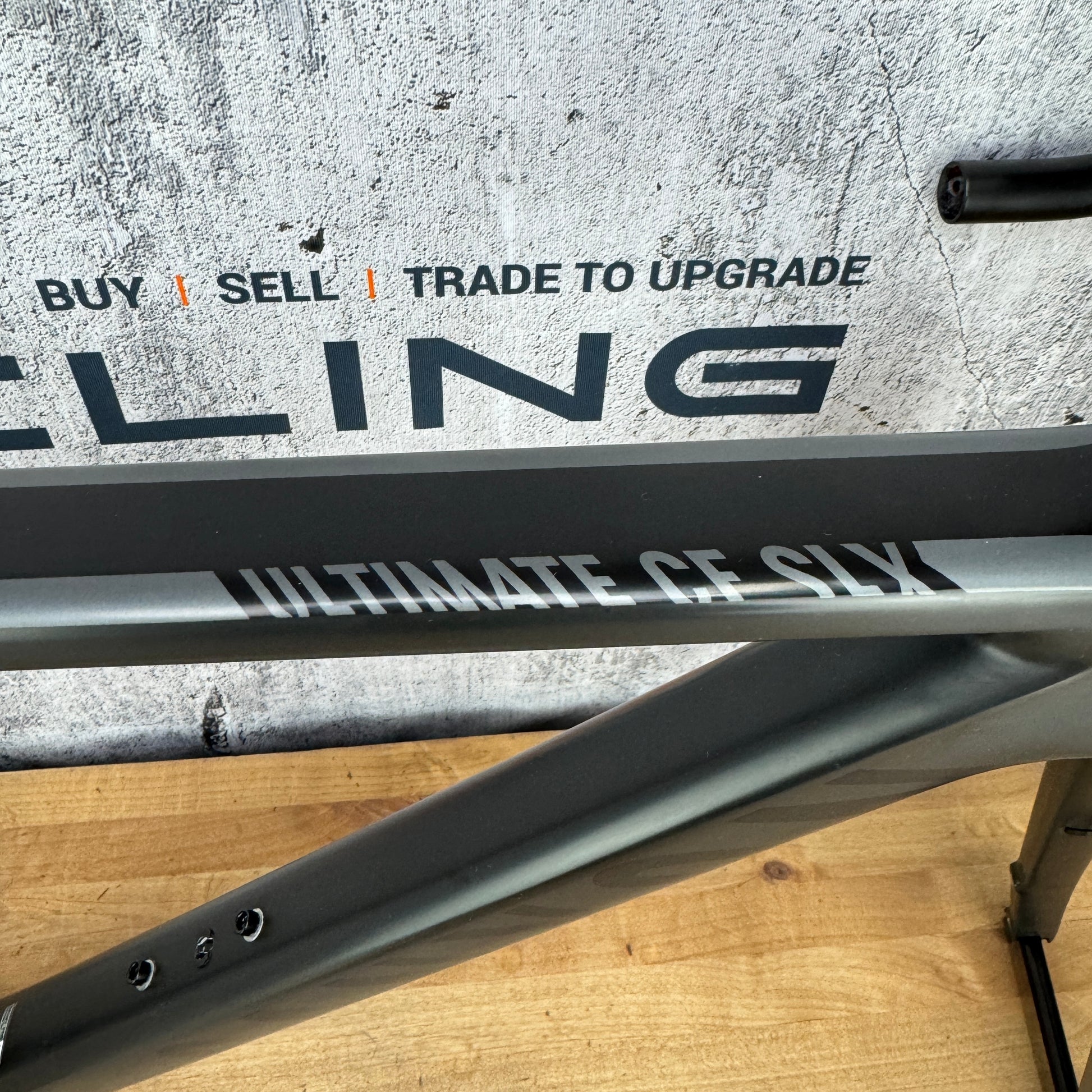

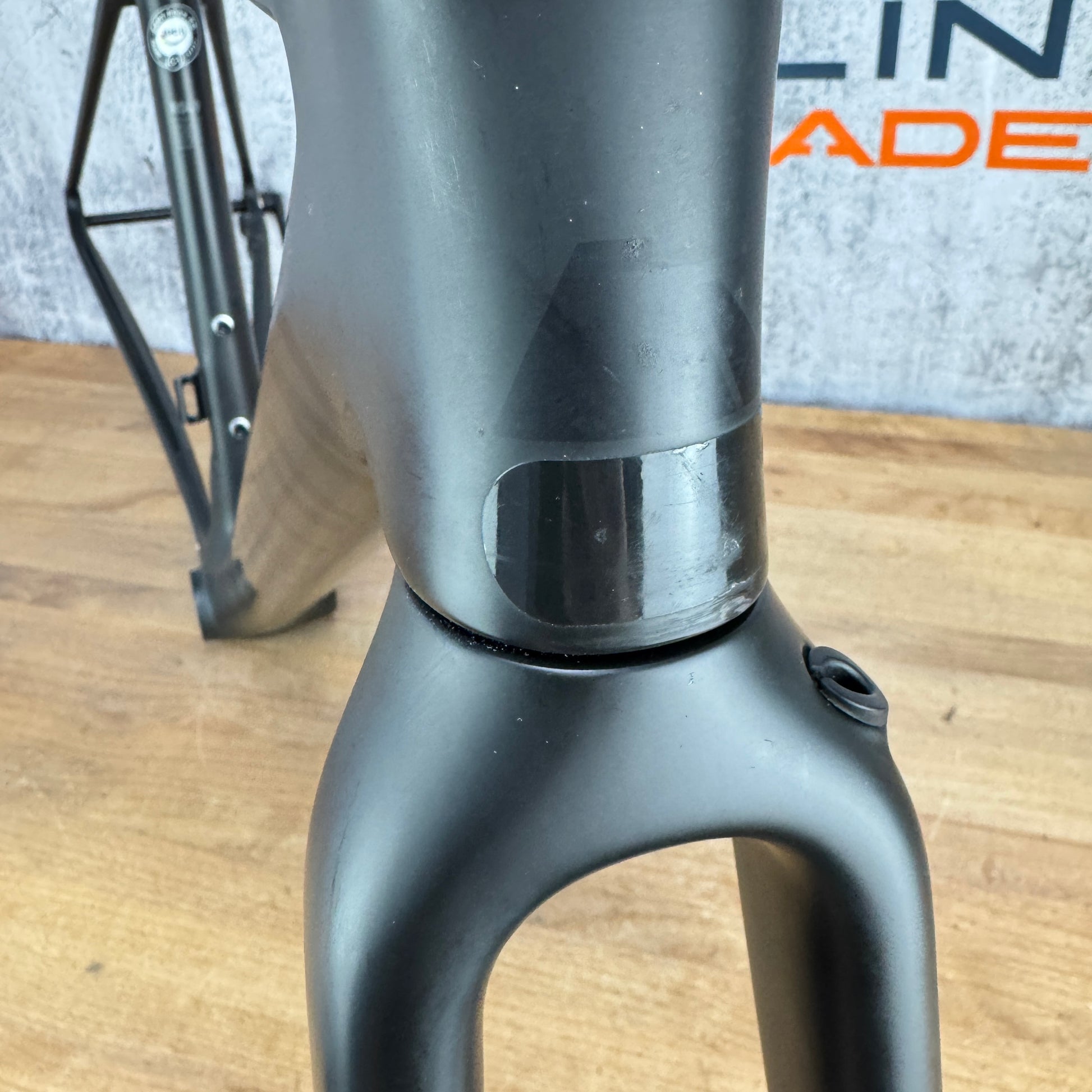

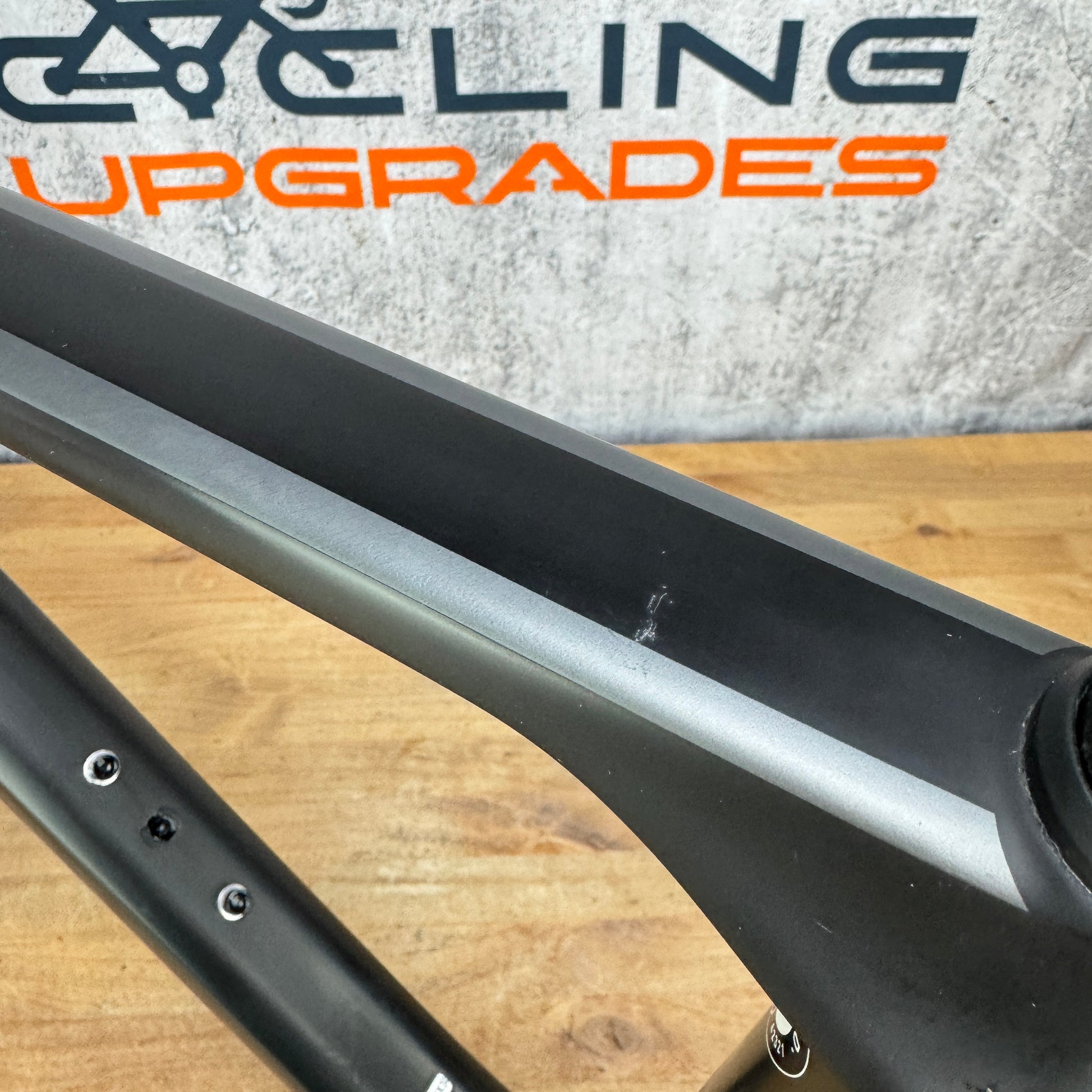

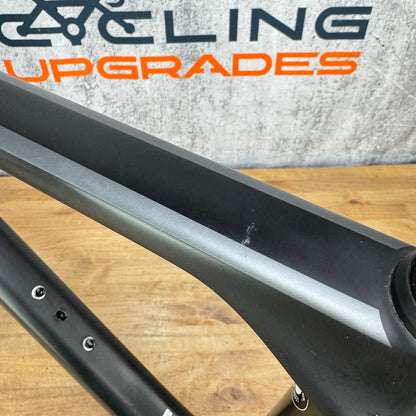

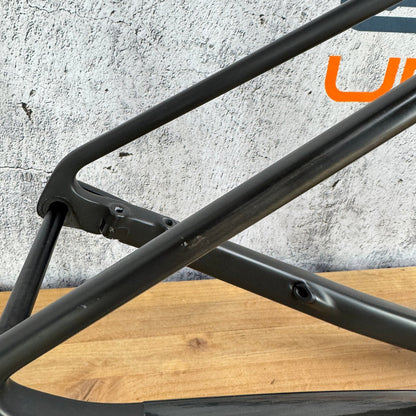

Condition: No cracks or carbon defects were identified through a thorough visual inspection. The cosmetic imperfections to highlight include: Some scratches on the seatpost shown in pic #8, some scratches on the chainstay shown in pic #9, some rub wear on the head tube shown in pic #10, and some scratches on the top tube shown in pic #11. We have attempted to show all noticeable imperfections in specific close-up pictures, however other minor imperfections and light signs of use may exist.
Groupset compatibility: Frame can be setup for Di2, EPS, eTap, or mechanical groupsets. This frame was previously setup with an eTap groupset. Other frame/cable stops may be needed for Di2 or mechanical setups.

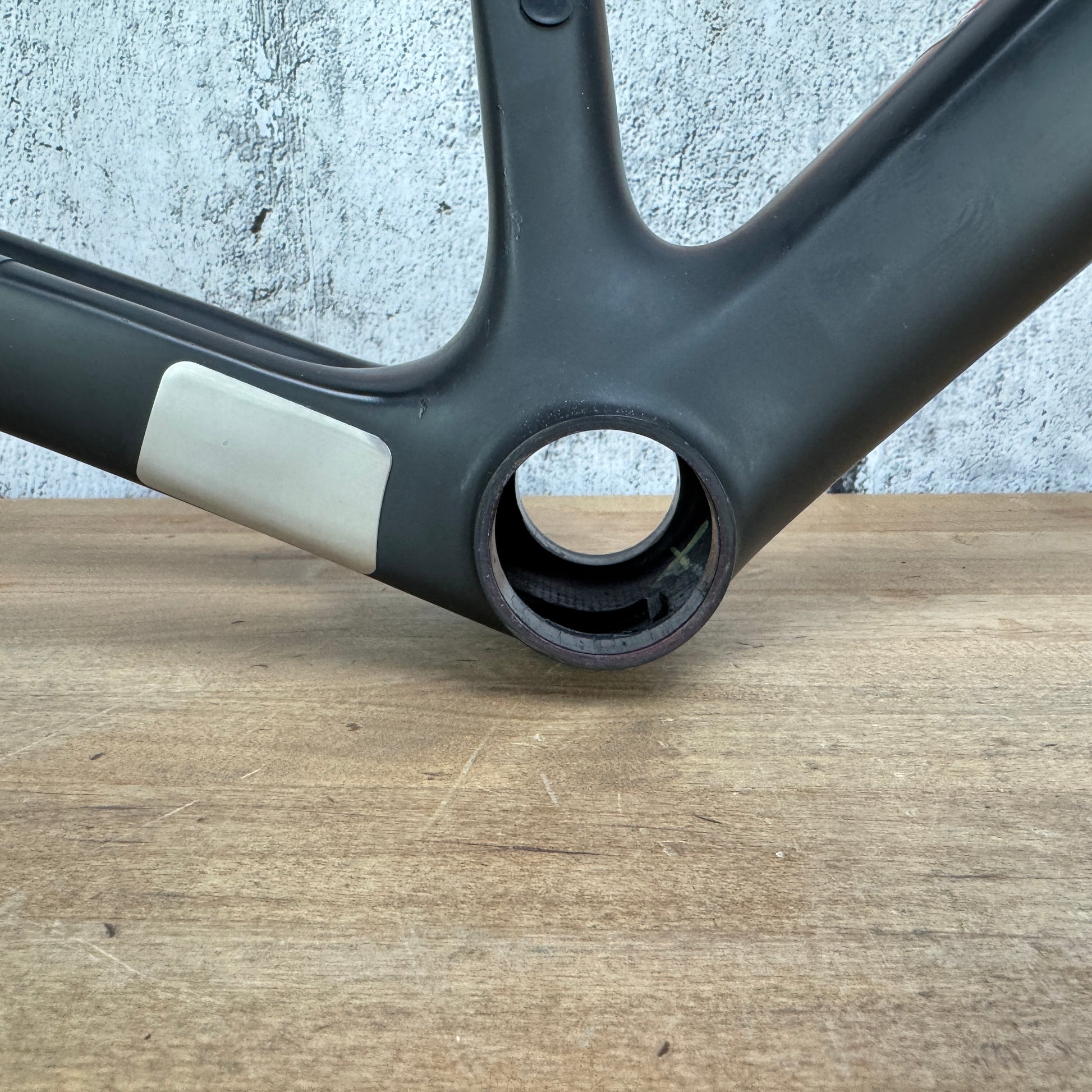

Bottom bracket: BB86 bottom bracket shell type (41mm shell diameter, 86mm shell width). No bottom bracket currently installed or included. We have a handful of lightly used basic bottom brackets on hand, let us know what you need and we can try to ship the frame with the right bottom bracket installed. Additionally, CyclingUpgrades is a Ceramicspeed and Cane Creek Authorized Dealer, if you prefer to have the frame setup with a certain bottom bracket we can add and install it at an additional cost before shipping - message with inquiries/requests.
Steerer length: 80mm of steerer above the top tube. 30mm of spacers below the stem plus the headset cover. We may have an option available to safely extend the steerer tube by 15-18mm - message us for additional details.

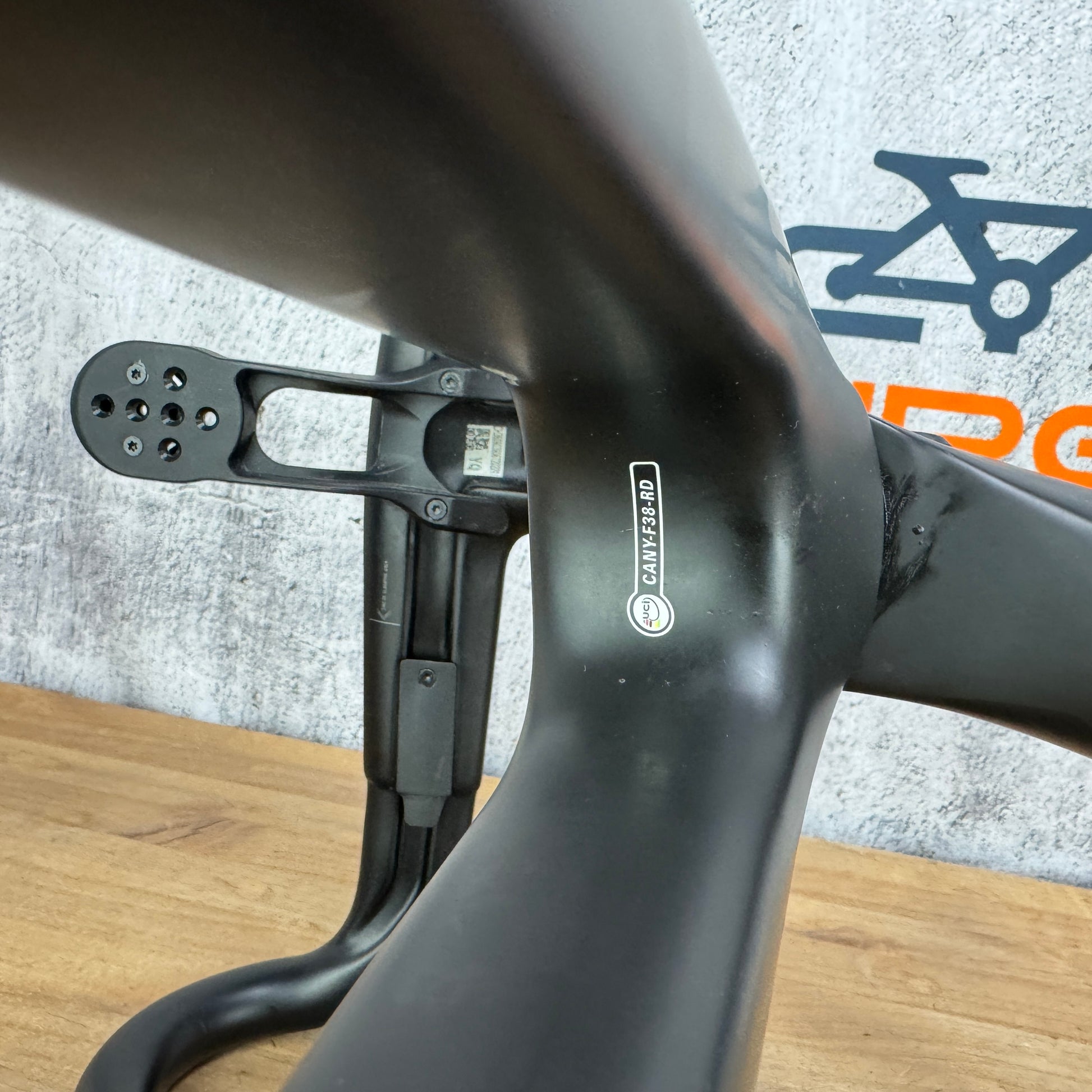

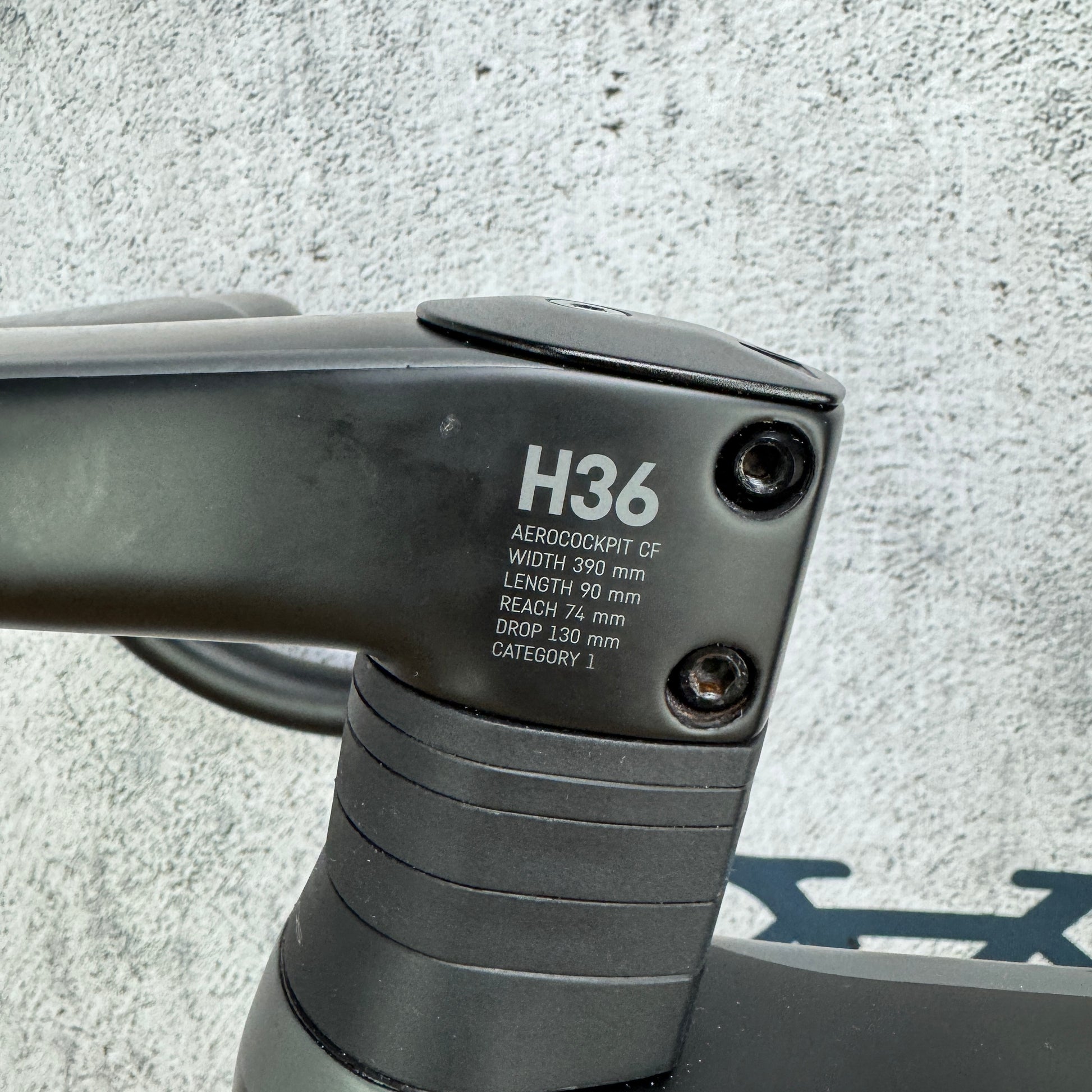

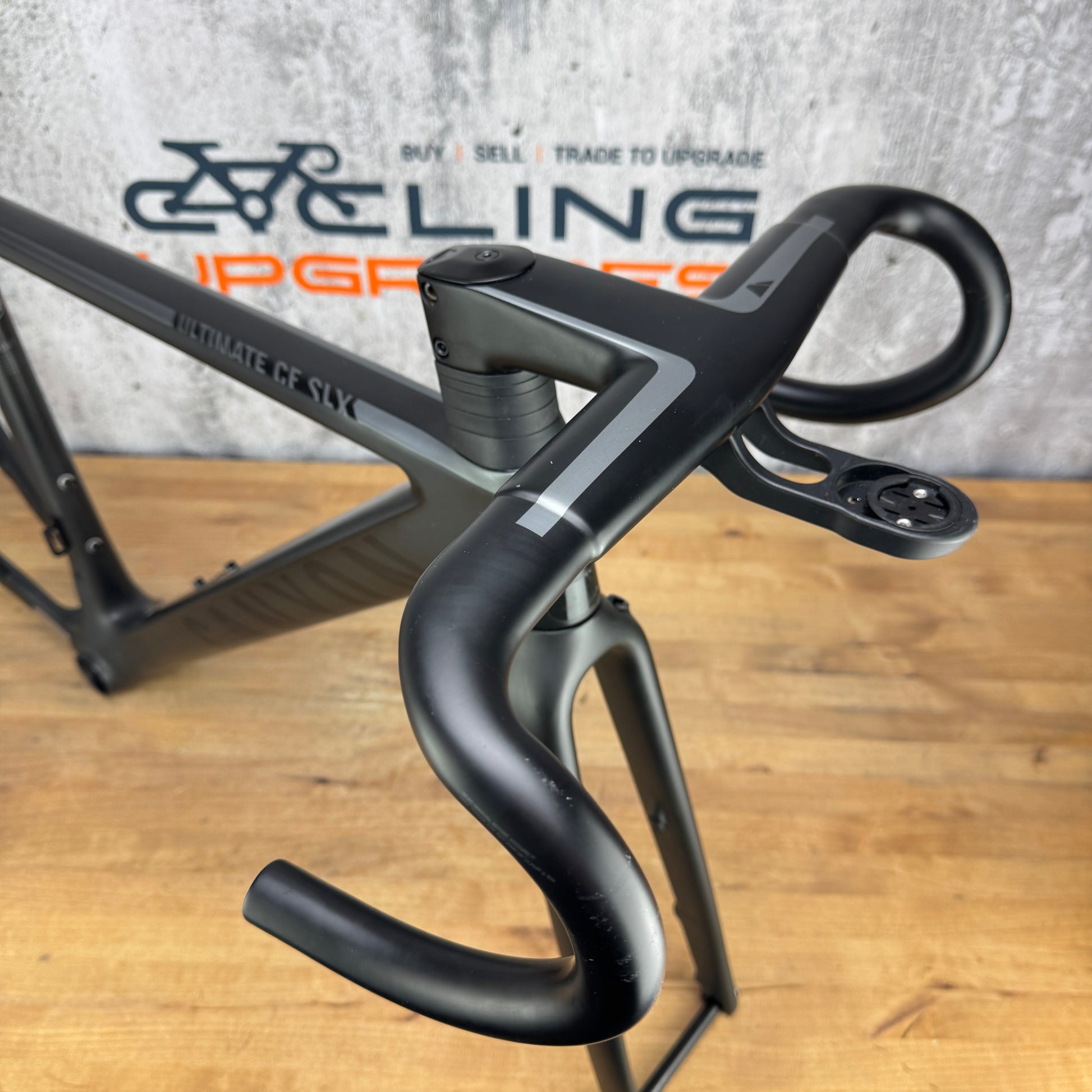

Handlebar: Canyon H36 carbon aerocockpit CF. 39mm width, 90mm stem length, 74mm reach, 130mm drop. Out front computer mount included.Â

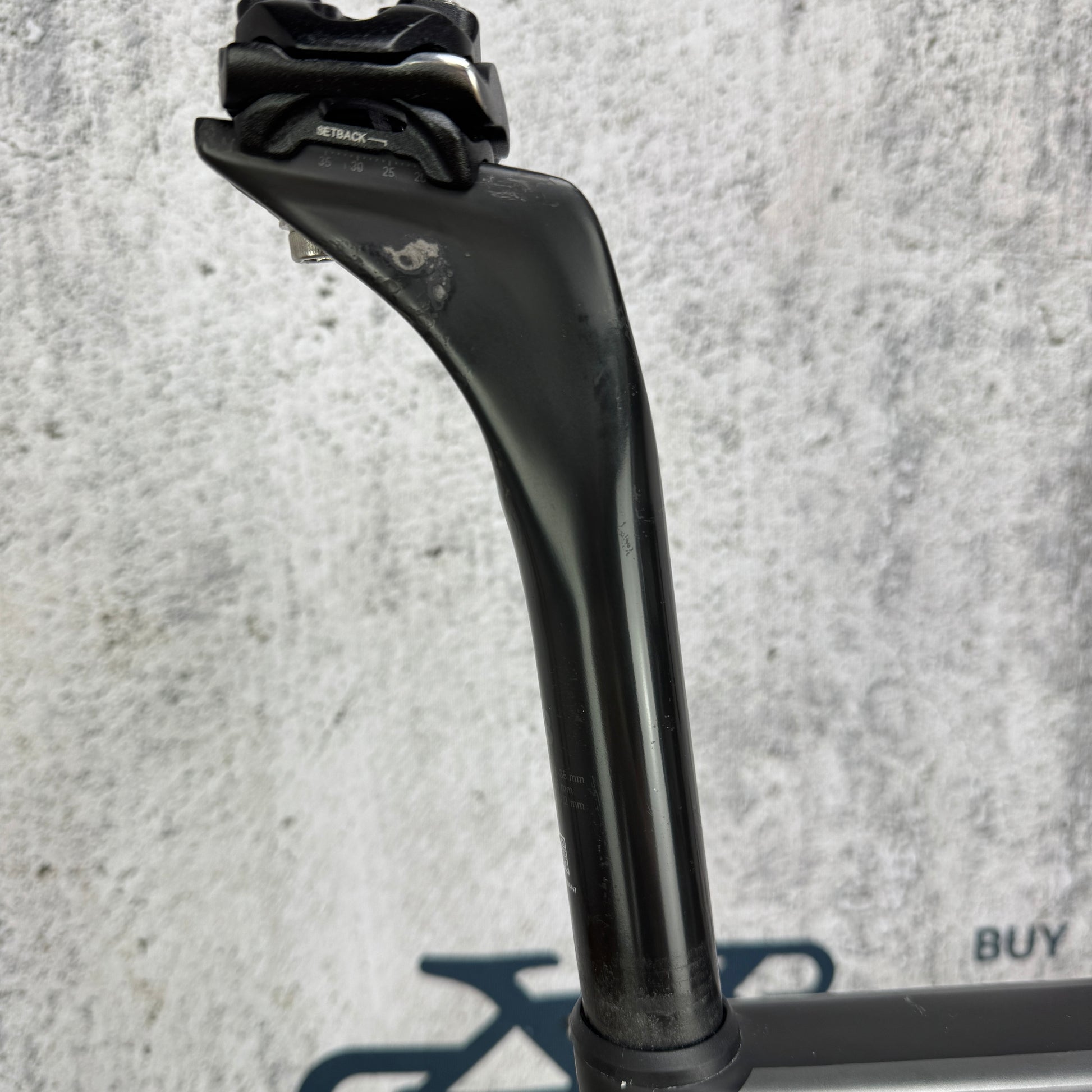

 Seatpost: Canyon 30mm setback carbon seatpost included.Â
Dropout Spacing: Front 12mm Thru Axle x 100mm, Rear 12mm Thru Axle x 142mm.
Weight: 1957 grams as pictured with headset, thru axles, handlebar, seatpost, frame hardware, etc.Â
What's included: Frame, fork, headset, rear derailleur hanger, handlebar, seatpost, thru axles
