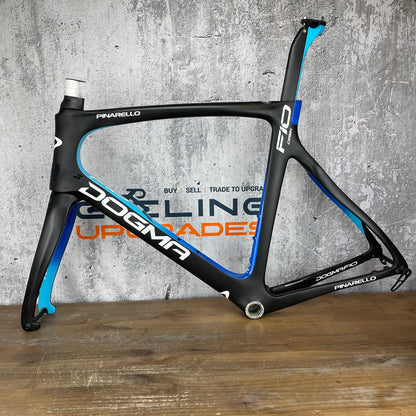

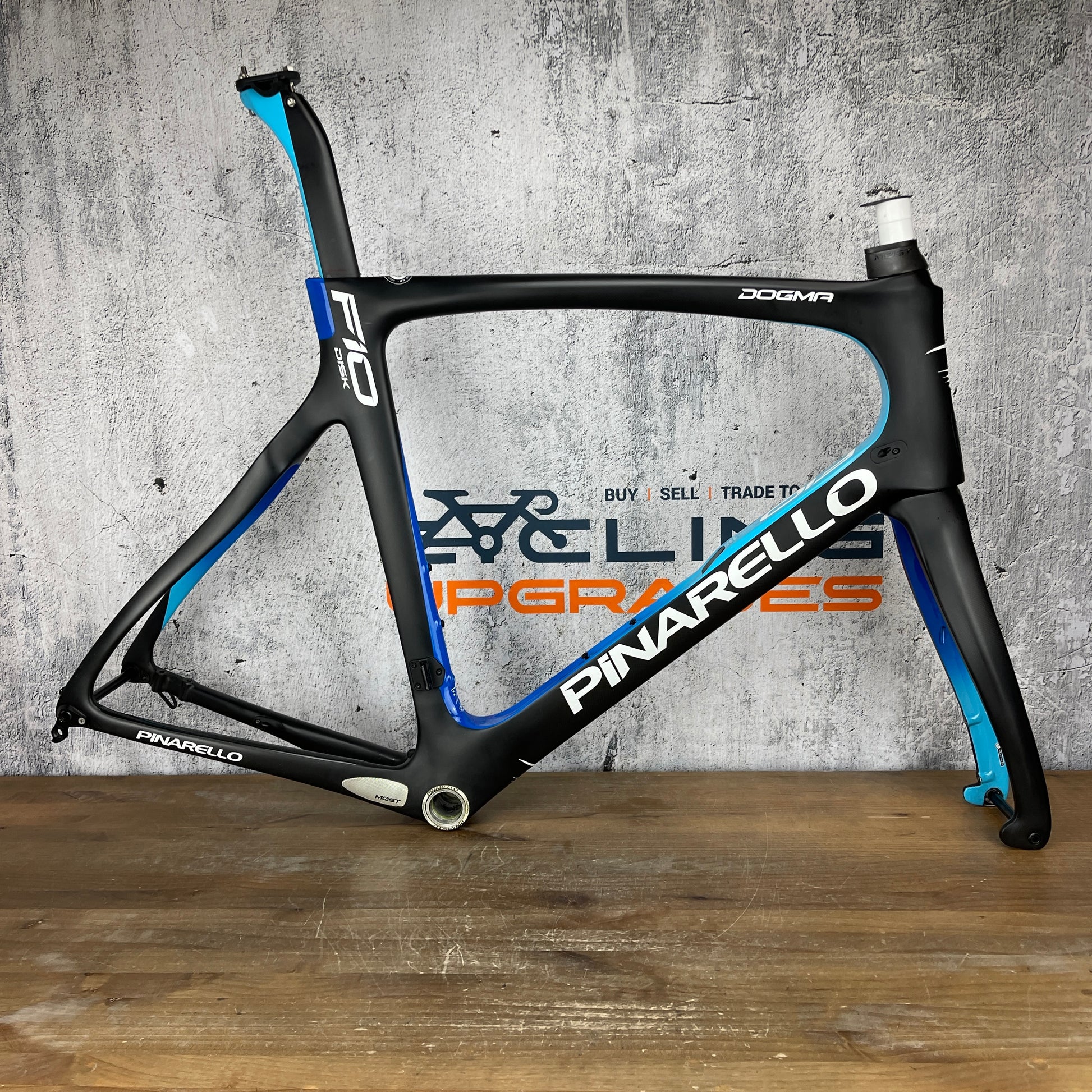

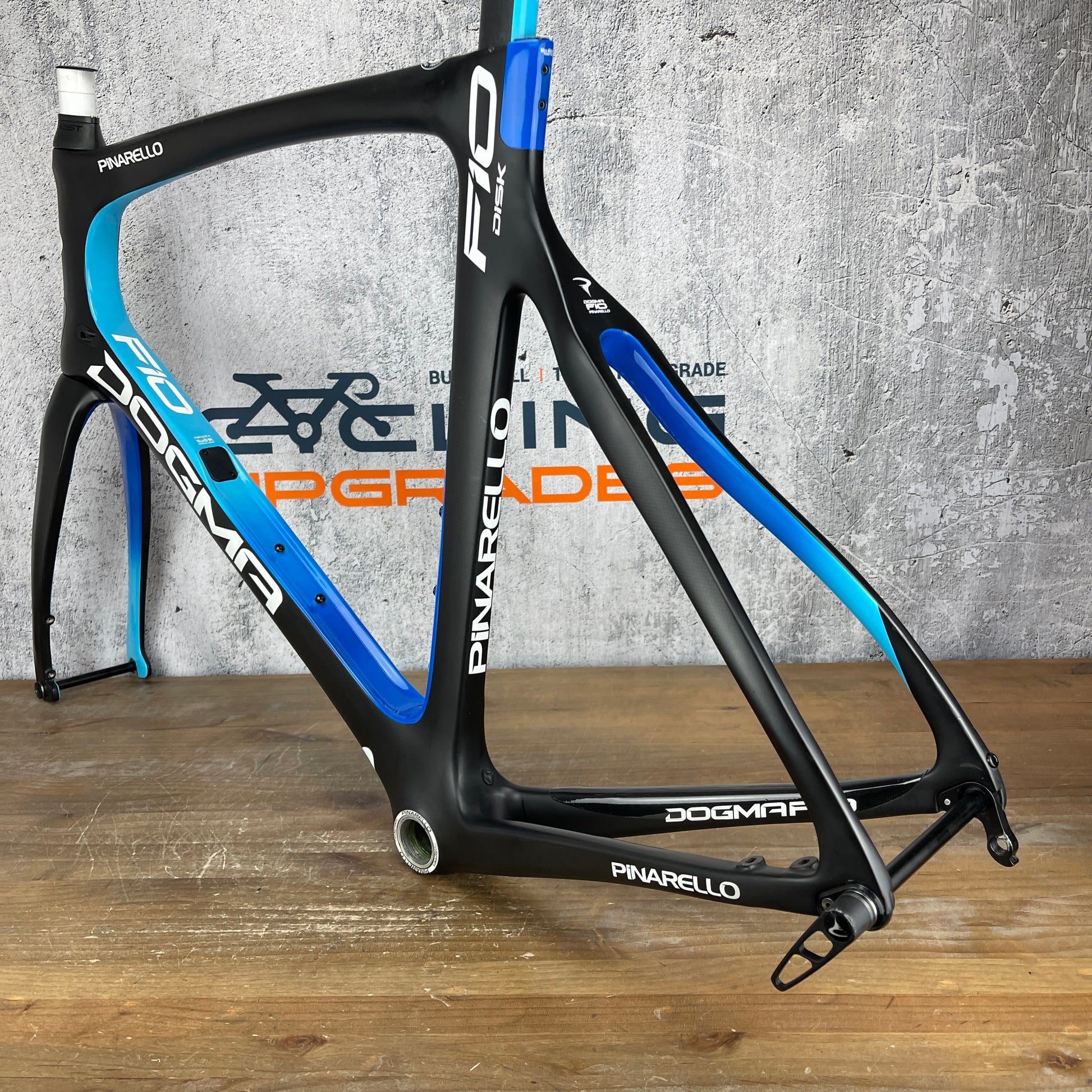

Frame: 2018 Pinarello Dogma F10
Color: 2018 Granfondo Pinarello Limited Edition
Brake type: Flat-mount disc brake.
Size: Pinarello Size 59.5. Effective Top Tube 587mm. Stack - 612mm. Reach - 394mm. Head tube 215mm. Recommend buyer confirm and research full geometry online.

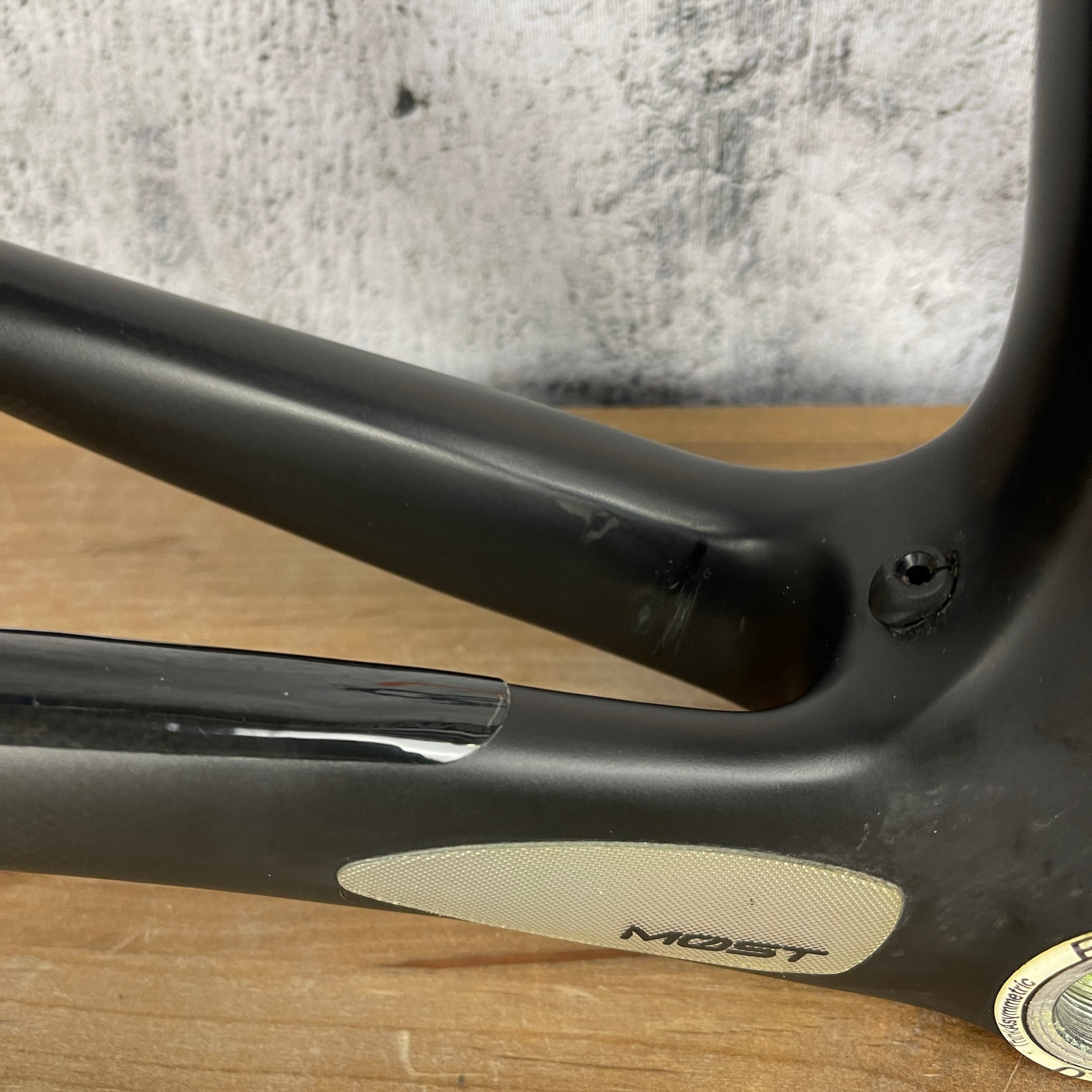

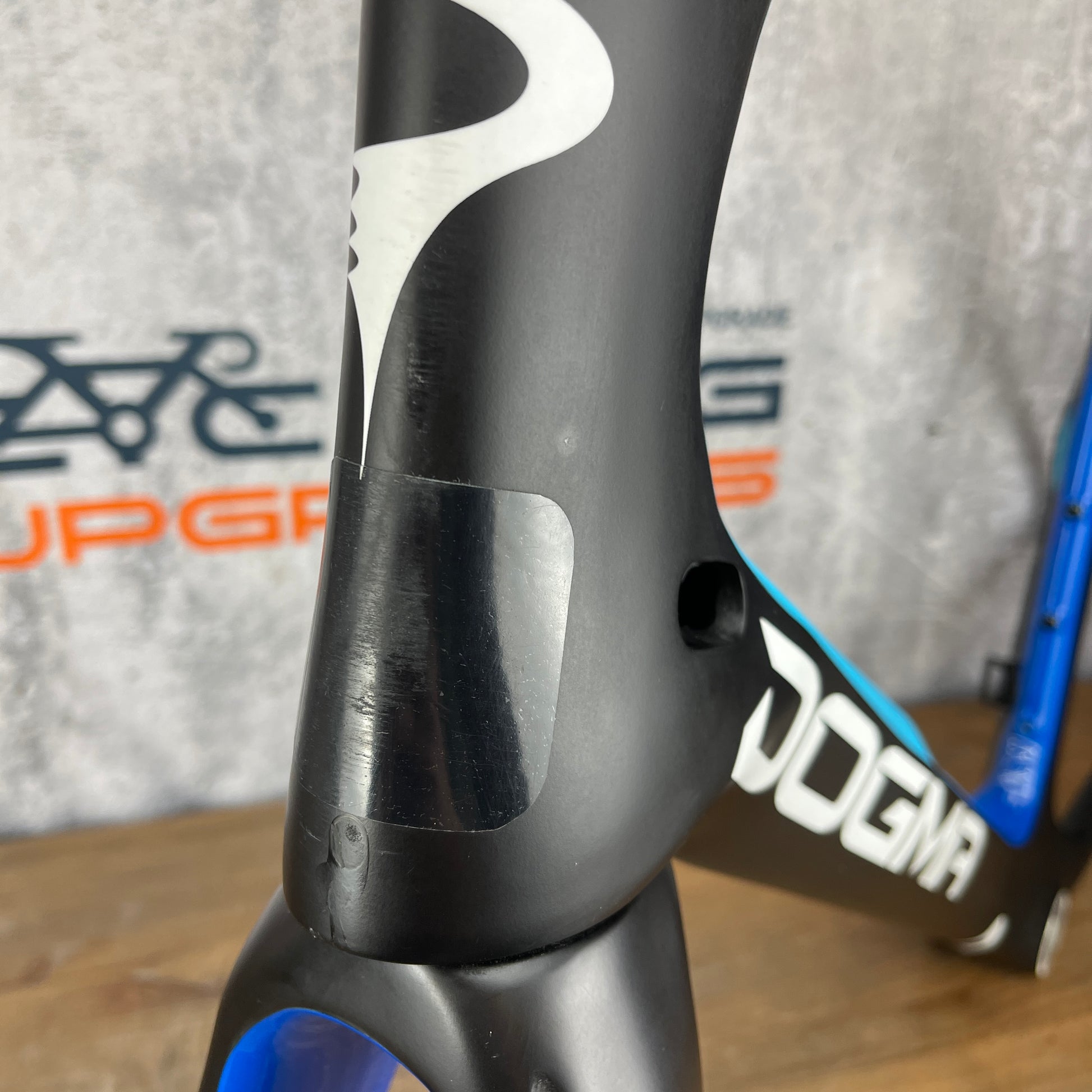

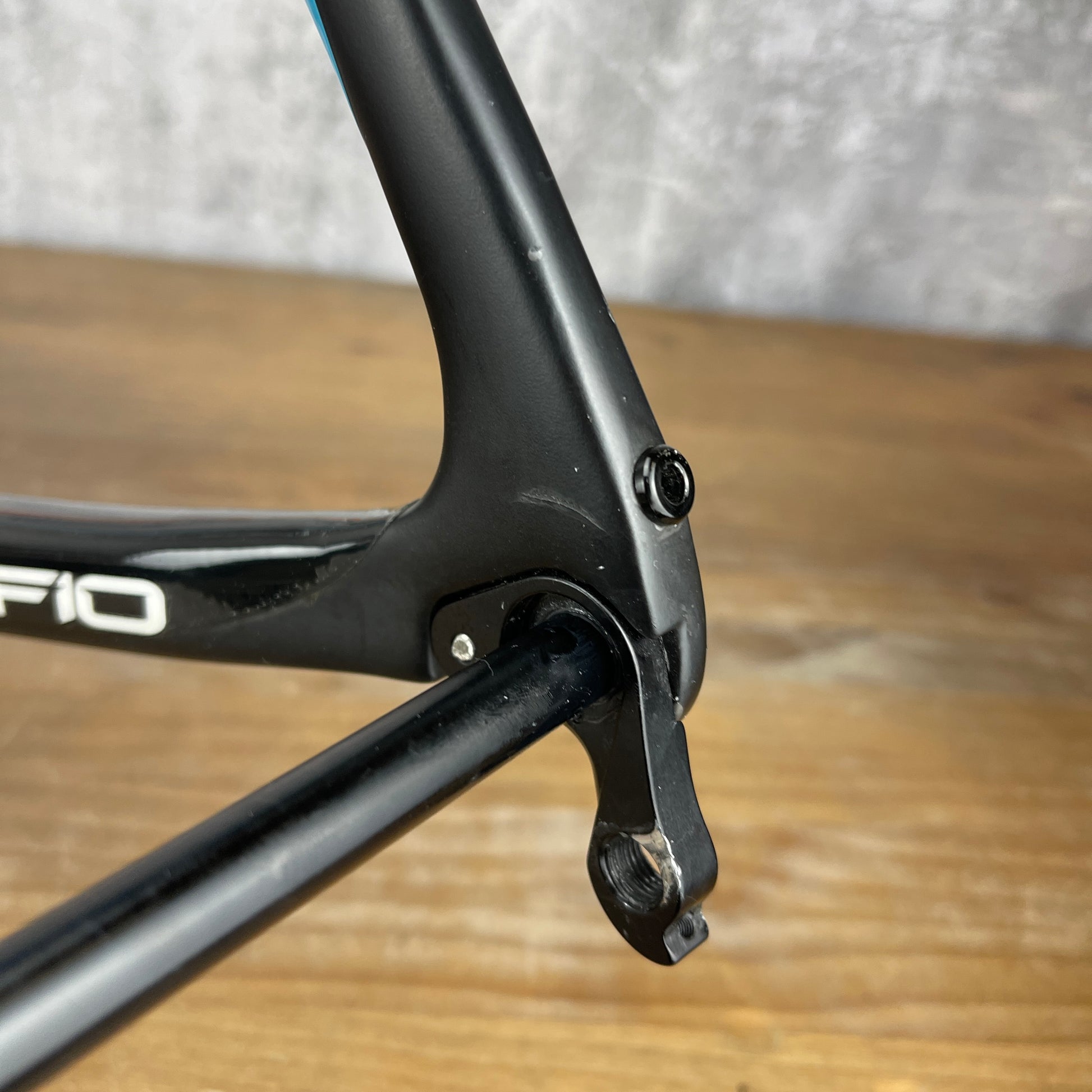

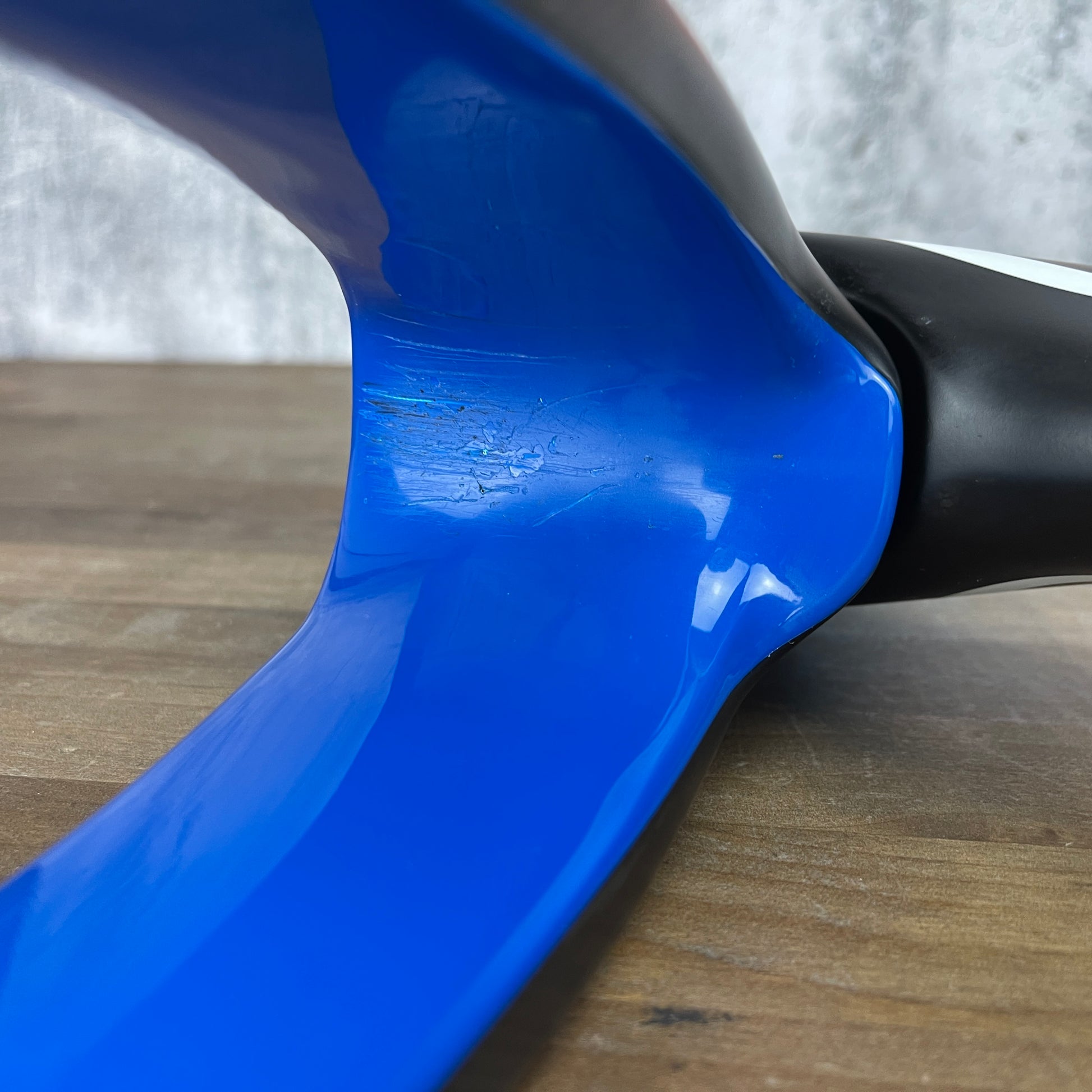

Condition: No cracks or carbon defects were identified through a thorough visual inspection. The cosmetic imperfections to highlight include: Some tire rub on the chainstays shown in pic #7, some cable rub on the head tube shown in pic #8, and a scratch near the rear dropout shown in pic #9. We have attempted to show all noticeable imperfections in specific close-up pictures, however other minor imperfections and light signs of use may exist.
Groupset compatibility: Frame can be setup for Di2, EPS, eTap, or mechanical groupsets. This frame was previously setup with a mechanical groupset. Other frame/cable stops may be needed for Di2 or EPS setups. Mechanical cable guide below the bottom bracket intact.

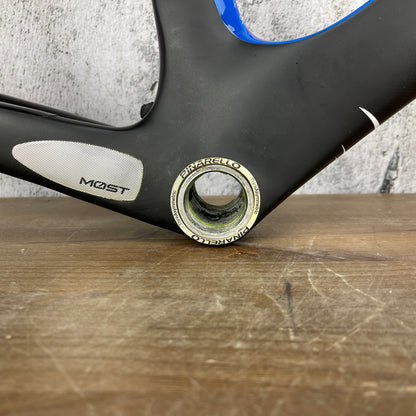

Bottom bracket: Italian threaded bottom bracket shell type . No bottom bracket currently installed. We have a handful of lightly used basic bottom brackets on hand, let us know what you need and we can try to ship the frame with the right bottom bracket installed. Additionally, CyclingUpgrades is a Wheels Manufacturing, and a Ceramicspeed Authorized Dealer, if you prefer to have the frame setup with a certain Wheels Manufacturing, or Ceramicspeed bottom bracket we can add and install it at an additional cost before shipping - message with inquiries/requests.

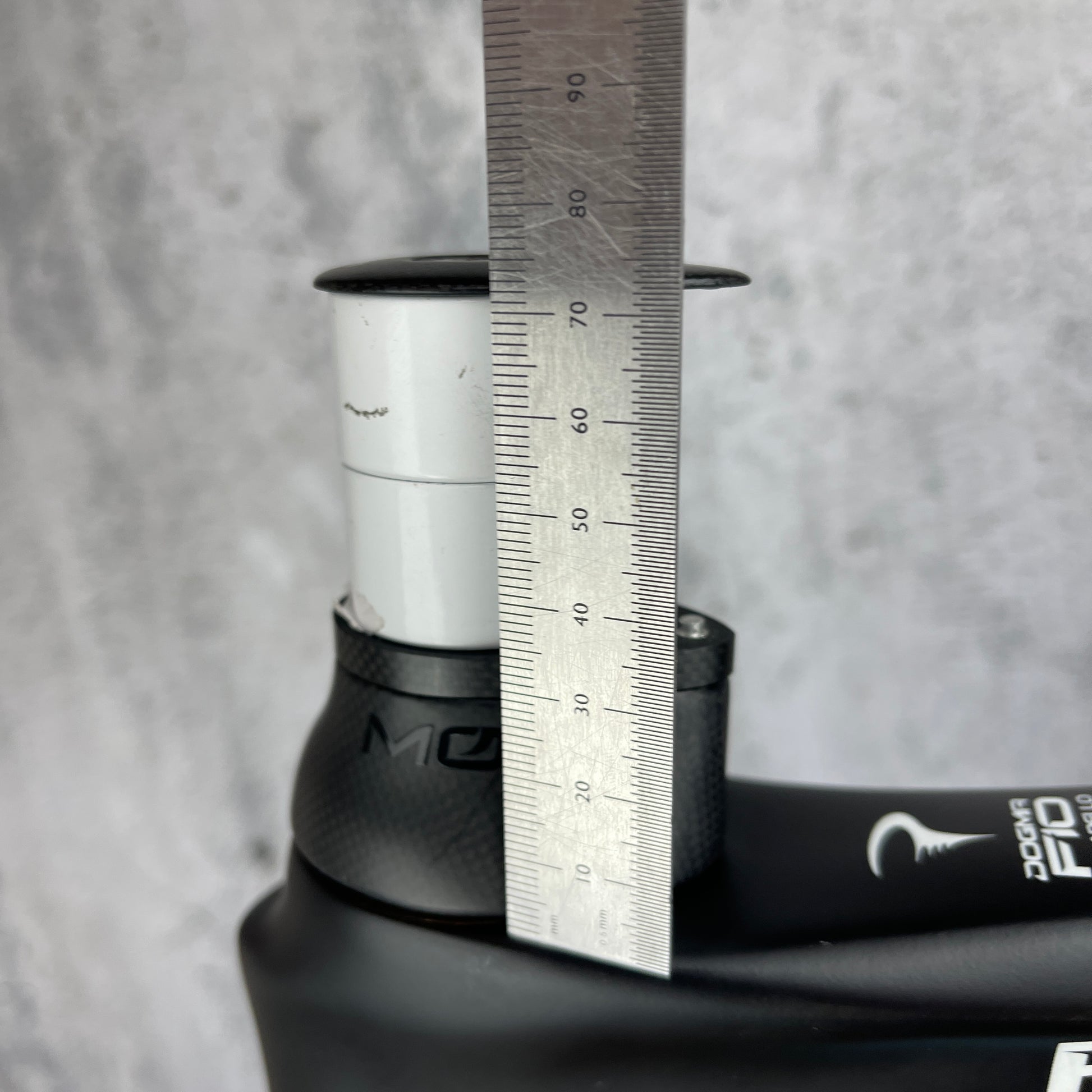

Steerer length: 70mm of steerer above the top tube. 5mm of spacers below the stem plus the headset cover. We do have an option available to safely extend the steerer tube by 15-18mm - message us for additional details.
Seatpost: Frame specific carbon seatpost included.
Dropout Spacing: 12mm thru axle x 100mm front, 12m thru axle x 142mm rear.
Weight: 2117 grams as pictured with headset, thru axles, seatpost, frame hardware, etc.
What's included: Frame, fork, headset, thru axles, rear derailleur hanger, seatpost
